Part 3
iDEN MINI
User’s Manual -24-

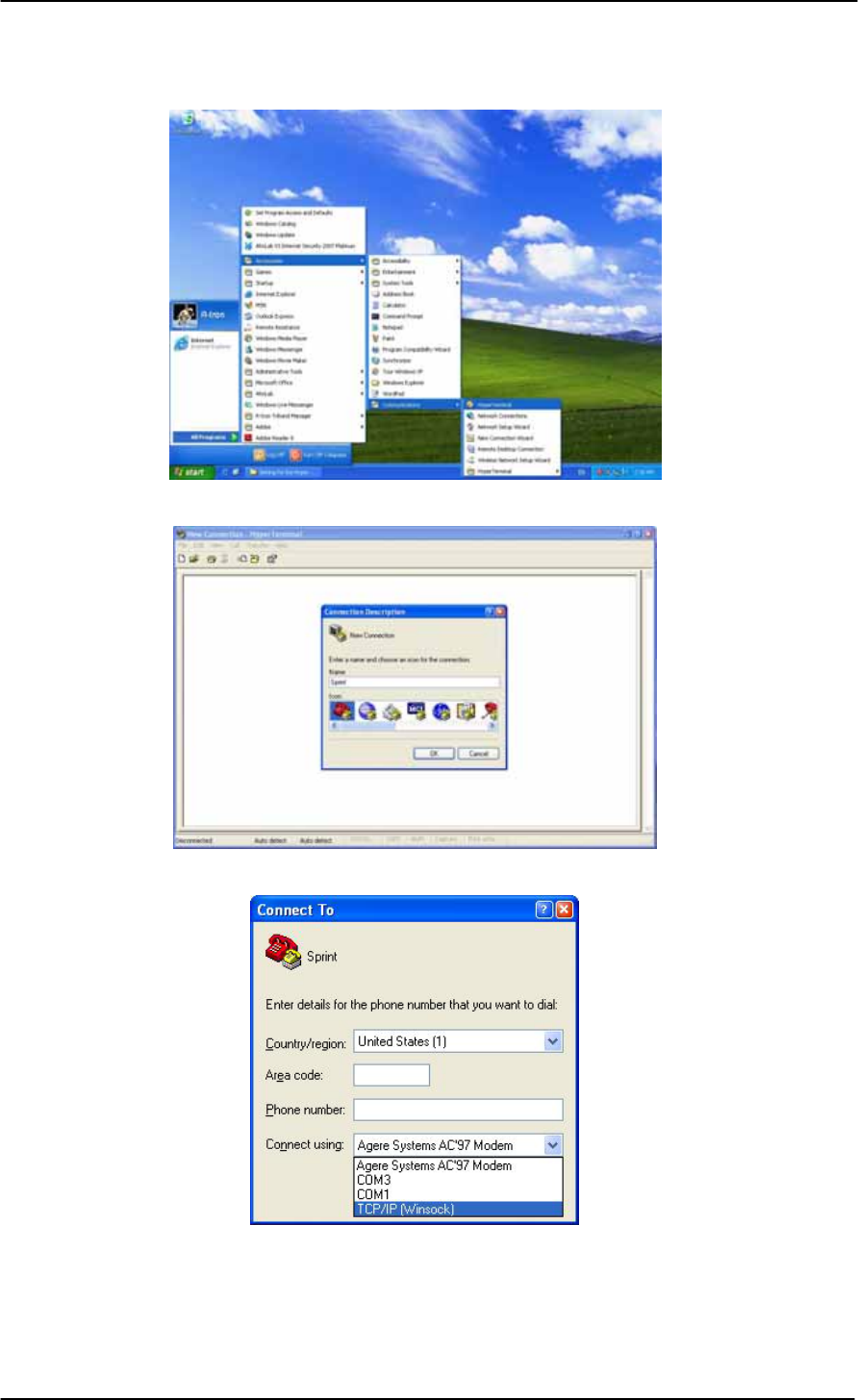

Step 5 Execute the Hyper Terminal.
Step 6 Name the session and OK.
Step 7 Select the TCP/IP (Winsock).
iDEN MINI
User’s Manual -25-

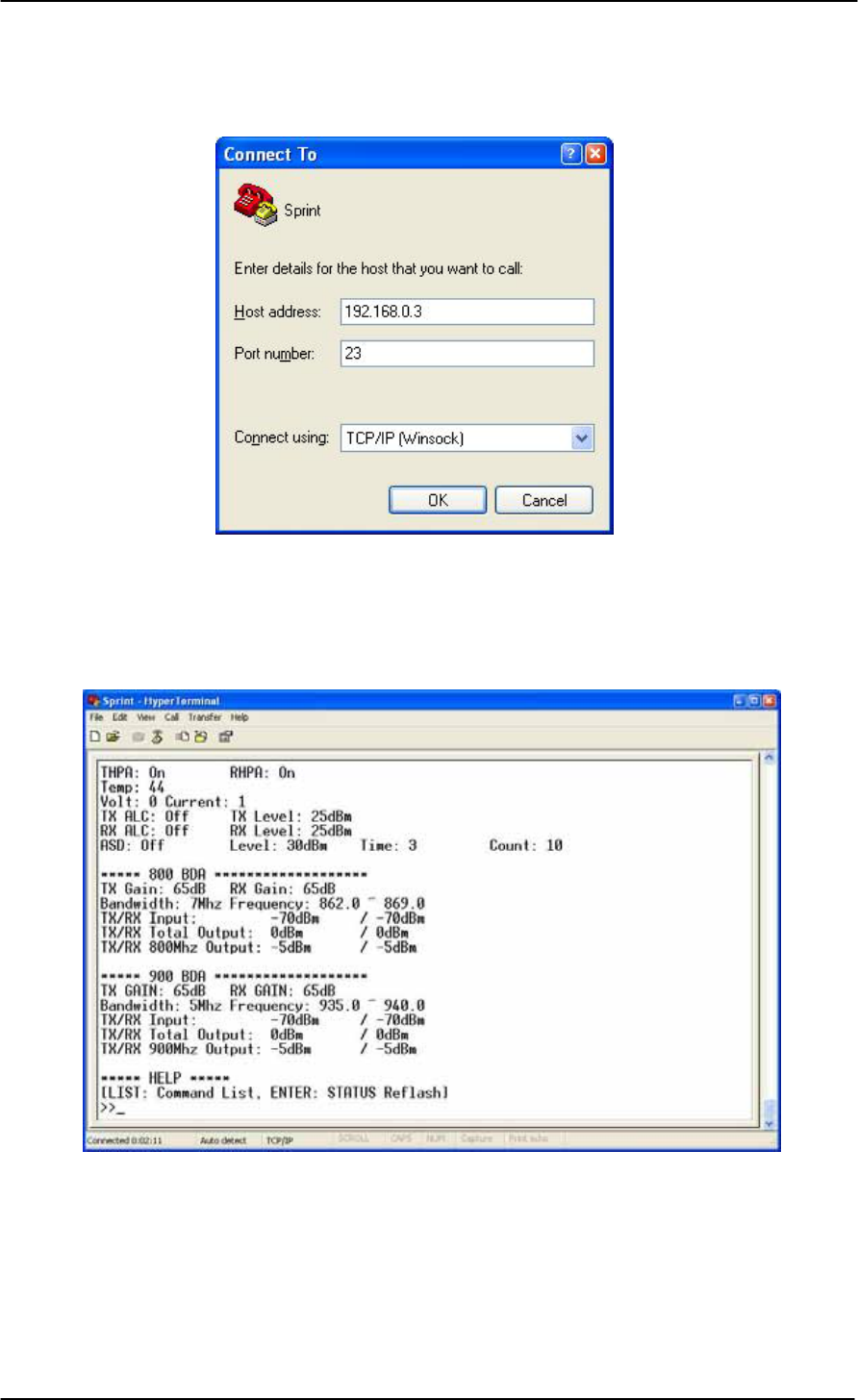

Step 8 Set the values as the following and OK.
4.2 Command and Control through the Hyper Terminal
Note 1. To see the current status, hit “Enter” key only.

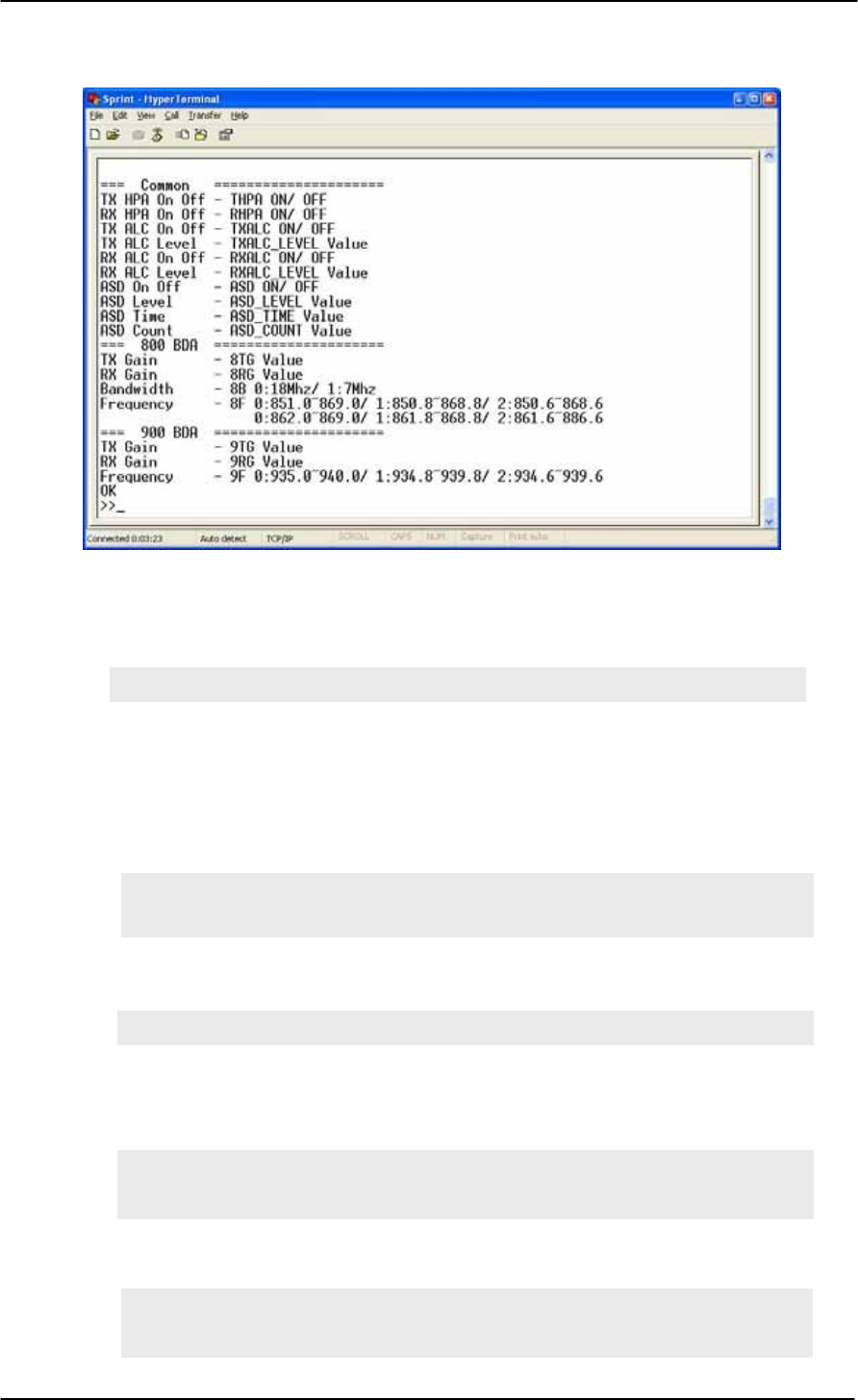

Note 2. Type “LIST” and hit “Enter” key to look up the list of commands.
iDEN MINI
User’s Manual -26-
Note 3.
▶ To execute a command, “Enter” key must be hit.
▶ If the command is successful, “OK” is displayed but if not, “ERROR” is displayed.
▶ To reset a MCU (Main Control Unit), type “RESET” in.

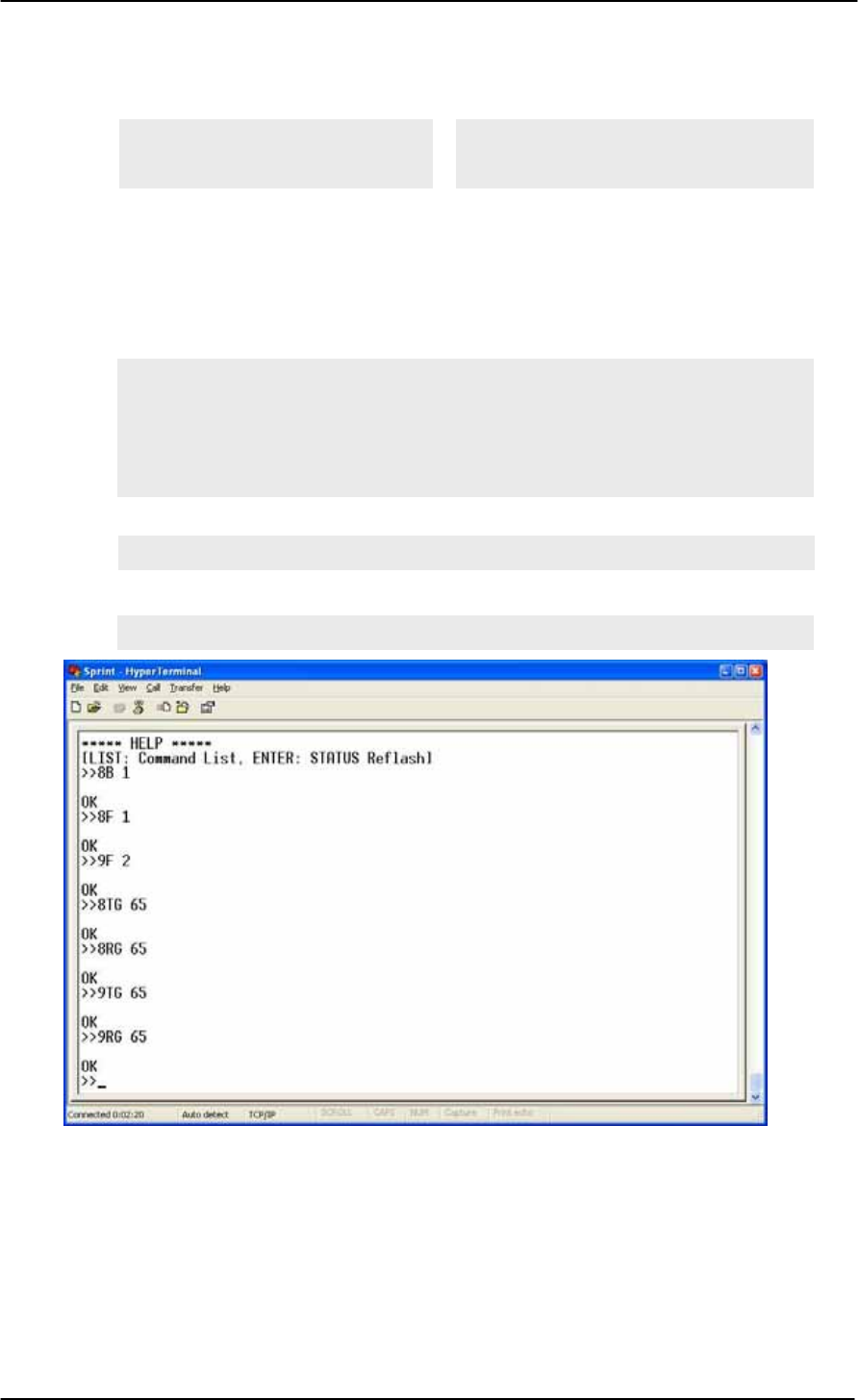

Examples
1 Frequency Setup
1.1 iDEN 800,
9 Bandwidth: 7MHz
9 Frequency: 861.8MHz ~ 868.8MHz
1.2 iDEN 900 (5MHz fixed bandwidth),
9 Frequency: 934.6MHz ~ 939.6MHz (5MHz-bandwidth)
2 Gain Setup
2.1 iDEN 800
9 TX Gain: 65dB, RX Gain 65dB
2.2 iDEN 900
9 TX Gain: 65dB, RX Gain 65dB
Command: >>8B 1↵
>>8F 1↵
Command: >>9F 2↵
Command: >>8TG 65↵
>>8RG 65↵
Command: >>9TG 65↵
>>9RG 65↵
Command: >>RESET↵
iDEN MINI
User’s Manual -27-

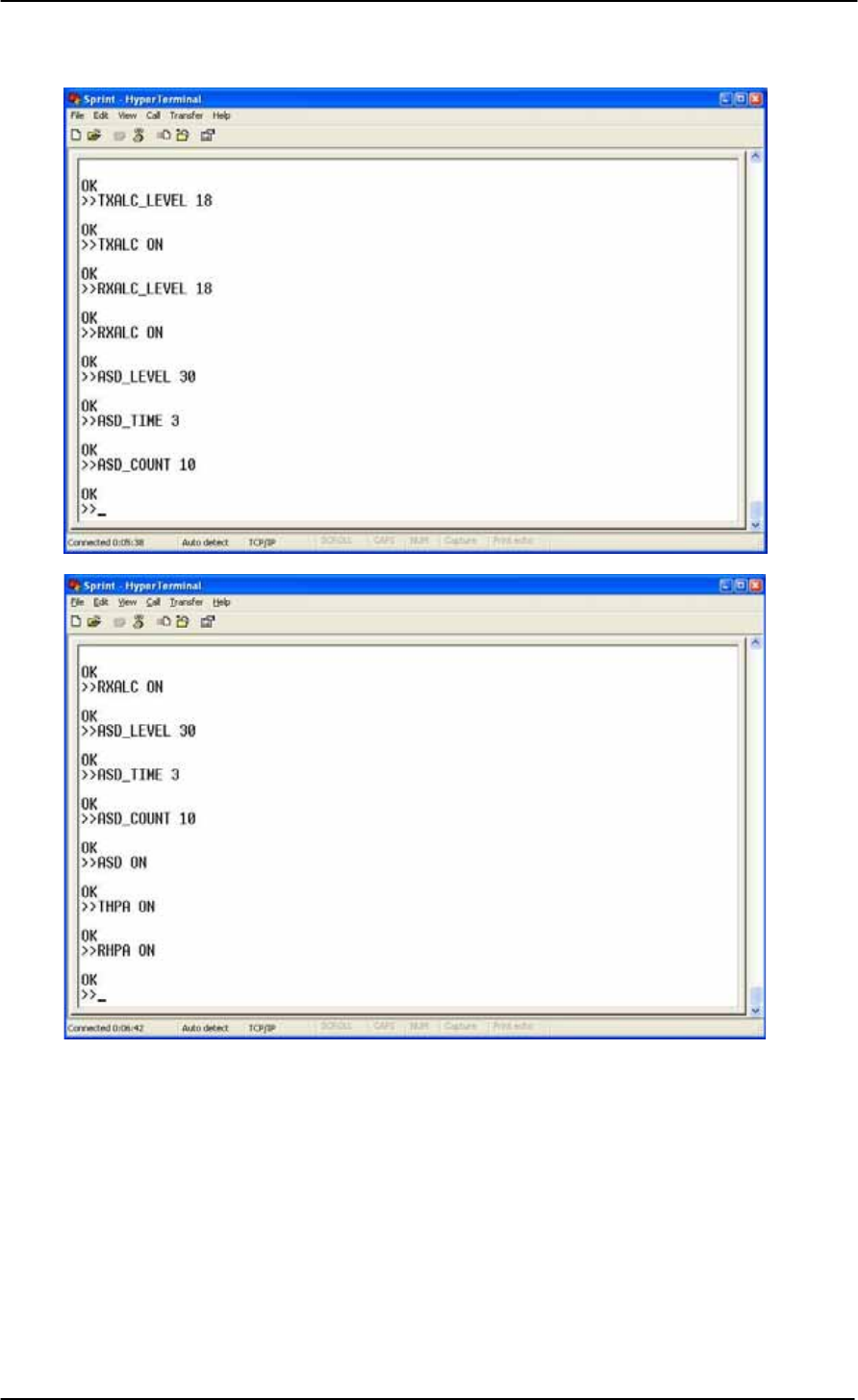

3 ALC (Automatic Level Control) Level Setup: 18dBm
4 ASD* (Automatic Shut Down) Setup:
9 Level: 30dBm, Time: 3sec, Count: 10
5 Tx HPA On
6 Rx HPA On
Command: >>RHPA ON
↵
Command: >>TXALC_LEVEL 18
↵
>>TXALC ON↵
Command: >>RXALC_LEVEL 18↵
>>RXALC ON↵
Command: >>ASD_LEVEL 30
↵
>>ASD_TIME 3↵
>>ASD_COUNT 10↵
>>ASD ON↵
* If the output power gets higher than “Level”, the repeater will shut down for
“Delay” time and then turn on the amp and measure the output power again.
If this repeats “Count” times, the repeater will shut down completely.
Command: >>THPA ON
↵
iDEN MINI
User’s Manual -28-
The maximum output power for operating is +25 dBm on both Tx and Rx.
iDEN MINI
User’s Manual -29-
* Reference
The Operating Bandwidth & Frequencies
Bandwidth Operating Frequency
iDEN 800
18MHz-bandwidth
Downlink
851~869MHz
850.8~868.8MHz
850.6~868.6MHz
Uplink
806~824MHz
805.8~823.8MHz
805.6~823.6MHz
7MHz-bandwidth
Downlink
862~869MHz
861.8~868.8MHz
861.6~868.6MHz
Uplink
817~824MHz
816.8~823.8MHz
816.6~823.6MHz
iDEN 900 5MHz-bandwidth
Downlink
935~940MHz
934.8~939.8MHz
934.6~939.6MHz
Uplink
896~901MHz
895.8~900.8MHz
895.6~900.6MHz
Operating bandwidth and Frequencies of iDEN
iDEN MINI
User’s Manual -30-
5. Troubleshooting
5.1 RF Connection Check
Problem
Either the downlink output power or the uplink output power (=Input
Power to the repeater) is too weak.
Solution
Check if the following RF connections are loose:
1. The cable connection from the donor antenna to the donor
antenna port
2. The cable connection from the service antenna port to the
service antenna

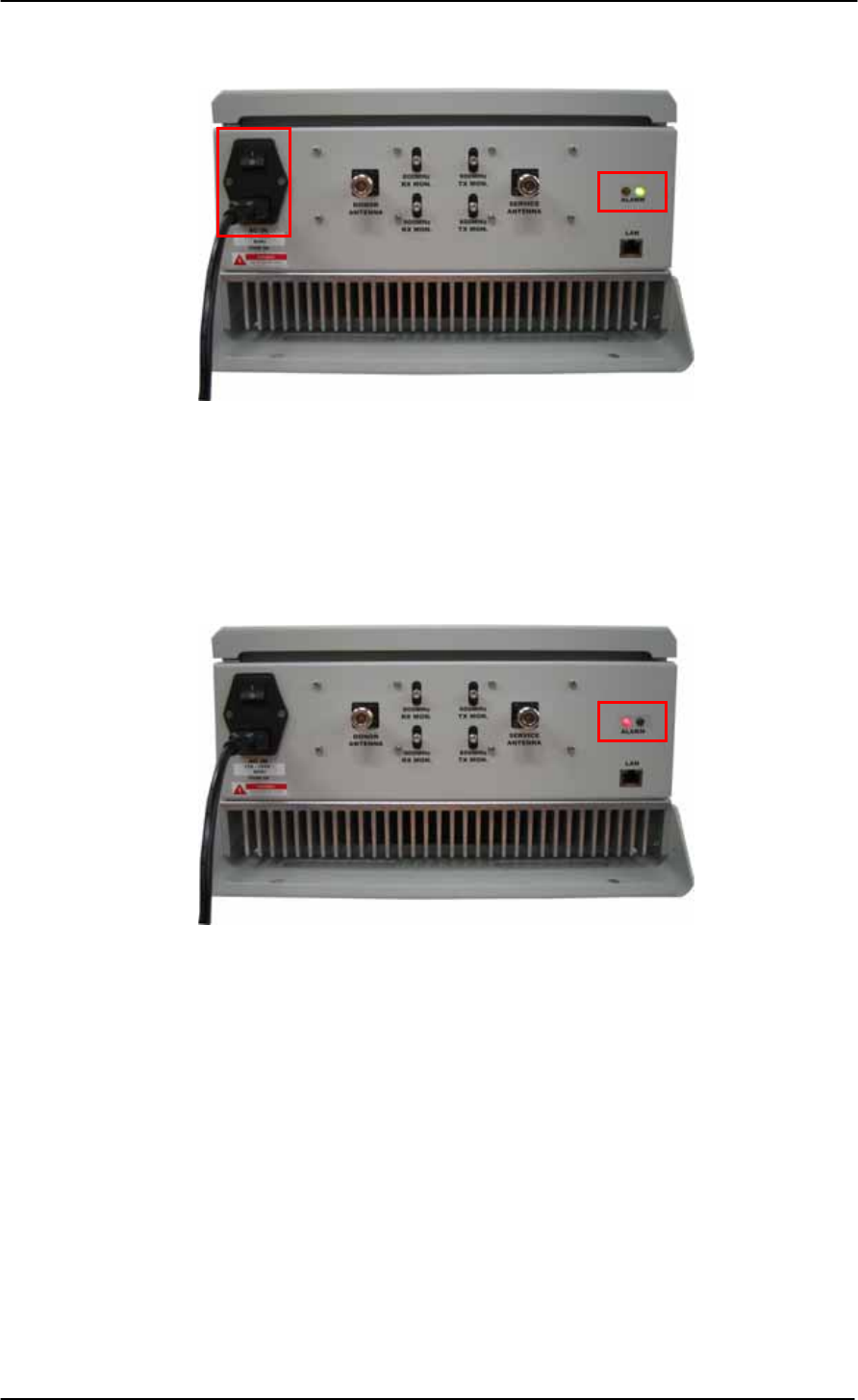

5.2 Power Connection
Problem
All LEDs at the bottom are turned off.
Figure 17. LEDs Off
Solution
Check if the power cord is connected correctly and the green LED at the
bottom is on.
iDEN MINI
User’s Manual -31-

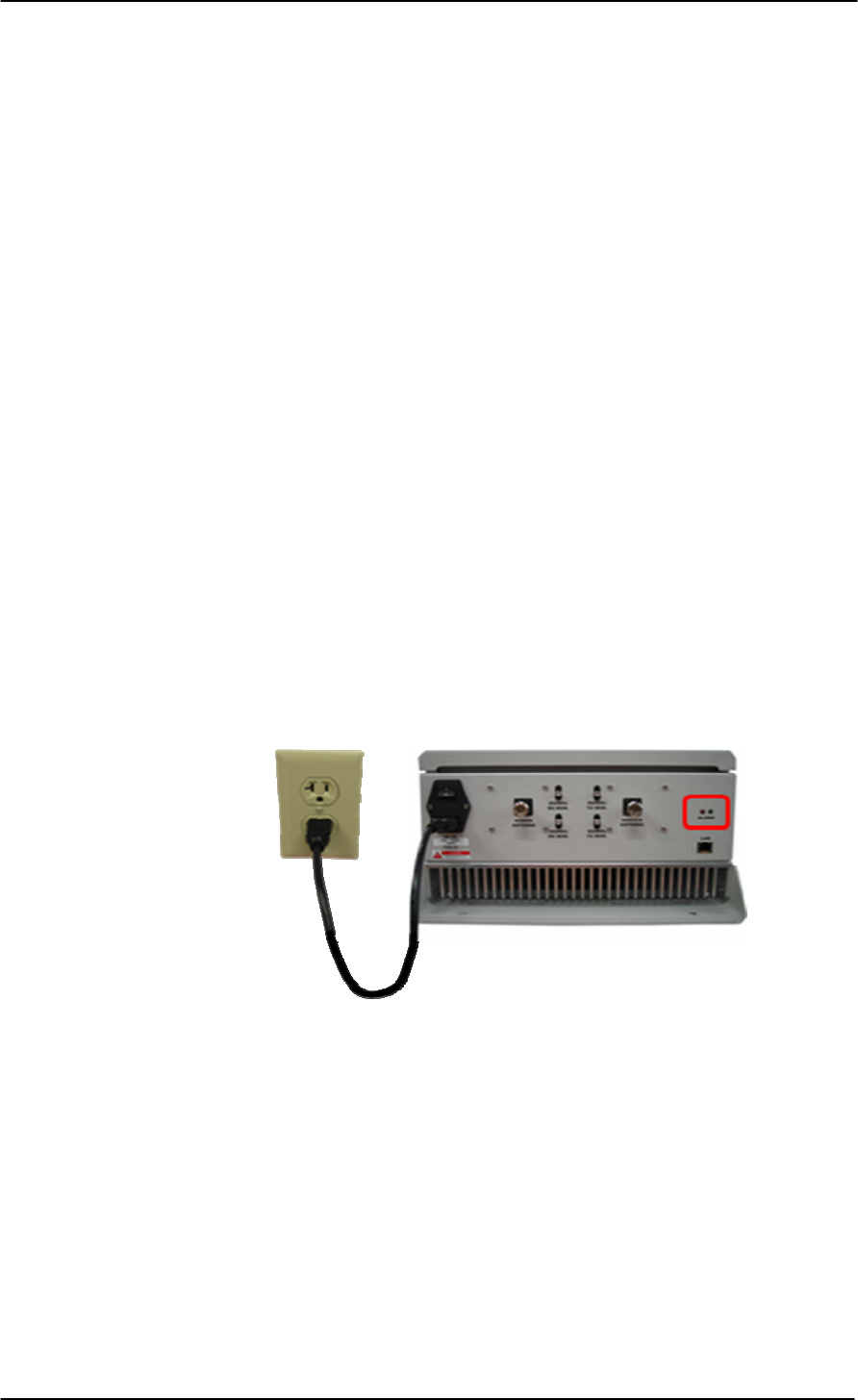

Figure 18. AC power cord Check
5.3 Red Light on the Alarm LED
Problem
Red light LED turns on the Alarm LED after applying AC power.
Figure 19. Red Light on Alarm LED
Solution
Request a technical support.
