R tron SNIDEN25 iDen Mini Wireless Repeater User Manual
R-tron Inc. iDen Mini Wireless Repeater
R tron >
Part 2
iDEN MINI
User’s Manual -17-
2.2.6. HPA (High Power Amplifier)
The High Power Amplifiers (HPAs) amplifies the transmitted signal from a
base station at the final stage of the repeater and vice versa.

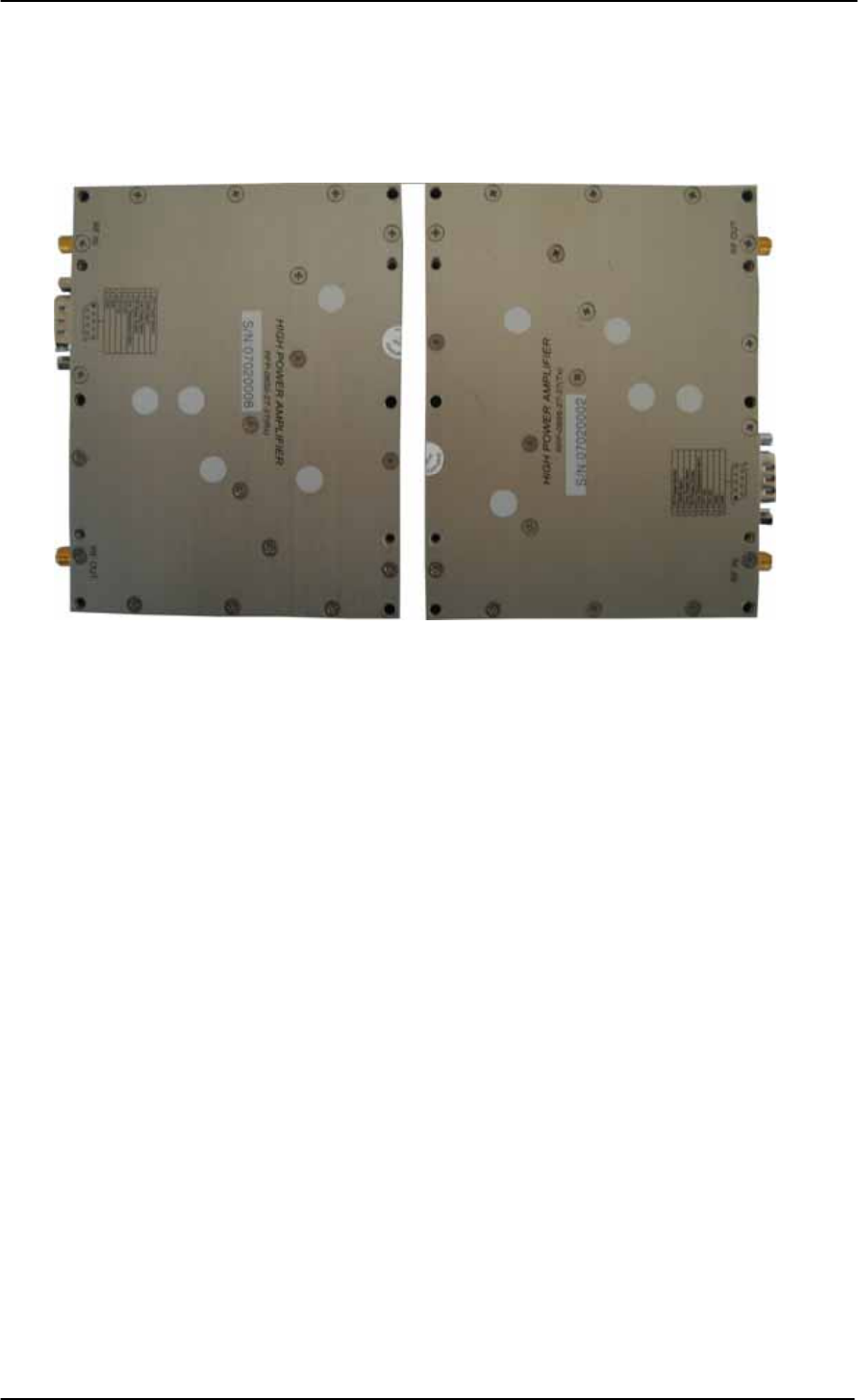

Figure 10. HPA(High Power Amplifier)
iDEN MINI
User’s Manual -18-
3. Hardware Installation
The installation procedure is as follows:
Check List of Items
Mounting
Grounding
RF Connection
Power up
3.1 Check List of Items
Index Items Q’ty
1 iDEN MINI 1
2 Power Cord 1
3 Screws for Mounting 4
Items

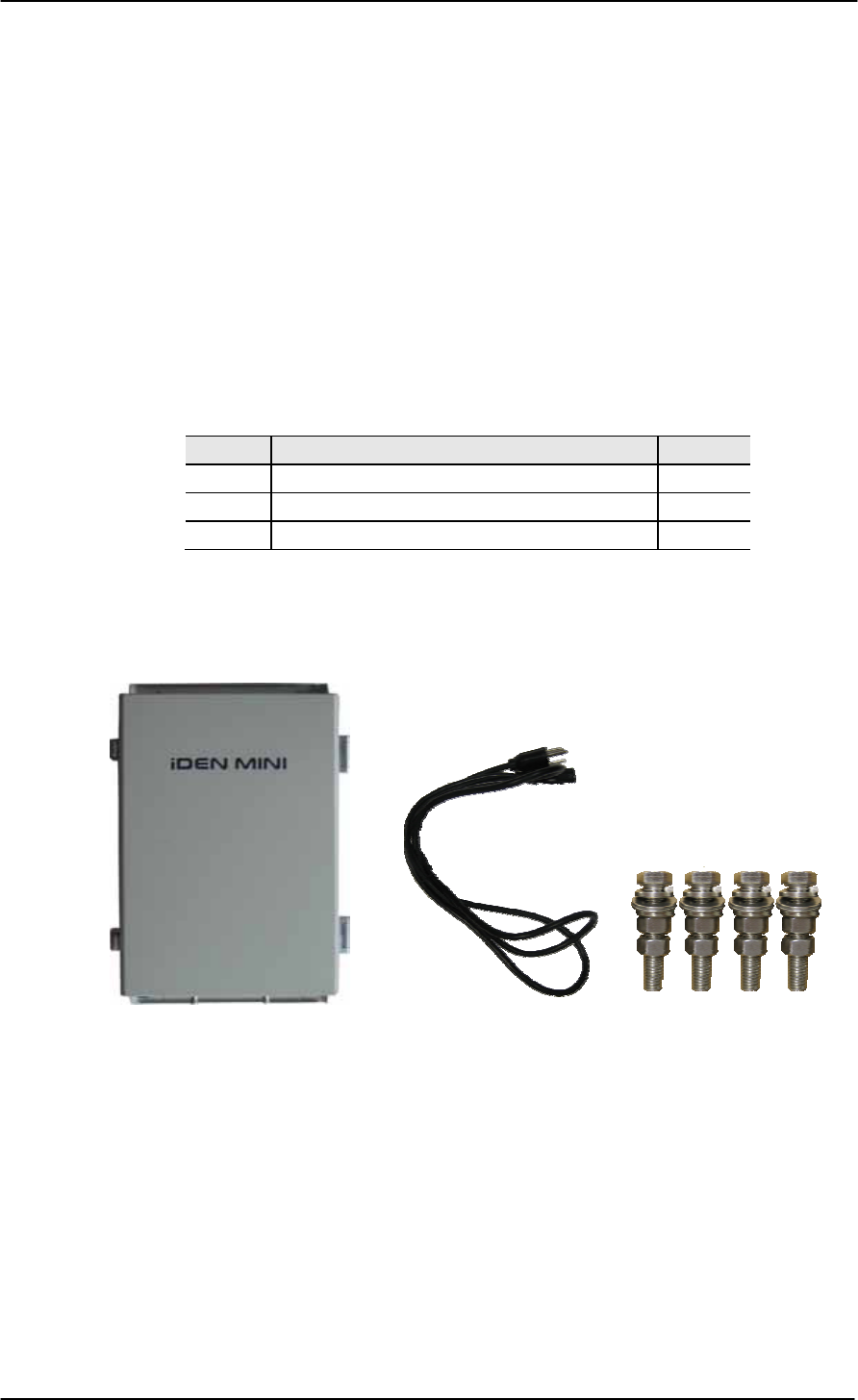

Figure 11. Items
1 2 3
iDEN MINI
User’s Manual -19-
3.2 Mounting
iDEN MINI is easy to mount using the assembled mounting bracket,
which has Ø9 holes for the provided 5/16" fixing screws.

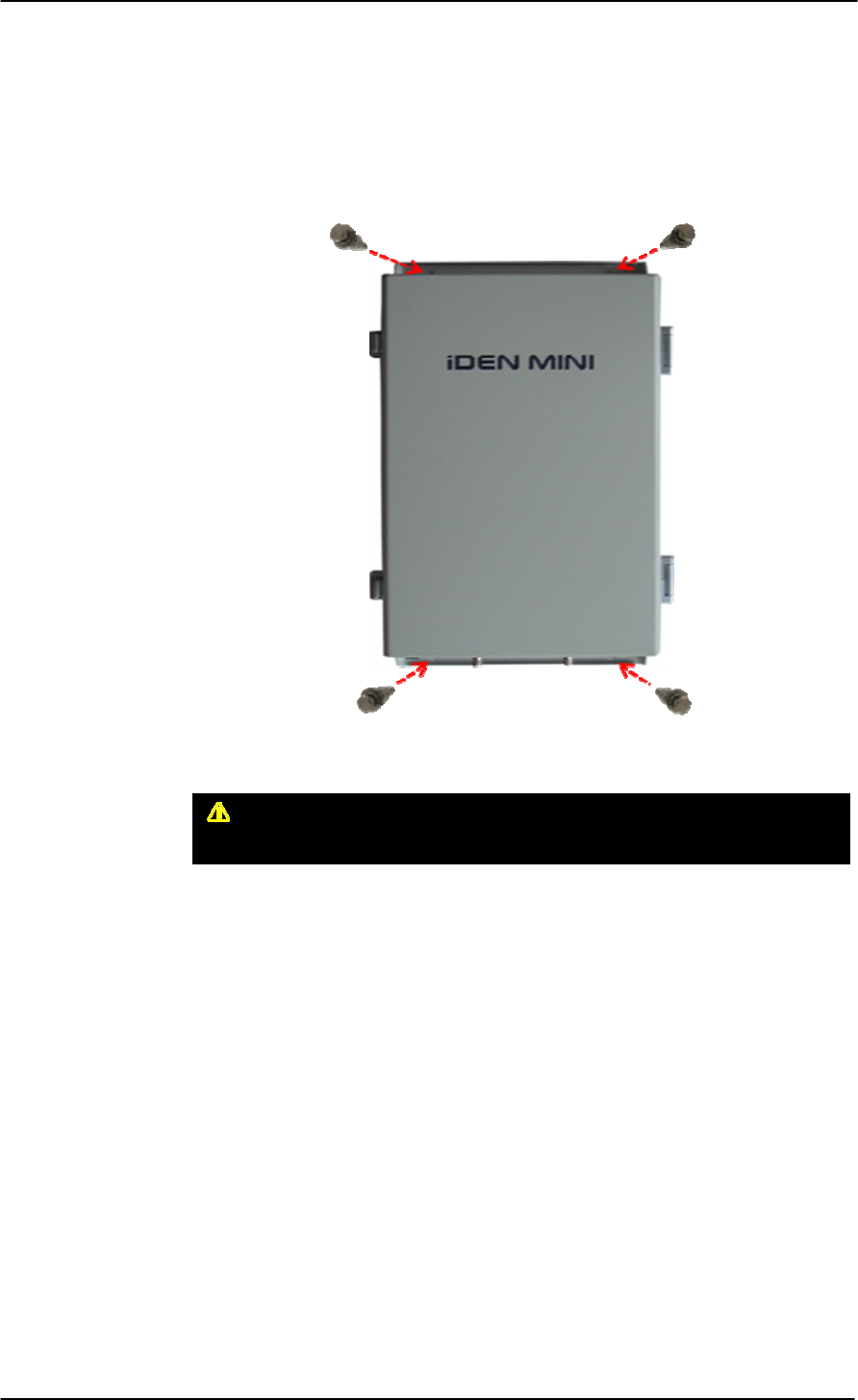

Figure 12. Mounting
CAUTION
Firmly affix the equipment on the wall of a building and Check necessary.
iDEN MINI
User’s Manual -20-
3.3 Grounding
A rod on the left side is intended for a building ground. Connect the
ground cable to the rod.

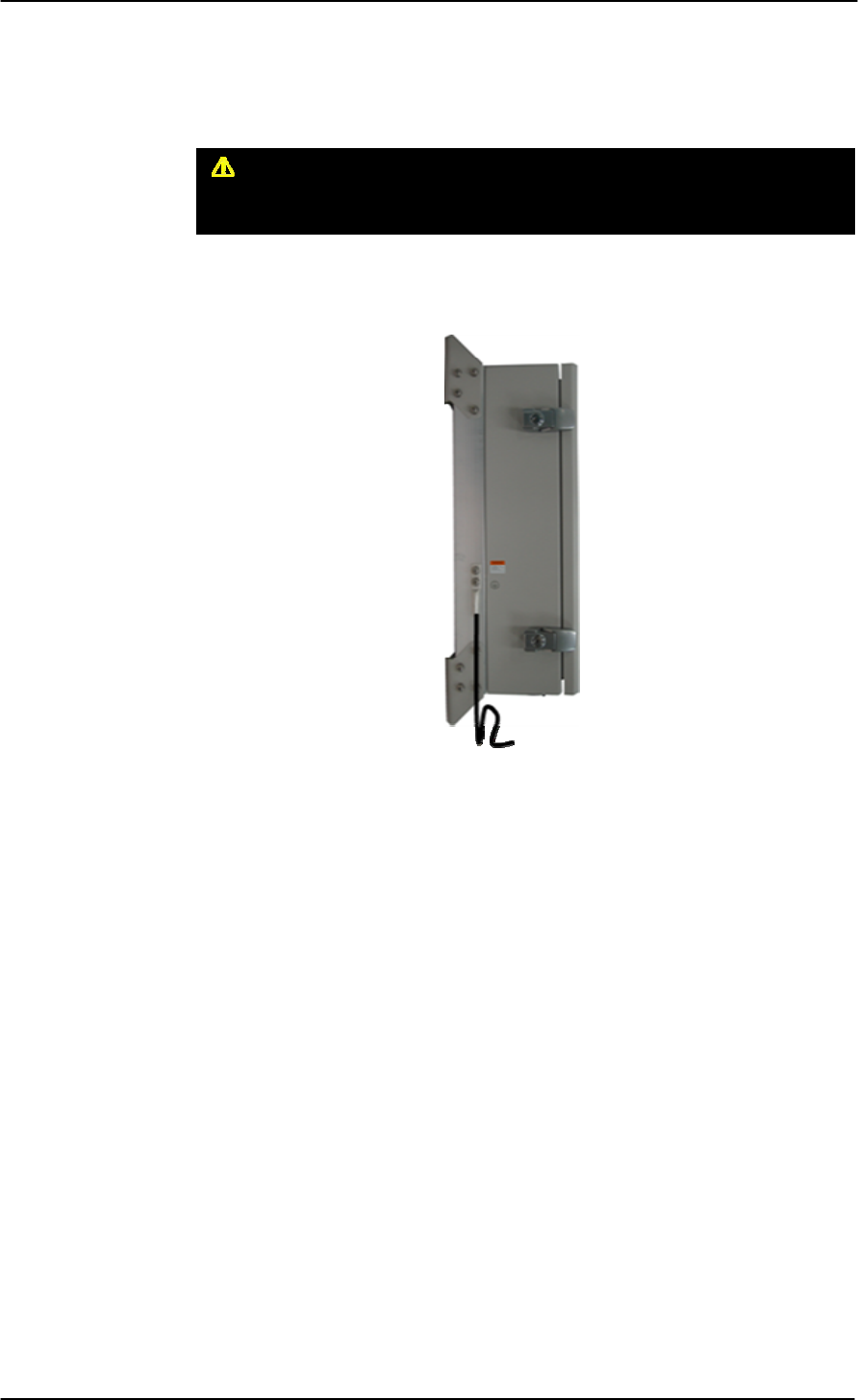

Figure 13. Grounding
3.4 RF Cable Connection
a. Connect a cable from a donor antenna to the DONOR ANTENNA
Port.
b. Connect a cable from the SERVICE ANTENNA Port to a repeater’s
service antenna.
WARNING
Dangerously high voltages may occur and damage the equipment if the
e
q
ui
p
ment is not
g
rounded
p
ro
p
erl
y
.
iDEN MINI
User’s Manual -21-

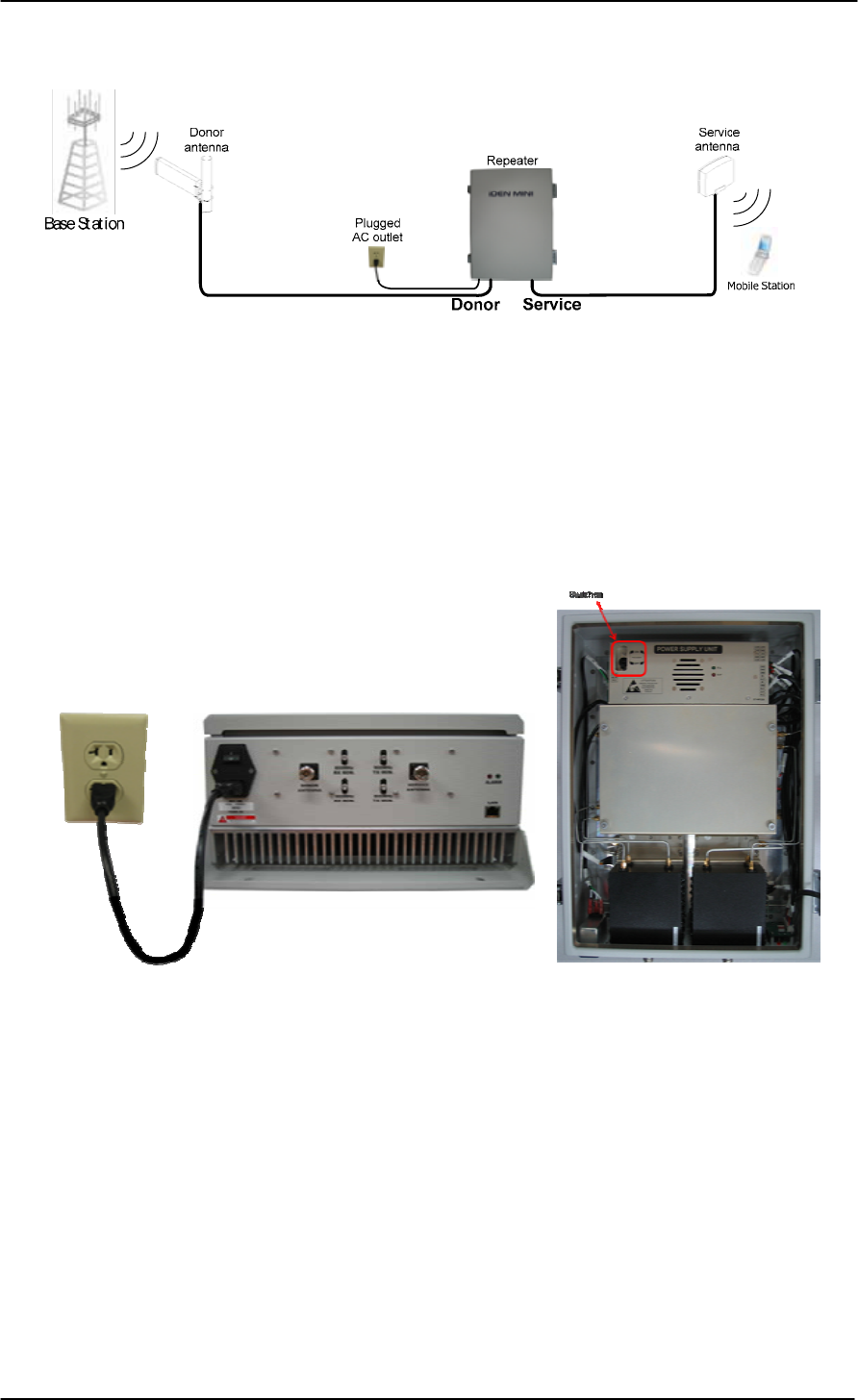

Figure 14. Configuration: RF Cable Connection
3.5 Power Up
a. Connect the power cord.
b. Plug the power cord into a wall outlet.
c. Switch on.
d. Check if the green LED at the bottom turns on.
Figure 15. Power Cord Connection
iDEN MINI
User’s Manual -22-
4. Command and Control through the Hyper Terminal
4.1 Setting for Command and Control through the Hyper Terminal

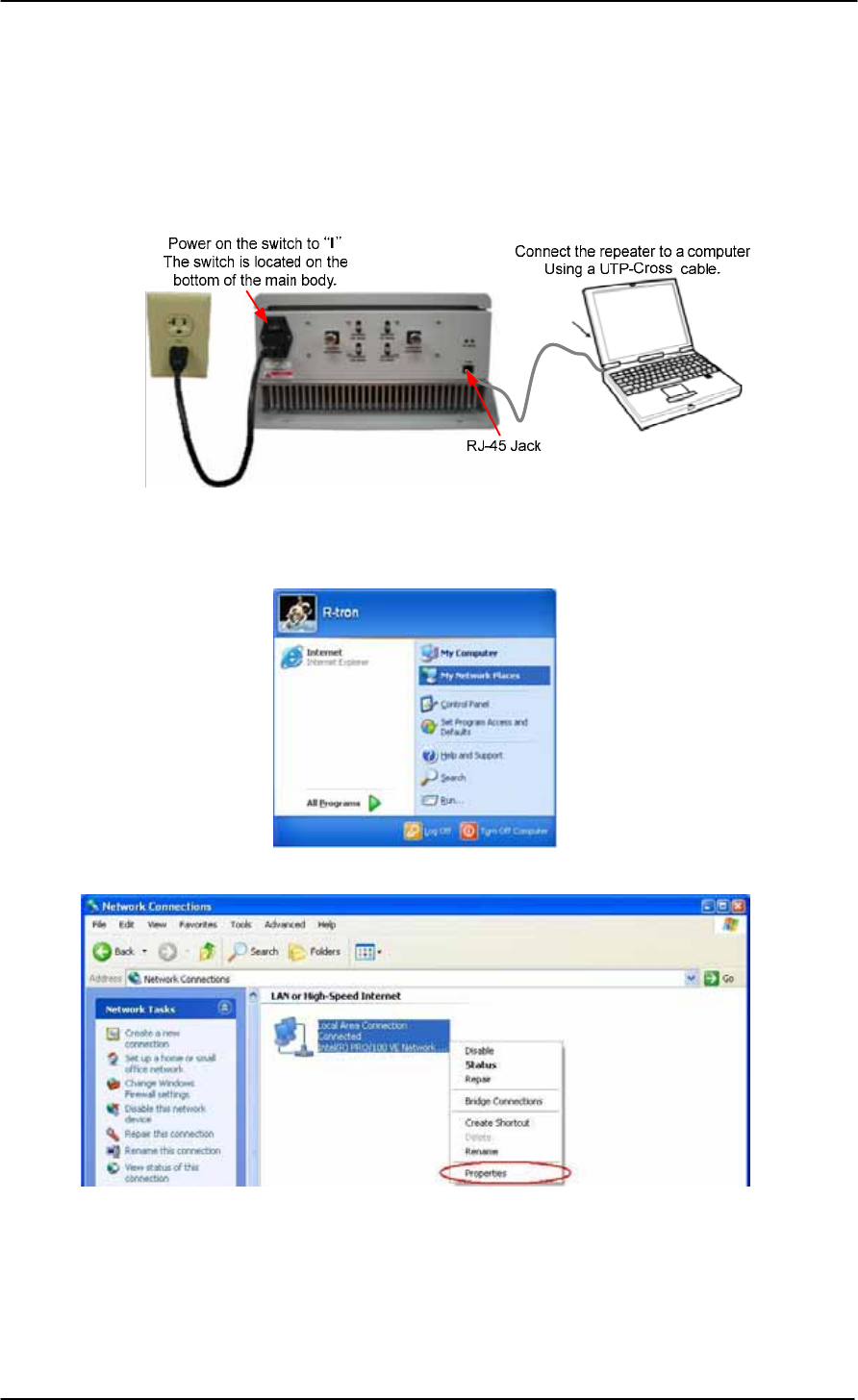

Figure 16. Local connection to the iDEN MINI
Step 1 Open My Network Places.
Step 2 Push the right button of mouse and select the properties.
iDEN MINI
User’s Manual -23-
Step 3 Click the properties of TCP/IP.
Step 4 Set the values and OK as the following. Close all windows.
