RSI VIDEOTECHNOLOGIES CT01 Indoor Contact Transmitter User Manual Manual IRT601
RSI VIDEOTECHNOLOGIES Indoor Contact Transmitter Manual IRT601
Contents
Manual_IRT601
Installation guidelines
For easier installation, programming and RF testing should be
done to check proper communication between the control
panel and all system devices before mounting system devices.
Install the detector and other system devices in the following
order:
> Programming/RF Testing - program the relay and all other
devices into the control panel and test RF communication from
each intended device location to the control panel.
> Mounting - Mount the relay at the tested location.
The IRT indoor relay transmitter is designed
for use with Videofied™ wireless security
systems.
The contact includes the following features :
• Completely wireless and powered by a
Lithium battery
• Dual tamper function provides detection
for both wall and cover tamper
• Transmits check-in/status signal every 8
minutes
• Programmable radio output for wired
devices trigger

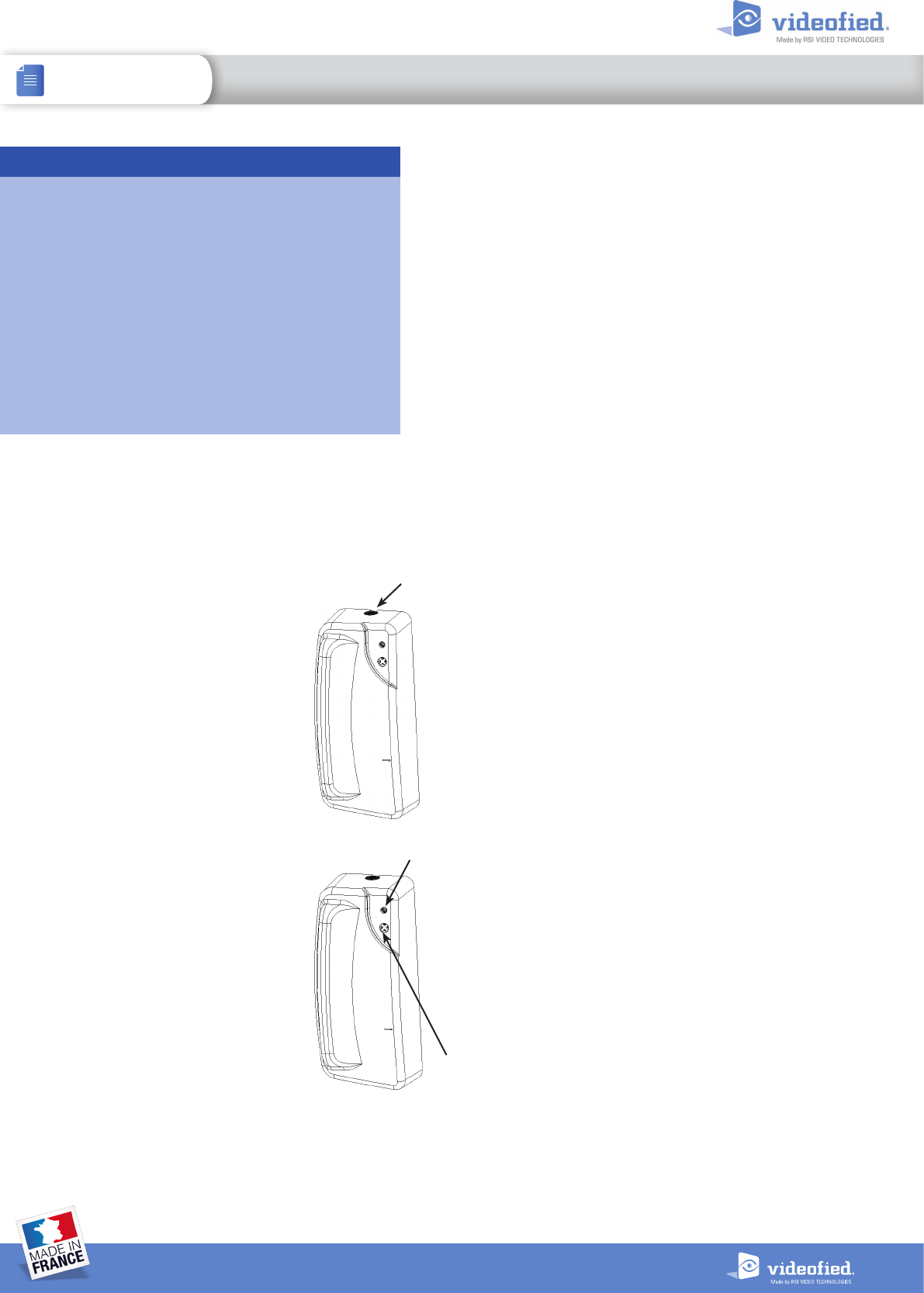

Product presentation
Programming/RF Testing/Mounting
The following provides summarized steps for device
programming, testing and mounting. For complete details,
refer to the control panel installation manual.
1 Loosen the screw, open the box and
insert the batteries.
2 Close the box and tighten the screw.
3 Access to the panel configuration
menu.
4 Proceed through menus until the
display shows ADD A NEW DEVICE.
5 Press YES/OK. The display shows
PRESS PROGRAM BUTTON OF DEVICE.
6 Using a paperclip, press and release
the relay INIT button.
The contact LED flashes. Wait for the
keypad to display TRANSMITTER (1-24)
RECORDED.
7 Press YES/OK. The display shows
RADIO RANGE TEST?
Press YES/OK again. The IRT LED starts
flashing and keypad display shows TEST
IN PROGRESS.
8 Take the transmitter to its intended
mounting location and make sure that
the LED flashes continuously, indicating
good communication with the control
panel.
9 Press YES/OK to end the radio range test then press ESC
NO.
10 The display shows NAME + LOCATION:
Enter appropriate device name/location (up to 16 characters),
then press YES/OK. The display shows the device number and
name for confirmation.
11 The display shows ENTERING A NEW DEVICE?
Repeat steps 1 - 14 for remaining devices.
Screw
LED
INIT button
INSTALLATION SHEET
DOC. - REF. 219-IRT
MODIF. DATE : NOVEMBER 2016
VERSION : 08.XX.XX
1
INDOOR RELAY TRANSMITTER IRT200 IRT601 IRT702

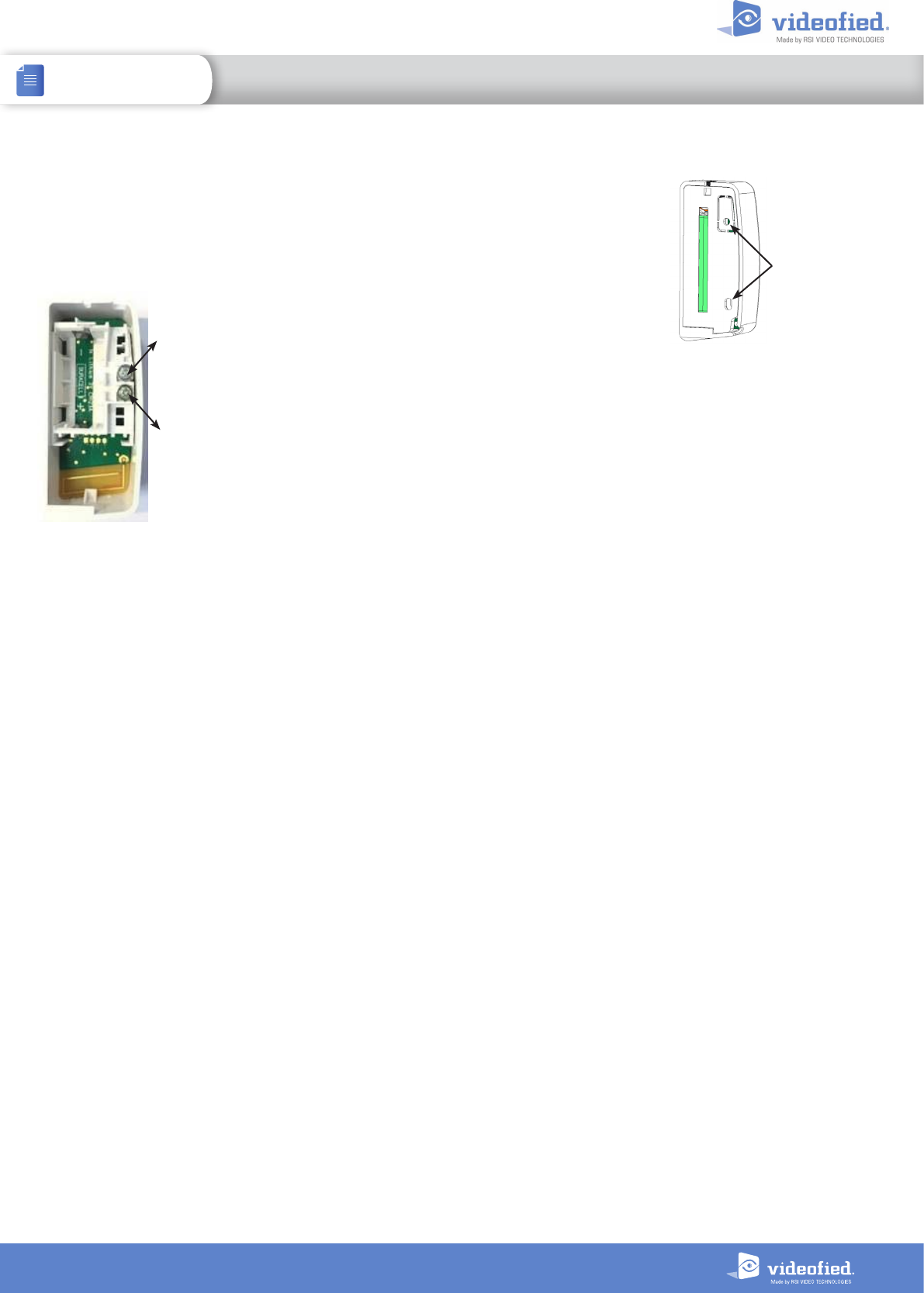

1 Remove the base from the contact.
2 Hold the base against the wall and mark the mounting
points.
3 Drill.
4 Mount the base on the wall.
5 Connect 2 AWG22 wires from the devices to trigger (sirens,
flashes, cameras, smoke generators, garage doors, etc.) to the
input terminals.
6 Mount the IRT on its base and lock with the screw.
Mounting
brackets
Connect to the
wired devices to
trigger
2
INSTALLATION SHEET INDOOR RELAY TRANSMITTER IRT200 IRT601 IRT702
3
INSTALLATION SHEET INDOOR RELAY TRANSMITTER IRT200 IRT601 IRT702
Security notes / (FR) Notes de sécurité / (DE) Hinweise zur Sicherheit
Français
• Retirez les piles avant toute opération de
maintenance !
• Attention ! Il y a un risque d'explosion si la batterie
utilisée est remplacée par un mauvais modèle !
• Respectez la polarité lors de la mise en place des
piles !
• Ne jetez pas les batteries usagées !
Ramenez-les à votre installateur ou à un point de
collecte spécialisé.
English
• Remove the batteries before any
maintenance !
• WARNING, there is a risk of explosion if a battery
is replaced by an improper model !
• Observe polarity when setting up the batteries!
• Do not litter the batteries when they are used!
Dispose of them properly according to Lithium
Metal requirements
Deutsch
• Batterien vor jeglichen Wartungsarbeiten
entfernen!
• Vorsicht, es besteht Explosionsgefahr, wenn eine
Batterie durch eine Batterie falschen Models
ersetzt wird!
• Achten Sie beim Einsetzen der Batterien auf die
Polung!
• Entsorgen Sie Batterien nicht im normalen
Haushaltsmüll! Bringen Sie Ihre verbrauchten
Batterien zu den öffentlichen Sammelstellen.
FCC Regulatory Information for USA and CANADA
FCC Part 15.21 Changes or modifications made to this equipment not expressly approved by RSI Video Technologies may void the FCC authorization
to operate this equipment.
FCC Part 15.105 Class B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
> Reorient or relocate the receiving antenna.
> Increase the separation between the equipment and receiver.
> Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
> Consult the dealer or an experienced radio/TV technician for help.
Radio frequency radiation exposure information according 2.1091 / 2.1093 / OET bulletin 65
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and
operated with minimum distance of 20 cm between the radiator and your body.
Cet équipement est conforme aux limites d’exposition aux rayonnements IC établies pour un environnement non contrôlé.
Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.
This device complies with Part 15 of the FCC Rules and with Industry Canada licence-exempt RSS standard(s)
Operation is subject to the following two conditions:
1 This device may not cause harmful interference, and
2 This device must accept any interference received, including interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence.
L’exploitation est autorisée aux deux conditions suivantes :
1 L’appareil ne doit pas produire de brouillage, et
2 L’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le
fonctionnement.
EMEA SALES
23, avenue du Général Leclerc
92340 BOURG-LA-REINE
FRANCE
E-Mail : emeasales@rsivideotech.com
North American Headquarters
1375 Willow Lake Blvd, Suite 103
Vadnais Heights, MN 55110
USA
E-Mail : usasales@rsivideotech.com
4
www.videofied.com
INSTALLATION SHEET
The EC declaration of conformity of
this product is available by flashing
that QR code :
INDOOR RELAY TRANSMITTER IRT200 IRT601 IRT702
Battery Type C - CR123A - Lithium battery
Nominal voltage 3 V
Low battery limit 2.8 V
Estimated battery life Up to 3 years
Current consumption
Standby (1h average) 45 µA
Max 35 mA
Panel compatibility W panels
ELECTRICAL PROPERTIES
Trigger properties Open-collector
RF S2View® technology
Radio type Spread spectrum RF bidirectional
Operating frequency
• 868MHz - IRT200 (Europe, Africa, Asia)
• 915MHz - IRT601 (Americas)
• 920MHz - IRT702 (Australia, Chile, Peru, Paraguay)
Transmission security AES algorithm encryption
Supervision Radio, batteries, tamper
Radio antenna Integrated
RADIO PROPERTIES
BOX
Physical properties
Material ABS UL94-V0
Dimensions 79.3 mm x 35 mm x 24.6 mm
Weight 32 g (without battery)
Installation / Mounting
Wall mounting 2 screws
Box sealing 1 screw
Environmental properties
Operating temperature -10°/+55°C
Max relative humidity 75%, without condensing
STANDARDS AND CERTIFICATIONS
868MHz (IRT 200)
Compliant with the annex IV of the R&TTE Directive 1999/5/EC
915MHz (IRT 601)
USA FCC Part 15C
Canada IC RSS-247 Issue 1
920MHz (IRT 702)
Australia RCM AS/NZS4268
Tamper
Tamper detection
Cover and wall tamper
This symbol on the product or on its packaging indicates that this product should not be treated as household waste.
It must be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the
environment and human health. The recycling of materials will help to conserve natural resources.
For more information about recycling of this product, please contact your local municipality, your waste disposal
service or the company that installed the product.
