Chapter 5
Diagnostics and
Troubleshooting
This chapter describes the WinLink 1000 diagnostic functions, which
include:
Get Link Information
Monitoring Performance
Error detection and alarms including Link Compatibility
Diagnostic tests (local and remote loopbacks on E1 or T1 link)
Troubleshooting
Frequently asked questions.
5.1 Automatic Link Data Collection (Get Link
Information)
The Get Link Information feature collects all the link and Manager
information which can be used for diagnostics.
In the event of needing to contact technical support please send this
file so as to speed up the assistance.
Æ To get link information

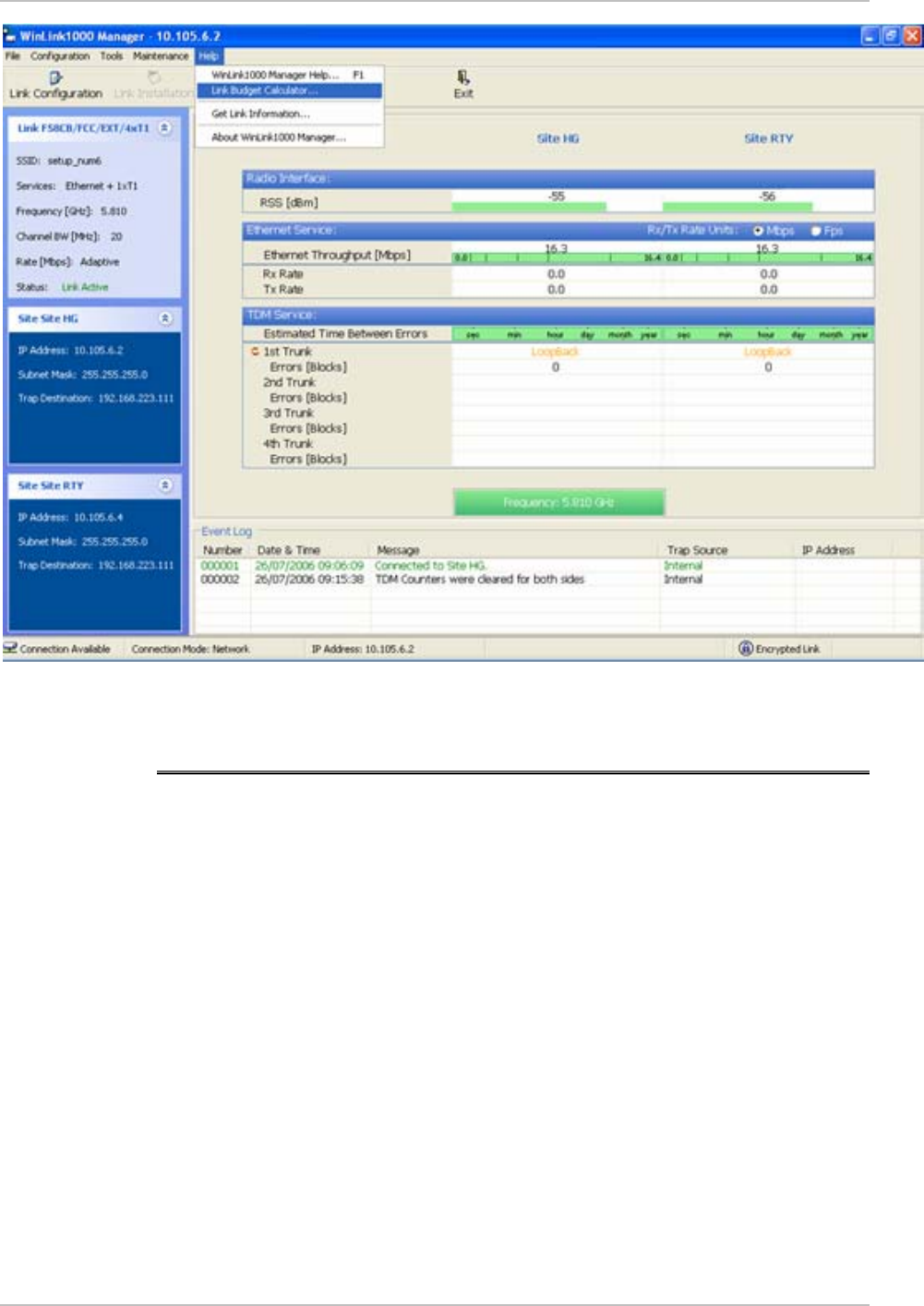

1. Click Help on the menu bar, select Link Information.
The Get Link Information dialog box appears. See
Figure
5-1
.
2. Select or deselect the data options. If the file is to be sent to
Technical Support leave all options checked.
3. Click File Path to get to the directory to save the file in.
4. Click Start to save the information.
The file is saved as Link Information.txt
Automatic Link Data Collection (Get Link Information) 5-1
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual

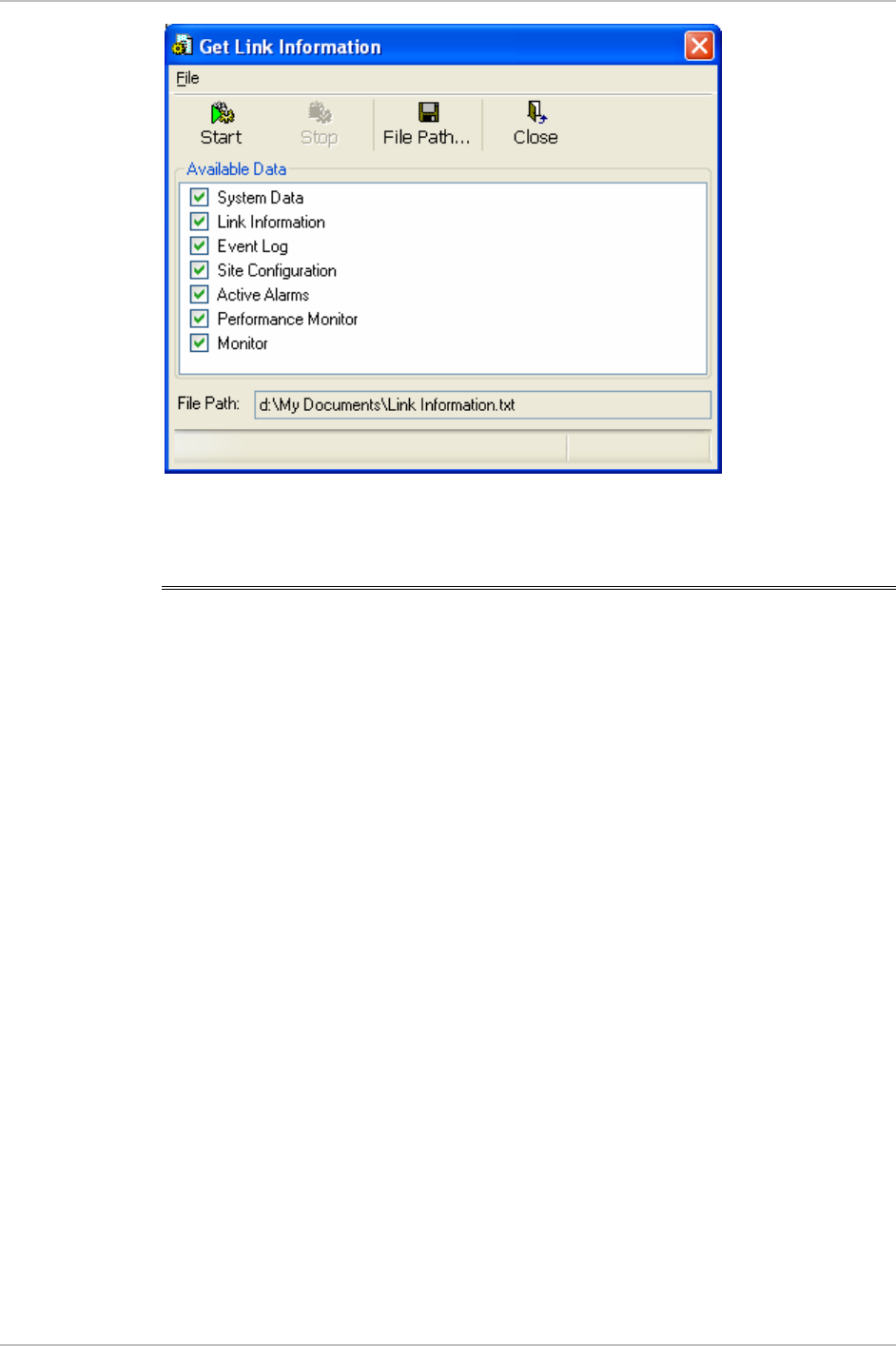

Figure
5-1. Get Link Information
5.2 Monitoring Performance
WinLink 1000 constantly monitors traffic over the radio link and
collects the following statistics data:
Site 1/Site 2 received traffic rate (in Mbps)
Site 1/Site 2 received frames rate (in Mbps)
Radio signal strength (in dBm)
Error (Blocks).
The statistics (monitor) log and event log can be saved as TXT files.
New alarms are automatically added to the text file, as they enter the
event log.
Saving the Monitor Log
Æ To save the monitor log:
1. From the Tools menu, choose Preferences.
The Preferences dialog box appears (see
Figure
5-2
).
2. Click the Monitor Tab.
3. Select the file to save.
5-2 Monitoring Performance
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
4. Click the check box to open the file for saving.
5. Click the button and in the Select File dialog box indicate in
which folder and under what name the alarm log file is to be saved.
6. Set the time interval for adding data to the file.
7. Click OK to save the file

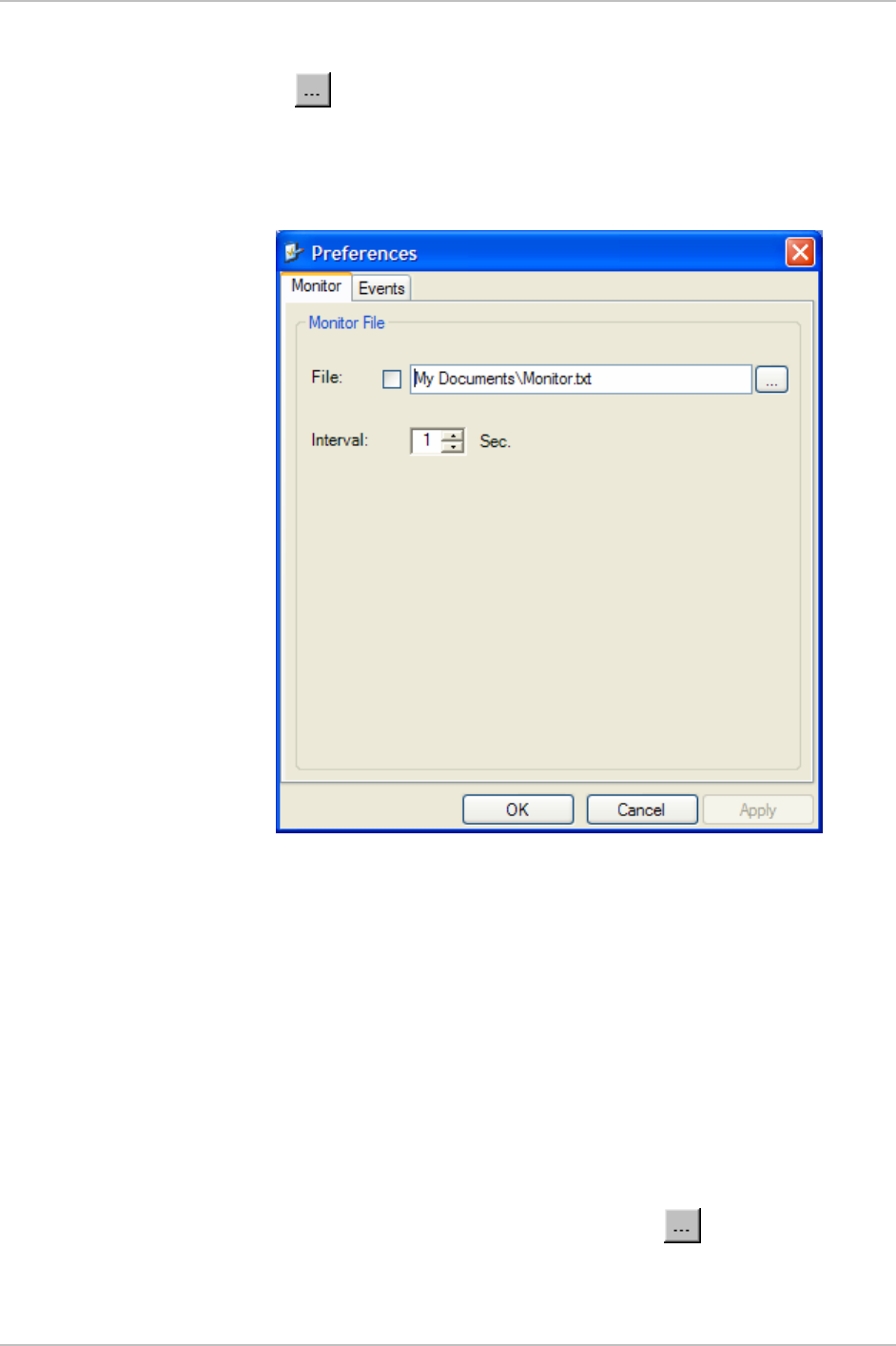

Figure
5-2. Preferences Dialog Box, Monitor Tab
Setting the Events Preferences
You can define a color that the traps are displayed in the monitor pane,
according to severity of the event. The severity is predefined.
Æ To set the trap color:
1. From the Tools menu, choose Preferences.
The Preferences dialog box appears).

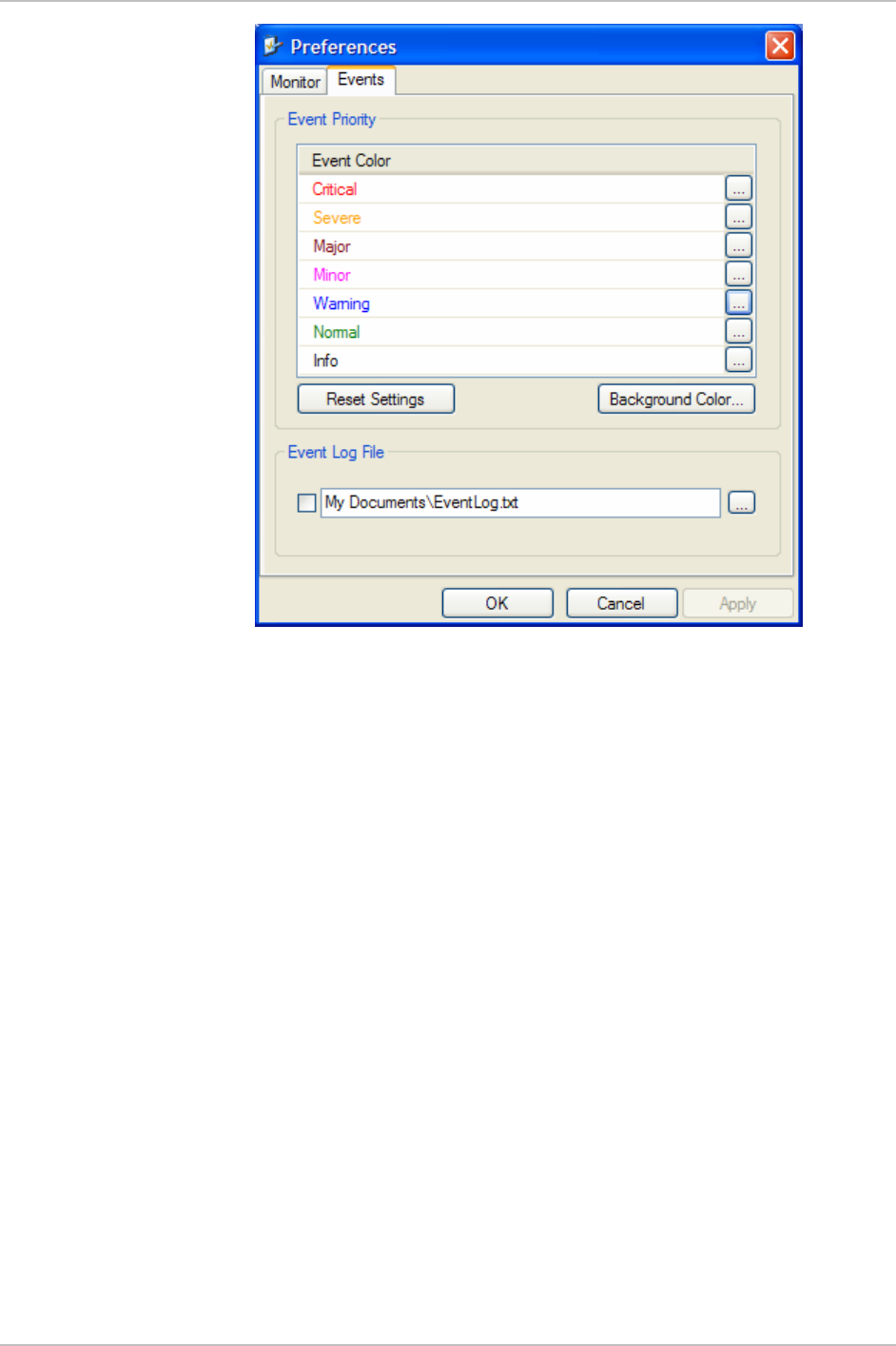

2. Click the Events Tab (see
Figure
5-3
).
3. Select the Event priority type and click on the button.
A color chart opens.
Monitoring Performance 5-3
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
4. Select the desired color.
5. Repeat for all the trap types.
Æ To set the trap background color:
Click Background Color to change the text background.
Æ To reset the trap colors:
Click Reset Settings to return to the default color settings.
Saving the Events Log
Æ To save the event log:
1. From the Tools menu, choose Preferences.
The Preferences dialog box appears (see
Figure
5-3
).
2. Click the Events Tab.
3. Select the file to save.
4. Click the check box to open the file for saving.
5. Click the button and in the Select File dialog box indicate in
which folder and under what name the alarm log file is to be saved,
and click OK.
5-4 Monitoring Performance
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
Figure
5-3. Preferences Dialog Box, Event Log Tab
Monitoring Performance 5-5
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
5.3 Viewing Performance Reports
The Performance Monitor Report displays performance views of each of
the interfaces1 (see
Figure
5-4
). Several performance data are collected
for each of the interfaces (ES, SES, and UAS), as well as Specific data per
Interface type (e.g., TX and RX bytes for Ethernet). For the Air Interface,
user defined thresholds data are collected. Refer to
Table
5-1
and
Table
5-2
.
Data is collected and selectively displayed based on three time intervals
as selected by the Interval radio buttons:
Current (t=0)
15 minutes Intervals
Daily.
UAS – This parameter counts the time the air link was not providing
any service. There are several potential reasons for this situation; one
of the sites has a power failure, high interference, maintenance
operation etc.
Radio BBER Threshold – This parameter counts the seconds in which
the radio performance is below a user specified threshold. The
threshold is measured in percent. The threshold can be set from 0.1%
up to 50%.
For links with E1/T1 service the recommended value is 1% (system
default). Excellent TDM service is expected below the 1% threshold,
meaning that for 1% threshold, the expected BBER value should be 0 if
there are no problems during the 15 min interval. If the BBER threshold
increases some degraded service might be noticed.
For links with Ethernet only service, 8% threshold is recommended and
not 1% meaning that for 8% threshold, the recommended BBER value
should be 0 if there are no problems during the 15 min interval. Since
WinLink 1000 provides a loss less Ethernet service, there is throughput
degradation in case of interference. The degradation is proportional to
the BBER.
Radio RSS Threshold can also be used to indicate problems in the radio
channel. After verifying the RSS according to the link budget calculator
1 Ethernet performance is not collected in PoE systems.
5-6 Viewing Performance Reports
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
during the installation. A value of -5dB from the current RSS is
recommended as a threshold.

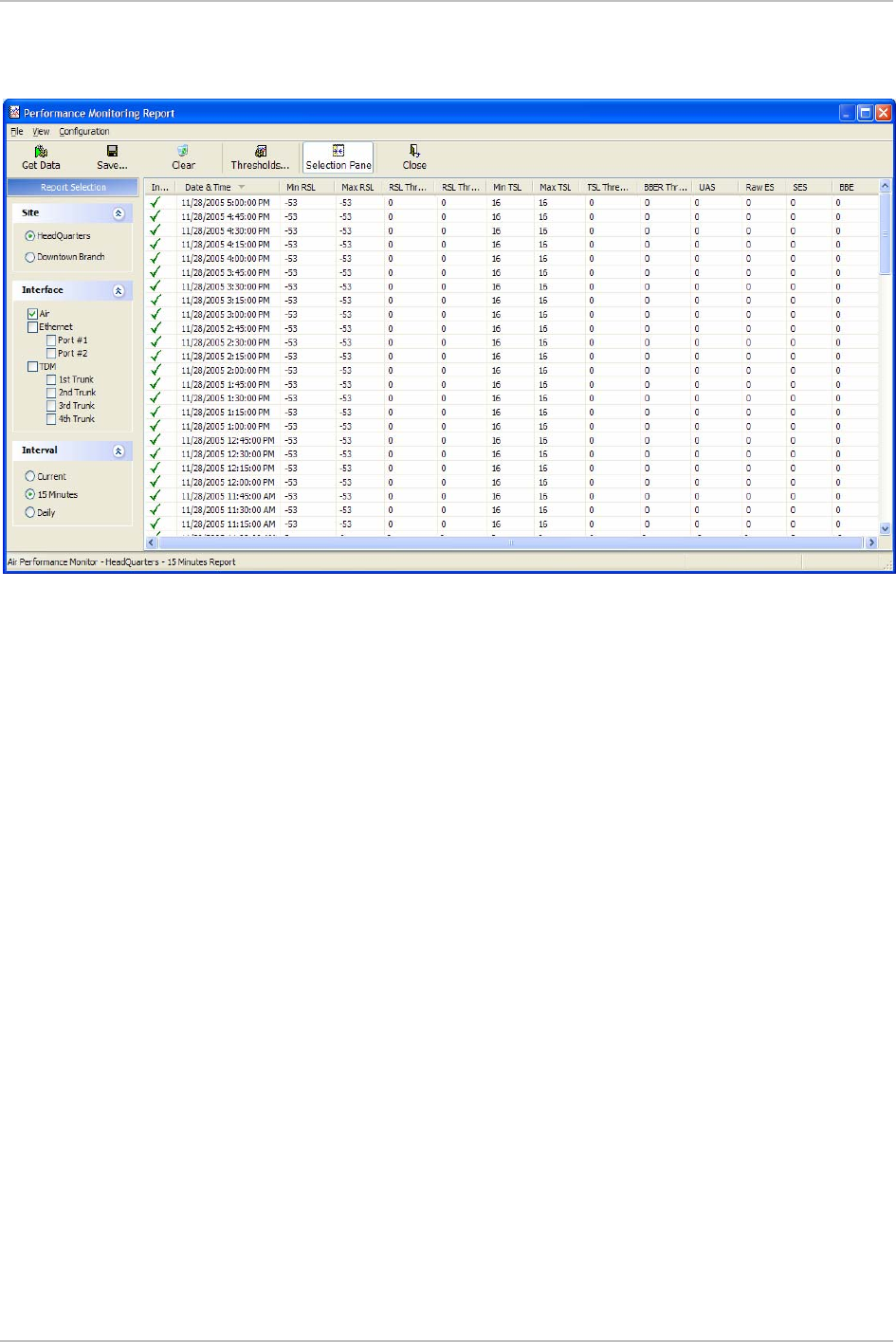

Figure
5-4. Performance Monitoring Report window
Viewing Performance Reports 5-7
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
Table
5-1. Explanation of performance data
Data type Reported value Explanation
UAS – Unavailable
Seconds
Seconds in which the
interface was out of
service.
ES – Error Second The number of
seconds in which there
was at least an error
block. Note that
notation of an error
block is different per
interface.
SES – Severe Error
Second
The number of
seconds in which the
service quality is low
(the actual BBER ratio
varies per interface).
BBE – Background
Block Error
The number of error
block in an interval.
Generic PM Data
Integrity A flag indicating that
the data is valid. Note
that the PM data is not
valid if not all the
values were stored2.
Max RSL The maximum of the
receive signal level
(measured in dBm).
Min RSL The minimum of the
receive signal level
(measured in dBm).
Air Interface PM Data
Max TSL The maximum of the
transmit signal level
(measured in dBm)3.
2 Possible reasons are: Clock changes within the interval and Power up reset
3 The transmit power is fixed. The value can be changed only by user
configuration
5-8 Viewing Performance Reports
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
Data type Reported value Explanation
Min TSL The minimum of the
transmit signal level
(measured in dBm).
RSL Threshold 1 This parameter counts
the number of seconds
in which the RSL is
below the specified
threshold.
RSL Threshold 2 This parameter counts
the number of seconds
in which the RSL is
below the specified
threshold.
TSL Threshold 1 This parameter counts
the number of seconds
in which the RSL is
above the specified
threshold.
BBER Threshold The BBER Threshold
value counts the
number of seconds in
which the Background
Block Error Ratio
(BBER) exceeds the
specified threshold.
Note, that the system
is design for excellent
quality of service with
BBER of less then 1%.
(at 1% BBER expected
TDM BER is less than
1E-6.
Ethernet Interface PM
Data
Received Bytes The number of Mega
bytes received in the
specified port within
the interval
Viewing Performance Reports 5-9
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
Data type Reported value Explanation
Transmitted Bytes The number of Mega
bytes received in the
specified port within
the interval.
Table
5-2. Action of the tool bar button commands
Button Action
Get Data Uploads the selected report from the ODU.
Save Saves the data in a CSV or Text format for additional analysis.
Clear Removes the current data from the window.
Selection pane Selects the site, interface, and interval to be displayed.
Threshold Opens the threshold configuration dialog box (Figure 5-5) to
set the Air Interface thresholds. Note that threshold change is
effected immediately, but it does not change any historical data.
Close Closes the Performance Monitor Report window.

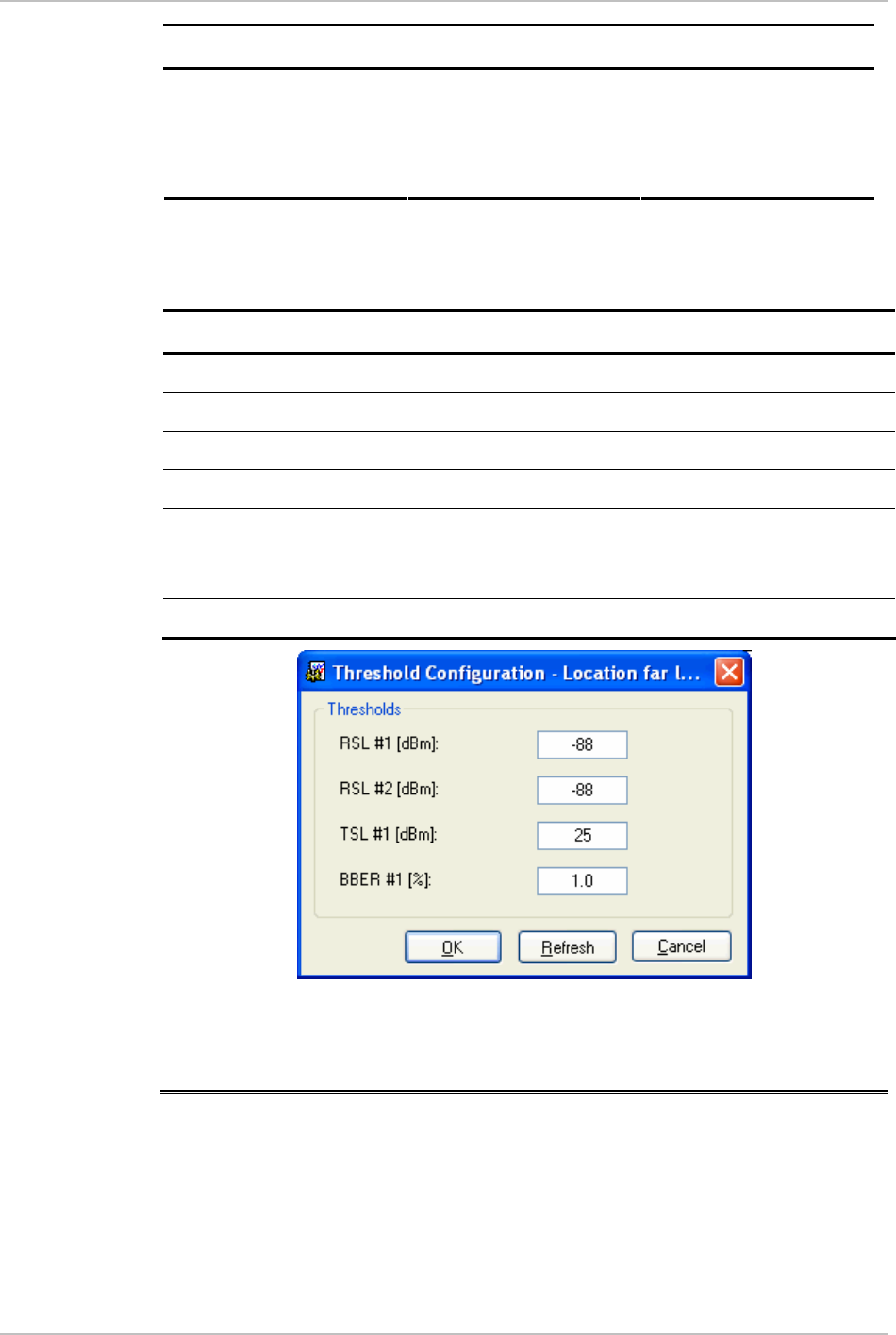

Figure
5-5. Threshold configuration dialog box
5.4 Error Detection and Alarms
WinLink 1000 detects compatibility problems, fault conditions of the
radio or user links, and initiates alarms to alert the user.
5-10 Error Detection and Alarms
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
To store the Event Log, first define the IP address, subnet mask,
default gateway and trap address of the management PC, see
Chapter
4
for details.
Note

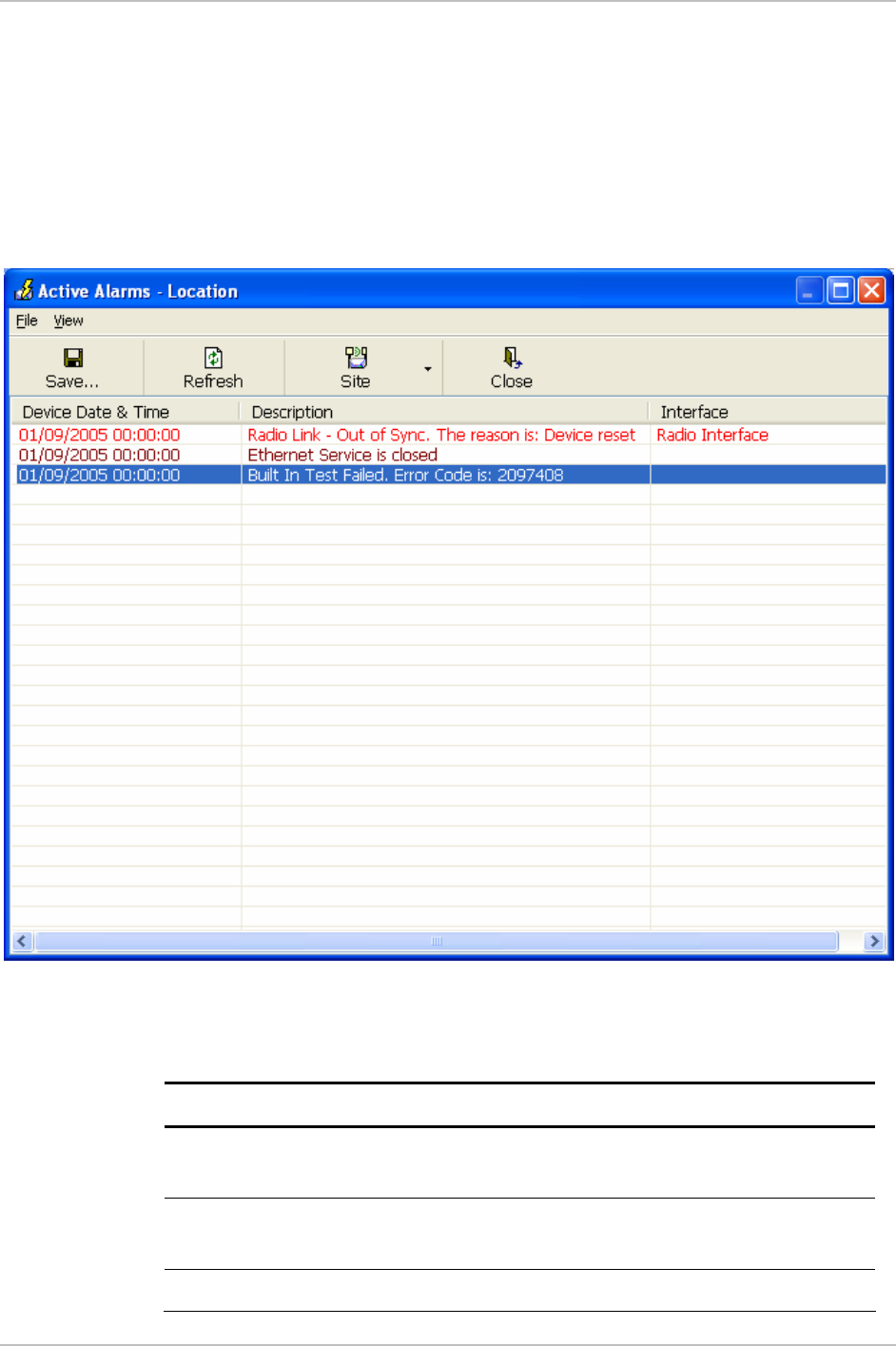

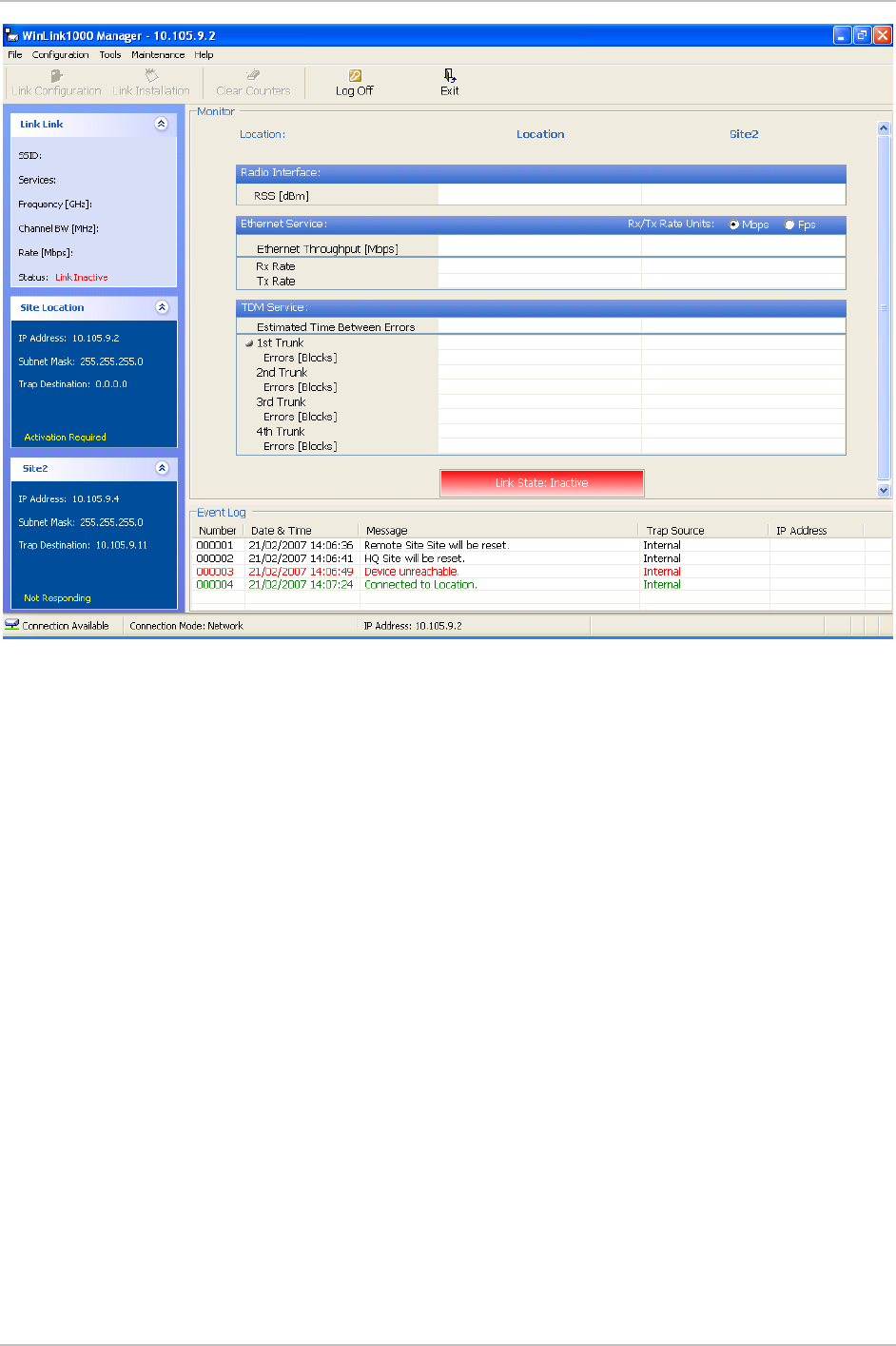

Alarms (traps) are displayed in the Event Log in the lower panel of the
Main Menu screen. The event log may be saved as a TXT file.
The event log includes the following fields:
Sequential number (ID)
Date and time stamp
Message
Trap source
IP address of the ODU that initiated alarm.
Error Detection and Alarms 5-11
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
Table
5-3. WinLink 1000 Alarms and Information Messages
Message Description
Radio Link – Sync Radio link is synchronized
Radio Link – Out Of Sync Radio link lost synchronization
Link Has Been Reset ODU was reset due to internal problem
TDM Interface – Normal TDM interface is operating properly
TDM Interface – LOS Loss of Synchronization is reported by TDM interface
TDM Interface – LOS Loss of Signal is reported by TDM interface
TDM Interface – AIS Alarm Indication Signal is reported by TDM interface
TDM Interface – Loopback A loopback is active on TDM interface
Link Resetting Wireless link reset from the management station. This
alarm is caused by automatic reset after link
configuration.
Local ODU Resetting The local ODU reset from the management station.
Monitor was stopped since no
connection to the link
No ODU-to-IDU traffic was detected during the last 20
minutes.
TDM Service – Normal TDM service is operating properly
TDM Service – Alarm Error has been detected on a TDM line
Configuration problem detected The link needs to be reinstalled
Channel Scanning in progress The ODU is scanning the channels for the remote ODU
Transmitting on <frequency>
GHz
The ODU is transmitting on the frequency channel listed
Radar activity was detected in
<site>, on channel <frequency>
GHz
For DFS versions only. Radar is detected; the channel is
prohibited for 30 minutes.
Monitoring fo Radar activity on
channel <frequency> GHz
For DFS versions only. ODU is looking for Radar activity.
Bit Failed indication Indicates ODU hardware problem. Send error code to
Technical Support.
Link Status Indicates incorrect connection or incompatibility between
versions. Available in 1.620 versions and above.
Site Status Indicates incorrect connection or operation at the site.
Available in 1.620 versions and above.
5-12 Error Detection and Alarms
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
Æ To view summary of saved alarms
From the Tools menu, choose Active Alarm Summary.
The Active Alarms Summary window opens. See
Table
5-4
; for
an explanation of the command buttons.
Figure
5-6. Active Alarms Summary
Table
5-4. Active Alarms command buttons
Command Action
Save Saves the alarms in CSV or text format for further
analysis.
Refresh Reads the alarms from the ODU, and displays the
alarms.
Site Selects site for the active alarms.
Error Detection and Alarms 5-13
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
Close Closes the active alarm window.
5.5 Remote Power Fail Indication
Remote power fail indication indicates to one side that the other side
has had a power failure. The failed site sends a final trap indication
about the power loss just before powering off.
A Dying-Gasp circuit identifies the power failure at a minimum interval
of 20 milliseconds before the IDU crash, during that interval a message
notifying the power failure is sent to the remote end.
Alarm output number 4 indicates link loss due to power failure at the
remote end.
5.6 Link Compatibility
WinLink 1000 indicates the version compatibility via software traps. As
new hardware is added to existing networks compatibility issues may
arise. An incompatibility issue is indicated to the user via a change of
color of the Link Status box on the Main Menu screen. Trap messages
in the Event Log indicate the problems or limitations and suggest
upgrades when appropriate.
The following Link Status messages are given:
fullCompatibility - different software versions that are fully compatible.
Message indicates that upgrade is available.
restrictedCompatibility - different software versions that operate
correctly. However, new features are not supported
softwareUpgradeRequired - different software versions with limited
operation. The link will operate as Ethernet only; a full service will not
be available. The message is software upgrade required.
versionsIncompatibility - different software versions that are not
compatible. User needs to perform local upgrades.
Table
5-5. Link Compatibility Trap Messages
Link State Link Link Status Site Description Site Link Status
5-14 Link Compatibility
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
State
Text
Color Desc.
Color
Color
fullCompatibility Active Green SW
Upgrade Available
Yellow Green
restrictedCompatibility Active -
SW
Version
mismatch
Magenta
(Same as
authentication
error)
SW Upgrade
Recommended
Yellow Magenta
(Same as
authentication
error)
softwareUpgradeRequired Active
SW
Upgrade
Required
Brown (Major) SW Upgrade
Required
Yellow Brown (Major)
versionsIncompatibility Not
Active -
SW
Upgrade
Required
Red Local SW Upgrade
Required
Yellow Red
5.7 Testing WinLink 1000
WinLink 1000 supports activation of the internal and external
loopbacks on the local and remote units.
Æ To activate a loopback:
1. From the Maintenance menu, choose Set Loopbacks.
The Loopbacks dialog box appears (see
Figure
5-7
).
2. From the Local or Remote drop-down box, select a loopback that
you intend to run, and click OK.
A confirmation message appears.
3. Click OK to activate a loopback.
WinLink 1000 activates selected loopback. A loopback status
arrow in the Main menu turns green to indicate an active
loopback.
Æ To deactivate a loopback:
From the From the Local or Remote drop-down box of the
Loopbacks dialog box, select None and click OK.
Testing WinLink 1000 5-15
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
A loopback is deactivated and the corresponding status arrow in
the Main menu becomes dimmed.

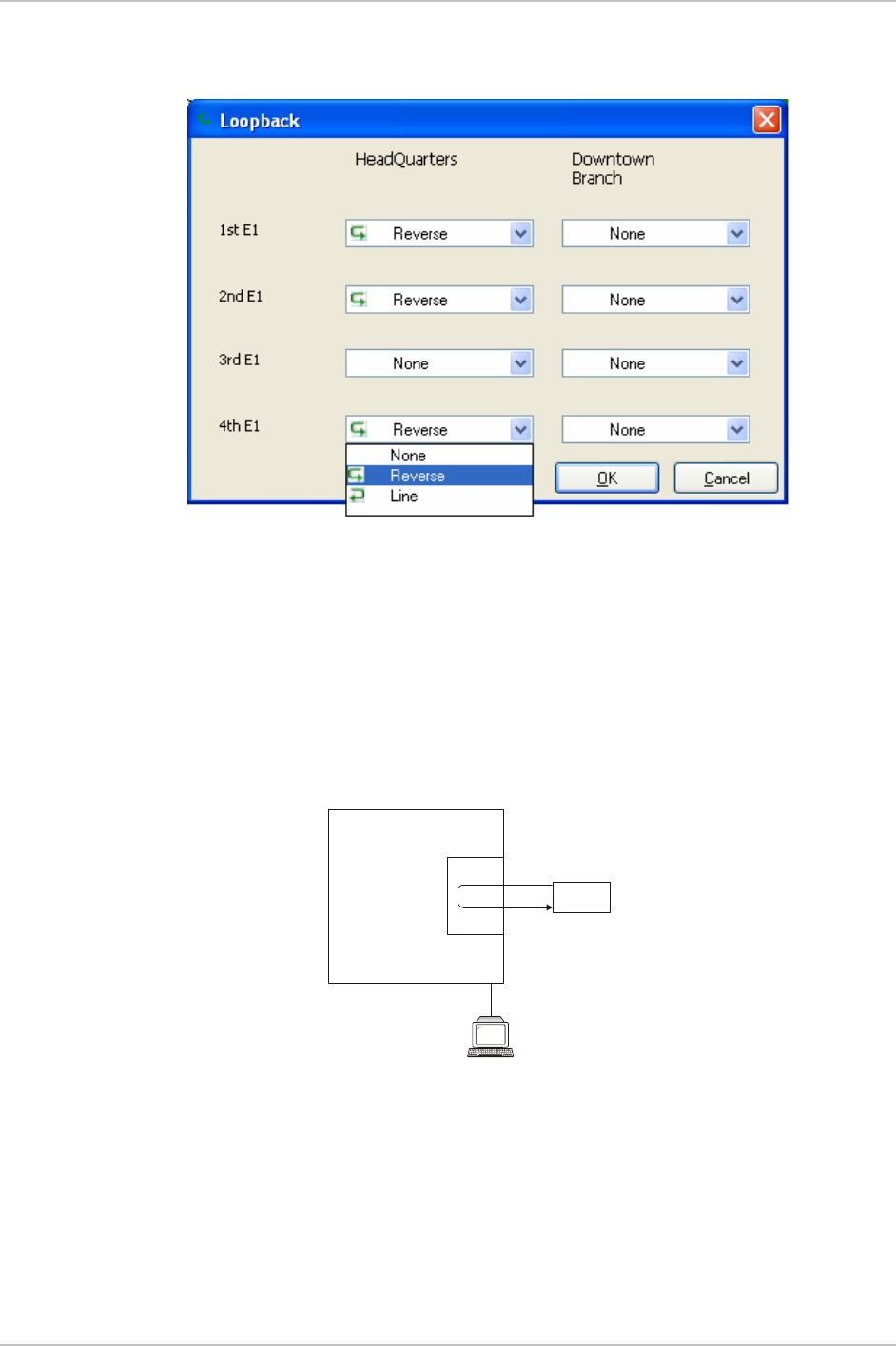

Figure
5-7. Loopbacks Dialog Box
Local External Loopback
Local WinLink 1000 can be set to an external loopback to test the local
E1/T1 port and its connection to the local side user equipment. In this
mode, data coming from the local user equipment is looped back to it
(see
Figure
5-8
). This loopback is initiated from a management station
connected to the local unit.
Tes ti ng
Equipment
Management
Station
E1
Interface
/T1
Local ODU
Figure
5-8. Local External Loopback

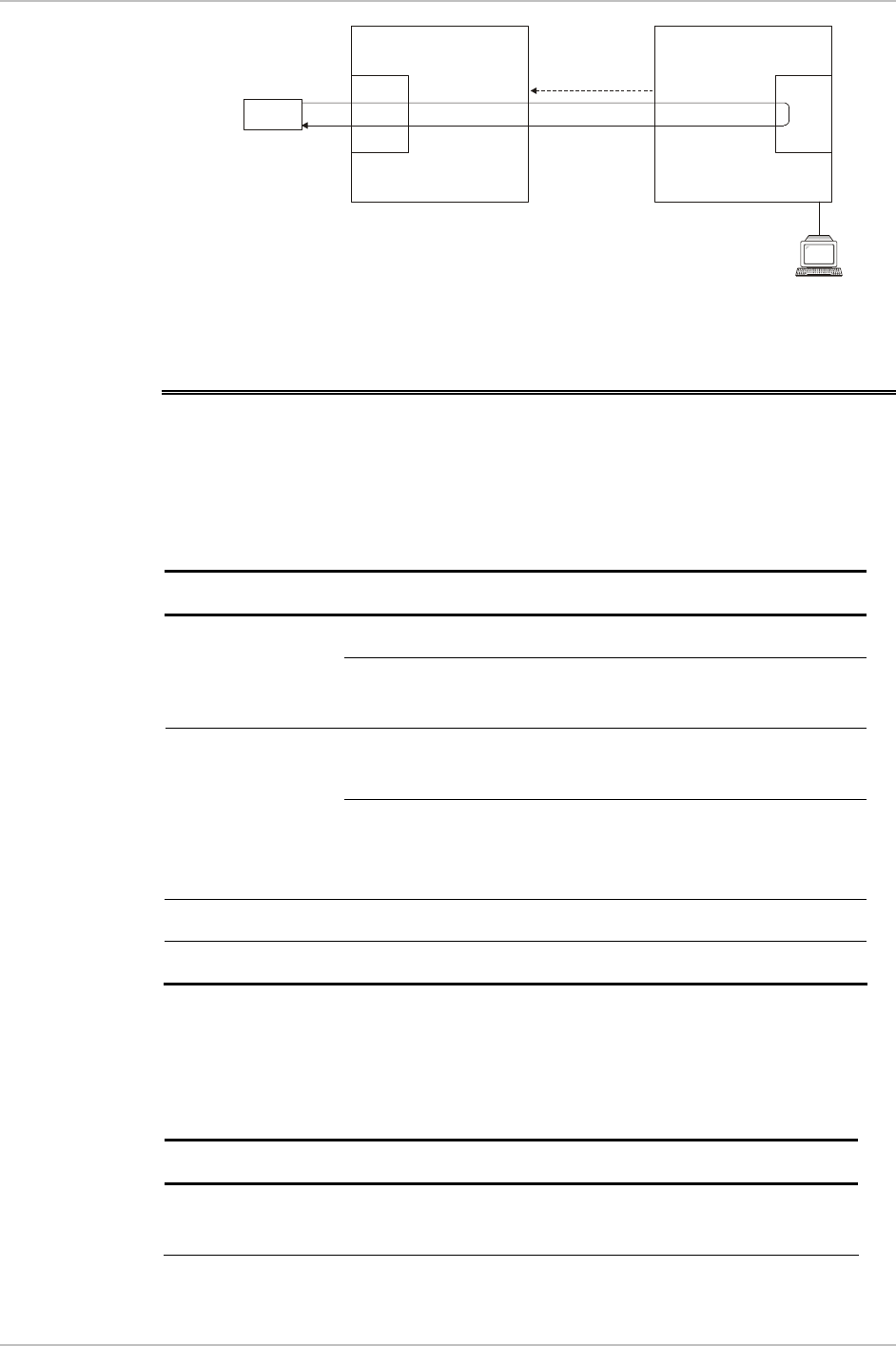

Remote Internal Loopback
Remote WinLink 1000 can be set to an internal loopback to test
connection between the local and remote units, the local E1/T1 port
and its connection to the local side user equipment. In this mode, data
5-16 Testing WinLink 1000
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
coming from the local WinLink 1000 is looped back to it (see
Figure
5-
9
). This loopback is initiated from a management station connected to
the local unit.

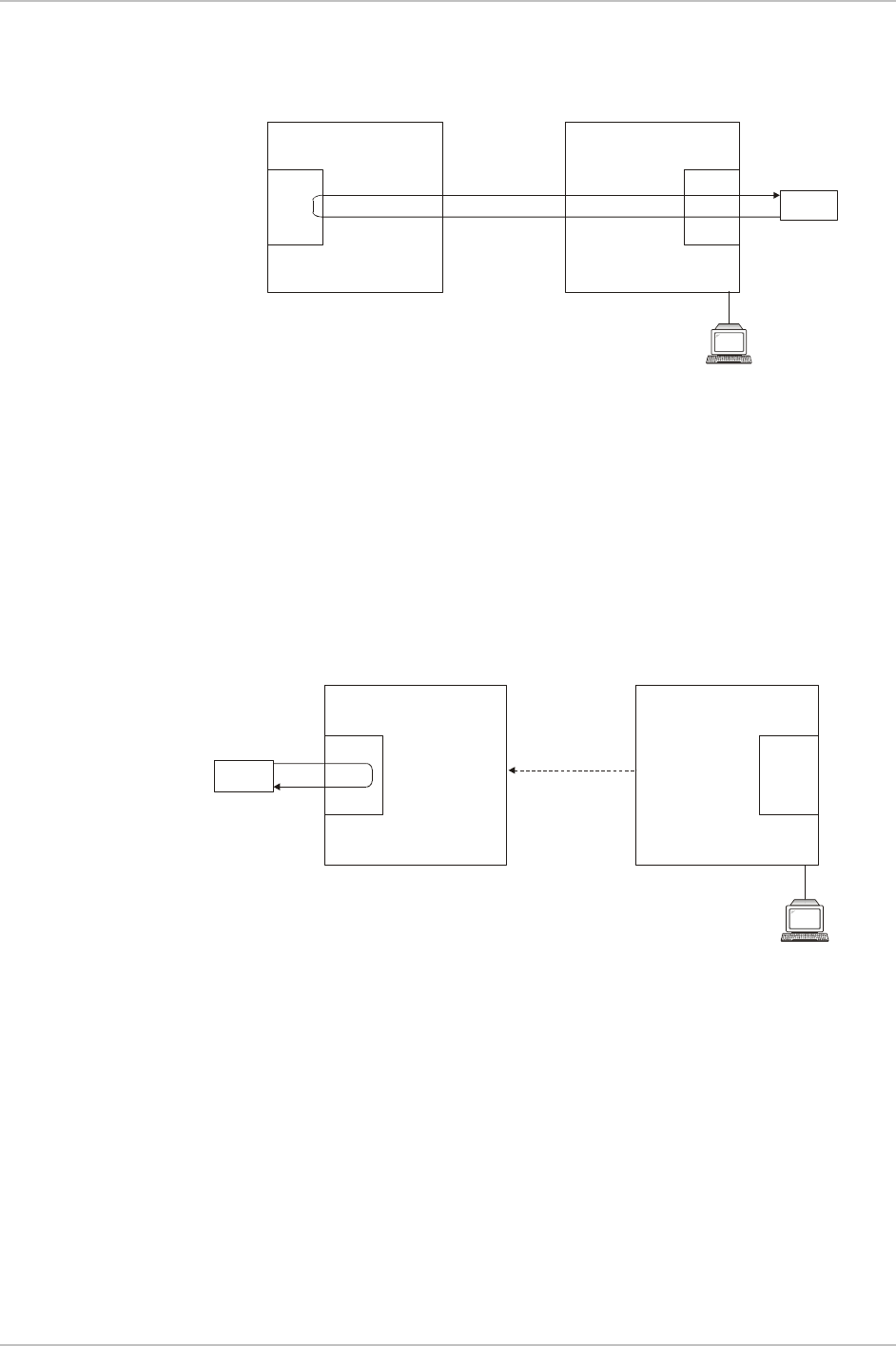

Management
Station
E1/T1
Interface E1
Interface
/T1
Tes ti ng
Equipment
Remote ODU Local ODU
Figure
5-9. Remote Internal Loopback
Remote External Loopback
Remote WinLink 1000 can be set to an external loopback to test the
remote E1/T1 port and its connection to the remote side user
equipment. In this mode, data coming from the remote user equipment
is looped back to it (see
Figure
5-10
). This loopback is initiated by an
inband command sent from a management station connected to the
local unit.
Tes ti ng
Equipment
Management
Station
E1
Interface
/T1 E1
Interface
/T1
Local ODU
Inband Loopback
Activation Command
Remote ODU
Figure
5-10. Remote External Loopback
Local Internal Loopback
Local WinLink 1000 can be set to close an internal loopback to test
connection between the local and remote units, remote E1/T1 port and
its connection to the remote side user equipment. In this mode, data
coming from the remote user equipment is looped back to it (see
Figure
5-11
). This loopback is initiated by an inband command sent
from a management station connected to the local unit.
Testing WinLink 1000 5-17
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
Tes ti ng
Equipment
Management
Station
Local ODU
Inband Loopback
Activation Command
Remote ODU
E1/T1
Interface E1
Interface
/T1
Figure
5-11. Local Internal Loopback
5.8 Troubleshooting
Use
Table
5-7
and
Table
5-7
to diagnose any faults in the system.
Table
5-6. Troubleshooting
Symptom Remedy
Verify that AC power is connected to the IDU. No power
Verify that the ODU cable is properly wired and
connected.
Complete the installation procedure from the
management software.
No signal
Verify the ODU alignment. Check that the radio
configuration of both site A and site B units are the
same (channel and SSID).
Weak signal Verify the ODU alignment, reconfigure the link.
Verify the beeper sounds the Best Signal sequence.
The WinLink 1000 LEDs show faults in the system or the link.
Table
5-7. Troubleshooting with WinLink 1000 LEDs
LED Status Remedy
PWR Off Check that AC adapter is connected to the
IDU-E and the AC power outlet.
5-18 Troubleshooting
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
IDU Orange Check that the IDU/ODU cable is properly
wired and connected.
ODU Red Check that the IDU/ODU cable is properly
wired and connected.
Orange Complete the installation procedure from
the management software.
AIR I/F
Red Check the ODU Antenna alignment. Check
that the radio configuration of both site A
and site B units are the same (channel and
SSID).
Off Check the TDM service configuration in the
NMS.
Orange Check that the system is not in loopback
mode.
Check the site B IDU ports and cables and
site B external equipment.
SERVICE
Red Check the site A IDU ports, cables and
external equipment.
5.9 Frequently Asked Questions
Q: What performance issues will arise due to environmental conditions?
A: WinLink 1000 is not sensitive to environmental conditions. However
if heavy rain or snowfall is expected ensure the performance by
allowing a higher fade margin in the link budget planning calculations.
Q: When using the WinLink 1000, what is the potential for interference
between our system and other cellular or wireless Networks devices?
A: The WinLink 1000 is a robust system. However since it operates in
unlicensed band there maybe some interference. Nevertheless, the fact
that we can manually set the frequency gives us the flexibility to find a
clear channel. In addition each WinLink 1000 link uses unique user
configurable SSID code.
Q: What protocol does the WinLink 1000 use, i.e. 802.11?
Frequently Asked Questions 5-19
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
A: WinLink 1000 uses a proprietary protocol; this protocol contains
improved options that more efficiently support the clock
reconstruction from the TDM services.
Q: What type of security is offered on WinLink 1000?
A: WinLink 1000 has three levels of security:
1. vAES hardware mechanism
2. Each unit uses a unique SSID link-specific code (up to 24
alphanumeric characters)
3. Proprietary protocol protects from eavesdropping from other
systems.
Q: Can we use horizontal and vertical polarization on the same
frequency to double the number of wireless links?
A: Installing two WinLink 1000 systems in the same band with cross
polarization provides 20–25 dB separations. Nevertheless, since there
are reflections, the cross polarization separation is decreased and
spatial separation is recommended.
Q: Could you add the frequency of 5.735 to the manual selection in
order to increase the number of 20 MHz channels to six?
A: Currently the system provides fixed channels, with one manual
frequency setting. The manual setting provides flexibility of spectrum
selection, including 5.735 MHz.
Q: Can we mange WinLink 1000 using SNMPc other than the supplied
management software that comes with the units?
A: Yes. The WinLink 1000 is SNMP-based. WinLink 1000 can be
managed when using other SNMP software after implementing RADWIN
MIB’s.
Q: Can WinLink 1000 be managed and configured via Telnet?
A: No. Use only the WinLink 1000 software manager.
Q: Can I use WinLink 1000 with any vendor’s external antenna?
A: RADWIN supplies the WinLink 1000 external ODU with an N-type
typical connector. Any vendor’s external antenna that is of the same
type and of equal or less directional gain as an antenna that RADWIN
5-20 Frequently Asked Questions
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
authorized with its specific external ODU product can be used. That is
given that it can be cascaded to our external unit. Please note that dB
losses in the cascading cable between the external ODU and antenna
should be taken into consideration. (In the supplied cascading cable of
one meter we have 1 dB loss)
Q: Do we need to add external arrestors on WinLink 1000 cables?
A: The WinLink 1000 ODU includes arrestors and lightning protection.
Therefore there is no need to add additional arrestors.
Q: What is the actual Ethernet data rate and maximum throughput?
A: The maximum net throughput of WinLink 1000 is full duplex 18
Mbps.
Note
WinLink 1000 is a symmetrical system
Q: What is the sensitivity for each rate of the WinLink 1000?
A: The rate sensitivities are:
Rate
[Mbps]
Sensitivity
[dB]
12 -84
18 -81
36 -74
48 -68
Q: Does WinLink 1000 withhold any MAC Addresses?
A: The WinLink 1000 is a layer 2 Bridge (VLAN transparent). The built-
in switch contains a MAC Address table up to 2047.
Q: Can I use any category 5e cable in order to connect the IDU and
ODU?
A: The cable should be suitable for outdoor use, and shielded Category
5e.
Q: What are the BER values expected in the WinLink 1000 link?
A: 10-11 (according to BER sensitivity threshold)
Q: Does WinLink 1000 use DSSS technique?
Frequently Asked Questions 5-21
Chapter 5 Diagnostics and Troubleshooting WinLink 1000 Installation and Operation Manual
A: No, WinLink 1000 uses the advanced OFDM technique.
Q: What are the main advantages of the WinLink 1000 solution (e.g.,
wireline, wireless, etc.) over other possible alternatives?
A:
Easy and intuitive installation using audio indication.
Easy configuration using the management software of overall link
site-to-site, there is no need to travel between the two sites in
order to change the configuration.
Easy migration between transition channels site-to-site.
Full backup option – backup and restore using ini files.
Very light ODU (1.5 kg).
No RF loses between IDU and ODU.
Robust Air Interface Layer 2 ARQ insures “error-free” Ethernet
service even in harsh conditions. Retransmit mechanism for TDM
esures low BER.
Integrated up to 4 E1/T1 and Ethernet radio over one single
product.
Supports a variety of applications Voice and Data over single radio –
no need for external mediation device.
Smooth migration to VoIP applications.
Carrier class compliant with ITU standards for E1 and T1.
Low and constant TDM latency (8 msec).
Extremely accurate recovered clock low cost replacement to PDH
radios.
5.10 Technical Support
Technical support for this product can be obtained from the local
distributor from whom it was purchased.
For further information, please contact the RADWIN distributor nearest
you or one of RADWIN's offices worldwide. This information can be
5-22 Technical Support
WinLink 1000 Installation and Operation Manual Chapter 5 Diagnostics and Troubleshooting
found at www.radwin.com.
Technical Support 5-23
Appendix A
Wiring Specifications
A.1 ODU-IDU Cable
The ODU-IDU cable is standard CAT-5, 4 twisted-pair 24 AWG FTP,
terminated with RJ-45 connectors on both ends. It is covered by a
cable gland on the ODU side for hermetic sealing.
Table
A-1
shows the connector pinout.
Table
A-1. ODU-IDU Cable Connector Pinout
IDU RJ-45 Wire Color Function ODU RJ-45
1
twisted
White/Green Ethernet (RxN) 1
2 pair Green Ethernet (RxT) 2
3
twisted
White/Orange Ethernet (TxT) 3
6 pair Orange Ethernet (TxN) 6
4
twisted
Blue Power (+) 4
5 pair White/Blue Power (+) 5
7
twisted
White/Brown Power () 7
8 pair Brown Power () 8
ODU-IDU Cable A-1
Appendix A Wiring Specifications WinLink 1000 Installation and Operation Manual
Figure

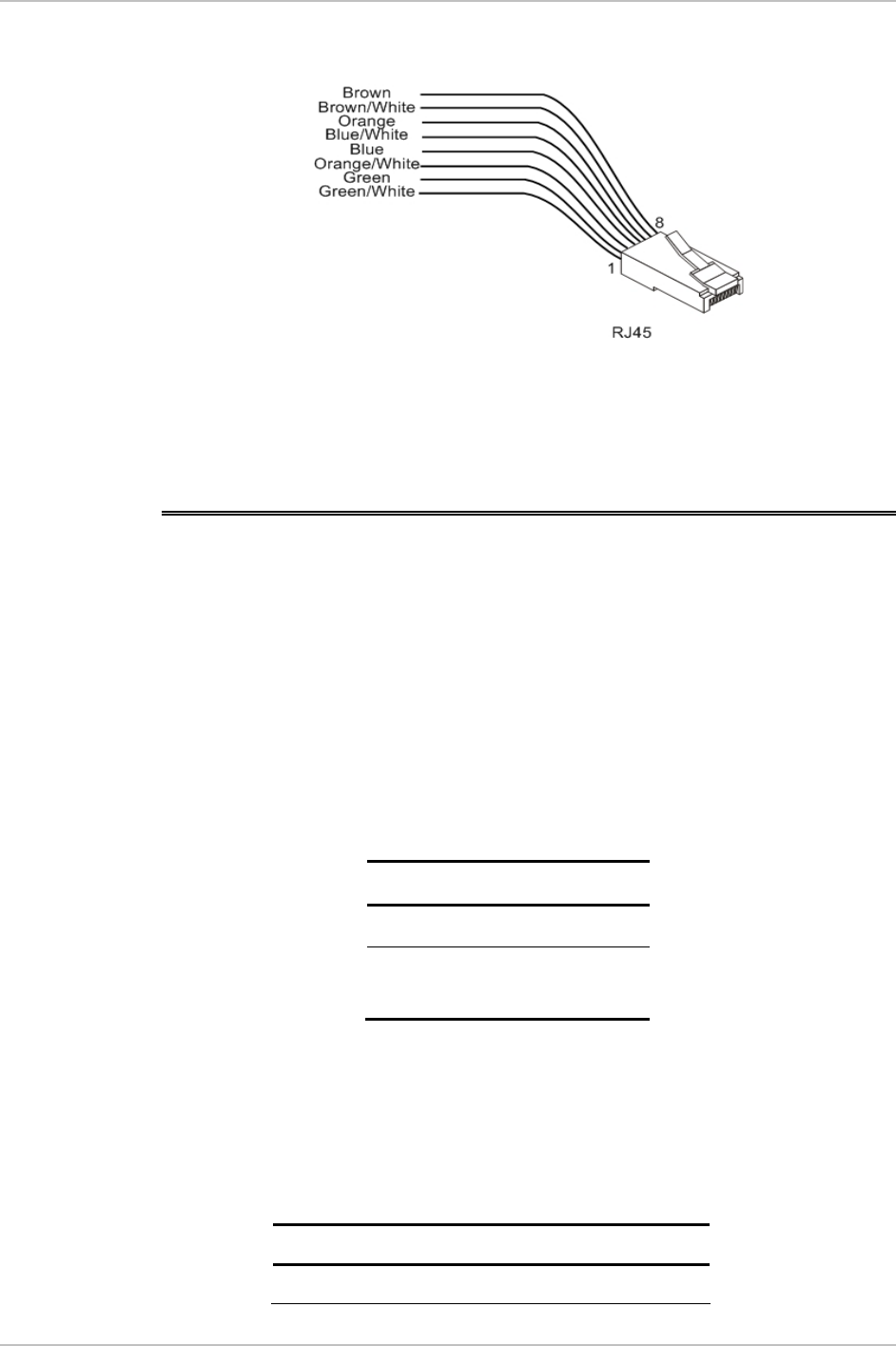

A-1. RJ-45 wiring for IDU-ODU cable
A.2 User Port Connectors
The IDU includes ports for connecting E1/T1 and 10/100BaseT
Ethernet user devices.
Trunk Port
The Trunk (E1/T1) interface terminates in an 8-pin RJ-45 balanced
connector, wired in accordance to
Table
A-2
.
Table
A-2. E1/T1 Connector Pinout
Pin Function
4,5 Receive (input)
1,2 Transmit
(output)
LAN Port
The LAN 10/100BaseT interface terminates in an 8-pin RJ-45
connector, wired in accordance to
Table
A-3
.
Table
A-3. Fast Ethernet Connector Pinout
Pin Signal Function
1 TD (+) Transmit Data
A-2 User Port Connectors
WinLink 1000 Installation and Operation Manual Appendix A Wiring Specifications
(positive)
2 TD (–) Transmit Data
(negative)
3 RD (+) Receive Data
(positive)
6 RD (–) Receive Data
(negative)
A.3 IDU-C Connectors
IDU-C DC Power Terminal
Table
A-4. Terminal Block 3-pin -48VDC
Pin Connectio
n
Right +
Center Ch is ass
Left –
IDU-C Connectors A-3
Appendix A Wiring Specifications WinLink 1000 Installation and Operation Manual
IDU-C Alarm Connector
Table Table A-5 lists the alarm connector pinout.
Table
A-5. Alarm Connector (Dry-Contact)
Pin Descriptio
n
1 Input 1 Positive
6 Input 1 Negative
2 Input 2 Positive
7 Input 2 Negative
3 Output 1 Normally
Closed
8 Output 1 Common
4 Output 1 Normally Open
9 Output 2 Common
5 Output 2 Normally Open
9COM
8COM
7- ve
6-ve
4
3
1
2
+ve
Output 2
Output 1
Input 1
Input 2
Alarm Connector
7
+ve
10 to 50 VDC alarm voltage
-10 to -50 VDC alarm voltage
Ext. current limit resistor Alarm LED
Ext. DC Power
Alarm Buzzer
Ext. DC Power
Ext. current limit resistor
N/C
N/O
N/O
Figure

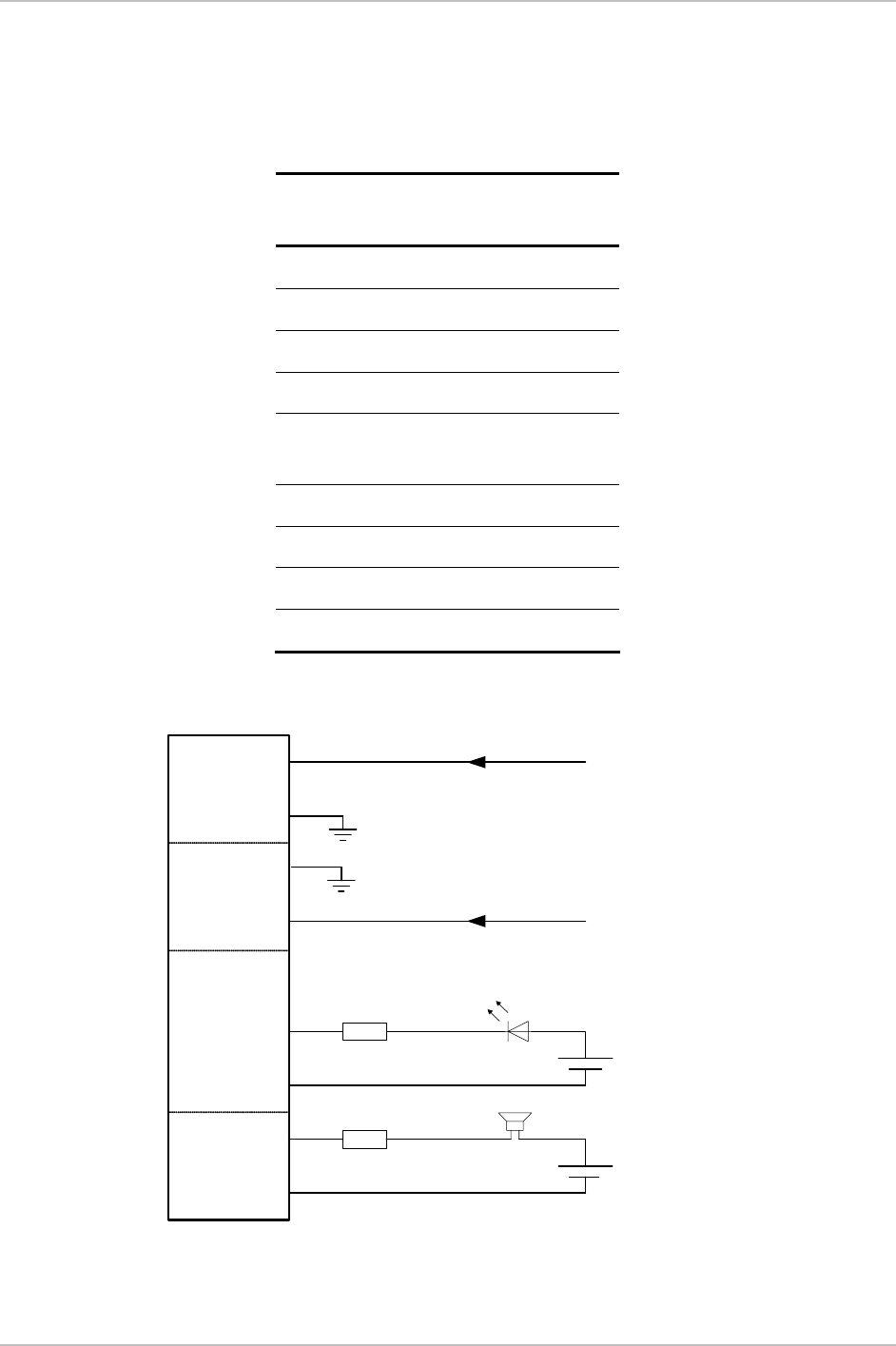

A-2. Example for connecting the alarm connector
A-4 IDU-C Connectors
WinLink 1000 Installation and Operation Manual Appendix A Wiring Specifications
IDU-C Connectors A-5
Appendix B
Mast and Wall Installation
B.1 Mounting the ODU
The ODU can be mounted on a mast or a wall.
ODU Mounting Kit Contents
The ODU mounting kit includes the following items:
One Large Clamp (see figure B-1)
One Small Clamp (see figure B-2)
One Arm (see figure B-3)
Four Screw hex head M8x40
Two Screw hex head M8x70
Four Washer flat M8
Three Washer spring M8
Two M8 Nuts.

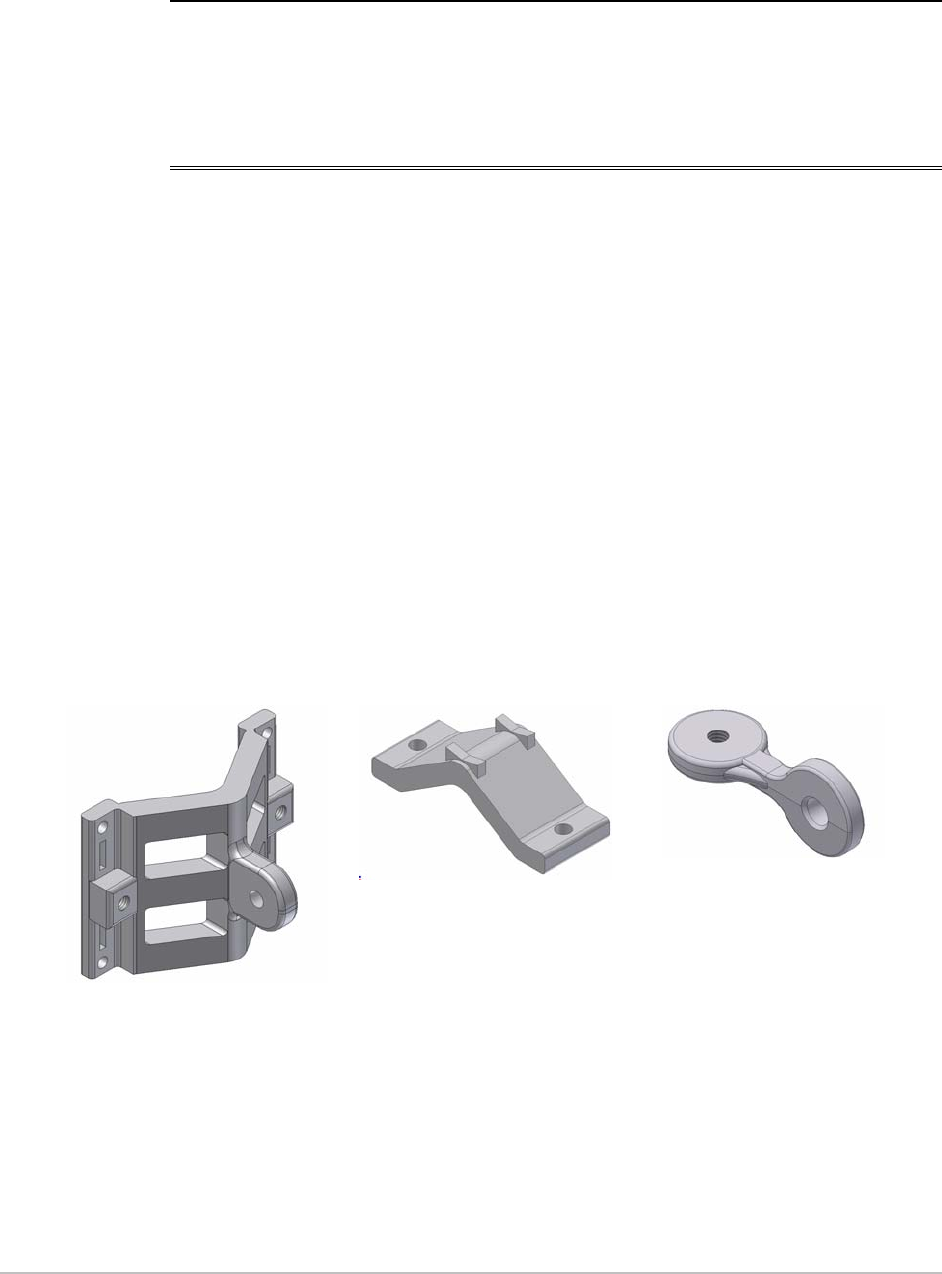

Figure
B-1. Large
Clamp
Figure
B-2. Small
Clamp
Figure
B-3. Arm
Mounting the ODU B-1
Appendix B Mast and Wall Installation WinLink 1000 Installation and Operation Manual
Mounting WinLink 1000 on a Mast
B-2 Mounting the ODU
WinLink 1000 Installation and Operation Manual Appendix B Mast and Wall Installation

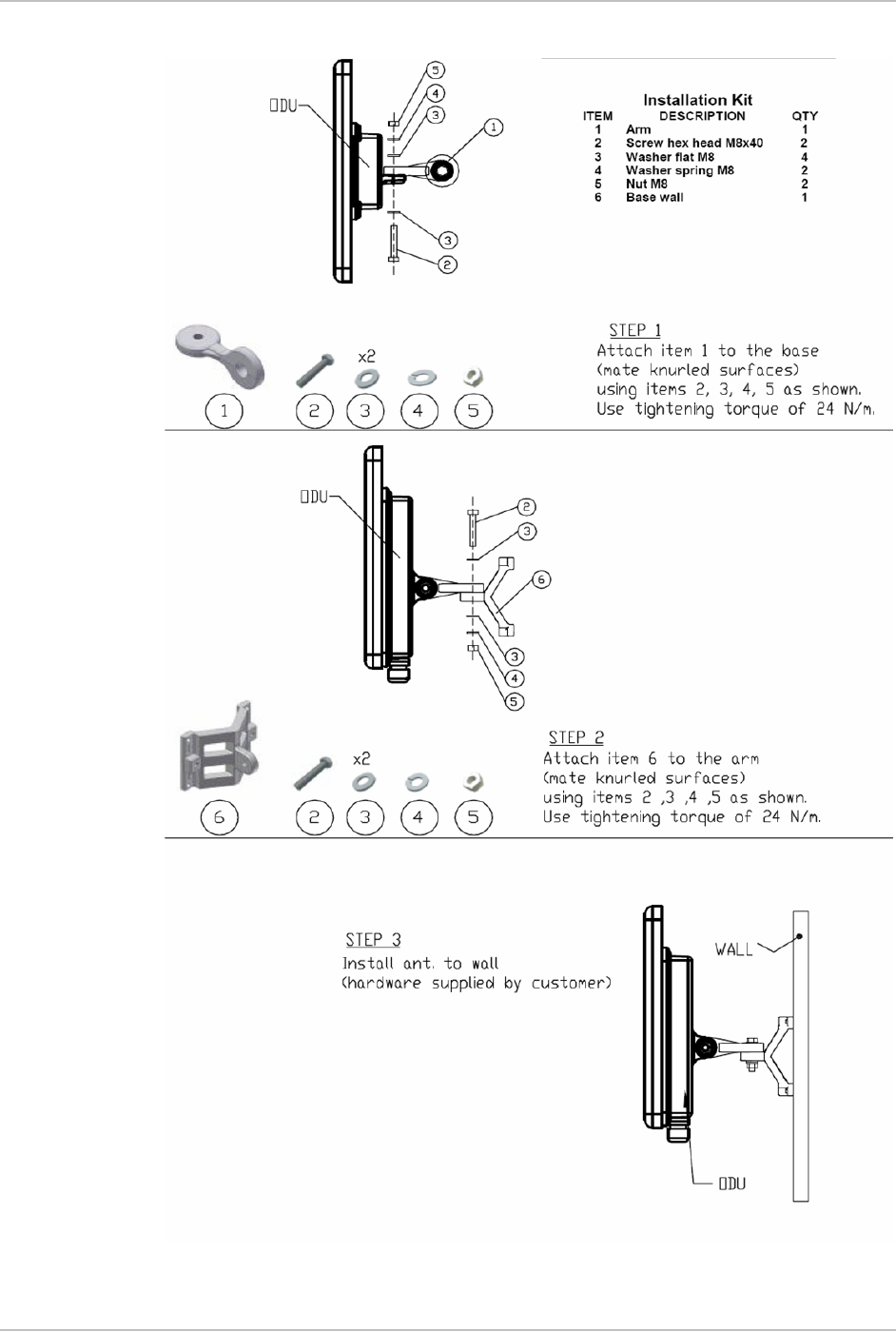

Mounting WinLink1000 on a Wall
Mounting the ODU B-3
Appendix B Mast and Wall Installation WinLink 1000 Installation and Operation Manual

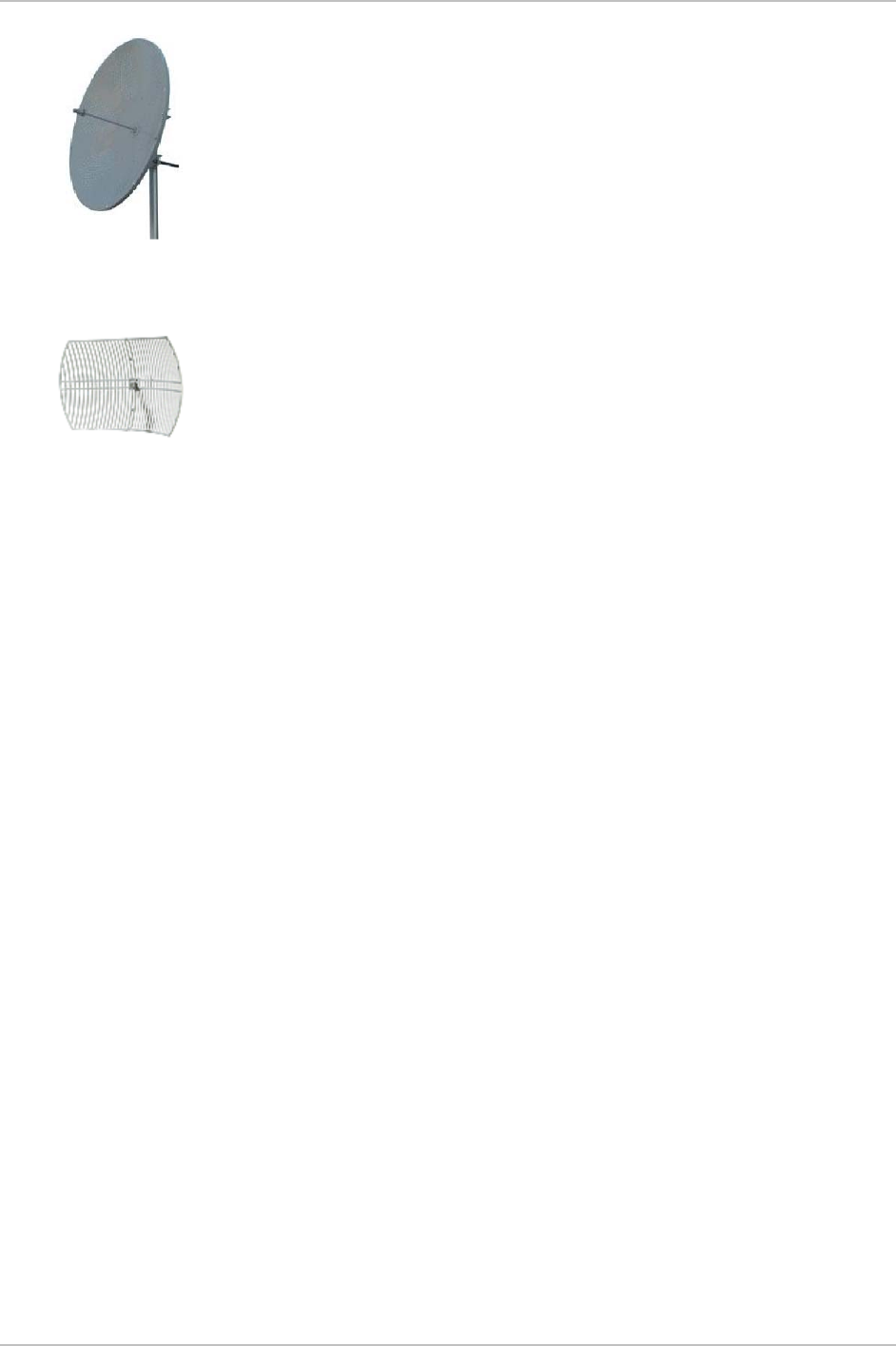

B.2 Mounting an External Antenna
The optional external antenna can be mounted on a mast.
External Antenna Mounting Kit Contents
The external antenna mounting kit includes the following items:
Twelve flat washers
Eight spring washers
Eight hex nuts
Four bolts
One U-bracket
One pivoting bracket
Two metal strap clamps.

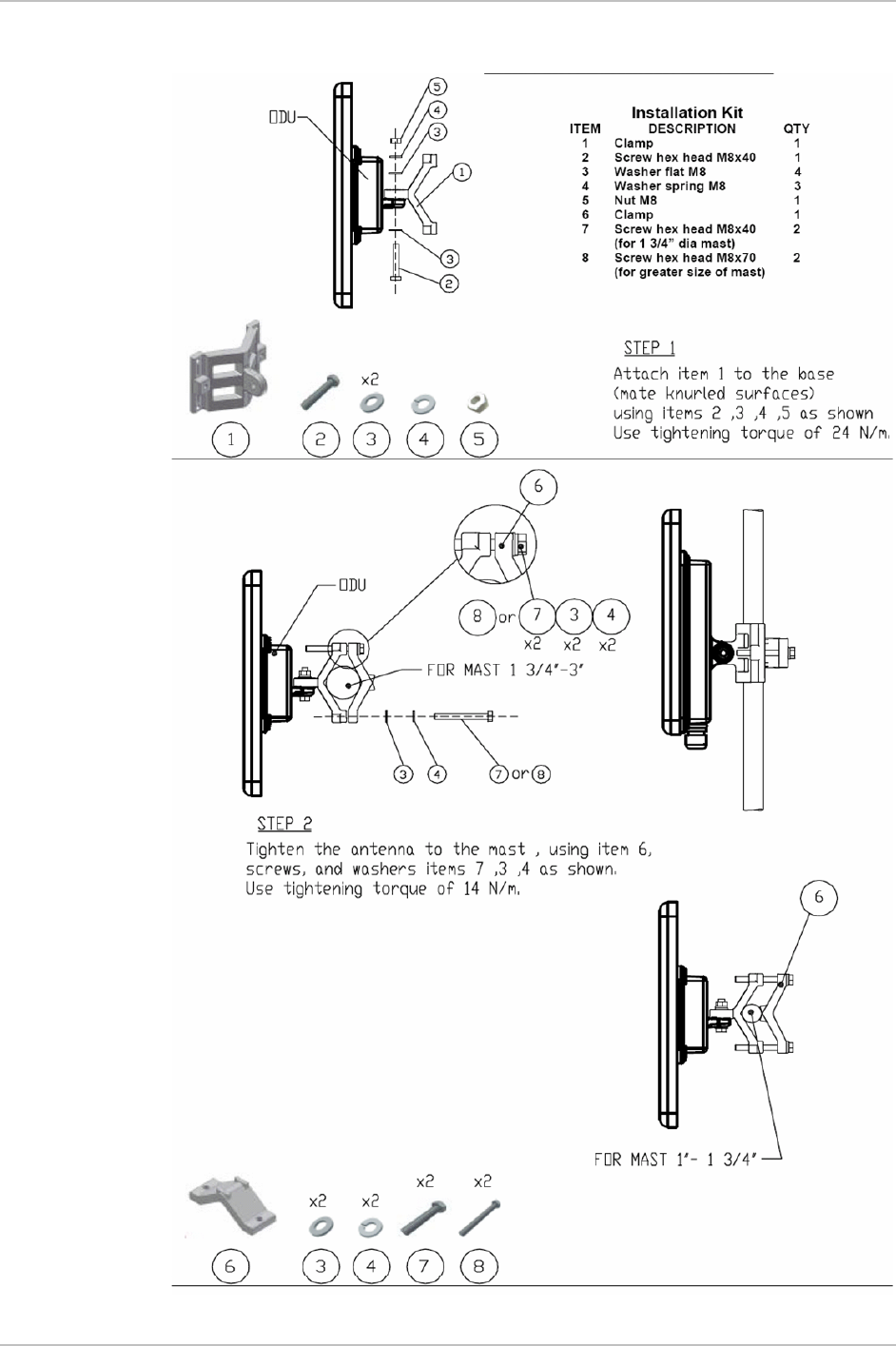

Æ To install external antenna on the mast:
1. Attach the U-bracket to the back of the antenna using four flat
washers, four spring washers and four hex nuts.
2. Attach the pivoting bracket to the U-bracket using eight flat
washers, four spring washers, four hex nuts and four bolts.
3. Pass both strap clamps through the vertical slots in the pivoting
bracket.
4. Attach the antenna to the mast using the two strap clamps.
5. Adjust the required tilt using the angular scale and tighten all bolts
and nuts at the required position.
B-4 Mounting an External Antenna
Appendix C
Link Budget Calculator
C.1 Overview
The Link Budget Calculator is a utility for calculating the expected
performance of the WinLink 1000 wireless link and the possible
configurations for a specific link range.
The utility allows you to calculate the expected RSS of the link, and find
the type of services and their effective throughput as a function of the
link range and deployment conditions.
The Link Budget Calculator is supplied on the WinLink 1000 Manager
CD. After installation, it may also be accessed from the menu bar of
the WinLink Manager (see Figure C-1).
WinLink 1000 Overview C-1
Appendix C Link Budget Calculator Installation and Operation Manual
Figure
C-1. Accessing the Link Budget Manager Calculator
C.2 Using the Link Budget Calculator
The Link Budget Calculator comprises of one table where all the link
parameters are defined.
C-2 Using the Link Budget Calculator WinLink 1000
Installation and Operation Manual Appendix C Link Budget Calculator

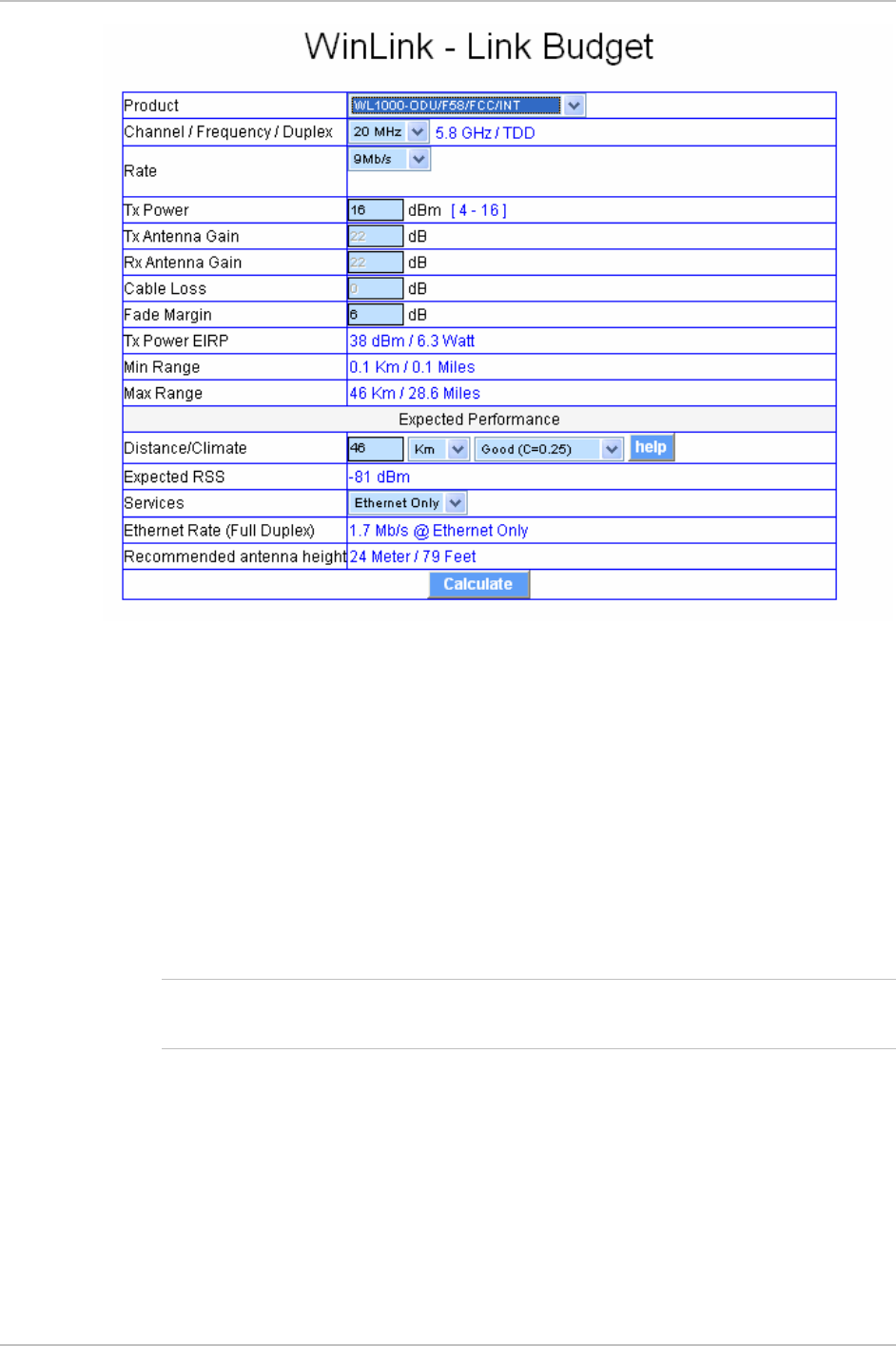

Figure
C-2. Link Budget Screen
Æ To calculate the link budget
1. Select your WinLink system product from the dropdown list of
products.
2. Select the rate from the dropdown list. The rate defines the air-
interface rate in Mbps. The system operates in TDD mode and has
overhead of the air-interface protocol and therefore the accurate
actual throughput is provided in the ‘Service’ Row and the effective
Ethernet throughput is provided in the ‘Ethernet Rate’.
Note
Throughput can be decreased as a function of range due to
propagation delay.
The remaining fields are completed automatically depending on the
product selected in the product field. Standard WinLink 1000
system parameters are entered as default. Fields in blue boxes may
be edited if non-standard antennas and cables are used.
The Fade margin is the minimum margin that is required for LOS
conditions. For degraded link conditions, a larger fade margin
should be taken into account.
WinLink 1000 Using the Link Budget Calculator C-3
Appendix C Link Budget Calculator Installation and Operation Manual
The Tx power EIRP for the system is given in dBm and Watts.
3. Type the required link distance and select units of distance,
kilometers or miles.
4. Select the general conditions
5. Select the services required
6. Click Calculate
The Expected Performance parameters are calculated and
displayed in the lower part of the table.
Expected RSS – this is the number that the WinLink 1000
Manager software shows when the WinLink 1000 ODUs are best
aligned.
Ethernet Rate – Maximum throughput available with the chosen
system.
If the expected performance is not suitable for your application, select
a different data rate and re-calculate.
C-4 Using the Link Budget Calculator WinLink 1000
Appendix D
AIND Antenna Alignment
Procedure
Use this procedure when using the all indoor system WinLink 1000-
ANID or manually aligning two WinLink 1000 units.
To achieve the best benefit and link budget from the WinLink
installation, the link antennas must be aligned; the two antennas
should exactly face each other.
In order to achieve the best performance, the line of sight must be as
clear as possible with no obstructions between the two sites.
Prior to attempting WinLink alignment, install the hardware and
software in accordance with the WinLink 1000 Installation and
Operation Manual.
Figure
D-1
shows the link setup. At least two
people are needed to perform the alignment procedures.
Once the alignment is complete, you are able to evaluate the quality of
the link.
Site A
Site B
AirMux
IDUx IDUx
Figure

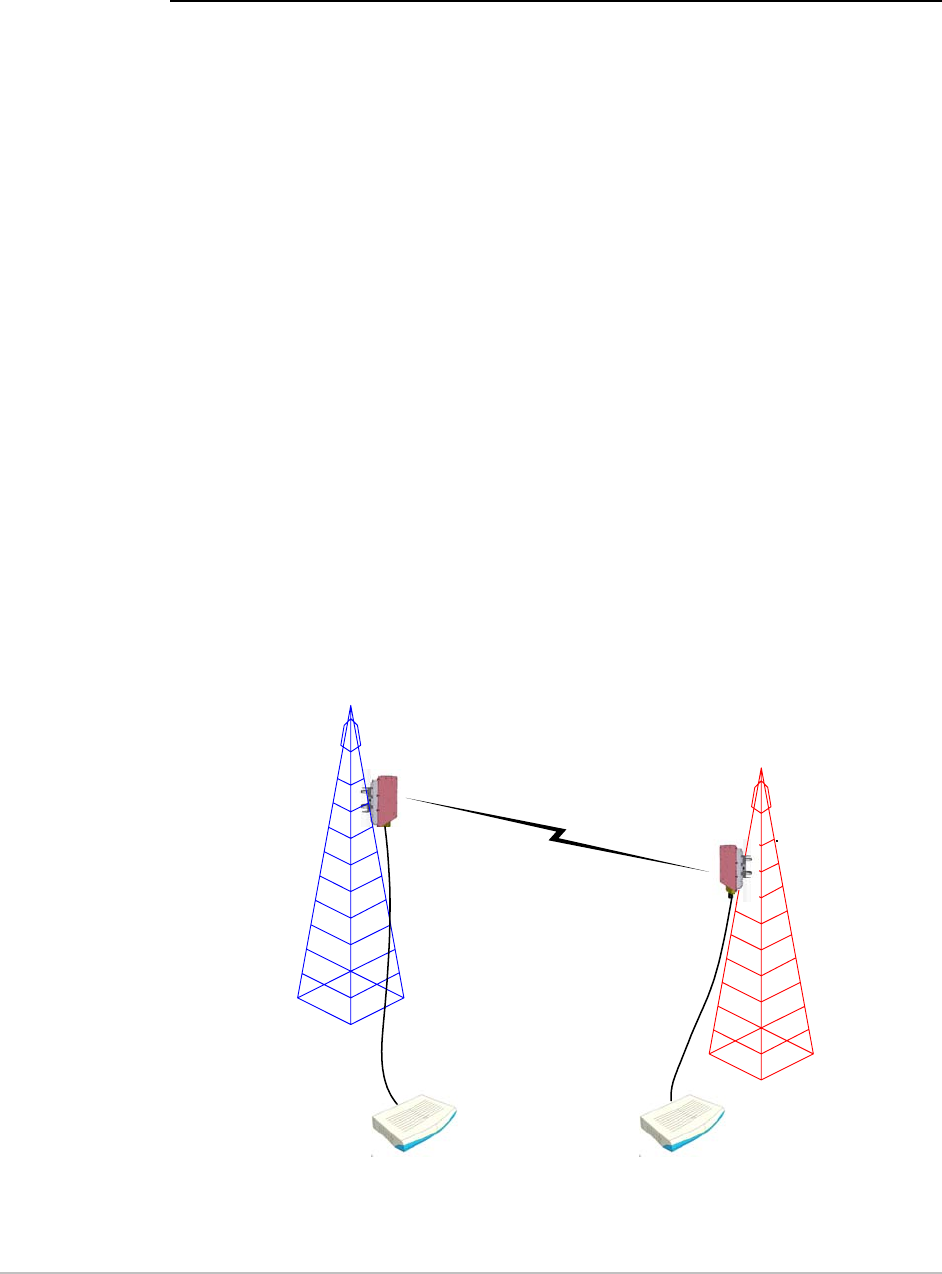

D-1. WinLink 1000 Link Setup
Expected Signal Level D-1
Appendix D AIND Antenna Alignment Procedure WinLink 1000 Installation and Operation Manual
D.1 Expected Signal Level
Based on the link budget parameters of the actual WinLink sites, you
need to calculate the expected signal level that will be received by the
receiving site.
Use the Link Budget Calculator utility supplied on the WinLink 1000
Manager Software CD-ROM to calculate the expected performance of
the WinLink 1000 wireless link. The utility allows you to determine the
RSS of the link, and find the number of E1/T1 services available at
various data rates, with the minimum and maximum distance.
D.2 Performing WinLink 1000-AIND Alignment
The supervisor of the antenna alignment is situated at the receive site
with the Spectrum Analyzer.
Equipment Setup
Æ To set up the antenna alignment equipment:
1. Coarsely align the two antennas. Use the compass readings taken
during the Site Survey to point the antennas in the correct direction.
2. Connect the equipment as shown in
Figure
D-1
but connect a
spectrum analyzer in place of the remote WinLink 1000-AIND.
3. Turn on the CW transmit signal from site A (from the WinLink 1000
NMS).
4. 4. At site B, tune the SA to the frequency transmitted.
5. 5. Increase the SA sensitivity according to the expected receive
signal.
Align the antennas:
Note
When one antenna is moved, the opposite ite is passive s
Move the antennas very slowly
1. Slowly move the site B antenna azimuth axis (the elevation axis
should be locked) until you see the best signal on the SA Lock the
azimuth axis.
D-2 Performing WinLink 1000-AIND Alignment
WinLink 1000 Installation and Operation Manual Appendix D AIND Antenna Alignment Procedure
2. Slowly move the site A antenna azimuth axis (the elevation axis
should be locked) until you see the best signal on the SA.
Lock the azimuth axis.
3. Slowly move the site B antenna elevation axis (the azimuth axis
should be locked) until you see the best signal on the SA.
Lock the elevation axis.
4. Slowly move the site A antenna elevation axis (the azimuth axis
should be locked) until you see the best signal on the SA.
Lock the elevation axis.
5. Repeat steps 1 to 4 until the reading on the SA is equal or as close
as possible to the calculated receive signal (for Rx Power Level see
Expected Signal Level
).
When the SA reads the expected receive signal, the antennas are
aligned and there is an indication of a good link between the sites.
6. Tighten the antenna azimuth axis and elevation axis.
7. Stop the CW function. The NMS will restart the system.
8. Connect WinLink 1000-AIND unit to external antenna. See WinLink
1000 Installation and Operation Manual for details. The operational
link is shown in
Figure 2-3
.
9. Configure WinLink 1000 NMS at both sites to operate at the pure
channel frequency found in the RF survey. WinLink 1000 is now
ready for operation.
D.3 Configuring the Link
1. Run the Installation Wizard in the WinLink 1000 Manager Software
to set the configuration of the link. Configure the link in accordance
with the parameters calculated in the Link Budget Calculator.
2. WinLink 1000 has a unique identification number, the SSID. Each
side of the link looks for its partner with the same SSID. Therefore
both sides of the link must be configured with the same SSID.
3. The WinLink 1000 link is now ready for operation.
Configuring the Link D-3
Appendix D AIND Antenna Alignment Procedure WinLink 1000 Installation and Operation Manual
D.4 Evaluating the Link
With the link operating at a pure channel as determined by the
RF survey procedure, the recommended performance threshold of an
WinLink 1000 link is the following:
RSS: –84 dBm minimum
There are cases when there is no line of sight, but still the link is of an
acceptable quality.
If the link is not within the acceptable limit, see
Troubleshooting
.
D-4 Evaluating the Link
WinLink 1000 Installation and Operation Manual Appendix D AIND Antenna Alignment Procedure
D.5 Troubleshooting
If the link is not within the acceptable limit as defined in
Evaluating the
Link
, check the following:
Verify that both antennas have the same polarization
(horizontal/vertical).
Check all the WinLink 1000-AIND cable connectors for faulty
connections.
Verify that there are no obstacles in the Fresnel zone of the antenna
path such as large buildings, trees, etc.
Use a spectrum analyzer with suitable sensitivity to measure the
signal at the distance between the sites.
If nothing improves the receive power level, check the overall link.
Reduce the distance of the link–move the equipment from one site
closer to the other site–where it is possible to actually see the
antennas with the naked eye.
If you now get the expected receive signal level, you can assume
that the equipment is operational, and the problem arises from
interference between the sites.
Troubleshooting D-5
Appendix E
Antenna Characteristics
An antenna is the radiating and receiving element from which the radio
signal, in the form of RF power, is radiated to its surroundings and vice
versa. The transmission range is a function of the antenna gain and
transmitting power. These factors are limited by country regulations.
WinLink 1000 may be operated with an integrated antenna attached to
the ODU unit, or with an external antenna wired to the ODU via an N-
type connector. All cables and connections must be connected
correctly to reduce losses. The required antenna impedance is 50.
Table
E-1. Antenna Characteristics
Type Gain
[dBi]
Max Range
[km][miles]
Beam
[degrees
]
Dimensions
[mm] [in]
Weight
[kg]
[Ib]
Connector Lightning
Protection
5.8, 5.4, 5.3 GHz
Integrat
ed
Flat
panel
22 40 25 9.0 305×305×58 12×12×2.3 0.5 1.1 NR Yes
External Flat
panel
28 80 50 4.5 600×600×51 23.6×23.6×25.0 11.0 N-type No
5.8 GHz only
External Dish 32.5 80 50 4.5 Dia 900 Dia 35.4 10 22 N-type No
4.9 GHz
External Flat
panel
21 24 15 9.0 305×305×58 12×12×2.3 0.5 1.1 N-type Yes
External Dish 27 80 50 5 Dia 600 Dia 23.6 5.0 11.0 N-type Yes
2.4 GHz
Integrat
ed
Flat
panel
17 40 25 20 305×305×58 12×12×2.3 0.5 1.1 NR Yes
External Grid 24 80 50 7.5 600×997×38
0
23.5×39.2×1
5
2.0 4.6 N-type No
Antenna Characteristics E-1
Appendix E Antenna Characteristics WinLink 1000 Installation and Operation Manual
Parabolic Dish
Antenna
The Parabolic dish antenna is a high-gain, reflector
antenna used for radio, television, and data
communications. The relatively short wavelength of
electromagnetic (radio) energy at these frequencies allows
reasonably sized reflectors to exhibit the very desirable
highly directional response for both receiving and
transmitting.
Grid Antenna
Used for 2.4 GHz applications. Due to the large size, the
grid design minimizes weight and windloading.
E-2 Antenna Characteristics
Appendix F
Hub Site Synchronization
F.1 Introduction
This Appendix is relevant for WinLink 1000-ACCESS-CL hardware only.
WinLink 1000-ACCESS-CL ODU units are supplied with special
hardware for easing collocation of several units, using a method called
Hub Site Synchronization (HSS). HSS uses an external cable connected
to all collocated WinLink 1000 radios. This cable carries pulses sent to
each radio, which synchronize their transmission with each other.
This pulse synchronization ensures that the transmission of packets
occurs at the same time for all collocated units. This synchronized
transmission also results in all of the hub units receiving data at the
same time, eliminating the possibility of interference that could result
if some units transmit while other units at the same location receive.
HSS supports installation of up to eight collocated units.
Figure
F-1

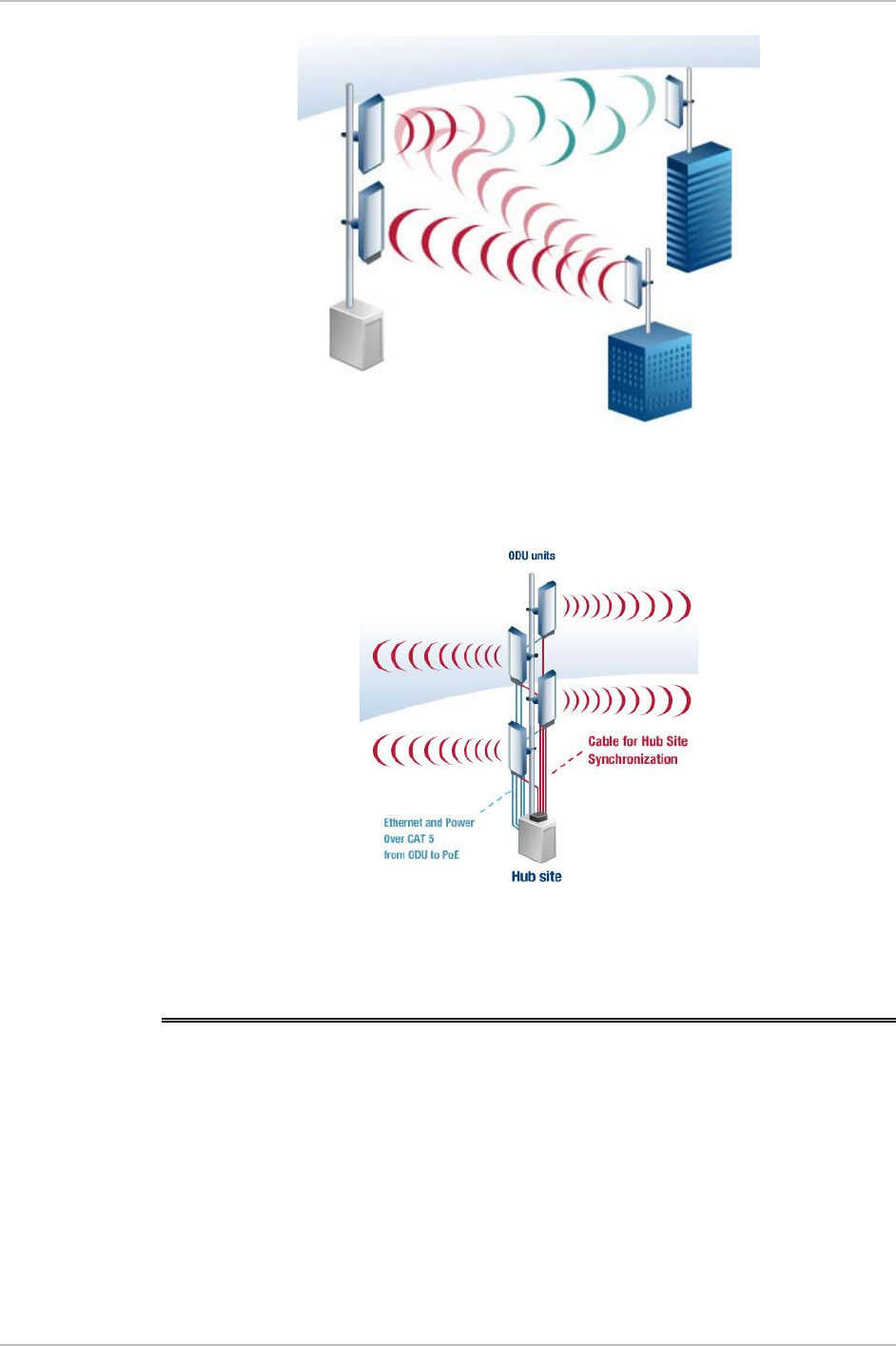

shows interference caused by non-synchronized collocated
units.
WinLink 1000 Introduction F-1
Appendix F Hub Site Synchronization Installation and Operation Manual
Figure
F-1. Interference caused by collocated units
Figure
F-2. Collocated units using Hub Site Synchronization
F.2 Hardware Installation
HSS supports installation of up to eight collocated units. In addition to
each unit being connected to its IDU or PoE device, the collocated unit
has an additional cable that is connected to the HSS Unit. The HSS Unit
is a compact, weatherproof (IP67) connector box that is installed on
the same mast as the ODUs. All collocated units connect to this box via
CAT 5e cable. Prepared lengths are available for purchase.
F-2 Hardware Installation WinLink 1000
Installation and Operation Manual Appendix F Hub Site Synchronization
The HSS is supplied with ten protective covers; any port not in use
must be closed with a protective cover.

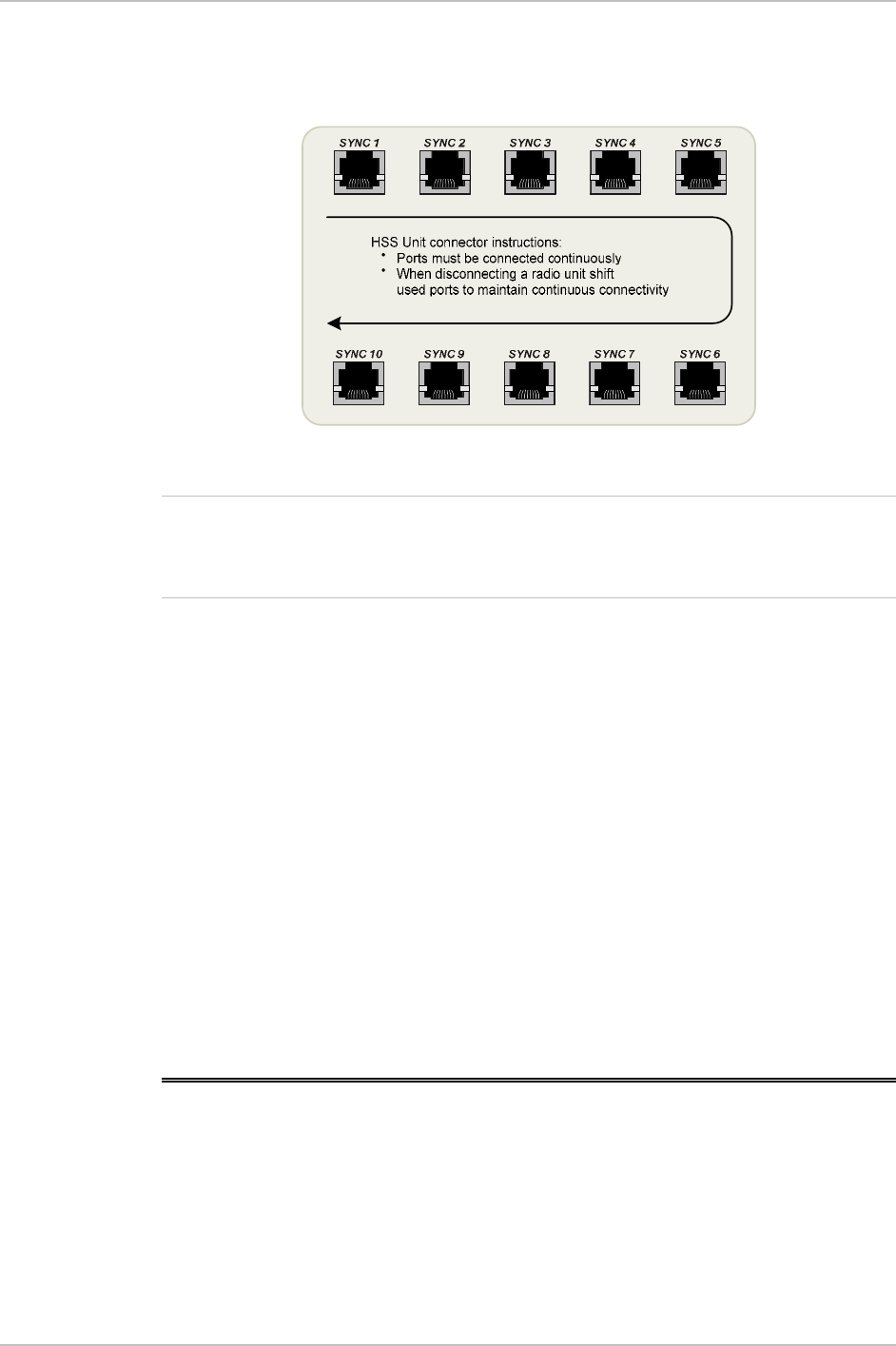

Figure
F-3. HSS Interconnection Unit
Note
Ensure that the collocated units are connected in sequence from SYNC
1. If an ODU is removed form the hub site, then all remaining ODUs
must be reconnected to maintain the connectivity.
Æ To connect an ODU to the HSS
1. Unscrew the protective cover from the port marked SYNC 1.
2. Connect the RJ-45 connector from one end of the prepared CAT 5e
cable to SYNC 1.
3. Connect the other end of the CAT 5e cable to the ODU connector
labeled SYNC.
4. Tighten the protective seal that is on the prepared cable over the
RJ-45 connector.
5. Repeat for all ODUs that are to be collocated at the hub site. The
next ODU to be connected is inserted to SYNC 2, followed by SYNC
3 and so on.
F.3 Architecture
One of the collocated ODUs at the hub site acts as the Hub Sync
Master; all the other collocated units are Hub Sync Clients. The Hub
Sync Master generates the pulses that synchronize the timing of the
Hub Sync Clients.
WinLink 1000 Architecture F-3
Appendix F Hub Site Synchronization Installation and Operation Manual
A Hub Sync Client can be configured to be two different types:
Hub Sync Client–Continue Transmission: In the event that the unit
loses synchronization with the Hub Sync Master, the link remains
active. However, without synchronization pulses, it is possible that this
unit will cause interference.
Hub Sync Client–Disable Transmission: In the event that the unit loses
synchronization with the Hub Sync Master, the link is dropped until the
synchronization pulses resume. This setting prevents the unit from
causing interference.
The remote ODUs that are not located at the hub site, are called
Independent Units and do not require HSS hardware.
F.4 HSS Link Configuration

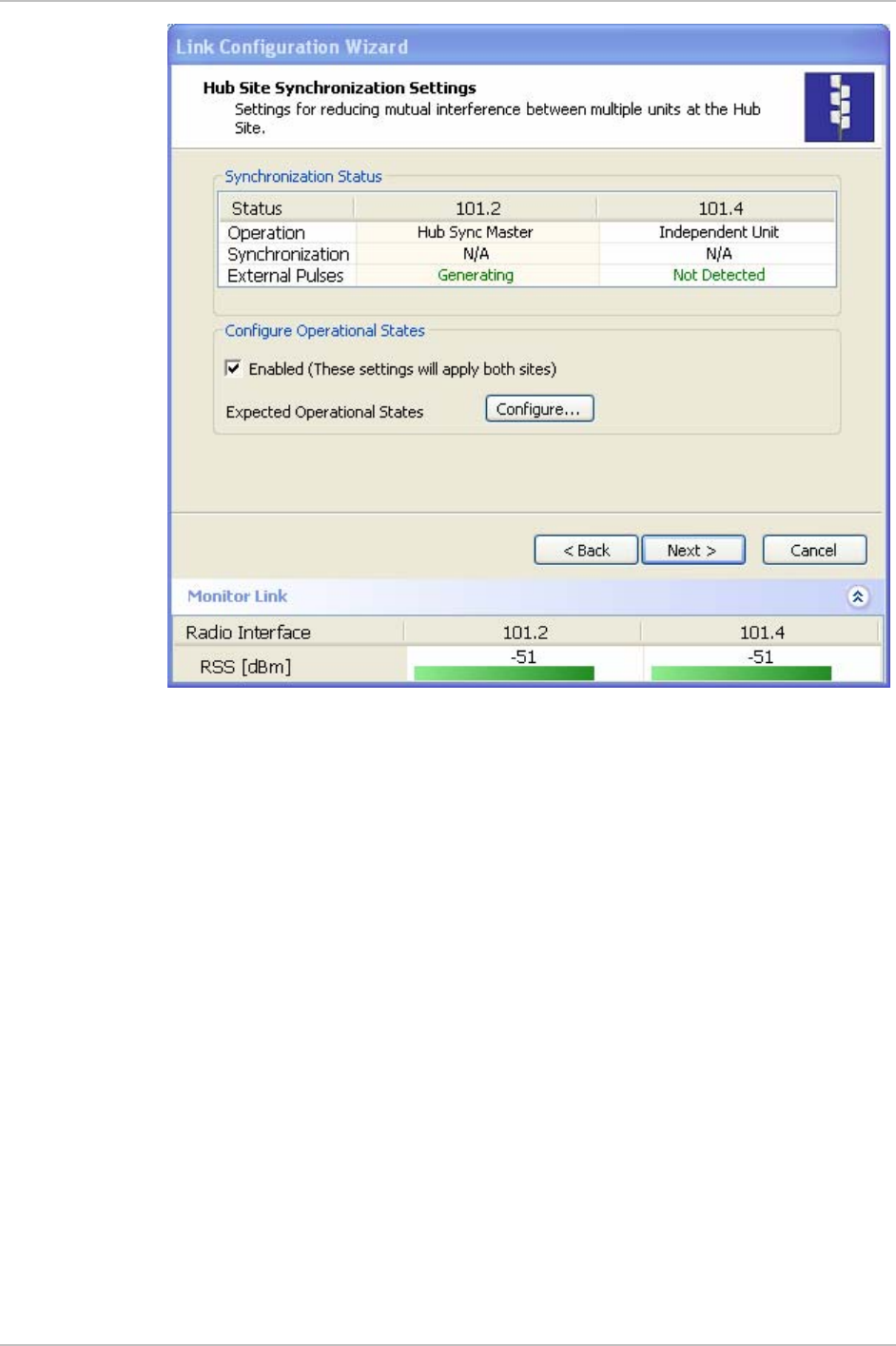

For HSS-enabled units, the Hub Site Synchronization Settings dialog
box appears in the Link Configuration Wizard.
F-4 HSS Link Configuration WinLink 1000
Installation and Operation Manual Appendix F Hub Site Synchronization
Figure
F-4. Hub Site Synchronization Settings dialog box
The Synchronization Status dialog box displays the current status of
each side of the link.
Operation: Type of unit
Hub Sync Master
Hub Sync Client – Disable Transmission
Hub Sync Client – Continue Transmission
Synchronization:
N/A- for Master or Independent Units
Synchronized – for Hub Site Clients
Not Synchronized – for Hub Site Clients)
External Pulses: The status of the pulses running through the HSS
cable. The Master generates such pulses. The severity of each of
these states is indicated by green, yellow or red text color. Possible
states are:
Not Detected (Sync pulses were not detected)
WinLink 1000 HSS Link Configuration F-5
Appendix F Hub Site Synchronization Installation and Operation Manual
Generating (No pulses detected)
Generating and Detected
Generating and Improper Detected
Detected (Proper external pulses detected)
Improper Detected (Improper pulses detected)
Multiple Sources Detected (Multiple pulses detected).
Æ To configure the Operational States of the hub site unit
6. Click the Enabled check box
7. Click the Configure button.
The Hub Site Configuration dialog box with the current status of
the ODUs is displayed.
8. Select the appropriate radio button and then select from the drop-
down list. Because only the relevant options are displayed
according to the hardware configuration of each unit, usually the
remote site will have only the Independent Unit option available.

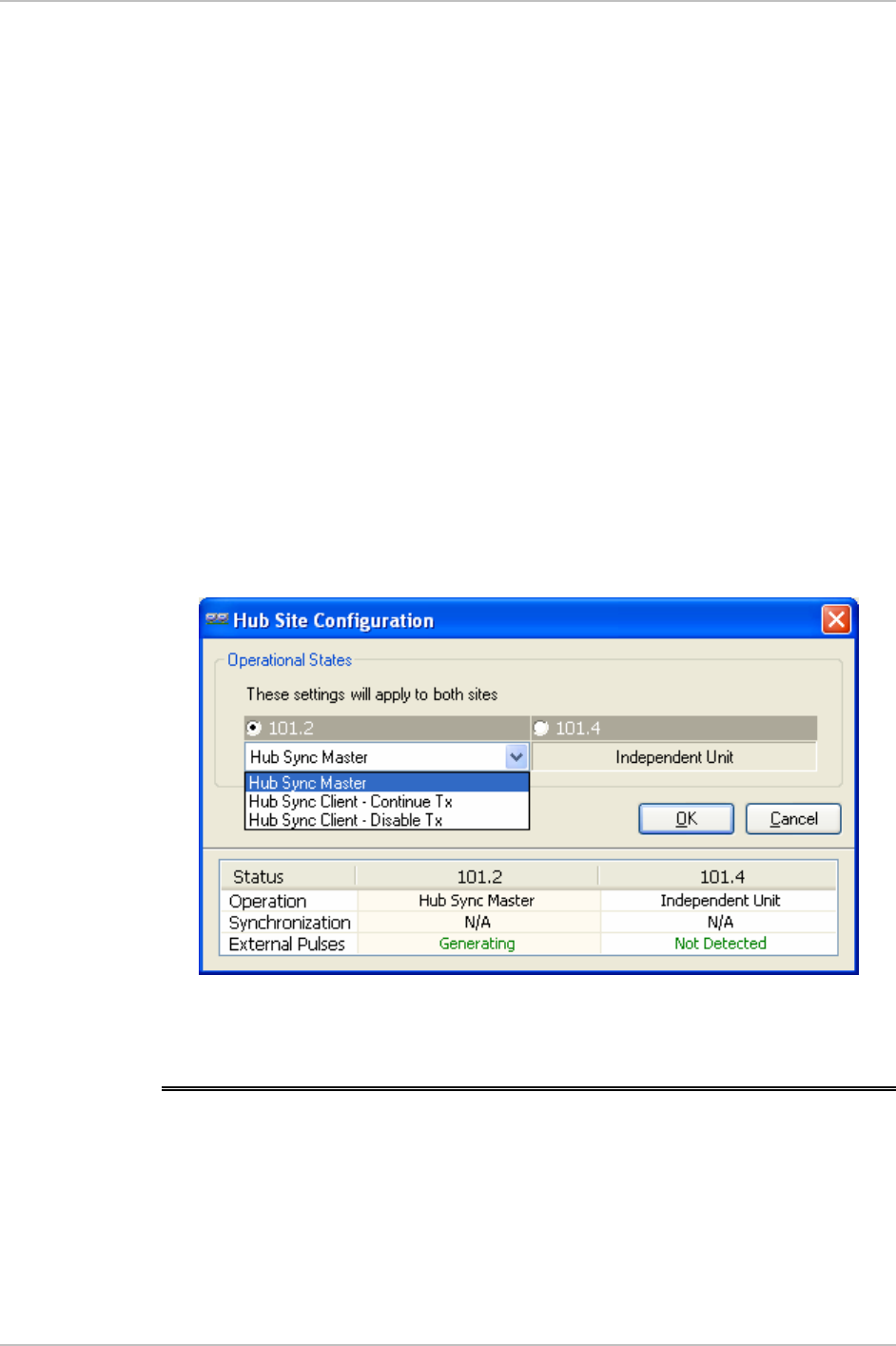

Figure
F-5. Hub Site Configuration dialog box
F.5 Site Configuration
For units that support HSS, the Hub Site Sync option appears in the Air
Interface section and displays the current HSS of the unit. Configure
the unit from the Link Configuration Wizard according to the procedure
described above.
F-6 Site Configuration WinLink 1000
Installation and Operation Manual Appendix F Hub Site Synchronization

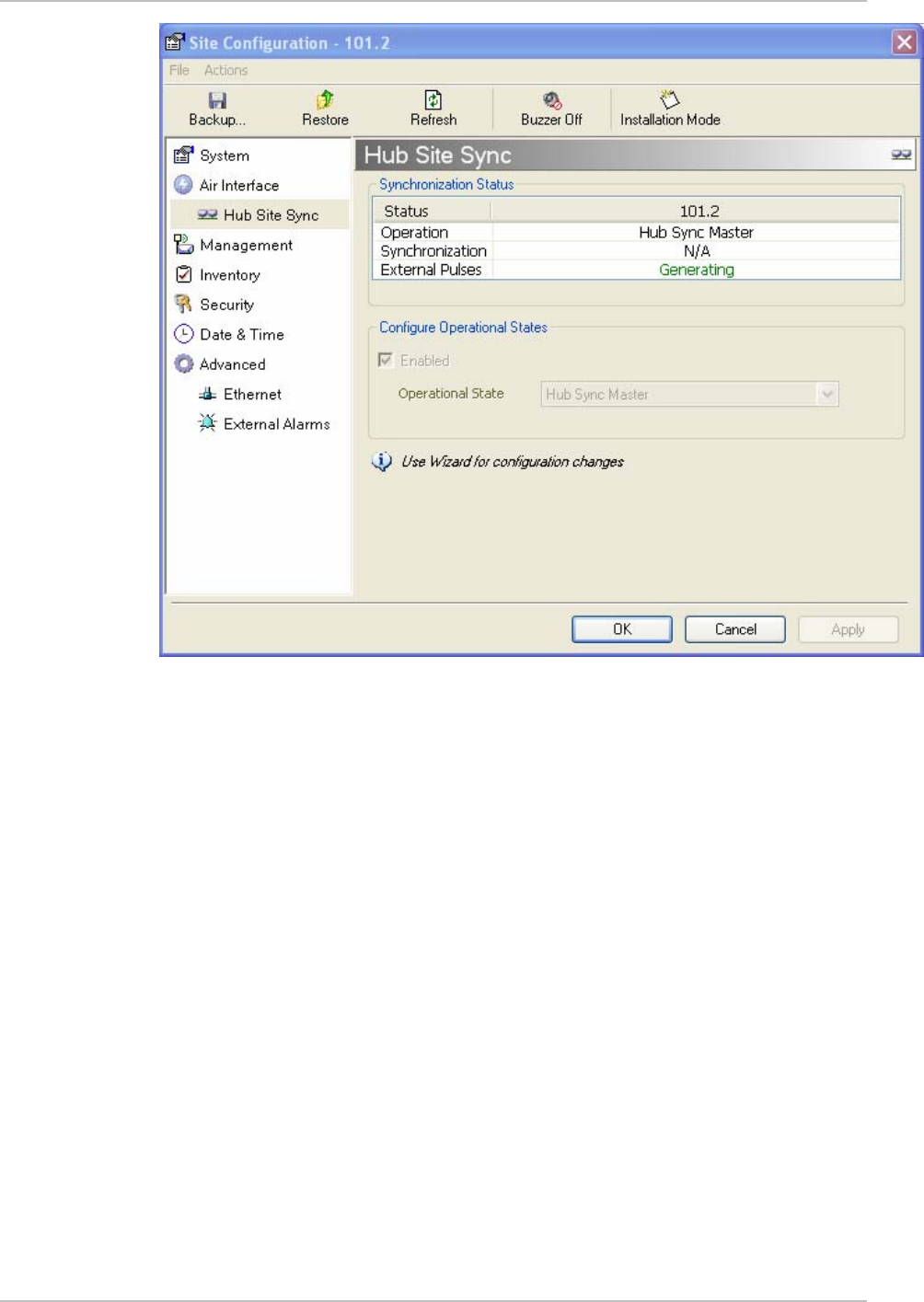

Figure
F-6. Site Configuration – Hub Site Sync dialog box
WinLink 1000 Site Configuration F-7
Appendix G
BRS Installation Procedure
G.1 BRS Link Activation
In accordance with 2.5 GHz standard, WinLink 1000-BRS systems links
must be activated before use. This is done at both ODUs independently
before installation on site. Both ODUs must be configured the same.
Æ To Activate a BRS Link
1. Install WinLink 1000 Manager software as usual.
2. When the Manager Main Screen is displayed it appears with the Link
Status label red and showing Inactive. The Link Configuration and
Link installation buttons are disabled.
WinLink 1000 BRS Link Activation G-1
Appendix G BRS Installation Procedure Installation and Operation Manual
Figure
G-1. Inactive Manager Screen
3. Click Configuration>Configure Location
The Air Interface dialog box opens,
Figure
G-2
.
G-2 BRS Link Activation WinLink 1000
Installation and Operation Manual Appendix G BRS Installation Procedure

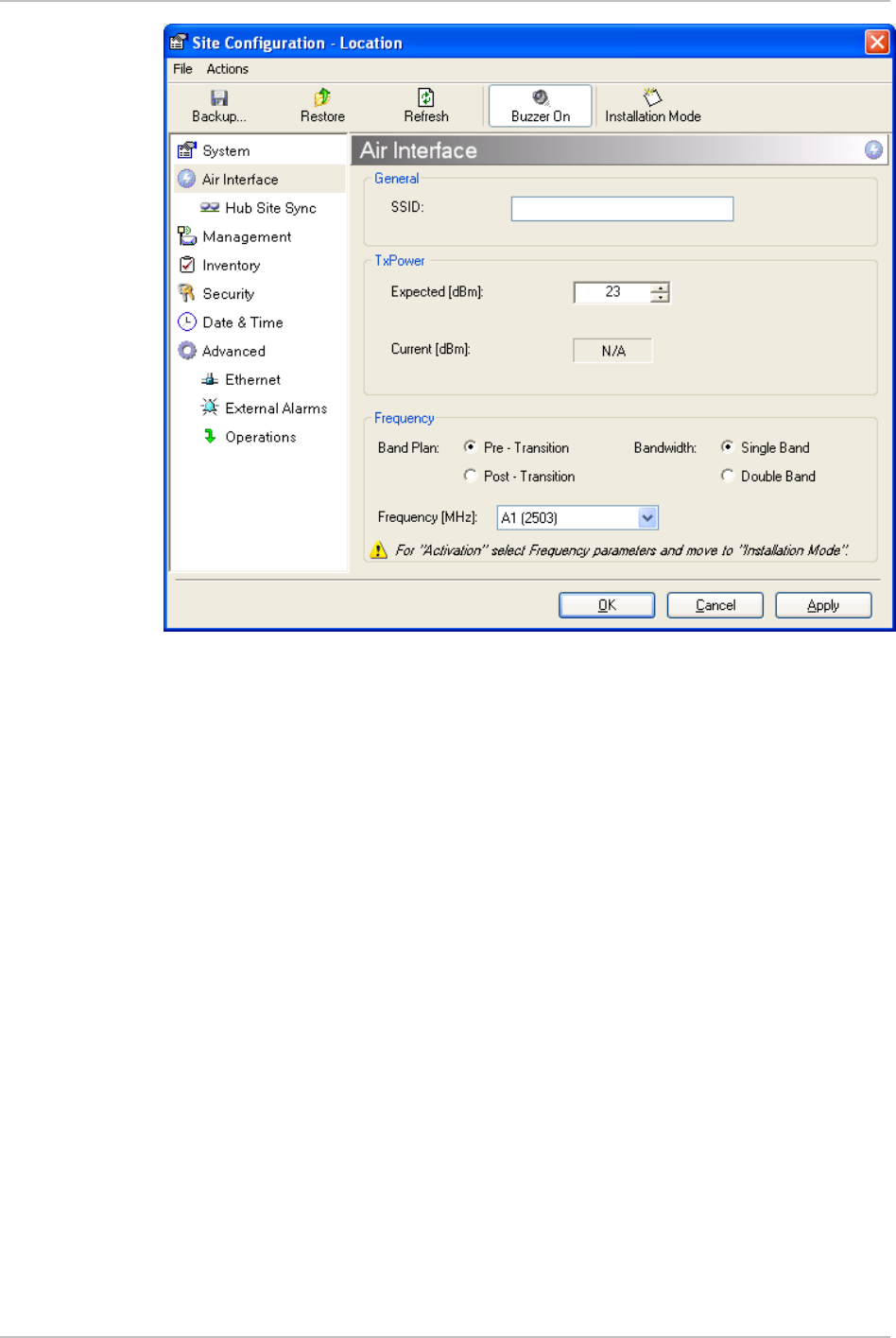

Figure
G-2. BRS Air Interface dialog box
4. Set the appropriate Frequency Band Plan and Bandwidth.
5. Select the required frequency band, and click Apply.
6. Click Installation Mode
7. Repeat for the remote ODU.
WinLink 1000 BRS Link Activation G-3
Appendix G BRS Installation Procedure Installation and Operation Manual

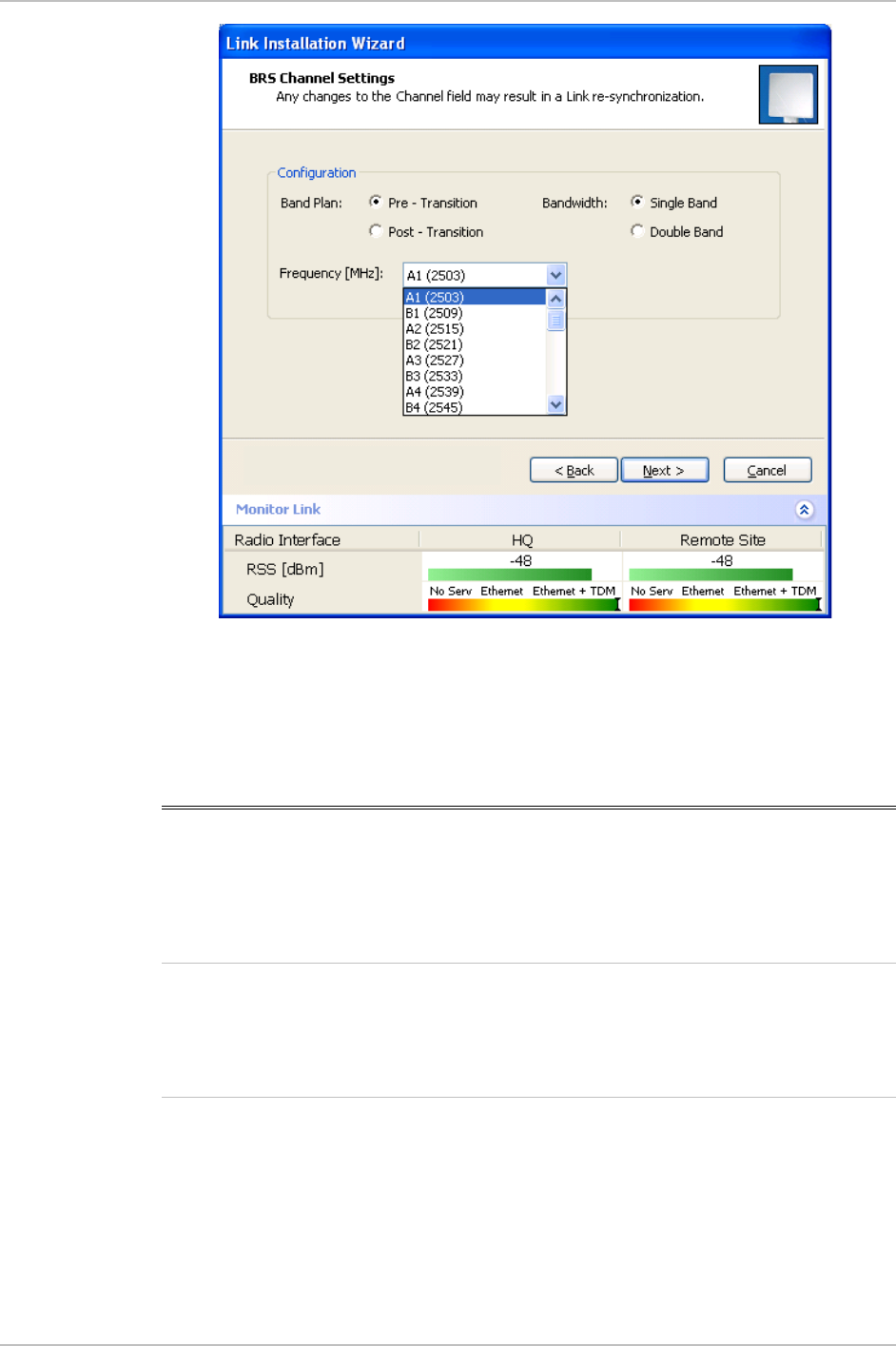

Figure
G-3. BRS Channel Settings Pre-Transition
8. Perform the remainder of the Installation procedure as defined in
the Installation section.
G.2 BRS Link Configuration
The BRS link is reconfigured during the Link Installation or the Link
Configuration wizards, or from the Air Interface screen.
Note
Both sites in a BRS Link must be configured identically.
Any changes to the frequency settings cause the link to re-
synchronize. A short loss of servi e will occur during re-
synchronization.
c
Æ To Configure BRS Channel Settings
1. Set the Band Plan.
G-4 BRS Link Configuration WinLink 1000
Installation and Operation Manual Appendix G BRS Installation Procedure
2. Select the Bandwidth required,
Single Band
Double Band
3. Select the Frequency from the pull-down menu.
4. Click Next. The system is re-synchronized to the changes.

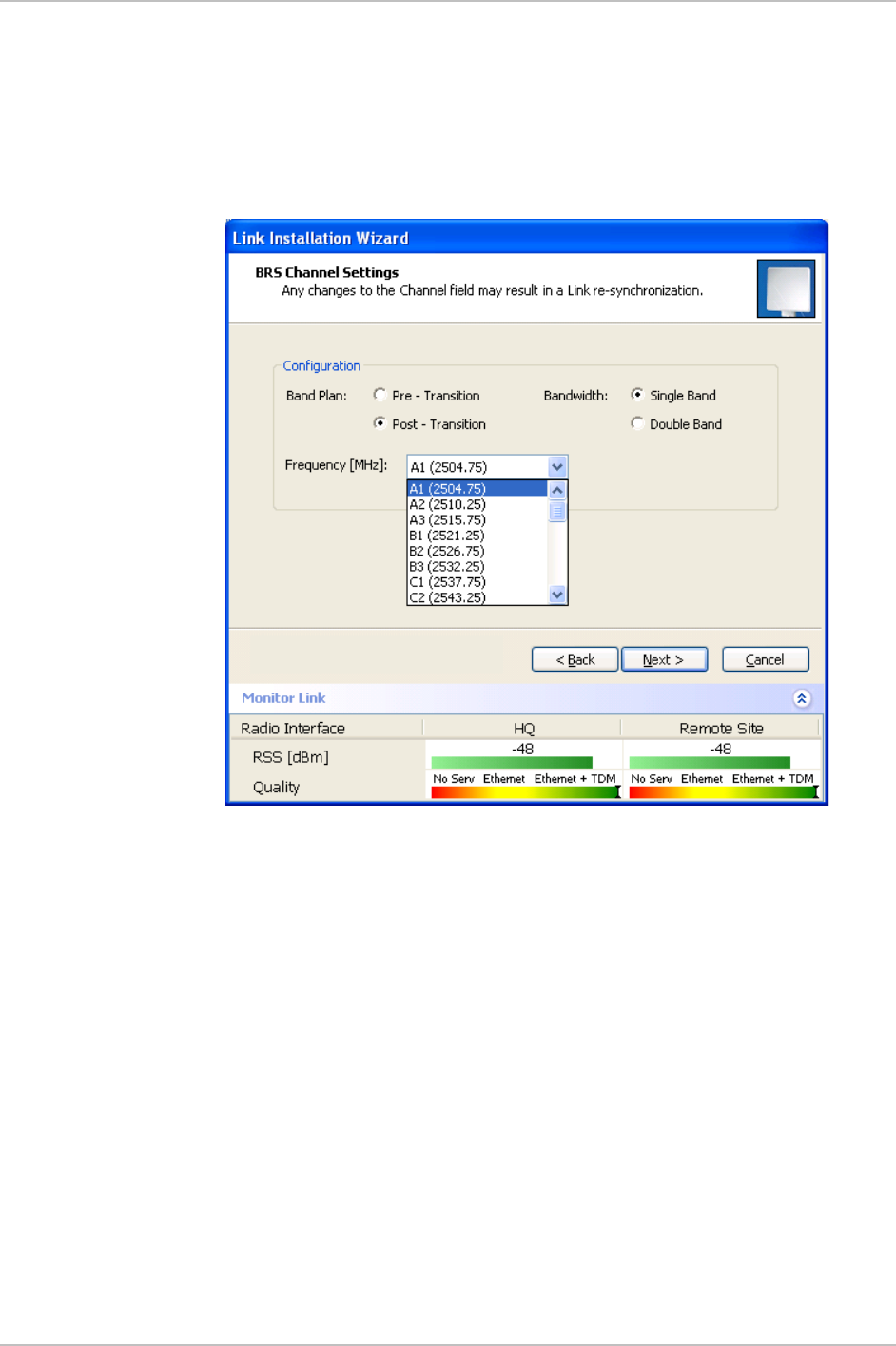

Figure
G-4. BRS Channel Settings Post-Transition
WinLink 1000 BRS Link Configuration G-5
Appendix H
RF Exposure
The antennas use for the following transmitters must be installed to
provide a separation distance as specified. They must not be co-
located or operated in conjunction with any other antenna or
transmitter.
Product FCC ID Antenna gain [dBi] Min. Safety Distance [cm]
F58A/HE/FCC Q3KAMWL1580 22 109
F58A/HE/FCC Q3KAMWL1580 28 217
F58A/HE/FCC
F58A/FCC/AIND
Q3KAMWL1580 32.5 364
F24A/FCC Q3KAMWL1240 16 16
F24A/FCC Q3KAMWL1240 24 40
F24A/HE/FCC Q3KAMWL1240H 24 71
F24A/HE/FCC Q3KAMWL1240H 15.2 37
WinLink 1000 H-1
Index
—A—
AC power
connecting, 2-6
Active Alarm Summary, 5-10
Adaptive Modulation, 1-3, 4-9
Advanced configuration, 4-16
Advanced Encryption System, 1-3
Advanced Tab, 4-23
AIND All Indoor Radio Unit, 2-5
Air Interface, 1-7
calculate, 2-11
configuration, 4-15
rate, 4-8
Alarm connector, 1-4, 1-8, A-3
Alarms, 5-9
list of, 5-10
Antenna, 1-4
Antenna characteristics, E-1
Application, 1-1
—B—
Backup, 4-31
button, 4-16
Beeper
muting, 4-30
restore, 4-30
sequence, 2-10
Bridge configuration, 4-16, 4-22
Buzzer. See Beeper
—C—
Change password, 4-28
Channel select, 2-14
Clear Counters, 3-5
Community String, 4-26
change dialog box, 4-26
forgotten string, 4-28
Read-Only, 4-26
Read-Write, 4-26
Trap, 4-26
types, 4-26
Community values, 4-16
Configuration
advanced, 4-15
air interface, 4-15
bridge, 4-15
community values, 4-15
contact details, 4-15
editing, 4-15
external alarms, 4-15
inventory, 4-15
LAN connection, 4-15
location details, 4-15
management, 4-15
restoring, 4-32
saving, 4-31
security, 4-16
system, 4-15
transmit power, 4-15, 4-17
wizard, 4-1
Configure
system parameters, 4-1
Connecting
AC power, 2-6
DC power, 2-7
user equipment, 2-20
Connectivity icon, 3-6
Connectors
Alarm, A-3
IDU-E, A-2
Contact person, 4-15
Contents, of package, 2-1
I-1
Index Installation and Operation Manual
—D—
Date & Time synchronizing, 4-20
Date and Time, 4-16, 4-20
DC power
connecting, 2-7
Default Gateway, 4-15, 4-19
Default password
link password, 4-29
management, 2-8
Default settings, 3-4
Description, 1-5
DFS, 1-3, 2-16, 4-6
Diagnostics, 1-3, 5-1
Dynamic frequency selection, 1-3
Dynamic Frequency Selection (DFS), 2-16,
4-6
—E—
E1/T1 Connector Pinout, A-2
Editing
configuration, 4-15
contact person, 4-15
location details, 4-15
Encryption icon, 3-6
Environment, 1-8
Equipment required, 2-2
Estimated Time Between Errors, 3-6
ETBE. See Estimated Time Between Errors
Event colors, 5-3
Event log, 3-6, 5-9
save, 5-4
External antenna, 1-4
mounting, B-4
—F—
FAQ, 5-16
Fast Ethernet Pinout, A-2
Features, 1-2
—G—
Get Link Information, 5-1
Grid Antenna, E-1
—H—
HSS. See Hub Site Synchronization
Hub Site Synchronization, 1-4, F-1
Hub Sync Clients, F-3
Hub Sync Master, F-3
—I—
Icon
Connectivity, 3-6
Encryption, 3-6
IDU Aging time, 4-23
Ethernet Bridge, 4-24
Fast aging mode, 4-24
Hub Mode, 4-24
IDU-2E1-AL
rear panel, 2-5
IDU-C, 1-5, 1-6
front panels, 2-5
IDU-E, 1-5, 1-6
front panel, 2-4
rear panel, 2-5
Indicators, 1-8
Indoor Unit. See IDU
Information messages, 5-10
Information Rate, 4-25
Install mode, 4-16
button, 4-16
Installation, 2-1
management software, 2-6
sequence, 2-2
software, 2-5
wizard, 2-11
Inventory, 4-15
IP address, 4-15, 4-19
—L—
LAN connection, 4-16
LAN interface, 1-2, 1-7
LAN Port, A-2
LEDs
front panel, 3-2
rear panel, 3-2
Line code, 2-19, 4-14
Link Budget Calculator
overview, A-1
using, A-2
Link Compatibility, 1-4, 5-11
Link configuration, 4-2
I-2 WinLink 1000
Installation and Operation Manual Index
Link details, 3-6
Link Information, 5-1
Link installation, 2-11
Link password, 4-16
Link Status, 3-6
Location details, 4-15
Loopback
activate, 5-12
deactivate, 5-13
external, 5-13
internal, 5-13
—M—
Main menu, 3-5
Management
addresses, 4-19
configuration, 4-15
Default Gateway, 4-15
definitions, 4-15
IP address, 4-15
options, 1-3
program, 2-6
Subnet Mask, 4-15
Trap Destination, 4-15
Monitor log
save, 5-2
Monitor pane, 3-6
Monitoring, 1-3
Monitoring Performance, 5-2
Mounting
mast, B-2
wall, B-3
Mute
button, 4-16
Muting the beeper, 4-16, 4-30
—O—
ODU, 1-5, 1-6
aligning, 2-10
beeper, 2-10
connecting, 2-4
mounting, 2-3
ODU Bridge Mode, 4-23
ODU-IDU cable
pinout, A-1
Operating temperature, 2-1
Outdoor Unit. See ODU
Outdoor Unit (ODU)
mounting, B-1
—P—
Package contents, 2-1
Panel
AIND unit, 2-5
IDU-2E1-AL, 2-5
IDU-C, 2-4
IDU-E, 2-4
Parabolic dish antenna, E-1
Password
changing, 4-28
default, 2-7
PC requirements, 2-5
Performance Monitor Report, 5-5
commands, 5-8
data, 5-7
time intervals, 5-5
Performance monitoring, 1-3
Physical description, 1-5
Physical dimensions, 1-8
Pinout
alarm connector, A-3
DC power connector, A-2
E1/T1 Connector, A-2
Fast Ethernet connector, A-2
Pinout ODU-IDU cable, A-1
Power
IDU, 2-6
IDU-E, 2-6
Power specifications, 1-8
Power supply, 2-7
AC, 2-6
Preferences, 5-2, 5-3, 5-4
event colors, 5-3
reset event colors, 5-3
Prerequisites, 2-1
—Q—
Quality bar, 2-16, 4-7
—R—
Radio signal strength, 3-6
Re-installing the Link, 4-32
WinLink 1000 I-3
Index Installation and Operation Manual
Reselect Channel, 2-16, 4-5, 4-7
Reset, 4-32
factory defaults, 4-32
Restore
button, 4-16
Restoring configuration, 4-32
—S—
Saving, 4-31
Saving the Monitor Log, 5-2
Security configuration, 4-16
Service parameters, 4-8
Setup, 2-1
Site requirements, 2-1
SSID, 2-14
Statistics, 3-6, 5-2
Status Bar, 3-6
Subnet Mask, 4-15, 4-19
System Configuration, 4-15
—T—
TDM
interface, 1-3, 1-7
Traffic LEDs, 3-3
TDM clock
automatic mode, 4-11
TDM status, 3-6
Technical Specifications, 1-7
Toolbar, 3-5
TPC, 1-4
Traffic rate, 3-6
Transmission Rate, 4-8
Transmit power, 4-17
limits, 4-19
Transmit Power Control, 1-4
Trap colors
background, 5-3
reset, 5-3
set, 5-3
Trap Destination, 4-15, 4-19
Troubleshooting, 5-1, 5-15
Trunk Port, A-2
Turning off, 3-7
Turning on, 3-1
Typical application, 1-1
Typical installation, 2-3
—U—
User equipment, 2-20
—W—
Wireless link, 1-2
I-4 WinLink 1000

Navigation menu
