1. Introducing the Notebook PC
General Overview ������������������������������������������������������������������������������������� 6
Notes For The User ����������������������������������������������������������������������������� 6
Safety Precautions ����������������������������������������������������������������������������������� 7
Transportation Precautions ���������������������������������������������������������������������� 8
Preparing your Notebook PC�������������������������������������������������������������������� 9
2. Knowing the Parts
Top Side�������������������������������������������������������������������������������������������������� 12
Right Side ����������������������������������������������������������������������������������������������� 14
Left Side ������������������������������������������������������������������������������������������������� 15
3. Getting Started
Power System ���������������������������������������������������������������������������������������� 18
Using AC Power �������������������������������������������������������������������������������� 18
Using Battery Power �������������������������������������������������������������������������� 19
Battery Care �������������������������������������������������������������������������������������� 19
Powering ON the Notebook PC ��������������������������������������������������������� 20
Power Options ����������������������������������������������������������������������������������� 20
Checking Battery Power �������������������������������������������������������������������� 21
Charging the Battery Pack ���������������������������������������������������������������� 21
Power Management Modes �������������������������������������������������������������� 22
Power Manager Utility ����������������������������������������������������������������������� 23
Special Keyboard Functions ������������������������������������������������������������������� 27
Colored Hot Keys ������������������������������������������������������������������������������ 27
Microsoft Windows Keys ������������������������������������������������������������������� 28
3
Contents
Table of Contents (cont.)
4. Using the Notebook PC
Pointing Device��������������������������������������������������������������������������������������� 30
Using the Touchpad ��������������������������������������������������������������������������� 30
Touchpad Usage Illustrations ������������������������������������������������������������ 31
Multi-touch gesture usage ���������������������������������������������������������������� 32
Caring for the Touchpad �������������������������������������������������������������������� 34
Storage Devices ������������������������������������������������������������������������������������� 35
Flash Memory Card Reader �������������������������������������������������������������� 35
Network Connection ������������������������������������������������������������������������������� 36
Wireless LAN Connection ����������������������������������������������������������������� 37
A. Appendix
Declarations and Safety Statements ������������������������������������������������������ 42
4
Notes
5
NOTE: Photos and icons in this document are used for artistic purposes only and do
not show what is actually used in the product itself.
1. Introducing the Notebook PC
About This User Guide
Safety Precautions
Transportation Precautions
Preparing your Notebook PC
6
1 Introducing the Notebook PC
General Overview
This document provides information on the various components in
the Notebook PC and how to use them� The following are the major
sections of this document:
1� Introducing the Notebook PC
Introduces you to the Notebook PC and its documentation�
2� Knowing the Parts
Gives you information on the Notebook PC’s components�
3� Getting Started
Gives you information on getting started with the Notebook PC�
4� Using the Notebook PC
Gives you information on using the Notebook PC’s components�
Notes For The User
A few notes and warnings in bold are used throughout this document that you should
be aware of in order to complete certain tasks safely and completely� These notes
have different degrees of importance as described below:
TIP: Tips and useful information for completing tasks.
IMPORTANT! Vital information that must be followed to prevent damage to data,
components, or persons.
WARNING! Important information that must be followed for safe operation.
Text enclosed in < > or [ ] represents a key on the keyboard; do not actually type the
< > or [ ] and the enclosed letters.
< >
[ ]
NOTE: Tips and information for special situations.
7
Introducing the Notebook PC 1
Safety Precautions
The following safety precautions will increase the life of the Notebook PC� Follow
all precautions and instructions� Except as described in this document, refer all
servicing to qualied personnel. Do not use damaged power cords, accessories, or
other peripherals� Do not use strong solvents such as thinners, benzene, or other
chemicals on or near the surface�
System Power Rating: 65W, 19V, 3.42A
IMPORTANT! Disconnect the AC power before cleaning. Wipe the Notebook PC using
a clean cellulose sponge or chamois cloth dampened with a solution of nonabrasive
detergent and a few drops of warm water and remove any extra moisture with a dry
cloth.
Battery safety warnings:
DO NOT throw the battery in re.
DO NOT disassemble the battery�
DO NOT short circuit the contacts�
DO NOT handle damaged or
leaking batteries�
DO NOT leave the Notebook
PC on your lap or any part of
the body in order to prevent
discomfort or injury from heat
exposure�
DO NOT expose to strong
magnetic or electrical elds. The
electromagnetic eld may cause
the computer to malfunction�
DO NOT place or drop objects
on top and do not shove any
foreign objects into the Notebook
PC� Do not block air vents�
DO NOT throw the Notebook
PC in municipal waste� Check
local regulations for disposal of
electronic products�
DO NOT carry or cover a
Notebook PC that is powered
ON with any materials that will
reduce air circulation such as a
carrying bag�
CAUTION! Danger of explosion if
battery is incorrectly replaced�
DO NOT expose to dirty or dusty
environments� DO NOT operate
during a gas leak� DO NOT use
cut or damaged connection
cables�
DO NOT expose to or use near
liquids, rain, or moisture�
DO NOT place on uneven or
unstable work surfaces� Seek
servicing if the casing has been
damaged�
DO NOT press or touch the
display panel� Do not place
together with small items
that may scratch or enter the
Notebook PC�
SAFE TEMP: This Notebook
PC should only be used in
environments with ambient
temperatures between 5°C
(41°F) and 35°C (95°F)�
INPUT RATING: Refer to the
rating label on the bottom of the
Notebook PC and be sure that
your power adapter complies
with the rating�
WARNING: To avoid bodily injury, DO NOT attempt to troubleshoot your notebook PC if
any of the above conditions have damaged it, the battery, or the battery charger. Instead,
unplug your notebook and contact a qualied computer technician.
IMPORTANT: Listening to audio at full volume for long periods of time can damage
the user’s hearing, to prevent this please adjust audio levels to middle levels.
8
1 Introducing the Notebook PC
IMPORTANT! There are three main types of airport security devices: X-ray machines
(used on items placed on conveyor belts), magnetic detectors (used on people
walking through security checks), and magnetic wands (hand-held devices used on
people or individual items). You can send your Notebook PC and diskettes through
airport X-ray machines. However, it is recommended that you do not send your
Notebook PC or diskettes through airport magnetic detectors or expose them to
magnetic wands.
Charge Your Batteries
If you intend to use battery power, be sure to fully charge your battery pack�
Remember that the power adapter charges the battery pack as long as it is plugged
into the computer and an AC power source� Be aware that it takes much longer to
charge the battery pack when the Notebook PC is in use�
Airplane Precautions
Contact your airline if you want to use the Notebook PC on the airplane� Most airlines
will have restrictions for using electronic devices� Most airlines will allow electronic
use only between and not during takeoffs and landings�
Transportation Precautions
To prepare the Notebook PC for transport, you should turn it OFF and disconnect all
external peripherals to prevent damage to the connectors� Close the display panel
and check that it is latched securely in the closed position to protect the keyboard
and display panel�
IMPORTANT! The Notebook PC’s surface is easily dulled if not properly cared for.
Be careful not to rub or scrape the Notebook PC surfaces.
Cover Your Notebook PC
Purchase a carrying bag to protect the Notebook PC from dirt, water, shock, and
scratches�
9
Introducing the Notebook PC 1
Preparing your Notebook PC
These are only quick instructions for using your Notebook PC� Read the later pages
for detailed information on using your Notebook PC�

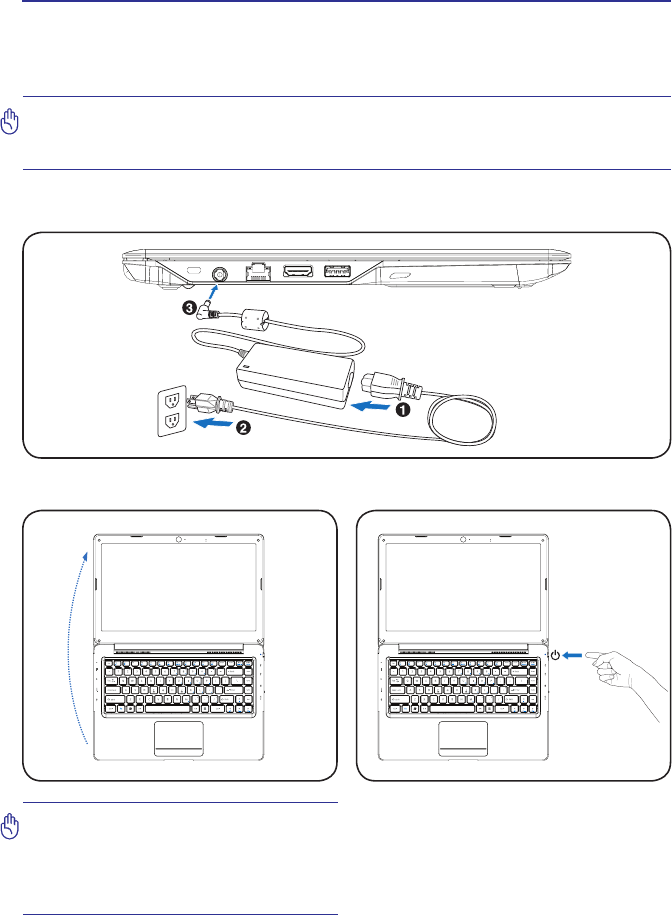

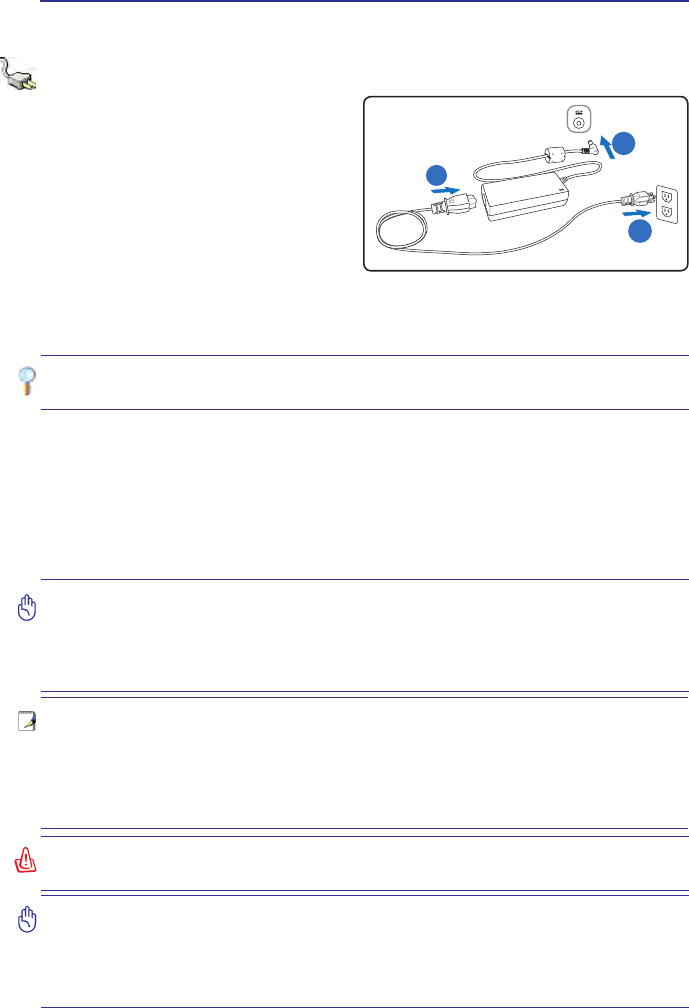

1. Connect the AC Power Adapter
IMPORTANT! When opening, do not
force the display panel down to the
table or else the hinges may break!
Never lift the Notebook PC by the
display panel!
2. Open the Display Panel 3. Turn ON the Notebook PC
The power switch turns the Notebook PC
ON and OFF or puts the Notebook PC
into sleep or hibernation modes� Actual
behavior of the power switch can be
customized in Windows Control Panel >
Power Options > System Settings�
IMPORTANT! Selected models may feature display panels that do not fully open
to a 180-degree angle, with such models do not attempt to force the display panel
beyond its limit as it may cause damage to the device.
10
Notes
11
NOTE: Photos and icons in this document are used for artistic purposes only and do
not show what is actually used in the product itself.
2. Knowing the Parts
Basic sides of the Notebook PC
12
2 Knowing the Parts
Top Side

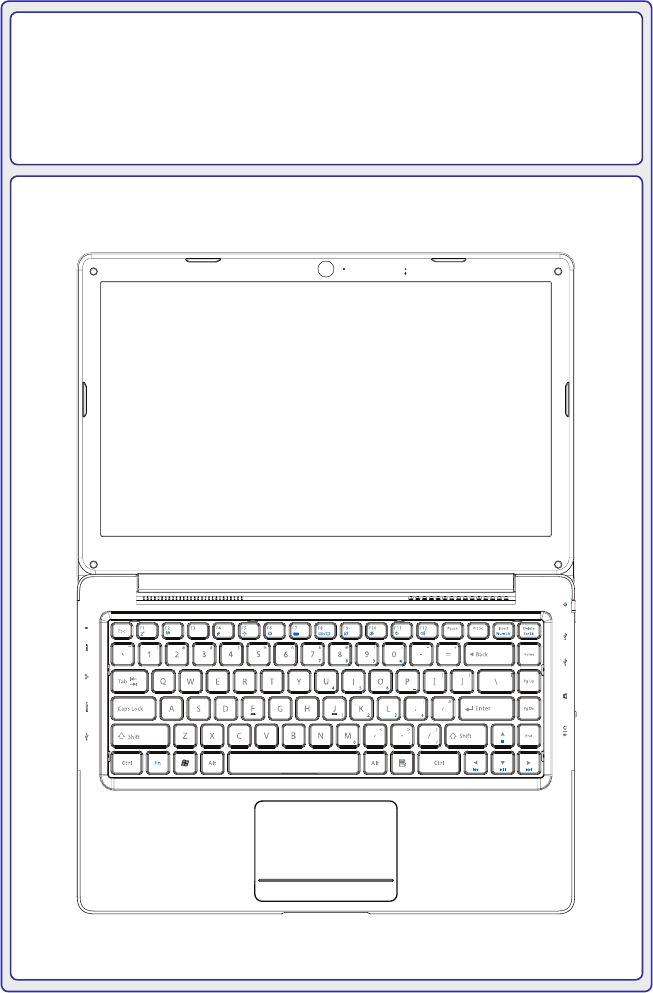

Refer to the diagram below to identify the components on these sides of the
Notebook PC�
NOTE: The keyboard will be different for each territory.
IMPORTANT! Selected models may feature display panels that do not fully open
to a 180-degree angle, with such models do not attempt to force the display panel
beyond its limit as it may cause damage to the device.
12
4
3
5
13
Knowing the Parts 2
2
3
4
5
1
Camera
The built-in camera allows picture taking or video recording� Can be used
with video conferencing and other interactive applications�
Display Panel
The Notebook PC uses an ultra-clear at panel which provides excellent
viewing like that of desktop monitors without any harmful radiation or
ickering, so it is easier on the eyes. Use a soft cloth without chemical liquids
(use plain water if necessary) to clean the display panel� WARNING: The
display panel is fragile� Do not to bend or press the panel�
Keyboard
The keyboard provides keys with comfortable travel (depth at which the
keys can be depressed) and palm rest for both hands� A Windows function
key is provided to help ease navigation in the Windows operating system�
Touchpad and Buttons
The touchpad with its buttons is a pointing device that provides the same
functions as a desktop mouse� A software-controlled scrolling function is
available after setting up the included touchpad utility to allow easy Windows
or web navigation�
Microphone (Built-in)
The built-in mono microphone can be used for video conferencing, voice
narrations, or simple audio recordings�
14
2 Knowing the Parts
Right Side

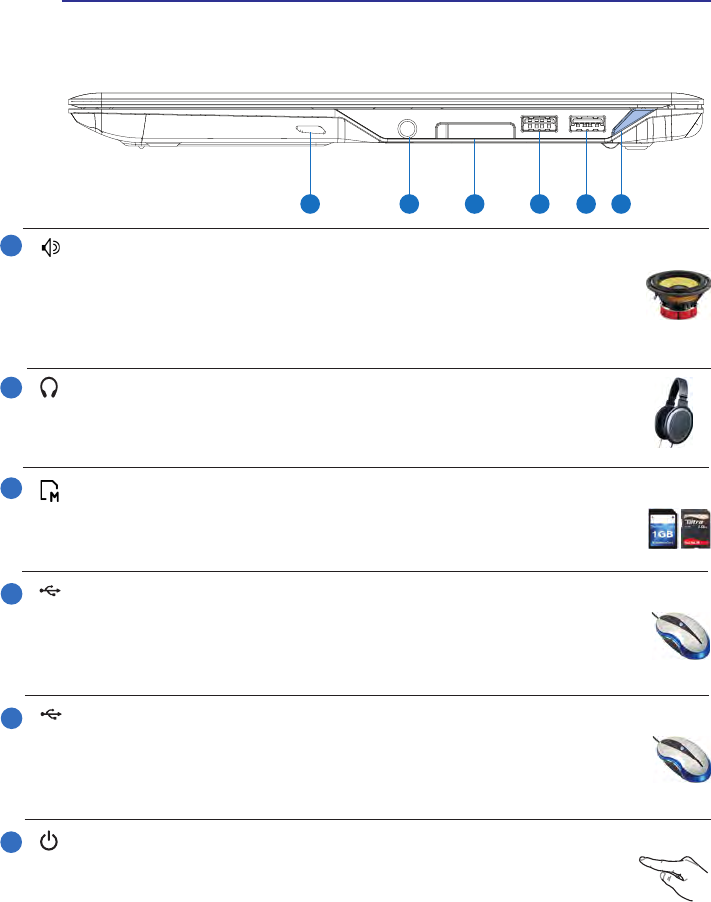

Refer to the diagram below to identify the components on this side of the Notebook
PC�
1
2
3
4
Headphone Output / Microphone Input Combo Jack
The stereo combo jack (3�5mm) is used to connect the Notebook PC
to amplied speakers, headphones, or a microphone. Using this jack
automatically disables the built-in speakers�
35
4
26
1
5
USB 3.0 Port
USB (Universal Serial Bus) allows many devices to run simultaneously on a
single computer, with some peripherals acting as additional plug-in sites or
hubs� USB supports hot-swapping of devices so that most peripherals can
be connected or disconnected without restarting the computer�
Power Switch
The power switch turns the Notebook PC ON and OFF or puts the Notebook
PC into sleep or hibernation modes� Actual behavior of the power switch
can be customized in Windows Control Panel “Power Options�”
6
Flash Memory Card Reader
This Notebook PC has a built-in high-speed memory card reader that can
conveniently read from and write to many ash memory cards used in devices
such as digital cameras, MP3 players, mobile phones, and PDAs�
Memory Stick Duo/Pro Duo/MagicGate (with MS adapter)
SD (Secure Digital)
miniSD (with SD adapter)
SDHC (Secure Digital High Capacity)
microSD (with SD adapter)
Memory Stick Micro (with MS adapter)
xD-Picture Card
MMC (Multimedia Card)
MMC Plus
RS-MMC (Reduced Size) (with MMC adapter)
Memory stick (MS) / PRO / MagicGate / Select
USB Port (2.0/1.1)
USB (Universal Serial Bus) allows many devices to run simultaneously on a
single computer, with some peripherals acting as additional plug-in sites or
hubs� USB supports hot-swapping of devices so that most peripherals can
be connected or disconnected without restarting the computer�
Audio Speaker
The built-in stereo speaker system allows you to hear audio without
additional attachments� The multimedia sound system features an integrated
digital audio controller that produces rich, vibrant sound (results improved
with external stereo headphones or speakers)� Audio features are software
controlled�
15
Knowing the Parts 2
Power (DC) Input
The supplied power adapter converts AC power to DC power for use with this
jack� Power supplied through this jack supplies power to the Notebook PC
and charges the internal battery pack� To prevent damage to the Notebook
PC and battery pack, always use the supplied power adapter�
CAUTION: The adapter may become warm to hot when in use. Be sure not to cover
the adapter and keep it away from your body.
Left Side
Refer to the diagram below to identify the components on this side of the Notebook
PC�
1
4
2
3
LAN Port
The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and
supports a standard Ethernet cable for connection to a local network� The
built-in connector allows convenient use without additional adapters�
HDMI Port
HDMI (High-Denition Multimedia Interface) is an uncompressed all-digital
audio/video interface between any audio/video source, such as a set-top
box, DVD player, and A/V receiver and an audio and/or video monitor, such
as a digital television (DTV). Supports standard, enhanced, or high-denition
video, plus multi-channel digital audio on a single cable� It transmits all ATSC
HDTV standards and supports 8-channel digital audio�
HDMI
124
35 6
Kensington® Lock Port
The Kensington® lock port allows the Notebook PC to be secured using
Kensington® compatible Notebook PC security products� These security
products usually include a metal cable and lock that prevent the Notebook
PC to be removed from a xed object. Some may also include a motion
detector to sound an alarm when moved�
(continued on the next page)
16
2 Knowing the Parts
Left Side (cont.)
Refer to the diagram below to identify the components on this side of the Notebook
PC�
5
USB 3.0 Port (with High-Powered USB Port capability)
USB (Universal Serial Bus) allows many devices to run simultaneously on
a single computer, with some peripherals acting as additional plug-in sites
or hubs� USB supports hot-swapping of devices so that most peripherals
can be connected or disconnected without restarting the computer�
The High-Powered USB Port function allows the USB port to charge at a higher current
(with a maximum current of 2�5A) than traditional USB ports when the notebook PC
is in Suspend/Hibernate mode or when it is powered OFF�
When the notebook PC is powered ON and in a normal power state, the port will • function as a traditional USB port with normal charging (with a maximum of 500mA)
and normal data transmission�
The High-Powered charging function will not activate if the battery level is critically • low and the AC adapter is not plugged in�
The High-Powered USB Port does not support USB wakeup�•
The High-Powered charging function can be enabled or disabled in BIOS setup�•
124
35 6
6
Audio Speaker
The built-in stereo speaker system allows you to hear audio without
additional attachments� The multimedia sound system features an integrated
digital audio controller that produces rich, vibrant sound (results improved
with external stereo headphones or speakers)� Audio features are software
controlled�
17
NOTE: Photos and icons in this document are used for artistic purposes only and do
not show what is actually used in the product itself.
3. Getting Started
Power System
Special Keyboard Functions
18
3 Getting Started
Power System
Using AC Power
The Notebook PC power is comprised
of two parts, the power adapter and the
battery power system� The power adapter
converts AC power from a wall outlet to
the DC power required by the Notebook
PC� Your Notebook PC comes with a
universal AC-DC adapter� That means
that you may connect the power cord to
any 100V-120V as well as 220V-240V
outlets without setting switches or using
power converters� Different countries may require that an adapter be used to connect
the provided US-standard AC power cord to a different standard� Most hotels will
provide universal outlets to support different power cords as well as voltages�
IMPORTANT! Damage may occur if you use a different adapter to power the Notebook
PC or use the Notebook PC’s adapter to power other electrical devices. If there is smoke,
burning scent, or extreme heat coming from the AC-DC adapter, seek servicing. Seek
servicing if you suspect a faulty AC-DC adapter. You may damage both your battery
pack(s) and the Notebook PC with a faulty AC-DC adapter.
NOTE: This Notebook PC may come with either a two or three-prong plug depending
on territory. If a three-prong plug is provided, you must use a grounded AC outlet or
use a properly grounded adapter to ensure safe operation of the Notebook PC DO NOT
remove the grounding prong from the power cable plug. If you use a power extension
cable, use the appropriate type, two-prong or three-prong, to mate with the AC adapter
power cable.
WARNING! THE POWER ADAPTER MAY BECOME WARM TO HOT WHEN IN USE. BE
SURE NOT TO COVER THE ADAPTER AND KEEP IT AWAY FROM YOUR BODY.
TIP: You can buy travel kits for the Notebook PC that includes power and modem
adapters for almost every country.
With the AC power cord connected to the AC-DC converter, connect the AC power cord
to an AC outlet (preferably with surge-protection) and then connect the DC plug to the
Notebook PC. Connecting the AC-DC adapter to the AC outlet rst allows you to test
the AC outlet’s power and the AC-DC converter itself for compatibility problems before
connecting the DC power to the Notebook PC� The power indicator on the adapter
(if available) will light if the power is within accepted ranges� If you use a power strip
with your AC adapter, ensure that the total ampere rating of the products plugged in
to the power strip does not exceed the ampere rating of the power strip�
1
2
3
IMPORTANT! When in use plug the AC adapter cord into an AC outlet that is easily
accessible at all times and place the adapter in a ventilated area, such as a desk top or
on the oor. DO NOT place heavy objects on the AC adapter or cover it with papers or
other items that will reduce cooling; also, DO NOT use the AC adapter inside a carrying
case.
19
Getting Started 3
IMPORTANT! Only use battery packs and power adapters supplied with this Notebook
PC or specically approved by the manufacturer or retailer for use with this model
or else damage may occur to the Notebook PC.
WARNING! For safety reasons, DO NOT throw the battery in re, DO NOT
short circuit the contacts, and DO NOT disassemble the battery. If there is
any abnormal operation or damage to the battery pack caused by impact,
turn OFF the Notebook PC and contact an authorized service center.
Battery Care
The Notebook PC’s battery pack, like all rechargeable batteries, has a limit on the
number times it can be recharged� The battery pack’s useful life will depend on your
environment temperature, humidity, and how your Notebook PC is used� It is ideal
that the battery be used in a temperature range between 5˚C and 35˚C (41˚F and
95˚F). You must also take into account that the Notebook PC’s internal temperature
is higher than the outside temperature� Any temperatures above or below this range
will shorten the life of the battery�
Using Battery Power
The Notebook PC is designed to work with a battery pack� A fully charged pack will
provide several hours of battery life, which can be further extended by using power
management features through the BIOS setup�
20
3 Getting Started
IMPORTANT! To protect the hard disk drive, always wait at least 5 seconds after
turning OFF your Notebook PC before turning it back ON.
NOTE: Before bootup, the display panel ashes when the power is turned ON. This
is part of the Notebook PC’s test routine and is not a problem with the display.
WARNING! DO NOT carry or cover a Notebook PC that is powered ON with any
materials that will reduce air circulation such as a carrying bag.
Powering ON the Notebook PC
The Notebook PC’s power-ON message appears on the screen when you turn it ON�
If necessary, you may adjust the brightness by using the hot keys� If you need to run
the BIOS Setup to set or modify the system conguration, press [F2] upon bootup
to enter the BIOS Setup. If you press [Tab] during the splash screen, standard boot
information such as the BIOS version can be seen. Press [ESC] and you will be
presented with a boot menu with selections to boot from your available drives�

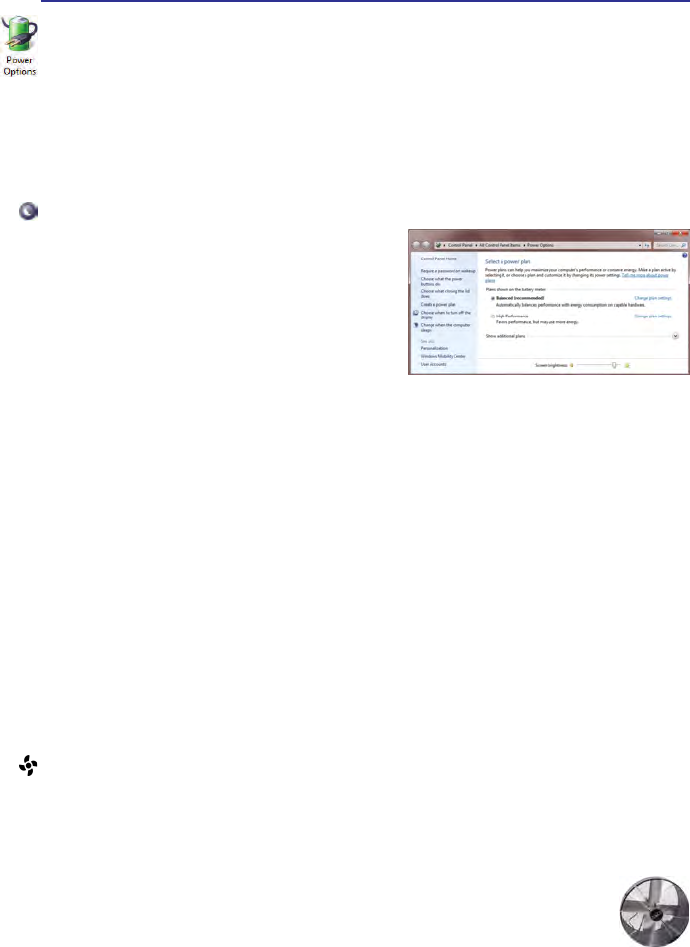

Power Options
The power switch turns ON and OFF the Notebook PC or puts the Notebook PC into
sleep or hibernation modes� Actual behavior of the power switch can be customized
in Windows Control Panel “Power Options�”
For other options, such as “Switch User, Restart, Sleep, or Shut Down,” click the
arrowhead next to the lock icon�
Restarting or Rebooting
After making changes to your operating system, you may be prompted to restart the
system� Some installation processes will provide a dialog box to allow restart� To
restart the system manually, choose Restart�
IMPORTANT! Do not use emergency shutdown while data is being written; doing
so can result in loss or destruction of your data.
Emergency Shutdown
In case your operating system cannot properly turn OFF or restart, there is a manual
way to shutdown your Notebook PC:
Hold the power button over 4 seconds
21
Getting Started 3
NOTE: You will be warned when battery power is low. If you continue to ignore the
low battery warnings, the Notebook PC eventually enters suspend mode (Windows
default uses STR).
WARNING! Suspend-to-RAM (STR) does not last long when the battery power is
depleted. Suspend-to-Disk (STD) is not the same as power OFF. STD requires a
small amount of power and will fail if no power is available due to complete battery
depletion or no power supply (e.g. removing the power adapter).
Checking Battery Power
The battery system implements the Smart Battery standard under the Windows
environment, which allows the battery to accurately report the amount of charge
left in the battery� A fully-charged battery pack provides the Notebook PC a few
hours of working power. But the actual gure varies depending on how you use the
power saving features, your general work habits, the CPU, system memory size,
and the size of the display panel�
WARNING! Do not leave the battery pack discharged. The battery pack will discharge
over time. If not using a battery pack, it must continued to be charged every three
months to extend recovery capacity or else it may fail to charge in the future.
NOTE: The battery stops charging if the temperature is too high or the battery
voltage is too high.
Charging the Battery Pack
Before you use your Notebook PC on the road, you will have to charge the battery
pack� The battery pack begins to charge as soon as the Notebook PC is connected to
external power using the power adapter� Fully charge the battery pack before using
it for the rst time. A new battery pack must completely charge before the Notebook
PC is disconnected from external power� It takes a few hours to fully charge the
battery when the Notebook PC is turned OFF and may take twice the time when
the Notebook PC is turned ON� The battery status indicator on the Notebook PC
turns OFF when the battery pack is charged�
NOTE: Screen captures
shown here are examples
only and may not reflect
what you see in your
system.
Left-click the battery icon�
Cursor over the battery icon
without power adapter�
Cursor over the battery icon
with power adapter�
Right-click the battery icon�
22
3 Getting Started
Sleep and Hibernate
Power management settings can be found
in the Windows > Control Panel > Power
Options. In System Settings, you can dene
“Sleep/Hibernate” or “Shut Down” for closing
the display panel or pressing the power button�
“Sleep” and “Hibernate” saves power when
your Notebook PC is not in use by turning OFF
certain components� When you resume your
work, your last status (such as a document scrolled down half way or email typed
half way) will reappear as if you never left� “Shut Down” will close all applications
and ask if you want to save your work if any are not saved�
Hibernate is the same as Suspend-to-Disk (STD) and stores your current data and
status on the hard disk drive� By doing this, RAM does not have to be periodically
refreshed and power consumption is greatly reduced but not completely eliminated
because certain wake-up components like LAN needs to remain powered�
“Hibernate” saves more power compared to “Sleep”� Click the Start button and the
arrowhead next to the lock icon to see this option� Recover by pressing the power
button� (NOTE: The power indicator will be OFF in this mode�)
Sleep is the same as Suspend-to-RAM (STR)� This function stores your current
data and status in RAM while many components are turned OFF� Because RAM is
volatile, it requires power to keep (refresh) the data� Click the Start button and the
arrowhead next to the lock icon to see this option� You can also use the keyboard
shortcut [Fn F1] to activate this mode. Recover by pressing any keyboard key except
[Fn]. (NOTE: The power indicator will blink in this mode.)
Power Management Modes
The Notebook PC has a number of automatic or adjustable power saving features
that you can use to maximize battery life and lower Total Cost of Ownership (TCO)�
You can control some of these features through the Power menu in the BIOS Setup�
ACPI power management settings are made through the operating system� The
power management features are designed to save as much electricity as possible
by putting components into a low power consumption mode as often as possible
but also allow full operation on demand�
Thermal Power Control
There are three power control methods for controlling the Notebook PC’s thermal
state. These methods cannot be congured by the user and should be known in case
the Notebook PC should enter these states� The following temperatures represent
the chassis temperature (not CPU)�
• The fan turns ON for active cooling when temperature reaches the safe upper limit.
• The CPU decreases speed for passive cooling when the temperature exceeds the
safe upper limit�
• The system shuts down for critical cooling when temperature exceeds the maximum
safe upper limit�
23
Getting Started 3
Power Manager Utility
The Power Manager Utility provides the user with an integrated power management
tool that:
Features an integrated user interface which lets the user easily control/set a power
• plan�
Provides a battery maintenance tool to extend battery life�•
Provides an add-on value tool, such as the peak-shift utility, for saving electricity�•
Power Plans (for monitoring power consumption)
Power Plans shows real-time power consumption for the power mode selected by
the user�
1
2
3
1
Choose the specic power plan you want to view the power consumption chart
for here�
2
Choose the time frame you want for the power consumption chart here�
3
The power consumption chart will be displayed in this area�
24
3 Getting Started

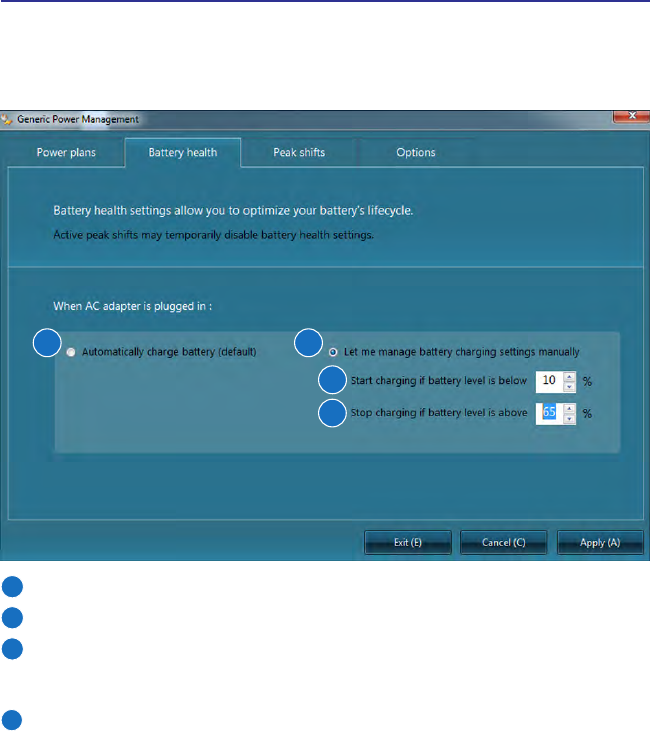

Battery Health
Battery Health provides the user with tools to extend the life of the battery by allowing
the user to select battery charging behavior when the AC adapter is plugged in� When
peak-shift is enabled by the user, this option will not function�
1
2
3
4
1
Choose this option if you want the battery to continuously charge until full�
2
Choose this option if you want to manually set battery charging behavior�
3
Set the battery level at which to start charging here. This eld cannot be over 96%
and cannot be lower than the low battery warning level set by the operating
system�
4
Set the battery level at which to stop charging here�
25
Getting Started 3

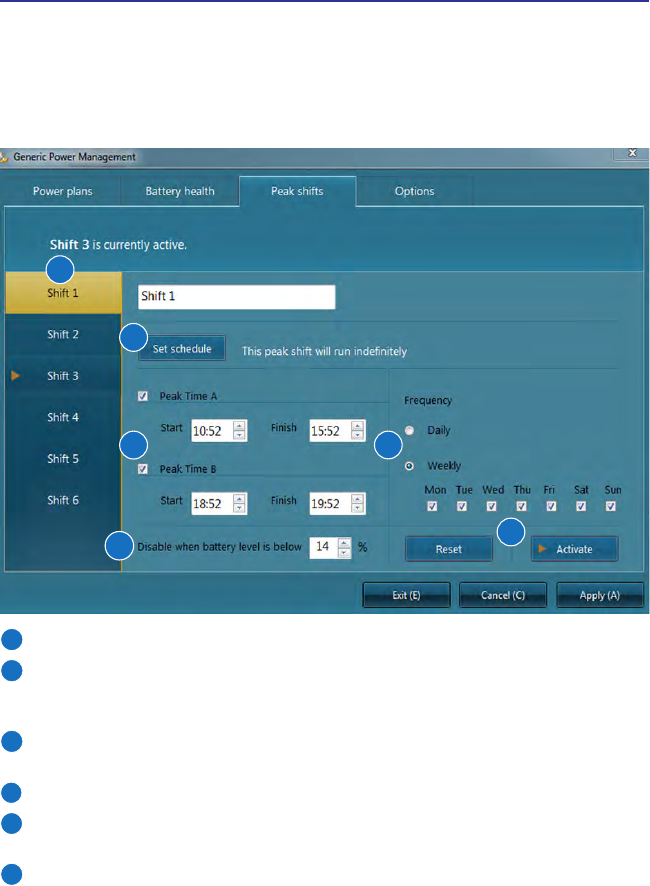

Peak Shift
Peak shift allows the user to set specic time periods in which the PC will only use
battery power even when the AC adapter is plugged in, in order to stop the PC from
using energy from the power socket during periods of peak power demand� When
the adapter is plugged in and peak shift is activated, Windows will still show that the
adapter is plugged in�
1
2
3
4
5
6
1
Choose an individual peak shift you want to activate or edit�
2
Choose this option if you want the selected peak shift to only be activated for a
specic time span. A menu to select start and end dates will open if this option is
chosen�
3
Choose the start and end time for the selected peak shift, you may choose up to
two different time periods for each individual peak shift�
4
Choose how frequently the selected peak shift will occur�
5
Choose the minimum battery level at which the battery will start charging during
the peak shift�
6
Choose whether to activate or reset the selected peak shift�
