INSTALLATION INSTRUCTIONS
PANEL INTERFACE
MODULE
(PIM)
Includes Installation Instructions for:
PIM, PIM-OTD, PIME, PIME-OTD, & PIM-OTD-485
3820 Stern Avenue
St. Charles, IL 60174
Phone: 630-762-4450
Fax: 630-762-4455
P/N: M053-xxx-x001
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 2 of 26
Recognition Source, LLC
3820 Stern Avenue
St Charles, IL 60174
(630) 762-4450
(630) 762-4455 Fax
Copyright © 2003 Recognition Source, LLC, all rights reserved.
No part of this document can be reproduced, transmitted, or transcribed in any form by electrical, mechanical, optical, manual, or
otherwise without the prior written consent of Recognition Source. Recognition Source reserves the right to alter or revise the
content of this document as needed to support future product revisions, without obligation to notify any persons of specific
changes.
The use of trademarks, trade names, or other product identification is solely for reference purposes. All other product brand
names are trademarks or registered trademarks of their respective holders.
Recognition Source believes the information in this document to be accurate and reliable. Recognition Source does not guarantee
results from the use of this information. Recognition Source assumes no responsibility, obligation, or liability for the information
presented in this document.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 3 of 26
INSTALLATION INSTRUCTIONS
Wyreless Access™ Panel Interface Module (PIM)
NOTE: These instructions are for installing the Panel Interface Module (PIM), a component of a Wyreless Access
System. After completing this installation refer to the “Configuring and Operating the Wyreless Access System”
manual.
Table of Contents
1. Wyreless AccessTM System Components............................................................................................................4
1.1 Overview .......................................................................................................................................................4
1.2 Panel Interface Module (PIM) Components & Sales Models........................................................................5
2. Determining the Best PIM Location ..................................................................................................................7
2.1 PIM Location Guidelines...............................................................................................................................7
2.2 Pre-installation Wyreless Access ™ Test ......................................................................................................7
3. Installing the Panel Interface Module (PIM) ....................................................................................................9
3.1 How to determine the version of PIM PCB ...................................................................................................9
3.2 PIM PCB Functional Components ..............................................................................................................11
3.3 Tools – Hardware Required.........................................................................................................................12
3.4 Mounting the PIM........................................................................................................................................13
3.5 Installing the Antenna..................................................................................................................................14
3.6 Connecting the RS232 PIM PCB to the Access Control Panel....................................................................15
3.7 Connecting the RS485 PIM PCB to the Access Control Panel....................................................................18
4. Installing a Panel Interface Module Extender ................................................................................................21
4.1 Installing an Extender in a PIM Enclosure ..................................................................................................21
4.2 Installing an Extender in a PIM-OTD Enclosure.........................................................................................21
5. PIM/PIME Cable/Wire Specifications.............................................................................................................23
6. Contacting Recognition Source ........................................................................................................................24
7. FCC/UL Compliance & Warnings...................................................................................................................25
7.1 FCC Compliance .........................................................................................................................................25
7.2 UL Compliance............................................................................................................................................25
7.3 Warnings......................................................................................................................................................25
8. Revision History.................................................................................................................................................26
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 4 of 26
1. Wyreless AccessTM System Components
1.1 Overview
Every access control system that uses Wyreless AccessTM contains two different types of modules (Figure
1-1):
• at least one Wyreless Panel Interface Module (WPIM), and
• at least one Wyreless Access Point Module (WAPM)
Figure 1-1 – Wyreless Access System Block Diagram
Recognition Source’s product line contains several different expressions of each module.
The WPIMs are wired to access control panels and usually are installed very close to the access control
panels. The WPIMs installation locations are determined by the location of the WAPMs with which they
will communicate using RF.
The WAPMs are installed at access points where access will be controlled and/or monitored. Depending
on the application and which WAPM is used, some wiring at the access point may be required.
Regardless of which WPIM or WAPM module is used, the communication link between the WPIM and
WAPM is always RF.
This manual describes the installation of a Panel Interface Module (PIM) or a Panel Interface Module
Expander (PIME), both of which are WPIMs
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 5 of 26
1.2 Panel Interface Module (PIM) Components & Sales Models
The PIM is the wireless interface to an access control panel. The PIM can be ordered with one of two
possible enclosures: PIM or PIM-OTD. Table 1-1 shows these two models, what PIM Expander, and
what antenna each uses.

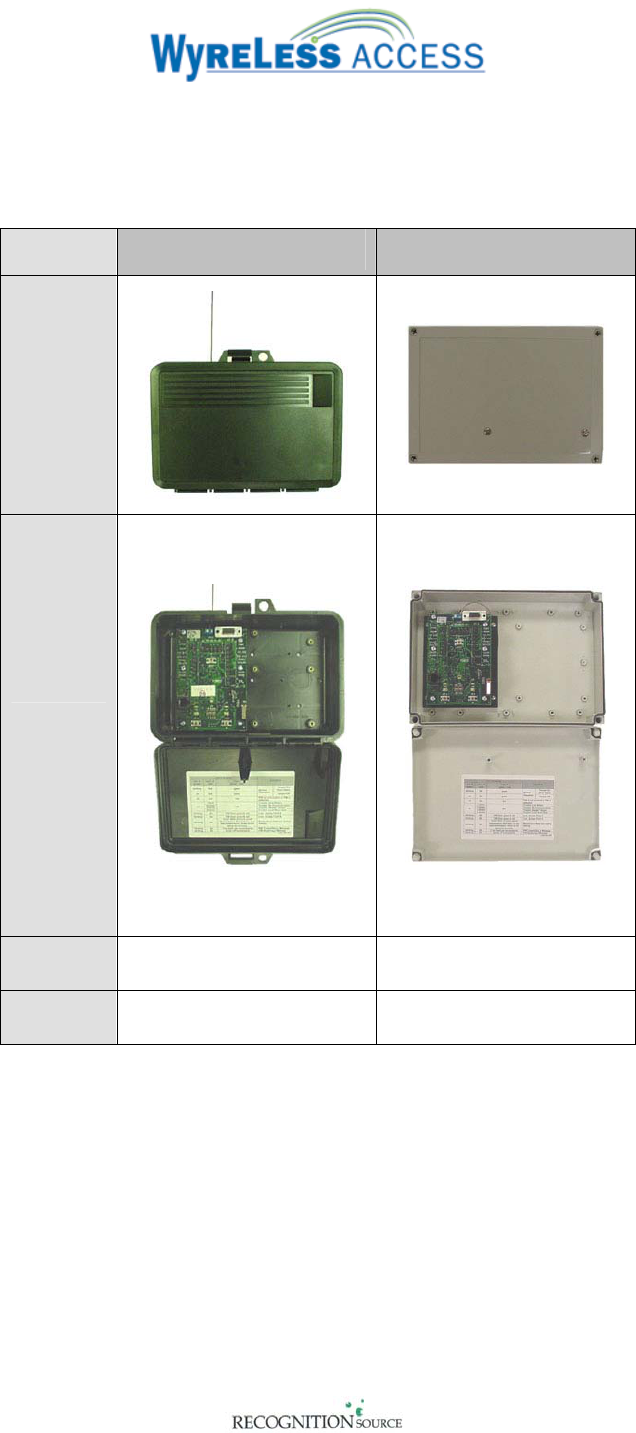

Sales
Model PIM PIM-OTD
Closed
Enclosure

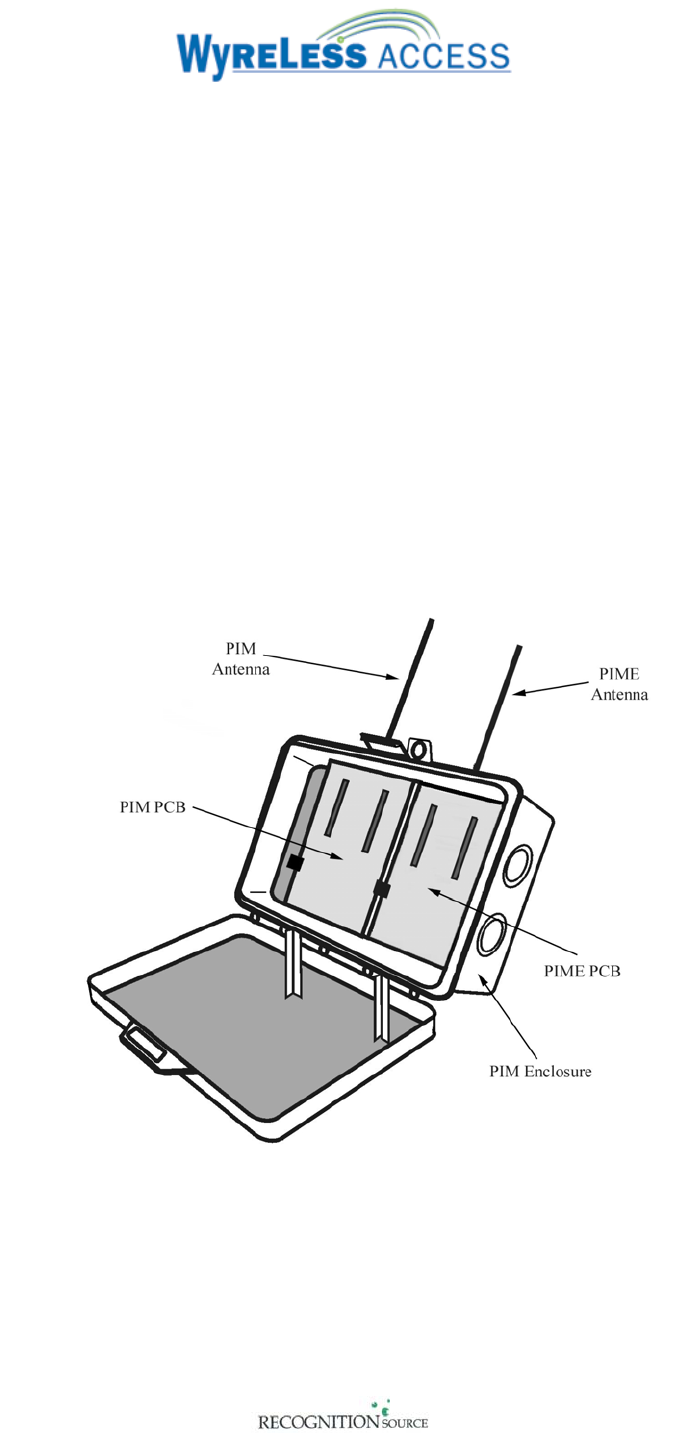

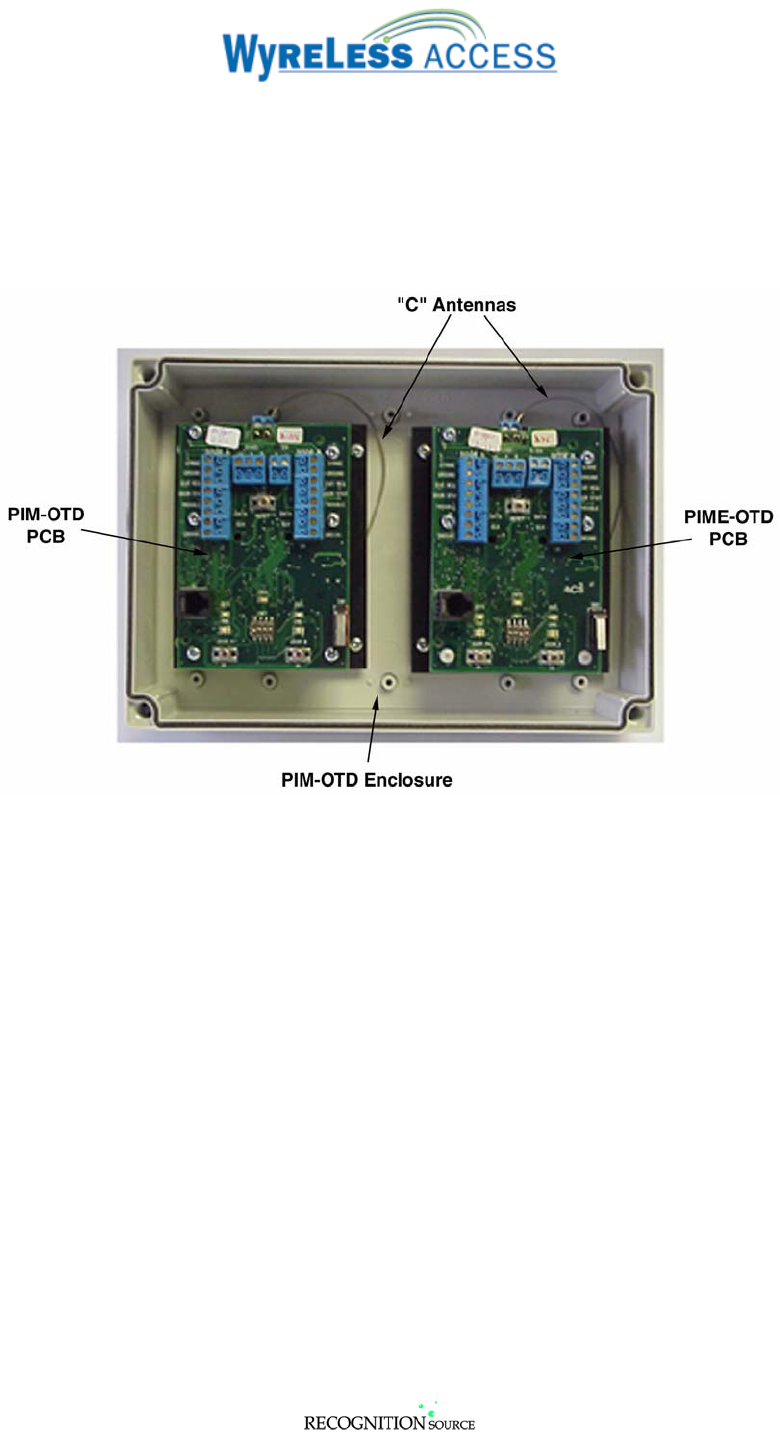

Opened
Enclosure
Expander PIME PIME-OTD
Antenna whip only internal “c”
Table 1-1 – PIM Enclosure Variations
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 6 of 26
MODEL ENCLOSURE
MAXIMUM
NUMBER
OF WAPMs
LOCATION ACCESS CONTROL PANEL
INTERFACE/DESCRIPTION
PIM plastic 2 indoor
Magnetic (clock & data) or
Wiegand (data1/data0)
PIM-OTD plastic 2 indoor
Magnetic (clock & data) or
Wiegand (data1/data0)
PIM-OTD-485 plastic 16 indoor RS485
PIME n/a 2 indoor
Magnetic (clock & data) or
Wiegand (data1/data0)
PIME-OTD n/a 2 indoor
Magnetic (clock & data) or
Wiegand (data1/data0)
Table 1-2- PIM Sales Model Table
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 7 of 26
2. Determining the Best PIM Location
It is important to determine the best mounting location for the PIM to insure that reliable RF communications
between the PIM and its WAPMs can be achieved.
Please refer to the WAPM installation manual for determining the best location for the WAPM.
2.1 PIM Location Guidelines
NOTE: A WAPM located with a substantial steel barrier intervening between it and the PIM may
require alternate PIM placement in order to ensure reliable RF communications. In these
applications, mount the PIM remote from the access control panel. Choose the PIM location to
prevent “shadowing” of the WAPM from PIM radio transmissions.
2.1.1 If the PIM and WAPM are to be used in a line of sight application (i.e. the PIM antenna can visually
see the WAPM antenna with no obstructions), then the maximum distance between the PIM and
WAPM is 1000’. If the WAPM is an IRL, then the maximum distance is 600’.
2.1.2 If the PIM and WAPM are to be used in a building using normal construction, then the maximum
distance between the PIM and WAPM is 200’ horizontally.
2.1.3 Always try to install the PIM on the same floor of a building as the WAPMs it controls.
2.1.4 If WAPM(s) are on another floor of a building (one floor up or down), cut the range by 100 feet for
each floor away from the PIM.
2.1.5 Never install the PIM more than 1 floor away from its WAPMs.
2.1.6 Never install the PIM in an all cinder block, concrete or metal room.
2.1.7 If possible, install the PIM halfway between all the WAPMs it will control and never more than 200
feet away from any. Remember to include the WAPMs that will be controlled by a PIME, if one is
used.
2.1.8 Always mount the PIM so the antenna is vertical for best performance.
2.1.9 Install the PIM as far above the floor as possible, 6 feet is usually optimum for operation and
maintenance.
2.1.10 If possible, mount the PIM so that is there are the minimum number of obstacles between the antennas
of the PIM and the WAPM.
2.1.11 Line-of-sight means no obstructions ever. If obstructions like moving vehicles can block the line-of-
sight, even if for very short times, reduce the specified range in half.
2.1.12 A PIM must, in all directions (sides, top, bottom, and back), have a minimum 3” separation from any
metal surface. Therefore if the PIM must be mounted on a metal surface, though not recommended, a
user supplied 3” non-metallic spacer (i.e. wood) must be provided.
A PIM-OTD must, in all directions (sides, top, bottom, and back), have a minimum 1” separation
from any metal surface. Therefore if the PIM-OTD must be mounted on a metal surface, though not
recommended, the supplied 1” spacer kit (K384-003-001) must be used.
2.2 Pre-installation Wyreless Access ™ Test
Once the best locations for the PIM and WAPM(s) have been determined, use this procedure to
check performance prior to installation:
2.2.1 As close as possible to its exact mounting location, temporarily mount the WAPM to the access
control point (i.e. a door, a gate, an elevator). Do not connect battery pack yet.
2.2.2 Temporarily mount PIM in the exact location and orientation it is intended to be mounted.
2.2.3 Install the PIM antenna as indicated in Section 3.5.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 8 of 26
2.2.4 Power the PIM temporarily with a 12-volt battery capable of delivering 300 mA by connecting it to J1
– positive left, negative right (depending on PIM PCB being used see Figure 3-1 or Figure 3-2).
2.2.5 Put the PIM into Link Mode (S1 or S2) for the WAPM (A or B) being tested (depending on PIM PCB
being used see Figure 3-1 or Figure 3-2).
2.2.6 Go to the access control point being tested. Make sure the access control point is in its secure state
(i.e. closed). Connect battery. Verify that linking has occurred. Successful linking is indicated at the
WAPM by the green LED flashing and optionally by an internal sounder beeping. The number of
green flashes and audible beeps should be the same as the channel number that the PIM is set to. This
linking process can take from 20-60 seconds to complete.
2.2.7 If linking occurred successfully, link second WAPM similarly, then proceed with installing the
WAPM(s) and PIM.
2.2.8 If linking does not occur successfully, move the PIM 6-10 inches in any convenient direction (up,
down, sideways) and repeat until all WAPMs link successfully. Once the linking is successful, then
proceed with installing the WAPMs and PIM.
2.2.9 If still not successful, change channels and repeat or move PIM closer to the WAPMs and repeat.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 9 of 26
3. Installing the Panel Interface Module (PIM)
There are two versions of the PIM printed circuit board (PCB): RS232 (Figure 3-1), and RS485 (Figure 3-2).
3.1 How to determine the version of PIM PCB
The version of PIM PCB being installed can be identified by observing which connectors are installed on
the PCB. Compare the board being installed toFigure 3-1, and Figure 3-2.
3.1.1 RS232 PIM PCB (Figure 3-1)
If the RS232, 9-pin connector, J5, is installed and the RS485, 5-pin terminal block, J7, is missing then
it is a RS232 PIM PCB
3.1.2 RS485 PIM PCB (Figure 3-2
The RS485 PIM PCB can be uniquely identified in one of two ways:
• If the RS232, 9-pin connector, J5, is installed and the RS485, 5-pin terminal block, J7, is
installed it is a RS485 PIM PCB
• If the Access Point A, 8-pin panel connector, J3 and the Access Point B, 8-pin panel
connector, J4, are missing it is a RS485 PIM PCB
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 10 of 26

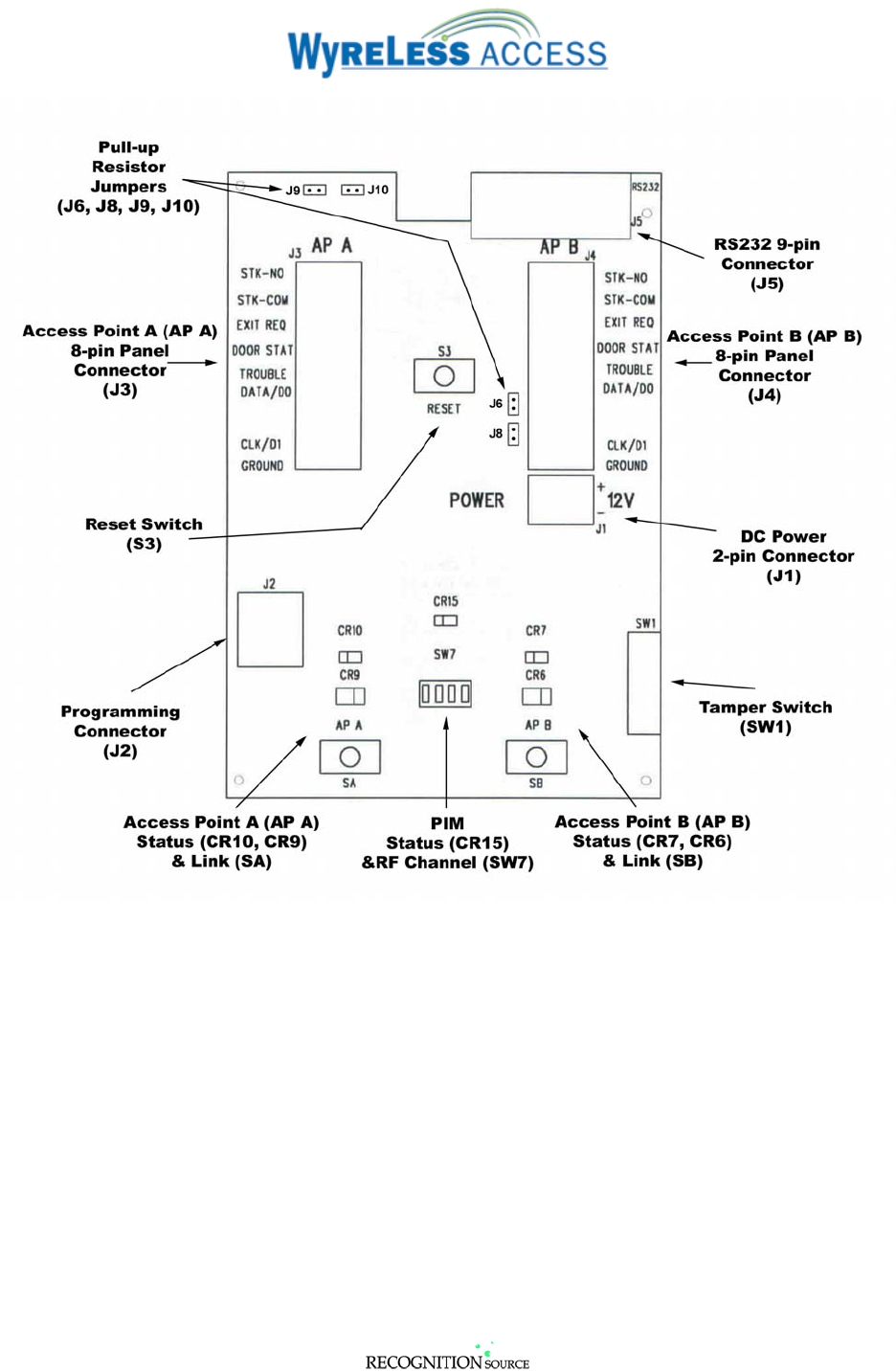

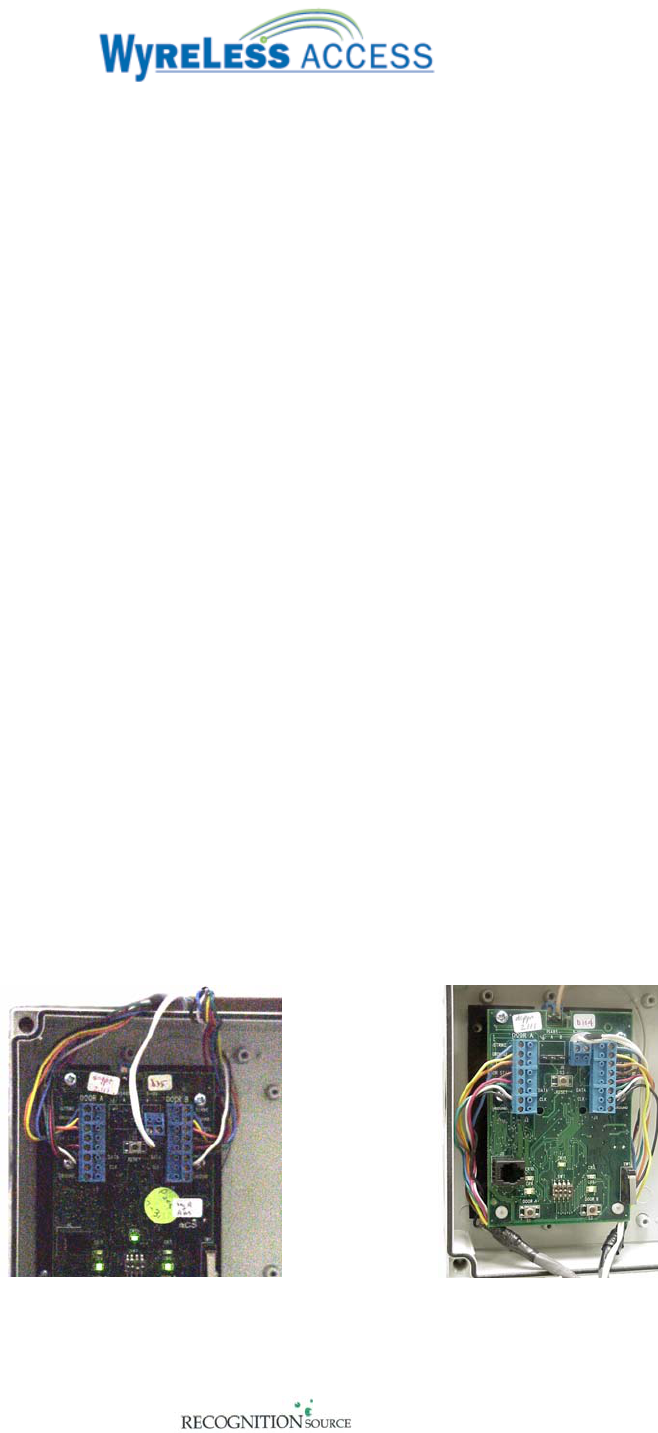

Figure 3-1 – RS232 PIM & PIME Printed Circuit Board (PCB)
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 11 of 26

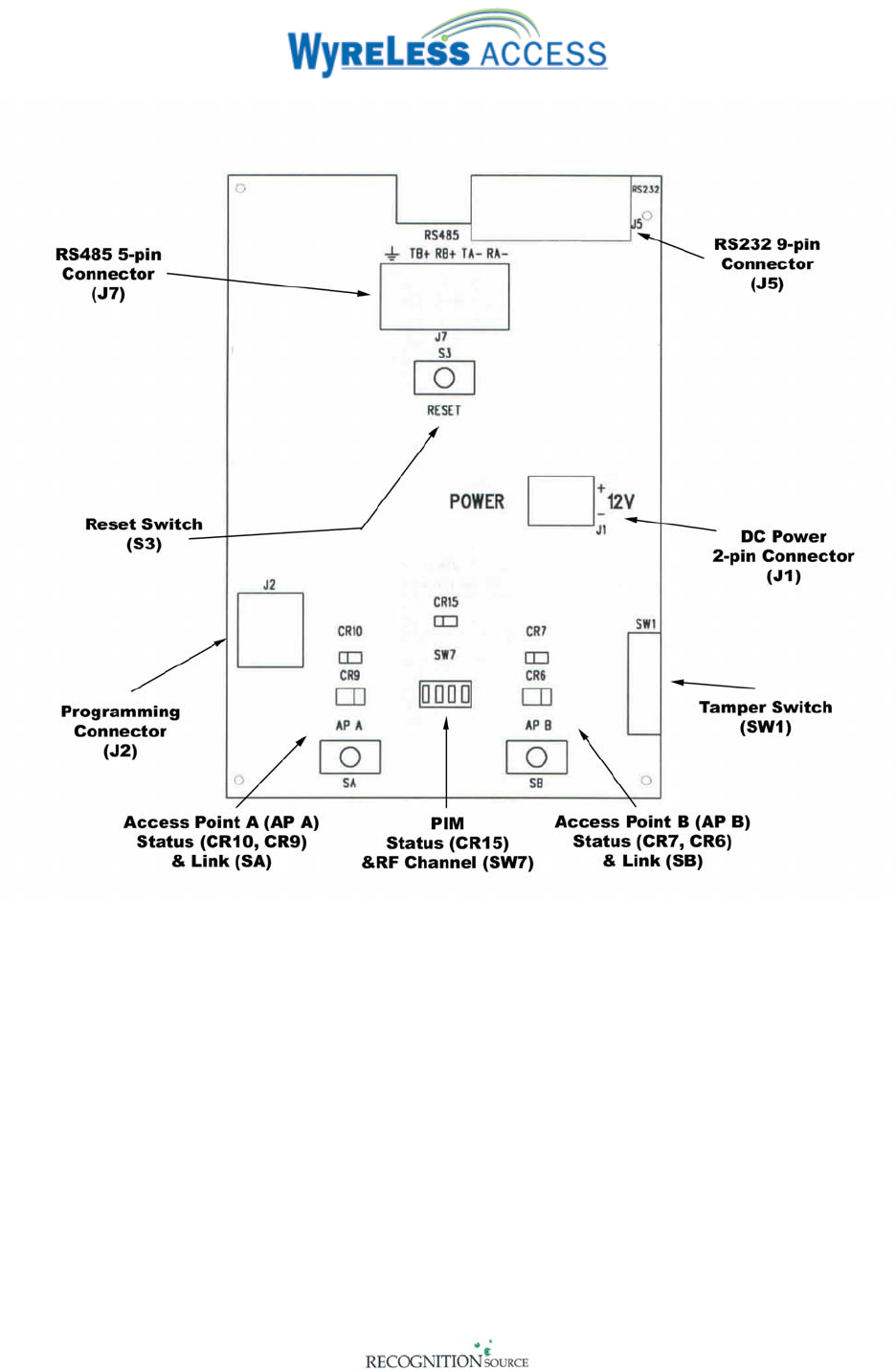

Figure 3-2 – RS485 PIM & PIME Printed Circuit Board (PCB)
3.2 PIM PCB Functional Components
NOTE: The components on the left side of the PIM PCB are for Access Point A (AP A) while
components on the right are for Access Point B (AP B).
3.2.1 Access Control Panel Connections
PIM signal wiring connections to an access control panel are accomplished using two 8-Pin
Connectors. J3 is used to connect Access Point A (AP A) and J4 is used for Access Point B (AP B)
(depending on PIM PCB being used see Figure 3-1 or Figure 3-2).
3.2.2 DC Power Connection
DC power is connected to the PIM via connector J1. Positive is the left pin, negative is the right pin
(depending on PIM PCB being used see Figure 3-1 or Figure 3-2).
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 12 of 26
3.2.3 RS485 Connection
A serial RS485 connection can be made to the PIM using connector J6. This connection is used for
system configuration and future features (depending on PIM PCB being used see Figure 3-1 or Figure
3-2).
For additional information about system configuration please refer to the “Configuring & Operating a
Wyreless Access System” manual and the “Configuration & Demonstration Tool (CDT)” manual.
3.2.4 PIM RF Channel & Status
The RF channel to be used to communicate with the Access Points is selected using a 4 position,
single pole, single throw DIP switch SW7 (depending on PIM PCB being used see Figure 3-1 or
Figure 3-2).
The overall status of the PIM is indicated using the green LED, CR15.
For additional information about setting the RF channel and how the PIM status is displayed please
refer to the “Configuring & Operating a Wyreless Access System” manual.
3.2.5 Access Point Link & Status
A PIM/Access Point link mode process is initiated using a Link Switch, either S1 for AP A or S2 for
AP B (depending on PIM PCB being used see Figure 3-1 or Figure 3-2).
The status of an Access Point is indicated using two LEDs: one for the real time status and one for
trouble status. A red/green LED is used for real time status: CR9 for AP A and CR6 for AP B. A red
LED is used for trouble status: CR10 for AP A and CR7 for AP B (depending on PIM PCB being
used see Figure 3-1 or Figure 3-2).
For additional information about Access Point linking and status please refer to the “Configuring &
Operating a Wyreless Access System” manual.
3.2.6 PIM Reset Switch
Switch S3 is provided to reset the PIM without having to cycle power (depending on PIM PCB being
used see Figure 3-1 or Figure 3-2).
For additional information about the PIM Reset switch please refer to the “Configuring & Operating a
Wyreless Access System” manual.
3.2.7 PIM Programming Connector
A programming connector (J2) is provided to allow new PIM firmware versions to be installed
(depending on PIM PCB being used see Figure 3-1 or Figure 3-2).
For additional information about PIM programming, please refer to the “Configuring & Operating a
Wyreless Access System” manual.
3.2.8 PIM Tamper Switch
A tamper switch (SW1) is provided to indicate when the PIM enclosure cover is open (depending on
PIM PCB being used see Figure 3-1 or Figure 3-2).
For additional information about PIM tamper switch refer to the “Configuring & Operating a
Wyreless Access System” manual.
3.3 Tools – Hardware Required
• Hammer
• 9/32” drill bit
• Flat and Phillips head screwdrivers (1/8” wide flat blade for screw terminals)
• Pencil
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 13 of 26
• Mounting Kit (K381-000-001), provided, including four #8 X 1 ½” screws and four heavy-duty
anchors
• Mounting Kit (K384-003-001), provided, including four #8 X 2 ½” screws and four 1” round by 1”
high (1” O.D. x 1”) spacers
3.4 Mounting the PIM
3.4.1 PIM
If installing a PIM, see Table 1-1, PIM column, use this procedure:
3.4.1.1 Remove the desired knockout with the screwdriver and hammer.
3.4.1.1.1 To remove the inner ½” electrical metallic tubing (conduit) knockout, place screwdriver
blade into inner groove and strike top of screwdriver handle with a hammer.
3.4.1.1.2 To remove the outer ¾” electrical metallic tubing (conduit), repeat the above procedure but
place the screwdriver blade in the outer groove.
3.4.1.2 If the PIM is to be mounted on a metal surface, install a 3”, non-metallic spacer (i.e. wood) to
the metal surface first, then proceed, as described below, to fasten the PIM to the non-metallic
spacer.
3.4.1.3 Place the PIM with its door opened, against the wall or against installed non-metallic spacer in
the position it was successfully “link” tested (Section 2.2)
3.4.1.4 Using the four mounting holes in the back of the PIM housing as a template, mark these holes
with a pencil.
3.4.1.5 Set the PIM down and drill the four holes with a 9/32” diameter drill bit, 1 ¾” deep.
3.4.1.6 Insert the four anchors provided firmly into the holes so they are flush with the wall or the non-
metallic spacer.
3.4.1.7 Screw in the four screws provided to attach the PIM to the wall or the non-metallic spacer.
3.4.2 PIM-OTD
If installing a PIM-OTD, see Table 1-1, PIM-OTD column, use this procedure:
3.4.2.1 When using the internal “C” antenna with the PIM-OTD or PIME-OTD, wire routing inside the
enclosure is very important. Improper wire routing will reduce the RF range. Keep the wires
inside the enclosure as short as possible (i.e. do not coil an excess wire inside the enclosure).
(Figure 3-3 & Figure 3-4).
Figure 3-3 – Improper Wire Routing
Figure 3-4 – Proper Wire Routing

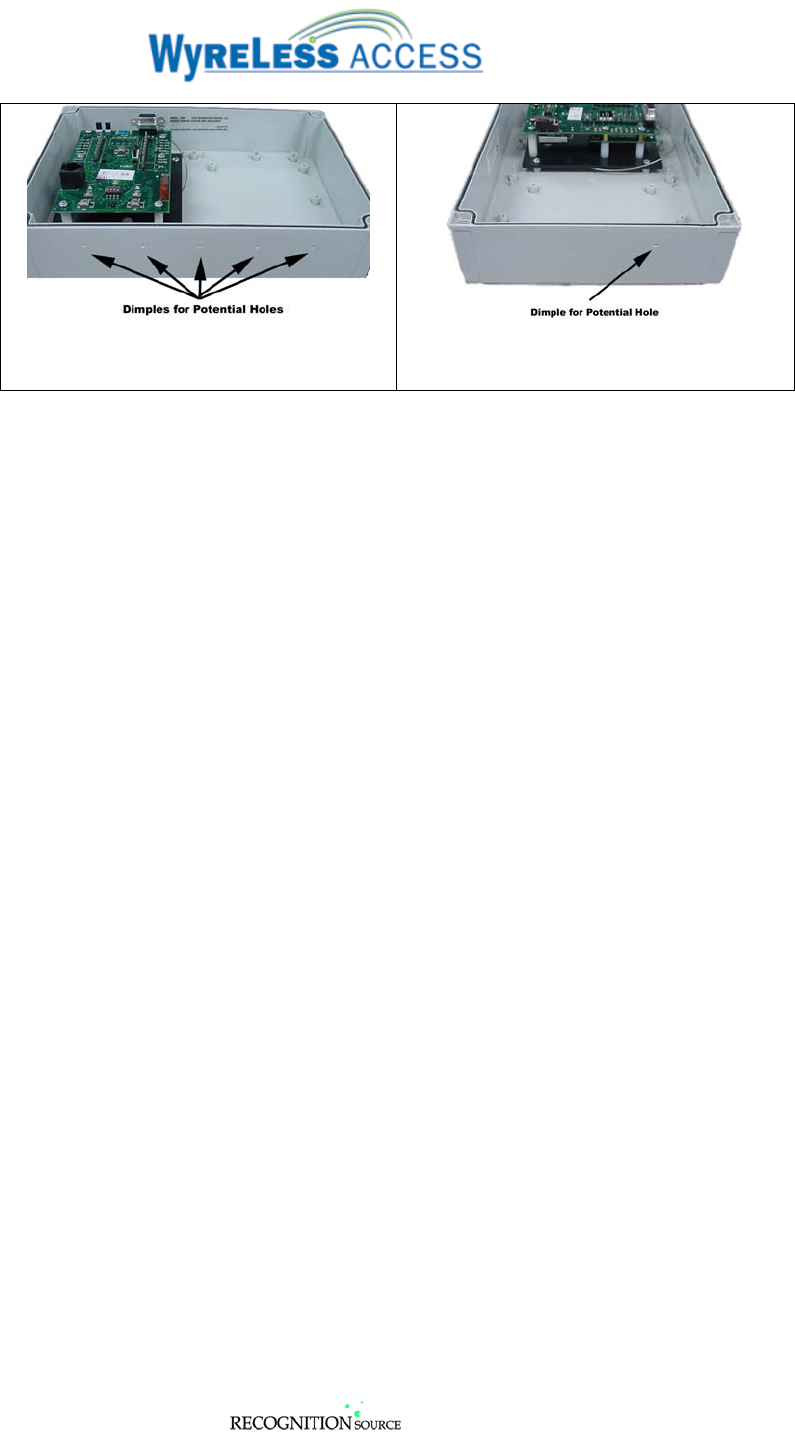

There are dimples on the sides and bottom of the PIM-OTD enclosure indicating the only proper
place to drill holes (Figure 3-5 and Figure 3-6).
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 14 of 26
Figure 3-5 - PIM-OTD Dimples for Hole
Drilling
Figure 3-6 – PIM-OTD Dimples for Hole
Drilling
NOTE: There are two dimples on the top of the PIM-OTD enclosure. These are for remote
antenna installation and are not to be used for signal/power wiring.
Using these dimples, drill hole(s) in the PIM-OTD enclosure, to accommodate the size and
number of entry/exit connectors to be used.
NOTE: When drilling, make certain that the drill bit does not damage any electronics inside
the enclosure. Use light drill pressure so that the bit does not enter the enclosure very far
when the bit breaks through the inside of the enclosure.
3.4.2.2 Place the PIM-OTD, with its cover removed, against the wall in the position it was successfully
“link” tested (Section 2.2)
3.4.2.3 Using the four mounting holes in the corner of the PIM-OTD housing as a template, mark these
holes with a pencil.
3.4.2.4 Set the PIM-OTD down and drill the four holes with a 9/32” diameter drill bit, 1 ¾” deep.
3.4.2.5 Insert the four anchors provided (kit: K381-000-001) firmly into the holes so they are basically
flush with the wall.
3.4.2.6 If the PIM-OTD is to be mounted on a non-metallic surface use the #8, 1½” screws provided
(kit: K381-000-001) to attach the PIM-OTD to the wall..
If the PIM-OTD is to be mounted on a metallic surface use the 1” round by 1” high (1” O.D. x
1”) spacers and the #8, 2½” screws provided (kit: K384-003-001) to attach the PIM-OTD 1”
from the wall.
3.5 Installing the Antenna
3.5.1 Omni Whip Antenna (ANT-OMNI)
Insert the straight black omni antenna, supplied with the PIM or PIME, into the hole at the top of the
PIM housing and tighten the screw. Do not over tighten.
3.5.2 Internal C Antenna
If the internal C antenna is to be used, then no antenna installation is required.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 15 of 26
3.6 Connecting the RS232 PIM PCB to the Access Control Panel
Review the PIM Functional Components from Section 3.1 before connecting the RS232 PIM PCB to an
access control panel.
Caution: Disconnect the access control panel’s power and standby batteries while wiring the PIM
to the panel.
Warning! Because each access control panel is different, always check the panel’s instruction manual
for appropriate interface wiring.
Use shielded 8-conductor wire for the signal wiring between PIM and the access control panel.
Refer to Table 5-1 for maximum wiring lengths and cable specifications.
There are 6 different wiring connections that need to be made between the PIM and the Access Control
Panel. These 6 connections need to be made for each of the Access Points on the PIM if both are used:
3.6.1 DC Power (required)
Refer to J1 section of Table 3-2 for how to connect DC power to the PIM. This connection is always
required regardless of the system application or configuration.
3.6.2 Access Point Card Reader (optional)
Refer to J3/J4 section of Table 3-2 for how to connect the Card Reader signals from the PIM to the
access control panel. This connection is optional depending on the system application or
configuration. Make certain there is at least one signal ground connection between the PIM and the
access control panel.
3.6.2.1 The Card Reader signals on earlier PIM versions are driven by open-collector (open drain)
devices. If the access control panel does not have internal pull-up resistors then external pull-up
resistors (external to the access control panel) will need to be installed. See Recognition Source
Application Note A664-006-xxx: “When Are PIM External Pull-Up Resistors Needed?”
3.6.2.2 Later versions of the PIM RS232 PCB have optional pull-up resistors on the PCB. These pull-
up resistors are enabled or disabled using PCB shorting blocks (jumpers) (Table 3-2). The PIM
RS232 with pull-up resistors on the PCB are shipped with the pull-ups enabled.
Shorting
Block Signal Pull-ups Enabled
(1Kohm to +5 VDC)
Pull-ups Disabled
(open collector)
J10 CLK/D1 shorted open
J9 AP A Pull-ups DATA/D0 shorted open
J8 CLK/D1 shorted open
J6 AP B Pull-ups DATA/D0 shorted open
Table 3-1 – PIM RS232 Pull-up Resistor Options
3.6.3 Access Point Strike Signal (optional)
Refer to J3/J4 section of Table 3-2 for how to connect the Strike signal from the access control panel
to the PIM. This connection is optional depending on the system application or configuration. Make
certain there is at least one signal ground connection between the PIM and the access control panel.
3.6.4 Access Point (Door) Position Signal (optional)
Refer to J3/J4 section of Table 3-2 for how to connect the Access Point (Door) Position Switch signal
from the PIM to the access control panel. This connection is optional depending on the system
application or configuration. Make certain there is at least one signal ground connection between the
PIM and the access control panel.
3.6.5 Access Point Request to Exit Signal (optional)
Refer to J3/J4 section of Table 3-2 for how to connect the Request to Exit signal from the PIM to the
access control panel. This connection is optional depending on the system application or
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 16 of 26
configuration. Make certain there is at least one signal ground connection between the PIM and the
access control panel.
3.6.6 Access Point Trouble Signal (optional)
Refer to J3/J4 section of Table 3-2 for how to connect the Trouble signal from the PIM to the access
control panel. This connection is optional depending on the system application or configuration.
Make certain there is at least one signal ground connection between the PIM and the access control
panel.
After all required connections have been made connect the power and standby
batteries to the panel.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 17 of 26
PIM PIM
SIGNAL
ACCESS
PANEL
SIGNAL
DESCRIPTION/EXPLANATION
12V+ +7-14 VDC
J1
12V- DC Ground
PIM inputs for 12 VDC power. The PIM works from 7 to 14 VDC, and draws 250mA
max during transmit. The access control panel’s reader power outputs may not source
enough current for the PIM. If this is the case use the access control panel’s main
regulated 12 VDC power supply or a separate UL approved 12 VDC power supply.
Observe polarity.
STK-NO
Normally Open
Strike Relay
Contact
STK-COM Common Strike
Relay Contact
PIM input, used to monitor the state of the access panel’s strike relay. The STRIKE
signal should be connected to the normally open terminal of the strike relay. The
GROUND signal should be connected to the common terminal of the strike relay.
This connection only needs to be made if the Access Point needs to be unlocked (door)
or raised (gate).
The PIM circuit is designed for connection to dry strike relay contacts (i.e. no external
voltage should be applied to the strike relay contacts).
If the access control panel does not have dry strike relay contacts, please contact
Recognition Source for interfacing advice (section 6).
EXIT REQ Request To Exit
Input
PIM open collector output, used to indicate when the Access Point is making a request
to exit and needs to be connected to the access control panel’s request to exit input
(15 VDC max, 50ma max).
This connection only needs to be made if the Access Point needs to have a request to
exit function.
Default configuration: low = request to exit. Logic polarity configurable.
DOOR STAT Door Status Input
PIM open collector output, used to indicate the position of the Access Point’s portal:
open or closed (15 VDC max, 50ma max).
This connection only needs to be made if the Access Point needs to know the Access
Point’s portal state.
Default configuration: low = door closed. Logic polarity configurable.
TROUBLE General Purpose
Alarm Input
PIM open collector output, used to indicate that the Access Point has some type of
trouble that needs attention or maintenance (15 VDC max, 50ma max).
This connection only needs to be made if the Access Point trouble status needs to be
monitored
Default configuration: low = trouble. Logic polarity configurable.
DATA/D0 Data or Data 0
Input
CLK/D1 Clock or Data 1
Input
PIM outputs shipped with 1Kohm pull-up resistors to +5VDC option enabled
(configurable to open collector by removing PCB jumpers), used to present card data
to the access control panel. Generally, if the Access Point uses a magnetic reader then
the PIM will present clock & data signals to the access control panel. If the Access
Point uses a Wiegand or Proximity reader then the PIM will present data1/data0
signals to the access control panel.
It is easy to get these signals reversed, if the first hookup fails to work, try switching
the wires at these terminals. (6 VDC max, 50ma max).
Refer to section 3.6.2 above, for pull-up resistor options for these signals.
Default configuration: pull-up resistors = enabled. Configurable via PCB jumpers.
J3
for
Access
Point A
J4
for
Access
Point B
GROUND Signal Ground
This is a common signal ground for the EXIT REQ, DOOR STAT, TROUBLE,
DATA/D0, and CLK/D1 signals.
PIN 2 TD
Transmit Data
PIN 3 RD
Receive Data
J5
PIN 5 Signal Ground
A RS232 communications port used with Wyreless Access system configuration tool.
For additional information please refer to the “Configuring & Operating a Wyreless
Access System” manual and the “Configuration & Demonstration Tool (CDT)”
manual.
Table 3-2 – RS232 PIM to Access Control Panel Connections
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 18 of 26
3.7 Connecting the RS485 PIM PCB to the Access Control Panel
Review the PIM Functional Components from Section 3.1 before connecting the RS485 PIM to an access
control panel.
Caution: Disconnect the access control panel’s power and standby batteries while wiring the PIM
to the panel.
Warning! Because each access control panel is different, always check the panel’s instruction manual
for appropriate interface wiring.
Use shielded 3 or 5 conductor wire for the signal wiring between PIM and the access control panel.
Refer to Table 5-1 for maximum wiring lengths and cable specifications.
There are 2 different wiring connections that need to be made between the PIM and the Access Control
Panel.
3.7.1 DC Power (required)
Refer to J1 section of Table 3-3 for how to connect DC power to the PIM. This connection is always
required regardless of the system application or configuration.
3.7.2 RS485 Connections (required)
Refer to J7 section of Table 3-3 for how to connect the RS485 signals from the RS485 PIM to the
access control panel.
Notes about making a RS485 connection: There is some confusion about the “A” and “B”
designations for the RS485 signals. The EIA RS-485 Specification labels the data wires as “A” and
“B” but many RS485 products label their wires “+” and “-.” Some products associate the “+” signal
with “A”, some with “B”. The bottom line is that the “+” should always be connected to the “+” and
the “-“ to the “-“ however it is designated. Reversing the polarity will not damage either RS485
device, it just won’t communicate. So take your best guess (a 50/50 chance) about connecting “+” to
“+” and “-“ to “-“ and if it doesn’t work, switch them!
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 19 of 26
PIM PIM
SIGNAL
ACCESS
PANEL
SIGNAL
DESCRIPTION/EXPLANATION
12V+ +7-14 VDC
J1
12V- DC Ground
PIM inputs for 12 VDC power. The PIM works from 7 to 14 VDC, and draws 250mA
max during transmit. The access control panel’s reader power outputs may not source
enough current for the PIM. If this is the case use the access control panel’s main
regulated 12 VDC power supply or a separate UL approved 12 VDC power supply.
Observe polarity.
PIN 2 TD
Transmit Data
PIN 3 RD
Receive Data
J5
PIN 5 Signal Ground
A RS232 communications port used with Wyreless Access system configuration tool.
For additional information please refer to the “Configuring & Operating a Wyreless
Access System” manual and the “Configuration & Demonstration Tool (CDT)”
manual.
Signal Ground
TB+ + Transmit Data
RB+ + Receive Data
TA- - Transmit Data
J7
RA- - Receive Data
A full or half duplex, 2 or 4 wire, bi-directional RS485 communications port for
interfacing to access control panels.
For a 2 wire RS485 installation refer to Table 3-4
For a 4 wire RS485 installation refer to Table 3-5
Note: Transmit and Receive nomenclature are with respect to the PIM (i.e.
Transmit = data sent from the PIM, Receive = data sent to the PIM)
Table 3-3 – RS485 PIM to Access Control Panel Connections
PIM1 Access Control Panel (ACP)2
Signal Description Signal Description
Signal Ground Ground ACP Signal Ground
TB+ PIM +Transmit Data
RB+ PIM +Receive Data
+ RS485 ACP +RS485 Data
TA- PIM –Transmit Data
TB- PIM –Receive Data - RS485 ACP –RS485 Data
1 – PIM Transmit and Receive nomenclature are with respect to the PIM
2 – ACP Transmit and Receive nomenclature are with respect to the ACP
Table 3-4 – 2 Wire RS485 Connections
PIM1 Access Control Panel (ACP)2
Signal Description Signal Description
Signal Ground Ground ACP Signal Ground
TB+ PIM +Transmit Data + RS485 Receive ACP +Receive Data
RB+ PIM +Receive Data + RS485 Transmit ACP +Transmit Data
TA- PIM –Transmit Data - RS485 Receive ACP –Receive Data
TB- PIM –Receive Data - RS485 Transmit ACP –Transmit Data
1 – PIM Transmit and Receive nomenclature are with respect to the PIM
2 – ACP Transmit and Receive nomenclature are with respect to the ACP
Table 3-5 – 4 Wire RS485 Connections
After all required connections have been made connect the power and standby
batteries to the panel.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 20 of 26
This completes the installation of the PIM/PIME.
If the Wyreless Access Point Modules (WAPM) that this PIM/PIME will control are not
installed yet, now is the time to install them, please refer to the appropriate APC
Installation Manual.
If the Wyreless Access Point Modules (WAPM) that this PIM/PIME will control are
installed, then you are ready to configure your Wyreless Access System, please refer to the
“Configuring & Operating a Wyreless Access System” manual.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 21 of 26
4. Installing a Panel Interface Module Extender
The PIM and the PIM-OTD can be expanded to control two additional access points by adding a Panel
Interface Module Extender (PIME). To expand the PIM use a PIME, to expand the PIM-OTD use a PIME-
OTD.
4.1 Installing an Extender in a PIM Enclosure
Installing a PIME permits one PIM enclosure (indoor) to control two additional access points for a total
of four. The PIME is a PCB identical to the PCB in a standard PIM. The PIME mounts in the PIM
enclosure to the right of the standard PIM PCB using 6 screws (Figure 4-1). All 6 screws are held in place
by retaining washers and screw into threaded bosses inside the PIM enclosure. The top 4 screws use thin
fiber retaining washers and the bottom 2 screws use a thicker nylon retaining washer. The retaining
washers provide the proper spacing for mounting the PIME and therefore it is very important that the
retaining washers be used and that the thicker nylon washers are only used on the bottom two holes.
Once the PIME is mechanically mounted in the PIM enclosure, follow the instructions in section 3.5 to
install the PIME antenna and connect the PIME to the access control panel. The installation instructions
in section 3.5 are written for a PIM, when installing a PIME; substitute PIME where ever PIM is found.
NOTE: If the PIME is installed after the PIM was installed it may be necessary to re-evaluate if the
current PIM location is optimum for all the WAPMs that this location will control (see section 2).
Figure 4-1 – PIME PCB Location
4.2 Installing an Extender in a PIM-OTD Enclosure
Installing an Extender permits one PIM-OTD enclosure (outdoor) to control two additional access points
for a total of four. The PIME-OTD is a PCB identical to the PCB in a standard PIM-OTD. The PIME-
OTD mounts in the PIM-OTD enclosure to the right of the standard PIM-PCB using four 3/8”, #6 thread
forming screws, provided (Figure 4-2).
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 22 of 26
Once the Extender is mechanically mounted in the PIM-OTD enclosure, follow the instructions in section
3.5 to install the Extender antenna and connect the Extender to the access control panel. The installation
instructions in section 3.5 are written for a PIM, when installing a PIME-OTD substitute PIME-OTD
where ever PIM is found.
NOTE: If the PIME-OTD is installed after the PIM-OTD was installed it may be necessary to re-evaluate
if the current PIM-OTD location is optimum for all the WAPMs that this location will control (see section
2).
Figure 4-2 – PIME-OTD PCB Location in a PIM-OTD
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 23 of 26
5. PIM/PIME Cable/Wire Specifications
Application Part Number AWG Description Maximum
Distance
DC Power
Input Belden 8760 18 2 conductor 1,000’
RS485 Belden 9842
or 9841 24 3 conductor
shielded 1,000’
PIM to
Access
Control Panel
Alpha 1298C 22 8 conductor
shielded 500’
Table 5-1 – PIM Cable/Wire Specifications
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 24 of 26
6. Contacting Recognition Source
For questions regarding Wyreless Access ™:
(630) 762-4450
(630) 762-4444 fax
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 25 of 26
7. FCC/UL Compliance & Warnings
7.1 FCC Compliance
• This device has been authorized by the FCC Rules and Industry Canada.
• This device complies with the limits for a Class B digital device and a Class B intentional radiator,
pursuant to Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to
the following two conditions: (1) This device may cause harmful interference, and (2) this device
must accept any interference received, including interference that may cause undesired operation.
• The Wyreless Access System Component must be installed by qualified professionals or contractors
in accordance with FCC part 15.203, Antenna Requirements.
• Do not use any antenna other than the one provided for the unit.
7.2 UL Compliance
• The Panel Interface Module (PIM) is listed under UL294 as an access control system accessory.
• Access equipment manufactured and/or sold by Recognition Source, LLC, is not rated for, or
intended for use in life safety installations.
• For UL installations use Recognition Source Power Supply, model PS-12VDCR-500mA UL listed
class 2 power supply.
• For UL installations the Panel Interface Module enclosure (PIM or PIM-OTD) must be mounted in a
secure area.
7.3 Warnings
• RF Exposure - To comply with FCC RF exposure requirements for mobile transmitting devices this
transmitter should only be used or installed at locations where there is normally at least a 20 cm
separation between the antenna and all persons.
• Do not co-locate and operate in conjunction with any other antenna or transmitter.
• Changes or modifications not expressly approved by Recognition Source could void the user's
authority to operate the equipment.
3820 Stern Avenue
St. Charles, IL 60174
(630) 762-4450
P/N: M053-xxx-x001 (630) 762-4444 fax Page 26 of 26
8. Revision History
Version Date Changes
X001 09/09/03 preliminary in house release for comments
