Content
Regulatory information for FCC for US and IC for Canada for
Device name: GCY Idefix
Manufacturer part number: 1600A00H6H
FCC ID: TXTIDX01
IC: 909H-IDX01
Preamble
By purchase of any products described in this document the customer accepts
the document's validity and declares their agreement and understanding of its
contents and recommendations. Robert Bosch GmbH and Robert Bosch
Power Tools GmbH reserve the right to make changes as required without
notification.
Notice
This device complies with Part 15 of the FCC Rules and with Industry Canada
licence-exempt RSS standard(s).
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
Power Tools
22 June 2016
Page 2 of 5
deux conditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et
(2) l'appareil doit accepter tout brouillage radioélectrique subi, même
si le brouillage est susceptible d'en compromettre le fonctionnement.
Caution & Requirements
The FCC requires the user to be notified that changes or modifications made
to the equipment not expressly approved by Robert Bosch GmbH and Robert
Bosch Power Tools GmbH may void the FCC / IC authorization to operate this
equipment.
The use of the transceiver module is authorized in mobile or fixed host
devices taking into account the conditions listed below:
OEM Integrator must ensure that the end user manual may not contain
any information about the way to install or remove the module from the
final product.
Depending on the final host device additional authorization
requirements for the non-transmitter functions of the transmitter
module may be required (i.e., Verification, or Declaration of
Conformity) The OEM integrator is responsible for ensuring that after
the module is installed and operational the host continues to be
compliant with the Part 15B unintentional radiator requirements.
The information on the label and in the user manual is required to be
incorporated in the user manual of the final host. see 47 CFR15
requirements for more details (e.g. 15.19 / 15.21 / 15.101 / 15.105 /
RSS-GEN / ICES)
Additional label with the words ‘Contains FCC ID:TXTIDX01’ and
‘Contains IC:909H-IDX01’ shall be applied and visible from the
outside of the host product.
The module must be installed and used in strict accordance with the
manufacturer’s instructions as described in the user documentation
that comes with the module.
The end user manual for the final host product operating with this
transmitter must include operating instructions to satisfy RF exposure
compliance requirements, e.g
Radiofrequency radiation exposure Information:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance of 20 cm between the radiator
Power Tools
22 June 2016
Page 3 of 5
and your body. This transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Cet équipement est conforme aux limites d'exposition aux
rayonnements IC établies pour un environnement non contrôlé. Cet
équipement doit être installé et utilisé avec un minimum de 20 cm de
distance entre la source de rayonnement et votre corps.
The antenna of the module may not be removed, replaced nor
modified. The antenna must not be co-located or operating in
conjunction with any other antenna or transmitter. No additional
antenna must be used.
When the final host product operating with this transmitter deviate from
above, installation of this module into specific final hosts may require
the submission of a Class II permissive change application containing
data pertinent to RF Exposure, spurious emissions, ERP/EIRP, and
host/module authentication, or new application if appropriate.
Device Power Supply
The transmitter described in this document is intended to be supplied by an
external voltage supply: Either directly with nominal 3V by a CR2032 coin cell
via the corresponding “coin cell +/-“ pins and/or with nominal 3.3.V indirectly
by a host device via the “ext_pwr” pins.
Power Tools
22 June 2016
Page 4 of 5

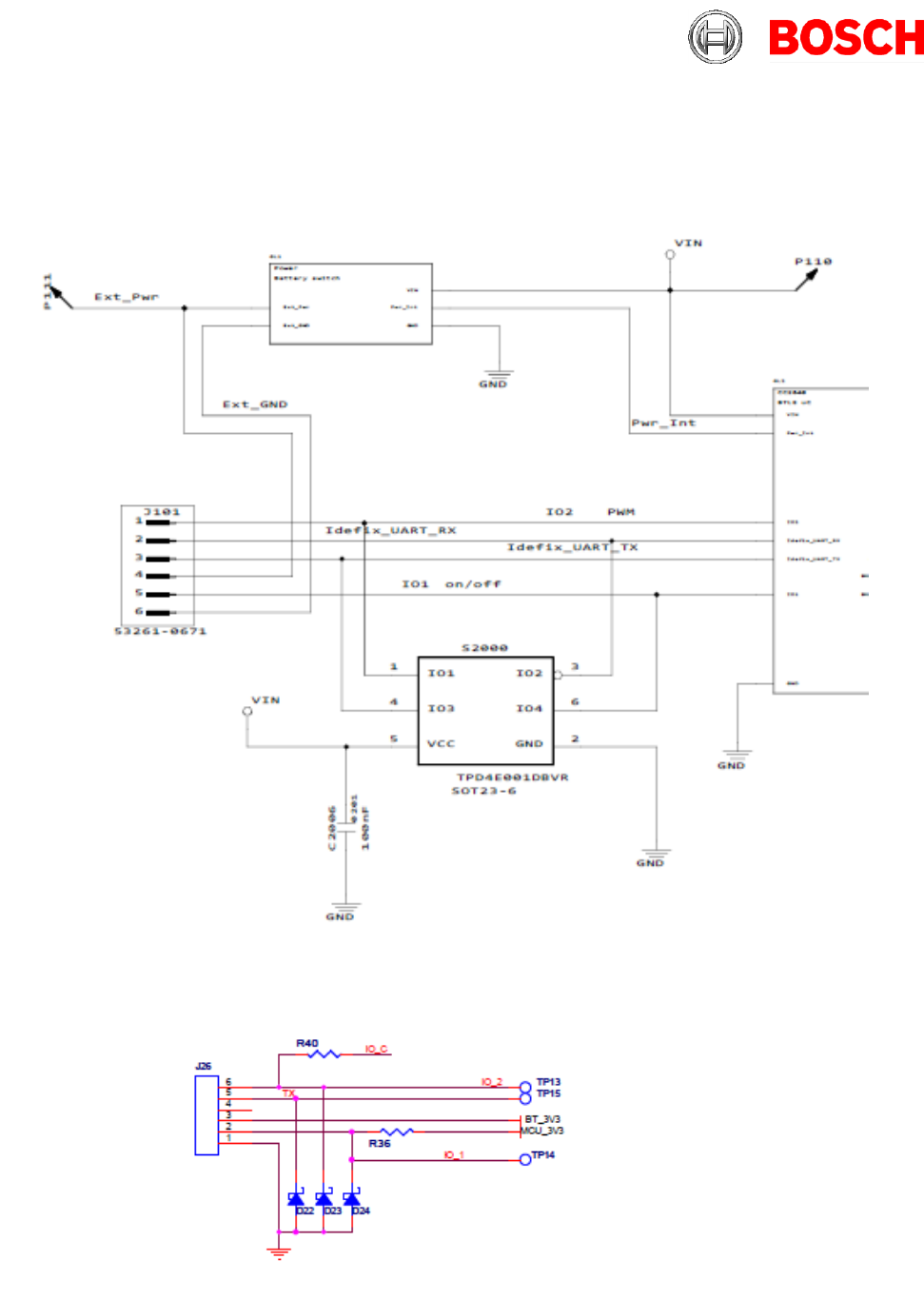

Exemplary block diagram of interface at host device (“BT_3V3” corresponds
to “ext_pwr”):
Feel free to contact us if additional guidance is required.
