To whom it may concern
Applicant / Manufacturer Hardware
Robert Bosch GmbH
70745 Leinfelden-Echterdingen
Germany
01 July 2016
Content
Instruction manual for
Device name: GCY Idefix
Manufacturer part number: 1600A00H6H
FCC ID: TXTIDX01
IC: 909H-IDX01

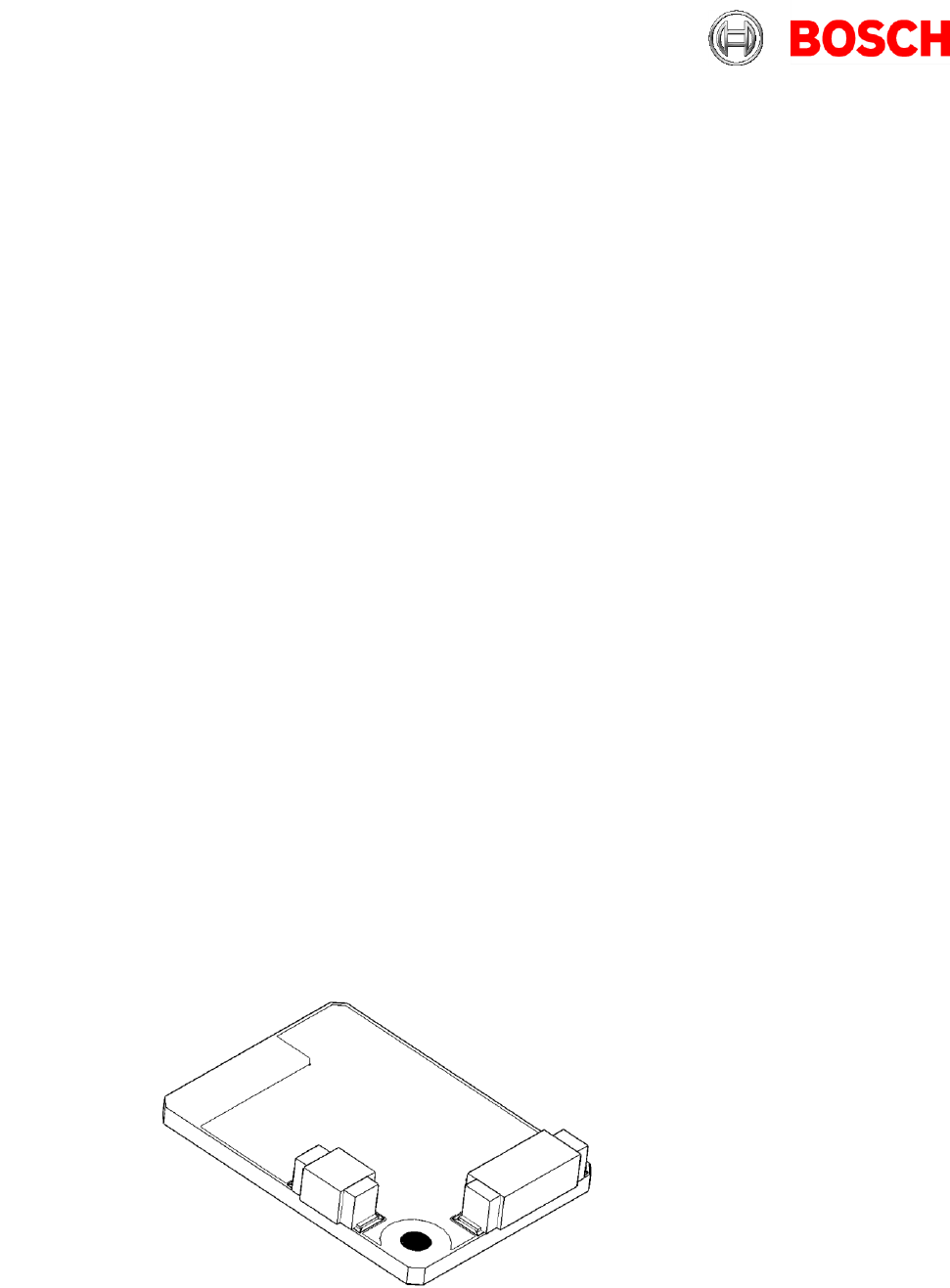

Instructions for physical implementation
The described transmitter is intended to be fixated with a screw in the screw
hole (black, see figure below):
To ensure an adequate performance of the antenna, the following
exclusion areas (red/green) for the components and screw hole need to be
adhered to, when implementing the described transmitter into a host device,
Power Tools
01 July 2016
Page 2 of 3
see figure below:
Additionally, to ensure an adequate performance of the antenna, no
metal parts are allowed in the exclusion areas defined in green. No plastic is
allowed in the orange exclusion areas and no plastic or metal is allowed in the
black exclusion areas, see figure below:
Device Power Supply
The transmitter described in this document is intended to be supplied by an
external voltage supply:
Either directly with nominal 3V by a CR2032 coin cell via the corresponding
and/or with nominal 3.3V ± 2% indirectly by a host device with pins.
Power Tools
01 July 2016
Page 3 of 3
The connection for both external power supplies is realized by a PicoBlade™
(wire to board connector) which prevents unintended connection of standard
power supplies (such as micro-USB).
Feel free to contact us if additional guidance is required.
