COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-003)

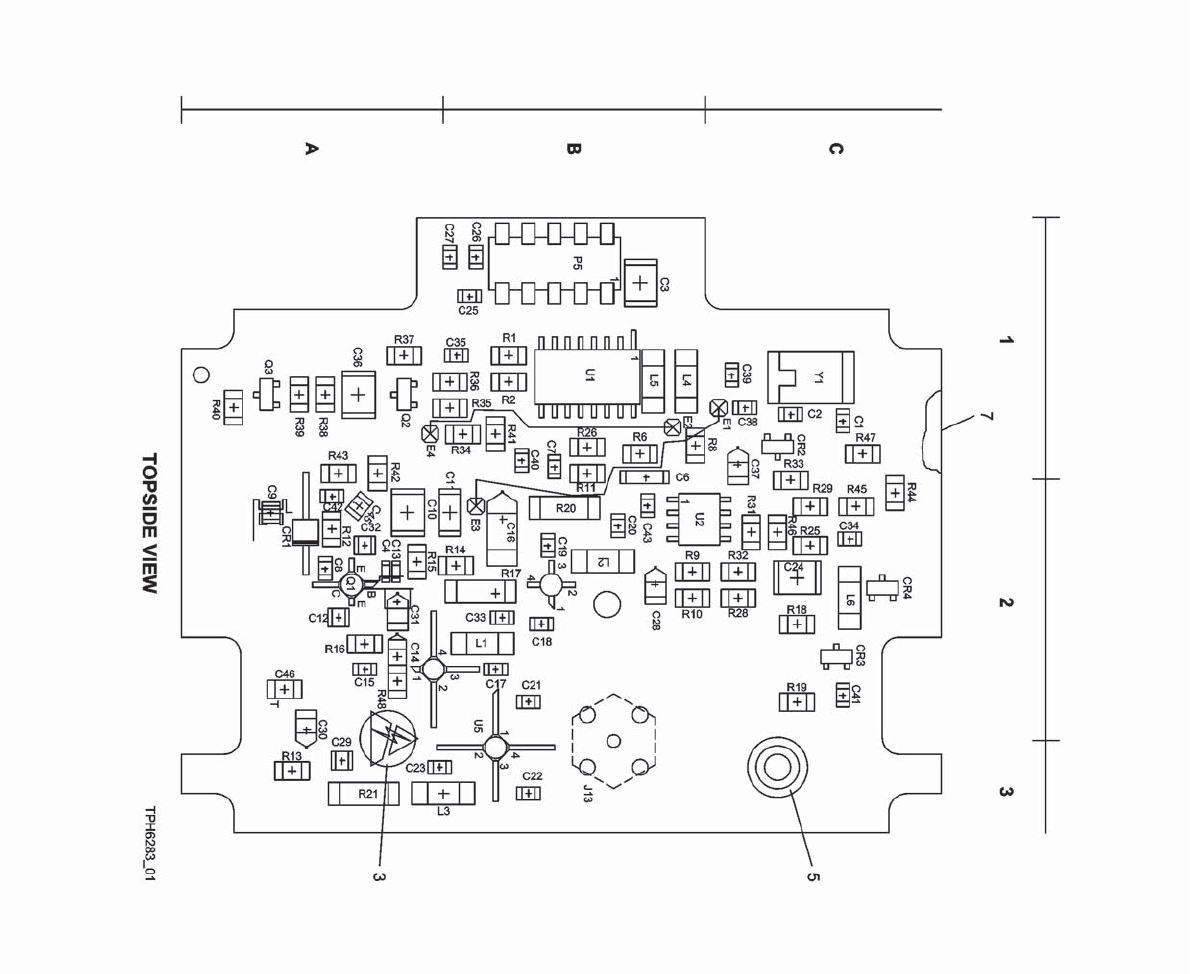

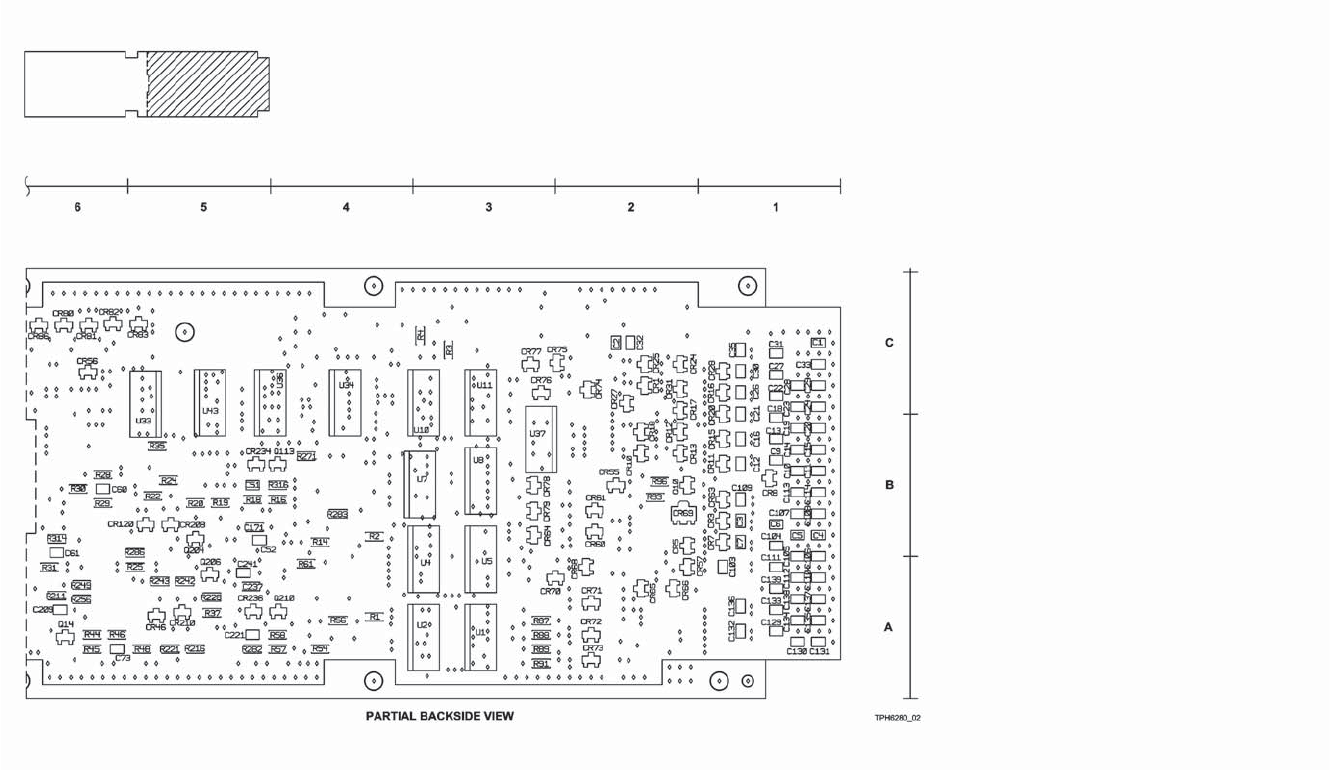

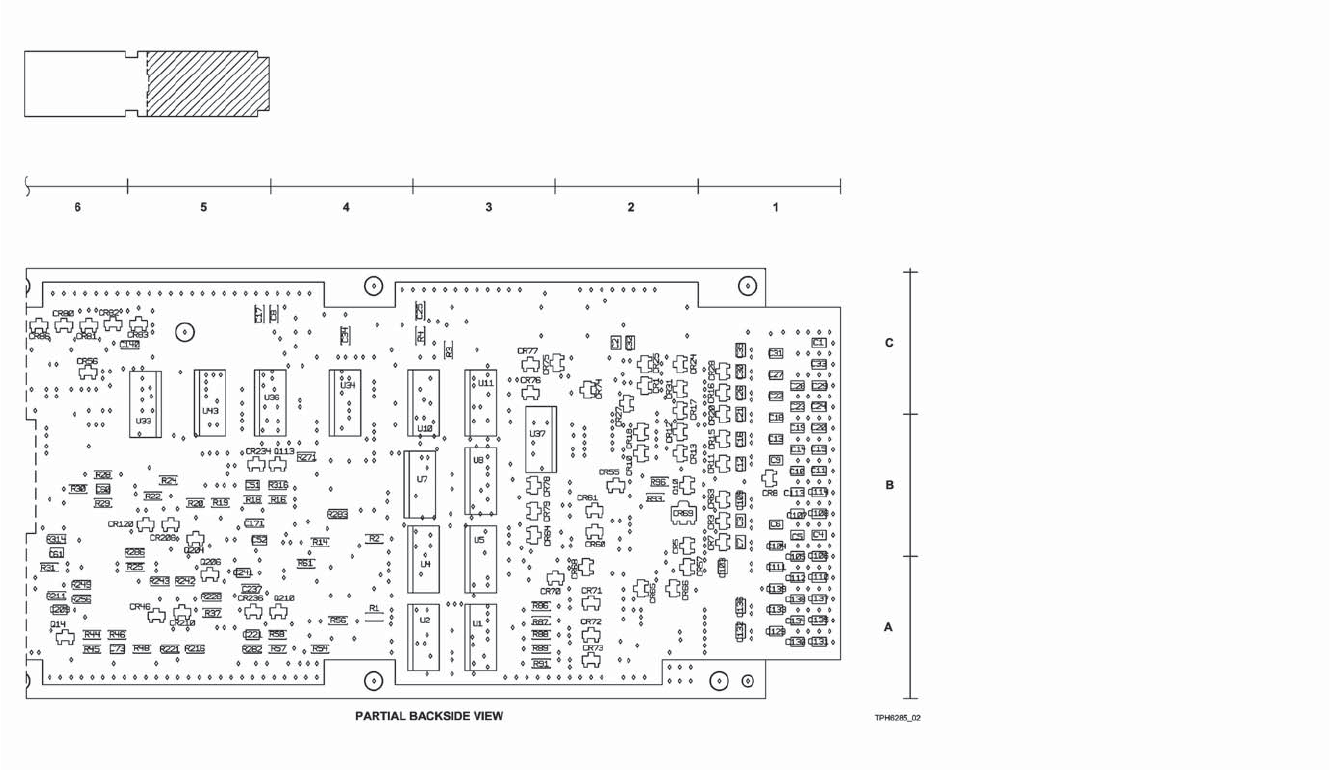

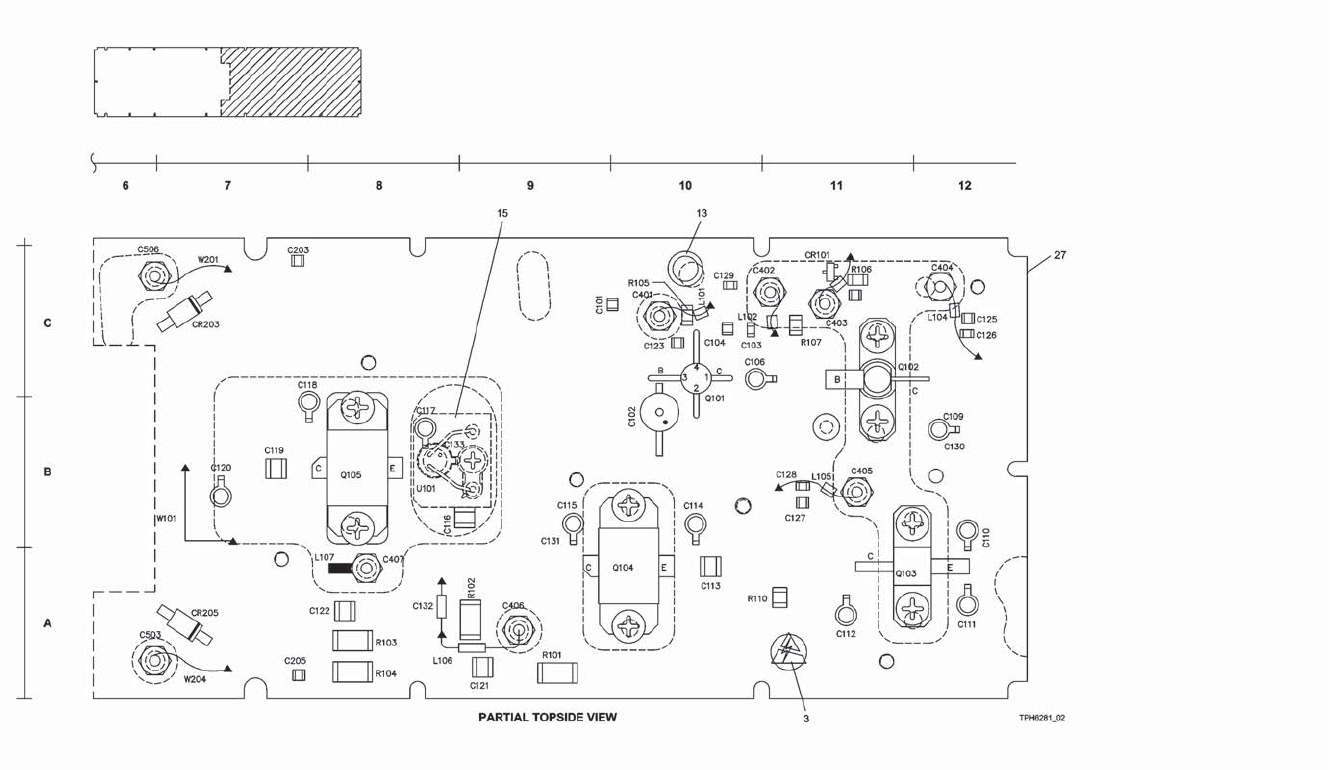

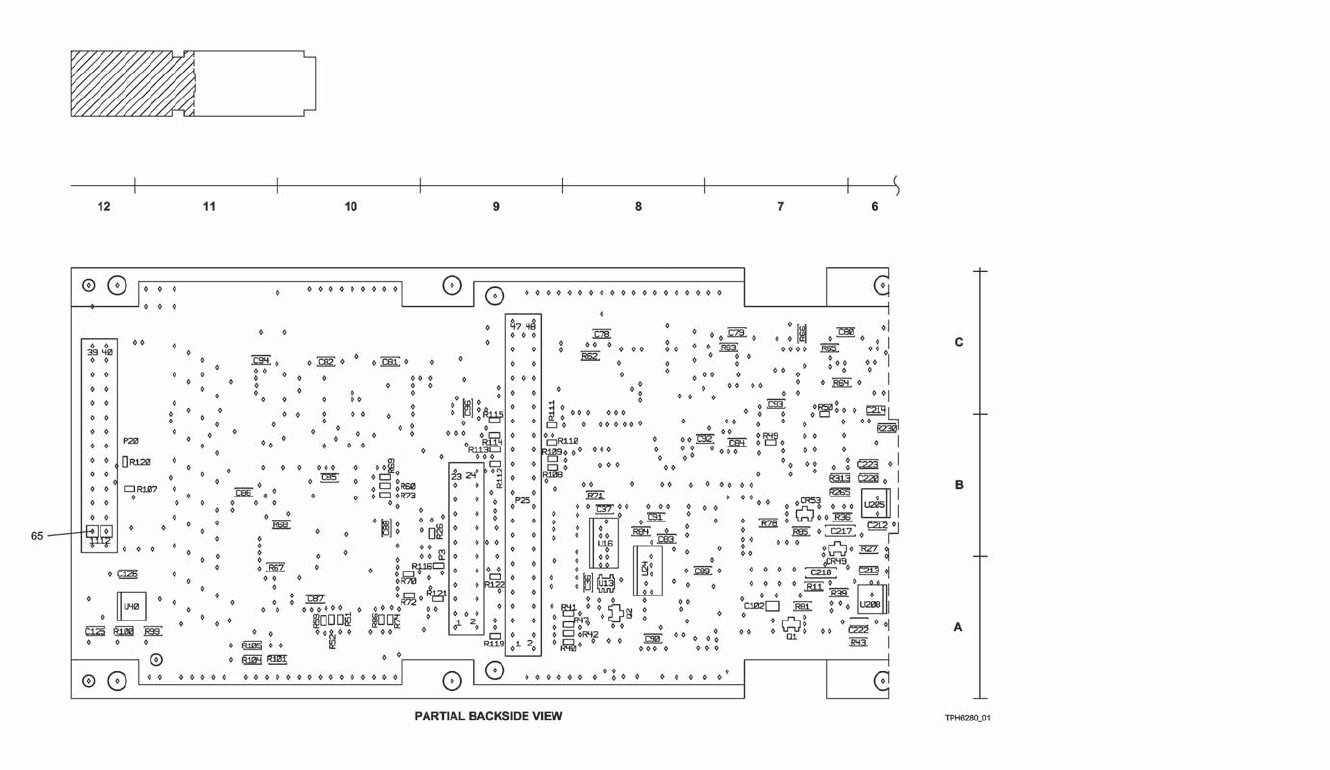

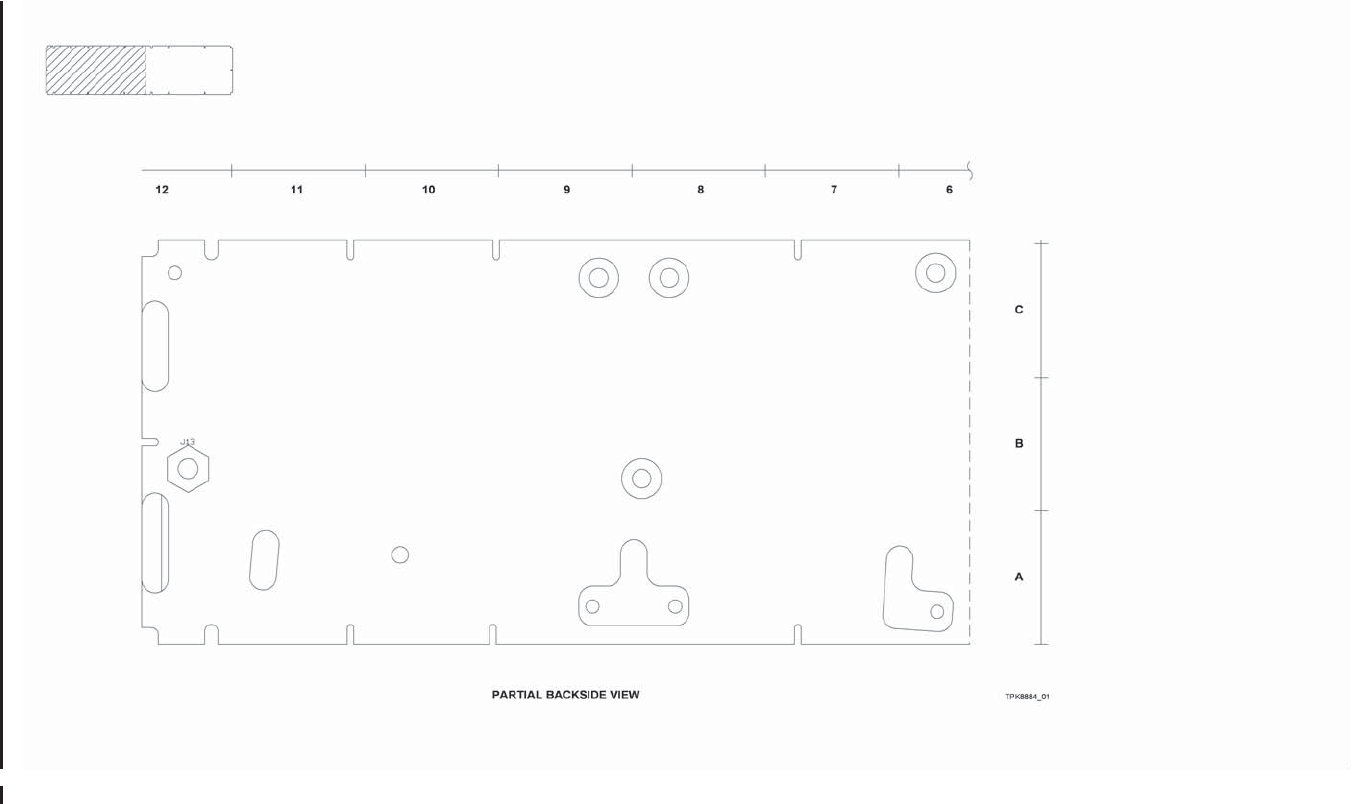

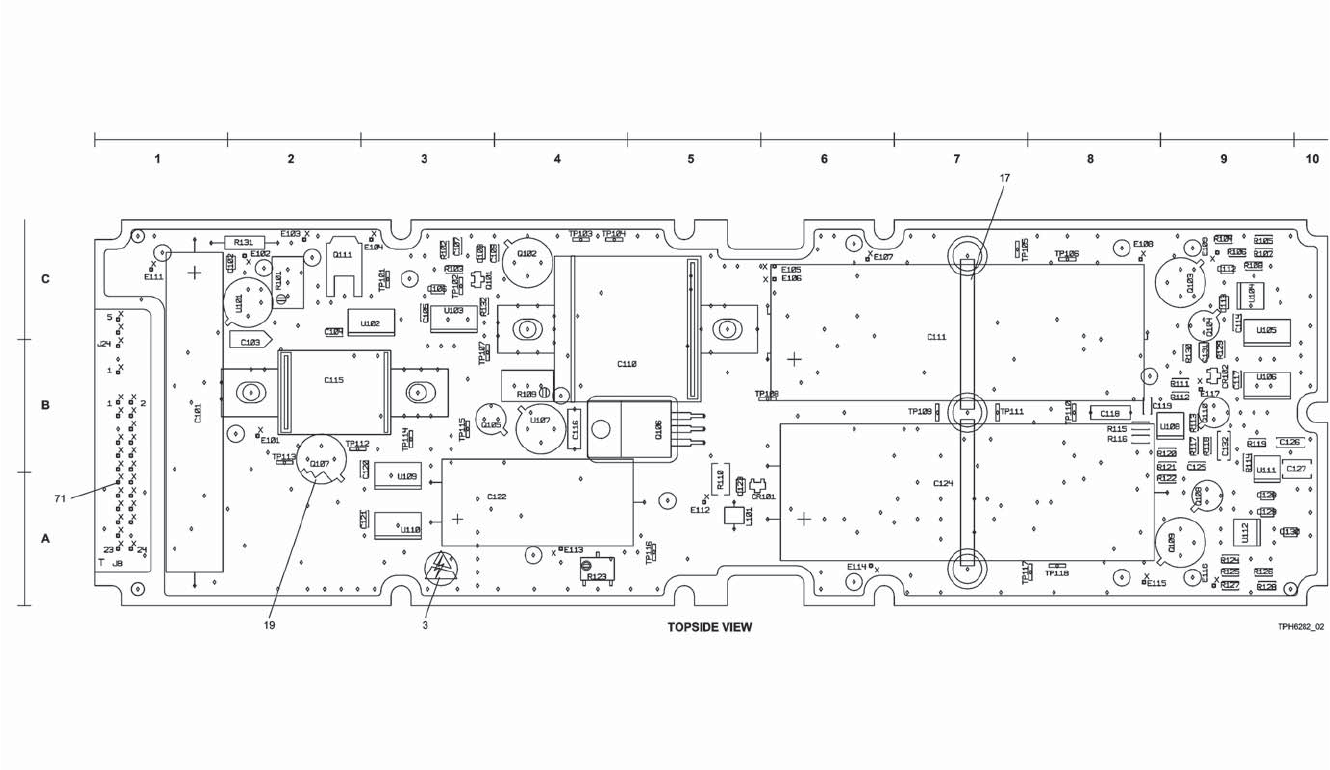

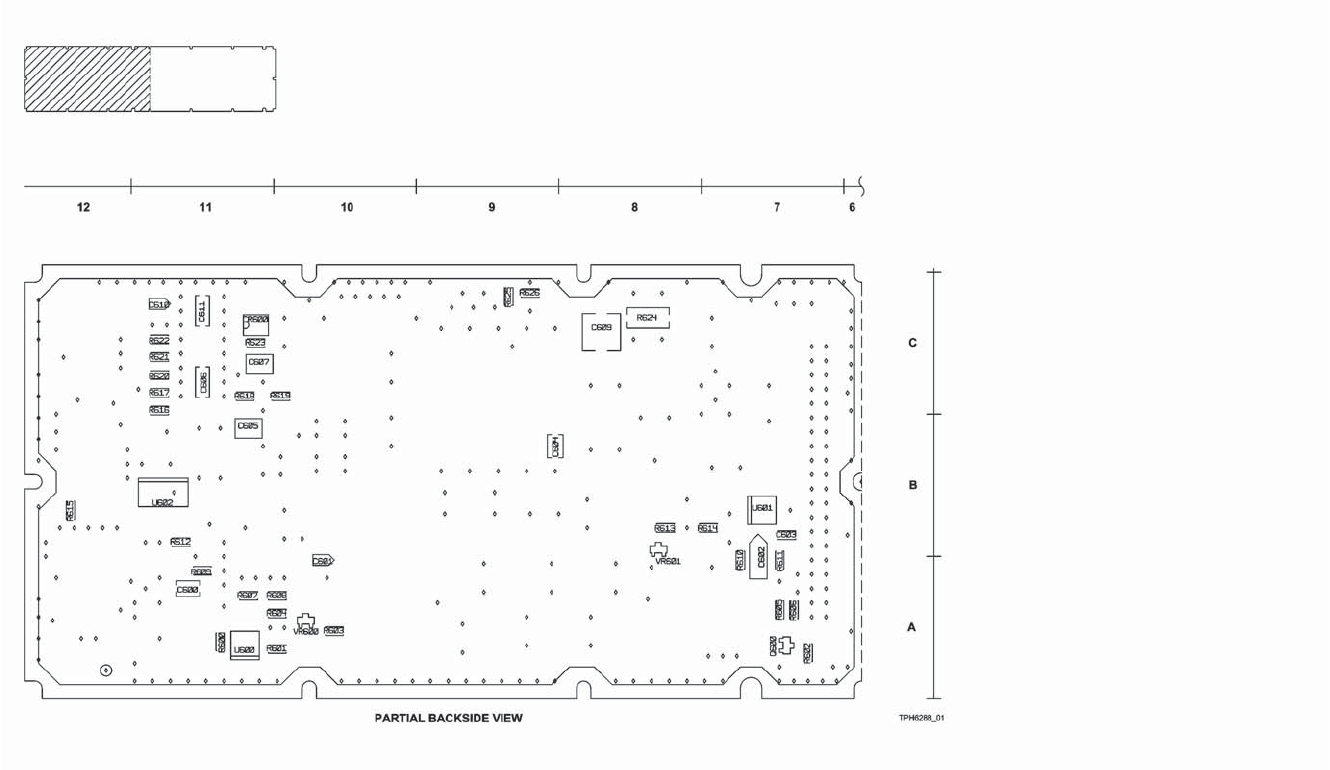

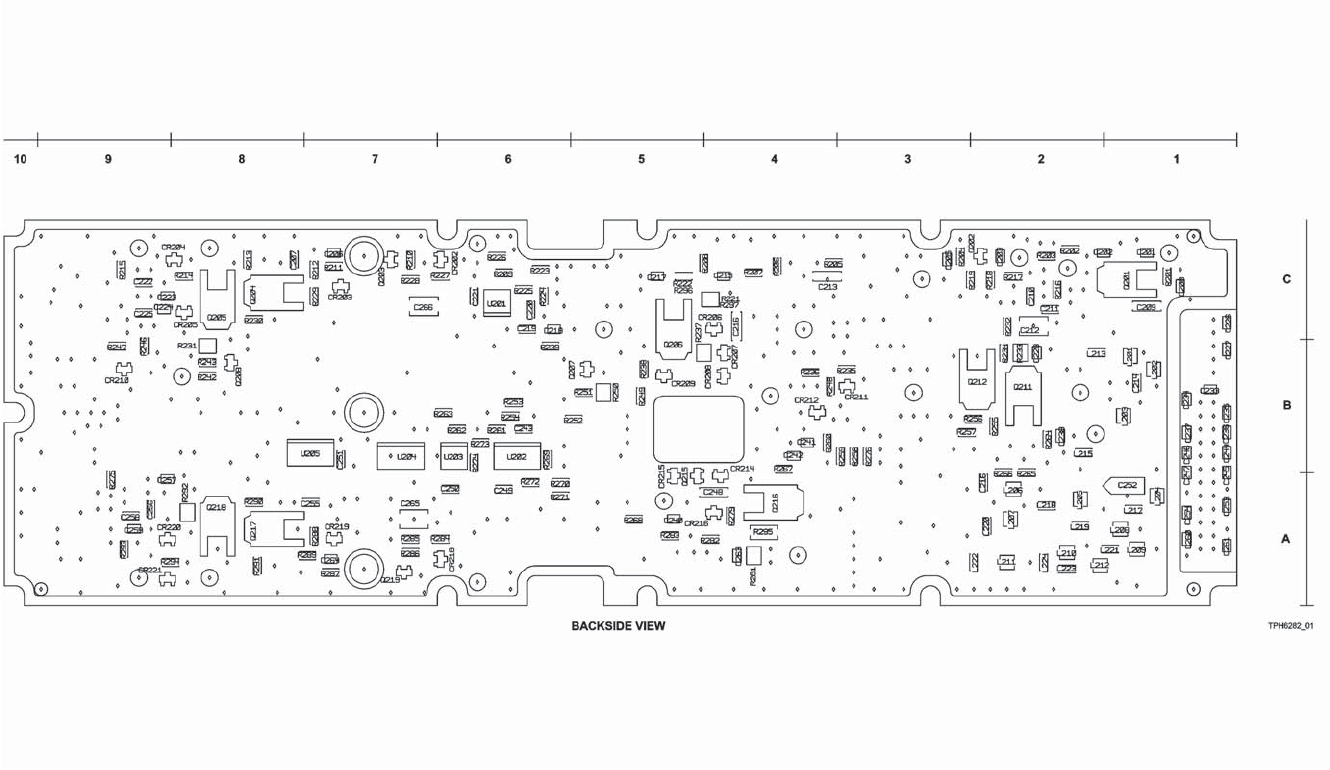

Figure 11 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-161-A01
34-50-96 Page 10215/10216
Apr 17/07
![](/img.php?id=1856825&img=bg3.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-003)

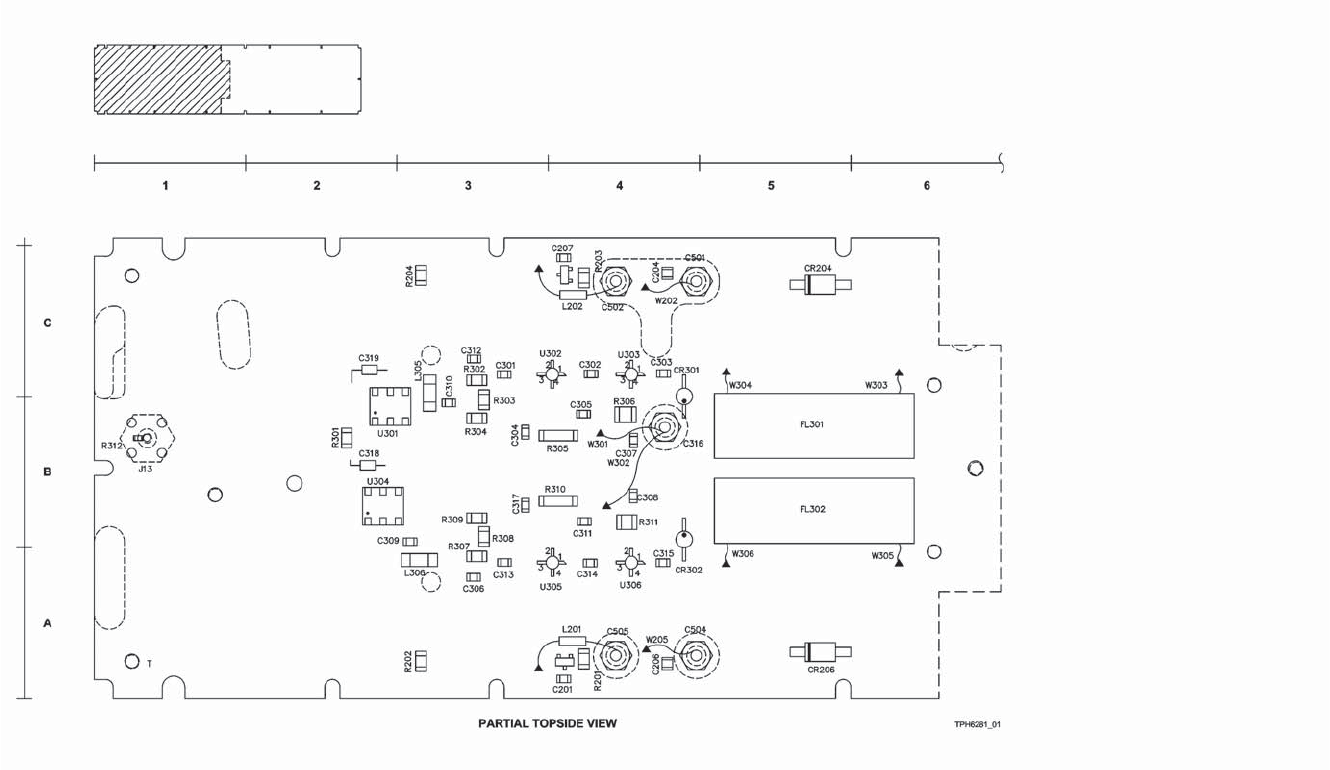

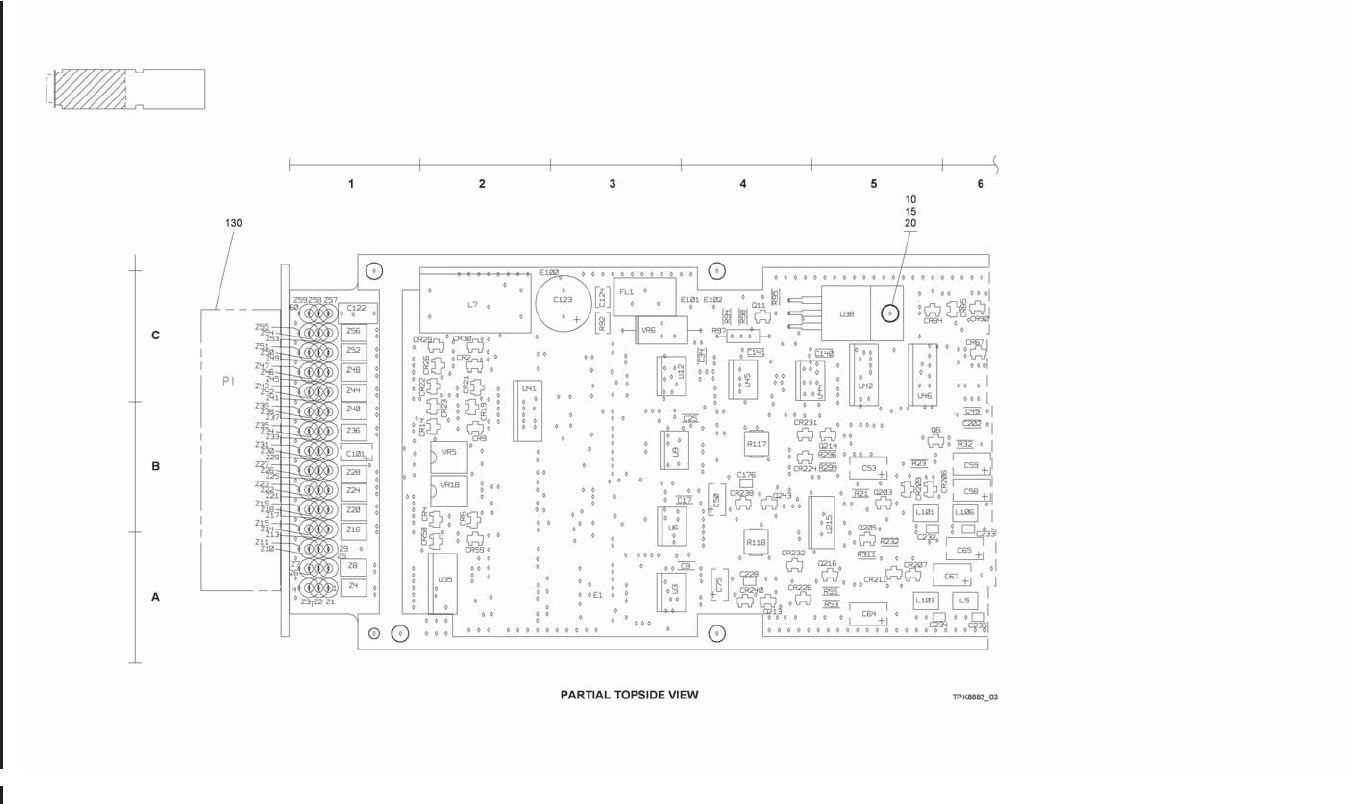

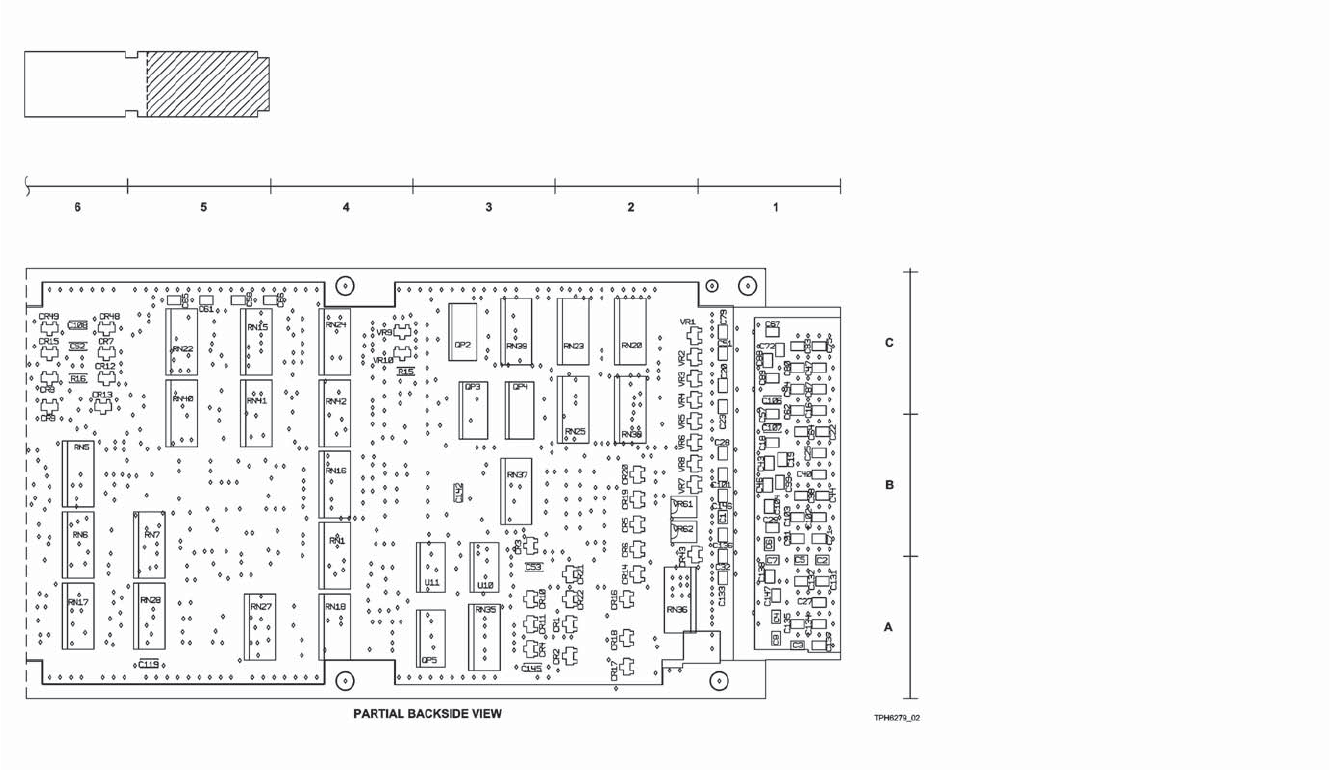

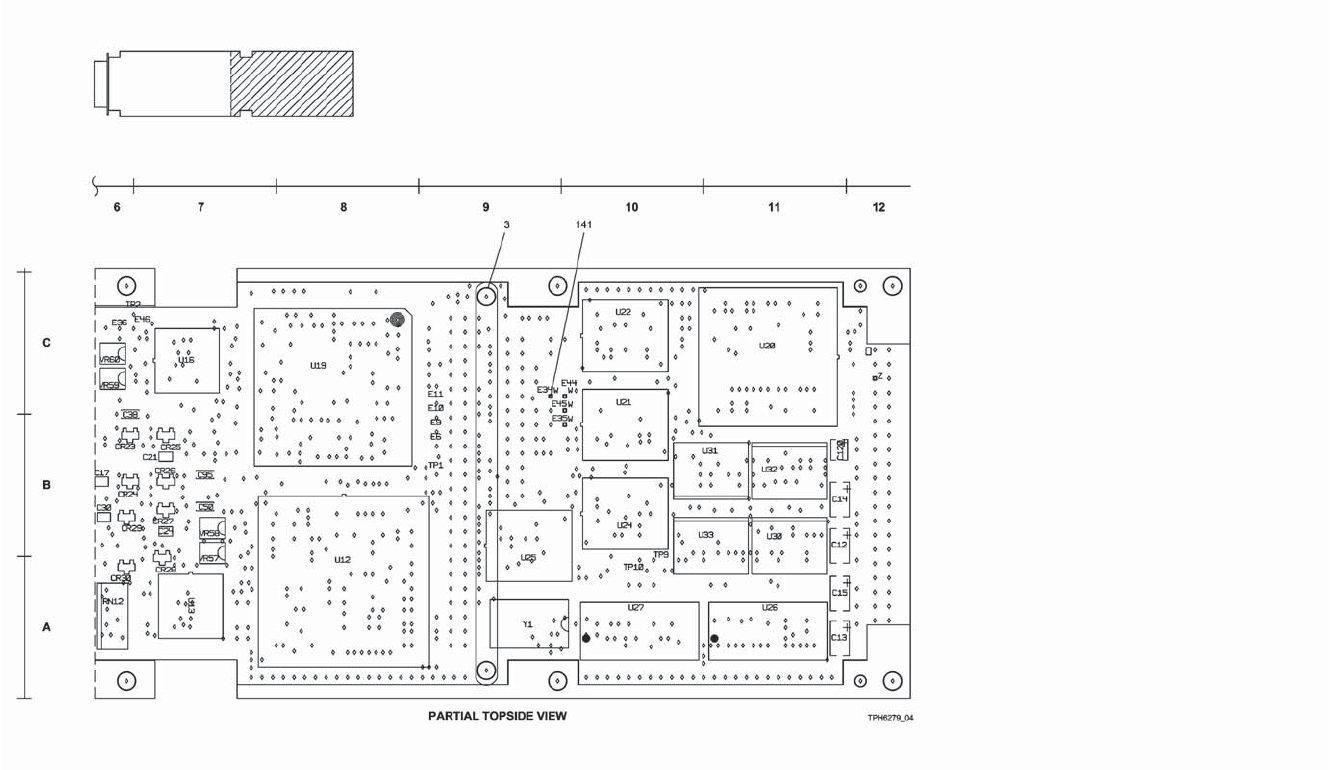

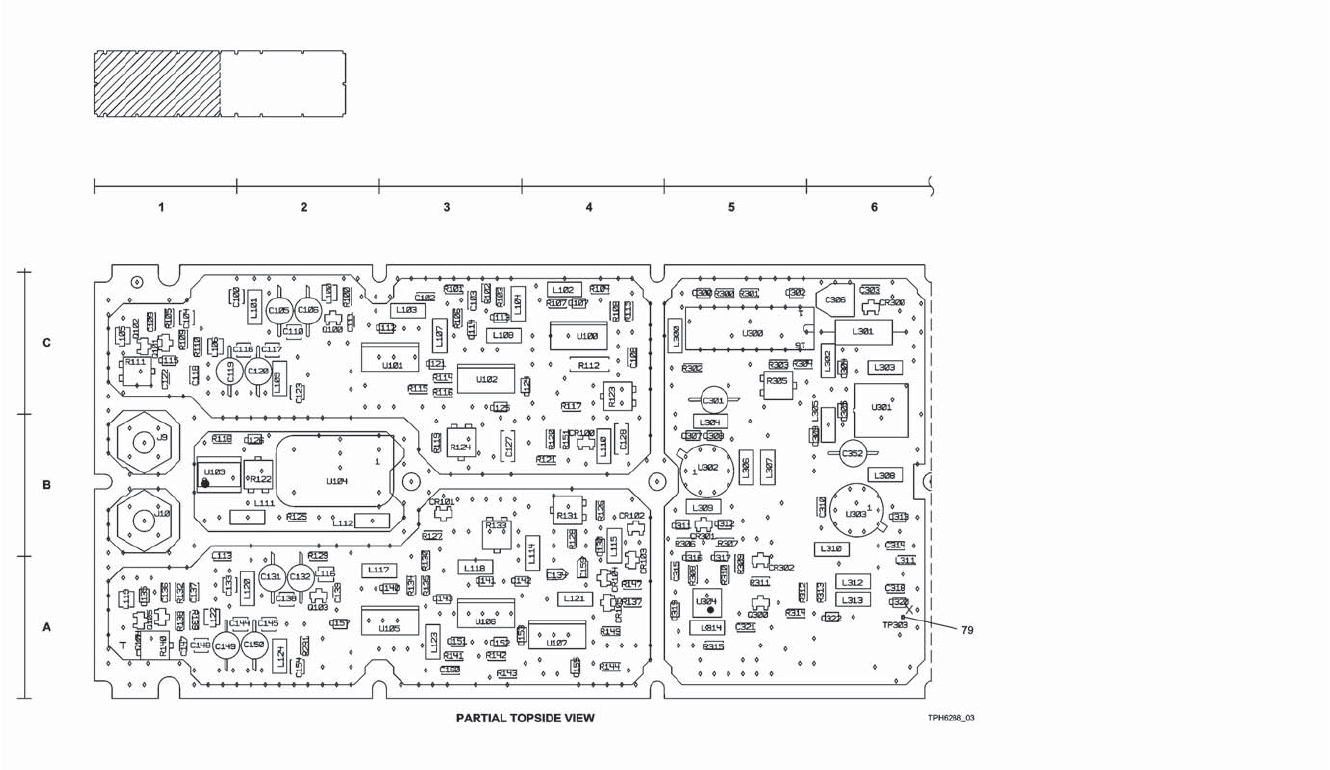

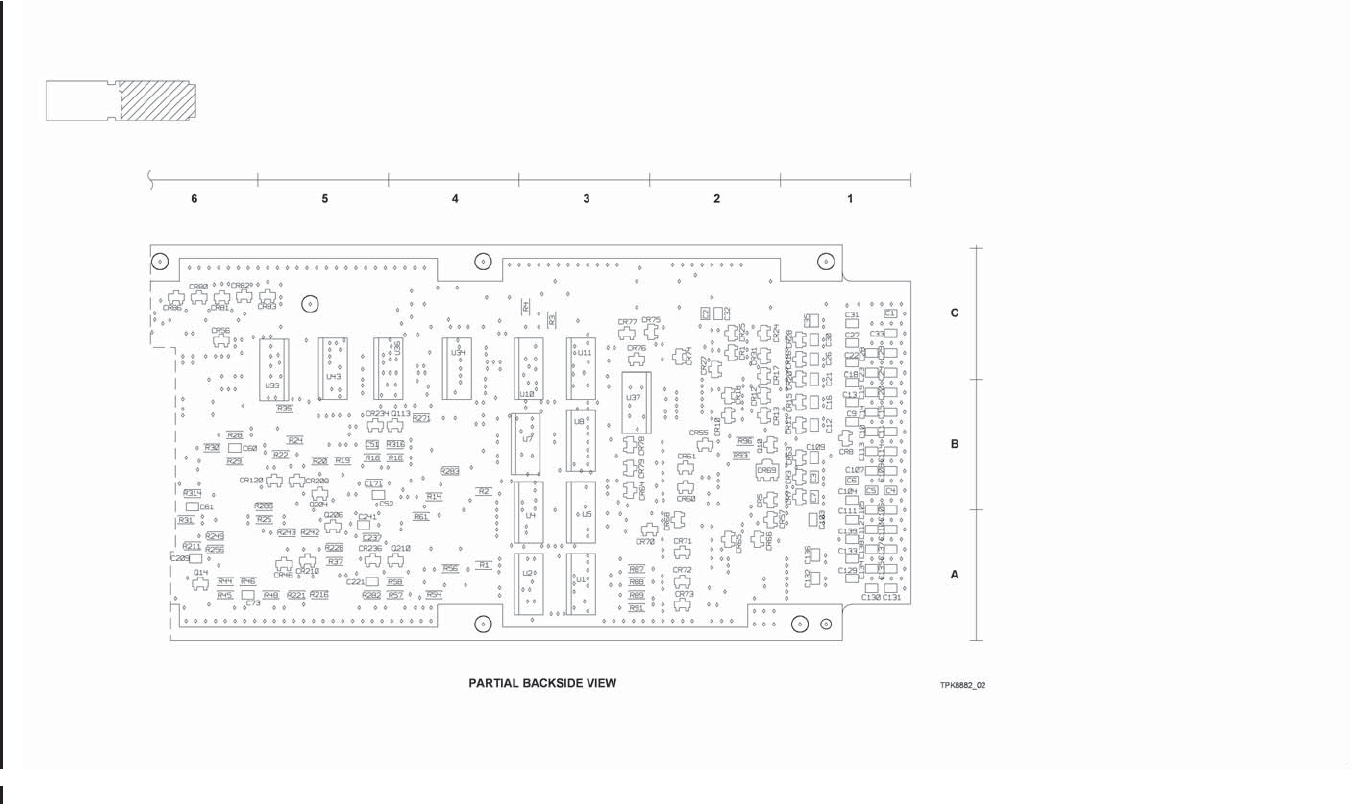

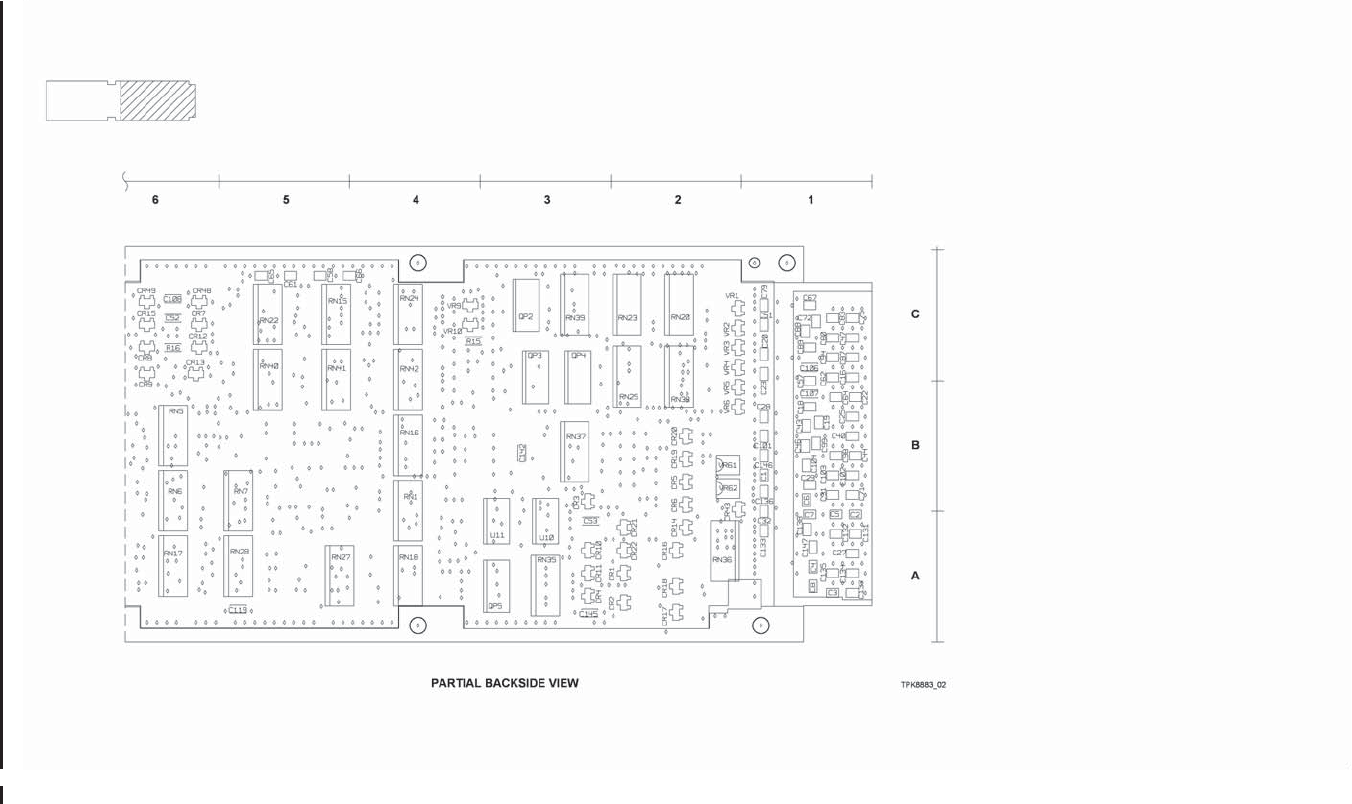

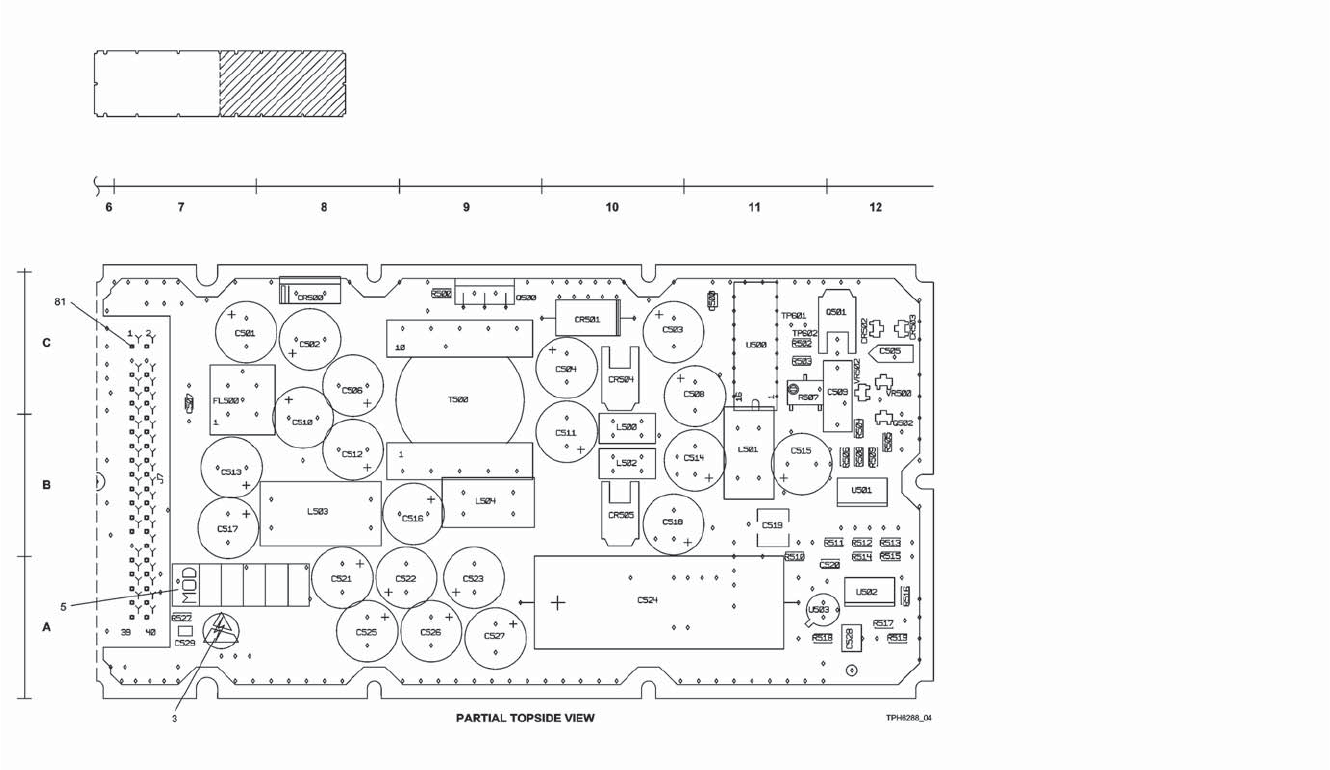

Figure 11 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-161-A01
34-50-96 Page 10217/10218
Apr 17/07
![](/img.php?id=1856825&img=bg5.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-003)

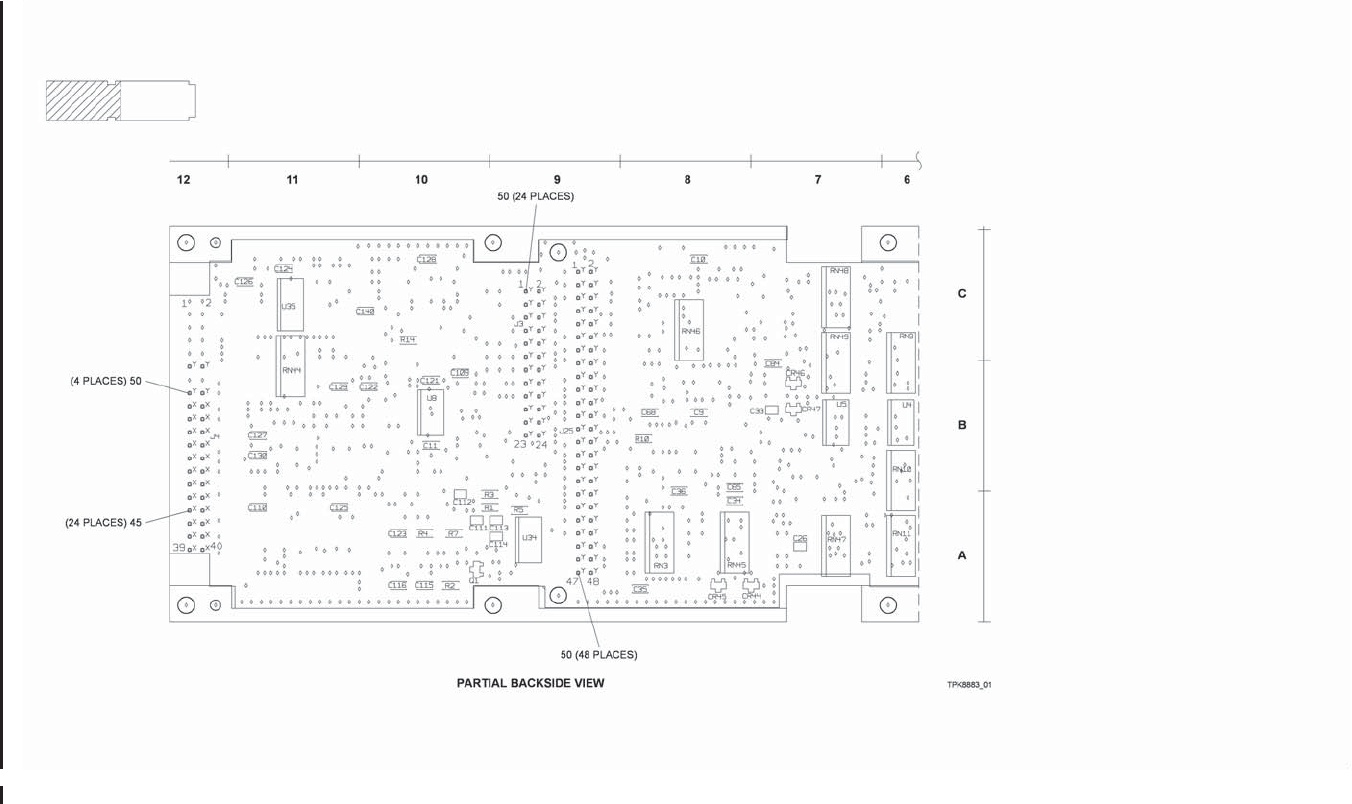

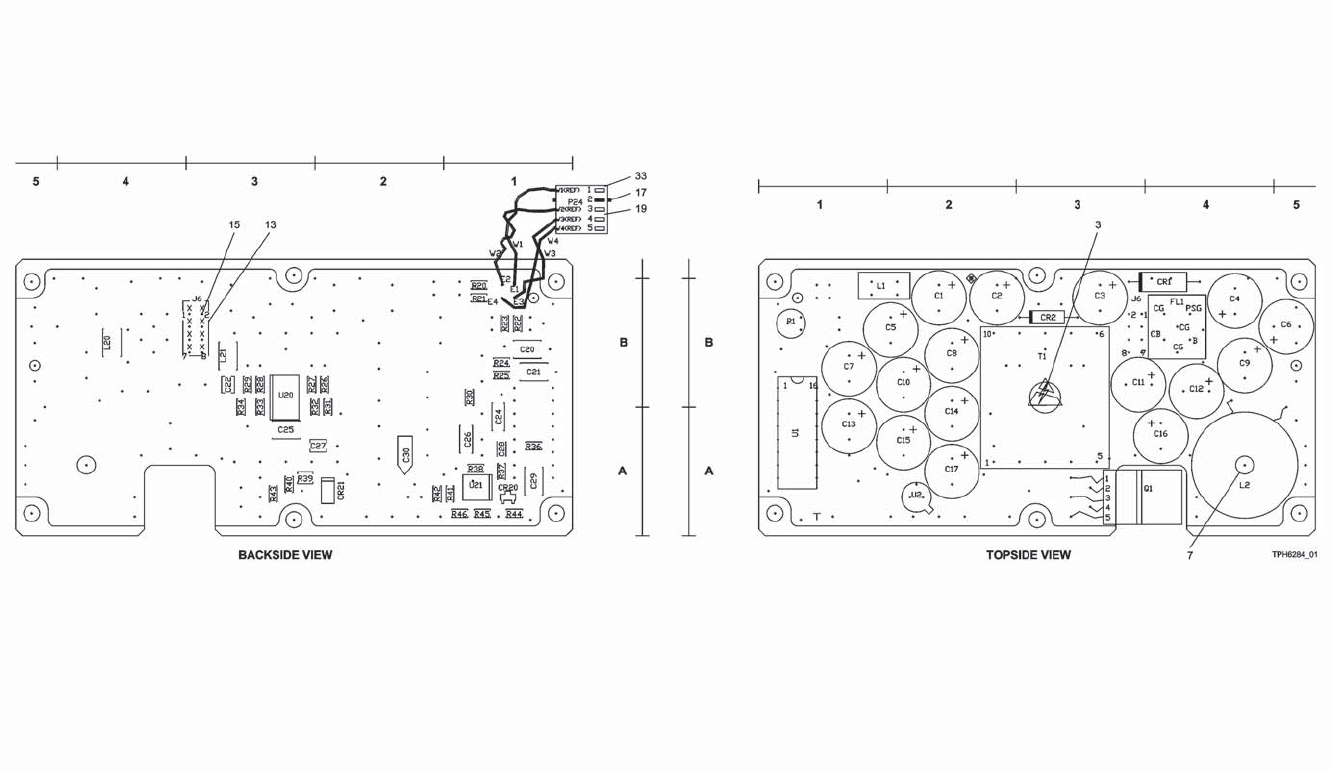

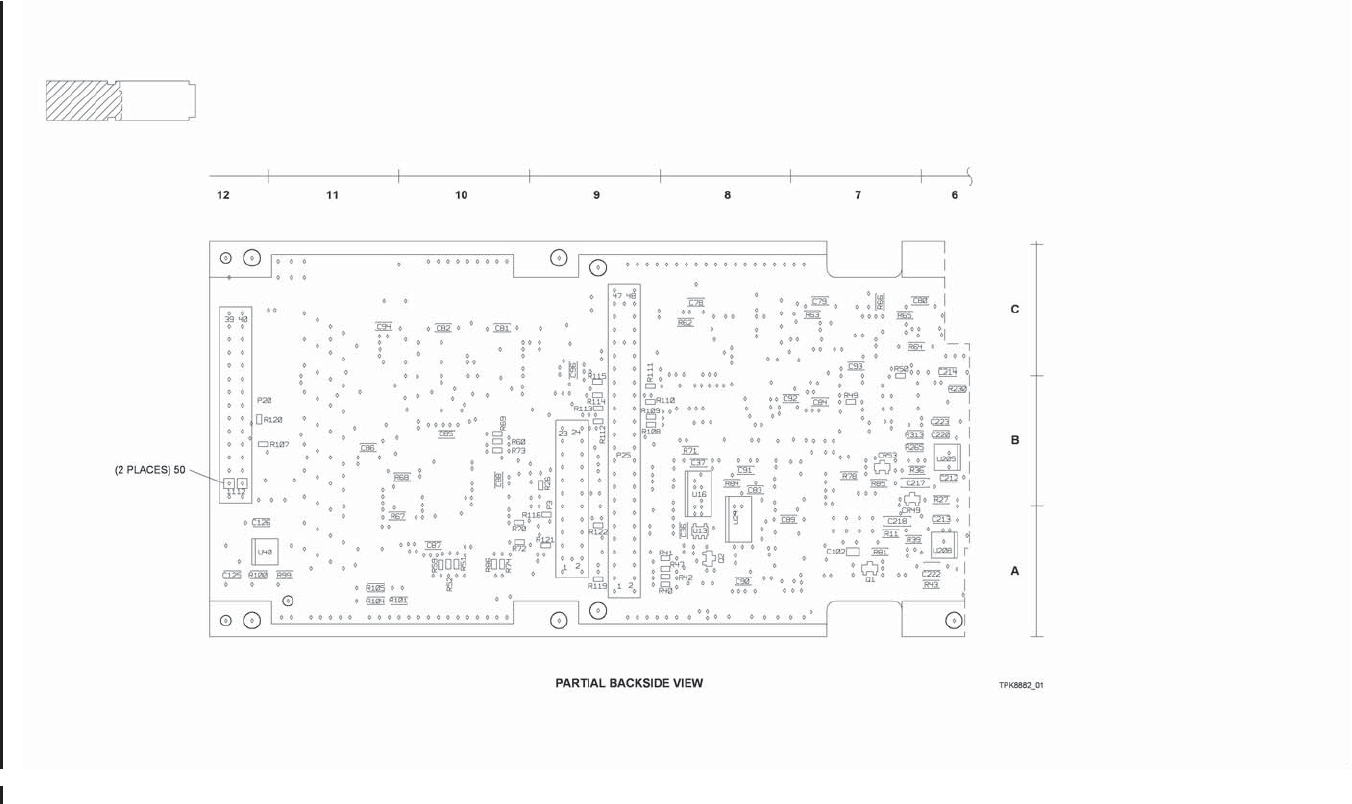

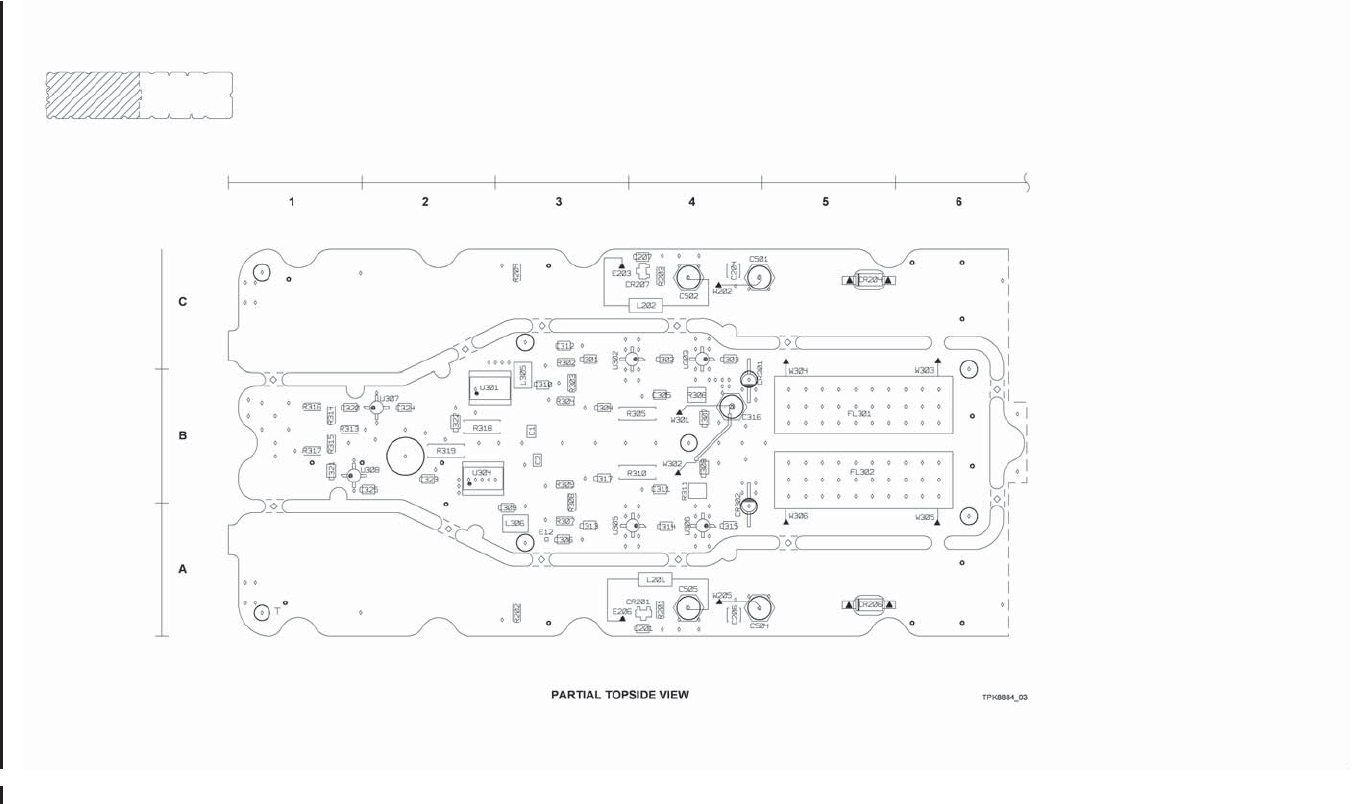

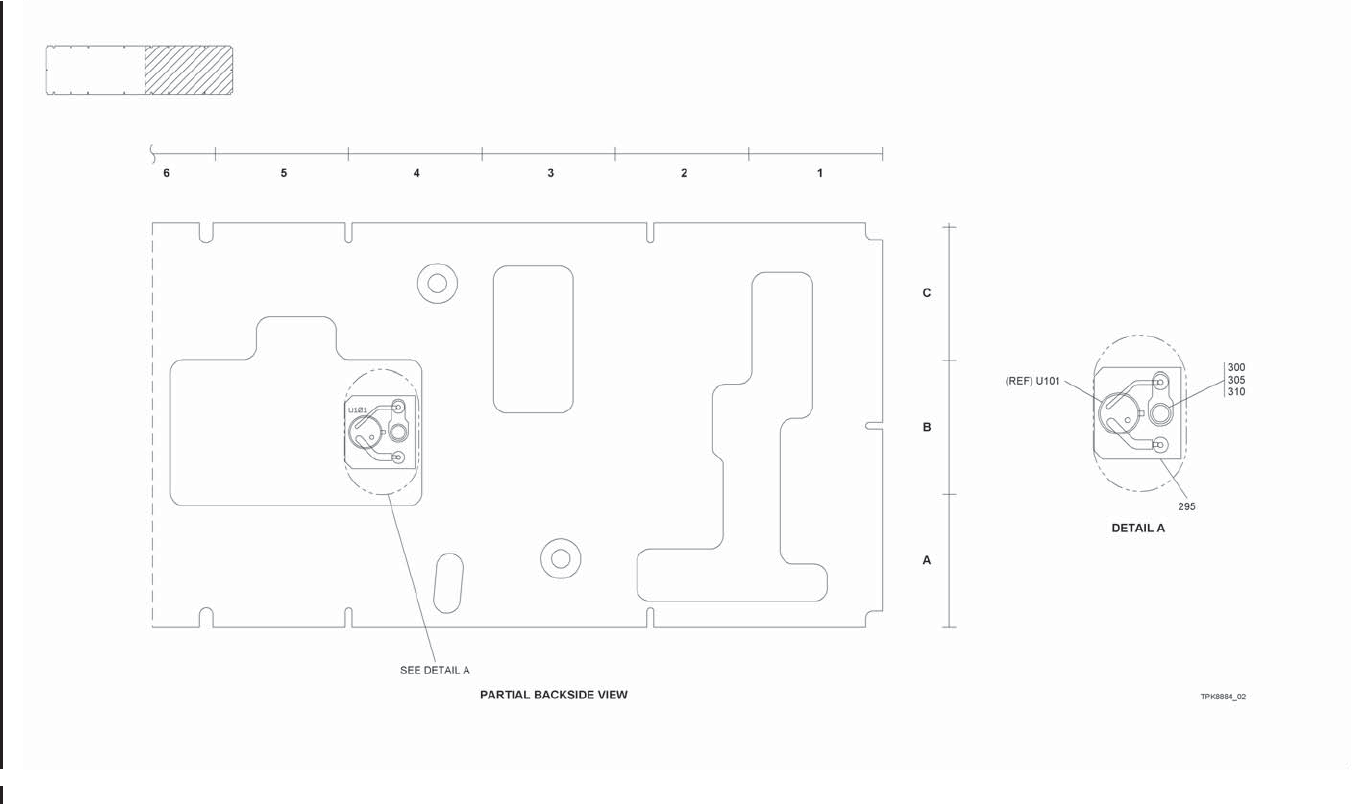

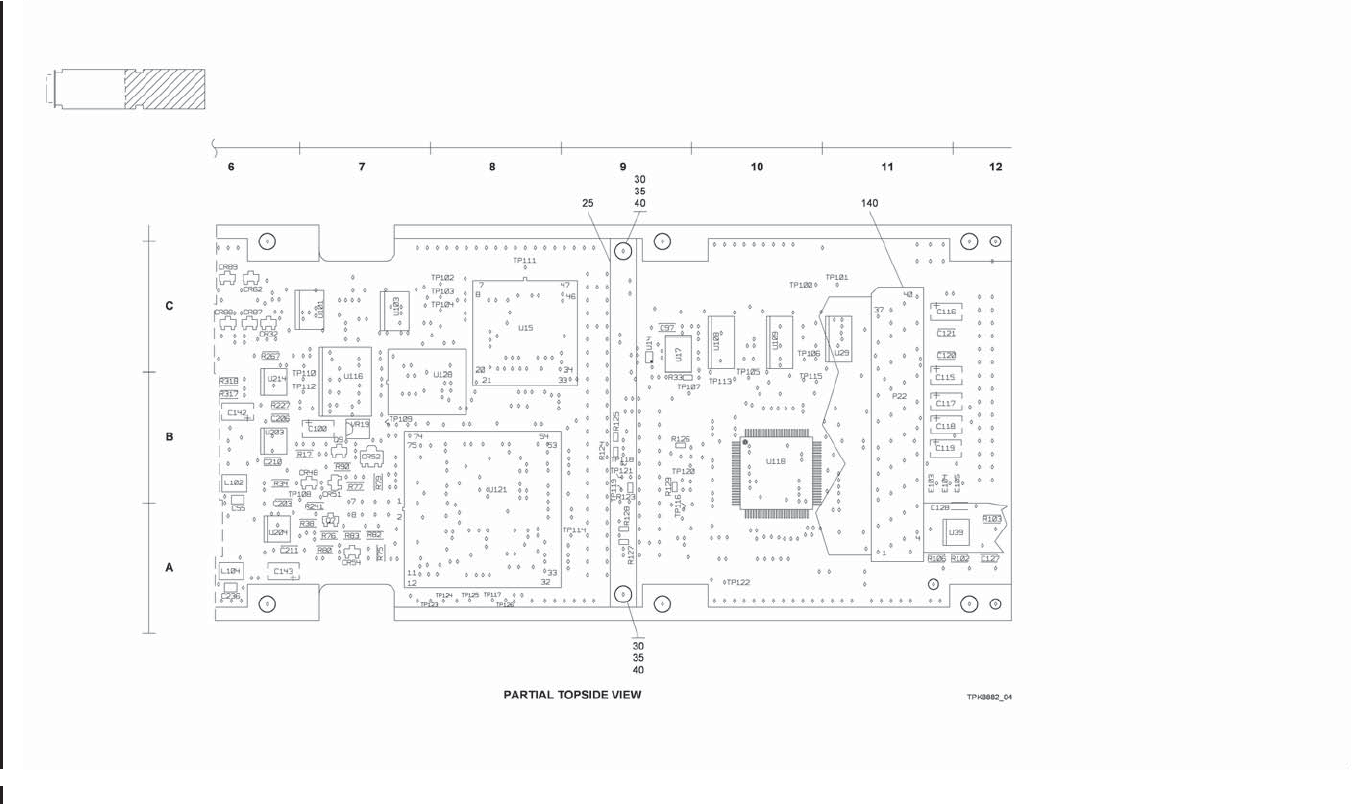

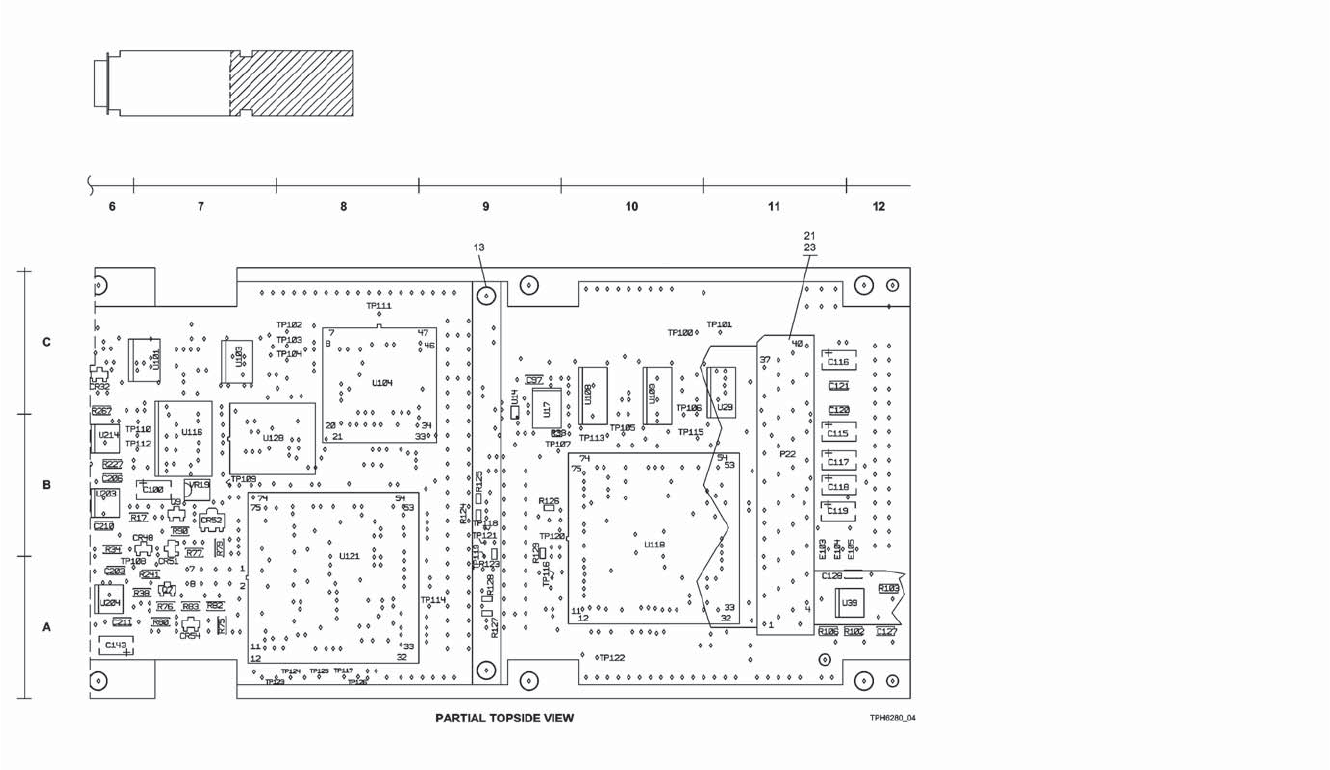

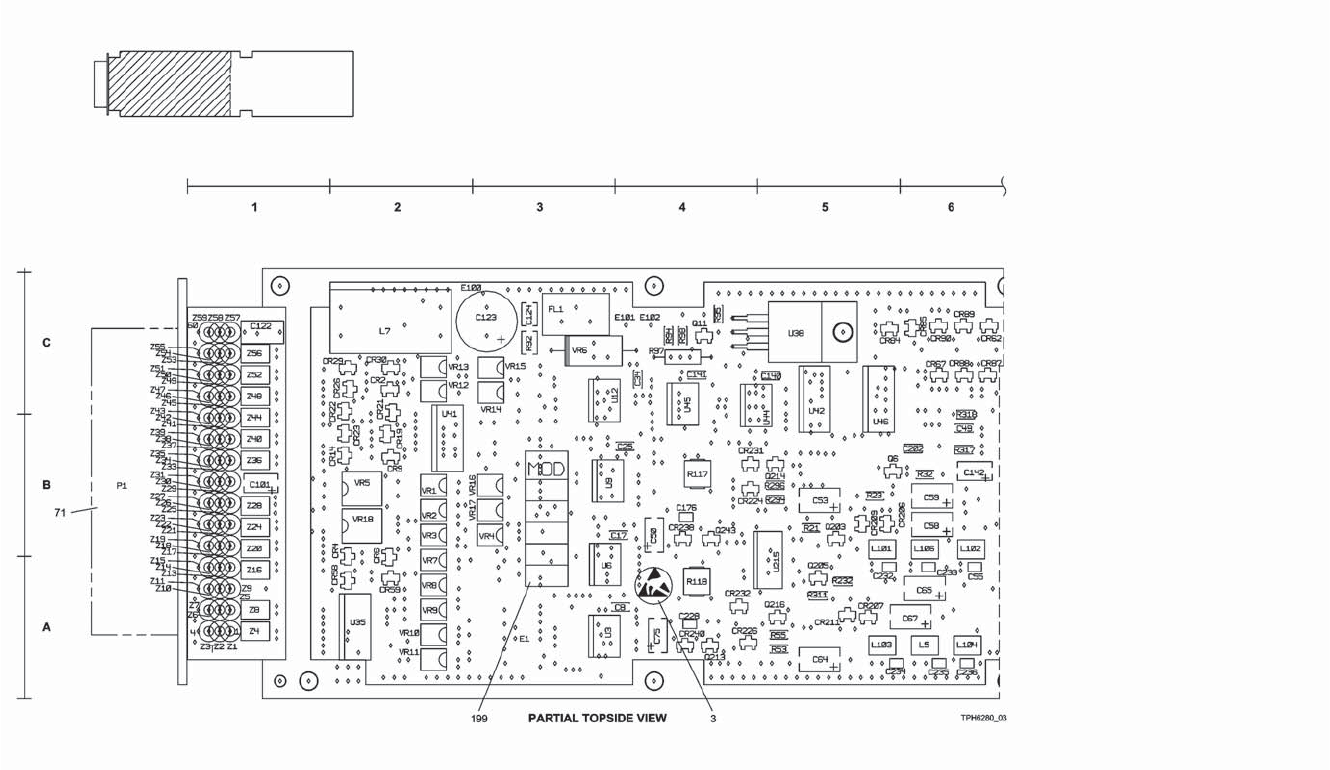

Figure 11 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-161-A01
34-50-96 Page 10219/10220
Apr 17/07
![](/img.php?id=1856825&img=bg7.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-003)

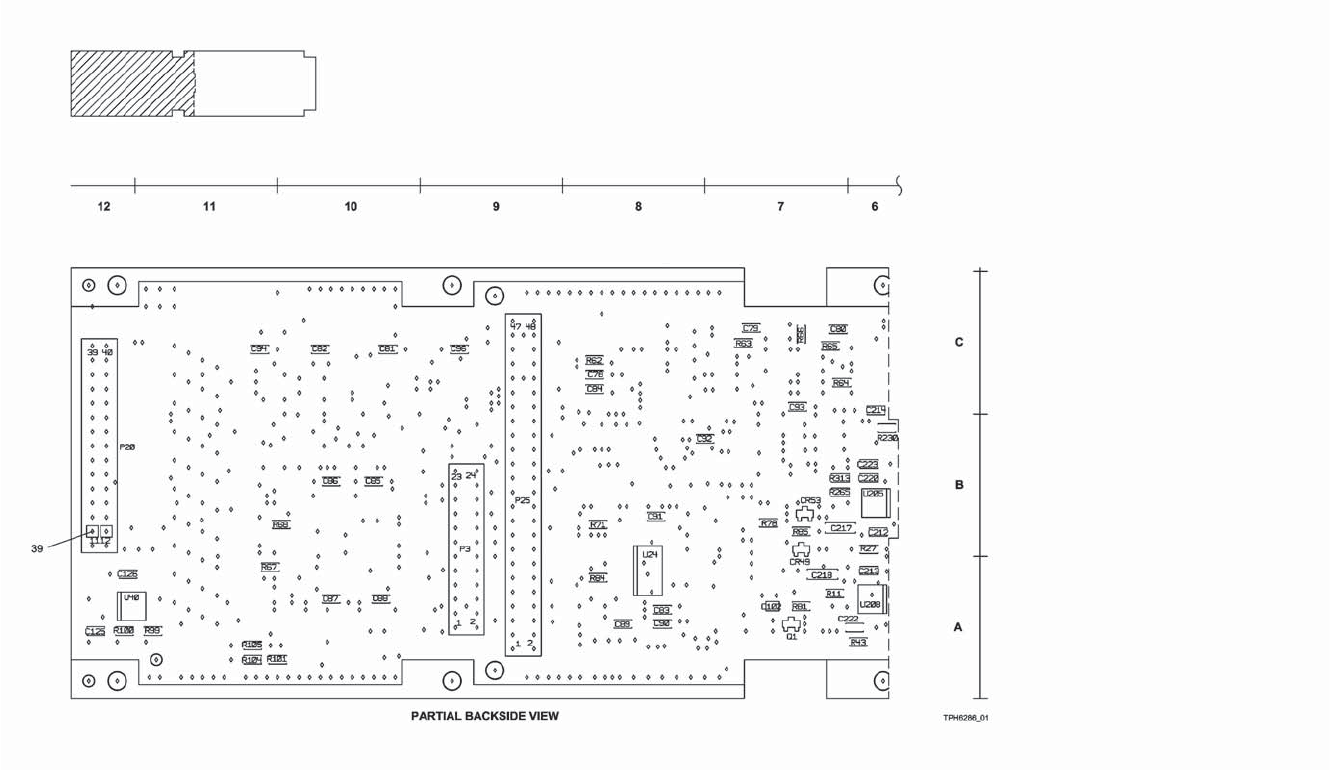

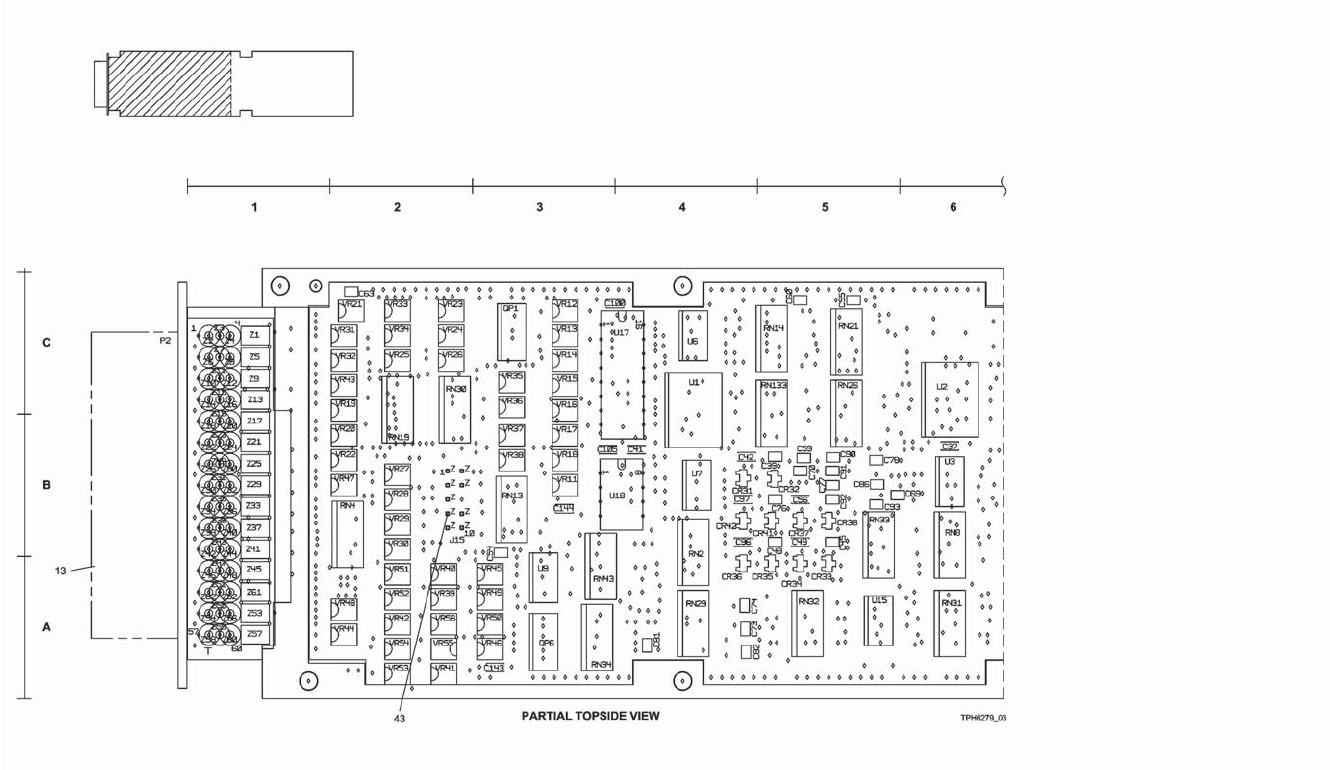

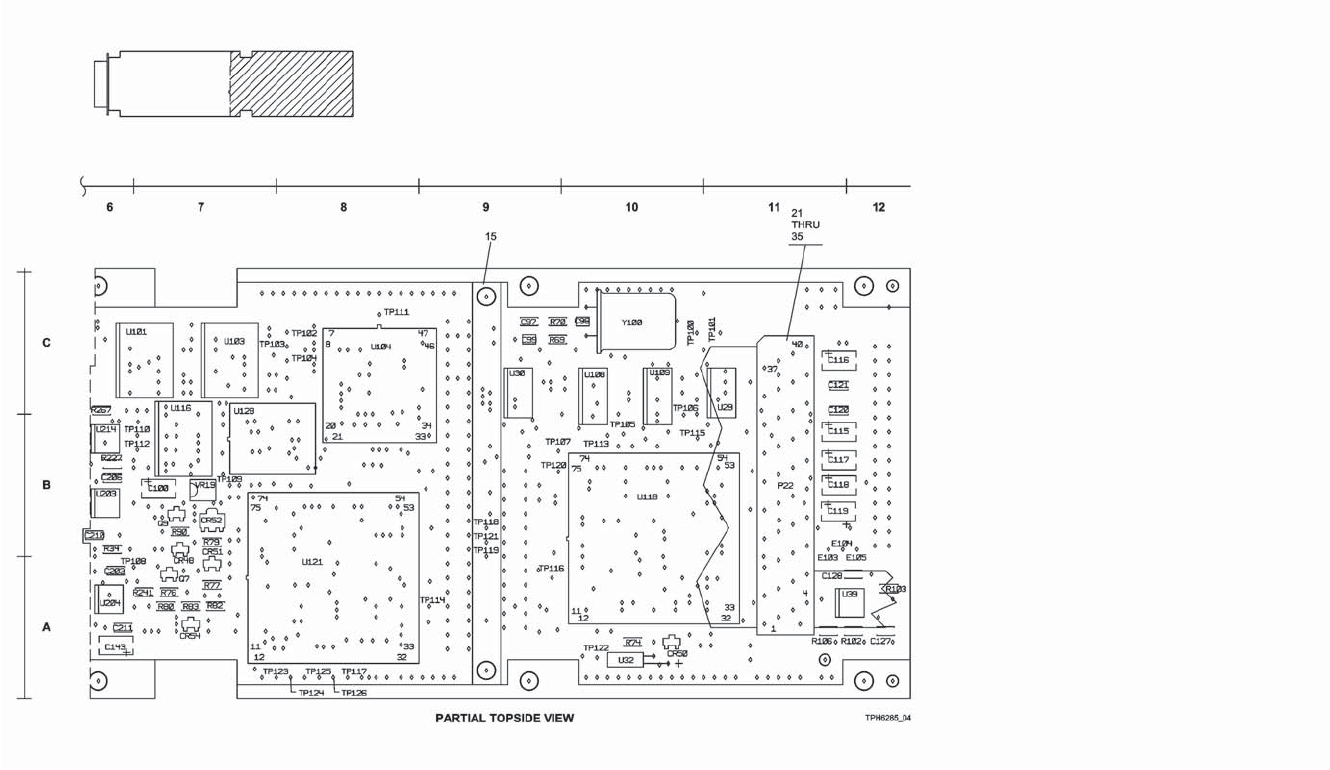

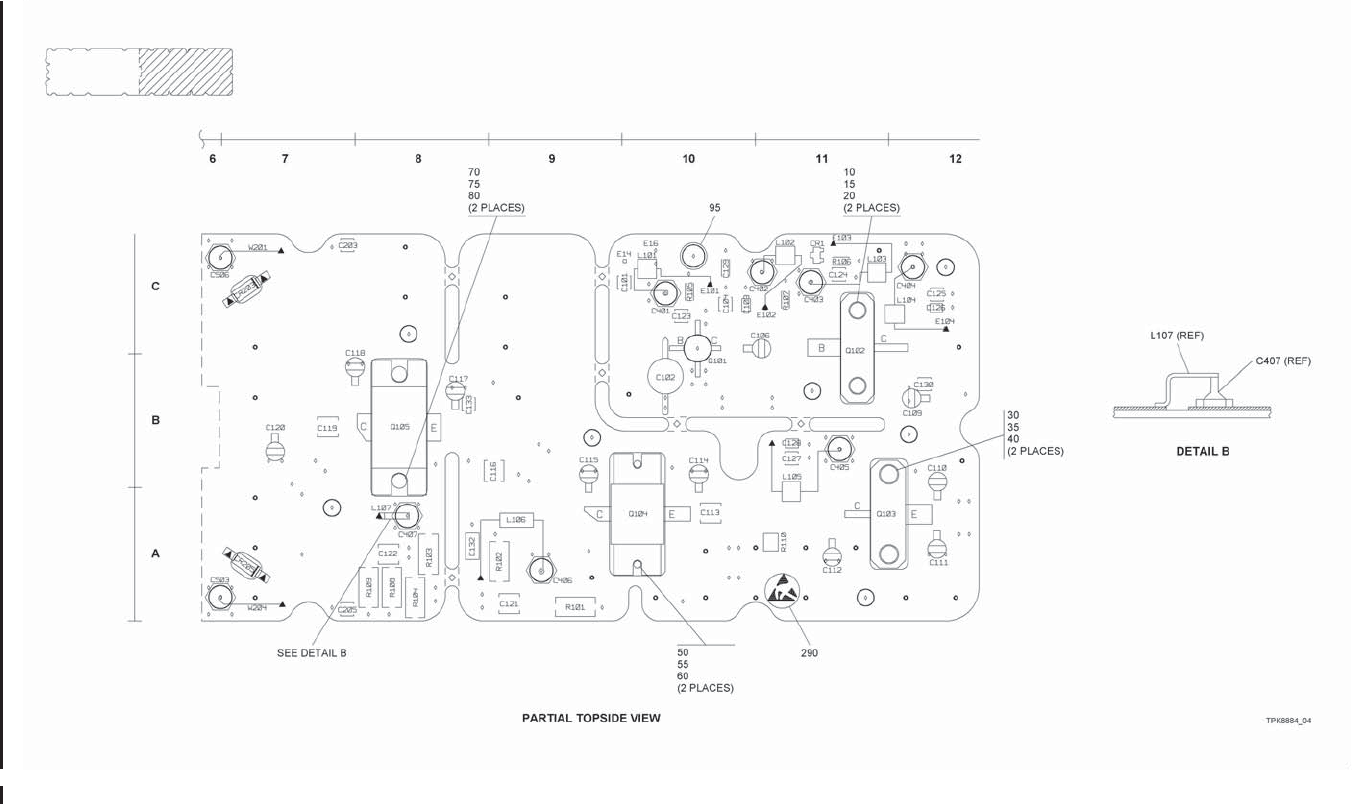

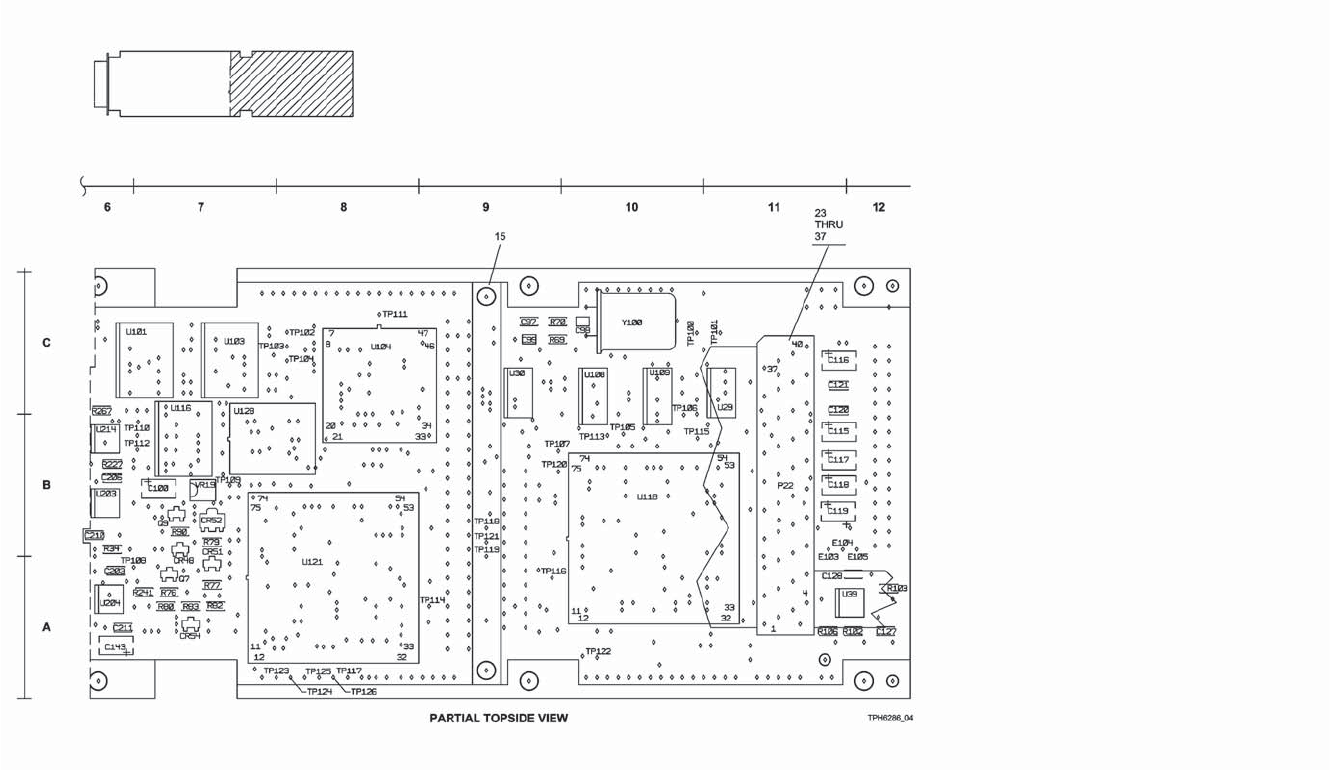

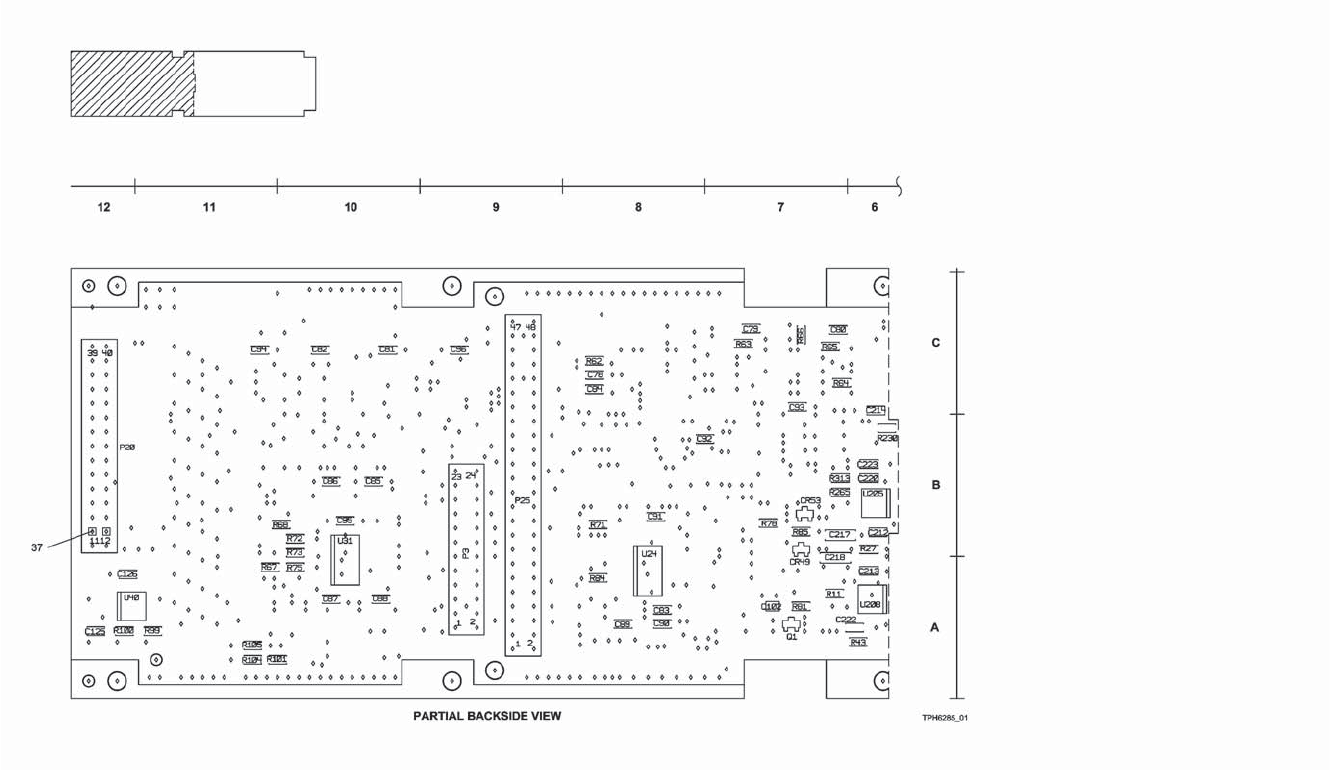

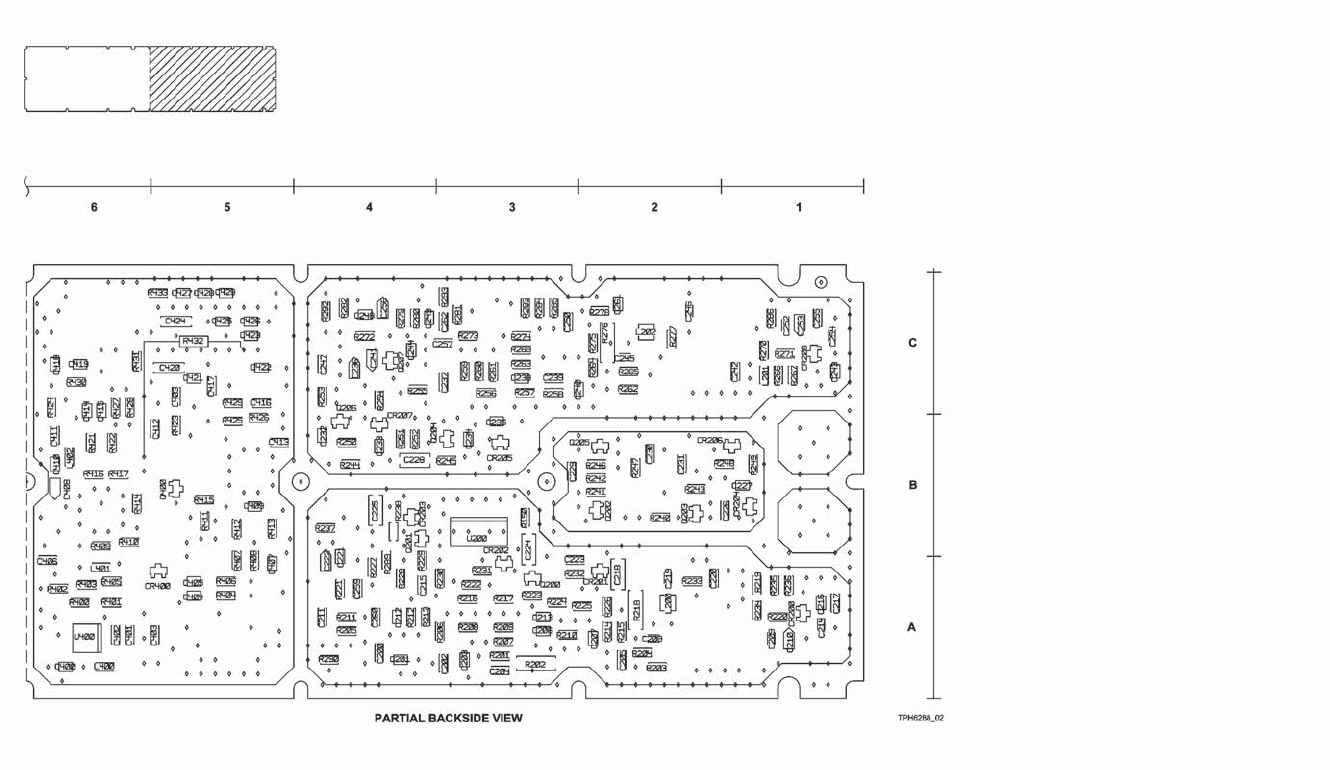

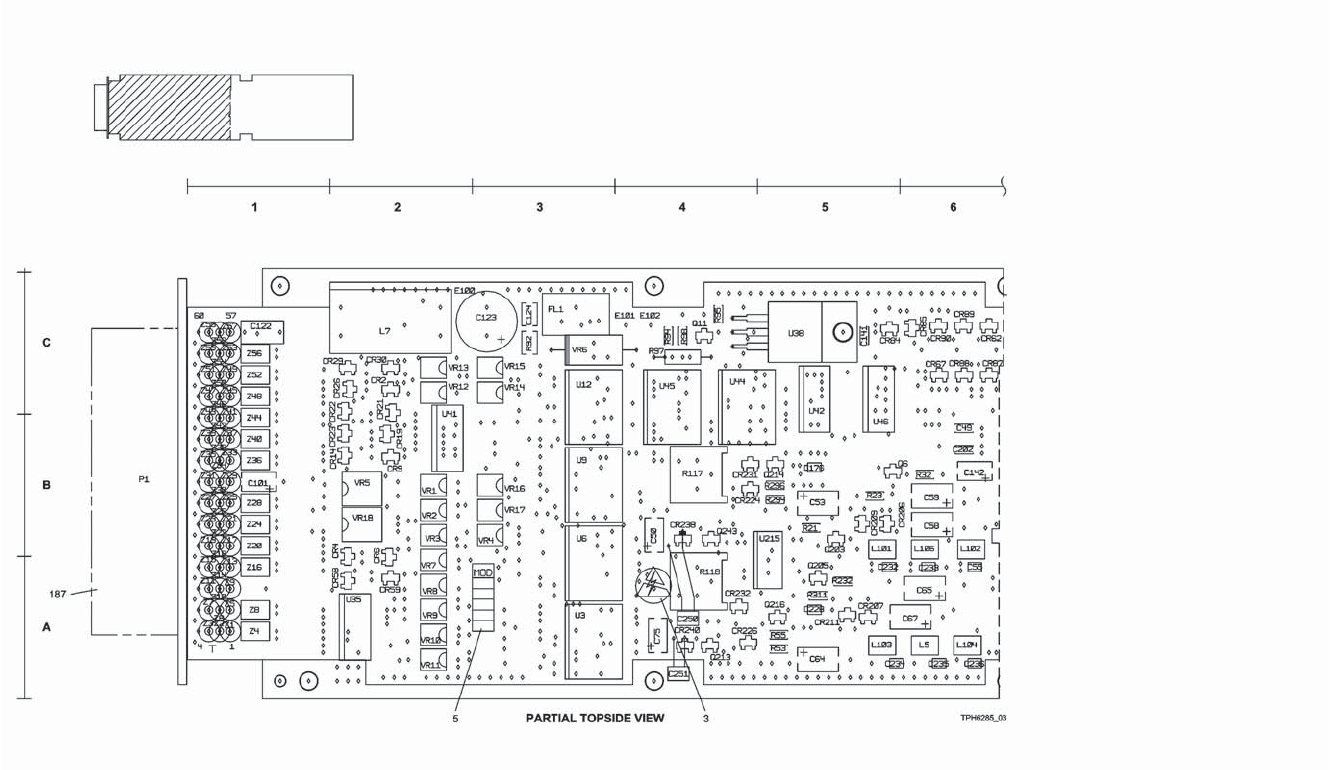

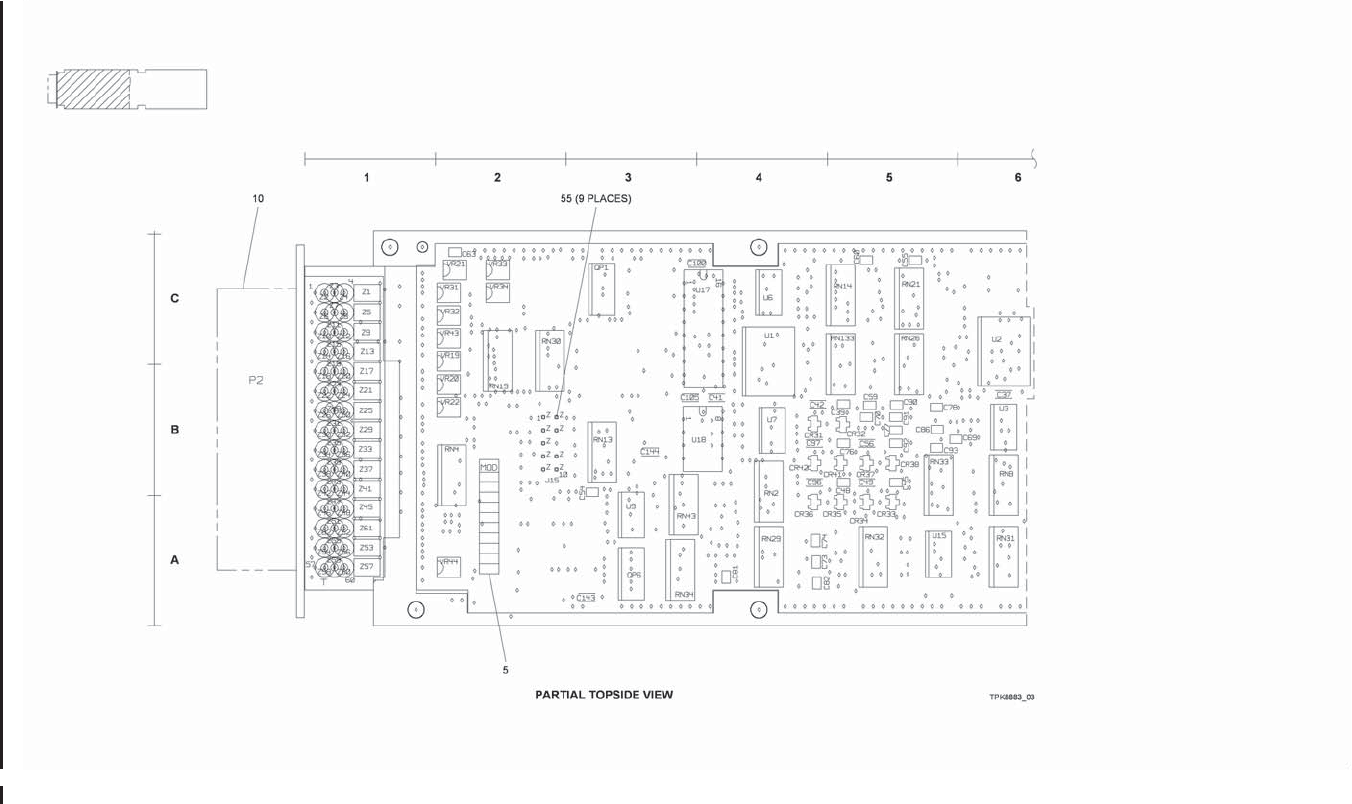

Figure 11 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-161-A01
34-50-96 Page 10221/10222
Apr 17/07
![](/img.php?id=1856825&img=bg9.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
11
- 1 828-2700-003 1 CIRCUIT CARD, CPU I/O RF
(SEE FIG 4-81A FOR NHA)
A5
3 653-2280-001 2 STRAP, BOARD 1
- - - ATTACHING PARTS - - -
- 5 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
- 7 NAS620C4L 2 WASHER, FLAT PSVT CRES 2
0. 115 ID X 0.209 OD
(V80205) 310-0740-200
- 9 68-1660-40 2 NUT, SLFLKG HEX AL 2
4-40
(V019L2) 333-0605-000
------*------
11 288-0815-010 2 BEAD, FERRITE 45
(V02114) 288-0815-010
PN IS REF NO FOR TUB3.7/1.2/3.5-4B1
A5Z2 A5Z3 A5Z4 A5Z6 A5Z7 A5Z8 A5Z10
A5Z11 A5Z12 A5Z14 A5Z15 A5Z16 A5Z18
A5Z19 A5Z20 A5Z22 A5Z23 A5Z24 A5Z26
A5Z30 A5Z31 A5Z32 A5Z34 A5Z35 A5Z36
A5Z38 A5Z39 A5Z40 A5Z42 A5Z43 A5Z44
A5Z46 A5Z47 A5Z48 A5Z49 A5Z50 A5Z51
A5Z52 A5Z54 A5Z55 A5Z56 A5Z58 A5Z59
A5Z60 A5Z62
13 634-7949-002 2 CIRCUIT CARD ASSEMBLY 1
A5P2
- 15 NA1109-023 3 CONTACT 30
(V57863) 372-2604-023
- 17 NA1109-022 3 CONTACT 30
(V57863) 372-2604-022
19 DS9638J883Q 2 MICROCIRCUIT 1
(V27014) 351-1412-010
TRUE PN IS DS9638J/883Q
A5U18
21 AM26LS32AMJ 2 MICROCIRCUIT 1
(V01295) 351-1926-010
A5U17
23 SN74HCT244DW 2 MICROCIRCUIT 2
(V01295) 351-3610-040
A5U1 A5U2
25 SN74HC32D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-100
A5U8
27 CD74HC04M 2 MICROCIRCUIT (ESDS) 1
(V81349) 351-3705-010
A5U34
29 74AC245SC 2 MICROCIRCUIT (ESDS) 2
(V27014) 835-4508-010
A5U32 A5U33
31 CD74HC373M 2 MICROCIRCUIT (ESDS) 2
(V01295) 351-3706-020
A5U30 A5U31
33 PMBT2222A 2 TRANSISTOR (ESDS) 1
(V18324) 352-9113-010
A5Q1
35 MMBZ5232BLT1 2 DIODE (ESDS) 2
(V1MQ07) 353-8133-070
A5VR7 A5VR8
37 MMBZ5237BLT1 2 DIODE (ESDS) 8
(V1MQ07) 353-8133-120
A5VR1 A5VR2 A5VR3 A5VR4 A5VR5 A5VR6
A5VR9 A5VR10
39 BAS70-04 2 DIODE 47
(V12954) 353-8136-010
A5CR1 A5CR2 A5CR3 A5CR4 A5CR5 A5CR6
A5CR7 A5CR8 A5CR9 A5CR10 A5CR11 A5CR12
A5CR13 A5CR14 A5CR15 A5CR16 A5CR17
34-50-96 Page 10223
Apr 17/07
![](/img.php?id=1856825&img=bga.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
11
A5CR18 A5CR19 A5CR20 A5CR21 A5CR22
A5CR23 A5CR24 A5CR25 A5CR26 A5CR27
A5CR28 A5CR29 A5CR30 A5CR31 A5CR32
A5CR33 A5CR34 A5CR35 A5CR36 A5CR37
A5CR38 A5CR41 A5CR42 A5CR43 A5CR44
A5CR45 A5CR46 A5CR47 A5CR48 A5CR49
41 NA1104-037 2 CONTACT, ELECTRICAL 76
.025 SQ. PIN
(V57863) 372-2601-037
43 NA1104-045 2 CONTACT, ELECTRICAL 10
(V57863) 372-2601-045
45 NA1103-197 2 CONTACT, ELECTRICAL 24
(V57863) 372-2601-197
47 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 6
(V56845) 705-3535-020
A5R1 A5R2 A5R7 A5R10 A5R14 A5R16
49 CRCW12061004F 2 RESISTOR, FIXED FILM, 1 MEG, 1%, 125MW 1
(V56845) 705-3535-120
A5R5
51 CRCW12065620F 2 RESISTOR, FIXED 562 OHMS, 1%, 125MW 2
(V56845) 705-3535-800
A5R3
53 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHMS, 1%, 1
0.4W
(V59124) 705-3540-100
A5R4
55 S0MC160336R0GDC 2 RESISTOR, NETWORK, 36 OHM, .25W, 2% 7
(V91637) 833-5502-010
TRUE PN IS SOMC160336R0GDC
A5RN4 A5RN13 A5RN19 A5RN20 A5RN30
A5RN36 A5RN46
57 833-5502-020 2 RESISTOR, NETWORK, 47 OHM, .25W, 2% 1
(V11236) 833-5502-020
A5RN37
59 833-5502-030 2 RESISTOR, NETWORK, 82 OHM, .25W, 2% 2
(V11236) 833-5502-030
A5RN23 A5RN35
61 833-5502-040 2 RESISTOR, NETWORK 1K, 2% (ESDS) 3
(V11236) 833-5502-040
A5RN24 A5RN25 A5RN34
63 833-5502-050 2 RESISTOR, NETWORK, 1.5K OHM, .25W, 2% 1
(V11236) 833-5502-050
A5RN38
65 833-5502-060 2 RESISTOR, NETWORK 4.7K, 2% 2
(V11236) 833-5502-060
A5RN39 A5RN44
67 833-5502-070 2 RESISTOR, NETWORK 10K, 2% (ESDS) 2
(V11236) 833-5502-070
A5RN2 A5RN43
69 833-5502-080 2 MICROCIRCUIT (ESDS) 2
(V11236) 833-5502-080
A5RN1 A5RN3
71 833-5502-120 2 RESISTOR, NETWORK 47K, 2% (ESDS) 5
(V11236) 833-5502-120
A5RN21 A5RN22 A5RN26 A5RN29 A5RN33
73 833-5502-140 2 RESISTOR, NETWORK, 62K OHM, .25W, 2% 1
(V11236) 833-5502-140
A5RN40
75 833-5502-180 2 RESISTOR, NETWORK, 100K OHM, .25W, 2% 1
(V11236) 833-5502-180
A5RN42
77 833-5502-190 2 RESISTOR, NETWORK, 270K OHM, .25W, 2% 1
(V11236) 833-5502-190
A5RN41
79 833-6002-010 2 RESISTOR, FIXED, 1.2W, 2% 22
(V91637) 833-6002-010
PN IS REF NO FOR SOMC160000000DC1
A5RN5 A5RN6 A5RN7 A5RN8 A5RN9 A5RN10
A5RN11 A5RN12 A5RN14 A5RN15 A5RN16
34-50-96 Page 10224
Apr 17/07
![](/img.php?id=1856825&img=bgb.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
11
A5RN17 A5RN18 A5RN27 A5RN28 A5RN31
A5RN32 A5RN45 A5RN47 A5RN48 A5RN49
A5RN133
81 TAJB475K010H 2 CAPACITOR, FIXED 4.7UF, 10%, 10V 1
(V04222) 834-2008-140
A5C120
83 TAJC105K050H 2 CAPACITOR, FIXED 1UF, 10%, 50V 4
(V04222) 834-2008-320
A5C12 A5C13 A5C14 A5C15
85 12065C103KAT2A 2 CAPACITOR, FIXED 10,000PF, 10%, 50V 44
(V04222) 834-5005-250
A5C9 A5C10 A5C11 A5C34 A5C35 A5C36
A5C37 A5C38 A5C41 A5C42 A5C49 A5C50
A5C52 A5C53 A5C56 A5C68 A5C84 A5C85
A5C95 A5C96 A5C97 A5C100 A5C105 A5C106
A5C107 A5C108 A5C109 A5C110 A5C119
A5C121 A5C122 A5C123 A5C124 A5C125
A5C126 A5C127 A5C128 A5C129 A5C130
A5C140 A5C142 A5C143 A5C144 A5C145
87 C1206C104K5RAC 2 CAPACITOR, FIXED CER, 0.1UF, 10%, 50V 2
(V31433) 834-5005-370
A5C115 A5C116
89 MC33074D 2 MICROCIRCUIT (ESDS) 3
(V1MQ07) 835-0032-010
A5U9 A5U10 A5U11
91 MMPQ2222A 2 TRANSISTOR 3
(V1MQ07) 835-0035-020
A5QP1 A5QP3 A5QP5
93 MMPQ2907A 2 TRANSISTOR 3
(V1MQ07) 835-0036-020
A5QP2 A5QP4 A5QP6
95 LM2901D 2 MICROCIRCUIT 6
(V1MQ07) 835-1278-030
A5U3 A5U4 A5U5 A5U6 A5U7 A5U15
97 835-5509-100 2 MICROCIRCUIT (ESDS) 2
(V34371) 835-5509-100
PN IS REF NO FOR X28HC256JI-90 C7992
A5U24 A5U25
99 TN80C196KC20 2 MICROCIRCUIT 1
(V34649) 835-1532-090
TRUE PN IS TN80C196KC-20
A5U20
101 MAX693AESE 2 MICROCIRCUIT 1
(V1ES66) 835-1632-010
A5U35
103 835-1681-030 2 MICROCIRCUIT 1
(V0FB81) 835-1681-030
A5U19
105 831-4505-003 2 MICROCIRCUIT, MODIFIED 1
A5U13
107 CY7C291AL35JI 3 MICROCIRCUIT 1
(V65786) 835-2012-040
TRUE PN IS CY7C291AL-35JI
109 AM29F010A70JI 2 MICROCIRCUIT (ESDS) 2
(V34335) 835-2059-050
TRUE PN IS AM29F010A-70JI
A5U21 A5U22
111 CY7C109B20VI 2 MICROCIRCUIT (ESDS) 2
(V65786) 835-5021-070
TRUE PN IS CY7C109B-20VI
A5U26 A5U27
113 31015-11 2 MICROCIRCUIT 1
(V34576) 351-4950-010
A5U12
115 831-4504-001 2 MICROCIRCUIT, MODIFIED 1
A5U16
- 117 ATF22V10C7JI 3 MICROCIRCUIT 1
(V1FN41) 835-5874-070
TRUE PN IS ATF22V10C-7JI
34-50-96 Page 10225
Apr 17/07
![](/img.php?id=1856825&img=bgc.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
11
119 P6SMB36A 2 DIODE 8
(V1MQ07) 844-0082-180
A5VR47 A5VR48 A5VR49 A5VR50 A5VR51
A5VR52 A5VR53 A5VR54
121 P6SMB11CA 2 DIODE (ESDS) 44
(V14936) 844-0103-010
A5VR11 A5VR12 A5VR13 A5VR14 A5VR15
A5VR16 A5VR17 A5VR18 A5VR19 A5VR20
A5VR21 A5VR22 A5VR23 A5VR24 A5VR25
A5VR26 A5VR27 A5VR28 A5VR29 A5VR30
A5VR31 A5VR32 A5VR33 A5VR34 A5VR35
A5VR36 A5VR37 A5VR38 A5VR39 A5VR40
A5VR41 A5VR42 A5VR43 A5VR44 A5VR45
A5VR46 A5VR55 A5VR56 A5VR57 A5VR58
A5VR59 A5VR60 A5VR61 A5VR62
123 SG615P20-000MC 2 MICROCIRCUIT 1
(V61722) 850-1035-010
TRUE PN IS SG-615P20.000MC
A5Y1
125 2743019446L 2 BEAD, FERRITE 15
(V34899) 852-3002-010
A5Z1 A5Z5 A5Z9 A5Z13 A5Z17 A5Z21 A5Z25
A5Z29 A5Z33 A5Z37 A5Z41 A5Z45 A5Z53
A5Z57 A5Z61
127 08055A100JATBA 2 CAPACITOR, FIXED CER DIEL, 10PF, 5%, 12
50V
(V04222) 913-3667-030
A5C69 A5C70 A5C73 A5C74 A5C77 A5C78
A5C81 A5C82 A5C86 A5C90 A5C91 A5C93
129 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 8
50V
(V04222) 913-3667-110
A5C26 A5C30 A5C33 A5C39 A5C45 A5C48
A5C76 A5C92
131 08055A101JATBA 2 CAPACITOR, FIXED CER DIEL, 100PF, 5%, 8
50V
(V04222) 913-3667-150
A5C54 A5C55 A5C58 A5C59 A5C60 A5C61
A5C65 A5C66
133 08055A331JATBA 2 CAPACITOR, FIXED CER DIEL, 330PF, 5%, 2
50V
(V04222) 913-3667-200
A5C113 A5C114
135 08055A471JATBA 2 CAPACITOR, FIXED CER DIEL, 470PF, 5%, 57
50V
(V04222) 913-3667-230
A5C1 A5C101 A5C101A5 A5C102 A5C103
A5C104 A5C131 A5C132 A5C133 A5C134
A5C135 A5C136 A5C137 A5C138 A5C146
A5C147 A5C16 A5C18 A5C19 A5C2 A5C20
A5C22 A5C23 A5C25 A5C27 A5C28 A5C29
A5C3 A5C31 A5C32 A5C4 A5C40 A5C43
A5C44 A5C46 A5C47 A5C5 A5C51 A5C57
A5C6 A5C62 A5C63 A5C64 A5C67 A5C7
A5C71 A5C72 A5C75 A5C79 A5C8 A5C80
A5C83 A5C87 A5C88 A5C89 A5C94 A5C98
A5C99 C102
137 08055A221JATBA 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 1
50V
(V04222) 913-3667-470
A5C112
139 08051A430JATMN 2 CAPACITOR, FIXED CER DIEL, 43PF, 5%, 1
100V
(V04222) 913-3669-080
A5C111
141 NA1104-027 2 CONTACT, ELECTRICAL 4
(V57863) 372-2601-027
34-50-96 Page 10226
Jun 20/08
![](/img.php?id=1856825&img=bgd.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
11
143 08055C561KATBA 2 CAPACITOR, FIXED CER, 560PF, 10%, 50V 3
(V04222) 913-3670-090
A5C17 A5C21 A5C24
145 RK73H2BL4751F 2 RESISTOR, FIXED FILM, 4.75K, 1%, 0.4W 1
(V59124) 705-3537-600
A5R15
34-50-96 Page 10227/10228
Apr 17/07
![](/img.php?id=1856825&img=bgf.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 12. Video Processor Circuit Card A6 (CPN 687-0726-006)
C1 C-1* 191
C10 B-1* 191
C100 B-7 135
C101 B-1 141
C102 A-7* 191
C103 A-1* 191
C104 B-1* 191
C105 B-1* 191
C106 B-1* 191
C107 B-1* 191
C108 B-1* 191
C109 B-1* 191
C11 B-1* 191
C110 A-1* 191
C111 A-1* 191
C112 A-1* 191
C113 B-1* 191
C114 B-1* 191
C115 B-11 141
C116 C-11 141
C117 B-11 141
C118 B-11 141
C119 B-11 141
C12 B-1* 191
C120 C-11 145
C121 C-11 145
C122 C-1 181
C123 C-3 133
C124 C-3 143
C125 A-12* 145
C126 A-12* 145
C127 A-12 145
C128 A-12 145
C129 A-1* 191
C13 B-1* 191
C130 A-1* 191
C131 A-1* 191
C132 A-1* 191
C133 A-1* 191
C134 A-1* 191
C135 A-1* 191
C136 A-1* 191
C137 A-1* 191
C138 A-1* 191
C139 A-1* 191
C14 B-1* 191
C140 C-5 145
C141 C-4 145
C142 B-6 137
C143 A-6 137
C15 B-1* 191
C16 B-1* 191
C17 B-4 145
C171 B-5* 145
C176 B-4 183
C18 B-1* 191
C19 B-1* 191
C2 C-2* 191
C20 B-1* 191
C202 B-6 147
C203 A-6 145
C206 B-6 145
C209 A-6* 185
C21 C-1* 191
C210 B-6 145
C211 A-6 145
C212 B-6* 145
C213 A-6* 145
C214 C-6* 145
C217 B-7* 193
C218 A-7* 193
C22 C-1* 191
C220 B-6* 145
C221 A-5* 195
C222 A-6* 145
C223 B-6* 145
C228 A-4 183
C23 C-1* 191
C232 A-5 187
C233 A-6 187
C234 A-5 187
C235 A-6 187
C236 A-6 189
C237 A-5* 145
C24 C-1* 191
C241 A-5* 195
C25 B-4 145
C26 C-1* 191
C27 C-1* 191
C28 C-1* 191
C29 C-1* 191
C3 B-1* 191
C30 C-1* 191
C31 C-1* 191
C32 C-2* 191
C33 C-1* 191
C34 C-4 145
C35 C-1* 191
C36 A-8* 145
C37 B-8* 145
C4 B-1* 191
C49 B-6 147
C5 B-1* 191
C50 B-4 137
C51 B-5* 195
C52 B-5* 195
C53 B-5 139
C55 A-6 189
C58 B-6 139
C59 B-6 139
C6 B-1* 191
C60 B-6* 189
C61 B-6* 185
C64 A-5 139
C65 A-6 139
C67 A-6 139
C7 B-1* 191
C73 A-6* 189
C75 A-4 137
C78 C-8* 145
C79 C-7* 145
C8 A-4 145
C80 C-7* 145
C81 C-10* 145
C82 C-10* 145
C83 B-8* 145
C84 B-7* 145
C85 B-10* 145
C86 B-11* 145
C87 A-10* 145
C88 B-10* 145
C89 A-8* 145
C9 B-1* 191
C90 A-8* 145
C91 B-8* 145
C92 B-8* 145
C93 C-7* 145
C94 C-11* 145
C96 C-9* 145
C97 C-9 145
CR1 C-2* 59
CR10 B-2* 59
CR11 B-1* 59
CR12 B-2* 59
CR120 B-5* 163
CR13 B-2* 59
CR14 B-2 59
CR15 B-1* 59
34-50-96 Page 10229
Apr 17/07
![](/img.php?id=1856825&img=bg10.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 12. Video Processor Circuit Card A6 (CPN 687-0726-006)
CR16 C-1* 59
CR17 C-2* 59
CR18 B-2* 59
CR19 B-2 59
CR2 C-2 59
CR20 C-1* 59
CR206 B-5 163
CR207 A-5 163
CR208 B-5* 163
CR209 B-5 163
CR21 C-2 59
CR210 A-5* 163
CR211 A-5 163
CR22 C-2 59
CR224 B-4 163
CR226 A-4 163
CR23 B-2 59
CR231 B-4 163
CR232 A-4 163
CR234 B-5* 163
CR236 A-5* 163
CR238 B-4 163
CR24 C-2* 59
CR240 A-4 163
CR25 C-2* 59
CR26 C-2 59
CR27 C-2* 59
CR28 C-1* 59
CR29 C-2 59
CR3 B-1* 59
CR30 C-2 59
CR31 C-2* 59
CR32 C-6 59
CR4 B-2 59
CR46 A-5* 163
CR48 B-7 163
CR49 B-7* 163
CR5 B-2* 59
CR51 B-7 163
CR52 B-7 61
CR53 B-7* 59
CR54 A-7 59
CR55 B-2* 59
CR56 C-6* 59
CR57 A-2* 59
CR58 A-2 59
CR59 A-2 59
CR6 A-2 59
CR60 B-2* 59
CR61 B-2* 59
CR62 C-6 59
CR63 B-1* 59
CR64 B-3* 59
CR65 A-2* 59
CR66 A-2* 59
CR67 C-6 59
CR68 A-2* 59
CR69 B-2* 61
CR7 B-1* 59
CR70 A-3* 59
CR71 A-2* 59
CR72 A-2* 59
CR73 A-2* 59
CR74 C-2* 59
CR75 C-2* 59
CR76 C-3* 59
CR77 C-3* 59
CR78 B-3* 59
CR79 B-3* 59
CR8 B-1* 59
CR80 C-6* 59
CR81 C-6* 59
CR82 C-6* 59
CR83 C-5* 59
CR84 C-5 59
CR85 C-6 59
CR86 C-6* 59
CR87 C-6 59
CR88 C-6 59
CR89 C-6 59
CR9 B-2 59
CR90 C-6 59
FL1 C-3 173
L101 B-5 169
L102 B-6 169
L103 A-5 169
L104 A-6 169
L106 B-6 171
L5 A-6 171
L7 C-2 179
P1 A-1 71
P20 B-12* 69
P25 A-9* 63
P3 A-9* 77
Q1 A-7* 53
Q10 B-2* 53
Q11 C-4 53
Q113 B-4* 53
Q14 A-6* 53
Q2 A-8* 37
Q203 B-5 53
Q204 B-5* 53
Q205 A-5 53
Q206 A-5* 53
Q210 A-4* 53
Q213 A-4 53
Q214 B-5 53
Q216 A-5 53
Q243 B-4 53
Q6 B-5 53
Q7 A-7 55
Q9 B-7 53
R1 A-4* 81
R100 A-12* 91
R101 A-11* 91
R102 A-12 91
R103 A-12 91
R104 A-11* 91
R105 A-11* 91
R106 A-11 91
R107 B-12* 197
R108 B-9* 197
R109 B-9* 197
R11 A-7* 83
R110 B-9* 197
R111 B-9* 197
R112 B-9* 197
R113 B-9* 197
R114 B-9* 197
R115 B-9* 197
R116 A-9* 197
R117 B-4 67
R118 A-4 67
R119 A-9* 197
R120 B-12* 197
R121 A-9* 197
R122 A-9* 197
R123 B-9 197
R124 B-9 197
R125 B-9 197
R126 B-9 197
R127 A-9 197
R128 A-9 197
R129 B-9 197
R14 B-4* 109
R16 B-4* 79
R17 B-7 111
R18 B-5* 107
34-50-96 Page 10230
Apr 17/07
![](/img.php?id=1856825&img=bg11.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 12. Video Processor Circuit Card A6 (CPN 687-0726-006)
R19 B-5* 79
R2 B-4* 81
R20 B-5* 81
R21 B-5 103
R211 A-6* 87
R216 A-5* 93
R22 B-5* 91
R221 A-5* 83
R227 B-6 207
R228 A-5* 79
R23 B-5 91
R230 B-6* 207
R232 A-5 99
R24 B-5* 99
R241 A-7 83
R242 A-5* 91
R243 A-5* 91
R249 A-6* 91
R25 A-5* 93
R256 A-6* 91
R26 B-9* 197
R265 B-7* 83
R267 C-6 85
R27 B-6* 105
R271 B-4* 101
R28 B-6* 95
R282 A-5* 107
R283 B-4* 79
R286 B-5* 83
R29 B-6* 95
R294 B-5 93
R296 B-5 93
R3 C-3* 81
R30 B-6* 95
R31 A-6* 91
R311 A-5 103
R313 B-7* 83
R314 B-6* 91
R316 B-4* 79
R317 B-6 205
R318 B-6 205
R32 B-6 91
R33 B-9 197
R34 B-6 87
R35 B-5* 81
R36 B-7* 111
R37 A-5* 81
R38 A-7 111
R39 A-7* 111
R4 C-3* 81
R40 A-8* 197
R41 A-8* 197
R42 A-8* 197
R43 A-6* 105
R44 A-6* 91
R45 A-6* 95
R46 A-6* 95
R47 A-8* 197
R48 A-5* 95
R49 B-7* 197
R50 C-7* 197
R51 A-10* 197
R52 A-10* 197
R53 A-5 93
R54 A-4* 109
R55 A-5 93
R56 A-4* 79
R57 A-4* 79
R58 A-4* 79
R59 A-10* 197
R60 B-10* 197
R61 A-4* 101
R62 C-8* 81
R63 C-7* 81
R64 C-7* 79
R65 C-7* 79
R66 C-7* 81
R67 A-11* 111
R68 B-10* 111
R69 B-10* 197
R70 A-10* 197
R71 B-8* 79
R72 A-10* 197
R73 B-10* 197
R74 A-10* 197
R75 A-7 79
R76 A-7 83
R77 B-7 83
R78 B-7* 83
R79 B-7 83
R80 A-7 79
R81 A-7* 79
R82 A-7 95
R83 A-7 95
R84 B-8* 97
R85 B-7* 89
R86 A-10* 197
R87 A-3* 79
R88 A-3* 79
R89 A-3* 79
R90 B-7 79
R91 A-3* 79
R92 C-3 131
R93 B-2* 83
R94 C-4 83
R95 C-4 79
R96 B-2* 97
R97 C-4 113
R98 C-4 95
R99 A-11* 91
U1 A-3* 123
U10 C-3* 123
U101 C-7 47
U103 C-7 47
U104 C-8 161
U108 C-10 157
U109 C-10 157
U11 C-3* 121
U116 B-7 159
U118 B-10 153
U12 C-3 47
U121 A-8 201
U128 B-7 115
U13 A-8* 43
U14 C-9 45
U16 B-8* 155
U17 C-9 39
U2 A-3* 121
U203 B-6 149
U204 A-6 149
U205 B-6* 149
U208 A-6* 149
U214 B-6 149
U215 A-5 49
U24 A-8* 41
U29 C-11 51
U3 A-3 47
U33 C-5* 127
U34 C-4* 125
U35 A-2 119
U36 C-5* 129
U37 B-3* 121
U38 C-4 5
U39 A-12 151
U4 A-3* 123
U40 A-12* 151
U41 B-2 119
U42 C-5 127
34-50-96 Page 10231
Apr 17/07
![](/img.php?id=1856825&img=bg12.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 12. Video Processor Circuit Card A6 (CPN 687-0726-006)
U43 C-5* 125
U44 C-4 47
U45 C-4 47
U46 C-5 129
U5 A-3* 121
U6 A-3 47
U7 B-3* 123
U8 B-3* 121
U9 B-3 47
VR1 B-2 165
VR10 A-2 165
VR11 A-2 165
VR12 C-2 165
VR13 C-2 165
VR14 C-3 165
VR15 C-3 165
VR16 B-3 165
VR17 B-3 165
VR18 B-2 167
VR19 B-7 165
VR2 B-2 165
VR3 B-2 165
VR4 B-3 165
VR5 B-2 167
VR6 C-3 57
VR7 A-2 165
VR8 A-2 165
VR9 A-2 165
Z1 A-1 175
Z10 A-1 175
Z11 A-1 175
Z13 A-1 175
Z14 A-1 175
Z15 A-1 175
Z16 A-1 177
Z17 B-1 175
Z18 B-1 175
Z19 B-1 175
Z2 A-1 175
Z20 B-1 177
Z21 B-1 175
Z22 B-1 175
Z23 B-1 175
Z24 B-1 177
Z25 B-1 175
Z26 B-1 175
Z27 B-1 175
Z28 B-1 177
Z29 B-1 175
Z3 A-1 175
Z30 B-1 175
Z31 B-1 175
Z33 B-1 175
Z34 B-1 175
Z35 B-1 175
Z36 B-1 177
Z37 B-1 175
Z38 B-1 175
Z39 B-1 175
Z4 A-1 177
Z40 B-1 177
Z44 B-1 177
Z48 C-1 177
Z49 C-1 175
Z5 A-1 175
Z50 C-1 175
Z51 C-1 175
Z52 C-1 177
Z53 C-1 175
Z54 C-1 175
Z55 C-1 175
Z56 C-1 177
Z57 C-1 175
Z58 C-1 175
Z59 C-1 175
Z6 A-1 175
Z7 A-1 175
Z8 A-1 177
Z9 A-1 175
34-50-96 Page 10232
Apr 17/07
![](/img.php?id=1856825&img=bg13.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-006)

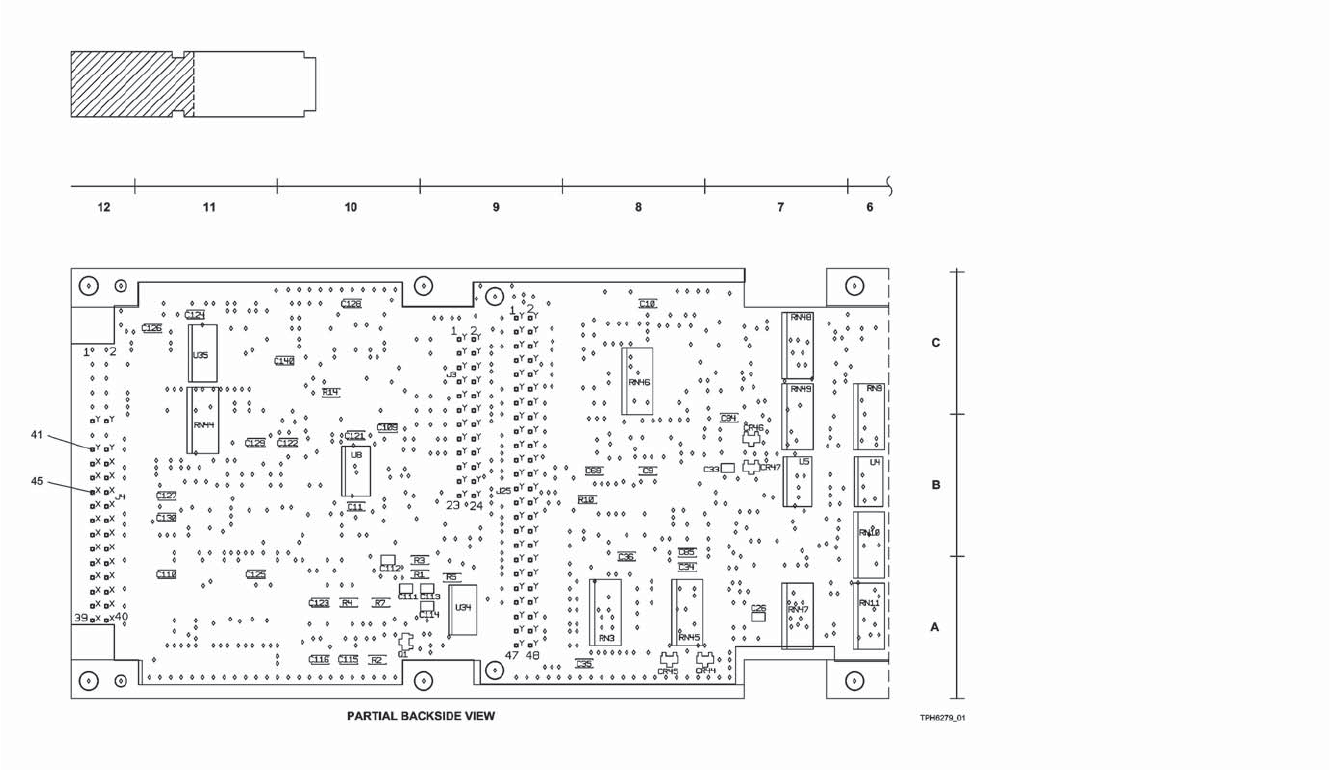

Figure 12 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-162-A01
34-50-96 Page 10233/10234
Apr 17/07
![](/img.php?id=1856825&img=bg15.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-006)

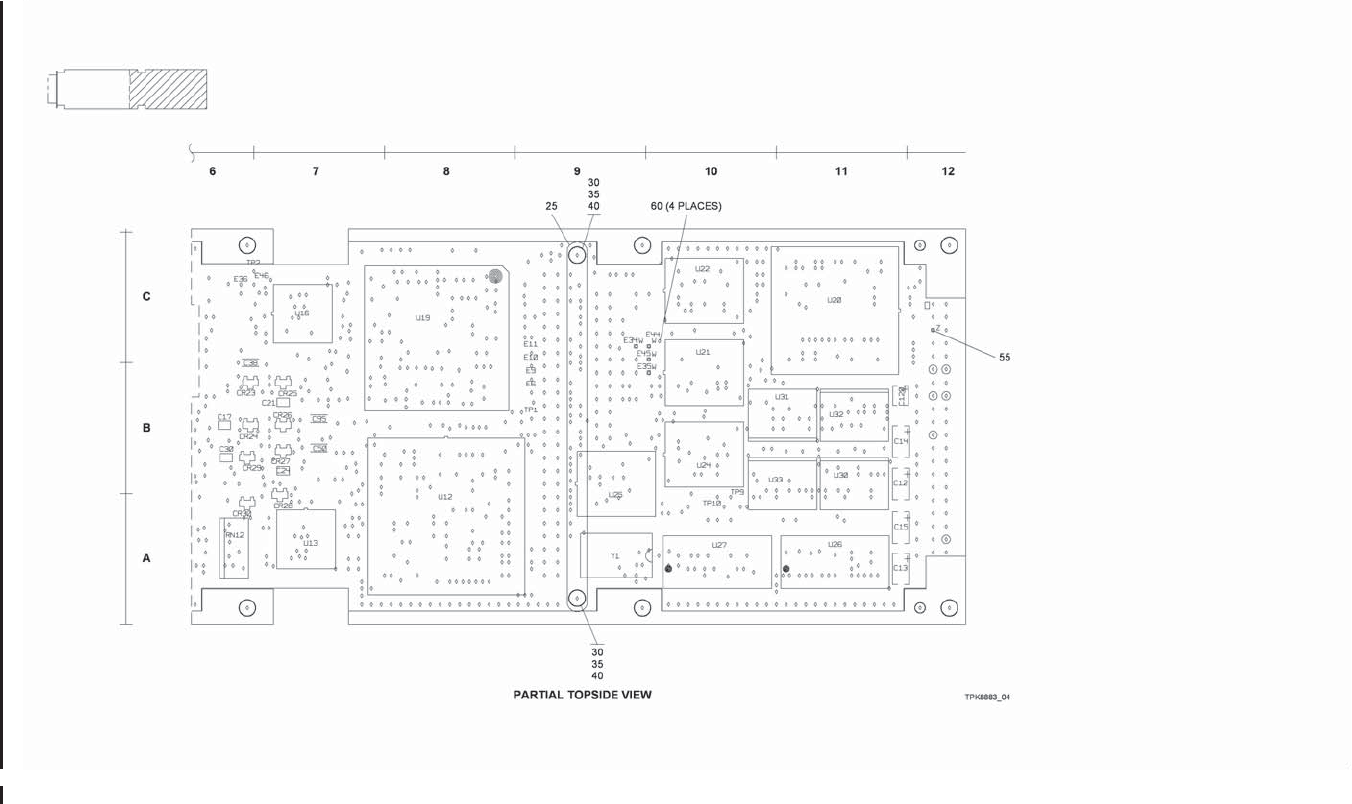

Figure 12 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-162-A01
34-50-96 Page 10235/10236
Apr 17/07
![](/img.php?id=1856825&img=bg17.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-006)

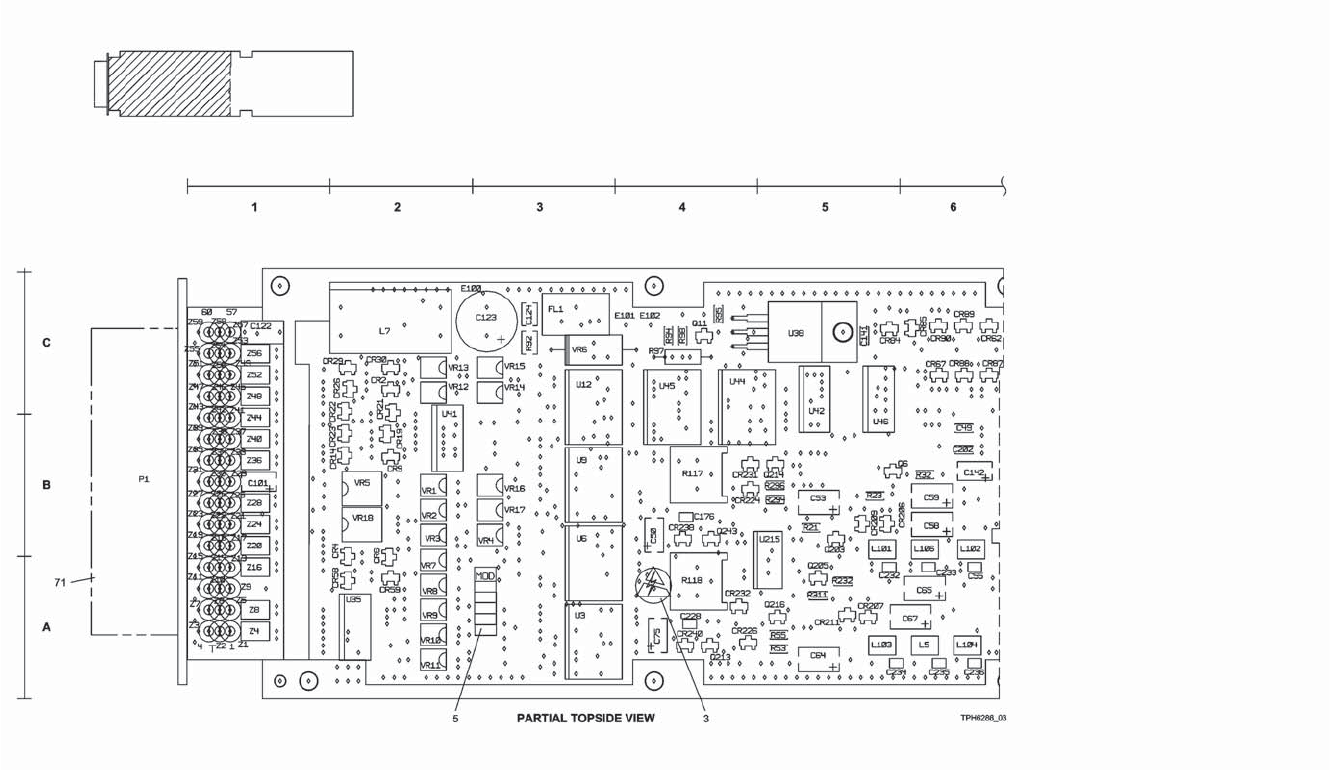

Figure 12 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-162-A01
34-50-96 Page 10237/10238
Apr 17/07
![](/img.php?id=1856825&img=bg19.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-006)
Figure 12 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-162-A01
34-50-96 Page 10239/10240
Apr 17/07
![](/img.php?id=1856825&img=bg1b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
12
- 1 687-0726-006 1 CIRCUIT CARD, VIDEO PROCESSOR RF
(SEE FIG 4-79 FOR NHA)
(SEE FIG 4-79A FOR NHA)
(SEE FIG 4-63A FOR NHA)
(SEE FIG 4-63D FOR NHA)
(SEE FIG 4-63E FOR NHA)
(SEE FIG 4-63G FOR NHA)
(SEE FIG 4-63H FOR NHA)
(SEE FIG 4-63K FOR NHA)
(SEE FIG 4-63L FOR NHA)
(SEE FIG 4-63N FOR NHA)
(SEE FIG 4-63P FOR NHA)
(SEE FIG 4-63S FOR NHA)
(SEE FIG 4-63T FOR NHA)
(SEE FIG 4-63V FOR NHA)
(SEE FIG 4-63X FOR NHA)
(SEE FIG 4-63Y FOR NHA)
(SEE FIG 4-64 FOR NHA)
(SEE FIG 4-64A FOR NHA)
A6
3 M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
5 LM317T 2 MICROCIRCUIT (ESDS) 1
(V27014) 351-1271-010
A6U38
- - - ATTACHING PARTS - - -
- 7 MS51957-14 2 SCREW, MACHINE SST 1
4-40 X 5/16
(V96906) 343-0134-000
- 9 MS35338-135 2 WASHER, LOCK SST 1
0.115 ID X 0.209 OD
(V96906) 310-0279-000
- 11 NAS671C4 2 NUT, PLAIN HEXAGON CD PL STL 1
0.112-40
(V80205) 313-0132-000
------*------
13 653-2280-001 2 STRAP, BOARD 1
- - - ATTACHING PARTS - - -
- 15 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
- 17 NAS620C4L 2 WASHER, FLAT PSVT CRES 2
0. 115 ID X 0.209 OD
(V80205) 310-0740-200
- 19 68-1660-40 2 NUT, SLFLKG HEX AL 2
4-40
(V019L2) 333-0605-000
------*------
21 653-2248-002 2 CABLE, ASSEMBLY 1
23 86286-1 2 PLUG, KEYING 4
(V00779) 372-2641-010
- 25 111356-8 3 CONNECTOR 1
(V00779) 859-2000-150
- 27 111355-8 3 CONNECTOR 1
(V00779) 859-2000-160
- 29 1-499566-0 3 CONNECTOR 1
(V00779) 372-2648-070
- 31 499568-1 3 CONNECTOR 1
(V00779) 372-2648-020
- 33 88450-2 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-020
- 35 88450-9 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-090
37 204-0077-020 2 TRANSISTOR 1
A6Q2
39 0CE720000XCCDXX 2 MICROCIRCUIT, CRYSTAL CONTROLLED 1
(V0S4G1) 277-0696-070
TRUE PN IS OCE720000XCCDXX
A6U17
34-50-96 Page 10241
Dec 16/09
![](/img.php?id=1856825&img=bg1c.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
12
41 SN74HC02D 2 MICROCIRCUIT 1
(V01295) 351-2802-010
A6U24
43 NC7ST32M5 2 MICROCIRCUIT 1
(V7D893) 351-3152-080
A6U13
45 NC7WZ04P6 2 MICROCIRCUIT 1
(V7D893) 351-3265-020
A6U14
47 SN74ABT2244ADB 2 MICROCIRCUIT 8
(V01295) 351-3435-010
A6U3 A6U6 A6U9 A6U12 A6U44 A6U45
A6U101 A6U103
49 MC74HC4316AD 2 MICROCIRCUIT 1
(V1MQ07) 351-3460-010
A6U215
51 SN74HC08D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-040
A6U29
53 PMBT2222A 2 TRANSISTOR (ESDS) 16
(V18324) 352-9113-010
A6Q1 A6Q6 A6Q9 A6Q10 A6Q11 A6Q14
A6Q113 A6Q203 A6Q204 A6Q205 A6Q206
A6Q210 A6Q213 A6Q214 A6Q216 A6Q243
55 PMBT2907TR 2 TRANSISTOR 1
(V18324) 352-9114-010
TRUE PN IS PMBT2907T/R
A6Q7
57 353-3768-060 2 DIODE 1
(V12954) 353-3768-060
A6VR6
59 BAS70-04 2 DIODE 69
(V12954) 353-8136-010
A6CR1 A6CR2 A6CR3 A6CR4 A6CR5 A6CR6
A6CR7 A6CR8 A6CR9 A6CR10 A6CR11 A6CR12
A6CR13 A6CR14 A6CR15 A6CR16 A6CR17
A6CR18 A6CR19 A6CR20 A6CR21 A6CR22
A6CR23 A6CR24 A6CR25 A6CR26 A6CR27
A6CR28 A6CR29 A6CR30 A6CR31 A6CR32
A6CR53 A6CR54 A6CR55 A6CR56 A6CR57
A6CR58 A6CR59 A6CR60 A6CR61 A6CR62
A6CR63 A6CR64 A6CR65 A6CR66 A6CR67
A6CR68 A6CR70 A6CR71 A6CR72 A6CR73
A6CR74 A6CR75 A6CR76 A6CR77 A6CR78
A6CR79 A6CR80 A6CR81 A6CR82 A6CR83
A6CR84 A6CR85 A6CR86 A6CR87 A6CR88
A6CR89 A6CR90
61 BAW78D 2 DIODE 2
(V1W698) 353-8138-040
A6CR52 A6CR69
63 2-535542-4 2 CONNECTOR, ELECTRICAL 1
(V00779) 372-0033-390
A6P25
65 M55302-127-00KY 2 PLUG, KEYING 2
(V81349) 372-2669-010
67 3314J1-203E 2 RESISTOR, VARIABLE, 20K OHM, .25W, 20% 2
(V32997) 376-0286-110
TRUE PN IS 3314J-1-203E
A6R117 A6R118
69 628-5853-001 2 CONNECTOR, ELECTRICAL 1
A6P20
71 634-7949-002 2 CIRCUIT CARD ASSEMBLY 1
A6P1
- 73 NA1109-023 3 CONTACT 30
(V57863) 372-2604-023
- 75 NA1109-022 3 CONTACT 30
(V57863) 372-2604-022
77 653-3984-001 2 CONNECTOR, ELECTRICAL 1
A6P3
34-50-96 Page 10242
Dec 16/09
![](/img.php?id=1856825&img=bg1d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
12
79 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 20
(V56845) 705-3535-020
A6R16 A6R19 A6R56 A6R57 A6R58 A6R64
A6R65 A6R71 A6R75 A6R80 A6R81 A6R87
A6R88 A6R89 A6R90 A6R91 A6R95 A6R228
A6R283 A6R316
81 CRCW12061003F 2 RESISTOR, FIXED FILM, 100K, 1%, 125MW 10
(V56845) 705-3535-060
A6R1 A6R2 A6R3 A6R4 A6R20 A6R35 A6R37
A6R62 A6R63 A6R66
83 CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 12
(V56845) 705-3535-200
A6R11 A6R76 A6R77 A6R78 A6R79 A6R93
A6R94 A6R221 A6R241 A6R265 A6R286
A6R313
34-50-96
Page 10242.1/
10242.2
Dec 16/09
![](/img.php?id=1856825&img=bg1f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
12
85 CRCW12061212F 2 RESISTOR, FIXED FILM, 12.1K, 1%, 125MW 1
(V56845) 705-3535-270
A6R267
87 CRCW12069760F 2 RESISTOR, FIXED, 976 OHM, .25W, 1% 2
(V56845) 705-3535-390
A6R34 A6R211
89 CRCW12064750F 2 RESISTOR, FIXED FILM, 475 OHMS, 1%, 1
125MW
(V56845) 705-3535-730
A6R85
91 RK73H2BL2001F 2 RESISTOR, FIXED FILM, 2K, 1%, 0.4W 18
(V59124) 705-3537-290
A6R22 A6R23 A6R31 A6R32 A6R44 A6R99
A6R100 A6R101 A6R102 A6R103 A6R104
A6R105 A6R106 A6R242 A6R243 A6R249
A6R256 A6R314
93 RK73H2BL2211F 2 RESISTOR, FIXED FILM, 2.21K, 1%, 125MW 6
(V59124) 705-3537-330
A6R25 A6R53 A6R55 A6R216 A6R294 A6R296
95 RK73H2BL3921F 2 RESISTOR, FIXED FILM, 3.92K, 1%, 125MW 9
(V59124) 705-3537-530
A6R28 A6R29 A6R30 A6R45 A6R46 A6R48
A6R82 A6R83 A6R98
97 RK73H2BL4751F 2 RESISTOR, FIXED FILM, 4.75K, 1%, 0.4W 2
(V59124) 705-3537-600
A6R84 A6R96
99 RK73H2BL2742F 2 RESISTOR, FIXED FILM, 27.4K, 1%, 125MW 2
(V59124) 705-3538-230
A6R24 A6R232
101 RK73H2BL2874F 2 RESISTOR, FIXED, 28.7K OHM, .25W, 1% 2
(V59124) 705-3538-250
A6R61 A6R271
103 RK73H2BL4752F 2 RESISTOR, FIXED FILM, 47.5K, 1%, 125MW 2
(V59124) 705-3538-450
A6R21 A6R311
105 RK73H2BL5622F 2 RESISTOR, FIXED FILM 56.2K, 1%, 125MW 2
(V59124) 705-3538-510
A6R27 A6R43
107 CRCW120633R2FB 2 RESISTOR, FIXED FILM, 33.2 OHMS, 1%, 2
125MW
(V56845) 705-3539-640
A6R18 A6R282
109 RK73H2BL2210F 2 RESISTOR, FIXED FILM, 221 OHMS, 1%, 2
125MW
(V59124) 705-3540-430
A6R14 A6R54
111 RM73Z2B 2 RESISTOR, CHIP FILM, 0.05 OHM, 0.25W 6
(ESDS)
(V80205) 705-3543-020
A6R17 A6R36 A6R38 A6R39 A6R67 A6R68
113 RWR81S2370FR 2 RESISTOR, FIXED, 237 OHM, 1W, 1% 1
(V81349) 747-2183-370
A6R97
115 831-0037-001 2 MICROCIRCUIT, MODIFIED 1
A6U128
- 117 351-6826-010 3 MICROCIRCUIT 1
(V66958) 351-6826-010
119 S0MC160336R0GDC 2 RESISTOR, NETWORK, 36 OHM, .25W, 2% 2
(V91637) 833-5502-010
TRUE PN IS SOMC160336R0GDC
A6R35 A6R41 A6U35 A6U41
121 833-5502-070 2 RESISTOR, NETWORK 10K, 2% (ESDS) 5
(V11236) 833-5502-070
A6U2 A6U5 A6U8 A6U11 A6U37
123 833-5502-080 2 MICROCIRCUIT (ESDS) 4
(V11236) 833-5502-080
A6U1 A6U4 A6U7 A6U10
34-50-96 Page 10243
Jun 20/08
![](/img.php?id=1856825&img=bg20.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
12
125 833-5502-140 2 RESISTOR, NETWORK, 62K OHM, .25W, 2% 2
(V11236) 833-5502-140
A6U34 A6U43
127 833-5502-180 2 RESISTOR, NETWORK, 100K OHM, .25W, 2% 2
(V11236) 833-5502-180
A6U33 A6U42
129 833-5502-190 2 RESISTOR, NETWORK, 270K OHM, .25W, 2% 2
A6U36 A6U46
A6U36 A6U46
131 RK73Z2EL 2 RESISTOR, FIXED, 0 OHM 1
(V59124) 833-6008-030
A6R92
133 834-0516-030 2 CAPACITOR, FIXED, 22UF, 60V 1
(V7M138) 834-0516-030
PN IS REF NO FOR 678D226M060CG5DD444
A6C123
135 TAJC475K025H 2 CAPACITOR, FIXED 4.7UF, 10%, 25V 1
(V04222) 834-2008-150
A6C100
137 TAJC685K020H 2 CAPACITOR, FIXED 6.8UF, 10%, 20V 4
(V04222) 834-2008-170
A6C50 A6C75 A6C142 A6C143
139 TAJD156K025H 2 CAPACITOR, FIXED 15UF, 10%, 25V 6
(V04222) 834-2008-220
A6C53 A6C58 A6C59 A6C64 A6C65 A6C67
141 TAJC105K050H 2 CAPACITOR, FIXED 1UF, 10%, 50V 6
(V04222) 834-2008-320
A6C101 A6C115 A6C116 A6C117 A6C118
A6C119
143 834-5000-020 2 CAPACITOR, FIXED CER DIEL, .10UF, 1
10%, 100V
(V04222) 834-5000-020
PN IS REF NO FOR 12101C104KAT060L
A6C124
145 12065C103KAT2A 2 CAPACITOR, FIXED 10,000PF, 10%, 50V 45
(V04222) 834-5005-250
A6C8 A6C17 A6C25 A6C34 A6C36 A6C37
A6C78 A6C79 A6C80 A6C81 A6C82 A6C83
A6C84 A6C85 A6C86 A6C87 A6C88 A6C89
A6C90 A6C91 A6C92 A6C93 A6C94 A6C96
A6C97 A6C120 A6C121 A6C125 A6C126
A6C127 A6C128 A6C140 A6C141 A6C171
A6C203 A6C206 A6C210 A6C211 A6C212
A6C213 A6C214 A6C220 A6C222 A6C223
A6C237
147 C1206C104K5RAC 2 CAPACITOR, FIXED CER, 0.1UF, 10%, 50V 2
(V31433) 834-5005-370
A6C49 A6C202
149 LT1016 2 MICROCIRCUIT 5
(V64155) 835-0048-010
A6U203 A6U204 A6U205 A6U208 A6U214
151 AD817AR 2 MICROCIRCUIT 2
(V24355) 835-0371-010
A6U39 A6U40
153 835-1570-010 2 MICROCIRCUIT 1
(V61722) 835-1570-010
A6U118
155 HCT74 2 MICROCIRCUIT 1
(V01295) 835-3607-030
A6U16
157 CD74HC259M 2 MICROCIRCUIT (ESDS) 2
(V81349) 835-3707-050
A6U108 A6U109
159 CD74AC374M 2 MICROCIRCUIT (ESDS) 1
(V01295) 835-4507-030
A6U116
161 IDT7130SA70JI 2 MICROCIRCUIT 1
(V61772) 835-5815-030
A6U104
34-50-96 Page 10244
Apr 17/07
![](/img.php?id=1856825&img=bg21.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
12
163 MMBD301LT1 2 DIODE 19
(V1MQ07) 844-0003-020
A6CR46 A6CR48 A6CR49 A6CR51 A6CR120
A6CR206 A6CR207 A6CR208 A6CR209
A6CR210 A6CR211 A6CR224 A6CR226
A6CR231 A6CR232 A6CR234 A6CR236
A6CR238 A6CR240
165 P6SMB36A 2 DIODE 16
(V1MQ07) 844-0082-180
A6VR1 A6VR2 A6VR3 A6VR4 A6VR7 A6VR8
A6VR9 A6VR10 A6VR11 A6VR12 A6VR13
A6VR14 A6VR15 A6VR16 A6VR17 A6VR19
167 1SMC36A 2 DIODE 2
(V1MQ07) 844-0097-250
A6VR5 A6VR18
169 1812-153K 2 COIL, 15UH 4
(V99800) 849-0025-270
A6L101 A6L102 A6L103 A6L104
171 1812-333K 2 COIL, 33UH 2
(V99800) 849-0025-310
A6L5 A6L106
173 849-0512-010 2 CAPACITOR, FIXED, .0022UF, 100V 1
(V18796) 849-0512-010
PN IS REF NO FOR DSS9NC52A222Q55B
A6FL1
175 2661000101 2 BEAD, FERRITE 45
(V34899) 852-1000-190
A6Z1 A6Z2 A6Z3 A6Z5 A6Z6 A6Z7 A6Z9
A6Z10 A6Z11 A6Z13 A6Z14 A6Z15 A6Z17
A6Z18 A6Z19 A6Z21 A6Z22 A6Z23 A6Z25
A6Z26 A6Z27 A6Z29 A6Z30 A6Z31 A6Z33
A6Z34 A6Z35 A6Z37 A6Z38 A6Z39 A6Z41
A6Z42 A6Z43 A6Z45 A6Z46 A6Z47 A6Z49
A6Z50 A6Z51 A6Z53 A6Z54 A6Z55 A6Z57
A6Z58 A6Z59
177 2743019446L 2 BEAD, FERRITE 12
(V34899) 852-3002-010
A6Z4 A6Z8 A6Z16 A6Z20 A6Z24 A6Z28
A6Z36 A6Z40 A6Z44 A6Z48 A6Z52 A6Z56
179 852-3005-040 2 COIL, 50UH 1
(V00204) 852-3005-040
A6L7
181 CK60AW102M 2 CAPACITOR, FIXED CER, DIEL, 1000PF, 1
20%, 1000V
(V81349) 913-1186-000
A6C122
183 08055A100JATBA 2 CAPACITOR, FIXED CER DIEL, 10PF, 5%, 2
50V
(V04222) 913-3667-030
A6C176 A6C228
185 08055A270JATBA 2 CAPACITOR, FIXED CER DIEL 27PF, 5%, 2
50V
(V04222) 913-3667-080
A6C61 A6C209
187 08055A330JATBA 2 CAPACITOR, FIXED CER DIEL, 33PF, 5%, 4
50V
(V04222) 913-3667-090
A6C232 A6C233 A6C234 A6C235
189 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 4
50V
(V04222) 913-3667-110
A6C55 A6C60 A6C73 A6C236
191 08055A471JATBA 2 CAPACITOR, FIXED CER DIEL, 470PF, 5%, 55
50V
(V04222) 913-3667-230
A6C1 A6C2 A6C3 A6C4 A6C5 A6C6 A6C7
A6C9 A6C10 A6C11 A6C12 A6C13 A6C14
A6C15 A6C16 A6C18 A6C19 A6C20 A6C21
A6C22 A6C23 A6C24 A6C26 A6C27 A6C28
34-50-96 Page 10245
Apr 17/07
![](/img.php?id=1856825&img=bg22.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
12
A6C29 A6C30 A6C31 A6C32 A6C33 A6C35
A6C102 A6C103 A6C104 A6C105 A6C106
A6C107 A6C108 A6C109 A6C110 A6C111
A6C112 A6C113 A6C114 A6C129 A6C130
A6C131 A6C132 A6C133 A6C134 A6C135
A6C136 A6C137 A6C138 A6C139
193 18055A152JATBA 2 CAPACITOR, FIXED CER DIEL 1500PF, 5%, 2
50V
(V04222) 913-3667-370
A6C217 A6C218
195 08055A221JATBA 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 4
50V
(V04222) 913-3667-470
A6C51 A6C52 A6C221 A6C241
197 RK73H1JL33R2F 2 RESISTOR, FIXED 33.2 OHM 1%, 0.063W 39
(V59124) 705-2437-230
A6R26 A6R33 A6R40 A6R41 A6R42 A6R47
A6R49 A6R50 A6R51 A6R52 A6R59 A6R60
A6R69 A6R70 A6R72 A6R73 A6R74 A6R86
A6R107 A6R108 A6R109 A6R110 A6R111
A6R112 A6R113 A6R114 A6R115 A6R116
A6R119 A6R120 A6R121 A6R122 A6R123
A6R124 A6R125 A6R126 A6R127 A6R128
A6R129
199 280-3778-050 2 LABEL, INFORMATION 1
(V0BU16) 280-3778-050
201 831-7172-001 2 MICROCIRCUIT, MODIFIED 1
A6U121
- 203 A42MX09PL84I 3 MICROCIRCUIT 1
(VK7766) 351-3321-010
TRUE PN IS A42MX09-PL84I
205 RK73H2BL1821F 2 RESISTOR, FIXED FILM, 1.82K, 1%, 125MW 2
(V59124) 705-3537-250
A6R317 A6R318
207 RK73H2BL8251F 2 RESISTOR, FIXED FILM, 8.25K, 1%, 125MW 2
(V59124) 705-3537-780
A6R227 A6R230
34-50-96 Page 10246
Apr 17/07
![](/img.php?id=1856825&img=bg23.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 13. Power Amplifier Circuit Card A2 (CPN 687-0722-003)
C101 C-10 99
C102 B-10 103
C103 C-10 95
C104 C-10 99
C106 C-10 105
C109 B-12 105
C110 A-12 105
C111 A-12 105
C112 A-11 105
C113 A-10 121
C114 B-10 105
C115 B-10 105
C116 B-8 121
C117 B-8 105
C118 B-7 105
C119 B-7 101
C120 B-7 105
C121 A-9 101
C122 A-8 101
C123 C-10 99
C124 C-12 99
C125 C-12 99
C126 C-12 95
C127 B-11 99
C128 B-11 95
C129 A-10 97
C130 B-12 109
C132 A-8 115
C133 B-8 123
C201 A-4 91
C203 C-7 99
C204 C-4 99
C205 A-8 99
C206 A-5 99
C207 C-4 91
C301 C-3 91
C302 C-4 91
C303 C-4 91
C304 B-4 95
C305 B-4 95
C306 A-3 93
C307 B-4 95
C308 B-4 95
C309 B-2 93
C310 B-3 93
C311 B-4 95
C312 C-3 93
C313 A-3 91
C314 A-4 91
C315 A-4 91
C316 B-5 89
C317 B-3 95
C318 B-3 129
C319 C-2 125
C401 C-10 89
C402 C-10 89
C403 C-11 89
C404 C-12 89
C405 B-11 89
C406 A-9 89
C407 A-8 89
C501 C-4 89
C502 C-4 89
C503 A-7 89
C504 A-5 89
C505 A-4 89
C506 C-6 89
CR101 C-11 117
CR201 C-11 33
CR203 C-7 107
CR204 C-5 107
CR205 A-7 107
CR206 A-5 107
CR207 B-4 33
CR301 C-4 119
CR302 B-4 119
FL301 B-5 85
FL302 B-5 85
J13 B-1 35
L101 C-10 43
L102 C-10 43
L103 C-11 43
L104 C-12 43
L105 B-11 43
L106 A-9 131
L201 A-4 113
L202 C-4 113
L305 C-3 29
L306 A-3 29
Q101 B-10 81
Q102 B-11 31
Q103 A-11 5
Q104 A-9 83
Q105 B-8 79
R101 A-9 55
R102 A-9 55
R103 A-8 55
R104 A-8 55
R105 C-10 45
R106 C-11 53
R107 C-11 41
R110 A-10 111
R201 A-4 49
R202 A-3 49
R203 C-4 49
R204 C-3 49
R301 B-2 53
R302 C-3 57
R303 C-3 137
R304 B-3 57
R305 B-3 51
R306 B-4 39
R307 B-3 57
R308 B-3 137
R309 B-3 57
R310 B-3 51
R311 B-4 39
R312 B-1 157
U101 B-8 75
U301 B-2 87
U302 C-4 37
U303 C-4 77
U304 B-2 87
U305 A-4 37
U306 A-4 77
34-50-96 Page 10247/10248
Apr 17/07
![](/img.php?id=1856825&img=bg25.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Power Amplifier Circuit Card A2 (CPN 687-0722-003)
Figure 13 (Sheet 1 of 2) /GRAPHIC 34-50-96-99B-163-A01
34-50-96 Page 10249/10250
Apr 17/07
![](/img.php?id=1856825&img=bg27.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Power Amplifier Circuit Card A2 (CPN 687-0722-003)
Figure 13 (Sheet 2 of 2) /GRAPHIC 34-50-96-99B-163-A01
34-50-96 Page 10251/10252
Apr 17/07
![](/img.php?id=1856825&img=bg29.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
13
- 1 687-0722-003 1 CIRCUIT CARD, POWER AMPLIFIER RF
(SEE FIG 2-25A FOR NHA)
A2
3 M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
5 SD1512-06 2 TRANSISTOR 1
(V08JA0) 843-0018-010
A2Q103
- - - ATTACHING PARTS - - -
- 7 347-0006-000 2 SCREW, MACHINE CRES, PSVT 8
0.112-40X0.250L
(V1GP79) 347-0006-000
- 9 MS35338-135 2 WASHER, LOCK SST 8
0.115 ID X 0.209 OD
(V96906) 310-0279-000
- 11 188-121-015 2 WASHER, FLAT, .121 ID, .188 OD, .015 8
(V85446) 846-1009-010
TRUE PN IS 188 121 015
------*------
13 307-1020-000 2 EYELET, FLANGE, ROLLED, .152, .158 1
(V23730) 307-1020-000
15 653-2269-001 2 PLATE, TERMINAL 1
- - - ATTACHING PARTS - - -
- 17 343-0298-000 2 SCREW, PAN, 0.086-56, .187 1
(V1GP79) 343-0298-000
- 19 304-0014-000 2 TERMINAL, LUG 1
(V20293) 304-0014-000
PN IS REF NO FOR
304-0014-000 HOT DIP SOLDER
- 21 MS35333-103 2 WASHER, .093 ID, .189 OD 1
(V96906) 373-3120-000
------*------
- 23 653-2269-002 3 PLATE, TERMINAL 1
- 25 860-0505-010 3 STANDOFF 2
(V3N087) 860-0505-010
PN IS REF NO FOR
2111-1-00-01-00-00-070
27 653-2271-001 2 PLATE, BACKING 1
29 2510-00J 2 COIL, .1UH 2
(V99800) 240-0116-010
A2L305 A2L306
31 SRF3809 2 TRANSISTOR, RF (ESDS) 1
(V04713) 352-1581-010
(EFF THRU REV L)
A2Q102
- 31A SD1802-01 2 TRANSISTOR 1
(V08JA0) 843-1507-010
(EFF REV M THRU R)
- 31B 60159 2 TRANSISTOR 1
(V0PJR2) 843-1507-020
(EFF REV T)
(NON-PREFERRED)
- 31C SD1802-01 2 TRANSISTOR 1
(V08JA0) 843-1507-010
(EFF REV T)
(PREFERRED)
33 BAS70-06 2 DIODE 2
(V12954) 353-8136-030
(EFF THRU REV J)
A2CR201 A2CR207
- 33A BAS70-05 2 DIODE 2
(V12954) 353-8136-020
(EFF REV K)
35 3009-1511-005 2 CONNECTOR, ELECTRICAL (ESDS) 1
(V19505) 357-7195-010
A2J13
37 A03 2 MICROCIRCUIT (ESDS) 2
(VK7766) 835-0057-030
A2U302 A2U305
34-50-96 Page 10253
Apr 17/07
![](/img.php?id=1856825&img=bg2a.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
13
39 RK73B2ELBD511J 2 RESISTOR, FIXED, 510 OHM, .25W, 5% 2
(V59124) 705-3541-420
A2R306 A2R311
41 RK73H2BL2211F 2 RESISTOR, FIXED FILM, 2.21K, 1%, 125MW 1
(V59124) 705-3537-330
A2R107
43 W2298 2 COIL 5
(V02113) 628-5632-001
A2L101 A2L102 A2L103 A2L104 A2L105
45 RK73H2BL47R5F 2 RESISTOR, FIXED FILM, 47.5 OHMS, 1%, 1
125MW
(V59124) 705-3539-790
A2R105
49 RK73H2BL51R1F 2 RESISTOR, FIXED FILM, 51.1 OHMS, 1%, 4
0.4W
(V59124) 705-3539-820
A2R201 A2R202 A2R203 A2R204
51 833-6524-720 2 RESISTOR, FIXED, 200 OHM, .6W, 1% 2
(V91637) 833-6524-720
PN IS REF NO FOR RCWP7225200RFKBB
A2R305 A2R310
53 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHMS, 1%, 2
0.4W
(V59124) 705-3540-100
A2R106 A2R301
55 RK73B3AL200J 2 RESISTOR, FIXED, 20 OHM, 1W, 5% 4
(V59124) 833-6009-040
A2R101 A2R102 A2R103 A2R104
57 653-0030-003 2 RESISTOR, TEST SELECT 4
A2R302 A2R304 A2R307 A2R309
- 59 RK73H2BL1150F 3 RESISTOR, FIXED FILM, 115 OHMS, 1%, AR
125MW
(V59124) 705-3540-160
- 61 RK73H2BL1300F 3 RESISTOR, FIXED FILM, 130 OHMS, 1%, AR
0.4W
(V59124) 705-3540-210
- 63 RK73H2BL1500F 3 RESISTOR, FIXED FILM, 150 OHMS, 1%, AR
125MW
(V59124) 705-3540-270
- 65 RK73H2BL2210F 3 RESISTOR, FIXED FILM, 221 OHMS, 1%, AR
125MW
(V59124) 705-3540-430
- 67 RK73H2BL1820F 3 RESISTOR, FIXED FILM, 182 OHMS, 1%, AR
125MW
(V59124) 705-3540-350
- 69 RK73H2BL1000F 3 RESISTOR, FIXED FILM, 100 OHMS, 1%, AR
0.4W
(V59124) 705-3540-100
- 71 CRCW12064320F 3 RESISTOR, FIXED FILM, 432 OHMS, 1%, AR
0.4W
(V56845) 705-3535-690
- 73 CRCW12063010F 3 RESISTOR, FIXED FILM, 301 OHMS, 1%, AR
125MW
(V56845) 705-3535-550
75 LM235AH 2 MICROCIRCUIT 1
(V27014) 835-0016-010
A2U101
77 A06 2 MICROCIRCUIT 2
(VK7766) 835-0057-040
A2U303 A2U306
79 MRF10500 2 TRANSISTOR 1
(V04713) 843-0023-020
(EFF THRU REV F)
A2Q105
- 79A 843-0023-040 2 TRANSISTOR 1
(EFF REV G THRU R)
- 79B MRF10502 2 TRANSISTOR 1
(V04713) 843-0023-030
(EFF REV T)
34-50-96 Page 10254
Apr 17/07
![](/img.php?id=1856825&img=bg2b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
13
81 MRF2369 2 TRANSISTOR 1
(V04713) 843-0017-010
TRUE PN IS {MRF}2369
A2Q101
83 SRF4037 2 TRANSISTOR 1
(V04713) 843-0019-010
A2Q104
85 KFF6138A 2 FILTER, CERAMIC 2
(V76978) 849-0510-010
A2FL301 A2FL302
87 RMS5 2 MICROCIRCUIT 2
(V15542) 850-0001-020
TRUE PN IS RMS-5
(EFF THRU REV N)
A2U301 A2U304
- 87A RMS5 2 MICROCIRCUIT 2
(V15542) 850-0001-020
TRUE PN IS RMS-5
(EFF THRU REV N)
(NON-PREFERRED)
- 87B RMS860 2 MICROCIRCUIT 2
(V15542) 850-0001-060
TRUE PN IS RMS-860
(EFF REV P)
(PREFERRED)
A2U301 A2U304
89 54-713-063 2 CAPACITOR, FIXED CER DIEL 100PF, 20%, 14
100V
(V33095) 913-1128-010
A2C316 A2C401 A2C402 A2C403 A2C404
A2C405 A2C406 A2C407 A2C501 A2C502
A2C503 A2C504 A2C505 A2C506
91 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 8
50V
(V04222) 913-3667-110
A2314 A2C201 A2C207 A2C301 A2C302
A2C303 A2C313 A2C314 A2C315
93 08051A240JATMN 2 CAPACITOR, FIXED CER DIEL 24PF, 5%, 4
100V
(V04222) 913-3669-050
A2C306 A2C309 A2C310 A2C312
95 08055C102KATBA 2 CAPACITOR, FIXED CER 1,000PF, 10%, 50V 9
(V04222) 913-3670-120
A2C103 A2C126 A2C128 A2C304 A2C305
A2C307 A2C308 A2C311 A2C317
97 913-3676-130 2 CAPACITOR, FIXED CER DIEL 0.1UF, 20%, 1
50V
(V18796) 913-3676-130
PN IS REF NO FOR GRM319E41H104MA15B
A2C129
99 AQ12EM510JAJBE 2 CAPACITOR, FIXED CER DIEL 51PF, 5%, 10
50V
(V04222) 914-3500-300
A2C101 A2C104 A2C123 A2C124 A2C125
A2C127 A2C203 A2C204 A2C205 A2C206
101 CDR14BG330EJUR 2 CAPACITOR, FIXED, 33PF, 500V 3
(V04222) 914-3503-390
A2C119 A2C121 A2C122
103 9610-3LSL 2 CAPACITOR, VAR CER DIEL, 1-4.5PF, 1
250VDC
(V91293) 917-0501-120
A2C102
105 GWV4R551 2 CAPACITOR, VARIABLE 0.6 TO 4.5PF 500V 10
(V52769) 922-0596-140
A2C106 A2C109 A2C110 A2C111 A2C112
A2C114 A2C115 A2C117 A2C118 A2C120
34-50-96 Page 10255
Jun 20/08
![](/img.php?id=1856825&img=bg2c.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
13
107 UM9830 2 DIODE 4
(V12969) 922-6151-010
(EFF THRU REV T)
A2CR203 A2CR204 A2CR205 A2CR206
- 107A MA4P7104B 2 DIODE 4
(V96341) 922-6151-040
(EFF REV U)
109 AQ12EM5R6BAJBE 2 CAPACITOR, FIXED CER DIEL 5.6PF, PORM 1
0.1PF, 50V
(V04222) 914-3500-090
A2C130
111 RK73B2ELBD470J 2 RESISTOR, FIXED, 47 OHM, .25W, 5% 1
(V59124) 705-3541-170
A2R110
113 MS75083-1 2 COIL, RF, 0.100UH 2
(V96906) 240-2723-140
(ADDED BY REV D)
A2L201 A2L202
115 CK05BX562K 2 CAPACITOR, FIXED, .0056UF, 100V 1
(V04222) 913-5019-170
(EFF THRU REV H)
A2C132
- 115A CK05BX103K 2 CAPACITOR, FIXED CER DIEL, 0.01UF, 1
10%, 100VDC
(V81349) 913-5019-200
(EFF REV J)
117 MMBD6050 2 DIODE 1
(V1MQ07) 353-8135-010
A2CR101
119 844-0033-010 2 DIODE 2
A2CR301 A2CR302
121 CDR14BG331CJUR 2 CAPACITOR, FIXED 330PF, 5%, 200V 2
(V04222) 914-3503-670
A2C113 A2C116
123 AQ12EM5R6BAJBE 2 CAPACITOR, FIXED CER DIEL 5.6PF, PORM 1
0.1PF, 50V
(V04222) 914-3500-090
(EFF THRU REV C)
A2C133
- 123A AQ12EM7R5BAJBE 2 CAPACITOR, FIXED, 7.5PF, 150V 1
(V04222) 914-3500-110
(EFF REV D)
125 SR201A102JAA 2 CAPACITOR, FIXED CER DIEL 1000PF, 1
5%, 100V
(VK7766) 913-3281-270
A2C319
127 AQ12EM5R6BAJBE 2 CAPACITOR, FIXED CER DIEL 5.6PF, PORM 1
0.1PF, 50V
(V04222) 914-3500-090
(DELETED BY REV D)
A2C131
129 SR201A102JAA 2 CAPACITOR, FIXED CER DIEL 1000PF, 1
5%, 100V
(VK7766) 913-3281-270
(ADDED BY REV N)
A2C318
131 MS75083-1 2 COIL, RF, 0.100UH 1
(V96906) 240-2723-140
A2L106
133 RK73B3AL200J 2 RESISTOR, FIXED, 20 OHM, 1W, 5% 2
(V59124) 833-6009-040
(ADDED BY REV K)
A2R108 A2R109
137 653-0030-002 2 RESISTOR, TEST SELECT 2
A2R303 A2R308
- 139 RK73H2BL11R0F 3 RESISTOR, FIXED, 11 OHM, .25W, 1% AR
(V59124) 705-3539-180
34-50-96 Page 10256
Apr 17/07
![](/img.php?id=1856825&img=bg2d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
13
- 141 RK73H2BL18R2F 3 RESISTOR, FIXED FILM 18.2 OHMS, 1%, AR
125MW
(V59124) 705-3539-390
- 143 RK73H2BL24R3F 3 RESISTOR, FIXED FILM 24.3 OHMS, 1%, AR
125MW
(V59124) 705-3539-510
- 145 RK73H2BL30R1F 3 RESISTOR, FIXED FILM, 30.1 OHMS, 1%, AR
125MW
(V59124) 705-3539-600
- 147 RK73H2BL43R2F 3 RESISTOR, FIXED FILM, 43.2 OHMS, 1%, AR
0.4W
(V59124) 705-3539-750
- 149 RK73H2BL61R9F 3 RESISTOR, FIXED 61.9 OHM, 1%, 0.025W AR
(V59124) 705-3539-900
- 151 RK73Z2BL 3 RESISTOR, FIXED FILM, .05 OHM, .2 AMP AR
(V59124) 833-6008-020
- 153 RK73H2BL35R7F 3 RESISTOR, FIXED, 35.7 OHM, .25W, 1% AR
(V59124) 705-3539-670
- 155 RK73H2BL51R1F 3 RESISTOR, FIXED FILM, 51.1 OHMS, 1%, AR
0.4W
(V59124) 705-3539-820
157 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHMS, 1%, 1
0.4W
(V59124) 705-3540-100
(ADDED BY REV N)
A2R312
34-50-96 Page 10257/10258
Apr 17/07
![](/img.php?id=1856825&img=bg2f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 14. Modulator Circuit Card A3 (CPN 687-0723-004)
C101 C-2 21
C102 C-2 197
C103 C-2 27
C104 C-2 231
C105 C-3 231
C106 C-3 197
C107 C-3 231
C108 C-3 197
C109 C-4 231
C110 C-5 5
C111 B-5 169
C112 C-9 197
C113 C-9 197
C114 C-9 231
C115 B-2 7
C116 B-4 233
C117 B-9 231
C118 B-8 233
C119 B-8 231
C120 B-3 231
C121 A-3 231
C122 A-3 23
C123 A-5 197
C124 A-6 169
C125 B-9 231
C126 B-9 221
C127 B-10 229
C128 A-9 197
C129 A-9 197
C130 A-9 197
C131 B-9 25
C132 B-9 235
C201 C-1* 197
C202 C-2* 197
C203 C-2* 197
C205 C-3* 197
C206 C-7* 217
C207 C-8* 231
C208 C-1* 197
C209 C-1* 223
C210 C-2* 231
C211 C-2* 231
C212 C-2* 193
C213 C-4* 225
C215 C-4* 197
C216 C-4* 201
C217 C-5* 197
C218 C-6* 197
C219 C-6* 231
C220 C-6* 231
C221 C-6* 231
C222 C-9* 231
C223 C-9* 197
C224 C-9* 197
C225 C-9* 231
C226 C-1* 195
C227 B-1* 195
C228 B-2* 219
C233 B-1* 195
C234 B-1* 195
C235 B-1* 195
C236 B-1* 195
C237 B-1* 195
C238 B-2* 197
C240 A-5* 191
C241 B-4* 197
C242 B-4* 197
C243 B-6* 231
C244 B-1* 195
C245 B-1* 195
C246 B-1* 195
C247 B-1* 195
C248 A-4* 199
C249 A-6* 231
C250 A-6* 231
C251 B-7* 231
C252 A-1* 27
C253 A-1* 195
C254 A-1* 195
C255 A-7* 231
C256 A-9* 231
C257 A-9* 197
C258 A-9* 231
C259 A-9* 197
C260 A-1* 195
C261 A-1* 195
C263 A-4* 197
C264 A-7* 217
C265 A-7* 227
C266 C-7* 227
CR101 A-5 187
CR102 B-9 187
CR202 C-6* 187
CR203 C-7* 67
CR204 C-8* 187
CR205 C-8* 187
CR206 C-4* 187
CR207 B-4* 187
CR208 B-4* 187
CR209 B-5* 69
CR210 B-9* 63
CR211 B-3* 187
CR212 B-4* 65
CR214 A-4* 69
CR215 A-5* 187
CR216 A-4* 187
CR218 A-6* 187
CR219 A-7* 67
CR220 A-9* 187
CR221 A-9* 187
L101 A-5 75
L201 B-1* 29
L202 B-1* 29
L203 B-1* 29
L204 A-1* 29
L205 A-2* 29
L206 A-2* 29
L207 A-2* 29
L208 A-1* 29
L209 A-1* 29
L210 A-2* 29
L211 A-2* 29
L212 A-2* 29
L213 B-2* 189
L214 B-1* 189
L215 B-2* 189
L216 A-2* 189
L217 A-1* 189
L218 A-2* 189
L219 A-2* 189
L220 A-2* 189
L221 A-1* 189
L222 A-2* 189
L223 A-2* 189
Q101 C-3 59
Q102 C-4 177
Q103 C-9 53
Q104 C-9 51
Q105 B-3 51
Q106 B-5 55
Q107 B-2 53
Q108 A-9 51
Q109 A-9 53
Q110 B-9 49
Q111 C-2 185
Q201 C-1* 179
Q202 C-2* 59
Q203 C-7* 57
34-50-96 Page 10259
Apr 17/07
![](/img.php?id=1856825&img=bg30.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 14. Modulator Circuit Card A3 (CPN 687-0723-004)
Q204 C-8* 185
Q205 C-8* 185
Q206 C-5* 185
Q207 B-5* 61
Q208 B-8* 57
Q211 B-2* 181
Q212 B-2* 185
Q215 A-5* 57
Q216 A-4* 183
Q217 A-8* 185
Q218 A-8* 185
Q219 A-7* 57
R101 C-2 73
R102 C-3 129
R103 C-3 113
R104 C-9 129
R105 C-9 81
R106 C-9 77
R107 C-9 131
R108 C-9 137
R109 B-4 73
R110 A-5 167
R111 B-9 115
R112 B-9 153
R113 B-9 85
R114 B-9 121
R115 B-8 133
R116 B-8 111
R117 B-9 115
R118 B-9 79
R119 B-9 113
R120 B-9 127
R121 B-9 115
R122 A-9 85
R123 A-4 165
R124 A-9 137
R125 A-9 77
R126 A-9 131
R127 A-9 129
R128 A-9 81
R129 B-9 101
R130 B-9 105
R131 C-2 163
R132 C-3 83
R201 C-1* 139
R202 C-2* 83
R203 C-2* 109
R204 C-3* 83
R205 C-4* 101
R206 C-4* 79
R207 C-4* 83
R208 C-5* 83
R209 C-6* 77
R210 C-7* 77
R211 C-7* 119
R212 C-7* 83
R213 C-8* 83
R214 C-8* 147
R215 C-9* 143
R216 C-2* 87
R217 C-2* 145
R218 C-2* 97
R219 C-3* 103
R221 C-4* 157
R222 C-5* 141
R223 C-6* 77
R224 C-6* 123
R225 C-6* 77
R226 C-6* 77
R227 C-6* 147
R228 C-7* 149
R229 C-7* 119
R230 C-8* 127
R231 B-8* 161
R232 C-2* 101
R233 B-2* 155
R234 B-2* 141
R235 B-3* 95
R236 B-4* 109
R237 B-5* 239
R238 B-5* 147
R239 B-6* 137
R242 B-8* 83
R243 B-8* 79
R246 B-9* 89
R247 B-9* 83
R248 B-4* 147
R249 B-5* 147
R250 B-5* 239
R251 B-5* 83
R252 B-5* 99
R253 B-6* 107
R254 B-6* 125
R255 B-2* 93
R256 B-2* 83
R257 B-3* 83
R258 B-3* 149
R259 B-3* 145
R260 B-4* 125
R261 B-6* 113
R262 B-6* 125
R263 B-6* 117
R264 B-2* 111
R265 B-2* 83
R266 B-2* 135
R267 B-4* 87
R268 A-5* 151
R269 B-6* 83
R270 A-6* 83
R271 A-6* 99
R272 A-6* 113
R273 B-6* 77
R274 B-6* 137
R275 A-9* 89
R276 B-3* 83
R279 A-4* 149
R281 A-4* 159
R282 A-4* 91
R283 A-5* 83
R284 A-6* 147
R285 A-7* 149
R286 A-7* 77
R287 A-7* 119
R288 A-7* 119
R289 A-7* 83
R290 A-8* 127
R291 A-8* 83
R292 A-8* 161
R293 A-9* 143
R294 A-9* 147
R295 A-4* 237
R296 C-5* 141
R297 C-4* 241
TP101 C-3 31
TP102 C-3 31
TP103 C-4 31
TP104 C-4 31
TP105 C-7 31
TP106 C-8 31
TP107 B-3 31
TP108 B-6 31
TP109 B-7 31
TP110 B-8 31
TP111 B-7 31
TP112 B-2 31
TP113 B-2 31
TP114 B-3 31
TP115 B-3 31
34-50-96 Page 10260
Apr 17/07
![](/img.php?id=1856825&img=bg31.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 14. Modulator Circuit Card A3 (CPN 687-0723-004)
TP116 A-5 31
TP117 A-8 31
TP118 A-8 31
U101 C-2 33
U102 C-3 43
U103 C-3 175
U104 C-9 171
U105 C-9 41
U106 B-9 47
U107 B-4 33
U108 B-9 35
U109 A-3 41
U110 A-3 45
U111 B-9 173
U112 A-9 171
U201 C-6* 37
U202 B-6* 39
U203 B-6* 171
U204 B-7* 47
U205 B-7* 47
34-50-96 Page 10261/10262
Apr 17/07
![](/img.php?id=1856825&img=bg33.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Modulator Circuit Card A3 (CPN 687-0723-004)
Figure 14 (Sheet 1 of 2) /GRAPHIC 34-50-96-99B-164-A01
34-50-96 Page 10263/10264
Apr 17/07
![](/img.php?id=1856825&img=bg35.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Modulator Circuit Card A3 (CPN 687-0723-004)
Figure 14 (Sheet 2 of 2) /GRAPHIC 34-50-96-99B-164-A01
34-50-96 Page 10265/10266
Apr 17/07
![](/img.php?id=1856825&img=bg37.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
14
- 1 687-0723-004 1 CIRCUIT CARD, MODULATOR RF
(SEE FIG 2-17 FOR NHA)
A3
3 M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
5 5MC9472J 2 CAPACITOR, FIXED, 10PF, 100V 1
(V50558) 933-0253-070
A3C110
7 5MC9473K 2 CAPACITOR, FIXED, 10PF, 50V 1
(V50558) 933-0253-090
A3C115
- - - ATTACHING PARTS - - -
- 9 MS51957-13 2 SCREW, MACHINE STL 2
4-40 X 1/4
(V96906) 343-0133-000
(AP FOR ITEM 5 THRU 7)
- 11 MS15795-803 2 WASHER, FLAT CRES 2
0.125 ID X 0.250 OD
(V96906) 310-0779-030
(AP FOR ITEM 5 THRU 7)
- 13 MS35338-135 2 WASHER, LOCK SST 2
0.115 ID X 0.209 OD
(V96906) 310-0279-000
(AP FOR ITEM 5 THRU 7)
- 15 NAS671C4 2 NUT, PLAIN HEXAGON CD PL STL 2
0.112-40
(V80205) 313-0132-000
(AP FOR ITEM 5 THRU 7)
------*------
17 MS3367-2-9 2 CLAMP, LOOP 2
(V96906) 435-1141-000
19 7717-22DAP 2 INSULATOR, DISK 6
(V13103) 352-9552-110
21 600D157G050DL5 2 CAPACITOR, FIXED, 150UF, 50V 1
(V0P569) 183-1277-010
A3C101
23 672D561 2 CAPACITOR, FIXED, 120UF, 100V 1
(V0P569) 183-1504-430
A3C122
25 195D155X0025S2 2 CAPACITOR, FIXED TNTLM 1.5UF, 20%, 25V 1
(V56289) 184-2551-170
A3C131
27 195D105X0050X2 2 CAPACITOR, FIXED, 1UF, 50V 2
(V56289) 184-2551-290
A3C103 A3C252
29 30012NT 2 COIL, RF, .100UH, PM10% 12
(V03550) 849-0020-130
A3L201 A3L202 A3L203 A3L204 A3L205
A3L206 A3L207 A3L208 A3L209 A3L210
A3L211 A3L212
31 008-0096-14 2 TERMINAL, TEST POINT 18
(V79963) 306-2721-010
A3TP101 A3TP102 A3TP103 A3TP104
A3TP105 A3TP106 A3TP107 A3TP108
A3TP109 A3TP110 A3TP111 A3TP112
A3TP113 A3TP114 A3TP115 A3TP116
A3TP117 A3TP118
33 LM117H 2 MICROCIRCUIT, LINEAR (ESDS) 2
(V64155) 351-1271-020
A3U101 A3U107
35 LM2903M 2 MICROCIRCUIT (ESDS) 1
(V27014) 351-1278-020
A3U108
37 TL082ID 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-1392-180
A3U201
39 TL084ID 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-1392-190
A3U202
34-50-96 Page 10267
Apr 17/07
![](/img.php?id=1856825&img=bg38.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
14
41 SN74HC00D 2 MICROCIRCUIT (ESDS) 2
(V01295) 351-3701-010
A3U105 A3U109
43 CD74HC20M 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-070
A3U102
45 SN74HC32D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-100
A3U110
47 CD74HC74M 2 MICROCIRCUIT (ESDS) 3
(V01295) 351-3706-070
A3U106 A3U204 A3U205
49 2N2907A 2 TRANSISTOR 1
(V81349) 352-0551-010
A3Q110
51 2N3700 2 TRANSISTOR 3
(V81349) 352-0734-020
A3Q104 A3Q105 A3Q108
53 2N6660 2 TRANSISTOR 3
(V81349) 352-1159-010
A3Q103 A3Q107 A3Q109
55 IRF540N 2 TRANSISTOR 1
(V59993) 352-7904-080
(EFF THRU REV J)
A3Q106
- 55A IRF540 2 TRANSISTOR 1
(V81483) 352-7904-070
(EFF REV K)
57 PMBT2222A 2 TRANSISTOR (ESDS) 4
(V18324) 352-9113-010
A3Q203 A3Q208 A3Q215 A3Q219
59 PMBT2907TR 2 TRANSISTOR 2
(V18324) 352-9114-010
TRUE PN IS PMBT2907T/R
A3Q101 A3Q202
61 MMBT5401LT1 2 TRANSISTOR (ESDS) 1
(V1MQ07) 352-9125-010
A3Q207
63 MMBZ5230BLT1 2 DIODE (ESDS) 1
(V1MQ07) 353-8133-050
A3CR210
65 MMBZ5237BLT1 2 DIODE (ESDS) 1
(V1MQ07) 353-8133-120
A3CR212
67 MMBZ5248BLT1 2 DIODE (ESDS) 2
(V1MQ07) 353-8133-230
A3CR203 A3CR219
69 MMBD914LT 2 DIODE 2
(V1MQ07) 353-8135-040
A3CR209 A3CR214
71 NA1104-045 2 CONTACT, ELECTRICAL 42
(V57863) 372-2601-045
73 RJ24CW103 2 RESISTOR, VARIABLE NONWIRE-WOUND 10K, 2
10%, 1/2W
(V81349) 380-1080-270
A3R101 A3R109
75 T4466 2 COIL 1
(V0EUG1) 628-5266-001
A3L101
77 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 9
(V56845) 705-3535-020
A3R106 A3R125 A3R209 A3R210 A3R223
A3R225 A3R226 A3R273 A3R286
79 705-3535-160 2 RESISTOR, FIXED FILM, 6.81K, 1%, 125MW 3
(V56845) 705-3535-160
PN IS REF NO FOR CRCW12066K81FKTB
A3R118 A3R206 A3R243
34-50-96 Page 10268
Apr 17/07
![](/img.php?id=1856825&img=bg39.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
14
81 CRCW12063011F 2 RESISTOR, FIXED FILM, 3.01K, 1%, 0.4W 2
(V56845) 705-3535-190
A3R105 A3R128
83 CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 19
(V56845) 705-3535-200
A3R132 A3R202 A3R204 A3R207 A3R208
A3R212 A3R213 A3R242 A3R247 A3R251
A3R256 A3R257 A3R265 A3R269 A3R270
A3R276 A3R283 A3R289 A3R291
85 CRCW12069090F 2 RESISTOR, FIXED 909 OHMS, 1%, 125MW 2
(V56845) 705-3535-210
A3R113 A3R122
87 CRCW12062430F 2 RESISTOR, FIXED 243 OHM,1%,0.25W 2
(V56845) 705-3535-230
A3R216 A3R267
89 CRCW12063321F 2 RESISTOR, FIXED FILM, 3.32K, 1%, 125MW 2
(V56845) 705-3535-300
A3R246 A3R275
91 CRCW12063010F 2 RESISTOR, FIXED FILM, 301 OHMS, 1%, 1
125MW
(V56845) 705-3535-550
A3R282
93 CRCW12063320F 2 RESISTOR, FIXED FILM, 332 OHMS, 1%, 1
125MW
(V56845) 705-3535-590
A3R255
95 CRCW12063920F 2 RESISTOR, FIXED FILM 392 OHMS, 1%, 1
125MW
(V56845) 705-3535-660
A3R235
97 CRCW12064750F 2 RESISTOR, FIXED FILM, 475 OHMS, 1%, 1
125MW
(V56845) 705-3535-730
A3R218
99 CRCW12065110F 2 RESISTOR, FIXED FILM, 511 OHMS, 1%, 2
125MW
(V56845) 705-3535-760
A3R252 A3R271
101 CRCW12065620F 2 RESISTOR, FIXED 562 OHMS, 1%, 125MW 3
(V56845) 705-3535-800
A3R129 A3R205 A3R232
103 CRCW12066810F 2 RESISTOR, FIXED FILM, 681 OHMS, 1%, 1
125MW
(V56845) 705-3535-870
A3R219
105 CRCW12067500F 2 RESISTOR, FIXED, 750 OHM, .25W, 1% 1
(V56845) 705-3535-910
A3R130
107 RK73H2BL1211F 2 RESISTOR, FIXED FILM, 1.21K, 1%, 1
0.025W
(V59124) 705-3537-080
A3R253
109 RK73H2BL1621F 2 RESISTOR, FIXED FILM, 1.62K, 1%, 125MW 2
(V59124) 705-3537-200
A3R203 A3R236
111 RK73H2BL1821F 2 RESISTOR, FIXED FILM, 1.82K, 1%, 125MW 2
(V59124) 705-3537-250
A3R116 A3R264
113 RK73H2BL2001F 2 RESISTOR, FIXED FILM, 2K, 1%, 0.4W 4
(V59124) 705-3537-290
A3R103 A3R119 A3R261 A3R272
115 RK73H2BL2211F 2 RESISTOR, FIXED FILM, 2.21K, 1%, 125MW 3
(V59124) 705-3537-330
A3R111 A3R117 A3R121
117 RK73H2BL3921F 2 RESISTOR, FIXED FILM, 3.92K, 1%, 125MW 1
(V59124) 705-3537-530
A3R263
34-50-96 Page 10269
Apr 17/07
![](/img.php?id=1856825&img=bg3a.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
14
119 RK73H2BL4751F 2 RESISTOR, FIXED FILM, 4.75K, 1%, 0.4W 4
(V59124) 705-3537-600
A3R211 A3R229 A3R287 A3R288
121 RK73H2BL5621F 2 RESISTOR, FIXED FILM, 5.62K, 1%, 0.4W 1
(V59124) 705-3537-660
A3R114
123 RK73H2BL6191F 2 RESISTOR, FIXED FILM, 6.19K, 1%, 125MW 1
(V59124) 705-3537-690
A3R224
125 RK73H2BL8251F 2 RESISTOR, FIXED FILM, 8.25K, 1%, 125MW 3
(V59124) 705-3537-780
A3R254 A3R260 A3R262
127 RK73H2BL1822F 2 RESISTOR, FIXED FILM, 18.2K, 1%, 125MW 3
(V59124) 705-3538-080
A3R120 A3R230 A3R290
129 RK73H2BL2212F 2 RESISTOR, FIXED 22.1K, 1%, 0.25W 3
(V59124) 705-3538-140
A3R102 A3R104 A3R127
131 RK73H2BL2432F 2 RESISTOR, FIXED FILM, 24.3K, 1%, 125MW 2
(V59124) 705-3538-180
A3R107 A3R126
133 RK73H2BL3012F 2 RESISTOR, FIXED FILM, 30.1K, 1%, 0.25W 1
(V59124) 705-3538-270
A3R115
135 RK73H2BL3322F 2 RESISTOR, FIXED 33.2K, 1%, 125MW 1
(V59124) 705-3538-310
A3R266
137 RK73H2BL2213F 2 RESISTOR, FIXED FILM 221K, 1%, 125MW 4
(V59124) 705-3539-020
A3R108 A3R124 A3R239 A3R274
139 RK73H2BL22R1F 2 RESISTOR, FIXED 22.1 OHM,1%,0.25W 1
(V59124) 705-3539-470
A3R201
141 CRCW120633R2FB 2 RESISTOR, FIXED FILM, 33.2 OHMS, 1%, 3
125MW
(V56845) 705-3539-640
A3R222 A3R234 A3R296
143 RK73H2BL61R9F 2 RESISTOR, FIXED 61.9 OHM, 1%, 0.025W 2
(V59124) 705-3539-900
A3R215 A3R293
145 CRCW120668R1FB 2 RESISTOR, FIXED FILM, 68.1 OHMS, 1%, 2
125MW
(V56845) 705-3539-940
A3R217 A3R259
147 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHMS, 1%, 7
0.4W
(V59124) 705-3540-100
A3R214 A3R227 A3R238 A3R248 A3R249
A3R284 A3R294
149 RK73H2BL2000F 2 RESISTOR, FIXED 200 OHM, 1%, 0.025W 4
(V59124) 705-3540-390
A3R228 A3R258 A3R279 A3R285
151 RK73H2BL2210F 2 RESISTOR, FIXED FILM, 221 OHMS, 1%, 1
125MW
(V59124) 705-3540-430
A3R268
153 RK73H2BL9093F 2 RESISTOR, FIXED FILM, 909K, 1%, 0.125W 1
(V59124) 705-3540-950
A3R112
155 RK73B2ELBD560J 2 RESISTOR, FIXED, 56 OHM, .25W, 5% 1
(V59124) 705-3541-190
A3R233
157 RK73B2ELBD101J 2 RESISTOR, FIXED, 100 OHM, .25W, 5% 1
(V59124) 705-3541-250
A3R221
159 RK73B2ELBD121J 2 RESISTOR, FIXED, 120 OHM, .25W, 5% 1
(V59124) 705-3541-270
A3R281
34-50-96 Page 10270
Apr 17/07
![](/img.php?id=1856825&img=bg3b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
14
161 RK73B2ELBD112J 2 RESISTOR, FIXED, 1.1K OHM, .25W, 5% 2
(V59124) 705-3541-500
A3R231 A3R292
163 745-0771-000 2 RESISTOR, FIXED, 4.3K OHM, .25W, 5% 1
(EFF THRU REV D)
A3R131
- 163A RLR07C4321FR 2 RESISTOR, FIXED, 4.32K OHM, .25W, 1% 1
(V81349) 833-6048-780
(EFF REV E)
165 3269W1-202 2 RESISTOR, VARIABLE, 2K OHM, .25W, 10% 1
(V80294) 833-1004-050
TRUE PN IS 3269W-1-202
A3R123
167 RK73B2HL620J 2 RESISTOR, FIXED, 62 OHM, .5W, 5% 1
(V59124) 833-6014-200
A3R110
169 301AR102U100JP2 2 CAPACITOR, FIXED, 1000UF, 100V 2
(V00853) 834-0505-010
A3C111 A3C124
171 LT1016 2 MICROCIRCUIT 3
(V64155) 835-0048-010
A3U104 A3U112 A3U203
173 REF02CS 2 MICROCIRCUIT 1
(V06665) 835-1001-010
A3U111
175 7406 2 MICROCIRCUIT 1
(V01295) 835-1519-010
A3U103
177 2N6661 2 TRANSISTOR 1
(V81349) 843-0008-010
A3Q102
179 MJD117 2 TRANSISTOR 1
(V1MQ07) 843-0012-010
A3Q201
181 T8N06E 2 TRANSISTOR 1
(V1MQ07) 843-0013-030
(EFF THRU REV C)
A3Q211
- 181A NTD15N06V 2 TRANSISTOR 1
(V1MQ07) 843-0013-070
(EFF REV D)
183 MTD6N10 2 TRANSISTOR 1
(V1MQ07) 843-0013-020
A3Q216
185 IRFR9120 2 TRANSISTOR (ESDS) 7
(V59993) 843-7017-010
A3Q111 A3Q204 A3Q205 A3Q206 A3Q212
A3Q217 A3Q218
187 MMBD701L 2 DIODE 14
(V1MQ07) 844-0003-010
A3CR101 A3CR102 A3CR202 A3CR204
A3CR205 A3CR206 A3CR207 A3CR208
A3CR211 A3CR215 A3CR216 A3CR218
A3CR220 A3CR221
189 HF50ACB321611B 2 COIL, RF 12
(V7J069) 852-3001-010
TRUE PN IS HF50ACB321611-B
A3L213 A3L214 A3L215 A3L216 A3L217
A3L218 A3L219 A3L220 A3L221 A3L222
A3L223 A3L224
191 08055A181JATBA 2 CAPACITOR, FIXED CER DIEL, 180PF, 5%, 1
50V
(V04222) 913-3667-180
A3C240
193 18125A562JATBA 2 CAPACITOR, FIXED CER DIEL 5600PF, 5%, 1
50V
(V04222) 913-3667-550
A3C212
34-50-96 Page 10271
Apr 17/07
![](/img.php?id=1856825&img=bg3c.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
14
195 08051A130JATMN 2 CAPACITOR, FIXED CER DIEL 13PF, 5%, 15
(V04222) 913-3669-020
A3C226 A3C227 A3C233 A3C234 A3C235
A3C236 A3C237 A3C244 A3C245 A3C246
A3C247 A3C253 A3C254 A3C260 A3C261
197 08051A111JATMN 2 CAPACITOR, FIXED CER DIEL, 100PF, 5%, 25
100V
(V04222) 913-3669-130
A3C102 A3C106 A3C108 A3C112 A3C113
A3C123 A3C128 A3C129 A3C130 A3C201
A3C202 A3C203 A3C205 A3C208 A3C215
A3C217 A3C218 A3C223 A3C224 A3C238
A3C241 A3C242 A3C257 A3C259 A3C263
199 18051A241JATMN 2 CAPACITOR, FIXED, 240PF, 100V 1
(V04222) 913-3669-170
A3C248
201 18081A911JATMN 2 CAPACITOR, FIXED, 910PF, 100V 1
(V04222) 913-3669-240
(EFF THRU REV B)
A3C216
- 201A 653-0063-001 2 CAPACITOR, TEST SELECT 1
(EFF REV C)
- 203 18081A911JATMN 3 CAPACITOR, FIXED, 910PF, 100V AR
(V04222) 913-3669-240
- 205 18081A751JATMN 3 CAPACITOR, FIXED, 750PF, 100V AR
(V04222) 913-3669-230
- 207 18081A621JATMN 3 CAPACITOR, FIXED, 620PF, 100V AR
(V04222) 913-3669-220
- 209 18081A511JATMN 3 CAPACITOR, FIXED, 510PF, 100V AR
(V04222) 913-3669-210
- 211 18081A361JATMN 3 CAPACITOR, FIXED, 360PF, 100V AR
(V04222) 913-3669-190
- 213 18051A301JATMN 3 CAPACITOR, FIXED, 300PF, 100V AR
(V04222) 913-3669-180
- 215 18051A241JATMN 3 CAPACITOR, FIXED, 240PF, 100V 1
(V04222) 913-3669-170
217 08055C102KATBA 2 CAPACITOR, FIXED CER 1,000PF, 10%, 50V 2
(V04222) 913-3670-120
A3C206 A3C264
219 08055C332KATBA 2 CAPACITOR, FIXED CER, 3,300PF, 10%, 1
50V
(V04222) 913-3670-180
A3C228
221 18055C103JATBA 2 CAPACITOR, FIXED, .01UF, 50V 1
(V04222) 913-3670-320
A3C126
223 18055C153JATBA 2 CAPACITOR, FIXED, .015UF, 50V 1
(V04222) 913-3670-390
A3C209
225 18055C223JATBA 2 CAPACITOR, FIXED, .022UF, 50V 1
(V04222) 913-3670-470
A3C213
227 913-3670-700 2 CAPACITOR, FIXED, .12UF, 50V 2
(V04222) 913-3670-700
PN IS REF NO FOR 18125C124MAT060L
A3C265 A3C266
229 18125C104KATBA 2 CAPACITOR, FIXED CER 0.1UF, 10%, 50V 1
(V04222) 913-3670-740
A3C127
231 913-3676-130 2 CAPACITOR, FIXED CER DIEL 0.1UF, 20%, 25
50V
(V18796) 913-3676-130
PN IS REF NO FOR GRM319E41H104MA15B
A3C104 A3C105 A3C107 A3C109 A3C114
A3C117 A3C119 A3C120 A3C121 A3C125
A3C207 A3C210 A3C211 A3C219 A3C220
A3C221 A3C222 A3C225 A3C243 A3C249
A3C250 A3C251 A3C255 A3C256 A3C258
34-50-96 Page 10272
Apr 17/07
![](/img.php?id=1856825&img=bg3d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
14
233 MD021C104KAB 2 CAPACITOR, FIXED CER DIEL 0.1UF, 10%, 2
100VDC
(V04222) 913-3325-750
A3C116 A3C118
235 18085C393JATBA 2 CAPACITOR, FIXED, .039UF, 50V 1
(V04222) 913-3670-550
A3C132
237 S1R000201JSA14 2 RESISTOR, FIXED, 1 OHM, 2W, 5% 1
(V26618) 833-6035-010
TRUE PN IS S1R000201JSA-14
(ADDED BY REV B)
A3R295
239 RK73H2BL1210F 2 RESISTOR, FIXED FILM, 121 OHMS, 1%, 2
125MW
(V59124) 705-3540-180
(EFF THRU REV A)
A3R237 A3R250
- 239A RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHMS, 1%, 2
0.4W
(V59124) 705-3540-100
(EFF THRU REV B)
- 239B RK73B2ELBD101J 2 RESISTOR, FIXED, 100 OHM, .25W, 5% 2
(V59124) 705-3541-250
(EFF REV C)
241 RK73B2ELBD101J 2 RESISTOR, FIXED, 100 OHM, .25W, 5% 1
(V59124) 705-3541-250
(ADDED BY REV B)
A3R297
34-50-96 Page 10273/10274
Apr 17/07
![](/img.php?id=1856825&img=bg3f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 15. Synthesizer Assembly A4 (CPN 687-0724-002)
C1 C-1 71
C10 A-2 77
C11 B-2 75
C12 A-2 89
C13 A-2 85
C14 A-2 115
C15 A-2 97
C16 B-2 11
C17 B-2 129
C18 B-2 69
C19 B-2 69
C2 C-1 69
C20 B-2 69
C21 B-2 129
C22 B-3 129
C23 B-3 69
C24 C-2 77
C25 B-1 69
C26 B-1 69
C29 A-3 85
C3 B-1 77
C30 A-3 9
C31 A-2 9
C32 A-2 83
C33 B-2 69
C34 C-2 69
C35 B-1 73
C36 A-2 77
C37 C-1 9
C38 C-1 69
C39 C-1 69
C4 A-2 109
C40 B-1 79
C41 C-3 129
C42 A-2 117
C43 B-2 81
C44 B-2 99
C45 A-1 127
C46 A-2 113
C6 B-1 103
C7 B-2 69
C8 A-2 87
C9 A-9 85
CR1 A-1 61
CR3 C-2 63
J13 B-3 25
L1 B-2 111
L3 A-3 111
L4 B-1 13
L5 B-1 13
P5 B-1 67
Q1 A-2 17
Q2 A-1 21
Q3 A-1 19
R1 B-1 51
R10 B-2 31
R11 B-2 121
R12 A-2 51
R13 A-3 53
R14 B-2 41
R15 A-2 35
R16 A-2 53
R17 B-2 95
R18 C-2 33
R19 C-2 33
R2 B-1 51
R20 B-2 93
R25 C-2 27
R28 C-2 39
R29 C-2 27
R31 C-2 55
R32 C-2 29
R33 C-1 27
R34 B-1 51
R35 B-1 51
R36 B-1 31
R37 A-1 49
R38 A-1 49
R39 A-1 49
R40 A-1 45
R41 B-1 51
R42 A-2 57
R43 A-2 123
R44 C-1 47
R45 C-2 31
R46 C-2 27
R47 C-1 57
R48 A-2 125
R6 B-1 119
R8 B-1 101
R9 C-2 43
U1 B-1 59
U2 B-2 15
U3 B-2 107
U4 A-2 91
U5 B-3 105
Y1 C-1 65
34-50-96 Page 10275
Apr 17/07
![](/img.php?id=1856825&img=bg40.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Synthesizer Assembly A4 (CPN 687-0724-002)
Figure 15 /GRAPHIC 34-50-96-99B-165-A01
34-50-96 Page 10276
Apr 17/07
![](/img.php?id=1856825&img=bg41.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
15
- 1 687-0724-002 1 SYNTHESIZER, ASSEMBLY RF
(SEE FIG 2-39 FOR NHA)
A4
3 M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
5 307-1217-000 2 EYELET 1
(V57771) 307-1217-000
7 653-2270-001 2 PLATE, BACKING 1
9 195D155X0025S2 2 CAPACITOR, FIXED TNTLM 1.5UF, 20%, 25V 4
(V56289) 184-2551-170
A4C28 A4C28A A4C30 A4C31 A4C37
11 195D106X0025Y2 2 CAPACITOR, FIXED TNTLM 10UF, 20%, 25V 1
(V56289) 184-2551-210
A4C16
13 2510-00J 2 COIL, .1UH 4
(V99800) 240-0116-010
A4L2 A4L4 A4L5 A4L6
15 TL082ID 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-1392-180
A4U2
17 NE85635D 2 TRANSISTOR 1
(V62104) 352-0227-010
A4Q1
19 PMBT2222A 2 TRANSISTOR (ESDS) 1
(V18324) 352-9113-010
A4Q3
21 PMBT2907TR 2 TRANSISTOR 1
(V18324) 352-9114-010
TRUE PN IS PMBT2907T/R
A4Q2
23 MMBZ5231BLT1 2 DIODE 1
(V1MQ07) 353-8133-060
A4CR2
25 3025-1511-004 2 CONNECTOR, PLUG 1
(V19505) 357-7195-030
A4J13
27 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 4
(V56845) 705-3535-020
A4R25 A4R29 A4R33 A4R46
29 CRCW12061004F 2 RESISTOR, FIXED FILM, 1 MEG, 1%, 125MW 1
(V56845) 705-3535-120
A4R32
31 CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 3
(V56845) 705-3535-200
A4R10 A4R36 A4R45
33 RK73H2BL51R1F 2 RESISTOR, FIXED FILM, 51.1 OHMS, 1%, 2
0.4W
(V59124) 705-3539-820
(ADDED BY REV E)
A4R18 A4R19
35 CRCW12066190F 2 RESISTOR, FIXED FILM, 619 OHMS, 1%, 1
125MW
(V56845) 705-3535-840
A4R15
37 RK73H2BL2001F 2 RESISTOR, FIXED FILM, 2K, 1%, 0.4W 1
(V59124) 705-3537-290
A4R26
39 RK73H2BL2431F 2 RESISTOR, FIXED FILM, 2.43K, 1%, 125MW 1
(V59124) 705-3537-370
A4R28
41 RK73H2BL2941F 2 RESISTOR, FIXED, 2.94K OHM, .25W, 1% 1
(V59124) 705-3537-440
A4R14
43 RK73H2BL3571F 2 RESISTOR, FIXED FILM, 3.57K, 1%, 125MW 1
(V59124) 705-3537-490
A4R9
45 RK73H2BL4751F 2 RESISTOR, FIXED FILM, 4.75K, 1%, 0.4W 1
(V59124) 705-3537-600
A4R40
34-50-96 Page 10277
Jun 20/08
![](/img.php?id=1856825&img=bg42.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
15
47 RK73H2BL6191F 2 RESISTOR, FIXED FILM, 6.19K, 1%, 125MW 1
(V59124) 705-3537-690
A4R44
49 RK73H2BL2212F 2 RESISTOR, FIXED 22.1K, 1%, 0.25W 3
(V59124) 705-3538-140
A4R37 A4R38 A4R39
51 RK73H2BL4752F 2 RESISTOR, FIXED FILM, 47.5K, 1%, 125MW 6
(V59124) 705-3538-450
A4R1 A4R2 A4R12 A4R34 A4R35 A4R41
53 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHMS, 1%, 2
0.4W
(V59124) 705-3540-100
A4R13 A4R16
55 RK73H2BL2210F 2 RESISTOR, FIXED FILM, 221 OHMS, 1%, 1
125MW
(V59124) 705-3540-430
A4R31
57 RM73Z2B 2 RESISTOR, CHIP FILM, 0.05 OHM, 0.25W 2
(ESDS)
(V80205) 705-3543-020
(ADDED BY REV E)
A4R42 A4R47
59 MB1501PF 2 MICROCIRCUIT 1
(V61271) 835-1509-010
A4U1
61 GC11031-17 2 DIODE 1
(V50101) 844-0008-010
A4CR1
63 HSMS2800 2 DIODE (ESDS) 2
(V24539) 844-0011-010
TRUE PN IS HSMS-2800
A4CR3 A4CR4
65 850-2513-010 2 CRYSTAL, 12 MHZ 1
(V0S6S8) 850-2513-010
PN IS REF NO FOR
CXAT-T2 12.00MHZ 32PF +/-50PPM
A4Y1
67 95278-102-10 2 CONNECTOR 1
(V22526) 859-5509-180
A4P5
69 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 13
50V
(V04222) 913-3667-110
A4C2 A4C7 A4C18 A4C19 A4C20 A4C23
A4C25 A4C26 A4C27 A4C33 A4C34 A4C38
A4C39
71 08055A560JATBA 2 CAPACITOR, FIXED CER DIEL 56PF, 5%, 1
50V
(V04222) 913-3667-120
A4C1
73 08055A471JATBA 2 CAPACITOR, FIXED CER DIEL, 470PF, 5%, 1
50V
(V04222) 913-3667-230
A4C35
75 18085A102JATBA 2 CAPACITOR, FIXED CER DIEL, 1000PF, 5%, 1
(V04222) 913-3667-270
A4C11
77 18125C104KATBA 2 CAPACITOR, FIXED CER 0.1UF, 10%, 50V 4
(V04222) 913-3670-740
A4C3 A4C10 A4C24 A4C36
79 08055C103KAT2A 2 CAPACITOR, FIXED, .01UF, 50V 1
(V04222) 913-3676-070
(EFF THRU REV C)
A4C40
- 79A 08055C332KATBA 2 CAPACITOR, FIXED CER, 3,300PF, 10%, 1
50V
(V04222) 913-3670-180
(EFF REV D)
34-50-96 Page 10278
Apr 17/07
![](/img.php?id=1856825&img=bg43.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
15
81 08055C102KATBA 2 CAPACITOR, FIXED CER 1,000PF, 10%, 50V 1
(V04222) 913-3670-120
(EFF THRU REV C)
A4C43
- 81A 08055A331JATBA 2 CAPACITOR, FIXED CER DIEL, 330PF, 5%, 1
50V
(V04222) 913-3667-200
(EFF REV D)
83 AQ12EM110JAJBE 2 CAPACITOR, FIXED CER DIEL, 11PF, 5%, 1
50V
(V04222) 914-3500-140
A4C32
85 AQ12EM470JAJBE 2 CAPACITOR, FIXED CER DIEL 47PF, 5%, 3
50V
(V04222) 914-3500-290
A4C9 A4C13 A4C29
87 AQ12EM2R7CAJBE 2 CAPACITOR, FIXED CER SMD 2.7 PF 50 VDC 1
(V04222) 914-3500-390
(EFF THRU REV C)
A4C8
- 87A AQ12EM6R8BAJBE 2 CAPACITOR, FIXED CER DIEL 6.8PF, PORM 1
0.1PF, 150V
(V04222) 914-3500-100
(EFF REV D)
89 AQ12EM1R8BAJBE 2 CAPACITOR, FIXED CER, 1.8PF, 50V 1
(V04222) 914-3500-420
A4C12
91 A03 2 MICROCIRCUIT (ESDS) 1
(VK7766) 835-0057-030
A4U4
93 833-6524-720 2 RESISTOR, FIXED, 200 OHM, .6W, 1% 1
(V91637) 833-6524-720
PN IS REF NO FOR RCWP7225200RFKBB
A4R20
95 833-6524-740 2 RESISTOR, FIXED, 121 OHM, .6W, 1% 1
(V91637) 833-6524-740
PN IS REF NO FOR RCWP7225121RFKBB
A4R17
97 AQ12EM2R7CAJBE 2 CAPACITOR, FIXED CER SMD 2.7 PF 50 VDC 1
(V04222) 914-3500-390
(EFF THRU REV C)
A4C15
- 97A AQ12EM3R9BAJBE 2 CAPACITOR, FIXED CER DIEL 3.9PF, PORM 1
0.1PF, 50V
(V04222) 914-3500-060
(EFF REV D)
99 27261LSL 2 CAPACITOR 1
(V91293) 922-0596-170
A4C44
101 RK73H2BL7501F 2 RESISTOR, FIXED FILM, 7.5K, 1%, 125MW 1
(V59124) 705-3537-750
(EFF THRU REV C)
A4R8
- 101A RK73H2BL8251F 2 RESISTOR, FIXED FILM, 8.25K, 1%, 125MW 1
(V59124) 705-3537-780
(EFF REV D)
103 18055C183JATBA 2 CAPACITOR, FIXED, .018UF, 50V 1
(V04222) 913-3670-430
(EFF THRU REV C)
A4C6
- 103A 18055C223JATBA 2 CAPACITOR, FIXED, .022UF, 50V 1
(V04222) 913-3670-470
(EFF REV D)
105 CGY40 2 MICROCIRCUIT 1
(V32421) 351-0254-010
TRUE PN IS CGY 40
(EFF THRU REV H)
A4U5
34-50-96 Page 10279
Apr 17/07
![](/img.php?id=1856825&img=bg44.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
15
- 105A ERA2SM 2 MICROCIRCUIT 1
(V15542) 835-0362-070
TRUE PN IS ERA-2SM
(EFF REV J)
107 CGY40 2 MICROCIRCUIT 1
(V32421) 351-0254-010
TRUE PN IS CGY 40
(EFF THRU REV H)
A4U3
- 107A E5 2 MICROCIRCUIT (ESDS) 1
(V15542) 835-0362-100
(EFF REV J)
109 08055C103KAT2A 2 CAPACITOR, FIXED CER 10,000PF, 10%, 1
50V
(V04222) 834-5005-050
(ADDED BY REV J)
A4C4
111 2510-00J 2 COIL, .1UH 2
(V99800) 240-0116-010
(EFF THRU REV H)
A4L1 A4L3
- 111A 1812SMSR10G 2 COIL, .1UH 2
(V02113) 240-2939-090
TRUE PN IS 1812SMS-R10G
(EFF REV J)
113 08055A102JAT2A 2 CAPACITOR, CHIP CERAMIC 1000PF (ESDS) 1
(V04222) 913-0865-680
A4C46
115 AQ12EM3R9BAJBE 2 CAPACITOR, FIXED CER DIEL 3.9PF, PORM 1
0.1PF, 50V
(V04222) 914-3500-060
(ADDED BY REV J)
A4C14
117 08055A331JATBA 2 CAPACITOR, FIXED CER DIEL, 330PF, 5%, 1
50V
(V04222) 913-3667-200
A4C42
119 CRCW12063920F 2 RESISTOR, FIXED FILM 392 OHMS, 1%, 1
125MW
(V56845) 705-3535-660
(EFF THRU REV C)
A4R6
- 119A RK73H2BL3571F 2 RESISTOR, FIXED FILM, 3.57K, 1%, 125MW 1
(V59124) 705-3537-490
(EFF REV D)
121 RK73H2BL1621F 2 RESISTOR, FIXED FILM, 1.62K, 1%, 125MW 1
(V59124) 705-3537-200
(EFF THRU REV C)
A4R11
- 121A CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 1
(V56845) 705-3535-200
(EFF REV D)
123 RK73H2BL4752F 2 RESISTOR, FIXED FILM, 47.5K, 1%, 125MW 1
(V59124) 705-3538-450
(EFF THRU REV C)
A4R43
- 123A CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 1
(V56845) 705-3535-020
(EFF REV D)
125 RK73H2BL51R1F 2 RESISTOR, FIXED FILM, 51.1 OHMS, 1%, 1
0.4W
(V59124) 705-3539-820
(ADDED BY REV E)
(DEL BY REV J)
A4R48
127 AQ12EM1R8BAJBE 2 CAPACITOR, FIXED CER, 1.8PF, 50V 1
(V04222) 914-3500-420
(ADDED BY REV K)
A4C45
34-50-96 Page 10280
Apr 17/07
![](/img.php?id=1856825&img=bg45.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
15
129 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 4
50V
(V04222) 913-3667-110
(EFF THRU REV H)
A4C17 A4C21 A4C22 A4C41
- 129A AQ12EM470JAJBE 2 CAPACITOR, FIXED CER DIEL 47PF, 5%, 4
50V
(V04222) 914-3500-290
(EFF REV J)
131 833-6524-740 2 RESISTOR, FIXED, 121 OHM, .6W, 1% 1
(V91637) 833-6524-740
PN IS REF NO FOR RCWP7225121RFKBB
(EFF THRU REV H)
A4R21
- 131A 833-6524-720 2 RESISTOR, FIXED, 200 OHM, .6W, 1% 1
(V91637) 833-6524-720
PN IS REF NO FOR RCWP7225200RFKBB
(EFF REV J)
34-50-96 Page 10281/10282
Apr 17/07
![](/img.php?id=1856825&img=bg47.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 16. High Voltage Power Supply Circuit Card A1 (CPN 687-0721-002)
C1 B-2 89
C10 B-2 89
C11 B-3 89
C12 B-4 89
C13 A-1 89
C14 A-2 89
C15 A-2 89
C16 A-4 89
C17 A-2 89
C2 B-2 91
C20 B-1* 85
C21 B-1* 85
C22 B-3* 87
C24 A-1* 81
C25 A-3* 85
C26 A-1* 83
C27 A-2* 93
C28 A-1* 79
C29 A-1* 109
C3 B-3 91
C30 A-2* 21
C4 B-4 89
C5 B-2 89
C6 B-5 89
C7 B-1 89
C8 B-2 89
C9 B-4 89
CR1 B-4 29
CR2 B-3 27
CR20 A-1* 31
CR21 A-2* 95
FL1 B-4 103
L1 B-1 99
L2 A-4 5
L20 B-4* 97
L21 B-3* 97
P24 C-0* 33
Q1 A-4 105
R1 B-1 35
R20 B-1* 45
R21 B-1* 67
R22 B-1* 63
R23 B-1* 71
R24 B-1* 41
R25 B-1* 41
R26 B-2* 65
R27 B-3* 43
R28 B-3* 43
R29 B-3* 45
R30 B-1* 69
R31 B-2* 53
R32 B-3* 49
R33 B-3* 55
R34 B-3* 57
R36 A-1* 59
R37 A-1* 51
R38 A-1* 75
R39 A-3* 37
R40 A-3* 39
R41 A-1* 47
R42 A-2* 61
R43 A-3* 73
R44 A-1* 43
R45 A-1* 39
R46 A-1* 47
T1 B-3 101
U1 A-1 23
U2 A-2 25
U20 B-3* 77
U21 A-1* 107
34-50-96 Page 10283/10284
Apr 17/07
![](/img.php?id=1856825&img=bg49.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
High Voltage Power Supply Circuit Card A1 (CPN 687-0721-002)
Figure 16 /GRAPHIC 34-50-96-99B-166-A01
34-50-96 Page 10285/10286
Apr 17/07
![](/img.php?id=1856825&img=bg4b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
16
- 1 687-0721-002 1 CIRCUIT CARD, HIGH VOLTAGE POWER RF
SUPPLY
(SEE FIG 4-53 FOR NHA)
A1
3 M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
5 06-3450-01 2 INDUCTOR, POWER 1
(V11402) 852-3005-010
A1L2
7 634-1348-002 2 BUTTON, CABLE 1
- - - ATTACHING PARTS - - -
- 9 MS51957-17 2 SCREW, SELF LOCKING PSVT CRES 1
0.112-40 X 0.500
(V96906) 343-0137-000
- 11 MS15795-803 2 WASHER, FLAT CRES 1
0.125 ID X 0.250 OD
(V96906) 310-0779-030
------*------
13 ASP101503-01B 2 INSULATOR, STRIP 2
(V55322) 843-9004-010
TRUE PN IS ASP-101503-01-B
15 NA1104-078 2 CONTACT, ELECTRICAL 8
(V57863) 372-2601-078
17 87077-1 2 PLUG, KEYING 1
(V00779) 372-2641-020
19 1-87309-4 2 CONTACT, ELEC 4
(V00779) 372-2501-090
21 195D106X0025Y2 2 CAPACITOR, FIXED TNTLM 10UF, 20%, 25V 1
(V56289) 184-2551-210
A1C30
23 UC1825J 2 MICROCIRCUIT 1
(V01295) 351-0715-010
A1U1
25 AD580JH 2 MICROCIRCUIT 1
(V24355) 351-1301-010
A1U2
27 UES1105 2 DIODE (ESDS) 1
(V14552) 353-6615-080
A1CR2
29 USC1306 2 DIODE 1
(V14099) 353-6616-010
A1CR1
31 MMBD914LT 2 DIODE 1
(V1MQ07) 353-8135-040
A1CR20
33 87499-9 2 CONNECTOR 1
(V00779) 372-0015-530
A1P24
35 8050EKW202 2 RESISTOR, VARIABLE, 2K OHM 1
(V30983) 382-0027-080
A1R1
37 705-3522-010 2 RESISTOR, FIXED FILM, 10.0 OHMS, 1%, 1
100MW (ESDS)
(V81349) 705-3522-010
PN IS REF NO FOR M55342-6K4752FRR
A1R39
39 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 2
(V56845) 705-3535-020
A1R40 A1R45
41 CRCW12062002F 2 RESISTOR, FIXED 20000 OHM,1%,0.25W 2
(V56845) 705-3535-030
A1R24 A1R25
43 CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 3
(V56845) 705-3535-200
A1R27 A1R28 A1R44
45 CRCW12067502F 2 RESISTOR, FIXED FILM, 75K, 1%, 125MW 2
(V56845) 705-3535-340
A1R20 A1R29
34-50-96 Page 10287
Apr 17/07
![](/img.php?id=1856825&img=bg4c.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
16
47 CRCW120602671F 2 RESISTOR, FIXED FILM, 2.67K, 1%, 125MW 2
(V56845) 705-3535-260
A1R41 A1R46
49 CRCW12064990F 2 RESISTOR, FIXED 499 OHMS, 1%, 125MW 1
(V56845) 705-3535-750
A1R32
51 RK73H2BL1211F 2 RESISTOR, FIXED FILM, 1.21K, 1%, 1
0.025W
(V59124) 705-3537-080
A1R37
53 RK73H2BL2151F 2 RESISTOR, FIXED FILM 2.15K, 1%, 125MW 1
(V59124) 705-3537-320
A1R31
55 CRCW12068450F 2 RESISTOR, FIXED FILM, 845 OHMS, 1%, 1
(V56845) 705-3535-170
A1R33
57 RK73H2BL2491F 2 RESISTOR, FIXED FILM, 2.49K, 1%, 125MW 1
(V59124) 705-3537-380
A1R34
59 RK73H2BL7501F 2 RESISTOR, FIXED FILM, 7.5K, 1%, 125MW 1
(V59124) 705-3537-750
A1R36
61 RK73H2BL1621F 2 RESISTOR, FIXED FILM, 1.62K, 1%, 125MW 1
(V59124) 705-3537-200
A1R42
63 RK73H2BL9091F 2 RESISTOR, FIXED FILM, 9.09K, 1%, 125MW 1
(V59124) 705-3537-810
A1R22
65 RK73H2BL3012F 2 RESISTOR, FIXED FILM, 30.1K, 1%, 0.25W 1
(V59124) 705-3538-270
A1R26
67 RK73H2BL3242F 2 RESISTOR, FIXED FILM, 32.4K, 1%, 125MW 1
(V59124) 705-3538-300
A1R21
69 RK73H2BL1213F 2 RESISTOR, FIXED FILM, 121K, 1%, 125MW 1
(V59124) 705-3538-800
A1R30
71 CRCW12061303F 2 RESISTOR, FIXED FILM, 130K, 1%, 125MW 1
(V56845) 705-3535-070
A1R23
73 RK73H2BL39R2F 2 RESISTOR, FIXED FILM, 39.2 OHMS, 1%, 1
0.25W
(V59124) 705-3539-710
A1R43
75 RK73H2BL47R5F 2 RESISTOR, FIXED FILM, 47.5 OHMS, 1%, 1
125MW
(V59124) 705-3539-790
A1R38
77 LM2901D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-0656-010
A1U20
79 08055A331JATBA 2 CAPACITOR, FIXED CER DIEL, 330PF, 5%, 1
50V
(V04222) 913-3667-200
A1C28
81 18085A681JATBA 2 CAPACITOR, FIXED CER DIEL, 680PF, 5%, 1
(V04222) 913-3667-250
A1C24
83 18085A102JATBA 2 CAPACITOR, FIXED CER DIEL, 1000PF, 5%, 1
(V04222) 913-3667-270
A1C26
85 18125C154MATBA 2 CAPACITOR, FIXED, .15UF, 50V 3
(V04222) 913-3670-710
A1C20 A1C21 A1C25
87 913-3676-250 2 CAPACITOR, FIXED, .68UF, 25V 1
(V18796) 913-3676-250
PN IS REF NO FOR GRM32MF51E684ZA15B
A1C22
34-50-96 Page 10288
Apr 17/07
![](/img.php?id=1856825&img=bg4d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
16
89 834-0516-040 2 CAPACITOR, FIXED, 15UF, 60V 15
(V7M138) 834-0516-040
PN IS REF NO FOR 678D156M060CD5DD445
A1C1 A1C4 A1C5 A1C6 A1C7 A1C8 A1C9
A1C10 A1C11 A1C12 A1C13 A1C14 A1C15
A1C16 A1C17
91 834-0516-050 2 CAPACITOR, FIXED, 10UF, 100V 2
(V0P569) 834-0516-050
PN IS REF NO FOR 672D106M100CD5DD1203
A1C2 A1C3
93 834-5000-020 2 CAPACITOR, FIXED CER DIEL, .10UF, 1
10%, 100V
(V04222) 834-5000-020
PN IS REF NO FOR 12101C104KAT060L
A1C27
95 MBRS120T3 2 DIODE (ESDS) 1
(V1MQ07) 844-0005-020
A1CR21
97 HF50ACB453215B 2 COIL, RF 2
(V7J069) 852-3001-020
TRUE PN IS HF50ACB453215-B
A1L20 A1L21
99 852-3005-030 2 COIL, 43UH 1
(V01086) 852-3005-030
A1L1
101 06-2480-00 2 TRANSFORMER 1
(V11402) 852-6016-020
A1T1
103 BNX002-01 2 CAPACITOR, FIXED, .2UF, 50V 1
(V12294) 849-0511-010
A1FL1
105 IRC640 2 TRANSISTOR 1
(V81483) 843-0020-020
A1Q1
107 MC33072D 2 MICROCIRCUIT 1
(V1MQ07) 835-0032-020
A1U21
109 18125C104KATBA 2 CAPACITOR, FIXED CER 0.1UF, 10%, 50V 1
(V04222) 913-3670-740
A1C29
34-50-96 Page 10289/10290
Apr 17/07
![](/img.php?id=1856825&img=bg4f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 17. Video Processor Circuit Card A6 (CPN 687-0726-004)
C1 C-1* 185
C10 B-1* 185
C100 B-7 127
C101 B-1 133
C102 A-7* 185
C103 A-1* 185
C104 B-1* 185
C105 B-1* 185
C106 B-1* 185
C107 B-1* 185
C108 B-1* 185
C109 B-1* 185
C11 B-1* 185
C110 A-1* 185
C111 A-1* 185
C112 A-1* 185
C113 B-1* 185
C114 B-1* 185
C115 B-11 133
C116 C-11 133
C117 B-11 133
C118 B-11 133
C119 B-11 133
C12 B-1* 185
C120 C-11 137
C121 C-11 137
C122 C-1 175
C123 C-3 125
C124 C-3 135
C125 A-12* 137
C126 A-12* 137
C127 A-12 137
C128 A-12 137
C129 A-1* 185
C13 B-1* 185
C130 A-1* 185
C131 A-1* 185
C132 A-1* 185
C133 A-1* 185
C134 A-1* 185
C135 A-1* 185
C136 A-1* 185
C137 A-1* 185
C138 A-1* 185
C139 A-1* 185
C14 B-1* 185
C140 C-5* 137
C141 C-5 137
C142 B-6 129
C143 A-6 129
C15 B-1* 185
C16 B-1* 185
C17 C-5* 137
C171 B-5* 137
C176 B-5 177
C18 B-1* 185
C19 B-1* 185
C2 C-2* 185
C20 B-1* 185
C202 B-6 139
C203 A-6 137
C206 B-6 137
C209 A-6* 179
C21 C-1* 185
C210 B-6 137
C211 A-6 137
C212 B-6* 137
C213 A-6* 137
C214 C-6* 137
C217 B-7* 193
C218 A-7* 193
C22 C-1* 185
C220 B-6* 137
C221 A-5* 69
C222 A-6* 137
C223 B-6* 137
C228 A-5 177
C23 C-1* 185
C232 A-5 181
C233 A-6 181
C234 A-5 181
C235 A-6 181
C236 A-6 183
C237 A-5* 137
C24 C-1* 185
C241 A-5* 69
C25 C-3* 137
C250 A-4 195
C251 A-4 195
C26 C-1* 185
C27 C-1* 185
C28 C-1* 185
C29 C-1* 185
C3 B-1* 185
C30 C-1* 185
C31 C-1* 185
C32 C-2* 185
C33 C-1* 185
C34 C-4* 137
C35 C-1* 185
C4 B-1* 185
C49 B-6 139
C5 B-1* 185
C50 B-4 129
C51 B-5* 69
C52 B-5* 69
C53 B-5 131
C55 A-6 183
C58 B-6 131
C59 B-6 131
C6 B-1* 185
C60 B-6* 183
C61 B-6* 179
C64 A-5 131
C65 A-6 131
C67 A-6 131
C7 B-1* 185
C73 A-6* 183
C75 A-4 129
C78 C-8* 137
C79 C-7* 137
C8 C-4* 137
C80 C-7* 137
C81 C-10* 137
C82 C-10* 137
C83 A-8* 137
C84 C-8* 137
C85 B-10* 137
C86 B-10* 137
C87 A-10* 137
C88 A-10* 137
C89 A-8* 137
C9 B-1* 185
C90 A-8* 137
C91 B-8* 137
C92 B-8* 137
C93 C-7* 137
C94 C-11* 137
C95 B-10* 197
C96 C-9* 137
C97 C-9 137
C98 C-10 183
C99 C-9 183
CR1 C-2* 59
CR10 B-2* 59
CR11 B-1* 59
CR12 B-2* 59
CR120 B-5* 155
34-50-96 Page 10291
Apr 17/07
![](/img.php?id=1856825&img=bg50.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 17. Video Processor Circuit Card A6 (CPN 687-0726-004)
CR13 B-2* 59
CR14 B-2 59
CR15 B-1* 59
CR16 C-1* 59
CR17 C-2* 59
CR18 B-2* 59
CR19 B-2 59
CR2 C-2 59
CR20 C-1* 59
CR206 B-5 155
CR207 A-5 155
CR208 B-5* 155
CR209 B-5 155
CR21 C-2 59
CR210 A-5* 155
CR211 A-5 155
CR22 C-2 59
CR224 B-4 155
CR226 A-4 155
CR23 B-2 59
CR231 B-4 155
CR232 A-4 155
CR234 B-5* 155
CR236 A-5* 155
CR238 B-4 155
CR24 C-2* 59
CR240 A-4 155
CR25 C-2* 59
CR26 C-2 59
CR27 C-2* 59
CR28 C-1* 59
CR29 C-2 59
CR3 B-1* 59
CR30 C-2 59
CR31 C-2* 59
CR4 B-2 59
CR46 A-5* 155
CR48 B-7 155
CR49 B-7* 155
CR5 B-2* 59
CR50 A-10 199
CR51 A-7 155
CR52 B-7 61
CR53 B-7* 59
CR54 A-7 59
CR55 B-2* 59
CR56 C-6* 59
CR57 A-2* 59
CR58 A-2 59
CR59 A-2 59
CR6 A-2 59
CR60 B-2* 59
CR61 B-2* 59
CR62 C-6 59
CR63 B-1* 59
CR64 B-3* 59
CR65 A-2* 59
CR66 A-2* 59
CR67 C-6 59
CR68 A-2* 59
CR69 B-2* 61
CR7 B-1* 59
CR70 A-3* 59
CR71 A-2* 59
CR72 A-2* 59
CR73 A-2* 59
CR74 C-2* 59
CR75 C-2* 59
CR76 C-3* 59
CR77 C-3* 59
CR78 B-3* 59
CR79 B-3* 59
CR8 B-1* 59
CR80 C-6* 59
CR81 C-6* 59
CR82 C-6* 59
CR83 C-5* 59
CR84 C-5 59
CR85 C-6 59
CR86 C-6* 59
CR87 C-6 59
CR88 C-6 59
CR89 C-6 59
CR9 B-2 59
CR90 C-6 59
FL1 C-3 167
L101 B-5 163
L102 B-6 163
L103 A-5 163
L104 A-6 163
L106 B-6 165
L5 A-6 165
L7 C-2 171
P1 A-1 187
P20 B-12* 67
P25 A-9* 63
P3 A-9* 173
Q1 A-7* 53
Q10 B-2* 53
Q11 C-4 53
Q113 B-4* 53
Q14 A-6* 53
Q203 B-5 53
Q204 B-5* 53
Q205 A-5 53
Q206 A-5* 53
Q210 A-4* 53
Q213 A-4 53
Q214 B-5 53
Q216 A-5 53
Q243 B-4 53
Q6 B-5 53
Q7 A-7 55
Q9 B-7 53
R1 A-4* 73
R100 A-12* 83
R101 A-11* 83
R102 A-12 83
R103 A-12 83
R104 A-11* 83
R105 A-11* 83
R106 A-11 83
R11 A-7* 75
R117 B-4 65
R118 A-4 65
R14 B-4* 101
R16 B-4* 71
R18 B-5* 99
R19 B-5* 71
R2 B-4* 73
R20 B-5* 73
R21 B-5 95
R211 A-6* 79
R216 A-5* 85
R22 B-5* 83
R221 A-5* 75
R227 B-6 71
R228 A-5* 71
R23 B-5 83
R230 B-6* 71
R232 A-5 91
R24 B-5* 91
R241 A-7 75
R242 A-5* 83
R243 A-5* 83
R249 A-6* 83
R25 A-5* 85
R256 A-6* 83
34-50-96 Page 10292
Apr 17/07
![](/img.php?id=1856825&img=bg51.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 17. Video Processor Circuit Card A6 (CPN 687-0726-004)
R265 B-7* 75
R267 C-6 77
R27 B-6* 97
R271 B-4* 93
R28 B-6* 87
R282 A-5* 99
R283 B-4* 71
R286 B-5* 75
R29 B-6* 87
R294 B-5 85
R296 B-5 85
R3 C-3* 73
R30 B-6* 87
R31 A-6* 83
R311 A-5 95
R313 B-7* 75
R314 B-6* 83
R316 B-4* 71
R32 B-6 83
R34 B-6 79
R37 A-5* 73
R4 C-3* 73
R43 A-6* 97
R44 A-6* 83
R45 A-6* 87
R46 A-6* 87
R48 A-5* 87
R53 A-5 85
R54 A-4* 101
R55 A-5 85
R56 A-4* 71
R57 A-4* 71
R58 A-4* 71
R61 A-4* 93
R62 C-8* 73
R63 C-7* 73
R64 C-7* 71
R65 C-7* 71
R66 C-7* 73
R67 A-11* 103
R68 B-10* 103
R69 C-9 75
R70 C-9 75
R71 B-8* 71
R72 B-10* 201
R73 B-10* 203
R74 A-10 205
R75 A-10* 207
R76 A-7 75
R77 A-7 75
R78 B-7* 75
R79 B-7 75
R80 A-7 71
R81 A-7* 71
R82 A-7 87
R83 A-7 87
R84 A-8* 89
R85 B-7* 81
R86 A-3* 71
R87 A-3* 71
R88 A-3* 71
R89 A-3* 71
R90 B-7 71
R91 A-3* 71
R92 C-3 123
R93 B-2* 75
R94 C-4 75
R95 C-4 71
R96 B-2* 89
R97 C-4 105
R98 C-4 87
R99 A-11* 83
U1 A-3* 115
U10 C-3* 115
U101 C-7 43
U103 C-7 43
U104 C-8 153
U108 C-10 49
U109 C-10 49
U11 C-3* 113
U116 B-7 149
U118 B-10 147
U12 C-3 43
U121 A-8 51
U128 B-7 107
U2 A-3* 113
U203 B-6 141
U204 A-6 141
U205 B-6* 141
U208 A-6* 141
U214 B-6 141
U215 A-5 145
U24 A-8* 45
U29 C-11 47
U3 A-3 43
U30 C-9 151
U31 A-10* 209
U32 A-10 211
U33 C-5* 119
U34 C-4* 117
U35 A-2 111
U36 C-5* 121
U37 B-3* 113
U38 C-4 7
U39 A-12 143
U4 A-3* 115
U40 A-12* 143
U41 B-2 111
U42 C-5 119
U43 C-5* 117
U44 C-4 43
U45 C-4 43
U46 C-5 121
U5 A-3* 113
U6 A-3 43
U7 B-3* 115
U8 B-3* 113
U9 B-3 43
VR1 B-2 157
VR10 A-2 157
VR11 A-2 157
VR12 C-2 157
VR13 C-2 157
VR14 C-3 157
VR15 C-3 157
VR16 B-3 157
VR17 B-3 157
VR18 B-2 159
VR19 B-7 157
VR2 B-2 157
VR3 B-2 161
VR4 B-3 157
VR5 B-2 159
VR6 C-3 57
VR7 A-2 157
VR8 A-2 157
VR9 A-2 157
Y100 C-10 41
Z1 A-1 39
Z10 A-1 39
Z11 A-1 39
Z13 A-1 39
Z14 A-1 39
Z15 A-1 39
Z16 A-1 169
Z17 B-1 39
Z18 B-1 39
Z19 B-1 39
34-50-96 Page 10293
Apr 17/07
![](/img.php?id=1856825&img=bg52.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 17. Video Processor Circuit Card A6 (CPN 687-0726-004)
Z2 A-1 39
Z20 B-1 169
Z21 B-1 39
Z22 B-1 39
Z23 B-1 39
Z24 B-1 169
Z25 B-1 39
Z26 B-1 39
Z27 B-1 39
Z28 B-1 169
Z29 B-1 39
Z3 A-1 39
Z30 B-1 39
Z31 B-1 39
Z33 B-1 39
Z34 B-1 39
Z35 B-1 39
Z36 B-1 169
Z37 B-1 39
Z38 B-1 39
Z39 B-1 39
Z4 A-1 169
Z40 B-1 169
Z41 B-1 39
Z42 B-1 39
Z43 B-1 39
Z44 B-1 169
Z45 C-1 39
Z46 C-1 39
Z47 C-1 39
Z48 C-1 169
Z49 C-1 39
Z5 A-1 39
Z50 C-1 39
Z51 C-1 39
Z52 C-1 169
Z53 C-1 39
Z54 C-1 39
Z55 C-1 39
Z56 C-1 169
Z57 C-1 39
Z58 C-1 39
Z59 C-1 39
Z6 A-1 39
Z7 A-1 39
Z8 A-1 169
Z9 A-1 39
34-50-96 Page 10294
Apr 17/07
![](/img.php?id=1856825&img=bg53.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-004)
Figure 17 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-167-A01
34-50-96 Page 10295/10296
Apr 17/07
![](/img.php?id=1856825&img=bg55.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-004)
Figure 17 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-167-A01
34-50-96 Page 10297/10298
Apr 17/07
![](/img.php?id=1856825&img=bg57.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-004)
Figure 17 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-167-A01
34-50-96 Page 10299/10300
Apr 17/07
![](/img.php?id=1856825&img=bg59.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-004)
Figure 17 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-167-A01
34-50-96 Page 10301/10302
Apr 17/07
![](/img.php?id=1856825&img=bg5b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
17
- 1 687-0726-004 1 CIRCUIT CARD, VIDEO PROCESSOR RF
(SEE FIG 4-63 FOR NHA)
A6
3 M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
5 280-3778-050 2 LABEL, INFORMATION 1
(V0BU16) 280-3778-050
(SB 15)
(ADDED BY REV K)
7 LM317T 2 MICROCIRCUIT (ESDS) 1
(V27014) 351-1271-010
A6U38
- - - ATTACHING PARTS - - -
- 9 MS51957-14 2 SCREW, MACHINE SST 1
4-40 X 5/16
(V96906) 343-0134-000
- 11 MS35338-135 2 WASHER, LOCK SST 1
0.115 ID X 0.209 OD
(V96906) 310-0279-000
- 13 NAS671C4 2 NUT, PLAIN HEXAGON CD PL STL 1
0.112-40
(V80205) 313-0132-000
------*------
15 653-2280-001 2 STRAP, BOARD 1
21 653-2248-002 2 CABLE, ASSEMBLY 1
23 88450-9 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-090
25 88450-2 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-020
27 499568-1 3 CONNECTOR 1
(V00779) 372-2648-020
29 1-499566-0 3 CONNECTOR 1
(V00779) 372-2648-070
31 86286-1 3 PLUG, KEYING 4
(V00779) 372-2641-010
33 111355-8 3 CONNECTOR 1
(V00779) 859-2000-160
35 111356-8 3 CONNECTOR 1
(V00779) 859-2000-150
37 M55302-127-00KY 2 PLUG, KEYING 2
(V81349) 372-2669-010
(ADDED BY REV G)
39 288-0815-010 2 BEAD, FERRITE 45
(V02114) 288-0815-010
PN IS REF NO FOR TUB3.7/1.2/3.5-4B1
A6Z1 A6Z2 A6Z3 A6Z5 A6Z6 A6Z7 A6Z9
A6Z10 A6Z11 A6Z13 A6Z14 A6Z15 A6Z17
A6Z18 A6Z19 A6Z21 A6Z22 A6Z23 A6Z25
A6Z26 A6Z27 A6Z29 A6Z30 A6Z31 A6Z33
A6Z34 A6Z35 A6Z37 A6Z38 A6Z39 A6Z41
A6Z42 A6Z43 A6Z45 A6Z46 A6Z47 A6Z49
A6Z50 A6Z51 A6Z53 A6Z54 A6Z55 A6Z57
A6Z58 A6Z59
41 289-0262-000 2 CRYSTAL, 20 MHZ 1
(V00136) 289-0262-000
PN IS REF NO FOR CR-76/U 20M00000
A6Y100
43 SN74HCT244DW 2 MICROCIRCUIT 8
(V01295) 351-3610-040
A6U3 A6U6 A6U9 A6U12 A6U44 A6U45
A6U101 A6U103
45 SN74HC02D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-020
(EFF THRU REV P)
A6U24
- 45A SN74HC02D 2 MICROCIRCUIT 1
(V01295) 351-2802-010
(EFF REV R)
34-50-96 Page 10303
Apr 17/07
![](/img.php?id=1856825&img=bg5c.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
17
47 SN74HC08D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-040
A6U29
49 SN74HC259D 2 MICROCIRCUIT 2
(V01295) 351-3704-170
A6U108 A6U109
51 S38FC002PI04 2 MICROCIRCUIT 1
(V04713) 351-5175-010
A6U121
53 PMBT2222A 2 TRANSISTOR (ESDS) 16
(V18324) 352-9113-010
A6Q1 A6Q10 A6Q11 A6Q113 A6Q14 A6Q203
A6Q204 A6Q205 A6Q206 A6Q210 A6Q213
A6Q214 A6Q216 A6Q243 A6Q6 A6Q9 Q6A10
55 PMBT2907TR 2 TRANSISTOR 1
(V18324) 352-9114-010
TRUE PN IS PMBT2907T/R
A6Q7
57 353-3768-060 2 DIODE 1
(V12954) 353-3768-060
A6VR6
59 BAS70-04 2 DIODE 68
(V12954) 353-8136-010
A6CR1 A6CR2 A6CR3 A6CR4 A6CR5 A6CR6
A6CR7 A6CR8 A6CR9 A6CR10 A6CR11 A6CR12
A6CR13 A6CR14 A6CR15 A6CR16 A6CR17
A6CR18 A6CR19 A6CR20 A6CR21 A6CR22
A6CR23 A6CR24 A6CR25 A6CR26 A6CR27
A6CR28 A6CR29 A6CR30 A6CR31 A6CR53
A6CR54 A6CR55 A6CR56 A6CR57 A6CR58
A6CR59 A6CR60 A6CR61 A6CR62 A6CR63
A6CR64 A6CR65 A6CR66 A6CR67 A6CR68
A6CR70 A6CR71 A6CR72 A6CR73 A6CR74
A6CR75 A6CR76 A6CR77 A6CR78 A6CR79
A6CR80 A6CR81 A6CR82 A6CR83 A6CR84
A6CR85 A6CR86 A6CR87 A6CR88 A6CR89
A6CR90
61 BAW78B 2 DIODE 2
(V1W698) 353-8138-020
A6CR52 A6CR69
63 2-535542-4 2 CONNECTOR, ELECTRICAL 1
(V00779) 372-0033-390
A6P25
65 3386P1-203 2 RESISTOR, VARIABLE, 20K OHM 2
(V32997) 382-0038-080
TRUE PN IS 3386P-1-203
A6R117 A6R118
67 628-5853-001 2 CONNECTOR, ELECTRICAL 1
A6P20
69 08055A221JATBA 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 4
50V
(V04222) 913-3667-470
A6C51 A6C52 A6C221 A6C241
71 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 22
(V56845) 705-3535-020
A6R16 A6R19 A6R56 A6R57 A6R58 A6R64
A6R65 A6R71 A6R80 A6R81 A6R86 A6R87
A6R88 A6R89 A6R90 A6R91 A6R95 A6R227
A6R228 A6R230 A6R283 A6R316
73 CRCW12061003F 2 RESISTOR, FIXED FILM, 100K, 1%, 125MW 9
(V56845) 705-3535-060
A6R1 A6R2 A6R3 A6R4 A6R20 A6R37 A6R62
A6R63 A6R66
75 CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 14
(V56845) 705-3535-200
A6R11 A6R69 A6R70 A6R76 A6R77 A6R78
A6R79 A6R93 A6R94 A6R221 A6R241 A6R265
A6R286 A6R313
34-50-96 Page 10304
Jun 20/08
![](/img.php?id=1856825&img=bg5d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
17
77 CRCW12061212F 2 RESISTOR, FIXED FILM, 12.1K, 1%, 125MW 1
(V56845) 705-3535-270
A6R267
79 CRCW12069760F 2 RESISTOR, FIXED, 976 OHM, .25W, 1% 2
(V56845) 705-3535-390
A6R34 A6R211
81 CRCW12064750F 2 RESISTOR, FIXED FILM, 475 OHMS, 1%, 1
125MW
(V56845) 705-3535-730
A6R85
83 RK73H2BL2001F 2 RESISTOR, FIXED FILM, 2K, 1%, 0.4W 18
(V59124) 705-3537-290
A6R22 A6R23 A6R31 A6R32 A6R44 A6R99
A6R100 A6R101 A6R102 A6R103 A6R104
A6R105 A6R106 A6R242 A6R243 A6R249
A6R256 A6R314
85 RK73H2BL2211F 2 RESISTOR, FIXED FILM, 2.21K, 1%, 125MW 6
(V59124) 705-3537-330
A6R25 A6R53 A6R55 A6R216 A6R294 A6R296
87 RK73H2BL3921F 2 RESISTOR, FIXED FILM, 3.92K, 1%, 125MW 9
(V59124) 705-3537-530
A6R28 A6R29 A6R30 A6R45 A6R46 A6R48
A6R82 A6R83 A6R98
89 RK73H2BL4751F 2 RESISTOR, FIXED FILM, 4.75K, 1%, 0.4W 2
(V59124) 705-3537-600
A6R84 A6R96
91 RK73H2BL2742F 2 RESISTOR, FIXED FILM, 27.4K, 1%, 125MW 2
(V59124) 705-3538-230
A6R24 A6R232
93 RK73H2BL2874F 2 RESISTOR, FIXED, 28.7K OHM, .25W, 1% 2
(V59124) 705-3538-250
A6R61 A6R271
95 RK73H2BL4752F 2 RESISTOR, FIXED FILM, 47.5K, 1%, 125MW 2
(V59124) 705-3538-450
A6R21 A6R311
97 RK73H2BL5622F 2 RESISTOR, FIXED FILM 56.2K, 1%, 125MW 2
(V59124) 705-3538-510
A6R27 A6R43
99 CRCW120633R2FB 2 RESISTOR, FIXED FILM, 33.2 OHMS, 1%, 2
125MW
(V56845) 705-3539-640
A6R18 A6R282
101 RK73H2BL2210F 2 RESISTOR, FIXED FILM, 221 OHMS, 1%, 2
125MW
(V59124) 705-3540-430
A6R14 A6R54
103 RM73Z2B 2 RESISTOR, CHIP FILM, 0.05 OHM, 0.25W 2
(ESDS)
(V80205) 705-3543-020
A6R67 A6R68
105 RWR81S2370FR 2 RESISTOR, FIXED, 237 OHM, 1W, 1% 1
(V81349) 747-2183-370
A6R97
107 831-0037-001 2 MICROCIRCUIT, MODIFIED 1
A6U128
- 109 NM27C256VE200 3 MICROCIRCUIT 1
(V07263) 351-3768-010
TRUE PN IS NM27C256VE-200
111 S0MC160336R0GDC 2 RESISTOR, NETWORK, 36 OHM, .25W, 2% 2
(V91637) 833-5502-010
TRUE PN IS SOMC160336R0GDC
A6U35 A6U41
113 833-5502-070 2 RESISTOR, NETWORK 10K, 2% (ESDS) 5
(V11236) 833-5502-070
A6U2 A6U5 A6U8 A6U11 A6U37
115 833-5502-080 2 MICROCIRCUIT (ESDS) 4
(V11236) 833-5502-080
A6U1 A6U4 A6U7 A6U10
34-50-96 Page 10305
Apr 17/07
![](/img.php?id=1856825&img=bg5e.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
17
117 833-5502-140 2 RESISTOR, NETWORK, 62K OHM, .25W, 2% 2
(V11236) 833-5502-140
A6U34 A6U43
119 833-5502-180 2 RESISTOR, NETWORK, 100K OHM, .25W, 2% 2
(V11236) 833-5502-180
A6U33 A6U42
121 833-5502-190 2 RESISTOR, NETWORK, 270K OHM, .25W, 2% 2
(V11236) 833-5502-190
A6U36 A6U46
123 RK73Z2EL 2 RESISTOR, FIXED, 0 OHM 1
(V59124) 833-6008-030
A6R92
125 834-0516-030 2 CAPACITOR, FIXED, 22UF, 60V 1
(V7M138) 834-0516-030
PN IS REF NO FOR 678D226M060CG5DD444
A6C123
127 TAJC475K025H 2 CAPACITOR, FIXED 4.7UF, 10%, 25V 1
(V04222) 834-2008-150
A6C100
129 TAJC685K020H 2 CAPACITOR, FIXED 6.8UF, 10%, 20V 4
(V04222) 834-2008-170
A6C50 A6C75 A6C142 A6C143
131 TAJD156K025H 2 CAPACITOR, FIXED 15UF, 10%, 25V 6
(V04222) 834-2008-220
A6C53 A6C58 A6C59 A6C64 A6C65 A6C67
133 TAJC105K050H 2 CAPACITOR, FIXED 1UF, 10%, 50V 6
(V04222) 834-2008-320
A6C101 A6C115 A6C116 A6C117 A6C118
A6C119
135 834-5000-020 2 CAPACITOR, FIXED CER DIEL, .10UF, 1
10%, 100V
(V04222) 834-5000-020
PN IS REF NO FOR 12101C104KAT060L
A6C124
137 12065C103KAT2A 2 CAPACITOR, FIXED 10,000PF, 10%, 50V 43
(V04222) 834-5005-250
A6C8 A6C17 A6C25 A6C34 A6C78 A6C79
A6C80 A6C81 A6C82 A6C83 A6C84 A6C85
A6C86 A6C87 A6C88 A6C89 A6C90 A6C91
A6C92 A6C93 A6C94 A6C96 A6C97 A6C120
A6C121 A6C125 A6C126 A6C127 A6C128
A6C140 A6C141 A6C171 A6C203 A6C206
A6C210 A6C211 A6C212 A6C213 A6C214
A6C220 A6C222 A6C223 A6C237
139 C1206C104K5RAC 2 CAPACITOR, FIXED CER, 0.1UF, 10%, 50V 2
(V31433) 834-5005-370
A6C49 A6C202
141 LT1016 2 MICROCIRCUIT 5
(V64155) 835-0048-010
A6U203 A6U204 A6U205 A6U208 A6U214
143 MC34081BD 2 MICROCIRCUIT 2
(V1MQ07) 835-0060-020
A6U39 A6U40
145 MC74HC4316AD 2 MICROCIRCUIT 1
(V1MQ07) 351-3460-010
A6U215
147 835-1570-010 2 MICROCIRCUIT 1
(V61722) 835-1570-010
A6U118
149 CD74AC374M 2 MICROCIRCUIT (ESDS) 1
(V01295) 835-4507-030
A6U116
151 74AC04SC 2 MICROCIRCUIT, DIGITAL (ESDS) 1
(V7D893) 835-4509-030
A6U30
153 IDT7130LA100JI 2 MICROCIRCUIT 1
(V61772) 835-5891-010
A6U104
34-50-96 Page 10306
Apr 17/07
![](/img.php?id=1856825&img=bg5f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
17
155 MMBD301LT1 2 DIODE 19
(V1MQ07) 844-0003-020
A6CR46 A6CR48 A6CR49 A6CR51 A6CR120
A6CR206 A6CR207 A6CR208 A6CR209
A6CR210 A6CR211 A6CR224 A6CR226
A6CR231 A6CR232 A6CR234 A6CR236
A6CR238 A6CR240
157 P6SMB36A 2 DIODE 15
(V1MQ07) 844-0082-180
A6VR1 A6VR2 A6VR4 A6VR7 A6VR8 A6VR9
A6VR10 A6VR11 A6VR12 A6VR13 A6VR14
A6VR15 A6VR16 A6VR17 A6VR19
159 1SMC36A 2 DIODE 2
(V1MQ07) 844-0097-250
A6VR5 A6VR18
161 P6SMB11CA 2 DIODE (ESDS) 1
(V14936) 844-0103-010
A6VR3
163 1812-153K 2 COIL, 15UH 4
(V99800) 849-0025-270
A6L101 A6L102 A6L103 A6L104
165 1812-333K 2 COIL, 33UH 2
(V99800) 849-0025-310
A6L5 A6L106
167 849-0512-010 2 CAPACITOR, FIXED, .0022UF, 100V 1
(V18796) 849-0512-010
PN IS REF NO FOR DSS9NC52A222Q55B
A6FL1
169 2743019446L 2 BEAD, FERRITE 12
(V34899) 852-3002-010
A6Z4 A6Z8 A6Z16 A6Z20 A6Z24 A6Z28
A6Z36 A6Z40 A6Z44 A6Z48 A6Z52 A6Z56
171 852-3005-040 2 COIL, 50UH 1
(V00204) 852-3005-040
A6L7
173 653-3984-001 2 CONNECTOR, ELECTRICAL 1
(EFF THRU REV L)
A6P3
- 173A 1-535542-2 2 CONNECTOR 1
(V00779) 372-0033-750
(EFF REV M)
175 CK60AW102M 2 CAPACITOR, FIXED CER, DIEL, 1000PF, 1
20%, 1000V
(V81349) 913-1186-000
A6C122
177 08055A100JATBA 2 CAPACITOR, FIXED CER DIEL, 10PF, 5%, 2
50V
(V04222) 913-3667-030
A6C176 A6C228
179 08055A270JATBA 2 CAPACITOR, FIXED CER DIEL 27PF, 5%, 2
50V
(V04222) 913-3667-080
A6C61 A6C209
181 08055A330JATBA 2 CAPACITOR, FIXED CER DIEL, 33PF, 5%, 4
50V
(V04222) 913-3667-090
A6C232 A6C233 A6C234 A6C235
183 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 6
50V
(V04222) 913-3667-110
A6C55 A6C60 A6C73 A6C98 A6C99 A6C236
185 08055A471JATBA 2 CAPACITOR, FIXED CER DIEL, 470PF, 5%, 55
50V
(V04222) 913-3667-230
A6C1 A6C2 A6C3 A6C4 A6C5 A6C6 A6C7
A6C9 A6C10 A6C11 A6C12 A6C13 A6C14
A6C15 A6C16 A6C18 A6C19 A6C20 A6C21
A6C22 A6C23 A6C24 A6C26 A6C27 A6C28
A6C29 A6C30 A6C31 A6C32 A6C33 A6C35
34-50-96 Page 10307
Apr 17/07
![](/img.php?id=1856825&img=bg60.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
17
A6C102 A6C103 A6C104 A6C105 A6C106
A6C107 A6C108 A6C109 A6C110 A6C111
A6C112 A6C113 A6C114 A6C129 A6C130
A6C131 A6C132 A6C133 A6C134 A6C135
A6C136 A6C137 A6C138 A6C139
187 634-7949-002 2 CIRCUIT CARD ASSEMBLY 1
A6P1
- 189 NA1109-023 3 CONTACT 30
(V57863) 372-2604-023
- 191 NA1109-022 3 CONTACT 30
(V57863) 372-2604-022
193 08055A221JATBA 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 2
50V
(V04222) 913-3667-470
(EFF THRU REV D)
A6C217 A6C218
- 193A 18055A152JATBA 2 CAPACITOR, FIXED CER DIEL 1500PF, 5%, 2
50V
(V04222) 913-3667-370
(EFF REV E)
195 CCR13CG100J 2 CAPACITOR, FIXED CER, 10PF, 5%, 100V 2
(V81349) 913-1098-010
(ADDED BY REV F)
A6C250 A6C251
197 12065C103KAT2A 2 CAPACITOR, FIXED 10,000PF, 10%, 50V 1
(V04222) 834-5005-250
(DELETED BY REV D)
A6C95
199 BAS70-04 2 DIODE 1
(V12954) 353-8136-010
(DELETED BY REV D)
A6CR50
201 RK73H2BL7501F 2 RESISTOR, FIXED FILM, 7.5K, 1%, 125MW 1
(V59124) 705-3537-750
(DELETED BY REV D)
A6R72
203 RK73H2BL1502F 2 RESISTOR, FIXED FILM, 15K, 1%, 125MW 1
(V59124) 705-3537-990
(DELETED BY REV D)
A6R73
205 RK73H2BL5761F 2 RESISTOR, FIXED 5.76K, 1%, 125MW 1
(V59124) 705-3537-670
(DELETED BY REV D)
A6R74
207 RK73H2BL5363F 2 RESISTOR, FIXED FILM 536K, 1%, 125MW 1
(V59124) 705-3540-740
(DELETED BY REV D)
A6R75
209 MC33074D 2 MICROCIRCUIT (ESDS) 1
(V1MQ07) 835-0032-010
(DELETED BY REV D)
A6U31
211 AD590KF 2 MICROCIRCUIT 1
(V24355) 351-1411-020
(DELETED BY REV D)
A6U32
34-50-96 Page 10308
Apr 17/07
![](/img.php?id=1856825&img=bg61.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 18. Video Processor Circuit Card A6 (CPN 687-0726-005)
C1 C-1* 191
C10 B-1* 191
C100 B-7 133
C101 B-1 139
C102 A-7* 191
C103 A-1* 191
C104 B-1* 191
C105 B-1* 191
C106 B-1* 191
C107 B-1* 191
C108 B-1* 191
C109 B-1* 191
C11 B-1* 191
C110 A-1* 191
C111 A-1* 191
C112 A-1* 191
C113 B-1* 191
C114 B-1* 191
C115 B-11 139
C116 C-11 139
C117 B-11 139
C118 B-11 139
C119 B-11 139
C12 B-1* 191
C120 C-11 143
C121 C-11 143
C122 C-1 181
C123 C-3 131
C124 C-3 141
C125 A-12* 143
C126 A-12* 143
C127 A-12 143
C128 A-12 143
C129 A-1* 191
C13 B-1* 191
C130 A-1* 191
C131 A-1* 191
C132 A-1* 191
C133 A-1* 191
C134 A-1* 191
C135 A-1* 191
C136 A-1* 191
C137 A-1* 191
C138 A-1* 191
C139 A-1* 191
C14 B-1* 191
C140 C-5* 143
C141 C-5 143
C142 B-6 135
C143 A-6 135
C15 B-1* 191
C16 B-1* 191
C17 C-5* 143
C171 B-5* 143
C176 B-4 183
C18 B-1* 191
C19 B-1* 191
C2 C-2* 191
C20 B-1* 191
C202 B-6 145
C203 A-6 143
C206 B-6 143
C209 A-6* 185
C21 C-1* 191
C210 B-6 143
C211 A-6 143
C212 B-6* 143
C213 A-6* 143
C214 C-6* 143
C217 B-7* 195
C218 A-7* 195
C22 C-1* 191
C220 B-6* 143
C221 A-5* 193
C222 A-6* 143
C223 B-6* 143
C228 A-4 183
C23 C-1* 191
C232 A-5 187
C233 A-6 187
C234 A-5 187
C235 A-6 187
C236 A-6 189
C237 A-5* 143
C24 C-1* 191
C241 A-5* 193
C25 C-3* 143
C26 C-1* 191
C27 C-1* 191
C28 C-1* 191
C29 C-1* 191
C3 B-1* 191
C30 C-1* 191
C31 C-1* 191
C32 C-2* 191
C33 C-1* 191
C34 C-4* 143
C35 C-1* 191
C4 B-1* 191
C49 B-6 145
C5 B-1* 191
C50 B-4 135
C51 B-5* 193
C52 B-5* 193
C53 B-5 137
C55 A-6 189
C58 B-6 137
C59 B-6 137
C6 B-1* 191
C60 B-6* 189
C61 B-6* 185
C64 A-5 137
C65 A-6 137
C67 A-6 137
C7 B-1* 191
C73 A-6* 189
C75 A-4 135
C78 C-8* 143
C79 C-7* 143
C8 C-4* 143
C80 C-7* 143
C81 C-10* 143
C82 C-10* 143
C83 A-8* 143
C84 C-8* 143
C85 B-10* 143
C86 B-10* 143
C87 A-10* 143
C88 A-10* 143
C89 A-8* 143
C9 B-1* 191
C90 A-8* 143
C91 B-8* 143
C92 B-8* 143
C93 C-7* 143
C94 C-11* 143
C96 C-9* 143
C97 C-9 143
C98 C-10 189
C99 C-9 189
CR1 C-2* 61
CR10 B-2* 61
CR11 B-1* 61
CR12 B-2* 61
CR120 B-5* 161
CR13 B-2* 61
CR14 B-2 61
CR15 B-1* 61
34-50-96 Page 10309
Apr 17/07
![](/img.php?id=1856825&img=bg62.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 18. Video Processor Circuit Card A6 (CPN 687-0726-005)
CR16 C-1* 61
CR17 C-2* 61
CR18 B-2* 61
CR19 B-2 61
CR2 C-2 61
CR20 C-1* 61
CR206 B-5 161
CR207 A-5 161
CR208 B-5* 161
CR209 B-5 161
CR21 C-2 61
CR210 A-5* 161
CR211 A-5 161
CR22 C-2 61
CR224 B-4 161
CR226 A-4 161
CR23 B-2 61
CR231 B-4 161
CR232 A-4 161
CR234 B-5* 161
CR236 A-5* 161
CR238 B-4 161
CR24 C-2* 61
CR240 A-4 161
CR25 C-2* 61
CR26 C-2 61
CR27 C-2* 61
CR28 C-1* 61
CR29 C-2 61
CR3 B-1* 61
CR30 C-2 61
CR31 C-2* 61
CR4 B-2 61
CR46 A-5* 161
CR48 B-7 161
CR49 B-7* 161
CR5 B-2* 61
CR51 A-7 161
CR52 B-7 63
CR53 B-7* 61
CR54 A-7 61
CR55 B-2* 61
CR56 C-6* 61
CR57 A-2* 61
CR58 A-2 61
CR59 A-2 61
CR6 A-2 61
CR60 B-2* 61
CR61 B-2* 61
CR62 C-6 61
CR63 B-1* 61
CR64 B-3* 61
CR65 A-2* 61
CR66 A-2* 61
CR67 C-6 61
CR68 A-2* 61
CR69 B-2* 63
CR7 B-1* 61
CR70 A-3* 61
CR71 A-2* 61
CR72 A-2* 61
CR73 A-2* 61
CR74 C-2* 61
CR75 C-2* 61
CR76 C-3* 61
CR77 C-3* 61
CR78 B-3* 61
CR79 B-3* 61
CR8 B-1* 61
CR80 C-6* 61
CR81 C-6* 61
CR82 C-6* 61
CR83 C-5* 61
CR84 C-5 61
CR85 C-6 61
CR86 C-6* 61
CR87 C-6 61
CR88 C-6 61
CR89 C-6 61
CR9 B-2 61
CR90 C-6 61
FL1 C-3 173
L101 B-5 169
L102 B-6 169
L103 A-5 169
L104 A-6 169
L106 B-6 171
L5 A-6 171
L7 C-2 177
P1 A-1 71
P20 B-12* 69
P25 A-9* 65
P3 A-9* 179
Q1 A-7* 55
Q10 B-2* 55
Q11 C-4 55
Q113 B-4* 55
Q14 A-6* 55
Q203 B-5 55
Q204 B-5* 55
Q205 A-5 55
Q206 A-5* 55
Q210 A-4* 55
Q213 A-4 55
Q214 B-5 55
Q216 A-5 55
Q243 B-4 55
Q6 B-5 55
Q7 A-7 57
Q9 B-7 55
R1 A-4* 79
R100 A-12* 89
R101 A-11* 89
R102 A-12 89
R103 A-12 89
R104 A-11* 89
R105 A-11* 89
R106 A-11 89
R11 A-7* 81
R117 B-4 67
R118 A-4 67
R14 B-4* 107
R16 B-4* 77
R18 B-5* 105
R19 B-5* 77
R2 B-4* 79
R20 B-5* 79
R21 B-5 101
R211 A-6* 85
R216 A-5* 91
R22 B-5* 89
R221 A-5* 81
R227 B-6 77
R228 A-5* 77
R23 B-5 89
R230 B-6* 77
R232 A-5 97
R24 B-5* 97
R241 A-7 81
R242 A-5* 89
R243 A-5* 89
R249 A-6* 89
R25 A-5* 91
R256 A-6* 89
R265 B-7* 81
R267 C-6 83
R27 B-6* 103
R271 B-4* 99
34-50-96 Page 10310
Apr 17/07
![](/img.php?id=1856825&img=bg63.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 18. Video Processor Circuit Card A6 (CPN 687-0726-005)
R28 B-6* 93
R282 A-5* 105
R283 B-4* 77
R286 B-5* 81
R29 B-6* 93
R294 B-5 91
R296 B-5 91
R3 C-3* 79
R30 B-6* 93
R31 A-6* 89
R311 A-5 101
R313 B-7* 81
R314 B-6* 89
R316 B-4* 77
R32 B-6 89
R34 B-6 85
R37 A-5* 79
R4 C-3* 79
R43 A-6* 103
R44 A-6* 89
R45 A-6* 93
R46 A-6* 93
R48 A-5* 93
R53 A-5 91
R54 A-4* 107
R55 A-5 91
R56 A-4* 77
R57 A-4* 77
R58 A-4* 77
R61 A-4* 99
R62 C-8* 79
R63 C-7* 79
R64 C-7* 77
R65 C-7* 77
R66 C-7* 79
R67 A-11* 109
R68 B-10* 109
R69 C-9 81
R70 C-9 81
R71 B-8* 77
R76 A-7 81
R77 A-7 81
R78 B-7* 81
R79 B-7 81
R80 A-7 77
R81 A-7* 77
R82 A-7 93
R83 A-7 93
R84 A-8* 95
R85 B-7* 87
R86 A-3* 77
R87 A-3* 77
R88 A-3* 77
R89 A-3* 77
R90 B-7 77
R91 A-3* 77
R92 C-3 129
R93 B-2* 81
R94 C-4 81
R95 C-4 77
R96 B-2* 95
R97 C-4 111
R98 C-4 93
R99 A-11* 89
U1 A-3* 121
U10 C-3* 121
U101 C-7 45
U103 C-7 45
U104 C-8 159
U108 C-10 51
U109 C-10 51
U11 C-3* 119
U116 B-7 155
U118 B-10 153
U12 C-3 45
U121 A-8 53
U128 B-7 113
U2 A-3* 119
U203 B-6 147
U204 A-6 147
U205 B-6* 147
U208 A-6* 147
U214 B-6 147
U215 A-5 151
U24 A-8* 47
U29 C-11 49
U3 A-3 45
U30 C-9 157
U33 C-5* 125
U34 C-4* 123
U35 A-2 117
U36 C-5* 127
U37 B-3* 119
U38 C-4 7
U39 A-12 149
U4 A-3* 121
U40 A-12* 149
U41 B-2 117
U42 C-5 125
U43 C-5* 123
U44 C-4 45
U45 C-4 45
U46 C-5 127
U5 A-3* 119
U6 A-3 45
U7 B-3* 121
U8 B-3* 119
U9 B-3 45
VR1 B-2 163
VR10 A-2 163
VR11 A-2 163
VR12 C-2 163
VR13 C-2 163
VR14 C-3 163
VR15 C-3 163
VR16 B-3 163
VR17 B-3 163
VR18 B-2 165
VR19 B-7 163
VR2 B-2 163
VR3 B-2 167
VR4 B-3 163
VR5 B-2 165
VR6 C-3 59
VR7 A-2 163
VR8 A-2 163
VR9 A-2 163
Y100 C-10 43
Z1 A-1 41
Z10 A-1 41
Z11 A-1 41
Z13 A-1 41
Z14 A-1 41
Z15 A-1 41
Z16 A-1 175
Z17 B-1 41
Z18 B-1 41
Z19 B-1 41
Z2 A-1 41
Z20 B-1 175
Z21 B-1 41
Z22 B-1 41
Z23 B-1 41
Z24 B-1 175
Z25 B-1 41
Z26 B-1 41
Z27 B-1 41
Z28 B-1 175
34-50-96 Page 10311
Apr 17/07
![](/img.php?id=1856825&img=bg64.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 18. Video Processor Circuit Card A6 (CPN 687-0726-005)
Z29 B-1 41
Z3 A-1 41
Z30 B-1 41
Z31 B-1 41
Z33 B-1 41
Z34 B-1 41
Z35 B-1 41
Z36 B-1 175
Z37 B-1 41
Z38 B-1 41
Z39 B-1 41
Z4 A-1 175
Z40 B-1 175
Z41 B-1 41
Z42 B-1 41
Z43 B-1 41
Z44 B-1 175
Z45 C-1 41
Z46 C-1 41
Z47 C-1 41
Z48 C-1 175
Z49 C-1 41
Z5 A-1 41
Z50 C-1 41
Z51 C-1 41
Z52 C-1 175
Z53 C-1 41
Z54 C-1 41
Z55 C-1 41
Z56 C-1 175
Z57 C-1 41
Z58 C-1 41
Z59 C-1 41
Z6 A-1 41
Z7 A-1 41
Z8 A-1 175
Z9 A-1 41
34-50-96 Page 10312
Apr 17/07
![](/img.php?id=1856825&img=bg65.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-005)
Figure 18 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-168-A01
34-50-96 Page 10313/10314
Apr 17/07
![](/img.php?id=1856825&img=bg67.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-005)
Figure 18 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-168-A01
34-50-96 Page 10315/10316
Apr 17/07
![](/img.php?id=1856825&img=bg69.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-005)
Figure 18 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-168-A01
34-50-96 Page 10317/10318
Apr 17/07
![](/img.php?id=1856825&img=bg6b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-005)
Figure 18 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-168-A01
34-50-96 Page 10319/10320
Apr 17/07
![](/img.php?id=1856825&img=bg6d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
18
- 1 687-0726-005 1 CIRCUIT CARD, VIDEO PROCESSOR RF
(SEE FIG 4-63 FOR NHA)
(SEE FIG 4-63C FOR NHA)
A6
3 M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
5 280-3778-050 2 LABEL, INFORMATION 1
(V0BU16) 280-3778-050
7 LM317T 2 MICROCIRCUIT (ESDS) 1
(V27014) 351-1271-010
A6U38
- - - ATTACHING PARTS - - -
- 9 MS51957-14 2 SCREW, MACHINE SST 1
4-40 X 5/16
(V96906) 343-0134-000
- 11 MS35338-135 2 WASHER, LOCK SST 1
0.115 ID X 0.209 OD
(V96906) 310-0279-000
- 13 NAS671C4 2 NUT, PLAIN HEXAGON CD PL STL 1
0.112-40
(V80205) 313-0132-000
------*------
15 653-2280-001 2 STRAP, BOARD 1
- - - ATTACHING PARTS - - -
- 17 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
- 19 NAS620C4L 2 WASHER, FLAT PSVT CRES 2
0. 115 ID X 0.209 OD
(V80205) 310-0740-200
- 21 68-1660-40 2 NUT, SLFLKG HEX AL 2
4-40
(V019L2) 333-0605-000
------*------
23 653-2248-002 2 CABLE, ASSEMBLY 1
25 88450-9 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-090
27 88450-2 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-020
29 499568-1 3 CONNECTOR 1
(V00779) 372-2648-020
31 1-499566-0 3 CONNECTOR 1
(V00779) 372-2648-070
33 86286-1 3 PLUG, KEYING 4
(V00779) 372-2641-010
35 111355-8 3 CONNECTOR 1
(V00779) 859-2000-160
37 111356-8 3 CONNECTOR 1
(V00779) 859-2000-150
39 M55302-127-00KY 2 PLUG, KEYING 2
(V81349) 372-2669-010
41 2661000101 2 BEAD, FERRITE 45
(V34899) 852-1000-190
A6Z1 A6Z2 A6Z3 A6Z5 A6Z6 A6Z7 A6Z9
A6Z10 A6Z11 A6Z13 A6Z14 A6Z15 A6Z17
A6Z18 A6Z19 A6Z21 A6Z22 A6Z23 A6Z25
A6Z26 A6Z27 A6Z29 A6Z30 A6Z31 A6Z33
A6Z34 A6Z35 A6Z37 A6Z38 A6Z39 A6Z41
A6Z42 A6Z43 A6Z45 A6Z46 A6Z47 A6Z49
A6Z50 A6Z51 A6Z53 A6Z54 A6Z55 A6Z57
A6Z58 A6Z59
43 289-0262-000 2 CRYSTAL, 20 MHZ 1
(V00136) 289-0262-000
PN IS REF NO FOR CR-76/U 20M00000
A6Y100
45 SN74HCT244DW 2 MICROCIRCUIT 8
(V01295) 351-3610-040
A6U3 A6U6 A6U9 A6U12 A6U44 A6U45
A6U101 A6U103
34-50-96 Page 10321
Dec 16/09
![](/img.php?id=1856825&img=bg6e.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
18
47 SN74HC02D 2 MICROCIRCUIT 1
(V01295) 351-2802-010
A6U24
49 SN74HC08D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-040
A6U29
51 SN74HC259D 2 MICROCIRCUIT 2
(V01295) 351-3704-170
A6U108 A6U109
53 S38FC002PI04 2 MICROCIRCUIT 1
(V04713) 351-5175-010
A6U121
55 PMBT2222A 2 TRANSISTOR (ESDS) 16
(V18324) 352-9113-010
A6Q1 A6Q6 A6Q9 A6Q10 A6Q11 A6Q14
A6Q113 A6Q203 A6Q204 A6Q205 A6Q206
A6Q210 A6Q213 A6Q214 A6Q216 A6Q243
57 PMBT2907TR 2 TRANSISTOR 1
(V18324) 352-9114-010
TRUE PN IS PMBT2907T/R
A6Q7
59 353-3768-060 2 DIODE 1
(V12954) 353-3768-060
A6VR6
61 BAS70-04 2 DIODE 68
(V12954) 353-8136-010
A6CR1 A6CR2 A6CR3 A6CR4 A6CR5 A6CR6
A6CR7 A6CR8 A6CR9 A6CR10 A6CR11 A6CR12
A6CR13 A6CR14 A6CR15 A6CR16 A6CR17
A6CR18 A6CR19 A6CR20 A6CR21 A6CR22
A6CR23 A6CR24 A6CR25 A6CR26 A6CR27
A6CR28 A6CR29 A6CR30 A6CR31 A6CR53
A6CR54 A6CR55 A6CR56 A6CR57 A6CR58
A6CR59 A6CR60 A6CR61 A6CR62 A6CR63
A6CR64 A6CR65 A6CR66 A6CR67 A6CR68
A6CR70 A6CR71 A6CR72 A6CR73 A6CR74
A6CR75 A6CR76 A6CR77 A6CR78 A6CR79
A6CR80 A6CR81 A6CR82 A6CR83 A6CR84
A6CR85 A6CR86 A6CR87 A6CR88 A6CR89
A6CR90
63 BAW78B 2 DIODE 2
(V1W698) 353-8138-020
A6CR52 A6CR69
65 2-535542-4 2 CONNECTOR, ELECTRICAL 1
(V00779) 372-0033-390
A6P25
67 3386P1-203 2 RESISTOR, VARIABLE, 20K OHM 2
(V32997) 382-0038-080
TRUE PN IS 3386P-1-203
A6R117 A6R118
69 628-5853-001 2 CONNECTOR, ELECTRICAL 1
A6P20
71 634-7949-002 2 CIRCUIT CARD ASSEMBLY 1
A6P1
- 73 NA1109-023 3 CONTACT 30
(V57863) 372-2604-023
- 75 NA1109-022 3 CONTACT 30
(V57863) 372-2604-022
77 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 22
(V56845) 705-3535-020
A6R16 A6R19 A6R56 A6R57 A6R58 A6R64
A6R65 A6R71 A6R80 A6R81 A6R86 A6R87
A6R88 A6R89 A6R90 A6R91 A6R95 A6R227
A6R228 A6R230 A6R283 A6R316
79 CRCW12061003F 2 RESISTOR, FIXED FILM, 100K, 1%, 125MW 9
(V56845) 705-3535-060
A6R1 A6R2 A6R3 A6R4 A6R20 A6R37 A6R62
A6R63 A6R66
34-50-96 Page 10322
Apr 17/07
![](/img.php?id=1856825&img=bg6f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
18
81 CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 14
(V56845) 705-3535-200
A6R11 A6R69 A6R70 A6R76 A6R77 A6R78
A6R79 A6R93 A6R94 A6R221 A6R241 A6R265
A6R286 A6R313
83 CRCW12061212F 2 RESISTOR, FIXED FILM, 12.1K, 1%, 125MW 1
(V56845) 705-3535-270
A6R267
85 CRCW12069760F 2 RESISTOR, FIXED, 976 OHM, .25W, 1% 2
(V56845) 705-3535-390
A6R34 A6R211
87 CRCW12064750F 2 RESISTOR, FIXED FILM, 475 OHMS, 1%, 1
125MW
(V56845) 705-3535-730
A6R85
89 RK73H2BL2001F 2 RESISTOR, FIXED FILM, 2K, 1%, 0.4W 18
(V59124) 705-3537-290
A6R22 A6R23 A6R31 A6R32 A6R44 A6R99
A6R100 A6R101 A6R102 A6R103 A6R104
A6R105 A6R106 A6R242 A6R243 A6R249
A6R256 A6R314
91 RK73H2BL2211F 2 RESISTOR, FIXED FILM, 2.21K, 1%, 125MW 6
(V59124) 705-3537-330
A6R25 A6R53 A6R55 A6R216 A6R294 A6R296
93 RK73H2BL3921F 2 RESISTOR, FIXED FILM, 3.92K, 1%, 125MW 9
(V59124) 705-3537-530
A6R28 A6R29 A6R30 A6R45 A6R46 A6R48
A6R82 A6R83 A6R98
95 RK73H2BL4751F 2 RESISTOR, FIXED FILM, 4.75K, 1%, 0.4W 2
(V59124) 705-3537-600
A6R84 A6R96
97 RK73H2BL2742F 2 RESISTOR, FIXED FILM, 27.4K, 1%, 125MW 2
(V59124) 705-3538-230
A6R24 A6R232
99 RK73H2BL2874F 2 RESISTOR, FIXED, 28.7K OHM, .25W, 1% 2
(V59124) 705-3538-250
A6R61 A6R271
101 RK73H2BL4752F 2 RESISTOR, FIXED FILM, 47.5K, 1%, 125MW 2
(V59124) 705-3538-450
A6R21 A6R311
103 RK73H2BL5622F 2 RESISTOR, FIXED FILM 56.2K, 1%, 125MW 2
(V59124) 705-3538-510
A6R27 A6R43
105 CRCW120633R2FB 2 RESISTOR, FIXED FILM, 33.2 OHMS, 1%, 2
125MW
(V56845) 705-3539-640
A6R18 A6R282
107 RK73H2BL2210F 2 RESISTOR, FIXED FILM, 221 OHMS, 1%, 2
125MW
(V59124) 705-3540-430
A6R14 A6R54
109 RM73Z2B 2 RESISTOR, CHIP FILM, 0.05 OHM, 0.25W 2
(ESDS)
(V80205) 705-3543-020
A6R67 A6R68
111 RWR81S2370FR 2 RESISTOR, FIXED, 237 OHM, 1W, 1% 1
(V81349) 747-2183-370
A6R97
113 831-0037-001 2 MICROCIRCUIT, MODIFIED 1
A6U128
- 115 NM27C256VE200 3 MICROCIRCUIT 1
(V07263) 351-3768-010
TRUE PN IS NM27C256VE-200
117 S0MC160336R0GDC 2 RESISTOR, NETWORK, 36 OHM, .25W, 2% 2
(V91637) 833-5502-010
TRUE PN IS SOMC160336R0GDC
A6U35 A6U41
34-50-96 Page 10323
Apr 17/07
![](/img.php?id=1856825&img=bg70.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
18
119 833-5502-070 2 RESISTOR, NETWORK 10K, 2% (ESDS) 5
(V11236) 833-5502-070
A6U2 A6U5 A6U8 A6U11 A6U37
121 833-5502-080 2 MICROCIRCUIT (ESDS) 4
(V11236) 833-5502-080
A6U1 A6U4 A6U7 A6U10
123 833-5502-140 2 RESISTOR, NETWORK, 62K OHM, .25W, 2% 2
(V11236) 833-5502-140
A6U34 A6U43
125 833-5502-180 2 RESISTOR, NETWORK, 100K OHM, .25W, 2% 2
(V11236) 833-5502-180
A6U33 A6U42
127 833-5502-190 2 RESISTOR, NETWORK, 270K OHM, .25W, 2% 2
(V11236) 833-5502-190
A6U36 A6U46
129 RK73Z2EL 2 RESISTOR, FIXED, 0 OHM 1
(V59124) 833-6008-030
A6R92
131 834-0516-030 2 CAPACITOR, FIXED, 22UF, 60V 1
(V7M138) 834-0516-030
PN IS REF NO FOR 678D226M060CG5DD444
A6C123
133 TAJC475K025H 2 CAPACITOR, FIXED 4.7UF, 10%, 25V 1
(V04222) 834-2008-150
A6C100
135 TAJC685K020H 2 CAPACITOR, FIXED 6.8UF, 10%, 20V 4
(V04222) 834-2008-170
A6C50 A6C75 A6C142 A6C143
137 TAJD156K025H 2 CAPACITOR, FIXED 15UF, 10%, 25V 6
(V04222) 834-2008-220
A6C53 A6C58 A6C59 A6C64 A6C65 A6C67
139 TAJC105K050H 2 CAPACITOR, FIXED 1UF, 10%, 50V 6
(V04222) 834-2008-320
A6C101 A6C115 A6C116 A6C117 A6C118
A6C119
141 834-5000-020 2 CAPACITOR, FIXED CER DIEL, .10UF, 1
10%, 100V
(V04222) 834-5000-020
PN IS REF NO FOR 12101C104KAT060L
A6C124
143 12065C103KAT2A 2 CAPACITOR, FIXED 10,000PF, 10%, 50V 43
(V04222) 834-5005-250
A6C8 A6C17 A6C25 A6C34 A6C78 A6C79
A6C80 A6C81 A6C82 A6C83 A6C84 A6C85
A6C86 A6C87 A6C88 A6C89 A6C90 A6C91
A6C92 A6C93 A6C94 A6C96 A6C97 A6C120
A6C121 A6C125 A6C126 A6C127 A6C128
A6C140 A6C141 A6C171 A6C203 A6C206
A6C210 A6C211 A6C212 A6C213 A6C214
A6C220 A6C222 A6C223 A6C237
145 C1206C104K5RAC 2 CAPACITOR, FIXED CER, 0.1UF, 10%, 50V 2
(V31433) 834-5005-370
A6C49 A6C202
147 LT1016 2 MICROCIRCUIT 5
(V64155) 835-0048-010
A6U203 A6U204 A6U205 A6U208 A6U214
149 MC34081BD 2 MICROCIRCUIT 2
(V1MQ07) 835-0060-020
A6U39 A6U40
151 MC74HC4316AD 2 MICROCIRCUIT 1
(V1MQ07) 351-3460-010
A6U215
153 835-1570-010 2 MICROCIRCUIT 1
(V61722) 835-1570-010
A6U118
155 CD74AC374M 2 MICROCIRCUIT (ESDS) 1
(V01295) 835-4507-030
A6U116
34-50-96 Page 10324
Apr 17/07
![](/img.php?id=1856825&img=bg71.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
18
157 74AC04SC 2 MICROCIRCUIT, DIGITAL (ESDS) 1
(V7D893) 835-4509-030
A6U30
159 IDT7130LA100JI 2 MICROCIRCUIT 1
(V61772) 835-5891-010
A6U104
161 MMBD301LT1 2 DIODE 19
(V1MQ07) 844-0003-020
A6CR46 A6CR48 A6CR49 A6CR51 A6CR120
A6CR206 A6CR207 A6CR208 A6CR209
A6CR210 A6CR211 A6CR224 A6CR226
A6CR231 A6CR232 A6CR234 A6CR236
A6CR238 A6CR240
163 P6SMB36A 2 DIODE 15
(V1MQ07) 844-0082-180
A6VR1 A6VR2 A6VR4 A6VR7 A6VR8 A6VR9
A6VR10 A6VR11 A6VR12 A6VR13 A6VR14
A6VR15 A6VR16 A6VR17 A6VR19
165 1SMC36A 2 DIODE 2
(V1MQ07) 844-0097-250
A6VR5 A6VR18
167 P6SMB11CA 2 DIODE (ESDS) 1
(V14936) 844-0103-010
A6VR3
169 1812-153K 2 COIL, 15UH 4
(V99800) 849-0025-270
A6L101 A6L102 A6L103 A6L104
171 1812-333K 2 COIL, 33UH 2
(V99800) 849-0025-310
A6L5 A6L106
173 849-0512-010 2 CAPACITOR, FIXED, .0022UF, 100V 1
(V18796) 849-0512-010
PN IS REF NO FOR DSS9NC52A222Q55B
A6FL1
175 2743019446L 2 BEAD, FERRITE 12
(V34899) 852-3002-010
A6Z4 A6Z8 A6Z16 A6Z20 A6Z24 A6Z28
A6Z36 A6Z40 A6Z44 A6Z48 A6Z52 A6Z56
177 852-3005-040 2 COIL, 50UH 1
(V00204) 852-3005-040
A6L7
179 653-3984-001 2 CONNECTOR, ELECTRICAL 1
(EFF THRU REV D)
A6P3
- 179A 1-535542-2 2 CONNECTOR 1
(V00779) 372-0033-750
(EFF REV E)
181 CK60AW102M 2 CAPACITOR, FIXED CER, DIEL, 1000PF, 1
20%, 1000V
(V81349) 913-1186-000
A6C122
183 08055A100JATBA 2 CAPACITOR, FIXED CER DIEL, 10PF, 5%, 2
50V
(V04222) 913-3667-030
A6C176 A6C228
185 08055A270JATBA 2 CAPACITOR, FIXED CER DIEL 27PF, 5%, 2
50V
(V04222) 913-3667-080
A6C61 A6C209
187 08055A330JATBA 2 CAPACITOR, FIXED CER DIEL, 33PF, 5%, 4
50V
(V04222) 913-3667-090
A6C232 A6C233 A6C234 A6C235
189 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 6
50V
(V04222) 913-3667-110
A6C55 A6C60 A6C73 A6C98 A6C99 A6C236
191 08055A471JATBA 2 CAPACITOR, FIXED CER DIEL, 470PF, 5%, 55
50V
34-50-96 Page 10325
Apr 17/07
![](/img.php?id=1856825&img=bg72.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
18
(V04222) 913-3667-230
A6C1 A6C2 A6C3 A6C4 A6C5 A6C6 A6C7
A6C9 A6C10 A6C11 A6C12 A6C13 A6C14
A6C15 A6C16 A6C18 A6C19 A6C20 A6C21
A6C22 A6C23 A6C24 A6C26 A6C27 A6C28
A6C29 A6C30 A6C31 A6C32 A6C33 A6C35
A6C102 A6C103 A6C104 A6C105 A6C106
A6C107 A6C108 A6C109 A6C110 A6C111
A6C112 A6C113 A6C114 A6C129 A6C130
A6C131 A6C132 A6C133 A6C134 A6C135
A6C136 A6C137 A6C138 A6C139
193 08055A221JATBA 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 4
50V
(V04222) 913-3667-470
A6C51 A6C52 A6C221 A6C241
195 18055A152JATBA 2 CAPACITOR, FIXED CER DIEL 1500PF, 5%, 2
50V
(V04222) 913-3667-370
A6C217 A6C218
34-50-96 Page 10326
Apr 17/07
![](/img.php?id=1856825&img=bg73.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 19. IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
C100 C-2 313
C102 C-3 301
C103 C-3 301
C104 C-1 315
C105 C-2 215
C106 C-2 215
C107 C-4 297
C108 C-4 301
C109 C-1 301
C110 C-2 311
C111 C-2 307
C112 C-3 297
C113 C-3 297
C114 C-3 297
C115 C-1 283
C116 C-2 311
C117 C-2 329
C118 C-1 301
C119 C-1 317
C120 C-2 215
C121 C-3 297
C122 C-1 307
C123 C-2 313
C124 C-4 299
C125 C-3 297
C126 B-2 271
C127 B-3 289
C128 B-4 289
C130 B-4 283
C131 A-2 215
C132 A-2 215
C133 A-1 313
C134 A-4 13
C135 A-1 283
C136 A-1 301
C137 A-1 301
C138 A-2 311
C139 A-2 307
C140 A-3 297
C141 A-3 297
C142 A-4 297
C143 A-3 297
C144 A-2 311
C145 A-2 329
C147 A-1 307
C148 A-1 315
C149 A-1 317
C150 A-2 215
C151 A-3 297
C152 A-3 297
C153 A-4 299
C154 A-2 313
C155 A-4 297
C157 A-2 299
C159 A-4 17
C160 A-3 301
C200 A-4* 301
C201 A-4* 297
C202 A-3* 305
C203 A-3* 279
C204 A-3* 301
C205 A-2* 301
C206 A-3* 297
C207 A-2* 297
C208 A-2* 307
C209 A-1* 307
C210 A-1* 17
C211 A-4* 301
C212 A-4* 297
C213 A-3* 277
C214 A-1* 307
C215 A-4* 301
C216 A-1* 299
C217 A-1* 301
C218 A-2* 289
C219 A-2* 307
C220 A-2* 325
C221 B-4* 299
C222 A-4* 15
C223 A-3* 301
C224 B-3* 289
C225 B-4* 289
C226 B-1* 301
C227 B-1* 271
C228 B-4* 289
C229 B-3* 301
C230 B-2* 301
C231 B-2* 301
C232 B-4* 297
C233 B-4* 283
C234 B-3* 277
C235 B-3* 297
C236 C-4* 17
C237 C-3* 305
C238 C-3* 297
C239 C-3* 301
C240 C-3* 297
C241 C-4* 13
C242 C-1* 325
C243 C-1* 299
C244 C-4* 279
C245 C-2* 307
C246 C-2* 307
C247 C-4* 301
C248 C-4* 297
C249 C-4* 297
C250 C-3* 301
C252 C-1* 307
C253 C-1* 17
C254 C-1* 307
C255 C-1* 301
C256 C-4* 17
C257 C-3* 301
C259 A-4* 301
C260 A-4* 301
C261 C-2* 299
C262 C-3* 301
C300 C-5 297
C301 C-5 317
C302 C-5 283
C303 C-6 211
C304 C-6 283
C305 C-6 299
C306 C-6 319
C307 B-5 281
C308 B-5 281
C309 B-6 299
C310 B-6 301
C311 B-5 279
C312 B-5 279
C313 B-6 299
C314 B-6 301
C315 A-5 301
C316 B-5 279
C317 B-5 279
C318 A-6 301
C319 A-5 277
C320 A-6 281
C321 A-5 301
C322 A-6 281
C352 B-6 317
C400 A-6* 285
C401 A-6* 301
C402 A-6* 301
C403 A-5* 301
C404 A-5* 279
C405 A-5* 279
C406 A-6* 301
34-50-96 Page 10327
Apr 17/07
![](/img.php?id=1856825&img=bg74.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 19. IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
C407 A-5* 297
C408 B-6* 15
C409 B-5* 299
C410 B-6* 297
C411 B-6* 301
C412 B-5* 301
C413 B-5* 301
C414 C-6* 281
C415 C-6* 281
C416 C-5* 301
C417 C-5* 301
C418 C-6* 295
C419 C-6* 271
C420 C-5* 293
C421 C-5* 283
C422 C-5* 295
C423 C-5* 277
C424 C-5* 293
C425 C-5* 299
C426 C-5* 283
C427 C-5* 275
C428 C-5* 273
C429 C-5* 283
C500 C-11 297
C501 C-7 11
C502 C-8 11
C503 C-10 9
C504 C-10 9
C505 C-12 21
C506 C-8 207
C507 C-7 213
C508 C-11 9
C509 B-12 269
C510 C-8 207
C511 B-10 11
C512 B-8 207
C513 B-7 207
C514 B-11 9
C515 B-11 9
C516 B-9 11
C517 B-7 207
C518 B-10 11
C519 B-11 309
C520 A-12 301
C521 A-8 207
C522 A-8 207
C523 A-9 207
C524 A-10 7
C525 A-8 207
C526 A-9 207
C527 A-9 207
C528 A-12 303
C529 A-7 299
C600 A-11* 327
C601 A-10* 13
C602 B-7* 19
C603 B-7* 301
C604 B-9* 209
C605 B-11* 303
C606 C-11* 287
C607 C-11* 303
C609 C-8* 291
C610 C-11* 13
C611 C-11* 289
CR100 B-4 59
CR101 B-3 73
CR102 B-4 59
CR103 A-4 59
CR104 A-4 73
CR105 A-4 73
CR200 A-1* 59
CR201 A-2* 59
CR202 A-3* 73
CR203 B-4* 71
CR204 B-1* 59
CR205 B-3* 71
CR206 B-1* 59
CR207 B-4* 73
CR208 C-1* 59
CR300 C-6 61
CR301 B-5 75
CR302 A-5 69
CR400 A-5* 75
CR500 C-8 57
CR501 C-10 245
CR502 C-12 69
CR503 C-12 69
CR504 C-10 241
CR505 B-10 241
CR600 C-11* 243
FL500 C-7 253
J10 B-1 77
J9 B-1 77
L100 C-2 331
L101 C-2 247
L102 C-4 25
L103 C-3 29
L104 C-3 25
L105 C-1 251
L106 C-1 249
L107 C-3 31
L108 C-3 25
L109 C-2 247
L110 B-4 25
L111 B-2 39
L112 B-2 39
L113 B-1 259
L114 B-4 33
L115 B-4 31
L116 A-2 331
L117 A-3 29
L118 A-3 33
L119 A-1 251
L120 A-2 247
L121 A-4 33
L122 A-1 249
L123 A-3 31
L124 A-2 247
L200 A-2* 249
L201 C-1* 259
L202 C-2* 249
L300 C-5 27
L301 C-6 41
L302 C-6 35
L303 C-6 23
L304 B-5 23
L305 B-6 33
L306 B-5 37
L307 B-5 39
L308 B-6 27
L309 B-5 37
L310 B-6 29
L311 A-6 259
L312 A-6 39
L313 A-6 39
L314 A-5 323
L400 A-6* 259
L401 A-6* 259
L402 B-6* 259
L403 C-5* 259
L500 B-10 263
L501 B-11 261
L502 B-10 263
L503 B-8 265
L504 B-9 261
Q100 C-2 237
Q101 C-1 55
Q102 C-1 55
34-50-96 Page 10328
Apr 17/07
![](/img.php?id=1856825&img=bg75.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 19. IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
Q103 A-2 237
Q104 A-1 55
Q105 A-1 55
Q200 A-3* 239
Q201 B-4* 51
Q202 B-2* 51
Q203 B-2* 53
Q204 B-3* 239
Q205 B-2* 51
Q206 B-4* 51
Q207 C-4* 51
Q300 A-5 53
Q400 B-5* 51
Q500 C-9 235
Q501 C-12 233
Q502 B-12 53
Q600 A-7* 51
R100 C-2 93
R101 C-3 83
R102 C-3 83
R103 C-3 107
R104 C-4 179
R105 C-1 141
R106 C-3 107
R107 C-4 107
R108 C-4 121
R109 C-1 131
R110 C-1 121
R111 C-1 193
R112 C-4 205
R113 C-4 107
R114 C-3 169
R115 C-3 179
R116 C-3 121
R117 C-4 125
R118 B-1 175
R119 B-3 87
R120 B-4 93
R121 B-4 149
R122 B-2 195
R123 C-4 197
R124 B-3 197
R125 B-2 129
R126 B-4 149
R127 B-3 199
R128 B-4 87
R129 B-2 93
R130 A-3 83
R131 B-4 197
R132 A-1 141
R133 B-3 197
R134 A-3 107
R135 A-3 107
R137 A-4 199
R138 A-1 131
R139 A-1 121
R140 A-1 193
R141 A-3 179
R142 A-3 169
R143 A-3 121
R144 A-4 169
R147 A-4 199
R149 A-4 107
R150 B-3* 199
R151 B-4 93
R201 A-3* 121
R202 A-3* 205
R203 A-2* 321
R204 A-2* 183
R205 A-4* 121
R206 A-3* 169
R207 A-3* 121
R208 A-3* 169
R209 A-3* 169
R210 A-3* 169
R211 A-4* 179
R212 A-4* 121
R213 A-4* 179
R214 A-2* 169
R215 A-2* 121
R216 A-3* 179
R217 A-3* 179
R218 A-2* 203
R219 A-1* 131
R220 A-1* 177
R221 A-4* 153
R222 A-3* 107
R223 A-3* 85
R224 A-3* 179
R225 A-2* 121
R226 A-2* 179
R227 A-4* 125
R228 A-4* 107
R229 A-4* 125
R230 A-3* 107
R231 A-3* 175
R232 A-3* 107
R233 A-2* 105
R234 A-1* 141
R235 A-1* 93
R236 A-1* 109
R237 B-4* 125
R238 B-4* 83
R240 B-2* 93
R241 B-2* 125
R242 B-2* 85
R243 B-2* 109
R244 B-4* 101
R245 B-3* 85
R246 B-2* 87
R247 B-2* 85
R248 B-1* 175
R249 B-1* 125
R250 B-4* 93
R251 B-4* 125
R252 B-4* 175
R253 C-4* 97
R254 C-4* 85
R255 C-4* 153
R256 C-3* 169
R257 C-3* 121
R258 C-3* 121
R259 C-3* 179
R260 C-3* 169
R261 C-3* 179
R262 C-2* 321
R263 C-3* 169
R264 C-2* 169
R265 C-2* 183
R266 C-1* 93
R267 C-1* 109
R268 C-3* 179
R270 C-1* 141
R271 C-1* 177
R272 C-4* 125
R273 C-3* 121
R274 C-3* 121
R275 C-2* 179
R276 C-2* 203
R277 C-2* 105
R278 C-2* 83
R279 C-4* 179
R280 C-4* 169
R281 C-3* 121
R282 C-4* 169
R283 C-3* 107
R284 C-3* 107
R285 C-3* 107
34-50-96 Page 10329
Apr 17/07
![](/img.php?id=1856825&img=bg76.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 19. IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
R286 C-1* 131
R289 A-4* 167
R290 A-4* 167
R291 A-2 83
R292 C-4* 167
R293 C-3* 167
R300 C-5 183
R301 C-5 83
R302 C-5 85
R303 C-5 119
R304 C-5 187
R305 C-5 195
R306 B-5 151
R307 B-5 151
R308 A-5 115
R309 A-5 171
R310 A-5 115
R311 A-5 89
R312 A-5 101
R313 A-6 101
R314 A-5 171
R315 A-5 111
R400 A-6* 141
R401 A-6* 101
R402 A-6* 101
R403 A-6* 141
R404 A-5* 115
R405 A-6* 83
R406 A-5* 115
R407 A-5* 141
R408 A-5* 129
R409 B-6* 157
R410 B-6* 145
R411 B-5* 187
R412 B-5* 151
R413 B-5* 151
R414 B-6* 145
R415 B-5* 145
R416 B-6* 109
R417 B-6* 109
R421 B-6* 109
R422 B-6* 109
R423 B-5* 113
R424 C-6* 185
R425 B-5* 101
R426 B-5* 101
R427 C-6* 125
R428 C-6* 125
R429 C-5* 83
R430 C-6* 339
R431 C-6* 199
R432 D-6* 189
R433 C-5* 199
R500 C-9 173
R502 C-11 167
R503 C-11 85
R504 B-12 85
R505 B-12 161
R506 B-12 137
R507 C-11 191
R508 B-12 147
R509 B-12 133
R510 B-11 83
R511 B-12 93
R512 B-12 159
R513 B-12 87
R514 B-12 157
R515 B-12 135
R516 A-12 145
R517 A-12 85
R518 A-11 155
R519 A-12 155
R527 A-7 109
R600 A-11* 95
R601 A-10* 119
R602 A-7* 97
R603 A-10* 95
R604 A-10* 117
R605 A-7* 159
R606 A-7* 137
R607 A-11* 125
R608 A-10* 127
R609 A-11* 167
R610 A-7* 123
R611 A-7* 103
R612 B-11* 165
R613 B-8* 137
R614 B-7* 99
R615 B-12* 91
R616 C-11* 199
R617 C-11* 143
R618 C-11* 85
R619 C-10* 85
R620 C-11* 163
R621 C-11* 155
R622 C-11* 199
R623 C-11* 139
R624 C-8* 201
R625 C-9* 83
R626 C-9* 85
T500 C-9 267
U100 C-4 229
U101 C-3 229
U102 C-3 229
U103 B-1 255
U104 B-3 257
U105 A-3 229
U106 A-3 229
U107 A-4 229
U200 B-3* 229
U300 C-5 223
U301 C-6 231
U302 B-5 43
U303 B-6 43
U304 A-5 221
U400 A-6* 219
U500 C-11 225
U501 B-12 45
U502 A-12 45
U503 A-11 47
U600 A-11* 217
U601 B-7* 227
U602 B-11* 49
VR500 C-12 65
VR502 C-12 181
VR600 A-10* 63
VR601 B-8* 67
34-50-96 Page 10330
Apr 17/07
![](/img.php?id=1856825&img=bg77.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
Figure 19 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-169-A01
34-50-96 Page 10331/10332
Apr 17/07
![](/img.php?id=1856825&img=bg79.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
Figure 19 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-169-A01
34-50-96 Page 10333/10334
Apr 17/07
![](/img.php?id=1856825&img=bg7b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
Figure 19 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-169-A01
34-50-96 Page 10335/10336
Apr 17/07
![](/img.php?id=1856825&img=bg7d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
IF Receiver, DPSK Detector, and LVPS Circuit Card A7 (CPN 687-0727-004)
Figure 19 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-169-A01
34-50-96 Page 10337/10338
Apr 17/07
![](/img.php?id=1856825&img=bg7f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
- 1 687-0727-004 1 CIRCUIT CARD, IF RECEIVER, DPSK RF
DETECTOR, LVPS
(SEE FIG 3-25 FOR NHA)
A7
3 280-2745-010 2 LABEL, ESDS WARNING 1
(V12998) 280-2745-010
- 3A M39018-01-1161M 2 LABEL, ESDS WARNING 1
(V81349) 280-2745-040
(EFF REV D)
5 280-3778-050 2 LABEL, INFORMATION 1
(V0BU16) 280-3778-050
7 601D138G7R5FJ3A 2 CAPACITOR, FIXED, 1300UF, 7.5V 1
(V0P569) 183-1465-560
A7C524
9 834-0516-010 2 CAPACITOR, FIXED, 100UF, 20V 5
(V7M138) 834-0516-010
PN IS REF NO FOR 678D107M020CG5DD443
A7C503 A7C504 A7C508 A7C514 A7C515
11 834-0516-020 2 CAPACITOR, FIXED, 150UF, 15V 5
(V7M138) 834-0516-020
PN IS REF NO FOR 678D157M015CG5DD450
A7C501 A7C502 A7C511 A7C516 A7C518
13 195D105X0010S2 2 CAPACITOR, FIXED, 1UF, 10V 4
(V56289) 184-2551-080
A7C134 A7C241 A7C601 A7C610
15 195D475X0010S2 2 CAPACITOR, FIXED TNTLM 4.7UF, 20%, 10V 2
(V56289) 184-2551-100
A7C222 A7C408
17 195D155X0025S2 2 CAPACITOR, FIXED TNTLM 1.5UF, 20%, 25V 5
(V56289) 184-2551-170
A7C159 A7C210 A7C236 A7C253 A7C256
19 195D475X0025X2 2 CAPACITOR, FIXED TNTLM 4.7UF, 20%, 25V 1
(V56289) 184-2551-190
A7C602
21 195D106X0025Y2 2 CAPACITOR, FIXED TNTLM 10UF, 20%, 25V 1
(V56289) 184-2551-210
A7C505
23 2510-00J 2 COIL, .1UH 2
(V99800) 240-0116-010
A7L303 A7L304
25 2510-26J 2 COIL, 1.2UH 4
(V99800) 240-0116-140
A7L102 A7L104 A7L108 A7L110
27 2510-18J 2 COIL, .56UH 2
(V99800) 240-0116-100
A7L300 A7L308
29 2510-20J 2 COIL, .68UH 3
(V99800) 240-0116-110
A7L103 A7L117 A7L310
31 2510-22K 2 COIL, .82UH 3
(V99800) 240-0116-120
A7L107 A7L115 A7L123
33 2510-24J 2 COIL, 1UH 4
(V99800) 240-0116-130
A7L114 A7L118 A7L121 A7L305
35 2510-32J 2 COIL, 2.2UH 1
(V99800) 240-0116-170
A7L302
37 2510-34J 2 COIL, 2.7UH 2
(V99800) 240-0116-180
A7L306 A7L309
39 2510-38J 2 COIL, 3.9UH 5
(V99800) 240-0116-200
A7L111 A7L112 A7L307 A7L312 A7L313
41 MS75087-5 2 COIL, .22UH 1
(V96906) 240-2715-050
A7L301
43 1596BIAJC 2 MICROCIRCUIT (ESDS) 2
(V04713) 351-0043-010
34-50-96 Page 10339
Apr 17/07
![](/img.php?id=1856825&img=bg80.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
TRUE PN IS 1596/BIAJC
A7U302 A7U303
45 LM2901D 2 MICROCIRCUIT (ESDS) 2
(V01295) 351-0656-010
A7U501 A7U502
47 AD580TH 2 MICROCIRCUIT (ESDS) 1
(V24355) 351-1301-020
A7U503
49 CD74HC14M 2 MICROCIRCUIT (ESDS) 1
(V81349) 351-3705-020
A7U602
51 PMBT2222A 2 TRANSISTOR (ESDS) 7
(V18324) 352-9113-010
A7Q201 A7Q202 A7Q205 A7Q206 A7Q207
A7Q400 A7Q600
53 PMBT2907TR 2 TRANSISTOR 3
(V18324) 352-9114-010
TRUE PN IS PMBT2907T/R
A7Q203 A7Q300 A7Q502
55 BFS17 2 TRANSISTOR 4
(V25403) 352-9120-010
A7Q101 A7Q102 A7Q104 A7Q105
57 USD845 2 DIODE 1
(V50101) 353-6619-010
A7CR500
59 MMBV3401 2 DIODE 8
(V1MQ07) 353-8130-010
A7CR100 A7CR102 A7CR103 A7CR200
A7CR201 A7CR204 A7CR206 A7CR208
61 MMBV105G 2 DIODE 1
(V1MQ07) 353-8132-010
A7CR300
63 MMBZ5231BLT1 2 DIODE 1
(V1MQ07) 353-8133-060
A7VR600
65 MMBZ5237BLT1 2 DIODE (ESDS) 1
(V1MQ07) 353-8133-120
A7VR500
67 MMBZ5257BLT1 2 DIODE 1
(V1MQ07) 353-8133-320
A7VR601
69 MMBD6050 2 DIODE 3
(V1MQ07) 353-8135-010
A7CR302 A7CR502 A7CR503
71 MMBD6100LT1 2 DIODE 2
(V1MQ07) 353-8135-020
A7CR203 A7CR205
73 M5C 2 DIODE 5
(V81349) 353-8135-030
A7CR101 A7CR104 A7CR105 A7CR202
A7CR207
75 BAS70-04 2 DIODE 2
(V12954) 353-8136-010
A7CR301 A7CR400
77 M39012-95-0001 2 CONNECTOR, RCPT, ELEC 2
(V81349) 357-7405-010
A7J9 A7J10
79 NA1104-033 2 CONTACT, ELECTRICAL 1
(V57863) 372-2601-033
81 NA1104-045 2 CONTACT, ELECTRICAL 37
(V57863) 372-2601-045
83 705-3522-010 2 RESISTOR, FIXED FILM, 10.0 OHMS, 1%, 11
100MW (ESDS)
(V81349) 705-3522-010
PN IS REF NO FOR M55342-6K4752FRR
A7R101 A7R102 A7R130 A7R238 A7R278
A7R291 A7R301 A7R405 A7R429 A7R510
A7R625
34-50-96 Page 10340
Apr 17/07
![](/img.php?id=1856825&img=bg81.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
85 CRCW12061002F 2 RESISTOR, FIXED 10K, 1%, 0.4W 12
(V56845) 705-3535-020
A7R223 A7R242 A7R245 A7R247 A7R254
A7R302 A7R503 A7R504 A7R517 A7R618
A7R619 A7R626
87 CRCW12062002F 2 RESISTOR, FIXED 20000 OHM,1%,0.25W 4
(V56845) 705-3535-030
A7R119 A7R128 A7R246 A7R513
89 CRCW12061003F 2 RESISTOR, FIXED FILM, 100K, 1%, 125MW 1
(V56845) 705-3535-060
A7R311
91 CRCW12061503F 2 RESISTOR, FIXED 150K, 1%, 125MW 1
(V56845) 705-3535-090
A7R615
93 CRCW12061001F 2 RESISTOR, FIXED FILM, 1K, 1%, 0.4W 9
(V56845) 705-3535-200
A7R100 A7R120 A7R129 A7R151 A7R235
A7R240 A7R250 A7R266 A7R511
95 CRCW12061212F 2 RESISTOR, FIXED FILM, 12.1K, 1%, 125MW 2
(V56845) 705-3535-270
A7R600 A7R603
97 CRCW12063321F 2 RESISTOR, FIXED FILM, 3.32K, 1%, 125MW 2
(V56845) 705-3535-300
A7R253 A7R602
99 CRCW12067502F 2 RESISTOR, FIXED FILM, 75K, 1%, 125MW 1
(V56845) 705-3535-340
A7R614
101 CRCW12063320F 2 RESISTOR, FIXED FILM, 332 OHMS, 1%, 7
125MW
(V56845) 705-3535-590
A7R244 A7R312 A7R313 A7R401 A7R402
A7R425 A7R426
103 CRCW12063570F 2 RESISTOR, FIXED FILM 357 OHMS, 1%, 1
125MW
(V56845) 705-3535-620
A7R611
105 CRCW12063920F 2 RESISTOR, FIXED FILM 392 OHMS, 1%, 2
125MW
(V56845) 705-3535-660
A7R233 A7R277
107 CRCW12064320F 2 RESISTOR, FIXED FILM, 432 OHMS, 1%, 14
0.4W
(V56845) 705-3535-690
A7R103 A7R106 A7R107 A7R113 A7R134
A7R135 A7R149 A7R222 A7R228 A7R230
A7R232 A7R283 A7R284 A7R285
109 CRCW12064750F 2 RESISTOR, FIXED FILM, 475 OHMS, 1%, 8
125MW
(V56845) 705-3535-730
A7R236 A7R243 A7R267 A7R416 A7R417
A7R421 A7R422 A7R527
111 CRCW12065620F 2 RESISTOR, FIXED 562 OHMS, 1%, 125MW 1
(V56845) 705-3535-800
A7R315
113 CRCW12066190F 2 RESISTOR, FIXED FILM, 619 OHMS, 1%, 1
125MW
(V56845) 705-3535-840
A7R423
115 CRCW12068250F 2 RESISTOR, FIXED FILM, 825 OHMS, 1%, 4
125MW
(V56845) 705-3535-950
A7R308 A7R310 A7R404 A7R406
117 RK73H2BL1211F 2 RESISTOR, FIXED FILM, 1.21K, 1%, 1
0.025W
(V59124) 705-3537-080
A7R604
119 RK73H2BL1621F 2 RESISTOR, FIXED FILM, 1.62K, 1%, 125MW 2
(V59124) 705-3537-200
A7R303 A7R601
34-50-96 Page 10341
Apr 17/07
![](/img.php?id=1856825&img=bg82.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
121 RK73H2BL1821F 2 RESISTOR, FIXED FILM, 1.82K, 1%, 125MW 16
(V59124) 705-3537-250
A7R108 A7R110 A7R116 A7R139 A7R143
A7R201 A7R205 A7R207 A7R212 A7R215
A7R225 A7R257 A7R258 A7R273 A7R274
A7R281
123 RK73H2BL2001F 2 RESISTOR, FIXED FILM, 2K, 1%, 0.4W 1
(V59124) 705-3537-290
A7R610
125 RK73H2BL2211F 2 RESISTOR, FIXED FILM, 2.21K, 1%, 125MW 11
(V59124) 705-3537-330
A7R117 A7R227 A7R229 A7R237 A7R241
A7R249 A7R251 A7R272 A7R427 A7R428
A7R607
127 RK73H2BL2431F 2 RESISTOR, FIXED FILM, 2.43K, 1%, 125MW 1
(V59124) 705-3537-370
A7R608
129 RK73H2BL3571F 2 RESISTOR, FIXED FILM, 3.57K, 1%, 125MW 2
(V59124) 705-3537-490
A7R125 A7R408
131 RK73H2BL3921F 2 RESISTOR, FIXED FILM, 3.92K, 1%, 125MW 4
(V59124) 705-3537-530
A7R109 A7R138 A7R219 A7R286
133 RK73H2BL4321F 2 RESISTOR, FIXED FILM, 4.32K, 1%, 125MW 1
(V59124) 705-3537-560
A7R509
135 RK73H2BL4751F 2 RESISTOR, FIXED FILM, 4.75K, 1%, 0.4W 1
(V59124) 705-3537-600
A7R515
137 RK73H2BL5111F 2 RESISTOR, FIXED FILM, 5.11K, 1%, 125MW 3
(V59124) 705-3537-620
A7R506 A7R606 A7R613
139 RK73H2BL5361F 2 RESISTOR, FIXED FILM 5.36K, 1%, 125MW 1
(V59124) 705-3537-640
A7R623
141 RK73H2BL8251F 2 RESISTOR, FIXED FILM, 8.25K, 1%, 125MW 7
(V59124) 705-3537-780
A7R105 A7R132 A7R234 A7R270 A7R400
A7R403 A7R407
143 RK73H2BL9091F 2 RESISTOR, FIXED FILM, 9.09K, 1%, 125MW 1
(V59124) 705-3537-810
A7R617
145 RK73H2BL1102F 2 RESISTOR, FIXED FILM, 11K, 1%, 125MW 4
(V59124) 705-3537-880
A7R410 A7R414 A7R415 A7R516
147 RK73H2BL1302F 2 RESISTOR, FIXED FILM, 13K, 1%, 125MW 1
(V59124) 705-3537-940
A7R508
149 RK73H2BL1502F 2 RESISTOR, FIXED FILM, 15K, 1%, 125MW 2
(V59124) 705-3537-990
A7R121 A7R126
151 RK73H2BL1822F 2 RESISTOR, FIXED FILM, 18.2K, 1%, 125MW 4
(V59124) 705-3538-080
A7R306 A7R307 A7R412 A7R413
153 RK73H2BL3322F 2 RESISTOR, FIXED 33.2K, 1%, 125MW 2
(V59124) 705-3538-310
A7R221 A7R255
155 RK73H2BL3922F 2 RESISTOR, FIXED 39.2K, 1%, 125MW 3
(V59124) 705-3538-370
A7R518 A7R519 A7R621
157 RK73H2BL4322F 2 RESISTOR, FIXED FILM, 43.2K, 1%, 125MW 2
(V59124) 705-3538-410
A7R409 A7R514
159 RK73H2BL5112F 2 RESISTOR, FIXED FILM, 51.1K, 1%, 125MW 2
(V59124) 705-3538-470
A7R512 A7R605
161 RK73H2BL5622F 2 RESISTOR, FIXED FILM 56.2K, 1%, 125MW 1
(V59124) 705-3538-510
A7R505
34-50-96 Page 10342
Apr 17/07
![](/img.php?id=1856825&img=bg83.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
163 RK73H2BL1213F 2 RESISTOR, FIXED FILM, 121K, 1%, 125MW 1
(V59124) 705-3538-800
A7R620
165 RK73H2BL2213F 2 RESISTOR, FIXED FILM 221K, 1%, 125MW 1
(V59124) 705-3539-020
A7R612
167 RK73H2BL22R1F 2 RESISTOR, FIXED 22.1 OHM,1%,0.25W 6
(V59124) 705-3539-470
A7R289 A7R290 A7R292 A7R293 A7R502
A7R609
169 RK73H2BL30R1F 2 RESISTOR, FIXED FILM, 30.1 OHMS, 1%, 14
125MW
(V59124) 705-3539-600
A7R114 A7R142 A7R144 A7R206 A7R208
A7R209 A7R210 A7R214 A7R256 A7R260
A7R263 A7R264 A7R280 A7R282
171 CRCW120633R2FB 2 RESISTOR, FIXED FILM, 33.2 OHMS, 1%, 2
125MW
(V56845) 705-3539-640
A7R309 A7R314
173 RK73H2BL39R2F 2 RESISTOR, FIXED FILM, 39.2 OHMS, 1%, 1
0.25W
(V59124) 705-3539-710
A7R500
175 RK73H2BL51R1F 2 RESISTOR, FIXED FILM, 51.1 OHMS, 1%, 4
0.4W
(V59124) 705-3539-820
A7R118 A7R231 A7R248 A7R252
177 CRCW120656R2FB 2 RESISTOR, FIXED FILM 56.2 OHMS, 1%, 2
125MW
(V56845) 705-3539-860
A7R220 A7R271
179 RK73H2BL61R9F 2 RESISTOR, FIXED 61.9 OHM, 1%, 0.025W 14
(V59124) 705-3539-900
A7R104 A7R115 A7R141 A7R211 A7R213
A7R216 A7R217 A7R224 A7R226 A7R259
A7R261 A7R268 A7R275 A7R279
181 CMPZ5245B 2 DIODE (ESDS) 1
(V55464) 353-8133-200
A7VR502
183 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHMS, 1%, 3
0.4W
(V59124) 705-3540-100
A7R204 A7R265 A7R300
185 RK73H2BL1210F 2 RESISTOR, FIXED FILM, 121 OHMS, 1%, 1
125MW
(V59124) 705-3540-180
A7R424
187 RK73H2BL1820F 2 RESISTOR, FIXED FILM, 182 OHMS, 1%, 2
125MW
(V59124) 705-3540-350
A7R304 A7R411
189 RLR05C3572FS 2 RESISTOR, FIXED 35700 OHM, 1%, 0.125W 1
(V81349) 833-6049-180
A7R432
191 3269W1-202 2 RESISTOR, VARIABLE, 2K OHM, .25W, 10% 1
(V80294) 833-1004-050
TRUE PN IS 3269W-1-202
A7R507
193 3314G1-101E 2 RESISTOR, VARIABLE, 100 OHM, .25W, 20% 2
(V32997) 833-1005-010
TRUE PN IS 3314G-1-101E
A7R111 A7R140
195 833-1005-040 2 RESISTOR, VARIABLE 1K, 1/4W 2
(V22929) 833-1005-040
PN IS REF NO FOR
TS53YL 1K{OHMS} {+/-}20%
A7R122 A7R305
34-50-96 Page 10343
Apr 17/07
![](/img.php?id=1856825&img=bg84.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
197 833-1005-070 2 RESISTOR, VARIABLE 10K, 1/4W 4
(V22929) 833-1005-070
PN IS REF NO FOR
TS53YL 10K{OHMS} {+/-}20%
A7R123 A7R124 A7R131 A7R133
199 RM73Z2B 2 RESISTOR, CHIP FILM, 0.05 OHM, 0.25W 8
(ESDS)
(V80205) 705-3543-020
A7R127 A7R137 A7R147 A7R150 A7R431
A7R433 A7R616 A7R622
201 RK73B3AL10R0F 2 RESISTOR, FIXED, 10 OHM, 1W, 5% 1
(V59124) 833-6009-020
A7R624
203 833-6524-210 2 RESISTOR, FIXED, 825 OHM, .6W, 1% 2
(V91637) 833-6524-210
PN IS REF NO FOR RCWP7225825RFKBB
A7R218 A7R276
205 833-6524-730 2 RESISTOR, FIXED, 392 OHM, .6W, 1% 2
(V91637) 833-6524-730
PN IS REF NO FOR RCWP7225392RFKBB
A7R112 A7R202
207 834-0516-030 2 CAPACITOR, FIXED, 22UF, 60V 11
(V7M138) 834-0516-030
PN IS REF NO FOR 678D226M060CG5DD444
A7C506 A7C510 A7C512 A7C513 A7C517
A7C521 A7C522 A7C523 A7C525 A7C526
A7C527
209 834-5000-020 2 CAPACITOR, FIXED CER DIEL, .10UF, 1
10%, 100V
(V04222) 834-5000-020
PN IS REF NO FOR 12101C104KAT060L
A7C604
211 834-5009-340 2 CAPACITOR, FIXED, 4PF, 50V 1
(V18796) 834-5009-340
PN IS REF NO FOR GRM42-6T2H4R0D050BB
A7C303
213 08052C472KAT9A 2 CAPACITOR, CER 4700PF, 10%, 200V 1
(V04222) 834-5031-020
A7C507
215 9621-3SL 2 CAPACITOR, FIXED, 1PF, 250V 6
(V91293) 834-7000-020
A7C105 A7C106 A7C120 A7C131 A7C132
A7C150
217 MC33072D 2 MICROCIRCUIT 1
(V1MQ07) 835-0032-020
A7U600
219 LT1016 2 MICROCIRCUIT 1
(V64155) 835-0048-010
A7U400
221 UPC1663G 2 MICROCIRCUIT 1
(V62104) 835-0055-010
A7U304
223 SL1451 2 MICROCIRCUIT 1
(V52648) 835-0119-010
A7U300
225 UC1825J 2 MICROCIRCUIT 1
(V01295) 351-0715-010
A7U500
227 LM317 2 MICROCIRCUIT 1
(V1MQ07) 835-1271-010
A7U601
229 CA3127M 2 MICROCIRCUIT 7
(V34371) 835-1461-010
A7U100 A7U101 A7U102 A7U105 A7U106
A7U107 A7U200
231 MC10135FN 2 MICROCIRCUIT 1
(V1MQ07) 835-1573-010
A7U301
34-50-96 Page 10344
Apr 17/07
![](/img.php?id=1856825&img=bg85.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
233 MJD112 2 TRANSISTOR (ESDS) 1
(V1MQ07) 843-0012-020
A7Q501
235 IRC640 2 TRANSISTOR 1
(V81483) 843-0020-020
A7Q500
237 MMBFU310 2 TRANSISTOR (ESDS) 2
(V1MQ07) 843-0021-010
A7Q100 A7Q103
239 MMBF4416 2 TRANSISTOR (ESDS) 2
(V1MQ07) 843-9117-010
A7Q200 A7Q204
241 MURD320T4 2 DIODE 2
(V1MQ07) 844-0004-020
A7CR504 A7CR505
243 MBRS120T3 2 DIODE (ESDS) 1
(V1MQ07) 844-0005-020
A7CR600
245 50SQ080 2 DIODE 1
(V59993) 844-0010-010
A7CR501
247 4132 2 COIL, .62UH 4
(V99800) 849-0017-020
A7L101 A7L109 A7L120 A7L124
249 30020NT 2 COIL, .47UH 4
(V03550) 849-0020-210
A7L106 A7L122 A7L200 A7L202
251 30023NT 2 COIL, 0.82UH 2
(V03550) 849-0020-240
A7L105 A7L119
253 BNX002-01 2 CAPACITOR, FIXED, .2UF, 50V 1
(V12294) 849-0511-010
A7FL500
255 SMDK1 2 MICROCIRCUIT 1
(V63155) 850-0001-010
TRUE PN IS SMD-K1
A7U103
257 014E60000XHDDXX 2 MICROCIRCUIT 1
(V0S4G1) 850-1017-010
A7U104
259 HF50ACB321611B 2 COIL, RF 7
(V7J069) 852-3001-010
TRUE PN IS HF50ACB321611-B
A7L113 A7L201 A7L311 A7L400 A7L401
A7L402 A7L403
261 852-3005-020 2 COIL, 90UH 2
(V01086) 852-3005-020
A7L501 A7L504
263 852-3005-030 2 COIL, 43UH 2
(V01086) 852-3005-030
A7L500 A7L502
265 852-3005-050 2 COIL, 108UH 1
(V00204) 852-3005-050
A7L503
267 VE49718 2 TRANSFORMER, POWER 1
(V03550) 852-6016-010
A7T500
269 913-3279-310 2 CAPACITOR, FIXED, 3.3UF, 50V 1
(V18796) 913-3279-310
PN IS REF NO FOR RPEE41H335M6CEF16B
A7C509
271 08055A100JATBA 2 CAPACITOR, FIXED CER DIEL, 10PF, 5%, 3
50V
(V04222) 913-3667-030
A7C126 A7C227 A7C419
273 08055A150JATBA 2 CAPACITOR, FIXED CER DIEL, 15PF, 5%, 1
50V
(V04222) 913-3667-050
A7C428
34-50-96 Page 10345
Apr 17/07
![](/img.php?id=1856825&img=bg86.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
275 08055A220JATBA 2 CAPACITOR, FIXED CER DIEL, 22PF, 5%, 1
50V
(V04222) 913-3667-070
A7C427
277 08055A270JATBA 2 CAPACITOR, FIXED CER DIEL 27PF, 5%, 4
50V
(V04222) 913-3667-080
A7C213 A7C234 A7C319 A7C423
279 08055A330JATBA 2 CAPACITOR, FIXED CER DIEL, 33PF, 5%, 8
50V
(V04222) 913-3667-090
A7C203 A7C244 A7C311 A7C312 A7C316
A7C317 A7C404 A7C405
281 08055A470JATBA 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 6
50V
(V04222) 913-3667-110
A7C307 A7C308 A7C320 A7C322 A7C414
A7C415
283 08055A101JATBA 2 CAPACITOR, FIXED CER DIEL, 100PF, 5%, 9
50V
(V04222) 913-3667-150
A7C115 A7C130 A7C135 A7C233 A7C302
A7C304 A7C421 A7C426 A7C429
285 08055A151JATBA 2 CAPACITOR, FIXED CER DIEL, 150PF, 5%, 1
50V
(V04222) 913-3667-170
A7C400
287 18085A681JATBA 2 CAPACITOR, FIXED CER DIEL, 680PF, 5%, 1
(V04222) 913-3667-250
A7C606
289 18085A102JATBA 2 CAPACITOR, FIXED CER DIEL, 1000PF, 5%, 7
(V04222) 913-3667-270
A7C127 A7C128 A7C218 A7C224 A7C225
A7C228 A7C611
291 22255A223JATBA 2 CAPACITOR, FIXED, .022UF, 50V 1
(V04222) 913-3667-350
A7C609
293 18055A152JATBA 2 CAPACITOR, FIXED CER DIEL 1500PF, 5%, 2
50V
(V04222) 913-3667-370
A7C420 A7C424
295 08055A221JATBA 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 2
50V
(V04222) 913-3667-470
A7C418 A7C422
297 08055A331JATBA 2 CAPACITOR, FIXED CER DIEL, 330PF, 5%, 27
50V
(V04222) 913-3667-200
A7C107 A7C112 A7C113 A7C114 A7C121
A7C125 A7C140 A7C141 A7C142 A7C143
A7C151 A7C152 A7C155 A7C201 A7C206
A7C207 A7C212 A7C232 A7C235 A7C238
A7C240 A7C248 A7C249 A7C300 A7C407
A7C410 A7C500
299 08055C102KATBA 2 CAPACITOR, FIXED CER 1,000PF, 10%, 50V 13
(V04222) 913-3670-120
A7C124 A7C153 A7C157 A7C216 A7C221
A7C243 A7C261 A7C305 A7C309 A7C313
A7C409 A7C425 A7C529
34-50-96 Page 10346
Apr 17/07
![](/img.php?id=1856825&img=bg87.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
301 12065C103KAT2A 2 CAPACITOR, FIXED 10,000PF, 10%, 50V 43
(V04222) 834-5005-250
A7C102 A7C103 A7C108 A7C109 A7C118
A7C136 A7C137 A7C160 A7C200 A7C204
A7C205 A7C211 A7C215 A7C217 A7C223
A7C226 A7C229 A7C230 A7C231 A7C239
A7C247 A7C250 A7C255 A7C257 A7C259
A7C260 A7C262 A7C310 A7C314 A7C315
A7C318 A7C321 A7C401 A7C402 A7C403
A7C406 A7C411 A7C412 A7C413 A7C416
A7C417 A7C520 A7C603
303 18125C224KAT2A 2 CAPACITOR, FIXED CER, 0.22UF 10%, 50V 3
(V04222) 834-5005-770
A7C528 A7C605 A7C607
305 C1206C104K5RAC 2 CAPACITOR, FIXED CER, 0.1UF, 10%, 50V 2
(V31433) 834-5005-370
A7C202 A7C237
307 08055C103KAT2A 2 CAPACITOR, FIXED, .01UF, 50V 12
(V04222) 913-3676-070
A7C111 A7C122 A7C139 A7C147 A7C208
A7C209 A7C214 A7C219 A7C245 A7C246
A7C252 A7C254
309 C1825C684K5RAC 2 CAPACITOR, FIXED CER, 680,000PF, 10%, 1
50V
(V31433) 834-5005-970
A7C519
311 AQ12EM1R5BAJBE 2 CAPACITOR, FIXED CER DIEL 1.5PF, PORM 4
0.1PF, 50V
(V04222) 914-3500-020
A7C110 A7C116 A7C138 A7C144
313 AQ12EM3R9BAJBE 2 CAPACITOR, FIXED CER DIEL 3.9PF, PORM 4
0.1PF, 50V
(V04222) 914-3500-060
A7C100 A7C123 A7C133 A7C154
315 AQ12EM5R6BAJBE 2 CAPACITOR, FIXED CER DIEL 5.6PF, PORM 2
0.1PF, 50V
(V04222) 914-3500-090
A7C104 A7C148
317 9622-3SL 2 CAPACITOR, VARIABLE, 10PF, 250V 4
(V91293) 917-0501-140
A7C119 A7C149 A7C301 A7C352
319 2807S0R610 2 CAPACITOR, FIXED, 10PF, 100V 1
(V26769) 834-9005-020
TRUE PN IS 2807SOR610
A7C306
321 RK73H2BL82R5F 2 RESISTOR, FIXED FILM, 82.5 OHMS, 1%, 2
125MW
(V59124) 705-3540-020
A7R203 A7R262
323 2510-16J 2 COIL, .47UH 1
(V99800) 240-0116-090
A7L314
325 12065C102MAT9A 2 CAPACITOR, FIXED, .001UF, 50V 2
(V04222) 834-5005-140
A7C220 A7C242
327 12105C334KAT2A 2 CAPACITOR, FIXED, .33UF, 50V 1
(V04222) 913-3676-150
A7C600
329 AQ12EM1R2BAJBE 2 CAPACITOR, FIXED, 1.2PF, 50V 2
(V04222) 914-3500-410
A7C117 A7C145
331 653-0604-001 2 COIL, TEST SELECT 2
A7L100 A7L116
- 333 30020NT 3 COIL, .47UH AR
(V03550) 849-0020-210
- 335 30019NT 3 COIL, RF, .390UH, PM10% AR
(V03550) 849-0020-200
- 337 30018NT 3 COIL, .33UH AR
(V03550) 849-0020-190
34-50-96 Page 10347
Apr 17/07
![](/img.php?id=1856825&img=bg88.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
19
339 CRCW12063570F 2 RESISTOR, FIXED FILM 357 OHMS, 1%, 1
125MW
(V56845) 705-3535-620
(EFF THRU REV B)
A7R430
- 339A 653-0608-001 2 RESISTOR, TEST SELECT 1
(EFF REV C)
- 341 CRCW12063920F 3 RESISTOR, FIXED FILM 392 OHMS, 1%, AR
125MW
(V56845) 705-3535-660
- 343 CRCW12063740F 3 RESISTOR, FIXED, 374 OHM, .25W, 1% AR
(V56845) 705-3535-640
- 345 CRCW12063570F 3 RESISTOR, FIXED FILM 357 OHMS, 1%, AR
125MW
(V56845) 705-3535-620
- 347 CRCW12063400F 3 RESISTOR, FIXED FILM, 340 OHMS, 1%, AR
125MW
(V56845) 705-3535-600
- 349 CRCW12063240F 3 RESISTOR, FIXED, 324 OHM, .25W, 1% AR
(V56845) 705-3535-580
34-50-96 Page 10348
Apr 17/07
![](/img.php?id=1856825&img=bg89.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 20. Video Processor Circuit Card A6 (CPN 687-0726-007)
C1 C-1* 470
C10 B-1* 470
C100 B-7 330
C101 B-1 345
C102 A-7* 470
C103 A-1* 470
C104 B-1* 470
C105 B-1* 470
C106 B-1* 470
C107 B-1* 470
C108 B-1* 470
C109 B-1* 470
C11 B-1* 470
C110 A-1* 470
C111 A-1* 470
C112 A-1* 470
C113 B-1* 470
C114 B-1* 470
C115 B-11 345
C116 C-11 345
C117 B-11 345
C118 B-11 345
C119 B-11 345
C12 B-1* 470
C120 C-11 355
C121 C-11 355
C122 C-1 445
C123 C-3 325
C124 C-3 350
C125 A-12* 355
C126 A-12* 355
C127 A-12 355
C128 A-12 355
C129 A-1* 470
C13 B-1* 470
C130 A-1* 470
C131 A-1* 470
C132 A-1* 470
C133 A-1* 470
C134 A-1* 470
C135 A-1* 470
C136 A-1* 470
C137 A-1* 470
C138 A-1* 470
C139 A-1* 470
C14 B-1* 470
C140 C-5 355
C141 C-4 355
C142 B-6 335
C143 A-6 335
C15 B-1* 470
C16 B-1* 470
C17 B-4 355
C171 B-5* 355
C176 B-4 450
C18 B-1* 470
C19 B-1* 470
C2 C-2* 470
C20 B-1* 470
C202 B-6 360
C203 A-6 355
C206 B-6 355
C209 A-6* 455
C21 C-1* 470
C210 B-6 355
C211 A-6 355
C212 B-6* 355
C213 A-6* 355
C214 C-6* 355
C217 B-7* 475
C218 A-7* 475
C22 C-1* 470
C220 B-6* 355
C221 A-5* 480
C222 A-6* 355
C223 B-6* 355
C228 A-4 450
C23 C-1* 470
C232 A-5 460
C233 A-6 460
C234 A-5 460
C235 A-6 460
C236 A-6 465
C237 A-5* 355
C24 C-1* 470
C241 A-5* 480
C25 B-4 355
C26 C-1* 470
C27 C-1* 470
C28 C-1* 470
C29 C-1* 470
C3 B-1* 470
C30 C-1* 470
C31 C-1* 470
C32 C-2* 470
C33 C-1* 470
C34 C-4 355
C35 C-1* 470
C36 A-8* 355
C37 B-8* 355
C4 B-1* 470
C49 B-6 360
C5 B-1* 470
C50 B-4 335
C51 B-5* 480
C52 B-5* 480
C53 B-5 340
C55 A-6 465
C58 B-6 340
C59 B-6 340
C6 B-1* 470
C60 B-6* 465
C61 B-6* 455
C64 A-5 340
C65 A-6 340
C67 A-6 340
C7 B-1* 470
C73 A-6* 465
C75 A-4 335
C78 C-8* 355
C79 C-7* 355
C8 A-4 355
C80 C-7* 355
C81 C-10* 355
C82 C-10* 355
C83 B-8* 355
C84 B-7* 355
C85 B-10* 355
C86 B-11* 355
C87 A-10* 355
C88 B-10* 355
C89 A-8* 355
C9 B-1* 470
C90 A-8* 355
C91 B-8* 355
C92 B-8* 355
C93 C-7* 355
C94 C-11* 355
C96 C-9* 355
C97 C-9 355
CR1 C-2* 110
CR10 B-2* 110
CR11 B-1* 110
CR12 B-2* 110
CR120 B-5* 400
CR13 B-2* 110
CR14 B-2 110
CR15 B-1* 110
34-50-96 Page 10349
May 20/10
![](/img.php?id=1856825&img=bg8a.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 20. Video Processor Circuit Card A6 (CPN 687-0726-007)
CR16 C-1* 110
CR17 C-2* 110
CR18 B-2* 110
CR19 B-2 110
CR2 C-2 110
CR20 C-1* 110
CR206 B-5 400
CR207 A-5 400
CR208 B-5* 400
CR209 B-5 400
CR21 C-2 110
CR210 A-5* 400
CR211 A-5 400
CR22 C-2 110
CR224 B-4 400
CR226 A-4 400
CR23 B-2 110
CR231 B-4 400
CR232 A-4 400
CR234 B-5* 400
CR236 A-5* 400
CR238 B-4 400
CR24 C-2* 110
CR240 A-4 400
CR25 C-2* 110
CR26 C-2 110
CR27 C-2* 110
CR28 C-1* 110
CR29 C-2 110
CR3 B-1* 110
CR30 C-2 110
CR31 C-2* 110
CR32 C-6 110
CR4 B-2 110
CR46 A-5* 400
CR48 B-7 400
CR49 B-7* 400
CR5 B-2* 110
CR51 B-7 400
CR52 B-7 115
CR53 B-7* 110
CR54 A-7 110
CR55 B-2* 110
CR56 C-6* 110
CR57 A-2* 110
CR58 A-2 110
CR59 A-2 110
CR6 A-2 110
CR60 B-2* 110
CR61 B-2* 110
CR62 C-6 110
CR63 B-1* 110
CR64 B-3* 110
CR65 A-2* 110
CR66 A-2* 110
CR67 C-6 110
CR68 A-2* 110
CR69 B-2* 115
CR7 B-1* 110
CR70 A-3* 110
CR71 A-2* 110
CR72 A-2* 110
CR73 A-2* 110
CR74 C-2* 110
CR75 C-2* 110
CR76 C-3* 110
CR77 C-3* 110
CR78 B-3* 110
CR79 B-3* 110
CR8 B-1* 110
CR80 C-6* 110
CR81 C-6* 110
CR82 C-6* 110
CR83 C-5* 110
CR84 C-5 110
CR85 C-6 110
CR86 C-6* 110
CR87 C-6 110
CR88 C-6 110
CR89 C-6 110
CR9 B-2 110
CR90 C-6 110
FL1 C-3 425
L101 B-5 415
L102 B-6 415
L103 A-5 415
L104 A-6 415
L106 B-6 420
L5 A-6 420
L7 C-2 440
P20 B-12* 45
P25 A-9* 120
P3 A-9* 180
Q1 A-7* 95
Q10 B-2* 95
Q11 C-4 95
Q113 B-4* 95
Q14 A-6* 95
Q2 A-8* 55
Q203 B-5 95
Q204 B-5* 95
Q205 A-5 95
Q206 A-5* 95
Q210 A-4* 95
Q213 A-4 95
Q214 B-5 95
Q216 A-5 95
Q243 B-4 95
Q6 B-5 95
Q7 A-7 100
Q9 B-7 95
R1 A-4* 195
R100 A-12* 220
R101 A-11* 220
R102 A-12 220
R103 A-12 220
R104 A-11* 220
R105 A-11* 220
R106 A-11 220
R107 B-12* 485
R108 B-9* 485
R109 B-9* 485
R11 A-7* 200
R110 B-9* 485
R111 B-9* 485
R112 B-9* 485
R113 B-9* 485
R114 B-9* 485
R115 B-9* 485
R116 A-9* 485
R117 B-4 125
R118 A-4 125
R119 A-9* 485
R120 B-12* 485
R121 A-9* 485
R122 A-9* 485
R123 B-9 485
R124 B-9 485
R125 B-9 485
R126 B-9 485
R127 A-9 485
R128 A-9 485
R129 B-9 485
R14 B-4* 265
R16 B-4* 190
R17 B-7 270
R18 B-5* 260
R19 B-5* 190
34-50-96 Page 10350
May 20/10
![](/img.php?id=1856825&img=bg8b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 20. Video Processor Circuit Card A6 (CPN 687-0726-007)
R2 B-4* 195
R20 B-5* 195
R21 B-5 250
R211 A-6* 210
R216 A-5* 225
R22 B-5* 220
R221 A-5* 200
R227 B-6 505
R228 A-5* 190
R23 B-5 220
R230 B-6* 505
R232 A-5 240
R24 B-5* 240
R241 A-7 200
R242 A-5* 220
R243 A-5* 220
R249 A-6* 220
R25 A-5* 225
R256 A-6* 220
R26 B-9* 485
R265 B-7* 200
R267 C-6 205
R27 B-6* 255
R271 B-4* 245
R28 B-6* 230
R282 A-5* 260
R283 B-4* 190
R286 B-5* 200
R29 B-6* 230
R294 B-5 225
R296 B-5 225
R3 C-3* 195
R30 B-6* 230
R31 A-6* 220
R311 A-5 250
R313 B-7* 200
R314 B-6* 220
R316 B-4* 190
R317 B-6 500
R318 B-6 500
R32 B-6 220
R33 B-9 485
R34 B-6 210
R35 B-5* 195
R36 B-7* 270
R37 A-5* 195
R38 A-7 270
R39 A-7* 270
R4 C-3* 195
R40 A-8* 485
R41 A-8* 485
R42 A-8* 485
R43 A-6* 255
R44 A-6* 220
R45 A-6* 230
R46 A-6* 230
R47 A-8* 485
R48 A-5* 230
R49 B-7* 485
R50 C-7* 485
R51 A-10* 485
R52 A-10* 485
R53 A-5 225
R54 A-4* 265
R55 A-5 225
R56 A-4* 190
R57 A-4* 190
R58 A-4* 190
R59 A-10* 485
R60 B-10* 485
R61 A-4* 245
R62 C-8* 195
R63 C-7* 195
R64 C-7* 190
R65 C-7* 190
R66 C-7* 195
R67 A-11* 270
R68 B-10* 270
R69 B-10* 485
R70 A-10* 485
R71 B-8* 190
R72 A-10* 485
R73 B-10* 485
R74 A-10* 485
R75 A-7 190
R76 A-7 200
R77 B-7 200
R78 B-7* 200
R79 B-7 200
R80 A-7 190
R81 A-7* 190
R82 A-7 230
R83 A-7 230
R84 B-8* 235
R85 B-7* 215
R86 A-10* 485
R87 A-3* 190
R88 A-3* 190
R89 A-3* 190
R90 B-7 190
R91 A-3* 190
R92 C-3 320
R93 B-2* 200
R94 C-4 200
R95 C-4 190
R96 B-2* 235
R97 C-4 275
R98 C-4 230
R99 A-11* 220
U1 A-3* 300
U10 C-3* 300
U101 C-7 80
U103 C-7 80
U108 C-10 385
U109 C-10 385
U11 C-3* 295
U116 B-7 390
U118 B-10 375
U12 C-3 80
U121 A-8 490
U128 B-7 280
U13 A-8* 70
U14 C-9 75
U15 C-8 395
U16 B-8* 380
U17 C-9 60
U2 A-3* 295
U203 B-6 365
U204 A-6 365
U205 B-6* 365
U208 A-6* 365
U214 B-6 365
U215 A-5 85
U24 A-8* 65
U29 C-11 90
U3 A-3 80
U33 C-5* 310
U34 C-4* 305
U35 A-2 290
U36 C-5* 315
U37 B-3* 295
U38 C-4 5
U39 A-12 370
U4 A-3* 300
U40 A-12* 370
U41 B-2 290
U42 C-5 310
U43 C-5* 305
34-50-96 Page 10351
May 20/10
![](/img.php?id=1856825&img=bg8c.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 20. Video Processor Circuit Card A6 (CPN 687-0726-007)
U44 C-4 80
U45 C-4 80
U46 C-5 315
U5 A-3* 295
U6 A-3 80
U7 B-3* 300
U8 B-3* 295
U9 B-3 80
VR18 B-2 410
VR19 B-7 405
VR5 B-2 410
VR6 C-3 105
Z1 A-1 430
Z10 A-1 430
Z11 A-1 430
Z13 A-1 430
Z14 A-1 430
Z15 A-1 430
Z16 A-1 435
Z17 B-1 430
Z18 B-1 430
Z19 B-1 430
Z2 A-1 430
Z20 B-1 435
Z21 B-1 430
Z22 B-1 430
Z23 B-1 430
Z24 B-1 435
Z25 B-1 430
Z26 B-1 430
Z27 B-1 430
Z28 B-1 435
Z29 B-1 430
Z3 A-1 430
Z30 B-1 430
Z31 B-1 430
Z33 B-1 430
Z34 B-1 430
Z35 B-1 430
Z36 B-1 435
Z37 B-1 430
Z38 B-1 430
Z39 B-1 430
Z4 A-1 435
Z40 B-1 435
Z41 B-1 430
Z42 B-1 430
Z43 B-1 430
Z44 B-1 435
Z45 C-1 430
Z46 C-1 430
Z47 C-1 430
Z48 C-1 435
Z49 C-1 430
Z5 A-1 430
Z50 C-1 430
Z51 C-1 430
Z52 C-1 435
Z53 C-1 430
Z54 C-1 430
Z55 C-1 430
Z56 C-1 435
Z57 C-1 430
Z58 C-1 430
Z59 C-1 430
Z6 A-1 430
Z7 A-1 430
Z8 A-1 435
Z9 A-1 430
34-50-96 Page 10352
May 20/10
![](/img.php?id=1856825&img=bg8d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-007)
Figure 20 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-820-A01
34-50-96 Page 10353/10354
May 20/10
![](/img.php?id=1856825&img=bg8f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-007)
Figure 20 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-820-A01
34-50-96 Page 10355/10356
May 20/10
![](/img.php?id=1856825&img=bg91.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-007)
Figure 20 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-820-A01
34-50-96 Page 10357/10358
May 20/10
![](/img.php?id=1856825&img=bg93.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Video Processor Circuit Card A6 (CPN 687-0726-007)
Figure 20 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-820-A01
34-50-96 Page 10359/10360
May 20/10
![](/img.php?id=1856825&img=bg95.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
20
- 1 687-0726-007 1 CIRCUIT CARD, VIDEO PROCESSOR (ESDS) RF
(SEE FIG 4-63F FOR NHA)
(SEE FIG 4-63J FOR NHA)
(SEE FIG 4-63M FOR NHA)
(SEE FIG 4-63R FOR NHA)
(SEE FIG 4-63U FOR NHA)
(SEE FIG 4-63W FOR NHA)
(SEE FIG 4-63Z FOR NHA)
(SEE FIG 4-64B FOR NHA)
(SEE FIG 4-64D FOR NHA)
(SEE FIG 4-79B FOR NHA)
A6
5 LM317T 2 MICROCIRCUIT (ESDS) 1
(V27014) 351-1271-010
A6U38
- - - ATTACHING PARTS - - -
10 MS51957-14 2 SCREW, PAN 1
0.112-40
(V96906) 343-0134-000
15 MS35338-135 2 WASHER, LOCK SST 1
0.115 ID X 0.209 OD
(V96906) 310-0279-000
20 NAS671C4 2 NUT, PLAIN HEXAGON CD PL STL 1
0.112-40
(V80205) 313-0132-000
------*------
25 653-2280-001 2 STRAP, BOARD 1
- - - ATTACHING PARTS - - -
30 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
35 NAS620C4L 2 WASHER, FLAT PSVT CRES 2
0. 115 ID X 0.209 OD
(V80205) 310-0740-200
40 68-1660-40 2 NUT, SLFLKG HEX AL 2
4-40
(V019L2) 333-0605-000
------*------
45 628-5853-001 2 CONNECTOR, ELECTRICAL 1
A6P20
50 M55302-127-00KY 2 PLUG, KEYING 2
(V00779) 372-2669-010
TRUE PN IS M55302/127-00KY
(USED ON ITEM 45)
55 MMBT2369ALT1 2 TRANSISTOR (ESDS) 1
(V1MQ07) 204-0077-020
A6Q2
60 0CE720000XCCDXX 2 MICROCIRCUIT (ESDS) 1
(V0S4G1) 277-0696-070
TRUE PN IS OCE720000XCCDXX
A6U17
65 SN74HC02D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-2802-010
A6U24
70 NC7ST32M5 2 MICROCIRCUIT (ESDS) 1
(V7D893) 351-3152-080
A6U13
75 NC7WZ04P6 2 MICROCIRCUIT (ESDS) 1
(V7D893) 351-3265-020
A6U14
80 SN74ABT2244ADB 2 MICROCIRCUIT (ESDS) 8
(V01295) 351-3435-010
A6U3 A6U6 A6U9 A6U12 A6U44 A6U45
A6U101 A6U103
85 MC74HC4316ADR2 2 MICROCIRCUIT (ESDS) 1
(V1MQ07) 351-3460-010
A6U215
34-50-96 Page 10361
May 20/10
![](/img.php?id=1856825&img=bg96.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
20
90 SN74HC08D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-040
A6U29
95 PMBT2222A 2 TRANSISTOR (ESDS) 16
(V18324) 352-9113-010
A6Q1 A6Q6 A6Q9 A6Q10 A6Q11 A6Q14
A6Q113 A6Q203 A6Q204 A6Q205 A6Q206
A6Q210 A6Q213 A6Q214 A6Q216 A6Q243
100 PMBT2907TR 2 TRANSISTOR (ESDS) 1
(V18324) 352-9114-010
TRUE PN IS PMBT2907T/R
A6Q7
105 1-5KE82A 2 DIODE 1
(V14936) 353-3768-060
TRUE PN IS 1.5KE82A
A6VR6
110 BAS70-04 2 DIODE 69
(V12954) 353-8136-010
A6CR1 A6CR2 A6CR3 A6CR4 A6CR5 A6CR6
A6CR7 A6CR8 A6CR9 A6CR10 A6CR11 A6CR12
A6CR13 A6CR14 A6CR15 A6CR16 A6CR17
A6CR18 A6CR19 A6CR20 A6CR21 A6CR22
A6CR23 A6CR24 A6CR25 A6CR26 A6CR27
A6CR28 A6CR29 A6CR30 A6CR31 A6CR32
A6CR53 A6CR54 A6CR55 A6CR56 A6CR57
A6CR58 A6CR59 A6CR60 A6CR61 A6CR62
A6CR63 A6CR64 A6CR65 A6CR66 A6CR67
A6CR68 A6CR70 A6CR71 A6CR72 A6CR73
A6CR74 A6CR75 A6CR76 A6CR77 A6CR78
A6CR79 A6CR80 A6CR81 A6CR82 A6CR83
A6CR84 A6CR85 A6CR86 A6CR87 A6CR88
A6CR89 A6CR90
115 BAW78D 2 DIODE 2
(VC6489) 353-8138-040
A6CR52 A6CR69
120 2-535542-4 2 CONNECTOR, ELECTRICAL 1
(V00779) 372-0033-390
A6P25
125 3314J1-203E 2 RESISTOR, VARIABLE, 20K OHM, .25W, 20% 2
(V32997) 376-0286-110
TRUE PN IS 3314J-1-203E
A6R117 A6R118
130 828-3734-001 2 CIRCUIT CARD, WATERFALL CONNECTOR 1
- 135 NA1109-023 3 CONTACT 60
(V57863) 372-2604-023
140 653-2248-002 2 CABLE ASSEMBLY, RIBBON 1
- 145 111356-8 3 CONNECTOR 1
(V00779) 859-2000-150
- 150 111355-8 3 CONNECTOR, COVER 1
(V00779) 859-2000-160
- 155 86286-1 3 PLUG, KEYING 4
(V00779) 372-2641-010
- 160 201260-20 3 CONNECTOR 1
(V66886) 372-2648-070
- 165 201260-05 3 CONNECTOR 1
(V66886) 372-2648-020
- 170 88450-2 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-020
- 175 88450-9 3 CONNECTOR, PULL TAB 1
(V00779) 372-0112-090
180 653-3984-001 2 CONNECTOR, ELECTRICAL 1
A6P3
- 185 2-535542-5 3 CONNECTOR, RCPT 1
(V00779) 372-0033-190
34-50-96 Page 10362
May 20/10
![](/img.php?id=1856825&img=bg97.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
20
190 CRCW12061002F 2 RESISTOR, FIXED, 10K OHM, 1%, .25W 20
(V56845) 705-3535-020
A6R16 A6R19 A6R56 A6R57 A6R58 A6R64
A6R65 A6R71 A6R75 A6R80 A6R81 A6R87
A6R88 A6R89 A6R90 A6R91 A6R95 A6R228
A6R283 A6R316
195 CRCW12061003F 2 RESISTOR, FIXED FILM, 100K, 1%, 125MW 10
(V56845) 705-3535-060
A6R1 A6R2 A6R3 A6R4 A6R20 A6R35 A6R37
A6R62 A6R63 A6R66
200 CRCW12061001F 2 RESISTOR, FIXED, 1K OHM, 1%, .25W 12
(V56845) 705-3535-200
A6R11 A6R76 A6R77 A6R78 A6R79 A6R93
A6R94 A6R221 A6R241 A6R265 A6R286
A6R313
205 CRCW12061212F 2 RESISTOR, FIXED FILM, 12.1K OHM, 1%, 1
125MW
(V56845) 705-3535-270
A6R267
210 CRCW12069760F 2 RESISTOR, FIXED, 976 OHM, .25W, 1% 2
(V56845) 705-3535-390
A6R34 A6R211
215 CRCW12064750F 2 RESISTOR, FIXED, 475 OHM, 1%, .25W 1
(V56845) 705-3535-730
A6R85
220 RK73H2BL2001F 2 RESISTOR, FIXED FILM, 2K, 1%, 1/4W 18
(V59124) 705-3537-290
A6R22 A6R23 A6R31 A6R32 A6R44 A6R99
A6R100 A6R101 A6R102 A6R103 A6R104
A6R105 A6R106 A6R242 A6R243 A6R249
A6R256 A6R314
225 RK73H2BL2211F 2 RESISTOR, FIXED, 2.21K OHM, .25W, 1% 6
(V59124) 705-3537-330
A6R25 A6R53 A6R55 A6R216 A6R294 A6R296
230 RK73H2BL3921F 2 RESISTOR, FIXED FILM, 3.92K, 1%, 125MW 9
(V59124) 705-3537-530
A6R28 A6R29 A6R30 A6R45 A6R46 A6R48
A6R82 A6R83 A6R98
235 RK73H2BL4751F 2 RESISTOR, FIXED, 4.75K OHM, 1%, .25W 2
(V59124) 705-3537-600
A6R84 A6R96
240 RK73H2BLTD2742F 2 RESISTOR, FIXED FILM, 27.4K, 1%, 125MW 2
(V59124) 705-3538-230
A6R24 A6R232
245 RK73H2BLTD2874F 2 RESISTOR, FIXED, 28.7K OHM, .25W, 1% 2
(V59124) 705-3538-250
A6R61 A6R271
250 RK73H2BLTD4752F 2 RESISTOR, FIXED FILM, 47.5K, 1%, 125MW 2
(V59124) 705-3538-450
A6R21 A6R311
255 RK73H2BLTD5622F 2 RESISTOR, FIXED FILM, 56.2K OHM, 1%, 2
125MW
(V59124) 705-3538-510
A6R27 A6R43
260 CRCW120633R2FB 2 RESISTOR, FIXED FILM, 33.2 OHMS, 1%, 2
125MW
(V56845) 705-3539-640
A6R18 A6R282
265 RK73H2BL2210F 2 RESISTOR, FIXED FILM, 221 OHMS, 1%, 2
125MW
(V59124) 705-3540-430
A6R14 A6R54
270 RK73Z2BTTD 2 RESISTOR, FIXED FILM, 0.05 OHM, 1%, 6
1/8W
(V59124) 705-3543-020
A6R17 A6R36 A6R38 A6R39 A6R67 A6R68
275 RWR81S2370FR 2 RESISTOR, FIXED, 237 OHM, 1W, 1% 1
(V91637) 747-2183-370
A6R97
34-50-96 Page 10363
May 20/10
![](/img.php?id=1856825&img=bg98.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
20
280 831-0037-001 2 MICROCIRCUIT, MODIFIED (ESDS) 1
A6U128
- 285 351-6826-010 3 MICROCIRCUIT (ESDS) 1
(V66958) 351-6826-010
290 S0MC160336R0GDC 2 RESISTOR, NETWORK, 36 OHM, .25W, 2% 2
(ESDS)
(V91637) 833-5502-010
TRUE PN IS SOMC160336R0GDC
A6U35 A6U41
295 833-5502-070 2 RESISTOR, NETWORK 10K, 2% (ESDS) 5
(V11236) 833-5502-070
A6U2 A6U5 A6U8 A6U11 A6U37
300 833-5502-080 2 MICROCIRCUIT (ESDS) 4
(V11236) 833-5502-080
A6U1 A6U4 A6U7 A6U10
305 833-5502-140 2 RESISTOR, NETWORK, 62K OHM, .25W, 2% 2
(ESDS)
(V11236) 833-5502-140
A6U34 A6U43
310 833-5502-180 2 RESISTOR, NETWORK, 100K OHM, .25W, 2% 2
(V11236) 833-5502-180
A6U33 A6U42
315 833-5502-190 2 RESISTOR, NETWORK, 270K OHM, .25W, 2% 2
(ESDS)
(V11236) 833-5502-190
A6U36 A6U46
320 RK73Z2EL 2 RESISTOR, FIXED, 0 OHM 1
(V59124) 833-6008-030
A6R92
325 834-0516-030 2 CAPACITOR, FIXED, 22UF, 60V 1
(V0P569) 834-0516-030
PN IS REF NO FOR 678D226M060CG5DD444
A6C123
330 TAJC475K025HNJ 2 CAPACITOR, FIXED, 4.7UF, 10%, 25V 1
(V04222) 834-2008-150
A6C100
335 TAJC685K020HNJ 2 CAPACITOR, FIXED 6.8UF, 10%, 20V 4
(V04222) 834-2008-170
A6C50 A6C75 A6C142 A6C143
340 TAJD156K025HNJ 2 CAPACITOR, FIXED, 15UF, 10%, 25V 6
(V04222) 834-2008-220
A6C53 A6C58 A6C59 A6C64 A6C65 A6C67
345 TAJC105K050HNJ 2 CAPACITOR, FIXED 1UF, 10%, 50V 6
(V04222) 834-2008-320
A6C101 A6C115 A6C116 A6C117 A6C118
A6C119
350 834-5000-020 2 CAPACITOR, FIXED CER DIEL, .10UF, 1
10%, 100V
(V04222) 834-5000-020
PN IS REF NO FOR 12101C104KAT060L
A6C124
355 12065C103KAT2A 2 CAPACITOR, FIXED, .01UF, 10%, 50V 45
(V04222) 834-5005-250
A6C8 A6C17 A6C25 A6C34 A6C36 A6C37
A6C78 A6C79 A6C80 A6C81 A6C82 A6C83
A6C84 A6C85 A6C86 A6C87 A6C88 A6C89
A6C90 A6C91 A6C92 A6C93 A6C94 A6C96
A6C97 A6C120 A6C121 A6C125 A6C126
A6C127 A6C128 A6C140 A6C141 A6C171
A6C203 A6C206 A6C210 A6C211 A6C212
A6C213 A6C214 A6C220 A6C222 A6C223
A6C237
360 12065C104KAT2A 2 CAPACITOR, FIXED, 0.1UF, 10%, 50V 2
(V04222) 834-5005-370
A6C49 A6C202
365 LT1016 2 MICROCIRCUIT (ESDS) 5
(V64155) 835-0048-010
A6U203 A6U204 A6U205 A6U208 A6U214
34-50-96 Page 10364
May 20/10
![](/img.php?id=1856825&img=bg99.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
20
370 AD817AR 2 MICROCIRCUIT (ESDS) 2
(V24355) 835-0371-010
A6U39 A6U40
375 S1L909S2F01P000 2 MICROCIRCUIT (ESDS) 1
(V61722) 835-1570-020
A6U118
380 HCT74 2 MICROCIRCUIT (ESDS) 1
(V01295) 835-3607-030
A6U16
385 HC259 2 MICROCIRCUIT (ESDS) 2
(V07263) 835-3707-050
A6U108 A6U109
390 CD74AC374M 2 MICROCIRCUIT (ESDS) 1
(V01295) 835-4507-030
A6U116
395 IDT7130SA70JI 2 MICROCIRCUIT (ESDS) 1
(V61772) 835-5815-030
A6U15
400 MMBD301LT1 2 DIODE 19
(V1MQ07) 844-0003-020
A6CR46 A6CR48 A6CR49 A6CR51 A6CR120
A6CR206 A6CR207 A6CR208 A6CR209
A6CR210 A6CR211 A6CR224 A6CR226
A6CR231 A6CR232 A6CR234 A6CR236
A6CR238 A6CR240
405 P6SMB36A 2 DIODE 1
(V1MQ07) 844-0082-180
A6VR19
410 1SMC36A 2 DIODE 2
(V1MQ07) 844-0097-250
A6VR5 A6VR18
415 1812-153K 2 COIL, 15UH 4
(V99800) 849-0025-270
A6L101 A6L102 A6L103 A6L104
420 1812-333K 2 COIL, 33UH 2
(V99800) 849-0025-310
A6L5 A6L106
425 849-0512-010 2 CAPACITOR, FIXED, .0022UF, 100V 1
(V18796) 849-0512-010
PN IS REF NO FOR DSS9NC52A222Q55B
A6FL1
430 2661000101 2 BEAD, FERRITE 45
(V34899) 852-1000-190
A6Z1 A6Z2 A6Z3 A6Z5 A6Z6 A6Z7 A6Z9
A6Z10 A6Z11 A6Z13 A6Z14 A6Z15 A6Z17
A6Z18 A6Z19 A6Z21 A6Z22 A6Z23 A6Z25
A6Z26 A6Z27 A6Z29 A6Z30 A6Z31 A6Z33
A6Z34 A6Z35 A6Z37 A6Z38 A6Z39 A6Z41
A6Z42 A6Z43 A6Z45 A6Z46 A6Z47 A6Z49
A6Z50 A6Z51 A6Z53 A6Z54 A6Z55 A6Z57
A6Z58 A6Z59
435 2743019447 2 BEAD, SURFACE MOUNT FERRITE 12
(V34899) 852-3002-010
A6Z4 A6Z8 A6Z16 A6Z20 A6Z24 A6Z28
A6Z36 A6Z40 A6Z44 A6Z48 A6Z52 A6Z56
440 852-3005-040 2 COIL, 50UH 1
(V00204) 852-3005-040
A6L7
445 CK60AW102M 2 CAPACITOR, FIXED CER, DIEL, 1000PF, 1
20%, 1000V
(V59660) 913-1186-000
A6C122
450 08055A100JAT9A 2 CAPACITOR, FIXED CER DIEL, 10PF, 5%, 2
50V
(V04222) 913-3667-030
A6C176 A6C228
34-50-96 Page 10365
May 20/10
![](/img.php?id=1856825&img=bg9a.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
20
455 08055A270JAT9A 2 CAPACITOR, FIXED CER DIEL 27PF, 5%, 2
50V
(V04222) 913-3667-080
A6C61 A6C209
460 LD055A330JAB9A 2 CAPACITOR, FIXED CER DIEL, 33PF, 5%, 4
50V
(V04222) 913-3667-090
A6C232 A6C233 A6C234 A6C235
465 08055A470JAT9A 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 4
50V
(V04222) 913-3667-110
A6C55 A6C60 A6C73 A6C236
470 08055A471JAT9A 2 CAPACITOR, FIXED, 5.6PF, 50V 55
(V04222) 913-3667-230
A6C1 A6C2 A6C3 A6C4 A6C5 A6C6 A6C7
A6C9 A6C10 A6C11 A6C12 A6C13 A6C14
A6C15 A6C16 A6C18 A6C19 A6C20 A6C21
A6C22 A6C23 A6C24 A6C26 A6C27 A6C28
A6C29 A6C30 A6C31 A6C32 A6C33 A6C35
A6C102 A6C103 A6C104 A6C105 A6C106
A6C107 A6C108 A6C109 A6C110 A6C111
A6C112 A6C113 A6C114 A6C129 A6C130
A6C131 A6C132 A6C133 A6C134 A6C135
A6C136 A6C137 A6C138 A6C139
475 18055A152JAT9A 2 CAPACITOR, FIXED CER DIEL 1500PF, 5%, 2
50V
(V04222) 913-3667-370
A6C217 A6C218
480 08055A221JAT9A 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 4
50V
(V04222) 913-3667-470
A6C51 A6C52 A6C221 A6C241
485 RK73H1JL33R2F 2 RESISTOR, FIXED, 33.2 OHM, 1%, .063W 39
(V59124) 705-2437-230
A6R26 A6R33 A6R40 A6R41 A6R42 A6R47
A6R49 A6R50 A6R51 A6R52 A6R59 A6R60
A6R69 A6R70 A6R72 A6R73 A6R74 A6R86
A6R107 A6R108 A6R109 A6R110 A6R111
A6R112 A6R113 A6R114 A6R115 A6R116
A6R119 A6R120 A6R121 A6R122 A6R123
A6R124 A6R125 A6R126 A6R127 A6R128
A6R129
490 831-7172-001 2 MICROCIRCUIT, MODIFIED (ESDS) 1
A6U121
- 495 A42MX09PL84I 3 MICROCIRCUIT (ESDS) 1
(V0J4Z0) 351-3321-010
TRUE PN IS A42MX09-PL84I
500 RK73H2BL1821F 2 RESISTOR, FIXED FILM, 1.82K, 1%, 125MW 2
(V59124) 705-3537-250
A6R317 A6R318
505 RK73H2BL8251F 2 RESISTOR, FIXED, 8.25K OHM, .25W, 1% 2
(V59124) 705-3537-780
A6R227 A6R230
34-50-96 Page 10366
May 20/10
![](/img.php?id=1856825&img=bg9b.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 21. CPU I/O Circuit Card A5 (CPN 828-2700-004)
C1 B-1* 330
C10 C-8* 210
C100 C-4 210
C101 B-1* 330
C102 B-1* 330
C103 B-1* 330
C104 B-1* 330
C105 B-3 210
C106 C-1* 210
C107 B-1* 210
C108 C-6* 210
C109 B-10* 210
C11 B-10* 210
C110 A-11* 210
C111 A-10* 340
C112 A-10* 335
C113 A-9* 325
C114 A-9* 325
C115 A-10* 215
C116 A-10* 215
C119 A-5* 210
C12 B-11 205
C120 B-11 200
C121 B-10* 210
C122 B-10* 210
C123 A-10* 210
C124 C-11* 210
C125 A-11* 210
C126 C-11* 210
C127 B-11* 210
C128 C-10* 210
C129 B-11* 210
C13 A-11 205
C130 B-11* 210
C131 A-1* 330
C132 A-1* 330
C133 A-1* 330
C134 A-1* 330
C135 A-1* 330
C136 B-1* 330
C137 A-1* 330
C138 A-1* 330
C14 B-11 205
C140 C-10* 210
C142 B-3* 210
C143 A-3 210
C144 B-3 210
C145 A-3* 210
C146 B-1* 330
C147 A-1* 330
C15 A-11 205
C16 C-1* 330
C17 B-6 345
C18 B-1* 330
C19 B-1* 330
C2 A-1* 330
C20 C-1* 330
C21 B-7 345
C22 B-1* 330
C23 C-1* 330
C24 B-7 345
C25 B-1* 330
C26 A-7* 315
C27 A-1* 330
C28 B-1* 330
C29 B-1* 330
C3 A-1* 330
C30 B-6 315
C31 B-1* 330
C32 B-1* 330
C33 B-7* 315
C34 A-8* 210
C35 A-8* 210
C36 B-8* 210
C37 B-6 210
C38 C-6 210
C39 B-5 315
C4 A-1* 330
C40 B-1* 330
C41 B-4 210
C42 B-4 210
C43 B-1* 330
C44 B-1* 330
C45 B-5 315
C46 B-1* 330
C47 C-1* 330
C48 B-5 315
C49 B-5 210
C5 A-1* 330
C50 B-7 210
C51 C-1* 330
C52 C-6* 210
C53 A-3* 210
C54 B-3 320
C55 C-5 320
C56 B-5 210
C57 C-1* 330
C58 C-5* 320
C59 B-5 320
C6 B-1* 330
C60 C-5 320
C61 C-5* 320
C62 C-1* 330
C63 C-2 330
C64 B-1* 330
C65 C-5* 320
C66 C-5* 320
C67 C-1* 330
C68 B-8* 210
C69 B-5 310
C7 A-1* 330
C70 B-5 310
C71 B-1* 330
C72 C-1* 330
C73 A-4 310
C74 A-4 310
C75 C-1* 330
C76 B-5 315
C77 B-5 310
C78 B-5 310
C79 C-1* 330
C8 A-1* 330
C80 C-1* 330
C81 A-4 310
C82 A-4 310
C83 C-1* 330
C84 B-7* 210
C85 B-8* 210
C86 B-5 310
C87 C-1* 330
C88 C-1* 330
C89 C-1* 330
C9 B-8* 210
C90 B-5 310
C91 B-5 310
C92 B-5 315
C93 B-5 310
C94 C-1* 330
C95 B-7 210
C96 B-4 210
C97 B-4 210
C98 B-1* 330
C99 B-1* 330
CR1 A-2* 110
CR10 A-3* 110
CR11 A-3* 110
CR12 C-6* 110
CR13 C-6* 110
34-50-96 Page 10367
May 20/10
![](/img.php?id=1856825&img=bg9c.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 21. CPU I/O Circuit Card A5 (CPN 828-2700-004)
CR14 A-2* 110
CR15 C-6* 110
CR16 A-2* 110
CR17 A-2* 110
CR18 A-2* 110
CR19 B-2* 110
CR2 A-2* 110
CR20 B-2* 110
CR21 A-2* 110
CR22 A-2* 110
CR23 B-6 110
CR24 B-6 110
CR25 B-7 110
CR26 B-7 110
CR27 B-7 110
CR28 A-7 110
CR29 B-6 110
CR3 B-3* 110
CR30 A-6 110
CR31 B-4 110
CR32 B-5 110
CR33 A-5 110
CR34 A-5 110
CR35 A-5 110
CR36 A-4 110
CR37 B-5 110
CR38 B-5 110
CR4 A-3* 110
CR41 B-5 110
CR42 B-4 110
CR43 B-2* 110
CR44 A-8* 110
CR45 A-8* 110
CR46 B-7* 110
CR47 B-7* 110
CR48 C-6* 110
CR49 C-6* 110
CR5 B-2* 110
CR6 B-2* 110
CR7 C-6* 110
CR8 C-6* 110
CR9 C-6* 110
Q1 A-10* 100
QP1 C-3 225
QP2 C-3* 230
QP3 C-3* 225
QP4 C-3* 230
QP5 A-3* 225
QP6 A-3 230
R1 A-10* 115
R10 B-8* 115
R14 C-10* 115
R15 C-4* 350
R16 C-6* 115
R2 A-10* 115
R3 A-10* 125
R4 A-10* 130
R5 A-9* 120
R7 A-10* 115
RN1 B-4* 170
RN10 B-6* 195
RN11 A-6* 195
RN12 A-6 195
RN13 B-3 135
RN133 C-5 195
RN14 C-5 195
RN15 C-5* 195
RN16 B-4* 195
RN17 A-6* 195
RN18 A-4* 195
RN19 C-2 135
RN2 B-4 165
RN20 C-2* 135
RN21 C-5 175
RN22 C-5* 175
RN23 C-2* 145
RN24 C-4* 150
RN25 C-2* 150
RN26 C-5 175
RN27 A-5* 195
RN28 A-5* 195
RN29 A-4 175
RN3 A-8* 170
RN30 C-2 135
RN31 A-6 195
RN32 A-5 195
RN33 B-5 175
RN34 A-3 150
RN35 A-3* 145
RN36 A-2* 135
RN37 B-3* 140
RN38 C-2* 155
RN39 C-3* 160
RN4 B-2 135
RN40 C-5* 180
RN41 C-5* 190
RN42 C-4* 185
RN43 A-3 165
RN44 B-11* 160
RN45 A-8* 195
RN46 C-8* 135
RN47 A-7* 195
RN48 C-7* 195
RN49 B-7* 195
RN5 B-6* 195
RN6 B-6* 195
RN7 B-5* 195
RN8 B-6 195
RN9 B-6* 195
U1 C-4 75
U10 A-3* 220
U11 A-3* 220
U12 A-8 280
U13 A-7 260
U15 A-5 235
U16 C-7 285
U17 C-3 70
U18 B-3 65
U19 C-8 255
U2 C-6 75
U20 C-11 245
U21 B-10 270
U22 C-10 270
U24 B-10 240
U25 B-9 240
U26 A-11 275
U27 A-10 275
U3 B-6 235
U30 B-11 95
U31 B-11 95
U32 B-11 90
U33 B-11 90
U34 A-9* 85
U35 C-11* 250
U4 B-6* 235
U5 B-7* 235
U6 C-4 235
U7 B-4 235
U8 B-10* 80
U9 A-3 220
VR1 C-2* 105
VR10 C-4* 105
VR19 C-2 295
VR2 C-2* 105
VR20 B-2 295
VR21 C-2 295
VR22 B-2 295
VR3 C-2* 105
34-50-96 Page 10368
May 20/10
![](/img.php?id=1856825&img=bg9d.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 21. CPU I/O Circuit Card A5 (CPN 828-2700-004)
VR31 C-2 295
VR32 C-2 295
VR33 C-2 295
VR34 C-2 295
VR4 C-2* 105
VR43 C-2 295
VR44 A-2 295
VR5 B-2* 105
VR6 B-2* 105
VR61 B-2* 355
VR62 B-2* 355
VR9 C-4* 105
Y1 A-9 300
Z1 C-1 305
Z10 C-1 20
Z11 C-1 20
Z12 C-1 20
Z13 C-1 305
Z14 C-1 20
Z15 C-1 20
Z16 C-1 20
Z17 B-1 305
Z18 B-1 20
Z19 B-1 20
Z2 C-1 20
Z20 B-1 20
Z21 B-1 305
Z22 B-1 20
Z23 B-1 20
Z24 B-1 20
Z25 B-1 305
Z26 B-1 20
Z29 B-1 305
Z3 C-1 20
Z30 B-1 20
Z31 B-1 20
Z32 B-1 20
Z33 B-1 305
Z34 B-1 20
Z35 B-1 20
Z36 B-1 20
Z37 B-1 305
Z38 B-1 20
Z39 B-1 20
Z4 C-1 20
Z40 B-1 20
Z41 B-1 305
Z42 B-1 20
Z43 B-1 20
Z44 B-1 20
Z45 A-1 305
Z46 A-1 20
Z47 A-1 20
Z48 A-1 20
Z49 B-1 20
Z5 C-1 305
Z50 B-1 20
Z51 A-1 20
Z52 A-1 20
Z53 A-1 305
Z54 A-1 20
Z55 A-1 20
Z56 A-1 20
Z57 A-1 305
Z58 A-1 20
Z59 A-1 20
Z6 C-1 20
Z60 A-1 20
Z61 A-1 305
Z62 A-1 20
Z7 C-1 20
Z8 C-1 20
Z9 C-1 305
34-50-96 Page 10369/10370
May 20/10
![](/img.php?id=1856825&img=bg9f.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-004)
Figure 21 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-821-A01
34-50-96 Page 10371/10372
May 20/10
![](/img.php?id=1856825&img=bga1.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-004)
Figure 21 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-821-A01
34-50-96 Page 10373/10374
May 20/10
![](/img.php?id=1856825&img=bga3.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-004)
Figure 21 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-821-A01
34-50-96 Page 10375/10376
May 20/10
![](/img.php?id=1856825&img=bga5.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
CPU I/O Circuit Card A5 (CPN 828-2700-004)
Figure 21 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-821-A01
34-50-96 Page 10377/10378
May 20/10
![](/img.php?id=1856825&img=bga7.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
21
- 1 828-2700-004 1 CIRCUIT CARD, CPU I/O (ESDS) RF
(SEE FIG 4-81B FOR NHA)
A5
5 280-3778-050 2 LABEL, INFORMATION 1
(V0BU16) 280-3778-050
10 828-3734-001 2 CIRCUIT CARD, WATERFALL CONNECTOR 1
- 15 NA1109-023 3 CONTACT 60
(V57863) 372-2604-023
20 288-0815-010 2 BEAD, FERRITE 45
(V3RMR9) 288-0815-010
PN IS REF NO FOR TUB3.7/1.2/3.5-4B1
A5Z2 A5Z3 A5Z4 A5Z6 A5Z7 A5Z8 A5Z10
A5Z11 A5Z12 A5Z14 A5Z15 A5Z16 A5Z18
A5Z19 A5Z20 A5Z22 A5Z23 A5Z24 A5Z26
A5Z30 A5Z31 A5Z32 A5Z34 A5Z35 A5Z36
A5Z38 A5Z39 A5Z40 A5Z42 A5Z43 A5Z44
A5Z46 A5Z47 A5Z48 A5Z49 A5Z50 A5Z51
A5Z52 A5Z54 A5Z55 A5Z56 A5Z58 A5Z59
A5Z60 A5Z62
25 653-2280-001 2 STRAP, BOARD 1
- - - ATTACHING PARTS - - -
30 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
35 NAS620C4L 2 WASHER, FLAT PSVT CRES 2
0. 115 ID X 0.209 OD
(V80205) 310-0740-200
40 68-1660-40 2 NUT, SLFLKG HEX AL 2
4-40
(V019L2) 333-0605-000
------*------
45 NA1103-197 2 CONTACT, ELECTRICAL 24
(V57863) 372-2601-197
50 NA1104-037 2 CONTACT, ELECTRICAL 76
.025 SQ. PIN
(V57863) 372-2601-037
55 NA1104-045 2 CONTACT, ELECTRICAL 10
(V57863) 372-2601-045
60 NA1104-027 2 CONTACT, ELECTRICAL 4
(V57863) 372-2601-027
65 DS9638J883Q 2 MICROCIRCUIT (ESDS) 1
(V27014) 351-1412-010
TRUE PN IS DS9638J/883Q
A5U18
70 AM26LS32AMJ 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-1926-010
A5U17
75 SN74HCT244DW 2 MICROCIRCUIT (ESDS) 2
(V01295) 351-3610-040
A5U1 A5U2
80 SN74HC32D 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3701-100
A5U8
85 CD74HC04M 2 MICROCIRCUIT (ESDS) 1
(V01295) 351-3705-010
A5U34
90 74ABT245CSC 2 MICROCIRCUIT (ESDS) 2
(V7D893) 351-3282-100
A5U32 A5U33
95 CD74HC373M 2 MICROCIRCUIT (ESDS) 2
(V01295) 351-3706-020
A5U30 A5U31
100 PMBT2222A 2 TRANSISTOR (ESDS) 1
(V18324) 352-9113-010
A5Q1
105 MMBZ5237BLT1 2 DIODE 8
(V1MQ07) 353-8133-120
A5VR1 A5VR2 A5VR3 A5VR4 A5VR5 A5VR6
A5VR9 A5VR10
34-50-96 Page 10379
May 20/10
![](/img.php?id=1856825&img=bga8.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
21
110 BAS70-04 2 DIODE 47
(V12954) 353-8136-010
A5CR1 A5CR2 A5CR3 A5CR4 A5CR5 A5CR6
A5CR7 A5CR8 A5CR9 A5CR10 A5CR11 A5CR12
A5CR13 A5CR14 A5CR15 A5CR16 A5CR17
A5CR18 A5CR19 A5CR20 A5CR21 A5CR22
A5CR23 A5CR24 A5CR25 A5CR26 A5CR27
A5CR28 A5CR29 A5CR30 A5CR31 A5CR32
A5CR33 A5CR34 A5CR35 A5CR36 A5CR37
A5CR38 A5CR41 A5CR42 A5CR43 A5CR44
A5CR45 A5CR46 A5CR47 A5CR48 A5CR49
115 CRCW12061002F 2 RESISTOR, FIXED, 10K OHM, 1%, .25W 6
(V56845) 705-3535-020
A5R1 A5R2 A5R7 A5R10 A5R14 A5R16
120 CRCW12061004F 2 RESISTOR, FIXED, 1M OHM, 1%, .25W 1
(V56845) 705-3535-120
A5R5
125 CRCW12065620F 2 RESISTOR, FIXED 562 OHMS, 1%, 125MW 1
(V56845) 705-3535-800
A5R3
130 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHM, 1%, 1
1/4W
(V59124) 705-3540-100
A5R4
135 S0MC160336R0GDC 2 RESISTOR, NETWORK, 36 OHM, .25W, 2% 7
(ESDS)
(V91637) 833-5502-010
TRUE PN IS SOMC160336R0GDC
A5RN4 A5RN13 A5RN19 A5RN20 A5RN30
A5RN36 A5RN46
140 833-5502-020 2 RESISTOR, NETWORK, 47 OHM, .25W, 2% 1
(ESDS)
(V11236) 833-5502-020
A5RN37
145 833-5502-030 2 RESISTOR, NETWORK, 82 OHM, .25W, 2% 2
(ESDS)
(V11236) 833-5502-030
A5RN23 A5RN35
150 833-5502-040 2 RESISTOR, NETWORK 1K OHM, 2% (ESDS) 3
(V11236) 833-5502-040
A5RN24 A5RN25 A5RN34
155 833-5502-050 2 RESISTOR, NETWORK, 1.5K OHM, .25W, 2% 1
(ESDS)
(V11236) 833-5502-050
A5RN38
160 833-5502-060 2 RESISTOR, NETWORK 4.7K, 2% (ESDS) 2
(V11236) 833-5502-060
A5RN39 A5RN44
165 833-5502-070 2 RESISTOR, NETWORK 10K, 2% (ESDS) 2
(V11236) 833-5502-070
A5RN2 A5RN43
170 833-5502-080 2 MICROCIRCUIT (ESDS) 2
(V11236) 833-5502-080
A5RN1 A5RN3
175 833-5502-120 2 RESISTOR, NETWORK 47K, 2% (ESDS) 5
(V91637) 833-5502-120
A5RN21 A5RN22 A5RN26 A5RN29 A5RN33
180 833-5502-140 2 RESISTOR, NETWORK, 62K OHM, .25W, 2% 1
(ESDS)
(V11236) 833-5502-140
A5RN40
185 833-5502-180 2 RESISTOR, NETWORK, 100K OHM, .25W, 2% 1
(V11236) 833-5502-180
A5RN42
190 833-5502-190 2 RESISTOR, NETWORK, 270K OHM, .25W, 2% 1
(ESDS)
(V11236) 833-5502-190
A5RN41
34-50-96 Page 10380
May 20/10
![](/img.php?id=1856825&img=bga9.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
21
195 4816PS40-000 2 RESISTOR, FIXED, 1.2W, 2% (ESDS) 22
(V80294) 833-6002-010
TRUE PN IS 4816P-S40-000
A5RN5 A5RN6 A5RN7 A5RN8 A5RN9 A5RN10
A5RN11 A5RN12 A5RN14 A5RN15 A5RN16
A5RN17 A5RN18 A5RN27 A5RN28 A5RN31
A5RN32 A5RN45 A5RN47 A5RN48 A5RN49
A5RN133
200 TAJB475K010HNJ 2 CAPACITOR, FIXED 4.7UF, 10%, 10V 1
(V04222) 834-2008-140
A5C120
205 TAJC105K050HNJ 2 CAPACITOR, FIXED 1UF, 10%, 50V 4
(V04222) 834-2008-320
A5C12 A5C13 A5C14 A5C15
210 12065C103KAT2A 2 CAPACITOR, FIXED, .01UF, 10%, 50V 44
(V04222) 834-5005-250
A5C9 A5C10 A5C11 A5C34 A5C35 A5C36
A5C37 A5C38 A5C41 A5C42 A5C49 A5C50
A5C52 A5C53 A5C56 A5C68 A5C84 A5C85
A5C95 A5C96 A5C97 A5C100 A5C105 A5C106
A5C107 A5C108 A5C109 A5C110 A5C119
A5C121 A5C122 A5C123 A5C124 A5C125
A5C126 A5C127 A5C128 A5C129 A5C130
A5C140 A5C142 A5C143 A5C144 A5C145
215 12065C104KAT2A 2 CAPACITOR, FIXED, 0.1UF, 10%, 50V 2
(V04222) 834-5005-370
A5C115 A5C116
220 MC33074D 2 MICROCIRCUIT (ESDS) 3
(V1MQ07) 835-0032-010
A5U9 A5U10 A5U11
225 MMPQ2222A 2 TRANSISTOR (ESDS) 3
(V1MQ07) 835-0035-020
A5QP1 A5QP3 A5QP5
230 MMPQ2907A 2 TRANSISTOR (ESDS) 3
(V1MQ07) 835-0036-020
A5QP2 A5QP4 A5QP6
235 LM2901D 2 MICROCIRCUIT (ESDS) 6
(V01295) 835-1278-030
A5U3 A5U4 A5U5 A5U6 A5U7 A5U15
240 X28HC256JI90 2 MICROCIRCUIT (ESDS) 2
(V34371) 835-5509-100
TRUE PN IS X28HC256JI-90
A5U24 A5U25
245 TN80C196KC20 2 MICROCIRCUIT (ESDS) 1
(V34649) 835-1532-090
TRUE PN IS TN80C196KC-20
A5U20
250 MAX693AESE 2 MICROCIRCUIT (ESDS) 1
(V1ES66) 835-1632-010
A5U35
255 835-1681-030 2 MICROCIRCUIT (ESDS) 1
(V0FB81) 835-1681-030
A5U19
260 831-4505-004 2 MICROCIRCUIT, MODIFIED (ESDS) 1
A5U13
- 265 CY7C291AL35JI 3 MICROCIRCUIT (ESDS) 1
(V0C7V7) 835-2012-040
TRUE PN IS CY7C291AL-35JI
270 AM29F010A70JI 2 MICROCIRCUIT (ESDS) 2
(V34335) 835-2059-050
TRUE PN IS AM29F010A-70JI
A5U21 A5U22
275 CY7C109BN15VI 2 MICROCIRCUIT (ESDS) 2
(V65786) 351-3245-160
TRUE PN IS CY7C109BN-15VI
A5U26 A5U27
- 275A IDT71024S20YI 2 MICROCIRCUIT (ESDS) 2
(V61772) 351-9473-010
(OPT TO ITEM 275)
34-50-96 Page 10381
May 20/10
![](/img.php?id=1856825&img=bgaa.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
21
280 31015-11 2 MICROCIRCUIT (ESDS) 1
(V34576) 351-4950-010
A5U12
285 831-4504-001 2 MICROCIRCUIT, MODIFIED (ESDS) 1
A5U16
- 290 ATF22V10C7JI 3 MICROCIRCUIT (ESDS) 1
(V1FN41) 835-5874-070
TRUE PN IS ATF22V10C-7JI
295 P6SMB11CA 2 DIODE 10
(V14936) 844-0103-010
A5VR19 A5VR20 A5VR21 A5VR22 A5VR31
A5VR32 A5VR33 A5VR34 A5VR43 A5VR44
300 SG615P20-000MC 2 MICROCIRCUIT (ESDS) 1
(V61722) 850-1035-010
TRUE PN IS SG-615P20.000MC
A5Y1
305 2743019447 2 BEAD, SURFACE MOUNT FERRITE 15
(V34899) 852-3002-010
A5Z1 A5Z5 A5Z9 A5Z13 A5Z17 A5Z21 A5Z25
A5Z29 A5Z33 A5Z37 A5Z41 A5Z45 A5Z53
A5Z57 A5Z61
310 08055A100JAT9A 2 CAPACITOR, FIXED CER DIEL, 10PF, 5%, 12
50V
(V04222) 913-3667-030
A5C69 A5C70 A5C73 A5C74 A5C77 A5C78
A5C81 A5C82 A5C86 A5C90 A5C91 A5C93
315 08055A470JAT9A 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 8
50V
(V04222) 913-3667-110
A5C26 A5C30 A5C33 A5C39 A5C45 A5C48
A5C76 A5C92
320 08055A101JAT9A 2 CAPACITOR, FIXED, 100PF, 5%, 50V 8
(V04222) 913-3667-150
A5C54 A5C55 A5C58 A5C59 A5C60 A5C61
A5C65 A5C66
325 08055A331JAT9A 2 CAPACITOR, FIXED CER DIEL, 330PF, 5%, 2
50V
(V04222) 913-3667-200
A5C113 A5C114
330 08055A471JAT9A 2 CAPACITOR, FIXED, 5.6PF, 50V 57
(V04222) 913-3667-230
A5C1 A5C2 A5C3 A5C4 A5C5 A5C6 A5C7
A5C8 A5C16 A5C18 A5C19 A5C20 A5C22
A5C23 A5C25 A5C27 A5C28 A5C29 A5C31
A5C32 A5C40 A5C43 A5C44 A5C46 A5C47
A5C51 A5C57 A5C62 A5C63 A5C64 A5C67
A5C71 A5C72 A5C75 A5C79 A5C80 A5C83
A5C87 A5C88 A5C89 A5C94 A5C98 A5C99
A5C101 A5C102 A5C103 A5C104 A5C131
A5C132 A5C133 A5C134 A5C135 A5C136
A5C137 A5C138 A5C146 A5C147
335 08055A221JAT9A 2 CAPACITOR, FIXED CER DIEL, 220PF, 5%, 1
50V
(V04222) 913-3667-470
A5C112
340 08051A430JATMN 2 CAPACITOR, FIXED CER DIEL, 43PF, 5%, 1
100V
(V04222) 913-3669-080
A5C111
345 08055C561KAT9E 2 CAPACITOR, FIXED CER, 560PF, 10%, 50V 3
(V04222) 913-3670-090
A5C17 A5C21 A5C24
350 RK73H2BL4751F 2 RESISTOR, FIXED, 4.75K OHM, 1%, .25W 1
(V59124) 705-3537-600
A5R15
355 P6SMB6-8A 2 DIODE 2
(V1MQ07) 844-0082-010
TRUE PN IS P6SMB6.8A
A5VR61 A5VR62
34-50-96 Page 10382
May 20/10
![](/img.php?id=1856825&img=bgab.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Component Location Chart
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
REF
DES
GEO
LOC
ITEM
NO
* DESIGNATES BACKSIDE COMPONENTS
Figure 22. Power Amplifier Circuit Card A2 (CPN 687-0722-006)
C1 B-3 230
C101 C-10 255
C102 B-10 270
C103 C-10 230
C104 C-10 255
C106 C-11 275
C109 B-12 275
C110 B-12 275
C111 A-12 275
C112 A-11 275
C113 A-10 265
C114 B-10 275
C115 B-9 275
C116 B-9 265
C117 B-8 275
C118 B-7 275
C119 B-7 260
C120 B-7 275
C121 A-9 260
C122 A-8 260
C123 C-10 255
C124 C-11 255
C125 C-12 255
C126 C-12 230
C127 B-11 255
C128 B-11 230
C129 C-10 235
C130 B-12 245
C132 A-8 240
C133 B-8 250
C2 B-3 230
C201 A-4 220
C203 C-7 255
C204 C-4 255
C205 A-7 255
C206 A-4 255
C207 C-4 220
C301 C-3 220
C302 C-4 220
C303 C-4 220
C304 B-3 230
C305 B-4 230
C306 A-3 225
C307 B-4 230
C308 B-4 230
C309 A-3 225
C310 B-3 225
C311 B-4 230
C312 C-3 225
C313 A-3 220
C314 A-4 220
C315 A-4 220
C316 B-4 215
C317 B-3 230
C320 B-1 220
C321 B-1 220
C322 B-2 230
C323 B-2 230
C324 B-2 220
C325 B-2 220
C401 C-10 215
C402 C-11 215
C403 C-11 215
C404 C-12 215
C405 B-11 215
C406 A-9 215
C407 A-8 215
C501 C-4 215
C502 C-4 215
C503 A-6 215
C504 A-4 215
C505 A-4 215
C506 C-6 215
CR1 C-11 100
CR201 A-4 105
CR203 C-7 280
CR204 C-5 280
CR205 A-7 280
CR206 A-5 280
CR207 C-4 105
CR301 B-4 195
CR302 A-4 195
FL301 B-5 205
FL302 B-5 205
J13 B-12* 110
L101 C-10 90
L102 C-11 90
L103 C-11 90
L104 C-12 90
L105 A-11 90
L106 A-9 85
L201 A-4 85
L202 C-4 85
L305 B-3 200
L306 A-3 200
Q101 C-10 190
Q102 C-11 5
Q103 A-11 25
Q104 A-10 45
Q105 B-8 65
R101 A-9 165
R102 A-9 165
R103 A-8 165
R104 A-8 165
R105 C-10 130
R106 C-11 145
R107 C-11 125
R108 A-8 165
R109 A-8 165
R110 A-11 155
R201 A-4 135
R202 A-3 135
R203 C-4 135
R204 C-3 135
R302 C-3 120
R303 B-3 115
R304 B-3 120
R305 B-4 170
R306 B-4 160
R307 A-3 120
R308 B-3 115
R309 B-3 120
R310 B-4 170
R311 B-4 160
R313 B-1 285
R314 B-1 150
R315 B-1 150
R316 B-1 140
R317 B-1 140
R318 B-2 170
R319 B-2 170
U101 B-4* 175
U301 B-2 210
U302 C-4 180
U303 C-4 185
U304 B-2 210
U305 A-4 180
U306 A-4 185
U307 B-2 180
U308 B-1 180
34-50-96 Page 10383/10384
May 20/10
![](/img.php?id=1856825&img=bgad.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Power Amplifier Circuit Card A2 (CPN 687-0722-006)
Figure 22 (Sheet 1 of 4) /GRAPHIC 34-50-96-99B-822-A01
34-50-96 Page 10385/10386
May 20/10
![](/img.php?id=1856825&img=bgaf.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Power Amplifier Circuit Card A2 (CPN 687-0722-006)
Figure 22 (Sheet 2 of 4) /GRAPHIC 34-50-96-99B-822-A01
34-50-96 Page 10387/10388
May 20/10
![](/img.php?id=1856825&img=bgb1.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Power Amplifier Circuit Card A2 (CPN 687-0722-006)
Figure 22 (Sheet 3 of 4) /GRAPHIC 34-50-96-99B-822-A01
34-50-96 Page 10389/10390
May 20/10
![](/img.php?id=1856825&img=bgb3.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
Power Amplifier Circuit Card A2 (CPN 687-0722-006)
Figure 22 (Sheet 4 of 4) /GRAPHIC 34-50-96-99B-822-A01
34-50-96 Page 10391/10392
May 20/10
![](/img.php?id=1856825&img=bgb5.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
22
- 1 687-0722-006 1 CIRCUIT CARD, POWER AMPLIFIER (ESDS) RF
(SEE FIG 2-25D FOR NHA)
A2
5 23A008 2 TRANSISTOR (ESDS) 1
(V0PJR2) 843-1507-020
A2Q102
- 5A SD1802-01 2 TRANSISTOR (ESDS) 1
(V08JA0) 843-1507-010
(OPT TO ITEM 5)
- - - ATTACHING PARTS - - -
10 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
15 MS35338-135 2 WASHER, LOCK SST 2
0.115 ID X 0.209 OD
(V96906) 310-0279-000
20 188-121-015 2 WASHER, FLAT, .121 ID, .188 OD, .015 2
(V85446) 846-1009-010
TRUE PN IS 188 121 015
------*------
25 1512-06 2 TRANSISTOR (ESDS) 1
(V08JA0) 843-0018-010
A2Q103
- - - ATTACHING PARTS - - -
30 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
35 MS35338-135 2 WASHER, LOCK SST 2
0.115 ID X 0.209 OD
(V96906) 310-0279-000
40 188-121-015 2 WASHER, FLAT, .121 ID, .188 OD, .015 2
(V85446) 846-1009-010
TRUE PN IS 188 121 015
------*------
45 SRF4037 2 TRANSISTOR (ESDS) 1
(V04713) 843-0019-010
A2Q104
- - - ATTACHING PARTS - - -
50 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
55 MS35338-135 2 WASHER, LOCK SST 2
0.115 ID X 0.209 OD
(V96906) 310-0279-000
60 188-121-015 2 WASHER, FLAT, .121 ID, .188 OD, .015 2
(V85446) 846-1009-010
TRUE PN IS 188 121 015
------*------
65 MRF10502 2 TRANSISTOR (ESDS) 1
(V04713) 843-0023-030
A2Q105
- - - ATTACHING PARTS - - -
70 347-0006-000 2 SCREW, MACHINE CRES, PSVT 2
0.112-40X0.250L
(V1GP79) 347-0006-000
75 MS35338-135 2 WASHER, LOCK SST 2
0.115 ID X 0.209 OD
(V96906) 310-0279-000
80 188-121-015 2 WASHER, FLAT, .121 ID, .188 OD, .015 2
(V85446) 846-1009-010
TRUE PN IS 188 121 015
------*------
85 MS75083-1 2 COIL, RF, 0.100UH 3
(V96906) 240-2723-140
A2L106 A2L201 A2L202
90 W2298 2 COIL 5
(V02113) 628-5632-001
A2L101 A2L102 A2L103 A2L104 A2L105
34-50-96 Page 10393
May 20/10
![](/img.php?id=1856825&img=bgb6.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
22
95 307-1020-000 2 EYELET, FLANGE, ROLLED, .152, .158 1
(V23730) 307-1020-000
100 MMBD6050 2 DIODE 1
(V1MQ07) 353-8135-010
A2CR1
105 BAS70-05 2 DIODE 2
(V12954) 353-8136-020
A2CR201 A2CR207
110 3009-1511-005 2 CONNECTOR, ELECTRICAL 1
(V19505) 357-7195-010
A2J13
115 653-0030-002 2 RESISTOR, TEST SELECT 2
(SEE FIG 23 FOR DET BKDN)
A2R303 A2R308
120 653-0030-003 2 RESISTOR, TEST SELECT 4
(SEE FIG 24 FOR DET BKDN)
A2R302 A2R304 A2R307 A2R309
125 RK73H2BL2211F 2 RESISTOR, FIXED, 2.21K OHM, .25W, 1% 1
(V59124) 705-3537-330
A2R107
130 RK73H2BL47R5F 2 RESISTOR, FIXED FILM, 47.5 OHM, 1%, 1
125MW
(V59124) 705-3539-790
A2R105
135 RK73H2BL51R1F 2 RESISTOR, FIXED FILM, 51.1 OHM, 1%, 4
.25W
(V59124) 705-3539-820
A2R201 A2R202 A2R203 A2R204
140 RK73H2BL1500F 2 RESISTOR, FIXED FILM, 150 OHM, 1%, 2
1/4W
(V59124) 705-3540-270
A2R316 A2R317
145 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHM, 1%, 1
1/4W
(V59124) 705-3540-100
A2R106
150 CRCW120668R1FB 2 RESISTOR, FIXED FILM, 68.1 OHM, 1%, 2
1/8W
(V56845) 705-3539-940
A2R314 A2R315
155 RK73B2ELBD470J 2 RESISTOR, FIXED, 47 OHM, .25W, 5% 1
(V59124) 705-3541-170
A2R110
160 RK73B2ELBD511J 2 RESISTOR, FIXED, 510 OHM, .25W, 5% 2
(V59124) 705-3541-420
A2R306 A2R311
165 RK73B3AL200J 2 RESISTOR, FIXED, 20 OHM, 1W, 5% 6
(V59124) 833-6009-040
A2R101 A2R102 A2R103 A2R104 A2R108
A2R109
170 833-6524-720 2 RESISTOR, FIXED, 200 OHM, .6W, 1% 4
(ESDS)
(V91637) 833-6524-720
PN IS REF NO FOR RCWP7225200RFKBB
A2R305 A2R310 A2R318 A2R319
175 LM235AH 2 MICROCIRCUIT (ESDS) 1
(V27014) 835-0016-010
A2U101
180 MSA0386BLKG 2 MICROCIRCUIT (ESDS) 4
(V07980) 835-0057-030
TRUE PN IS MSA-0386-BLKG
A2U302 A2U305 A2U307 A2U308
185 A06 2 MICROCIRCUIT (ESDS) 2
(V07980) 835-0057-040
A2U303 A2U306
190 MRF2369 2 TRANSISTOR (ESDS) 1
(V04713) 843-0017-010
TRUE PN IS {MRF}2369
A2Q101
34-50-96 Page 10394
May 20/10
![](/img.php?id=1856825&img=bgb7.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
22
195 DL100211-701 2 DIODE 2
(V96341) 844-0033-010
A2CR301 A2CR302
200 1812-101K 2 COIL, 0.1 2
(V99800) 849-0025-010
A2L305 A2L306
205 KFF6138A 2 FILTER, CERAMIC 2
(V76978) 849-0510-010
A2FL301 A2FL302
210 JMS5LH 2 MICROCIRCUIT (ESDS) 2
(V15542) 850-0001-080
TRUE PN IS JMS-5LH
A2U301 A2U304
215 54-713-063 2 CAPACITOR, FIXED CER DIEL 100PF, 20%, 14
100V
(V33095) 913-1128-010
A2C316 A2C401 A2C402 A2C403 A2C404
A2C405 A2C406 A2C407 A2C501 A2C502
A2C503 A2C504 A2C505 A2C506
220 08055A470JAT9A 2 CAPACITOR, FIXED CER DIEL, 47PF, 5%, 12
50V
(V04222) 913-3667-110
A2C201 A2C207 A2C301 A2C302 A2C303
A2C313 A2C314 A2C315 A2C320 A2C321
A2C324 A2C325
225 08051A240JATMN 2 CAPACITOR, FIXED CER DIEL 24PF, 5%, 4
100V
(V04222) 913-3669-050
A2C306 A2C309 A2C310 A2C312
230 08055C102KAT9E 2 CAPACITOR, FIXED, .001UF, 50V 13
(V04222) 913-3670-120
A2C1 A2C2 A2C103 A2C126 A2C128 A2C304
A2C305 A2C307 A2C308 A2C311 A2C317
A2C322 A2C323
235 12065C104KAT9A 2 CAPACITOR, FIXED CER DIEL 0.1UF, 20%, 1
50V
(V04222) 913-3676-130
A2C129
240 CK05BX103K 2 CAPACITOR, FIXED CER DIEL, 0.01UF, 1
10%, 100VDC
(V04222) 913-5019-200
A2C132
245 AQ12EM5R6BAJBE 2 CAPACITOR, FIXED CER DIEL 5.6PF, PORM 1
0.1PF, 50V
(V04222) 914-3500-090
A2C130
250 AQ12EM7R5BAJBE 2 CAPACITOR, FIXED, 7.5PF, 150V 1
(V04222) 914-3500-110
A2C133
255 AQ12EM510JAJBE 2 CAPACITOR, FIXED CER DIEL 51PF, 5%, 10
50V
(V04222) 914-3500-300
A2C101 A2C104 A2C123 A2C124 A2C125
A2C127 A2C203 A2C204 A2C205 A2C206
260 CDR14BG330EJUR 2 CAPACITOR, FIXED, 33PF, 500V 3
(V04222) 914-3503-390
A2C119 A2C121 A2C122
265 CDR14BG331CJUR 2 CAPACITOR, FIXED, 330PF, 5%, 200V 2
(V04222) 914-3503-670
A2C113 A2C116
270 9610-3LSL 2 CAPACITOR, VAR CER DIEL, 1-4.5PF, 1
250VDC
(V91293) 917-0501-120
A2C102
275 GNV4R551 2 CAPACITOR, VARIABLE 0.6 TO 4.5PF 500V 10
(V52769) 922-0596-140
A2C106 A2C109 A2C110 A2C111 A2C112
A2C114 A2C115 A2C117 A2C118 A2C120
34-50-96 Page 10395
May 20/10
![](/img.php?id=1856825&img=bgb8.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
22
280 MA4P7104B 2 DIODE 4
(V96341) 922-6151-040
A2CR203 A2CR204 A2CR205 A2CR206
285 CRCW12063920F 2 RESISTOR, FIXED, 392 OHM, .25W, 1% 1
(V56845) 705-3535-660
A2R313
290 280-2745-040 2 LABEL, ESDS WARNING 1
(V12998) 280-2745-040
295 653-2269-001 2 PLATE, TERMINAL 1
- - - ATTACHING PARTS - - -
300 343-0298-000 2 SCREW, PAN, 0.086-56, .187 1
(V1GP79) 343-0298-000
305 MS35333-103 2 WASHER, .093 ID, .189 OD 1
(V78189) 373-3120-000
310 304-0014-000 2 TERMINAL, LUG 1
(V20293) 304-0014-000
PN IS REF NO FOR
304-0014-000 HOT DIP SOLDER
------*------
- 315 860-0505-010 3 STANDOFF 2
(V3N087) 860-0505-010
PN IS REF NO FOR
2111-1-00-01-00-00-070
- 320 653-2269-002 3 PLATE, TERMINAL 1
34-50-96 Page 10396
May 20/10
![](/img.php?id=1856825&img=bgb9.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
FIGURE 23 IS A TEST SELECT RESISTOR AND REQUIRES NO ILLUSTRATION
23
- 1 653-0030-002 1 RESISTOR, TEST SELECT RF
(SEE FIG 22-115 FOR NHA)
- 10 RK73H2BL11R0F 2 RESISTOR, FIXED, 11 OHM, .25W, 1% AR
(V59124) 705-3539-180
- 20 RK73H2BL18R2F 2 RESISTOR, FIXED FILM, 18.2 OHM, 1%, AR
1/8W
(V59124) 705-3539-390
- 30 RK73H2BL24R3F 2 RESISTOR, FIXED FILM 24.3 OHMS, 1%, AR
125MW
(V59124) 705-3539-510
- 40 RK73H2BL30R1F 2 RESISTOR, FIXED, 30.1 OHM, .25W, 1% AR
(V59124) 705-3539-600
- 50 RK73H2BL43R2F 2 RESISTOR, FIXED FILM, 43.2 OHMS, 1%, AR
0.4W
(V59124) 705-3539-750
- 60 RK73H2BL61R9F 2 RESISTOR, FIXED 61.9 OHM, 1%, 0.025W AR
(V59124) 705-3539-900
- 70 RK73Z2BL 2 RESISTOR, FIXED FILM, .05 OHM, .2 AMP AR
(V59124) 833-6008-020
- 80 RK73H2BL35R7F 2 RESISTOR, FIXED, 35.7 OHM, .25W, 1% AR
(V59124) 705-3539-670
- 90 RK73H2BL51R1F 2 RESISTOR, FIXED FILM, 51.1 OHM, 1%, AR
.25W
(V59124) 705-3539-820
34-50-96 Page 10397/10398
May 20/10
![](/img.php?id=1856825&img=bgbb.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
FIG-
ITEM
PART NUMBER
AIRLINE PART
NUMBER
I
N
D
E
N
T
NOMENCLATURE
EFFECT
CODE
UNITS
PER
ASSY
- ITEM NOT ILLUSTRATED
FIGURE 24 IS A TEST SELECT RESISTOR AND REQUIRES NO ILLUSTRATION
24
- 1 653-0030-003 1 RESISTOR, TEST SELECT RF
(SEE FIG 22-120 FOR NHA)
- 10 CRCW12063010F 2 RESISTOR, FIXED FILM, 301 OHMS, 1%, AR
125MW
(V56845) 705-3535-550
- 20 CRCW12064320F 2 RESISTOR, FIXED FILM, 432 OHMS, 1%, AR
0.4W
(V56845) 705-3535-690
- 30 RK73H2BL1000F 2 RESISTOR, FIXED FILM, 100 OHM, 1%, AR
1/4W
(V59124) 705-3540-100
- 40 RK73H2BL1820F 2 RESISTOR, FIXED, 182 OHM, .25W, 1% AR
(V59124) 705-3540-350
- 50 RK73H2BL2210F 2 RESISTOR, FIXED FILM, 221 OHMS, 1%, AR
125MW
(V59124) 705-3540-430
- 60 RK73H2BL1500F 2 RESISTOR, FIXED FILM, 150 OHM, 1%, AR
1/4W
(V59124) 705-3540-270
- 70 RK73H2BL1300F 2 RESISTOR, FIXED FILM, 130 OHM, 1%, AR
1/4W
(V59124) 705-3540-210
- 80 RK73H2BL1150F 2 RESISTOR, FIXED FILM, 115 OHM, 1%, AR
1/4W
(V59124) 705-3540-160
34-50-96 Page 10399/10400
May 20/10
![](/img.php?id=1856825&img=bgbd.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
SPECIAL PROCEDURES
TASK 34-50-96-99E-803-A01
1. Introduction
A. This section gives special procedures that are necessary because of other maintenance
tasks done to the unit. These procedures are not shown in other sections of this manual.
TASK 34-50-96-99E-804-A01
2. Procedures
A. There are no special procedures necessary for this equipment.
34-50-96 Page 11001/11002
May 18/06
![](/img.php?id=1856825&img=bgbf.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
REMOVAL
TASK 34-50-96-010-801-A01
1. Introduction
A. This section is not applicable to this component.
34-50-96 Page 12001/12002
May 18/06
![](/img.php?id=1856825&img=bgc1.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
INSTALLATION
TASK 34-50-96-410-801-A01
1. Introduction
A. This section is not applicable to this component.
34-50-96 Page 13001/13002
May 18/06
![](/img.php?id=1856825&img=bgc3.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
SERVICING
TASK 34-50-96-610-801-A01
1. Introduction
A. This section is not applicable to this component.
34-50-96 Page 14001/14002
May 18/06
![](/img.php?id=1856825&img=bgc5.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
STORAGE INCLUDING TRANSPORTATION
TASK 34-50-96-550-801-A01
1. Introduction
A. This section gives the procedures to prepare the unit for transportation or storage and
preservation. Do these procedures after the test and assembly procedures are completed.
TASK 34-50-96-550-802-A01
2. Storage After Assembly
CAUTION: AMBIENT TEMPERATURE LIMITS FOR STORAGE ARE SET IN THE
EQUIPMENT SPECIFICATIONS. THE STORAGE AREA TEMPERATURE
MUST NOT BE MORE THAN THESE LIMITS.
CAUTION: INSTALL THE CONNECTOR CAPS WHEN A UNIT IS NOT INSTALLED
IN THE AIRCRAFT, OR IS IN STORAGE, OR WHILE THE UNIT IS
MOVED. WITHOUT CAPS, POSSIBLE ELECTROSTATIC DISCHARGE
DAMAGE CAN OCCUR TO THE UNIT.
A. Make sure that all assemblies are attached to the chassis and that the cover is installed on
the equipment. Put the equipment in the initial container that it came in, if available. Include
the sufficient desiccant to absorb moisture before the equipment is put in storage. Seal the
container with tape before storage.
NOTE: To replace connector caps, refer to the Illustrated Parts List or the ALL AIR
TRANSPORT AVIONICS EQUIPMENT SIL. The SIL title is Protective Connector
Cap Parts List for Collins and other vendor part numbers.
34-50-96 Page 15001/15002
May 18/06
![](/img.php?id=1856825&img=bgc7.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
REWORK
TASK 34-50-96-840-801-A01
1. Introduction
A. Service bulletins applicable to this equipment are shown in the Service Bulletin List in the
front of this manual. Copies of service bulletins are available from Rockwell Collins, Inc.
34-50-96 Page 16001/16002
May 18/06
![](/img.php?id=1856825&img=bgc9.png)
ROCKWELL COLLINS
COMPONENT MAINTENANCE MANUAL with IPL
TDR-94, PART NO 622-9352
APPENDIX A
TASK 34-50-96-99E-805-A01
1. Integrated Circuit Descriptions
A. The IC description information has been moved to the end of the Description and Operation
section of this manual.
34-50-96 Page A-1/A-2
May 18/06
![](/img.php?id=1856825&img=bgcc.png)
523-0778502
© Copyright 2010, Rockwell Collins, Inc.
All Rights Reserved, Printed in USA
