Three Field of View (FOV) options are supported when shooting in 1920x1080 60i, 1920x1080

30pand 1920x1080 25p: Wide (140

), Medium (120

) and Narrow (90

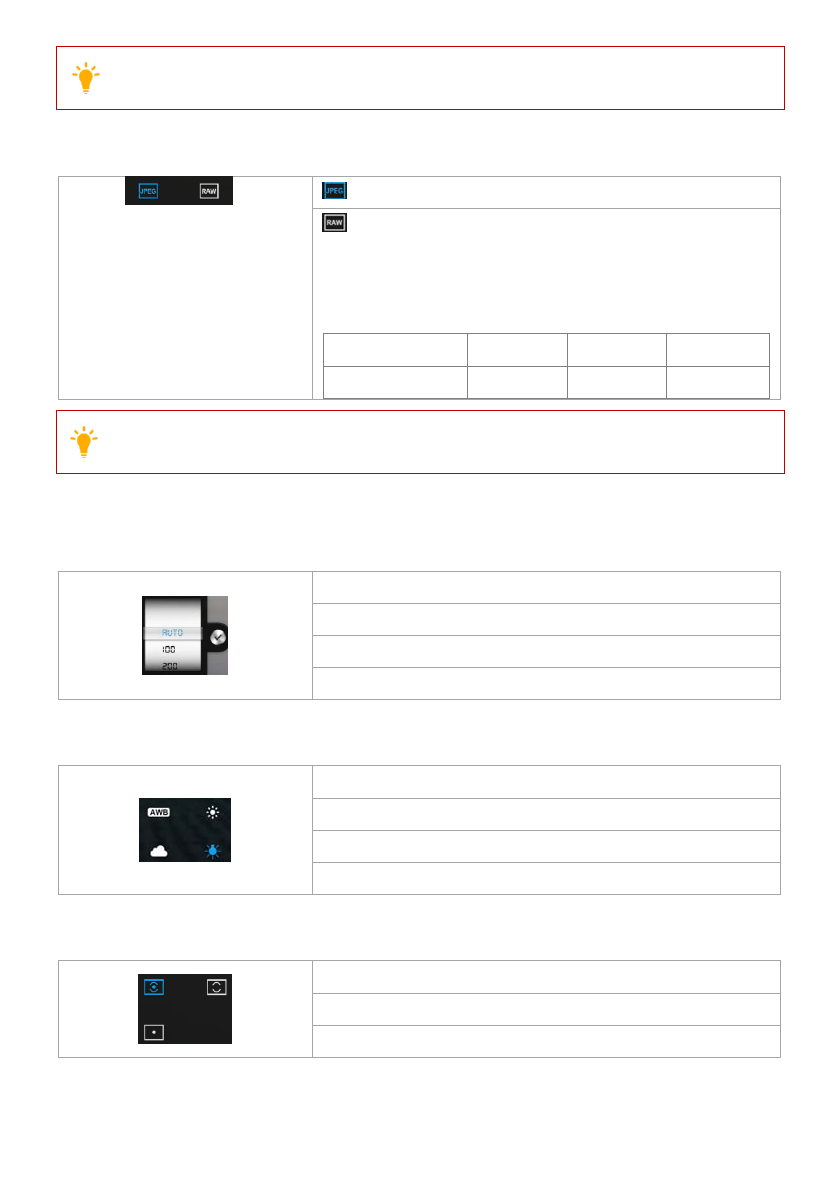

[4]Photo Format

JPEG

RAW

The PHANTOM 2 VISION+ camera shoots in JPEG and RAW file

formats simultaneouslywhen this option is selected. See the following

table for detailed specifications.

JPEG photo size

4384X3288

4384X2922

4384X2466

RAW photo size

4384X3288

4384X2920

4384X2464

RAW format supports to be manipulated in Photoshop, including Photoshop CS,

Photoshop Elements 3, Photoshop Elements 10 and Photoshop Lightroom.

[5] Selectable ISO

AUTO

100

200

400

[6] White Balance

AWB (auto white balance)

Sunny

C lo u d y

Incandescentlamp

[7]Exposure Metering

Center

Average

Spot

[8] Exposure Compensation

-2.0

（

）

2.0

（

）

-1.7

（

）

1.7

（

）

-1.3

（

）

1.3

（

）

-1.0

（

）

1.0

（

）

-0.7

（

）

0.7

（

）

-0.3

（

）

0.3

（

）

（

）

[9] Sharpness

Standard

Hard

Soft

[10]Anti-flicker

Auto

50Hz

60Hz

[11]Restore Default Settings

Restores all cameradefault settings. Camera reboot is needed to a l lo w restoration to take effect.

[12]Format Micro-SD Card

FormattheMicro-SD card. All data stored in the Micro-SD cardwill be lost after formatting. Remember to

backup before formatting.

4 Album Page

DJI VISION App has SD CARD album and Mobile Device album. The captures and videos in SD CARD album store in

Micro-SD card and those in Mobile Device album store in the storage devices of mobile device. The captures and

videos in SD CARD album can be synchronized to Mobile Device album.

In DJI VISION App, tap to enter into SD CARD album and tap to enter into Mobile Device album.

SD CARD Album M obile D evice A lbum

SD CARD album is accessible when the mobile device is well connected to the Wi-Fi of PHANTOM 2

VISION

SD CARDAlbum

The pictures stored in the camera is presented to you in the thumbnail fashion. Tap the corresponding thumbnail

to view the picture that you wish to see.

[1]

[4]

[3]

[2]

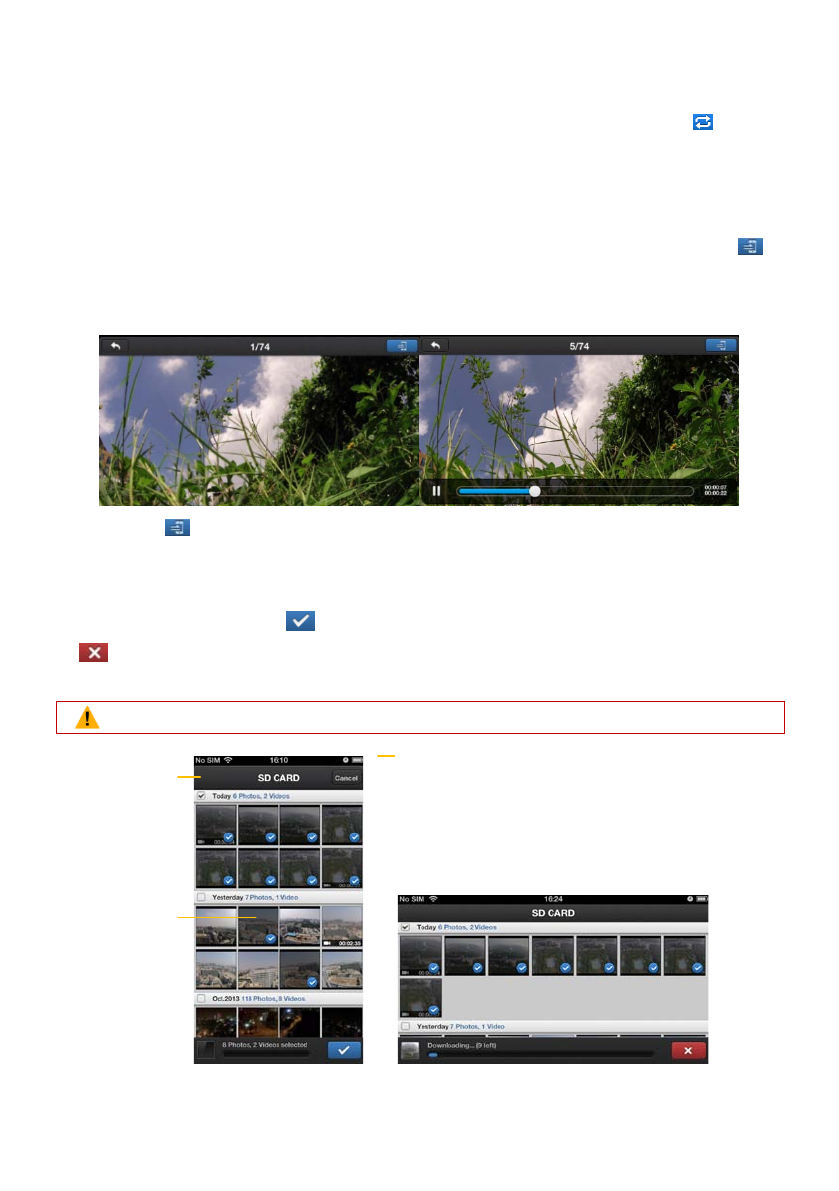

[1]Photos and Videos are listed and grouped by date.

[2]All photos and videos that have already been synced to your mobile device are identified with the icon.

[3]Tap any thumbnail for single view mode. Tap a Photo thumbnail that hasn’t been synchronized to the mobile

de v i c e to view the photo. Swipe left or right to view the previous or next photo item. Tap on a video thumbnail

to play it and view the video’s length. A progress bar will also appear at the bottom of the screen.Tap to

enter single synchronization m o de to synchronize a singlephoto or video, orto synchronize and play a video at

the same time.

[4]Tapthe button to enter multiplesynchronization m o de (as shown in the following diagram).Tap thumbnails

to select photos or videos to synchronize to your mobile device (The thumbnails identified by the check

markaresuccessfully selected.). Or you can select one or more groups to be synchronized by checking the box

before the group, and then Tap to start synchronizing. During the synchronization process, users can tap

to cancel the synchronization. Photos and videos that have been synchronized to the mobile devicewill

remain.

Some mobile de v i c e s does not support the synchronization of 1080i60 video files.

Select a group

Select a single

photo or video

[5]

[5]Tap“Cancel”or “Finished” to exit themultiple synchronization m o de and return to the SD CARD page.

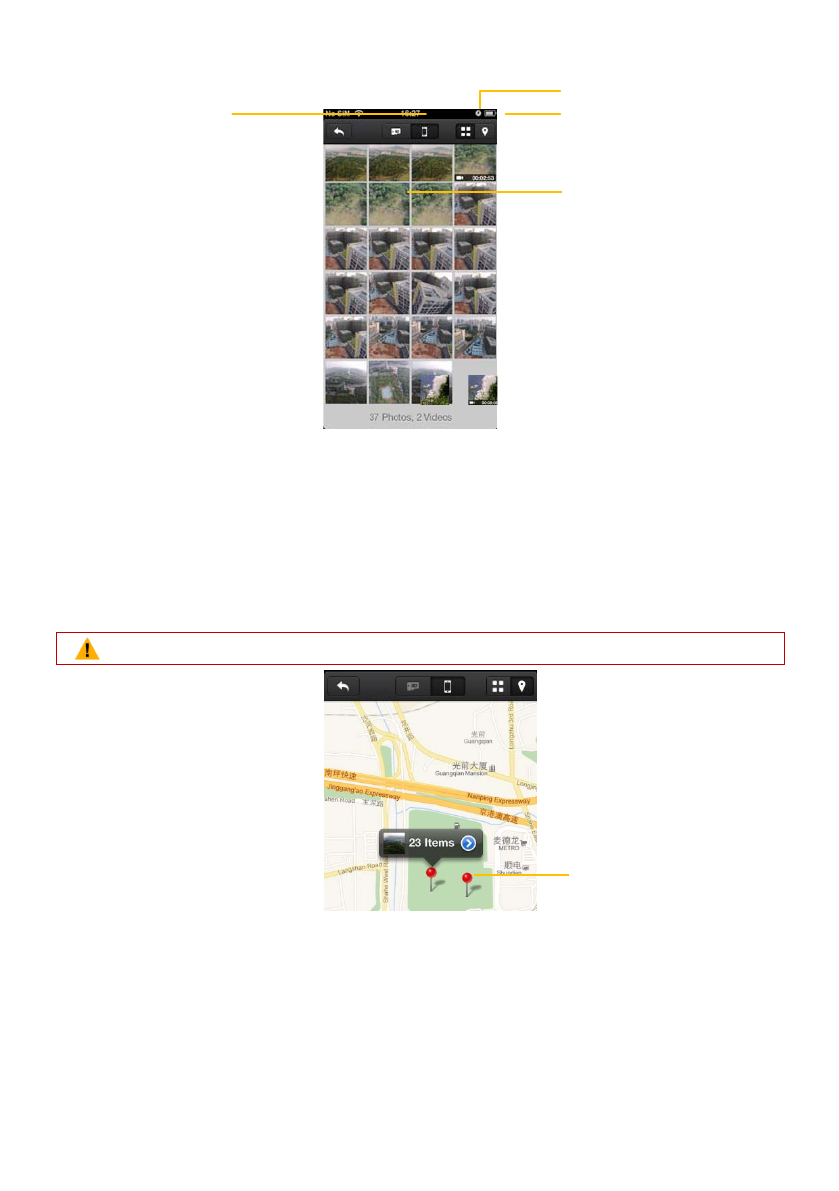

Mobile Device Album

[1]

[2]

[3]

[4]

[1]You can browse all photos and videos in the album which have been synchronized to the mobile device, view a

selected photo or play a selected video.

[2]Photos and videos are listed in thumbnail style and sorted by capture time.

[3]Pictures and videos are sorted by captured/recordedGeo-tagged locations.

Internet access is required for downloading the map.

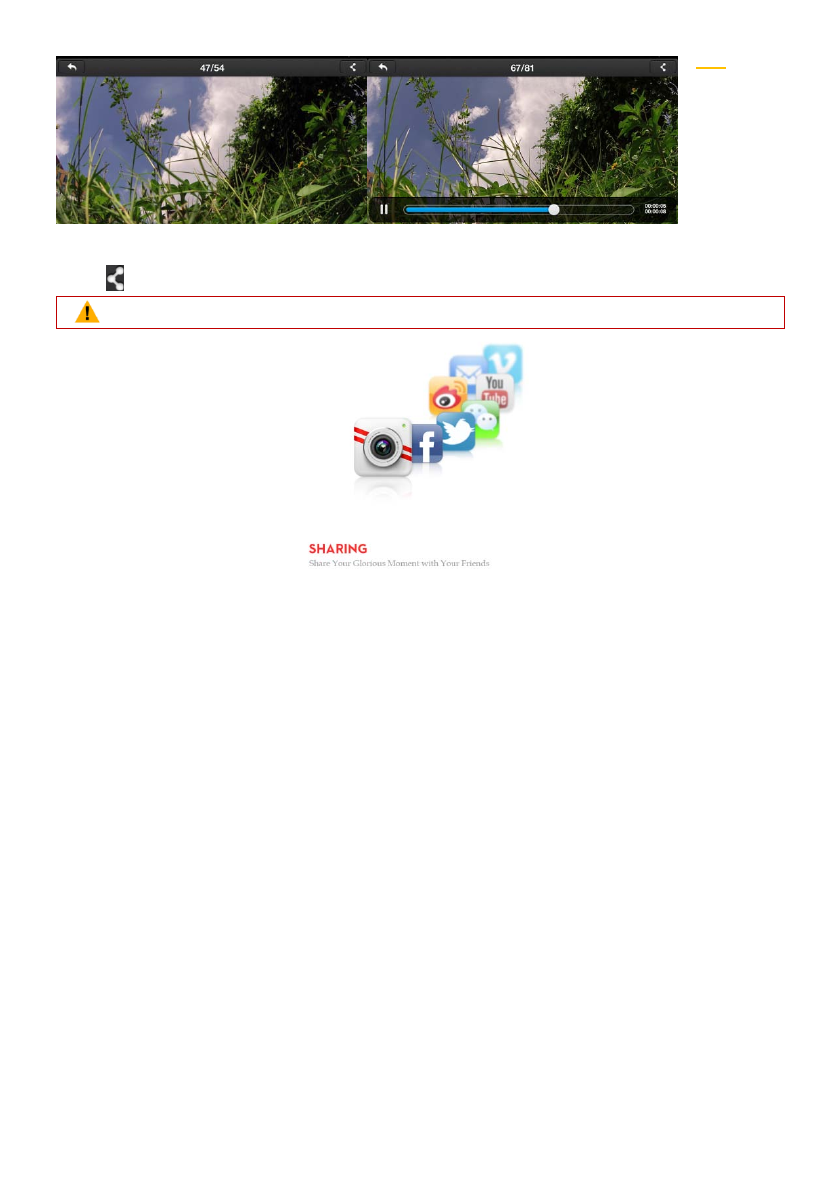

[4]Tap any thumbnail for single view;you can slide left or right to view the previous or next photo.Tap a vi de o

thumbnailto play a single video.

[5]

Geo-tagged locations

[5]Tap to share your photos and videos to social network sites.

Access to the Internet is requiredto share your photos and videos.

[5]

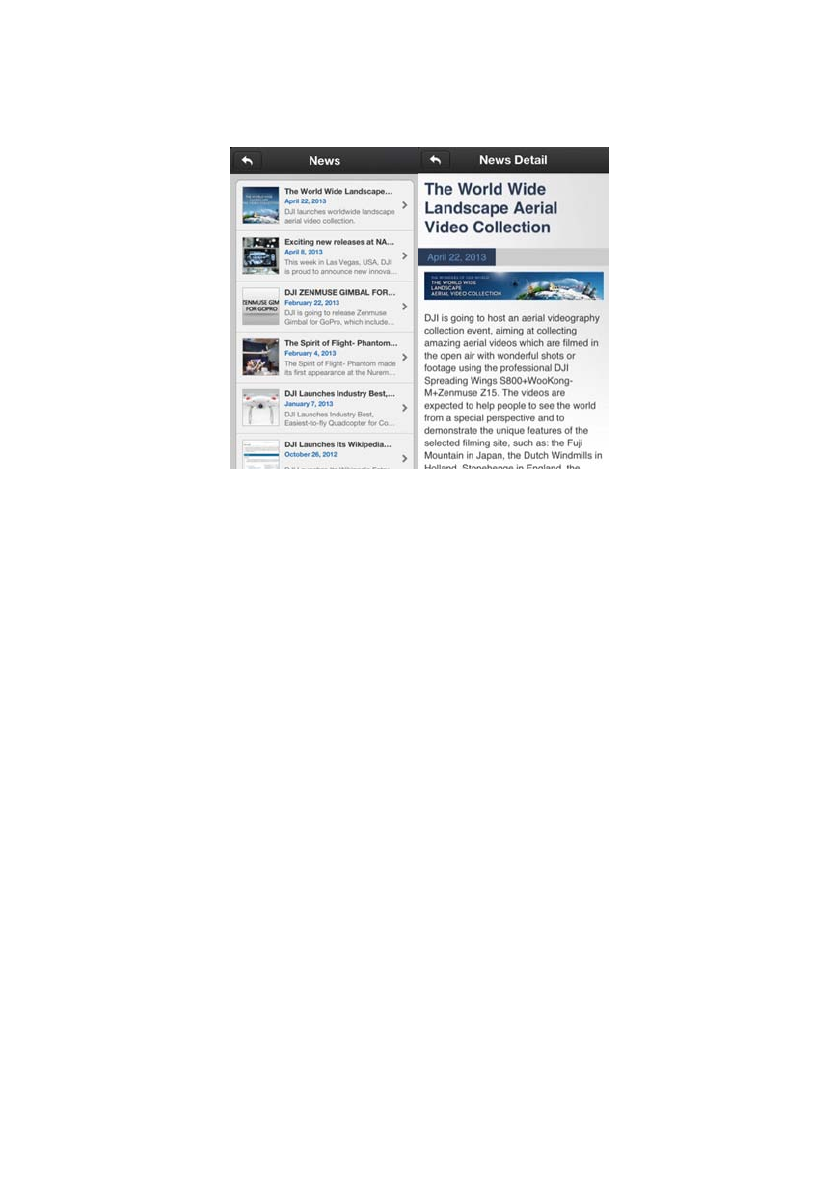

5 News Page

View the latest DJI news. (Internet access is required.)

News List News Details

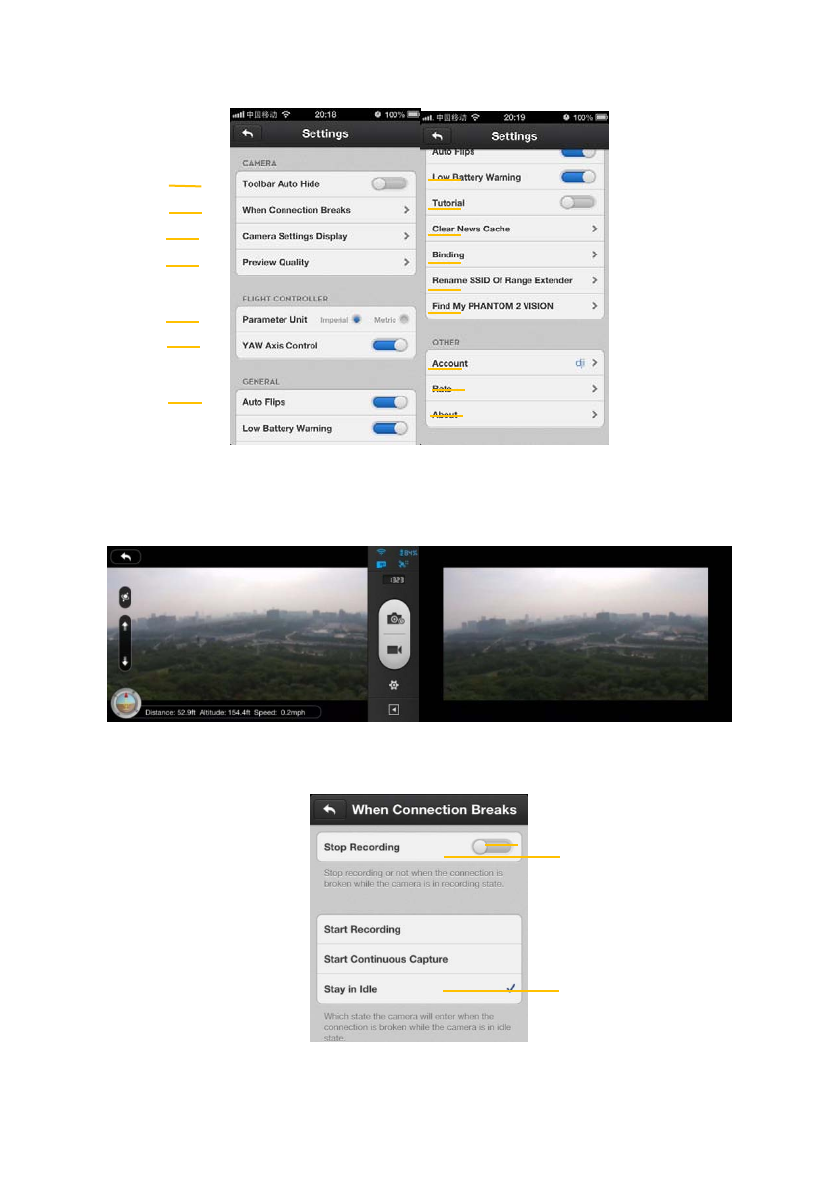

6 Settings Page

[1] Toolbar Auto Hide

Slide the switch from left to right to enable this function. The toolbar will auto hide on the camera page.

Toolbar Auto HideDisabled Toolbar Auto Hide E n a b le d

[2] When Connection Lost

[17]Stop Recording:

Enabled:Stop recording when the Wi-Ficonnection between the mobile device and the camera breaks while

the camera is recording.

[8]

[9]

[10]

[11]

[12]

[13]

[14]

[15]

[16]

[17]

[18]

[1]

[2]

[3]

[4]

[5]

[6]

[7]

Disabled:Keep recording when the Wi-Ficonnection between the mobile device and the camera breaks while

the camera is recording.

[18] Selectthe state the camera will enter in the event of a Wi-Fi Connection break between the mobile device and

the camera.Use this function to ensure you continue to capture the scenesyou don’t want to miss during a

flight.

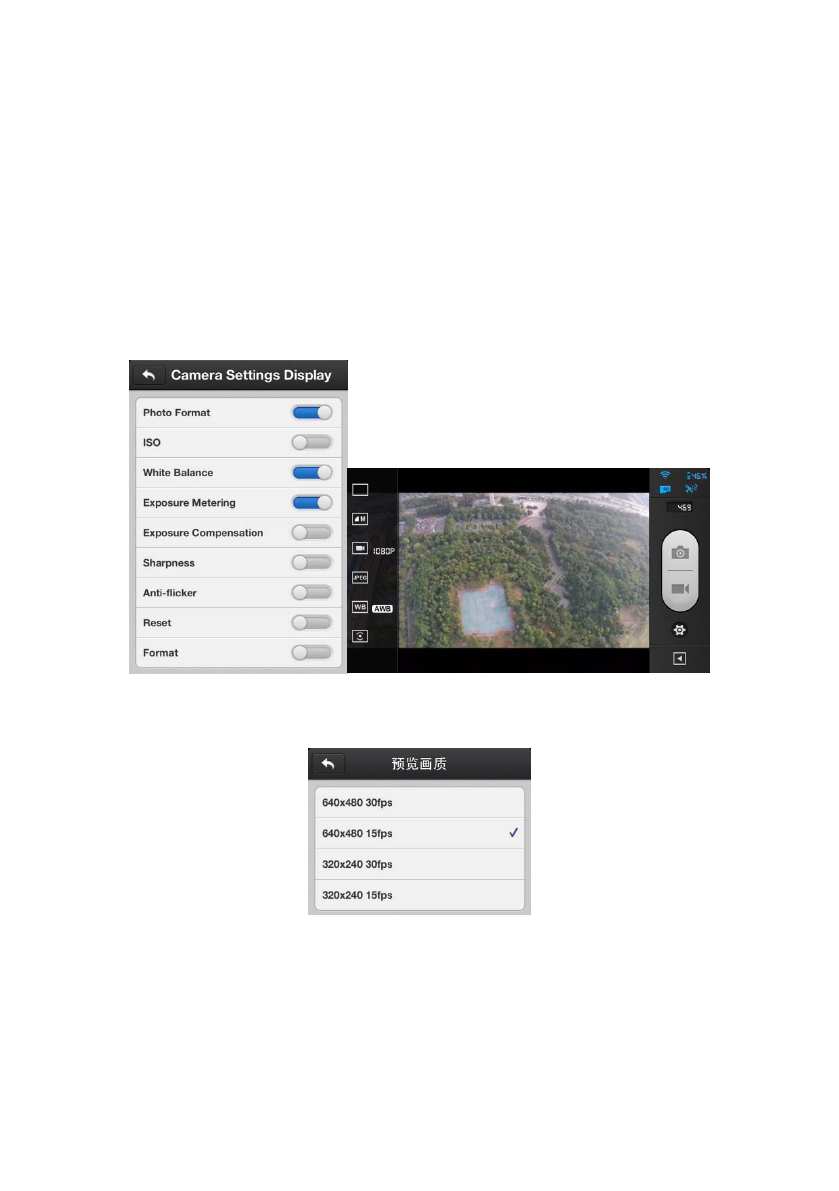

[3] Camera Settings Display

For iOS users, an enabled item will dis p lay in the camera settings toolbar, while a disabled item will be hidden.

For Android users,there is no this item.

[4]Preview Quality

High: 640x480@30fps

Medium: 640x480@15fps

Medium: 320x240@30fps

Low: 320x240@15fps (Recommended when there is a lot of interference.)

[5] Parameter Unit

Select imperial or metric units of measurement.

[6]YAW Axial Control

Perform the YAW axial rotate when this function is enabled.

[7] Auto Flips

The user interface of DJIVISION App will flip if the mobile device’s auto-flip is enabled.

[8] Battery Low Warning

If enabled, an alarm will sound when the battery level is too low.

We recommended you to adjust the mobile devicevolume to the highestle v e l.

[9] Tutorial

Usage tips will be displayed.

[10] Clear News Cache

Tap to flush thenews cache.

[11] Binding

In the eventthe camera and range extender bind is lost or one of them requires repair or replacement, camera

and range extender binding should be performed via the DJI VISIONApp. Refer to the<How to

PerformaCamera &Range Extender Binding> for details.

[12]Rename SSID of Range Extender

Tap to rename the SSID of range extender.

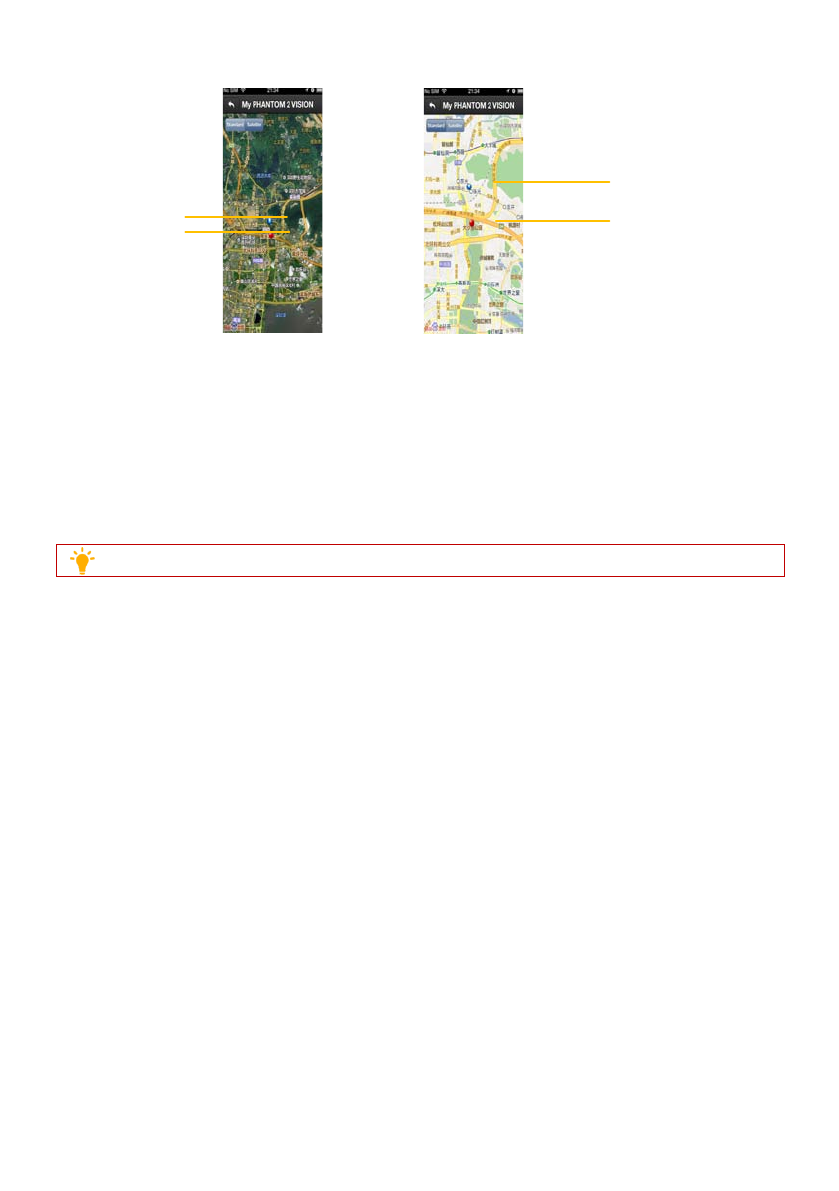

[13] Find My PHANTOM 2 VISION+

M y location

PH A N TO M 2

V IS IO N ’

S a te llit e M o d e Standard M ode

M y location

S location

PH A N TO M 2

V IS IO N ’

S location

[14] Account

Tap to see user’s account information.

[15] Rate

Tap to rate the DJI VISION App. Internet accessis required.

Android A p p do e s n’t have Rate item.

[16] About

Tap to see the current version of the DJI VISION App and also for contact information.

Assistant Software

For better use of PHANTOM 2 VISION+, PHANTOM 2 VISION+ Assistant Software and PHANTOM RC Assistant

Software are involved. Both of them can run on Windows or Mac OS X system.

1Installing Driver and PHANTOM 2 VISION+Assistant Software

Installing and running on Windows

Download driver installer and Assistant Software instal le r in EXE format from the download page of

PHANTOM 2 VISION+on the DJI website.

2. Connect thePHANTOM 2 VISION+ to a PC via a Micro-USB cable.

3. Run the driver installer and follow the prompts to finish installation.

4. Next, run the Assistant Software installer and follow the prompts to finish installation.

Double click the PHANTOM 2 VISION+ icon on your Windows desktop to launch the software.

The installer in EXE format only supports Windows operating systems (Win XP, Win7, Win8 (32 or 64

bit)).

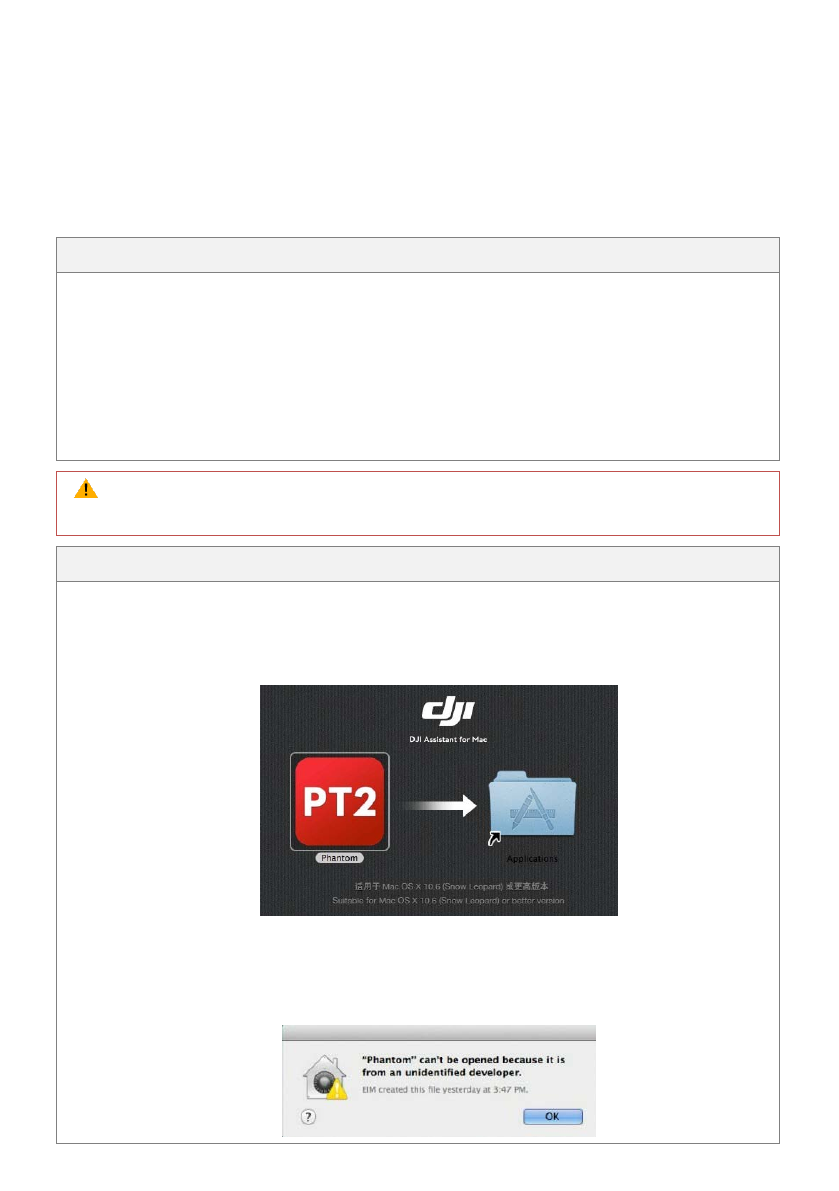

Installing and running on Mac OS X

Download theAssistant Software installer in DMG format from the download page of PHANTOM 2

VISION+ on the DJI website.

2. Run the installer and follow the prompts to finish installation.

3. When launching for the first timeif use Launchpad to run the PHANTOM 2 VISION+Assistant

Software,Launchpad won’t allow access because the software has not been reviewed by Mac App

Store.

Locate the PHANTOM 2 VISION+ icon in the Finder,press the Control key and then click the icon (or

right-click the icon using a mouse). Choose Open from the shortcut menu, click Open in the prompt

dialog box and then software will launch.

5. After the first successful launch, direct launching of the software can be achieved by double-clicking the

PHANTOM 2 VISION+icon in the Finder or using Launchpad.

Installer in DMG format supports only Mac OS X 10.6or above.

Usage of PHANTOM 2 VISION+Assistant Software on Mac OS X and Windows are exactly the same.

The Assistant Software pages appear in other places of this manual are on the Windows for example.

2Using the Assistant Software

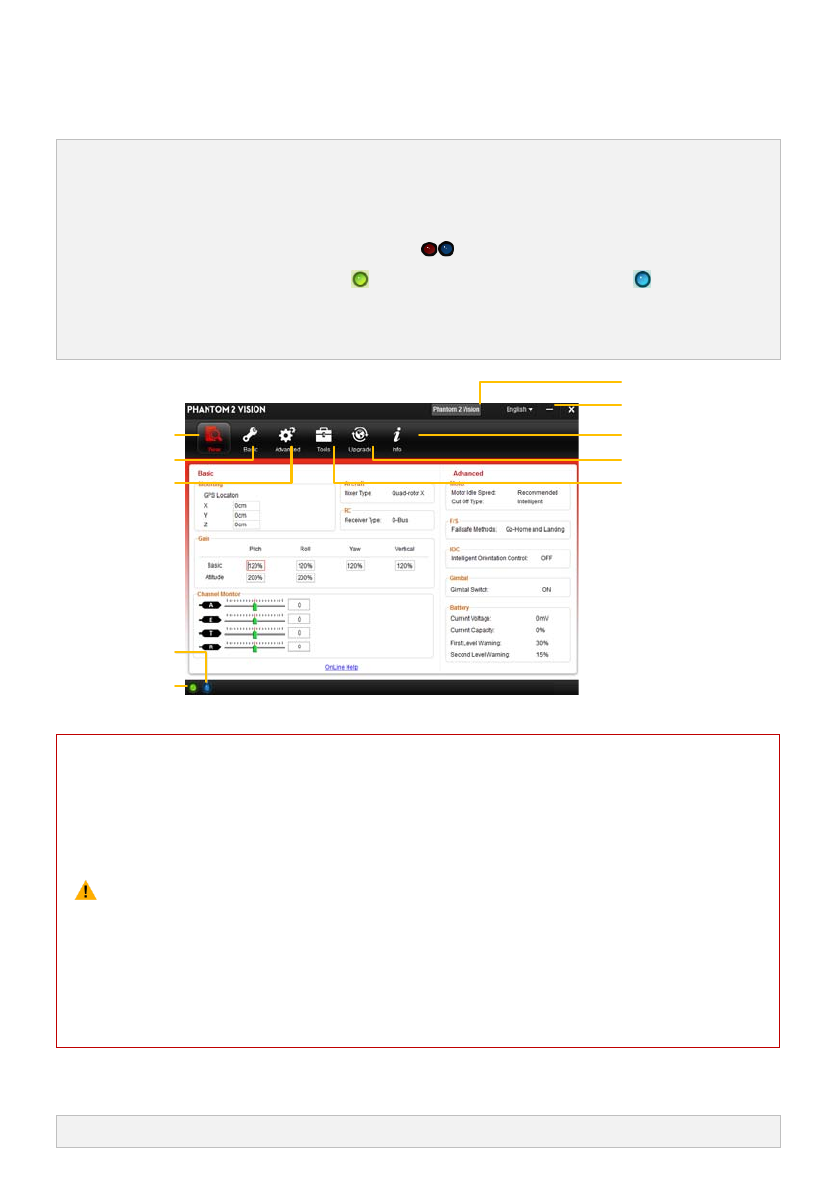

2.1 Using the PHANTOM 2 VISION+ Assistant Software

Startup the PC, power on the PHANTOM 2 VISION+, thenconnect the PHANTOM 2 VISION+ to the PC

with a Micro-USB cable. DO NOT disconnect until configuration is finished.

Run the PHANTOM 2 VISION+Assistant Software and wait for the PHANTOM 2 VISION+ to connect to

the Assistant Software. Observe the indicators on the bottomof the screen. When connected

successfully, the connection indicator is and communication indicator is blinking .

Choose [Basic] or [Advanced] configuration pages.

View and check the current configuration in the [View] page.

Language sw ap

V ie w c o n fig u r a t io n s

C onnection indicator

C o m m u n ic a t io n

in d ic a t o r

RC ,

G a in

G im b a l, B a tte ry IM U c a lib r a t io n

F irm w a re u p g ra d e

A ccount, so ftw a re

v e r s io n

*This im age is for reference

o n ly . Please refer to the

actual user interface.

Function sw itch betw een PH A N TO M

2 V IS IO N a n d N A Z A -M

(1) Users should not enable the Naza-M function before finishing the “Advanced Flight Maneuvers”

procedure, in accordance with the "Phantom Pilot Training Guide”. If the Naza-M function is

enabled, users can switch the control mode to either the ATTI. Mode, GPS Mode or Manual Mode,

and accessthe advanced settings (e.g. IOC). In addition, the LED located on the rear frame arms

will display the flight status according to the Naza-M's indicator, instead of the PHANTOM 2

VISION+'s indicator. Do not enable the Naza-M function unless you are an experienced user or

guided by a professional.

(2)You can change to the PHANTOM 2 VISION+ function by tapping the same button if the Naza-M

function is enabled. This operation will disable the Naza-M function and enable the PHANTOM 2

VISION+ function.All parameters will bereturned to factory settings.

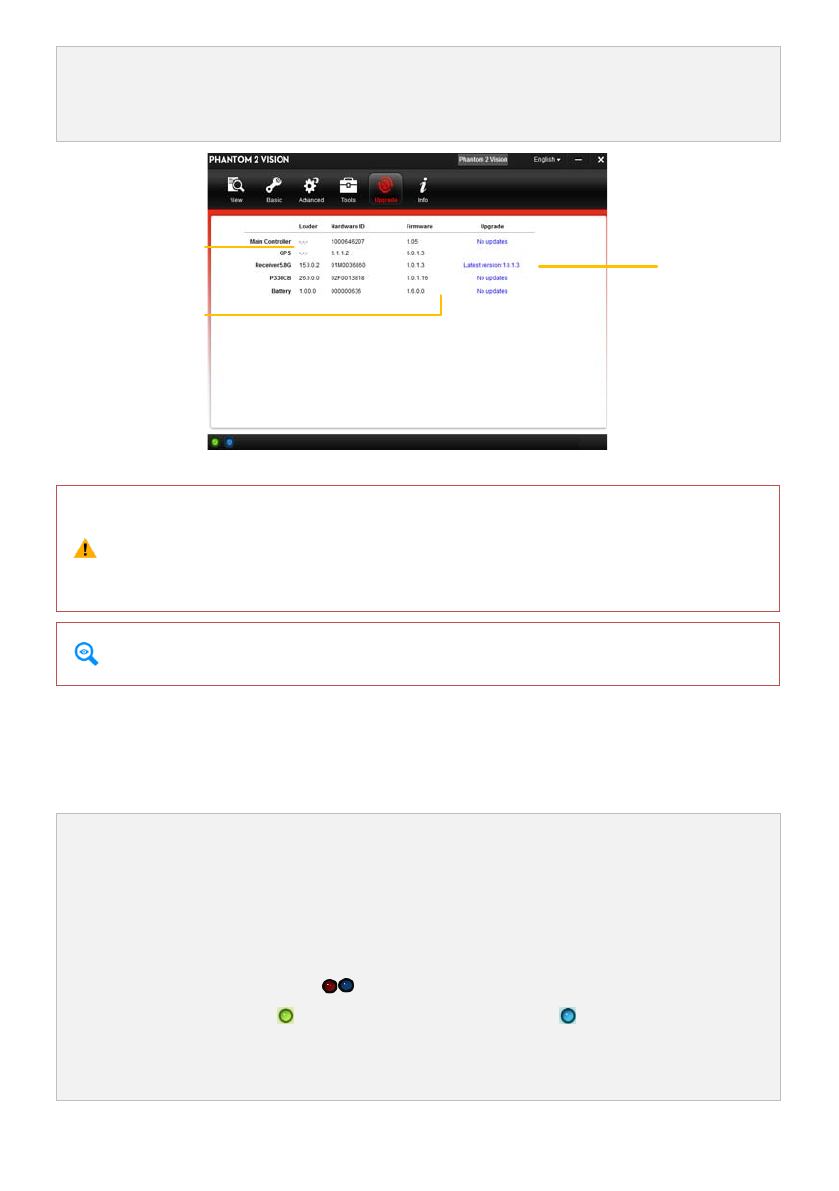

Firmware upgrade of the PHANTOM 2 VISION+

Click the [Upgrade] icon to check the current firmware version and whether the installed firmware is

the late s t version. If not, click the relative links to upgrade.

2. Be sure to wait until the Assistant Software shows “finished”. Click OK and power cycle the PHANTOM 2

VISION+ after 5 seconds. Once completed, the firmware is up to date.

F irm w a re u p g ra d a b le ite m s

C u rre n t firm w are v e rsio n

U pgrade link

*This im age is for reference

o n ly . Please refer to the

actual user interface.

（

）

An internet connection is required to upgrade the PHANTOM 2 VISION+’s firmware.

（2） DO NOT power off until the upgrade is finished.

（3） If the firmware upgrade failed, the main controller will enter a waiting for firmware upgrade

status automatically. If this happens, repeat the above procedures.

Firmware upgradable items: (1)Main Controller (2)GPS (3)5.8GReceiver (4)P330CB (Main Board)

(5)Battery (6)Gimbal IMU

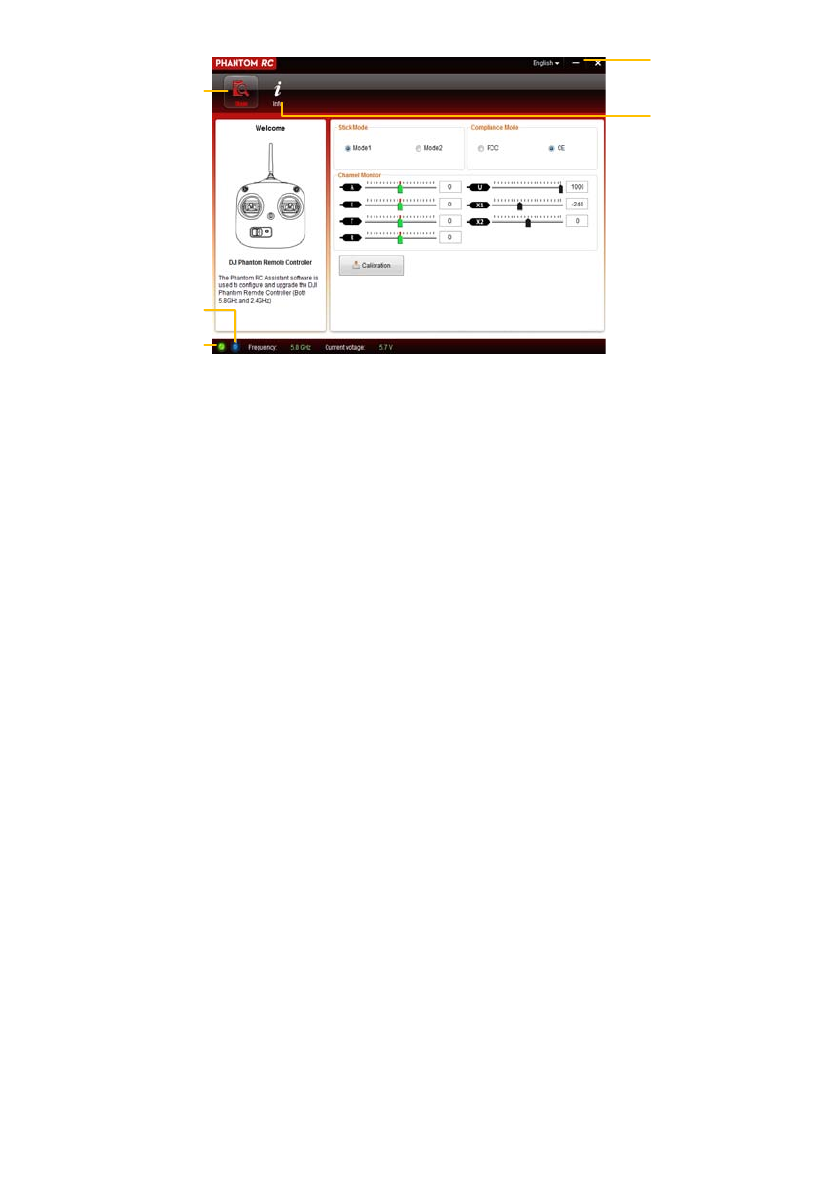

2.2PHANTOM RC Assistant SoftwareUsage

Please refer to the PHANTOM 2 VISION+Assistant Software to install PHANTOM RC Assistant Software, and then

follow the procedures to finish the configuration of the remote controller.

Turn off the remote controller and find the Micro-USB port on the back of it. (If there is no one, users

should open the rear cover to find the Micro-USB port on the board inner the remote controller.)

Start up the PC, power on the remote controller, and then Connect the remote controller to the PC with a

Micro-USB cable. DO NOT disconnect until the configuration is finished.

Run the PHANTOM RC Assistant Software and wait for the remote controller to connect to the Assistant

Software. Observe the indicators

on the bottom left of the screen. When connected successfully,

the connection indicator is and communication indicator is blinking .

Finish configuration in the [Main] page.

Finish upgrade in the [Info] page if necessary.

Language sw ap

M ain page

C onnection indicator

C o m m u n ic a t io n in d ic a t o r

F irm w a re u p g ra d e

A ccount, s o ftw a re

v e r s io n

*T h is im a g e is f o r

reference only. Please

refer to the actual

user interface.

Appendix

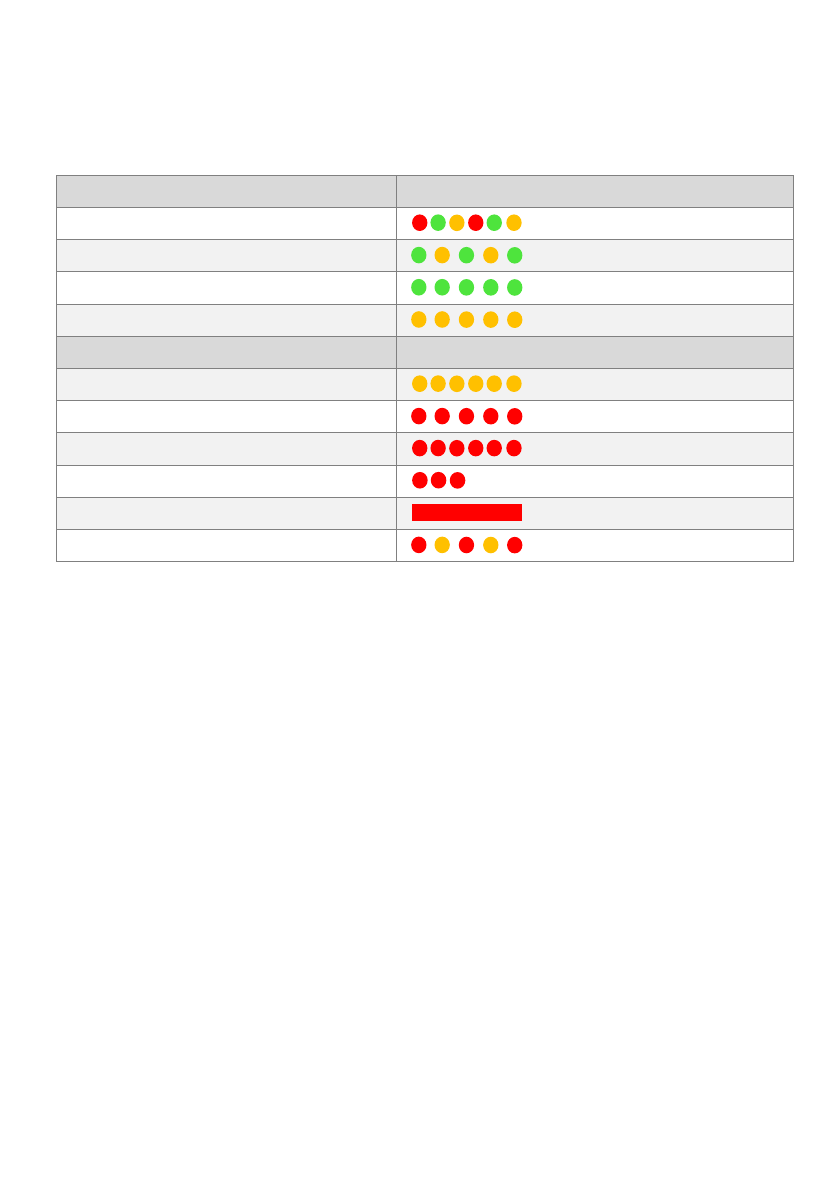

1 LED Flight Indicator Status

Normal status

LEDFlight Indicators

Power On Self-Test

Warming Up

Ready to Fly

Ready to Fly (non-GPS)

Warning and Error

LEDFlight Indicators

Remote Controller Signal Lost

Low Battery Level Warning

CriticalBattery Capacity Warning

Not Stationary or Sensor Bias is too big

Error*

Compass Needs Calibration

*You can figure out the error by connecting the PHANTOM 2 VISION+ to the PHANTOM 2 VISION+’s Assistant

Software.

2 Specifications

Aircraft

Supported Battery DJI 5200mAh Li-Po Battery

PHANTOM 2 VISION+ Weight 1240g

Hovering Accuracy (Ready to Fly) Vertical: 0.8m;Horizontal: 2.5m

Max Yaw Angular Velocity 200°/s

Max Pitch Angle 35°

Max Ascent / Descent Speed 6m/s

Max Flight Speed 15m/s (Not Recommended)

Wheelbase 350mm

Remote Controller

Operating Frequency 5.728 GHz－5.85 GHz

Communication Distance (open area) CE Compliance: 300m; FCC Compliance: 500m

Receiver Sensitivity (1%PER) -93dBm

Transmitting Power(EIRP) CE Compliance: 25mW; FCC Compliance: 125mW

Working Current/Voltage 80 mA@6V

Battery 4 AA Batteries

Gimbal

Working Current Static : 750mA

Dynamic : 900mA

Control Accuracy ±0.03°

Controllable Range Pitch : -90°~+15°

Maximum Angular Speed Pitch : 90°/s

Camera

Operating EnvironmentTemperature 0℃-40℃

Resolution 14 Megapixels

FOV 140°/ 120° / 90°

Sensor Size 1/2.3”

Range Extender

Operating Frequency 2412MHz -2462MHz

Communication Distance (open area) 500m

Transmitting Power 18dBm

Power Consumption 2W

3 Troubleshooting（FAQ）

3.1How to solve large margin(s) mid-point error?

If the Remote Contro l le r stick(s) mid-point margin of error is too big, the motors will fail to start when you execute

the Combination Stick Commands (CSC) and the aircraft willnot takeoff. Below are possible situations where the

Remote Controller’s stick(s) mid-point margins of error could be too big:

(1)One of the Remote Controller’s stick position (except the throttle stick) is not centered when powering on the

PHANTOM 2 VISION+.

Solution:Place all Remote Controller sticks at their mid-point positions and then power cycle the PHANTOM 2

VISION+ to re-record the mid-point. If the problem persists, this can be caused by scenario (2).

(2)The Remote Controller sticks have been trimmed which leads to a large deviation of the mid-point position.

Solution:Use the Assistant Software to perform aRemote Controller calibration. To do so, carry out the following

procedures.

(a) Connect to the Assistant Software, tap Basic-> RC-> Command Sticks Calibration, and push all Remote

Controller sticks through their complete travel range to see if any stick cannot reach its outer most position.

(b) Power cycle the PHANTOM 2 VISION+. Note that a power cycle is required.

If the above solutions do not solve your issue, please send your Remote Controller to DJI Customer service for

repair.

3.2 How to restore a video file if power is turned off during a recording session?

Solution: Keep or place the Micro-SD card back intothe camera. Power cycle the camera and wait about 30 seconds

for the video file to be restored.

3.3 Failure to acquire the SSID.

Solution:Double check whether both the camera and Range Extender are powered on and the power switch of the

camera is switched to“WIFI ON.”

3.4 What to do ifPHANTOM 2 VISION+ is out of sight andthe Wi-Fi connections is lost?

Solution:Turn off the Remote Controller to trigger the Failsafe m o de and the aircraft will start to fly back, descend,

and land at the Home point automatically. Please make sure there are no obstacles within the go home route and

you are familiar with the regaining control procedure.

3.5 Wi-Fi connection fails all the time.

Solution:Double check the current Wi-Fi connection status of the mobile device.The mobile device may be

connecting to other Wi-Fi networks after a connection breaks with thePHANTOM 2 VISION+.

3.6 Files fail to synchronize.

Solution:Videofiles that are too large (file sizes close to 4GB) cannot be synchronized to the mobile device. Some

mobile devices also fail to support synchronization of the 1080i60 video files.

3.7 iOSAlbumsfail to synchronize.

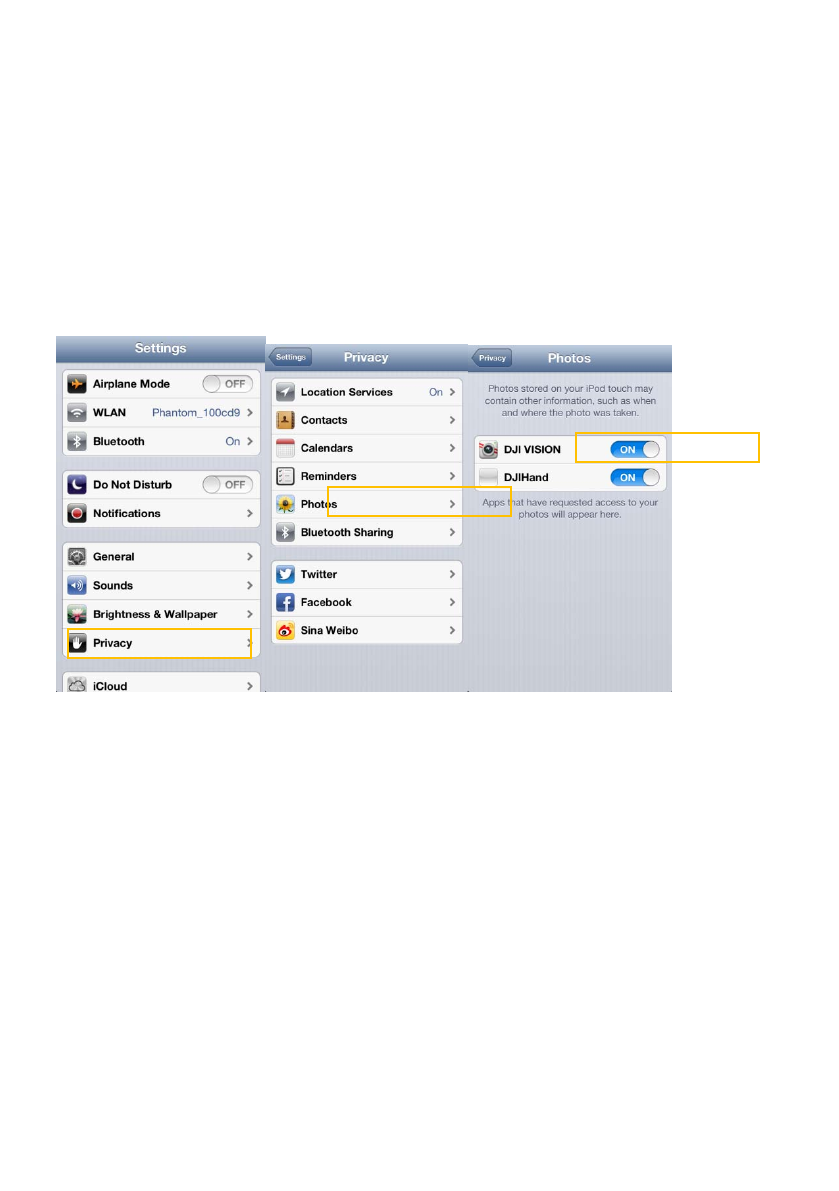

Solution:Reset the settings of your mobile device as illustrated b e lo w. Enable the Settings ->Private->Photos->DJI

VISION. Otherwise the Albums will fail to synchronize with your mobile device.

3.8 Failure to share.

Solution:Please make sure the mobile device has access to the Internet.

3.9Some mobile Android devices have a problem connecting to the PHANTOM 2 VISION+ Wi-Fi

Extender.

Solution:Some mobile Android devices do not allow for both a Wi-Fi connection and a mobile data connection at the

same time. When trying to connect to the PHANTOM 2 VISION+ Wi-Fi network, most devices will check whether

an Internet connection has a certain Wi-Fi setting enabled, e.g. Auto network switch or Test for Internet connection.

If no Internet connection is found because the PHANTOM 2 VISION+ creates a non-routable connection it will

drop the PHANTOM 2 VISION+ Wi-Fi network connection and scan for the next available connection. Example: For

the Samsung Note 3, carry out the following procedures to solve this issue. Tap Settings -> Wi-Fi, and then tap the

“Menu” button. Select “Advanced” then uncheck the “Auto network switch”. You might see a warning that indicates

the Internet connection is unstable but just ignore this message.

3.10 Usage tips for the App used on m u lti p le mobile devices.

During flight, if you use the App on multiple mobile devices, please turn off the App on the first mobile device, and

then turn on the App on the second one to ensure the App can work normally on the second mobile device.

3.11 How to la nd the aircraft smoothly in a better way?

First pull the throttle stick position down to lower than 5%, then execute the CSC command to stop the motors.

3.12 Why the discharge times of a new battery not at zero?

A battery aging test is performed prior to delivery which affects the discharge time of the new battery. This is why

the discharge time of a new battery is not zero. The battery is okay to use.

SZ DJI TECHNOLOGY PV3311402 PHANTOM 2 VISION + User Manual PHANTOM 2 VISION

SZ DJI TECHNOLOGY CO., LTD PHANTOM 2 VISION + PHANTOM 2 VISION

Contents

User Manual Part 3

Navigation menu

Namespaces

Views

Navigation
