Contents

Users Manual 2

Installing Stand
Kit
Connecting Your
Monitor
Multiple Display
Control (MDC)

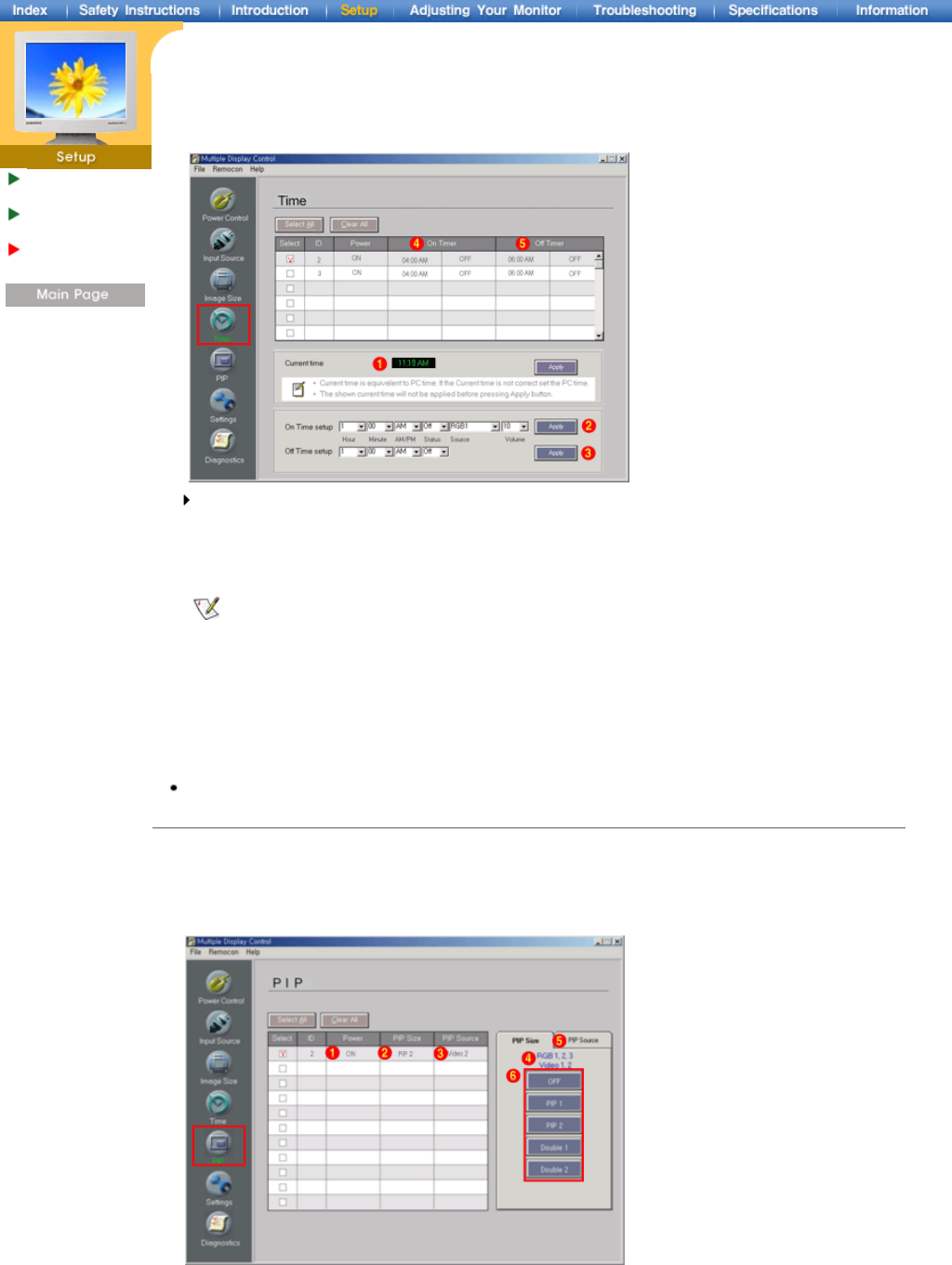

7. Time Control
1. Click Time of the main icons and the Time Control screen appears.
Info Grid shows some basic information necessary to Time Control.
1) Current Time
- Set the current time for the selected display (PC Time)
- To change the current time, first change the PC Time.
Current time is equivalent to PC time, If the Current time is not correct set the PC time
The shown current time will not be applien before pressing Apply button.
2) On Time Setup
- Set the hour, minute, AM/PM of On Time, Status, Source, volume of the selected display.
3) Off Time Setup
-
Set the hour, minute, and AM/PM, Status for Off Timer of the selected display.
4) Shows the On Timer settings.
5) Shows the Off Timer settings.
Time Control is available only for the displays for which the power status is ON.
8. PIP Control - PIP Size
1. Click PIP of the main icons and the PIP control screen appears.
Click Select All or use Check Box to select a display to control.
Installing Stand
Kit
Connecting Your
Monitor
Multiple Display
Control (MDC)
Info Grid shows some basic information necessary to PIP Size Control.
1) Power
- Shows the power status of the current display.
2) PIP Size
- Shows the current PIP Size of the display in use.
3) PIP Source
- Shows the current PIP Source of the display in use.
4) When you click PIP, the PIP Size tabs first appear.
- The PIP Control button controls PIP Size available for RGB 1, 2, 3, Video 1, 2
5) Click the PIP Source tab to control PIP Source for respective Input source.
6) Click to change PIP Size of the selected display.
• OFF : Turns off the PIP of the selected display.
• PIP 1 : Turns on the PIP of the selected display and changes the size to PIP 1.
• PIP 2 : Turns on the PIP of the selected display and changes the size to PIP 2.
• Double 1 : Turns on the PIP of the selected display and changes the size to Double 1.
• Double 2 : Turns on the PIP of the selected display and changes the size to Double 2.
PIP Size Control is available only for the displays for which power status is ON.

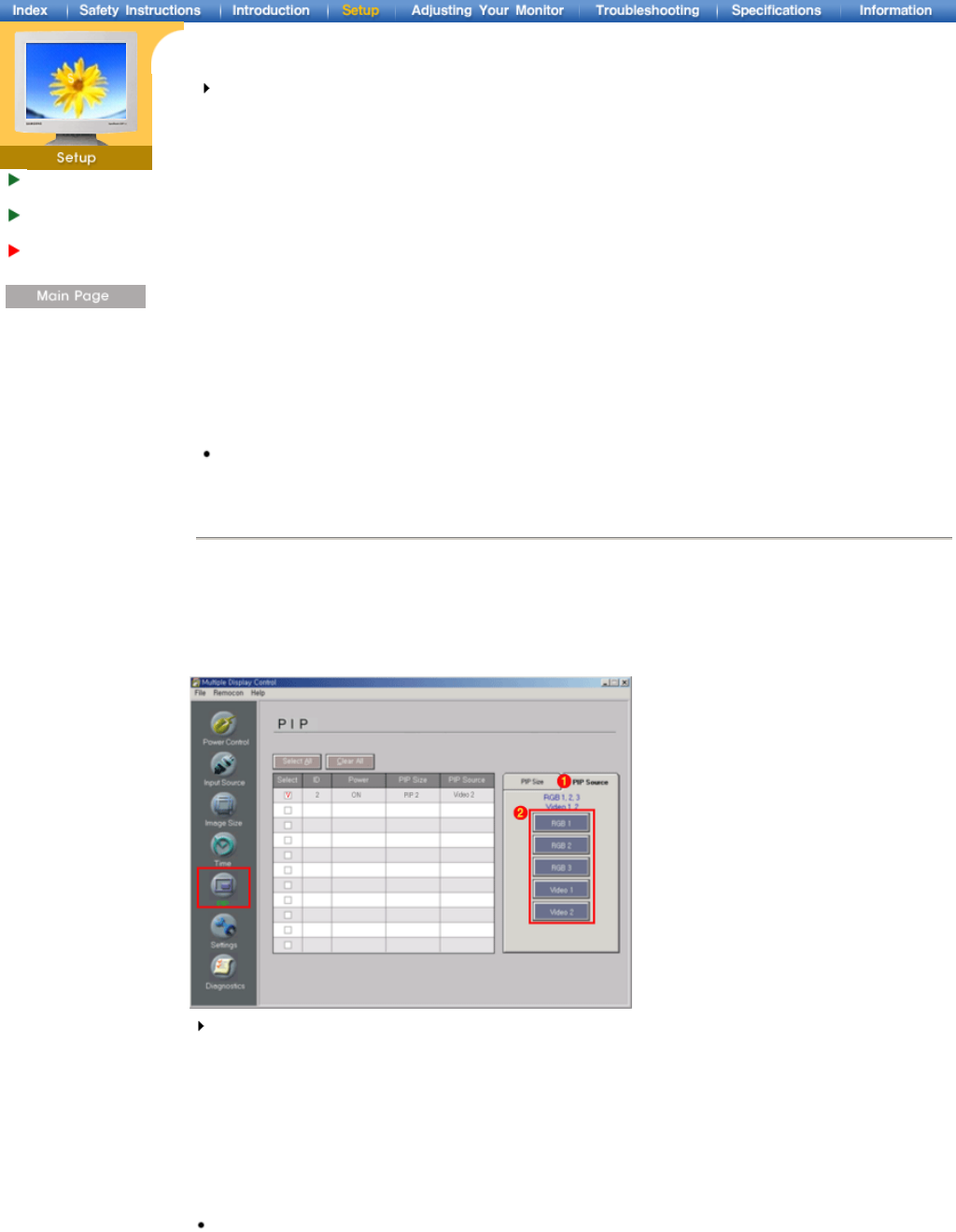

8. PIP Control - PIP Source
1. Click PIP of the main icons and the PIP control screen appears.
Info Grid shows some basic information necessary to PIP Source Control.
1) Click the PIP Source tab to adjust PIP Source.
Click Select All or use Check Box to select a display to control.
• RGB 1 : Changes the source of the PIP of the selected display to RGB 1.
• RGB 2 : Changes the source of the PIP of the selected display to RGB 2.
• RGB 3 : Changes the source of the PIP of the selected display to RGB 3.
• Video 1 : Changes the source of the PIP of the selected display to Video 1.
• Video 2 : Changes the source of the PIP of the selected display to Video 2.
PIP Source Control is available only for the displays for which power status is ON.
Installing Stand
Kit
Connecting Your
Monitor
Multiple Display
Control (MDC)
9. Settings Control - Picture
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control. When each function is selected, the
set value of the selected function is displayed in the slide.
When Select All is selected, the default value (50) returns. If you change the value in the Settings Control
screen, it switches to CUSTOM mode automatically.
1) Picture
- Available only for VIDEO 1, VIDEO 2, COMPONENT.
2) Contrast
-
Adjusts Contrast of the selected display.
3) Brightness
- Adjusts Brightness of the selected display.
4) Sharpness
-
Adjusts Sharpness of the selected display.
5) Color
-
Adjusts Color of the selected display.
6) Tint
- Adjusts Tint of the selected display.
Settings Control is available only for the displays for which the power status is ON and the default
value is 50 when no adjustments are made.
9. Settings Control - Picture RGB
1. Click Settings of the main icons and the Settings Control screen appears.
Installing Stand
Kit
Connecting Your
Monitor
Multiple Display
Control (MDC)
Info Grid shows some basic information necessary to Settings Control. When each function is selected, the
set value of the selected function is displayed in the slide.
When Select All is selected, the default value (50) returns. If you change the value in the Settings Control
screen, it switches to CUSTOM mode automatically.
1) Picture RGB
- Available only for RGB 1, RGB 2, RGB 3.
2) Contrast
-
Adjusts Contrast of the selected display.
3) Brightness
-
Adjusts Brightness for the selected display.
4) Color Temp.
-
Adjusts Color Temperature of the selected display.
Settings Control is available only for the displays for which the power status is ON and the default
value is 50 when no adjustments are made.
This Control window is for the displays with RGB input source.

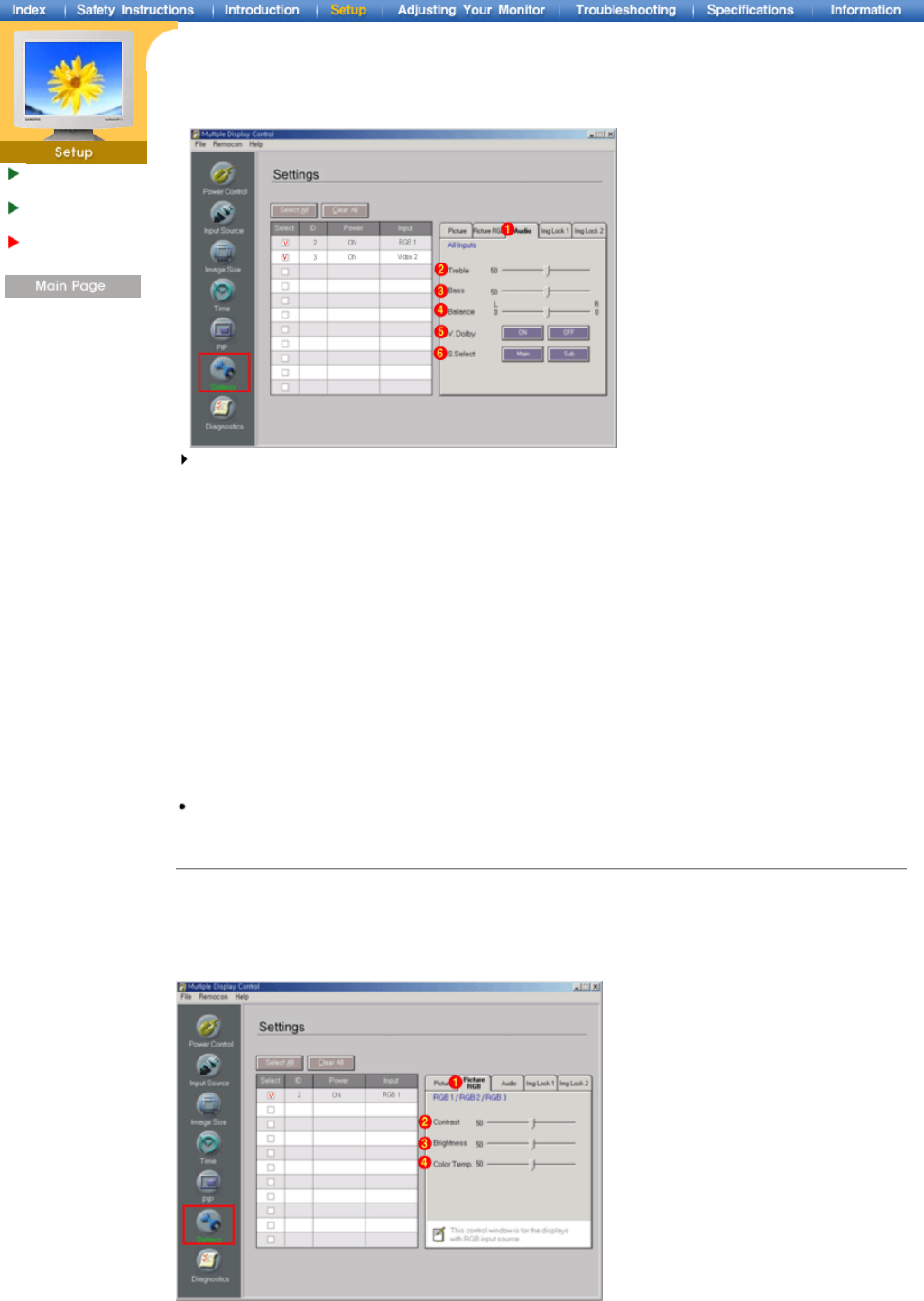

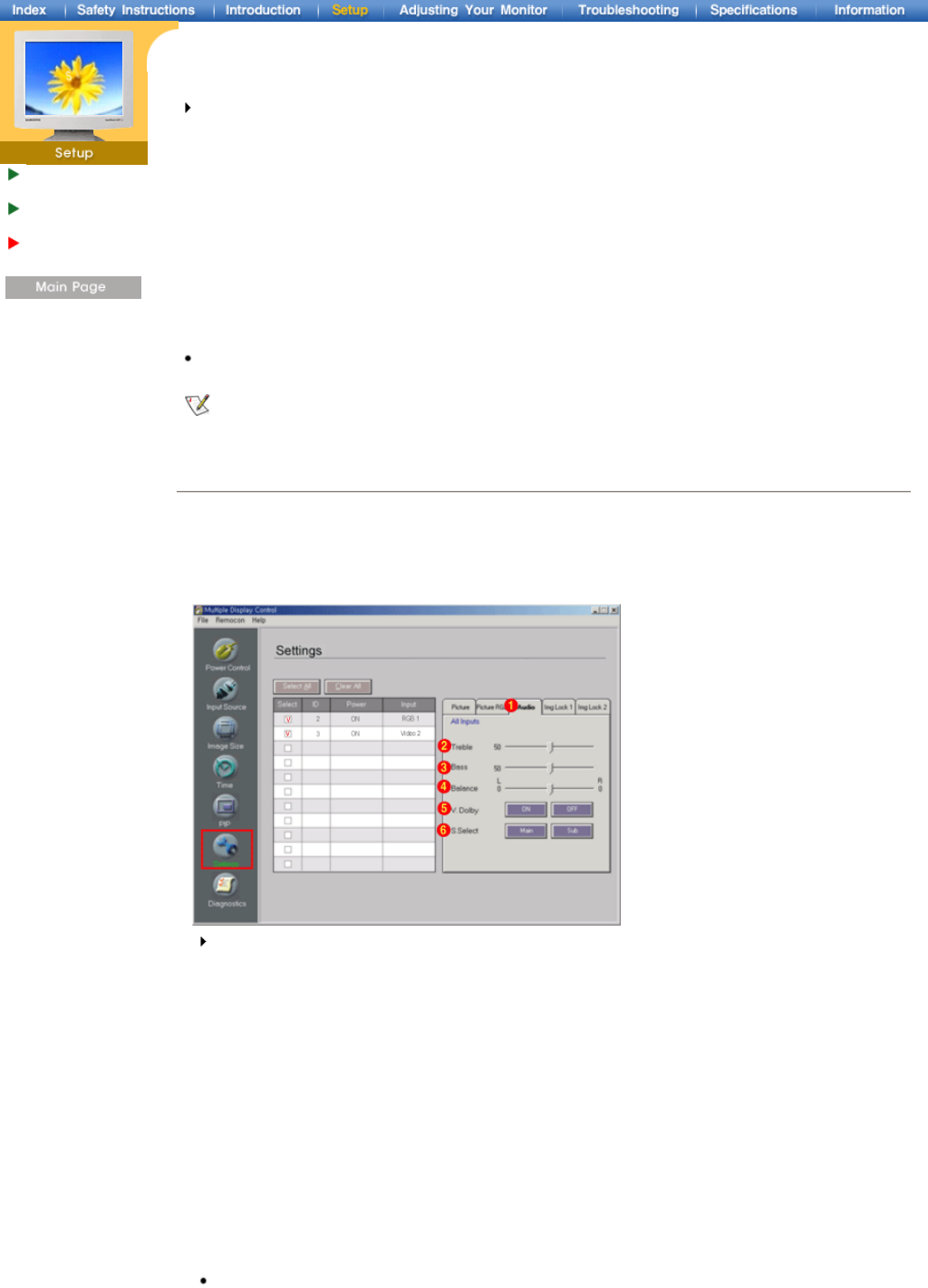

9. Settings Control - Audio
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control. When each function is selected, the
set value of the selected function is displayed in the slide.
When Select All is selected, the default value (50) returns. If you change the value in the Settings Control
screen, it switches to CUSTOM mode automatically.
1) Audio
- Controls audio settings for all input sources.
2) Treble
-
Adjusts Treble of the selected display.
3) Bass
-
4) Balance
-
Adjusts Balance of the selected display.
5) Virtual Dolby
-
Virtual Dolby Sound On/Off of the selected display.
6) Sound Select
- Select either Main or Sub when PIP is On.
Settings Control is available only for the displays for which the power status is ON and the default
value is 50 when no adjustments are made.
Installing Stand
Kit
Connecting Your
Monitor
Multiple Display
Control (MDC)

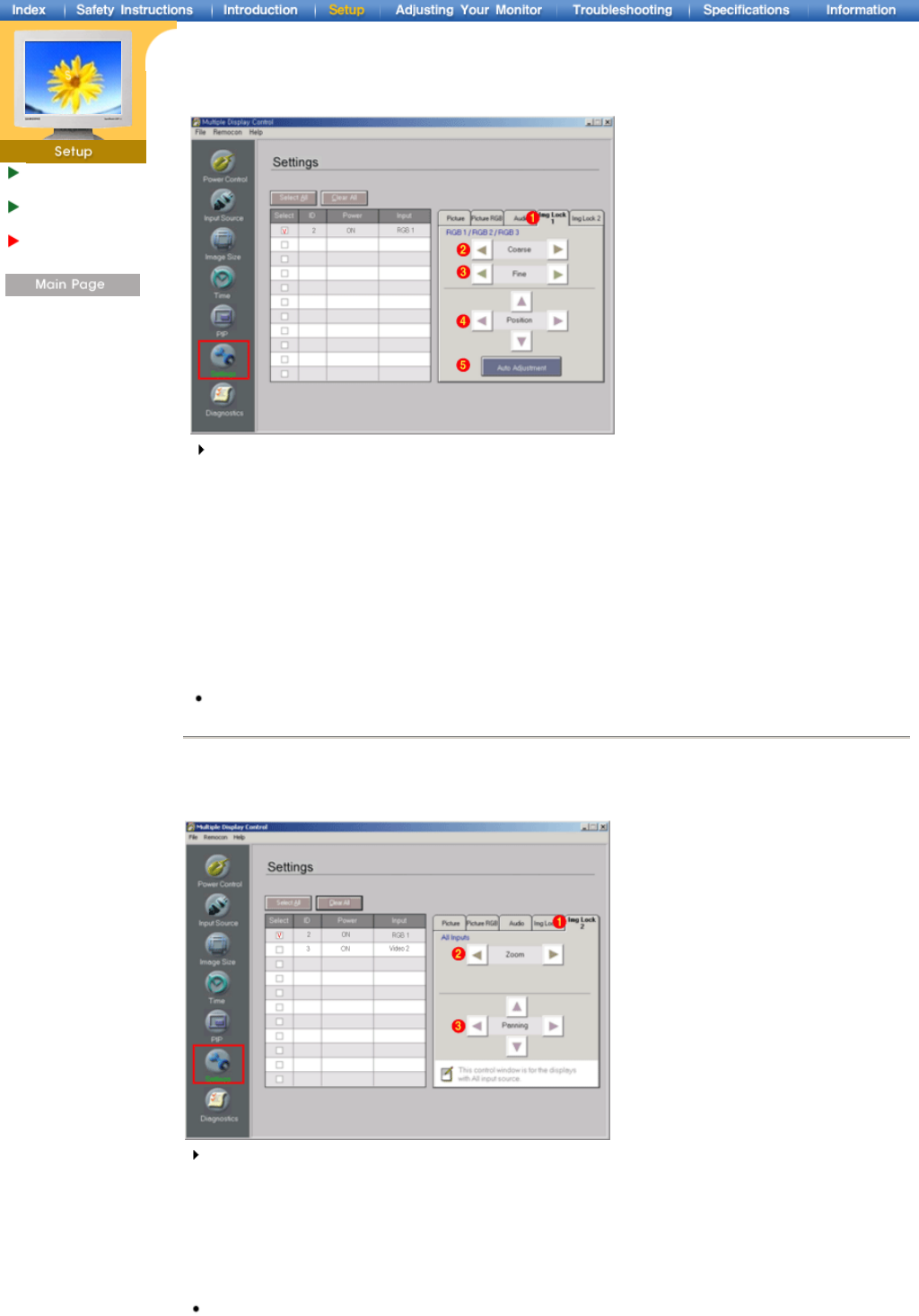

9. Settings Control – Image Lock 1
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control.
1) Image Lock 1
- Available only for RGB 1, RGB 2, RGB 3.
2) Coarse
- Adjusts Coarse of the selected display.
3) Fine
- Adjusts Fine of the selected display.
4) Position
- Adjusts Position of the selected display.
5) Auto Adjustment
- Adjusts the Audio settings of the selected display.
Settings Control is available only for the displays for which the power status is ON.
9. Settings Control – Image Lock 2
1. Click Settings of the main icons and the Settings Control screen appears.
Info Grid shows some basic information necessary to Settings Control.
1) Image Lock 2
- Available for all Inputs.
2) Zoom
-
Magnifies the size of the picture on screen.
3) Panning
- Moves the position of the magnified image on the screen either vertically or horizontally.
Settings Control is available only for the displays for which the power status is ON.
Installing Stand
Kit
Connecting Your
Monitor
Multiple Display
Control (MDC)

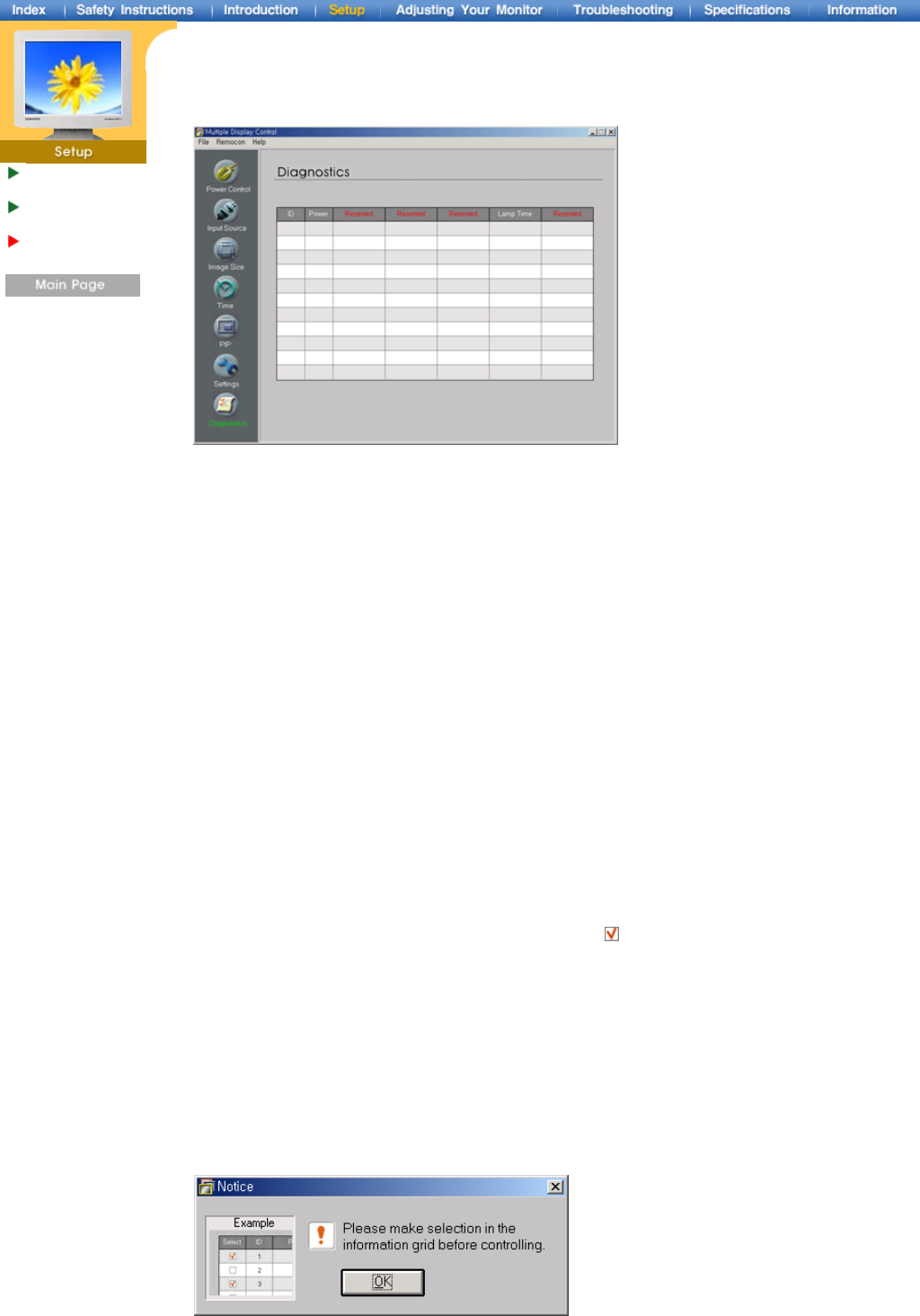

10. Diagnostics
1. Click Diagnostics of the main icons and the Settings Control screen appears.
1) SET ID
- Shows the ID of the currently connected display.
2) Power Status
-
Shows the power status of the current display.
3) Lamp Time
- Shows the LCD Lamp On time of the currently connected display.
11. Troubleshooting
1. The display you wish to control does not appear on the Power Control Info Grid
- Check the connection of RS232C. (Check if it is properly connected to the Com1 port)
- Check the displays to see if any of the other displays connected have the same ID. If more than one
displays have the same ID, those displays are not properly detected by the program due to data conflict.
- Check if the Display Set ID is a number between 0 and 10. (Adjust using the Display menu)
Note : A Display Set ID must be a value between 0 and 10. If the value is out of the range, the MDC
system cannot control the display. Samsung Electronics guarantees that this program operates
up to four displays at a time. Although it may operate between 0 to 10 displays simultaneously, but
Samsung Electronics cannot guarantee normal operation in that case.
2. The display you wish to control does not appear on the other Control Info Grids
- Check to see if the display power is ON. (You can check this in Power Control Info Grid)
- Check if you can change the input source of the display.
3. The dialogue box appears repeatedly.
- Check to see if the display you wish to control is selected .
4. Both On Timer and Off Timer have been set but different time is showing.
- Apply current time to synchronize the display clocks.
5. The remote may not function properly when you turn off the remote Function, disconnect the RS-232C
cable, or exit the program in an Irregular manner. Rerun the program and turn the remote function again to
Restore normal functions.
6. <Note> This program may malfunction due to problems in communication circuits or interference from
electronic appliances nearby.
7. If you do need assistance, please call the phone number on the warranty card, the phone number on the
Information section or contact your dealer.
Installing Stand
Kit
Connecting Your
Monitor
Multiple Display
Control (MDC)
12. Settings Value Display In Multiple Display Mode
When there are more than one displays connected, the settings values are displayed as follows.
1. No selection: Displays the Factory Default Value.
2. Selected one display: Fetches and displays the settings value for the selected display.
3. Selected one display (ID1) and add another display (ID3): The program, which was displaying the settings
value of ID 1, fetches and displays the value of ID3.
4. Selected all sets using Select All: Returns to the Factory Default Value.
User Controls
On-Screen
Display
Introduction remote control buttons
The control button configuration may vary slightly depending on the monitor model.

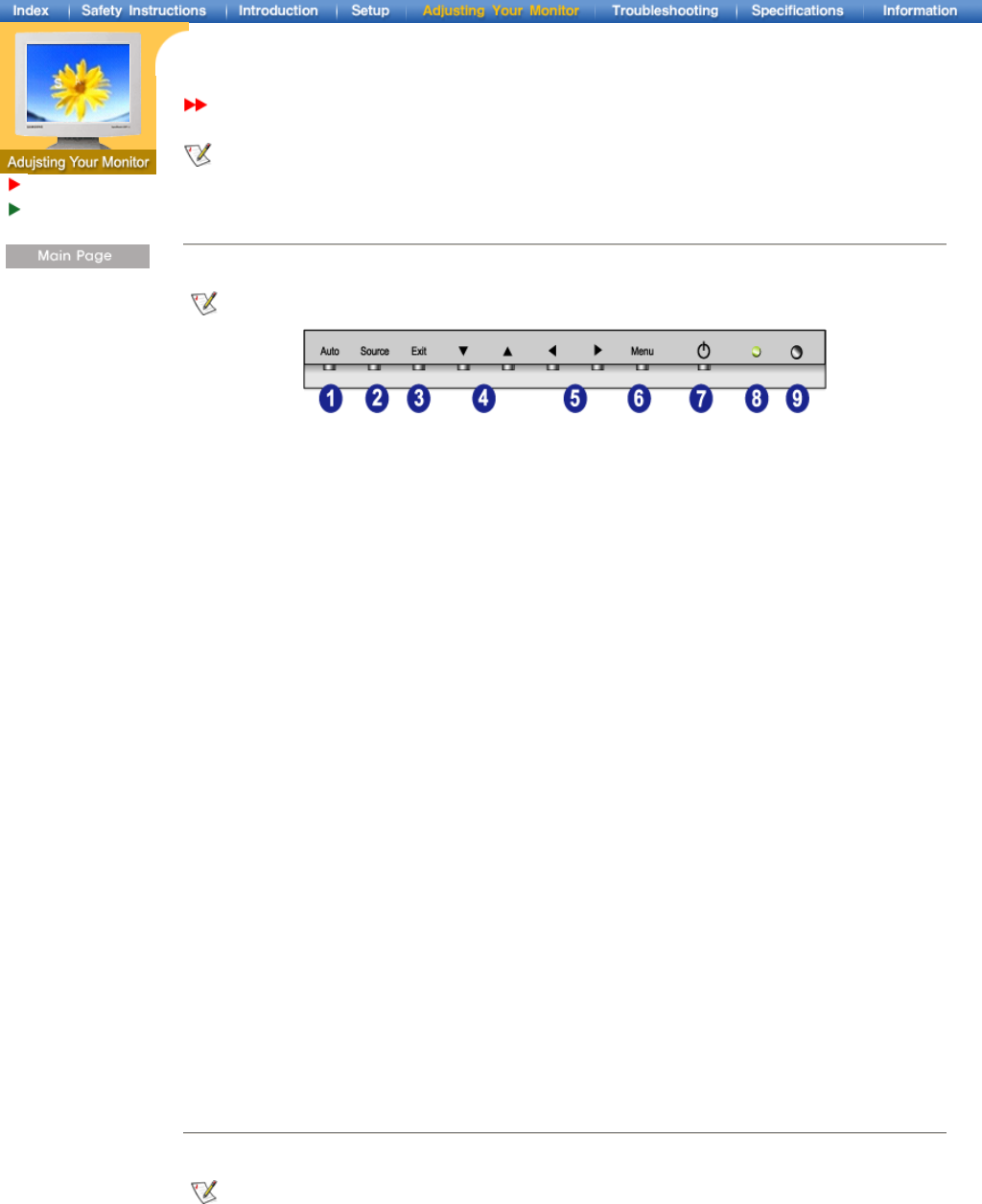

Monitor Buttons | Remote Control Buttons
| Monitor Buttons |
For more information about screen adjustment, refer to On-Screen Display.

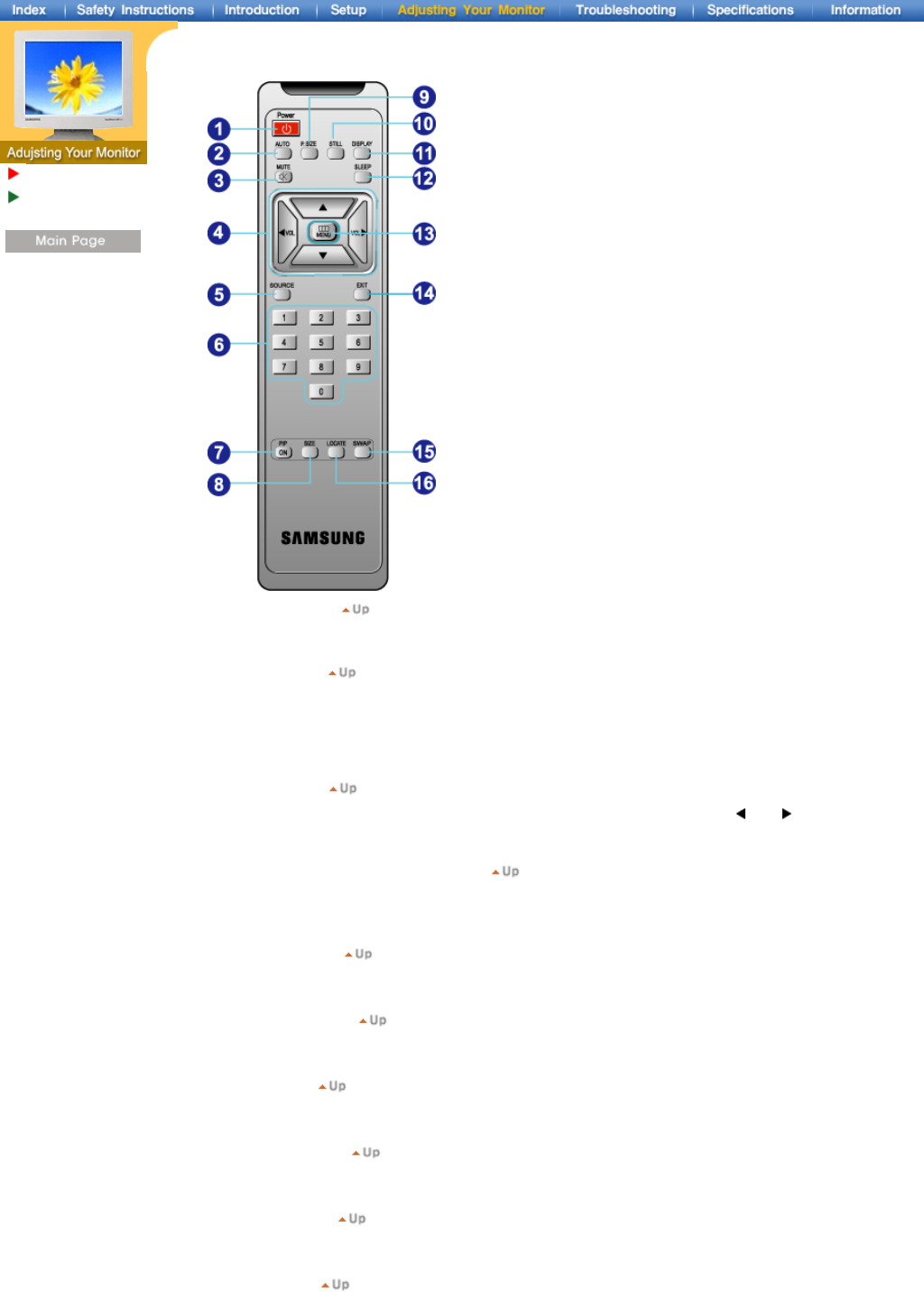

| Remote Control Buttons |
For more information on the screen adjustment functions, refer to On-Screen Display.
1. Power button
2. Auto button
3. Mute button
4. VOL(Volume)and Up/Down buttons
5. Source button
1. Auto button
Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are adjusted
automatically.
To make the automatic adjustment function sharper, execute the 'AUTO' function while the AUTO
PATTERN is on. (Press here to view an animation about Auto Adjustment.)
2. Source button
Turns on the indicator to indicate the currently displayed input signal.
(Press here to view Screen Mode Switching Animation Clips.)
3. Exit button
When screen adjustment menu is on : Exit button exits from the menu screen or closes screen
adjustment menu.
4. Navigate button (Control OSD)
5. Adjust button (Control OSD)
Moves from one menu item to another horizontally or adjusts selected menu values.
6. Menu button
When screen adjustment menu is off: Use this button to open the OSD and activate a highlighted
menu item.
7. Power button
Use this button to turn the monitor on and off.
8. Power indicator
Lights up when you turn the power off. Refer to Specifications > PowerSaver.
9. Remote control sensor
Aim the remote control towards this spot on the Monitor.
6. Number buttons
7. PIP button
8. PIP Size button
9. P.Size button
10. Still button
11. Display button
12. Sleep button
13. Menu button
14. Exit button
15. Swap button
16. Location button
1. Power button
User Controls
On-Screen
Display
Use this button to turn the monitor on and off.
2. Auto button
Press to self-adjust to the incoming PC signal. The values of fine,coarse and position are
adjusted automatically.
To make the automatic adjustment function sharper, execute the 'AUTO' function while the
AUTO
PATTERN is on. (Press here to view an animation about Auto Adjustment.)
3. Mute button
Pauses (mutes) the audio output temporarily. The audio resumes if Mute or VOL button is
pressed in the Mute mode.
4. VOL(Volume)and Up/Down buttons
Press to increase or decrease the volume. (Also used to make selections on the on-screen
menus.)
5. Source button
Press to display all of the available video sources.
6. Number buttons
Press to select numbers when setting individual ID to the SET.
7. PIP button
Press this button to control the PIP window.
8. PIP Size button
Press to make the PIP window PIP 1, PIP 2, Double Screen 1, Double Screen 2.
9. P.Size button
Press to change the Screen size.
10. Still button
13. Menu button
When screen adjustment menu is off: Use this button to open the OSD and activate a highlighted
menu item.
14. Exit button
Press to exit the menu.
15. Swap button
Exchanges the video signal that is currently displayed on the main screen with the signal in the
PIP window.
16. Location button
Press to move the PIP window to any of the nine corners of the monitor screen.
Press to stop the action during a particular scene. Press again to resume normal video.
11. Display button
Shows a Resolution and Frequency on the upper center of the screen.
12. Sleep button
Press to select a preset time interval for automatic shutoff.
User Controls
On-Screen
Display
User Controls
On-Screen
Display

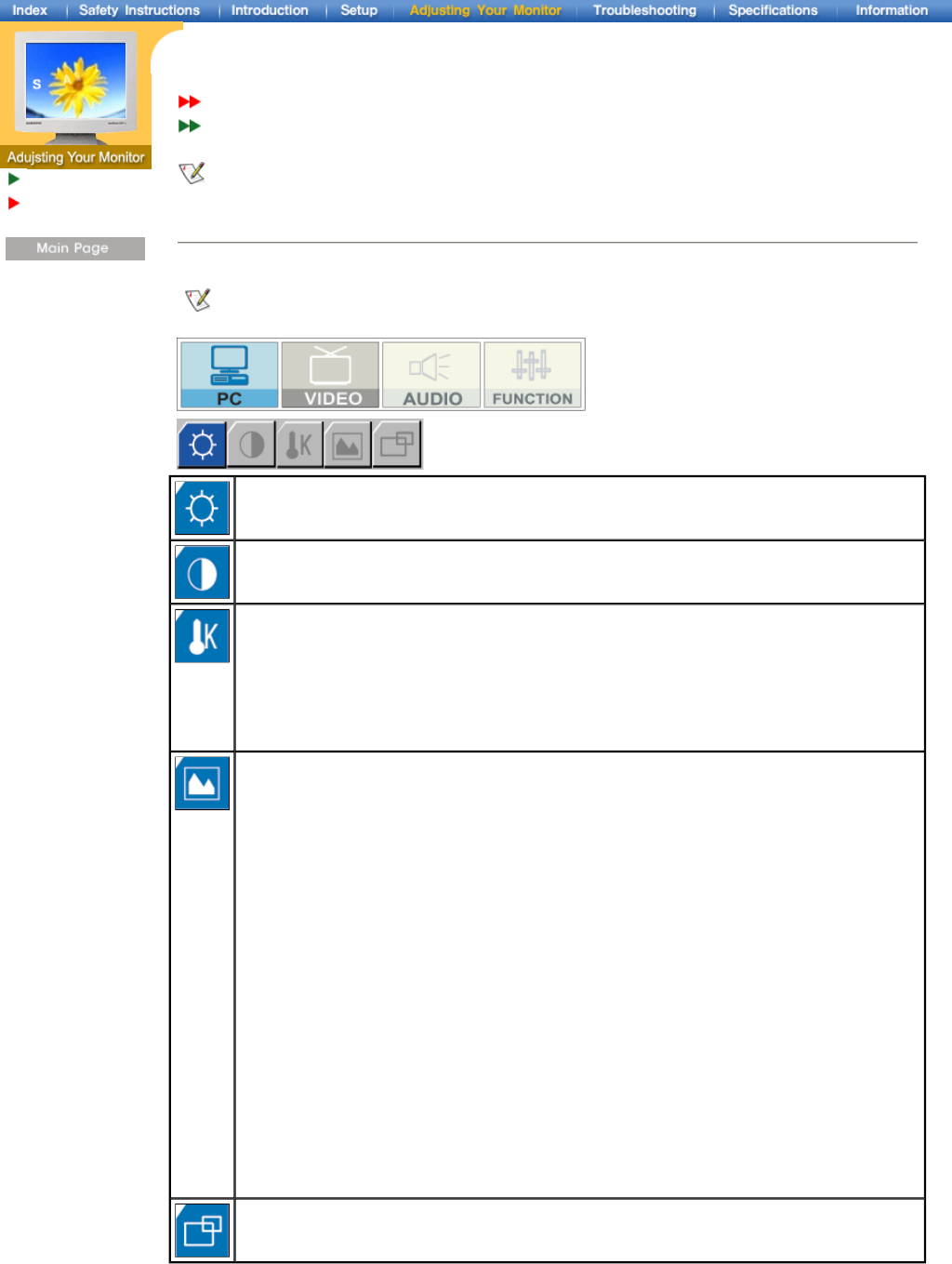

OSD Functions
Screen Adjustment Animation Clips
Characters and icons become highlighted in blue during adjustment for each menu.
PC Control | Video Control | Audio Control | Function Control
1. PC Control
For detailed information on Screen Adjustment in the PC mode, refer to PC mode Screen
Adjustment Animation Clips.
Brightness
Adjust Brightness.
Contrast
Adjust Contrast.
Color Temperature
The tone of color can be changed from redish white to bluish white. The individual color
components are also user customizable.
1) Mode 1 : High Temperature.
2) Mode 2 : Middle Temperature.
3) Mode 3 : Low Temperature.
4) User Mode : User customizable.
PC Screen Settings.
1) Image Lock
Image Lock is used to fine tune and get the best image by removing noises that creates unstable
images with jitters and shimmers. If satisfactory results are not obtained using the Fine adjustment,
use the Coarse adjustment and then use Fine again.
2) Image Size
Allows choosing from different image sizes.
(Varies depending on the resolution or signal ratio. The Expand 1, Expand 2 and 1:1 functions work
only in PC RGB.)
• Coarse Removes noise such as vertical stripes. Coarse adjustment may move the screen
image area. You may relocate it to the center using the Horizontal Control menu.
• Fine Removes noise such as horizontal stripes. If the noise persists even after Fine tuning,
repeat it after adjusting the frequency (clock speed).
• Reset Image lock and position parameters are replaced with the factory default values.
• Expand 1 Performs full screen image expansion. (No change if the resolution is set at
maximum)
• Expand 2 Performs image expansion while maintaining the vertical/horizontal aspect ratio of
the original video resolution. (No change if the resolution is set at maximum)
• 1 : 1 Displays the image as created by the signal source.
(No change if the resolution is set at maximum.)
Position
This adjusts the screen location horizontally and vertically.
2. Video Control
Brightness
Adjust Brightness.
Contrast
Adjusting Contrast.
Sharpness
Use to adjust the difference between the lightest and darkest areas on the display.
Color
• Color : Use to adjust the lightness/darkness on the display.
Tint
• Tint : Use to add the natural tone to the display.
Reset
Picture parameters are replaced with the factory default values.
Image Size
Resizing the screen.
• Expand 1
• Expand 2
• 1 : 1
• Panorama
• Zoom 1
• Zoom 2
3. Audio Control
User Controls
On-Screen
Display
For detailed information on Screen Adjustment in the Video mode, refer to Video mode Screen
Adjustment Animation Clips.
You can use this function only if your screen mode is Video 1 or Video 2 or Component.
For detailed information on Screen Adjustment in the Audio mode, refer to Audio mode Screen
Adjustment Animation Clips.
When you connnect the speaker set sold separately, you can adjust the audio controls.
Sound Select is available when the PIP is on.
Sound Select
You can select either Main or Sub when PIP is On.
User Controls
On-Screen
Display
4. Function Control
For detailed information on Screen Adjustment in the Function mode, refer to Function mode Screen
Adjustment Animation Clips.
ID (MDC Program)
Assigns individual ID to the SET.
1) ID Setup : Assigning distinctive IDs to the SET.
2) ID Input : Use to select the transmitter functions of the individual SET. Only the SET whose
ID corresponds to the transmitter setting becomes activated.
PIP
When external A/V devices such as VCR or DVD are connected to the monitor, PIP allows you to
watch video from such devices in a small window super-imposed on pc video signal. (On/Off)
1) On / Off
2) Size
Resizing the PIP Screen.
3) Source
Select the input source for the PIP.
PIP Settings
4) Position : Change PIP window position.
• PIP 1
• PIP 2
• Double Screen 1
• Double Screen 2
RGB 1 RGB 2 RGB3 Component
Video 2 Video 1
RGB 1 X X X X O O
RGB 2 X X X X O O
RGB 3 X X X X O O
Component
X X X X X X
Video 2 O O O X X X
Video 1 O O O X X X
Advanced Picture
1) Zoom
2) DNIe (Digital Natural Image engine)
Samsung’s New Technology bring you more detailed image with contrast enhancement and white
enhancement. New image compensation algorithm gives brighter, cleare, to our customers.
DNIe technology will fit every signals into your eyes.
3) Reset
•
Zoom :
Magnifies the size of the picture on screen.
• Pan : Moves the position of the magnified image on the screen either vertically or
horizontally.
• Off : Switches off the DNIe mode.
•
Medium :
Switches on the DNIe mode.
• High : The screen is more clear than in Medium.
• Demo : The screen before applying DNIe appears on the right and the screen after applying
DNIe appears on the left.
Timer
•
Clock :
Current Time Setting
• On Time : Use to set the monitor to turn on automatically at preset time.
• Off Time : Use to set the monitor to turn off automatically at preset time.
• On Time Source : Use to control the mode at the time the monitor turns on automatically.
•
On Time Volume :
Use to control the volume level at the time the monitor turns on
automatically.
• Sleep : Sleep Function
User Controls
On-Screen
Display
BNC Source
Select an input source from the BNC connection.
1) RGB 3
2) Component
OSD
1) Language : You can choose one of 10 languages.
2) Position : Move the OSD Window to the vertical and horizontal direction.
3) Halftone : Change the opaqueness of the background of the OSD.
4) Duration : The number of seconds that the OSD will remain visible before disappearing.
Information
Display current display mode.
Source / Resolution / Video Mode
Check before
calling for service
Problems and
Solutions
Q & A
Check the following items yourself before calling for service. Contact the service center for problems
that you cannot solve by yourself.
Self-Test Feature Check | Video mode not supported |
Dot Acceptable | Maintenance and Cleaning | Symptoms & Recommended Actions

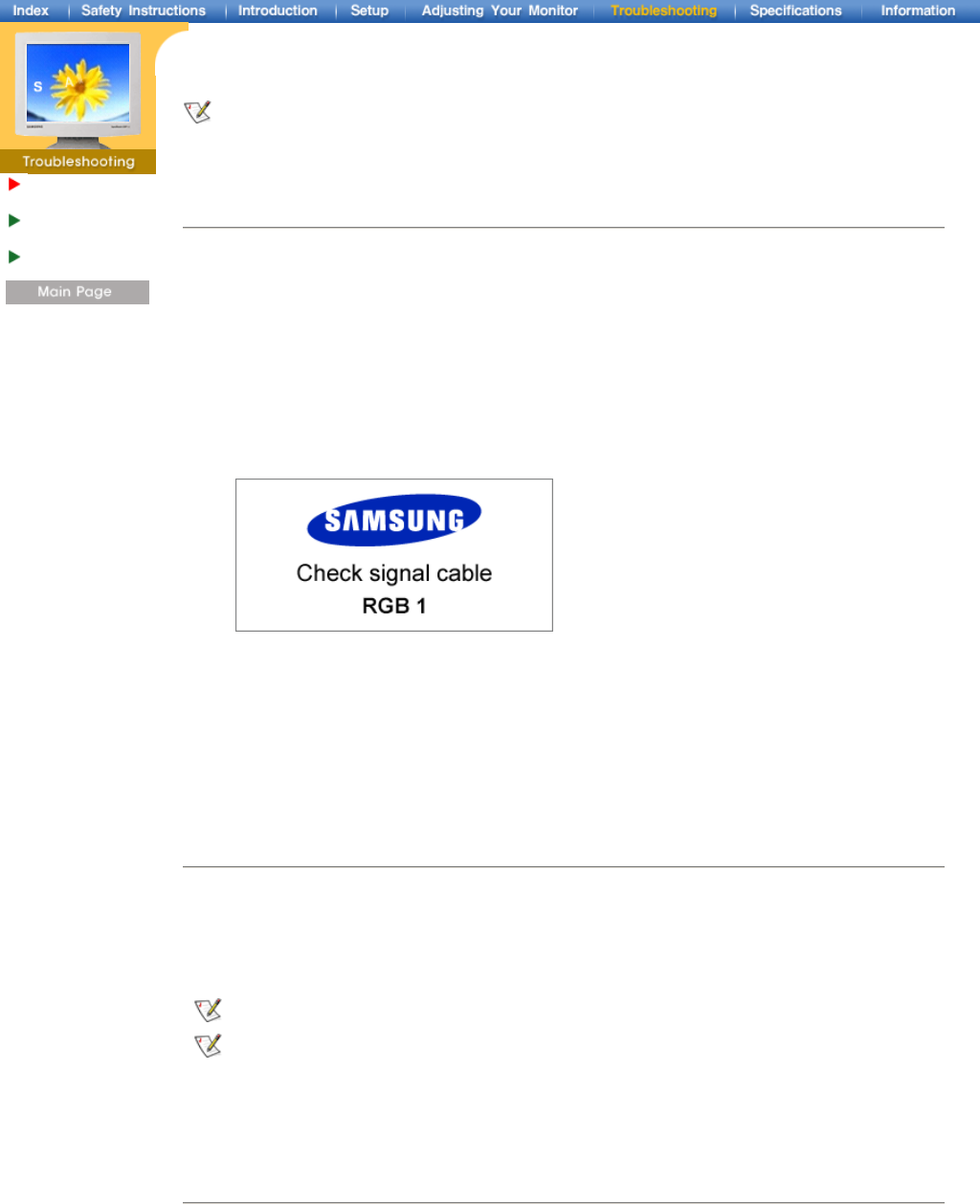

- Self-Test Feature Check
Your monitor provides a self test feature that allows you to check whether your monitor is functioning
properly.
1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer.
3. Turn on the monitor.
The figure shown below ("Check Signal Cable") appears on a black background when the monitor is
in its normal working condition though it does not sense any video signal: While in the Self-Test
mode, the LED power indicator remains green and the figure moves around on the screen.
Failure of any of the boxes to appear indicates a problem with your monitor. This box also appears
during normal operation if the video cable becomes disconnected or damaged.
4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the
monitor.
If your monitor screen remains blank after using the previous procedure, check your video controller and
computer system; your monitor is functioning properly.
- Video mode not supported
This indicates the display resolution or refresh rate is not properly set on your computer video card. Reboot
the computer in Safe Mode and select "Default" in the "Refresh Rate Unknown" box while setting Adapter
for Display Properties.
The screen sometimes remains black even though it does not show the message "Video mode not
supported." This indicates the monitor is set for a frequency out of range or the PowerSaver mode is on.
Contact the computer dealer or manufacturer for information on Safe Mode Booting.
Refer to Specifications > Preset Timing Modes for the resolutions or frequencies that are supported
by the monitor.
- Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 99.999%
above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright
sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without
uneasiness.
The number of TFT LCD pixels :
2,949,120
- Maintenance and Cleaning
1. Maintaining the Monitor Case
Clean with a soft cloth after disconnecting the power cord.
2. Maintaining the Flat Panel Display Screen
Clean with a soft cloth (cotton flannel) smoothly.
zDo not use benzene, thinner or other flammable substances.
zWe recommend a Samsung cleansing agent is used to prevent
damage to the screen.
zNever use acetone, benzene or thinner.
(They may cause flaws or deformation of the screen surface.)
zThe user will be required to pay costs and related expenses for repair of
damages caused by the user.
Check before
calling for service
Problems and
Solutions
Q & A
Check before
calling for service
Problems and
Solutions
Q & A
The following table lists possible problems and their solutions. Before calling for service, check the
information in this section to see if you can remedy any problems yourself. If you do need assistance,
please call the phone number on the warranty card, the phone number on the Information section or
contact your dealer.
Installation | Screen | Audio | Remote Control
1. Problems related to Installation
Problems related to the monitor installation and their solutions are listed.
Problems Solutions
The monitor screen flickers. zCheck if the signal cable between the computer and the
monitor is securely connected and tightened. (Refer to
Connecting to a Computer)
2. Problems related to Screen
Problems related to the monitor screen and their solutions are listed.
Problems Solutions
Screen is blank and power
indicator is off
zEnsure that the power cord is firmly connected and the LCD
monitor is on. (Refer to the Connecting Your Monitor)
"Check Signal Cable" message zEnsure that the signal cable is firmly connected to the PC or
video sources. (Refer to the Connecting Your Monitor)
zEnsure that the PC or video sources are turned on.
"Video mode not supported"
message
zCheck the maximum resolution and the frequency of the
video adaptor.
zCompare these values with the data in the Preset Timing
Modes Chart.
Picture rolls vertically. zCheck if the signal cable is securely connected. Connect it
again securely.(Refer to Connecting to a Computer)
Image is not clear. Picture is
blurred.
zRun Frequency Coarse and Fine tuning.
zTurn on again after removing all accessories (video
extension cable, etc.)
zSet resolution and frequency to the recommended ranges.
(1280 x 768 @ 60Hz)
The image is too light or too dark zAdjust the Brightness and Contrast
(Refer to the Brightness, Contrast)
Screen color is inconsistent. zAdjust color using Mode under OSD Color Adjustment menu.
Color image is distorted with
dark shadows.
White color is poor.
Power Indicator blinks green. zThe monitor is currently saving the changes made in settings
to the OSD memory.
Screen is blank and power
indicator light is steady green or
zThe monitor is using its power management system.
zMove the computer's mouse or press a key on the keyboard
blinks every 0.5 or 1 seconds
3. Problems related to Audio
Problems related to audio signals and their solutions are listed below.
Problems Solutions
No sound zEnsure that the audio cable is firmly connected to both the
audio-in port on your monitor and the audio-out port on your
sound card. (Refer to the Connecting Your Monitor)
zCheck the volume level.
Sound level is too low. zCheck the volume level.
zIf the volume is still too low after turning the control to its
maximum, check the volume control on the computer sound
card or software program.
Sound is too high pitched or too
low pitched
zAdjust the Treble and Bass to appropriate level.
4. Problems related to Remote Control
Problems related to the remote control and their solutions are listed.
Problems Items to check
The remote control buttons do
not respond.
zCheck the battery polarities (+/-).
zCheck if the batteries have been exhausted.
zCheck if the power is on.
zCheck if the power cord is securely connected.
zCheck if a special fluorescent or neon lamp is on in the
vicinity.
Check before
calling for service
Problems and
Solutions
Q & A
Check before
calling for service
Problems and
Solutions
Q & A
Frequently asked questions are summarized here for your reference.
Question Answer
How can I change the frequency? Frequency can be changed by reconfiguring the video card.
Note that video card support can vary, depending on the
version of the driver used. (Refer to the computer or the video
card manual for details.)
How can I adjust the resolution? Windows XP:
Reset resolution by clicking Control Panel Appearance &
Theme Display Settings.
Windows ME/2000:
Set the resolution at the Control Panel Display
Settings.
* Contact the video card manufacturer for details.
How can I set the Power Saving
function?
Windows XP:
Reset Power Saving parameters by clicking Control Panel
Appearance & Theme Display Screen Saver or
in the computer BIOS SETUP. (Refer to Windows/Computer
Manual)
Windows ME/2000:
Set the function at BIOS-SETUP of the computer or the screen
saver. (Refer to Windows/Computer Manual).
How can I clean the outer case/LCD
Panel?
Disconnect the power cord and then clean the monitor with a
soft cloth, using either a cleaning solution or plain water.
Do not leave any remains of the detergent nor scratch the
case. Do not allow any water to go inside the monitor.
General
PowerSaver
Preset Timing
Modes
Design and specifications are subject to change without prior notice.
General
Model Name SyncMaster 403T
LCD Panel
Size 40.02 inch (Diagonal) / 39.6 inch (Diagonal)
Display area 871.68 (H) x 523.008 (V)
Pixel Pitch 0.681 (H) x 0.681 (V)
Type a-si TFT active matrix
Viewing Angle 170 º / 170 º (H/V)
Synchronization
Horizontal 30 ~ 70 kHz
Vertical 56 ~ 85 Hz
Display Color
16,777,216 Colors
Resolution
Optimum resolution 1080 x 768 @ 60Hz
Maximum resolution 1280 x 768 @ 75Hz
Input Signal
Sync.
Separate: TTL, P. or N.
Composite: TTL, P. or N.
Video signal 0.7 Vp-p @ 75 ohm
Video
Color system NTSC, PAL, SECAM
Sound system M/N
Video format CVBS, S-VHS, RGB, Component
Maximum Pixel Clock
90 MHz
Power Supply
AC 90 ~ 264 V(50/60 Hz)
Power Consumption
200W (Maximum)
Power Saving
Less than 6W
Dimensions (WxDxH)
Monitor body 1006.0 x 300.0 x 746.5 mm
Weight
Monitor body 28.0 kg
Environmental considerations
Operating Temperature : 50°F ~ 104°F(10°C ~ 40°C)
Humidity : 10% ~ 80%, non-condensing
Storage Temperature : -13°F ~113°F (-25°C ~ 45°C)
Humidity : 5% ~ 95%, non-condensing
Audio Characteristics
Audio Input 1 RCA Jack Red(R) White(L), 0.5Vrms (-9dB)
Audio Input 2 RCA Jack Red(R) White(L), 0.5Vrms (-9dB)
PC Audio Input 3.5ØStereo Jack, 0.5Vrms (-9dB)
Frequency RF: 80Hz ~ 15kHz (at -3dB)
Response A/V: 80Hz ~ 20kHz (at -3dB)
Plug and Play Capability
This monitor can be installed on any Plug & Play compatible system. Interaction of the monitor and computer
systems will provide the best operating conditions and monitor settings. In most cases, monitor installation
will proceed automatically, unless the user wishes to select alternate settings.
Dot Acceptable
TFT LCD panel manufactured by using advanced semiconductor technology with precision of 99.999%
above is used for this product. But the pixels of RED, GREEN, BLUE and WHITE color seem to be bright
sometimes or some of black pixels could be seen. This is not from bad quality and you can use it without
uneasiness.
The number of TFT LCD pixels : 2,949,120
General
PowerSaver
Preset Timing
Modes
General
PowerSaver
Preset Timing
Modes
This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you move the computer's mouse or
press a key on the keyboard. For energy conservation, turn your monitor OFF when it is not needed, or
when leaving it unattended for long periods. The PowerSaver system operates with a VESA DPMS
compliant video card installed in your computer. Use a software utility installed on your computer to set
up this feature.
State Normal Operation Power saving mode
EPA/ENERGY 2000 Power Switch off
Power Indicator Green Green, Blinking Amber
Power Consumption Less than 200W Less than 6W Less than 6W
This monitor is EPA ENERGY STAR® compliant and ENERGY2000 compliant when
used with a computer equipped with VESA DPMS functionality.
As an ENERGY STAR® Partner, SAMSUNG has determined that this product meets the
ENERGY STAR® guidelines for energy efficiency.
General
PowerSaver
Preset Timing
Modes
If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while the
power LED is on. Refer to the video card manual and adjust the screen as follows.
Table 1. Preset Timing Modes
Display Mode Horizontal Frequency
(kHz)
Vertical Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(H/V)
MAC, 640 x 480 35.000 66.700 30.240 -/-
MAC, 832 x 624 49.730 75.000 57.284 -/-
VGA, 640 x 350 31.470 70.000 25.175 +/-
VGA, 720 x 400 31.470 70.000 28.322 -/+
VGA, 640 x 480 31.470 59.940 25.175 -/-
VGA, 640 x 480 37.861 72.809 31.500 -/-
VGA, 640 x 480 37.500 75.000 31.500 -/-
VGA, 640 x 480 43.269 85.008 36.000 -/-
WVGA, 848 x 480 29.820 60.000 31.490 +,-/+,-
SVGA, 800 x 600 35.160 56.200 36.000 +,-/+,-
SVGA, 800 x 600 37.880 60.300 40.000 +/+
SVGA, 800 x 600 48.100 72.200 50.000 +/+
SVGA, 800 x 600 46.875 75.000 49.500 +/+
SVGA, 800 x 600 53.674 85.061 56.250 +/+
XGA, 1024 x 768 48.363 60.004 65.000 -/-
XGA, 1024 x 768 56.480 70.000 75.000 -/-
XGA, 1024 x 768 60.023 75.029 78.750 +/+
XGA, 1024 x 768 68.677 84.997 94.500 +/+
WXGA, 1280 x 768 47.700 60.000 80.136 +,-/+,-
Service Center
Terms
Regulatory
Natural Color
Authority
U.S.A. :
Samsung Computer Products Customer Service
400 Valley Road, Suite 201, Mt. Arlington, NJ 07856
Tel. : (973)601-6000, 1-800-SAMSUNG (1-800-726-7864)
Fax. : (973)601-6001
http://www.samsungusa.com/monitor/
BRAZIL :
Samsung Eletronica da Amazonia Ltda.
R. Prof. Manoelito de Ornellas, 303, Terro B
Chacara Sto. Antonio, CEP : 04719-040
Sao Paulo, SP
SAC : 0800 124 421
http://www.samsung.com.br/
CANADA :
Samsung Electronics Canada Inc.
7037 Financial Drive
Mississauga, Ontario L5N 6R3
Tel. : 1-800-SAMSUNG (1-800-726-7864)
Fax. : (905) 542-1199
http://www.samsung.ca/
COLOMBIA :
Samsung Electronics Colombia
Cra 9 No 99A-02 Of. 106
Bogota, Colombia
Tel.: 9-800-112-112
Fax: (571) 618 - 2068
http://www.samsung-latin.com/
e-mail : soporte@samsung-latin.com
PANAMA :
Samsung Electronics Latinoamerica( Z.L.) S.A.
Calle 50 Edificio Plaza Credicorp, Planta Baja
Panama
Tel. : (507) 210-1122, 210-1133
Tel : 800-3278(FAST)
http://www.samsung-latin.com/
PERU
Servicio Integral Samsung
Av.Argentina 1790 Lima1. Peru
Tel: 51-1-336-8686
Fax: 51-1-336-8551
http://www.samsungperu.com/
GERMANY :
TELEPLAN Rhein-Main GmbH
Feldstr. 16
64331 Weiterstadt
T. 06151/957-1306
F. 06151/957-1732
* EURO 0,12/MIN.
http://www.samsung.de/
AUSTRALIA :
Samsung Electronics Australia Pty Ltd.
Customer Response Centre
7 Parkview Drive, Homebush Bay NSW 2127
Tel : 1300 362 603
http://www.samsung.com.au/
ITALY :
Samsung Electronics Italia S.p.a.
Via C. Donat Cattin, 5
20063 Cernusco s/Naviglio (MI)
Servizio Clienti: 199.153.153
http://www.samsung-italia.com/
ESPAÑA :
Samsung Electronics Comercial Iberica, S.A.
Ciencies, 55-65 (Poligono Pedrosa) 08908
Hospitalet de Llobregat (Barcelona)
Tel. : (93) 261 67 00
Fax. : (93) 261 67 50
http://samsung.es/
United Kingdom :
Samsung Electronics (UK) Ltd.
Samsung House, 225 Hook Rise South
Surbiton, Surrey KT6 7LD
Tel. : (0208) 391 0168
Fax. : (0208) 397 9949
< European Service Center & National Service >
Stafford Park 12 Telford, Shropshire, TF3 3BJ
Tel. : (0870) 242 0303
Fax. : (01952) 292 033
http://samsungservice.co.uk/
THAILAND :
HAI SAMSUNG SERVICE CENTER
MPA COMPLEX BUILDING,1st-2nd Floor
175 SOI SUEKSA VIDHAYA SATHON SOI 12
SILOM ROAD ,SILOM,BANGRAK
BANGKOK 10500
TEL : 0-2635-2567
FAX : 0-2635-2556
http://www.samsungelectronics.co.th/
SOUTH AFRICA :
Samsung Electronics,5 Libertas Road, Somerset Office Park,
Bryanston Ext 16. Po Box 70006, Bryanston,2021, South Africa
Tel : 0027-11-549-1621
Fax : 0027-11-549-1629
http://www.samsung.co.za/
UKRAINE :
SAMSUNG ELECTRONICS REPRESENTATIVE OFFICE IN UKRAINE
4 Glybochitska str.
Kiev, Ukraine
Tel. 8-044-4906878
Fax 8-044-4906887
Toll-free 8-800-502-0000
http://www.samsung.com.ua/
SWEDEN/DENMARK/NORWAY/FINLAND :
Samsung Electronics AB
Box 713
S-194 27 UPPLANDS VÄSBY
SVERIGE
Bes?sadress : Johanneslundsv?en 4
Samsung support Sverige: 020-46 46 46
Samsung support Danmark : 8088-4646
Samsung support Norge: 8001-1800
Samsung support Finland: 0800-118001
Tel +46 8 590 966 00
Fax +46 8 590 966 50
http://www.samsung.se/
HUNGARY :
Samsung Electronics Magyar Rt.
1039, Budapest, Lehel u. 15-17.
Tel: 36 1 453 1100
Fax: 36 1 453 1101
http://www.samsung.hu/
FRANCE :
SAMSUNG ELECTRONICS FRANCE Service
Paris Nord 2
66 rue des Vanesses
BP 50116 Villepinte
95950 Roissy CDG Cedex
Tel : 08 25 08 65 65
Fax : 01 48 63 06 38
http://www.samsungservices.com/
PORTUGAL :
SAMSUNG ELECTRONICA PORTUGUESA S.A.
Rua M?io Dioniso, No2 - 1?Drt. 2795-140 LINDA-A-VELHA
Tel. 214 148 114/100 Fax. 214 148 133/128
Free Line 800 220 120
http://www.samsung.pt/
Service Center
Terms
Regulatory
Natural Color
Authority
SONDA S.A.
Teatinos 550, Santiago Centro, Santiago, Chile
Fono: 56-2-5605000 Fax: 56-2-5605353
56-2-800200211
http://www.sonda.com/
http://www.samsung.cl/
MEXICO :
Samsung Electronics Mexico S.A. de C.V.
Saturno 44 Col. Nueva Industrial Vallejo
Del. Gustavo A. Madero C.P. 07700
Mexico D.F.
Tel. 01 57 47 51 00
Fax. 01 57 47 52 02
RFC: SEM950215S98
http://www.samsung.com.mx/
IMPORTADO POR: SAMSUNG ELECTRONICS MEXICO S.A. DE C.V.
SATURNO 44 COL. NVA. INDUSTRIAL VALLEJO
DEL. GUSTAVO A. MADERO C.P. 07700
MEXICO D.F. TEL. 5747-5100
RFC: SEM950215S98
EXPORTADO POR: SAMSUNG ELECTRONICS CO.,LTD.
JOONG-ANG DAILY NEWS BLDG.
7 SOON-WHA-DONG CHUNG-KU,
C.P.O BOX 2775, 1144 SEOUL, KOREA
NETHERLANDS/BELGIUM/LUXEMBOURG :
Samsung Electronics Benelux B. V.
Fleminglaan 12 2289 CP Rijiswijk, NEDERLANDS
Service and informatielijn ;
Belgium :0800-95214, http://www.samsung.be/
Netherlands : 0800-2295214, http://www.samsung.nl/
CHILE :
Service Center
Terms
Regulatory
Natural Color
Authority
Service Center
Terms
Regulatory
Natural Color
Authority
Sync Signal
Sync (Synchronized) Signals refer to the standard signals that are required to display desired colors on
the monitor. They are divided into Vertical and Horizontal Sync Signals. These signals display normal
color images by the set resolution and frequency.
Types of Sync Signals
Separate This is a scheme of transmitting individual vertical sync signals to the monitor.
Composite This is a scheme of combining vertical sync signals into one composite signal
and transmitting it to the monitor. The monitor displays the color signals by
separating the composite signal into original color signals.
Sync On Green This scheme does not use sync signals. Instead, it combines horizontal and
vertical sync signals into a Green signal and transmits to the monitor. It is mainly
used for workstations.
Dot Pitch
The image on a monitor is composed of red, green and blue dots. The closer the dots, the higher the
resolution. The distance between two dots of the same color is called the 'Dot Pitch'. Unit: mm
Vertical Frequency
The screen must be redrawn several times per second in order to create and display an image for the
user. The frequency of this repetition per second is called Vertical Frequency or Refresh Rate. Unit: Hz
Example:
If the same light repeats itself 60 times per second, this is regarded as 60 Hz. In this case,
flickering of the screen can be detected. To avoid this problem, there is a Flicker-free Mode
using a vertical frequency over 70 Hz.
Horizontal Frequency
The time to scan one line connecting the right edge to the left edge of the screen horizontally is called
Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal Frequency. Unit: kHz
Interlace and Non-Interlace Methods
Showing the horizontal lines of the screen from the top to the bottom in order is called the Non-Interlace
method while showing odd lines and then even lines in turn is called the Interlace method. The Non-
Interlace method is used for the majority of monitors to ensure a clear image. The Interlace method is
the same as that used in TVs.
Plug & Play
This is a function that provides the best quality screen for the user by allowing the computer and the
monitor to exchange information automatically. This monitor follows the international standard VESA
DDC for the Plug & Play function.
Resolution
The number of horizontal and vertical dots used to compose the screen image is called 'resolution'. This
number shows the accuracy of the display. High resolution is good for performing multiple tasks as more
image information can be shown on the screen.
Example:
If the resolution is 1024 X 768, this means the screen is composed of 1024 horizontal dots
(horizontal resolution) and 768 vertical lines (vertical resolution).
Multiple Display Control (MDC)
A Multiple Display Control (MDC) is an application allowing various displays to be easily and
simultaneously operated on a PC. RS-232C, a standard of serial communication, is used for the
communication between a PC and a display.
Service Center
Terms
Regulatory
Natural Color
Authority
FCC Information | IC Compliance Notice | MPR II Compliance |
European Notice (Europe only) | PCT Notice | VCCI |
FCC Information
User Instructions
The Federal Communications Commission Radio Frequency Interference Statement includes the following
warning:
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television receptions,
which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
zReorient or relocate the receiving antenna.
zIncrease the separation between the equipment and receiver.
zConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
zConsult the dealer or an experienced radio/TV technician for help.
User Information
Changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment. If necessary, consult your dealer or an experienced
radio/television technician for additional suggestions. You may find the booklet called How to Identify and
Resolve Radio/TV Interference Problems helpful. This booklet was prepared by the Federal
Communications Commission. It is available from the U.S. Government Printing Office, Washington, DC
20402, Stock Number 004-000-00345-4.
The party responsible for product compliance:
SAMSUNG ELECTRONICS CO., LTD
America QA Lab of Samsung
3351 Michelson Drive,
Suite #290, Irvine, CA92612 USA
Tel) 949-975-7310
Fax) 949-922-8301
Warning
User must use shielded signal interface cables to maintain FCC compliance for the product.
Provided with this monitor is a detachable power supply cord with IEC320 style terminations. It may be
suitable for connection to any UL Listed personal computer with similar configuration. Before making the
connection, make sure the voltage rating of the computer convenience outlet is the same as the monitor
and that the ampere rating of the computer convenience outlet is equal to or exceeds the monitor voltage
rating.
For 120 Volt applications, use only UL Listed detachable power cord with NEMA configuration 5-15P type
(parallel blades) plug cap. For 240 Volt applications use only UL Listed Detachable power supply cord with
NEMA configuration 6-15P type (tandem blades) plug cap.
IC Compliance Notice
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment
Regulations of ICES-003.
Cet appareil Numérique de classe B respecte toutes les exigences du Règlemont NMB-03 sur les
équipements produisant des interférences au Canada.
MPR II Compliance
This monitor complies with SWEDAC(MPR II) recommendations for reduced electric and magnetic fields.
European Notice (Europe only)
Products with the CE marking comply with the EMC Directive(89/336/EEC), (92/31/EEC), (93/68/EEC) and
the Low Voltage Directive (73/23/EEC) issued by the Commission of the European Community.
Compliance with these directives implies conformity to the following European Norms:
zEN55022:1998+A1:2000 - Radio Frequency Interference
zEN55024:1998 - Electromagnetic Immunity of Information Technology Equipment
zEN61000-3-2:1995+A1/A2:1998 - Power Line Harmonics
zEN61000-3-3:1995 - Voltage Fluctuations
PCT Notice
VCCI
This is a Class B product based on the standard of the Voluntary Control Council for Interference by
Information Technology Equipment (VCCI). If this is used near a radio or television receiver in a domestic
environment, it may cause radio interference. Install and use the equipment according to the instruction
manual.
Service Center
Terms
Regulatory
Natural Color
Authority
Service Center
Terms
Regulatory
Natural Color
Authority

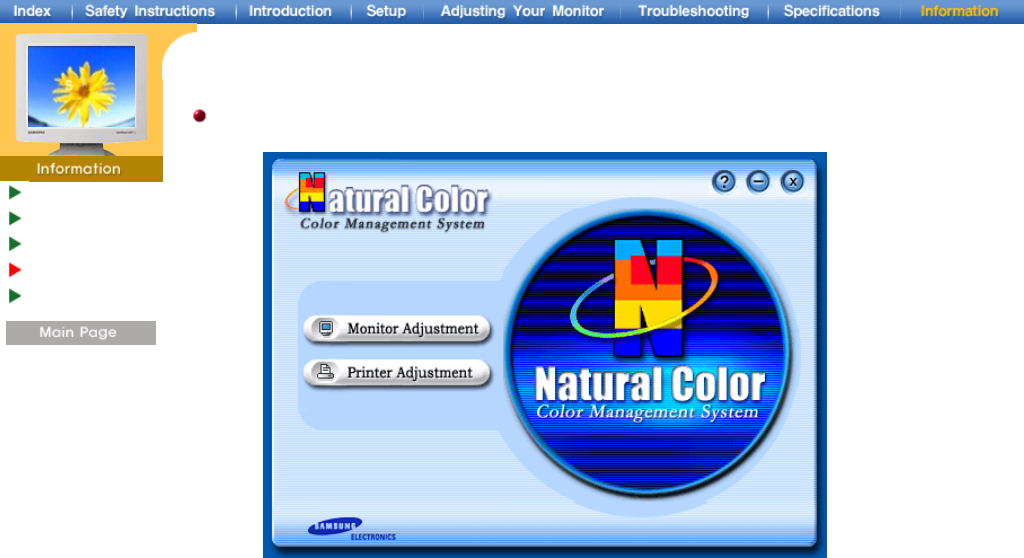

Natural Color Software Program
One of the recent problems in using a computer is that the color of the images printed out by a printer or
other images scanned by a scanner or a digital camera are not the same as those shown on the monitor.
The Natural Color S/W is the very solution for this problem. It is a color administration system developed
by Samsung Electronics in association with Korea Electronics & Telecommunications Research Institute
(ETRI). This system is available only for Samsung monitors and makes the color of the images on the
monitor the same as the printed or scanned images.
For more information, refer to Help (F1) in the software program.
How to install the Natural Color software
Insert the CD included with the Samsung monitor into the CD-ROM Drive. Then, the initial screen of the
program installation will be executed. Click Natural Color on the initial screen to install the Natural Color
software. To install the program manually, insert the CD included with the Samsung monitor into the CD-
ROM Drive, click the [Start] button of Windows and then select [Execute].
Enter D:\color\eng\setup.exe and then press the <Entrer> key.
(If the drive where the CD is inserted is not D:\, enter the applicable drive.)
How to delete the Natural Color software program
Select [Setting]/[Control Panel] on the [Start] menu and then double-click [Add/Delete a program].
Select Natural Color from the list and then click the [Add/Delete] button.
Service Center
Terms
Regulatory
Natural Color
Authority
Information in this document is subject to change without notice.
© 2003 Samsung Electronics Co., Ltd. All rights reserved.
Reproduction in any manner whatsoever without the written permission of Samsung Electronics Co., Ltd. is
strictly forbidden.
Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and Windows
NT are registered trademarks of Microsoft Corporation; VESA, DPMS and DDC are registered trademarks of
Video Electronics Standard Association; the ENERGY STAR
name and logo are registered trademarks of the
U.S. Environmental Protection Agency (EPA). As an ENERGY STAR Partner, Samsung Electronics Co., Ltd.
has determined that this product meets the ENERGY STAR
guidelines for energy efficiency. All other product
names mentioned herein may be the trademarks or registered trademarks of their respective owners.

Navigation menu
