Users Manual 1

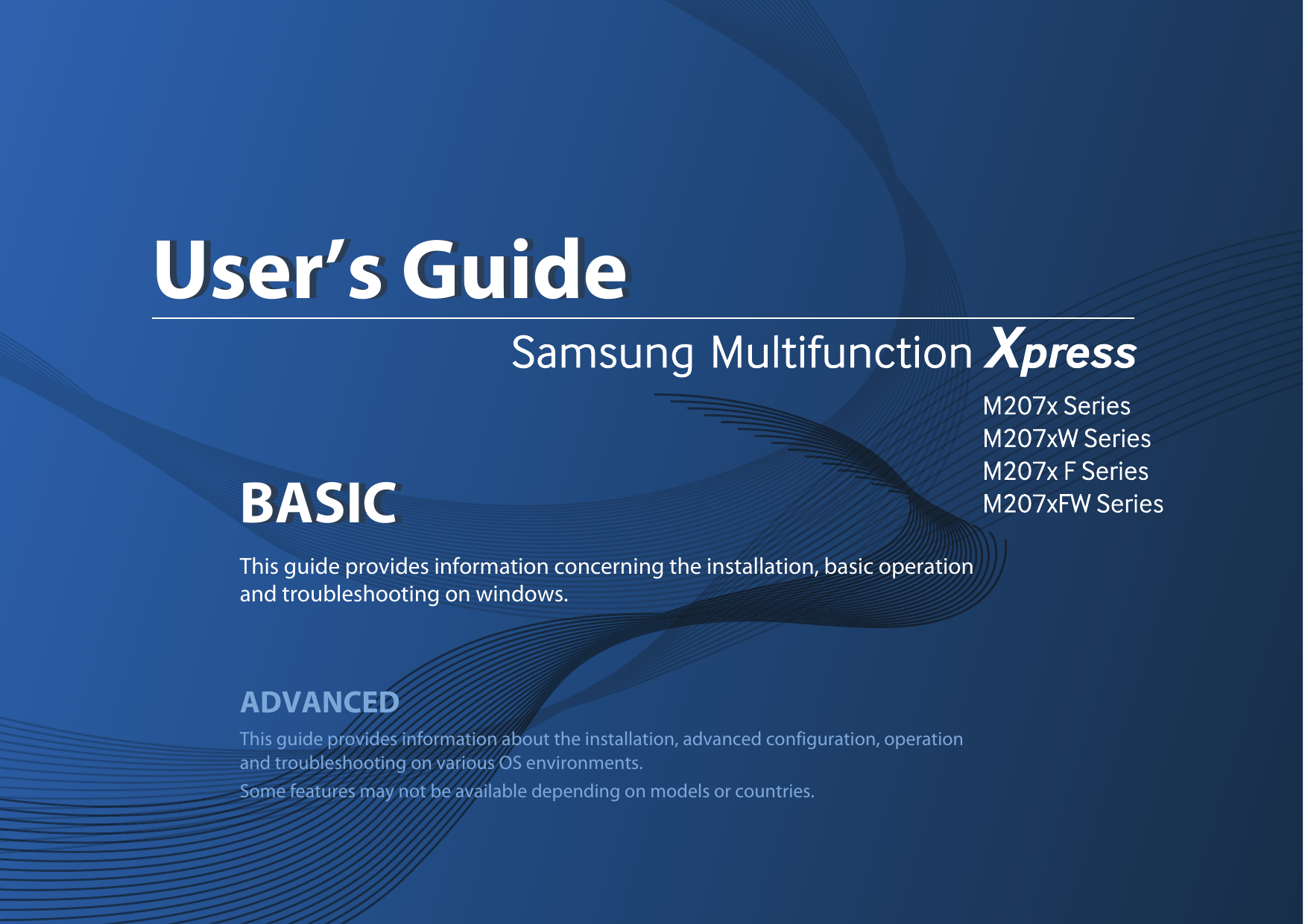

BASICUser’s GuideBASICUser’s GuideThis guide provides information concerning the installation, basic operation and troubleshooting on windows.ADVANCEDThis guide provides information about the installation, advanced configuration, operation and troubleshooting on various OS environments. Some features may not be available depending on models or countries.
2BASIC1. IntroductionKey benefits 5Features by models 7Useful to know 13About this user’s guide 14Safety information 15Machine overview 21Control panel overview 25Turning on the machine 30Installing the driver locally 31Reinstalling the driver 322. Menu Overview and Basic SetupMenu overview 34Machine’s basic settings 40Media and tray 42Basic printing 54Basic copying 60Basic scanning 65Basic faxing 663. MaintenanceOrdering supplies and accessories 71Available supplies 72Available maintenance parts 73Storing the toner cartridge 74Redistributing toner 76Replacing the toner cartridge 78Monitoring the supplies life 80Setting the toner low alert 81Cleaning the machine 82Tips for moving & storing your machine 884. TroubleshootingTips for avoiding paper jams 90Clearing original document jams 91Clearing paper jams 96Understanding the status LED 100Understanding display messages 102

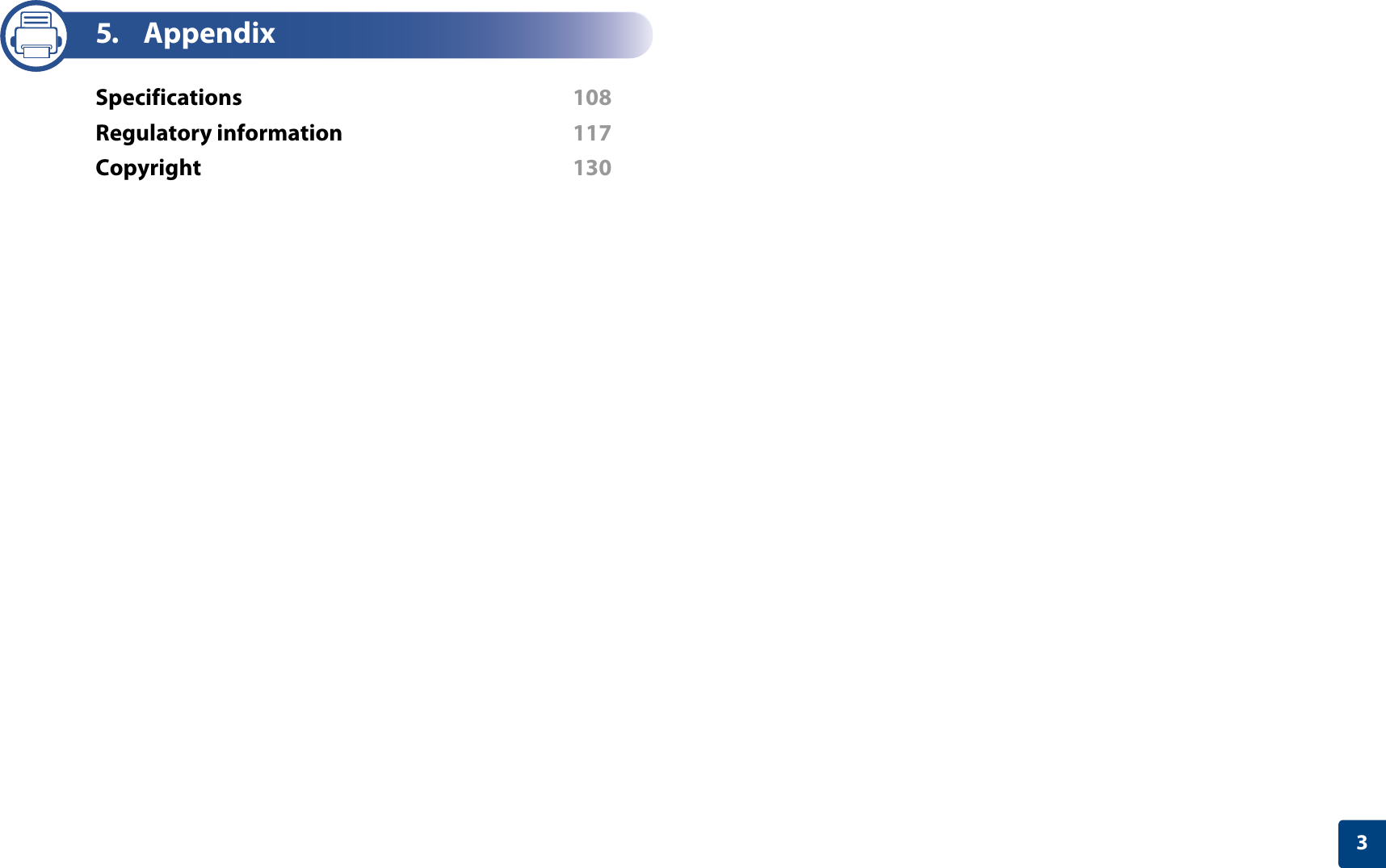

3BASIC5. AppendixSpecifications 108Regulatory information 117Copyright 130
1. IntroductionThis chapter provides information you need to know before using the machine.•Key benefits 5• Features by models 7• Useful to know 13• About this user’s guide 14• Safety information 15• Machine overview 21• Control panel overview 25• Turning on the machine 30• Installing the driver locally 31• Reinstalling the driver 32

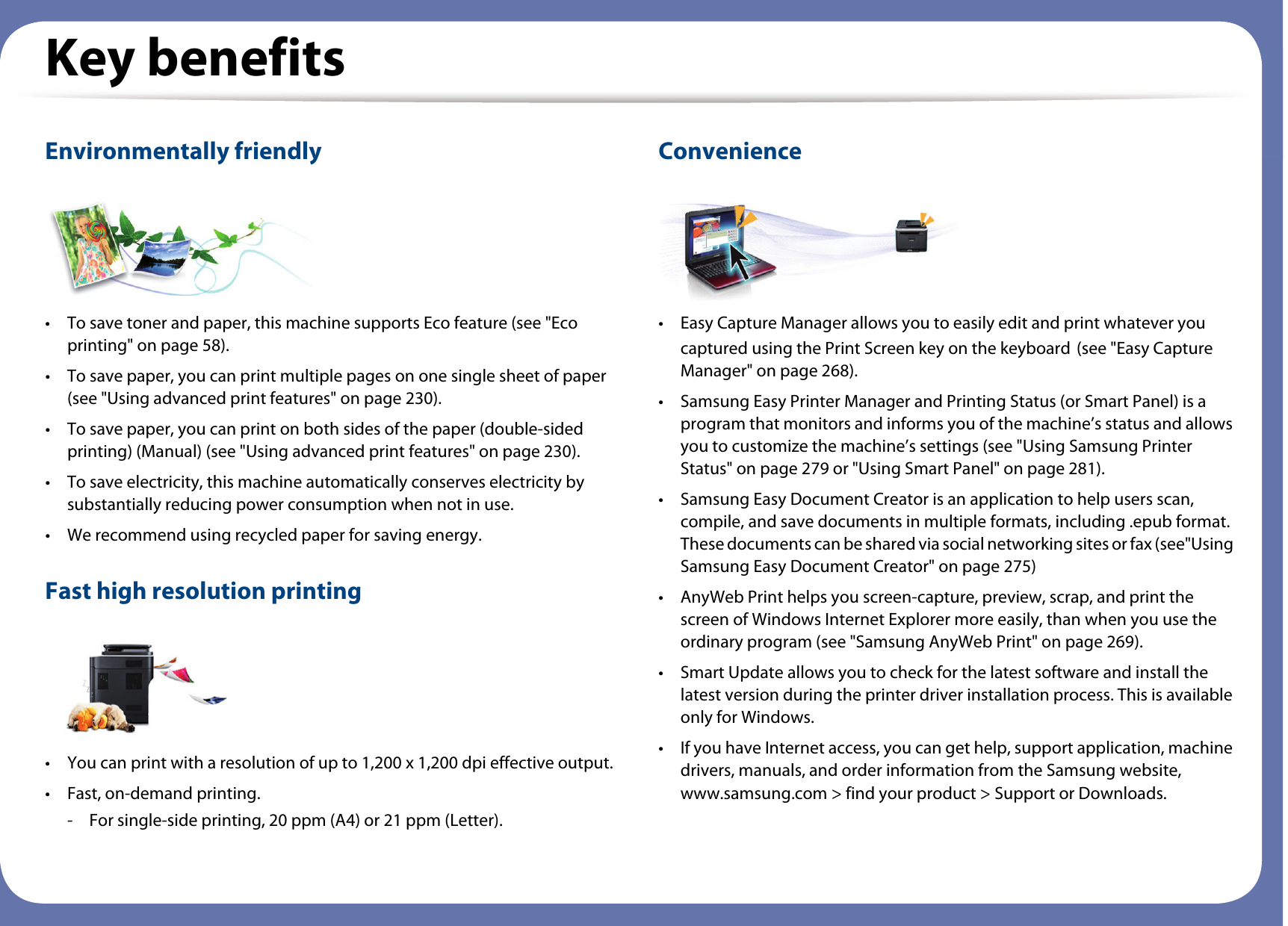

Key benefitsEnvironmentally friendly• To save toner and paper, this machine supports Eco feature (see "Eco printing" on page 58).• To save paper, you can print multiple pages on one single sheet of paper (see "Using advanced print features" on page 230).• To save paper, you can print on both sides of the paper (double-sided printing) (Manual) (see "Using advanced print features" on page 230).• To save electricity, this machine automatically conserves electricity by substantially reducing power consumption when not in use.• We recommend using recycled paper for saving energy.Fast high resolution printing• You can print with a resolution of up to 1,200 x 1,200 dpi effective output.• Fast, on-demand printing.- For single-side printing, 20 ppm (A4) or 21 ppm (Letter).Convenience• Easy Capture Manager allows you to easily edit and print whatever you captured using the Print Screen key on the keyboard (see "Easy Capture Manager" on page 268).• Samsung Easy Printer Manager and Printing Status (or Smart Panel) is a program that monitors and informs you of the machine’s status and allows you to customize the machine’s settings (see "Using Samsung Printer Status" on page 279 or "Using Smart Panel" on page 281).• Samsung Easy Document Creator is an application to help users scan, compile, and save documents in multiple formats, including .epub format. These documents can be shared via social networking sites or fax (see"Using Samsung Easy Document Creator" on page 275)• AnyWeb Print helps you screen-capture, preview, scrap, and print the screen of Windows Internet Explorer more easily, than when you use the ordinary program (see "Samsung AnyWeb Print" on page 269).• Smart Update allows you to check for the latest software and install the latest version during the printer driver installation process. This is available only for Windows.• If you have Internet access, you can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
Key benefitsWide range of functionality and application support• Supports various paper sizes (see "Print media specifications" on page 110).• Print watermark: You can customize your documents with words, such as “Confidential” (see "Using advanced print features" on page 230).• Print posters: The text and pictures of each page of your document are magnified and printed across the multiple sheets of paper and can then be taped together to form a poster (see "Using advanced print features" on page 230).• You can print in various operating systems (see "System requirements" on page 113).• Your machine is equipped with a USB interface and/or a network interface.AirPrint• AirPrint allows you to wirelessly print directly from iPhone, iPad and iPod touch running iOS 4.2 or later.Supports various wireless network setting method • Using the WPS (Wi-Fi Protected Setup™) button- You can easily connect to a wireless network using the WPS button on the machine and the access point (a wireless router).• Using the USB cable or a network cable- You can connect and set various wireless network settings using a USB cable or a network cable.• Using the Wi-Fi Direct- You can conveniently print from your mobile device using the Wi-Fi or Wi-Fi Direct feature. See "Introducing wireless set up methods" on page 157.
Features by modelsSome features and optional goods may not be available depending on model or country.Operating System (●: Included, Blank: Not available) Operating System M207x SeriesM207xW SeriesM207xF SeriesM207xFW SeriesWindows ● ●Mac ● ●Linux ● ●Unix
Features by modelsSoftware Software M207x SeriesM207xW SeriesM207xF SeriesM207xFW SeriesSPL printer driver ● ●PCL printer driverPS printer driverXPS printer drivera● ●Direct Printing UtilitySamsung Easy Printer Manager Scan to PC settings ● ●Fax to PC settings ●Device Settings ● ●Samsung Easy Document Creator ● ●Samsung Printer Status ● ●Smart Panel ● ●AnyWeb Print ● ●SyncThru™ Web Service ●(M207xW Series only)● (M207xFW Series only)SyncThru Admin Web Service ● (M207xW Series only)● (M207xFW Series only)
Features by models (●: Included, Blank: Not available) Easy Eco Driver ● ●Fax Samsung Network PC Fax ●a. For XPS driver, it is only supported for Windows through the Samsung website (www.samsung.com)Software M207x SeriesM207xW SeriesM207xF SeriesM207xFW Series
Features by modelsVariety feature Features M207x SeriesM207xW SeriesM207xF SeriesM207xFW SeriesHi-Speed USB 2.0 ● ●Network Interface Ethernet 10/100 Base TX wired LAN ● (M207xFW Series only)Network Interface 802.11b/g/n wireless LANa● (M207xW Series only)● (M207xFW Series only)Eco printing (Control panel) ● ●Duplex (2-sided) printing (Manual)b● ●USB memory interfaceMemory moduleMass Storage Device (HDD)Duplex Automatic Document Feeder (DADF)Automatic Document Feeder (ADF) ●Handset ● (M207xFW Series only)
Features by modelsFax Multi-send ●Delay send ●Priority send ●Duplex sendSecure receive ●Duplex printSend/ Receive forward - fax ●Send/ Receive forward - emailSend/ Receive forward - serverScan Scanning to emailScanning to SMB serverScanning to FTP serverDuplex scanScan to PC ● ●Features M207x SeriesM207xW SeriesM207xF SeriesM207xFW Series
Features by models (●: Included, Blank: Not available) Copy ID card copying ● ●Reduced or enlarged copying ●Collation ●Poster ●Clone ●Book2-up/4-up ●Adjust background ● ●Margin shiftEdge eraseGray enhanceDuplex copya. Depending on your country, wireless LAN card may not be available. For some counties, only 802.11 b/g can be applied. Contact your local Samsung dealer or the retailer where you bought your machine.b. Windows only.Features M207x SeriesM207xW SeriesM207xF SeriesM207xFW Series
Useful to knowThe machine does not print.• Open the print queue list and remove the document from the list (see "Canceling a print job" on page 55).• Remove the driver and install it again (see "Installing the driver locally" on page 31).• Select your machine as your default machine in your Windows (see "Setting your machine as a default machine" on page 229).Where can I purchase accessories or supplies?• Inquire at a Samsung distributor or your retailer.• Visit www.samsung.com/supplies. Select your country/region to view product service information.The status LED flashes or remains constantly on.• Turn the product off and on again.• Check the meanings of LED indications in this manual and troubleshoot accordingly (see "Understanding the status LED" on page 100).A paper jam has occurred.• Open and close the scan unit (see "Front view" on page 22).• Check the instructions on removing jammed paper in this manual and troubleshoot accordingly (see "Clearing paper jams" on page 96).Printouts are blurry.• The toner level might be low or uneven. Shake the toner cartridge (see "Redistributing toner" on page 76).• Try a different print resolution setting (see "Opening printing preferences" on page 56).• Replace the toner cartridge (see "Replacing the toner cartridge" on page 78).Where can I download the machine’s driver?• You can get help, support application, machine drivers, manuals, and order information from the Samsung website, www.samsung.com > find your product > Support or Downloads.
141. IntroductionAbout this user’s guideThis user's guide provides information for your basic understanding of the machine as well as detailed steps to explain machine usage.• Read the safety information before using the machine.• If you have a problem using the machine, refer to the troubleshooting chapter.• Terms used in this user’s guide are explained in the glossary chapter.• All illustrations in this user’s guide may differ from your machine depending on its options or model you purchased.• The screenshots in this administrator’s guide may differ from your machine depending on the machine’s firmware/driver version.• The procedures in this user’s guide are mainly based on Windows 7.1 ConventionsSome terms in this guide are used interchangeably, as below:• Document is synonymous with original.• Paper is synonymous with media, or print media.• Machine refers to printer or MFP.2 General iconsIcon Text DescriptionCaution Gives users information to protect the machine from possible mechanical damage or malfunction.Note Provides additional information or detailed specification of the machine function and feature.
151. IntroductionSafety informationThese warnings and precautions are included to prevent injury to you and others, and to prevent any potential damage to your machine. Be sure to read and understand all of these instructions before using the machine. After reading this section, keep it in a safe place for future reference.3 Important safety symbolsExplanation of all icons and signs used in this chapter4 Operating environment WarningWarning Hazards or unsafe practices that may result in severe personal injury or death.Caution Hazards or unsafe practices that may result in minor personal injury or property damage.Do not attempt.Do not use if the power cord is damaged or if the electrical outlet is not grounded.This could result in electric shock or fire. Do not place anything on top of the machine (water, small metal or heavy objects, candles, lit cigarettes, etc.).This could result in electric shock or fire. • If the machine gets overheated, it releases smoke, makes strange noises, or generates an odd odor, immediately turn off the power switch and unplug the machine.• The user should be able to access the power outlet in case of emergencies that might require the user to pull the plug out.This could result in electric shock or fire. Do not bend, or place heavy objects on the power cord. Stepping on or allowing the power cord to be crushed by a heavy object could result in electric shock or fire. Do not remove the plug by pulling on the cord; do not handle the plug with wet hands. This could result in electric shock or fire.
Safety information161. Introduction Caution5 Operating method CautionDuring an electrical storm or for a period of non-operation, remove the power plug from the electrical outlet. This could result in electric shock or fire. Be careful, the paper output area is hot. Burns could occur. If the machine has been dropped, or if the cabinet appears damaged, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the machine does not operate properly after these instructions have been followed, unplug the machine from all interface connections and request assistance from qualified service personnel.Otherwise, this could result in electric shock or fire.If the plug does not easily enter the electrical outlet, do not attempt to force it in. Call an electrician to change the electrical outlet, or this could result in electric shock.Do not allow pets to chew on the AC power, telephone or PC interface cords.This could result in electric shock or fire and/or injury to your pet. Do not forcefully pull the paper out during printing. It can cause damage to the machine.Be careful not to put your hand between the machine and paper tray.You may get injured.Be care when replacing paper or removing jammed paper. New paper has sharp edges and can cause painful cuts.When printing large quantities, the bottom part of the paper output area may get hot. Do not allow children to touch. Burns can occur.When removing jammed paper, do not use tweezers or sharp metal objects. It can damage the machine.Do not allow too many papers to stack up in the paper output tray.It can damage the machine.
Safety information171. Introduction6 Installation / Moving Warning CautionDo not block or push objects into the ventilation opening.This could result in elevated component temperatures which can cause damage or fire.Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.This machine's power reception device is the power cord. To switch off the power supply, remove the power cord from the electrical outlet. Do not place the machine in an area with dust, humidity, or water leaks. This could result in electric shock or fire. Before moving the machine, turn the power off and disconnect all cords. The information below are only suggestions based on the units weight.If you have a medical condition that prevents you from lifting, do not lift the machine. Ask for help, and always use the appropriate amount of people to lift the device safety.Then lift the machine:• If the machine weighs under 20 kg (44.09 lbs), lift with 1 person.• If the machine weighs 20 kg (44.09 lbs) - 40kg (88.18 lbs), lift with 2 people.• If the machine weighs more than 40 kg (88.18 lbs), lift with 4 or more people.The machine could fall, causing injury or machine damage.Choose a flat surface with enough space for ventilation to place the machine. Also consider the space required to open the cover and trays. The place should be well-ventilated and be far from direct light, heat, and humidity. When using the machine for a long period of time or printing a large number of pages in a non-ventilated space, it could pollute the air and be harmful to your health. Place the machine in a well-ventilated space or open a window to circulate the air periodically.
Safety information181. Introduction7 Maintenance / Checking CautionDo not place the machine on an unstable surface.The machine could fall, causing injury or machine damage.Use only No.26 AWGa or larger, telephone line cord, if necessary.Otherwise, it can cause damage to the machine.Make sure you plug the power cord into a grounded electrical outlet.Otherwise, this could result in electric shock or fire.Use the power cord supplied with your machine for safe operation. If you are using a cord which is longer than 2 meters (6 feet) with a 110V machine, then the gauge should be 16 AWG or larger.Otherwise, it can cause damage to the machine, and could result in electric shock or fire.Do not put a cover over the machine or place it in an airtight location, such as a closet.If the machine is not well-ventilated, this could result in fire.Do not overload wall outlets and extension cords.This can diminish performance, and could result in electric shock or fire.The machine should be connected tothe power level which is specified on the label.If you are unsure and want to check the power level you are using, contact the electrical utility company.a. AWG: American Wire GaugeUnplug this product from the wall outlet before cleaning the inside of the machine. Do not clean the machine with benzene, paint thinner or alcohol; do not spray water directly into the machine. This could result in electric shock or fire. When you are working inside the machine replacing supplies or cleaning the inside, do not operate the machine.You could get injured.Keep cleaning supplies away from children. Children could get hurt.Do not disassemble, repair or rebuild the machine by yourself. It can damage the machine. Call a certified technician when the machine needs repairing.
Safety information191. Introduction8 Supply usage CautionTo clean and operate the machine, strictly follow the user's guide provided with the machine.Otherwise, you could damage the machine.Keep the power cable and the contact surface of the plug clean from dust or water.Otherwise, this could result in electric shock or fire. • Do not remove any covers or guards that are fastened with screws. • Fuser units should only be repaired by a certified service technician. Repair by non-certified technicians could result in fire or electric shock.• The machine should only be repaired by a Samsung service technician.Do not disassemble the toner cartridge.Toner dust can be dangerous if inhaled or ingested.Do not burn any of the supplies such as toner cartridge or fuser unit.This could cause an explosion or uncontrollable fire.When storing supplies such as toner cartridges, keep them away from children.Toner dust can be dangerous if inhaled or ingested.Using recycled supplies, such as toner, can cause damage to the machine.In case of damage due to the use of recycled supplies, a service fee will be charged.For supplies that contain toner dust (toner cartridge, waste toner bottle, imaging unit, etc.) follow the instructions below.• When disposing of the supplies, follow the instructions for disposal. Refer to the reseller for disposal instructions.• Do not wash the supplies.•For a waste toner bottle, do not reuse it after emptying the bottle.If you do not follow the instructions above, it may cause machine malfunction and environmental pollution. The warranty does not cover damages caused by a user's carelessness.When toner gets on your clothing, do not use hot water to wash it.Hot water sets toner into fabric. Use cold water.
Safety information201. IntroductionWhen changing the toner cartridge or removing jammed paper, be careful not to let toner dust touch your body or clothes.Toner dust can be dangerous if inhaled or ingested.
211. IntroductionMachine overview9 AccessoriesPower cord Quick installation guideSoftware CDaa. The software CD contains the print drivers, user’s guide, and software applications.Handsetbb. Handset model only (see "Features by models" on page 7).Misc. accessoriescc. Miscellaneous accessories included with your machine may vary by country of purchase and specific model.

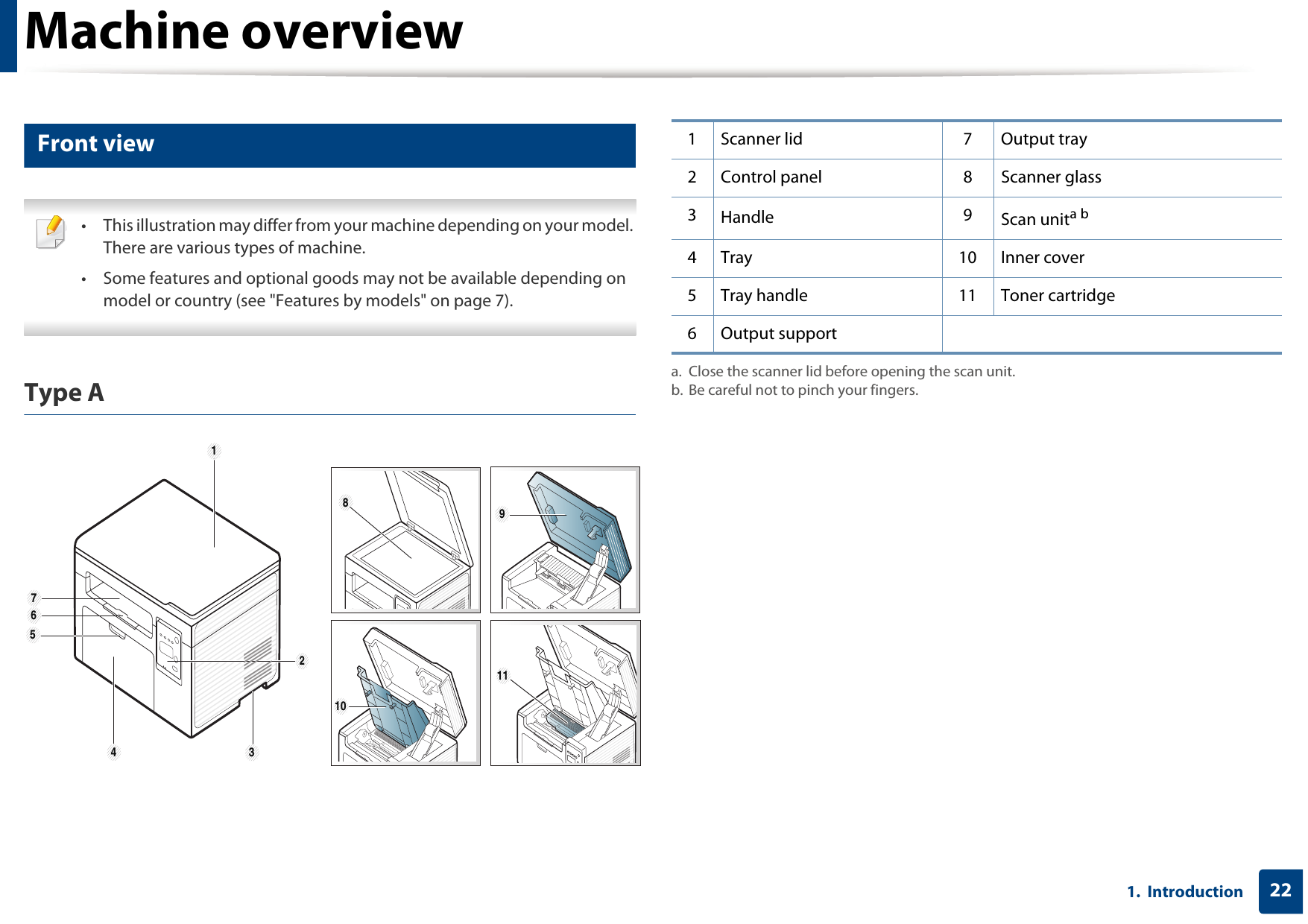

Machine overview221. Introduction10 Front view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). Type A 76 1 254 8 9 10 1131Scanner lid 7 Output tray2 Control panel 8 Scanner glass3Handle 9Scan unita ba. Close the scanner lid before opening the scan unit.b. Be careful not to pinch your fingers.4 Tray 10 Inner cover5 Tray handle 11 Toner cartridge6 Output support
Machine overview231. IntroductionType B 3 109 1 2 58 7 6 4 12 13 14 11 15 16 17 18 191 Document feeder cover 11 Scanner lid2 Document feeder guide cover12 Scanner glass3Document feeder output tray 13 Paper width guide on a document feeder4 Document feeder output support14 Document feeder input support5 Control panel 15 Document feeder input tray6Handle 16 Handsetaa. Handset model only (see "Features by models" on page 7).7Tray 17 Scan unitb cb. Close the scanner lid before opening the scan unit.c. Be careful not to pinch your fingers.8 Tray handle 18 Inner cover 9 Output support 19 Toner cartridge10 Output tray
Machine overview241. Introduction11 Rear view • This illustration may differ from your machine depending on your model. There are various types of machine.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). Type AType B1USB port 2Power receptacle121USB port2Network portaa. M207xF/ M207xFW Series only.3 Extension telephone socket (EXT.)4 Telephone line socket (LINE)5Power receptacle13425

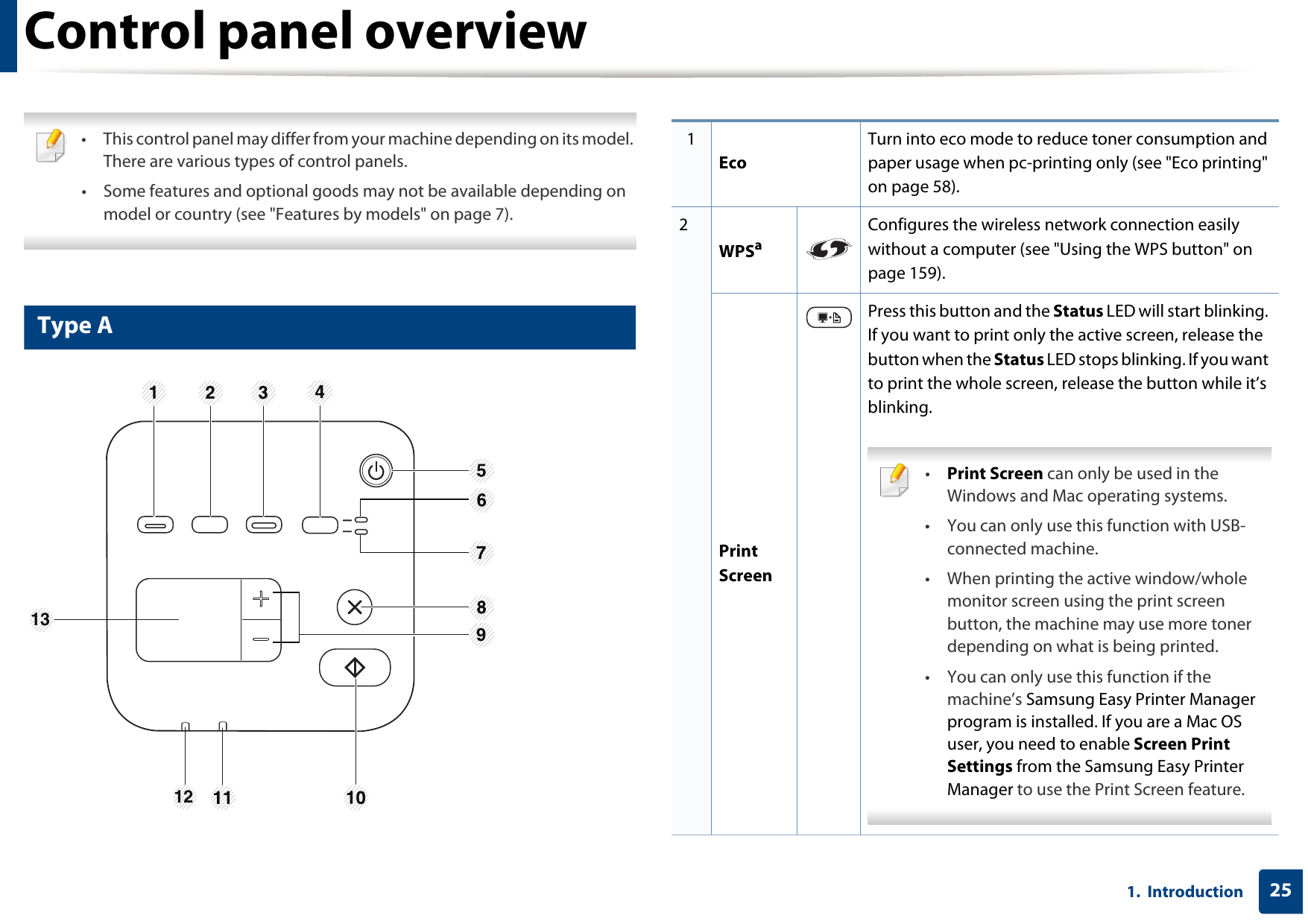

251. IntroductionControl panel overview • This control panel may differ from your machine depending on its model. There are various types of control panels.• Some features and optional goods may not be available depending on model or country (see "Features by models" on page 7). 12 Type A 12 131EcoTurn into eco mode to reduce toner consumption and paper usage when pc-printing only (see "Eco printing" on page 58). 2WPSaConfigures the wireless network connection easily without a computer (see "Using the WPS button" on page 159).Print ScreenPress this button and the Status LED will start blinking. If you want to print only the active screen, release the button when the Status LED stops blinking. If you want to print the whole screen, release the button while it’s blinking. •Print Screen can only be used in the Windows and Mac operating systems.• You can only use this function with USB-connected machine.• When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed.• You can only use this function if the machine’s Samsung Easy Printer Manager program is installed. If you are a Mac OS user, you need to enable Screen Print Settings from the Samsung Easy Printer Manager to use the Print Screen feature.

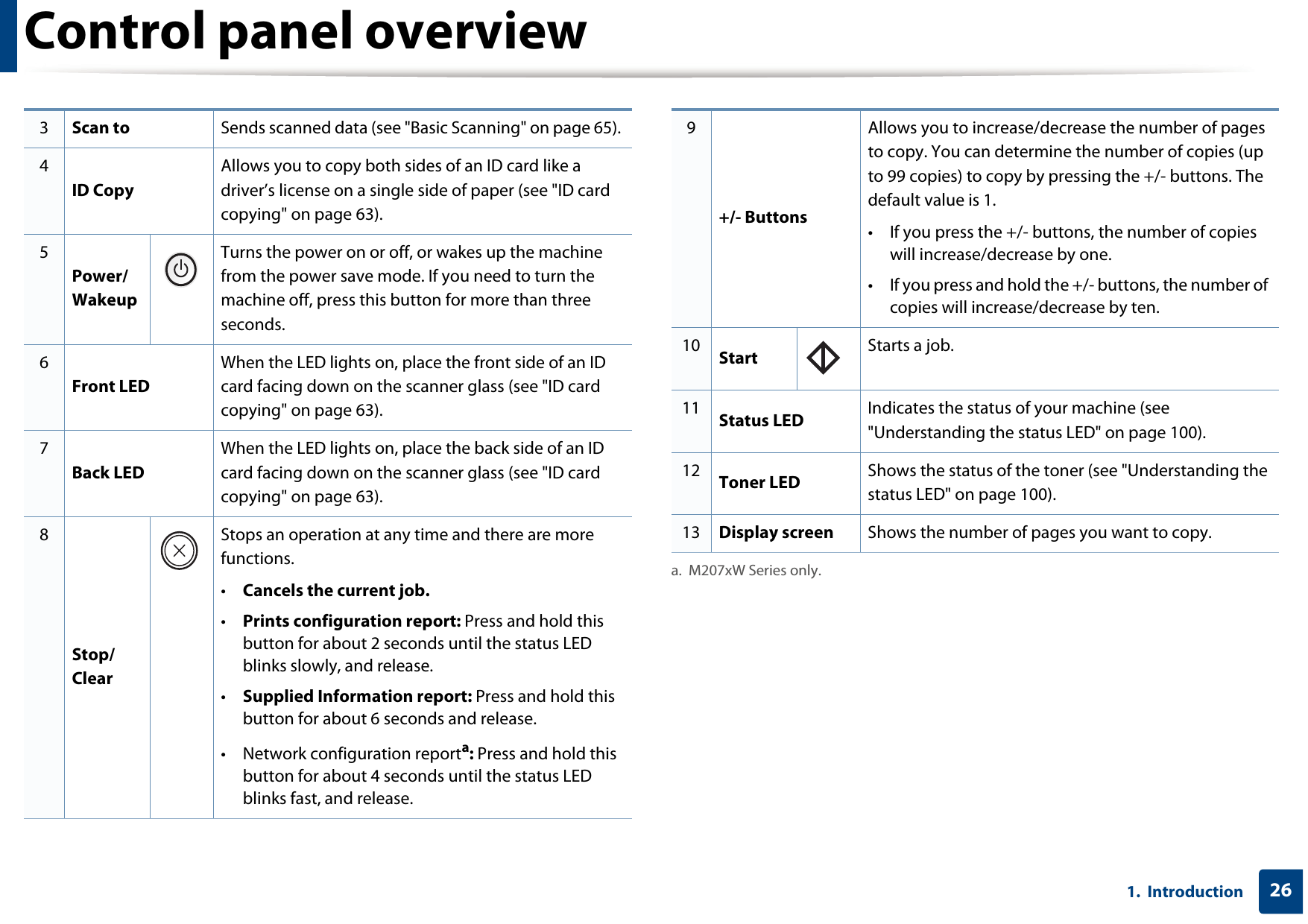

Control panel overview261. Introduction3Scan to Sends scanned data (see "Basic Scanning" on page 65). 4ID CopyAllows you to copy both sides of an ID card like a driver’s license on a single side of paper (see "ID card copying" on page 63). 5Power/WakeupTurns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds. 6Front LEDWhen the LED lights on, place the front side of an ID card facing down on the scanner glass (see "ID card copying" on page 63). 7Back LEDWhen the LED lights on, place the back side of an ID card facing down on the scanner glass (see "ID card copying" on page 63). 8Stop/ClearStops an operation at any time and there are more functions.•Cancels the current job.•Prints configuration report: Press and hold this button for about 2 seconds until the status LED blinks slowly, and release. •Supplied Information report: Press and hold this button for about 6 seconds and release. • Network configuration reporta: Press and hold this button for about 4 seconds until the status LED blinks fast, and release.9+/- Buttons Allows you to increase/decrease the number of pages to copy. You can determine the number of copies (up to 99 copies) to copy by pressing the +/- buttons. The default value is 1.• If you press the +/- buttons, the number of copies will increase/decrease by one.• If you press and hold the +/- buttons, the number of copies will increase/decrease by ten.10 Start Starts a job.11 Status LED Indicates the status of your machine (see "Understanding the status LED" on page 100). 12 Toner LED Shows the status of the toner (see "Understanding the status LED" on page 100). 13 Display screen Shows the number of pages you want to copy.a. M207xW Series only.
Control panel overview271. Introduction13 Type B1EcoTurn into eco mode to reduce toner consumption and paper usage when pc-printing and copying only (see "Eco printing" on page 58).2WPSaConfigures the wireless network connection easily without a computer (see "Using the WPS button" on page 159).Print ScreenPress this button and the display will Print Screen? on the display screen. If you want to print only the active screen, select the Active. If you want to print the whole screen, select Full. •Print Screen can only be used in the Windows and Mac operating systems.• You can only use this function with USB-connected machine.• When printing the active window/whole monitor screen using the print screen button, the machine may use more toner depending on what is being printed.• You can only use this function if the machine’s Samsung Easy Printer Manager program is installed. If you are a Mac OS user, you need to enable Screen Print Settings from the Samsung Easy Printer Manager to use the Print Screen feature. 3ID CopyAllows you to copy both sides of an ID card like a driver’s license on a single side of paper (see "ID card copying" on page 63).
Control panel overview281. Introduction4Power/WakeupTurns the power on or off, or wakes up the machine from the power save mode. If you need to turn the machine off, press this button for more than three seconds. 5Fax Switches to Fax mode. 6Copy Switches to Copy mode. 7Scan Switches to Scan mode.8Menu Opens Menu mode and scrolls through the available menus (see "Menu overview" on page 34).9Left/Right ArrowsScrolls through the options available in the selected menu and increases or decreases values. 10 OK Confirms the selection on the screen. 11 Back Sends you back to the upper menu level.12 Start Starts a job.13 Stop/ClearStops an operations at any time. 14 Status LED Indicates the status of your machine (see "Understanding the status LED" on page 100). 15 Numeric keypad Dials a number or enters alphanumeric characters (see "Keypad letters and numbers" on page 224).16On Hook DialWhen you press this button, you can hear a dial tone. Then enter a fax number. It is similar to making a call using speaker phone (see "Receiving manually in Tel mode" on page 261).17Redial/PauseRedials the recently sent fax number or received caller ID in ready mode, or inserts a pause(-) into a fax number in edit mode (see "Redialing the fax number" on page 254).18 Address BookAllows you to store frequently used fax numbers or search for stored fax numbers (see "Storing email address" on page 222 or "Setting up the fax address book" on page 225).19 Display screen Shows the current status and displays prompts during an operation.a. M207xF/ M207xFW Series only.
Control panel overview291. Introduction14 Adjusting the control panel Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 22).
301. IntroductionTurning on the machine1Connect the machine to the electricity supply first.Turn the switch on if the machine has a power switch. Illustrations on this user’s guide may differ from your machine depending on its options or models. Check your machine type (see "Front view" on page 22). 2 Power is turned on automatically.For M207x Series, press (Power/Wakeup) button on the control panel. If you want to turn the power off, press and hold (Power/Wakeup) button for about 3 seconds.

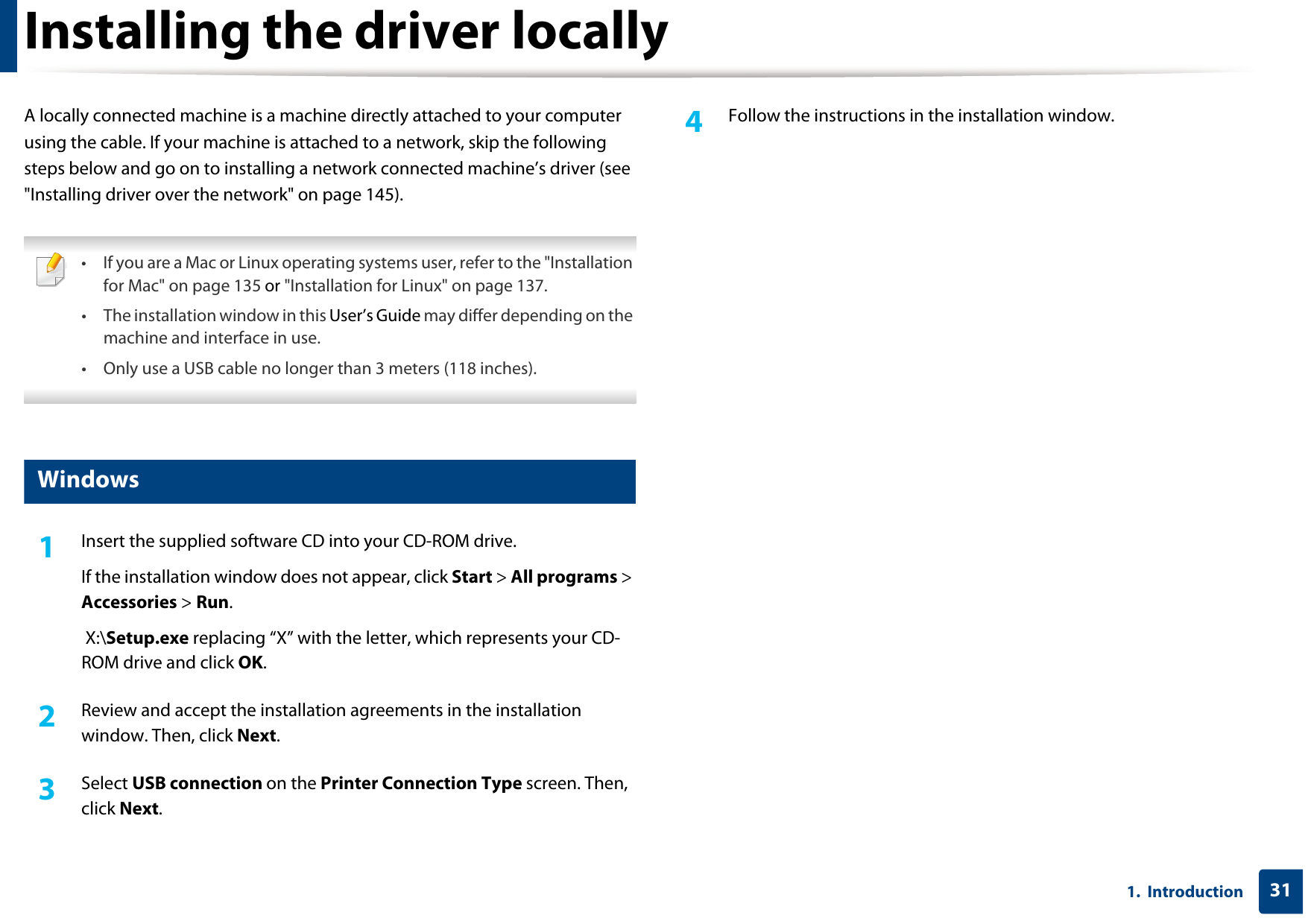

311. IntroductionInstalling the driver locallyA locally connected machine is a machine directly attached to your computer using the cable. If your machine is attached to a network, skip the following steps below and go on to installing a network connected machine’s driver (see "Installing driver over the network" on page 145). • If you are a Mac or Linux operating systems user, refer to the "Installation for Mac" on page 135 or "Installation for Linux" on page 137. • The installation window in this User’s Guide may differ depending on the machine and interface in use.• Only use a USB cable no longer than 3 meters (118 inches). 15 Windows1Insert the supplied software CD into your CD-ROM drive.If the installation window does not appear, click Start > All programs > Accessories > Run. X:\Setup.exe replacing “X” with the letter, which represents your CD-ROM drive and click OK.2 Review and accept the installation agreements in the installation window. Then, click Next.3 Select USB connection on the Printer Connection Type screen. Then, click Next.4 Follow the instructions in the installation window.
321. IntroductionReinstalling the driverIf the printer driver does not work properly, follow the steps below to reinstall the driver.16 Windows1From the Start menu, select Programs or All Programs > Samsung Printers > Uninstall Samsung Printer Software.2 Follow the instructions in the installation window.3 Insert the software CD into your CD-ROM drive and install the driver again (see "Installing the driver locally" on page 31).
2. Menu Overview and Basic SetupThis chapter provides information about the overall menu structure and the basic setup options.• Menu overview 34• Machine’s basic settings 40• Media and tray 42• Basic printing 54• Basic copying 60• Basic scanning 65• Basic faxing 66
342. Menu Overview and Basic SetupMenu overviewThe control panel provides access to various menus to set up the machine or use the machine’s functions. • This function is not supported for M207x Series (see "Control panel overview" on page 25).• Some menus may not appear on the display depending on options or models. If so, it is not applicable to your machine.• Some menu names may differ from your machine depending on its options or the models.• The menus are described in the Advanced Guide (see "Useful Setting Menus" on page 189). 1 Accessing the menu1Select the Fax, Copy, or Scan button on the control panel depending on the feature to be used.2 Select (Menu) until the menu you want appears on the bottom line of the display and press OK.3 Press the arrows until the needed menu item appears and press OK.4 If the setting item has sub menus, repeat step 3.5 Press OK to save the selection.6 Press (Stop/Clear) to return to the ready mode.Items OptionsFax Feature Darkness NormalDark+1- Dark+5Light+5- Light+1Contrast NormalDark+1- Dark+5Light+5- Light+1Resolution StandardFineSuper FinePhoto FaxColor FaxScan SizeMulti SendDelay Send

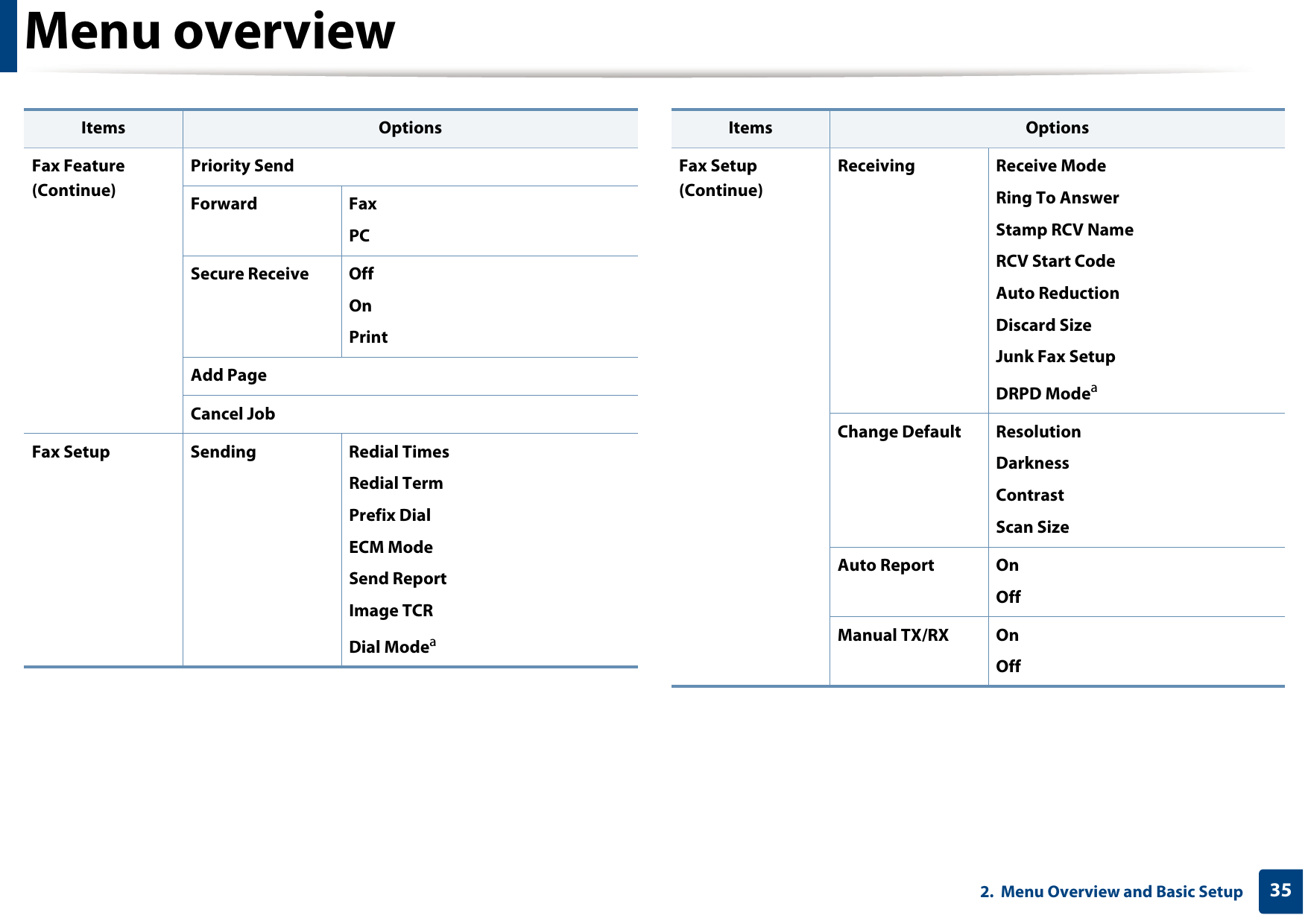

Menu overview352. Menu Overview and Basic SetupFax Feature (Continue)Priority SendForward FaxPCSecure Receive OffOnPrintAdd PageCancel JobFax Setup Sending Redial TimesRedial TermPrefix DialECM ModeSend ReportImage TCR Dial ModeaItems OptionsFax Setup (Continue)Receiving Receive ModeRing To AnswerStamp RCV NameRCV Start CodeAuto ReductionDiscard SizeJunk Fax SetupDRPD ModeaChange Default ResolutionDarkness ContrastScan SizeAuto Report OnOffManual TX/RX OnOffItems Options
Menu overview362. Menu Overview and Basic SetupCopy Feature Scan SizeReduce/EnlargeDarkness NormalDark+1- Dark+5Light+5- Light+1Items OptionsCopy Feature(Continue)Contrast NormalDark+1- Dark+5Light+5- Light+1Original Type TextText/PhotoPhotoLayout Normal2-Up4-UpID CopyPoster CopyClone CopyAdjust Bkgd. OffAutoEnhance Lev.1Enhance Lev.2Erase Lev.1- Erase Lev.4Items Options
Menu overview372. Menu Overview and Basic SetupCopy Setup Change Default Scan SizeCopiesCopy CollationReduce/EnlargeDarknessContrastOriginal TypeAdjust Bkgd.Items OptionsSystem Setup Machine Setup Machine IDFax NumberDate & TimeClock ModeLanguagePower SaveWakeup Event System TimeoutAltitude Adj.Auto ContinuebPaper MismatchPaper Substit.bToner SaveEco SettingsPaper Setup Paper SizePaper TypeMarginItems Options

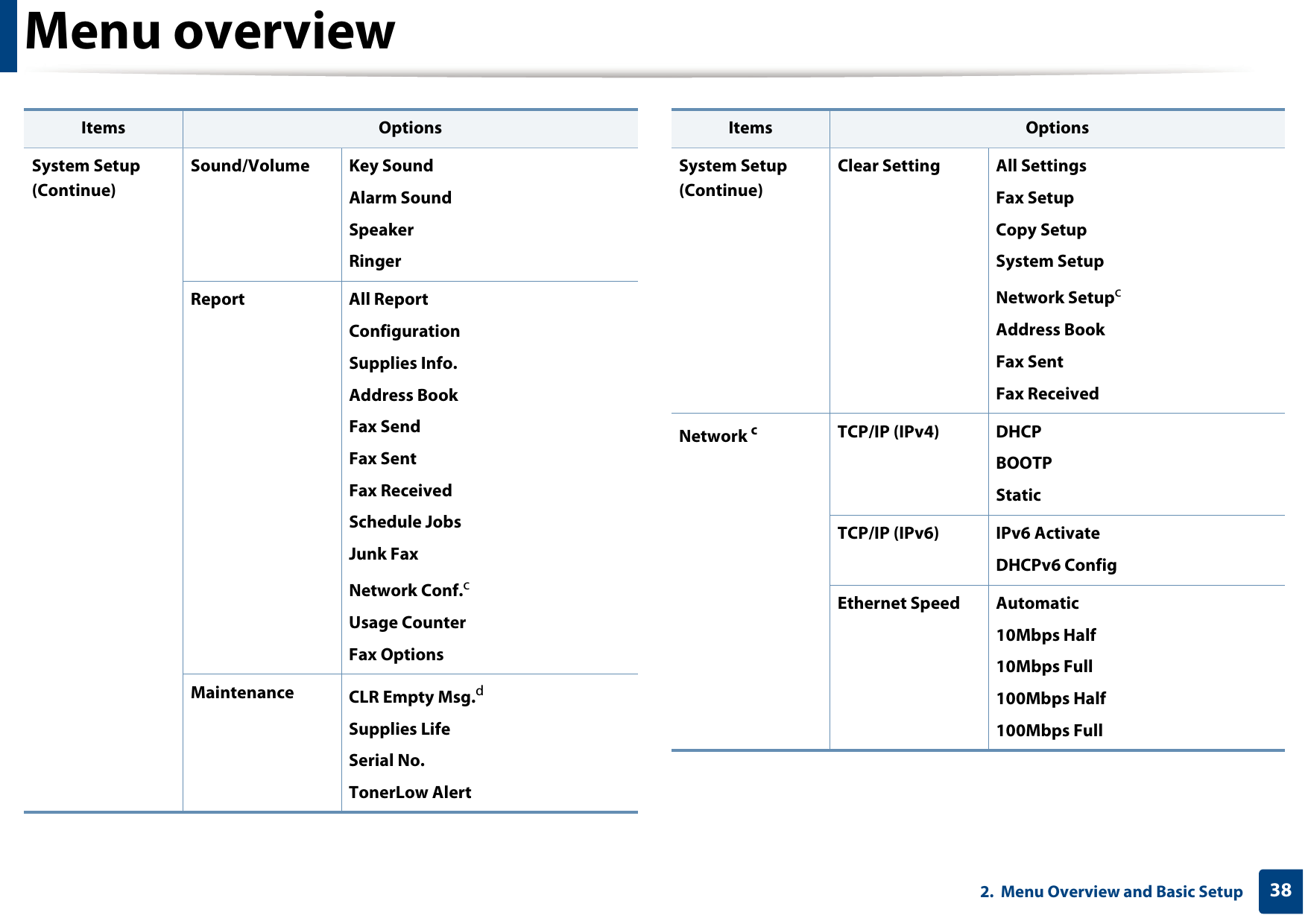

Menu overview382. Menu Overview and Basic SetupSystem Setup (Continue)Sound/Volume Key SoundAlarm SoundSpeakerRingerReport All ReportConfigurationSupplies Info.Address BookFax SendFax SentFax ReceivedSchedule JobsJunk FaxNetwork Conf.cUsage CounterFax OptionsMaintenance CLR Empty Msg.dSupplies LifeSerial No.TonerLow AlertItems OptionsSystem Setup (Continue)Clear Setting All SettingsFax SetupCopy SetupSystem SetupNetwork SetupcAddress BookFax SentFax ReceivedNetwork cTCP/IP (IPv4) DHCPBOOTPStaticTCP/IP (IPv6) IPv6 ActivateDHCPv6 ConfigEthernet Speed Automatic10Mbps Half10Mbps Full100Mbps Half100Mbps FullItems Options
Menu overview392. Menu Overview and Basic SetupNetwork c (Continue)Wireless Wi-Fi ON/OFFWi-Fi DirectWPS SettingWLAN SettingWLAN DefaultWLAN SignalClear SettingNetwork Conf.a. This option may not be available depending on your country.b. This option only appears if Paper Mismatch is enabled.c. M207x F/ M207xFW Series only.d. This option only appears when small amount of toner is left in the cartridge.Items Options

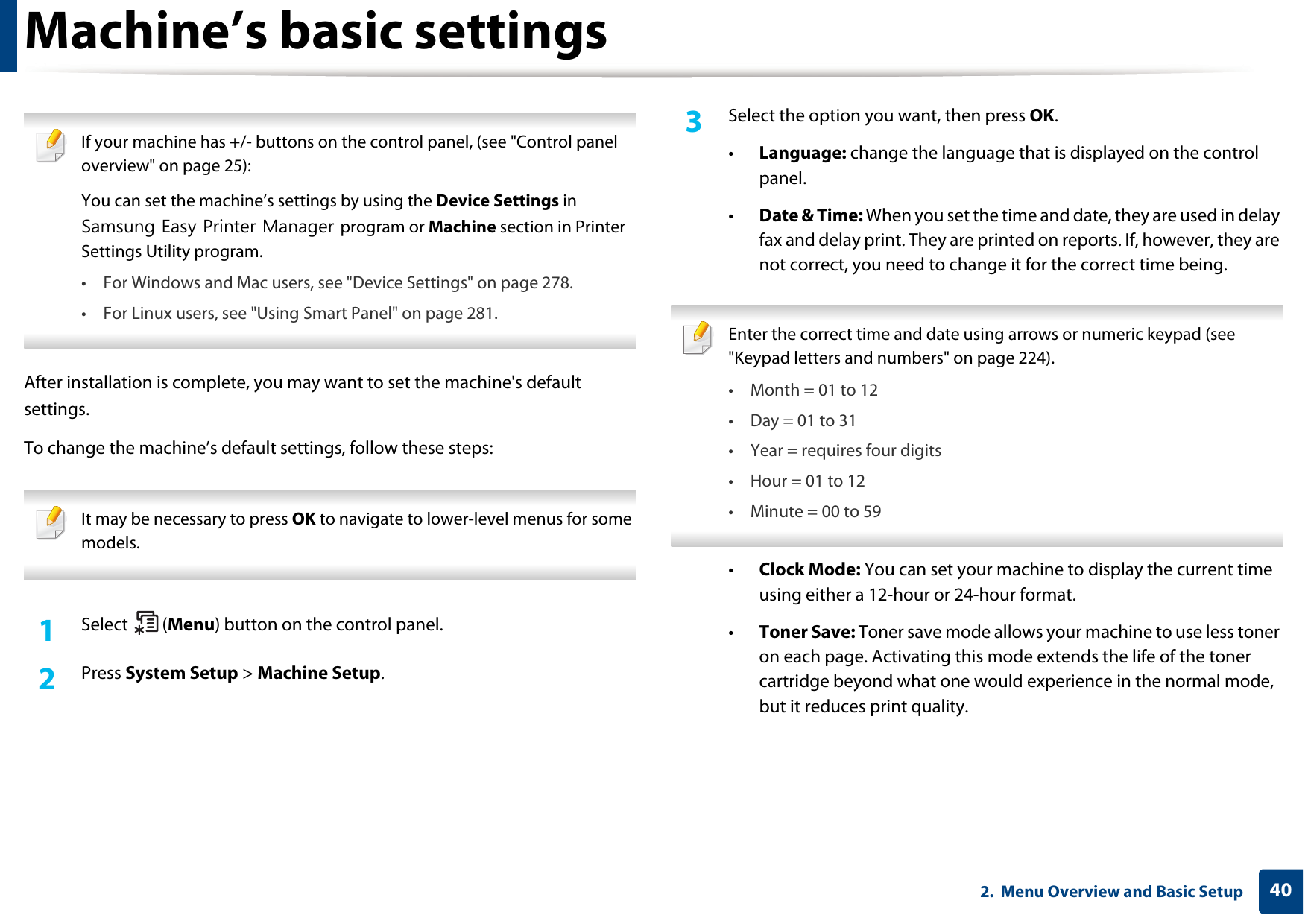

402. Menu Overview and Basic SetupMachine’s basic settings If your machine has +/- buttons on the control panel, (see "Control panel overview" on page 25):You can set the machine’s settings by using the Device Settings in Samsung Easy Printer Manager program or Machine section in Printer Settings Utility program.• For Windows and Mac users, see "Device Settings" on page 278.• For Linux users, see "Using Smart Panel" on page 281. After installation is complete, you may want to set the machine's default settings. To change the machine’s default settings, follow these steps: It may be necessary to press OK to navigate to lower-level menus for some models. 1Select (Menu) button on the control panel.2 Press System Setup > Machine Setup.3 Select the option you want, then press OK.•Language: change the language that is displayed on the control panel.•Date & Time: When you set the time and date, they are used in delay fax and delay print. They are printed on reports. If, however, they are not correct, you need to change it for the correct time being. Enter the correct time and date using arrows or numeric keypad (see "Keypad letters and numbers" on page 224).• Month = 01 to 12• Day = 01 to 31• Year = requires four digits• Hour = 01 to 12• Minute = 00 to 59 •Clock Mode: You can set your machine to display the current time using either a 12-hour or 24-hour format.•Toner Save: Toner save mode allows your machine to use less toner on each page. Activating this mode extends the life of the toner cartridge beyond what one would experience in the normal mode, but it reduces print quality.
