Users Manual 2

Maintenance

8.5

Cleaning the Drum

You can clean the OPC drum of the toner cartridge manually or

automatically.

If there are streaks or spots on documents you print, the OPC

drum of the toner cartridge may require manual cleaning.

Before starting the cleaning procedure, make sure that

paper is loaded in the machine.

Press

on the control panel until “Maintenance”

appears on the top line of the display.

The first available menu item, “Clean Drum”, displays on

the bottom line.

Press

Enter

The first available menu item, “Yes” displays on the

bottom line.

Press

Enter

The machine prints out a cleaning page. Toner particles on

the drum surface are affixed to the paper.

If the problem remains, repeat steps 1 through 4.

To return to Standby mode, press

Stop/Clear

Ignoring the Toner Empty Message

(Only for

SCX-4521F

)

When the toner cartridge is nearly empty, the machine shows

the “[Toner Empty]” message and continues printing except

incoming faxes. In this case, incoming faxes are saved in

memory.

However, you can set the machine to print incoming faxes, even

though print quality is not optimal.

Press

until “Machine Setup” appears on the display.

Press the scroll button ( or ) until “Ignore Toner”

appears on the bottom line and press

Enter

Press the Scroll button ( or ) to select “On” or “Off”.

Select “On” to ignore the [Toner Empty] message.

Select “Off” to stop printing incoming faxes when the

message appears. This is the default setting.

Press

Enter

to save the selection.

To return to Standby mode, press

Stop/Clear

Consumables and Replacement

Parts

From time to time, you needs to replace the toner cartridge,

roller, and fuser unit to maintain top performance and to avoid

print quality problems and paper feed problems resulting from

worn parts.

The following items should be replaced after you have printed

the specified number of pages:

To purchase consumables and replacement parts, contact your

Samsung dealer or the retailer where you bought your

machine. We strongly recommend that these items be installed

by a trained service professional, except for the toner cartridge

(see “Replacing the Toner Cartridge” on page 8.4) and the ADF

rubber pad (see “Replacing the ADF Rubber Pad” on page 8.6).

Items Yield (Average)

ADF rubber pad Approx. 20,000 pages

ADF roller Approx. 50,000 pages

Paper feeding roller Approx. 50,000 pages

Transfer roller Approx. 50,000 pages

Fuser unit Approx. 50,000 pages

Maintenance

8.6

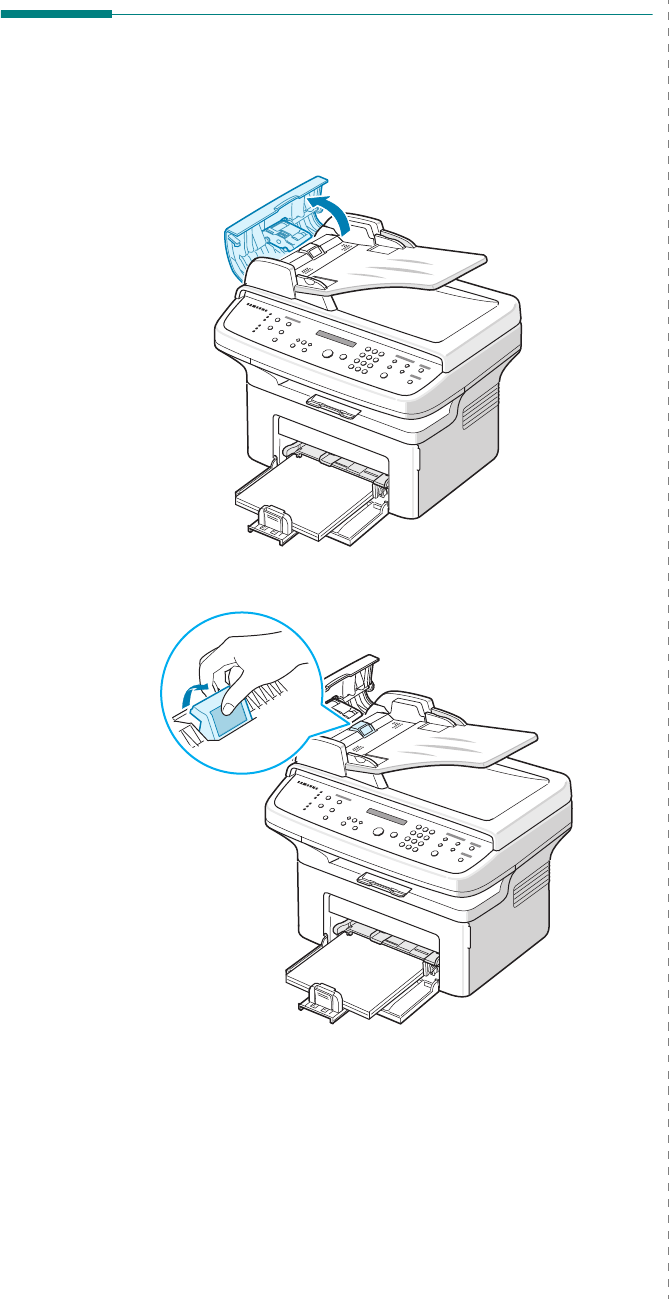

Replacing the ADF Rubber Pad

You can purchase an ADF rubber pad from your Samsung

dealer or the retailer where you bought your machine.

Open the ADF cover.

Remove the ADF rubber pad from the ADF, as shown.

Insert a new ADF rubber pad into place.

Close the ADF cover.

Troubleshooting

9.1

9Troubleshooting

This chapter gives helpful information for what to do if you

encounter an error.

This chapter includes:

• Clearing Document Jams

• Clearing Paper Jams

• Clearing LCD Error Messages

• Solving Other Problems

• Common Linux Problems

• Common Macintosh Problems

Clearing Document Jams

When a document jams while passing through the ADF

(Automatic Document Feeder), “[Document Jam]” appears on

the display.

Input Misfeed

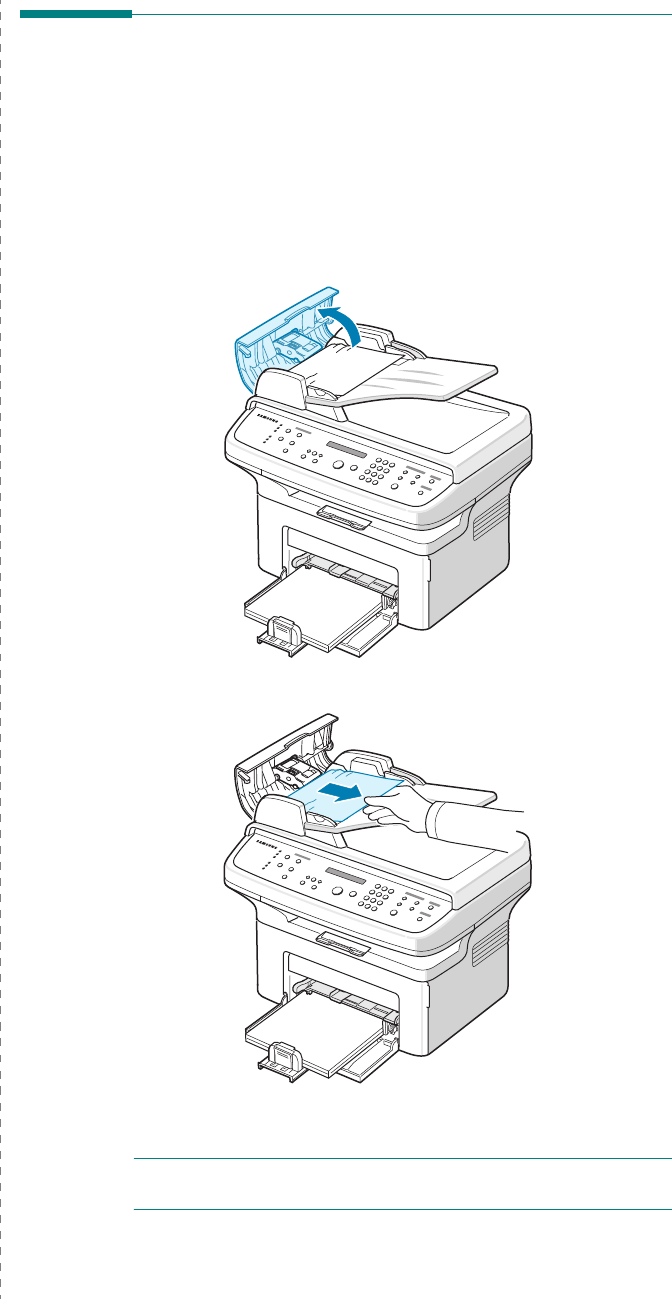

Remove any remaining page(s) from the ADF.

Open the ADF cover.

Pull the document gently out of the ADF.

Close the ADF cover. Then load the removed page(s), if

any, back into the ADF.

OTE

: To prevent document jams, use the document glass for

thick, thin, or mixed paper-type documents.

Troubleshooting

9.2

Exit Misfeed

Remove any remaining page(s) from the ADF.

Open the ADF cover.

Remove the misfed documents from the document output

tray.

Close the ADF cover. Then load the removed page(s), if

any, back into the ADF.

Clearing Paper Jams

When a paper jam occurs, “Paper Jam” appears on the display.

Refer to the table below to locate and clear the paper jam.

To avoid tearing the paper, pull out the jammed paper gently

and slowly. Follow the instructions in the following sections to

clear the jam.

Message Location of Jam Go to

[Paper Jam 0]

Open/Close Door

In the tray or manual

tray

page 9.2

[Paper Jam 1]

Open/Close Door

In the fuser area or

around the toner

cartridge.

page 9.3

[Paper Jam 2]

Check Inside

In the paper exit area page 9.3

In the Tray

Remove the jammed paper in the tray by gently pulling it

straight out.

If there is any resistance and the paper does not move

when you pull, or if you cannot see the paper in this area,

check the fuser area around the toner cartridge. See

page 9.3.

Open and close the front door to resume printing.

In the Manual Tray

Remove the jammed paper in the tray by gently pulling it

straight out.

If there is any resistance and the paper does not move

when you pull, or if you cannot see the paper in this area,

check the fuser area around the toner cartridge. See

page 9.3.

Open and close the front door to resume printing.

Troubleshooting

9.3

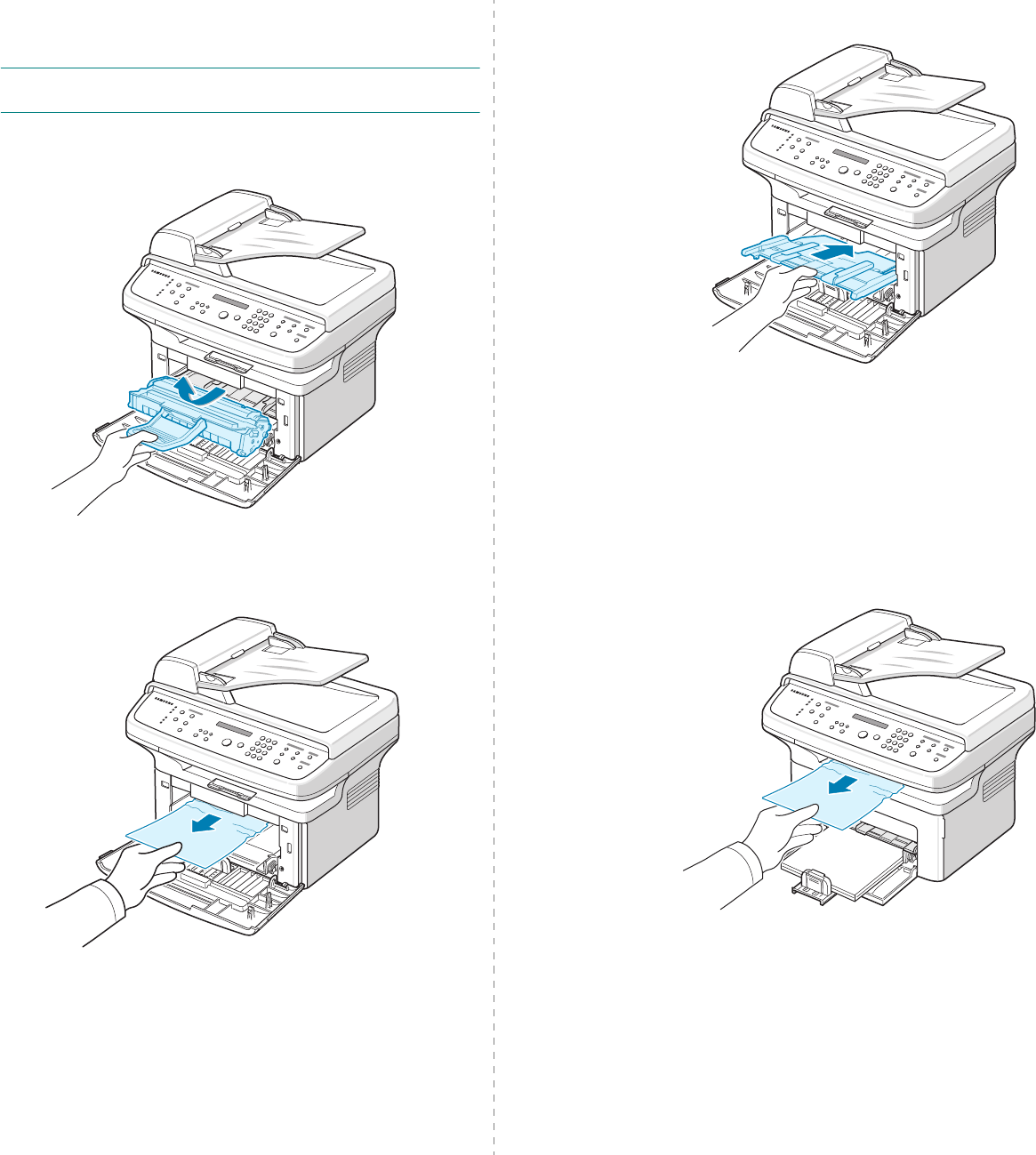

In the Fuser Area or Around the Toner

Cartridge

OTE

: The fuser area is hot. Take care when removing paper

from the machine.

Open the front door.

Pull the toner cartridge out, lightly pushing it down.

If necessary, pull the manual tray out.

Remove the jammed paper by gently pulling it straight

out.

If necessary, push the manual tray back into the machine.

Reinstall the toner cartridge and close the front door.

Printing automatically resumes.

In the Paper Exit Area

Open and close the front door. The jammed paper

automatically exits the machine.

If the paper does not exit, continue to step 2.

Gently pull the paper out of the output tray.

Troubleshooting

9.4

If there is any resistance and the paper does not move

when you pull, or if you cannot see the paper in the output

tray, open the rear cover by pulling the tab on it.

Remove the jammed paper by gently pulling it straight

out.

AUTION

: Inside of the machine is hot. Take care when

removing paper from the machine.

Close the rear cover.

Open and close the front door to resume printing.

Tips for Avoiding Paper Jams

By selecting the correct paper types, most paper jams can be

avoided. When a paper jam occurs, follow the steps outlined in

“Clearing Paper Jams” on page 9.2.

• Follow the procedures in “Loading Paper” on page 2.3.

Ensure that the adjustable guides are positioned

correctly.

• Do not overload the tray.

• Do not remove paper from the tray while your machine is

printing.

• Flex, fan, and straighten the paper before loading.

• Do not use creased, damp, or highly curled paper.

• Do not mix paper types in the tray.

• Use only recommended print materials. See “Paper

Specifications” on page 10.3.

• Ensure that the recommended print side of print

materials is facing up in the tray.

Clearing LCD Error Messages

Display Meaning Suggested solutions

Cancel ?

1:Yes 2:No

(only for SCX-

4521F)

Your machine’s

memory has become

full while trying to

store a document into

memory.

To cancel the fax job, press

the

button to accept “Yes”.

If you want to send the pages

that have been successfully

stored, press the

button to

accept “No”. You should send

the remaining pages later,

when memory is available.

[Comm. Error]

(only for SCX-

4521F)

The machine has a

communication

problem.

Ask the sender to try again.

CRU Fuse Error The toner cartridge is

not installed correctly.

Install the toner cartridge

correctly. See “Replacing the

Toner Cartridge” on page 8.4.

[Document Jam] The loaded document

has jammed in the

ADF (Automatic

Document Feeder).

Clear the document jam. See

“Clearing Document Jams” on

page 9.1.

[Front or Rear]

[Cover Open]

The front door or rear

cover is not securely

latched.

Close the door until it locks

into place.

Enter Again You entered an

unavailable item.

Enter the correct item again.

Troubleshooting

9.5

Low Heat Error There is a problem in

the fuser unit.

Unplug the power cord and

plug it back in. If the problem

persists, please call for

service.

Open Heat Error

[Over Heat]

Group Not

Available

(only for SCX-

4521F)

You have tried to

select a group location

number where only a

single location

number can be used,

such as when adding

locations for a

broadcast operation.

Use a speed dial number or

dial a number manually using

the number keypad.

[Incompatible]

(only for SCX-

4521F)

The remote machine

did not have the

requested feature,

such as a delayed

transmission.

This message also

occurs if the remote

machine does not

have enough memory

space to complete the

operation you are

attempting.

Reconfirm the remote

machine’s features.

[Line Busy]

(only for SCX-

4521F)

The receiving party

did not answer or the

line is already

engaged.

Try again after a few minutes.

[Line Error]

(only for SCX-

4521F)

Your machine cannot

connect with the

remote machine or

has lost contact

because of a problem

with the phone line.

Try again. If the problem

persists, wait an hour or so

for the line to clear and try

again.

Or, turn the ECM mode on.

See “ECM Mode (Error

Correction Mode)” on

page 7.15.

Load Document You have attempted

to set up a copy or fax

operation with no

document loaded into

the ADF.

Load a document into the ADF

and try again.

[LSU Error] A problem has

occurred in the LSU

(Laser Scanning Unit).

Unplug the power cord and

plug it back in. If the problem

persists, please call for

service.

Memory Dial Full

(only for SCX-

4521F)

The fax jobs queue in

the memory is full.

Cancel unnecessary fax jobs

in the memory.

Display Meaning Suggested solutions

Memory Full

(only for SCX-

4521F)

The memory is full. Delete unnecessary

documents and retransmit

after more memory becomes

available. Alternatively, split

the transmission into more

than one operation.

[No Answer]

(only for SCX-

4521F)

The receiving fax

machine has not

answered after

several redial

attempts.

Try again. Make sure that the

receiving machine is

operational.

[No Cartridge] The toner cartridge is

not installed.

Install the toner cartridge.

See “Installing the Toner

Cartridge” on page 2.2.

Not

Assigned

(only for SCX-

4521F)

• The speed dial

location you tried to

use has no number

assigned to it.

• The ID you entered

is not assigned

• Dial the number manually

using the number keypad or

assign the number. For

storing a number, see

“Automatic Dialing” on

page 7.9.

• Enter the correct ID

page 2.10

[No Paper]

Add Paper

The paper in the tray

has run out.

Load paper in the tray. See

“Loading Paper” on page 2.3.

Operation

Not Assigned

(only for SCX-

4521F)

You are doing the

Add/Cancel operation,

but there are no jobs

waiting.

Check the display to see if

there are any scheduled jobs.

The display should indicate

them in Standby mode; for

example, Delay Fax.

Out of Range The current date and

time you entered is

not correct

Enter the correct date and

time

[Paper Jam 0]

Open/Close Door

Paper has jammed in

the feeding area of

the tray.

Clear the jam. See “In the

Tray” on page 9.2.

[Paper Jam 1]

Open/Close Door

Paper has jammed in

the fuser area or

around the toner

cartridge.

Clear the jam. See “In the

Fuser Area or Around the

Toner Cartridge” on page 9.3.

[Paper Jam 2]

Check Inside

Paper has jammed in

the paper exit area.

Clear the jam. See “In the

Paper Exit Area” on page 9.3.

[Power Failure] Power has turned off

then on and the

machine’s memory

has not been saved.

The job which you were trying

to do before the power failure

must be completely re-done.

Display Meaning Suggested solutions

Troubleshooting

9.6

Remove Documents

from ADF

The Favorite Copy

button is set to Clone,

Autofit, ID Card Copy

or Poster and you

press the button.

The Clone, Autofit, ID Card

Copy or Poster feature does

not work with ADF. Remove

the documents in the ADF.

[Retry Redial?]

(only for SCX-

4521F)

The machine is

waiting for a specified

time interval to redial

a previously busy

station.

You can press

Enter

immediately redial, or

Stop/

Clear

to cancel the redial

operation.

Scanner Locked The scanner module is

locked.

Upload the power cord and

plug it back in.

[Stop Pressed] The

Stop/Clear

button has been

pressed during a copy

or fax operation.

Try again.

[Toner Empty] The toner cartridge

has run out.

Replace the toner cartridge

with a new one. See

“Replacing the Toner

Cartridge” on page 8.4.

[Toner Low] The toner is almost

empty.

Take out the toner cartridge

and gently shake it. By doing

this, you can temporarily

reestablish printing

operations. See

“Redistributing Toner” on

page 8.4.

Display Meaning Suggested solutions

Solving Other Problems

The following chart lists some conditions that may occur and

the recommended solutions. Follow the suggested solutions

until the problem is corrected. If the problem persists, please

call for service.

Paper Feeding Problems

Condition Suggested solutions

Paper is jammed

during printing.

Clear the paper jam. See “Clearing Paper Jams” on

page 9.2.

Paper sticks

together.

• Ensure that there is not too much paper in the tray.

The tray can hold up to 150 sheets of paper,

depending on the thickness of your paper.

• Make sure that you are using the correct type of

paper. See “Paper Specifications” on page 10.3

• Remove paper from the tray and flex or fan the

paper.

• Humid conditions may cause some paper to stick

together.

Multiple sheets of

paper do not feed.

• Different types of paper may be stacked in the tray.

Load paper of only one type, size, and weight.

• If multiple sheets have caused a paper jam, clear

the paper jam. See “Clearing Paper Jams” on

page 9.2.

Paper does not feed

into the machine.

• Remove any obstructions inside the machine.

• Paper has not been loaded correctly. Remove paper

from the tray and reload it correctly.

• There is too much paper in the tray. Remove excess

paper from the tray.

• The paper is too thick. Use only paper that meets

the specifications required by the machine. See

“Paper Specifications” on page 10.3.

The paper keeps

jamming.

• There is too much paper in the tray. Remove excess

paper from the tray. If you are printing on special

materials, use one sheet of paper at a time.

• An incorrect type of paper is being used. Use only

paper that meets the specifications required by the

machine. See “Paper Specifications” on page 10.3.

• There may be debris inside the machine. Open the

front door and remove the debris.

Transparencies stick

together in the

paper exit.

Use only transparencies specifically designed for laser

printers. Remove each transparency as it exits from

the machine.

Envelopes skew or

fail to feed

correctly.

Ensure that the paper guides are against both sides of

the envelopes.

Troubleshooting

9.7

Printing Problems

Condition Possible cause Suggested solutions

The machine

does not

print.

The machine is not

receiving power.

Check the power cord

connections. Check the power

switch and the power source.

The machine is not

selected as the default

printer.

Select

your printer

as your

default printer in your Windows.

Check the machine for

the following:

• The front door is not

closed.

• Paper is jammed.

• No paper is loaded.

• The toner cartridge

is not installed.

After locating the problem, clear

it.

• Close the door.

• Clear the paper jam. See

“Clearing Paper Jams” on

page 9.2.

• Load paper. See “Loading

Paper” on page 2.3.

• Install the toner cartridge. See

“Installing the Toner Cartridge”

on page 2.2.

If a printer system error occurs,

contact your service

representative.

The connection cable

between the computer

and the machine is not

connected properly.

Disconnect the printer cable and

reconnect it.

The connection cable

between the computer

and the machine is

defective.

If possible, attach the cable to

another computer that is working

properly and print a job. You can

also try using a different printer

cable.

The port setting is

incorrect.

Check the Windows printer setting

to make sure that the print job is

sent to the correct port, for

example, LPT1. If the computer

has more than one port, make

sure that the machine is attached

to the correct one.

The machine may be

configured incorrectly.

Check the printer properties to

ensure that all of the print

settings are correct.

The printer driver may

be incorrectly

installed.

Repair the printer software. For

details, see

Software User’s

Guide

The machine is

malfunctioning.

Check the display message on the

control panel to see if the

machine is indicating a system

error.

The machine

selects print

materials

from the

wrong paper

source.

The paper source

selection in the printer

properties may be

incorrect.

For many software applications,

the paper source selection is

found under the

Paper

tab within

the printer properties. Select the

correct paper source. For details,

see

Software User’s Guide

A print job is

extremely

slow.

The job may be very

complex.

Reduce the complexity of the

page or try adjusting the print

quality settings.

The maximum print speed of your

machine is 20 PPM for Letter-sized

paper and 20 PPM for A4-sized

paper.

If you are using

Windows 98/Me, the

Spooling Setting may

be set incorrectly.

From the

Start

menu, choose

Settings

and

Printers

. Right-

click the

your printer

icon,

choose

Properties

, click the

Details

tab, and then choose the

Spool Settings

button. Select

the desired spool setting.

Half the page

is blank.

The page orientation

setting may be

incorrect.

Change the page orientation in

your application. For details, see

Software User’s Guide

The paper size and the

paper size settings do

not match.

Ensure that the paper size in the

printer driver settings matches

the paper in the tray.

Or, ensure that the paper size in

the printer driver settings

matches the paper selection in the

software application settings you

use.

The machine

prints, but the

text is wrong,

garbled, or

incomplete.

The printer cable is

loose or defective.

Disconnect the printer cable and

reconnect. Try a print job that you

have already printed successfully.

If possible, attach the cable and

the machine to another computer

and try a print job that you know

works. Finally, try a new printer

cable.

The wrong printer

driver was selected.

Check the application’s printer

selection menu to ensure that

your machine is selected.

The software

application is

malfunctioning.

Try printing a job from another

application.

The operating system

is malfunctioning.

Exit Windows and reboot the

computer. Turn the machine off

and then back on again.

Condition Possible cause Suggested solutions

Troubleshooting

9.8

Pages print,

but are blank.

The toner cartridge is

defective or out of

toner.

Redistribute the toner, if

necessary. See “Redistributing

Toner” on page 8.4.

If necessary, replace the toner

cartridge.

The file may have

blank pages.

Check the file to ensure that it

does not contain blank pages.

Some parts, such as

the controller or the

board, may be

defective.

Contact a service representative.

An error

occurs

repeatedly

when you are

printing with

the USB

connection.

When the USB mode is

set to “Fast”, some PC

user may experience

poor USB

communication.

Change the USB mode to “Slow”.

To do so, follow these steps:

1. Press

until “Machine

Setup” appears on the display.

2. Press the scroll

button ( or )

until “USB Mode” appears on

the bottom line and press

Enter

3. Press the scroll

button ( or )

to select “Slow”.

4. Press

Enter

to save the

selection.

5. Press

Stop/Clear

to return to

Standby Mode.

Condition Possible cause Suggested solutions

Printing Quality Problems

If the inside of the machine is dirty or paper has been loaded

improperly, you may notice a reduction in print quality. See the

table below to clear the problem.

Condition Suggested solutions

Light or faded

If a vertical white streak or faded area appears on the

page:

• The toner supply is low. You may be able to temporarily

• extend the toner cartridge life. See “Redistributing

Toner” on page 8.4. If this does not improve the print

quality, install a new toner cartridge.

• The paper may not meet paper specifications; for

example, the paper is too moist or too rough. See

“Paper Specifications” on page 10.3.

• If the entire page is light, the print resolution setting is

too low or the toner save mode is on. Adjust the print

resolution and turn the toner save mode off. For

details, see

Software User’s Guide

and “Toner Save

Mode” on page 2.11, respectively.

• A combination of faded or smeared defects may

indicate that the toner cartridge needs cleaning. See

“Cleaning the Drum” on page 8.5.

• The surface of the LSU part inside the machine may be

dirty. Clean the LSU (“Cleaning the Inside” on

page 8.2). Contact a service representative.

Toner specs

• The paper may not meet specifications; for example,

the paper is too moist or too rough. See “Paper

Specifications” on page 10.3.

• The transfer roller may be dirty. Clean the inside of

your machine. See “Cleaning the Inside” on page 8.2.

• The paper path may need cleaning. See “Cleaning the

Drum” on page 8.5.

Dropouts

If faded areas, generally rounded, occur randomly on the

page:

• A single sheet of paper may be defective. Try reprinting

the job.

• The moisture content of the paper is uneven or the

paper has moist spots on its surface. Try a different

brand of paper. See “Paper Specifications” on

page 10.3.

• The paper lot is bad. The manufacturing processes can

cause some areas to reject toner. Try a different kind or

brand of paper.

• The toner cartridge may be defective. See “

Vertical

repetitive defects

” on page 9.9.

• If these steps do not correct the problem, contact a

service representative.

AaBbCc

Troubleshooting

9.9

Vertical lines

If black vertical streaks appear on the page:

• The drum inside the toner cartridge has probably been

scratched. Remove the toner cartridge and install a

new one. See “Replacing the Toner Cartridge” on

page 8.4.

If white vertical streaks appear on the page:

• The surface of the LSU part inside the machine may be

dirty. Clean the LSU (“Cleaning the Inside” on

page 8.2). Contact a service representative.

Gray

background

If the amount of background shading becomes

unacceptable:

• Change to a lighter weight paper. See “Paper

Specifications” on page 10.3.

• Check the machine’s environment: very dry (low

humidity) or high humidity (higher than 80% RH)

conditions can increase the amount of background

shading.

• Remove the old toner cartridge and install a new one.

See “Replacing the Toner Cartridge” on page 8.4.

Toner smear

• Clean the inside of the machine. See “Cleaning the

Inside” on page 8.2.

• Check the paper type and quality. See “Paper

Specifications” on page 10.3.

• Remove the toner cartridge and install a new one. See

“Replacing the Toner Cartridge” on page 8.4.

Vertical

repetitive

defects

If marks repeatedly appear on the printed side of the

page at even intervals:

• The toner cartridge may be damaged. If a repetitive

mark occurs on the page, print a cleaning sheet several

times to clean the cartridge; see “Cleaning the Drum”

on page 8.5. After the printout, if you still have the

same problems, remove the toner cartridge and install

a new one. See “Replacing the Toner Cartridge” on

page 8.4.

• Parts of the machine may have toner on them. If the

defects occur on the back of the page, the problem will

likely correct itself after a few more pages.

• The fusing assembly may be damaged. Contact a

service representative.

• If you use inferior quality paper; see “Cleaning the

Drum” on page 8.5.

Condition Suggested solutions

AaBbCc

Background

scatter

Background scatter results from bits of toner randomly

distributed on the printed page.

• The paper may be too damp. Try printing with a

different batch of paper. Do not open packages of

paper until necessary so that the paper does not

absorb too much moisture.

• If background scatter occurs on an envelope, change

the printing layout to avoid printing over areas that

have overlapping seams on the reverse side. Printing

on seams can cause problems.

• If background scatter covers the entire surface area of

a printed page, adjust the print resolution through your

software application or the printer properties.

Misformed

characters

• If characters are improperly formed and producing

hollow images, the paper stock may be too slick. Try a

different paper. See “Paper Specifications” on

page 10.3.

• If characters are improperly formed and producing a

wavy effect, the scanner unit may need service. For

service, contact a service representative.

Page skew

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper

Specifications” on page 10.3.

• Ensure that the paper or other material is loaded

correctly and the guides are not too tight or too loose

against the paper stack.

Curl or wave

• Ensure that the paper is loaded properly.

• Check the paper type and quality. Both high

temperature and humidity can cause paper curl. See

“Paper Specifications” on page 10.3.

• Turn over the stack of paper in the tray. Also try

rotating the paper 180° in the tray.

Wrinkles or

creases

• Ensure that the paper is loaded properly.

• Check the paper type and quality. See “Paper

Specifications” on page 10.3.

• Turn over the stack of paper in the tray. Also try

rotating the paper 180° in the tray.

Condition Suggested solutions

AaBbCc

Troubleshooting

9.10

Back of

printouts are

dirty

Check for leaking toner. Clean the inside of the machine.

See “Cleaning the Inside” on page 8.2.

Black pages

• The toner cartridge may not be installed properly.

Remove the cartridge and reinsert it.

• The toner cartridge may be defective and need

replacing. Remove the toner cartridge and install a new

one. See “Replacing the Toner Cartridge” on page 8.4.

• The machine may require repair. Contact a service

representative.

Loose toner

• Clean the inside of the machine. See “Cleaning the

Inside” on page 8.2.

• Check the paper type and quality. See “Paper

Specifications” on page 10.3.

• Remove the toner cartridge and install a new one. See

“Replacing the Toner Cartridge” on page 8.4.

• If the problem persists, the machine may require

repair. Contact a service representative.

Character

Voids

Character voids are white areas within parts of characters

that should be solid black:

• If you are using transparencies, try another type of

transparency. Because of the composition of

transparencies, some character voids are normal.

• You may be printing on the wrong surface of the paper.

Remove the paper and turn it around.

• The paper may not meet paper specifications. See

“Paper Specifications” on page 10.3.

Horizontal

stripes

If horizontally aligned black streaks or smears appear:

• The toner cartridge may be installed improperly.

Remove the cartridge and reinsert it.

• The toner cartridge may be defective. Remove the

toner cartridge and install a new one. See “Replacing

the Toner Cartridge” on page 8.4.

• If the problem persists, the machine may require

repair. Contact a service representative.

Curl

If the printed paper is curled or paper does not feed into

the machine:

• Turn over the stack of paper in the tray. Also try

rotating the paper 180° in the tray.

Condition Suggested solutions

AaBbCc

Copying Problems

Condition Suggested solutions

Copies are too light or

too dark.

Use the

Darkness

button to darken or lighten the

background of the copies.

Smears, lines, marks,

or spots appears on

copies.

• If defects are on the original, press the

Darkness

button to lighten the background of

your copies.

• If no defects are on the original, clean the scan

unit. See “Cleaning the Scan Unit” on page 8.3.

Copy image is skewed. • Ensure that the original is face down on the

document glass or face up in the ADF (Automatic

Document Feeder).

• Check that the copy paper is loaded correctly.

Blank copies print out. Ensure that the original is face down on the

document glass or face up in the ADF.

Image rubs off the

copy easily.

• Replace the paper in the tray with paper from a

new package.

• In high humidity areas, do not leave paper in the

machine for extended periods of time.

Frequent copy paper

jams occur.

• Fan the stack of paper, then turn it over in the

tray. Replace the paper in the tray with a fresh

supply. Check/adjust the paper guides, if

necessary.

• Ensure that the paper is the proper paper

weight. 20 lb (75 g/m

bond) paper is

recommended.

• Check for copy paper or pieces of copy paper

remaining in the machine after a paper jam has

been cleared.

Toner cartridge

produces fewer copies

than expected before

running out of toner.

• Your originals may contain pictures, solids, or

heavy lines. For example, your originals may be

forms, newsletters, books, or other documents

that use more toner.

• The machine may be turned on and off

frequently.

• The document cover may be left open while

copies are being made.

Troubleshooting

9.11

Scanning Problems

Fax Problems

(Only for

SCX-4521F

)

Condition Suggested solutions

The scanner does

not work.

• Make sure that you place the document to be

scanned face down on the document glass, or face

up in the Automatic Document Feeder.

• There may not be enough available memory to hold

the document you want to scan. Try the Prescan

function to see if that works. Try lowering the scan

resolution rate.

• Check that the USB or parallel cable is connected

properly.

• Make sure that the USB or parallel cable is not

defective. Switch the cable with a known good

cable. If necessary, replace the cable.

• If you are using a parallel cable, ensure that it is

compliant with IEEE 1284 standards.

• Check that the scanner is configured correctly.

Check scan setting in the SmarThru Configuration

or the application you want to use to make certain

that the scanner job is being sent to the correct

port, for example, LPT1.

The unit scans very

slowly.

• Check if the machine is printing received data. If so,

scan the document after the received data has been

printed.

• Graphics are scanned more slowly than text.

• Communication speed slows in scan mode because

of the large amount of memory required to analyze

and reproduce the scanned image. Set your

computer to the ECP printer mode through BIOS

setting. It will help to increase the speed. For

details about how to set BIOS, refer to your

computer User’s Guide.

Condition Suggested solutions

The machine is not

working, there is no

display and the

buttons are not

working.

• Unplug the power cord and plug it in again.

• Ensure that there is power to the electrical outlet.

No dial tone sounds. • Check that the phone line is connected properly.

• Check that the phone socket in the wall is working

by plugging in another phone.

The numbers stored

in memory do not

dial correctly.

Make sure that the numbers are stored in memory

correctly. Print a Phonebook list, referring to

“Phonebook List” on page 7.14.

The document does

not feed into the

machine.

• Make sure that the document is not wrinkled and

you are putting it in correctly. Check that the

document is the right size, not too thick or thin.

• Make sure that the ADF (Automatic Document

Feeder) cover is firmly closed.

Faxes are not

received

automatically.

• Fax mode should be selected.

• Make sure that there is paper in the tray.

• Check to see if the display shows “Memory Full”.

The machine does

not send.

• Make sure that the document is loaded in the ADF

or on the document glass.

• “TX” should show up on the display.

• Check the fax machine you are sending to, to see

if it can receive your fax.

The incoming fax has

blank spaces or is of

poor-quality.

• The fax machine sending you the fax may be

faulty.

• A noisy phone line can cause line errors.

• Check your machine by making a copy.

• The toner cartridge may be empty. Replace the

toner cartridge, referring to “Replacing the Toner

Cartridge” on page 8.4.

Some of the words

on an incoming fax

are stretched.

The fax machine sending you the fax had a

temporary document jam.

There are lines on

the documents you

send.

Check your scanning glass for marks and clean it.

See “Cleaning the Scan Unit” on page 8.3.

The machine dials a

number, but a

connection with the

other fax machine

fails.

The other fax machine may be turned off, out of

paper, or cannot answer incoming calls. Speak with

the other machine operator and ask her/him to sort

out the problem.

Documents are not

stored in memory.

There may not be enough memory to store the

document. If the display shows a “Memory Full”

message, delete from memory any documents you

no longer need and then try again to store the

document.

Blank areas appear

at the bottom of each

page or on other

pages, with a small

strip of text at the

top.

You may have chosen the wrong paper settings in

the user option setting. For details about paper

settings, see “Setting the Paper Size and Type” on

page 2.10.

Condition Suggested solutions

Troubleshooting

9.12

Common Linux Problems

Problem Possible Cause and Solution

The machine

doesn’t print.

• Check if the printer driver is installed in your system.

Open MFP configurator and switch to the Printers tab in

Printers configuration window to look at the list of

available printers. Make sure that your machine is

displayed on the list. If not, please, invoke Add new

printer wizard to set up your device.

• Check if the printer is started. Open Printers

configuration and select your machine on the printers list.

Look at the description in the Selected printer pane. If its

status contains “(stopped)” string, please, press the

Start

button. After that normal operation of the printer

should be restored. The "stopped" status might be

activated when some problems in printing occurred. For

instance, this could be an attempt to print document

when MFP port is claimed by a scanning application.

• Check if the MFP port is not busy. Since functional

components of MFP (printer and scanner) share the same

I/O interface (MFP port), the situation of simultaneous

access of different “consumer” application to the same

MFP port is possible. To avoid possible conflicts, only one

of them at a time is allowed to gain control over the

device. The other “consumer” will encounter “device

busy” response. You should open MFP ports configuration

and select the port assigned to your printer. In the

Selected port pane you can see if the port is occupied by

some other application. If this is the case, you should

wait for completion of the current job or should press

Release port button, if you are sure that the present

owner is not functioning properly.

Check if your application has special print option such

as “-oraw”. If “-oraw” is specified in the command

line parameter then remove it to print properly. For

Gimp front-end, select “print” -> “Setup printer” and

edit command line parameter in the command item.

The machine

doesn’t appear

on the

scanners list.

• Check if your machine is attached to your computer.

Make sure that it is connected properly via the USB port

and is turned on.

• Check if the scanner driver for you machine is installed in

your system. Open MFP Configurator, switch to Scanners

configuration, then press

Drivers

. Make sure that driver

with a name corresponding to your machine's name is

listed in the window.

• Check if the MFP port is not busy. Since functional

components of MFP (printer and scanner) share the same

I/O interface (MFP port), the situation of simultaneous

access of different “consumer” application to the same

MFP port is possible. To avoid possible conflicts, only one

of them at a time is allowed to gain control over the

device. The other “consumer” will encounter “device

busy” response. This can usually happen while starting

scan procedure, and appropriate message box displays.

To identify the source of the problem, you should open

MFP ports configuration and select the port assigned to

your scanner. MFP port's symbol /dev/mfp0 corresponds

to LP:0 designation displayed in the scanners’ options, /

dev/mfp1 relates to LP:1 and so on. USB ports start at /

dev/mfp4, so scanner on USB:0 relates to /dev/mfp4

respectively and so forth sequentially. In the Selected

port pane you can see if the port is occupied by some

other application. If this is the case, you should wait for

completion of the current job or should press Release

port button, if you are sure that the present port's owner

is not functioning properly.

The machine

doesn’t scan.

• Check if a document is loaded into the machine.

• Check if your machine is connected to the computer.

Make sure if it is connected properly if I/O error is

reported while scanning.

• Check if MFP port is not busy. Since functional

components of MFP (printer and scanner) share the same

I/O interface (MFP port), the situation of simultaneous

access of different “consumer” application to the same

MFP port is possible. To avoid possible conflicts, only one

of them at a time is allowed to gain control over the

device. The other “consumer” will encounter “device

busy” response. This can usually happen while starting

scan procedure, and appropriate message box will be

displayed.

The machine

doesn’t scan.

(continued)

• To identify the source of the problem, you should open

MFP ports configuration and select the port assigned to

your scanner. MFP port’s symbol /dev/mfp0 corresponds

to LP:0 designation displayed in the scanners’ options, /

dev/mfp1 relates to LP:1 and so on. USB ports start at /

dev/mfp4, so scanner on USB:0 relates to /dev/mfp4

respectively and so forth sequentially. In the Selected

port pane you can see if the port is occupied by some

other application. If this is the case, you should wait for

completion of the current job or should press Release

port button, if you are sure that the present port’s owner

is not functioning properly.

Problem Possible Cause and Solution

Troubleshooting

9.13

I can’t print

when I

installed both

Linux Print

Package (LPP)

and MFP driver

on the same

machine

simultaneously.

• Since both Linux Printer Package and MFP driver make a

symbolic link to “lpr” printing command, which is

commonly used on Unix clones, it is not recommended to

use both package on the same machine.

• If you still want to use both packages simultaneously,

please install the LPP first.

• If you want to uninstall only one of them, please uninstall

both packages and install that one you want to use again.

• If you don’t want to uninstall MFP driver and install it

again, you may make the necessary symbolic link

yourself. Please, log in as root user and invoke the

following command:

ln -sf /usr/local/bin/samsung/slpr /usr/bin/lpr

Can’t scan via

Gimp Front-

end.

• Check if Gimp Front-end has “Xsane:Device dialog..” on

the “Acquire” menu. If not, you should install Xsane plug-

in for Gimp on the your computer. You can find Xsane

plug-in package for Gimp on Linux distribution CD or

Gimp home page. For the detail information, refer to the

Help for Linux distribution CD or Gimp Front-end

application.

If you wish to use other kind of scan application, refer to

the Help for application.

I encounter

error “Cannot

open MFP port

device file”

when printing

a document.

Please avoid changing print job parameters (via SLPR

utility, for example) while a print job is in progress. Known

versions of CUPS server break the print job whenever print

options are changed and then try to restart the job from

the beginning. Since Linux MFP driver locks MFP port while

printing, the abrupt termination of the driver keeps the port

locked and therefore unavailable for subsequent print jobs.

If this situation occurred, please, try to release the MFP

port.

Problem Possible Cause and Solution

Common Macintosh Problems

Problems in Printer Setup Utility

Problem Possible Cause and Solution

There is described

"driver not

installed" at Product

List Window after

you click Add and

Select USB.

• Software is not installed correctly. Reinstall the

software. See

Software User’s Guide

• Make sure that you are using a high-quality cable.

Your product not

listed at Product

List Window after

you click Add and

Select USB.

• Make sure that the cables are connected correctly

and the printer is turned on.

• Check if “Ready” appears on the display of the

control panel. If not, clear the problem depending

on the error message; see “Clearing LCD Error

Messages” on page 9.4.

• Make sure that the correct printer driver has been

selected at Product List Window after you click Add

and Select USB.

Specifications

10.1

Specifications

This chapter includes:

• General Specifications

• Scanner and Copier Specifications

• Printer Specifications

• Facsimile Specifications

(Only for

SCX-4521F

)

• Paper Specifications

General Specifications

Item Description

Model name

SCX-4321(WT21MFC)

SCX-4521F(WT21MFF)

Automatic document

feeder Up to 30 sheets (20 lb, 75 g/m

bond)

ADF document size Width: 5.6 to 8.5 inches (142 to 216 mm)

Length: 5.8 to 14 inches (148 to 356 mm)

Paper input capacity

Tray with multi-pages: 150 multi-pages for plain

paper (20 lb, 75 g/m

bond)

Tray with single page and manual tray: 1 single page

for plain paper, card stock, labels, transparencies,

and envelopes (16 ~43 lb, 60 ~ 165 g/m

bond)

Paper output capacity 50 sheets

Paper type Plain paper, Transparencies, Labels, Card stock,

Envelopes

Consumables 1-piece toner cartridge system

Power requirements 110 - 127 VAC, 50/60 Hz, 4.5 A

220 - 240 VAC, 50/60 Hz, 2.5 A

Power consumption Sleep mode: Under 10 W

Average: 350 W

Noise

*.Sound Pressure Level, ISO7779

Standby mode: Less than 35 dBA

Warm up: Less than 49 dBA

Copying: Less than 55 dBA

Printing: Less than 50 dBA

Warm-up time Less than 35 seconds

Operating conditions Temperature: 50

F to 89

F (10

C to 32

Humidity: 20 % to 80 % RH

LCD 16 characters x 2 lines

Toner cartridge life

**.The number of pages may be affected by operating environment, printing

interval, media type, and media size.

3,000 pages (for starter, 1,000 pages) @ ISO 19752

5 % coverage

SET dimension

(W x D x H) 17.2 x 14.7x 14.5 in. (438 x 374 x 368 mm)

Weight 10.1 Kg (including consumables)

Package weight Paper: 1.2 Kg

Plastic: 0.5 Kg

Duty cycle (Monthly) Print: Up to 4,200 pages

Specifications

10.2

Scanner and Copier

Specifications

Item Description

Compatibility TWAIN standard / WIA standard

Scanning method ADF and Flat-bed CIS (Contact Image Sensor)

module

Resolution Optical: 600 x 600 dpi (Mono and color)

Enhanced: 4,800 x 4,800 dpi

Effective scanning length Platen: 11.7 in. (297 mm)

ADF: 14 in. (356 mm)

Effective scanning width Max. 8.2 in. (208 mm)

Color bit depth 24 bit

Mono bit depth 1 bit for Black & White mode

8 bit for Gray mode

Copy speed

*. Copy Speed is based on Single Document Multiple Copy.

Up to 20 ppm in A4 (20 ppm in Letter)

First copy out time Standby mode: 11 seconds

Power save mode: 40 seconds

Copy resolution

Scan: 600 x 300 (Text, Text/Photo)

600 x 600 (Photo using Platen)

600 x 300 (Photo using ADF)

Print: 600 x 600 (Text, Text/Photo, Photo)

Zoom rate Platen: 25 ~ 400 %

ADF: 25 ~ 100 %

Multiple copies 1-99 pages

Gray scale 256 levels

Printer Specifications

Item Description

Printing method Laser Beam Printing

Printing speed

*. Print speed will be affected by operating system used, computing

performance, application software, connecting method, media type,

media size, and job complexity.

Up to 20 ppm in A4 (20 ppm in Letter)

First print out time Standby mode: 11 seconds

Power save mode: 41 seconds

Paper size

Letter, Legal, A4, Folio, Executive, A5, A6 card,

Envelope 10, Envelope DL, Envelope C5, Envelope

C6, Envelope 7-3/4 (Monarch), JIS B5, ISO B5

* Min.: 3 x 5 in. (76 x 127 mm)

Max.: 8.5 x 14 in. (216 x 356 mm)

Printer resolution 600 x 600 dpi

Emulation SPL (Samsung Printer Language)

OS Compatibility

**.Please visit www.samsungprinter.com to download the latest soft-

ware version.

Windows 98/2000/NT 4.0/Me/XP, Various Linux OS

(USB only), Macintosh 10.3

Memory 10 MB (Non-expendable)

Inteface IEEE 1284 Parallel,

USB 1.1 (Compatible with USB 2.0)

Specifications

10.3

Facsimile Specifications

(Only for SCX-4521F)

Item Description

Compatibility ITU-T Group 3

Applicable line Public Switched Telephone Network (PSTN) or

behind PABX

Data coding MH/MR/MMR (ECM Mode)/JPEG

Modem speed 33.6 Kbps

Transmission speed

Approx. 3 seconds/page

* Transmission time applies to memory

transmission of text data with ECM compression

using only ITU-T No.1 Chart.

Maximum document

length

Platen: 11.7 in. (297 mm)

ADF: 14 in. (356 mm)

Paper size Letter, A4, Legal, Folio, Executive, B5

Resolution

Standard: 203 x 98 dpi

Fine: 203 x 196 dpi

Super Fine: 300 x 300 dpi

Photo: 203 x 196 dpi

Color: 200 x 200 dpi

Memory 2 MB

Halftone 256 levels

Auto dialer Speed dialing (up to 100 numbers)

Paper Specifications

Overview

Your machine accepts a variety of print materials, such as cut-

sheet paper (including up to 100% recycled fiber content

paper), envelopes, labels, transparencies and custom-size

paper. Properties, such as weight, composition, grain and

moisture content, are important factors affecting the machine’s

performance and the output quality. Paper that does not meet

the guidelines outlined in this user’s guide can cause the

following problems:

•Poor print quality

• Increased paper jams

• Premature wear on the machine.

OTES

• Some paper may meet all of the guidelines in this guide and

still not produce satisfactory results. This may be the result

of improper handling, unacceptable temperature and

humidity levels, or other variables over which Samsung has

no control.

• Before purchasing large quantities of paper, insure the paper

meets the requirements specified in this user’s guide.

AUTION

: Using paper that does not meet these

specifications may cause problems, requiring repairs. These

repairs are not covered by the Samsung warranty or service

agreements.

Specifications

10.4

Supported Sizes of Paper

OTE

: You may experience jams when using print materials

with a length of less than 5 in. (127 mm). For optimum

performance, ensure that you are storing and handling the

paper correctly. Please refer to “Paper Storage Environment”

on page 10.5.

Paper Dimensions

Weight Capacity

Letter 8.5 x 11 in.

(216 x 279 mm)

• 16 to 24 lb

(60 to 90 g/m

bond) for the tray

with multi-pages

feeding

• 16 to 43 lb

(60 to 165 g/m

bond) for the tray

with single page

feeding and the

manual tray

• 150

sheets of

20 lb

(75 g/m

bond)

paper for

the tray

• 1 sheet of

paper for

the tray or

manual

tray

A4 8.3 x 11.7 in.

(210 x 297 mm)

Executive 7.3 x 10.5 in.

(184 x 267 mm)

Legal 8.5 x 14 in.

(216 x 356 mm)

A5 5.8 x 8.2 in.

(148 x 210 mm)

A6 4.1 x 5.8 in.

(105 x 148 mm)

ISO B5 6.9 x 9.8 in.

(176 x 250 mm)

JIS B5 7.2 x 10.1 in.

(182 x 257 mm)

Folio 8.5 x 13 in.

(216 x 330 mm)

Minimum size

(custom)

3 x 5 in

(76 x 127 mm)

16 to 43 lb (60 to 165

g/m

bond) for the

tray with single page

feeding and the

manual tray 1 sheet of

paper for

the tray or

manual tray

Maximum size

(custom)

8.5 x 14 in

(216 x 356 mm)

Transparency

Same minimum

and maximum

paper sizes as

listed above.

138 to 146 g/m

Labels 120 to 150 g/m

Cards 90 to 163 g/m

Envelopes 75 to 90 g/m

*. The machine supports a wide range of media sizes. See “Paper

Type, Input Sources, and Capacities” on page 3.1

**.Capacity may differ depending on media weight, thickness, and

environmental conditions.

Guidelines for Using Paper

For the best result, use conventional 20 lb (75 g/m

bond)

paper. Ensure that the paper is of good quality, and free of cuts,

nicks, tears, spots, loose particles, dust, wrinkles, voids, and

curled or bent edges.

If you are unsure of what type of paper you are loading, such

as bond or recycled paper, check the label on the package.

The following problems may cause print quality deviations,

jamming or even damage to the machine:

OTES

• Do not use letterhead paper printed with low-temperature

inks, such as those used in some types of thermography.

• Do not use raised or embossed letterhead.

• The machine uses heat and pressure to fuse toner to the

paper. Insure that any colored paper or preprinted forms use

inks that are compatible with this fusing temperature (200

°C or 392 °F for 0.1 second).

Symptom Problem with Paper Solution

Poor print quality or

toner adhesion,

problems with feeding

Too moist, too rough,

too smooth or

embossed; faulty paper

lot

Try another kind of

paper, between 100 ~

400 Sheffield, 4 ~ 5 %

moisture content.

Dropout, jamming,

curl Stored improperly

Store paper flat in its

moisture-proof

wrapping.

Increased gray

background shading/

printer wear

Too heavy Use lighter paper.

Excessive curl

problems with feeding

Too moist, wrong grain

direction or short-grain

construction

Use long-grain paper.

Jamming, damage to

machine Cutouts or perforations Do not use paper with

cutouts or perforations.

Problems with feeding Ragged edges Use good quality paper.

Specifications

10.5

Paper Specifications

Paper Output Capacity

Paper Storage Environment

Paper storage environmental conditions directly affect the feed

operation.

Ideally, the machine and paper storage environment should be

at or near room temperature, and not too dry or humid.

Remember that paper is hygroscopic; it absorbs and loses

moisture rapidly.

Heat works with humidity to damage paper. Heat causes the

moisture in paper to evaporate, while cold causes it to

condense on the sheets. Heating systems and air conditioners

remove most of the humidity from a room. As paper is opened

and used, it loses moisture, causing streaks and smudging.

Humid weather or water coolers can cause the humidity to

increase in a room. As paper is opened and used it absorbs any

excess moisture, causing light print and dropouts. Also, as

paper loses and gains moisture it can become distorted. This

can cause paper jams.

Care should be taken not to purchase more paper than can be

used in a short time (about 3 months). Paper stored for long

periods may experience heat and moisture extremes, which

can cause damage. Planning is important to prevent damage to

large supplies of paper.

Unopened paper in sealed reams can remain stable for several

months before use. Opened packages of paper have more

potential for environment damage, especially if they are not

wrapped with a moisture-proof barrier.

Category Specifications

Acid content 5.5 pH or lower

Caliper 3.0 ~ 7.0 mils (0.094 ~ 0.18 mm)

Curl in ream Flat within 0.02 in. (5 mm)

Cut edge conditions Cut with sharp blades with no visible fray.

Fusing compatibility

Must not scorch, melt, offset or release hazardous

emissions when heated to 200 °C (392 °F) for 0.1

second.

Grain Long grain

Moisture content 4 % ~ 6 % by weight

Smoothness 100 ~ 400 Sheffield

Output Location Capacity

Face-down output tray 50 sheets of 20 lb (75 g/m

bond) paper

The paper storage environment should be properly maintained

to ensure optimum performance. The required condition is 20

to 24 °C (68 to 75 °F), with a relative humidity of 45 % to 55

%. The following guidelines should be considered when

evaluating the paper’s storage environment:

• Paper should be stored at or near room temperature.

• The air should not be too dry or too humid.

• The best way to store an opened ream of paper is to

rewrap it tightly in its moisture-proof wrapping. If the

machine environment is subject to extremes, unwrap

only the amount of paper to be used during the day’s

operation to prevent unwanted moisture changes.

Envelopes

Envelope construction is critical. Envelope fold lines can vary

considerably, not only between manufacturers, but also within

a box from the same manufacturer. Successful printing on

envelopes depends upon the quality of the envelopes. When

selecting envelopes, consider the following components:

• Weight: The weight of the envelope paper should not

exceed 20 lb (75 g/m

bond

) or jamming may occur.

• Construction: Prior to printing, envelopes should lie flat

with less than 0.25 in. (6 mm) curl, and should not

contain air.

• Condition: Envelopes should not be wrinkled, nicked or

otherwise damaged.

• Temperature: You should use envelopes that are

compatible with the heat and pressure of the machine.

• Size: You should only use envelopes within the following

size ranges.

OTES

• Load only one sheet of paper at a time to print envelopes.

• You may experience some paper jams when using any media

with a length less than 5.5 in. (140 mm). This may be

caused by paper that has been affected by environmental

conditions. For optimum performance, make sure you are

storing and handling the paper correctly. Please refer to

“Paper Storage Environment” on page 10.5.

Minimum Maximum

3 x 5 in.

(76 x 127 mm)

8.5 x 14 in.

(216 x 356 mm)

Specifications

10.6

Envelopes with Double Side Seams

Double side-seams construction has vertical seams at both

ends of the envelope rather than diagonal seams. This style

may be more likely to wrinkle. Be sure the seam extends all the

way to the corner of the envelope as illustrated below.

Envelopes with Adhesive Strips or Flaps

Envelopes with a peel-off adhesive strip or with more than one

flap that folds over to seal must use adhesives compatible with

the heat and pressure in the machine. The extra flaps and strips

might cause wrinkling, creasing or even jams and may even

damage the fuser.

Envelope Margins

The following gives typical address margins for a commercial

#10 or DL envelope.

OTES

• For the best print quality, position margins no closer than

0.6 in. (15 mm) from the edges of the envelope.

• Avoid printing over the area where the envelope’s seams

meet.

Envelope Storage

Proper storage of envelopes helps contribute to print quality.

Envelopes should be stored flat. If air is trapped in an envelope,

creating an air bubble, then the envelope may wrinkle during

printing.

Correct

Incorrect

Type of Address Minimum Maximum

Return address 0.6 in. (15 mm) 2 in. (51 mm)

Delivery address 2 in. (51 mm) 3.5 in. (90 mm)

Labels

AUTIONS

• To avoid damaging the machine, use only labels

recommended for laser printers.

• To prevent serious jams, always load one sheet of paper at a

time to print labels.

• Never print on the same sheet of labels more than once and

never print on a partial sheet of labels.

When selecting labels, consider the quality of each component:

• Adhesives: The adhesive material should be stable at

180°C (356°F), the machine’s fusing temperature.

• Arrangement: Only use labels with no exposed backing

between them. Labels can peel off sheets with spaces

between the labels, causing serious jams.

• Curl: Prior to printing, labels must lie flat with no more

than 5 in. (13 mm) of curl in any direction.

• Condition: Do not use labels with wrinkles, bubbles or

other indications of separation.

Transparencies

Transparencies used in the machine must be able to withstand

180°C (356°F), the machine’s fusing temperature.

AUTION

: To avoid damaging the machine, use only

transparencies recommended for use in laser printers.

INDEX

Numerics

2/4-up, special copy

4.5

adding documents

7.13

ADF (Automatic Document Feeder),

load

4.2, 7.3

ADF rubber pad, replace

8.6

auto fit, special copy

4.4

automatic dialing

group

7.9

speed

7.9

automatic redialing

7.6

broadcasting faxes

7.11

canceling

copy

4.2

fax

7.6

5.1

scheduled faxes

7.13

characters, enter

2.9

cleaning

drum

8.5

inside

8.2

LSU

8.3

outside

8.2

scan unit

8.3

clone, special copy

4.4

collation, special copy

4.4

components

1.2

connection

AC power

2.6

extension phone

2.5

parallel

2.6

telephone line cord

2.4

USB

2.6

consumables

8.5

contrast, copy

4.3

control panel

1.3

copying

collation

4.4

contrast

4.3

default setting, change

4.6

from ADF

4.2

from document glass

4.2

number of pages

4.3

original type

4.3

special features

4.3

time out, set

4.6

date and time, set

2.10

delayed fax

7.12

display language, change

2.8

document

jam, clear

9.1

ADF

4.2, 7.3

document glass

4.2, 7.3

preparing

4.1

document glass

cleaning

8.3

7.3

DRPD (Distinctive Ring Pattern

Detection)

7.8

drum, clean

8.5

error messages

9.4

extension phone, connect

2.5

fax system, set

advanced settings

7.15

basic settings

7.1

fit to page

copying

4.4

group dial

dialing

7.10

editing

7.10

setting

7.9

installing

toner cartridge

2.2

jam, clear

document

9.1

paper

9.2

Linux

common problems

9.12

load paper

manual tray

3.3

tray

2.3

machine ID, set

2.9

Macintosh

common problems

9.13

memory, clear

8.1

notifying toner

8.4

n-up (multiple pages per sheet)

copying

4.5

paper guidelines

3.2

paper jam, clear

9.2

paper load

manual tray

3.3

tray

2.3

paper load capacity

3.1

paper size, set

paper tray

2.10

paper type, set

paper tray

2.10

parallel,connect

2.6

poster

copying

4.5

power save mode, use

2.11

print quality problems, solve

9.8

printing

document

5.1

Phonebook list

7.11

reports

7.14

priority fax

7.12

problem, solve

copying

9.10

error messages

9.4

faxing

9.11

Linux

9.12

Macintosh

9.13

paper feeding

9.6

printing

9.7

printing quality

9.8

scanning

9.11

receive mode, set

7.2

receiving a fax

in Ans/Fax mode

7.7

in DRPD mode

7.8

in Fax mode

7.7

in Secure Receiving mode

7.14

in Tel mode

7.7

in the memory

7.8

redialing

automatically

7.6

manually

7.6

reduced/enlarged

copying

4.3

replacing

ADF rubber pad

8.6

toner cartridge

8.4

reports, print

7.14

resolution

faxing

7.4

scanning

contol panel

6.1

searching Phonebook

7.10

Secure Receiving mode

7.14

sending a fax

automatically

7.5

manually

7.6

sounds, set

2.11

specifications

facsimile

10.3

general

10.1

paper

10.3

printer

10.2

scanner and copier

10.2

speed dial

dialing

7.9

storing

7.9

system requirements

Windows

2.7

tel line, connect

2.4

toner cartridge

installing

2.2

maintaining

8.3

redistributing

8.4

replacing

8.4

toner save mode, use

2.11

USB

connect

2.6

mode, change

9.8

volume, adjust

alarm

2.11

key

2.11

ringer

2.11

speaker

2.11

zoom rate, copy

4.3

Samsung Printer

Software User’s Guide

CONTENTS

Chapter 1:

INSTALLING PRINTER SOFTWARE IN WINDOWS

Installing Printer Software ........................................................................................................ 4

Reinstalling Printer Software ..................................................................................................... 6

Removing Printer Software ....................................................................................................... 6

Chapter 2:

BASIC PRINTING

Printing a Document ................................................................................................................ 7

Printer Settings ....................................................................................................................... 8

Layout Tab .................................................................................................................... 8

Paper Tab ...................................................................................................................... 9

Graphics Tab ............................................................................................................... 10

Extras Tab ................................................................................................................... 11

About Tab ................................................................................................................... 11

Printer Tab .................................................................................................................. 11

Using a Favorite Setting ................................................................................................ 12

Using Help ................................................................................................................... 12

Chapter 3:

ADVANCED PRINTING

Printing Multiple Pages on One Sheet of Paper (N-Up Printing) ..................................................... 13

Printing Posters ..................................................................................................................... 14

Printing a Reduced or Enlarged Document ................................................................................ 14

Fitting Your Document to a Selected Paper Size ......................................................................... 15

Using Watermarks ................................................................................................................. 15

Using an Existing Watermark ......................................................................................... 15

Creating a Watermark ................................................................................................... 16

Editing a Watermark ..................................................................................................... 16

Deleting a Watermark ................................................................................................... 16

Using Overlays ...................................................................................................................... 17

What is an Overlay? ...................................................................................................... 17

Creating a New Page Overlay ......................................................................................... 17

Using a Page Overlay .................................................................................................... 18

Deleting a Page Overlay ................................................................................................ 18

Chapter 4:

SHARING THE PRINTER LOCALLY

Setting Up a Host Computer ................................................................................................... 19

Setting Up a Client Computer .................................................................................................. 19

Chapter 5:

USING PRINTER SETTINGS UTILITY

The Scan Settings Tab ........................................................................................................... 20

The Phonebook Tab

(fax available model only) ..................................................................... 21

The Firmware Update Tab ....................................................................................................... 21

Chapter 6:

SCANNING

Scanning Using Samsung SmarThru ......................................................................................... 22

Installing Samsung SmarThru ........................................................................................ 22

Uninstalling Samsung SmarThru ..................................................................................... 23

Using Samsung SmarThru ............................................................................................. 23

Using Onscreen Help File ............................................................................................... 24

Scanning Process with TWAIN-enabled Software ........................................................................ 25

Scanning Using the WIA Driver ................................................................................................ 25

Chapter 7:

USING YOUR PRINTER IN LINUX

Getting Started ..................................................................................................................... 26

Installing the MFP Driver ........................................................................................................ 26

System Requirements ................................................................................................... 26

Installing the MFP Driver ............................................................................................... 27

Uninstalling the MFP Driver ............................................................................................ 28

Using the MFP Configurator ..................................................................................................... 28

Opening the MFP Configurator ........................................................................................ 28

Printers Configuration ................................................................................................... 29

Scanners Configuration ................................................................................................. 29

MFP Ports Configuration ................................................................................................ 30

Configuring Printer Properties ................................................................................................. 30

Printing a Document .............................................................................................................. 31

Printing from Applications .............................................................................................. 31

Printing Files ................................................................................................................ 31

Scanning a Document ............................................................................................................ 32

Using the Image Editor ................................................................................................. 33

Chapter 8:

USING YOUR PRINTER WITH A MACINTOSH

Installing Software for Macintosh ............................................................................................. 34

Setting Up the Printer ............................................................................................................ 35

For a Network-connected Macintosh ................................................................................ 35

For a USB-connected Macintosh ..................................................................................... 35

Printing ................................................................................................................................ 36

Printing a Document ..................................................................................................... 36

Changing Printer Settings .............................................................................................. 36

Printing Multiple Pages on One Sheet of Paper .................................................................. 37

Scanning .............................................................................................................................. 38

Installing Printer Software in Windows

1Installing Printer

Software in Windows

This chapter includes:

• Installing Printer Software

• Reinstalling Printer Software

•Removing Printer Software

Installing Printer Software

All applications should be closed on your PC before beginning

installation.

OTE

: If the “New Hardware Wizard” window appears during

the installation procedure, click in the upper right corner of

the box to close the window, or click

Cancel

Insert the supplied CD-ROM into your CD-ROM drive.

The CD-ROM should automatically run and an installation

window appears.

If the installation window does not appear, click

Start

and

then

Run

. Type

X:\Setup.exe

, replacing “

” with the

letter which represents your drive and click

OTE

: If your printer is not already connected to the

computer, the following window will appear.

• After connecting the printer, click

• If you don’t want to connect the printer at this time, click

, and

on the following screen. Then the installation

will start and a test page will not be printed at the end of the

installation.

• The installation window that appears in this User’s

Guide may differ depending on the printer and

interface in use.

Installing Printer Software in Windows

Choose the type of installation.

•

Typical

: Installs the most common software for your

printer. This is recommended for most users.

•

Custom

: Allows you to choose both the language of the

software and the individual components you want to

install. After selecting the language and the

component(s), click

•

Install SmarThru

: Installs the SmarThru program. See

“Scanning Using Samsung SmarThru” on page 22..

•

View User’s Guide

: Allows you to view the User’s

Guide. If your computer doesn’t have Adobe Acrobat,

click on this option and it will automatically install Adobe

Acrobat Reader for you.

After the installation is finished, a window asking you to

print a test page appears. If you choose to print a test

page, select the checkbox and click

Otherwise, just click

and skip to step 5.

OTE

: If your printer is not connected to the computer, the

window asking you to print a test page will not appear.

If the test page prints out correctly, click

Yes

If not, click

to reprint it.

To register yourself as a user of Samsung Printers in order

to receive information from Samsung, select the checkbox

and click

Finish

. You are now sent to the Samsung web

site.

Otherwise, just click

Finish

OTE

: If your printer driver doesn’t work properly, reinstall

the printer driver. See “Reinstalling Printer Software” on

page 6.

Installing Printer Software in Windows

Reinstalling Printer Software

You can reinstall the software if installation fails.

Start Windows.

From the

Start

menu select

Programs

All Programs

→

your printer driver name

→

Maintenance

Or place the CD-ROM into the CD-ROM drive.

Select

Repair

You will see a component list so that you can reinstall any

item individually.

OTE

: If your printer is not already connected to the

computer, the following window will appear.

• After connecting the printer, click

• If you don’t want to connect the printer at this time, click

, and

on the following screen. Then the installation

will start and a test page will not be printed at the end of the

installation.

• The reinstallation window that appears in this User’s

Guide may differ depending on the printer and

interface in use.

Select the components you want to reinstall and click

If you select

Printer

, the window asking you to print a test

page appears. Do as follows:

a. To print a test page, select the check box and click

b. If the test page prints out correctly, click

Yes

If it doesn’t, click

to reprint it.

When the reinstallation is done, click

Finish

Removing Printer Software

Start Windows.

From the

Start

menu select

Programs

All Programs

→

your printer driver name

→

Maintenance

Or place the CD-ROM into the CD-ROM drive.

Select

Remove

You will see a component list so that you can remove any

item individually.

Select the components you want to remove and then click

When your computer asks you to confirm your selection,

click

Yes

The selected driver and all of its components are removed

from your computer.

After the software is removed, click

Finish

Basic Printing

2Basic Printing

This chapter explains the printing options and common printing

tasks in Windows.

This chapter includes:

• Printing a Document

•Printer Settings

- Layout Tab

- Paper Tab

- Graphics Tab

- Extras Tab

- About Tab

- Printer Tab

- Using a Favorite Setting

- Using Help

Printing a Document

OTE

• Your printer driver Properties window that appears in this

User’s Guide may differ depending on the printer in use.

However the composition of the printer properties window is

similar.

•

Check the Operating System(s) that are compatible

with your printer. Please refer to the OS Compatibility

section of Printer Specifications in your Printer User’s

Guide.

• If you need to know the exact name of your printer, you can

check the supplied CD-ROM.

The following procedure describes the general steps required

for printing from various Windows applications. The exact steps

for printing a document may vary depending on the application

program you are using. Refer to the User’s Guide of your

software application for the exact printing procedure.

Open the document you want to print.

Select

from the

File

menu. The Print window is

displayed. It may look slightly different depending on your

application.

The basic print settings are selected within the Print

window. These settings include the number of copies and

print range.

Select

your printer driver

from the

Name

drop-down

list.

To take advantage of the printer features provided by your

printer driver, click

Properties

Preferences

in the

application’s Print window. For details, see “Printer

Settings” on page 8.

If you see

Setup

Printer

, or

Options

in your Print

window, click it instead. Then click

Properties

on the next

screen.

Click

to close the printer properties window.

To start the print job, click

in the Print

window.

Make sure that your

printer is selected.

Basic Printing

Printer Settings

You can use the printer properties window, which allows you to

access all of the printer options you need when using your

printer. When the printer properties are displayed, you can

review and change the settings needed for your print job.

Your printer properties window may differ, depending on your

operating system. This Software User’s Guide shows the

Properties window for Windows 98.

Your printer driver Properties window that appears in this User’s

Guide may differ depending on the printer in use.

If you access printer properties through the Printers folder, you

can view additional Windows-based tabs (refer to your

Windows User’s Guide) and the Printer tab (see “Printer Tab” on

page 11).

OTES

• Most Windows applications will override settings you specify

in the printer driver. Change all print settings available in the

software application first, and change any remaining settings

using the printer driver.

• The settings you change remain in effect only while you are

using the current program.

To make your changes

permanent

, make them in the Printers folder.

• The following procedure is for Windows XP. For other

Windows OS, refer to the corresponding Windows User's

Guide or online help.

1. Click the Windows

Start

button.

2. Select

Printers and Faxes

3. Select your printer driver icon.

4. Right-click on the printer driver icon and select

Printing Preferences

5. Change the settings on each tab, click OK.

Layout Tab

The

Layout

tab provides options to adjust how the document

appears on the printed page. The

Layout Options

includes

Multiple Pages per Side

and

Poster

. See “Printing a

Document” on page 7 for more information on accessing printer

properties.

Orientation

allows you to select the direction in which

information is printed on a page.

•

Portrait

prints across the width of the page, letter style.

•

Landscape

prints across the length of the page, spreadsheet

style.

•

Rotate

allows you to rotate the page the selected degrees.

Layout Options

allows you to select advanced printing options.

You can choose

Multiple Pages per Side

and

Poster

•

For details, see

“Printing Multiple Pages on One Sheet of Paper

(N-Up Printing)” on page 13.

•

For details, see

“Printing Posters” on page 14

Landscape

Portrait

Basic Printing

Paper Tab

Use the following options to set the basic paper handling

specifications when you access the printer properties. See

“Printing a Document” on page 7 for more information on

accessing printer properties.

Click the

Paper

tab to access various paper properties.

Copies

allows you to choose the number of copies to be printed.

You can select 1 to 999 copies.

Size

allows you to set the size of paper you loaded in the tray.

If the required size is not listed in the

Size

box, click

Custom

When the

Custom Page Size

window appears, set the paper

size and click

. The setting appears in the list so that you can

select it.

Enter the custom

name you want to

use.

Enter the

paper size.

Source

Make sure that

Source

is set to the corresponding paper tray.

Use the

Manual Feed

source when printing to special material.

You need to load one sheet at a time into the manual tray.

If the paper source is set to

Auto Select

, the machine

automatically picks up print material in the following order: the

manual tray and the paper tray.

Type

Make sure that

Type

is set to

Printer Default

. If you load a

different type of print material, select the corresponding paper

type. If you use cotton paper, set the paper type to

Thick

for best

printing. To use recycled paper, with weighs from 20lb to 24lb

(75~90g/m

), or colored paper, select

Color Paper

Scaling

allows you to automatically or manually scale your print

job on a page. You can choose from

None

Reduce/Enlarge

and

Fit to Page

•

For details, see

“Printing a Reduced or Enlarged Document” on

page 14.

•

For details, see

“Fitting Your Document to a Selected Paper

Size” on page 15.

Basic Printing

Graphics Tab

Use the following Graphic options to adjust the print quality for

your specific printing needs. See “Printing a Document” on

page 7 for more information on accessing printer properties.

Click the

Graphics

tab to display the properties shown below..

Resolution

You can select the printing resolution by choosing

600 dpi

(Normal)

300 dpi (Draft)

. The higher the setting, the

sharper the clarity of printed characters and graphics. The higher

setting also may increase the time it takes to print a document.

Toner Save Mode

Selecting this option extends the life of your toner cartridge and

reduces your cost per page without a significant reduction in print

quality.

•

Printer Setting

: If you select this option, this feature is

determined by the setting you’ve made on the control panel of

the printer. Some printers do not support this feature.

•

: Select this option to allow the printer to use less toner on

each page.

•

Off

: If you don’t need to save toner when printing a document,

select this option.

Darkness

Use this option to lighten or darken your print job.

•

Normal

: This setting is for normal documents.

•

Light

: This setting is for bolder line widths or darker gray-scale

images.

•

Dark

: This setting is for finer line width, higher definition in

graphics, and lighter gray-scale images.

Advanced Options

You can set advanced settings by clicking the

Advanced

Options

button.

•

TrueType Options

This option determines what the driver

tells the printer about how to image the text in your document.

Select the appropriate setting according to the status of your

document.

This option is available only when you use

Windows 9x/Me.

Download as Bit Image

: When this option is selected, the

driver will download the font data as bitmap images.

Documents with complicated fonts, such as Korean or

Chinese, or various other fonts, will print faster in this setting.

Print as Graphics

When this option is selected, the driver

will download any fonts as graphics. When printing documents

with high graphic content and relatively few TrueType fonts,

printing performance (speed) may be enhanced in this

setting.

•

Print All Text Black

When the

Print All Text Black

option

is checked, all text in your document prints solid black,

regardless of the color it appears on the screen. When not

checked, colored text prints in shades of gray.

•

Darken Text

When the

Darken Text

option is checked, all

text in your document is allowed to print darker than on a

normal document.

Basic Printing

Extras Tab

You can select output options for your document. See “Printing

a Document” on page 7 for more information about accessing

the printer properties.

Click the

Extras

tab to access the following feature:

Watermark

You can create a background text image to be printed on each

page of your document.

For details, see

“Using Watermarks” on

page 15.

Overlay

Overlays are often used to take the place of preprinted forms and

letterhead paper.

For details, see

“Using Overlays” on page 17.

Output Options

•

Print Order

: You can set the sequence in which the pages

print. Select the print order from the drop-down list.

Normal

: Your printer prints all pages from the first page to

the last page.

Reverse All Pages

: Your printer prints all pages from the

last page to the first page.

Print Odd Pages

: Your printer prints only the odd numbered

pages of the document.

Print Even Pages

: Your printer prints only the even

numbered pages of the document.

About Tab

Use the

About

tab to display the copyright notice and the

version number of the driver. If you have an Internet browser,

you can connect to the Internet by clicking on the web site icon.

See “Printing a Document” on page 7 for more information

about accessing printer properties.

Printer Tab

If you access printer properties through the

Printers

folder,

you can view the

Printer

tab. You can set the printer

configuration.

The following procedure is for Windows XP. For other Windows

OS, refer to the corresponding Windows User's Guide or online

help.

Click the Windows

Start

menu.

Select

Printers and Faxes

Select

your printer driver

icon.

Right-click on the printer driver icon and select

Properties

Click the

Printer

tab and set the options.

High Altitude Correction

If your printer is going to be used at a high altitude, checking this

option will optimize the print quality for those circumstances.

Basic Printing

Using a Favorite Setting

The

Favorites

option, which is visible on each properties tab,

allows you to save the current properties settings for future

use.

To save a

Favorites

item:

Change the settings as needed on each tab.

Enter a name for the item in the

Favorites

input box.

Click

Save

When you save

Favorites

, all current driver settings are

saved.

To use a saved setting, select the item from the

Favorites

drop

down list. The printer is now set to print according to the

Favorites setting you selected.

To delete a Favorites item, select it from the list and click

Delete

You can also restore the printer driver’s default settings by

selecting

Printer Default

from the list.

Using Help

Your printer has a help screen that can be activated by clicking

the

Help

button in the printer properties window. These help

screens give detailed information about the printer features

provided by the printer driver.

You can also click from the upper right corner of the window,

and then click on any setting.

Advanced Printing

3Advanced Printing

This chapter explains printing options and advanced printing

tasks.

OTE

• Your printer driver

Properties

window that appears in this

User’s Guide may differ depending on the printer in use.

However the composition of the printer properties window is

similar.

• If you need to know the exact name of your printer, you can

check the supplied CD-ROM.

This chapter includes:

• Printing Multiple Pages on One Sheet of Paper (N-Up

Printing)

•Printing Posters

• Printing a Reduced or Enlarged Document

• Fitting Your Document to a Selected Paper Size

• Using Watermarks

• Using Overlays

Printing Multiple Pages on One

Sheet of Paper (N-Up Printing)

You can select the number of pages to print on a single sheet

of paper. To print more than one page per sheet, the pages will

be reduced in size and arranged in the order you specify. You

can print up to 16 pages on one sheet.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Layout

tab, choose

Multiple Pages per Side

the

Type

drop-down list.

Select the number of pages you want to print per sheet

(1, 2, 4, 6, 9, or 16) in the

Pages per Side

drop-down

list.

Select the page order from the

Page Order

drop-down

list, if necessary.

Check

Print Page Border

to print a border around each

page on the sheet.

Click the

Paper

tab, select the paper source, size, and

type.

Click

and print the document.

1 2

3 4

Advanced Printing

Printing Posters

This feature allows you to print a single-page document onto 4,

9, or 16 sheets of paper, for the purpose of pasting the sheets

together to form one poster-size document.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Layout

tab, select

Poster

in the

Type

drop-

down list.

Configure the poster option:

You can select the page layout from

2x2

3x3

, or

4x4

. If

you select

2x2

, the output will be automatically stretched

to cover 4 physical pages.

Specify an overlap in millimeters or inches to make it

easier to pasting the sheets together.

0.15 inches

Click the

Paper

tab, select the paper source, size, and

type.

Click

and print the document. You can complete the

poster by pasting the sheets together.

Printing a Reduced or Enlarged

Document

You can change the size of a page’s content to appear larger or

smaller on the printed page.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Paper

tab, select

Reduce/Enlarge

in the

Type

drop-down list.

Enter the scaling rate in the

Percentage

input box.

You can also click the or button.

Select the paper source, size, and type in

Paper Options

Click

and print the document.

Advanced Printing

Fitting Your Document to a

Selected Paper Size

This printer feature allows you to scale your print job to any

selected paper size regardless of the digital document size. This

can be useful when you want to check fine details on a small

document.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Paper

tab, select

Fit to Page

in the

Type

drop-

down list.

Select the correct size from the

Target Page

drop-down

list.

Select the paper source, size, and type in

Paper Options

Click

and print the document.

Using Watermarks

The Watermark option allows you to print text over an existing

document. For example, you may want to have large gray

letters reading “DRAFT” or “CONFIDENTIAL” printed diagonally

across the first page or all pages of a document.

There are several predefined watermarks that come with the

printer, and they can be modified, or you can add new ones to

the list.

Using an Existing Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab, and select the desired watermark

from the

Watermark

drop-down list. You will see the

selected watermark in the preview image.

Click

and start printing.

OTE

: The preview image shows how the page will look when

it is printed.

Preview Image

Advanced Printing

Creating a Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab, and click the

Edit

button in the

Watermark

section. The

Edit Watermark

window

appears.

Enter a text message in the

Watermark Message

box.

You can enter up to 40 characters. The message displays

in the preview window.

When the

First Page Only

box is checked, the watermark

prints on the first page only.

Select watermark options.

You can select the font name, style, size, or grayscale level

from the

Font Attributes

section and set the angle of the

watermark from the

Message Angle

section.

Click

Add

to add a new watermark to the list.

When you have finished editing, click

and start

printing.

To stop printing the watermark, select

from

the

Watermark

drop-down list.

Editing a Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab and click the

Edit

button in the

Watermark

section. The

Edit Watermark

window

appears.

Select the watermark you want to edit from the

Current

Watermarks

list and change the watermark message and

options.

Click

Update

to save the changes.

Click

until you exit the Print window.

Deleting a Watermark

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

From the

Extras

tab, click the

Edit

button in the

Watermark section. The

Edit Watermark

window

appears.

Select the watermark you want to delete from the

Current

Watermarks

list and click

Delete

Click

until you exit the Print window.

Advanced Printing

Using Overlays

What is an Overlay?

An overlay is text and/or images stored in the computer hard

disk drive (HDD) as a special file format that can be printed on

any document. Overlays are often used to take the place of

preprinted forms and letterhead paper. Rather than using

preprinted letterhead, you can create an overlay containing the

exact same information that is currently on your letterhead. To

print a letter with your company’s letterhead, you do not need

to load preprinted letterhead paper in the printer. You need only

tell the printer to print the letterhead overlay on your

document.

Creating a New Page Overlay

To use a page overlay, you must create a new page overlay

containing your logo or image.

Create or open a document containing text or an image for

use in a new page overlay. Position the items exactly as

you wish them to appear when printed as an overlay.

To save the document as an overlay, access printer

properties. See “Printing a Document” on page 7.

Click the

Extras

tab, and click

Edit

button in the

Overlay

section.

WORLD BEST

Dear ABC

Regards

WORLD BEST

Preview Image

In the Edit Overlay window, click

Create Overlay

In the Create Overlay window, type a name of up to eight

characters in the

File name

box. Select the destination

path, if necessary. (The default is C:\Formover).

Click

Save

. The name appears on the

Overlay List

box.

Click

Yes

to finish creating.

The file is not printed. Instead it is stored on your

computer hard disk drive.

OTE

: The overlay document size must be the same as the

documents you print with the overlay. Do not create an overlay

with a watermark.

Advanced Printing

Using a Page Overlay

After an overlay has been created, it is ready to be printed with

your document. To print an overlay with a document:

Create or open the document you want to print.

To change the print settings from your software

application, access printer properties. See “Printing a

Document” on page 7.

Click the

Extras

tab.

Select the desired overlay from the

Overlay

drop-down

list box.

If the overlay file you want does not appear in the

Overlay

list, click

Edit

button and

Load Overlay

, and

select the overlay file.

If you have stored the overlay file you want to use in an

external source, you can also load the file when you access

the

Load Overlay

window.

After you select the file, click

Open

. The file appears in the

Overlay List

box and is available for printing. Select the

overlay from the

Overlay List

box.

If necessary, click

Confirm Page Overlay When

Printing

. If this box is checked, a message window

appears each time you submit a document for printing,

asking you to confirm your wish to print an overlay on your

document.

If this box is not checked and an overlay has been

selected, the overlay automatically prints with your

document.

Click

Yes

until printing begins.

The selected overlay downloads with your print job and

prints on your document.

OTE

: The resolution of the overlay document must be the

same as that of the document you will print with the overlay.

Deleting a Page Overlay

You can delete page overlays that you no longer use.

In the printer properties window, click the

Extras

tab.

Click the

Edit

button in the

Overlay

section.

Select the overlay you want to delete from the

Overlay

List

box.

Click

Delete Overlay

When a confirming message window appears, click

Yes

Click

until you exit the Print window.

Sharing the Printer Locally

4Sharing the Printer

Locally

You can connect the printer directly to a selected computer,

which is called “host computer,” on the network.

The following procedure is for Windows XP. For other Windows

OS, refer to the corresponding Windows User's Guide or online

help.

OTES

• Check the Operating System(s) that are compatible with

your printer. Please refer to the OS Compatibility section of

Printer Specifications in your Printer User’s Guide.

• If you need to know the exact name of your printer, you can

check the supplied CD-ROM.

Setting Up a Host Computer

Start Windows.

From the

Start

menu select

Printers and Faxes

Double-click

your printer driver icon

From the

Printer

menu, select

Sharing

Check the

Share this printer

box.

Fill in the

Shared Name

field, and then click

Setting Up a Client Computer

Right-click the Windows

Start

button and select

Explorer

Open your network folder in the left column.

Click the shared name.

From the

Start

menu select

Printers and Faxes

Double-click

your printer driver icon

From the

Printer

menu, select

Properties

From the

Ports

tab, click

Add Port

Select

Local Port

and click

New Port

Fill in the

Enter a port name

field with the shared name.

Click

and click

Click

Apply

and click

Using Printer Settings Utility

5Using Printer Settings

Utility

This

is automatically installed when you install the MFP (Multi

Functional Printer) driver.

Using Printer Settings Utility, you can create and edit

Phonebook entries from your computer and configure the

destination launches when you use the

corresponding button

on the control panel. You can also update the firmware of the

machine.

To open Printer Settings Utility:

Start your Windows.

Click the

Start

button on your desktop computer.

From the

Programs

All Programs

, select your printer

driver name and then

Printer Settings Utility

The Printer Settings Utility window opens.

The Printer Settings Utility window provides the following

tabs:

Scan Settings

Phonebook

(only for the fax

available model),

and

Firmware Update

To exit, click the

Exit

button at the bottom of each tab.

Use the help feature by refering the window which appears

when you click the

Help

button at the bottom.

The Scan Settings Tab

Click the

Scan Settings

tab to configure the scan destination

list that appears on the control panel display when you press

the corresponding button on the control panel. Using the

destination list, you can select a software program that an

image can be scanned to.

You can also configure the scan settings, such as the output

type and resolution.

Select the program you want from the Available Scan Destinations

and click to add it to the Front Panel Destination List. To delete the

selected program, click .

Restore Defaults

Click to restore the default settings.

Send

Downloads the settings made in the Printer Settings Utility to your

machine.

Using Printer Settings Utility

The Phonebook Tab (fax available

model only)

Click the tab to create and edit Phonebook entries.

Read

Reads the Phonebook entries from the machine to the Printer Settings

Utility.

Write

Downloads the Phonebook entries from the Printer Settings Utility to

the machine.

Phonebook entries.

Edit

Allows you to edit a selected Phonebook entry in a separate Edit

window.

Delete

Deletes a selected Phonebook entry.

Delete All

Deletes all Phonebook entries.

Group dial...

Allows you to set up group dial numbers.

4567

When you click

Group dial

, the following window opens.

Name

Enter a name for the group

Shows the numbers included in the group. To remove a number,

select it and click

Remove

Shows the Phonebook entries you can include in the group. After

selecting a number, click

Add

to move it to the Included numbers list.

Click to save the group dial number after adding or removing numbers

for the group.

The Firmware Update Tab

Click the

Firmware Update

tab to update the firmware of your

machine. This feature should be used by an authorized

technician. Please consult with the purchase point.

Scanning

6Scanning

Scanning with your machine lets you turn pictures and text into

digital files on your computer. Then you can fax or e-mail the

files, display them on your web site or use them to create

projects that you can print using Samsung SmarThru software

or the WIA driver.

This chapter includes:

• Scanning Using Samsung SmarThru

• Scanning Process with TWAIN-enabled Software

• Scanning Using the WIA Driver

OTES

• Check the Operating System(s) that are compatible

with your printer. Please refer to the OS Compatibility

section of Printer Specifications in your Printer User’s

Guide.

• You can check your printer name in the supplied CD-

ROM.

Scanning Using Samsung

SmarThru

Samsung SmarThru is the accompanying software for your

machine. With SmarThru, scanning is the proverbial piece of

cake.

OTE

: You can use Status Monitor in Windows 98 or higher.

Installing Samsung SmarThru

Insert the supplied CD-ROM into your CD-ROM drive.

Click

Install SmarThru

Click

Follow the on-screen instructions and click

Select the installation type and click

The software installation supports two types of setup:

•

Typical

: The program will be installed with the most

common options and is recommended for most users.

•

Custom

: You may choose the options you want to install.

Scanning

If you select the Custom installation, you may choose the

components you want to install. Click

•

Basic SmarThru components

: to use the basic

SmarThru 4 applications and core service.

•

Scan component

: to scan the original document and

save it in an application or folder, email it, or publish it on

a web site.

•

Image component

: to edit an images you have saved

as a graphic file.

•

Copy component

: to produce professional quality

copies.

•

Print component

: to print images you have saved.

•

Fax component

: to send images and documents using

fax in your machine. This is available when your machine

supports the fax feature.

Follow the on-screen instructions to complete the

installation.

When the installation is finished, click

Finish

You may be prompted to restart your computer. In this

case you must shut the computer down and then restart it

before the changes will be saved.

Uninstalling Samsung SmarThru

OTE

: Before beginning uninstallation, ensure that all

applications are closed on your computer.

From the

Start

menu, select

Programs

Select

SmarThru 4

, and then select

Uninstall SmarThru

When your computer asks you to confirm, click

Click

Finish

You may be prompted to restart your computer. In this

case you must shut the computer down and then restart it

before the changes will be saved.

Using Samsung SmarThru

Follow these steps to start scanning using the SmarThru:

Make sure that your machine and computer are turned on

and properly connected to each other.

Place your photograph or page on the document glass

or ADF.

Once you have installed Samsung SmarThru, you will see

the

SmarThru 4

icon on your desktop. Double-click the

SmarThru 4

icon.

The SmarThru 4 window opens.

•Scan To

Allows you to scan an image and save it to an application

or folder, email it, or publish it on a web site.

•Image

Allows you to edit an image you have saved as a graphic

file and send it to a selected application or folder, email it,

or publish it on a web site.

•Copy

Allows you to produce professional quality copies. You can

make black and white or color copies of an image if your

machine supports it, and customize the copy settings.

•Print

Allows you to print images you have saved. You can print

images in black and white or color mode if your machine

supports it.

•Fax

Allows you to fax images or files you have saved on your

computer. This is available when your machine supports

the fax feature.

Double-click this icon.

Make sure that your

printer is selected.

Scanning

Click

Scan To

. The

Scan To

menu bar appears on the

SmarThru 4 window.

Scan To

lets you use the following services:

•Application

Scanning an image and placing it in an image editor

application, such as Paint or Adobe Photoshop.

•E-mail

Scanning an image and emailing it. Allows you to scan an

image, preview it, and email it.

OTE

: To send an image by e-mail, you must have a mail

client program, like Outlook Express, which has been set up

with your e-mail account.

•Folder

Scanning an image and saving it to a folder. Allows you to

scan an image, preview it, and save it to the folder of your

choice.

•OCR

Scanning an image and performing text recognition.

Allows you to scan an image, preview it, and send it to the

OCR program for text recognition.

- Recommended Scan Option for OCR

- Resolution: 200 or 300 dpi

- Image Type: Grayscale or Black & White

•Web

Scanning an image, previewing it, and publishing it on a

web site, using the specified file format for the image you

want to publish.

Adjust the

scan settings.

Scan To

menu bar

Click to start

scanning.

•Settings

Customizing settings of

Scan To

basic functions. Allows

you to customize settings for

Application

E-mail

OCR

and

Web

functions.

Click the service icon according to your job.

SmarThru 4

opens for the selected service. Adjust the

scan settings.

To start scanning, click

Scan

OTE

: If you want to cancel the scan job, click

Cancel

Using Onscreen Help File

For more information about SmarThru, click at the top right

corner of the window. The SmarThru Help window opens and

allows you to view onscreen help supplied on the SmarThru

program.

Scanning

Scanning Process with TWAIN-

enabled Software

If you want to scan documents using other software, you will

need to use TWAIN-compliant software, such as Adobe

PhotoDeluxe or Adobe Photoshop. The first time you scan with

your machine, select it as your TWAIN source in the application

you use.

The basic scanning process involves a number of steps:

Make sure that your machine and computer are turned on

and properly connected to each other.

Load the document(s) face up into the ADF.

Place a single document face down on the document

glass.

Open an application, such as PhotoDeluxe or Photoshop.

Open the TWAIN window and set the scan options.

Scan and save your scanned image.

OTE

: You need to follow the program’s instructions for

acquiring an image. Please refer to the user’s guide of the

application.

Scanning Using the WIA Driver

Your machine also supports the Windows Image Acquisition

(WIA) driver for scanning images. WIA is one of the standard

components provided by Microsoft



Windows



XP and works

with digital cameras and scanners. Unlike the TWAIN driver, the

WIA driver allows you to scan and easily manipulate images

without using additional software.

OTE

: The WIA driver works only on Windows XP with USB

port.

Load the document(s) face up into the ADF.

Place a single document face down on the document

glass.

From the

Start

menu on your desktop window, select

Settings

Control Panel

, and then

Scanners and

Cameras

Double click

your scanner driver

icon. The Scanner and

Camera Wizard launches.

Choose your scanning preferences and click

Preview

see how your preferences affect the picture.

Click

Enter a picture name, and select a file format and

destination to save the picture.

Follow the on-screen instructions to edit the picture after it

is copied to your computer.

OTE

: If you want to cancel the scan job, press the Cancel

button on the Scanner and Camera Wizard.

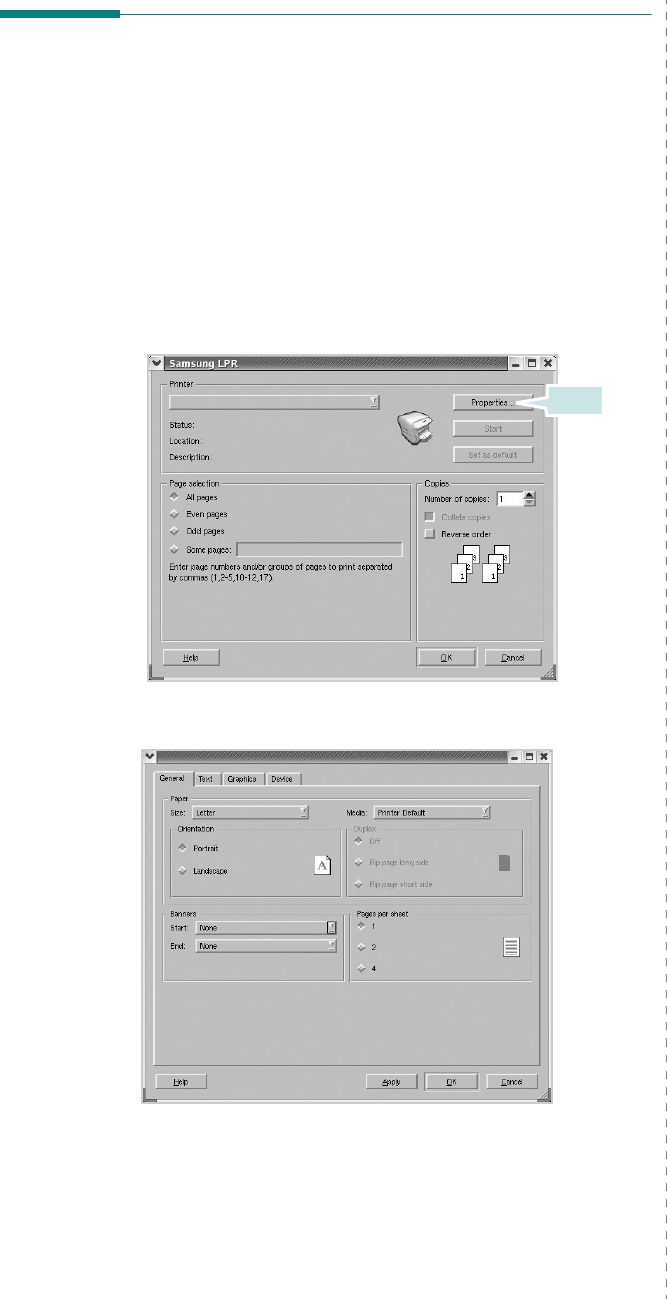

Using Your Printer in Linux

7Using Your Printer in

Linux

You can use your machine in a Linux environment.

This chapter includes:

• Getting Started

• Installing the MFP Driver

• Using the MFP Configurator

• Configuring Printer Properties

• Printing a Document

• Scanning a Document

Getting Started

The supplied CD-ROM provides you with Samsung’s MFP driver

package for using your machine with a Linux computer.

Samsung’s MFP driver package contains printer and scanner

drivers, providing the ability to print documents and scan

images. The package also delivers powerful applications for

configuring your machine and further processing of the scanned

documents.

After the driver is installed on your Linux system, the driver

package allows you to monitor a number of MFP devices via fast

ECP parallel ports and USB simultaneously. The acquired

documents can then be edited, printed on the same local MFP

or network printers, sent by e-mail, uploaded to an FTP site, or

transferred to an external OCR system.

The MFP driver package is supplied with a smart and flexible

installation program. You don't need to search for additional

components that might be necessary for the MFP software: all

required packages will be carried onto your system and

installed automatically; this is possible on a wide set of the

Samsung Electronics Co WT21MFF Laser Beam Printer User Manual 4x17 EN

Samsung Electronics Co Ltd Laser Beam Printer 4x17 EN

Contents

Users Manual 2

Navigation menu

Namespaces

Views

Navigation
