Quick reference guide
Quick Reference Guide
SRH/SRG/HBC
sepura
Antenna
Emergency
Key
Tri
-
colour
LED
Dupl
ex Earpiece
and Half Duplex
Microphone
PTT
Mode Key
(On/Off)
Navigation
Keys
Red
Telephone
Key
Alpha
-
Numeric
Keypad
Green
Telephone
Key
Navi-knob™
Sepura plc,
Radio House, St Andrew’s Road,
Cambridge, CB4 1GR England
www.sepura.com
SPR-DOC-00228 Issue 3
© Sepura plc 2009
Navi
-
kn
ob™
and Mode Key
Emergency
Key
Navi-keys
Duplex
Microphone

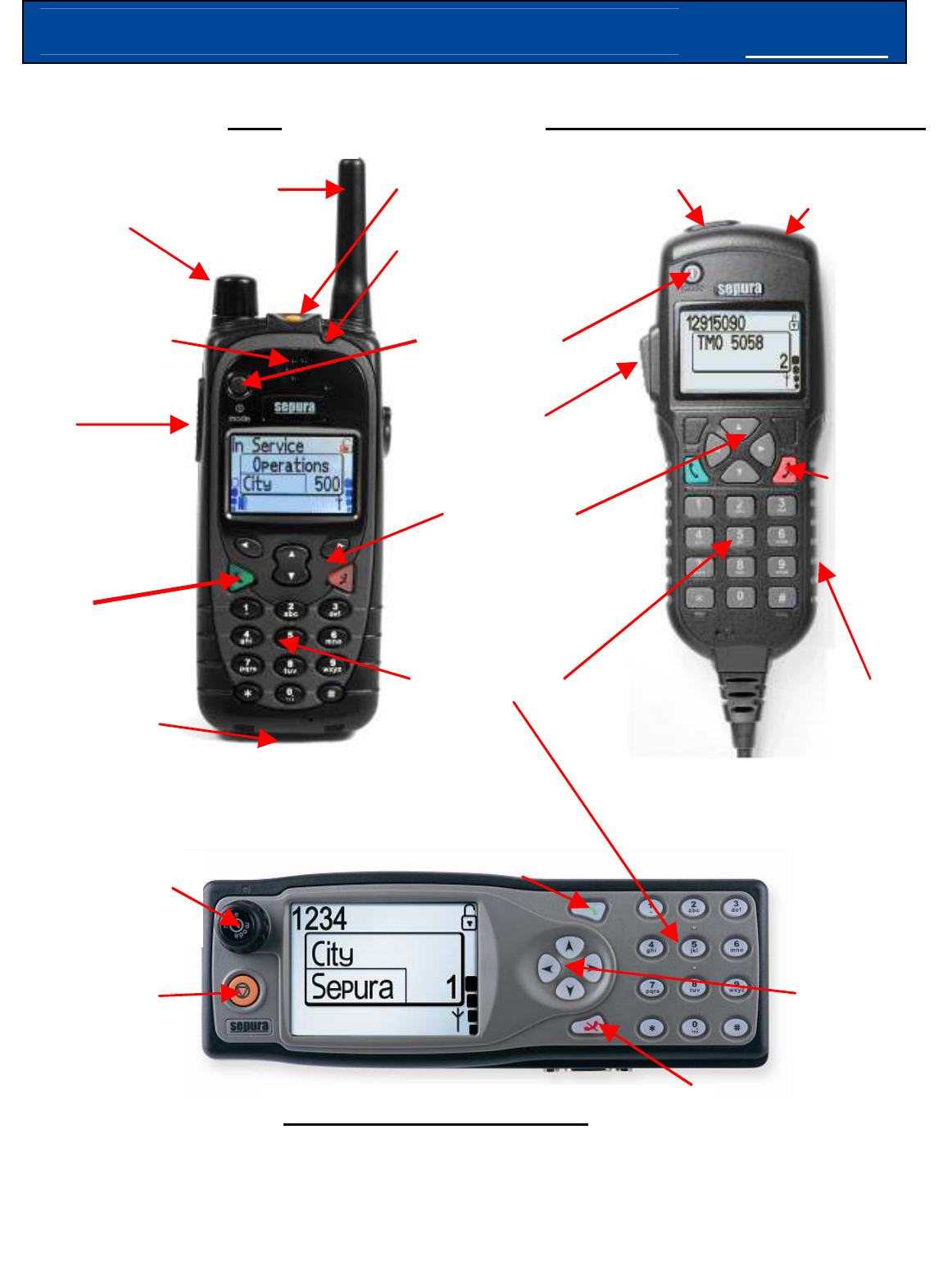

Handset Based Console (HBC) SRH
Standard Console (SRG)
Red Telephone Key
Green Telephone Key
Navigation
Keys
PTT
Emergency
Key
Earpiece and
Microphone
located on rear
of HBC
Switch On Press the Mode Key.
Switch Off Press & Hold the Mode Key.
Volume Adjust Rotate the Navi-knob™ or press + and – Navi-keys.
Emergency Call Press and hold the Emergency Key.
Change
Talkgroup
Press the Mode Key once, and then rotate the Navi-
knob™ or use the Navi-keys to choose from the list of
talkgroups in the current folder, or dial the number of
the talkgroup using the keypad. Wait or press the
PTT to activate the new talkgroup.
Change Folder
Press the Mode Key once, and then use the Up and
Down Navigation Keys to select a talkgroup folder.
Then change the talkgroup as explained above.
Talkgroup Call Press the PTT.
Radio Call to
Individual
Dial the radio number and select (using
Up/Down Navigation Keys), then press PTT to start
the call.
Telephone Call
Dial the required number and select (using
Up/Down Navigation Keys), and then press the
Green Telephone Key to start the call.
To end the call press the Red Telephone Key.
Send Status
Press the Mode Button twice and then rotate the
Navi-knob™ or press the Navi-keys to select a status
value. Press PTT twice to send to the currently active
talkgroup. These messages can also be accessed
from the menu structure.
Menu Access
From the default screen:
Press the Down Navigation Key once to see the menus available;
Press the Left or Right Navigation Key to move across and select
the menus;
Press the Down Navigation Key to enter menu;
Press the Left or Right Navigation Key to move across the cards
within the menu.
Press and hold the Up Navigation Key to exit the menus and return to the
default screen. Alternatively, do nothing and the default screen will reappear
after a timeout.
Activating Menu Options
Some menu cards allow you to alter settings within the radio by checking or
unchecking a checkbox. Press the Green Telephone Key to activate a function
and ‘check’ its checkbox. Press the Red Telephone Key to deactivate a function
and ‘uncheck’ its checkbox. In the Network Selection Menu only one Network
can be activated, so the previous network is deactivated automatically.
Entering Text
Within menu cards that allow text entry, e.g. to send message;
Press and hold the Down Navigation Key to start editing;
Enter or edit your text as required from the keypad;
Press the Green Telephone Key to action your changes or the Red
Telephone Key to exit.
Activating Soft key Functions
Press and hold the required soft key.
(A list of soft key functions may be displayed on the Help key if programmed.)
Some soft keys are a “toggle” function, requiring no further action. Some are
navigation keys requiring a second action.
Icons
Description Icon Description Icon
Half duplex call
DMO Gateway
Broadcast call
Signal strength
Telephone type
call dialling
mode
DMO Repeater
found
Transmit Inhibit
Battery
Emergency call
Keypad Locked
Description Icon Description Icon
New message
Volume level
meter
Missed Call
Packet Data
session
Low battery
Scanning
Lone Worker
Radio Settings
Covert
Operation
WAP
Calls not
encrypted
Calls are E2E
encrypted
Power from
charger
Telephone style
call
Paging Alert
Messages
Press ‘+‘ Navi-
key or turn Navi-
knob™
clockwise to
move cursor
Press ‘–‘ Navi-
key or turn
Navi-knob™
anticlockwise
to move cursor
Communication
mismatch
Status
Messages
DMO Repeater
Directory
Privacy Mode
Call History
Group Focus
Message Store
GPS
GPS disabled
TETRA type
dialling mode
Radio
Information
Incoming Call
Outgoing Call
Folders
Network
Selection
External Alerts
Short Data
Applications
Function is
activated
Function not
activated
Lone Worker
Alarm
