Sepura’s SRG3500 is a fully featured TETRA
mobile that is hardware ready to support
Direct Mode Gateway, Direct Mode Repeater,
PEI based Data and E2EE options.
The SRG3500 is the world’s best selling TETRA
Gateway / Repeater radio. Designed and
manufactured by Sepura, the adaptability and
flexibility of the SRG3500 has been proven to meet
the needs of the most demanding organisations.
Adaptable
• Class leading 10 Watts RF Power gives the greatest operational range
of any TETRA radio.
• Direct Mode Gateway services increase workow management
with Intelligent Call Conversion and Message Routing.
• Direct Mode Repeater functionality enhances DMO communication.
Flexible
• Numerous installation solutions include Transceiver only, Dual Console,
Virtual Console and Handset Based Console options.
• Audio presentation options support PA broadcast, local recording
and 3rd party radio equipment.
Intelligent
• Over the Air remote control via Sepura Status Triggered Functions.
• Tamper protected and Smart card based E2E Encryption options.
• Performance monitoring feature facilitates network analysis.
SRG3500 TETRA GATEWAY/REPEATER
d a t a s h e e t
Direct Mode Gateway:
Improved Coverage
Links radios operating in Direct Mode with the trunked radio
network extending primary radio coverage into areas of
unreliable coverage or network dead spots found inside
buildings, deep inside tunnels or in remote rural locations.
Intelligent Communication
With Sepura Intelligent Call Conversion, the calling party
only needs to call the TETRA identity of the SRG3500.
Once switched to DMO Gateway mode, the SRG radio
automatically converts and relays the incoming call or
message to the Direct Mode users.
Operational Effectiveness
Status messaging and SDS based messaging, including text
and GPS location reports, are seamlessly transferred between
the network and Direct Mode users. In operational terms, a
control room dispatcher is able to track the positions of the
individual users in a greater number of scenarios.
Direct Mode Repeater:
Extending Operational Reach

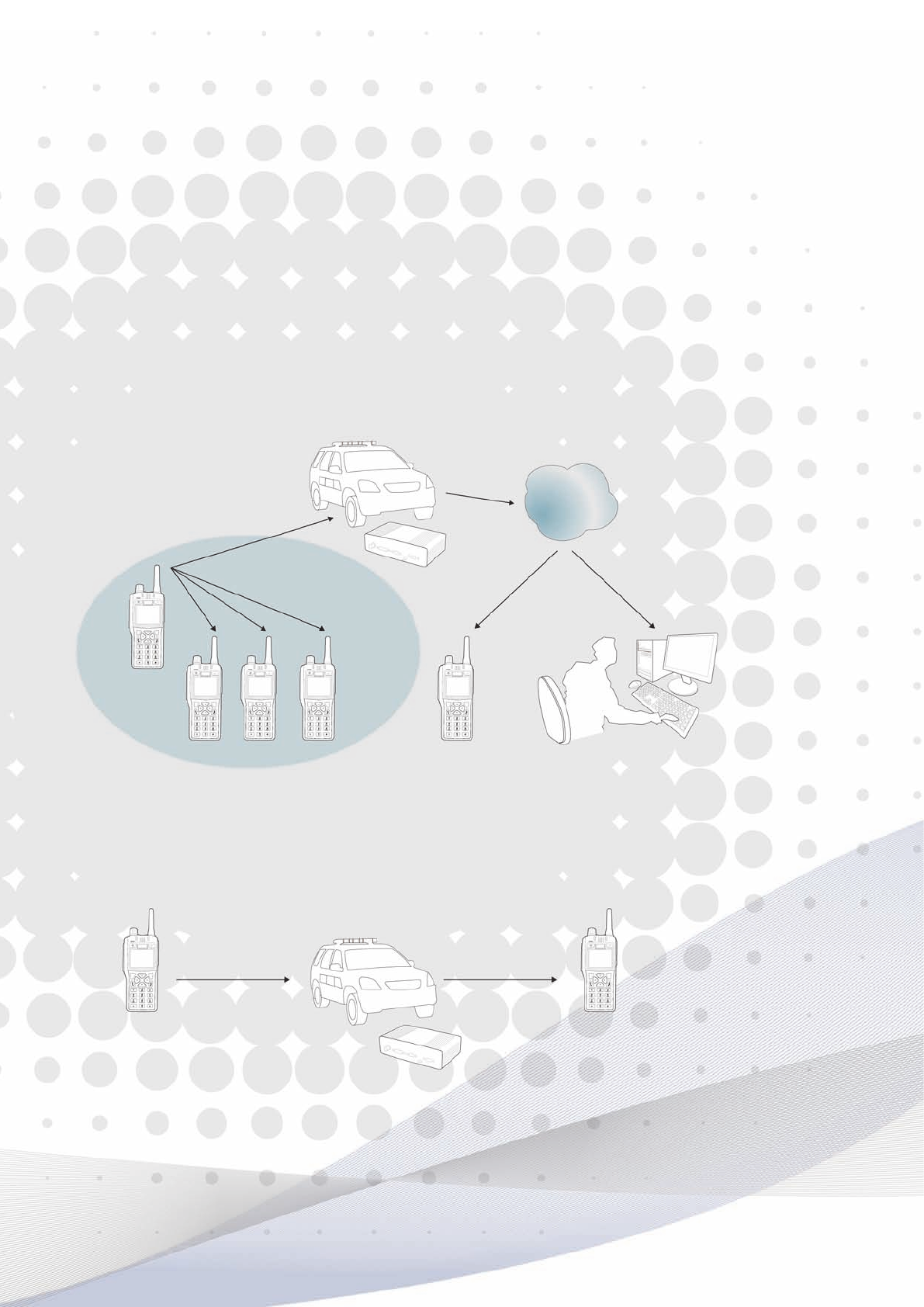

In situations where there is no network coverage available
the 10 watt DMO Repeater allows multiple Direct Mode
users to exchange voice and data messages over a wider
area with increased reliability. The DMO Repeater is ETSI
compliant Type 1A which uses a single frequency saving
scarce spectrum.
TMO TETRA
NETWORK
DMO
NO NETWORK COVERAGE
DIRECT MODE DIRECT MODE
Note: Direct Mode Gateway and Repeater services are enabled by a feature licence code.
SRG3500 TETRA
Gateway / Repeater Radio
The SRG3500 is a fully featured TETRA mobile radio that can
be easily field upgraded to support DMO Gateway and DMO
Repeater via a software licence code.
• 10 Watts RF Power – the most powerful TETRA mobile radio
available.
• Hardware ready to support Direct Mode Gateway, Direct
Mode Repeater, PEI based Data and E2EE options.
• Common UI with all Sepura radios – gives advantages of
easy integration into existing fleets, whilst minimising user
training.

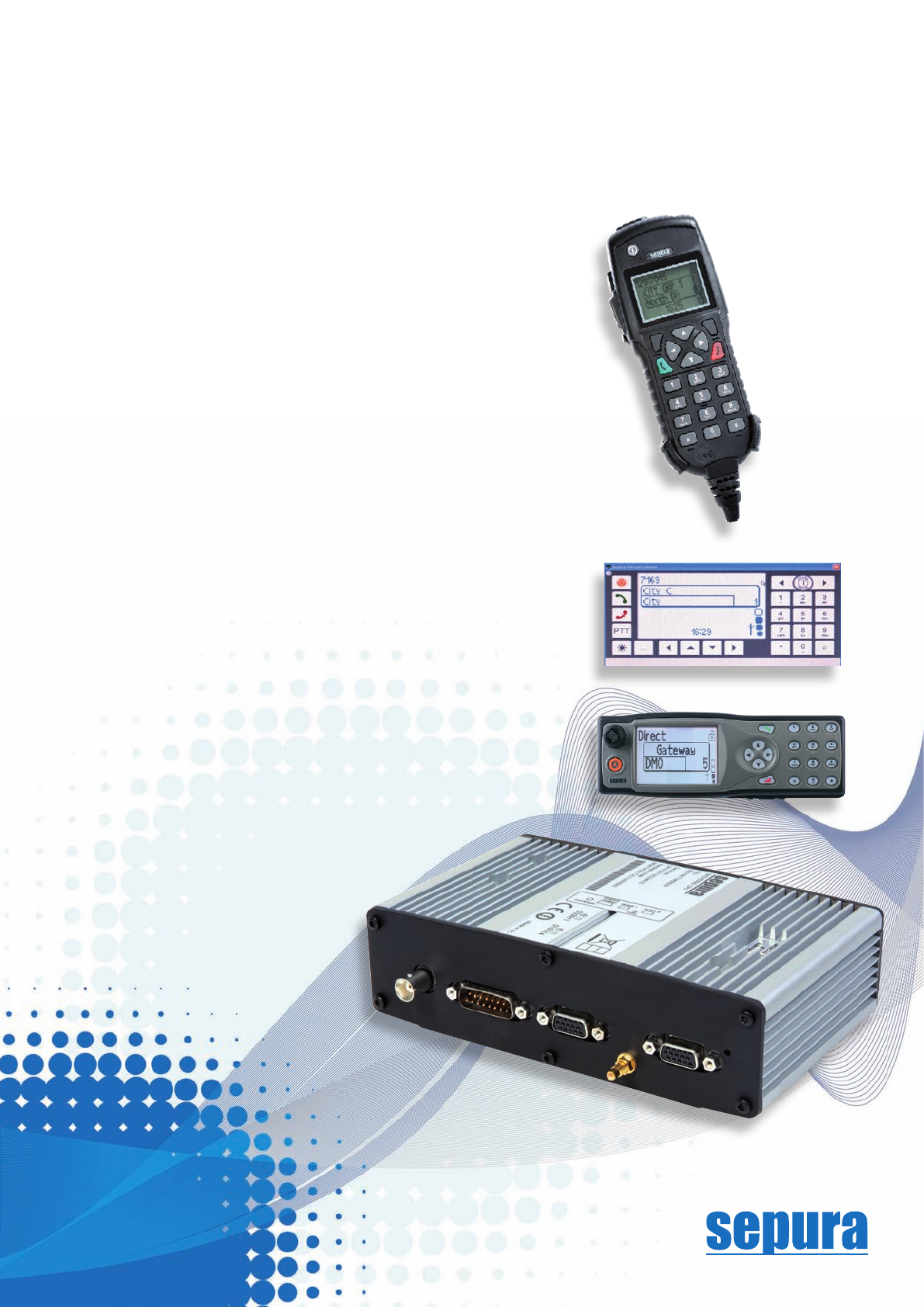

• Flexible conguration, installation and audio options allow
a solution to be tailored for all applications. The SRG3500
can be deployed as:
- Transceiver only – for remote SCADA and telemetry
operation.
- Single Console – for vehicle, motorcycle, marine, desk
and rack based solutions.
- Dual console – for larger vehicles such as ambulance,
fire and rail installations, which require multiple control
points, each mounted up to 10m away from the
transceiver.
- Virtual Console – a software application allowing
control of the radio from a Windows based computer.
- Handset Based Console – offers a GSM style handset
solution where installation space is limited.
- Full and semi-covert installation.
- Applications Interface Unit – allows 3rd party control of
the transceiver and user interface.
- Suitcase and Rucksack Transportable variants plus an
Air approved product for helicopter and fixed wing
installations.
• Optional GPS module, integral within the transceiver, with
selectable support for NEMA, Sepura Compact or ETSI LIP
messaging.
• Comprehensive Over the Air control using Sepura Status
Triggered Functions.
• Multi-lingual user interface: Eastern and Western European
languages plus Cyrillic, Chinese and Korean and Arabic.
• Fully congurable emergency call behaviour including
live microphone, status messaging and location reporting
options.
•The SRG3500 has been built to address security by
including tamper protected security processors and a
smart card connector in all models. E2E Encryption can be
implemented in the field by a software upgrade minimising
any operational disruption.
Intelligent Operation
• Dual data ports, as standard, enable support for two data
applications.
• Multiple I/O lines available – activated locally or via Status
Triggered operation.
• Congurable audio presentation options allows:
- Fixed Level Line-out audio for use with PA Broadcast or
local voice Recorder2.
- Line-in Audio to support a 3rd party console interface2.
- Independent volume control of the loudspeaker and
an audio accessory2.
• Macro keys allow a sequence of functions to be combined
and activated by a single Soft key action.
• Short Data Applications that allow system integrators to
create and run complex form driven programmes that can
interact with back ofce systems via SDS messaging.
• Performance Monitoring, whereby the radio can be
remotely interrogated for a report on the signal level,
location, neighbour cells, and data latency of a TETRA
network allowing an organisation to monitor the Quality of
Service (QoS) provided.
• When operating in Gateway mode the SRG3500 will
translate any received GPS message so that the DMO
originators identity is maintained.
Extending operational reach
1 – Further information available on request
2 – Available only on 380-430 MHz SRG3500 mobile radios
3 – Functionality is subject to an export licence
Sepura’s policy is to continually improve its products and services. The features and facilities described in this
document were correct at publication, but are subject to change without notice.
SCR007 SRG3500 DTS - ENGLISH - MAY09
© SEPURA PLC
For more information visit www.sepura.com
SRG3500 SPECIFICATIONS
All specifications are relative to +25°C unless otherwise stated.
SIZE AND WEIGHT
• Transceiver 980g
- 180mm W x 54mm L x 110mm D
• Standard Console 200g
- 187mm W x 64mm L x 30mm D
• Handset Based Console 225g
- 69mm W x 162mm L x 28mm D
FREQUENCY BANDS
• 350 - 372MHz
• 380 - 430MHz
• 440 - 473MHz1
• 806/825 paired with 851/870MHz
POWER
• 10 watt RF Power output (Class 2)
• RF power adjustable in steps of 5dB, independently
adjustable for TMO and DMO operations.
• Adaptive Power Control supported
POWER SUPPLY
• 10.8 to 15.6V DC, typical 13.8V DC
ENVIRONMENTAL
• Dust & Water protection to IEC529 IP54
• ETS 300 019 -2-5 drop, vibration and humidity
• Storage Temp -40°C to +85°C
• Operating Temp -30°C to +70°C
GPS RECEIVER - OPTIONAL
• 12 channel GPS receiver
• - 163 dBW acquisition sensitivity
• ETSI Location Information Protocol (LIP)
Sepura Compact and NMEA protocol support
• Position Assist
• Over the Air GPS management
• Location reporting to two TETRA identities
• Position & Direction Display1
SECURITY
• Authentication – Mutual and SwMI initiated
• TMO and DMO Air Interface Encryption
support - TEA1, TEA2, TEA3 and TEA41
• Trunked Mode Security Class 1, 2 and 3
• Direct Mode DM-2C support
• PIN and PUK Entry
• Software Authenticity and protection
employing Digital Signature
• Temporary Enable and Disable
• Fully Integrated E2E hardware with tamper
protection
• Public & Private Algorithm E2E support
enabled via software upgrade3
• Integral SIM connector for Smart Card based
E2EE options
CONSOLE
• 128 x 64 pixels LCD display with coloured
backlights to indicate radio state
• Up to 6 lines of 24 characters displayed
• Dual remote console support, each up to 10
metres from the Transceiver.
• Virtual and Handset Based Console (HBC)
options available1.
GATEWAY SERVICES
(option enabled by a feature license code).
• Group voice call between DMO and TMO
• Individual voice calls between DMO and TMO
• Emergency group call from DMO to TMO
• Emergency group call from TMO to DMO
• Pre-emption (in either direction) of existing call
• SDS messaging in either direction1
• Congurable routing of SDS messages to
Console or PEI
• Intelligent handling of point to point calls and
SDS messages whilst operating as a Gateway
REPEATER SERVICES
(option enabled by a feature license code).
• Repeats DMO voice and tone signalling on
selected talk group
• Repeats SDS and Status messaging on
selected talk group
• ETSI Type 1A DMO Repeater for channel
efficient operation
• Priority Call
• Emergency Call (Pre-emptive Priority Call)
• Supports E2E Encrypted DMO trafc
• Call participation whilst in Repeater mode
AUDIO
• Rated Audio Output - 8 W @ 1kHz into 4 Ohms
• Fixed Level Line-out audio option enabling
Broadcast and Recording support.2
• Line-in Audio for 3rd party console interface support 2
• Independent Volume Control of Loudspeaker
and Audio Accessory2
VOICE SERVICES
• Full Duplex Calls (to MS and PABX/PSTN)
• Half Duplex Calls (Individual and Group)
• Late Entry
• Priority Call
• Emergency Call (Pre-emptive Priority Call)
• Emergency Call preference
• Talking Party Identity
• Calling Line Identity Presentation
• DTMF Dialling
• Ambience Listening
• Privacy Mode
• Whisper Mode
• Group Focus
DATA SERVICES
• Status Messaging
• Short Data Service Messaging
• SDS via DMO Gateway
• Circuit Switched Data Calls
• Multi Slot Packet Data
• Text Message Data Store
• Short Data Applications (SDA)
• Wireless Application Protocol (WAP)
• SDS Store & Forward
OTHER FUNCTIONS AND FEATURES
• Support for up to 3000 pre-programmed
Talkgroups and in any combination of TMO
or DMO talk groups
• Up to 50 Dynamic Group Number Assignment
(DGNA) and supporting Lifetime Timers
• Efcient management of talk-groups using,
up to 255 Folders with up to 75 talk-groups
per Folder
• Talk-group Folder Management via PEI
and SDS
• Fixed and User Dened Talk-group Scan Lists
• Priority Group Scanning with support for
Background groups
• Fast Talk-group Access supports up to 5 TMO
and 5 DMO groups
• Query selected Talk-group
• Telephone and Radio user Address Book
(2000 entries) across 64 Folders
• Call History with Missed Call alerts
• Transmit Inhibit (TXI) with On/Off Status messaging
• DMO Group and Emergency Calls
• DMO Gateway Interoperability supported
• ETSI compliant PEI port. AT-command
interface for external applications
• User Proles including Pager capability
• Remote control via Status triggered functions
• Status triggered functions (up to 64
congurable actions driven by remote user)
• Macro keys – operation of a single key will
perform a sequence of complex functions
• Network performance monitoring

Navigation menu
