&OLHQW4XDOLW\RI6HUYLFH
Class Map
Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE 141

REVIEW DRAFT Version 2—CISCO CONFIDENTIAL
-6HOHFWIURP/LVW—Matches the Ethertype in the datagram header with
the selected protocol types: appletalk, arp, ipv4, ipv6, ipx, netbios,
pppoe.
-0DWFKWR9DOXH—Matches the Ethertype in the datagram header with a
custom protocol identifier that you specify. The value can be a four-digit
hexadecimal number in the range of 0600–FFFF.
•&ODVVRI6HUYLFH—A class of service 802.1p user priority value to be
matched for the packets. The valid range is 0–7.
•6RXUFH0$&$GGUHVV—A source MAC address to compare against an
Ethernet frame.
•6RXUFH0$&0DVN—The source MAC address mask specifying which bits
in the destination MAC to compare against an Ethernet frame.
An f indicates that the address bit is significant, and a 0 indicates that the
address bit is to be ignored. A MAC mask of ff:ff:ff:ff:ff:ff matches a single
MAC address.
•'HVWLQDWLRQ0$&$GGUHVV—The destination MAC address to compare
against an Ethernet frame.
•'HVWLQDWLRQ0$&0DVN—The destination MAC address mask specifying
which bits in the destination MAC to compare against an Ethernet frame.
An f indicates that the address bit is significant, and a 0 indicates that the
address bit is to be ignored. A MAC mask of ff:ff:ff:ff:ff:ff matches a single
MAC address.
•9/$1,'—A VLAN ID to be matched for packets. The VLAN ID range is
0–4095.
The following Service Type fields display for IPv4 only. You can specify one
type of service to use in matching packets to class criteria.
•,3'6&3—A differentiated services code point (DSCP) value to use as a
match criteria:
-6HOHFWIURP/LVW—A list of DSCP types.
-0DWFKWR9DOXH—A DSCP value that you specify, from 0–63.
•,33UHFHGHQFH (IPv4 only)—Matches the packet's IP Precedence value to
the class criteria IP Precedence value. The IP Precedence range is 0–7.
•,3726%LWV (IPv4 only)—Uses the packet's Type of Service bits in the IP
header as match criteria.
&OLHQW4XDOLW\RI6HUYLFH
Policy Map
Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE 142

REVIEW DRAFT Version 2—CISCO CONFIDENTIAL
The TOS bit value ranges between (00–FF). The high-order three bits
represent the IP precedence value. The high-order six bits represent the IP
Differentiated Services Code Point (DSCP) value.
67(3  Click 6DYH. The changes are saved to the Running Configuration and to the Startup
Configuration.
127(To delete a class map, select it in the &ODVV0DS1DPH list and click 'HOHWH.
The class map cannot be deleted if it is already attached to a policy.
3ROLF\0DS
Packets are classified and processed based on defined criteria. The classification
criteria is defined by a class on the Class Map page. The processing is defined by
a policy's attributes on the Policy Map page. Policy attributes may be defined on a
per-class instance basis and determine how traffic that matches the class criteria
is handled.
The AP supports up to 50 Policy Maps. A Policy Map can contain up to 10 Class
Maps.
To add and configure a policy map:
67(3  Click &OLHQW4R6 > 3ROLF\0DSin the navigation window.
67(3  Enter a 3ROLF\0DS1DPH and click $GG3ROLF\0DS.
The page redisplays with additional fields for configuring the policy map.
67(3  In the Policy Class Definition area, ensure the newly created policy map displays in
the 3ROLF\0DS1DPH list.
67(3  In the &ODVV0DS1DPH list, select the class map that this policy will apply to.
67(3  Configure the parameters:
•3ROLFH6LPSOH—Establishes the traffic policing style for the class. The
simple form of the policing style uses a single data rate and burst size,
resulting in two outcomes: conform and nonconform. If you select this field,
configure one of the following fields:
-&RPPLWWHG5DWH—The committed rate, in Kbps, to which traffic must
conform. The range is 1-4294967295 Kbps.
&OLHQW4XDOLW\RI6HUYLFH
Policy Map
Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE 143

REVIEW DRAFT Version 2—CISCO CONFIDENTIAL
-&RPPLWWHG%XUVW—The committed burst size, in bytes, to which traffic
must conform. The range is 1-64000 bytes.
•6HQG—Specifies that all packets for the associated traffic stream are to be
forwarded if the class map criteria is met.
•'URS—Specifies that all packets for the associated traffic stream are to be
dropped if the class map criteria is met.
•0DUN&ODVVRI6HUYLFH—Marks all packets for the associated traffic stream
with the specified class of service value in the priority field of the 802.1p
header. If the packet does not already contain this header, one is inserted.
The CoS value is an integer from 0 – 7.
•0DUN,3'6&3—Marks all packets for the associated traffic stream with the
IP DSCP value you select from the list or specify.
-6HOHFWIURP/LVW—A list of DSCP types.
-0DWFKWR9DOXH—A DSCP value that you specify (0 – 63).
•0DUN,33UHFHGHQFH—Marks all packets for the associated traffic stream
with the specified IP precedence value. The IP precedence value is an
integer from 0–7.
•'LVDVVRFLDWH&ODVV0DS—Removes the class selected in the Class Map
Name list from the policy selected in the Policy Map Name list.
•0HPEHU&ODVVHV—Lists all DiffServ classes currently defined as members
of the selected policy. If no class is associated with the policy, the field is
empty.
67(3  Click 6DYH. The changes are saved to the Running Configuration and to the Startup
Configuration.
127(To delete a policy map, select it in the 3ROLF\0DS1DPH list and click
'HOHWH.
&OLHQW4XDOLW\RI6HUYLFH
Client QoS Association
Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE 144

REVIEW DRAFT Version 2—CISCO CONFIDENTIAL
&OLHQW4R6$VVRFLDWLRQ
The Client QoS Association page provides additional control over certain QoS
aspects of wireless clients that connect to the network, such as the amount of
bandwidth an individual client is allowed to send and receive. To control general
categories of traffic, such as HTTP traffic or traffic from a specific subnet, you can
configure ACLs and assign them to one or more VAPs.
In addition to controlling general traffic categories, Client QoS allows you to
configure per-client conditioning of various micro-flows through Differentiated
Services (DiffServ). DiffServ policies are a useful tool for establishing general
micro-flow definition and treatment characteristics that can be applied to each
wireless client, both inbound and outbound, when it is authenticated on the
network.
To configure client QoS association parameters:
67(3  Click &OLHQW4R6>&OLHQW4R6$VVRFLDWLRQin the navigation window.
67(3  Select (QDEOH for the &OLHQW4R6*OREDO$GPLQ0RGH to globally enables this
feature.
67(3  From the VAP list, select the VAP on which you want to configure client QoS
parameters.
67(3  Configure the following parameters for the selected VAP:
•&OLHQW4R60RGH—Select (QDEOH to enable client QoS functionality on the
selected VAP.
•%DQGZLGWK/LPLW'RZQ—The maximum allowed transmission rate from the
AP to the client in bits per second (bps). The valid range is 0–4294967295
bps.
•%DQGZLGWK/LPLW8S—The maximum allowed transmission rate from the
client to the AP in bits per second (bps). The valid range is 0–4294967295
bps.
•$&/7\SH'RZQ—The type of ACL to apply to traffic in the outbound (AP-
to-client) direction, which can be one of the following:
-IPv4—The ACL examines IPv4 packets for matches to ACL rules.
-IPv6—The ACL examines IPv6 packets for matches to ACL rules
-MAC—The ACL examines layer 2 frames for matches to ACL rules
&OLHQW4XDOLW\RI6HUYLFH
Client QoS Status
Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE 145

REVIEW DRAFT Version 2—CISCO CONFIDENTIAL
•$&/1DPH'RZQ—The name of the ACL applied to traffic in the outbound
direction.
After switching the packet or frame to the outbound interface, the ACL's
rules are checked for a match. The packet or frame is transmitted if it is
permitted and discarded if it is denied.
•$&/7\SH8S—The type of ACL that is applied to traffic in the inbound
(client-to-AP) direction, which can be one of the following:
-IPv4—The ACL examines IPv4 packets for matches to ACL rules.
-IPv6—The ACL examines IPv6 packets for matches to ACL rules.
-MAC—The ACL examines layer 2 frames for matches to ACL rules.
•$&/1DPH8S—The name of the ACL applied to traffic entering the AP in
the inbound direction.
When a packet or frame is received by the AP, the ACL's rules are checked
for a match. The packet or frame is processed if it is permitted and discarded
if it is denied.
•'LII6HUY3ROLF\'RZQ—The name of the DiffServ policy applied to traffic
from the AP in the outbound (AP-to-client) direction.
•'LII6HUY3ROLF\8S—The name of the DiffServ policy applied to traffic sent
to the AP in the inbound (client-to-AP) direction.
67(3  Click 6DYH. The changes are saved to the Running Configuration and to the Startup
Configuration.
&OLHQW4R66WDWXV
The Client QoS Status page shows the client QoS settings that are applied to
each client currently associated with the AP.
To display this page, click &OLHQW4R6>&OLHQW4R66WDWXVin the navigation
window.
The following fields display:
&OLHQW4XDOLW\RI6HUYLFH
Client QoS Status
Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE 146

REVIEW DRAFT Version 2—CISCO CONFIDENTIAL
•6WDWLRQ—The Station menu contains the MAC address of each client
currently associated with the AP. To view the QoS settings applied to a
client, select its MAC address from the list.
•*OREDO4R60RGH—Whether QoS is enabled globally on the AP. This status
is configured on the Client QoS Association page.
•&OLHQW4R60RGH—Whether QoS is enabled on the VAP that this client is
associated with. This status is configured on the Client QoS Association
page.
•%DQGZLGWK/LPLW'RZQ—The maximum allowed transmission rate from the
AP to the client in bits per second (bps). The valid range is 0 – 4294967295
bps.
•%DQGZLGWK/LPLW8S—The maximum allowed transmission rate from the
client to the AP in bits per second (bps). The valid range is 0 – 4294967295
bps.
•$&/7\SH8S—The type of ACL that is applied to traffic in the inbound
(client-to-AP) direction, which can be one of the following:
-IPv4: The ACL examines IPv4 packets for matches to ACL rules.
-IPv6: The ACL examines IPv6 packets for matches to ACL rules.
-MAC: The ACL examines layer 2 frames for matches to ACL rules.
•$&/1DPH8S—The name of the ACL applied to traffic entering the AP in
the inbound direction. When a packet or frame is received by the AP, the
ACL's rules are checked for a match. The packet or frame is processed if it
is permitted and discarded if it is denied.
•$&/7\SH'RZQ—The type of ACL to apply to traffic in the outbound (AP-
to-client) direction, which can be one of the following:
-IPv4: The ACL examines IPv4 packets for matches to ACL rules.
-IPv6: The ACL examines IPv6 packets for matches to ACL rules
-MAC: The ACL examines layer 2 frames for matches to ACL rules
•$&/1DPH'RZQ—The name of the ACL applied to traffic in the outbound
direction. After switching the packet or frame to the outbound interface, the
ACL's rules are checked for a match. The packet or frame is transmitted if it
is permitted and discarded if it is denied.
•'LII6HUY3ROLF\8S—The name of the DiffServ policy applied to traffic sent
to the AP in the inbound (client-to-AP) direction.
&OLHQW4XDOLW\RI6HUYLFH
Client QoS Status
Cisco Small Business WAP121 and WAP321 Wireless-N Access Point with PoE 147

REVIEW DRAFT Version 2—CISCO CONFIDENTIAL
•'LII6HUY3ROLF\'RZQ—The name of the DiffServ policy applied to traffic
from the AP in the outbound (AP-to-client) direction.
Americas Headquarters:
© 2009 Cisco Systems, Inc. All rights reserved.
Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA
Regulatory Compliance and Safety
Information for the Cisco Small Business
Wired and Wireless Routers, and Access
Points (EMC Class B Devices)
This document provides domestic and international regulatory compliance and safety information for the
Cisco Small Business Wired and Wireless Routers, and Access Points (EMC Class B Devices).
Use this document in conjunction with the Quick Start Guide that accompanies your product as well as
the other product documentation that is available online.
This document contains the following sections:
•Translated Safety Warnings, page 2
•European Directives, page 22
•Standards Compliance for European Directives, page 25
•EMC Class B Notices and Warnings, page 26
•Japanese Electric Appliance and Radio Laws, page 28
•Radio, page 28
•Product Usage Restrictions, page 29
•Authorized External Antennas and Corresponding Power Levels, page 29
•Generic Discussion on RF Exposure, page 32
•Declarations of Conformity, page 33
2
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Translated Safety Warnings

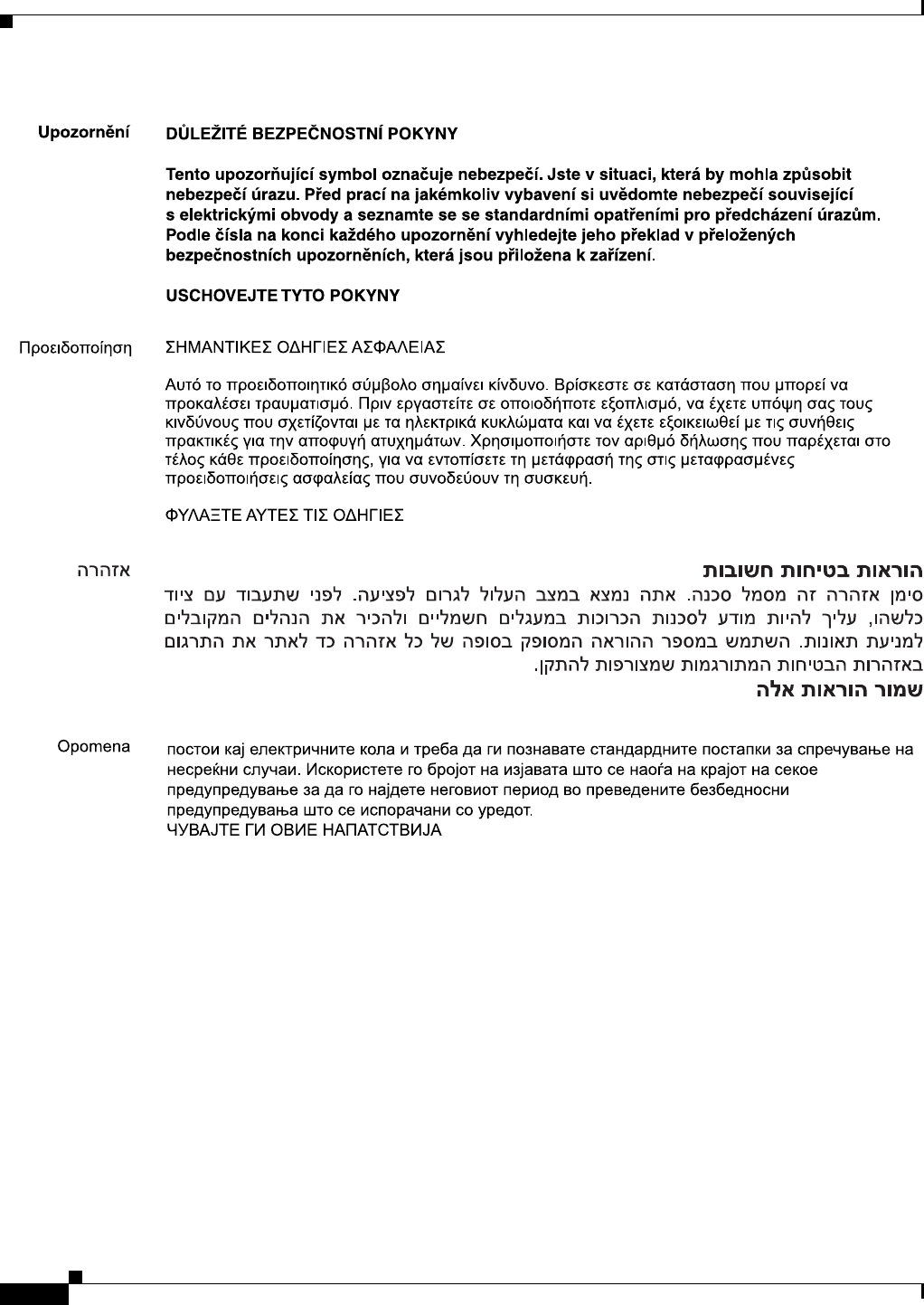

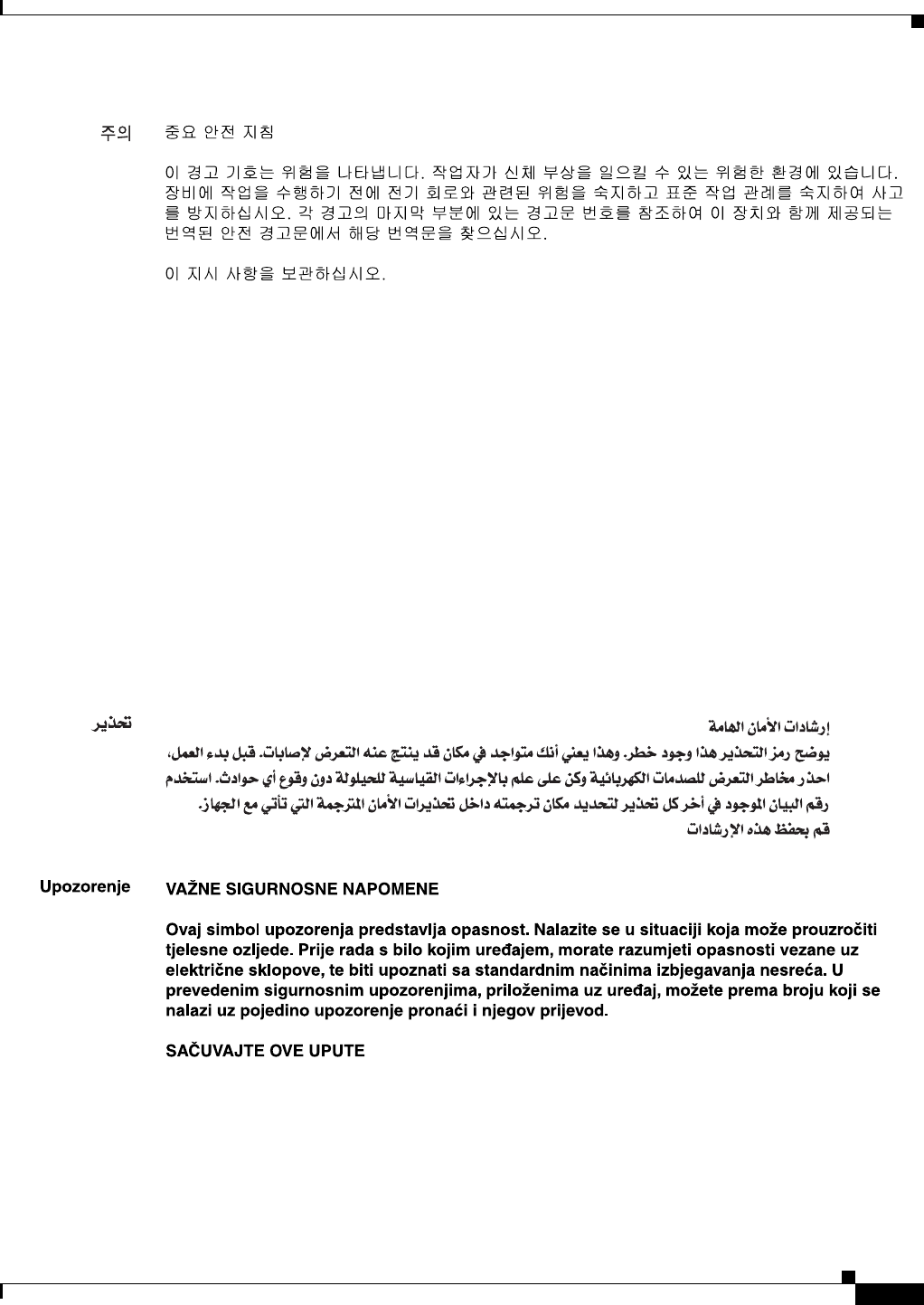

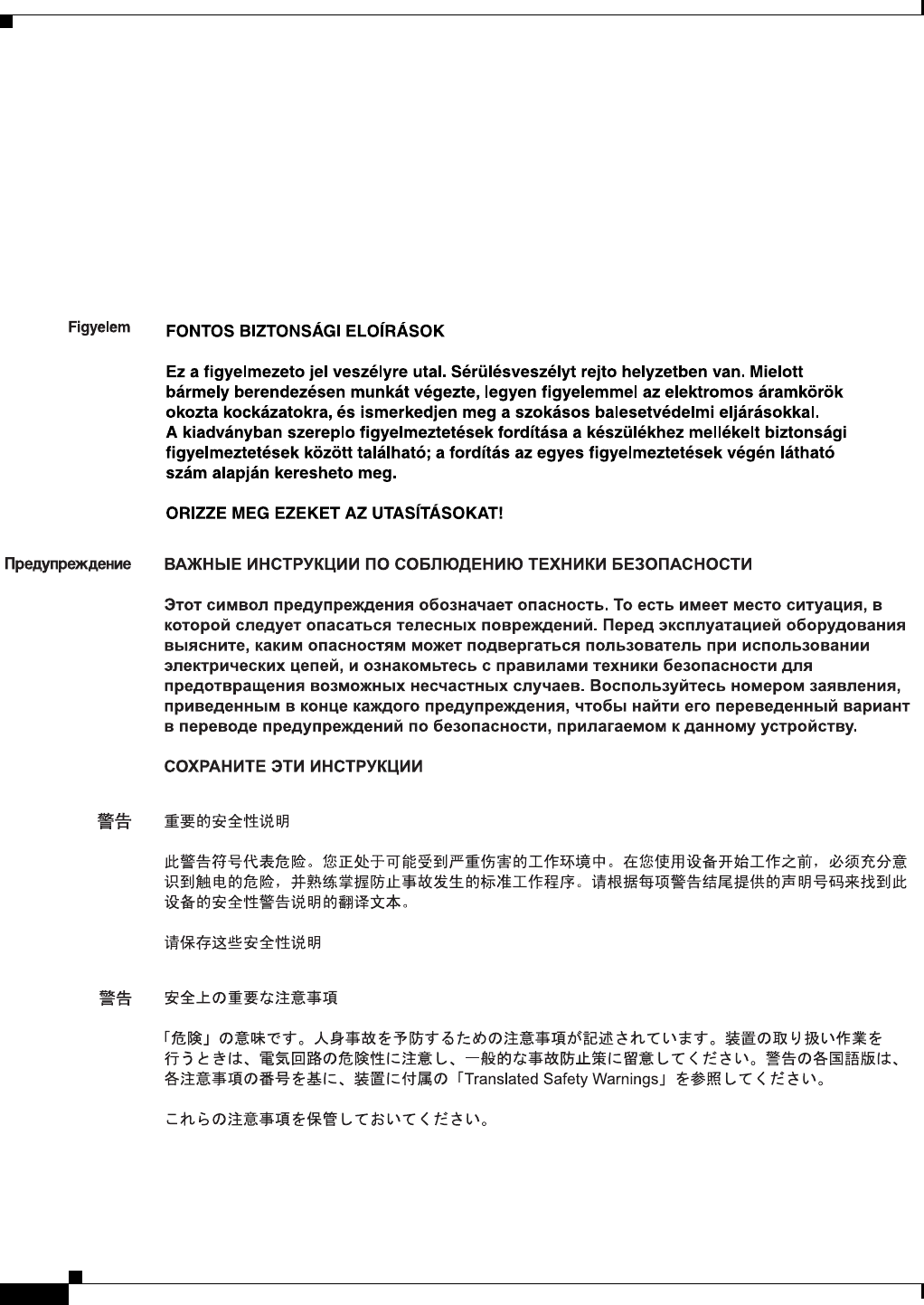

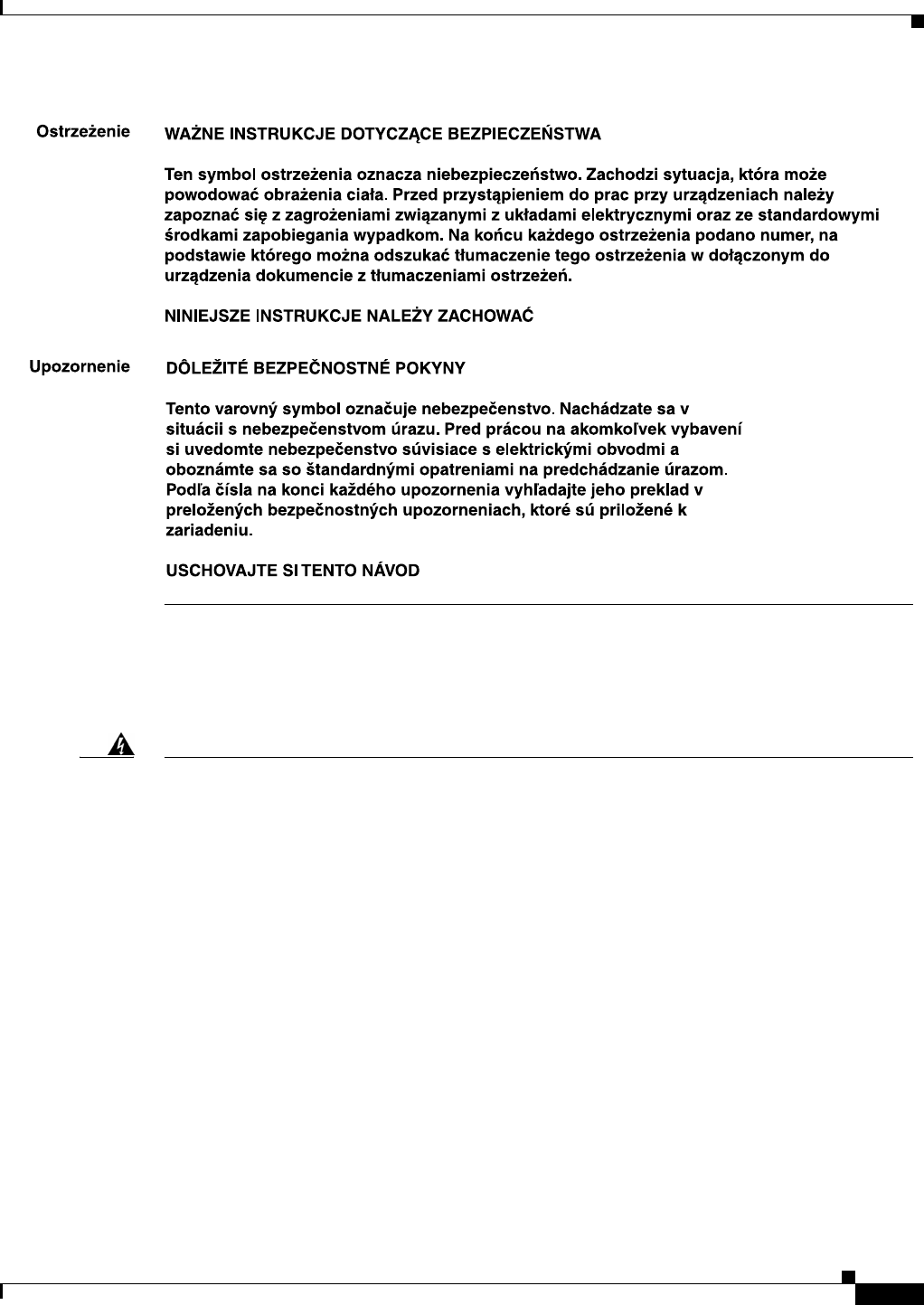

Statement 1071—Warning Definition
Warning
IMPORTANT SAFETY INSTRUCTIONS
This warning symbol means danger. You are in a situation that could cause bodily injury. Before
you work on any equipment, be aware of the hazards involved with electrical circuitry and be
familiar with standard practices for preventing accidents. Use the statement number provided
at the end of each warning to locate its translation in the translated safety warnings that
accompanied this device.
SAVE THESE INSTRUCTIONS
Waarschuwing
BELANGRIJKE VEILIGHEIDSINSTRUCTIES
Dit waarschuwingssymbool betekent gevaar. U verkeert in een situatie die lichamelijk letsel kan
veroorzaken. Voordat u aan enige apparatuur gaat werken, dient u zich bewust te zijn van de
bij elektrische schakelingen betrokken risico's en dient u op de hoogte te zijn van de standaard
praktijken om ongelukken te voorkomen. Gebruik het nummer van de verklaring onderaan de
waarschuwing als u een vertaling van de waarschuwing die bij het apparaat wordt geleverd,
wilt raadplegen.
BEWAAR DEZE INSTRUCTIES
Varoitus
TÄRKEITÄ TURVALLISUUSOHJEITA
Tämä varoitusmerkki merkitsee vaaraa. Tilanne voi aiheuttaa ruumiillisia vammoja. Ennen
kuin käsittelet laitteistoa, huomioi sähköpiirien käsittelemiseen liittyvät riskit ja tutustu
onnettomuuksien yleisiin ehkäisytapoihin. Turvallisuusvaroitusten käännökset löytyvät
laitteen mukana toimitettujen käännettyjen turvallisuusvaroitusten joukosta varoitusten
lopussa näkyvien lausuntonumeroiden avulla.
SÄILYTÄ NÄMÄ OHJEET
Attention
IMPORTANTES INFORMATIONS DE SÉCURITÉ
Ce symbole d'avertissement indique un danger. Vous vous trouvez dans une situation pouvant
entraîner des blessures ou des dommages corporels. Avant de travailler sur un équipement,
soyez conscient des dangers liés aux circuits électriques et familiarisez-vous avec les procédures
couramment utilisées pour éviter les accidents. Pour prendre connaissance des traductions des
avertissements figurant dans les consignes de sécurité traduites qui accompagnent cet appareil,
référez-vous au numéro de l'instruction situé à la fin de chaque avertissement.
CONSERVEZ CES INFORMATIONS
3
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Warnung
WICHTIGE SICHERHEITSHINWEISE
Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen
führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer
Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit
der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen
Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät
ausgeliefert wurden.
BEWAHREN SIE DIESE HINWEISE GUT AUF.
Avvertenza
IMPORTANTI ISTRUZIONI SULLA SICUREZZA
Questo simbolo di avvertenza indica un pericolo. La situazione potrebbe causare infortuni alle
persone. Prima di intervenire su qualsiasi apparecchiatura, occorre essere al corrente dei
pericoli relativi ai circuiti elettrici e conoscere le procedure standard per la prevenzione di
incidenti. Utilizzare il numero di istruzione presente alla fine di ciascuna avvertenza per
individuare le traduzioni delle avvertenze riportate in questo documento.
CONSERVARE QUESTE ISTRUZIONI
Advarsel
VIKTIGE SIKKERHETSINSTRUKSJONER
Dette advarselssymbolet betyr fare. Du er i en situasjon som kan føre til skade på person. Før
du begynner å arbeide med noe av utstyret, må du være oppmerksom på farene forbundet med
elektriske kretser, og kjenne til standardprosedyrer for å forhindre ulykker. Bruk nummeret i
slutten av hver advarsel for å finne oversettelsen i de oversatte sikkerhetsadvarslene som fulgte
med denne enheten.
TA VARE PÅ DISSE INSTRUKSJONENE
Aviso
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você está em uma situação que poderá ser causadora de
lesões corporais. Antes de iniciar a utilização de qualquer equipamento, tenha conhecimento
dos perigos envolvidos no manuseio de circuitos elétricos e familiarize-se com as práticas
habituais de prevenção de acidentes. Utilize o número da instrução fornecido ao final de cada
aviso para localizar sua tradução nos avisos de segurança traduzidos que acompanham este
dispositivo.
GUARDE ESTAS INSTRUÇÕES
¡Advertencia!
INSTRUCCIONES IMPORTANTES DE SEGURIDAD
Este símbolo de aviso indica peligro. Existe riesgo para su integridad física. Antes de manipular
cualquier equipo, considere los riesgos de la corriente eléctrica y familiarícese con los
procedimientos estándar de prevención de accidentes. Al final de cada advertencia encontrará
el número que le ayudará a encontrar el texto traducido en el apartado de traducciones que
acompaña a este dispositivo.
GUARDE ESTAS INSTRUCCIONES
4
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Varning!
VIKTIGA SÄKERHETSANVISNINGAR
Denna varningssignal signalerar fara. Du befinner dig i en situation som kan leda till
personskada. Innan du utför arbete på någon utrustning måste du vara medveten om farorna
med elkretsar och känna till vanliga förfaranden för att förebygga olyckor. Använd det nummer
som finns i slutet av varje varning för att hitta dess översättning i de översatta
säkerhetsvarningar som medföljer denna anordning.
SPARA DESSA ANVISNINGAR
5
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Aviso
INSTRUÇÕES IMPORTANTES DE SEGURANÇA
Este símbolo de aviso significa perigo. Você se encontra em uma situação em que há risco de
lesões corporais. Antes de trabalhar com qualquer equipamento, esteja ciente dos riscos que
envolvem os circuitos elétricos e familiarize-se com as práticas padrão de prevenção de
acidentes. Use o número da declaração fornecido ao final de cada aviso para localizar sua
tradução nos avisos de segurança traduzidos que acompanham o dispositivo.
GUARDE ESTAS INSTRUÇÕES
Advarsel
VIGTIGE SIKKERHEDSANVISNINGER
Dette advarselssymbol betyder fare. Du befinder dig i en situation med risiko for
legemesbeskadigelse. Før du begynder arbejde på udstyr, skal du være opmærksom på de
involverede risici, der er ved elektriske kredsløb, og du skal sætte dig ind i standardprocedurer
til undgåelse af ulykker. Brug erklæringsnummeret efter hver advarsel for at finde
oversættelsen i de oversatte advarsler, der fulgte med denne enhed.
GEM DISSE ANVISNINGER
6
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
7
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings

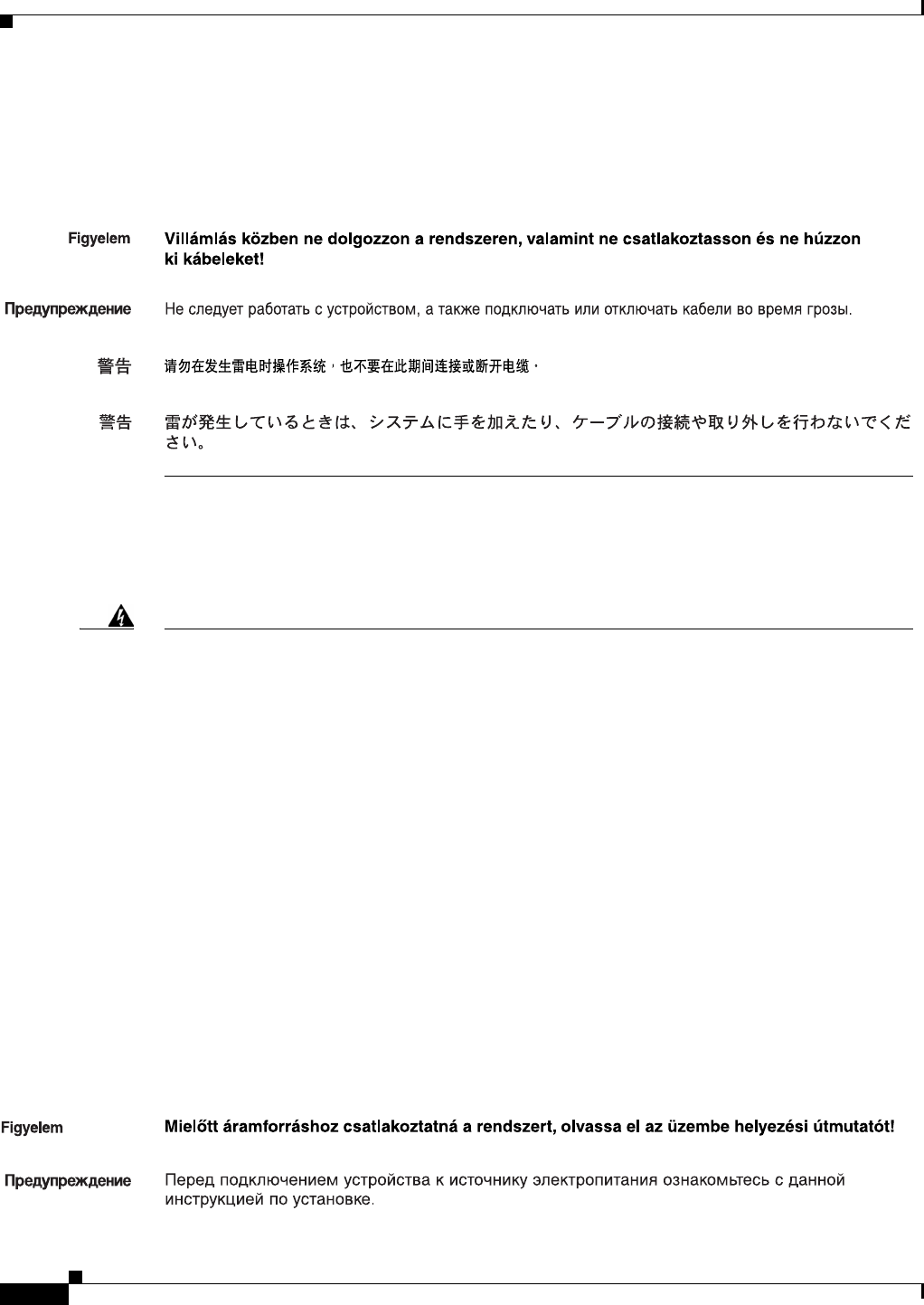

Statement 1001—Work During Lightning Activity
Warning
Do not work on the system or connect or disconnect cables during periods of lightning activity.
Waarschuwing
Tijdens onweer dat gepaard gaat met bliksem, dient u niet aan het systeem te werken of kabels
aan te sluiten of te ontkoppelen.
Varoitus
Älä työskentele järjestelmän parissa äläkä yhdistä tai irrota kaapeleita ukkosilmalla.
Attention
Ne pas travailler sur le système ni brancher ou débrancher les câbles pendant un orage.
Warnung
Arbeiten Sie nicht am System und schließen Sie keine Kabel an bzw. trennen Sie keine ab, wenn
es gewittert.
Avvertenza
Non lavorare sul sistema o collegare oppure scollegare i cavi durante un temporale con fulmini.
Advarsel
Utfør aldri arbeid på systemet, eller koble kabler til eller fra systemet når det tordner eller
lyner.
Aviso
Não trabalhe no sistema ou ligue e desligue cabos durante períodos de mau tempo (trovoada).
8
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Statement 1004—Installation Instructions
¡Advertencia!
No operar el sistema ni conectar o desconectar cables durante el transcurso de descargas
eléctricas en la atmósfera.
Varning!
Vid åska skall du aldrig utföra arbete på systemet eller ansluta eller koppla loss kablar.
Warning
Read the installation instructions before connecting the system to the power source.
Waarschuwing
Raadpleeg de installatie-instructies voordat u het systeem op de voedingsbron aansluit.
Varoitus
Lue asennusohjeet ennen järjestelmän yhdistämistä virtalähteeseen.
Attention
Avant de brancher le système sur la source d'alimentation, consulter les directives
d'installation.
Warnung
Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen.
Avvertenza
Consultare le istruzioni di installazione prima di collegare il sistema all'alimentatore.
Advarsel
Les installasjonsinstruksjonene før systemet kobles til strømkilden.
Aviso
Leia as instruções de instalação antes de ligar o sistema à fonte de energia.
¡Advertencia!
Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.
Varning!
Läs installationsanvisningarna innan du kopplar systemet till strömförsörjningsenheten.
9
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings

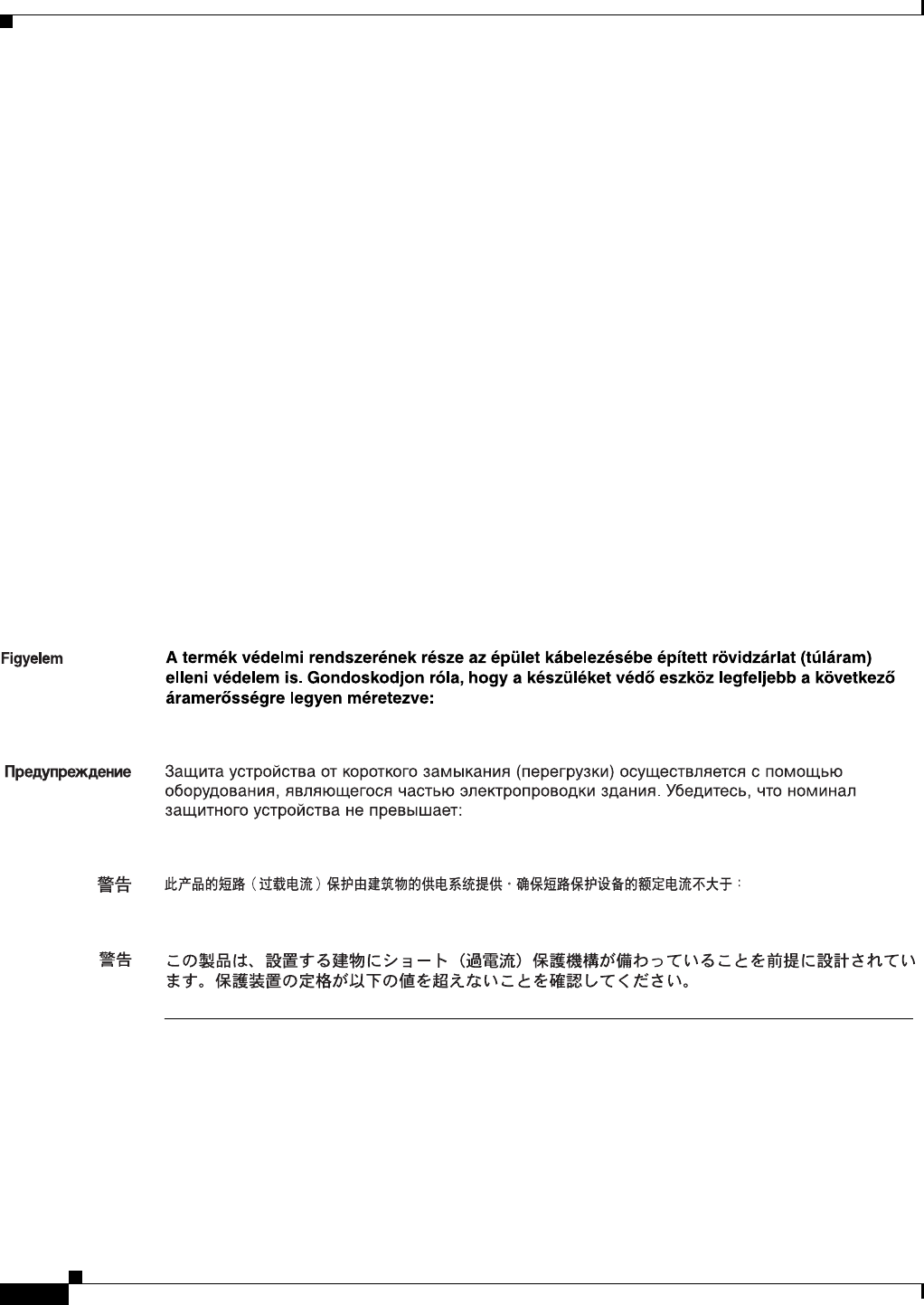

Statement 1005—Circuit Breaker
Warning
This product relies on the building’s installation for short-circuit (overcurrent) protection.
Ensure that the protective device is rated not greater than:
15 A, 125 Vac
, or 10A, 240 Vac.
Waarschuwing
Dit product is afhankelijk van de installatie van het gebouw voor beveiliging tegen kortsluiting
(overstroom). Controleer of de beschermingsinrichting niet meer dan:
15 A, 125 Vac
, or 10A, 240 Vac is.
Varoitus
Tämä tuote on riippuvainen rakennukseen asennetusta oikosulkusuojauksesta
(ylivirtasuojauksesta). Varmista, että suojalaitteen mitoitus ei ole yli:
15 A, 125 Vac
, or 10A, 240 Vac.
Attention
Pour ce qui est de la protection contre les courts-circuits (surtension), ce produit dépend de
l'installation électrique du local. Vérifiez que le courant nominal du dispositif de protection
n'est pas supérieur à :
15 A, 125 Vac
, or 10A, 240 Vac.
10
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Warnung
Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz
installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als:
15 A, 125 Vac
, or 10A, 240 Vac beträgt.
Avvertenza
Questo prodotto dipende dall'impianto dell'edificio per quanto riguarda la protezione contro
cortocircuiti (sovracorrente). Assicurarsi che il dispositivo di protezione non abbia un rating
superiore a:
15 A, 125 Vac
, or 10A, 240 Vac.
Advarsel
Dette produktet er avhengig av bygningens installasjoner av kortslutnings
(overstrøm)-beskyttelse. Påse at verneenheten ikke er merket høyere enn:
15 A, 125 Vac
, or 10A, 240 Vac.
Aviso
Este produto depende das instalações existentes para proteção contra curto-circuito
(sobrecarga). Assegure-se de que o fusível ou disjuntor não seja superior a:
15 A, 125 Vac
, or 10A, 240 Vac.
¡Advertencia!
Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
Asegúrese de que el dispositivo de protección no sea superior a:
15 A, 125 Vac
, or 10A, 240 Vac.
Varning!
Denna produkt är beroende av i byggnaden installerat kortslutningsskydd (överströmsskydd).
Kontrollera att skyddsanordningen inte har högre märkvärde än:
15 A, 125 Vac, or 10A, 240 Vac.
15 A, 125 Vac, or 10A, 240 Vac.
15 A, 125 Vac
, or 10A, 240 Vac.
15 A, 125 Vac, or 10A, 240 Vac.
15 A, 125 Vac
, or 10A, 240 Vac.
11
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings

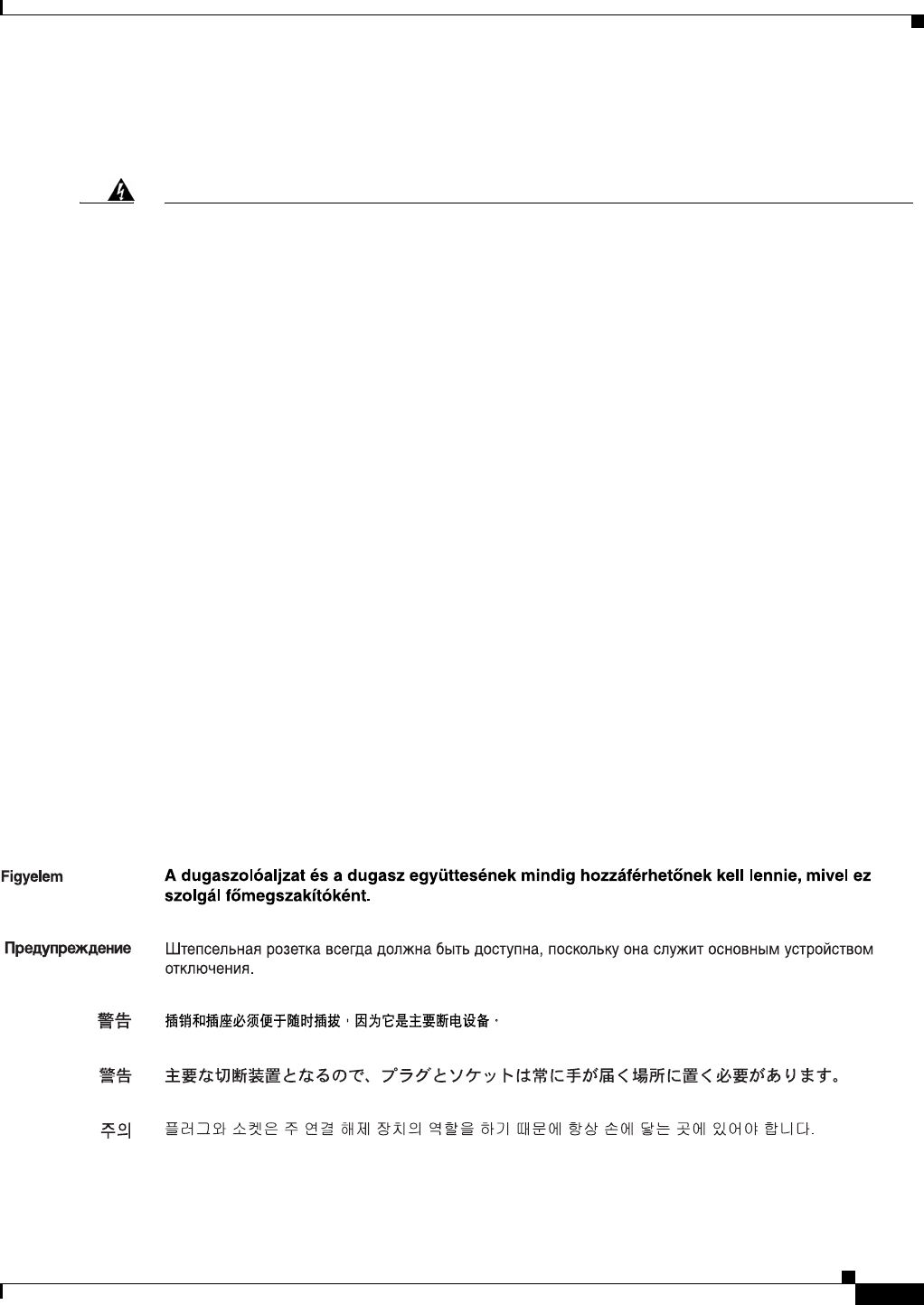

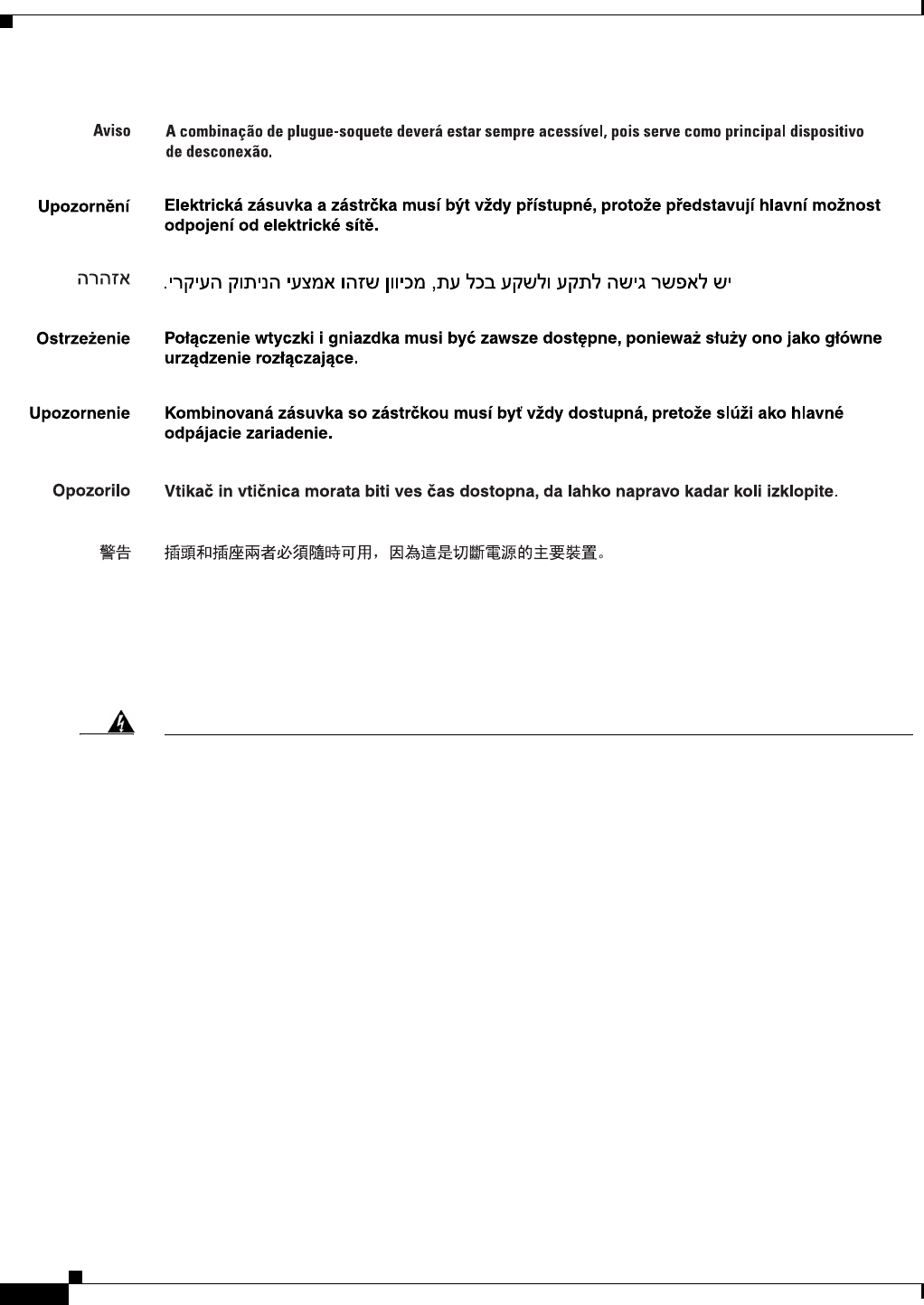

Statement 1019—Main Disconnecting Device
Warning
The plug-socket combination must be accessible at all times, because it serves as the main
disconnecting device.
Waarschuwing
De combinatie van de stekker en het elektrisch contactpunt moet te allen tijde toegankelijk zijn
omdat deze het hoofdmechanisme vormt voor verbreking van de aansluiting.
Varoitus
Pistoke/liitinkohta toimii pääkatkaisumekanismina. Pääsy siihen on pidettävä aina
esteettömänä.
Attention
La combinaison de prise de courant doit être accessible à tout moment parce qu'elle fait office
de système principal de déconnexion.
Warnung
Der Netzkabelanschluß am Gerät muß jederzeit zugänglich sein, weil er als primäre
Ausschaltvorrichtung dient.
Avvertenza
Il gruppo spina-presa deve essere sempre accessibile, poiché viene utilizzato come dispositivo di
scollegamento principale.
Advarsel
Kombinasjonen støpsel/uttak må alltid være tilgjengelig ettersom den fungerer som
hovedfrakoplingsenhet.
Aviso
A combinação ficha-tomada deverá ser sempre acessível, porque funciona como interruptor
principal.
¡Advertencia!
El conjunto de clavija y toma ha de encontrarse siempre accesible ya que hace las veces de
dispositivo de desconexión principal.
Varning!
Man måste alltid kunna komma åt stickproppen i uttaget, eftersom denna koppling utgör den
huvudsakliga frånkopplingsanordningen.
12
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings

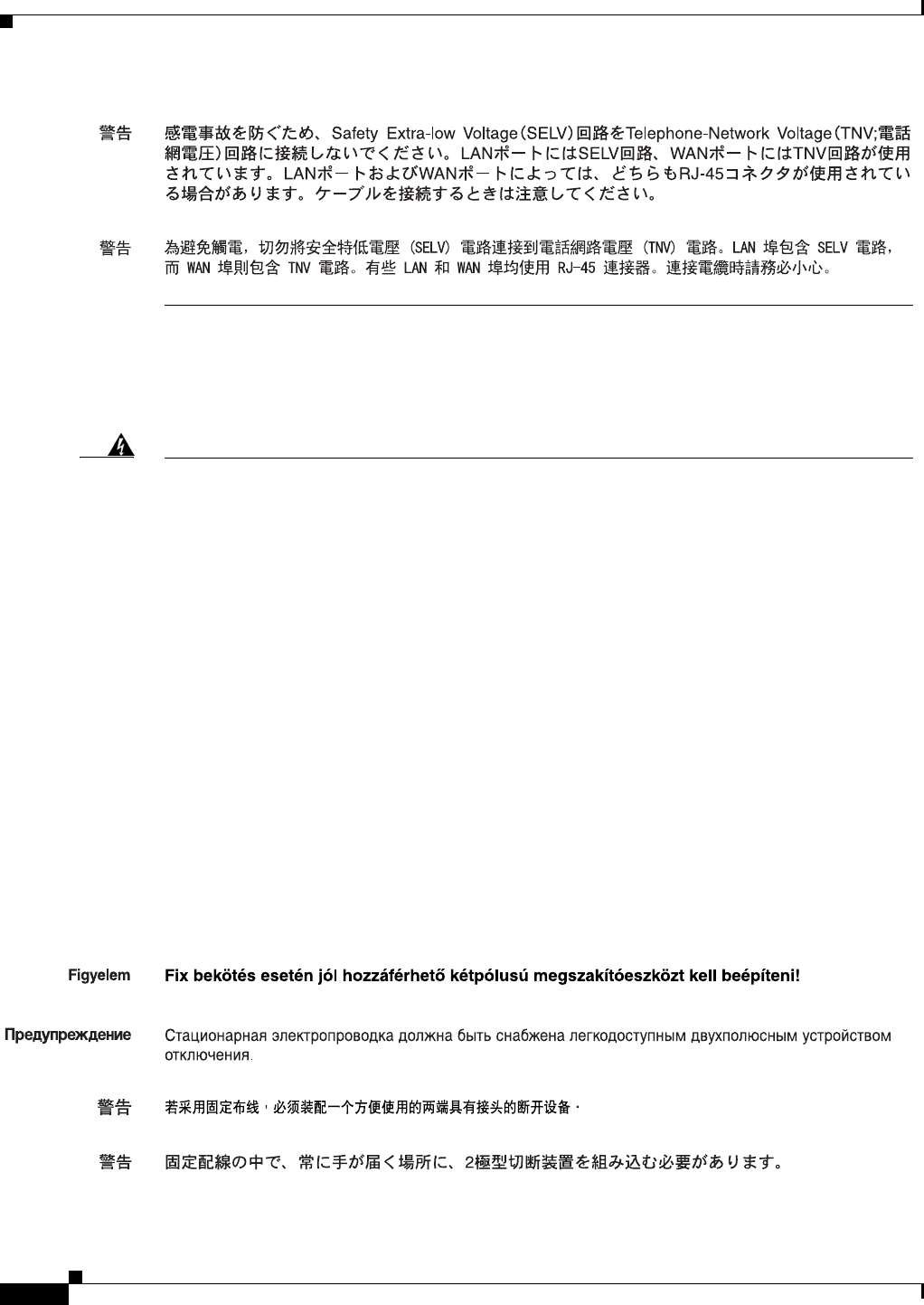

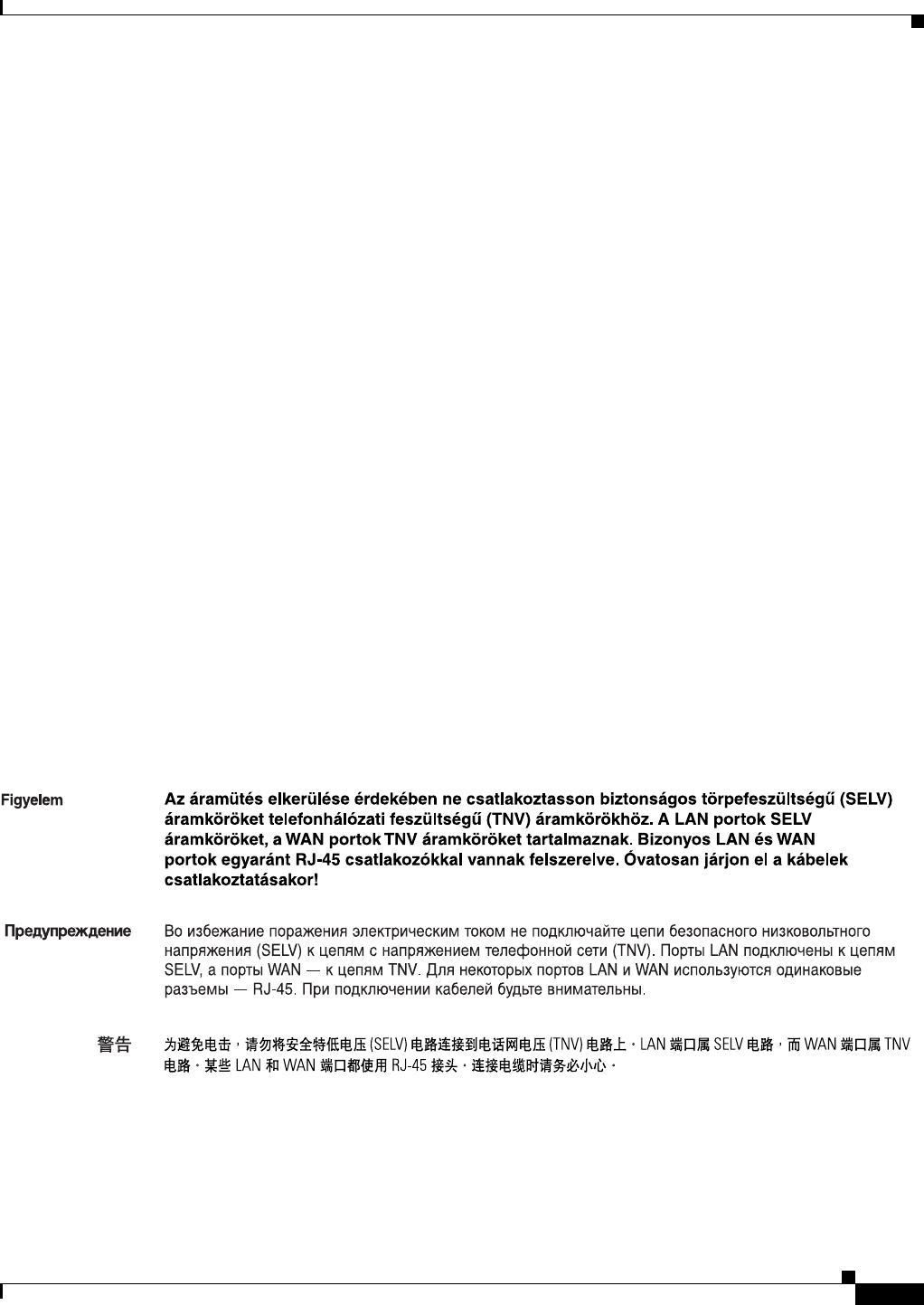

Statement 1021—SELV Circuit
Warning
To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to
telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports
contain TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when
connecting cables.
Waarschuwing
Om elektrische schokken te vermijden, mogen veiligheidscircuits met extra lage spanning
(genaamd SELV = Safety Extra-Low Voltage) niet met telefoonnetwerkspanning (TNV) circuits
verbonden worden. LAN (Lokaal netwerk) poorten bevatten SELV circuits en WAN (Regionaal
netwerk) poorten bevatten TNV circuits. Sommige LAN en WAN poorten gebruiken allebei
RJ-45 connectors. Ga voorzichtig te werk wanneer u kabels verbindt.
Varoitus
Jotta vältyt sähköiskulta, älä kytke pienjännitteisiä SELV-suojapiirejä
puhelinverkkojännitettä (TNV) käyttäviin virtapiireihin. LAN-portit sisältävät SELV-piirejä ja
WAN-portit puhelinverkkojännitettä käyttäviä piirejä. Osa sekä LAN- että WAN-porteista
käyttää RJ-45-liittimiä. Ole varovainen kytkiessäsi kaapeleita.
Attention
Pour éviter une électrocution, ne raccordez pas les circuits de sécurité basse tension (Safety
Extra-Low Voltage ou SELV) à des circuits de tension de réseau téléphonique (Telephone
Network Voltage ou TNV). Les ports du réseau local (LAN) contiennent des circuits SELV et les
ports du réseau longue distance (WAN) sont munis de circuits TNV. Certains ports LAN et WAN
utilisent des connecteurs RJ-45. Raccordez les câbles en prenant toutes les précautions
nécessaires.
13
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Warnung
Zur Vermeidung von Elektroschock die Sicherheits-Kleinspannungs-Stromkreise
(SELV-Kreise) nicht an Fernsprechnetzspannungs-Stromkreise (TNV-Kreise) anschließen.
LAN-Ports enthalten SELV-Kreise, und WAN-Ports enthalten TNV-Kreise. Einige LAN- und
WAN-Ports verwenden auch RJ-45-Steckverbinder. Vorsicht beim Anschließen von Kabeln.
Avvertenza
Per evitare scosse elettriche, non collegare circuiti di sicurezza a tensione molto bassa (SELV)
ai circuiti a tensione di rete telefonica (TNV). Le porte LAN contengono circuiti SELV e le porte
WAN contengono circuiti TNV. Alcune porte LAN e WAN fanno uso di connettori RJ-45. Fare
attenzione quando si collegano cavi.
Advarsel
Unngå å koble lavspenningskretser (SELV) til kretser for telenettspenning (TNV), slik at du
unngår elektrisk støt. LAN-utganger inneholder SELV-kretser og WAN-utganger inneholder
TNV-kretser. Det finnes både LAN-utganger og WAN-utganger som bruker RJ-45-kontakter.
Vær forsiktig når du kobler kabler.
Aviso
Para evitar choques eléctricos, não conecte os circuitos de segurança de baixa tensão (SELV)
aos circuitos de tensão de rede telefónica (TNV). As portas LAN contêm circuitos SELV e as
portas WAN contêm circuitos TNV. Algumas portas LAN e WAN usam conectores RJ-45. Tenha
o devido cuidado ao conectar os cabos.
¡Advertencia!
Para evitar la sacudida eléctrica, no conectar circuitos de seguridad de voltaje muy bajo (safety
extra-low voltage = SELV) con circuitos de voltaje de red telefónica (telephone network voltage
= TNV). Los puertos de redes de área local (local area network = LAN) contienen circuitos
SELV, y los puertos de redes de área extendida (wide area network = WAN) contienen circuitos
TNV. En algunos casos, tanto los puertos LAN como los WAN usan conectores RJ-45. Proceda
con precaución al conectar los cables.
Varning!
För att undvika elektriska stötar, koppla inte säkerhetskretsar med extra låg spänning
(SELV-kretsar) till kretsar med telefonnätspänning (TNV-kretsar). LAN-portar innehåller
SELV-kretsar och WAN-portar innehåller TNV-kretsar. Vissa LAN- och WAN-portar är
försedda med RJ-45-kontakter. Iaktta försiktighet vid anslutning av kablar.
14
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Statement 1022—Disconnect Device
Warning
A readily accessible two-poled disconnect device must be incorporated in the fixed wiring.
Waarschuwing
Er moet een gemakkelijk toegankelijke, tweepolige stroomverbreker opgenomen zijn in de
vaste bedrading.
Varoitus
Kiinteään johdotukseen on liitettävä kaksinapainen kytkinlaite, johon on helppo päästä käsiksi.
Attention
Un disjoncteur bipolaire facile d’accès doit être intégré dans le câblage fixe.
Warnung
Die feste Verdrahtung muß eine leicht zugängliche, zweipolige Trennvorrichtung enthalten.
Avvertenza
Nei cablaggi fissi va incorporato un sezionatore a due poli facilmente accessibile.
Advarsel
En lett tilgjengelig, topolet frakoblingsenhet må være innebygd i det faste ledningsnettet.
Aviso
Deverá incorporar-se um dispositivo de desconexão de dois pólos de acesso fácil, na instalação
eléctrica fixa.
Advertencia
El cableado fijo debe incorporar un dispositivo de desconexión de dos polos y de acceso fácil.
Varning!
En lättillgänglig tvåpolig frånkopplingsenhet måste ingå i den fasta kopplingen.
15
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings

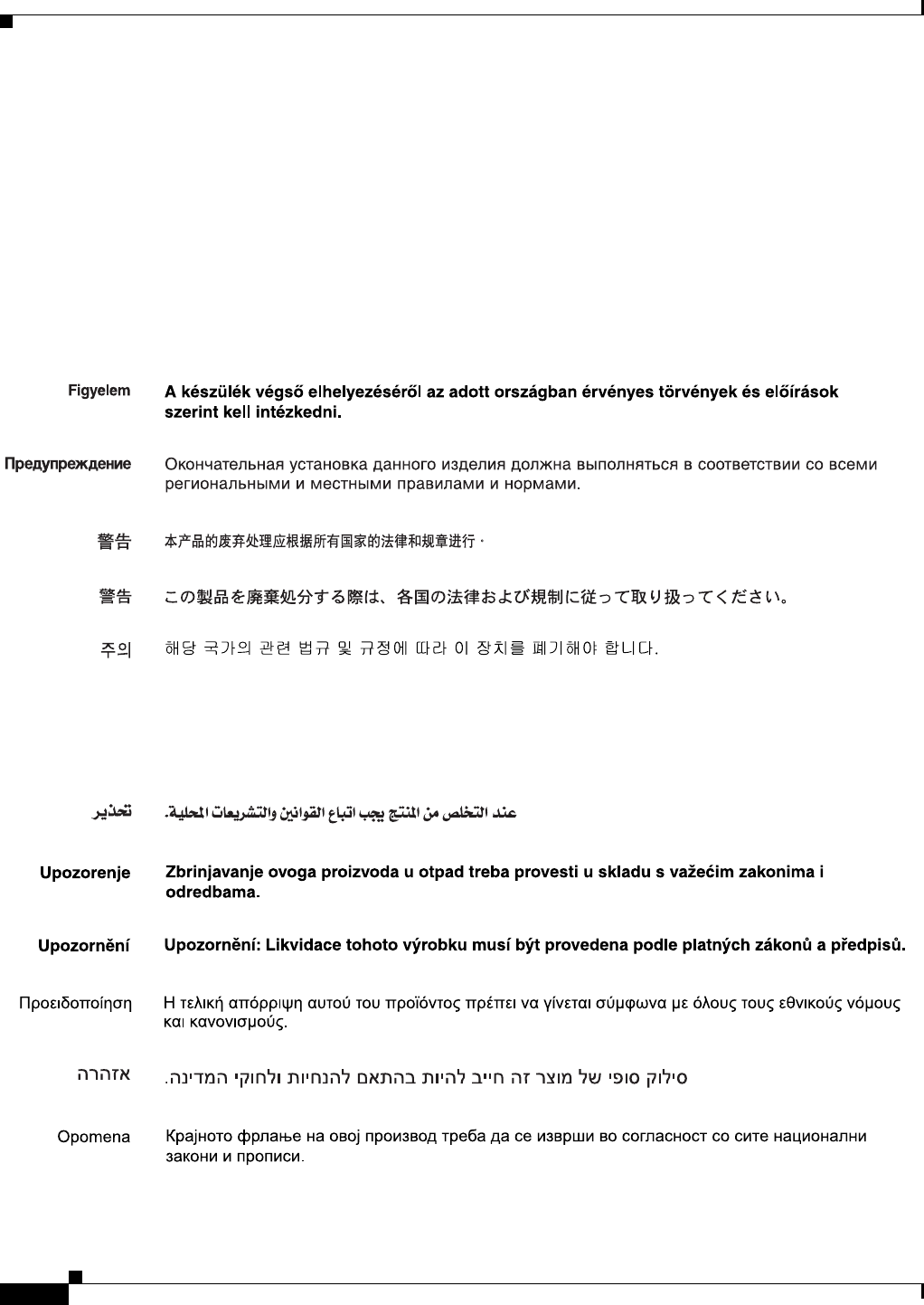

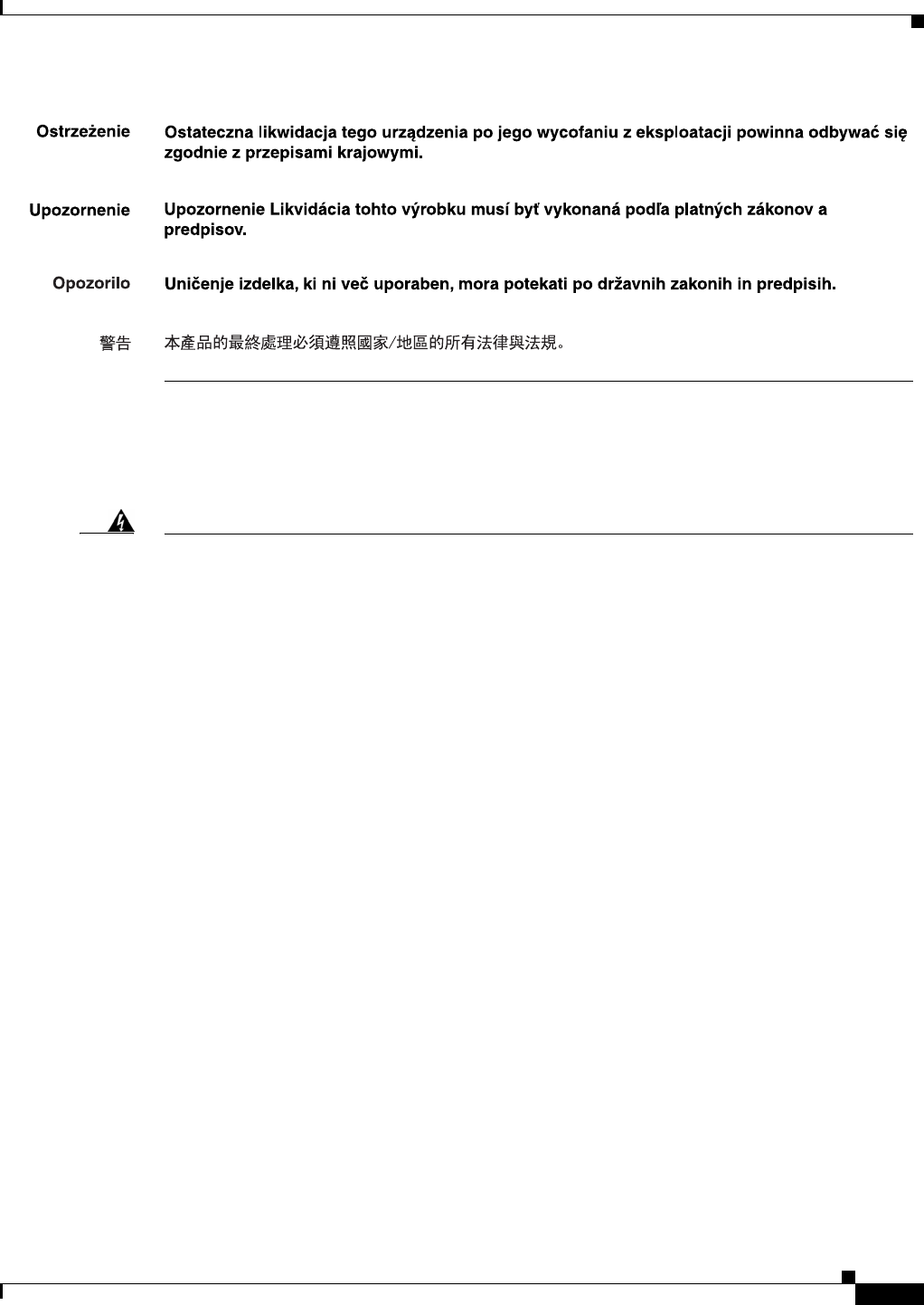

Statement 1040—Product Disposal
Aviso
Um dispositivo de desconexão de dois pólos de fácil acesso deve ser incorporado à fiação fixa.
Advarsel
En to-polet afmonteringsenhed med nem adgang skal integreres i det faste ledningsnet.
Warning
Ultimate disposal of this product should be handled according to all national laws and
regulations.
Waarschuwing
Het uiteindelijke wegruimen van dit product dient te geschieden in overeenstemming met alle
nationale wetten en reglementen.
Varoitus
Tämä tuote on hävitettävä kansallisten lakien ja määräysten mukaisesti.
Attention
La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou
directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
Warnung
Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes
erfolgen.
16
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Avvertenza
Lo smaltimento di questo prodotto deve essere eseguito secondo le leggi e regolazioni locali.
Advarsel
Endelig kassering av dette produktet skal være i henhold til alle relevante nasjonale lover og
bestemmelser.
Aviso
Deitar fora este produto em conformidade com todas as leis e regulamentos nacionais.
¡Advertencia!
Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos
nacionales.
Varning!
Vid deponering hanteras produkten enligt gällande lagar och bestämmelser.
Aviso
O descarte definitivo deste produto deve estar de acordo com todas as leis e regulamentações
nacionais.
Advarsel
Endelig bortskaffelse af dette produkt skal ske i henhold til gældende love og regler.
17
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings

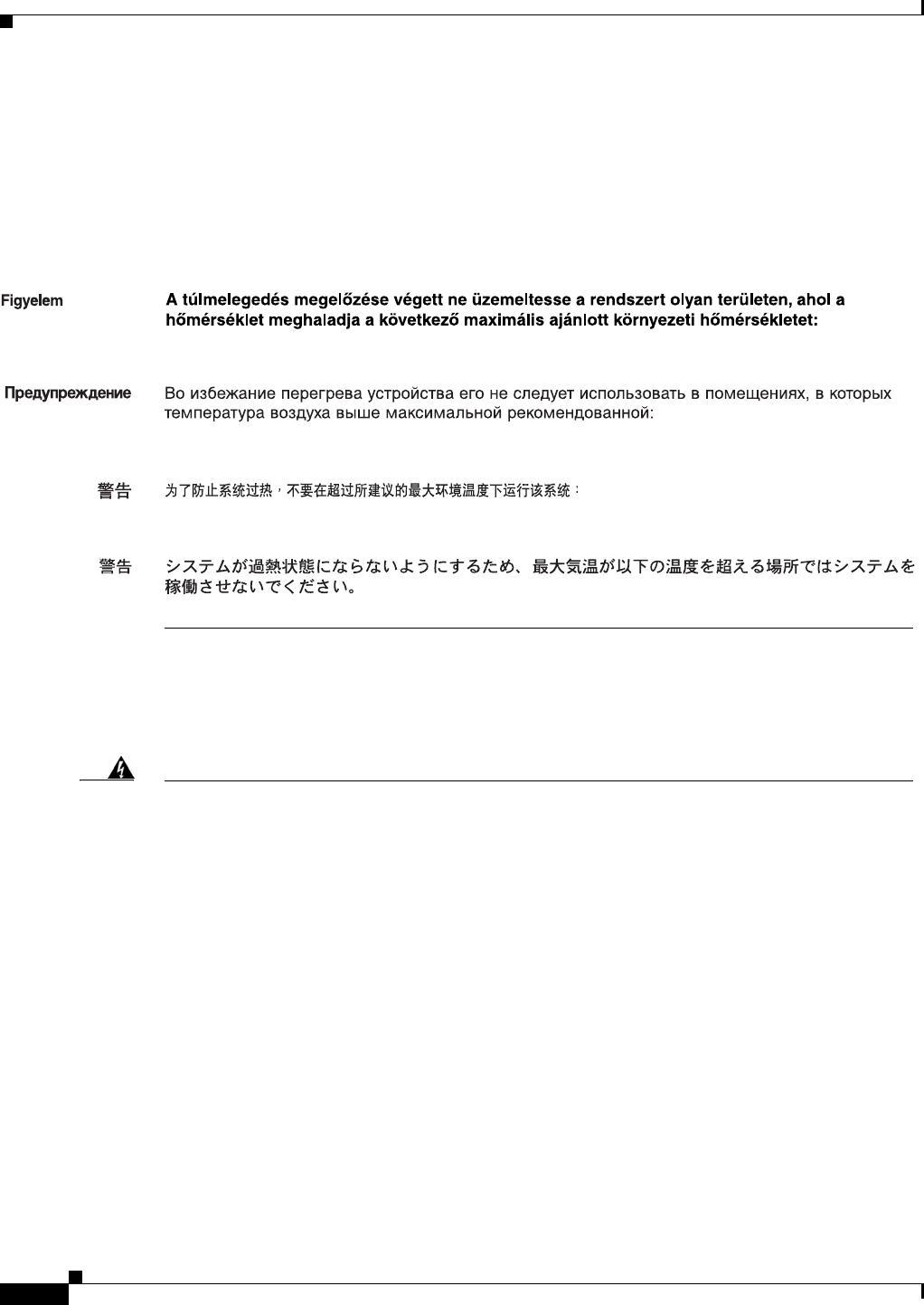

Statement 1047—Overheating Prevention
Warning
To prevent the system from overheating, do not operate it in an area that exceeds the maximum
recommended ambient temperature of:
104°F (40°C)
Waarschuwing
Om te voorkomen dat het systeem oververhit raakt, dient u het niet te gebruiken in een ruimte
waar de maximaal aanbevolen omgevingstemperatuur van
104°F (40°C)
Varoitus
Jotta järjestelmä ei kuumentuisi liikaa, sitä ei saa käyttää liian kuumassa ympäristössä.
Suosituksen mukainen käyttölämpötila on enintään
104°F (40°C)
Attention
Pour éviter toute surchauffe du système, il est recommandé de maintenir une température
ambiante inférieure à
104°F (40°C)
Warnung
Um das System vor Überhitzung zu schützen, vermeiden Sie dessen Verwendung in einem
Bereich, in dem die Umgebungstemperatur das empfohlene Maximum von
104°F (40°C).
Avvertenza
Per evitare che il sistema si surriscaldi, non utilizzatelo dove la temperatura ambiente sia
superiore alla temperatura massima raccomandata di
104°F (40°C)
Advarsel
For å hindre at systemet blir overopphetet, må det ikke brukes på et sted der temperaturen
overstiger den maksimalt anbefalte temperaturen på
104°F (40°C)
Aviso
Para evitar o sobreaquecimento do sistema, não o opere em áreas que excedam a temperatura
ambiente máxima recomendada de
104°F (40°C)
18
Regulatory Compliance and Safety Information for the Cisco Small Business Wired and Wireless Routers, and Access Points (EMC
78-19314-01
Translated Safety Warnings
Statement 1074—Comply with Local and National Electrical Codes
¡Advertencia!
Para impedir que el sistema se recaliente, no lo utilice en zonas en las que la temperatura
ambiente llegue a los
104°F (40°C)
Varning!
Förhindra att systemet överhettas genom att inte använda det på en plats där den
rekommenderade omgivningstemperaturen överstiger
104°F (40°C)
104°F (40°C)
104°F (40°C)
104°F (40°C)
104°F (40°C)
Warning
Installation of the equipment must comply with local and national electrical codes.
Waarschuwing
Bij installatie van de apparatuur moet worden voldaan aan de lokale en nationale
elektriciteitsvoorschriften.
Varoitus
Laitteisto tulee asentaa paikallisten ja kansallisten sähkömääräysten mukaisesti.
Attention
L'équipement doit être installé conformément aux normes électriques nationales et locales.
Warnung
Die Installation der Geräte muss den Sicherheitsstandards entsprechen.
Avvertenza
L'installazione dell'impianto deve essere conforme ai codici elettrici locali e nazionali.
Advarsel
Installasjon av utstyret må samsvare med lokale og nasjonale elektrisitetsforskrifter.
Aviso
A instalação do equipamento tem de estar em conformidade com os códigos eléctricos locais e
nacionais.

Navigation menu
