Part 24 Setup Photos

JAPAN QUALITY ASSURANCE ORGANIZATION
JQA File No. : KL80080746 Issue Date : May 7, 2009
Model No. : SH-07A FCC ID : APYHRO00101
Regulation : CFR 47 FCC Rules and Regulations Part 24
Page 41 of 46
Appendix B: Test Arrangement (Photographs)
Radiated Emission

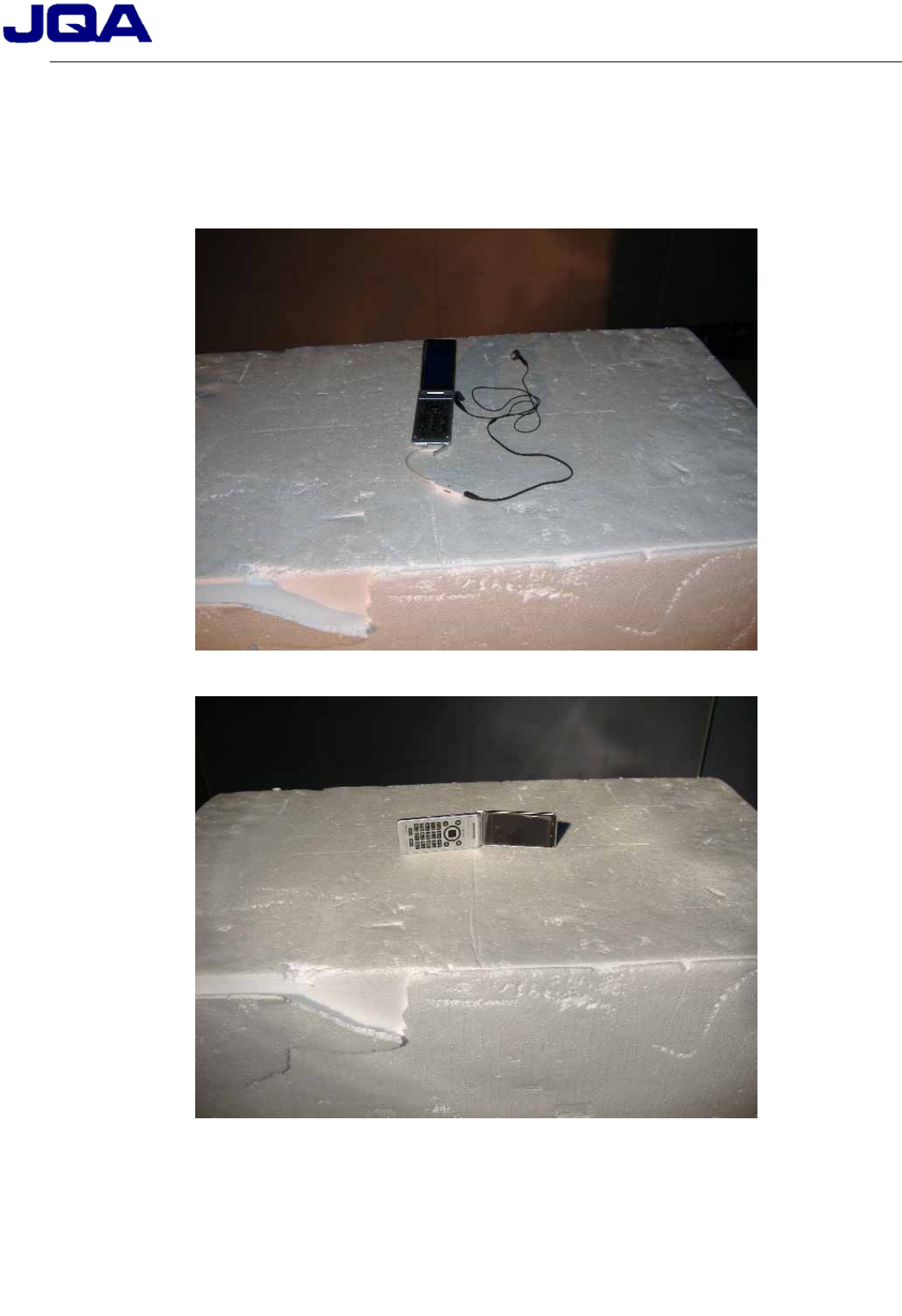

– X-axis –
– Y-axis –
JAPAN QUALITY ASSURANCE ORGANIZATION
JQA File No. : KL80080746 Issue Date : May 7, 2009
Model No. : SH-07A FCC ID : APYHRO00101
Regulation : CFR 47 FCC Rules and Regulations Part 24
Page 42 of 46

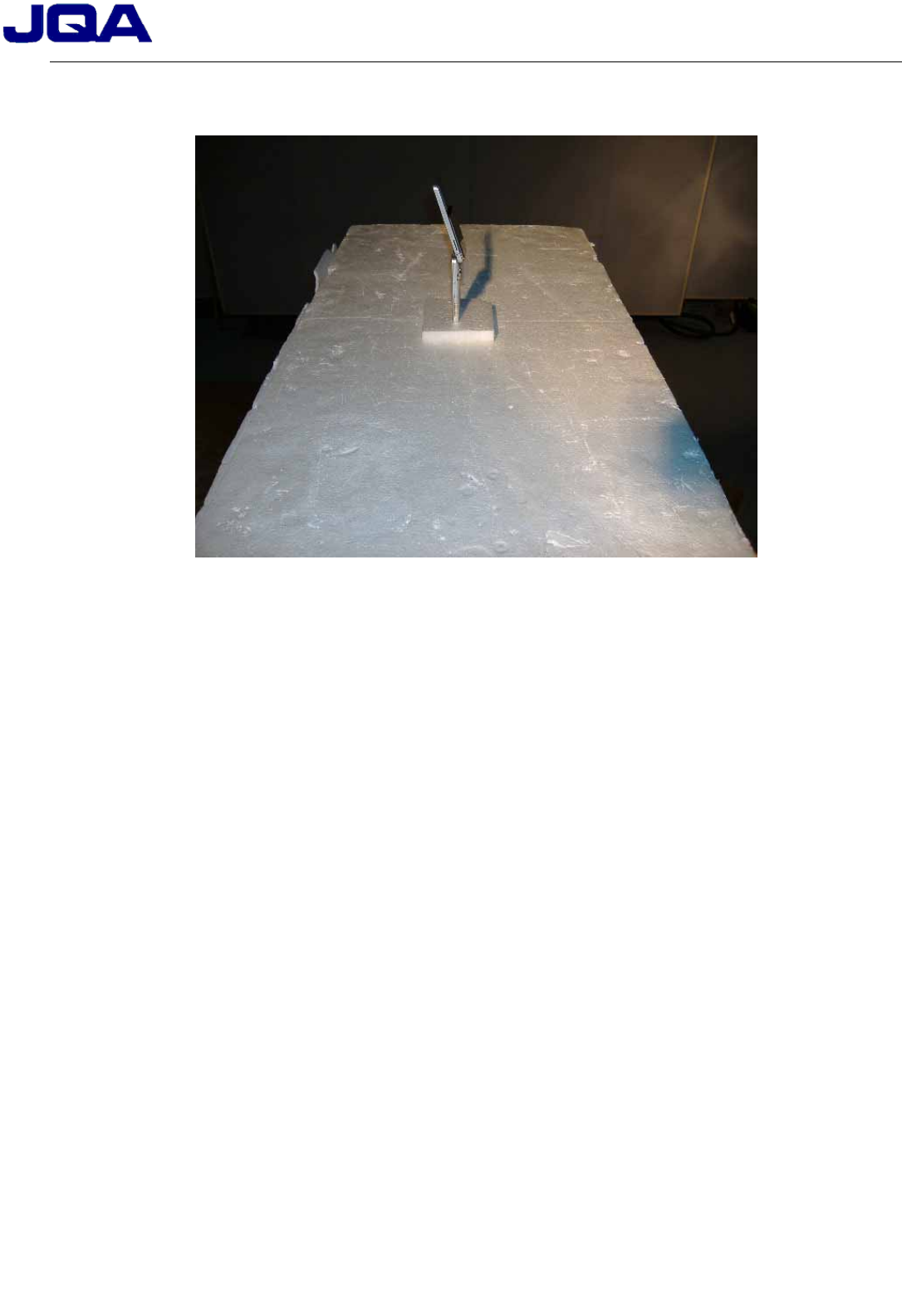

– Z-axis –
Photograph present configuration with maximum emission
The EUT position of the maximum emission at Horizontal Polarization is X-axis.
The EUT position of the maximum emission at Vertical Polarization is Z-axis.
