Sony Group IJ1001SNBT Energy Storage System User Manual 2

Sony Corporation Energy Storage System 2

User Manual 2

Energy Storage System “IJ1001SNBT”
19
Open the cargo and Take out the energy storage server from outer enclosure
Take out the energy storage server from the outer enclosure.
Copyright Sony Energy Devices Corporation
Take out
Energy Storage System “IJ1001SNBT”
20
Open the energy storage server using screw driver and install the lithium ion battery module
Open the cargo of lithium ion battery
Copyright Sony Energy Devices Corporation
Not in use
Fuse Bar
Battery
Energy Storage System “IJ1001SNBT”
21
Open the energy storage server using screw driver and install the lithium ion battery module

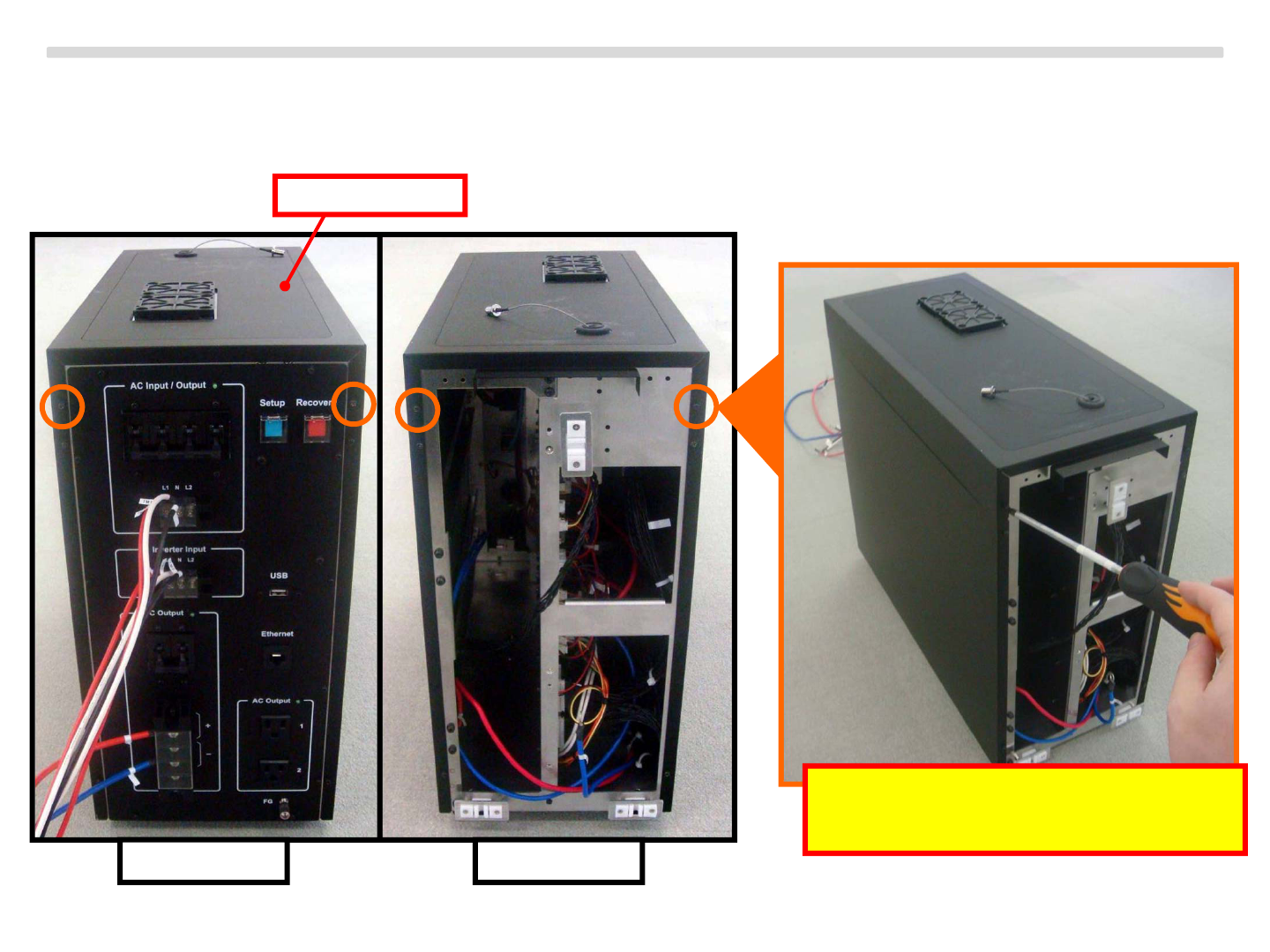

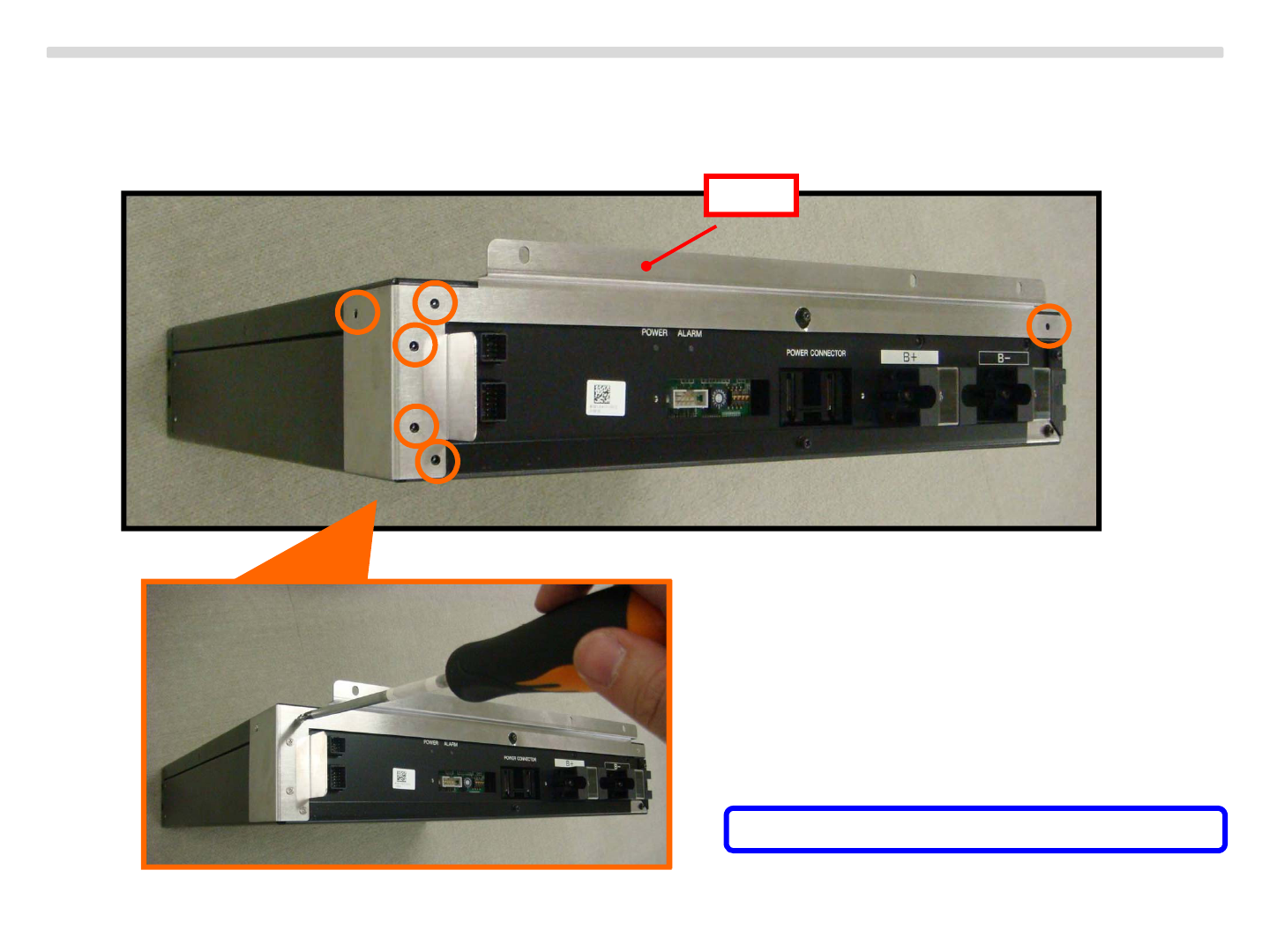

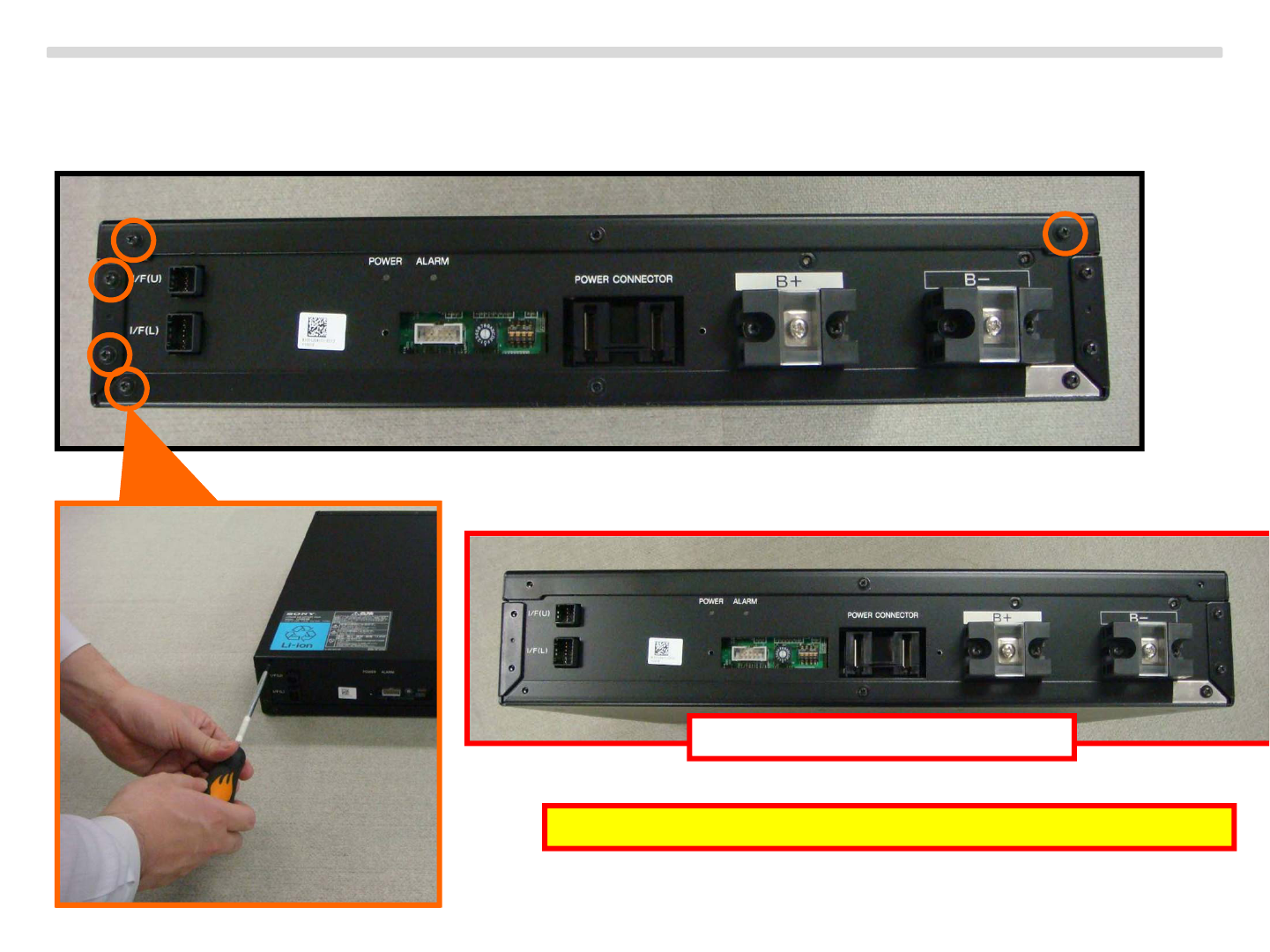

Remove 5pcs of the screw described bellow.
Copyright Sony Energy Devices Corporation
The screw removed won’t be used. It can be disposed.
After remove the screw
Energy Storage System “IJ1001SNBT”
22
Open the energy storage server using screw driver and install the lithium ion battery module

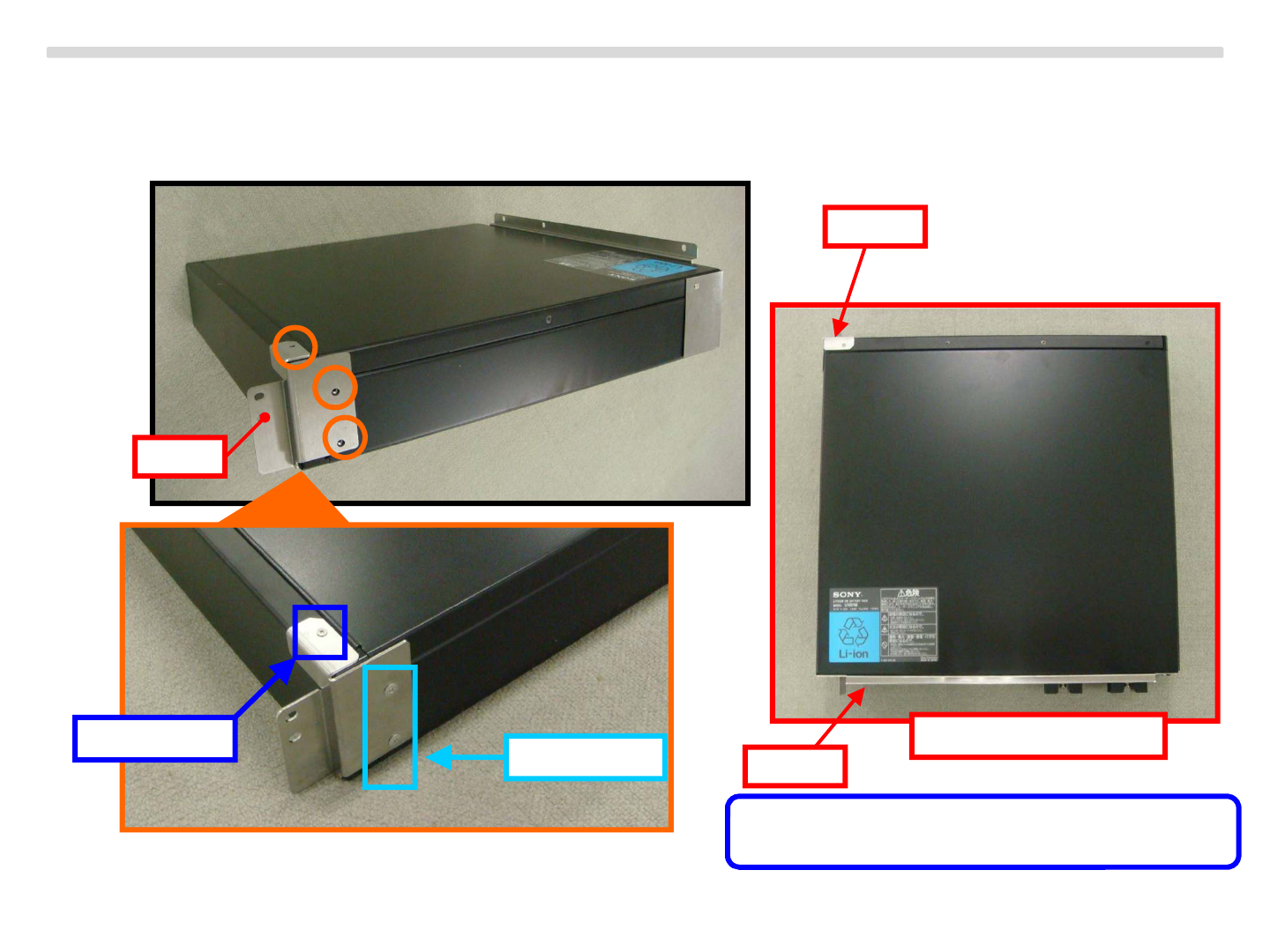

fix the jig-1 using new screw①on 6 position.
Copyright Sony Energy Devices Corporation
Jig-1
Screw：①Low head screw（M3×8㎜）×6pcs
Energy Storage System “IJ1001SNBT”
23
Open the energy storage server using screw driver and install the lithium ion battery module
fix the jig-2 using new screw①and②.
Copyright Sony Energy Devices Corporation
Screw①Screw②Completed photo
Jig-2
Jig-2
Jig-1
Screw：①Low head screw（M3×8㎜）×1pcs
②Low head screw（M4×10㎜）×2pcs
Energy Storage System “IJ1001SNBT”
24
Open the energy storage server using screw driver and install the lithium ion battery module
Remove the screw 4position bellow.
Copyright Sony Energy Devices Corporation
FrontRear
Top cover
The screw removed won’t be used.
It can be disposed.
Energy Storage System “IJ1001SNBT”
25
Open the energy storage server using screw driver and install the lithium ion battery module

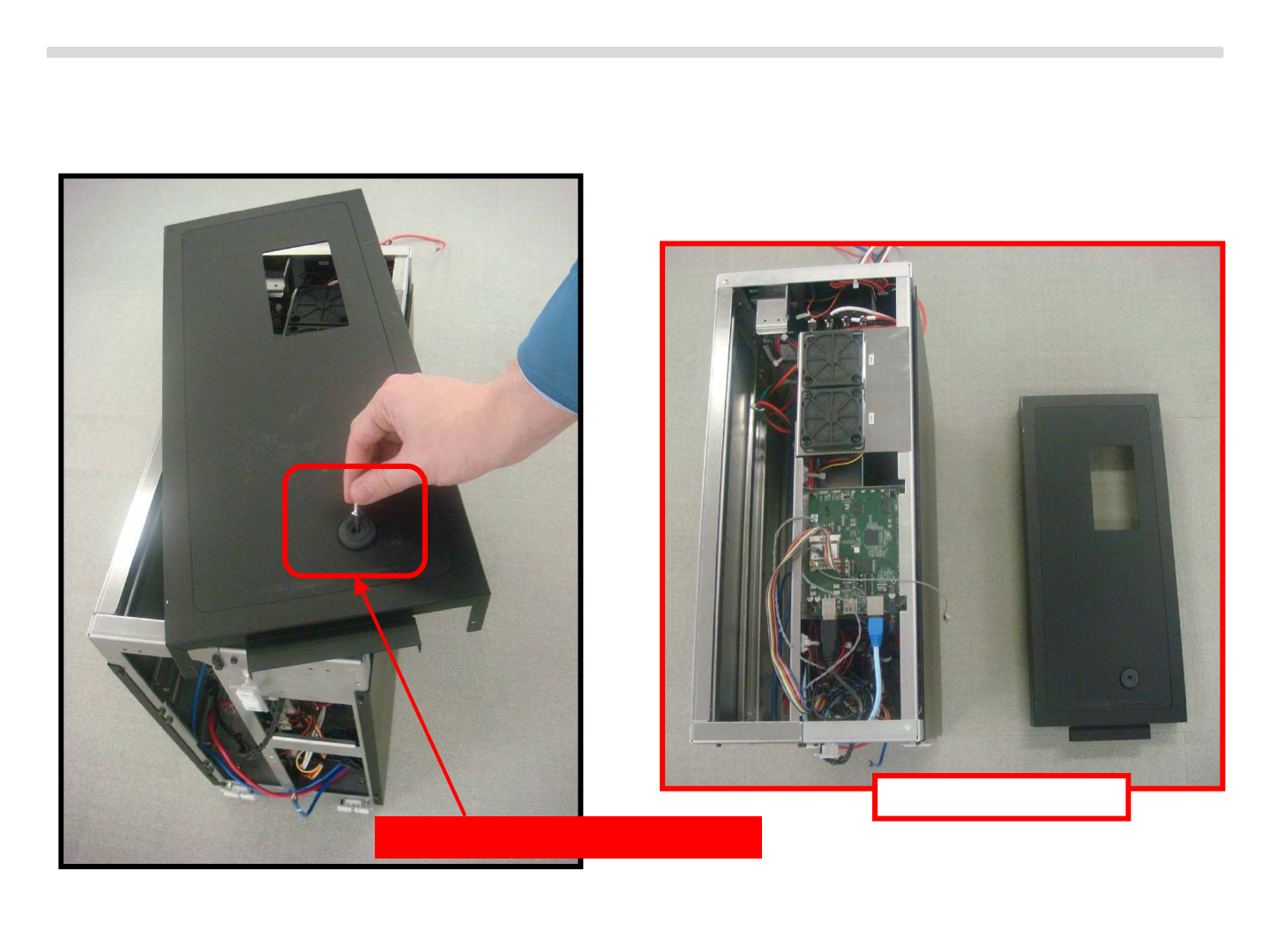

Remove the top cover.
Copyright Sony Energy Devices Corporation

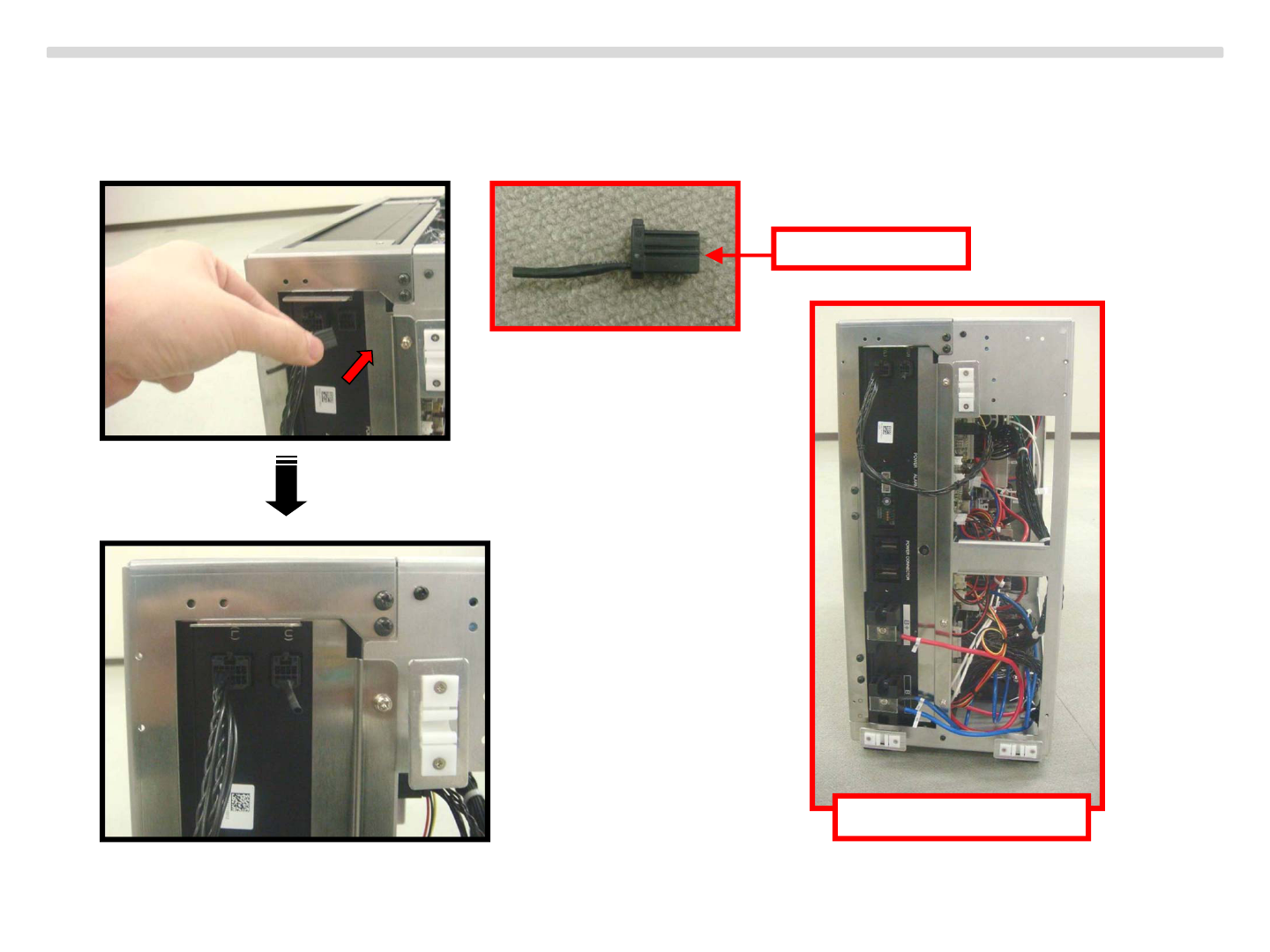

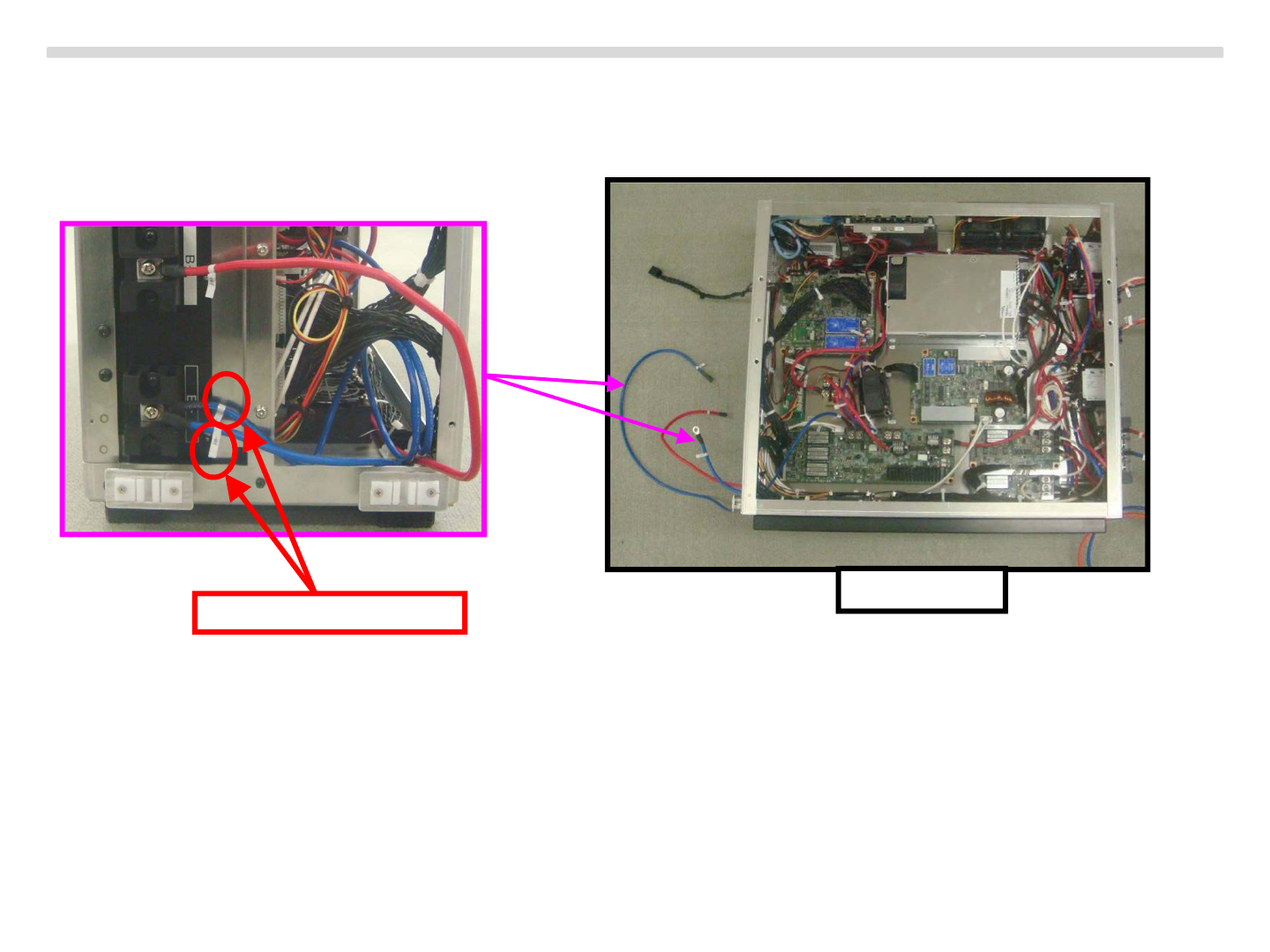

Push the connecter to inside
Completed photo
Energy Storage System “IJ1001SNBT”
26
Open the energy storage server using screw driver and install the lithium ion battery module

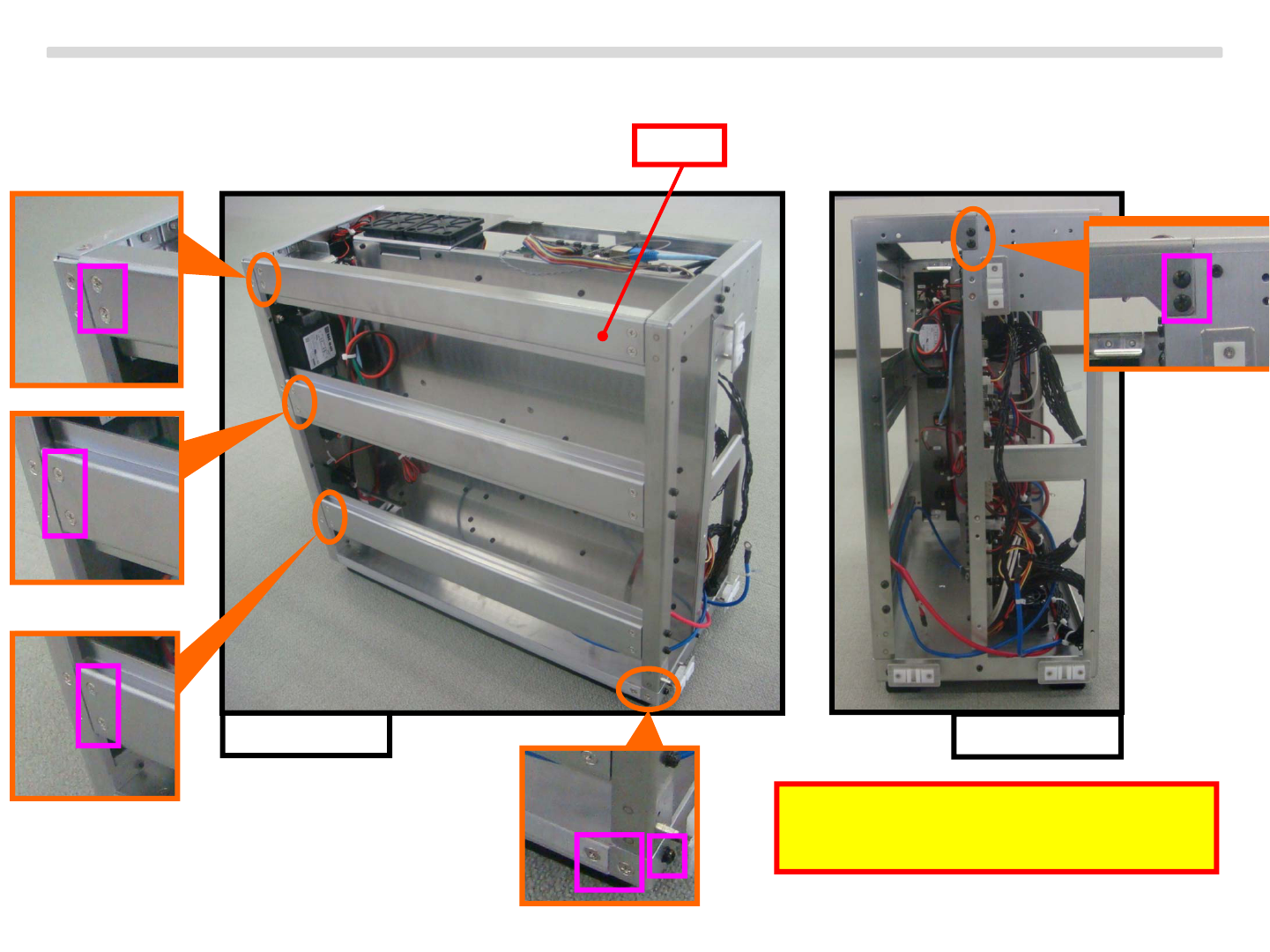

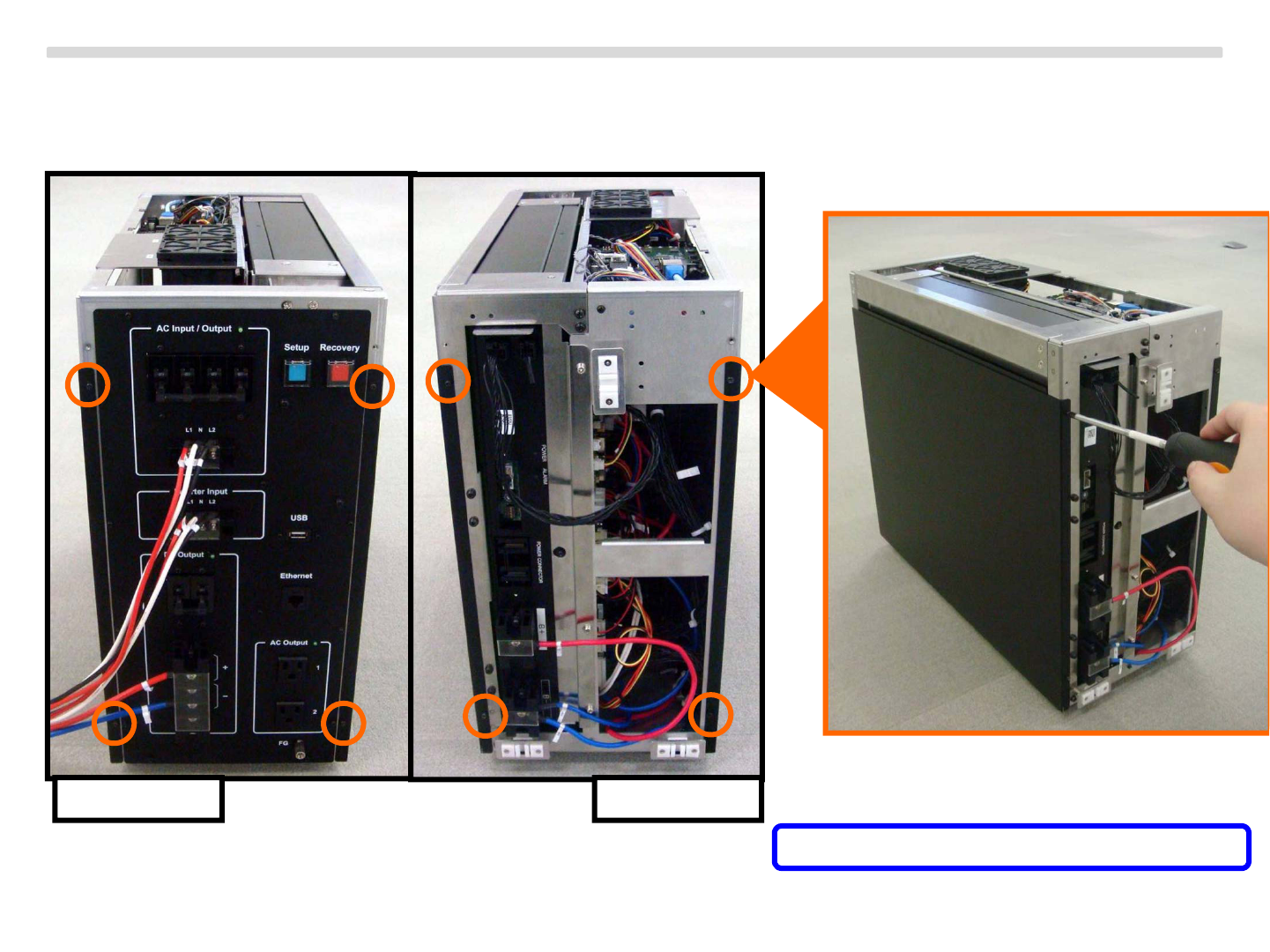

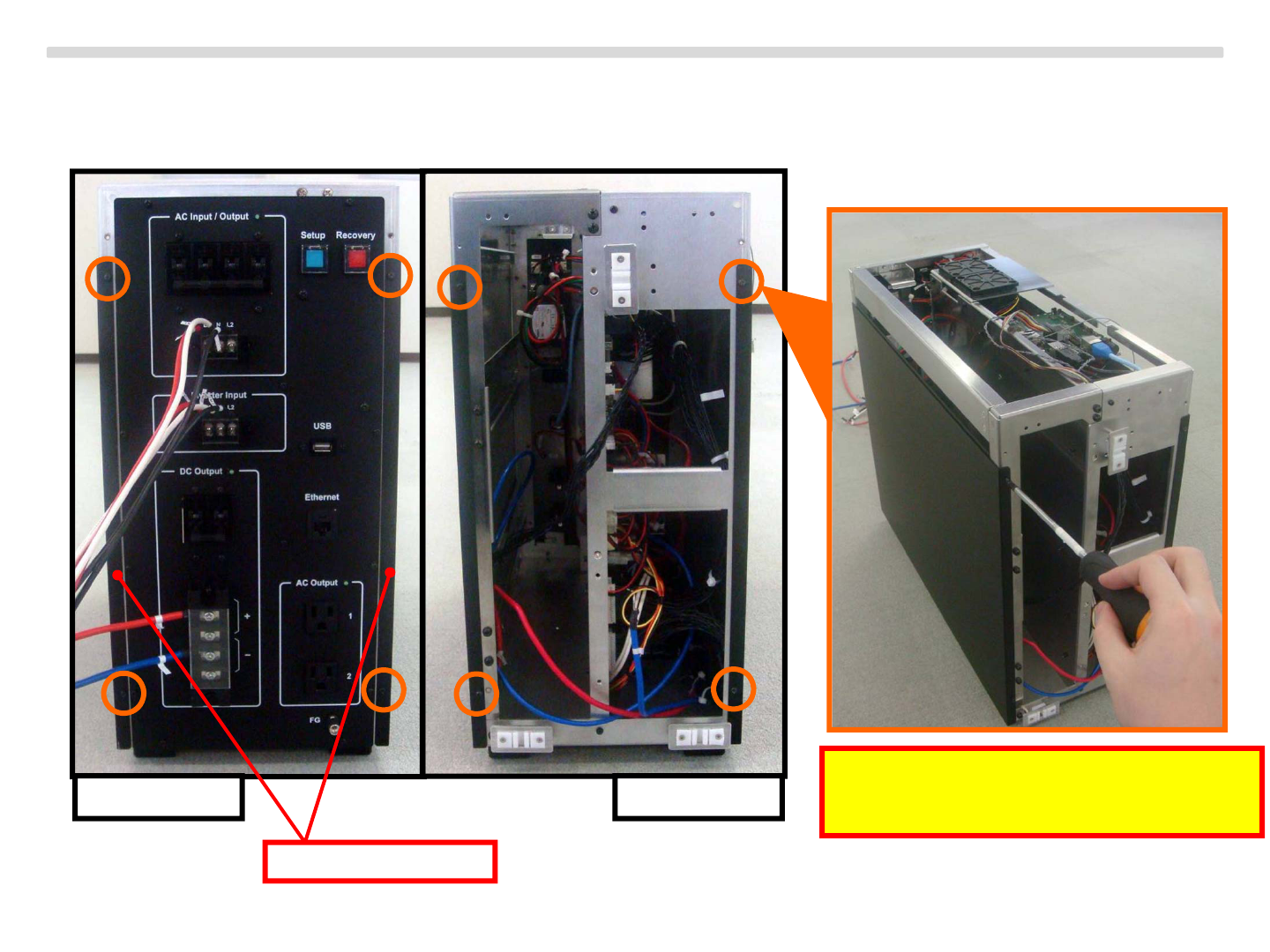

Remove the screw 8 position bellow.
Copyright Sony Energy Devices Corporation

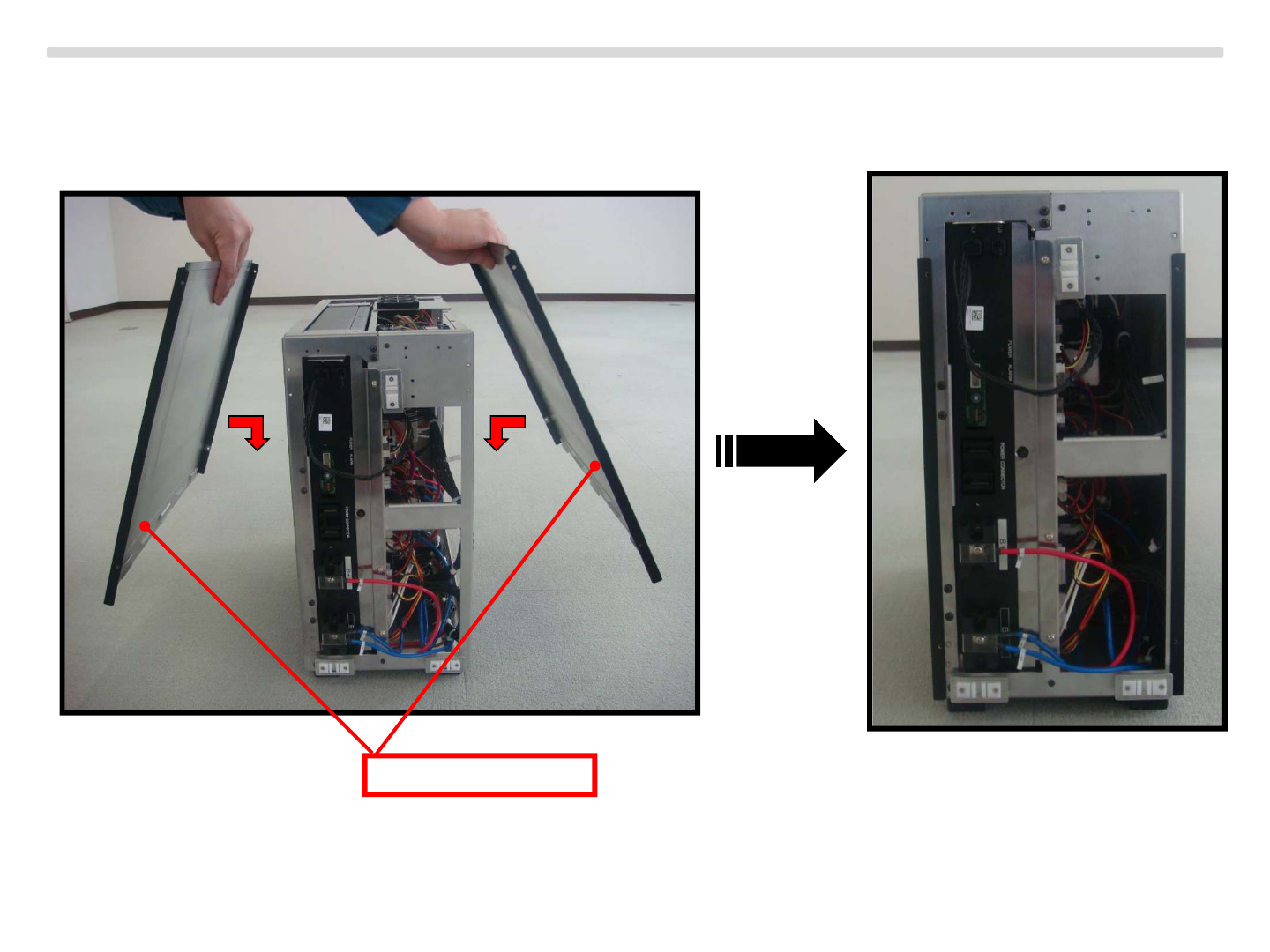

Side cover×2
FrontRear
The screw removed won’t be used.
It can be disposed.
Energy Storage System “IJ1001SNBT”
27
Open the energy storage server using screw driver and install the lithium ion battery module

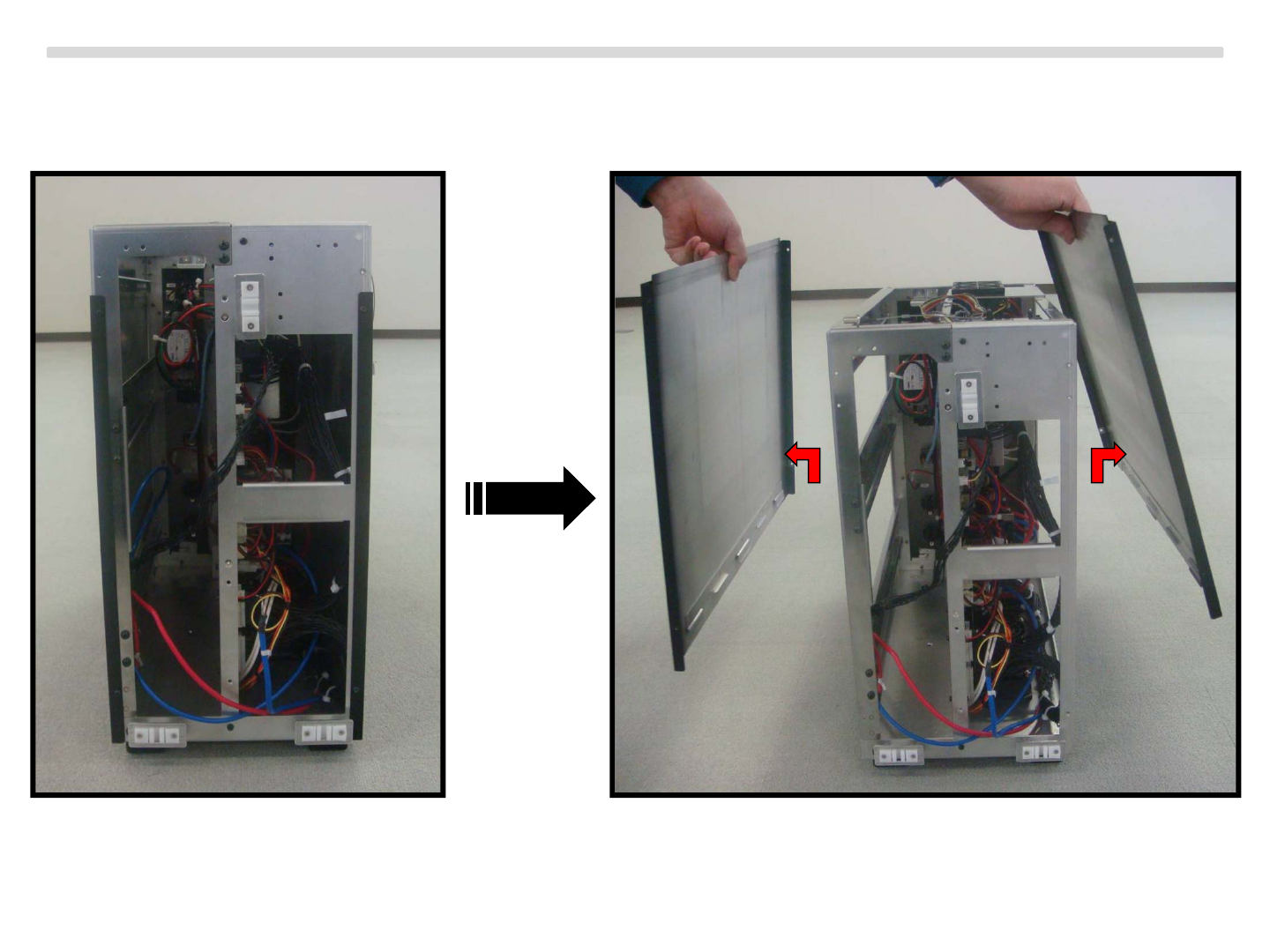

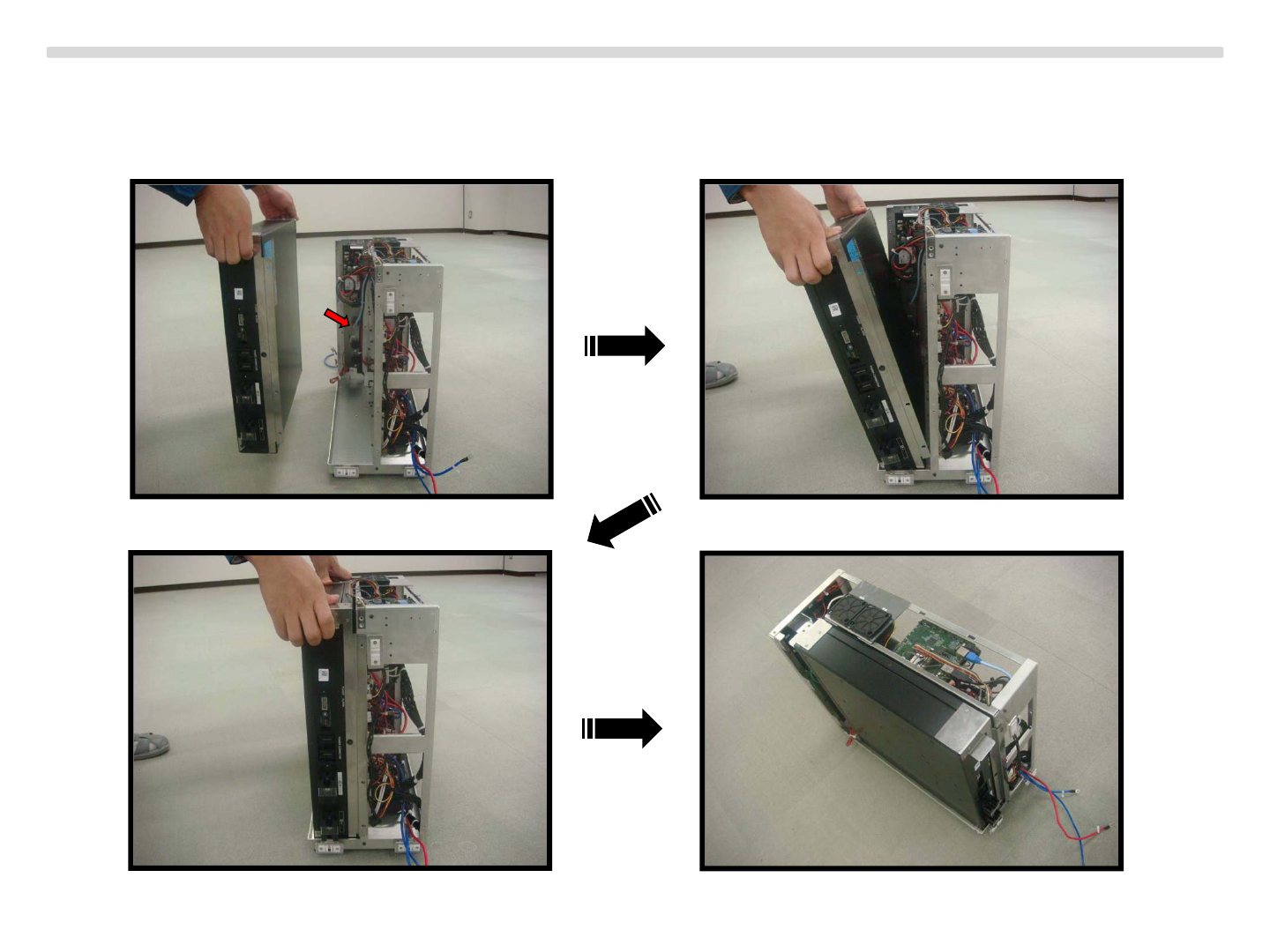

Remove the side cover.
Copyright Sony Energy Devices Corporation
Take out
Energy Storage System “IJ1001SNBT”
28
Open the energy storage server using screw driver and install the lithium ion battery module

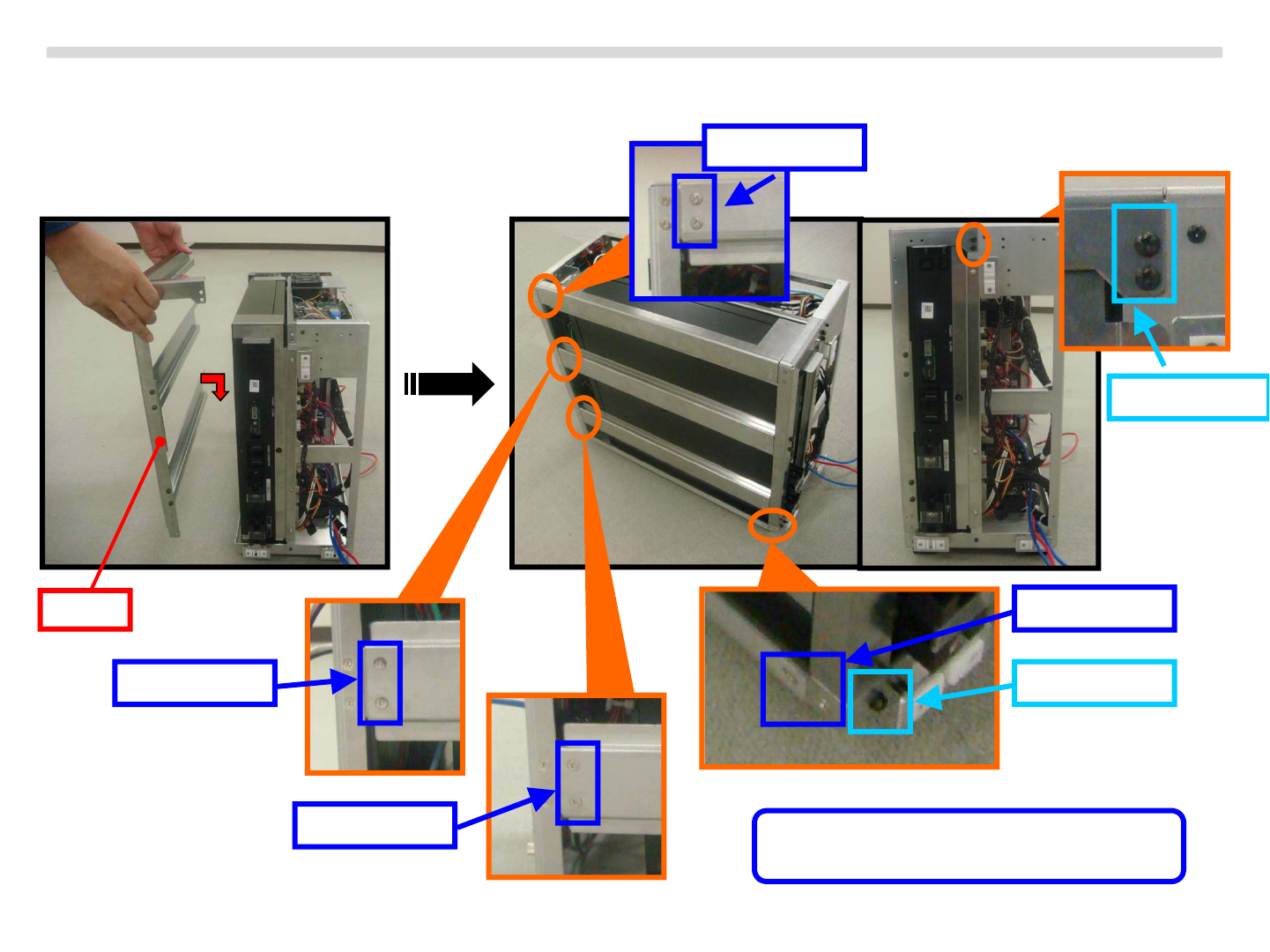

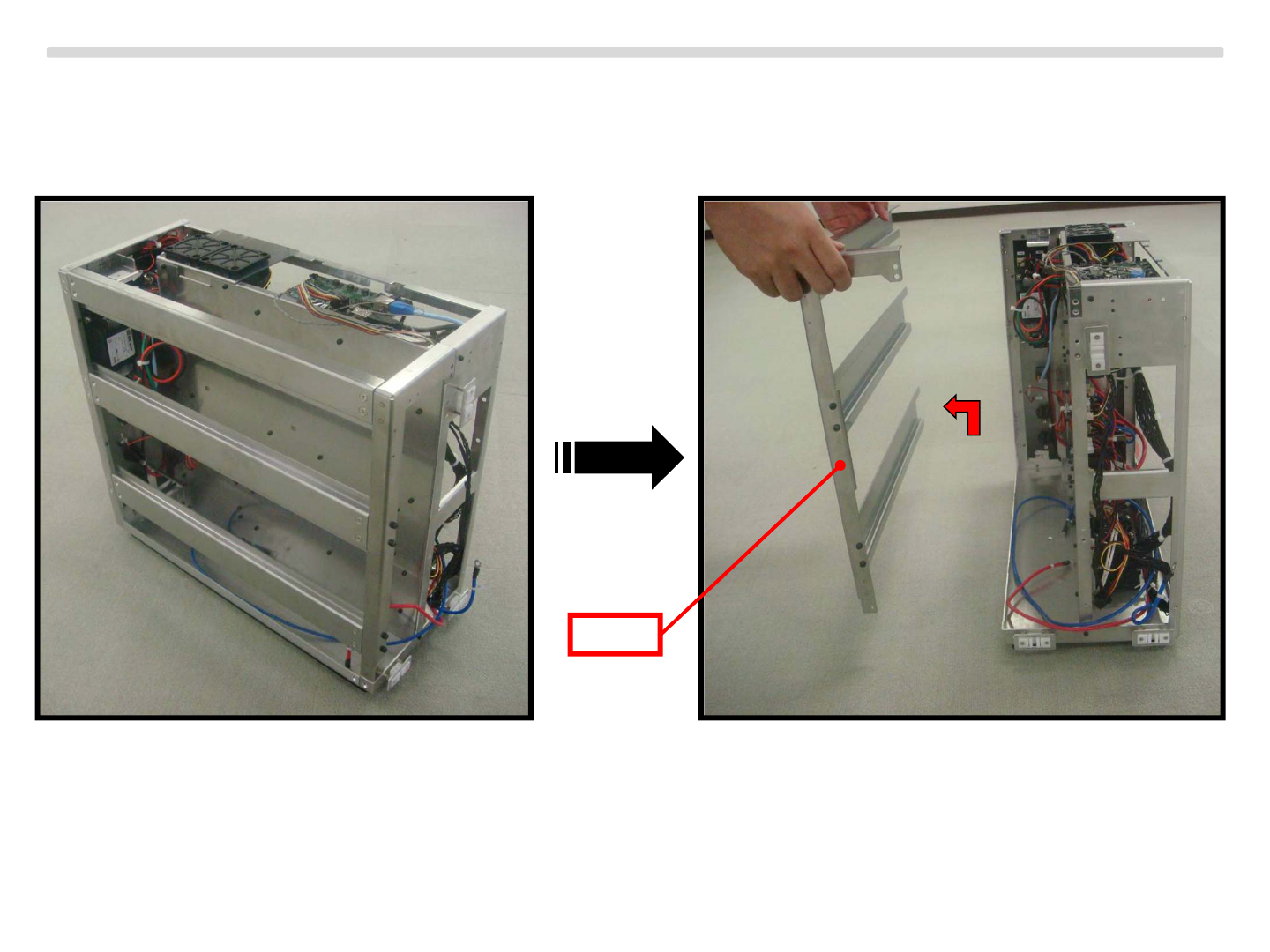

Remove the jig-6 after remove the screw .
Copyright Sony Energy Devices Corporation
Jig-6
Front
Side
The screw removed won’t be used.
It can be disposed.
Energy Storage System “IJ1001SNBT”
29
Open the energy storage server using screw driver and install the lithium ion battery module
Remove the jig-6 after remove the screw .
Copyright Sony Energy Devices Corporation
Jig-6
Take out
Energy Storage System “IJ1001SNBT”
30
Open the energy storage server using screw driver and install the lithium ion battery module

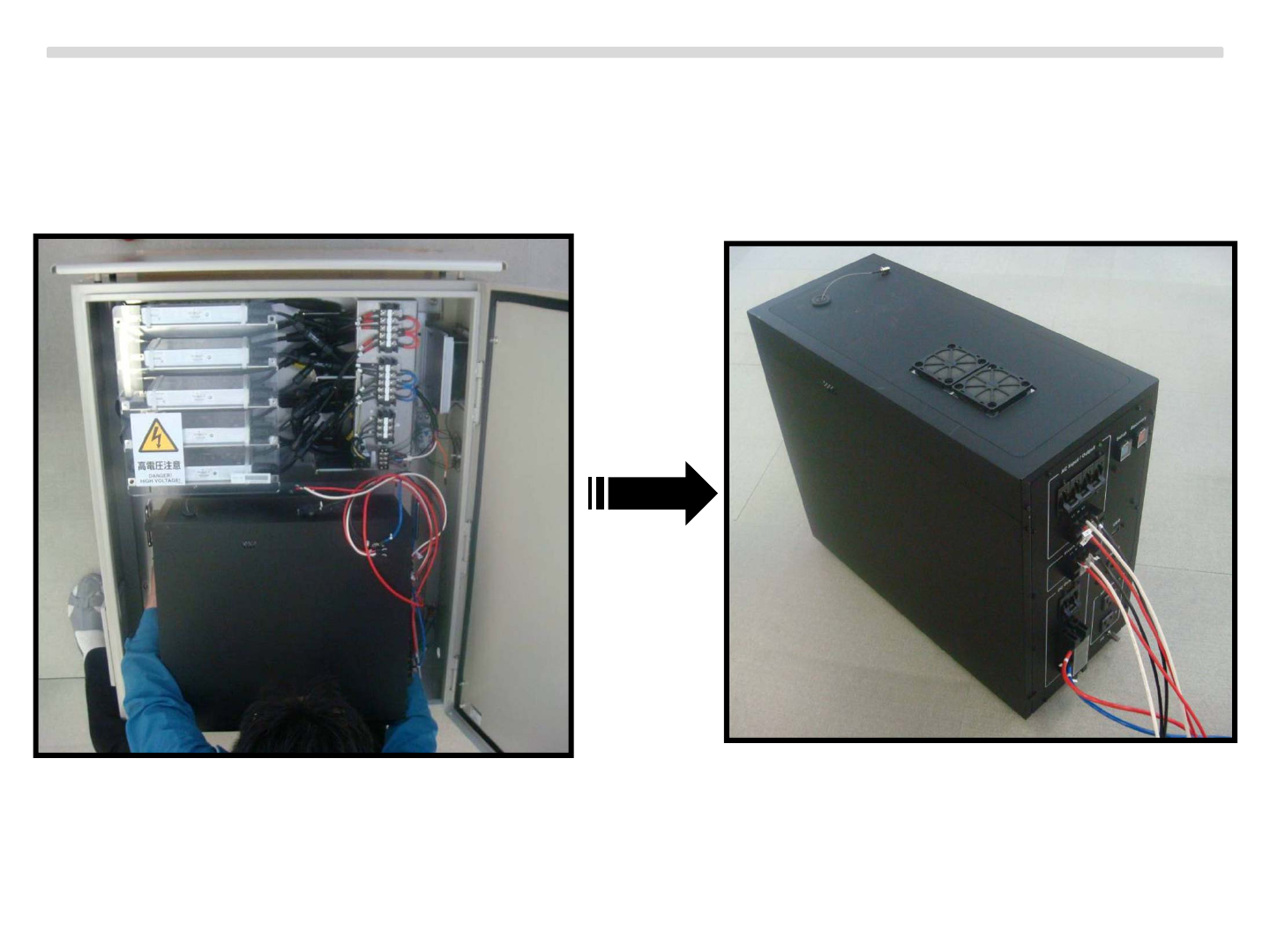

Install the lithium ion battery module to the energy storage server.
Copyright Sony Energy Devices Corporation
Energy Storage System “IJ1001SNBT”
31
Open the energy storage server using screw driver and install the lithium ion battery module

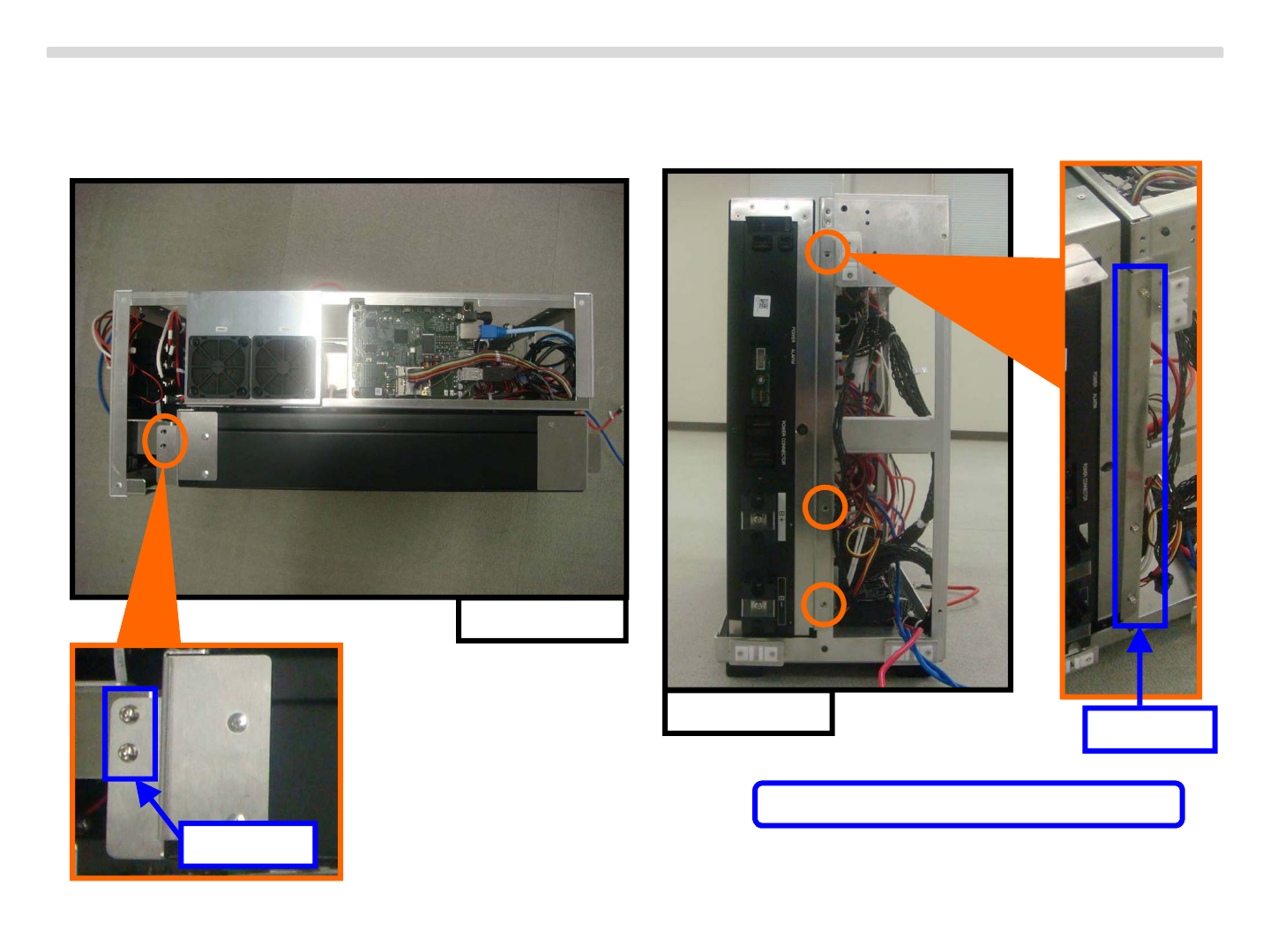

Fixing the lithium ion battery module to the energy storage server.
Copyright Sony Energy Devices Corporation
Screw③
Front
Top
Screw③
Screw：③Screw（M4×10mm）×5pcs
Energy Storage System “IJ1001SNBT”
32
Open the energy storage server using screw driver and install the lithium ion battery module
Fixing the lithium ion battery module
to the energy storage server.
Copyright Sony Energy Devices Corporation
Screw④
Screw④
Screw④
Screw④
Screw⑤
Screw⑤
Jig-6
Screw：④Screw（M4×8㎜）×8pcs
⑤Screw（M4×8㎜ 黒）×3pcs
Energy Storage System “IJ1001SNBT”
33
Open the energy storage server using screw driver and install the lithium ion battery module
Insert the connecter bellow.
Copyright Sony Energy Devices Corporation
Side
Indication【B＋】
Energy Storage System “IJ1001SNBT”
34
Open the energy storage server using screw driver and install the lithium ion battery module
Insert the connecter bellow.
Copyright Sony Energy Devices Corporation
Side
Indication【B－】
Energy Storage System “IJ1001SNBT”
35
Open the energy storage server using screw driver and install the lithium ion battery module
Insert the end connecter.
Copyright Sony Energy Devices Corporation
End connecter
Completed photo
Energy Storage System “IJ1001SNBT”
36
Open the energy storage server using screw driver and install the lithium ion battery module
Insert the side cover.
Copyright Sony Energy Devices Corporation
Side panel×2
Insert
Energy Storage System “IJ1001SNBT”
37
Open the energy storage server using screw driver and install the lithium ion battery module
Fixing the screw 8 position bellow.
Copyright Sony Energy Devices Corporation
Screw：⑥Screw（M4×10㎜Black）×8pcs
FrontRear
