Sony Group IJ1001SNBT Energy Storage System User Manual 1

Sony Corporation Energy Storage System 1

User Manual 1

User Manual
1
Sony Energy Devices Corporation
2012.4
Rev.5
Energy Storage System
MODEL : IJ1001SNBT
Energy Storage System “IJ1001SNBT”
2
FCC Compliance
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This transmitter must not be co-located or operated in conjunction with any other antenna or transmitter.
This equipment complies with FCC radiation exprosure limits set forth for an uncontrolled environment and
meets the FCC radio frequency （RF）Exposure Guidelines in Supplement C to OET65. This equipment has
very low levels of RF energy that it deemed to comply without maximum permissive exposure evaluation
（MPE）. But it is desireable that it should be installed and operated keeping the radiotor at least 20cm or
more away from person’s body（excluding extremities: hands, wrists, feet and ankles）.
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void user’s
authority to operate the equipment.
Copyright Sony Energy Devices Corporation
Energy Storage System “IJ1001SNBT”
3
Table of Contents
Important Safety Information
Read the first
Safety instructions
The Energy Storage Sysytem
How the system works
The system structure
The Energy Storage System Installation
Parts Included
Other Parts and Tools Required
Install procedure
On site software update (if necessary)
Commissioning
The Energy Storage System Activation
Connecting to the Internet.
Activating Energy Storage System for Field Trial.
Copyright Sony Energy Devices Corporation
Energy Storage System “IJ1001SNBT”
4
Important Information
Read the first
SAVE THESE INSTRUCTIONS– This manual contains important instructions for Model(s)
IJ1001SNBT that shall be followed during installation and maintenance of the system.
To reduce the risk of electrical shock, and to ensure the safe installation and operation of the
Energy storage system, the following safety symbols appear throughout this document to
indicate dangerous condition and important safety instructions.
WARNING! This indicates a situation where failure to follow instructions may be a safety
hazard or cause equipment malfunction. Use extreme caution and follow
instructions carefully.
NOTE : This indicated information particularly important for optimal system operation.
Follow instructions closely.
Safety Instructions
・Perform all electrical installations in accordance with all local electrical codes and the National
Electrical Code（NFC）, ANSI/NFPA 70.
・Be aware that only qualified personnel should install and/or replace the Energy storage system.
・Do not attempt to repair the Energy storage system; it contains user-serviceable parts. If it fails,
please contact Sony Customer service to obtain an product number and start the replacement
process. Tampering with or opening the Energy storage system will void the warranty.
・Before installing or using the Energy storage system, please read all instructions and cautionary
markings in the technical description and on the Energy storage system.
・Do NOT disconnect the Power cables from the Energy storage system without off the connection box.
Copyright Sony Energy Devices Corporation
Energy Storage System “IJ1001SNBT”
5
The Energy storage system
The Energy storage system is the world’s most technologically advanced energy storage system for
utility-interactive applications. This manual details the safe installation and operation of the energy
storage system.
The three key elements of the Energy storage system are :
・the energy storage system including Sony original lithium ion battery
・the wireless communication system（WiFi）
・the web-based monitoring and analysis system
This integrated system maximizes energy efficiency, increases system reliability, and simplified design,
installation and management.
Copyright Sony Energy Devices Corporation
PCS
Distribution Panel
Connection Box
Power
meter
PV
Energy
storage
system
Energy Storage System “IJ1001SNBT”
6
The Energy Storage System
How the system Works
This Energy storage system charges the integrated lithium ion battery from electrical utility grid
through the distribution panel automatically when the battery’s capacity is not full and its charging
period is controlled by the home energy management system（HEMS）which is specially by Sony
Corporation.
This Energy storage system outputs the electricity to electrical utility grid through the distribution
panel when determine the signal from HEMS. HEMS creates more efficiency control of the electrical power.
To equalize the power demand to save the peak value so that the contract price is able to be saved and
it’s benefit for the house owner.
The system structure
This Energy storage system is integrated lithium ion battery, AC-DC converter and DC-AC inverters.
General block diagram is bellow.
Copyright Sony Energy Devices Corporation
Battery
Micro Processer
AC-DC
Converter
Power
sense
Power
sense
Grid Power
In/Out
Circuit
protector
Circuit
Protector
DC-AC
Inverter
Circuit
protector
Energy Storage System “IJ1001SNBT”
7
The Energy Storage System Installation
Follow the instructions in this section to install the energy storage system.
CAUTION : Before installing the energy storage system, read all instructions and cautionary
markings in the installation manual.
CAUTION : Perform all electrical installations in accordance with all local electrical codes
and the National Electrical Code(NFC), ANSI/NFPA 70.
CAUTION : Connect the energy storage system to the electrical utility grid only after
receiving prior approval from the utility company.
CAUTION : Be aware that only qualified personnel should must connect the energy storage
system to the electrical utility grid.
CAUTION : Be aware that installation of this equipment includes risk of electric shock.
Normally grounded conductors may be undergrounded and energized when
a ground fault is indicated.
Parts Included
In addition to the energy storage system, battery module, you’ll need the system installation kit. This
kit includes the following items :
・Screws
・Mounting Bracket
・Antenna for WiFi module, Pipe and plastic case for Antenna.
Copyright Sony Energy Devices Corporation
Energy Storage System “IJ1001SNBT”
8

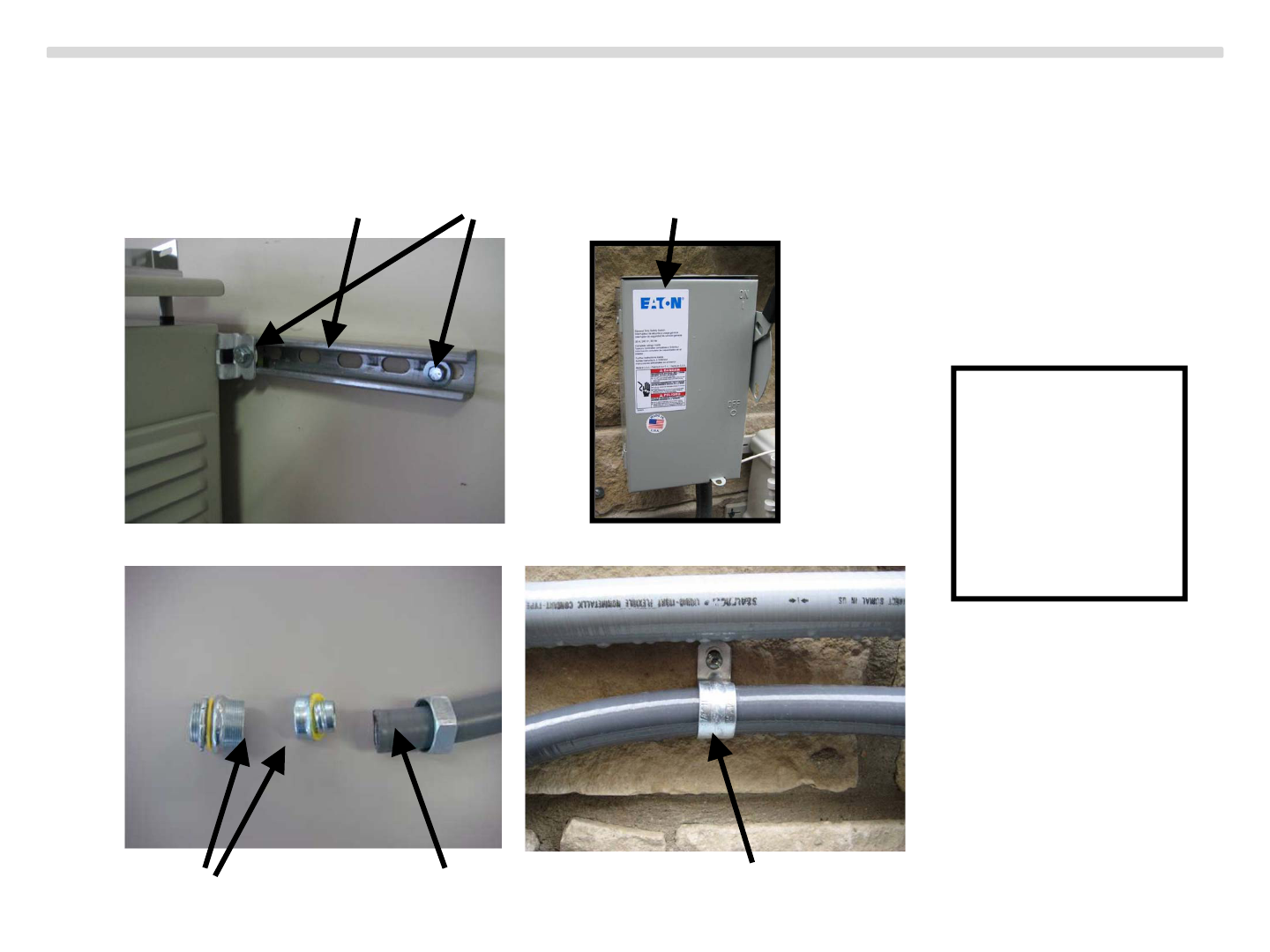

Other Parts and Tools Required
In addition to the energy storage system and its associated hardware, you will need to provide the
followings. The rating of the parts described on Page 50 to 54.
Copyright Sony Energy Devices Corporation
①Rail
②Fixing bolt
③Connection box
④Connecter
⑤Conduit pipe
⑥Fixing parts
①③
④⑤ ⑥
②
Energy Storage System “IJ1001SNBT”
9
Other Parts and Tools Required
Copyright Sony Energy Devices Corporation
①
②
③
④⑤
⑥⑦
⑧
⑨

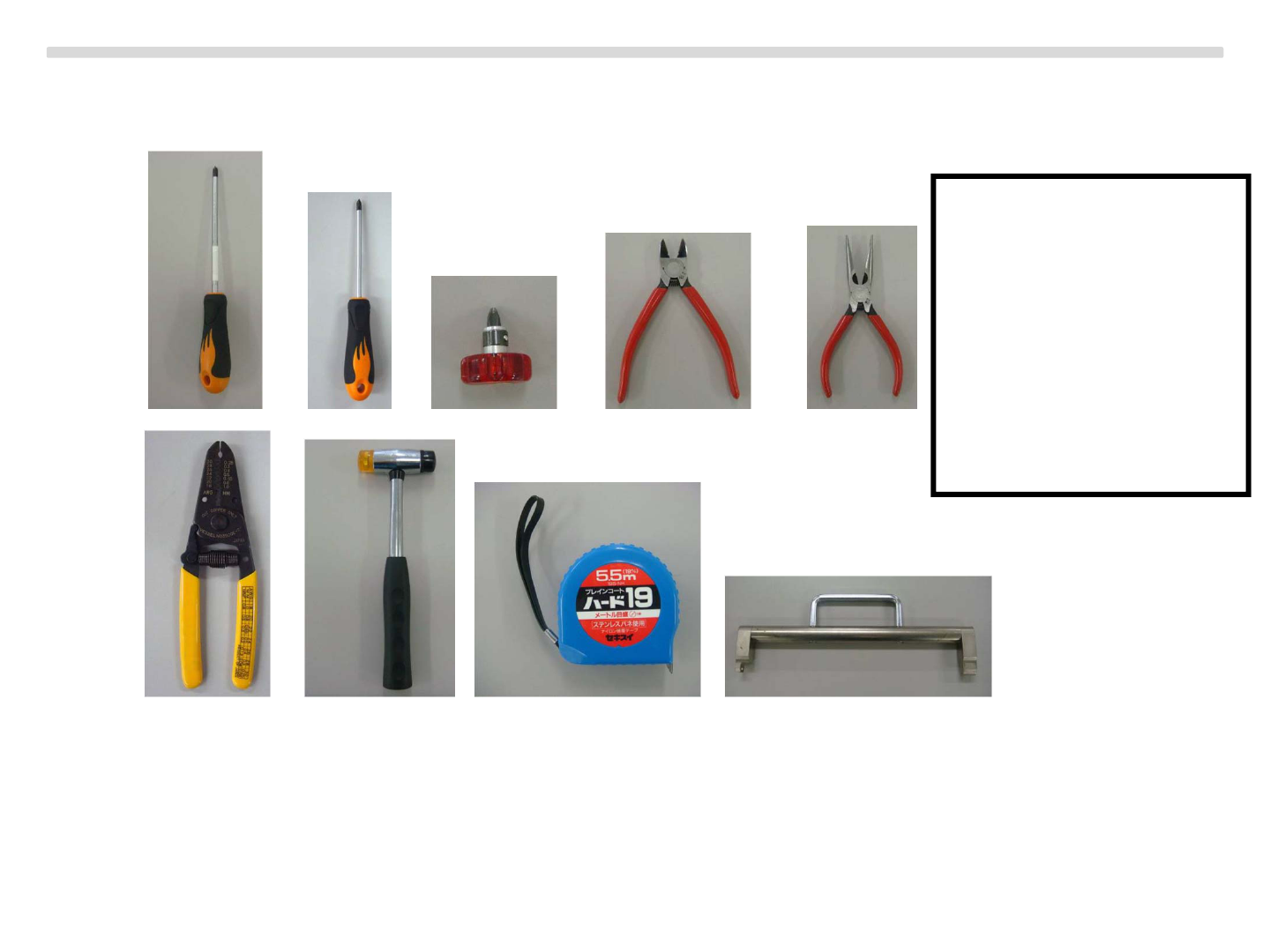

①Screw Driver（+）Φ6㎜(#2)
②Screw Driver（+）Φ5㎜(#1)
③Stabi. Driver（+）Φ6㎜(#2)
④Nipper
⑤Pench
⑥Wire stripper
⑦Hammer
⑧Measure
⑨Jig for removing the door
Energy Storage System “IJ1001SNBT”
10
Installation Procedure
Installing the energy storage system involves several key steps :
1, Open the cargo and Take out the energy storage server from outer enclosure.
2, Open the energy storage server using screw driver and install the lithium ion battery module.
3, Set the outer enclosure to the wall
4, Install the energy storage server into the outer enclosure.
5, Assemble the WiFi antenna to the outer enclosure.
6, Set the connecting box and conduit

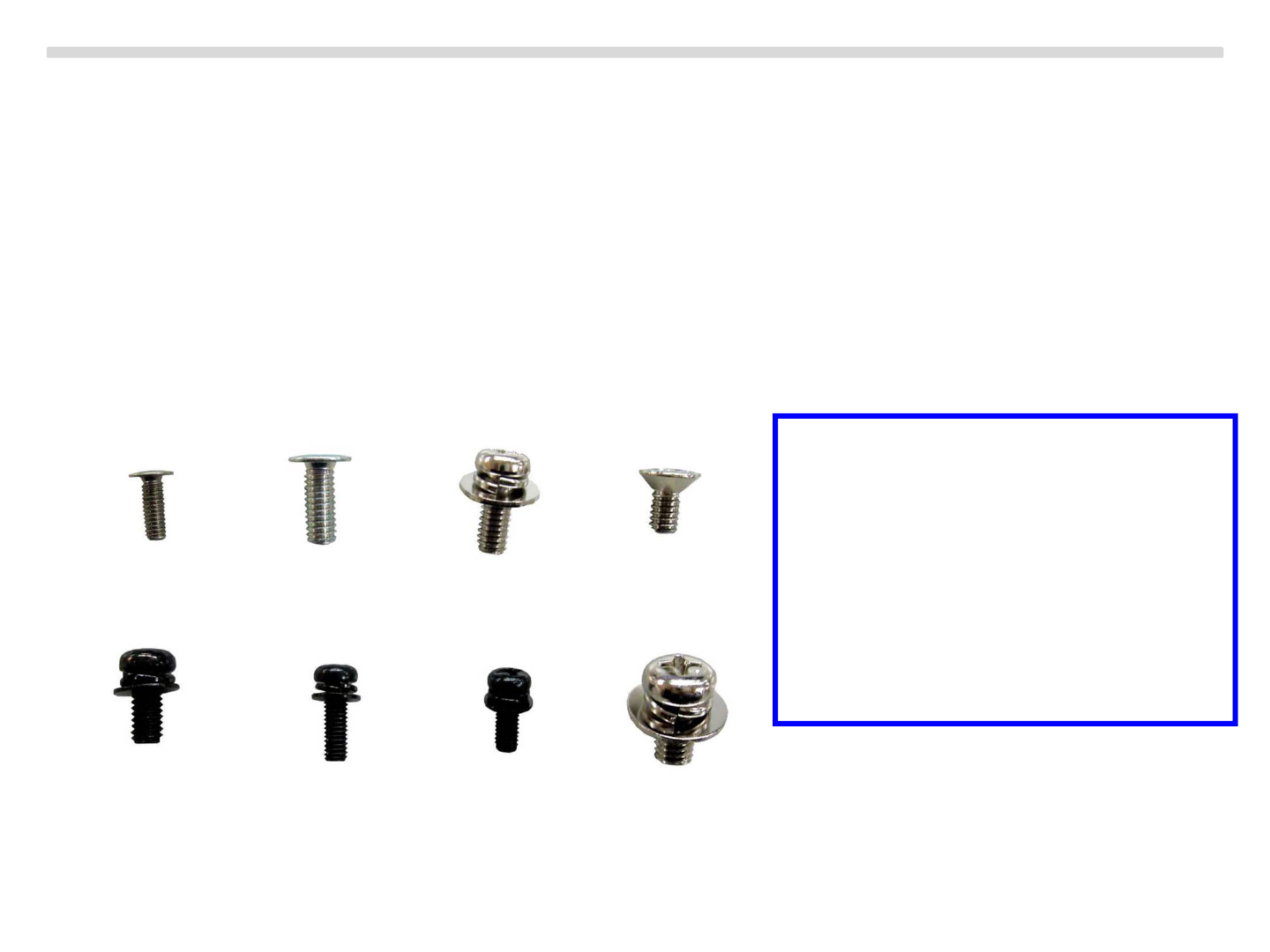

＜Reference＞Screws
Copyright Sony Energy Devices Corporation
①② ③ ④
⑤⑥⑦⑧
①Low head screw（M3×8㎜）× 7pcs
②Low head screw（M4×10㎜）× 2pcs
③Screw （M4×10㎜）× 5pcs
④Low head screw （M4×8㎜）× 8pcs
⑤Screw （M4×8㎜Black）× 3pcs
⑥Screw （M3×10㎜Black）× 12pcs
⑦Screw （M3×8㎜Black）× 2pcs
⑧Screw （M5×10㎜）× 6pcs
Energy Storage System “IJ1001SNBT”
11

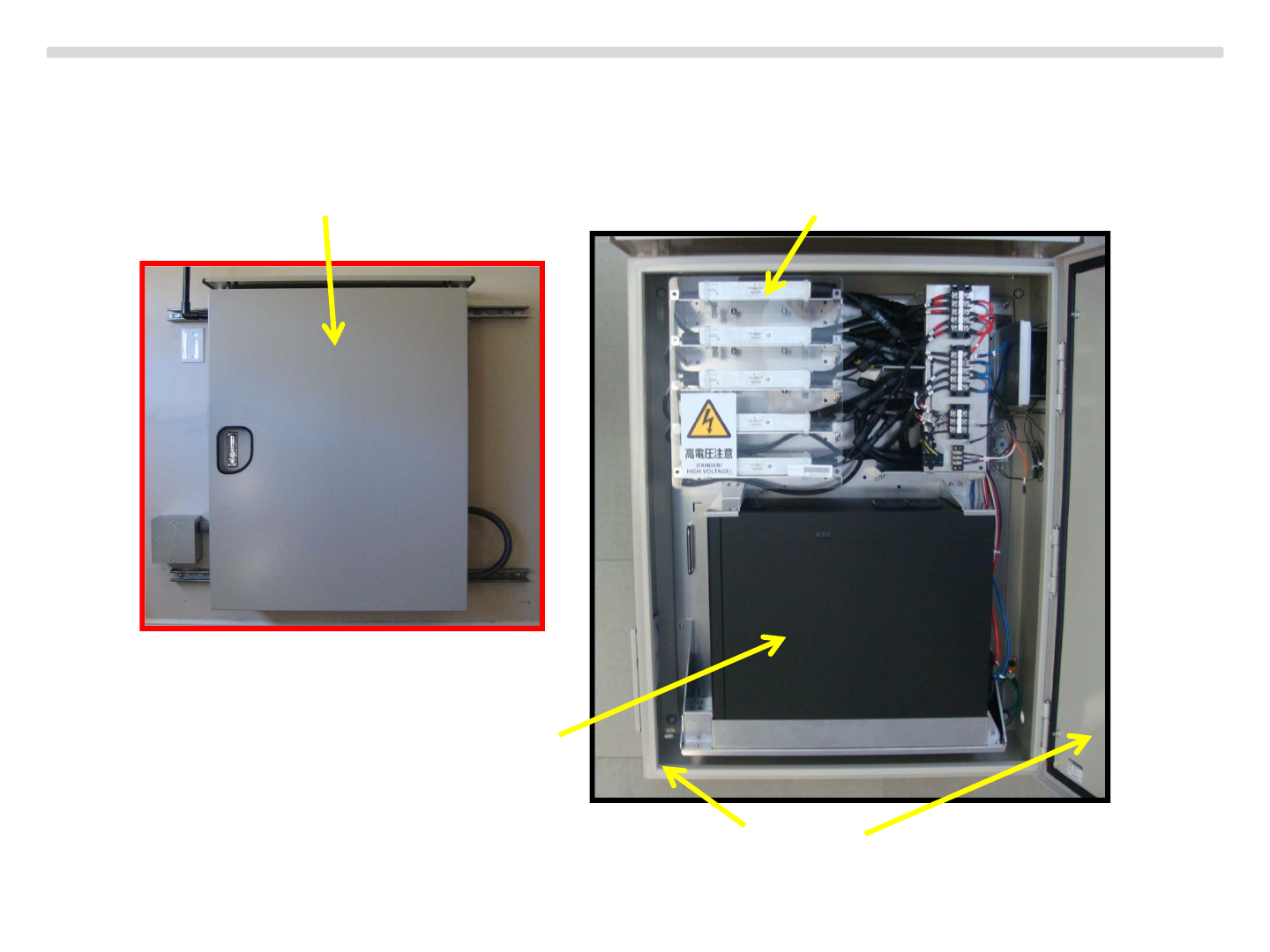

Open the cargo and Take out the energy storage server from outer enclosure
Description
Copyright Sony Energy Devices Corporation

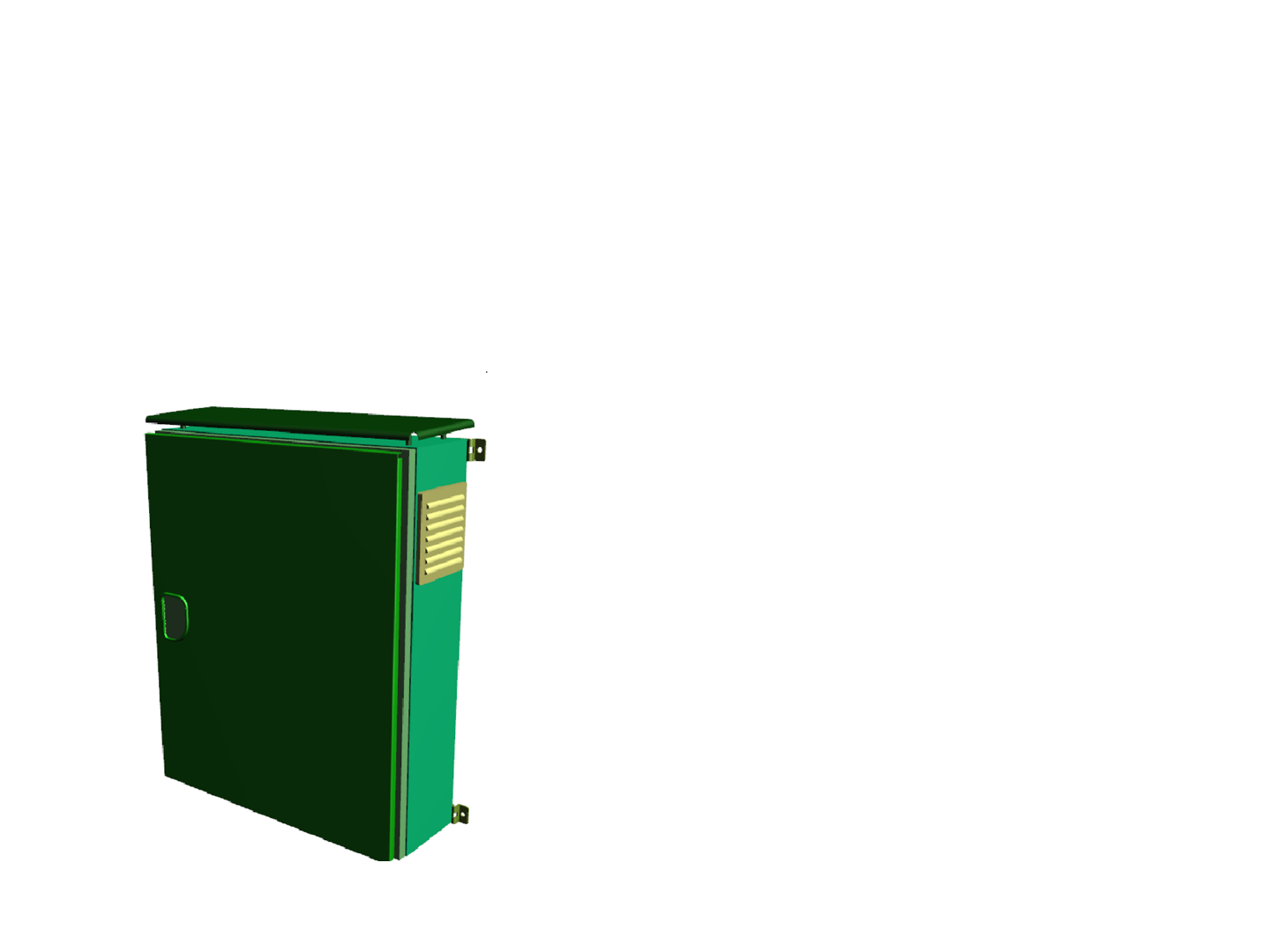

Energy Storage System
Energy Storage Server
Outer Enclosure
Inverter
Energy Storage System “IJ1001SNBT”
12

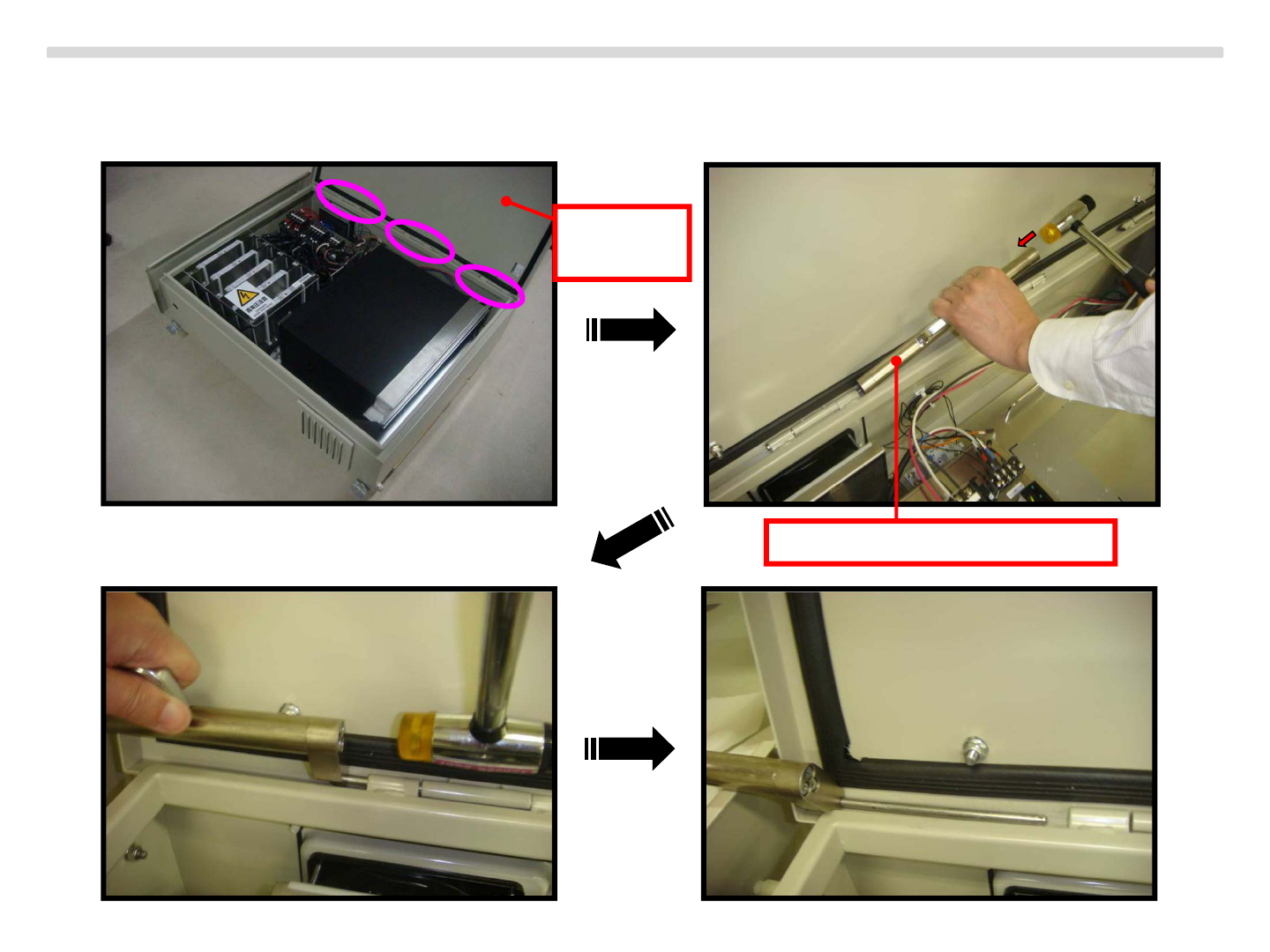

Open the cargo and Take out the energy storage server from outer enclosure
Remove the front door（Optional)
Copyright Sony Energy Devices Corporation
Tool ⑨refer to Page 9
Front
door
Energy Storage System “IJ1001SNBT”
13
Open the cargo and Take out the energy storage server from outer enclosure

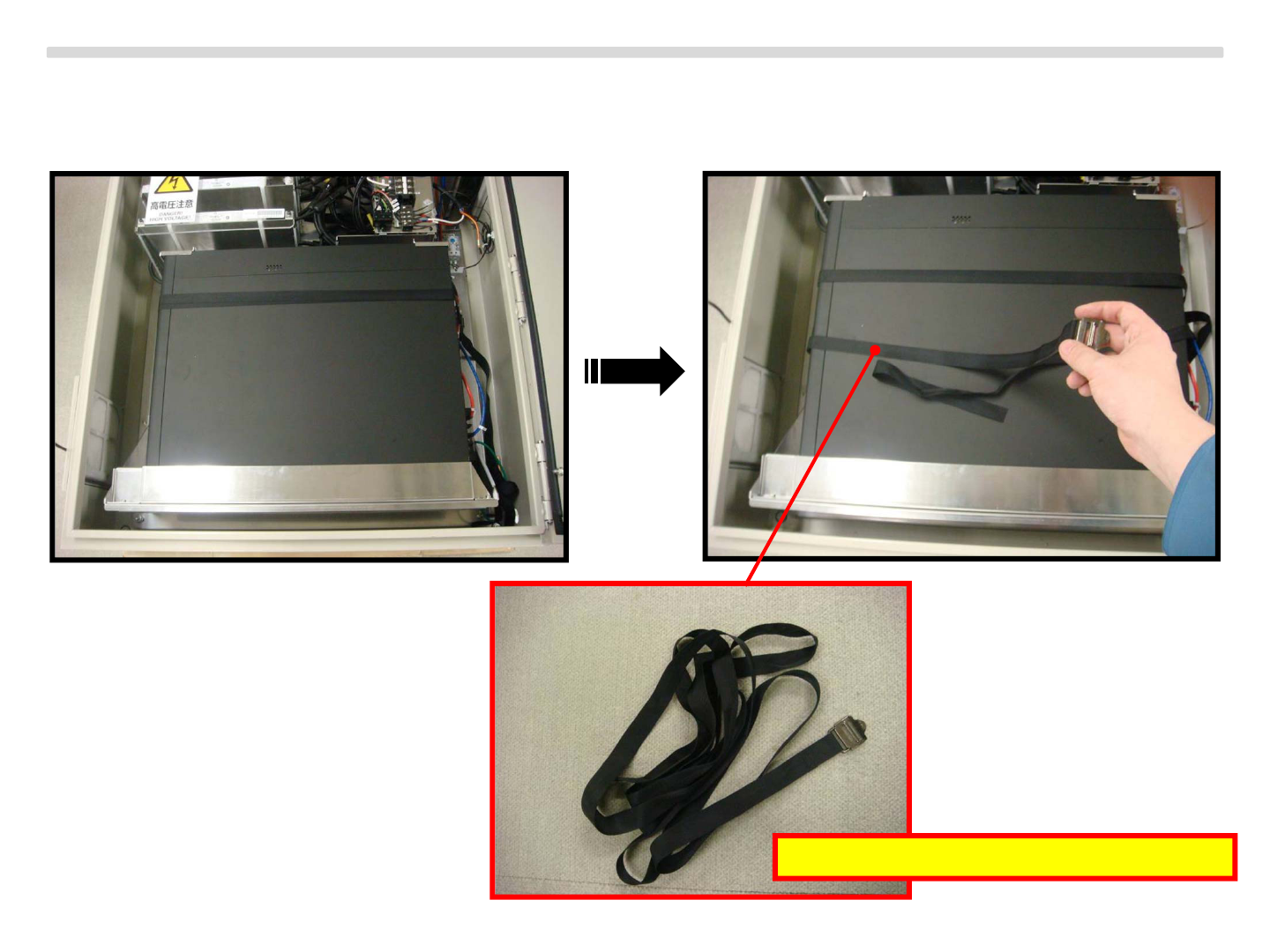

Remove the belt.
Copyright Sony Energy Devices Corporation
It won’t be used. Can be disposed.
Energy Storage System “IJ1001SNBT”
14

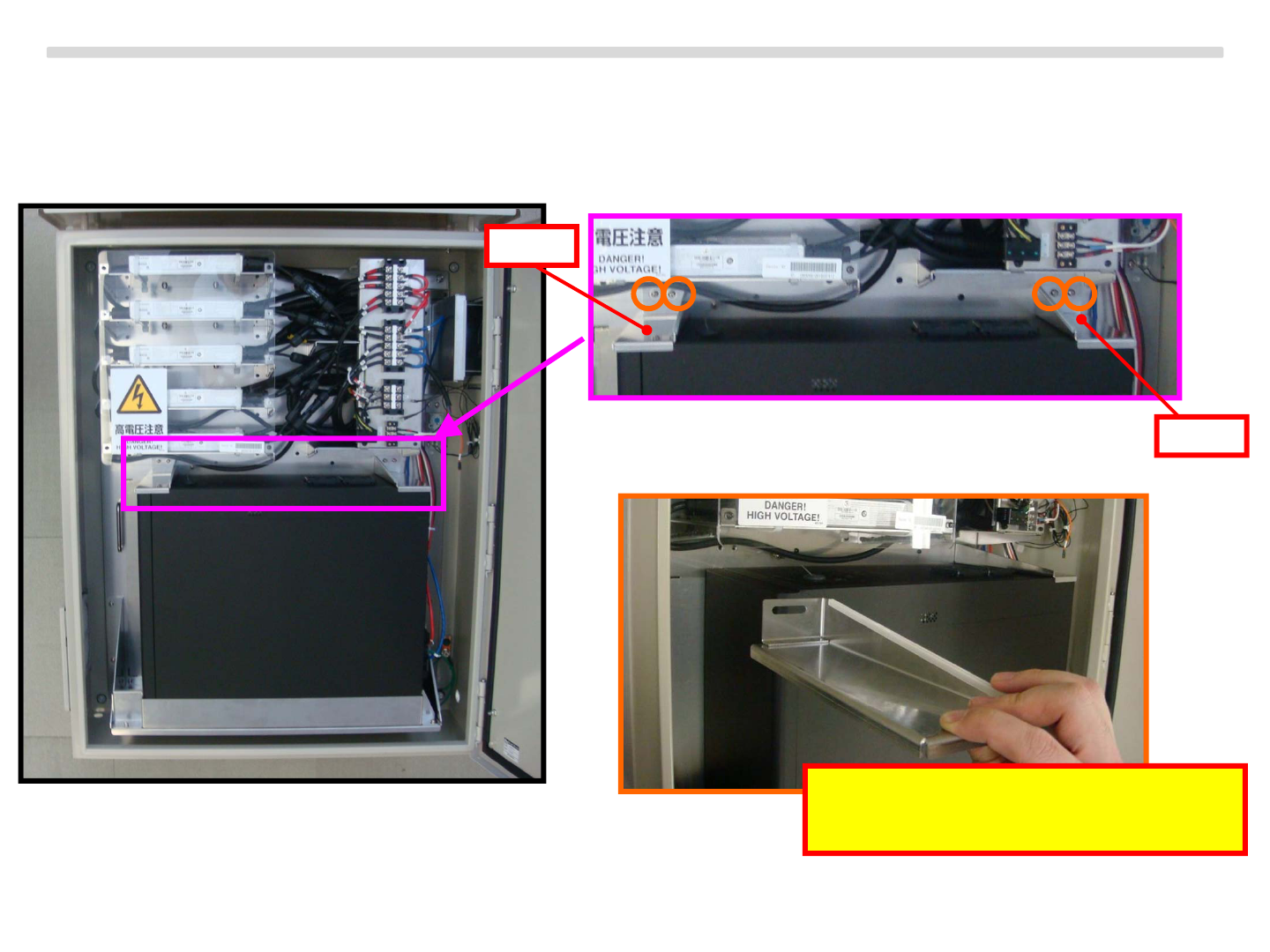

Open the cargo and Take out the energy storage server from outer enclosure

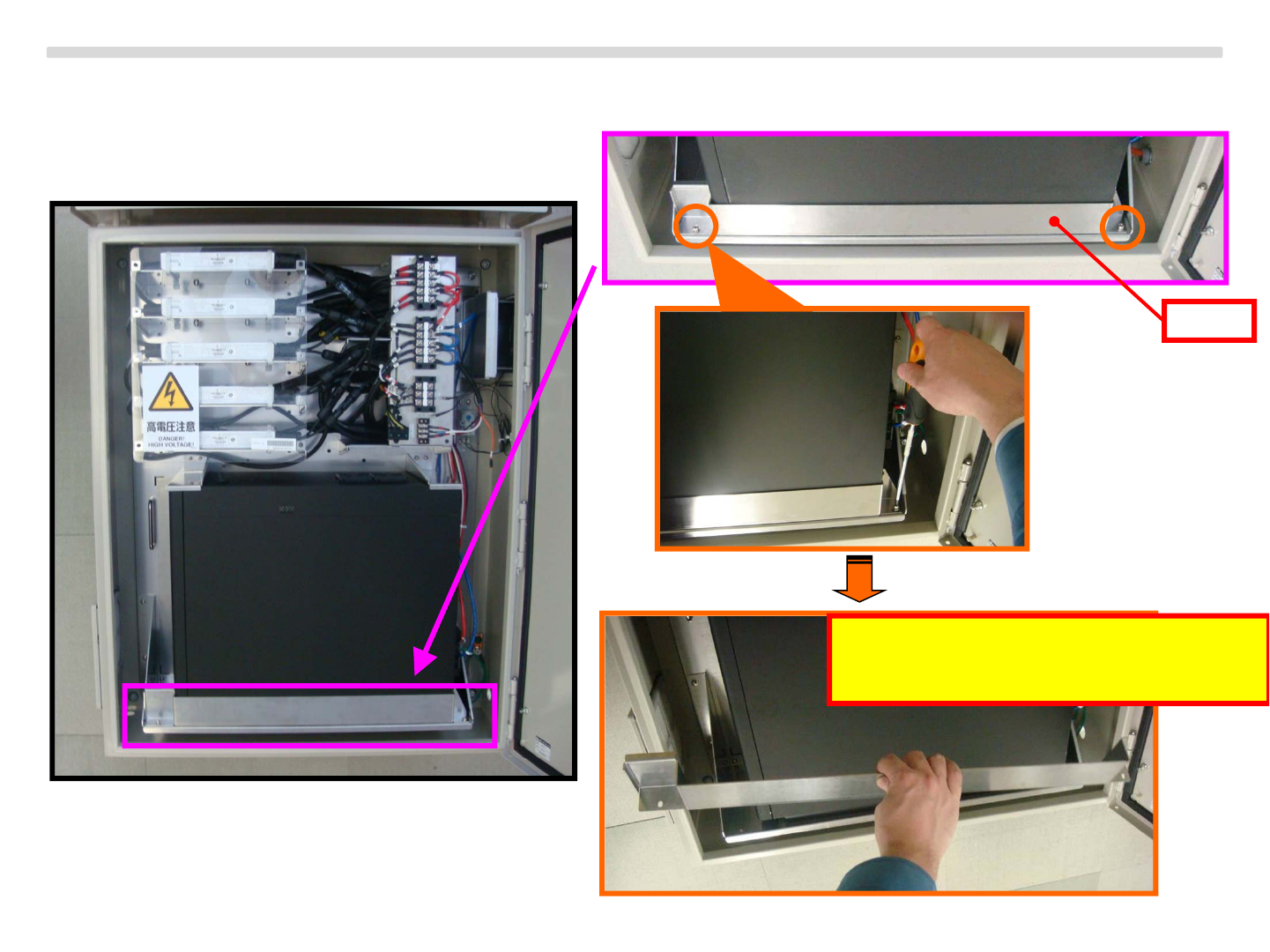

Remove the jig-3.
Copyright Sony Energy Devices Corporation
Jig-3
The screw removed won’t be used.
It can be disposed.
Energy Storage System “IJ1001SNBT”
15
Open the cargo and Take out the energy storage server from outer enclosure
Remove the jig-4,5.
Copyright Sony Energy Devices Corporation
Jig-4
Jig-5
The screw removed won’t be used.
It can be disposed.
Energy Storage System “IJ1001SNBT”
16
Open the cargo and Take out the energy storage server from outer enclosure

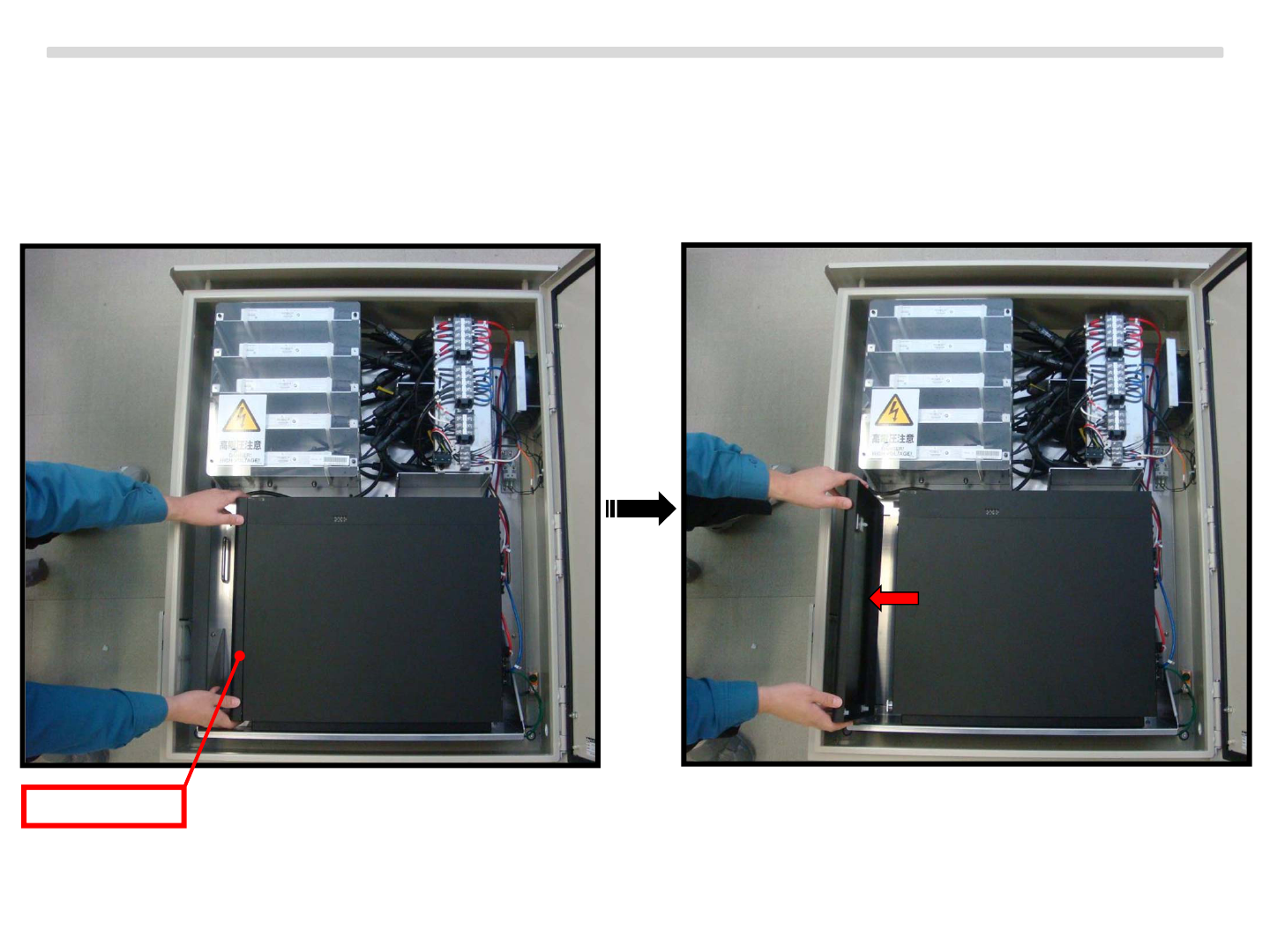

Remove the front panel of the energy storage server.
Copyright Sony Energy Devices Corporation
Front panel
Energy Storage System “IJ1001SNBT”
17

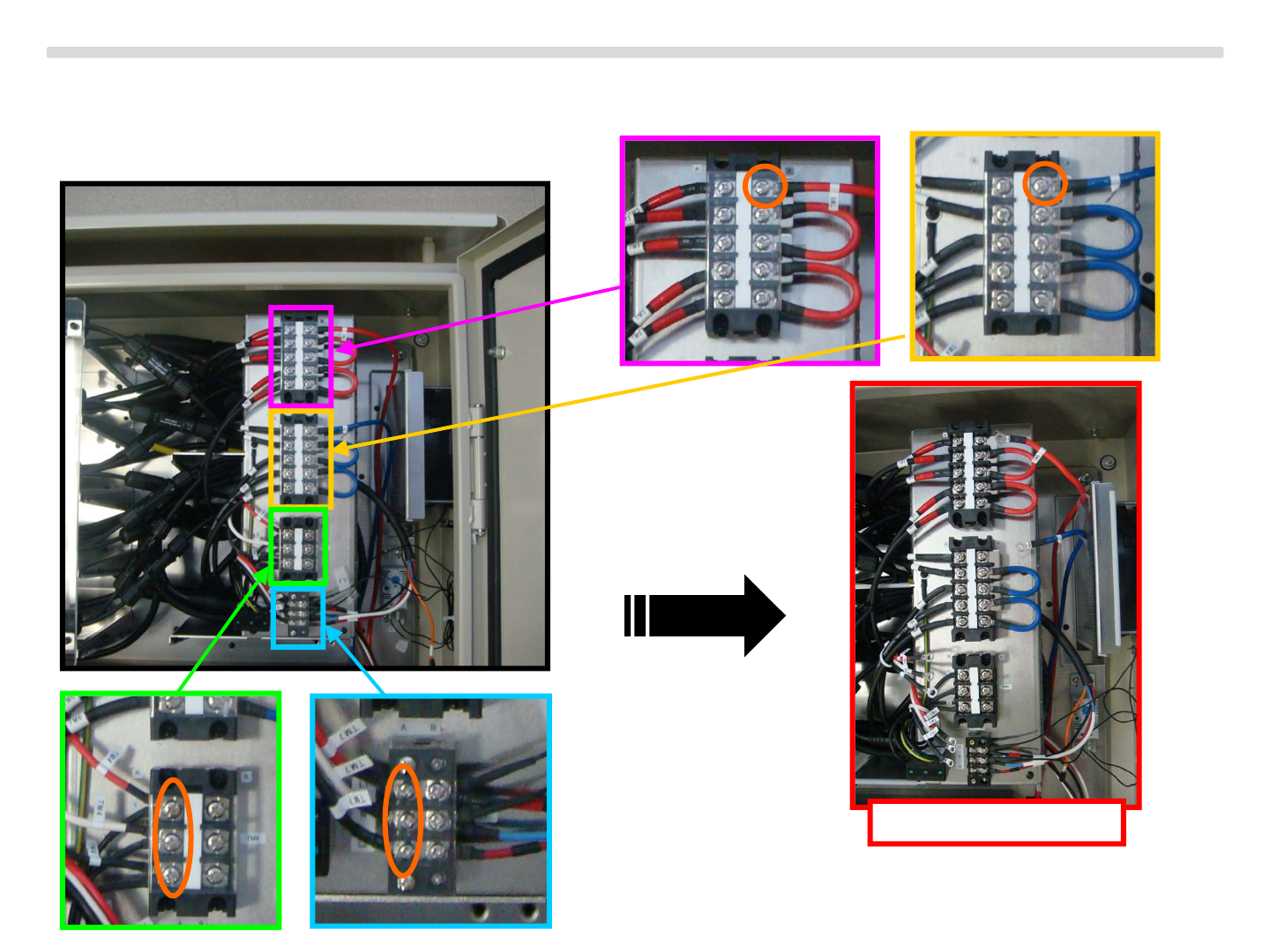

Open the cargo and Take out the energy storage server from outer enclosure
Remove the cables bellow.
Copyright Sony Energy Devices Corporation
Completed photo
Energy Storage System “IJ1001SNBT”
18
Open the cargo and Take out the energy storage server from outer enclosure

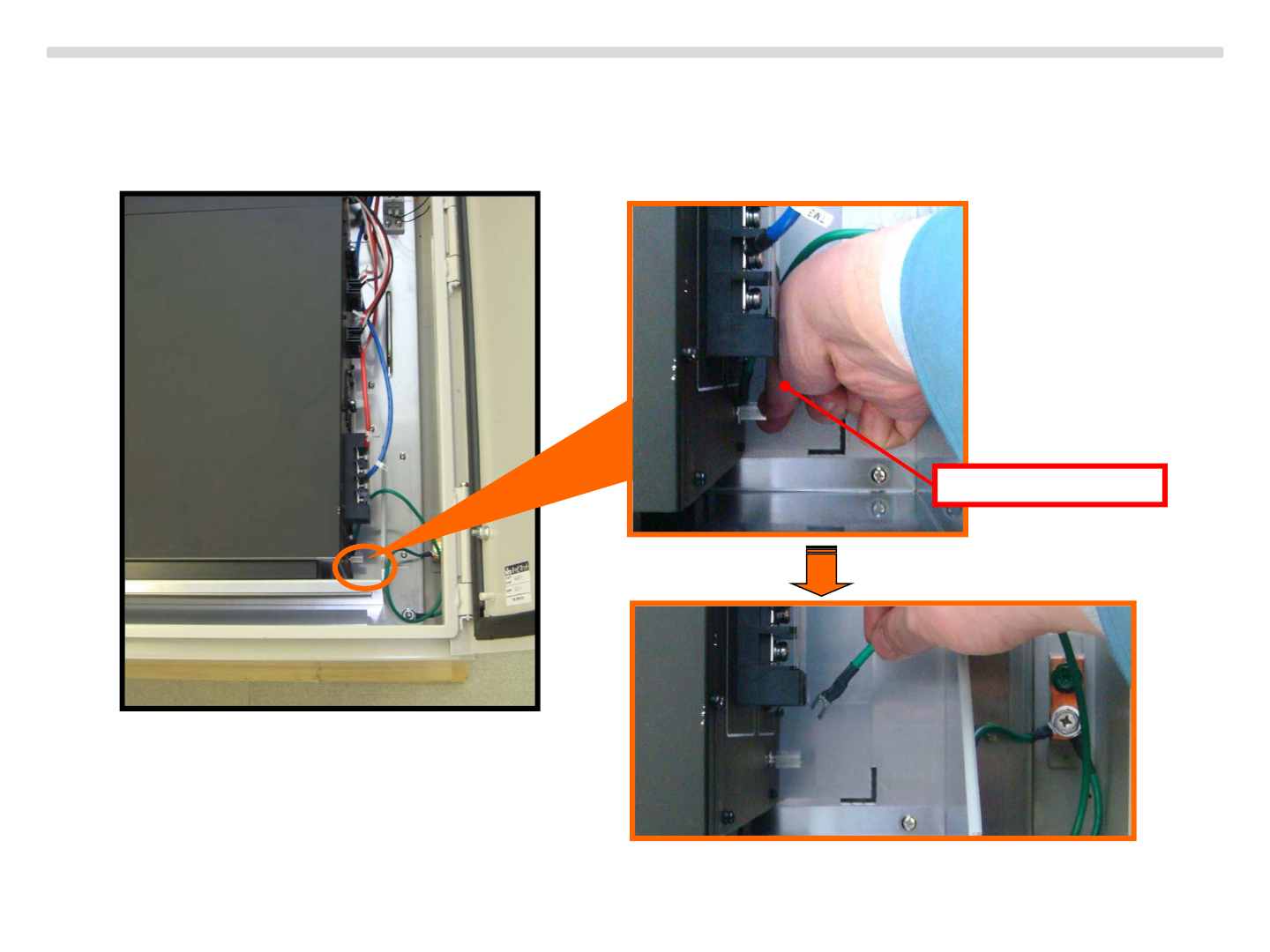

Remove the wire from ground terminal on the rear panel of energy storage server.
Copyright Sony Energy Devices Corporation
Ground terminal
