Introduction
This product is a Wireless LAN Card for the Sony Personal
Entertainment Organizer (mentioned as CLIÉ handheld after this) of
the Palm OS 5 (ver5.0).
This product complies with IEEE 802.11b* and allows you to access
the Internet wirelessly in locations where there is a Wi-Fi certified
wireless LAN access point.
* Wi-Fi certified.
Performing a HotSync operation
You can perform a HotSync operation via a network (synchronize
data wirelessly) between your CLIÉ handheld and a personal
computer. For details on HotSync operation, see the Operating
Instructions of your CLIÉ handheld.

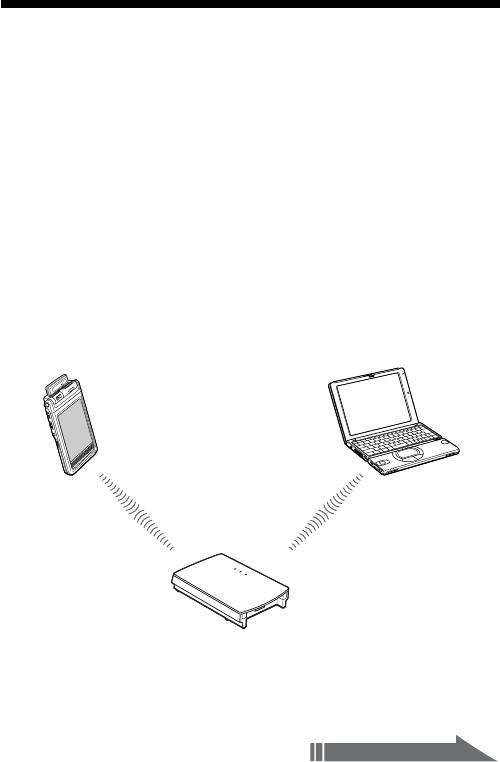

PEGA-WL100 and CLIÉ handheld Personal computer
LAN access point
Continued on next page
8

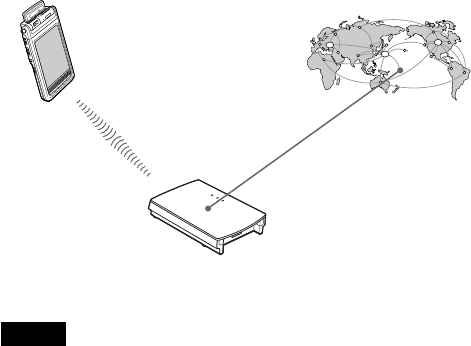

Accessing the Internet
You can access the Internet from your CLIÉ handheld in which this
Wireless LAN card is inserted through a LAN access point, and enjoy
browsing various websites or sending/receiving email.
Notes
•To access the Internet through a LAN access point, you need to be a subscriber
to a telecommunications company and an Internet Service Provider (ISP) in
advance.
•You may need a personal computer to set a wireless LAN. For details, see the
Operating Instructions of your wireless LAN access point.
PEGA-WL100
and CLIÉ
handheld
Internet
LAN access point
9
Names of Parts

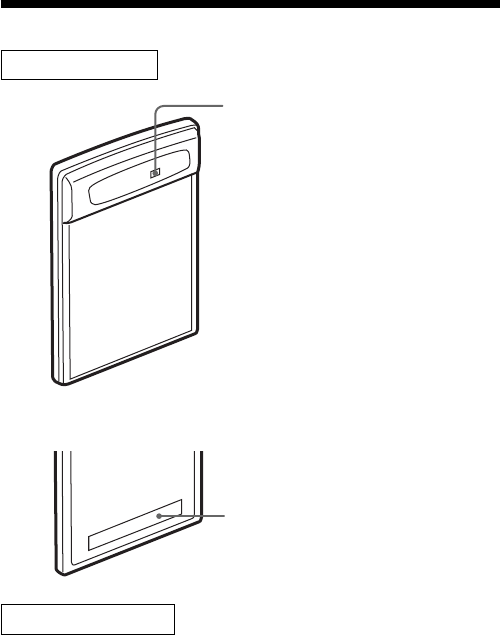

Wireless LAN Card
Front
Rear
Other items included
CD-ROM (1)
Hard case (1)
Operating Instructions (1)
Warranty card (1)
End-User’s License Agreement (1)
LED indicator
Blinks slowly while your CLIÉ
handheld is connected to an access
point, etc.
Blinks rapidly during data transfer.
(Flashing speed varies depending on
the amount of data being transferred).
Does not blink when your CLIÉ
handheld is not connected to an access
point, etc.
MAC Address
This address may be used by your
System Administrator.
10
Inserting/Removing the Wireless LAN
Card
Inserting the Wireless LAN card in your CLIÉ
handheld

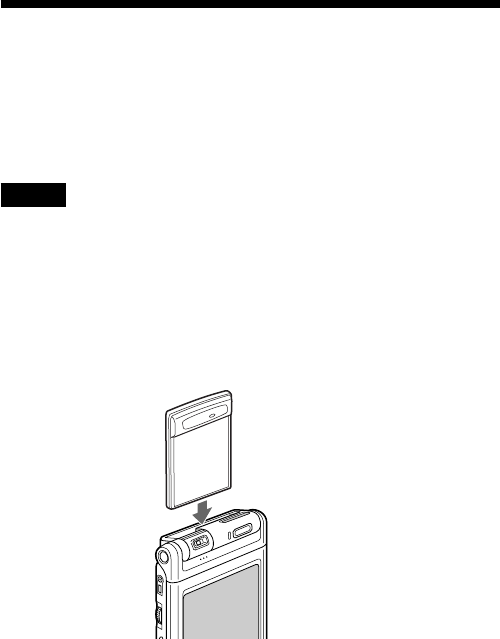

Insert the Wireless LAN card in Wireless Communication Slot of the
CLIÉ handheld.
Notes
•Insert the Wireless LAN card straight in Wireless Communication Slot of the
CLIÉ handheld.
•Do not insert the Wireless LAN card in the wrong way. Forcing it in the
wrong way will damage it and cause a malfunction.
•You may be unable to use the Wireless LAN card when the remaining power
of the battery in the CLIÉ handheld is low. Before using, charge the battery
fully.
Insert the Wireless LAN card
all the way into the slot until
it fully mates with the
connector.
11
Removing the Wireless LAN card from your CLIÉ
handheld
After use, terminate communications. Then, pull the wireless LAN
card up straight.
When using this Wireless LAN card with a
Flip&Rotate style CLIÉ handheld
Do not rotate the display when the wireless LAN card is inserted in
the Wireless Commnunication Slot of the CLIÉ handheld. This may
press the display panel against the Wireless LAN card and cause a
malfunction.
Note
During communication, do not remove the Wireless LAN card or subject the
CLIÉ handheld to excessive shock.
12
Installing the Software
When you try to perform wireless LAN communications for the first
time after inserting the Wireless LAN card in your CLIÉ handheld,
you need to install the Wireless LAN utility in your CLIÉ handheld.
You can install the Wireless LAN utility by using the supplied CD-
ROM.
Note
Before installation, it is necessary to have Palm Desktop for CLIÉ installed and
to perform a HotSync operation. Connect the CLIÉ handheld to a Windows
computer, using a cradle, etc. For details on how to connect the CLIÉ handheld
to the computer, see the Operating Instructions of your CLIÉ handheld.
1Perform a soft reset on your CLIÉ handheld.
For details on how to perform a soft reset, see the Operating
Instructions of your CLIÉ handheld.
2Insert the supplied CD-ROM in the CD-ROM drive of
your Windows computer.
The installer starts and the initial screen appears.
Tip
If the installer does not start automatically, double-click [setup] (setup.exe)
which can be found in the CD-ROM.
3Proceed with the installation, following the installer’s
instructions.
On the user name selection screen, select a user’s name.
Note
If you want to use more than one CLIÉ handheld, you need to install this
utility in each CLIÉ handheld.
13
4Click [Done] when the installer-closing screen appears.
Your computer is ready to install the Wireless LAN utility to your
CLIÉ handheld. In the next step, you will perform a HotSync
operation to carry out the installation.
5Click the icon on the task tray that is located in the
lower right corner of the Windows display on your
computer.
Check that [Local USB] is ticked in the shortcut menu on the
display.
Tip
If you cannot find the icon on the task tray, click [Programs] ([All
Programs] in Windows® XP), [Sony Handheld], and then [HotSync
Manager] to start up the HotSync manager, from the [Start] menu.
6Execute a local HotSync operation on your CLIÉ
handheld.
The Wireless LAN utility is installed into your CLIÉ handheld.
Note
Part of this software application extends into the system of CLIÉ handheld.
Therefore, it cannot be uninstalled.
After you perform a hard reset
Be sure to reinstall this utility.
After a hard reset, normally, the backup data in a personal computer
is automatically restored to your CLIÉ handheld through a HotSync
operation. However, this utility restores only the setting file when a
HotSync operation is performed, and it does not restore the utility
itself. Therefore, it is necessary to reinstall this utility after a hard
reset.
14
Performing Communications via a
Wireless LAN Access Point
(Infrastructure Mode)
You can wirelessly access the Internet or perform communications
with other communication device through a wireless LAN access
point.
Basic Settings
Before setting
You first need to input a couple of values to set the wireless LAN access point
you use. Check the following values in advance.
[NetworkID (SSID)]: It is also called ESS-ID or Network Name.
[WEP (Wired Equivalent Privacy)]: It is also called Encryption.
For details, ask your System Administrator. When you have a wireless LAN
access point for your personal use, refer to the operating instructions of the
wireless LAN access point.
Note
The Wireless LAN card uses the 1-11 channels (2.4 GHz band of frequencies). If
your access point uses the 12-14 channels, it is impossible to perform
communications using the Wireless LAN card.
1Insert the Wireless LAN card in Wireless
Communication Slot of your CLIÉ handheld.
2Tap the [Prefs] icon on the home screen of your CLIÉ
handheld.
The [Preferences] screen appears.
3Tap V in the upper right corner of the screen, and
select [Network].
The [Network] screen appears.
15

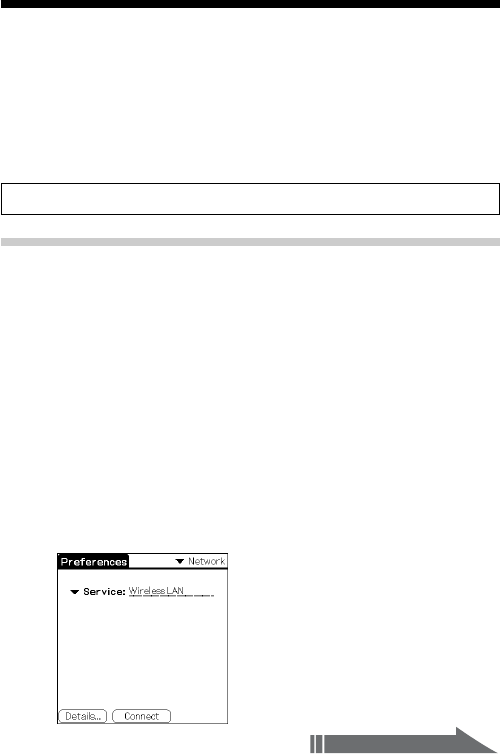

4Tap V of [Service], and select [Wireless LAN].
5Tap [Details...] in the lower left corner of the screen.
The [Wireless LAN Setup] screen appears.

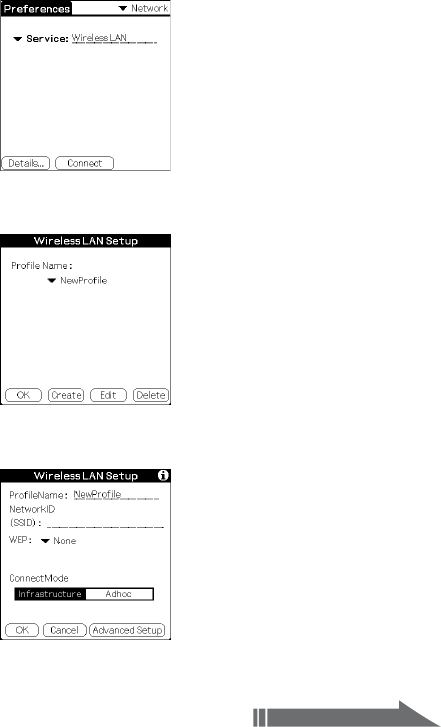

6Tap [Create].
A new input screen of [Wireless LAN Setup] appears.
Check that [Infrastructure] is selected (highlighted) in
[ConnectMode]. If it is not selected, tap [Infrastructure] to select it.
Continued on next page
16
Tip
Tapping the mark in the upper right corner of the screen shows a brief
explanation for the setting.

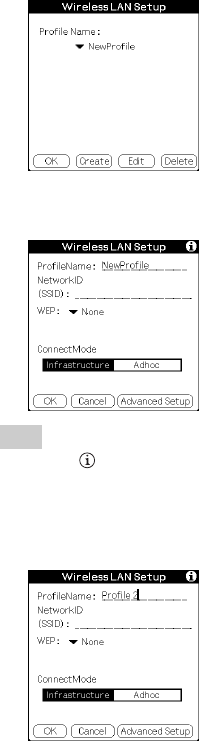

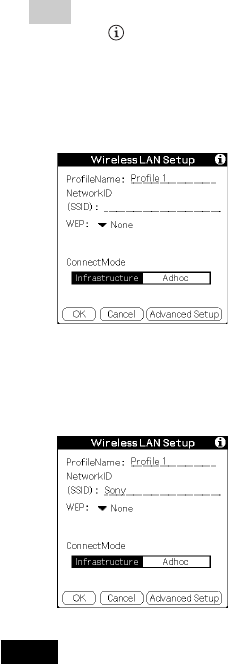

7Enter a profile name in [ProfileName].
Specify a name freely according to the name of the other
communication device, access point, etc.
8Enter a network ID in [NetworkID (SSID)].
Network ID (SSID) is fixed on the part of the access point you use.
Be sure to enter the network ID (SSID) that is specified by your
access point.
Note
Network ID is case-sensitive between capital letters and small letters. Be careful
when entering a Network ID.
17

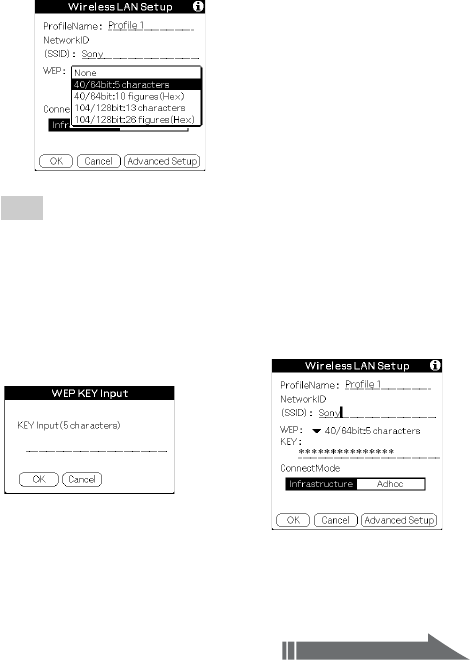

9Select the encryption level in [WEP].
WEP (encryption level) is fixed depending on the access point you
use. Be sure to select the encryption that is used by your access
point.
Tip
When you select [None] in [WEP], you do not need to enter a WEP key. In
this case, skip the next step, and go to Step 11.
10

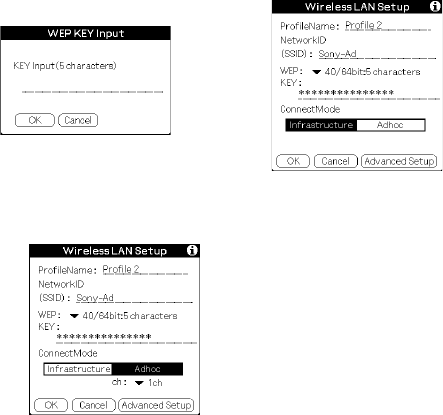

Enter a WEP key.
The WEP key is fixed, depending on the access point you use. Be
sure to enter the WEP key that is specified by your access point.
Continued on next page
b
18
When you select 40/64bit: alphanumeric string (5 characters)
Enter a 5-digit password using alphabet (a-z), numbers (0-9) and
symbols.
When you select 40/64bit: hexadecimal notation (10 figures
(Hex))
Enter a 10-digit password using alphabet (a-f) and numbers
(0-9).
When you select 104/128bit: alphanumeric string (13 characters)
Enter a 13-digit password using alphabet (a-z), numbers
(0-9) and symbols.
When you select 104/128bit: hexadecimal notation (26 figures
(Hex))
Enter a 26-digit password using alphabet (a-f) and numbers
(0-9).
Note
WEP key distinguishes between capital letters and small letters. Be careful
when entering a WEP key.
Tips
•WEP key is the function that encrypts data that are to be sent by radio
waves.
•Depending on the manufacturer, the above WEP keys may be assigned a
different name.
11
Tap [OK].
The basic settings are completed by the profile name you set in
Step 7.
12
Tap the Home icon on your CLIÉ handheld.
The home screen appears.
19
Modifying the settings
1Tap the [Prefs] icon on the home screen of your CLIÉ handheld.
The [Preferences] screen appears.
2 Tap V in the upper right corner of the screen, and select
[Network].
The [Network] screen appears.
3 Tap V of [Service], and select [Wireless LAN].
4Tap [Details...] in the lower left corner of the screen.
The [Wireless LAN Setup] screen appears.

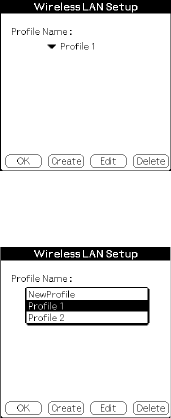

5 Tap V below [ProfileName], and select the profile name you
want to modify.
6Tap [Edit] at the bottom of the screen.
The [Wireless LAN Setup] input screen appears.
7Modify the settings.
8Tap [OK].
9Tap the Home icon.
The home screen appears.
Deleting the profile you have set
1In Step 6 of “Modifying the settings” above, tap [Delete] at the
bottom of the screen.
The selected profile is deleted.
2Tap [OK].
3Tap the Home icon.
The home screen appears.
Note
Do not modify the settings while the Wireless LAN card is being connected to
the wireless LAN access point.
20
Advanced Settings
Setting a network manually
When it is necessary to set a network IP address or DNS address,
follow the procedure below.

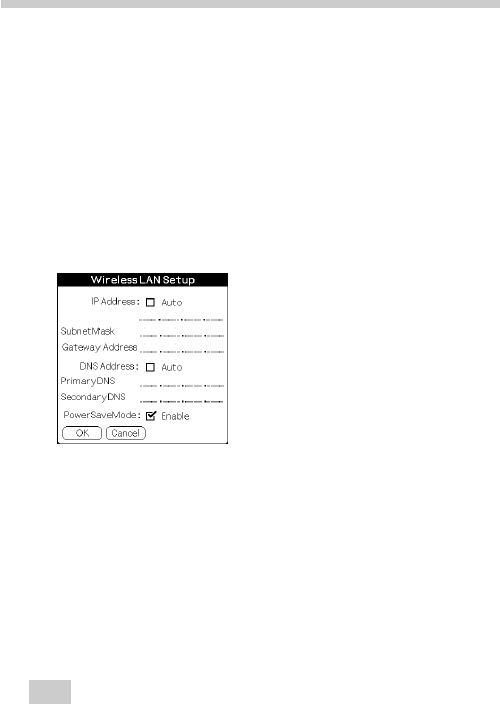

1Tap [Advanced Setup] in the lower right corner of the
[Wireless LAN Setup] input screen.
2Tap the checkbox of [Auto] in [IP Address] or [DNS
Address], and remove the tick.
The IP Address input screen or the DNS Address input screen appears.
3Enter necessary addresses.
4Tap [OK] when you complete the setting.
Disabling the power saving mode
1 Tap [Advanced Setup] in the lower right corner of the [Wireless
LAN Setup] input screen.
2Tap the checkbox of [Enable] in [PowerSaveMode], and remove
the tick.
The power saving mode is disabled.
Tip
When the communication conditions are not good, you can disable the
power saving mode to maximize the battery power and achieve better
communications. However, it will make the battery life shorter.
Normally, the power saving mode is recommended.
21
Connecting your CLIÉ Handheld to a Wireless LAN
1Insert the Wireless LAN card in Wireless
Communication Slot of your CLIÉ handheld.
2Tap the [Prefs] icon on the home screen of your CLIÉ
handheld.
The [Preferences] screen appears.

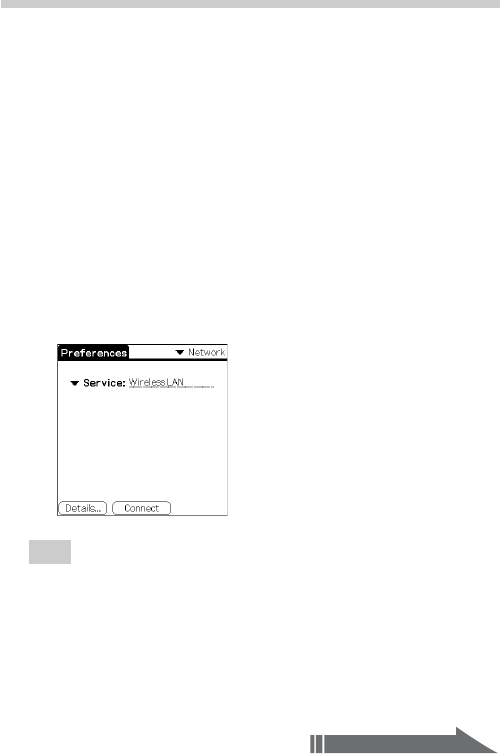

3Tap V in the upper right corner of the screen, and
select [Network].
The [Network] screen appears.

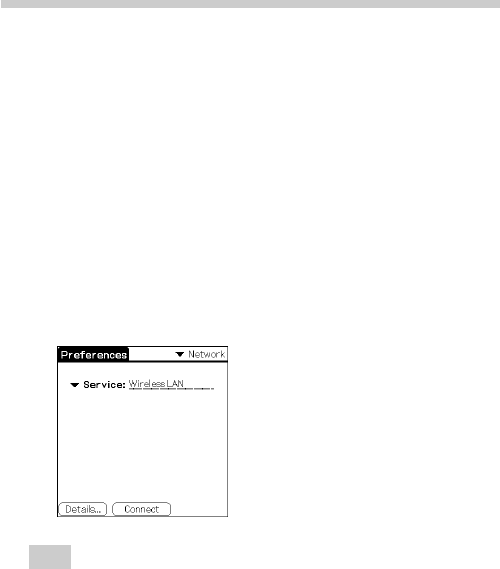

4Tap V of [Service], and select [Wireless LAN].
Tip
If you have set only one profile, go to Step 8.
Continued on next page
22
5Tap [Details...] in the lower left corner of the screen.
The [Wireless LAN Setup] screen appears.

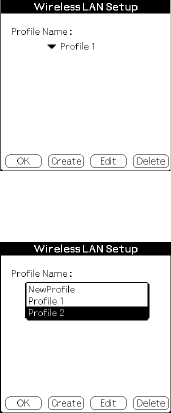

6Tap V below [Profile Name], and select the profile
name you want to use.
7Tap [OK].
The [Preferences] screen appears again.
8Tap [Connect] at the bottom of the screen.
Your CLIÉ handheld begins to connect to a wireless LAN.
When a connection is established, start up the application you
like.
23
Performing Communications Directly
between your CLIÉ Handheld and
Another Device on a Wireless LAN
(Ad-Hoc Mode)
Your CLIÉ handheld can communicate directly with another device
on a wireless LAN without using a wireless LAN access point.
The Ad-hoc mode settings and communications require network knowledge.
Basic Settings
1Insert the Wireless LAN card in Wireless
Communication Slot of your CLIÉ handheld.
2Tap the [Prefs] icon on the home screen of your CLIÉ
handheld.
The [Preferences] screen appears.
3Tap V in the upper right corner of the screen, and
select [Network].
The [Network] screen appears.
4Tap V of [Service], and select [Wireless LAN].
Continued on next page
24
5Tap [Details...] in the lower left corner of the screen.
The [Wireless LAN Setup] screen appears.
6Tap [Create].
A new input screen of [Wireless LAN Setup] appears.
Tip
Tapping the mark in the upper right corner of the screen shows a brief
explanation for the setting.
7Enter a profile name in [ProfileName].
Specify a name freely according to the name of the other
communication device, access point, etc.
25
8Enter a network ID in [NetworkID (SSID)].
Specify an alphanumeric string freely. The same network ID
(SSID) needs to be entered in both your CLIÉ handheld and the
other communication device.
9Select the encryption level in [WEP].
Be sure to select the same encryption level for both your CLIÉ
handheld and the other communication device.
Tip
When you select [None] in [WEP], you do not need to enter a WEP key. In
this case, skip the next step, and go to Step 11.
Continued on next page
26
10
Enter a WEP key.
Be sure to enter the same WEP key in both your CLIÉ handheld
and the other communication device.
For details on WEP key, see pages 17-18.
11
Tap [Adhoc] in [ConnectMode].
The Ad-hoc mode is selected as the connection type.
b
27
12

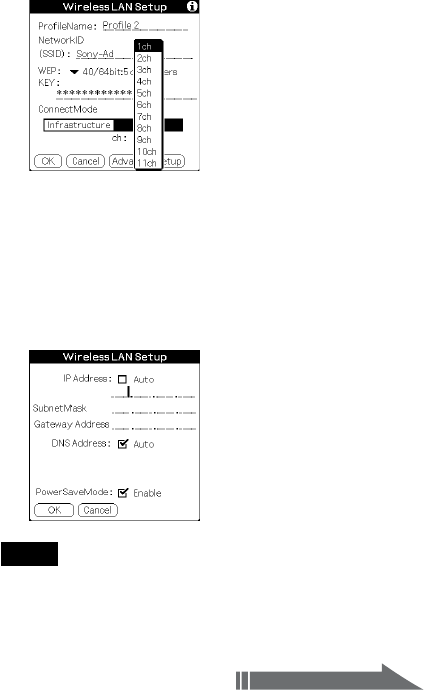

Tap V of [ch] below [Adhoc], and select a channel.
Be sure to select the same channel for both your CLIÉ handheld
and the other communication device. Select a channel from 1 to
11.
13
Tap [Advanced Setup] in the lower right corner of the
screen.
14

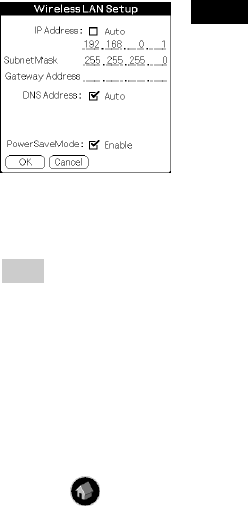

Tap the checkbox of [Auto] in [IP Address], and remove
the tick.
The IP address input screen appears.
Note
Ad-hoc mode may not be established if “Auto” is checked.
The connection works only when both of the PC without DHCP and CLIÉ
handheld select “Auto”. Most of the time, user has to enter static IP on CLIÉ
handheld for the Ad-hoc mode.
Continued on next page
28
15
Enter an IP address and a sub-netmask.
Enter different IP addresses in your CLIÉ handheld and the other
communication device.
Enter the same Subnet mask in your CLIÉ handheld and the other
communication device.
(Eg.)
IP address CLIÉ handheld: 192.168.0.1
Other device: 192.168.0.2
Subnet mask CLIÉ handheld/other device:
255.255.255.0
Tip
Enter a gateway address if necessary. When it is necessary to enter a DNS
address, tap and tick the checkbox of [Auto] in [DNS Address] before
entering the DNS address.
16
Tap [OK].
The [Wireless LAN Setup] screen appears.
17
Tap [OK].
The settings are completed in the profile name you set in Step 7.
18
Tap the Home icon on your CLIÉ handheld.
The home screen appears.
Note
User has to find the Subnet mask from the
PC that he/she wants to connect to. The
following is referred to find Subnet mask on
a PC.
Windows 98 and Windows ME:
From [Start] c [Run...] c type in ‘winipcfg’ c
the [IP configuration] dialog box appears c
check the IP address and Subnet mask.
Windows 2000 and Windows XP:
From [Start] c [Run...] c type in ‘cmd’ c type
‘ipconfig/all’ c check the IP address and
Subnet mask.
29
Modifying the settings
1Tap the [Prefs] icon on the home screen of your CLIÉ handheld.
The [Preferences] screen appears.
2 Tap V in the upper right corner of the screen, and select
[Network].
The [Network] screen appears.
3 Tap V of [Service], and select [Wireless LAN].
4Tap [Details...] in the lower left corner of the screen.
The [Wireless LAN Setup] screen appears.
5 Tap V below [ProfileName], and select the profile name you
want to modify.
6Tap [Edit] at the bottom of the screen.
The [Wireless LAN Setup] input screen appears.
7Modify the settings.
8Tap [OK].
9Tap the Home icon.
The home screen appears.
Deleting the profile you have set
1In Step 6 of “Modifying the settings” above, tap [Delete] at the
bottom of the screen.
The [Delete Profile] confirmation dialog window appears.
2Tap [OK] to confirm deletion or [Cancel] to cancel the deletion.
3Tap the Home icon.
The home screen appears.
Note
Do not modify the settings while the Wireless LAN card is being connected to
the wireless LAN access point.
Continued on next page
30
Connecting your CLIÉ Handheld to Another Device
on a Wireless LAN
1Insert the Wireless LAN card in Wireless
Communication Slot of your compatible CLIÉ handheld.
2Tap the [Prefs] icon on the home screen of your CLIÉ
handheld.
The [Preferences] screen appears.
3Tap V in the upper right corner of the screen, and
select [Network].
4Tap V of [Service], and select [Wireless LAN].
Tip
If you have set only one profile, go to Step 8.
31
5Tap [Details...] in the lower left corner of the screen.
The [Wireless LAN Setup] screen appears.
6Tap V below [Profile Name], and select the profile
name you want to use.
7Tap [OK].
The [Preferences] screen appears again.
8Tap [Connect] at the bottom of the screen.
Your CLIÉ handheld begins to connect to a wireless LAN.
When a connection is established, start up the application you like.
32
Performing a HotSync Operation via a
Network with a Wireless LAN Card
This Wireless LAN card can be used in various ways. For example,
you can perform a HotSync operation with a Windows computer via a
wireless LAN. Follow the procedures below.
Preparing your computer
1Click the icon in the Windows task tray (bottom-right corner
of the taskbar) and select [Network] from the shortcut menu.
2Click the icon in the Windows task tray again and select
[Setup] from the shortcut menu.
The [Setup] screen is displayed.
3Click the [Network] tab, then click the check box next to the
user name for HotSync.
4Click [TCP/IP Settings], and enter a Subnet Mask.
5Click [OK].
6Connect your CLIÉ handheld to your computer, and perform a
HotSync operation.
The computer information is transferred to your CLIÉ handheld.
When you perform a HotSync operation via a wireless LAN, your
CLIÉ handheld identifies the computer based on the information
transferred.
Preparing your CLIÉ handheld
Follow the steps below to set up your CLIÉ handheld for a HotSync
operation via a wireless LAN.
1Select [Wireless LAN] in [Service] on the [Network] screen of
[Preferences], and select a profile name for a HotSync operation
on the [Wireless LAN details] screen.
For details, see the Steps 1 to 6 of “Connecting your CLIÉ Handheld
to a Wireless LAN” on pages 21 and 22.
33
2Rotate the Jog Dial navigator to select HotSync and press the
Jog Dial navigator on the Application Launcher screen.
The [HotSync] screen is displayed.
You can also tap the [HotSync] icon to display the HotSync screen.
3Tap the Menu icon, and tap [Primary PC Setup] from the
[Option] menu.
4Check that correct data is entered in [Primary PC Address] and
[Subnet Mask(optional)], and tap [OK].
5Tap the Menu icon, and tap [Modem Sync Prefes] from the
[Option] menu.
6Tap [Network], and tap [OK].
7When the HotSync screen appears, tap [Modem], and then tap
[Select Service].
8 Tap V of [Service], select [Wireless LAN], and tap [Done].
Tip
It is unnecessary to enter a telephone number in [Enter phone #].
Note
It is also necessary to select [Wireless LAN] in [Service] on the [Network] screen
of the [Preferences] that can be started from the home screen.
Performing a HotSync operation
When you finish the preparation of your CLIÉ handheld and your
computer, tap the [HotSync] icon on the [HotSync] screen.
Your CLIÉ handheld automatically connects to the network and
begins a HotSync operation.
When communication is not possible
Following the above Step 3, erase the [Primary PC Name].
34
Troubleshooting
If any problem occurs, for example, if communication is not possible,
or if the unit does not operate normally, please check the points listed
in this troubleshooting guide.
Visit Sony CLIÉ support website:
Customers in USA, Canada and Mexico:
http://www.ita.sel.sony.com/support/clie/access/
Customers in European Countries:
http://www.clie-link.com/
Customers in Asia-Pacific Countries:
http://vaio-online.sony.com/clie/
If the problem persists, contact the Sony dealer where you purchased
this product or a Sony service representative serving your area.
Symptom
Your CLIÉ handheld
does not recognize this
Wireless LAN card.
(Although connection
has started, the LED
indicator on the
Wireless LAN card
does not flash.)
You cannot connect
your CLIÉ handheld to
an access point.
Cause/Remedy
•The Wireless LAN card is not installed
correctly in your CLIÉ handheld.
pInsert the Wireless LAN card into
Wireless Communication Slot of your
compatible CLIÉ handheld in the
correct way until it fully mates with the
connector.
•A service other than [Wireless LAN] is
selected in the [Network] of [Preferences].
pSelect [Wireless LAN] in [Service].
•A wrong profile is selected.
pCheck the [Profile Name] you have
selected on the [Wireless LAN Setup]
screen.
•The settings for communications are not
correct.
pCheck the settings of Network ID, WEP
key, etc.
35
Symptom
You cannot connect
your CLIÉ handheld to
an access point.
You cannot access the
Internet.
The data transfer rate is
slow.
Cause/Remedy
•Your CLIÉ handheld and the access point
are placed too far apart.
pDecrease the distance between them.
•There is an obstacle that could block off
radio waves (e.g., metal plate, concrete
block) between your CLIÉ handheld and
the access point.
pMove your CLIÉ handheld and/or the
access point to different places.
pDisable the power saving mode.
(This will increase the power
consumption. Be careful of the
remaining battery power).
•
The channels of the access point are not set
at 1-11.
pChange the channel setting of the access
point.
•The access point you are using is not
configured for internet access.
pConnect the access point to the Internet,
following the operating instructions of
the access point.
•
There is a mistake in the Network settings.
pAsk your System Administrator about
the settings.
•Some other access points are interfering
with communication.
pChange the channel number of the
access point you are using. For details
on how to change the setting, see the
Operating Instructions of your access
point.
•The access point is being heavily used.
pWait a while and try access again.
Continued on next page
36
Symptom
The data transfer rate is
slow.
You forget a WEP
(encryption) key.
You cannot send or
receive email.
You cannot perform a
HotSync operation.
You cannot browse
homepages.
Cause/Remedy
•There is an obstacle that could block off
radio waves (e.g., metal plate, concrete
block) between your CLIÉ handheld and
the access point.
pMove your CLIÉ handheld and/or the
access point to a different place.
pDisable the power saving mode.
(This will increase the power
consumption. Be careful of the
remaining battery power).
•There is a device operating at the 2.4 GHz
band of frequencies (microwave oven,
Bluetooth-enabled device, etc.) around
the CLIÉ handheld.
pIncrease the distance between the
device and the CLIÉ handheld or turn
off the power of the device.
pAfter changing all the settings of the
access point to its factory default setting,
set the access point again.
To restore the default settings, see the
operating instructions of the access point.
pCheck the settings of the emailing
software you are using.
For details on how to set the emailing
software, see its operating instructions.
pCheck the settings of HotSync.
For details on how to set HotSync, see the
operating instructions supplied with your
CLIÉ handheld.
pCheck the settings of the web browser
you are using.
For details on how to set the web
browser, see its operating instructions.
Tip
You can view the data of the communication preferences.
While performing communications using your CLIÉ handheld in which this
Wireless LAN card is inserted, show the [Network] screen of [Preferences].
Select [Option] on the menu, then select [View Log].
37
Precautions on Use
Handling this Wireless LAN Card
•Do not subject the card to excessive shock, and take care not to drop
it to prevent malfunction.
•Do not use or store this unit in locations subject to:
- extremely high temperature, such as in direct sunlight or near a
heater.
- excessive dust
- high humidity
- vibrations
- poor ventilation
It may cause a malfunction.
•Do not use the card in a shaky, unstable place.
•Do not put a metal object such as a metal clip etc. inside the card.
•When inserting the card in the CLIÉ handheld, take care not to force
it in the wrong way. It may cause a malfunction.
•When there is a device operating at the 2.4 GHz band of frequencies
around the CLIÉ handheld, the card and the CLIÉ handheld may not
work correctly.
Condensation
Condensation is a phenomenon that occurs when moisture in the air
becomes water drops when it contacts a metal plate etc. Condensation
may occur on the surface or inside of the Wireless LAN Card on
occasions when you quickly move it from a cold place to a warm
place, when you turn on the heater in the room on a cold, winter
morning. Using the Wireless LAN Card with condensation on it may
cause a malfunction. If condensation occurs on the Wireless LAN
Card, leave it without turning on the power of the CLIÉ handheld
until the condensation disappears.
38
Specifications
Power source
Powered by CLIÉ handheld
Power consumption
When transmitting: Approx. 560 – 920 mW (typ)*
Idle: Approx. 90 mW (typ)*
*At the default setting
(Note: The Wireless LAN card consumes no electricity when the LED
indicator is off.)
Dimensions
Approx. 1 11/16 × 2 1/4 × 1/4 in. (width/length/thickness)
(42.8 × 55.4 × 5.9 mm)
Mass
Approx. 0.5 oz (14 g)
Maximum communication range1)
Indoor: 300 ft. (90 m)
Outdoor: 1000 ft. (300 m)
Supported protocol
TCP/IP
Applied standard
IEEE 802.11b
Frequency band
2.4 GHz band (1 – 11 channels, ISM band)
WEP (data encryption)
128-bit/40-bit
Modulation method
DS-SS (in conformity to IEEE 802.11b)
Operating temperature
41 ˚F – 95 ˚F (5 ˚C – 35 ˚C)
1) Actual range will vary depending on factors such as obstacles between
devices, magnetic fields around a microwave oven, static electricity,
interference, radio wave conditions, reception sensitivity or antenna
performance, or the operating system or software application, etc.
Design and specifications are subject to change without notice.
39
Printed in Japan
Printed on 100% recycled paper using
VOC (Volatile Organic Compound)-free
vegetable oil based ink.
Customer Support
For the latest support information,
check our official Sony CLIÉ Web site
Customers in USA, Canada and Mexico:
http://www.ita.sel.sony.com/support/clie/access/
Customers in European Countries:
http://www.clie-link.com/
Customers in Asia-Pacific Countries
http://vaio-online.sony.com/clie/
