AP 300
Access Port
Quick Installation Guide
802.11a/b/g Access Port Internal Antenna Model
WSAP-5110-100-WW
Introduction
The AP 300 Access Port, a component of the Symbol Wireless Switch System, links wireless
802.11a/b/g devices to the switch, enabling growth of your wireless network with a cost-
effective alternative to standard access points. The AP 300 Access Port provides two
placement options: wall and ceiling. Wall mount slots fit onto two screws provided. Arrows on
the case guide placement of the screws. Clips on the back of the case fit onto a suspended
ceiling T-bar.
The AP 300 Access Port receives all power and transfers data through the same CAT-5 cable.
There is no additional power supply required.
Technical Specifications
Dimensions & Weight
Radio Characteristics
The AP 300 Access Port is an IEEE 802.11-compliant device containing one 802.11a radio and
one 802.11b/g radio. The following table lists radio characteristics for each radio’s compliance.
The three supported 802.11g modes are simultaneous CCK and ODFM. CCK only, or ODFM only.
AP 300 Access Port Package Contents
• AP 300 Access Port
• Two screws
• Two wall anchors
• Quick Installation Guide
Description
The AP 300 Access Port is an IEEE 802.11-compliant device containing one 802.11a radio and
one 802.11b/g radio. The unit contains internal 2.4-2.5GHz and 4.9-5.285GHz antennas and
supports UNII band 1, and it requires power from any UL-listed, 802.3af-compatible Power Over
Ethernet (PoE) power source.

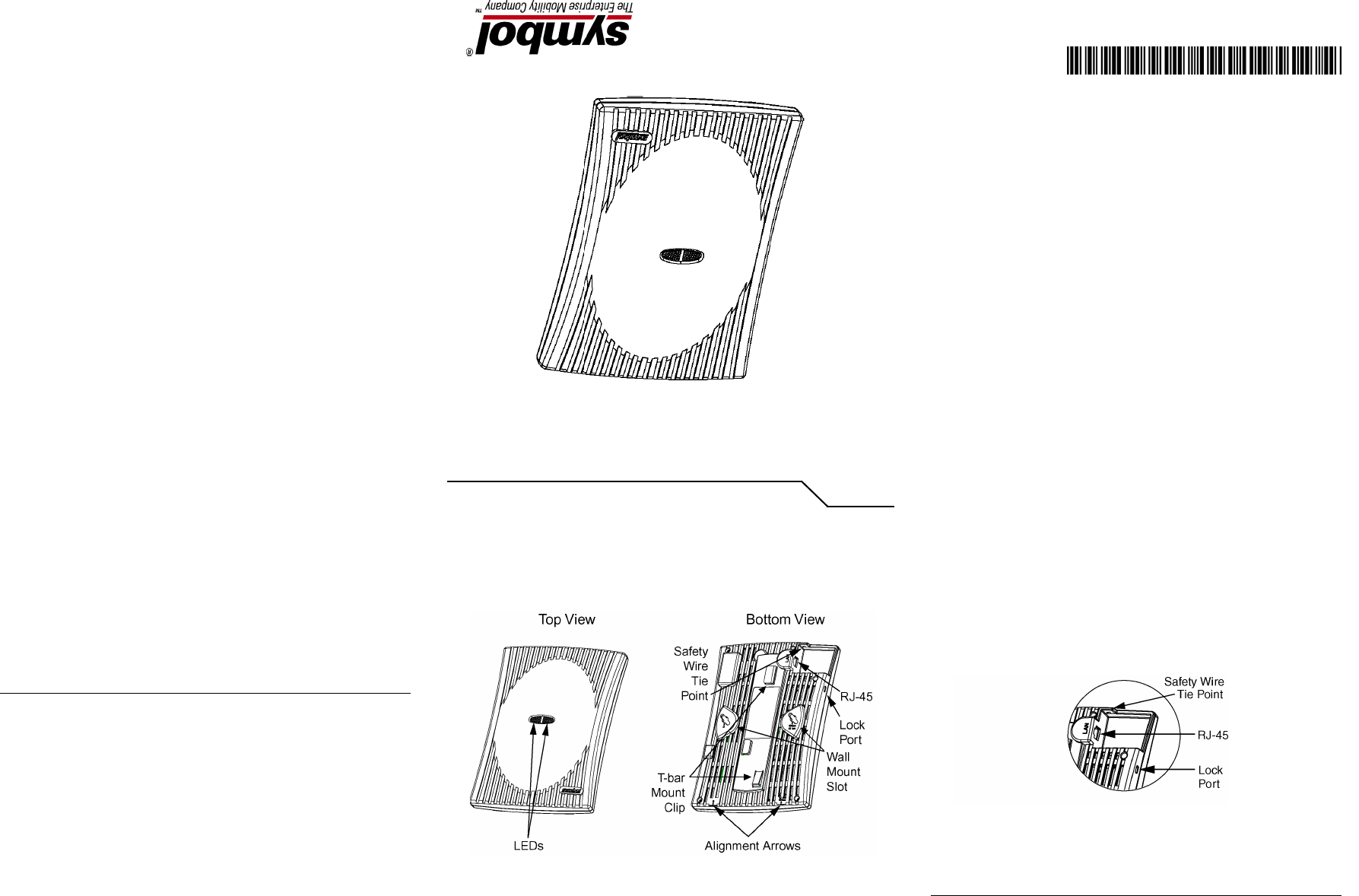

Features
• One RJ-45 connector
• LED indicators
• Safety wire tie point
• Kensington-compatible lock port
• Slots for wall mounting
• Clips for mounting on a suspended ceiling T-bar
The AP 300 Access Port has one RJ-45 connector supporting an 10/100 Ethernet port and
requires 802.3af-compliant power from an external source.
The AP 300 Access Port comprises two 802.11 radios: an 802.11b/g radio operating in
the 2.4 to 2.5Ghz band and an 802.11a radio operating in the 4.9 to 5.875Ghz band. Each radio
has an embedded controller which runs local firmware used to perform the functions of the
lower 802.11 MAC. All upper MAC functions and MAC management are controlled by the
Wireless Switch.
Motherboard firmware enables the unit to boot after either a power up or a watchdog reset.
After self-boot, the motherboard sends an “I am alive” message into the network to be adopted
and loaded with the actual runtime code. The boot firmware on the motherboard and the
firmware downloaded from the switch can be updated via the Ethernet interface from the
Wireless Switch.
Lock Port
The lock port, compatible with Kensington-style security cables, is on the side of the case.
LED Indicators
The unit has LED activity indicators on the front of the case provide a status display indicating
error conditions, transmission, and network activity for the 802.11a (amber) radio or the
802.11b/g (green) radio.
Operating Voltage 48VDC typical; 36-57VDC range
Operating Current 100mA to 165mA
Peak Current 250mA
Operating Temperature 0°C to 40°C (32°F to 104°F)
Operating Humidity 5% to 95% non-condensing
Operating Altitude (max ) 2438m (8,000ft.)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Storage Humidity 85%
Storage Altitude (max.) 4572m (15,000ft.)
Drop 91cm (36in.) to concrete
Electrostatic Discharge +/-15kV air; +/-8kV contact; +/-2kV pin
Note: The AP 300 Access Port (WSAP-5110-100-WW) supports UNII band 1.
Length 24.1cm (9.5in.)
Width 17.8cm (7.0in.)
Height 5.1cm (2.0in.)
Weight 0.45kg (1.0lbs)
Device Mbps Data Rate Support Utilizing Diversity GHz
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Transmit and receive 4.9 to 5.875 range
802.11b/g 1, 2, 5.5, 11 CCK
6, 9, 12, 18, 24, 36, 48, 54 ODFM
Transmit and receive 2.4 to 2.5 ISM range
Task 802.11a Activity LED Amber 802.11b/g Activity LED Green
Booting The amber LED flashes three times per second
until firmware is loaded. During boot, 802.11a
mobiles cannot associate.
The green LED flashes three times per second
until firmware is loaded. During boot,
802.11b/g mobiles cannot associate.
Normal After adoption, the amber LED is steady or
flashes with 802.11a radio traffic.
After adoption, the green LED is steady or
flashes with 802.11b/g radio traffic.
Error The amber LED flashes once per second
if an error prevents the 802.11a radio from
operating normally.
The green LED flashes once per second
if an error prevents the 802.11b/g radio from
operating normally.
(1) (2)
(3) (4) (5) (6)
(1) (2)
Installation Instructions
The AP 300 Access Port mounts either on a wall with wide-shoulder screws or on a suspended
ceiling T-bar. This unit is not designed for mounting on a desk.
To prepare for installation, perform the following steps:
1. Match the model number on the purchase order with the model numbers in the packing
list and on the case of the device shipped.
2. Verify that the contents of the box include the intended AP 300 Access Port and
mounting hardware:
3. Review site survey and network analysis reports to determine the location and
mounting position for the AP 300 Access Port.
4. Connect a CAT-5 cable to a compatible 802.3af power source and run the cable to the
installation site. Ensure that there is sufficient slack on the cable to perform the
installation steps.
Wall Mount
This mounting requires hanging the AP 300 Access Port along its width or length using the two
slots on the bottom of the unit. The AP 300 can be mounted onto any plaster, wood, or cement
wall surface using the provided wall anchors when necessary. The illustration shows a
lengthwise mount.
Item Notes
WSAP-5110-100-WW 802.11a/b/g configuration.
Mounting Hardware: Two wide-shoulder Phillips pan head self-tapping
screws.
Wall Mount Hardware
• Two wide-shoulder Phillips pan head self-tapping screws
• Two wall anchors
• Safety wire (recommended) and security cable (optional)
Note: In the event that the original mounting screws are lost, the following screws
can be used instead:`(ANSI Standard) #6-18 X 0.875in. Type A or AB Self-Tap-
ping Screw, or (ANSI Standard Metric) M3.5 X 0.6 X 20mm Type D Self-Tapping
Screw
Wall Mount Procedure
1. Orient the case on the wall by its width or length.
2. Using the arrows on one edge of the case as guides, move the edge to the midline of
the mounting area and mark points on the midline for the screws.
3. At each point, drill a hole in the wall, insert an anchor, screw into the anchor the wall
mounting screw and stop when there is 1mm between the screw head and the wall.
Note: When pre-drilling a hole the recommended hole size is 2.8mm (0.11in.) if the
screws are going directly into the wall and 6mm (0.23in.) if the provided wall
anchors are being used.
4. If required, loop a safety wire—with a diameter of at least .101cm (.04in.) but no more
than .158cm (.0625in.)—around the tie point and secure the loop.
5. If required, install and attach a security cable to the unit’s lock port.
6. Attach the Ethernet cable to the unit and to a switch with an 802.3af-compatible power
source.
7. Place the middle of each of the case’s mount slots over the screw heads.
8. Slide the case down along the mounting surface to hang the mount slots on the screw
heads.
4
6
5
9. Verify the unit has power by observing that the LEDs are lit or flashing.
Suspended Ceiling T-Bar Mount
Ceiling mount requires holding the AP 300 Access Port up against a T-bar of a suspended ceiling
grid and twisting the case onto the T-bar.
Ceiling Mount Hardware
• Safety wire (recommended) and security cable (optional)
Ceiling Mount Procedure
1. If required, loop a safety wire—with a diameter of at least .101cm (.04in.) but no more
than .158cm (.0625in.) —through the tie post and secure the loop.
2. If required, install and attach a security cable to the lock port.
3. Plug the Ethernet cable into the the unit and to a switch with an 802.3af-compatible
power source.
4. Face the bottom of the T-bar with the back of the case.
5. Orient the case by its length and the length of the T-bar.
6. Rotate the case in place 45 degrees clockwise, or about 10 o’clock.
7. Push the back of the case onto the bottom of the T-bar.
1
3
2
8. Rotate the case 45 degrees counter-clockwise. The clips click as they fasten to the T-bar.
9. Verify the unit has power by observing the LEDs.
Regulatory Information
All Symbol devices are designed to be compliant with rules and regulations in locations they are
sold and will be labeled as required. Any changes or modifications to Symbol Technologies
equipment, not expressly approved by Symbol Technologies, could void the user’s authority to
operate the equipment.
Use only the approved antennas. Unauthorized antennas, modifications, or attachments could
cause damage and may violate regulations.
This device is to be used only with Symbol Technologies Wireless Switch.
Country Approvals
Regulatory markings are applied to the device signifying the radio (s) are approved for use in the
following countries: United States, Canada, Australia, Japan & Europe 1,2. Please refer to the
Symbol Declaration of Conformity (DoC) for details of other country markings. This is available at
http://www2.symbol.com/doc/.
Note 1: For 2.4GHz Products: Europe includes, Austria, Belgium, Croatia, Czech Republic, Croat-
ia, Cyprus, Denmark, Estonia, Finland, France, Germany, Greece, Hungary, Iceland, Ire-
land, Italy, Latvia, Liechtenstein, Lithuania, Luxembourg, Malta, Netherlands, Norway,
Poland, Portugal, Slovak Republic, Slovenia, Spain, Sweden, Switzerland, and the Unit-
ed Kingdom.
Note 2: The use of 5GHz RLAN’s has varying restrictions of use; please refer to the Symbol Dec-
laration of Conformity (DoC) for details.
Operation of the device without regulatory approval is illegal.
Frequency of Operation
The use on UNII (Unlicensed National Information Infrastructure) Band 1 5150-5250 MHz is restricted to indoor
use only.
FCC/EU RF Exposure Guidelines
Safety Information
The device complies with Internationally recognised standards covering Specific Absorption Rate
(SAR) related to human exposure to electromagnetic fields from radio devices. It is advisable to
use the device only in the normal operating position.
Remote and Standalone Antenna Configurations
To comply with FCC RF exposure requirements, antennas that are mounted externally at remote
locations or operating near users at stand-alone desktop or similar configurations must operate
with a minimum separation distance of 20 cm from all persons.
Power Supply
This device is powered from a 802.3af compliant power source which is UL approved.
Radio Frequency Interference Requirements
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help.
Radio Transmitters (Part 15)
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Radio Frequency Interference Requirements – Canada
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Radio Transmitters
This device complies with RSS 210 of Industry & Science Canada. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference and (2) this device
must accept any interference received, including interference that may cause undesired operation.
Label Marking: The Term “IC:” before the radio certification only signifies that Industry Canada
technical specifications were met.
CE Marking and European Economic Area (EEA)
The use of 2.4GHz RLAN’s, for use through the EEA, have the following restrictions:
• Maximum radiated transmit power of 100 mW EIRP in the frequency range 2.400 -2.4835
GHz
• France, outside usage is restricted to 2.4-2.454 GHz
• Belgium, outside usage is restricted to 2.460-2.4835 GHz
• Italy requires a user license for outside usage.
The use of 5GHz RLAN’s has varying restrictions for use within the EEA; please refer to the
Symbol Declaration of Conformity (DoC) for details at http://www2.symbol.com/doc/
Statement of Compliance
Symbol Technologies, Inc., hereby, declares that this device is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC. A Declaration of
Conformity may be obtained from
http://www2.symbol.com/doc/
Other Countries
Mexico - Restrict Frequency Range to: 2.450 - 2.4835 GHz.
Sri Lanka - Restrict Frequency Range to: 2.400 – 2.430 GHz.
Customer Support
Symbol Technologies provides its customers with prompt and accurate customer support. Use
the Symbol Support Center as the primary contact for any technical problem, question or
support issue involving Symbol products.
If the Symbol Customer Support specialists cannot solve a problem, access to all technical
disciplines within Symbol becomes available for further assistance and support. Symbol
Customer Support responds to calls by e-mail, telephone or fax within the time limits set forth
individual contractual agreements.
When contacting Symbol Customer Support, please provide the following information:
• Device serial number
• Product name or model number
• Software type and version number
For warranty and service information, contact the Symbol Support Center: telephone 1-631-
738-6213 or 1-800-653-5350; fax: (631) 563-5410; or E-mail: support@symbol.com.
Web Support Sites and Additional Information
Obtain additional information by contacting Symbol at:
• 1-800-722-6234, inside North America
• +1-631-738-5200, in/outside North America
• http://www.symbol.com/
North American Contacts International Contacts
Inside North America, contact Symbol at:
Outside North America, contact Symbol at:
Symbol Technologies, Inc.
Symbol Technologies, Inc.
One Symbol Plaza
Symbol Place
Holtsville, New York 11742-1300
Winnersh Triangle, Berkshire, RG41 5TP
United Kingdom
1-631-738-2400/1-800-SCAN 234
0800-328-2424 (Inside UK) /+44 118 945 7529 (Outside UK)
Fax: 1-631-738-5990
MySymbolCare http://www.symbol.com/services/msc/
Symbol Services Homepage http://symbol.com/services/
Symbol Software Updates http://symbol.com/services/downloads/
Symbol Developer Program http://software.symbol.com/devzone/
Symbol Knowledge Base http://kb.symbol.com/register.asp
(7) (9) (11) (13)
(8) (10) (12) (14)

Navigation menu
