User’s Manual

TR3-C202-A0-8

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

Introduction

Thank you for purchasing a TR3-C202-A0-8 RFID READER/WRITER.

Be sure to read this manual before using the product.

After reading it, store the manual in a convenient place for future reference.

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

Regulations and Standards

FCC

This product is conform to the FCC standards.

FCC Rules (Federal Communications Commission)

This product complies with Part 15 Subpart C of the FCC Rules.

FCC ID : MK4TR3-C202-A0-8

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications. However,

there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by tuning the

equipment off an on, the user is encouraged to try to correct the interference by one or more of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC NOTICE

This device complies with part 15 of the FCC Rules. Operation is subject to the following two

conditions:

(1) This device may not cause harmful interference.

(2) This device must accept any interference received, including interference that may cause

undesired operation.

FCC WARNING

Changes or modifications not expressly approved by the party responsible for compliance could void

the user's authority to operate the equipment.

The following sentence has to be displayed on the outside of the device in which the transmitter module

is installed : “Contains FCC ID: MK4TR3-C202-A0-8”

Japan Radio Law

Equipment using high frequencies: Inductive Reading/Writing Communications Equipment

Conforming standards: Inductive Reading/Writing Communications Equipment;

Standard: ARIB STD-T82

Tags

This product can communicate the standard tags of ISO/IEC15693 and ISO/IEC18000-3(Mode1).

Supports Manufacturer

Tag-it HF-I Texas Instruments

my-d Infineon Technologies

I･CODE SLI NXP Semiconductors

MB89R118 FUJITSU Japan

RoHS is support

Restriction of Hazardous Substances

Waste

Dispose of the Products as industrial waste.

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

Safety Precautions

The following symbols are used in this manual to indicate precautions that must be observed to ensure safe use of

this product. The precautions provided here contain important safety information. Be sure to observe these

precautions.

The following signal words are used in this manual.

Failure to comply with a WARNING may result in serious injury or

death.

Failure to comply with a CAUTION may result in injury to the

operator, or damage to the items involved.

Be sure to observe the following precautions to ensure safe use of the Products.

Decomposition of this product and cable, repair, remodeling, please strictly prohibited. There is the

possibility of fire or electric shock injuries.

This product is using the RFID reader writer radio equipment. Therefore, depending on where the

applications you use may affect medical equipment. To minimize the impact of medical equipment for use,

please observe the following countermeasure. The Japan Automatic Identification Systems Association

(JAISA) guidelines are as follows: RFID antennas from implanted cardiac pacemakers or other medical

devices please 22cm apart. We recommend that you paste "RFID sticker" at equipment.

Be sure to observe the following precautions to ensure safe use of the Products.

Installation and storage environment

1. Do not use the Products in sunlight.

2. Do not use the Products in environment of spray of water, oil or chemicals.

3. Do not use the Products in environments with flammable, explosive, or corrosive gasses.

4. Do not use the Products in environment of hot humid.

5. Do not use the Products in environment of vibration or shock.

6. Do not use the Products in environment of condensation.

7. Do not use the Products in environment of around the metal is covered.

8. Do not use the Products in environment of high temperature.

9. Do not use the Products in environment that has a device that generates magnetic field and shock voltage.

10. Do not use the Products in unstable place.

11. If there is failure, discontinue use immediately, please contact us or the distributor.

Installation

1. Turn off the power before installation or removing.

2. The following effects may not work correctly.

･ Near 13.56MHz radio device

･ Near speakers , Inverter, motor and Plasma Display

3. The communication range may vary due to environment and conditions.

← RFID Sticker

Manual No.TDR-MNL-C202-A0-8-EN-101

TAKAYA RFID TR3 Series

Contents

1

Product Overview ................................

................................................................

......................................

............

...... 1

11

1

1.1

Features .............................................................................................................................................. 1

2

Names of Parts and Functions ................................

................................................................

.....................................................

..........................................

..................... 2

22

2

2.1

TR3-C202-A0-8 ................................................................................................................................... 2

2.2

Antenna .............................................................................................................................................. 3

2.2.1

TR3-A202 ........................................................................................................................................ 3

2.2.2

TR3-A302 ........................................................................................................................................ 4

2.2.3

TR3-A401 ........................................................................................................................................ 4

3

Installation and connection ................................

................................................................

.........................................................

..................................................

......................... 5

55

5

3.1

Installation into a host device .............................................................................................................. 5

3.1.1

Installation from the Front.................................................................................................................. 5

3.2

Antenna installation into a host device................................................................................................. 6

3.2.1

Screw holes ...................................................................................................................................... 6

3.2.2

Guide ............................................................................................................................................... 6

3.3

Connection .......................................................................................................................................... 7

3.3.1

Attaching the Cable and Antenna........................................................................................................ 7

3.3.2

Direct connection to the Host Device Interface .................................................................................... 7

3.3.3

Using the interface board to connect to the Host Device Interface.......................................................... 8

4

Specifications ................................

................................................................

.............................................

..........................

............. 9

99

9

4.1

TR3-C202-A0-8 ................................................................................................................................... 9

4.2

Antenna ............................................................................................................................................ 14

4.2.1

TR3-A202 ...................................................................................................................................... 14

4.2.2

TR3-A302 ...................................................................................................................................... 15

4.2.3

TR3-A401 ...................................................................................................................................... 16

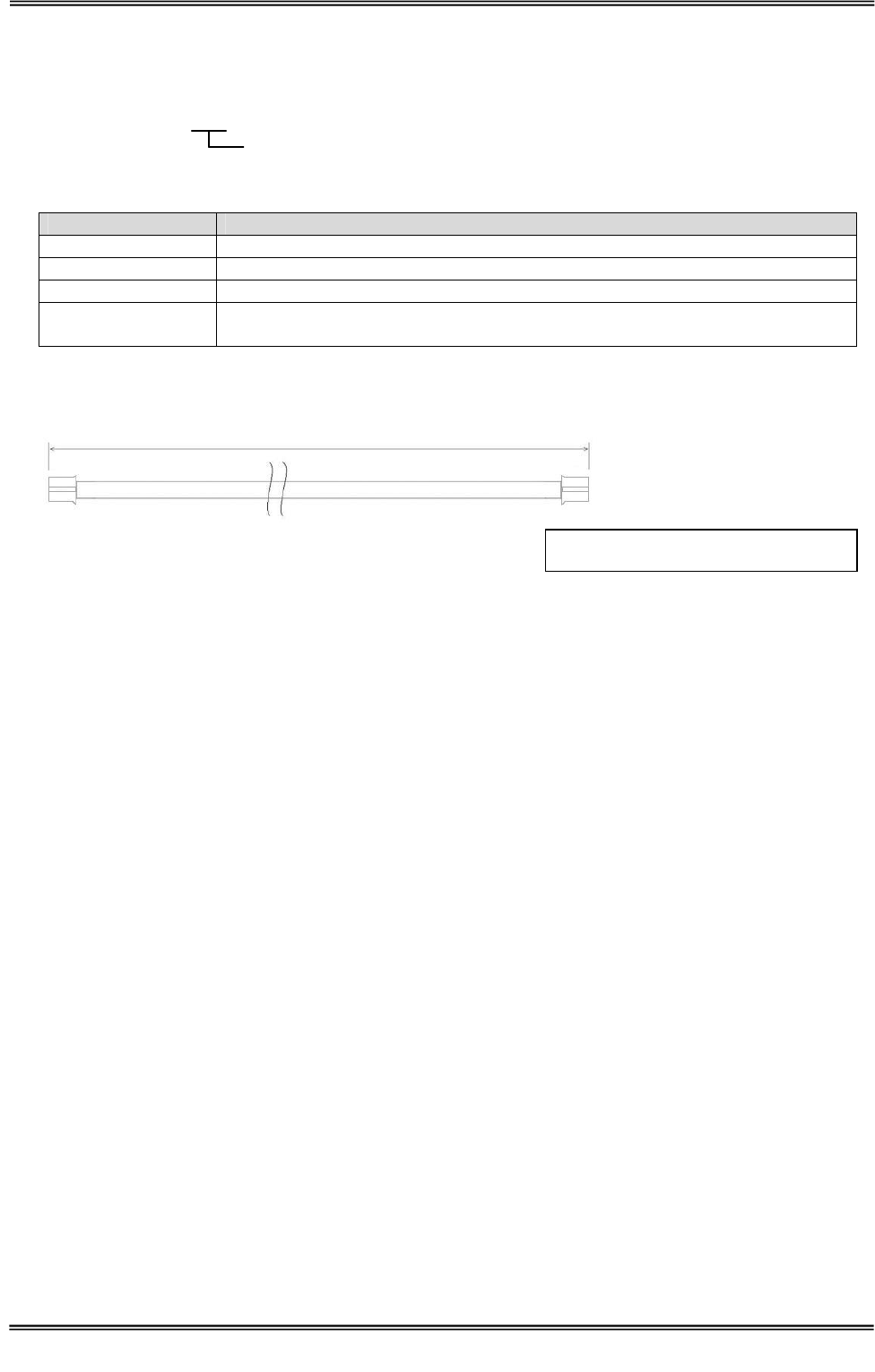

4.3

Cable................................................................................................................................................. 17

5

Maintenance ................................

................................................................

............................................

........................

............ 18

1818

18

Revision History................................

................................................................

.............................................

..........................

............. 19

1919

19

3.1.2 Installation from the Front deleted........................................................................................................ 19

Manual No.TDR-MNL-C202-A0-8-EN-101

1 Product Overview

1.1 Features

1 TAKAYA RFID TR3 Series

1 Product Overview

1.1 Features

This product uses the 13.56MHz frequency. This product is the electromagnetic induction type non-contact

IC can read and write RFID tag data.

This Product is designed to be embedded and integrated within OEM devices and finished products such as label

printers, cashless payment terminals or any other device that can benefit from integrated RFID capabilities.

■ Conform to international standards

ISO/IEC15693 and ISO/IEC18000-3(Mode1) is supports.

■ Rich Products

 Various interface RS-232C, USB, TCP/IP.

 Antennas of various sizes

■ Software

 TR3-series common communication protocol

 Software Development Kit

■ Multiplexer

Select the RF output.

■ Useful

 Continuous inventory mode

UID of the tag automatically sends Host Device.

 RDLoop mode

UID or User Data of the tag automatically sends Host Device.

For more information please refer to the TR3-PROTOCOL manual.

■ Environmentally

EU RoHS(2002/95/EC) Support

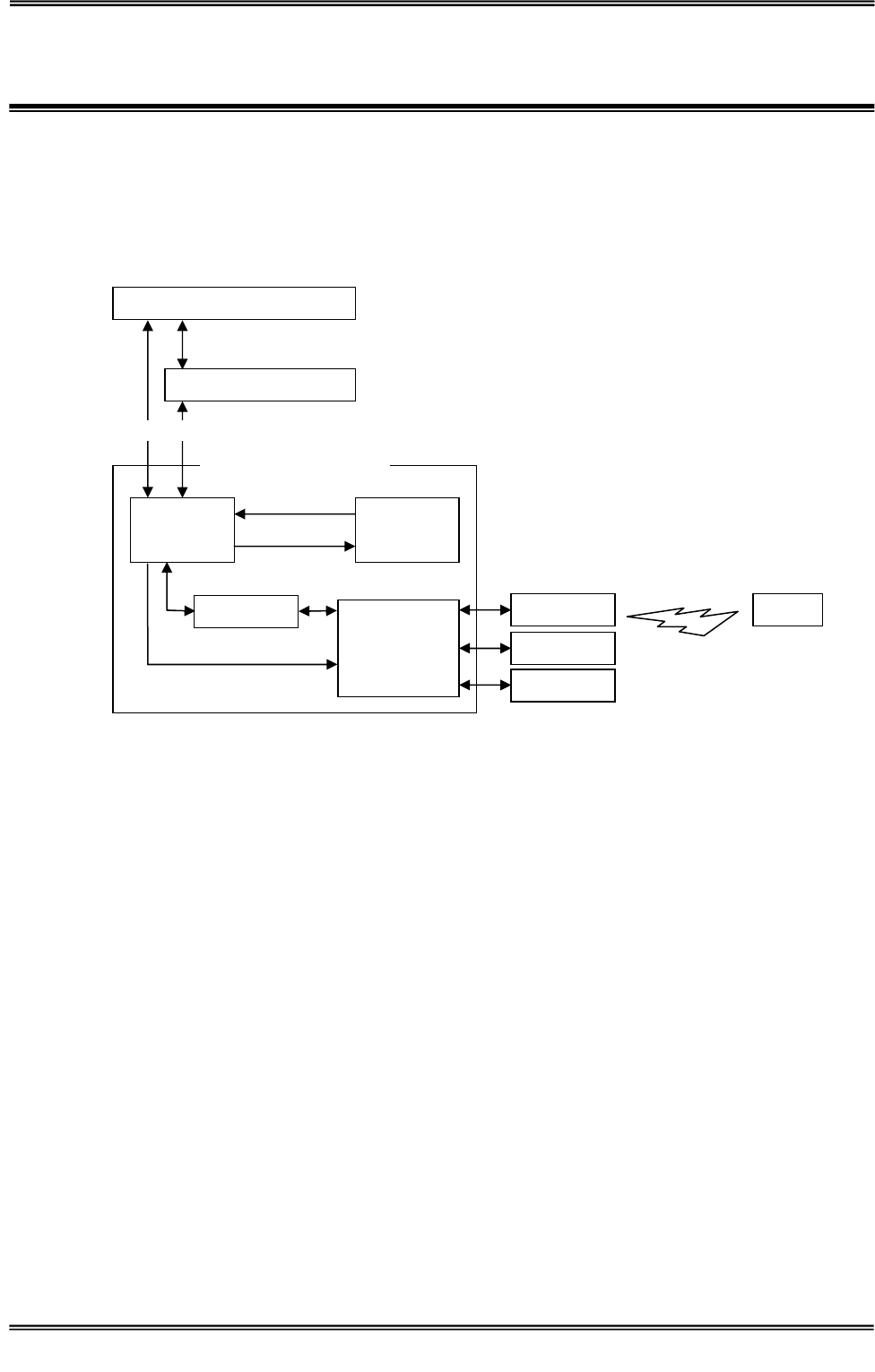

Antenna

CPU Memory

RF-ASIC

READER/WRITER

Load Settings

Save Settings

Interface

Tags

Host Device Interface

RS-232C、LAN(TCP/IP)、USB

Communications

Multiplexer

Antenna

UART(CMOS Level)

Manual No.TDR-MNL-C202-A0-8-EN-101

2 Names of Parts and Functions

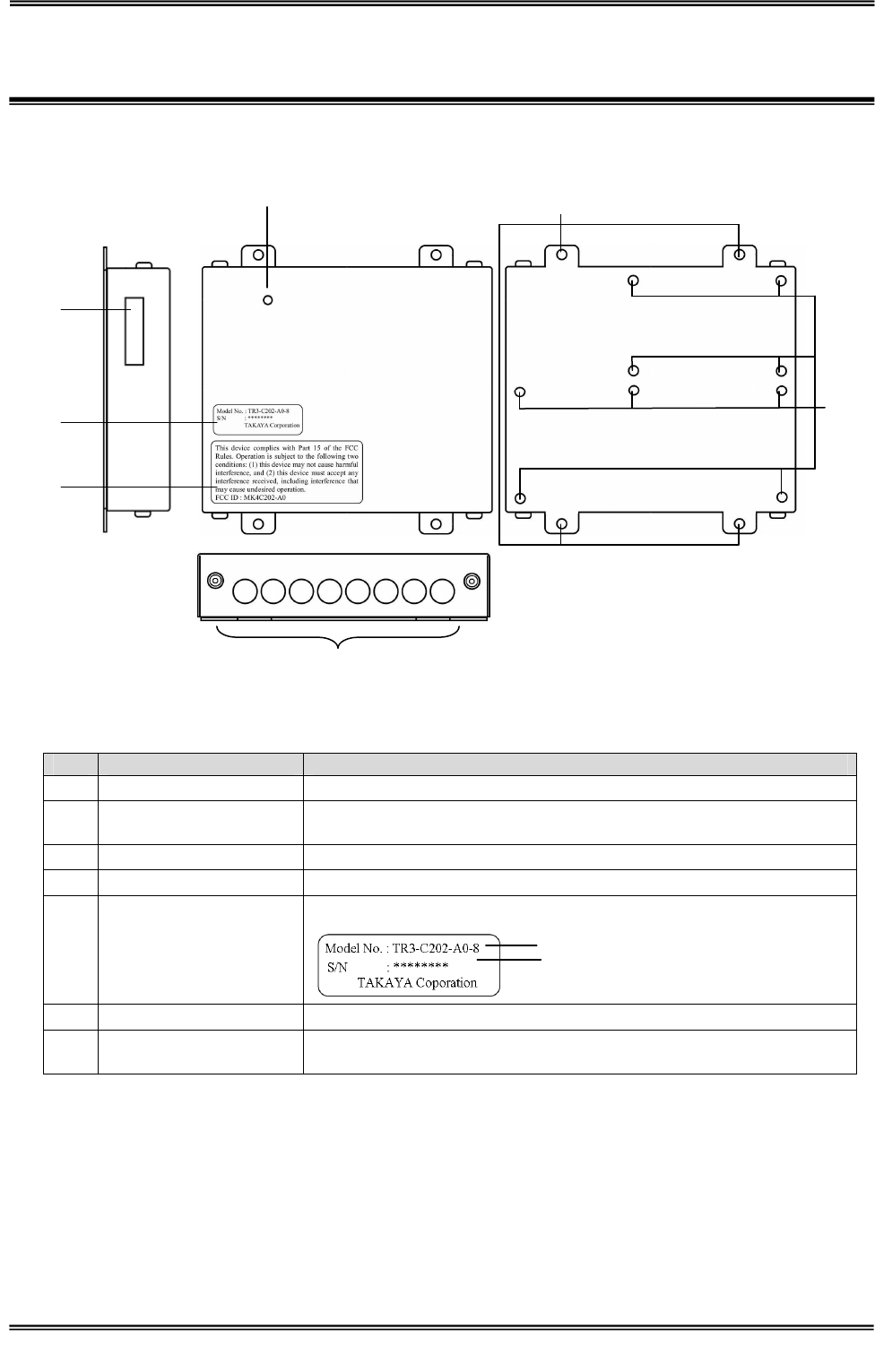

2.1 TR3-C202-A0-8

2 TAKAYA RFID TR3 Series

2 Names of Parts and Functions

2.1 TR3-C202-A0-8

No Name Description

① Screw holes M3 holes

② STUD NUTS Internally, substrate is fixed at stud nats.

M3 Screw hole depth : 3mm

③ LED1 Displays the status of this product.

④ CN1 This connector is for connection to the host.

⑤ Nameplate Production numbers, will be 8-digit serial number.

⑥ FCC ID stickers

⑦ CH1 to CH8 Connect the antenna cable.

Please connect form CH1.

①

③

④

⑦

⑥

⑤

②

Model Name

Serial number：＊＊＊＊＊＊＊＊(F)

Manual No.TDR-MNL-C202-A0-8-EN-101

2 Names of Parts and Functions

2.2 Antenna

3 TAKAYA RFID TR3 Series

2.2 Antenna

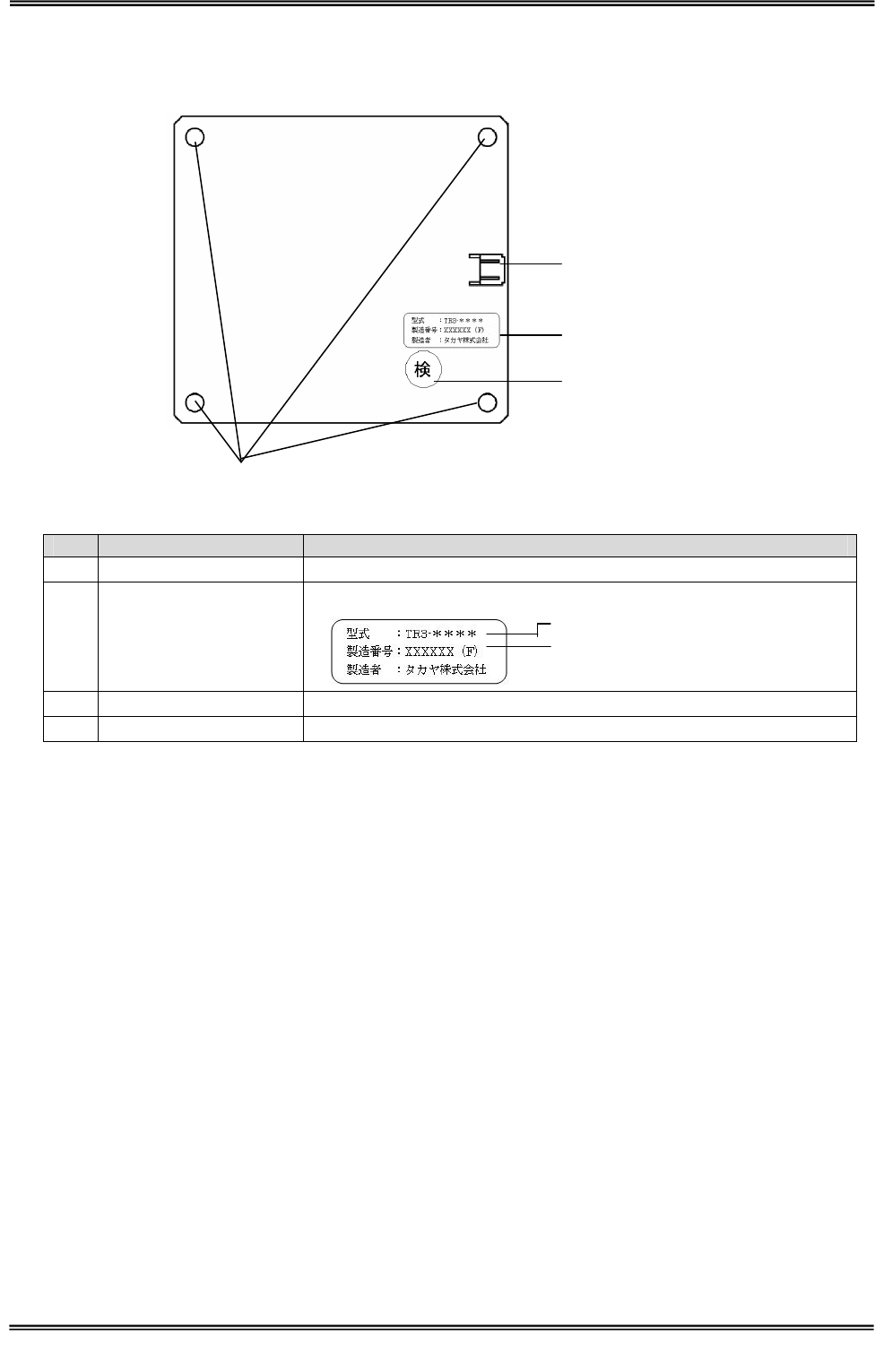

2.2.1 TR3-A202

No Name Description

① CN1 Connect the antenna cable.

② Nameplate Production numbers, will be 8-digit serial number.

③ Inspection mark

④ Screw holes M3 holes

④

①

②

③

Model Name

Serial number：＊＊＊＊＊＊＊＊(F)

Manual No.TDR-MNL-C202-A0-8-EN-101

2 Names of Parts and Functions

2.2 Antenna

4 TAKAYA RFID TR3 Series

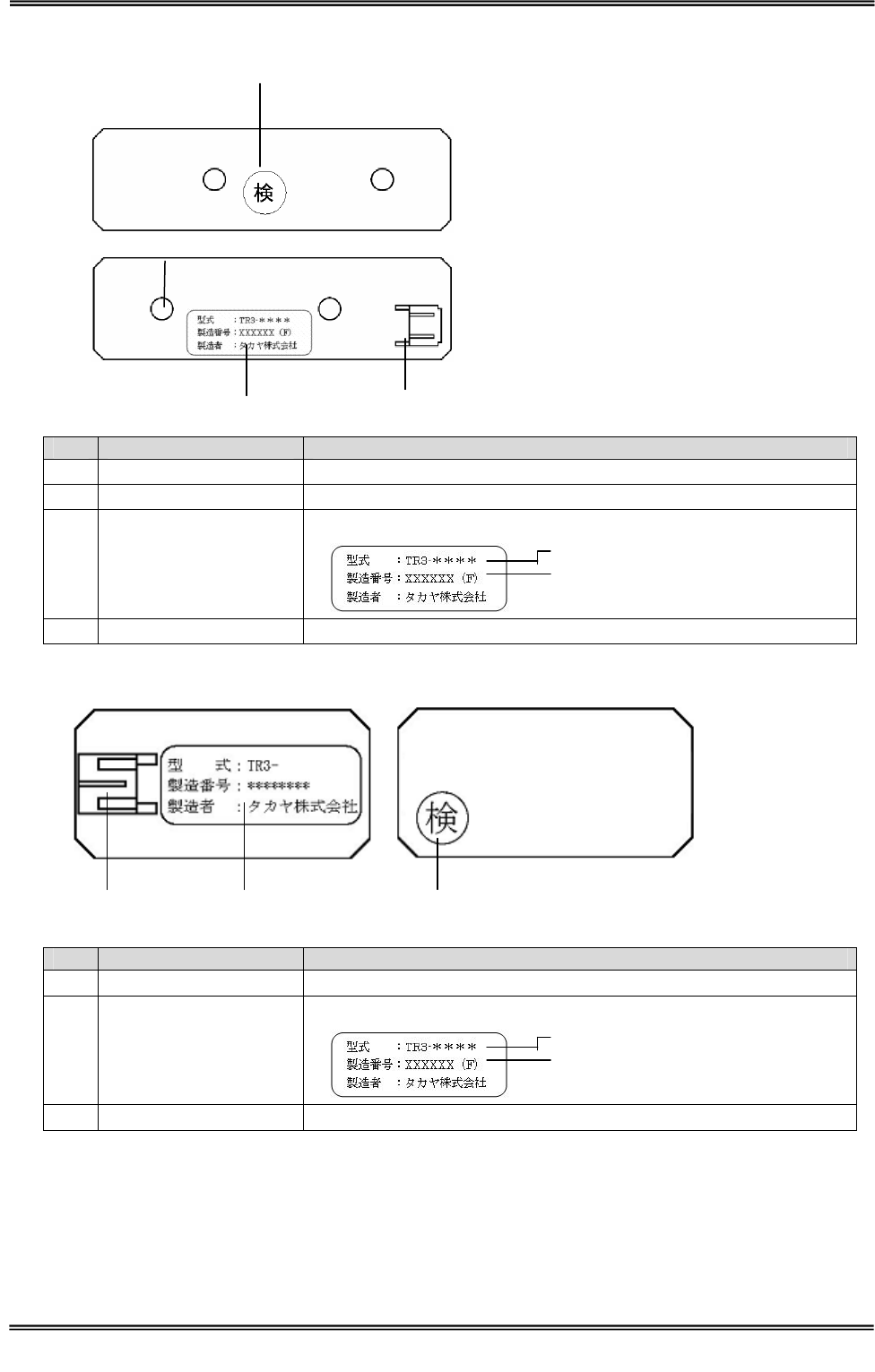

2.2.2 TR3-A302

No Name Description

① Inspection mark

② Screw holes M3 holes

③ Nameplate Production numbers, will be 8-digit serial number.

④ CN1 Connect the antenna cable.

2.2.3 TR3-A401

No Name Description

① CN1 Connect the antenna cable.

② Nameplate Production numbers, will be 8-digit serial number.

③ Inspection mark

②

③

④

①

Model Name

Serial number：＊＊＊＊＊＊＊＊(F)

①

②

③

Model Name

Serial number：＊＊＊＊＊＊＊＊(F)

Manual No.TDR-MNL-C202-A0-8-EN-101

3 Installation and connection

3.1 Installation into a host device

5 TAKAYA RFID TR3 Series

3 Installation and connection

3.1 Installation into a host device

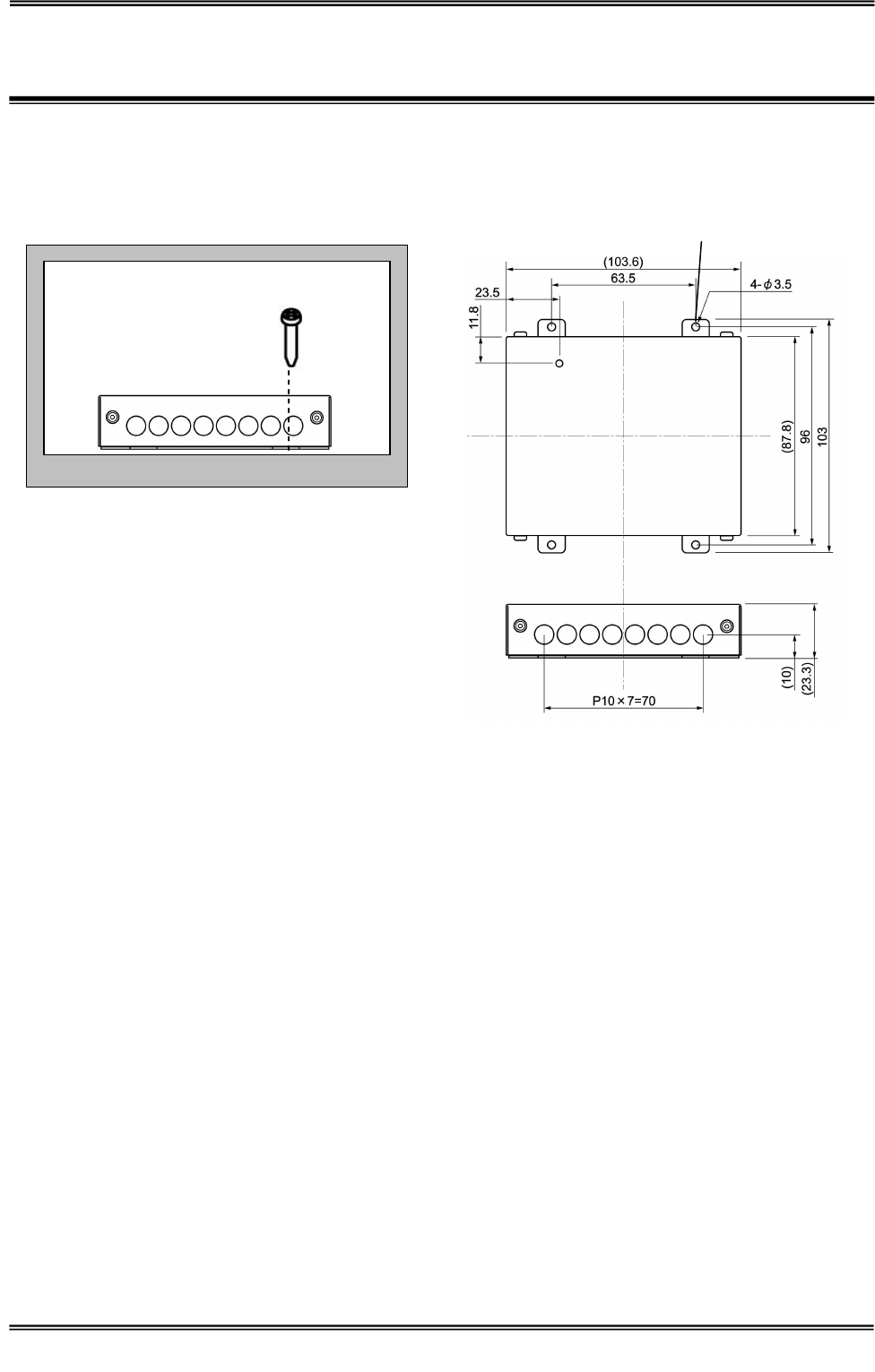

3.1.1 Installation from the Front

M3 Screw

Four, M3 holes

Host Device

Manual No.TDR-MNL-C202-A0-8-EN-101

3 Installation and connection

3.2 Antenna installation into a host device

6 TAKAYA RFID TR3 Series

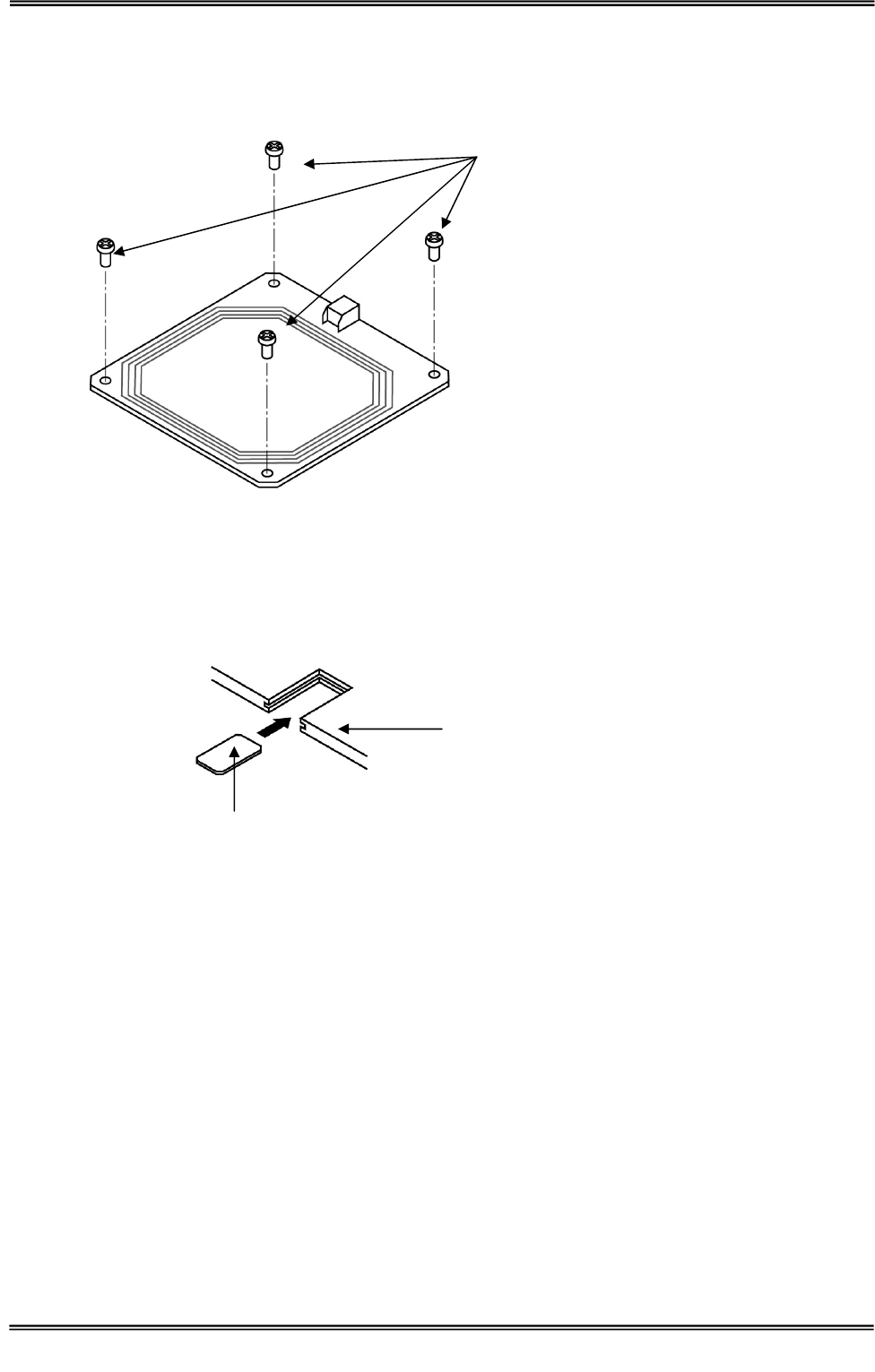

3.2 Antenna installation into a host device

3.2.1 Screw holes

3.2.2 Guide

TR3-A401 is recommended that you set up a guide on fixed-like the figure below.

TR3-A401

M3 Screw

Host Device

Manual No.TDR-MNL-C202-A0-8-EN-101

3 Installation and connection

3.3 Connection

7 TAKAYA RFID TR3 Series

3.3 Connection

This product will connect with the antenna and antenna cables.

This product connects with Host Device that direct connection or connect using our interface.

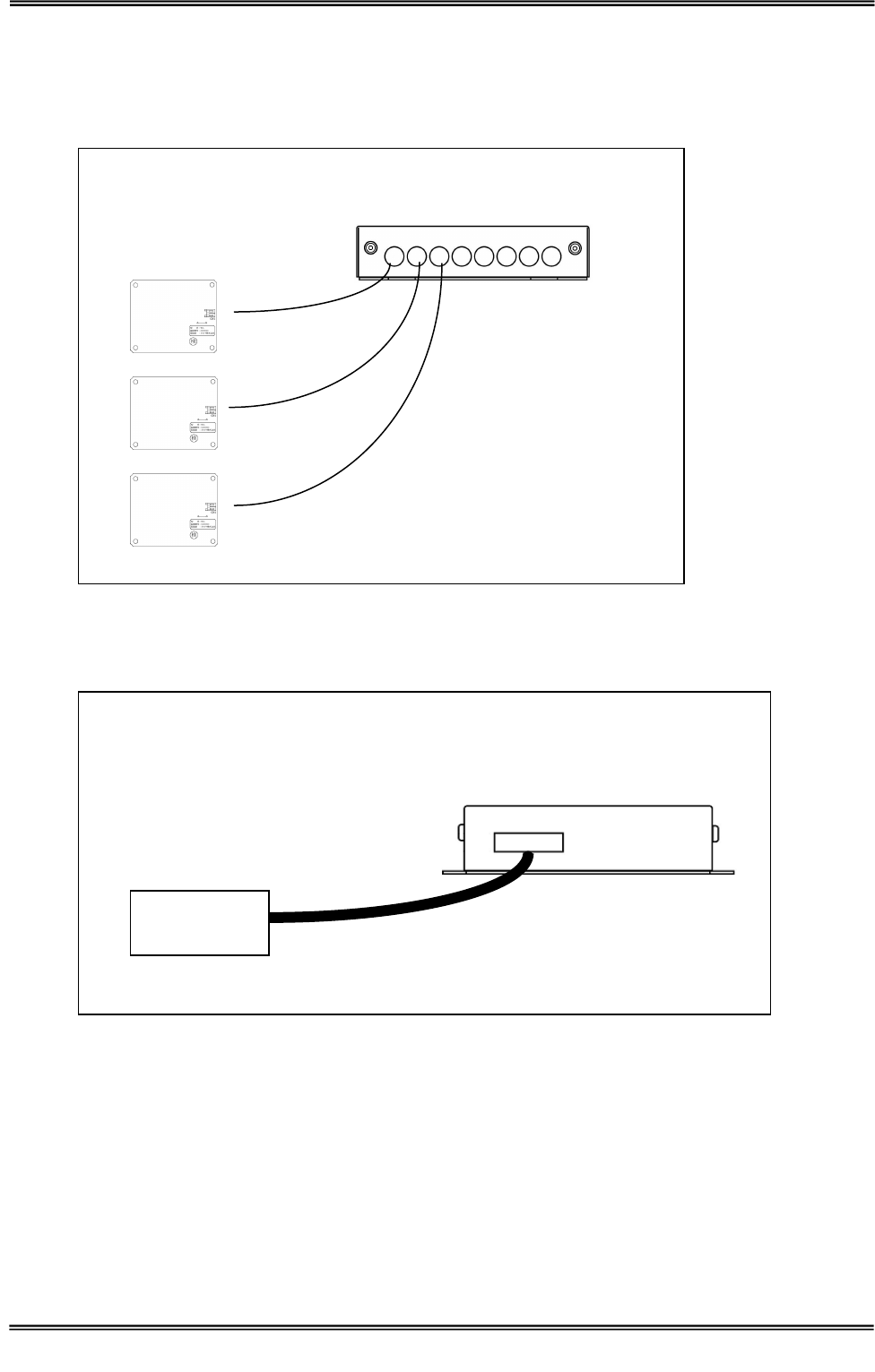

3.3.1 Attaching the Cable and Antenna

3.3.2 Direct connection to the Host Device Interface

Please prepare to the interface harness.

Host Device

Interface harness

TR3-C202-A0-8

Antenna

Antenna Cable

Host Device

Interface

Host Device

Manual No.TDR-MNL-C202-A0-8-EN-101

3 Installation and connection

3.3 Connection

8 TAKAYA RFID TR3 Series

Host Device

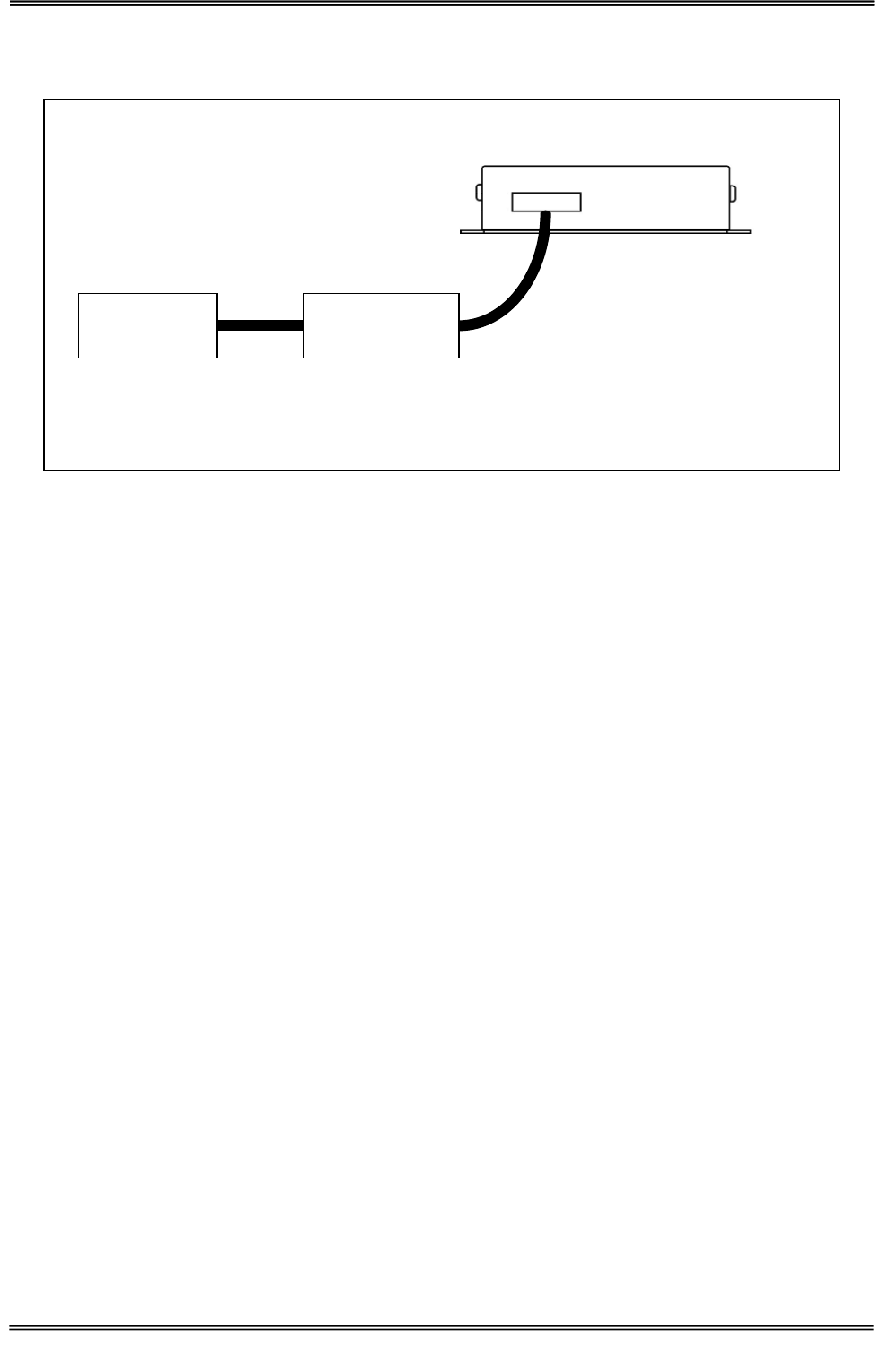

3.3.3 Using the interface board to connect to the Host Device Interface

Interface board, please contact us.

TR3-C202-A0-8

Interface Cable

Interface board

Interface harness

Host Device

Interface

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.1 TR3-C202-A0-8

9 TAKAYA RFID TR3 Series

4 Specifications

4.1 TR3-C202-A0-8

■ Specifications

Specifications

Item Parameter

Japan Radio Law ARIB STD-T82

FCC FCC Part 15 Subpart C

FCC ID : MK4TR3-C202-A0-8

Applicable

Standards

RoHS EU RoHS(2002/95/EC) Supports

Carrier frequency 13.56MHz ±50ppm(Ta=25℃) or less

Transmit power or

power range

10 to 100mW ± 20%

(Transmit power range varies with input voltage.)

Standards ISO/IEC 15693、ISO/IEC18000-3(Mode1)

Tags Tag-it HF-I, my-d, I･CODE SLI, MB89R118(※1)

Data rate

Speed Data rate

1/4 26.48kbps

Reader/Writer⇒Tag

1/256 1.65kbps

Tag⇒Reader/Writer 26.69kbps

Modulation

Parameter

Reader/Writer⇒Tag ASK 10%(※2) / ASK 100%

Tag⇒Reader/Writer ASK, FSK

Radio

Frequency

Anti-collision Support

※1：Tag-it HF-I is a registered trademark of Texas Instruments Incorporated.

my-d is a registered trademark of Infineon Technologies AG.

I･CODE SLI is a registered trademark of NXP Semiconductors.

MB89R118 is a registered trademark of FUJITSU Japan.

※2：initialization

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.1 TR3-C202-A0-8

10 TAKAYA RFID TR3 Series

Specifications

Item Parameter

Command Please refer to the TR3-C202 Protocol-Manual.

Host Interface UART(CMOS)

Item Parameter

Speed 9600bps

19200bps(※2)

38400bps

Data bits 8

Parity None

Stop bit 1

Flow control None

Controll

LED1 1pc (3 colors, red/green/orange)

CN1 Connector : JST S10B-PH-SM4-TB(LF)(SN)

Housing : JST PHR-10

Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol Function

1 VCC Power

2 VCC Power

3 GND GND

4 GND GND

5 Rx Received data signal

6 Tx Transmitted data signal

7 VCC2 Power output

8 IO1 Input/Output or Detection signal

output H : Detection

9 IO2 Input/Output or Trigger input

L : Trigger ON

10 IO3 Input/Output

Connector

CH1 to CH8 Connector : JST S2B-PH-SM4-TB(LF)(SN)

Housing : JST PHR-2

Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol Function

1 RF Analog signal

2 GND GND

※2：initialization

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.1 TR3-C202-A0-8

11 TAKAYA RFID TR3 Series

Specifications

Item Parameter

Dimensions

(W x D x H)

103.6 x 103 x 23.3mm

Wight approx. 240g

Mechanical

data

Installation M3 Screw

Screw is not included.

Electrical

data

Power Supply Voltage ：+3.3± 10%, +5V ± 10%

Current consumption ：approx. 160mA(VDD=5.0V)

Carrier off ：approx. 60mA(VDD=5.0V)

Power down mode ：approx. 50mA(VDD=5.0V)

Consumption ：max 1.0W(VDD=5.0V)

Temperature

Operating range

0 to 55 degree

Humidity Operating

range

30 to 80%RH

Temperature

Storage range

0 to 55 degree

Ambient

Conditions

Humidity

Storage range

30 to 80%RH

Other Accessories None

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.1 TR3-C202-A0-8

12 TAKAYA RFID TR3 Series

■ Dimensions

Unit：mm

Tolerance：±1mm

( )is Recommended Dimension

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.1 TR3-C202-A0-8

13 TAKAYA RFID TR3 Series

■ Connections

Names Model Notes

TR3-A202

TR3-A302

Antenna

TR3-A401

Cable TR3-AC-2A-*** *** puts the cable length.

0.5m ~ 3m cable are available.

TR3-IF-1C RS232C interface

TR3-IF-N1 TCP/IP interface

Interface board

TR3-IF-U1 USB interface

■ Electrical Characteristics(CN1、CN3)

 VDD=5.0V

Item Condition MIN TYP MAX Unit

H input voltage 2.5 5.0 V

L input voltage 0 1.0 V

H output voltage IOH=-5mA,-20mA 3.0 V

L output voltage IOL=5mA,20mA 2.0 V

Pull-up resistor 25.0 50.0 100.0 kΩ

 VDD=3.3V

Item Condition MIN TYP MAX Unit

H input voltage 1.815 3.3 V

L input voltage 0 0.66 V

H output voltage IOH=-5mA,-20mA 3.0 V

L output voltage IOL=5mA,20mA 2.0 V

Pull-up resistor 25.0 50.0 100.0 kΩ

・TX, RX, IO1, IO2 and IO3 is, Pull-up resistor has been connected.

・TX, RX, IO1, IO2 and IO3 is, 100 ohm resistor has been connected.

Output port, LED is not driven. If the LED drive, please use the digital transistors.

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.2 Antenna

14 TAKAYA RFID TR3 Series

4.2 Antenna

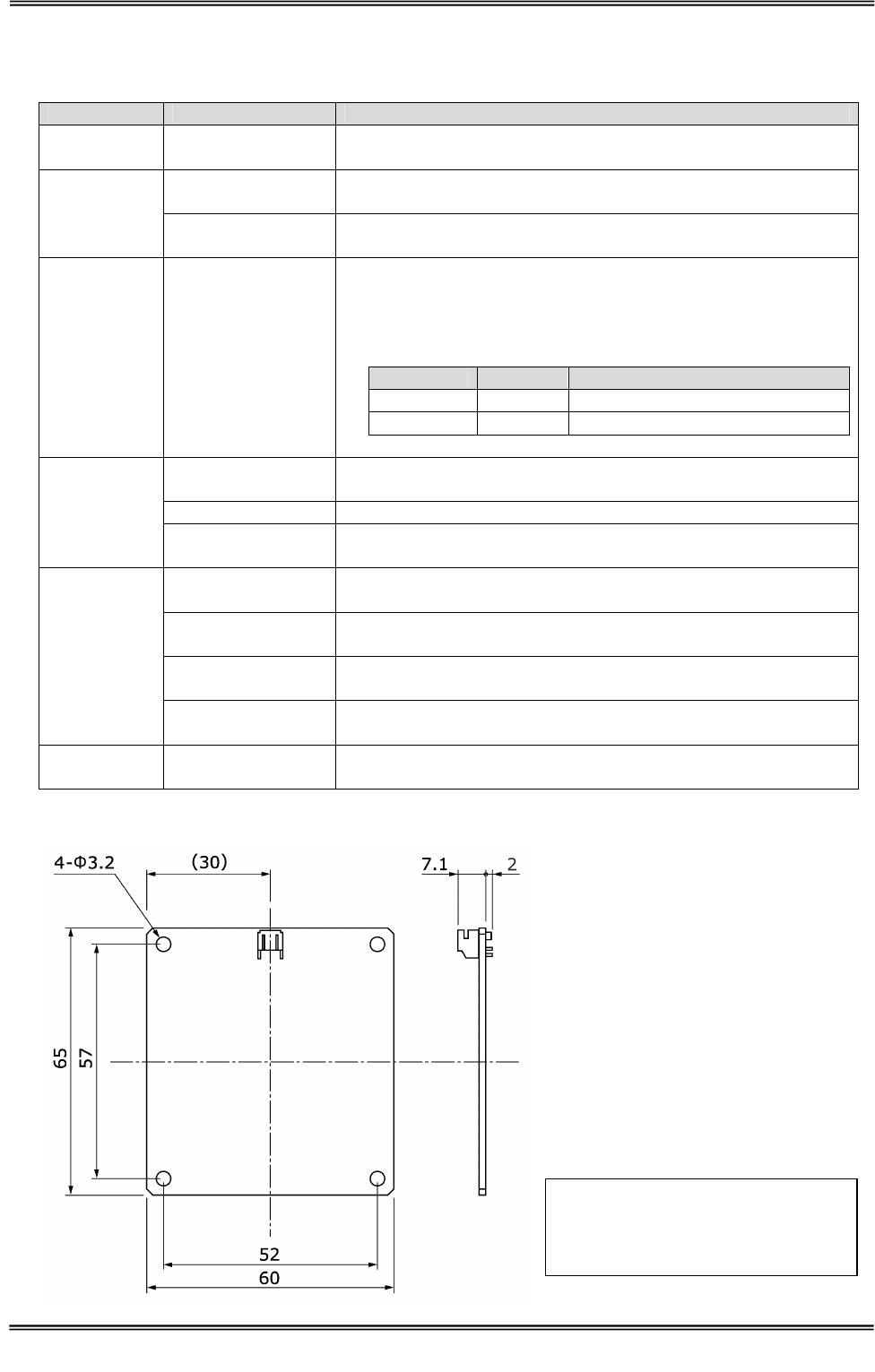

4.2.1 TR3-A202

■ Specifications

Specifications

Item Parameter

Applicable

Standards

RoHS EU RoHS(2002/95/EC) Support

Resonant

frequency

13.56MHz ±40kHz(Ta=25℃)

Antenna

Communication

distance

Max 10cm

(Communication distance depends on the environment.)

Connector CN1 Connector : JST S2B-PH-SM4-TB(LF)(SN)

Housing : JST PHR-2

Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol

Function

1 RF Analog signal

2 GND GND

Dimensions

(W x D x H)

60 x 65 x 9.1 mm

Wight approx. 11g

Mechanical

data

Installation M3 Screw

Screw is not included.

Temperature

Operating range

0 to 55 degree

Humidity Operating

range

30 to 80%RH

Temperature

Storage range

0 to 55 degree

Ambient

Conditions

Humidity

Storage range

30 to 80%RH

Other Accessories RFID Sticker 1 sheet

Model Name : SEL41400L

■ Dimensions

Unit：mm

Tolerance：±1mm

Substrate thickness : 1.6mm

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.2 Antenna

15 TAKAYA RFID TR3 Series

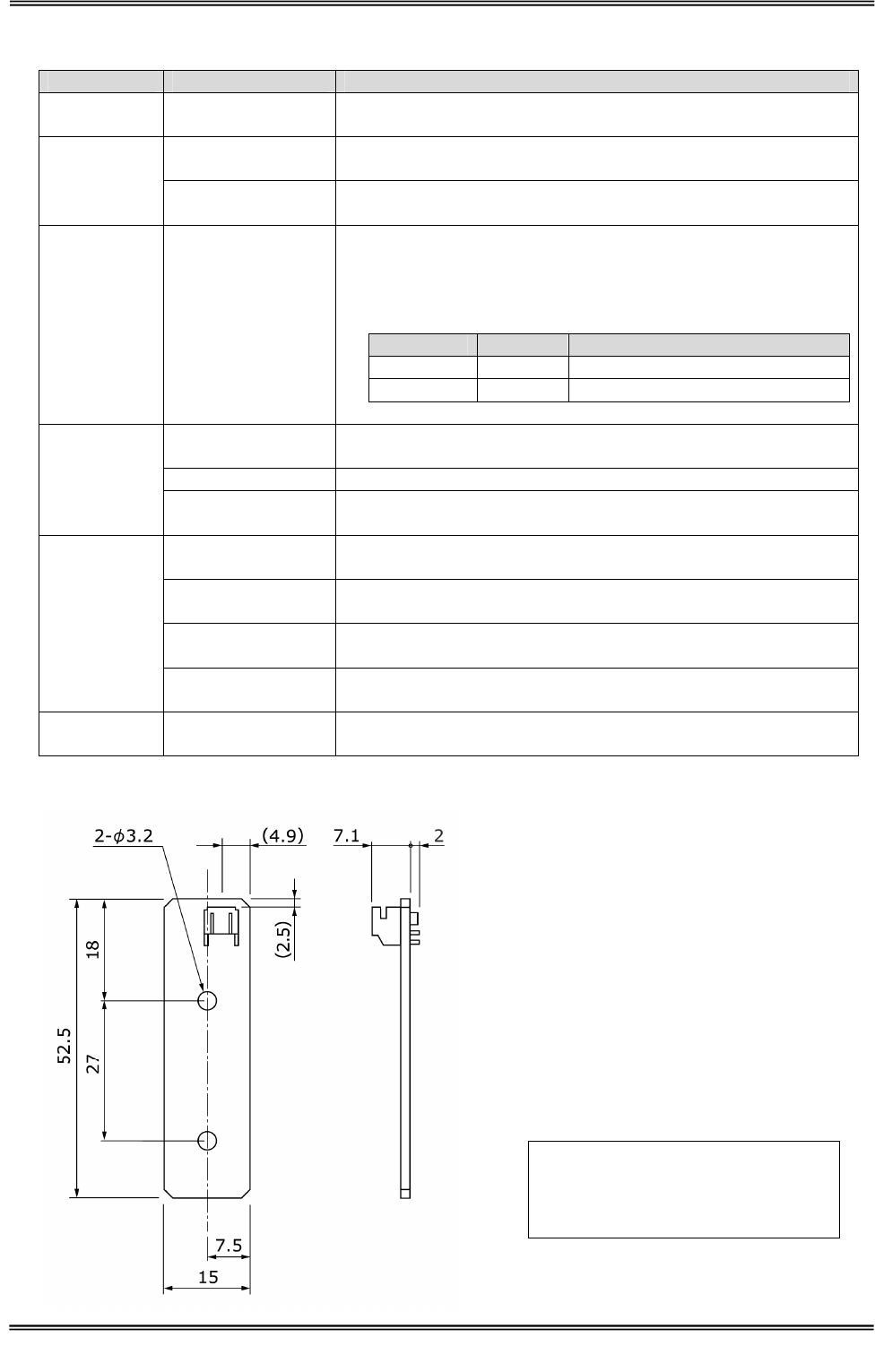

4.2.2 TR3-A302

■ Specifications

Specifications

Item Parameter

Applicable

Standards

RoHS EU RoHS(2002/95/EC) Support

Resonant

frequency

13.56MHz ±40kHz(Ta=25℃)

Antenna

Communication

distance

Max 7cm

(Communication distance depends on the environment.)

Connector CN1 Connector : JST S2B-PH-SM4-TB(LF)(SN)

Housing : JST PHR-2

Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol

Function

1 RF Analog signal

2 GND GND

Dimensions

(W x D x H)

15 x 52.5 x 9.1 mm

Wight approx. 3g

Mechanical

data

Installation M3 Screw

Screw is not included.

Temperature

Operating range

0 to 55 degree

Humidity Operating

range

30 to 80%RH

Temperature

Storage range

0 to 55 degree

Ambient

Conditions

Humidity

Storage range

30 to 80%RH

Other Accessories RFID Sticker 1 sheet

Model Name : SEL41400L

■ Dimensions

Unit：mm

Tolerance：±1mm

Substrate thickness : 1.6mm

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.2 Antenna

16 TAKAYA RFID TR3 Series

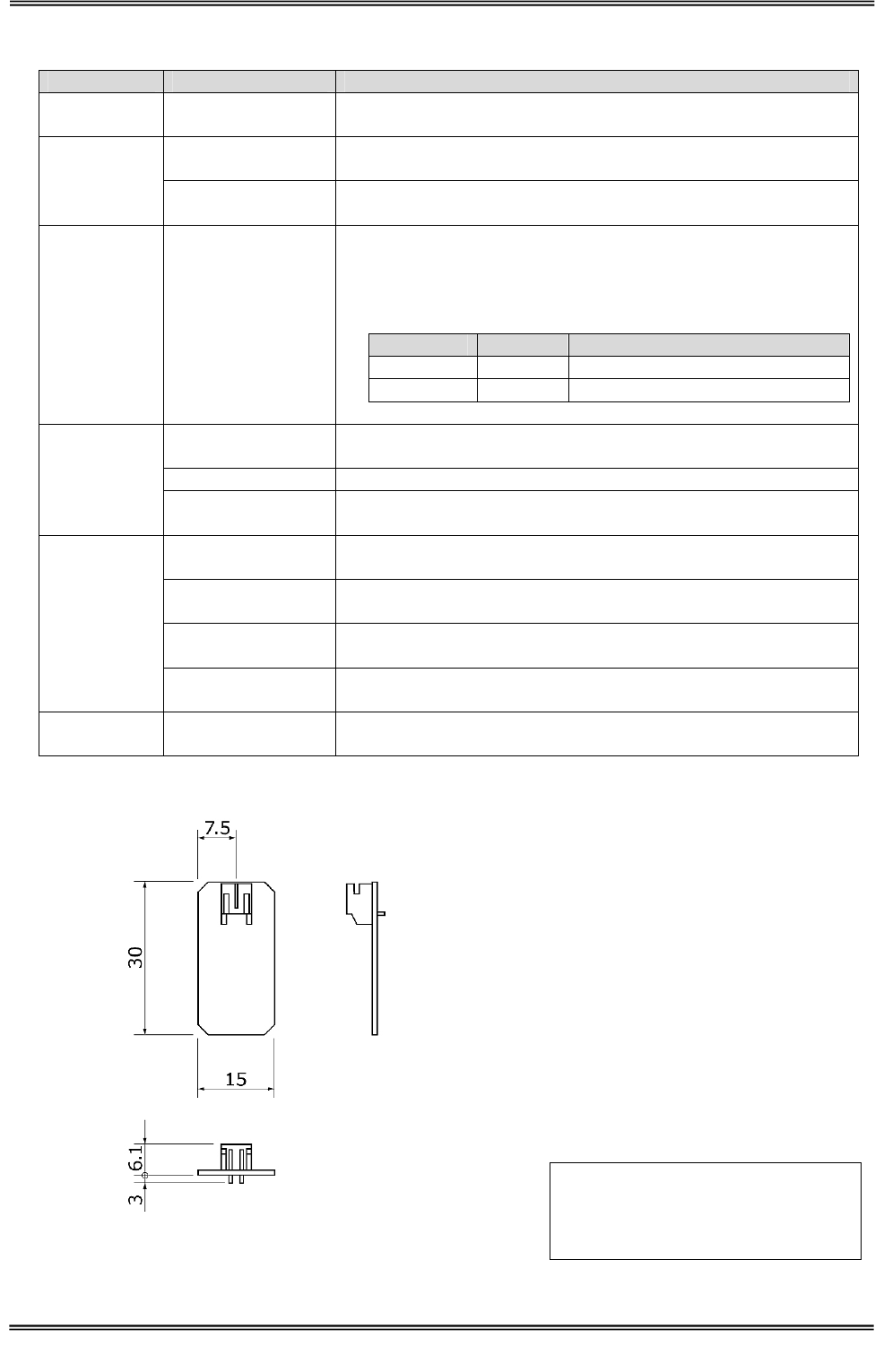

4.2.3 TR3-A401

■ Specifications

Specifications

Item Parameter

Applicable

Standards

RoHS EU RoHS(2002/95/EC) Support

Resonant

frequency

13.56MHz ±40kHz(Ta=25℃)

Antenna

Communication

distance

Max 5cm

(Communication distance depends on the environment.)

Connector CN1 Connector : JST S2B-PH-K-S(LF)(SN)

Housing : JST PHR-2

Contact : JST SPH-002T-P0.5S

Pin assignment

Pin No. Symbol

Function

1 RF Analog signal

2 GND GND

Dimensions

(W x D x H)

15 x 30 x 9.1 mm

Wight approx. 2g

Mechanical

data

Installation M3 Screw

Screw is not included.

Temperature

Operating range

0 to 55 degree

Humidity Operating

range

30 to 80%RH

Temperature

Storage range

0 to 55 degree

Ambient

Conditions

Humidity

Storage range

30 to 80%RH

Other Accessories RFID Sticker 1 sheet

Model Name : SEL41400L

■ Dimensions

Unit：mm

Tolerance：±1mm

Substrate thickness : 1.0mm

Manual No.TDR-MNL-C202-A0-8-EN-101

4 Specifications

4.3 Cable

17 TAKAYA RFID TR3 Series

4.3 Cable

■ Model Name

■ Specifications

Item Parameter

RoHS EU RoHS(2002/95/EC) Support

Linetype Coaxial cable 1.5D-2V

Connector PH-PH

Cable loss 0.5M : approx. 0.043dB

3M : approx. 0.255dB

■ Dimensions

( )is Recommended Dimension

(Cable length)

TR3-AC-2A-***

Enter the cable length(Unit:m)

0.5M～3M

Manual No.TDR-MNL-C202-A0-8-EN-101

18 TAKAYA RFID TR3 Series

5 Maintenance

This product is mainly used in electronic components and semiconductors.

Therefore, the long-term stable operation, the environment and conditions are expected to defect, as

shown below.

• Device degradation due to overvoltage and overcurrent.

• Device degradation due to high temperature and long-term stress.

• Poor contact of the connector and cause deterioration of insulation by moisture

or dust.

• Connector corrosion by corrosive gases.

In order to use this product at its best, please conduct routine or periodic inspections.

Item Maintenance Criteria

Temperature Temperature Operating range

0 to 55 degree

Humidity Humidity Operating range 30 to 80%RH

Enclosure

rating Check the dusty None

Ambient

conditions

Corrosive Check the corrosion None

Input Check the voltage

Power Voltage

fluctuation Check the Voltage fluctuation

Input Voltage :

DC +3.3 ± 10%, +5V ± 10%

Check the Screw

Product Check the Connector Checking and verifying

Attachment

Cable Check the Cable break None

Performance Check the Performance Work

Manual No.TDR-MNL-C202-A0-8-EN-101

19 TAKAYA RFID TR3 Series

Revision History

Revision code

Date Revised contents

1.00 2010/4/16 Original production

1.01 2011/03/03

3.1.2 Installation from the Front deleted.

4.1 TR3-C202-A0-8 Add to 3.3V input voltage.

20

[URL] http://www.takaya.co.jp/

[Mail] rfid@takaya.co.jp

TAKAYA TR3-C202-A0-8 RFID Reader/Writer User Manual TDR MNL C202 A0 8 EN 101

TAKAYA Corporation RFID Reader/Writer TDR MNL C202 A0 8 EN 101

Contents

User Manual

Navigation menu

Namespaces

Views

Navigation
