testo 400 - Universal IAQ instrument
Short instructions
=== Ende der Liste für Textmarke Inhalt1 ===
Table of contents
Pos: 4 /BAL/Allg emein/00_Inhaltsv erzeichnis @ 13\mod_13620610423 55_6.docx @ 160657 @ @ 1
Table of contents
1 About this document ................................................................................... 3
2 Safety and disposal ..................................................................................... 3
3 Product-specific safety instructions .......................................................... 3
4 Use ................................................................................................................ 4
5 Product description ..................................................................................... 4
5.1 Front view ............................................................................................... 4
5.2 Rear view ............................................................................................... 5
5.3 Probe connections .................................................................................. 5
6 Commissioning ............................................................................................ 6
6.1 Mains unit/energy storage unit ............................................................... 6
6.2 Switching the testo 400 on and off ......................................................... 6
6.3 Display – user interface .......................................................................... 7
7 Using the product ........................................................................................ 8
7.1 Overview of main menu ( ) ................................................................. 8
7.2 Overview of measurement types ( ) .................................................. 10
7.3 Overview – editing the reading display ( ) ........................................ 11
7.4 Getting the readings in 5 steps ............................................................. 12
8 Software ...................................................................................................... 13
8.1 Purpose ................................................................................................ 13
8.2 System requirements ........................................................................... 14
8.3 First steps ............................................................................................. 14
8.3.1 Installing the software/driver .................................................. 14
8.3.2 Launching testo DataControl ................................................. 15
8.4 Using the product ................................................................................. 15
8.4.1 Overview ................................................................................ 15
8.4.2 Synchronizing data ................................................................ 16
9 Technical data ............................................................................................ 16
9.1 Product-specific approvals ................................................................... 17
9.2 Contact and support ............................................................................. 18
=== Ende der Liste für Textmarke Inhalt2 ===
1 About this document
3
Pos: 6 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_01 Zu di esem Dokument/01_01_10 U1 Zu d iesem Dokument @ 30\mod_ 1520933199962_6.docx @ 388921 @ 1 @ 1
1 About this document
Pos: 7 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_01 Zu di esem Dokument/01_01_01 B estandteil des Gerä ts @ 13\mod_1372234681441_6. docx @ 163493 @ @ 1
• The instruction manual is an integral part of the instrument.
Pos: 8 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_01 Zu di esem Dokument/01_01_04 D okument aufbewahren @ 13\mo d_1372236534919_6.d ocx @ 163630 @ @ 1
• Keep this documentation to hand so that you can refer to it when necessary.
Pos: 9 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_01 Zu di esem Dokument/01_01_02 B AL aufmerksam lesen @ 13\mo d_1372236932079_6.do cx @ 163696 @ @ 1
• Please read this instruction manual through carefully and familiarize yourself
with the product before putting it to use.
Pos: 10 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_01 Zu di esem Dokument/01_01_ 06 BAL weitergeben @ 13\mod_137223705 9173_6.doc x @ 163729 @ @ 1
• Hand this instruction manual on to any subsequent users of the product.
Pos: 11 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_01 Zu di esem Dokument/01_01_ 03 Sicherheits- und Warnhi nweise beachten @ 13\mod_ 1372237131307_6.docx @ 163762 @ @ 1
• Pay particular attention to the safety instructions and warning advice in order
to prevent injury and damage to the product.
Pos: 12 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Hinweis _Weiterführende Informationen @ 32\mod_1537961112026_6.docx @ 417835 @ @ 1
You will also find further information about your testo 400 universal
IAQ instrument in the online instruction manual on the Testo website,
www.testo,com, under the product-specific download.
Pos: 13 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_00 Si cherheit und Entsorgung /01_00 U1 Sicherheit und Entsorgung @ 13\mod_13518503811 31_6.docx @ 149195 @ 1 @ 1
2 Safety and disposal
Pos: 14 /BAL/Allg emein/01 Sicherheit und Entsorgung/01_03 Si cherheit/01_02_34 Hi nweis auf Beileger 0975 0111 Al lgmeine Sicherhe itshinweise_Kur zform @ 31\mo d_1526545839711_6.doc x @ 398395 @ @ 1
Take the testo Information document into account (accompanies the product).
Pos: 15 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü1 + Text Produktspezifische Sicherheitshinweise @ 32\mod_1535462338457_ 6.docx @ 413986 @ 1 @ 1
3 Product-specific safety instructions
DANGER
Integrated magnet
Danger to life for persons with pacemakers!
- Keep a distance of at least 20 cm between your pacemaker and the
measuring instrument.
ATTENTION
Integrated magnet
Damage to other devices!
- Keep a safe distance from devices that may be damaged by magnetism
(e.g. monitors, computers, credit cards, memory cards, etc.).
4 Use
4
Pos: 16 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü1 + Text Verwendung @ 32\mod_15354626508 83_6.docx @ 414023 @ 1 @ 1
4 Use
The testo 400 is an instrument for measuring climate-related parameters. The
testo 400 is particularly suitable for carrying out comfort level measurements for
workplace evaluation and flow measurements in and on air conditioning
systems.
The instrument is only to be used by qualified expert personnel.
The product must not be used in potentially explosive atmospheres!
Pos: 17 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü1 Produktbeschreibung @ 32\mod_1535462845989_6.do cx @ 414060 @ 1 @ 1
5 Product description
Pos: 18 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü2 + Text Frontansicht @ 32\mo d_1535462894602_6.docx @ 414097 @ 2 @ 1

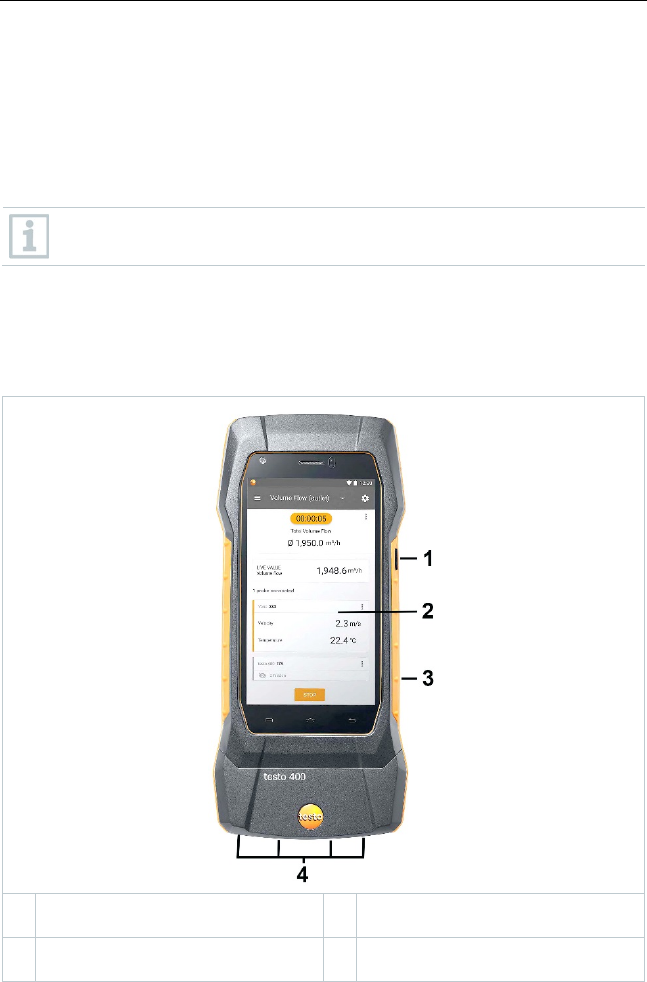

5.1 Front view
1
On/Off button
2
Display – user interface
(see section 6.3)
3
USB port/mains connection
4
Probe connections
(see section 5.3)
5 Product description
5
Pos: 19 /BAL/4xx x/0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü2 + Text Rückansicht @ 32\mod_1535521784171_6.docx @ 414135 @ 2 @ 1

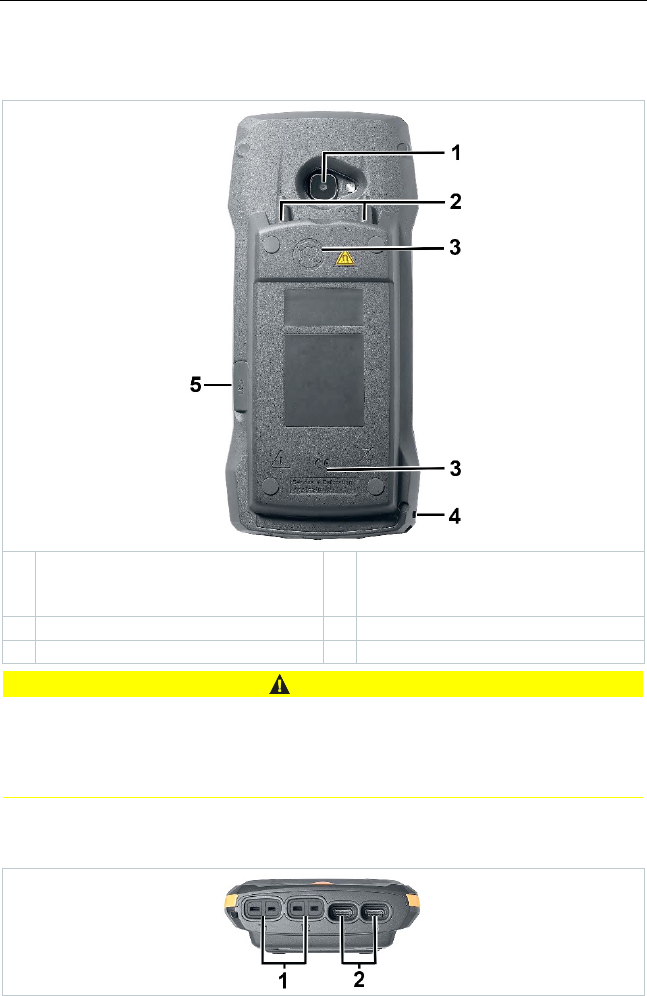

5.2 Rear view
1
Camera
2
Differential pressure
measurement connections
(+/- marking)
3
Magnets
4
Attachment point for carrying strap
5
USB port/mains connection
CAUTION
Make sure the pressure tube does not jump away from the connection
socket.
Risk of injury!
- Ensure correct connection.
Pos: 20 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü2 + Text Fühleranschlüsse @ 32\mod_1535527303371_ 6.docx @ 414172 @ 2 @ 1
5.3 Probe connections
6 Commissioning
6
1
Thermocouple probe type K
connection (T1 and T2)
2
Probe connection with TUC
connector (A and B)
Pos: 21 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü1 Inbetriebnahme @ 32\mod_1535527579242_ 6.docx @ 414209 @ 1 @ 1
6 Commissioning
Pos: 22 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü2 + Text Netzteil / Energiespeicher @ 32\mod_1535528075581_ 6.docx @ 414246 @ 2 @ 1
6.1 Mains unit/energy storage unit
The measuring instrument is supplied with an energy storage unit.
Fully charge the energy storage unit before using the measuring
instrument.
Plug the mains unit USB cable into the USB port on the side.
If the mains unit is connected, the
measuring instrument is automatically
powered via the mains unit.
Only charge the energy storage unit at an ambient temperature of 0 to
45 °C.
Pos: 23 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü2 + testo 400 Gerät ein- und ausschalten @ 32\mod_1535528616122_6. docx @ 414283 @ 2 @ 1
6.2 Switching the testo 400 on and off
Current status Action Function
Instrument off
Press and hold down the
button (> 3 sec)
Instrument is switched on
When the measuring instrument is started for the first time, the setup
wizard guides you through the following setting parameters step by
step:
- Language
- Country
- Units
- Wireless LAN
- Date and time
- Own company address
- E-mail account
- Customer registration
After the setup wizard, a tutorial can be launched. The tutorial
demonstrates the general operation and the most important functions of
the measuring instrument using examples.
6 Commissioning
7
Current status Action Function
Instrument on
Press the button briefly
(< 1 sec)
Instrument is switched to
standby mode. The instrument
is re-activated when the button
is pressed again.
Instrument on
Press and hold down the
button (> 1 sec)
Choice: press [OK] to switch the
instrument off or press [Cancel]
to cancel switch-off of the
instrument.
The startup wizard and the tutorial can be executed again at any time in
the main menu under Setup wizard.
Measuring values that have not been saved are lost when the
measuring instrument is switched off.
Pos: 24 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü2 + Text Display - Bedienoberfläche @ 32\mod_1535530204471_ 6.docx @ 414320 @ 2 @ 1

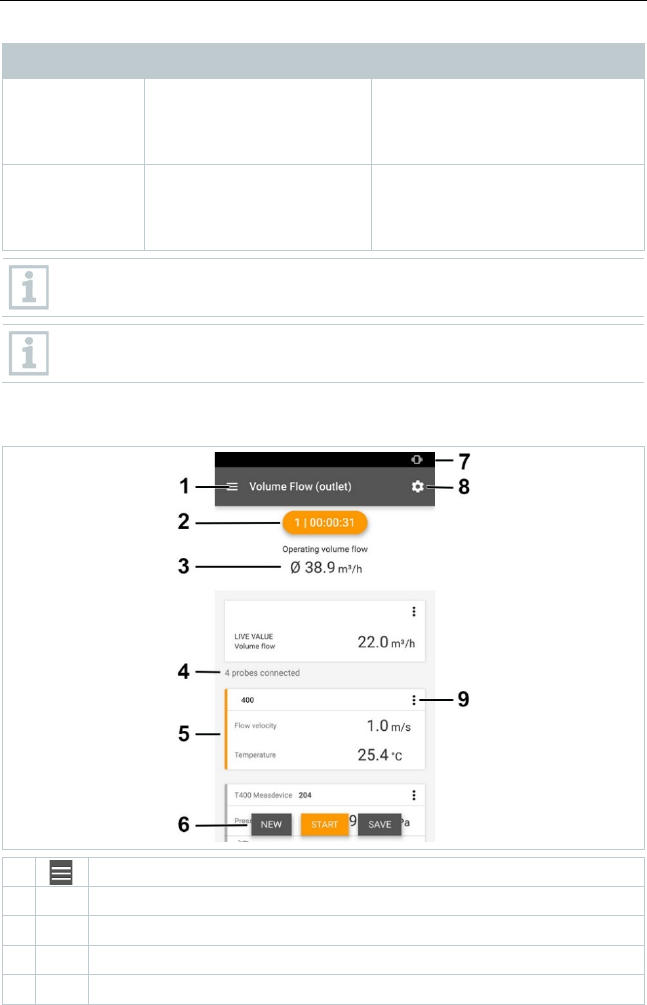

6.3 Display – user interface
1
Open main menu
2
Display of the measurement period
3
Display of calculated measurement results
4
Number of connected probes
5
Reading for each probe
7 Using the product
8
6
Can be controlled with different function keys
7
Instrument status bar
8
Options
9
Edit reading display
Further symbols on the user interface (without numbering)
One level back
Exit view
Share report
Search
Favourite
Delete
More information
Display report
Multiple selection
Pos: 25 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü1 Produkt verwenden @ 32\mod_ 1535530937119_6.docx @ 414357 @ 1 @ 1
7 Using the product
Pos: 26 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü2 + Text Übersicht Hauptmenü @ 32\mod_1535531048893_6.d ocx @ 414394 @ 2 @ 1
7.1 Overview of main menu ( )
7 Using the product
9
Menu Description
Measuring
List with various application-specific
menus
Customer Create, edit and delete customer and
system information.
Memory
Call up, edit, send, export (different
formats possible) and delete
measurements that have been carried
out.
Sensors
Overview of integrated sensors and
connected probes.
- Adjustment via the input of
calibration information
- Damping
- Serial number
- Firmware version
- Battery level (Bluetooth
®
probe)
Settings
Instrument settings
- Language and country
- Date & Time
- Units
- Own company address
- Wireless LAN
Help & Information Aids
- Device Registration
- Device information (serial
number, app version, firmware
version, update information)
- Tutorial
- Instruction manual
- Startup wizard
Additional Apps
Additional applications
- Settings
- Camera
- Clock
- E-mail
- Gallery
- Browser
- Calendar
- Pocket calculator
- Downloads
- QuickSupport
- File manager
7 Using the product
10
Pos: 27 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü2 + Text Übersicht Messarten @ 32\mod_1535532166993_ 6.docx @ 414431 @ 2 @ 1

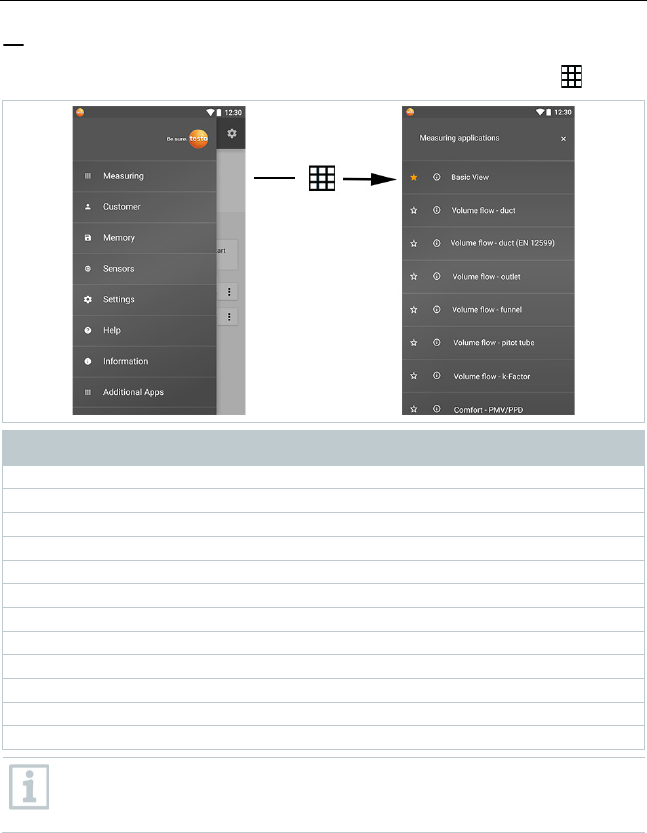

7.2 Overview of measurement types ( )
Measuring applications
Basic view
Volume flow – Duct
Volume flow – Duct traverse (EN 12599)
Volume flow – Duct traverse (ASHRAE 111)
Volume flow – Outlet
Volume flow – Funnel
Volume flow – Pitot tube
Volume flow – k-factor
Comfort – PMV/PPD (EN 7730 / ASHRAE 55)
Discomfort – Draft rate
Differential temperature (ΔT)
Differential pressure (ΔP)
You will also find further information about the individual measurement
types in the online instruction manual on the Testo website,
www.testo,com, under the product-specific download.
7 Using the product
11
Pos: 28 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü2 + Text Übersicht Messwert-Anzeige bearbeiten @ 32\mod_1535535844196_ 6.docx @ 414505 @ 2 @ 1

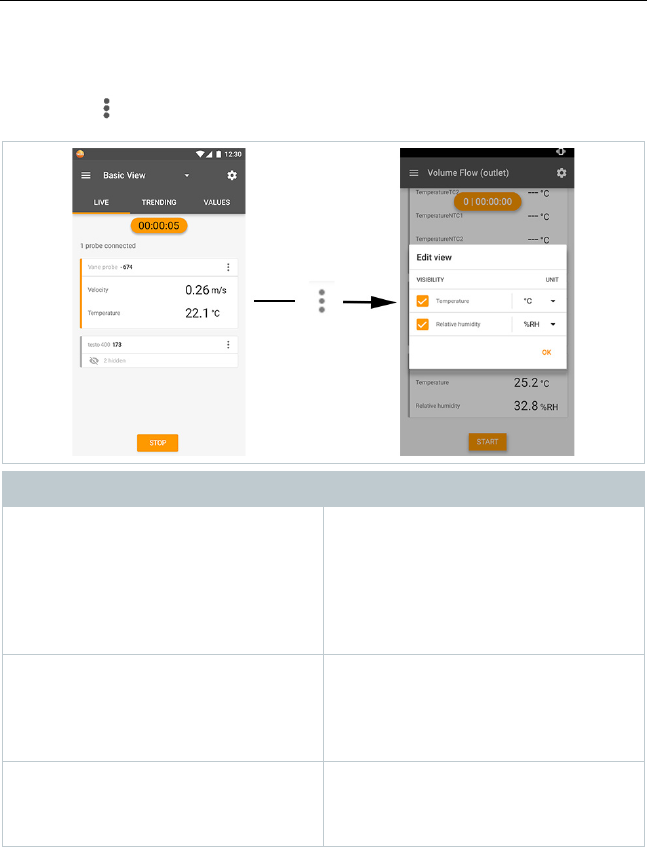

7.3 Overview – editing the reading display
( )
Menu Description
Edit view
The display can be edited for each
connected probe. The available
measurement parameters can be
selected and deselected and the unit
for each parameter can be adjusted.
These changes are saved for the next
measurement.
Zero pressure sensor
Once the testo 400 has been brought
into the operating position for a
differential pressure measurement, the
sensor should be zeroed against
ambient air.
Adjusting Degree of Emission
If the testo 805i is connected, the
selection of emissivity appears here.
This can be set individually depending
on the measuring surface.
7 Using the product
12
Pos: 29 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü2 + Text In 5 Schritten zu den Messw erten @ 32\mod_1535536548820_ 6.docx @ 414542 @ 2 @ 1
7.4 Getting the readings in 5 steps
1
Switch instrument on: Press button
> 1 sec.
2
Connect probe via cable or Bluetooth®.
3
Place probe in the application.
4
Start measurement and read off
measuring values.
8 Software
13
5

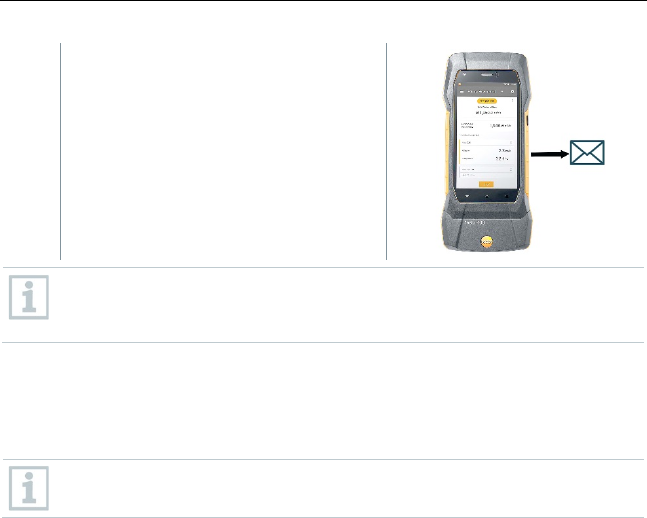

Save and send readings
You will also find further information about your testo 400 universal IAQ
instrument in the online instruction manual on the Testo website,
www.testo,com, under the product-specific download.
Pos: 30 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü1 + Text Software @ 32\mod_153900235169 2_6.docx @ 419425 @ 122233233 @ 1
8 Software
The testo 400 has a USB port, via which the measuring instrument can be
connected to the PC.
Knowledge of Windows® operating systems is required to work with the
software.
8.1 Purpose
The testo DataControl measurement data management and analysis software
enhances the functionality of the testo 400 measuring instrument with lots of
useful functions:
• Manage and archive customer data and measuring point information
• Read out, evaluate and archive measurement data
• Presenting readings in graphic form
• Create professional measurement reports from the existing measurement
data
• Conveniently add pictures and comments to measurement reports
• Data import from and data export to the measuring instrument
8 Software
14
8.2 System requirements
Administrator rights are required for installation.
Operating system
The software can be run on the following operating systems:
• Windows® 7
• Windows® 8
• Windows® 10
Calculator
The computer must meet the requirements of the operating system in each
case. The following requirements must also be met:
• Interface USB 2 or higher
• DualCore processor with minimum 1 GHz
• Minimum 2 GB RAM
• Minimum 5 GB available hard disk space
• Screen with a resolution of at least 800 x 600 pixels
8.3 First steps
8.3.1 Installing the software/driver
1
Insert the program CD into the CD-ROM drive of the computer.
or
Download the program (www.testo.com/download-center) and unpack
the zip file using a suitable compression tool.
2
Launch the TestoSetup.exe file.
3
Follow the instructions of the installation wizard.
4
Click on [Finish] to complete the software installation.
5
Once the software installation is completed, connect the instrument to
the computer to continue with the driver installation.
6
Use the USB-cable to connect the instrument to the PC.
The connection will be established.
8 Software
15
8.3.2 Launching testo DataControl
The user interface of the software is opened in the language of the
operating system, if it is supported. If the operating system language is
not supported, the user interface will be in English.
Windows® program menu
Windows® 7:
Click on [Start] | All Programs | Testo | testo DataControl (double-click on left
mouse button).
Windows® 8:
Click on [Start] | Right mouse button | Search (Enter the application name in the
search field) | testo DataControl (double-click on left mouse button).
Windows® 10:
Click on [Start] | All Apps | Testo | testo DataControl (double-click on left
mouse button).
testo DataControl launches automatically.
8.4 Using the product
8.4.1 Overview

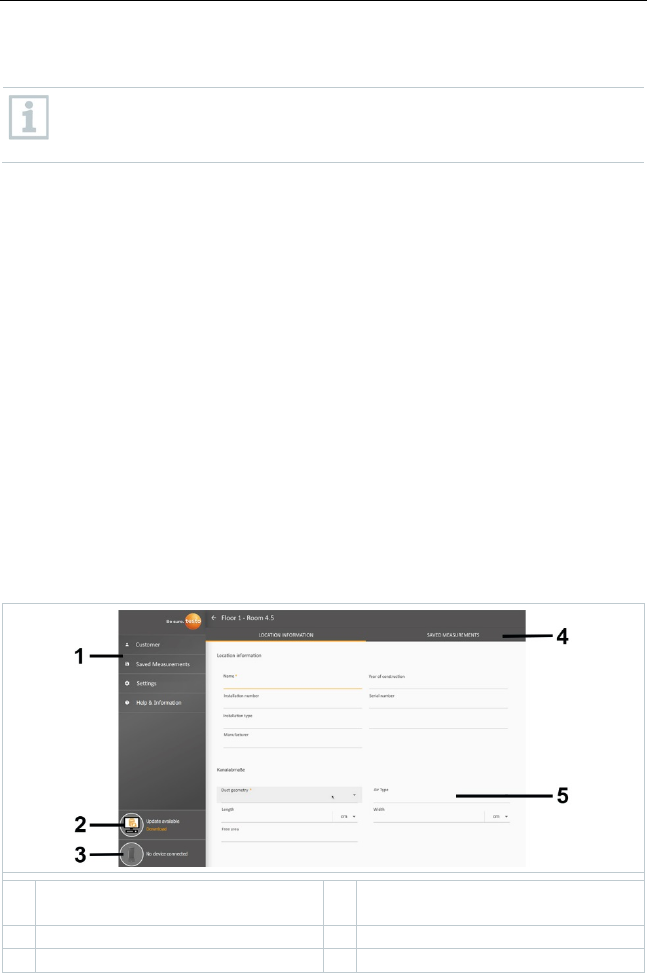

1 Main menu 3
Connection status of the
measuring instrument
2
Update notification
4
Multi-function bar
5
Display area
9 Technical data
16
Operation of the software is based on the same functional principle as the
instrument firmware for the testo 400.
You will also find further information about testo DataControl in the
online instruction manual on the Testo website, www.testo,com, under
the product-specific download.
8.4.2 Synchronizing data

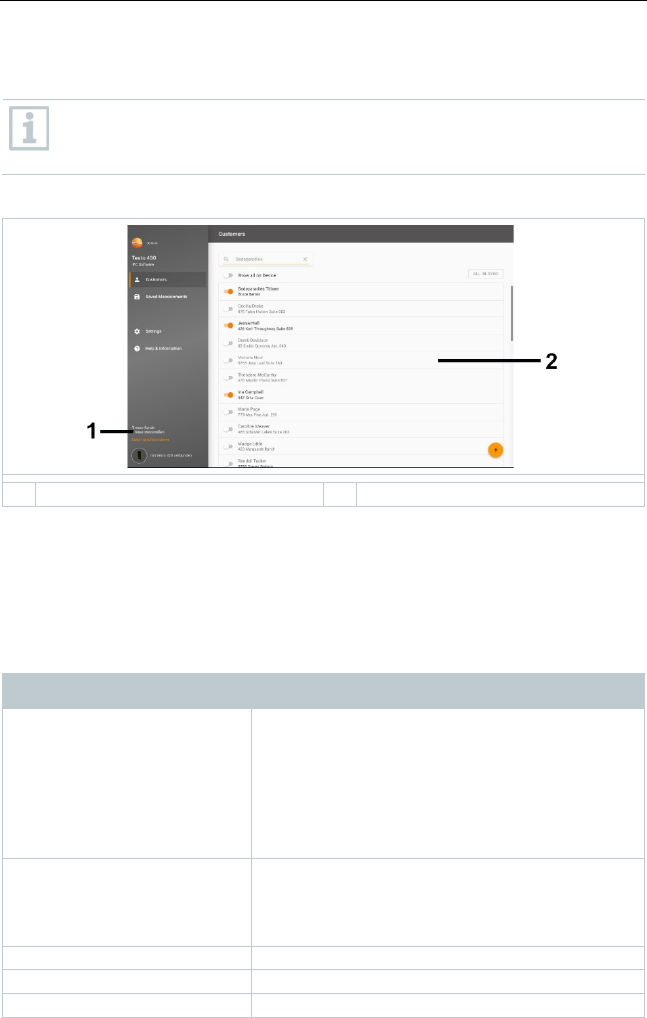

1
Synchronization status
2
Display area
The data can be synchronized selectively per customer or as a whole across all
customers simultaneously.
Pos: 31 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Ü1 + Text Technische Daten @ 32\mod_1535537021434_ 6.docx @ 414579 @ 1 @ 1
9 Technical data
General
Feature Value
Probe connections
- 2x type K thermocouple
- 2x Testo Universal Connector (TUC) for
connecting cable probes to the
corresponding plug
- 1x differential pressure
- 1x absolute pressure (integrated)
- 4x Bluetooth
®
probe or testo Smart Probe
Interfaces
- Mini USB for connection to PC or for battery
charging with mains unit
- WLAN 802.11 b/g/n
- Bluetooth
®
4.0
Internal memory capacity
2 GB (corresponds to 1,000,000 readings)
Rechargeable battery life
10 hours of continuous operation / 3200 mAh
Measuring cycle
0.5 sec / display update 1 sec
9 Technical data
17
Feature Value
Operating temperature
-5 to +45 °C
Storage temperature
-20 to +60 °C
Charging temperature
0 to +45 °C
Dimensions in mm
186 x 89 x 41 (L x W x H)
Housing material
PC, ABS, TPE
Weight
500 g
Protection class
IP 40
Display
5.0 inch HD display (1280*720 pixels)
Camera
- Front camera 5.0 MP
- Rear camera 8.0 MP
Integrated sensors (at 22 °C, ±1 digit)
Characteristics Measuring range Accuracy Resolution
Temperature
(TC type K)1
-200 to +1370 °C
± (0.3 °C + 0.1% of m.v.)
Internal cold junction
measurement: ± 0.5 °C
0.1 °C
Temperature
(NTC)
-40 to +150 °C ±0.2 °C (-25.0 to +74.9 °C)
±0.4 °C (-40.0 to -25.1 °C)
±0.4 °C (+75.0 to +99.9 °C)
±0.5% of m.v. (rest)
0.1 °C
Differential
pressure2
-100 to +200 hPa
± (0.3 Pa + 1% of m.v.)
(0 to 25 hPa)
±(0.1 hPa + 1.5% of m.v.)
(25 to 200 hPa)
0.001 hPa
Absolute
pressure
+700 to
+1100 hPa
± 3 hPa
0.1 hPa
1 The accuracy information applies in an adjusted, stable temperature state.
Plugging in the mains unit, charging the battery or adding digital probes can
distort this temporarily, and additional errors may occur.
2 The accuracy specification applies immediately after zeroing of the sensor.
For long-term measurements, mains operation with fully-charged battery is
recommended.
Pos: 32 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü2 + Text Produktspezifis che Zulassungen @ 32\mod_ 1535537763011_6.do cx @ 414616 @ 2 @ 1
9.1 Product-specific approvals
Please find the current approvals in the attached Approval and Certification
document(s).
9 Technical data
18
Pos: 33 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/ Ü2 + Text Kontakt und Support @ 32\m od_1535537923693_6.doc x @ 414653 @ 2 @ 1
9.2 Contact and support
If you have any questions or need further information, please contact your
dealer or Testo Customer Service. For contact details, please visit
www.testo.com/service-contact.
=== Ende der Liste für Textmarke Inhalt3 ===
Pos: 35 /BAL/4xxx/ 0971 4011 [testo 400 - Klim a-Messgerät] KAL/Rückseite @ 32\mod_1535461139194_6.docx @ 413868 @ @ 1
Testo SE & Co. KGaA
Testo-Strasse 1
D-79853 Lenzkirch
Germany
Phone: +49 7653 681-0
Fax: +49 7653 681-7699
E-mail: info@testo.de
www.testo.com
0971 4011 en 01
=== Ende der Liste für Textmarke Inhalt4 ===
