Correction sheet
Correction sheet 1
SAILOR 6300 MF/HF DSC 150W/250W/500W
User manual
Please note insufficiencies on the pages 3, 10 and 27 in the SAILOR 6300
MF/HF DSC user manual (98-131070-A). These have been corrected in this
document.
•Corrections on page 3: Controls on the front, bulleted item 9 edited
•Corrections on page 10: Adjusting RF gain, 3rd paragraph edited, 4th
paragraph removed
•Corrections on page 27: Display for a session, a note has been added
Correction sheet
2/4 98-133352-A
Page 3 in the SAILOR 6300 MF/HF DSC user manual:

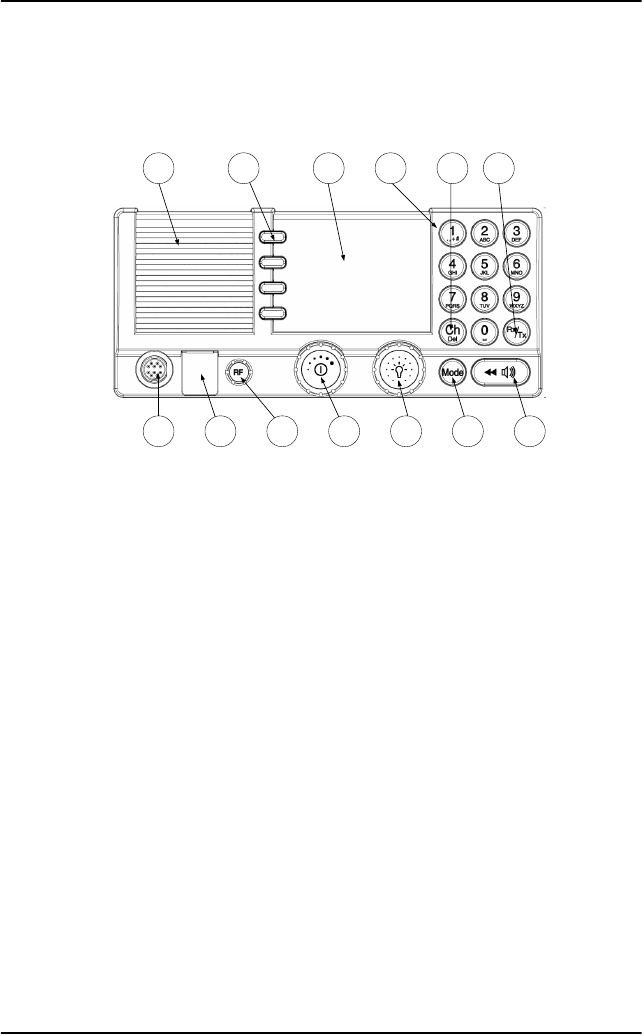

Controls on the front
1. Loudspeaker.
2. Four soft keys with function title in the display.
3. Large TFT color display.
4. Alphanumerical keys to enter Rx or Tx frequency or text strings.
5. CH button for channel selection.
6. Rx/Tx Key to enter Tx or RX frequency.
7. Connector for handset or handmicrophone.
8. Distress button for sending a Distress alert.
9. RF gain control (IF).
10. Volume knob with key-press function for power on/off.
11. Selector knob with key-press function for radio operation and setup.
12. Mode key to select the work mode: SSB, AM Broadcast, DSC, Telex.
13. Replay button to play back up to 240 s voice message.
1 2 3 4 6
78910 11 12 13
5
Correction sheet
98-133352-A 3/4
1111
Correction sheet
Page 10 in the SAILOR 6300 MF/HF DSC user manual:
Adjusting RF gain
Use RF gain to control audibility of the incoming signal. Turn the RF
gain control knob fully:
• clockwise: maximum RF gain — maximum sensitivity
• anti-clockwise: minimum RF gain — minimum sensitivity
The larger the signal strength bar, the larger the signal must be in
order to be audible. After entry of a new receive frequency the RF gain is set to
maximum.
The function is enabled in SSB telephony and disabled in all other modes.
kHz/
RX
kHz/
RX
Correction sheet
4/4 98-133352-A
Page 27 in the SAILOR 6300 MF/HF DSC user manual:

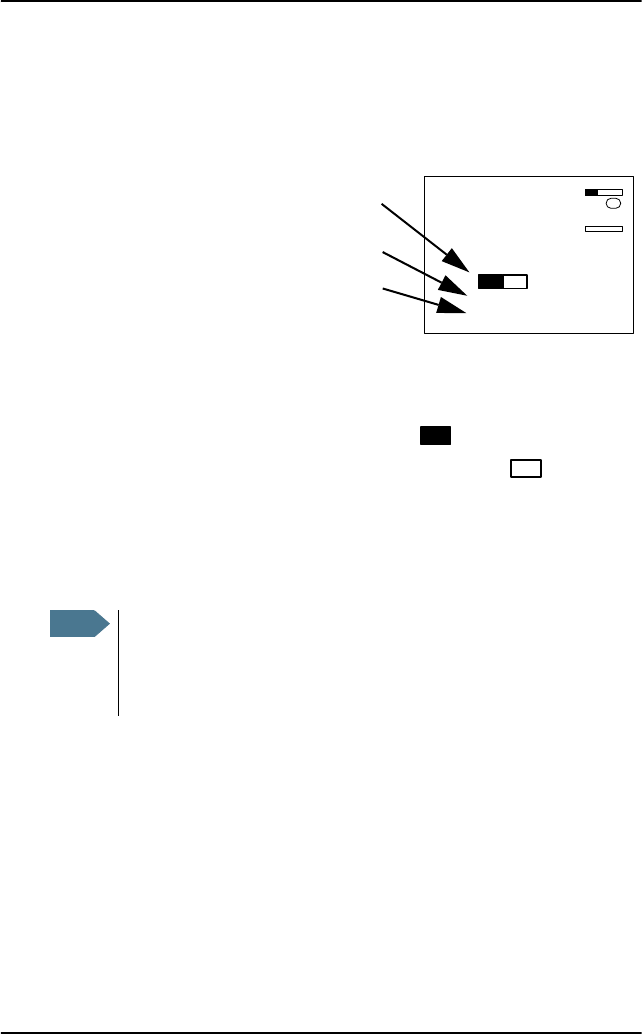

Display for a session
In the lower part of the
display the type of session,
the current state, MMSI
number of the other party
and lapsed time since the
reception of a call request
or an acknowledgment is
shown.
The session state icons, in the example V and R, show the state of the session:
•ACTIVE — the session icon is inverted, the transmitter tuned into the
communication channel (in the example , a DSC Routine call).
•HOLD — normal view, parked session (in the example , MF/HF
voice communication.
•FLASHING — Call has updates that need handling or viewing
For more information on the session state icons see Session state icons D, U,
S, R, V and T below.
Note
If two identical polling or test calls are sent from the same MMSI and
the operator wants to resend a confirmation to the second call
received, it is necessary to put the session on hold and then activate
it again.
QUIT
HOLD
VIEW
MORE COMM WITH 123456789
GROUP RX
0:12
RV
4357.0
4065.0
SSB 401
kHz/TX
RX
kHz/
Session state icons
Session line
Session status
R

Navigation menu
