SE3-RDR100 INSTALLATION GUIDE
The Blackboard SE3-RDR100 is a Door Access Reader that supports contactless card technology.
Contactless Card Technology offers the
following advantages vs. magnetic stripe:
virtual
ly eliminates reader wear and
tear (card need not contact the reader)

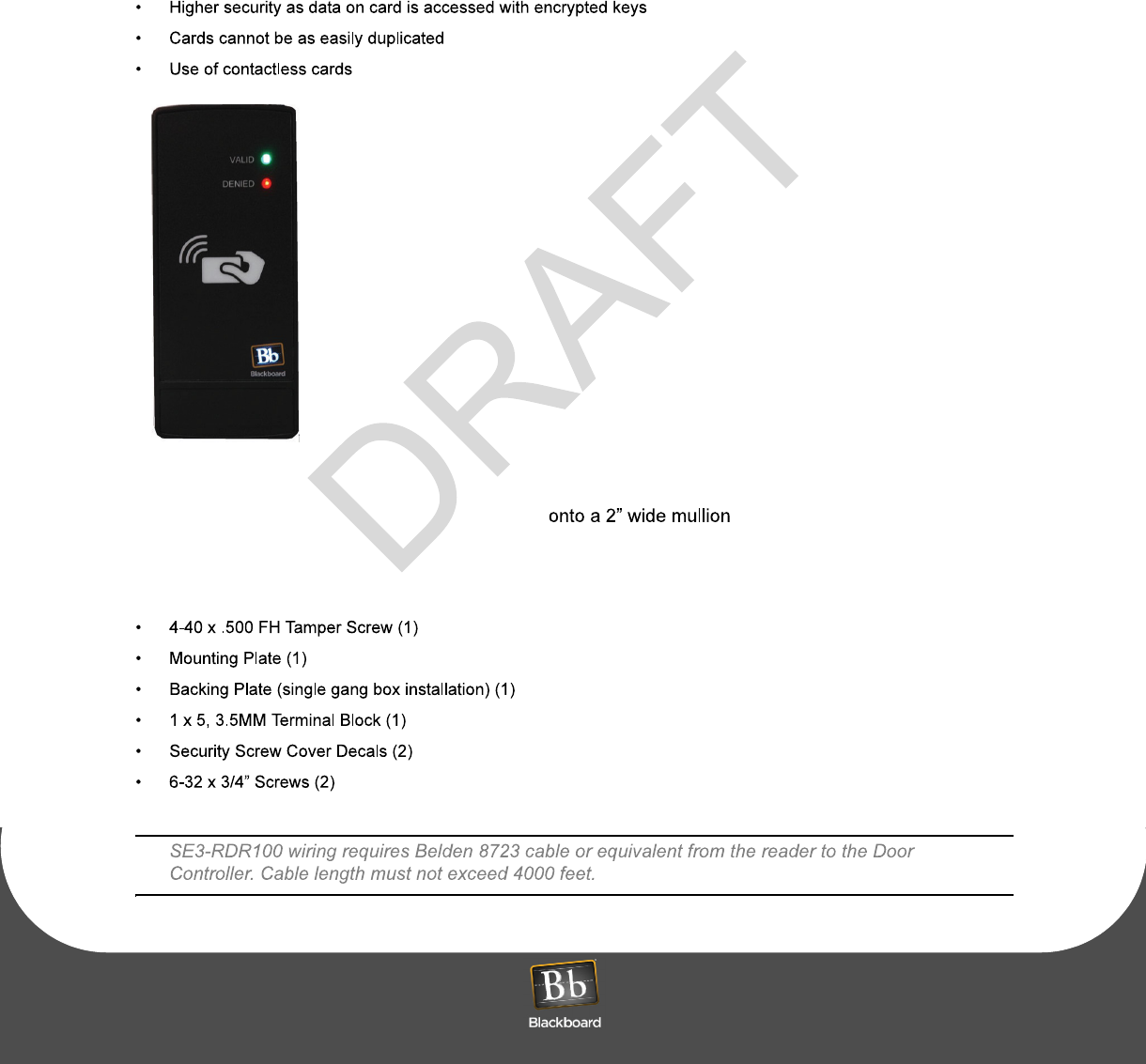

Figure 1-1 SE3-RDR100 Reader
The SE3-RDR100 Card Reader may
be mounted
or a single gang box using the
included backing plate.
The following items are included with the SE3-RDR100:
S E 3 - R D R 1 0 0 I N S T A L L A T I O N GU I D E
DO C U M E N T 1 2 9 1 R E V 0 1
P
RINTED
N
OVEMBER
24, 2009
1-3
I
NSTALL
THE
SE3-RDR100
UL Considerations:
Attention to Installers: All fi
eld wiring/cabling conn
ections made to the Controller need
to use shielded cable with one of the shielded ends connected to earth ground.
Surface Mount the SE3-RDR100
(page
1-3)
Single Gang Box Mount the SE3-RDR100
(page
1-6)
The mounting plate is secured using #6 flat head
ha
rdware. Select hardware based on the mounting
material.
To surface mount the SE3-RDR100
1
Use the mounting plate as a template to mark mounting holes and a cable routing hole.
2
Drill the holes for the mounting hardware (#6 flathead screws) and the cable.

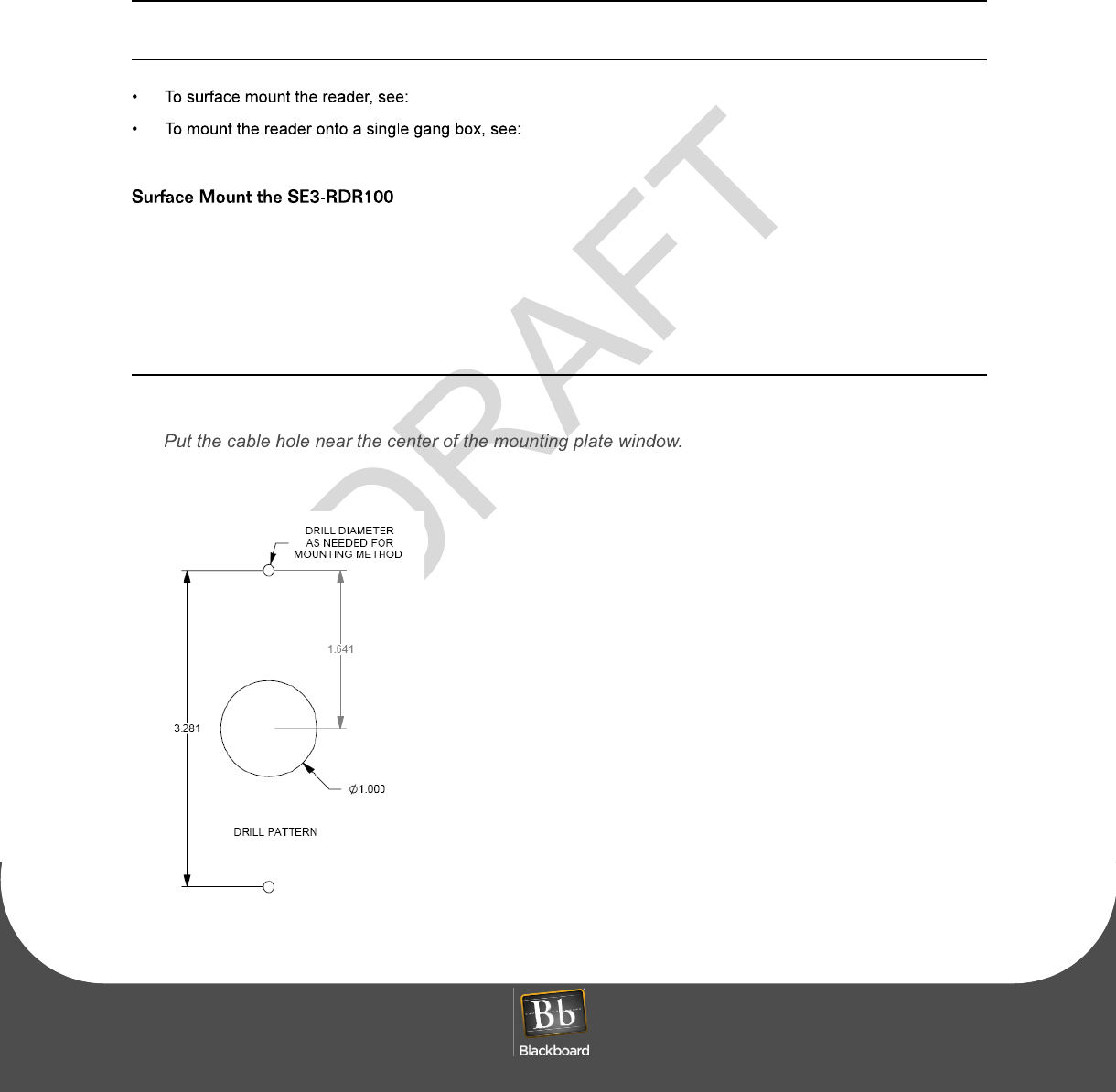

Figure 1-2 Mounting Drill Pattern
IN S T A L L T H E S E 3 - R D R 1 0 0
P
RINTED
N
OVEMBER
24, 2009
1-4
3
Secure the mounting plate with the chosen hardware.
Figure 1-3 Mounting Plate Installation - Mullion
4
Pull the cable through the hole, and then wire to the 5-pin terminal block.
SE3-RDR100 Wiring
5
Plug the terminal block onto the SE3-RDR100.
6
Place SE3-RDR100 at an angle over the mounting plat
e, and then slide down to engage the clip onto
the mounting plate notch.
S E 3 - R D R 1 0 0 I N S T A L L A T I O N GU I D E
DO C U M E N T 1 2 9 1 R E V 0 1
P
RINTED
N
OVEMBER
24, 2009
1-5

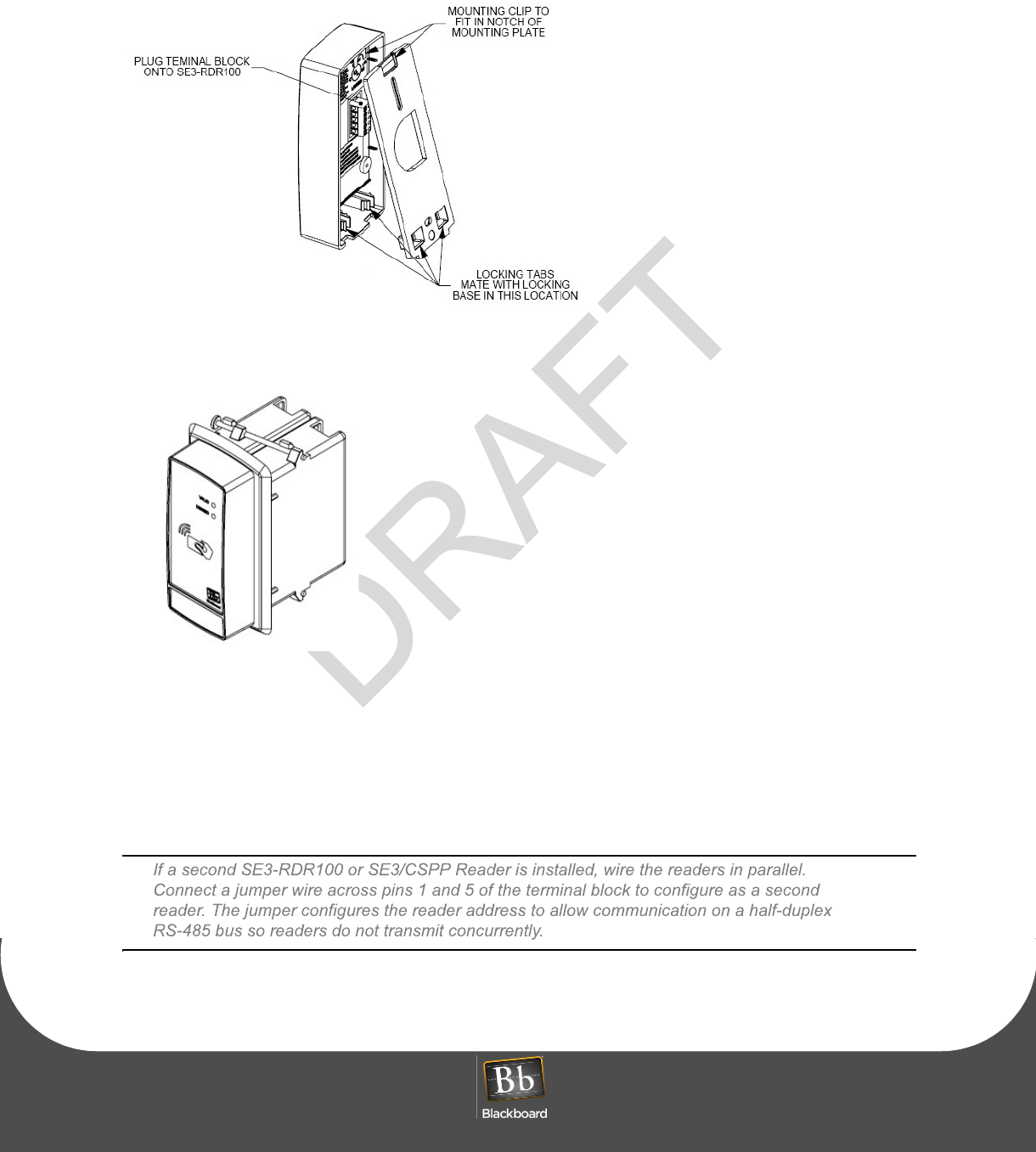

Figure 1-4 Mounting Plate Installation - Surface Mount
7
Push
the bottom of the reader onto the mounti
ng plate to lock the unit to the plate.
Figure 1-5 Mullion Installation
8
Test the SE3-RDR100 for proper operation.
9
Optionally secure the reader to the mounting plate
using the security screw supplied in the hardware
kit.
10
Apply the Security Screw Cover Decal.
IN S T A L L T H E S E 3 - R D R 1 0 0
P
RINTED
N
OVEMBER
24, 2009
1-6
To mount the SE3-RDR100 on
to a single gang box
1
Secure the backing and mounting plates with the appropriate hardware to the single gang box.

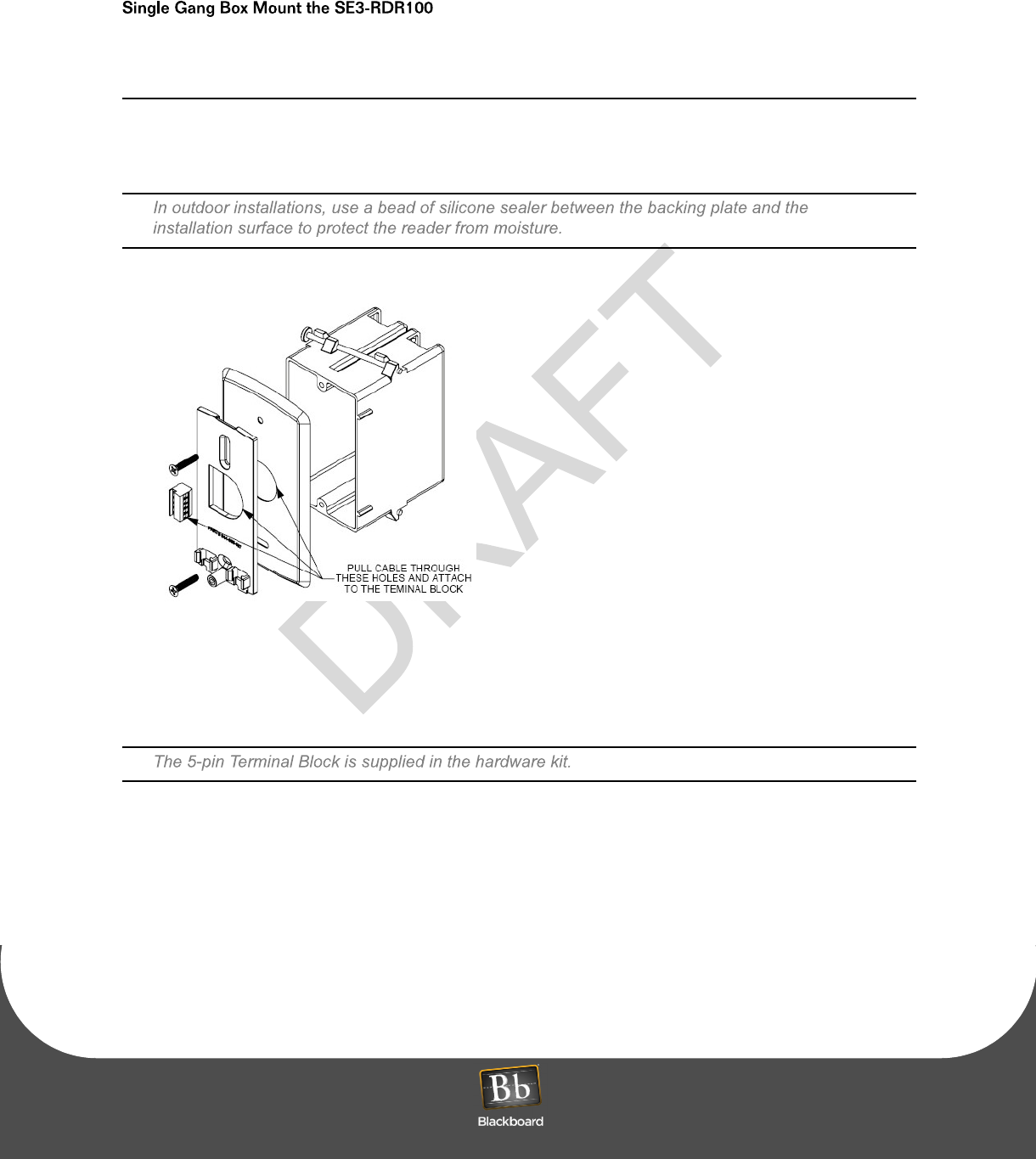

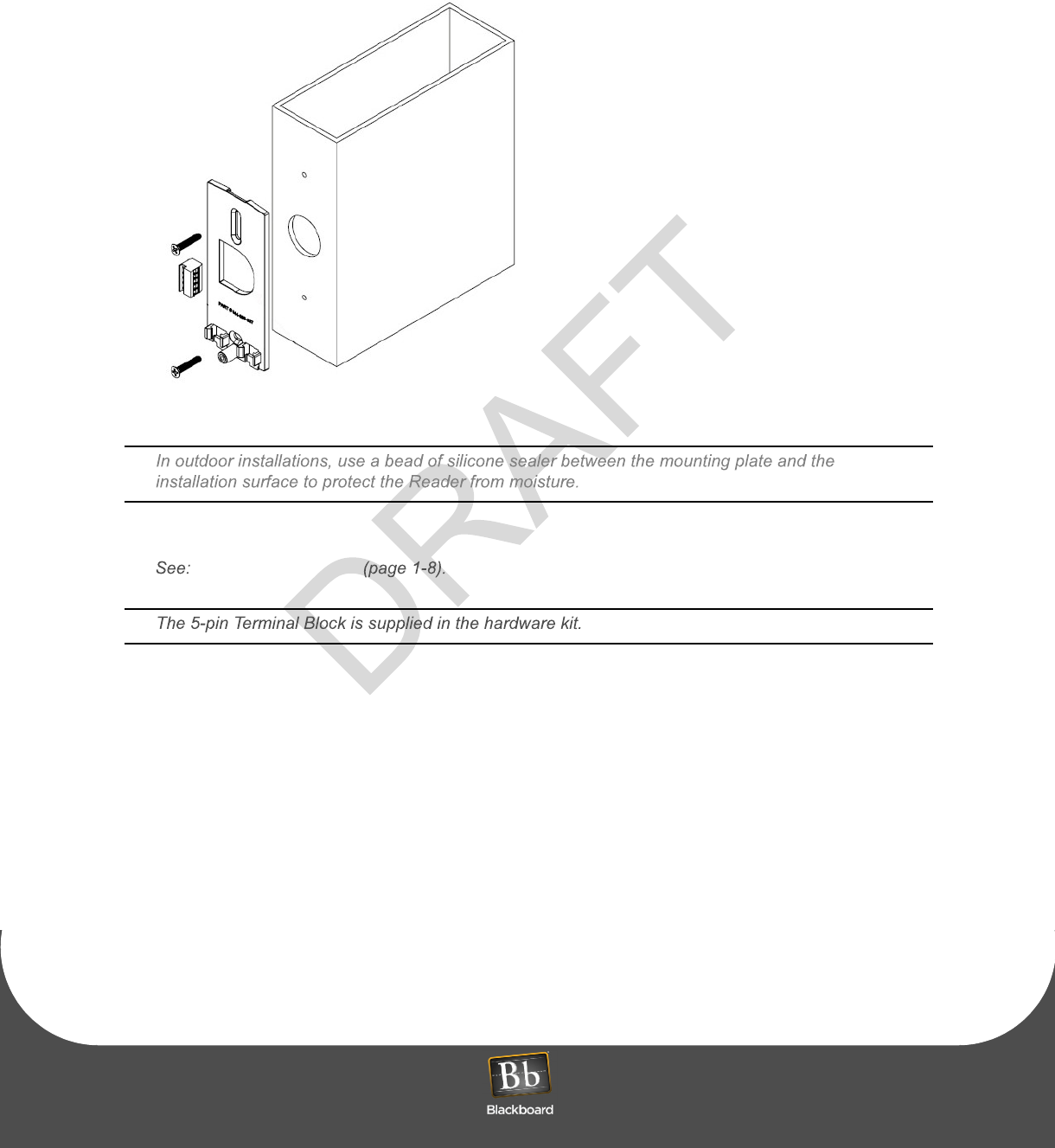

Figure 1-6 Single Gang Box Mount Assembly
2
Pull cable through mounting plate, and then connect to 5-pin terminal block,
see:
SE3-RDR100 Wiring
(page 1-8).
3
Plug the terminal block onto the SE3-RDR100.
4
Place SE3-RDR100 at an angle over the mounting plat
e, and then slide down to engage the clip onto
the mounting plate notch.
S E 3 - R D R 1 0 0 I N S T A L L A T I O N GU I D E
DO C U M E N T 1 2 9 1 R E V 0 1
P
RINTED
N
OVEMBER
24, 2009
1-7
Figure 1-7 Mounting Plate Installation - Gang Box Mount
5
Push
the bottom of the SE3-RDR100 onto the
mounting plate to lock the unit to the plate.

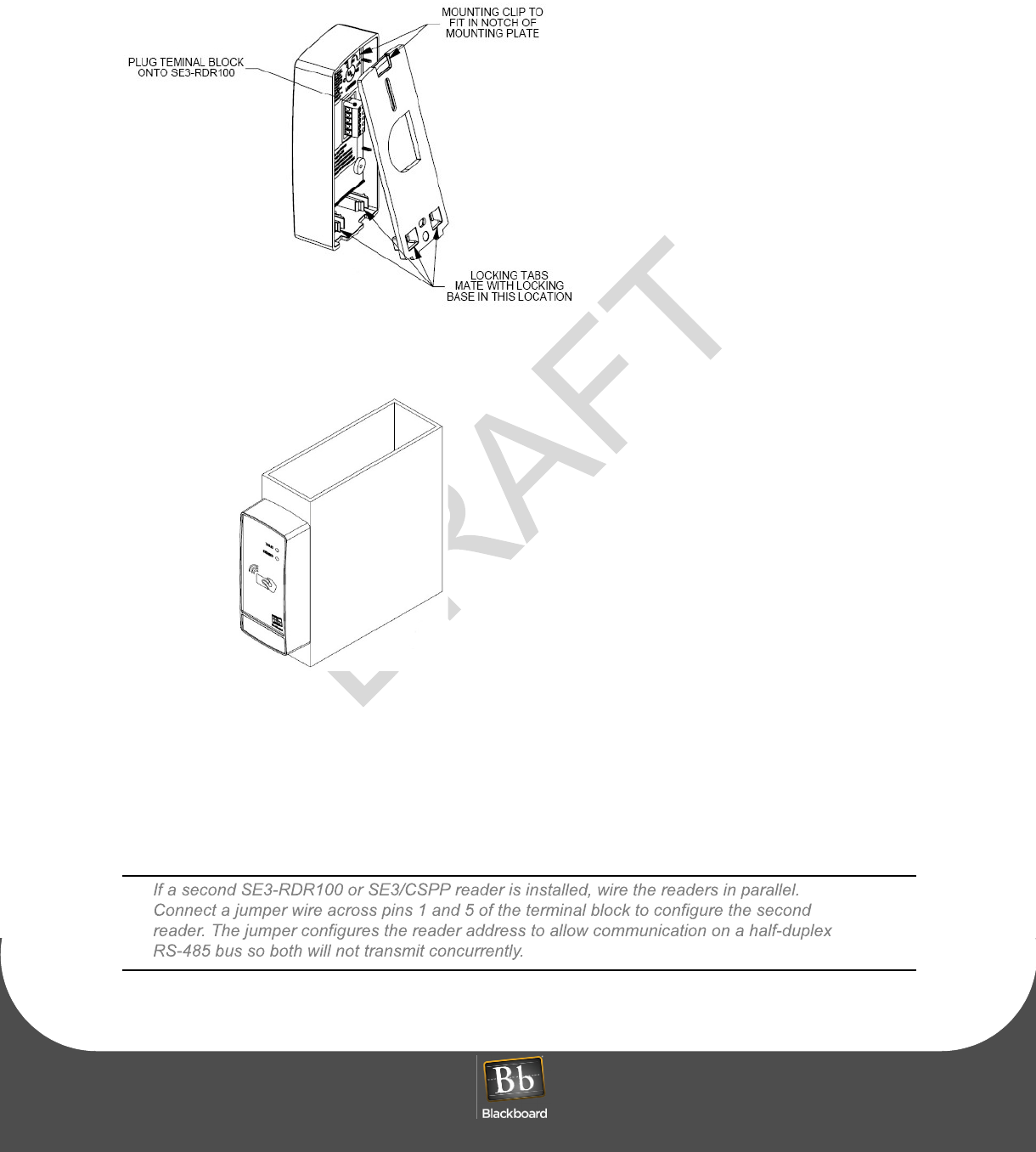

Figure 1-8 Single Gang Box Mount
6
Test the reader for proper operation.
7
Optionally secure the reader to the mounting plate
using the security screw supplied in the hardware
kit.
8
Apply the Security Screw Cover Decal.
IN S T A L L T H E S E 3 - R D R 1 0 0
P
RINTED
N
OVEMBER
24, 2009
1-8

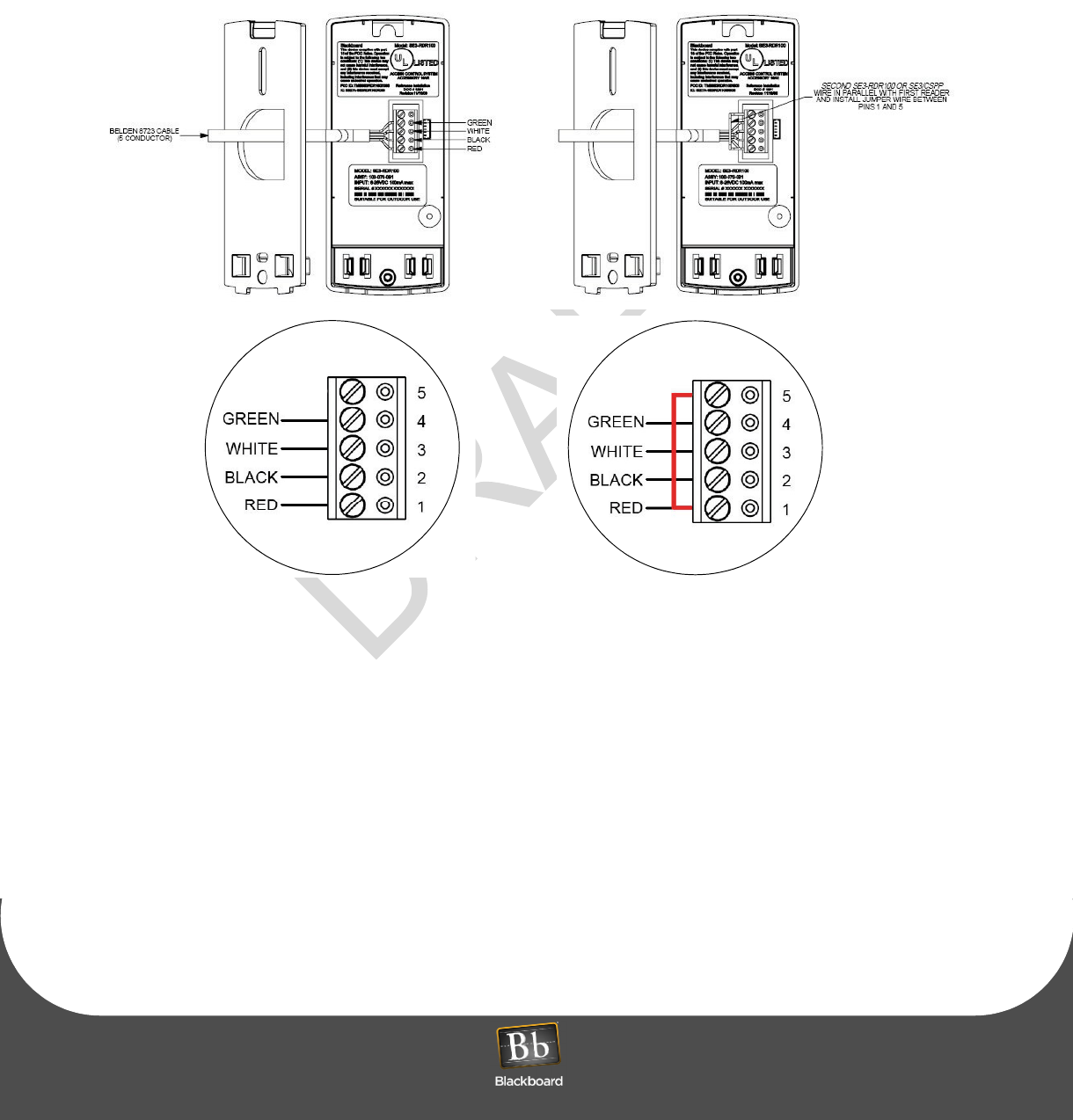

Figure 1-9 SE3-RDR100 Wiring
Jumper wire between
PINS 1 & 5
RE M O V E T H E S E 3 - R D R 1 0 0
P
RINTED
N
OVEMBER
24, 2009
1-9
R
EMOVE
THE
SE3-RDR100
To remove the SE3-RDR100 from its mounting
1
If a security screw is installed, re
move the Security Screw Cover Decal.
2
Insert the SE3-RDR100 key into the bottom slots.
3
Gently pull the bottom of the reader at an angl
e over the mounting plate, and then slide up to
disengage the clip from the mounting plate.
4
Disconnect the terminal block.
5
Remove the wall plate from the mounting if needed.

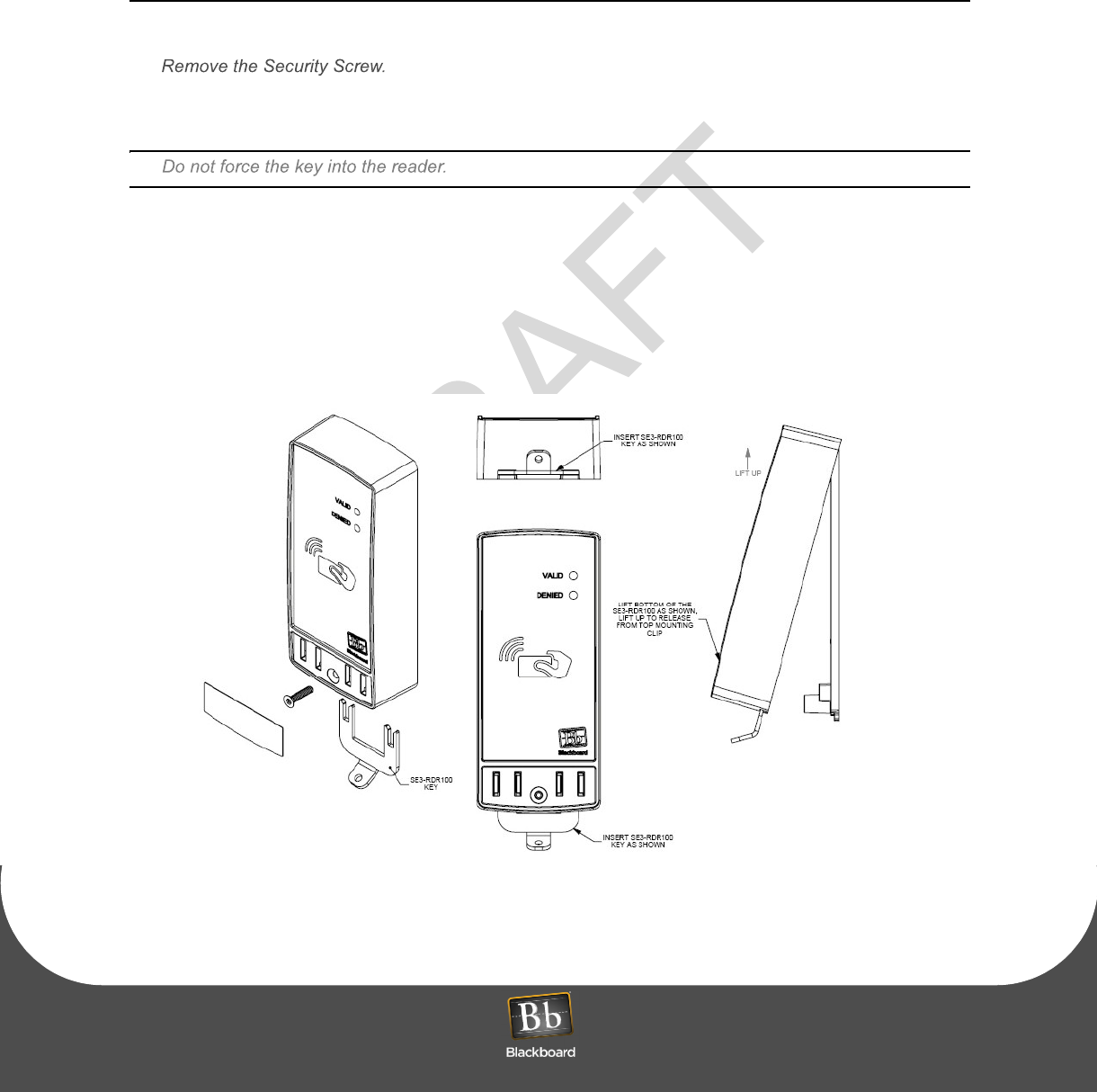

Figure 1-10 SE3-RDR100 Mounting Removal
SP E C I F I C A T I O N S
P
RINTED
N
OVEMBER
24, 2009
1-10
SPECIFICATIONS
Physical Size:
Weight: 0.30 lbs
Input Power:
12VDC 150mA, 1.8 Watts Maximum
Operating:
Temperature: -20 to 60+ degrees Celsius
Relative Humidity: 0 to 95 percent, non-condensing
Altitude: 0 - 10,000 feet
Non-Operating:
Temperature: -20 to +70 degrees Celsius
Relative Humidity: 0 to 95 percent, non-condensing
Altitude: 0 - 35,000 feet
This device contains an integrated lithium batt
ery (BR2032). There is a risk of fire if the
battery is replaced with an incorrect type. Proper disposal of a used battery is essential.
