Chapter 4

10W-100W UHF Translator Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-1

Chapter 4

Circuit Descriptions

4.1 (A1) UHF/VHF Receiver Tray

(1265-1100)

The UHF/VHF Receiver Tray w/(Optional)

Frequency Correction selects the desired

UHF or VHF On Channel Input Signal and

converts it to a Combined IF Signal of

45.75 MHz Visual + 41.25 MHz Aural.

The Tray also has provisions for a

Frequency Correction Option that

consists of a VCXO Channel Oscillator

Assembly with a PLL Circuit which

maintains an exact IF Output Frequency,

over the capture range of the PLL circuit,

even if the Input UHF or VHF Frequency

may vary.

RF Signal Path

4.1.1 (A7) 50Ω Filter, DC

Multiplexed, UHF (1035-1204), VHF

L.B. (1035-1902) or VHF H.B. (2065-

1024) or 75Ω, UHF (1035-1207),

VHF L.B. (1035-1903) or VHF H.B.

(2065-1023)

The RF Input to the Tray, (-61 dBm to -

16 dBm in Level), is fed through J1 for

50Ω to (A7) the input 50Ω Filter, DC

Multiplexed (1035-1204 UHF, 1035-1902

VHF LB or 2065-1024 VHF HB) or

through J5 for 75Ω to (A7) the 75Ω input

Filter, DC Multiplexed (1035-1207 UHF,

1035-1903 VHF LB or 2065-1023 VHF

HB), which is of a double tuned design

that is adjusted to the desired Input UHF

or VHF Channel Frequency. Note: If the

input signal is greater than -25dBm, an

attenuator should be used to limit the

level to -25dBm. +12 VDC, for use by an

(Optional) external Preamplifier

Assembly, connects to the filter through

F1 a 1 Amp Fuse. This +12 VDC is DC

Multiplexed onto the input signal cable

from the Preamplifier. DS1 a Red LED

located on TB1 in the Tray will be lit if the

+12 VDC is present on the input cable.

If a Preamplifier is not used, F1 should be

removed and DS1 should not be lit.

4.1.2 (A8) Dual Stage Amplifier

Assembly (1227-1503)

The signal is next amplified +12 dB to

approximately the -49 to -4 dBm level by a

low noise amplifier located on (A8-A1) the

Dual Stage Amplifier Board (1227-1501)

that is contained in (A8) the Dual Stage

Amplifier Assembly (1227-1503). The

board has approximately +13 dB or +26

dB of gain, depending on whether Jumper

W1 on J5 is in place. The amplified output

connects out of the board at J2.

4.1.3 (A9) Channel Filter, UHF (1007-

1101), VHF L.B. (1034-1202) or VHF

H.B. (2065-1000)

The signal is then filtered in (A9) a Channel

Filter (1007-1101 UHF, 1034-1202 VHF LB

or 2065-1000 VHF HB) and then applied

back to (A8-A1) the Dual Stage Board at

J3.

More amplification of the signal takes place

on the Dual Stage Board, if needed.

Jumper W1 on J7 should be removed if the

Receiver Input level is greater than -

40dBm.

4.1.4 (A10) Downconverter Amplifier

Assembly, 45.75 MHz. (1227-1505)

The output is connected to (A10) the

Downconverter Amplifier Assembly (1227-

1505) that contains (A10-A1) the

Downconverter Amplifier Board (1227-

1502). The RF, at the -47 dBm to -2 dBm

Level, connects to the "R" Input Jack of the

Mixer Z1 located on the Downconverter

Amplifier Board.

Local Oscillator Signal Path

The Local Oscillator Signal is derived from

a cut to channel crystal mounted in an

oven that is factory set at 45° C. The

Oscillator operates at 1/8 for UHF, 1/4 for

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-2

VHF High Band or 1/2 for VHF Low Band

of the desired local oscillator frequency.

4.1.5 (A4) Channel Oscillator

Assembly (1145-1202)

The crystal is mounted on (A4-A1) the

Channel Oscillator Board, Dual Oven

(1145-1201), that is part of the Channel

Oscillator Assembly (1145-1202). The

oscillator circuitry is a modified Colpitts

design operating in a separate oven set

at 50° C. for improved stability. If the

Frequency Correction Option is

purchased, the VCXO Channel Oscillator

Assembly (1145-1206), which contains

the VCXO Channel Oscillator Board

(1145-1204), is used in place of the

standard Channel Oscillator Assembly,

and an AFC voltage from the PLL circuit

maintains the frequency of the VCXO.

4.1.6 (A5-A1) x8 Multiplier Board

(1227-1002), x2 Multiplier Board

(1227-1524) or x4 Multiplier Board

(1227-1525)

The output of the Channel Oscillator is

connected to the (A5-A1) the x8

Multiplier Board (1227-1002) for UHF,

the x4 Multiplier Board (1227-1525) for

VHF HB or the x2 Multiplier Board

(1227-1524) for VHF LB, which is located

in (A5) the Multiplier Enclosure (1265-

1125). The proper multiplier board takes

the output of the Channel Oscillator (+3

dBm) and multiplies it eight, four or two

times by a series of three, two or one x2

Broadband Doublers (2x2x2 = x8), which

produces the L.O. signal on the desired

frequency needed for the upconversion

process. The signal is then amplified to

the +16 dBm level. A sample of the

multiplied L.O. Signal is fed to a detector

circuit which lights the Green LED DS1

that indicates that the L.O. is present at

the Output Jack J2 of the Multiplier

Board. This Green LED is seen through a

hole the lid of the Multiplier Assembly

and is an indication, when lit, that there

is a signal present at the output of the

Multiplier Board.

4.1.7 (A6) L.O. Filter, UHF (1007-

1101), VHF L.B. (1034-1211) or VHF

H.B. (2065-1000)

The L.O. signal is filtered in (A6) a L.O.

Filter 1007-1101 UHF, 2065-1000 VHF HB

or 1034-1211 VHF LB) and then sent (+15

dBm) to J2 on (A10-A1) the

Downconverter Amplifier Board.

The L.O. Input to the Downconverter

Amplifier Board is connected thru a 3 dB

matching pad to the "L" Input of the Mixer

(Z1) at a +12 dBm level.

Combined IF Signal Path

The L.O. and the RF signals are mixed in

the Mixer Stage of the Downconverter

Amplifier Board to produce the desired IF

difference frequency at -55 dBm to -10

dBm in level, depending on the RF Input

Level.

4.1.8 (A11-A1) IF Filter/ALC Board

(1227-1504)

The Combined IF Signal is routed to (A11-

A1) the IF Filter/ALC Board (1227-1504),

which is mounted in (A11) the IF Filter/ALC

Enclosure (1265-1105). The IF Filter/ALC

Board contains a Pin Diode Attenuator

circuit which is part of the Automatic Level

Control (ALC) that controls the level of the

IF Signal to the two stage amplifier ICs U1

and U2.

4.1.9 (A11-A2) (Optional) SAW

Filter/Amplifier Board (1035-1211)

The (Optional) (A11-A2) SAW

Filter/Amplifier Board (1035-1211) is also

contained in the IF Filter/ALC Enclosure.

The SAW Filter/Amplifier Board connects to

J5 and J6 of the IF Filter/ALC Board if more

attenuation of the Out Of Band products is

needed. If the SAW Filter/Amplifier Board

is not needed, a jumper connects the

Combined IF from J5 to J6 on the IF

Filter/ALC Board.

The Combined IF is then bandpass filtered

to the needed 6 MHz IF bandwidth around

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-3

the 41.25 MHz + 45.75 MHz Combined IF

signal and amplified by U3 to the -41

dBm to +4 dBm Level before it is split.

One output is detected by U4 for use as

the ALC reference level to the Pin Diode

Attenuator Circuit. The ALC comparator

drives the Pin Diode Attenuator Circuit to

maintain the desired output level,

typically +2 dBm. The other split output

connects to J2 the Combined IF Output of

the board that is cabled to the IF Output

Jack of the Tray at J4 (+2 dBm).

Frequency Correction Option

If the Frequency Correction Option

(1227-1528) is purchased, (A13) the IF

Filter/Limiter Board (1109-1001), (A14)

the IF PLL Board (1109-1002), the (A15)

IF Carrier Oven Oscillator Board (1100-

1206), (A4) the VCXO Channel Oscillator

Assembly (1145-1206) and (A16) an IF

Amplifier Board, High Gain (1197-1126)

are part of the System.

4.1.10 (A13) (Optional) IF Amplifier

Board (1197-1126)

A Sample of the amplified and ALC

controlled signal from the IF Filter/ALC

Board is directed to the IF Amplifier

Board, High Gain (1197-1126) where it is

amplified and connected to J2 on (A13)

the IF Filter/Limiter Board (1109-1001).

4.1.11 (A13) (Optional) IF

Filter/Limiter Board (1109-1001)

The IF is filtered by a SAW Filter, which

passes Visual Carrier and Aural Carrier

only, and amplified before it is split. The

Aural IF Output is not used in this Tray.

The other output of the splitter is

amplified and applied to a Notch Filter.

The Notch Filter is tuned to the Aural

Frequency by C17 and R10 which

reduces or eliminates the Aural IF from

the Visual IF signal. The Visual IF Only

signal then connects to a video detector

circuit which in conjunction with U5 strips

the video from the Visual IF signal. The

IF CW Signal is amplified and buffered

before it is connected to the output of the

board at J6. The IF CW connects to J2 of

(A14) the IF PLL Board (1109-1002).

4.1.12 (A14) (Optional) IF PLL Board

(1109-1002)

The IF CW Signal (+3 dBm) on the IF PLL

Board is wired to U1 a Divider IC which, in

conjunction with U2, sets up one of the

reference signals to the comparator circuit.

The other reference signal is derived from

the 50 kHz reference Input at J4 which is a

divided down 50 kHz sample of the 38.9

MHz signal generated on (A15) the IF

Carrier Oven Oscillator Board (1100-1206).

4.1.13 (A15) (Optional) IF Carrier

Oven Oscillator Board (1100-1206)

The 38.9 MHz IF Carrier Oven Oscillator

Board is used instead of the 45.75 MHz IF

Carrier Oven Oscillator Board to minimize

the interference between the generated

45.75 MHz IF and the signal generated on

the (A15) IF Carrier Oscillator Board. The

38.9 MHz signal itself is not used, just the

divided down 50 kHz reference of the 38.9

MHz Signal is used. The two reference

signals applied to the IF PLL Board are

compared by U2 and a difference voltage

(AFC) is produced. The difference voltage

(AFC), approximately -3 VDC, is fed from

J3 of the board to FL2 of (A4) the VCXO

Assembly. If the frequency of the VHF or

UHF Input to the Tray should drift, the ALC

voltage will change to increase or decrease

the output frequency of the VCXO

Assembly which increases or decreases the

L.O. Frequency that maintains the IF

Frequency at the standard 45.75 + 41.25

MHz Frequency. If the frequency of the

Input Signal should drift out of the capture

range of the PLL Circuit, DS1 the Red LED

Unlock Indicator, located on the IF PLL

Board, lights.

Voltages for Operation of the Tray

The AC input to the Tray is 117 VAC or 230

VAC and is directed thru Jack J2, of the

(A1) Power Entry Module (1265-1104), to

the step down Toroid (A2). The Power

Entry Module contains an On/Off Switch, a

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-4

4 Amp Slo-Blo Fuse and three MOVs

which protect the Tray from transients or

surges which may occur on the AC Input

Lines. When the On/Off Switch is

switched On, AC is applied to the (A2)

Toroid. The Toroid steps down the

voltage into two 16 VAC outputs which

are fed to (A3) the +12V(3A)/-12V Power

Supply Board (1092-1206).

4.1.14 (A3) +12V(3A)/-12V Power

Supply Board (1092-1206)

The 16 VAC Inputs are connected to the

two full wave bridge networks one for

+12 VDC and one for -12 VDC. The

output of the +12 VDC rectifier is fed to

three 7812 IC regulators (U1, U2 and

U3) and the output of the -12 VDC

rectifier is fed to one 7912 IC regulator

(U4). The ±12V Power Supply Board

provides the voltage regulated and

current limited +12 VDC and -12 VDC to

the rest of the boards in the Tray.

+12VDC for External Preamplifier

+12 VDC is also applied through a 1 Amp

Fuse F1 to (A7) the input DC Multiplexed

UHF or VHF Filter. The +12 VDC is

multiplexed in the Filter onto the input

coaxial cable that connects from the

(Optional) Remote Preamplifier Unit to

the Receiver Tray. This supplies the

Preamplifier with the +12 VDC needed

for operation. The Red LED DS1

mounted on the Terminal Block TB1 will

be lit if the +12 VDC is applied to the

coaxial cable. Note: If the Red LED,

DS1, is lit, the +12 VDC may damage

Test Equipment that is connected to the

input of the Receiver Tray. If a

Preamplifier Assembly is not part of your

System, F1 should be removed, therefore

DS1 should not be lit and the +12 VDC is

not multiplexed onto the input coaxial

cable. A spare Fuse for F1 is supplied

and stored near the fuse holder for F1.

UHF Exciter

4.2 (A3) IF Processor Module

Assembly (1301938)

The IF from the Receiver Tray enters the

module and the signal is pre-corrected as

needed for amplitude linearity correction,

Incidental Carrier Phase Modulation

(ICPM) correction and frequency response

correction.

The IF Module contains the following

board.

4.2.1 IF Processor Board (1301977)

The automatic level control (ALC) portion

of the board provides the ALC and

amplitude linearity correction of the IF

signal. The ALC adjusts the level of the IF

signal that controls the output power of the

transmitter.

The IF from the Receiver Tray enters the

board at J1B pin 32B. If the (optional)

receiver tray is present, the IF input (0

dBm) from the Receiver Tray connects to

the modulated IF input jack J1C Pin 21C.

The modulated IF input connects to relay

K3 and the receiver IF input connects to

relay K4. The two relays are controlled by

the Modulator Select command that is

connected to J1C Pin 14C on the board.

Modulator select enable/disable jumper

W11 on J29 controls whether the

Modulator Select command at J1C Pin 14C

controls the operation of the relays. With

jumper W11 on J29 between pins 1 and 2,

the Modulator Select command at J1C Pin

14C controls the operation of the relays;

with jumper W11 on J29, pins 2 and 3, the

modulator is selected all of the time.

4.2.1.1 Modulator Selected

With the modulator selected, J1C-14C low,

this shuts off Q12 and causes Pin 8 on the

relays to go high that causes relays K3 and

K4 to de-energize. When K4 is de-

energized, it connects the receiver IF input

at J1C-21C, if present, to a 50Ω load.

When K3 is de-energized, it connects the

modulator IF input at J1B-32B to the rest

of the board; Modulator Enable LED DS5

will be illuminated.

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-5

4.2.1.2 External Modulated IF Selected

With the External Modulated IF selected,

J1C-14C high, this turns on Q12 and

makes pin 8 on the relays low that

causes the relays K3 and K4 to

energized. When K4 is energized, it

connects the receiver IF input at J at J1C-

21C, if present, to the rest of the board.

When K3 is energized, it connects to the

modulator IF input at J1B-32B to a 50Ω

load. The Modulator Enable LED DS5 will

not be illuminated.

4.2.1.3 Main IF Signal Path (Part 1 of 3)

The selected IF input (-6 dBm average)

signal is split, with one half of the signal

entering a bandpass filter that consists of

L3, L4, C4, L5, and L6. This bandpass

filter can be tuned with C4 and is

substantially broader than the IF signal

bandwidth. It is used to slightly steer the

frequency response of the IF to make up

for any small discrepancies in the

frequency response in the stages that

precede this point. The filter also serves

the additional function of rejecting

unwanted frequencies that may occur if

the tray cover is off and the tray is in a

high RF environment. (If this is the case,

the transmitter will have to be serviced

with the tray cover off in spite of the

presence of other RF signals). The

filtered IF signal is fed through a pi-type

matching pad consisting of R2, R3, and

R4 to the pin-diode attenuator circuit

consisting of CR1, CR2, and CR3.

4.2.1.4 Input Level Detector Circuit

The other part of the split IF input is

connected through L2 and C44 to U7. U7

is an IC amplifier that is the input to the

input level detector circuit. The amplified

IF is fed to T4, which is a step-up

transformer that feeds diode detector

CR14. The positive-going detected signal

is then low-pass filtered by C49, L18, and

C50. This allows only the positive digital

peaks to be applied through emitter

follower Q1. The signal is then connected

to detector CR15 to produce a peak

digital voltage that is applied to op-amp

U9A. There is a test point at TP3 that

provides a voltage-reference check of the

input level. The detector serves the dual

function of providing a reference that

determines the input IF signal level to the

board and also serves as an input

threshold detector.

The input threshold detector prevents the

automatic level control from reducing the

attenuation of the pin-diode attenuator to

minimum, the maximum signal output, if

the IF input to the board is removed. The

ALC, input loss cutback, and the threshold

detector circuits will only operate when

jumper W2 on jack J5 is in the Enabled

position, between pins 2 and 3. Without

the threshold detector, and with the pin-

diode attenuator at minimum, the signal

will overdrive the stages following this

board when the input is restored.

As part of the threshold detector operation,

the minimum IF input level at TP3 is fed

through detector CR15 to op-amp IC U9A,

pin 2. The reference voltage for the op-

amp is determined by the voltage divider

that consists of R50 and R51, off the +12

VDC line. When the detected input signal

level at U9A, pin 2, falls below this

reference threshold, approximately 10 dB

below the normal input level, the output of

U9A at pin 1 goes high, toward the +12

VDC rail. This high is connected to the base

of Q2 that is forward biased and creates a

current path. This path runs from the -12

VDC line and through red LED DS1, the

input level fault indicator, which lights,

resistor R54, and transistor Q2 to +12

VDC. The high from U9A also connects

through diode CR16 and R52, to U24D pin

12, whose output at pin 14 goes high. The

high connects through the front panel

accessible ALC Gain pot R284 and the full

power set pot R252 to U24C Pin 9. This

high causes U24C pin 8 to go low. A power

raise/lower input from the

Control/Monitoring Module connects to

J42C pin 24C and is wired to Q14. This

input will increase or decrease the value of

the low applied to U24B and therefore

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-6

increase or decrease the power output of

the transmitter.

The low connects to U24B pin 5 whose

output goes low. The low is wired to

U24A pin2 whose output goes high. The

high is applied to U10A, pin 2, whose

output goes low. The low connects

through the switch SW1, if it is in the

auto gain position, to the pin-diode

attenuator circuit, CR1, CR2 & CR3. The

low reverse biases them and cuts back

the IF level, therefore the output level, to

0. When the input signal level increases

above the threshold level, the output

power will increase, as the input level

increases, until normal output power is

reached.

The digital input level at TP3 is also fed

to a pulse detector circuit, consisting of

IC U8, CR17, Q3, and associated

components, and then to a comparator

circuit made up of U9C and U9D. The

reference voltage for the comparators is

determined by a voltage divider

consisting of R243, R65, R66, and R130,

off the -12 VDC line. When the input

signal level to the detector at TP3 falls

below this reference threshold, which

acts as a loss-of-digital peak detector

circuit, the output of U9C and U9D goes

towards the -12 VDC rail and is split, with

one part biasing on transistor Q5. A

current path is then established from the

+12 VDC line through Q5, the resistors

R69 and R137, and the red LED DS3,

input loss indicator, which is illuminated.

When Q5 is on, it applies a high to the

gate of Q6. This causes it to conduct and

apply a modulation loss pull-down output

to J42C, pin 7C, which is applied to the

front panel display on the

Control/Monitor module.

The other low output of U9C and U9D is

connected through CR18, CR19 & CR20

to jack J5. Jumper W2 on J5, in the

Cutback Enable position, which is

between pins 2 and 3, connects the low

to the base of Q4 that is now forward-

biased. NOTE: If jumper W2 is in the

Disable position, between pins 1 and 2,

the auto cutback will not operate. With Q4

biased on, a negative level determined by

the setting of cutback level pot R71 is

applied to U24D, pin 12. The level is set at

the factory to cut back the output to

approximately 25%. The output of U24D at

pin 14 goes low and is applied through the

power adjust pot to U24C, pin 9, whose

output goes low.

The low connects to U24B, pin 5, whose

output goes low. The low then connects to

U24A, pin 2, whose output goes high. The

high is applied to U10A, pin 2, whose

output goes low. The low connects through

the switch SW1, if it is in the auto gain

position, to the to the pin-diode attenuator

circuit, CR1, CR2 & CR3. The low reverse

biases them and cuts back the level of the

output to approximately 25%.

4.2.1.5 Pin-Diode Attenuator Circuit

The input IF signal is fed to a pin-diode

attenuator circuit that consists of CR1, CR2

& CR3. Each of the pin diodes contains a

wide intrinsic region; this makes the diodes

function as voltage-variable resistors at

this intermediate frequency. The value of

the resistance is controlled by the DC bias

supplied to the diode. The pin diodes are

configured in a pi-type attenuator

configuration where CR1 is the first shunt

element, CR3 is the series element, and

CR2 is the second shunt element. The

control voltage, which can be measured at

TP1, originates either from the ALC circuit

when the switch SW1 is in the ALC Auto

position, between pins 2 and 3, or from pot

R87 when SW1 is in the Manual Gain

position, between pins 1 and 2.

In the pin diode attenuator circuit,

changing the amount of current through

the diodes by forward biasing them

changes the IF output level of the board.

There are two extremes of attenuation

ranges for the pin-diode attenuators. In

the minimum attenuation case, the

voltage, measured at TP1, approaches the

+12 VDC line. There is a current path

created through R6, through series diode

CR3, and finally through R9 to ground. This

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-7

path forward biases CR3 and causes it to

act as a relatively low-value resistor. In

addition, the larger current flow increases

the voltage drop across R9 that tends to

turn off diodes CR1 and CR2 and causes

them to act as high-value resistors. In

this case, the shunt elements act as a

high resistance and the series element

acts as a low resistance to represent the

minimum loss condition of the attenuator

(maximum signal output). The other

extreme case occurs as the voltage at

TP1 is reduced and goes towards ground

or even slightly negative. This tends to

turn off (reverse bias) diode CR3, the

series element, causing it to act as a

high-value resistor. An existing fixed

current path from the +12 VDC line, and

through R5, CR1, CR2, and R9, biases

series element CR3 off and shunt

elements, diodes CR1 and CR2, on,

causing them to act as relatively low-

value resistors. This represents the

maximum attenuation case of the pin

attenuator (minimum signal output). By

controlling the value of the voltage

applied to the pin diodes, the IF signal

level is maintained at the set level.

4.2.1.6 Main IF Signal Path (Part 2 of 3)

When the IF signal passes out of the pin-

diode attenuator through C11, it is

applied to modular amplifier U1. This

device contains the biasing and

impedance-matching circuits that makes

it operate as a wide-band IF amplifier.

The output of U1 connects to J40 that is

jumpered to J41. The J40 jack is

available, as a sample of the pre-

correction IF for troubleshooting

purposes and system setup. The IF signal

is connector to a splitter Z1 that has an

in phase output and a 90° Quadrature

output, which are then connected to the

linearity corrector portion of the board.

4.2.1.7 Amplitude and Phase

Pre-Correction Circuits

The linearity corrector circuits use three

stages of correction, two adjust for any

amplitude non-linearities and one for

phase non-linearities of the output signal.

Two of the stages are in the in phase

amplitude pre-correction path and one

stage is in the quadrature phase pre-

correction path. Each stage has a variable

threshold control adjustment, R211 and

R216, in the in phase path, and R231, in

the quadrature path, that determines the

point at which the gain is changed for that

stage.

Two reference voltages are needed for the

operation of the corrector circuits. The

Zener diode VR3, through R261, provides

the +6.8 VDC reference. The VREF is

produced using the path through R265 and

the diodes CR30 and CR31. They provide a

.9 VDC reference, which temperature

compensates for the two diodes in each

corrector stage.

The first corrector stage in the in phase

path operates as follows. The in phase IF

signal is applied to transformer T6, which

doubles the voltage swing by means of a

1:4 impedance transformation. Resistors

R222 and R225 form an L-pad that lowers

the level of the signal. The input signal

level when it reaches a certain level causes

the diodes CR24 and CR25 to turn on,

generating current flow that puts them in

parallel with the L-pad. When the diodes

are put in parallel with the resistors, the

attenuation through the L-pad is lowered,

causing signal stretch.

The signal is next applied to amplifier U17

to compensate for the loss through the

L-pad. The breakpoint, or cut-in point, for

the first corrector is set by controlling

where CR24 and CR25 turn on. This is

accomplished by adjusting the threshold

cut-in resistor R211. R211 forms a

voltage-divider network from +6.8 VDC to

ground. The voltage at the wiper arm of

R211 is buffered by the unity-gain

amplifier U16B. This reference voltage is

then applied to R215, R216, and C134

through L44 to the CR24 diode. C134

keeps the reference from sagging during

the vertical interval. The .9 VDC reference

voltage is applied to the unity-gain

amplifier U16D. The reference voltage is

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-8

then connected to diode CR25 through

choke L45. The two chokes L44 and L45

form a high impedance for RF that serves

to isolate the op-amp ICs from the IF.

After the signal is amplified by U17, it is

applied to the second corrector stage in

the in phase path through T7. These two

correctors and the third corrector stage

in the quadrature path operate in the

same fashion as the first. All three

corrector stages are independent and do

not interact with each other.

The correctors can be disabled by moving

jumper W12 on J30 to the Disable

position, between pins 1 and 2, this

moves all of the breakpoints past the

greatest peaks of digital so that they will

have no affect.

The pre-distorted IF signal in the in

phase path, connects to an op amp U18

whose output level is controlled by R238.

R238 provides a means of balancing the

level of the amplitude pre-distorted IF

signal that then connects to the combiner

Z2.

The pre-distorted IF signal in the

quadrature path connects to op amp U20

and then step up transformer T9, next op

amp U21 and step up transformer T10

and finally op amp U22 whose output

level is controlled by R258. R258

provides a means of balancing the level

of the Phase pre-distorted IF signal that

then connects to the combiner Z2.

The amplitude and phase pre-distorted IF

signals are combined by Z2 and

connected to J37 that is jumpered to J36

on the board. J37 can be used for

testing or monitoring purposes of the IF

signal after amplitude and phase pre-

distortion. The pre-distorted IF signal

connects through a resistor buffer

network that prevents loading of the

combiner before it is wired to the

frequency response circuitry.

4.2.1.8 Main IF Signal Path (Part 3 of 3)

The IF signal, at the input to the

frequency-response corrector circuit, is

split using L24, L25 and R89. One path is

through L24, which is the main IF path

through the board. The main IF is fed

through a resistor network that controls

the level of the IF by adjusting the

resistance of R99, the output level adjust.

The IF signal is then applied to a three-

stage, frequency-response corrector circuit

that is adjusted as needed.

The frequency-response corrector circuit

operates as follows. Variable resistors

R103, R106 and R274 are used to adjust

the depth and gain of the notches and

variable caps C71, C72 and C171 are used

to adjust the frequency position of the

notches. These are adjusted as needed to

compensate for frequency response

problems.

The frequency-response corrected IF is

connected to J38 that is jumpered to J39

on the board. J38 can be used for testing

or monitoring purposes of the IF signal

after frequency response

pre-correction. The IF is next amplified by

U13 and U14. After amplification, the IF is

split with one path connected to J42C pin

1C the IF output to the LO/Upconverter

Module. The other path is fed through a

divider network to J35 a SMA IF Sample

Jack, located on the front panel, that

provides a sample of the corrected IF for

test purposes.

4.2.1.9 ALC Circuit

The other path of the corrected IF signal at

the input to the frequency response

corrector circuit is used in the ALC circuit.

The IF flows through L25, of the L24 L25

splitter, and connects to the op-amp U12.

The IF signal is applied through a resistor

divider network to transformer T5. T5

doubles the voltage swing by means of a

1:4 impedance transformation before it is

connected to the ALC detector circuit,

consisting of C70, CR23 and R91. The

detected ALC level output is amplified by

U10B and wired to U10A, pin 2, where it is

summed with the power control setting,

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-9

which is the output power setting that is

maintained by the ALC. The output of

U10A connects through SW1, if it is in

the auto gain position, to the pin-diode

attenuator circuit, CR1, CR2 & CR3. The

high forward biases them more or less,

that increases or decreases the IF level,

therefore the output level, opposite the

input level. When the input signal level

increases, the forward bias on the pin

attenuator decreases, therefore the

output power will decrease, which keeps

the output power the same as set by the

customer.

An external power raise/lower switch can

be used by connecting it to TB30, at

TB30-8 power raise and TB30-9 power

lower, on the rear of the exciter/amplifier

chassis. The ALC voltage is set for .8

VDC at TP4 with a 0-dBm output at J42C

pin 1C of the module. A sample of the

ALC at J42C pin 11C, is wired to the

Control Monitoring/Power Supply module

where it is used on the front panel

display and in the AGC circuits.

The ALC voltage, and the DC level

corresponding to the IF level after signal

correction, are fed to U10A, pin 2, whose

output at pin 1 connects to the ALC pin-

diode attenuator circuit. If there is a loss

of gain somewhere in an IF circuit, the

output power of the transmitter will drop.

The ALC circuit senses this drop at U10A

and automatically decreases the loss

through the pin-diode attenuator circuit

therefore increasing its gain maintaining

the same output power level.

The ALC action starts with the ALC

detector level monitored at TP4. The

detector output at TP4 is nominally +.8

VDC and is applied through resistor R77

to a summing point at op-amp U10A, pin

2. The current available from the ALC

detector is offset, or complemented, by

current taken away from the summing

junction. In normal operation, U10A, pin

2, is at 0 VDC when the loop is satisfied.

If the recovered or peak-detected IF

signal level at IF input to this board

should drop, which normally means that

the output power will decrease, the null

condition would no longer occur at U10A,

pin 2. When the level drops, the output of

U10A, pin 1, will go more positive. If SW1

is in the Automatic position, it will cause

the ALC pin-diode attenuators CR1, CR2,

and CR3 to have less attenuation and

increase the IF level; this will compensate

for the decrease in the level. If the ALC

cannot increase the input level enough to

satisfy the ALC loop, due to there not being

enough range, an ALC fault will occur. The

fault is generated because U10D, pin 12,

increases above the trip point set by R84

and R83 until it conducts. This makes

U10D, pin 14, high and causes the red ALC

Fault LED DS2 to light.

4.2.1.10 Fault Command

The board also has circuitry for an external

mute fault input at J42 pin 10C. This is a

Mute command that protects the circuits of

high-gain output amplifier devices against

VSWR faults. This action needs to occur

faster than just pulling the ALC reference

down. Two different mechanisms are

employed: one is a very fast-acting circuit

to increase the attenuation of the pin-diode

attenuator, CR1, CR2, and CR3, and the

second is the reference voltage being

pulled away from the ALC amplifier device.

An external Mute is a pull-down applied to

J42 pin 10C, that completes a current path

from the +12 VDC line through R78 and

R139, the LED DS4 (Mute indicator), and

the LED section of opto-isolator U11.

These actions turn on the transistor section

of U11 that applies -12 VDC through CR21

to U10A pin 3, and pulls down the

reference voltage. This is a fairly slow

action controlled by the low-pass filter

function of R81 and C61. When the

transistor section of U11 is on, -12 VDC is

also connected through CR22 directly to

the pin-diode attenuator circuit. This

establishes a very fast muting action, by

reverse biasing CR3. This action occurs in

the event of an external VSWR fault.

4.2.1.11 ±12 VDC Needed to Operate the

Board

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-10

The ±12 VDC connects to the board at

J42C. The +12 VDC connects to J42C pin

16C and is filtered by L30, L41, and C80

before it is applied to the rest of the

board. The -12 VDC connects to J42C pin

18C and is filtered by L31 and C81 before

it is applied to the rest of the board.

The +12 VDC also connects through

R261 to the zener diode VR3 that

connects to ground, which generates the

+6.8 VDC output to the rest of the board.

The +12 VDC also connects through

R265 to the diodes CR30 and CR31

provide a .9 VDC reference output

voltage VREF that temperature

compensates for the two diodes in each

corrector stage.

4.3 (A5) LO/Upconverter Module

(1301930)

This module contains the

LO/Upconverter board, the UHF

Generator Board, LED Display Board and

channel filters. This module takes an

external IF and converts it to the final

RF output frequency using an internally

generated local oscillator.

The local oscillator consists of a VCXO

that is phase locked to an external 10

MHz reference. The 10 MHz reference

and the VCO are both divided down to 5

kHz and compared by the phase lock

loop circuit. Any error from this

comparison is generated in the form of

an error current that is converted to a

bias voltage that connects to the VCO.

This voltage adjusts the output

frequency of the VCO until it is on the

desired frequency.

The Phase lock loop is programmed by

loading in data generated by the control

module. This data sets the dividers so

that the 10MHz and the VCXO frequency

are divided to 5kHz. These divide

numbers are loaded into U6 using the

clock, data and LE lines. This data is

sent whenever the module is first

plugged into the backplane board or when

power is applied to the transmitter. This

is necessary because the divide numbers

are lost when power is removed from the

module.

There is an alarm generated if the phase

locked loop is unlocked. This alarm is

displayed locally and is also sent to the

control module in the transmitter to be

displayed as a fault. The bias voltage to

the VCO is also available to be monitored

at TP1 and also can be viewed on the

front panel display of the Transmitter.

Typical values for this voltage are 0.1 to

0.5V. The 10 MHz reference is normally

an external reference. There is also a

high stability internal reference option

that is available if there is a desire to

operate the transmitter without an

external reference. Jumper W1

determines whether an external or

internal high stability reference is to be

used.

The IF signal is applied at a level of

–15 dBm average and is converted to the

final RF channel frequency. The RF signal

is applied to a filter that selects the right

conversion product. Next, the signal is

amplified to -7 dBm by A3 and exits the

front of the module at J2. There are also a

front panel samples of the RF output at J3

and the LO at J1. The RF sample level is

approximately -20 dB below the RF

output. The LO sample level is -7 dBm.

4.3.1 (A4) UHF Generator Board

(1585-1265)

The UHF generator board is mounted in the

UHF Generator Enclosure for EMI and RFI

protection. The board contains a VCXO

circuit and additional circuitry to multiply

the VCXO frequency by eight.

The VCXO circuit uses the crystal Y1,

mounted in a crystal oven for stability, to

produce an output of ≈ 67 MHz to 132 MHz,

depending on the desired channel

frequency. Course adjustment to the

frequency of the crystal is made by C11,

while fine adjustments are accomplished by

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-11

the AFC voltage at J2 from (A1) the

LO/Upconverter board (1302132). The

VCXO output level is adjusted by C6, L2,

L4 and C18. The output is split and

provides an input to the x8 multiplier

circuitry as well as a VHF Output sample

at J1.

The x8 circuitry consists of three identical

x2 broadband frequency doublers. The

input signal at the fundamental frequency

is fed through a 6-dB pad consisting of

R21, R24, and R25 through C29 to

amplifier U3. The output of the amplifier

stage is directed through a bandpass filter

consisting of L8 and C32, which is tuned

to the fundamental frequency (67 MHz to

132 MHz). The voltage measured at TP1

is typically +.6 VDC. The first doubler

stage consists of Z1 with bandpass filter

L9 and C34 tuned to the second harmonic

(134 MHz to 264 MHz). The harmonic is

amplified by U4 and again bandpass

filtered at the second harmonic by C38

and L11 (134 MHz to 264 MHz). The

voltage measured at TP2 is typically +1.2

VDC. The next doubler stage consists of

Z2 with bandpass filter C40 and L12

tuned to the fourth harmonic of the

fundamental frequency (268 MHz to 528

MHz). The fourth harmonic is then

amplified by U5 and fed through another

bandpass filter tuned to the fourth

harmonic consisting of L14 and C44 (268

MHz to 528 MHz). The voltage measured

at TP3 is typically +2.0 VDC. The final

doubler stage consists of Z3 with

bandpass filter C46 and L15 tuned to the

eighth harmonic of the fundamental

frequency (536 MHz to 1056 MHz). The

signal is amplified by U6 and U7 to a

typical value of from +2 to +4 VDC as

measured at TP4. The amplified eighth

harmonic is then fed to the SMA RF

output jack of the board at J3. Typical

output level of the signal is +16 dBm

nominal. This output connects through

A5 a channel filter to the LO/Upconverter

Board.

The DC voltages needed to operate the

UHF generator board are supplied by the

LO/Upconverter Board. The +12 VDC for

the board enters through jack J4-3 and is

filtered by L22 and C54-C58 before being

distributed to the circuits on the board.

The +9 VDC for the board enters through

jack J4-1 and is distributed to the rest of

the board.

4.3.2 (A2 and A5) UHF Filters (1007-

1101)

Both UHF filters are tunable two-section

cavity filters that are typically tuned for a

bandwidth of 6 MHz and have a loss of -1

dB through the filter.

4.3.3 (A1) LO/Upconverter Board

(1302132)

The upconverter portion of the board

The LO/Upconverter board provides

upconversion processing by mixing the IF

and LO signals in mixer Z1 to produce the

desired RF frequency output. The RF

output is connected through J4 to A5, an

external channel filter, and applied back to

the board at J6. The RF is amplified and

connected to the RF output jack of the

board at J43-25B.

The IF signal (-6 dBm average) enters the

board at J43-2B and is applied through a

matching pad and filter circuit to the mixer.

The pad consists of R6, R2 and R7, which

presents a relatively good source

impedance. The IF is then connected

through a voltage divider network

consisting of R3, R4, R8 and R14. R14 is

variable and adjusted to set the 0 dBm IF

input level to the mixer. The IF in next

filtered by L3, C84 and C83 and connected

to pin 5, the I input of the mixer Z1.

The local oscillator signal (+13 dBm) from

UHF Generator Board, through (A5) a UHF

channel filter, connects to the board at jack

J1, an SMA connector. THE LO is

connected directly to pin 1, the L input of

the mixer Z1.

The frequency of the LO is the sum of the

IF frequency above the required digital

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-12

carrier. For instance, in system M, for

digital applications, the LO is the center

frequency of the digital channel added to

the 44-MHz IF frequency. By picking the

local oscillator to be 44 MHz above the

digital carrier, a conversion in frequency

occurs by selecting the difference

product. The difference product, the local

oscillator minus the IF, will be at the

desired digital carrier frequency output.

There will also be other signals present at

the RF output connector J3 at a lower

level. These are the sum conversion

product: the LO and the IF frequencies.

Usually, the output product that is

selected by the tuning of the external

filter is the difference product: the LO

minus the 44-MHz IF.

If a bad reactive load is connected to the

mixer, the LO signal that is fed through it

can be increased because the mixer no

longer serves as a double-balanced

mixer. The mixer has the inherent

property of suppressing signals that may

leak from one input port to any of the

other ports. This property is enhanced

by having inputs and outputs of the

mixer at 50Ω impedance. The RF output

of the mixer connects through a pad

made up of R12, R15, and R17 before it

is wired to the amplifier U2. The RF

signal is amplified by U2, a modular

amplifier, and includes within it biasing

and impedance matching networks that

makes U2 act as a wideband-RF amplifier

device. This amplifier, in a 50Ω system,

has approximately 12 dB of gain. U2 is

powered from the +12 VDC line through

RF decoupling components R24, C14, and

L4. Inductor L4 is a broadband-RF choke

and is resonance free through the UHF

band. The amplified RF connects through

a pad to the SMA RF output jack J4 and

is cabled to (A2) an external channel

filter. The reactive channel filter that is

externally connected to J4 of the board

does not appear as a good 50-Ω load at

all frequencies. The pad, in the output

line of the board, consisting of R20, R18,

and R21 buffers the bad effects of the

reactive filter load and makes it appear

as a 50Ω impedance.

The RF input signal from the external filter

re-enters the board at J6 (-11 to -17 dBm)

and is capacitively coupled to the pin-diode

attenuator circuit consisting of CR2, CR3,

and CR4. The pin-diode attenuator acts as

a voltage-variable attenuator in which each

pin diode functions as a voltage-variable

resistor that is controlled by the DC bias

connected to the diodes. The pin diodes,

because of a large, intrinsic region, cannot

rectify signals at this RF frequency;

therefore, they only act as a linear voltage-

variable resistor. These diodes are part of

the AGC for the transmitter.

The automatic gain control (AGC) portion

of the board

The automatic gain control (AGC) provides

automatic gain control for the power

amplifier module(s).

The AGC circuitry attempts to maintain

the ratio between an input reference

proportional to the input power and the

output power of either the

exciter/amplifier PA output, AGC #1,

Inner Loop, or the output of external

power amplifiers, AGC #2, Outer Loop,

farther downstream. NOTE: The AGC #2

Outer Loop is not used in 5W-50W digital

transmitters.

An ALC reference input is applied to the

board at J43-16A, amplified by U10A, and

sent to the front panel board through J5-7

where it is connected to a AGC Manual

Gain pot, accessed through the front

panel. A switch AUTO/MAN AGC is also

located on the front panel. When

switched in MAN the MAN GAIN Pot

adjusts the output power level. The Gain

Control voltage is reapplied to the board

at J5-6. The gain control voltage is

summed to the added together inner and

outer loop AGC reference voltage at U10D.

The AGC output reference from the

exciter/amplifier PA module, AGC #1

INNER LOOP, is applied at J43-14C and

from the external PA module, AGC #2

OUTER LOOP, is applied at J43-15C.

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-13

The larger voltage of either the inner or

the outer loop is used to control the AGC

loop. Since the outer loop is not used in

this system, the inner loop controls the

AGC. R82 is adjusted so that the inner

loop voltage at TP7 is larger than the

voltage at TP4 by approximately .1 VDC.

This ensures that the output of the

exciter/amplifier is the reference used

for AGC. In systems that use the outer

loop, that level is adjusted to .1 VDC

above the inner loops reference. This

ensures that the output of the system is

the reference used for AGC. If that

reference drops to the point where it is

smaller than the inner loop reference,

the system switches over to using the

inner loop reference.

The AGC reference that is being used is

buffered by U10C and connected to

U10D. U10D generates an output

voltage that is used to bias the pin

attenuators, CR2, CR3 and CR4, which

sets the gain of the exciter/amplifier.

This Auto AGC circuit can be disabled by

the AGC Auto/Man switch, located on

the front panel, which switches the pin-

attenuator bias to a variable voltage

that is set by the Manual Gain Adjust.

The level-controlled RF signal, from the

pin-diode attenuator circuit, is amplified

by the wideband-hybrid amplifier IC U13

that is configured in the same way as U2.

The RF signal is converted by T1 to a

balanced, dual feed output that is applied

to the push-pull Class A amplifier IC U1.

Capacitors C2 and C5 provide DC

blocking for the input signal to the IC.

The RF outputs of the IC are applied

through C3 and C4, which provide DC

blocking for the output signals. The RF

signals connect to combiner T2 that

combines the RF back to a single-RF

output at a 50Ω impedance. The RF then

enters a coupler stage, which provides a

sample of the RF at J7 (–20dB), the front

panel RF sample jack. The main path

through coupler is to J43 pin 25B, the

Upconverter RF output jack of the module

(+0 to +10 dBm).

The PLL and 10-MHz Reference section of

the Board

The PLL and 10-MHz reference portion of

the board utilizes either an external 10

MHz reference or an internally generated

10 MHz as the reference for the PLL circuit

that generates the AFC voltage, which

controls the frequency of the VCXO on the

UHF Generator Board.

The (PLL) phase lock loop circuit, provides

the automatic frequency control (AFC)

voltage, that connects to the VCXO,

located on the UHF generator board, and

maintains the accurate output frequency of

the VCXO. The AFC is generated by

comparing a sample of the 10-MHz

reference to a sample of the VCXO

frequency. The PLL uses an external 10-

MHz signal as the reference, unless it is

missing, then an internally generated 10-

MHz signal is used. The two 10-MHz

reference signals are connected to the K1

relay and the selected reference connects

to the comparator synthesizer IC U9. The

switching between the two references is

accomplished by the K1 relay. When the

relay is de-energized, it applies the

external 10-MHz reference to U9. The

relay will remain de-energized as long as

an externally generated 10-MHz reference

signal is present and the Jumper W3 on

J10 is placed in the external position,

between Pins 1 & 2. An alternate 10 MHz

reference can be connected to J11 on the

board. The jumper W3 on J10 must then

be moved to pins 2 & 3, internal, to

connect the alternate 10 MHz to K1. The

alternate 10 MHz will then act in the circuit

like the external 10 MHz.

If the external 10-MHz reference is lost,

the relay will energized and the internally

generated 10-MHz reference is then

applied through the K1 relay pin 14 to pin

1 to the IC U9.

With the relay de-energized, the externally

generated 10-MHz from jack J43 pin 22B

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-14

connects through the normally closed

contacts of the relay from pin 1 to pin 7

to the IC U9.

External 10-MHz Reference Present

Circuitry

The external 10-MHz reference signal

enters the board at J43 pin 22B and is

isolated by L8 and connected to the

External/Internal Jack J10. W3 on J10 is

a manual jumper that must be connected

between pins 1 & 2, External, for the

external 10 MHz to connect to the rest of

the circuit. The external 10 MHz is

filtered by C44, R55, L9 and C46 before it

split with one path connected to the K1

relay at pin 1 of the normally closed

contacts. The other path takes the 10

MHz and rectifies it by CR5 and filters it

before it is connected to U7A pin 2. If

the sample level of the external 10 MHz

is above the reference set by R46 and

R48, which is connected to pin 3 of U7A,

the output of U7A stays low. The low

connects to the gates of Q3, Q5 and Q6,

which are biased off and cause their

drains to go high. The high from the

drain of Q6 is wired to J43, pin 14A, for

connection to a remote external 10-MHz

present indicator. The high from the

drain of Q5 connects to the yellow LED

DS2, internal reference indictor, which

will not light. This indicates that an

external 10-MHz reference is present.

The low from U7A also connects to the

gate of Q3, biasing it off and causing its

drain to go high. This high de-energizes

the K1 relay and applies the external 10-

MHz reference signal to pin 6 on U9 for

use as the reference in the PLL circuits.

Internal 10-MHz Reference Circuitry

The internally generated 10-MHz

reference signal connects from U6, the

10-MHz oscillator IC, to pin 14, the

Normally Open contacts of relay K1.

With no external 10-MHz reference input,

the level connected to U7A Pin 2 will be

low. This will be less than the reference

set by R46 and R48, which is connected

to pin 3 of U7A, that causes the output of

U7A to go high. The high connects to the

gates of Q3, Q5 and Q6, which are biased

on and causes their drains to go low. The

low from the drain of Q6 is wired to J43,

pin 14A, for connection to a remote

external 10-MHz present indicator. The

low from the drain of Q5 connects to the

yellow LED DS2, internal reference indictor,

which will light. This indicates that an

external 10-MHz reference is not present

and that the internal 10-MHz is being used

as the reference. The high from U7A also

connects to the gate of Q3, biasing it on

and causing its drain to go low. This low

energizes the K1 relay and applies the

internal 10-MHz reference signal through

K1 pin 14 to pin 7 to pin 6 on U9 for use as

the reference in the PLL circuits.

Selected 10-MHz Reference Samples

A sample of the selected 10-MHz is split off

the main path through L13 and R95 using

L14 and C74 and C73. The sample path

connects to another splitter circuit

consisting of L2, R94, L11, C71 and C70.

One output of the splitter connects to J43

pin 28B that is used by the external digital

modulator tray. The other output of the

splitter connects to J43 pin 31B that is

used by the external analog modulator

tray.

Comparator Phase Lock Loop Circuit

The selected 10-MHz reference connects to

pin 6, Oscillator In, of the IC U9. The LO

generated by the VCXO located on the UHF

Generator Board connects to J1 on the

LO/Upconverter Board. A sample of the LO

is divided off the main line by R105, R106

and R107. The LO sample connects to pin

4, F In, of U9.

The U9 IC takes the 10 MHz reference and

divides it down to 5 kHz. It also takes the

LO sample input and divides it down to 50

kHz. The two 5 kHz divided down signals

are compared inside of U9 and any

differences are connected to U9 pin 16.

The output of U9 at pin 16 are 5 kHz

pulses whose pulse width varies as any

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-15

differences between the 10-MHz and

VCXO frequencies are detected. These

pulses are changed to a DC voltage level

by the capacitor-resistor filter network,

C32, C36, C42, C38 and R49. The AFC

voltage is then connected to the + input

of U4B that amplifies it and connects it to

jack J9. W2 on J9 must be in the operate

position, between pins 1 and 2, for the

PLL circuit to operate. With jumper W2

between pins 2 and 3 on J6, set up, the

AFC bias is set by R43. NOTE: With the

VCXO, located on the UHF Generator

Board, set on frequency, the voltage as

measured at TP2 should be –2 VDC.

The AFC output of J9 is split with one

path connected to J43 pin 13A. The

other path is amplified by U7B and

connected to J12, VCXO AFC Output, on

the board that connects to the VCXO on

the UHF generator board. The PLL circuit,

when locked, will maintain the very

accurate VCXO output frequency because

any change in frequency will be corrected

by the AFC error voltage.

Lock Detector Circuit

IC chip U9 contains an internal lock

detector that indicates the status of the

PLL circuit. When U9 is in a locked state,

pin 12 goes high; the high is applied to

Q1, which is biased off. With Q1 off, pin

3 goes low and is connected to DS1, the

Red Unlock LED, which does not lit. Q1

pin 3 low also connects to Q2 that is

biased off. The drain of Q2, a high, is

wired to J43 pin 15A, the PLL Lock

Indicator output of the board.

If the 5-kHz from the 10-MHz reference

and the 5-kHz from the VCXO become

unlocked, out of the capture range of the

PLL, pin 12 of U9 goes to a logic low that

connects to the base of Q1. This biases

On Q1 causing pin 3 to go high. The high

connects to DS1, the red Unlock LED,

which lights, and to Q2, which is biased

on. When Q2 is biased on, it connects a

low to jack J43 pin 15A, the PLL Lock

Indicator output of the board.

Voltage Requirements

The board is powered by ±12 VDC that is

produced by an external power supply.

+12 VDC enters the board through J43

pins 18A, B & C, and is filtered and isolated

by L5, L6 and the shunt capacitor C24.

The +12 VDC is then applied to the rest of

the board and to J14 pin 3 for use by the

UHF Generator Board.

One connection of the +12 VDC is to IC

U12. U12 and associated circuitry produce

a +9 VDC that connects to J14 pin 1 for

use by the UHF Generator Board.

Another connection of the +12 VDC is to a

+5 VDC regulator. The +12 VDC connects

to diodes CR6 and CR7 that along with the

pi type filter consisting of C56, L10, C54

and C55 removes any noise from the +12

VDC before it connects to the +5 VDC

regulator IC U8. The output of the IC U8,

+5 VDC, connects to the rest of the board.

The -12 VDC enters the board through J43

pins 19A, B & C and is filtered and isolated

by L7 and the shunt capacitor C28. The -

12 VDC is then applied to the rest of the

board and to J14 pin 5 for use by the UHF

Generator Board.

4.4 (A4) Control Monitoring/Power

Supply Module (1301936)

The Control Monitoring/Power Supply

Module Assembly contains (A1) a Power

Protection Board (1302837), (A2) a 600

Watt Switching Power Supply, (A3) a

Control Board (1302021), (A4) a Switch

Board (1527-1406) and (A5) a LCD

Display.

AC Input to Pioneer Exciter/Amplifier

Chassis Assembly

The AC input to the Pioneer

Exciter/Amplifier Chassis Assembly is

connected from J1, part of a fused entry

module, located on the rear of the chassis

assembly to J50 on the Control

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-16

Monitoring/Power Supply Module. J50-10

is line #1 input, J50-8 is earth ground

and J50-9 is line #2 input. The input AC

connects to J1 on the Power Protection

Board where it is fuse protected and

connected back to J50, at J50-11 AC Line

#1 and J50-12 AC Line #2, for

distribution to the cooling Fan.

4.4.1 (A1) Power Protection Board

(1302837)

The input AC connects through J1 to two

10 Amp AC fuses F1 and F2. The AC

line #1 input connects from J1-1 to the

F1 fuse. The AC line #1 input after the

F1 fuse is split with one line connected

back to Jack J1 Pin 4, which becomes

the AC Line #1 to the Fan. The other

line of the split connects to J4. The AC

line #2 input connects from J1-3 to the

F2 fuse. The AC line #2 input after the

F2 fuse is split with one line connected

back to Jack J1 at Pin 5, which becomes

the AC Line #2 to the Fan. The other

line of the split connects to J2. J1-2 is

the earth ground input for the AC and

connects to J3.

Three 150-VAC, for 115 VAC input, or

three 275-VAC, for 230 VAC input, MOVs

are connected to the input AC for

protection. One connects from each AC

line to ground and one connects across

the two lines. VR1 connects from J4 to

J2, VR2 connects from J4 to J3 and VR3

connects from J2 to J3.

+12 VDC Circuits

+12 VDC from the Switching Power

Supply Assembly connects to J6 on the

board. The +12 VDC is divided into four

separate circuits each with a 3 amp self

resetting fuse, PS3, PS4, PS5 and PS6.

The polyswitch resettable fuses may

open on a current as low as 2.43 Amps

at 50˚C, 3 Amps at 25˚C or 3.3 Amps at

0˚C. They definitely will open when the

current is 4.86 Amps at 50˚C, 6 Amps

at 25˚C or 6.6 Amps at 0˚C.

PS3 protects the +12 VDC 2 Amp circuits

for the System Controller, the Amplifier

Controller and the Spare Slot through J62

pins 7, 8, 9 and 10. If this circuit is

operational, the Green LED DS3, mounted

on the board, will be lit.

PS4 protects the +12 VDC 2 Amp circuits

for the Modulator and the IF Processor

through J62 pins 13, 14, 15 and 16. If

this circuit is operational, the Green LED

DS4, mounted on the board, will be lit

PS5 protects the +12 VDC 2 Amp circuits

for the Upconverter through J62 pins 17,

18, 19 and 20. If this circuit is

operational, the Green LED DS5, mounted

on the board, will be lit

PS6 protects the +12 VDC 2 Amp circuits

for the Remote through J63 pins 17, 18,

19 and 20. If this circuit is operational,

the Green LED DS6, mounted on the

board, will be lit

-12 VDC Circuits

-12 VDC from the Switching Power Supply

Assembly connects to J5 on the board.

The -12 VDC is divided into two separate

circuits each with a 3 amp self resetting

fuse, PS1 and PS2.

PS1 protects the -12 VDC 2 Amp circuits

for the System through J63 pins 1, 2, 3

and 4. If this circuit is operational, the

Green LED DS1, mounted on the board,

will be lit

PS2 protects the -12 VDC 2 Amp circuits

for the Remote through J62 pins 1, 2, 3

and 4. If this circuit is operational, the

Green LED DS2, mounted on the board,

will be lit

The connections from J62 and J63 of the

Power Protection Board are wired to J62

and J63 on the Control Board.

4.4.2 (A3) Control Board (1302021)

In this transmitter, control monitoring

functions and front panel operator

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-17

interfaces are found on the Control

Board. Front panel operator interfaces

are brought to the control board using a

26 position conductor ribbon cable that

plugs into J60. The control board

controls and monitors the Power Supply

and Power Amplifier module through a

16 position connector J61 and two 20

position connectors J62 & J63.

U1 is an 8 bit RISC microcontroller that

is in circuit programmed or programmed

using the serial programming port J4 on

the board. When the microcontroller,

U1, is held in reset, low on pin 20, by

either the programming port or the

external watchdog IC (U2), a FET Q1

inverts the reset signal to a high that

connects to the control lines of U5, an

analog switch. The closed contacts of

U5 connects the serial programming

lines from J4 to U1. LED DS10 will be lit

when programming port J4 is used.

U2 is a watchdog IC used to hold the

microcontroller in reset, if the supply

voltage is less the 4.21 VDC; (1.25 VDC

< Pin 4 (IN) < Pin 2 (Vcc). The

watchdog momentarily resets the

microcontroller, if Pin 6 (ST) is not

clocked every second. A manual reset

switch S1 is provided but should not be

needed.

Diodes DS1 through DS8 are used for

display of auto test results. A test board

is used to execute self test routines.

When the test board is installed,

Auto_Test_1 is held low and

Auto_Test_2 is allowed to float at 5

VDC. This is the signal to start the auto

test routines.

U3 and U4 are used to selectively enable

various input and output ICs found on

pages 2 & 3 of the schematic.

U1 has two serial ports available. In this

application, one port is used to

communicate with transmitter system

components where U1 is the master of a

RS-485 serial bus. The other serial port

is used to provide serial data I/O where

U1 is not the master of the data port. A

dual RS-232 port driver IC and a RS-485

Port driver is also in the second serial data

I/O system. The serial ports are wired

such that serial data input can come

through one of the three serial port

channels. Data output is sent out through

each of the three serial port channels.

Switch SW1, transmitter operation select,

is used to select either transmitter

operation or exciter/driver operation.

When the contacts of SW1 are closed,

transmitter operation is selected and the

power monitoring lines of the transmitter’s

power amplifier are routed to the system

power monitoring lines.

U9 is a non-inverting transceiver IC that

provides 2 way asynchronous

communication between data busses. .

The IC is used as an input buffer to allow

the microcontroller to monitor various

digital input values.

Digital output latch circuits are used to

control system devices. Remote output

circuits are implemented using open drain

FETs, Q13, Q14, Q16, and Q17, with

greater than 60 Volt drain to source

voltage ratings.

Remote digital inputs are diode protected,

using CR6, CR7, CR8 and CR9 with a 1 kΩ

pull-up resistor, to +5 VDC. If the remote

input voltage is greater than about 2 Volts

or floating, the FET is turned on and a

logic low is applied to the digital input

buffer, U9. If the remote input voltage is

less than the turn on threshold of the FET

(about 2 VDC), a logic high is applied to

the digital input buffer, U9.

Four of the circuits on page two of the

schematic, which include Q2, Q9, Q19 and

Q21, are auxiliary I/O connections wired

for future use. They are wired similar to

the remote digital inputs but include a

FET, Q5, Q12, Q20 and Q22, for digital

output operations. To operate these

signals as inputs, the associated output

FET must be turned off. The FETs are

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-18

controlled by U10 and U12, analog input

multiplexer ICs.

U13, U14, U15, U16, U17 and U18 are 3

state non-inverting transceiver ICs that

provide 2 way asynchronous

communication between data busses.

The ICs are used as input buffers to

allow the microcontroller to monitor

various digital input values. The digital

inputs to the ICs utilize a 10 kΩ pull-up

resistor. The buffer IC, U18, used for

data transfer to the display is wired for

read and write control.

U19 and U20 are digitally controlled

analog switches that provide samples

back to the microprocessor. Each

analog input is expected to be between

0 and 5 VDC. If a signal exceeds 5.1

VDC, a 5.1 Volt zener diode clamps the

signals voltage, to prevent damage to

the IC. Most signals are calibrated at

their source, however two dual serial

potentiometers ICs are used to calibrate

four signals, System Visual/Average

Power, System Aural Power, System

Reflected Power and the Spare AIN 1.

For these four circuits, the input value is

divided in half before it is applied to an

op-amp. The serial potentiometer is

used to adjust the output signal level to

between 80 and 120% of the input

signal level. Serial data, serial clock and

serial pot enables are supplied by the

microprocessor to the dual serial

potentiometer ICs. J62 and J63 are two

20 position connectors that provide the

+12 VDC and –12 VDC power through

the Power Protection Board. The ±12

VDC generated by the switching power

supply connects to J62 and J63 after

being fuse protected on the Power

Protection Board.

There are three dual element,

red/green, common cathode LED

indicators mounted on the front panel of

the sled assembly; DC OK, Operate and

Fault.

There are three, the fourth is a spare,

identical circuits that drive the front

panel mounted LED indicators. The levels

on the 1, 2, 3 and 4 LED Control Lines, for

both the red and green LEDs, are

generated by the IC U11 as controlled by

the DATABUS from the microprocessor U1.

Each LED controller circuit consists of an

N-Channel MOSFET w/internal diode that

controls the base of an N-P-N transistor in

an emitter follower configuration. The

emitter of the transistor connects the LED.

With the LED control line LOW, the

MOSFET is Off, which causes the base of

the transistor to increase towards +12

VDC, forward biasing the transistor. With

the transistor forward biased, current will

flow from ground through the LED, the

transistor and the current limiting

resistors in the collector to the +12 VDC

source. The effected LED will light.

With the LED control line HIGH, the

MOSFET is On, which causes the base of

the transistor go toward ground potential,

reverse biasing the transistor. With the

transistor reverse biased, no current

through the transistor and LED, therefore

the effected LED will not light.

A third color, amber, can also be

generated by having both transistors

conducting, both control lines LOW. The

amber color is produced because the

current applied to the green element is

slightly greater than the red element.

This occurs because the current limiting

resistors have a smaller ohm value in the

green circuit.

There are four voltage regulators, three

for +5 VDC and one for +7 VDC, which

are used to power the Control Board. +12

VDC is applied to U25 the +7 VDC

regulator that produces the +7V, which is

applied to the LEDs mounted on the

board. The +7V is also connected to the

input of U26 a precision +5.0 Volt

regulator. The +5.0Vdc regulator output

is used to power the analog circuits and as

the microcontroller analog reference

voltage. Another two +5 Volt regulator

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-19

circuits U27, +5V, and U8, +5 Vserial,

are used for most other board circuits.

4.4.3 (A4) Switch Board (1527-1406)

The switch board provides five front-

panel momentary contact switches for

user control and interface with the front-

panel LCD menu selections. The

switches, SW1 to SW5, complete the

circuit through connector J1 to

connector J2 that connects to J1 on (A5)

the 20 Character by 4 line LCD Display.

J1 on the switch board is also cabled to

the Control Board. When a switch is

closed, it connects a logic low to the

control board that supplies the

information from the selected source to

the display. By pushing the button

again, a different source is selected.

This occurs for each push button. Refer

to Chapter 3 Section 3.5.4, for more

information on the Display Menu

Screens.

4.4.4 (A2) Switching Power Supply

Assembly

The power supply module contains a

switching power supply, an eight

position terminal block for distributing

the DC voltages, a three position

terminal block to which the AC Input

connects, Jacks J1, V1 and V2. Jack J1

connects to the Control Board and

supplies DC OK, at J1-4 & 3, and AC OK,

at J1-2 & 1, status to the control board.

A Power Supply enable connects from

the control board to the power supply at

V1-6 & 7. The power supply is

configured for three output voltages

+12V, -12V, at the 8 position terminal

block, and a main output power of +32

VDC at J50 pin A (+) and J50 pin B

(Rtn). The power supply is power factor

corrected to .98 for optimum efficiency

and decrease in energy consumption.

For safety purposes all outputs are over

voltage and over current protected. This

supply accepts input voltages from 85 to

264 volts AC, but the power entry

module, for the exciter/amplifier chassis,

must be switched to the proper input

voltage setting, for the transmitter to

operate.

4.5 (A4) Power Amplifier Module

Assembly (1301923)

The Power Amplifier Module Assembly

contains (A1) a 1 Watt UHF Amplifier

Module Assembly (1302891), (A2) a 40

Watt UHF Module Assembly (1206693),

(A3) UHF RF Module Pallet Assembly

(1300116), (A4) a Coupler Board

Assembly (11301949), (A5) an Amplifier

Control Board (1301962) and (A6) a

Temperature Sensor IC.

The RF from the Upconverter Module

Assembly connects from the Upconverter RF

Output BNC Jack J23, through a cable, to

the PA RF Input BNC Jack J24, located on

the rear of the exciter/amplifier chassis

assembly.

4.5.1 (A1) 1-Watt UHF Module

Assembly (1302891)

The 1-watt UHF module assembly provides

radio frequency interference (RFI) and

electromagnetic interference (EMI)

protection, as well as the heatsink, for the

1-watt UHF amplifier board (1302762) that

is mounted inside the assembly. The

assembly has approximately 17 dB of gain.

The RF input to the assembly connects to

SMA Jack J3. The amplified RF output of

the assembly is at the SMA Jack J4.

Typically, with an input signal of +4 dBm

at J1 of the assembly, an output of

+21 dBm can be expected at J2.

The +12-VDC bias voltage connects

through J5, a RF-bypassed, feed-through

capacitor, to the amplifier board. The

-12-VDC bias voltage connects through J6,

a RF-bypassed, feed-through capacitor, to

the amplifier board. E1 on the assembly

connects to Chassis ground.

4.5.2 (A1-A1) 1-Watt UHF Amplifier

Board (1302761)

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-20

The 1-watt UHF amplifier board is

mounted in the 1-watt UHF amplifier

assembly (1302891) and provides

approximately +17 dB of gain.

The UHF signal enters the board at J3, a

SMA connector, and is applied to U3 an

IC hybrid coupler assembly that splits the

input signal into two equal parts. The

two amplifier paths are identical using Q4

and Q5, 1-Watt HFETs as the amplifier

devices. Each HFET has approximately

14 dB of gain.

The drain voltage needed to operate each

HFET is obtained from the +12 VDC line

that connects to the board at J5 and is

regulated down to +8.25 volts by U4.

The gate negative bias voltage is

obtained from the -12 VDC line that

connects to the board at J6.

The amplified outputs of the HFETs are

applied to U2 an IC hybrid coupler

assembly that combines the amplified

signals into a single output that connects

to J4 of the board.

4.5.3 (A4-A1) 40 Watt UHF Amplifier

Assembly (1206693)

The output of the UHF filter is connected

to the input J1 of (A2) the 40 Watt UHF

amplifier assembly (Figure 4-1). The

assembly is made up of a (51-5378-308-

00) module, which operates class AB and is

a highly linear broadband amplifier for the

frequency range of 470 to 860 MHz. It can

deliver an output power of 40 watts (CW)

with approximately 14 dB of gain.

The amplification circuit consists of

LDMOS transistors V804 and V805

connected in parallel and operating in

class AB. The paralleling network is

achieved with the aid of 3 dB couplers

Z802 and Z803. A further 3 dB coupler

Z801, in conjunction with capacitors C800

and C819, serves as a phase shifter.

Phase alignment (for the complete

amplifier), as well as quiescent current

settings are achieved by means of

potentiometers R807 and R808. The

settings are factory implemented and

should not be altered.

PIN diodes V810 & V811 form a variable-

damping circuit that is used to adjust the

amplification of the 40-watt module. The

adjustment is performed with the Gain

potentiometer R838. A readjustment of

the amplification may be required, after

repair work, to ensure that the PAs in

multiple PA transmitters deliver the same

output power

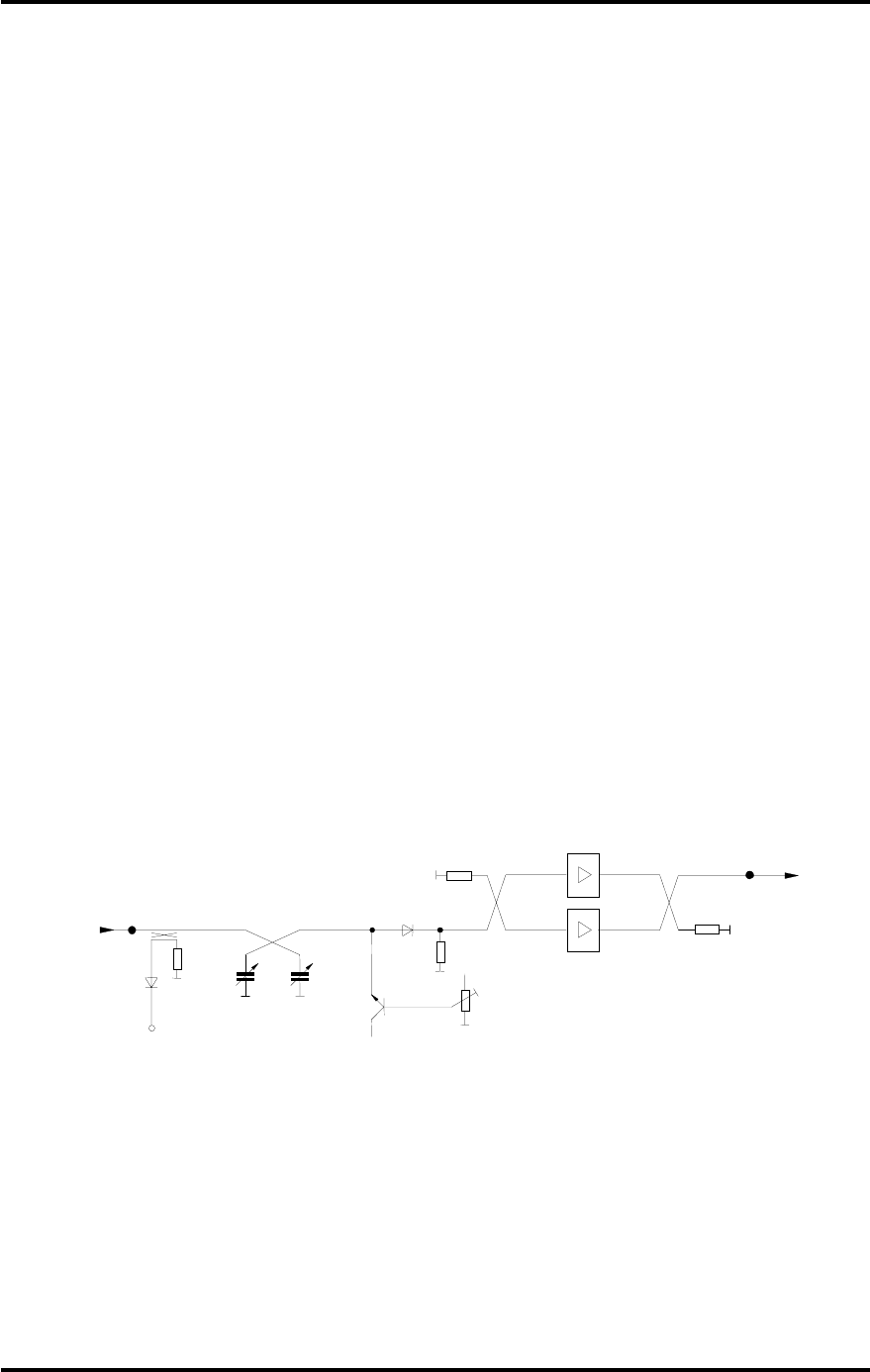

V 805

V 804

3 dB Coupler

Z 801

Output

Input

R 814

R 802, ..4, ..5

C 800 C 819

Detector

Output

X 801

+32V

R 838

V 810

V 811

V 812

3 dB Coupler

Z 802

3 dB Coupler

Z 803

Figure 4-1: 40 Watt UHF Amplifier Module

4.5.4 (A3) UHF Module Assembly, RF

Module Pallet, Philips (1300116)

The UHF Module Assembly, 250-watt

module (Figure 4-2) is a broadband

amplifier for the frequency range 470 to

860 MHz. The amplifier is capable of

delivering an output power of 70 Wrms.

The amplification is approximately 13 dB.

The amplification circuit consists of the

parallel connected push-pull amplifier

blocks V1 and V2 operating in class AB. In

order to match the transistor impedance

to the characteristic impedance of the

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-21

input and output sides, matching

networks are placed ahead and behind

the amplifier blocks. Transformers Z3 to

Z6 serve to balance the input and output

signals. The paralleling circuit is

achieved with the aid of 3-dB couplers

Z1 and Z2.

The working point setting is factory

implemented by means of potentiometers

R9, R11, and R12 and should not be

altered.

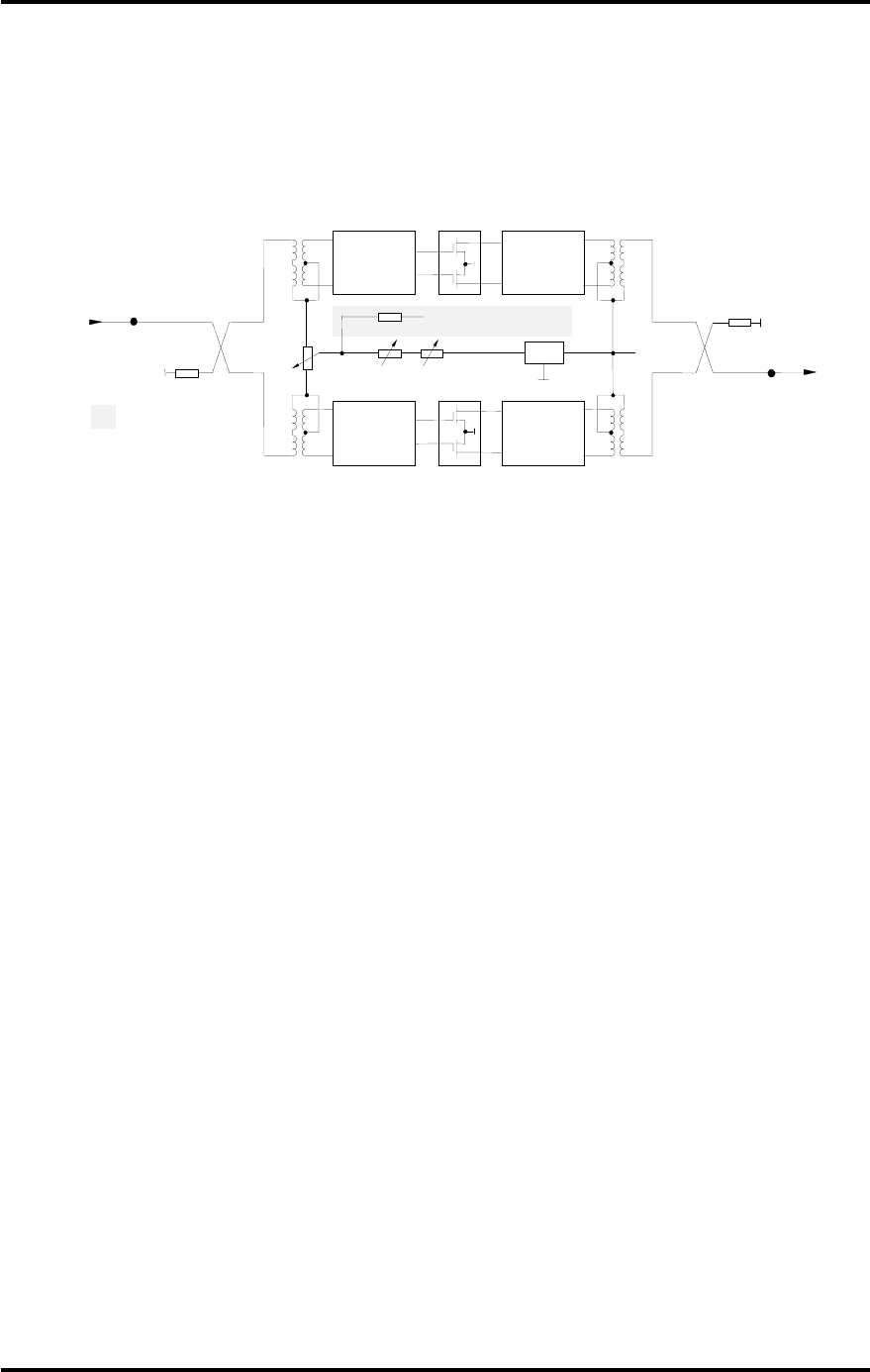

V 1

3 dB Coupler

Z 2

Output

Input

3 dB Coupler

Z 1

R 2

R 1

Matching

Network

Matching

Network

V 2

Matching

Network

Matching

Network

Z 3 Z 5

Z 4 Z 6

+Uop

N 1

R 11 R 12

R 9

R 10

Dynamic

Figure 4-2. UHF Amplifier Module, 250 Watts

4.5.5 (A4) Coupler Board Assembly

(1301949)

The UHF coupler board assembly

provides a forward and reflected power

samples of the output to (A5) the

amplifier control board where it connects

to the input of the overdrive-protection

circuit.

The RF input to the UHF coupler

assembly, from the 250 Watt UHF

amplifier module, connects to SMA jack

J1. The RF is connected by a stripline

track to the SMA type connector RF

Output jack J2. A hybrid-coupler circuit

picks off a power sample that is

connected to SMA type connector jack J3

as the forward power sample. Another

power sample is taken from the coupler

circuit that is connected to SMA type

connector jack J6 as the reflected power

sample. Two 50Ω terminations, used as

dissipation loads, connect to the reject

and reflected ports, J5 and J4, of the

coupler.

4.5.6 (A5) Amplifier Control Board

(1301962)

The amplifier control board provides LED

fault and enable indications on the front

panel of the module and also performs

the following functions: overdrive cutback,

when the drive level reaches the amount

needed to attain 110% output power; and

overtemperature, VSWR, and overdrive

faults. The board also provides connections

to the LCD Display for monitoring the %

Reflected Power, % Output Power, and the

power supply voltage.

U4, located upper center of page, is an in

circuit microcontroller. The controller is

operated at the frequency of 3.6864 MHz

using crystal Y1. Programming of this

device is performed through the serial

programming port J2. U4 selects the

desired analog channel of U1 through the

settings of PA0-PA3. The outputs of Port A

must be set and not changed during an

analog input read of channels PA5-PA7.

PA4 of U4 is a processor operating LED

that monitors the +/-12 VDC. PA5 is used

to monitor the +12VDC supply to the

board. PA6 is the selected channel of

analog switch U1. PA7 is connected to a

via, V10, for future access.

U6 is a serial to RS-485 driver IC. U7 is a

watchdog IC used to hold the

microprocessor in reset, if the supply

voltage is less than 4.21 VDC. U7

momentarily resets the microcontroller if

Pin 6 (!ST) is not clocked every second. A

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-22

manual reset switch is provided but

should not be needed.

Upper left corner U3 is used to determine

where the amplifier control board is

located. The eight inputs come from the

main amp connector and are used to set

the SCADA address of the controller.

Pull-up resistors set a default condition of

logic high.

U5 below U3 is used for getting digital

input information of the board. Page two

has several monitoring circuits that

provide information on the amplifier’s

status. Many of these circuits

automatically shut down the amplifier if a

specific fault occurs.

U8 below U5 is used to control four board

mounted status LEDs. A FET is turned

On to shunt current away from the LED

to turn it Off. U9 below U8 is used to

enable different features within the

software. Actual use is to be determined.

In the lower right corner are voltage

regulator circuits. U22 should allow for

0.14 amps of power using its 92 C/W

rating if Ta = 60°C max and Tj = 125°C

max 0.26 amps can be obtained from

U22 if the mounting pad is 0.5 square

inches. The controller will not need this

much current.

U23 and U24 are low drop out +5 VDC,

voltage regulators with a tolerance

greater than or equal to 1%. 100mA of

current is available from each device but

again the controller will not need this

much current.

In the upper left section are circuits with

U12 and U13. U12 is used to generate a

regulated voltage that is about 5 volts

less than the +32 VDC supply,

approximately +26.25 VDC. When the

+32 VDC supply is enabled, the circuitry

around U13B is used to provide gate

voltage to Q10 that is 5 volts greater

than the source pin of this FET. The gate

of Q10 can be turned Off by any one of a

few different circuits.

U10A is used to turn Off the gate of Q10 in

the event of high current in amplifier #1.

At 0.886 VDC the current to amplifier #1

should be greater than 5 Amps. U11B is

used to turn off the Q10 FET, if high

current is detected in amplifier #2. U11A

is used to turn off the Q10 FET, if high

current is detected in amplifier #3. With

2.257 VDC at Pin 5 of U11B or Pin 3 of

U11A, the voltage output of current sense

amplifier U17 or U18 at high current shut

down should be greater than 15 Amps.

U14B is used to turn Off the gate of Q10 in

the event of high power supply voltage,

approximately +35.4 VDC. U14A is used

to keep the FET disabled in the event of

low power supply voltage, approximately

+25.4 VDC.

Current monitoring sections of the board.

The ICs U16, U17 and U18 along with

associated components set up the current

monitoring sections of the board. R67,

R68 and R69 are 0.01Ω/5W 1% through

hole resistor is used for monitoring the

current through several sections of the

amplifier. The voltage developed across

these resistors are amplified for current

monitoring by U16, U17 or U18. The

LT1787HVCS8 precision high side current

sense IC amplifier accepts a maximum

voltage of 60 VDC. The 43.2 kΩ resistor

from pin 5 to ground sets the gain of the

amplifier to about 17.28. This value is not

set with much accuracy since the

manufacturer internally matches the

resistors of this part but their actual

resistance value is not closely defined. A

trimming resistor is suggested to give a

temperature stability of –200 ppm/C, but

instead the microcontroller will determine

the exact gain of the circuit and use a

correction factor for measurements.

Circuit loading components are located in

the lower portion of each current

monitoring circuit. These components

allow for short duration high current

loading of the supply. By measuring the

current through the sense resistor with and

without the additional four 30.1 Ω 1%

10W-100W Digital UHF Transmitter Chapter 4, Circuit Descriptions

Pioneer, UHF Translator, Rev. 0 4-23

resistors. For very short duration pulses,

a 1206 resistor can handle up to 60

watts. The processor requires 226 uSec

per conversion. A supply voltage of +32

VDC will pass 1.06 amps + 1% through

the load resistors.

A6 is a temperature sensor thermistor

that is used to monitor the temperature

of the module's heat sink. It connects

to J6 pins 1 & 2 on the board wand is

wired to the comparator IC U10B. If the

temperature increases above 75°C the

output will go Low that is used as a

temperature fault output, which

generates a Fault alert at U15A and

disables Amplifier #1.

Aural, Visual/Average and Reflected

power detector sections of the board.

A Forward Power Sample enters the

board at SMA Jack J3 and is split. One

part connects to J4 on the board that is

cabled to J1, the SMA Forward Power

Sample Jack, located on the front panel

of the assembly. The other part of the

split forward power sample is detected by

CR17 and the DC level amplified by

U25A. The output of U25A at pin 1 is

split with one part connected to the Aural

Power sample, which is not used in this

digital transmitter. The other split output

connects to U265A that is part of the

Forward Average Power circuit. The

detected level is connected to L4 that is

part of an intercarrier notch filter circuit

that is tuned to eliminate the 4.5 MHz

aural intercarrier, if present. The

Average power sample is amplified by

U26D and connected through the

average calibration pot R166 to U26C.

The output of U26C is connected to the

comparator IC U26B that has Aural Null

and Offset Null, if present in the system,

connected to the other input. The output

Average Forward power level connects to

J9 pin 2 of the board.

A Reflected Power Sample enters the board

at SMA Jack J5 and is detected by CR20

and the DC level amplified by U28B. The

output of U28B at pin 7 is connected

through the reflected calibration pot R163

to U28C. The output is split with one part

connected to J9 pin 5, the Reflected Power

Output level of the board. The other part

of the split from U28C connects to the

comparator IC U28D that has a reference

level connected to the other input. If the

reflected level increases above the

reference level a low output is produced

and connected to the Reflected Power

Shutdown circuit at CR28. The low shuts

off Q14 causing pin 3 to go high that is

connected to the inverter U15C. The

output of U15C goes low producing a

Reflected Power Fault that is connected to

an output of the board, the Fault Alert

circuit and also shuts down Amplifier #1.

Gain of the power measurements is

completed through software. Only the

Aural Null and Offset Null need to be done

through front panel pots.

This completes the description of the Power

Amplifier Module Assembly and the

Exciter/Amplifier chassis assembly.

Bandpass Filter and Trap Filter

The output of the translator is fed to (A9) a

Bandpass Filter, (A10) an Output Trap

Filter Assembly, and finally to the Antenna

for your System. The Bandpass Filter and

Trap Filter are tuned to provide high out of

band rejection of unwanted generated

products.

UBS Axcera LU100AL 100-Watt UHF Translator User Manual 366897

UBS-Axcera 100-Watt UHF Translator 366897

Contents

Chapter 4

Navigation menu

Namespaces

Views

Navigation
