Pioneer (Preliminary)
Low Power Transmitter 10W-2kW
Designed to provide broadcasters with a product that will meet their needs like
no other solution on the market, this new low to medium power transmitter
line uses the latest devices for broadband operation across each band. This
allows users to minimize spare parts stock, which is especially important to
group owners and networks, and also enables simple and inexpensive channel
changes.

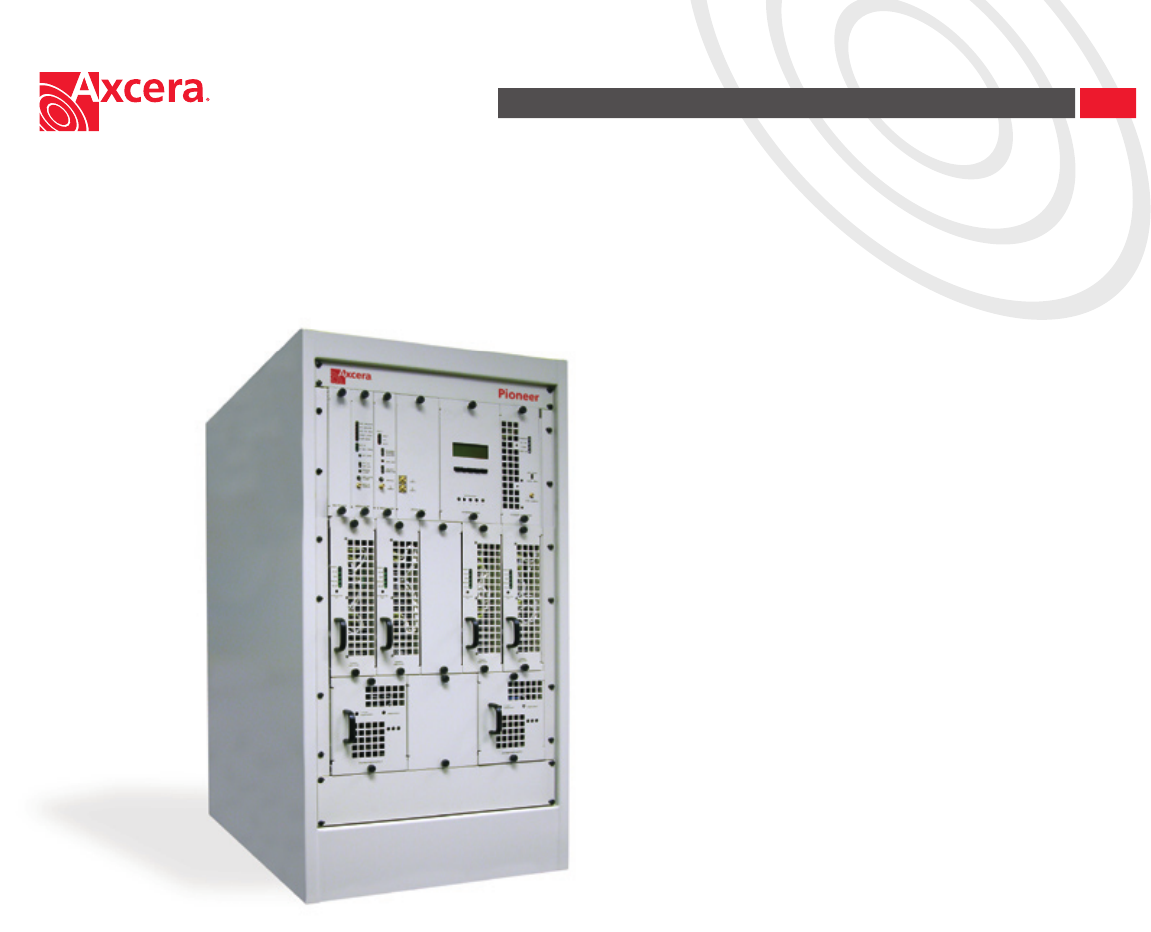

The very compact and completely modular design uses a chassis/backplane
conguration with parallel amplier and power supply modules which can be
removed and replaced while the transmitter is on the air. Additionally, the Pioneer
series was designed to be eld upgradable to digital operation.
Congurations are available in power levels from 10 watts to 2 kilowatts
analog and up to 1 kilowatt DTV, and all are manufactured in the USA by
Axcera - The RF Experts.
Speci cations published here are current as of the date of publication of this document. Because we are continuously improving our products, Axcera reserves the right to
change speci cations without prior notice. At any time, you may verify product speci cations by contacting our of ce. Axcera views it’s patent portfolio as an important
corporate asset and vigorously enforces its patents. Products or features contained herein may be covered by one or more U.S. or foreign patents.
0308R2 © 2003 AXCERA All Rights Reserved An Equal Opportunity Employer A Platinum Equity Company
Visual Performance
Frequency Range 470 to 806 MHz
Carrier Stability (Transmitters)
Standard ±1 kHz
Optional ±350 Hz
w/PFC ±1Hz
Frequency Translation Stability (Translators)
Standard ±1 kHz
Optional ±350 Hz
w/PFC ±1Hz
Regulation of RF Output Power 3%
Output Variation (Over 1 Frame) 2%
Sideband Response
-1.25 MHz and below -20 dB
-0.75 to -0.5 MHz +0.5 db, -2 dB
-0.5 to +3.58 MHz ±0.5 dB
+3.58 MHz to +4.18 MHz +0.5, -1.0 dB
Freq Response vs. Brightness ±0.5 dB
Visual Modulation Capability 1%
Differential Gain 5%
Incidental Phase Modulation ±3°
Linearity (Low Frequency) 5%
Aural Performance
Frequency Deviation Capability ±75 kHz
(Transmitters)
Distortion 0.5%
FM Noise -60 dB
AM Noise -55 dB
Aural to Visual Separation 4.5 MHz
± 100Hz
Composite Audio Input (Multi-channel sound)
(Transmitters)
Input Level 1V peak,
nominal
Input Impedance 75 ohms,
unbalanced
Frequency Range
±0.1 dB response 50 Hz to 50 kHz
±0.5 dB response 30 Hz to 120 kHz
Monaural Audio Input (Transmitters)
Input Level 0 to +10 dBm
Input 600 ohms,
balanced
Freq Range (±0.5 dB resp.) 30 Hz to 15 kHz
Pre-emphasis 75µs
Subcarrier Input (Transmitters)
Input Level 1V peak,
nominal
Input Impedance 75 ohms,
unbalanced
Freq Range (±0.5 dB resp.) 20 kHz to
120 kHz
Pioneer (Preliminary)
Low Power Transmitter 10W - 2kW
Visual Performance (continued)
Differential Phase ±3°
Signal-to-Noise Ratio 55 dB
2t K-Factor 2%
Noise Factor (Translators) 5 dB (Max)
w/Input Preamp 3 dB (Max)
Input Dynamic Range (Translators) -60 dB to
-15 dBm
w/Input Preamp -75 dBm
to -30 dBm
Env. Delay (Transmitters) Per FCC Standard
Video Input (Transmitters) 75 ohms
(Loop through)
Harmonics -60 dB or better
Intermodulation Products -52 dB or better
Spurious (›3 MHz from channel edge)
100W and lower -50dB or better
Greater than 100W -60dB or better
General
Model Number* LU10Ax LU100Ax LU250Ax LU500Ax LU1000Ax LU2000Ax
Power Output (Watts)
Visual (Peak) 10 100 250 500 1000 2000
Aural (Avg.) 1 10 15 50 100 200
Output Connector N N 7/8EIA 7/8EIA 7/8 EIA 7/8 EIA
Power Consumption (Watts) 250 675 1100 1900 3500 6700
Input Power
Line Voltage (Volts) 117/230 ±10% 230 ± 10%
Power Requirements Single Phase, 50 or 60 Hz
Size (H x W x D) 8.75”x19”x23” 55”x22”x34”
(Chassis Only)
Weight (lbs.) 45 45 340 360 400 550
Operational Temperature Range 0 to +50°, derate 2°C/1000 ft.
Maximum Altitude3 8500 feet (2600m) AMSL
Operational Humidity Range 0% to 95% non-condensing
RF Load Impedance 50 Ω
* For transmitters use “T” suf x, translators use “L” suf x (ex. LU100AT - 100W Transmitter)
