Quick Start Guide_Part 1

5 GHz airMAX® ac Radio with
InnerFeed® Technology
Model: LBE-5AC-Gen2
Introduction
Thank you for purchasing the Ubiquiti Networks®
LiteBeam®5AC Gen 2 radio. This Quick Start Guide is
designed to guide you through installation and also includes
warrantyterms.

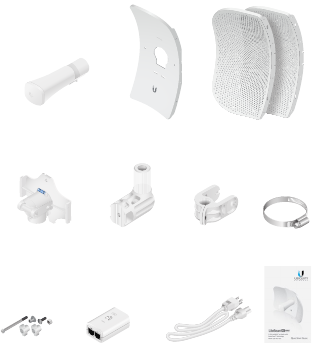

Package Contents
Antenna Feed Center Reflector
Panel
Side Reflector Panels
(Qty. 2)
Feed Receiver Azimuth Mount Elevation Mount Metal Strap
Knob Kit Gigabit PoE (24V, 0.3A)
with Mounting Bracket
Power Cord Quick Start
Guide
Products may be different from pictures and are subject to change without notice.
TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet
cable and earth grounding must be used as conditions of product warranty. TOUGHCable is
designed for outdoor installations. It is the customer’s responsibility to follow local country
regulations, including operation within legal frequency channels, output power, and Dynamic
Frequency Selection (DFS) requirements.
Installation Requirements
7 mm socket wrench or screwdriver
Shielded Category 5 (or above) cabling should be used for
all wired Ethernet connections and should be grounded
through the AC ground of the PoE.
We recommend that you protect your networks from
harmful outdoor environments and destructive ESD events
with industrial‑grade, shielded Ethernet cable from Ubiquiti
Networks. For more details, visit www.ubnt.com/toughcable

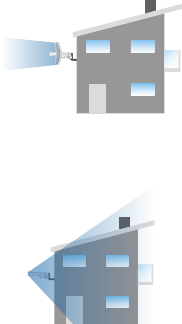

Application Examples
The LiteBeam AC mounted outdoors with the reflector
installed provides directional outdoor coverage (gain
reflector‑dependent).
The LiteBeam AC mounted outdoors without the reflector
installed provides outdoor‑to‑indoor coverage using the 3 dBi
Antenna Feed only.

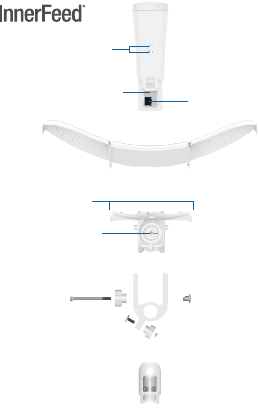

Hardware Overview
Bottom View
Antenna Feed
Reector Assembly
Feed Receiver
Elevation Mount
Azimuth Mount
Technology
Reset Button
Securing Arms
Port Cover
Ethernet Port
LEDs
LEDs
Ethernet The LED will light steady blue when an
active Ethernet connection is made and flash when
there is activity.
Power The LED will light blue when the device is
connected to a power source.
Button
Reset To reset to factory defaults, press and hold the Reset
button for more than 10 seconds while the LiteBeamAC is
poweredon. The LiteBeam AC may also be reset remotely
using the auxiliary Reset button located on the bottom of the
Gigabit PoEadapter.
Port
Ethernet Supports 10/100/1000 connections and passive PoE.
This port should be connected to the LAN and DHCP server.
