Contents

User manual part C

41
Basic operation
Source
SourceSource
My music
Create new user account in Windows Vista

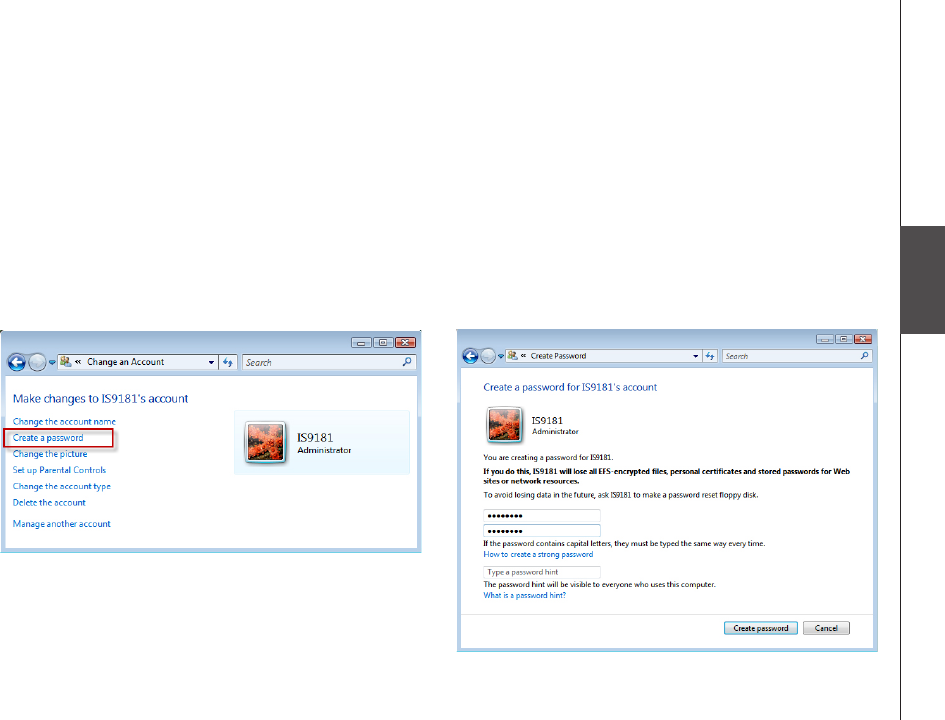

9. Create a password. Click on the user icon next to the IS9181 user account. Then click Create a
password.
To ensure the security of your computer we recommend that you create a password for the IS9181
user account. A typical password consists of 6-8 characters including numbers and letters.
Note: If you are going to create the user account on multiple computers, then you must use the same
password on each.
42
My music
Create new user account in Windows Vista
If you want to switch back to Classic View click on Switch to Classic View.
Source
43
Basic operation
Source
SourceSource
My music
Share a folder on Windows Vista
For the IS9181 to access the music on your computer, you must share the folder where the music
is located.
Right click on the folder you wish to share.
Click on Share.
Select user IS9181 and click Add.
Click Share.
1.
2.
3.
4.
5. The User Account Control prompts for your
permission, click Continue.
If the following message pops up, click: No, make
the network that I am connected to a private
network.
44
Share a folder on Windows Vista
6. The computer may take a few minutes to setup the network access. When the setup is complete
and you see the conrmation screen shown below, click Done.
My music
Source
45
Basic operation
Source
Source
Under the Apple menu, select System
Preferences and choose the Accounts pane.
Click the “+” symbol to add an account. You
may need to click the lock icon on the bottom
left to edit the settings.
1.
2.
You must name the account is9181 and
create a password. This user does not have
to administer the computer.
3.
My music
Instructions for IS9181 setup with Mac OS 10.4
Create the IS9181 user account and share the folder
46
Source
4. After the account is created, open the Sharing
Pane under System Preferences.
5. Ensure “Windows Sharing” is checked. You
may need to click the lock icon on the bottom
left to edit the settings.
6. After checking the “Windows Sharing” box,
click the Accounts… button to enable the
is9181 account.
My music
Instructions for IS9181 setup with Mac OS 10.4
Create the IS9181 user account and share the folder
47
Basic operation
Source
Source
7. After enabling to is9181 account to allow
windows sharing, choose the Firewall button
of the “Sharing” pane. If your Firewall is on,
ensure that the “Windows Sharing” box is
checked. (Note: The graphic below shows
the Firewall to be off).
8. After setting up sharing, you may now quit
System Preferences.
9. Now, use Spotlight (the blue magnifying
glass), found on the top right corner of
your desktop, to nd the Directory Access
Application. Launch the Directory Access
application.
My music
Instructions for IS9181 setup with Mac OS 10.4
Create the IS9181 user account and share the folder
48
Source

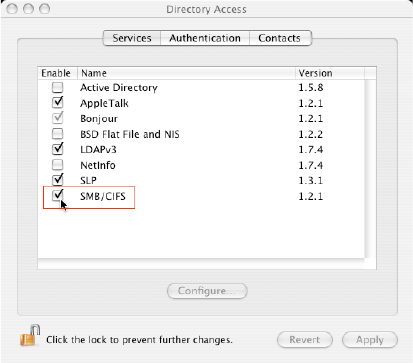

10. In Directory Access, ensure SMB/CIFS is checked and selected.
My music
Instructions for IS9181 setup with Mac OS 10.4
Create the IS9181 user account and share the folder
49
Basic operation
Source
Source
My music
Instructions for IS9181 setup with Mac OS 10.4
Create the IS9181 user account and share the folder
11. You will need to move your music to the is9181 account in order for the is9181 to access the
music. You may make duplicates of the music you wish to play in the is9181 music folder.
-OR-
You can move your entire music collection to the is9181 account by following these instructions:
While logged into the new is9181 account, control click the music folder in the users root
directory and select “Get Info”.
At the bottom of the dialog box there is a “Ownership & Permission” section.
Click the arrow for “Details” to expand this section.
Click the “Lock” next to the Owner drop-down and enter the is9181 user password when
promoted.
Change the Group drop-down box to the original user account name, which will be available
in the drop-down list.
Change the Access drop-down to Read & Write.
Click the “Apply to enclosed items” button at the bottom of the dialog box.
Enter administrator or original password when prompted.
Logout of the is9181 account.
Log into the administrator or original user account.
i.
ii.
iii.
iv.
v.
vi.
vii.
viii.
ix.
x.
50
My music
Instructions for IS9181 setup with Mac OS 10.4
Create the IS9181 user account and share the folder
Open up two Finder windows each looking at the music directories for both accounts. The
is9181 music folder should no longer be “X” out and inaccessible.
Drag the iTunes folder from the original user account music folder to the is9181 account music
folder. This will copy the music. If you do not have the room on your hard drive to copy the
music, you can copy the music to an external hard drive. Then delete the music from your
computer. Copy the music back to the computer on in the is9181 music folder.
Open iTunes.
Open iTunes Preferences and select the “Advanced” tab.
Ensure that the “Copy les to iTunes Music folder when adding to library” is selected.
Click “Change” next to iTunes Music folder location.
Create a path to the is9181 account music folder and iTunes music will point to that folder.
Now the IS9181 account houses all of your music. Any new music added in iTunes will show on the
PIMA after you select Update Computer list . You can use iTunes as normal and access all the
content through the IS9181.
xi.
xii.
xiii.
xiv.
xv.
xvi.
xvii.
Source
51
Basic operation
Source
Source

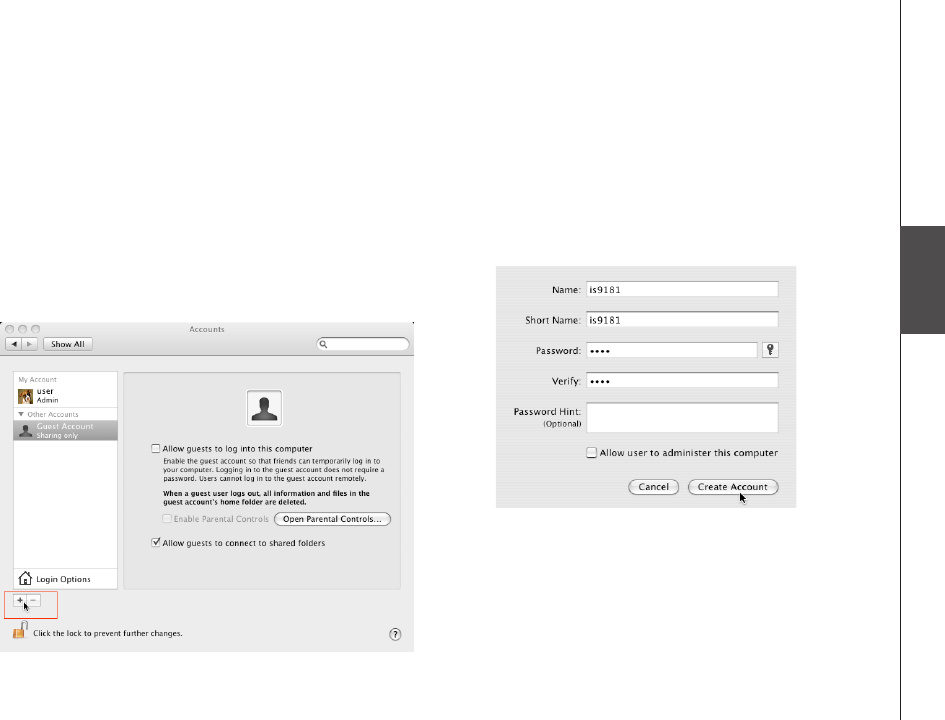

Under the Apple menu, select System
Preferences and choose the Accounts pane.
Click the “+” symbol to add an account. You
may need to click the lock icon on the bottom
left to edit the settings.
1.
2.
You must name the account is9181 and create
a password. The account can be a standard or
admin type.
3.
My music
Instructions for IS9181 setup with Mac OS 10.5
Create the IS9181 user account and share the folder
52
Source
4. Select the Sharing pane from the System
Preferences application. Ensure File Sharing
box is checked and selected. Click the
Options… button.
5. When you press the “Options…” button, you
will be able to select the type of le sharing.
Ensure the “Share les and folders using
SMB” box is checked, and check the box
for the user is9181. Press the “Done” when
nished.
My music
Instructions for IS9181 setup with Mac OS 10.5
Create the IS9181 user account and share the folder
53
Basic operation
Source
Source

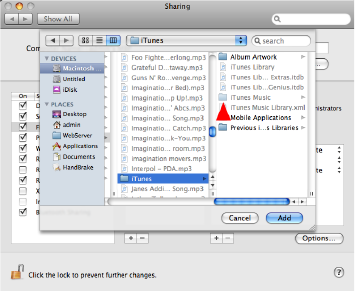

6. Click the + button under the “Shared Folder” pane. Navigate to your existing iTunes or other
music folder.
NOTE: it is important that you drill down to the folder that your music is in, not the rst iTunes folder which has some playlist
information.
My music
Instructions for IS9181 setup with Mac OS 10.5
Create the IS9181 user account and share the folder
54
Source
My music
Instructions for IS9181 setup with Mac OS 10.5
External USB & Firewire drives
It is possible to share les from external drives using the same method. You have to setup the desired
folder on the external drive as a shared folder. Note, however, that external drives are not accessed
until you physically (not remotely) log into the Mac, so simply turning on the computer is not enough
to share the les, you must log in.
You can now close the System Preferences. On the is9181 go to My Music and select Update
Computer List and reconnect with the desired Mac. Your music folder will now be available and
you can play all unprotected music that you may have in the folder you have chosen.
55
Basic operation
Source
SourceSource
My music
Access your music from the IS9181
On your IS9181, press SOURCE.
Rotate the dial to My Music and press SELECT.
Rotate the dial to Computer Password and press SELECT.
Rotate the dial to YES and press SELECT.
Enter the password you selected for the IS9181 user account by rotating the dial and pressing
SELECT for each character. Repeat this process until the entire password is displayed. Rotate the
dial to highlight DONE , and then press SELECT.
NOTE: Invalid Password for Accessing Computer Folders appears if you try to access a computer that does not have
the IS9181 user account setup or the passwords do not match.
Play music on your computer
To play the music:
Press SOURCE.
Rotate the dial to highlight My Music and press SELECT.
Rotate the dial to highlight Update Computer list and press SELECT. The
IS9181 searches and shows a list of computers on the same network as the
IS9181. (continued on next page)
NOTES:
Other devices connected to your network such as printers will show on the computer list.
If you make any changes to your music les on your computer, select Update Computer list to see the changes.
If you do not see the computer or folder you want, try Update Computer list again.
1.
2.
3.
4.
5.
1.
2.
3.
•
•
•
My Music
Update Computer List
Computer Password
PC1
56
My music
Play music on your computer
4. Rotate the dial to highlight the desired computer and press SELECT. All shared
folders on the computer appear.
5. Continue to browse the folders until you reach the music les. Only supported
music les (see page 27) appear.
6. Rotate the dial to highlight the desired music le and press SELECT. All
supported les in the same folder play sequentially.
Press BACK to return to the previous screen.
Press SOURCE to go back to the top source menu which will show My Music - Top.
The IS9181 will automatically repeat all the songs that are in the folder you are playing from.
If you have chosen My Music as your source and you press MENU, two additional items appear at
the top of the menu:
Now Playing - returns you to the source playing screen.
Add to Favorites - see page 59 for instructions.
•
•
Source
PC1
Shared Music
57
Basic operation
Source
Source
Source
Internet Radio
My Music
FM Radio
Aux In
12:00AM
Stereo
95.3
MHz
Source
FM radio
Play FM radio station
To listen to FM radio stations:
Press SOURCE on the top of the IS9181.
Rotate the dial to highlight FM Radio and press SELECT.
Press to seek the next lower FM frequency with sufcient signal strength.
Press to seek the next higher FM frequency with sufficient signal
strength.
-OR-
Rotate the dial counter clockwise to increase the FM frequency by one step.
Rotate the dial clockwise to decrease the FM frequency by one step.
To mute the sound, press . To resume the sound, press again.
If you have chosen FM radio as your source and you press MENU, two additional
items appear at the top of the menu:
Now Playing - returns you to the FM radio playing screen.
Add to Favorites - see page 59 for instructions.
1.
2.
3.
•
•
58
Source
Internet Radio
My Music
FM Radio
Aux In
12:00AM
Aux In
Source
Aux in
External audio device connection
The IS9181 enables you to listen to the audio from any source with a standard
headset jack connection.
Connect one end of the supplied auxiliary audio cable to the headset jack
(audio/line out) of your device, and plug the other end of the cable into the
Aux In port on the back of the IS9181.
Press SOURCE.
Rotate the dial to select Aux In and press SELECT.
4. Aux In appears on the screen. You can now play the music on your external
audio device, and listen to it through on the IS9181.
Please note that the IS9181 does not provide power or control to your external
audio device.
You can adjust the listening volume using the VOL+ / VOL- on the IS9181
and/or the volume control of your external audio device.
1.
2.
3.
59
Basic operation
Favorites
Menu
Now Playing
Add to Favorites
Alarm
Screen Brightness
Wireless Network
Private Stream for Free
Favorites
Add to favorites
When either an Internet radio station, FM radio station, or music le is playing,
you can add the current station or le that is playing to your favorites for easy
access.
The favorites entries are sorted in numeric order and duplicate entries are
allowed.
The maximum number of favorites that can be added for each source follow.
Internet Radio: 100 favorites
FM Radio: 20 favorites
My Music: 100 favorites
To add a source of Internet Radio, FM Radio, or My Music to your favorites:
When you are either playing an Internet radio station, FM radio station, or music
le, press MENU.
Rotate the dial to highlight Add to Favorites and press SELECT. The current
station or le that is playing is automatically added to the favorites.
•
•
•
1.
2.
60
Play favorites
To play your favorites, you must rst select the source. To play your favorites:
Press SOURCE.
Rotate the dial to highlight the desired source (Internet Radio, FM Radio, or
My Music) and press SELECT.
Press FAVORITES and a list of saved entries for that source appears.
Rotate the dial to highlight the desired favorite and press SELECT. The favorite
plays.
When playing My Music favorites, the IS9181 will play through all your favorites
and repeat automatically.
1.
2.
3.
4.
If the source
is not selected
rst, No Source
selected
appears when
you press
FAVORITES on
the IS9181.
•
Favorites
61
Basic operation
Favorites
Menu
Now Playing
Add to Favorites
Move
Favorite
Delete
Favorite
Delete All
Favorites
Private Stream for Free
Select new location:
1. 87.5 MHz
2. 104.3 MHz
3. 96.5 MHz
87.5 MHz
Favorites
Move favorites
You can organize or move the favorites. To move the
favorite:
Press SOURCE.
Rotate the dial to highlight the desired source (Internet
Radio, FM Radio, or My Music) and press SELECT.
Press FAVORITES and a list of saved favorites for that
source appears.
Rotate the dial to highlight the desired favorite to be moved
and press MENU.
Rotate the dial to highlight Move Favorite and press
SELECT.
A red line shows on the favorites screen. Rotate the dial to
position the red line where you want to move the favorite
(the favorite will be inserted above the red line) and press
SELECT.
1.
2.
3.
4.
5.
6.
To go back to the
screen currently
playing, press
MENU and select
Now Playing.
•
62
Delete favorites
You can delete one favorite or all favorites. To delete favorites:
Press SOURCE.
Rotate the dial to highlight the desired source (Internet Radio, FM Radio, or
My Music) and press SELECT.
Press FAVORITES and a list of saved favorites for that source appears.
Rotate the dial to highlight the desired favorite to be deleted or highlight any
favorite if you want to delete all the favorites and press MENU.
To delete a favorite, rotate the dial to highlight Delete Favorite and press
SELECT.
-OR-
To delete all favorites, rotate the dial to highlight Delete All Favorites
and press SELECT.
6. You are prompted to conrm that you want to delete the favorite or all favorites.
To delete the favorite or all favorites, rotate the dial to highlight YES and press
SELECT. To cancel the deletion, rotate the dial to highlight NO and press
SELECT.
1.
2.
3.
4.
5.
Menu
Now Playing
Add to Favorites
Move
Favorite
Delete
Favorite
Delete All
Favorites
Radio Pooki
Menu
Now Playing
Add to Favorites
Move
Favorite
Delete
Favorite
Delete All
Favorites
Radio Pooki
Favorites
63
Basic operation
Info
Press INFO
or BACK to
return to the Info
screen.
•
Info
Weather
Horoscope
VANCOUVER, BC
Mostly sunny
Today
High:
23℃
Low:
13℃
Info
Weather forecast
After you have set up the weather feature (see page 18), you
can view the 5-days weather forecast on the IS9181.
To view the weather forecast:
Press INFO.
Rotate the dial to highlight Weather and press SELECT.
Today’s weather appears.
Rotate the dial to view the weather forecast for the next
four days.
If you do not press a key within one minute, the IS9181 will
return to your playing screen.
1.
2.
3.
64
Info
Weather
Horoscope
Horoscope
Aries
Taurus
Gemini
Cancer
Leo
Info
Horoscope
You can view daily horoscope information.
To view the horoscopes:
Press INFO.
Rotate the dial to highlight Horoscope and press SELECT. A list of
horoscopes appears.
Rotate the dial to highlight the desired horoscope and press SELECT. The
selected horoscope information appears.
1.
2.
3.
65
Basic operation
Optional external audio system connection
The IS9181 can send music being played to an external audio system for more control over the sound
quality. To connect the IS9181 to an external audio system:
Connect one end of audio cables (RCA type, not included) to the LINE OUT jacks on the back of
the IS9181, matching the cable colors.
Connect the other end of the cables to the respective audio input jacks on the external audio
system.
You can now play music from your IS9181 and listen to it through the external audio system.
1.
2.
3.
Optional external audio system connection
66
You can install AA alkaline or rechargeable Ni-MH batteries
(sold separately) to use your IS9181 as a portable radio. To
install the batteries:

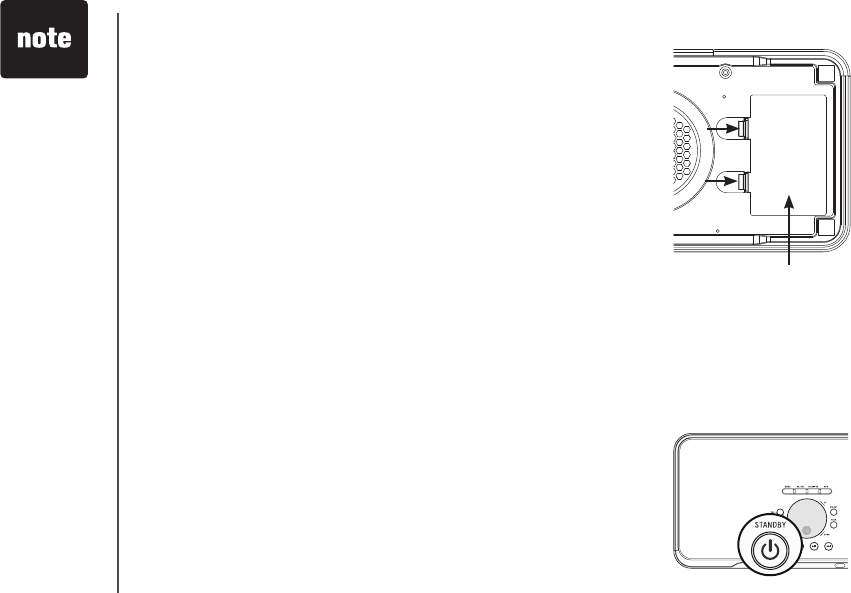

Press the tabs on the battery cover on the bottom of
the IS9181 and open the battery door.
Insert six new AA alkaline or rechargeable batteries,
matching the + and - signs engraved inside the battery
compartment.
Replace the battery cover. It clicks into place when
attached correctly.
When powered by batteries, the IS9181 operates the same as when it is plugged
into an AC power outlet with the following exceptions:
When the IS9181 is on, a battery icon appears on the status bar at the top of
the screen (see page 10).
The maximum speaker volume level is 25.
When the IS9181 goes into standby mode, the IS9181
automatically shuts down after one minute to save battery
power (power save mode). To wake the IS9181 from
power save mode, press STANDBY.
1.
2.
3.
•
•
•
Battery cover
If you use AA
rechargeable
batteries, the
IS9181 does not
recharge the
batteries.
If you unplug
your IS9181
without batteries
installed, you will
lose your clock
setting.
•
•
Optional battery installation
67
Basic operation
Optional battery installation
The batteries do not backup the clock setting. If your clock is set manually and the IS9181 loses
power, then the setting is lost. We recommend you have the clock set by the Internet (see page
16), so when the power returns, the clock setting will be automatically set by the Internet.
The alarm clock does not work on battery power. The alarm clock must have AC power to work.
•
•
Optional battery installation
68
Troubleshooting
If you have difculty operating your IS9181, please try the suggestions below. For Customer Service,
visit our website at www.vtechphones.com, or call VTech Communications at 1 (800) 595-9511; in
Canada, visit our website at www.vtechcanada.com, or call VTech Telecommunications Canada Ltd.
at 1 (800) 267-7377.
General
Reset procedure: Unplug the power cord and remove all batteries (if used) IS9181. Wait approximate
30 seconds, then plug the cord back in and re-install the batteries (if used).
When powered by batteries and the IS9181 goes into standby mode, the IS9181 automatically shuts
down after one minute to save battery power (power save mode). To wake the IS9181 from power
save mode, press STANDBY.
After pressing the STANDBY key, you cannot de-activate the IS9181 by immediately pressing the
STANDBY key again. Wait at least 3 seconds between key presses.
Networking
Your wireless network name and password MUST match what you enter in the IS9181. Check that
they are entered exactly the same (including capitalization and special characters).
If the SSID Broadcast is turned OFF on certain brands of wireless routers, the IS9181 will not be able
to connect during setup. Refer to your wireless router user’s manual for instructions to turn ON the
SSID Broadcast during the IS9181 wireless network setup process. Once the IS9181 successfully
connects to your wireless router, the SSID Broadcast can be turned OFF again.
Make sure your wireless router does not restrict connection by particular MAC addresses (MAC
ltering). Refer to you wireless router’s user manual for details.
•
•
•
•
•
•
69
Appendix
Troubleshooting
Remote control
Point the remote directly at the IS9181 display.
Check to make sure the remote control’s battery is properly installed.
Try replacing the remote control’s battery.
Clock/alarm
If the clock is one hour off when set to Auto (from Internet) mode, check that the daylight saving
option is set correctly.
Internet radio
Check that your internet and wireless network are working.
Use your computer to play the Internet radio station stream via the broadcasting website (page 23).
If the station plays on your computer, try to reset the IS9181 and reconnect to the station.
If you experience a slow response when browsing the Internet radio directory, buffering, or choppy
audio play. Reset the IS9181, WiFi router, and DSL or Cable modem by removing power for 30
seconds.
The internet radio station might not be broadcasting at this time, or the station might have reached
it’s maximum number of listeners/subscribers.
•
•
•
•
•
•
•
•
70
Troubleshooting
My music
Check that your computer is turned on and your internet and wireless network are working. Make
sure your computer is working properly - you may need to reboot/restart your computer.
Make sure that you have created a user account for the IS9181 on your computer and that the folder
with your music les is properly shared (see pages 28-54).
Supported les extension types are: mp3, mp4, m4a, ra, rm, rmvb, and wma.
WAV format music les are not supported.
Follow the instructions on page 55 for entering the Computer Password. The Computer Password
and the IS9181 user account password must be the same.
FM radio
If the FM radio reception is poor, try moving the IS9181 to a different part of your home and on a
different electrical outlet.
Keep the IS9181 at least one foot away from other electronic devices and appliances to reduce
interference.
AUX IN
If you have trouble with the volume, you can adjust the volume using the IS9181 and the volume
control on your external device.
Make sure the auxiliary cable is properly plugged into the IS9181 and your external device.
•
•
•
•
•
•
•
•
•
71
Appendix
Troubleshooting
Favorites
There are separate dedicated favorites lists for Internet Radio, My Music, and FM Radio. You
must choose a SOURCE before choosing FAVORITES.
To add an Internet station to the favorites list, the station must be connected and playing.
You are allowed a maximum of 100 favorites for Internet Radio, 100 for My Music, and 20 for FM
Radio. If you reach the maximum you will need to delete other favorites before you can add new
ones.
INFO
While viewing the Weather screen, rotate the dial to view the ve day forecast weather display.
•
•
•
•
72
Important safety instructions
When using your IS9181 equipment, basic safety precautions should always be followed to reduce the risk of re, electric shock and injury,
including the following:
Read and understand all instructions.
Follow all warnings and instructions marked on the product.
Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Do not use this product near water (for example, near a bathtub, kitchen sink, or swimming pool).
Do not place this product on an unstable table, shelf, stand or other unstable surfaces.
Slots and openings in the back or bottom of the unit are provided for ventilation. To protect it from overheating, these openings must not
be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator
or heat register. This product should not be placed in any area where proper ventilation is not provided.
This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power
supply in your home, consult your dealer or local power company.
Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on.
Never push objects of any kind into this product through the slots in the unit because it may touch dangerous voltage points or create a
short circuit. Never spill liquid of any kind on the product.
To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing
parts of the unit other than specied access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can
cause electric shock when the product is subsequently used.
Do not overload wall outlets and extension cords.
Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions:
When the power supply cord or plug is damaged or frayed.
If liquid has been spilled onto the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the
operation instructions. Improper adjustment of other controls may result in damage and often requires extensive work by an authorized
technician to restore the product to normal operation.
If the product has been dropped and the unit has been damaged.
If the product exhibits a distinct change in performance.
The power adapter is intended to be correctly oriented in a vertical or oor mount position. The prongs are not designed to hold the
plug in place if it is plugged into a ceiling or an under-the-table/cabinet outlet.
SAVE THESE INSTRUCTIONS
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
A.
B.
C.
D.
E.
F.
13.
73
Appendix
Maintenance
Taking care of your unit
Your IS9181 contains sophisticated electronic parts, so it must be treated with care.
Avoid rough treatment
Handle the unit gently. Save the original packing materials to protect your IS9181 if you ever need to ship it.
Avoid water
Your unit can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with wet hands. Do not install the IS9181
near a sink, bathtub or shower.
Electrical storms
Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety, take caution when using electrical
appliances during storms.
Cleaning your unit
Your unit has a durable plastic casing that should retain its luster for many years. Clean it only with a soft cloth slightly dampened with water
or a mild soap. Do not use excess water or cleaning solvents of any kind.
Remember that electrical appliances can cause serious injury if used when you are wet or standing in the water. If the unit should fall into the
water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD FROM THE WALL.
74
Warranty
What does this limited warranty cover?
The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all
accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms
and conditions, when installed and used normally and in accordance with the Product operating instructions. This limited warranty extends
only to the Consumer for Products purchased and used in the United States of America and Canada.
What will VTech do if the Product is not free from defects in materials and workmanship during the limited warranty period
(“Materially Defective Product”)?
During the limited warranty period, VTech’s authorized service representative will repair or replace at VTech’s option, without charge, a
Materially Defective Product. If we repair the Product, we may use new or refurbished replacement parts. If we choose to replace the Product,
we may replace it with a new or refurbished Product of the same or similar design. We will retain defective parts, modules, or equipment.
Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech will return the repaired or replacement Products
to you in working condition. You should expect the repair or replacement to take approximately 30 days.
How long is the limited warranty period?
The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially
Defective Product under the terms of this limited warranty, this limited warranty also applies to repaired or replacement Product for a period
of either (a) 90 days from the date the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year
warranty; whichever is longer.
What is not covered by this limited warranty?
This limited warranty does not cover:
1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or
handling, neglect, inundation, re, water or other liquid intrusion; or
2. Product that has been damaged due to repair, alteration or modication by anyone other than an authorized service representative of
VTech; or
3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or cable or antenna systems; or
4. Product to the extent that the problem is caused by use with non-VTech accessories; or
5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have been removed, altered or rendered
illegible; or
6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or
institutional purposes (including but not limited to Products used for rental purposes); or
75
Appendix
7. Product returned without a valid proof of purchase (see item 2 below); or
8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems outside the unit.
How do you get warranty service?
To obtain warranty service in the United States of America, please call 1 (800) 595-9511. In Canada, please call 1 (800) 267-7377. NOTE:
Before calling for service, please review the user’s manual - a check of the Product’s controls and features may save you a service call.
Except as provided by applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for delivery
or handling charges incurred in the transport of the Product(s) to the service location. VTech will return repaired or replaced Product under
this limited warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage or loss of the Product
in transit. If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited warranty,
VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the cost of repair
and return shipping costs for the repair of Products that are not covered by this limited warranty.
What must you return with the Product to get warranty service?
1. Return the entire original package and contents including the Product to the VTech service location along with a description of the
malfunction or difculty; and
2. Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or
receipt; and
3. Provide your name, complete and correct mailing address, and telephone number.
Warranty
76
Other Limitations
This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written or oral communications
related to this Product. VTech provides no other warranties for this Product. The warranty exclusively describes all of VTech’s responsibilities
regarding the Product. There are no other express warranties. No one is authorized to make modications to this limited warranty and you
should not rely on any such modication.
State/Provincial Law Rights: This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state
or province to province.
Limitations: Implied warranties, including those of tness for a particular purpose and merchantability (an unwritten warranty that the Product
is t for ordinary use) are limited to one year from the date of purchase. Some states/provinces do not allow limitations on how long an implied
warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential,
or similar damages (including, but not limited to lost prots or revenue, inability to use the Product or other associated equipment, the cost
of substitute equipment, and claims by third parties) resulting from the use of this Product. Some states/provinces do not allow the exclusion
or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.
Please retain your original sales receipt as proof of purchase.
Warranty
77
Appendix
FCC Part 15
COMPLIANCE INFORMATION
Product Name: WiFi Internet Radio
Model Number: IS9181
This product contains FCC ID: EW780-6569-00
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this product may not cause harmful
interference, and (2) this product must accept any interference received, including interference that may cause undesired operation.
VTech Technologies Canada Ltd.
12111 Jacobson Way, Richmond, B.C., Canada V6W 1L5
IMPORTANT NOTICE: NO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Changes or modications to
this equipment not expressly approved by the party responsible for compliance could void user authority to operate the equipment.
CAUTION
IEEE 802.11b or 802.11g operation of this product in the U.S.A. is rmware-limited to channels 1 through 11.
To comply with FCC RF exposure compliance requirement, separation distance of at least 20 cm must be maintained between the antenna
of this product and all persons.
This product and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.
•
•
78
FCC Part 15
FCC NOTICE
This product has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the FCC Rules. These
requirements are intended to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the product OFF and
ON, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the product into an outlet on a circuit different from that to which the receiver is connected.
Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for help.
•
•
•
•
79
Appendix
IC RSS-210 (Canada)
PRODUCT
This product contains IC 1135A-80656900.
This product complies with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) this product may not
cause harmful interference, and (2) this product must accept any interference received, including interference that may cause undesired
operation.
Industry Canada Notice
This Class B digital apparatus complies with Canadian ICES-003.
CAUTION
To reduce potential radio interference to other users, the antenna type and its gains should be so chosen that the equivalent isotropically
radiated power (e.i.r.p.) is not more than that permitted for successful communication.
80
Technical specications
Size 314 mm (w) X 159 mm (d) X 88 mm (h)
Weight 1420 grams
Power requirements 14V DC
Operating temperature 32°F — 122°F
0°C — 50°C
IMPORTANT:
This product is protected by certain intellectual property rights of Microsoft Corporation. Use or
distribution of such technology outside of this product is prohibited without a license from Microsoft
or an authorized Microsoft subsidiary.
MPEG Layer-3 audio decoding technology licensed from Fraunhofer IIS and Thomson.
Portions of this software are included under license from RealNetworks, Inc.
Copyright 1995-2007, RealNetworks, Inc. All rights reserved.
®2008 RealNetworks, Inc. Patents Pending. All rights reserved. RealNetworks, Real, the
Real logo, RealPlayer, and the RealPlayer logo are trademarks or registered trademarks
of RealNetworks, Inc.
81
Index
A
Access your music from the
IS9181 55
Add to favorites 59
Alarm 11
Aux in 58
B
Before you begin 1
C
Clock 16
Create a new user account for
Windows 2000 30
Create a new user account for
Windows XP 34
Create an online account 22
Create new user account in Windows
Vista 38
Create the IS9181 user account and
share the folder 45
Create the IS9181 user account and
share the folder 51
D
Delete favorites 62
Determine the version of your
Windows operating system 28
E
External audio device connection 58
External USB & Firewire drives
54
F
Favorites 59
FCC Part 15 77
Find a Internet radio station by URL
24
FM radio 57
G
Getting to know the IS9181 7
H
Horoscope 64
I
IC RSS-210 (Canada) 79
Important safety instructions 72
Index 81
Info 63
Installation 3
Instructions for IS9181 setup with Mac
OS 10.4 45
Instructions for IS9181 setup with Mac
OS 10.5 51
Internet radio 20
IS9181 installation 3
IS9181 layout 7
IS9181 status icons 10
M
Maintenance 73
Menu 11
Minimum requirements 1
Move favorites 61
My music 27
My Stations 22
O
Optional battery installation 66
Optional external audio system
connection 65
P
Parts checklist 2
Play added Internet radio station
26
Play favorites 60
Play FM radio station 57
Play Internet radio station 20
Play music on your computer 55
Product ID 19
82
R
Remote control installation 6
Remote control layout 9
Replace remote control battery 6
S
Screen brightness 13
Search for Internet radio stations
online 23
Share a folder on Windows 2000
Professional 29
Share a folder on Windows Vista 43
Share a folder on Windows XP 32
Source 20
Standby mode 5
Suggest a station 25
T
Technical specications 80
To continue playing music 12
To silence the alarm for 10
minutes 12
To stop the alarm 13
Troubleshooting 68
V
Volume 7, 9
W
Warranty 74
Weather forecast 63
Weather settings 18
Wireless network 14
Index
VTECH TELECOMMUNICATIONS LTD.
A member of THE VTECH GROUP OF COMPANIES.
Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon
Distributed in Canada by VTech Technologies Canada, Ltd., Richmond, B.C.
Copyright ©2008 for VTECH TELECOMMUNICATIONS LTD.
Printed in China.
User’s manual
www.vtechphones.com
Model: IS9181

Navigation menu
