User Guide Addendum

SPEEDLAN 9200, PROFESSIONAL INSTALLATION
GUIDELINES USER GUIDE ADDENDUM
ADDITION TO 34357-MNL (FOR SPEEDLAN 9200, 2.4/5.8/4.9)
Rev 01 SPEEDLAN Professional Installation Guidelines User Guide Addendum
Table of Contents:
1. Background Information on the Installation of Speedlan 9200 ....................................................................2
2. 2.4 GHz SPEEDLAN 9200 Installation Requirements .................................................................................. 2
3. 5.8 GHz SPEEDLAN 9200 Installation Requirements .................................................................................. 3
4. 4.9 GHz SPEEDLAN 9200 Requirements.......................................................................................................3
1. Background Information on the Installation of Speedlan 9200
Wave Wireless requires a Professional Installer to install the Speedlan 9200 product
The Speedlan 9200 was tested for compliance to the Federal Communication Commission (FCC) rules part 15.247
and the testing results indicated the need for some special guidelines for the Professional Installer to follow when
installing the Speedlan 9200.
2. 2.4 GHz SPEEDLAN 9200 Installation Requirements

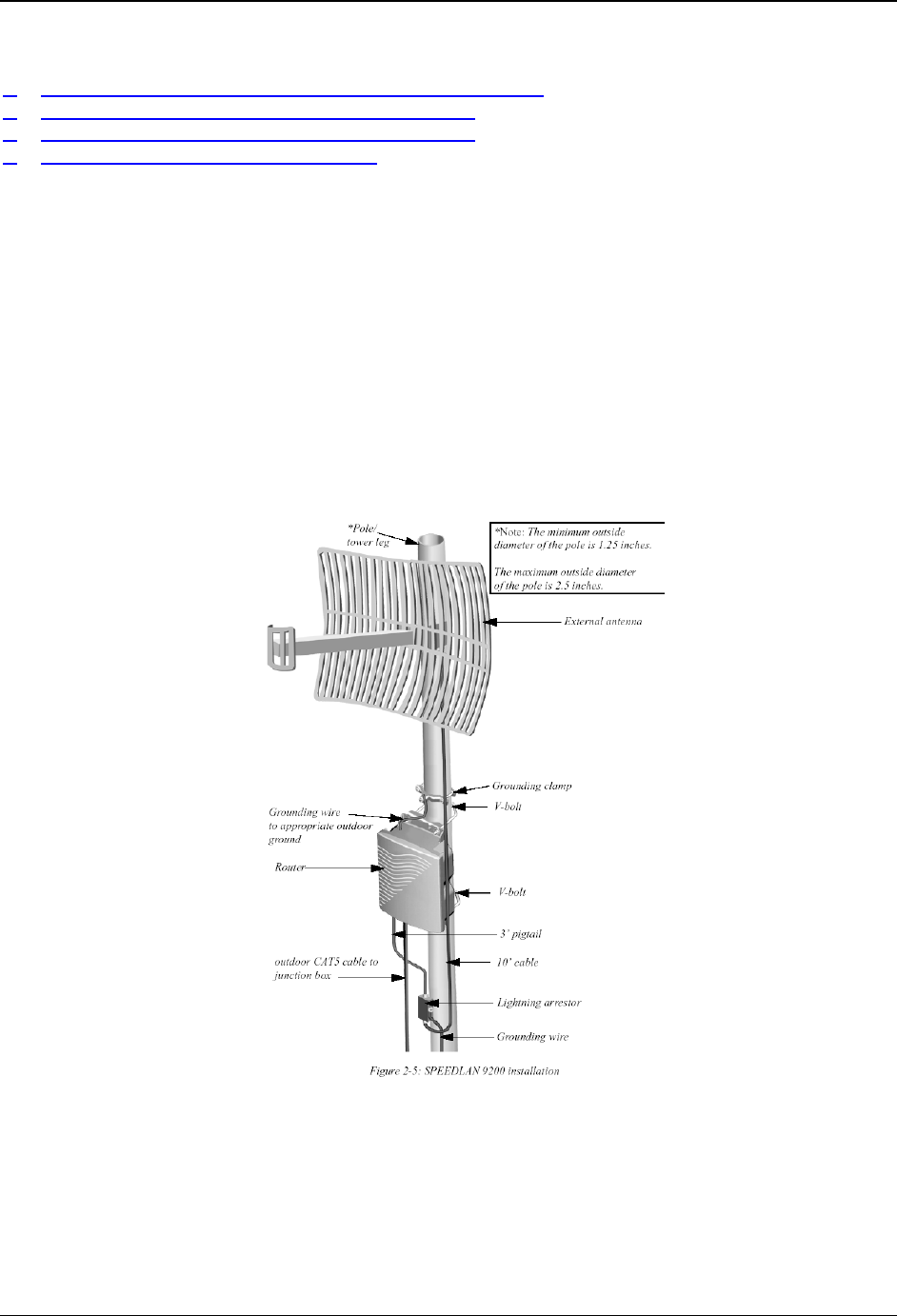

The installer is to follow the diagram in Figure 2-5 of the Speedlan 9200 User guide, Wave Wireless part number
34357-MNL.
3. 2.4 GHz SPEEDLAN 9200 Installation Requirements
The professional installer must follow the following guidelines in table 1 when installing the SPEEDLAN 9200 at
2.4 GHz.
Wave Wireless Confidential 2 of 3
Rev 01 SPEEDLAN Professional Installation Guidelines User Guide Addendum
Antenna Type (802.11g), MAX TXPO Setting:
24 dBi, Parabolic Grid +17 dBm, except +15 dBm on Channel 11
16 dBi, 90° Sector +17 dBm, except +14 dBm on Channel 1 & 11
15 dBi, Yagi +17 dBm, except +13 dBm on Channel 1 & 11
12 dBi OMNI +17 dBm, except +15 dBm on Channel 1 & 11
8 dBi Patch +17 dBm, except +15 dBm on Channel 1 and
+17 dBm, except +14 dBm on Channel 11
For 802.11b, +17 dBm no TXPO restrictions
4. 5.8 GHz SPEEDLAN 9200 Installation Requirements
The professional installer must follow the following guidelines in table 1 when installing the SPEEDLAN 9200 at
5.8 GHz
Antenna Type (802.11a), MAX TXPO Setting:
29 dBi, Parabolic Grid +17 dBm, Band-Stop or Band Pass filter
required before Antenna
23 dBi, Panel +17 dBm, Band-Stop or Band Pass filter
required before Antenna
17 dBi, Backfire Parabolic +17 dBm, no restrictions
16 dBi, 120° Sector +17 dBm, no restrictions
8 dBi OMNI +17 dBm, no restrictions
The installer is to follow the diagram in Figure 2-5 of the Speedlan 9200 User guide, Wave Wireless part number
34357-MNL. The filter is to installed directly on the antenna or in line with the lightning arrestor
5. 4.9 GHz SPEEDLAN 9200 Requirements
The professional installer must follow the following guidelines in table 1 when installing the SPEEDLAN 9200 at
4.9 GHz:
4.9 GHz complies with Part 90, Subpart Y,
As per 90.1215, the maximum antenna gain 9dBi for OMNI antennas. The maximum antenna gain is 26 dBi for
directional antennas used in Point-to-Point or Point-to-Multipoint.
For each dB increase in antenna gain over the above stated values, the transmit power must be reduced
correspondingly
Wave Wireless Confidential 3 of 3
