Gabriel flat panel antenna description

P.O. Box 70, Scarborough, Maine 04070 U.S.A. Tel: 207-883-5161 Fax: 207-883-4469
email: sales@gabrielnet.com web: http://www.gabrielnet.com
58
5.250 - 5.850 GHz
Flat Panel Antennas
5.250 - 5.850 GHz
Electrical Specifications
Associated Equipment Information Pages
Point-to-Point Antenna Specifications ................................. 14 - 111
Special Application Antennas ............................................. 135 - 145
Antenna Mounts & Reference Dimensions ....................... 112 - 134
Radomes ................................................................................ 122 - 124
Tower Accessories ............................................................. 146 - 154
Transmission Lines .............................................................. 155 - 243
Dry Air Pressurizers ............................................................ 244 - 253

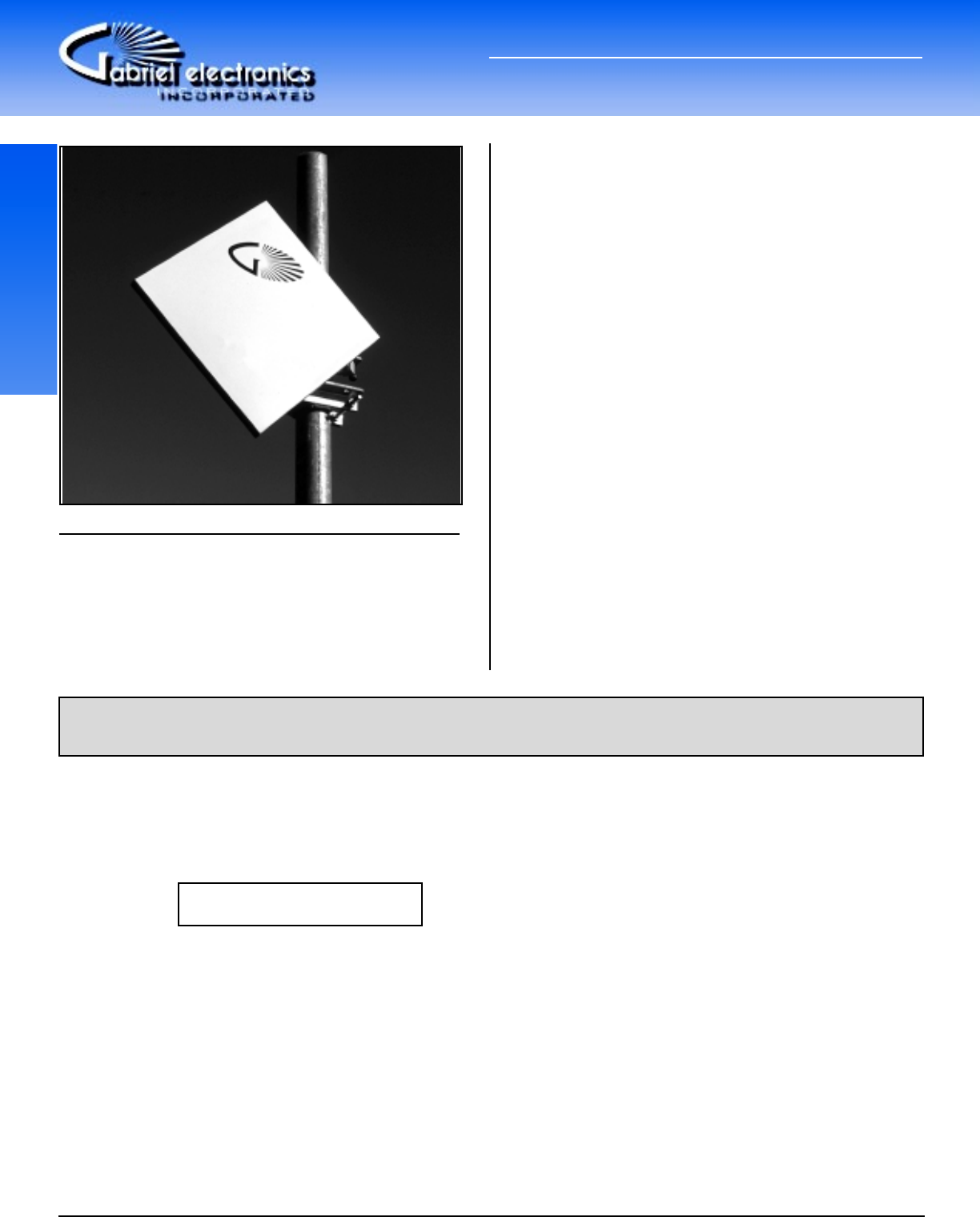

5 GHz Directional Flat Panel Antenna
5 GHz - Spread Spectrum / NII Band
Directional Flat Panel Antenna
(for Point-to-Point applications)
Facts & Features
• Gabriel Quality and Dependability.
• Lightweight and durable construction.
• Quick and easy installation.
• Feed input, Type N Female connector. (Other types available
on request.)
• Input connector positioned on back of antenna assembly.
• Antenna supplied with paintable rigid radome.
• All Gabriel antennas meet or exceed Standards EIA-195-C
and EIA-222-F.
• Antenna accommodates +/-20° elevation adjustment.
(specific installation limitations may apply)
• Mini-Mounts accommodate a 1.9 in. to 4.5 in. (48 to 114 mm)
O.D. mast pipe. Quick-Align Mounts mount to a 2.375 in. (60
mm) O.D. mast pipe. An optional 1.9 in. (48 mm) to 4.5 in. (114
mm) Mast Clamp Kit is available on request for the Quick-Align
Mount.
•
To adapt the Quick Align Mount for use on a 1.9 in. to 4.5 in.
O.D. mast pipe order Mast Clamp Kit MCKQ-19-45
• Special colors and / or logos available on request.
• Dual band models are available.
Diagonal - Directional Flat Panel - Plane Polarized
DFPS.5-52** 0.5 (0.15) MM 17.5 18.0 18.4 19.0 30 35 1.50 (14.0)
DFPD1-52 1 (0.3) MM 23.0 23.5 23.9 9.4 30 43 1.50 (14.0)
DFPD1-52 (M1) 1 (0.3) QAM 23.0 23.5 23.9 9.4 30 43 1.50 (14.0)
DFPD2-52 2 (0.6) QAM 27.5 28.0 28.4 4.6 30 46 1.50 (14.0)
NOTE:
Product information subject to change without notice.
5.250 - 5.850
VSWR (R.L.
max. dB)
Frequency
GHz Model
Number
Diameter
ft (m) Mount
Type
Gain at
Low Mid High
dBi
Nominal
Mid-Band
Beamwidth
degrees
XPD
dB
F/B
ratio
dB
MM = Mini - Mount
QAM = Quick Align Mount
** Note:
The DFPS.5-52 antenna model is square in configuration.
