2 Operating on battery power46
conservation and maximum performance at the same time. Windows handles all
power-saving chores for your computer.
Advanced Configuration and Power Interface
Advanced Configuration and Power Interface (ACPI) is a power management
specification jointly developed by Compaq/Intel/Microsoft/Phoenix/Toshiba.
ACPI enables Windows to control the amount of power given to each device
attached to the computer. With ACPI, Windows can turn off peripheral devices
when they are not in use, thereby saving power.
Note: We recommend you enable power management to prolong your battery
life.
Refer to Windows help for more details.
AJ-e.book Page 46 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg2.png)
3 Peripherals and
options
AJ-e.book Page 47 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg3.png)
Your computer offers excellent expansion capabilities
with its built-in ports and connectors. This chapter
describes how to connect peripherals and hardware
options that help you use your computer with ease.
When connecting peripherals, read the manual
included with the peripheral for operating instructions.
You can purchase most of these and other options
directly from authorized dealers.
This chapter also includes sections on how to upgrade
key components. Key component upgradeability
helps keep your computer in step with the latest
technology.
AJ-e.book Page 48 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg4.png)
49
External monitor
You can connect an external monitor to the CRT port. Read the monitor manual
for additional instructions.
Note: If an external monitor is not connected, closing the display cover puts
the computer into Standby mode.
Using simultaneous display
Your computer takes advantage of Windows multi-display capability, allowing
you to use your computer for presentation purposes. So whatever is displayed in
your computer will likewise be displayed on the other external display.
To use simultaneous display, you can choose to connect other display devices to
the computer through the CRT port.
AJ-e.book Page 49 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg5.png)
3 Peripherals and options50
S-video
The S-video port allows you to output to a television or display devices that
support S-video input. This is important if you want to do some presentations.
AJ-e.book Page 50 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg6.png)
51

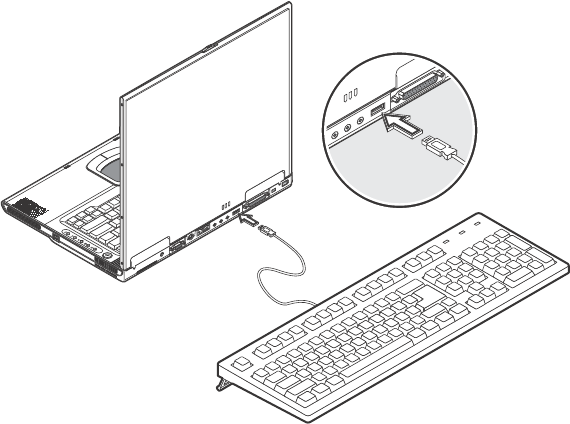

External keyboard
This computer has a keyboard with full-sized keys and an embedded keypad. If
you feel more comfortable using a desktop keyboard, you can connect a USB
external keyboard.
To connect an external keyboard, plug the external keyboard into the USB port.
AJ-e.book Page 51 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg7.png)
3 Peripherals and options52

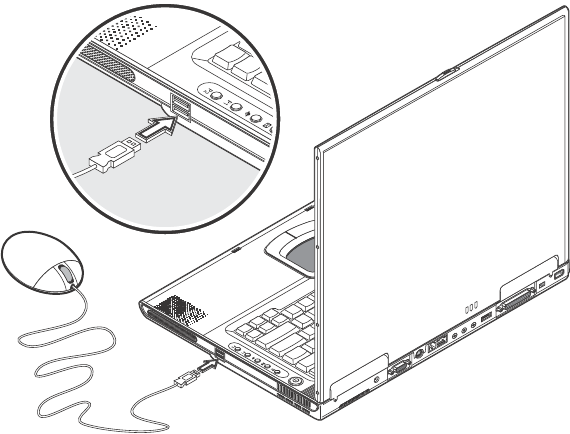

External pointing device
This computer accepts either a USB mouse or a similar pointing device.
AJ-e.book Page 52 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg8.png)
53
Printer
You can also connect a USB printer to your computer USB port. See your printer
manual for operating instructions.
AJ-e.book Page 53 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bg9.png)
3 Peripherals and options54

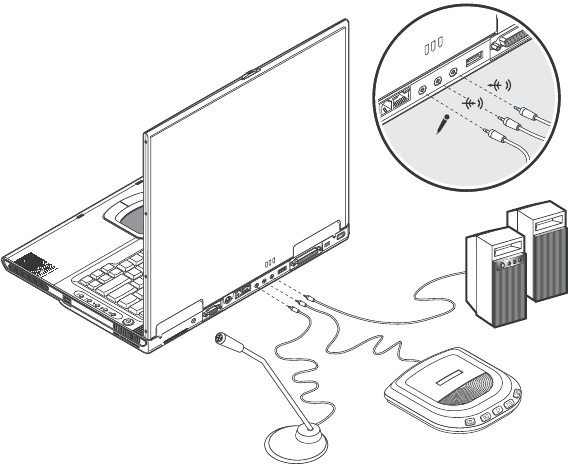

Audio devices
Audio devices are easy to connect with the audio ports accessible from the rear
side of the computer. You can plug an external microphone into the microphone
jack. Audio line-in device into the line-in jack. Amplified speakers or headphones
connect to the line-out jack.
You can also install an optional subwoofer module into your computer’s expansion
module, see “Front view” on page 5 for the location of the expansion module bay.
The subwoofer module carries low-frequency sound to give a bass boost and create
a rumbling effect for certain special effects sounds, such as explosions and trains.
See your dealer for more details on the subwoofer module.
AJ-e.book Page 54 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bga.png)
55
PC Card
The computer has a built-in CardBus PC Card slot that can accommodate one type
II PC Card. Please consult your dealer for PC Card options available that you can
purchase for your computer.
PC Card slot
The type II CardBus PC Card slot found on the left panel of the computer accepts
credit-card-sized cards that enhance the usability and expandability of the
computer.
PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving
you expansion possibilities long afforded by desktop PCs. Popular type II cards
include flash memory, SRAM, fax/data modem, LAN and SCSI cards. CardBus
improves on the 16-bit PC card technology by expanding the data path to 32 bits.
Note: Refer to your card’s manual for details on how to install and use the
card and its functions.

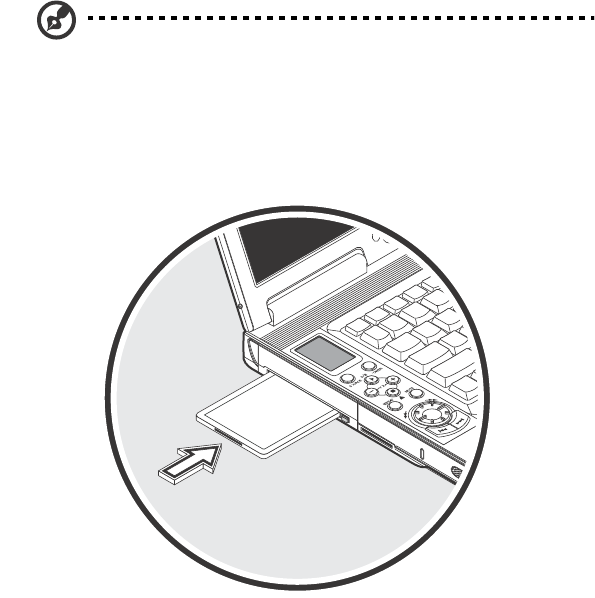

Inserting a card
Insert the card into the slot and make the proper connections (e.g., network cable),
if necessary. See your card manual for details.
AJ-e.book Page 55 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bgb.png)
3 Peripherals and options56
Ejecting a card
Before ejecting a PC Card:
• Exit the application using the card.
• Left-click on the PC Card icon on the taskbar and stop the card operation.
Press the slot eject button once to pop it out; then press it again to eject the PC
Card.
AJ-e.book Page 56 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bgc.png)
57
USB devices
The computer has two USB (Universal Serial Bus) (2.0) ports that allow you to
connect peripherals without occupying too many resources. Common USB
devices include a mouse, keyboard, and digital camera.
AJ-e.book Page 57 Friday, April 11, 2003 5:18 PM
![](/img.php?id=325578&img=bgd.png)
3 Peripherals and options58
IEEE 1394 devices
The computer's fast IEEE 1394 port allows you to connect IEEE 1394 supported
devices like a digital video camera or optical drive. The computer comes with 2
kind of IEEE 1394 ports, 4-pin and 6-pin for more flexibility.
See your peripheral's documentation for details.
AJ-e.book Page 58 Friday, April 11, 2003 5:18 PM
59
Miscellaneous options
Additional power packs
You can order an AC adapter and spare batteries.
Battery pack
It is a good practice to have a spare battery around, especially when you travel.
The Li-ion battery, coupled with the power management features of your
computer, supplies you with more power on-the-go.
You can also purchase a secondary battery pack to install in the module bay.
AC adapter
The compact AC adapter charges your battery pack and supplies power to your
computer. You can order a spare AC adapter so you do not need to carry it from
the office to your home or destination.
AJ-e.book Page 59 Friday, April 11, 2003 5:18 PM
