User Manual 1 of 2
1
AAUUDDIIOOVVOOXX PPPPCC44110000
AAUUDDIIOOVVOOXX PPPPCC44110000
Tri-band GSM (850/1800/1900)
Pocket PC with Built-in Phone
In today’s fast paced world, it has become a necessity to
have access to real time information.Your communications
tools must provide you with this access from anywhere
at anytime. With that in mind, Audiovox developed the
PPC4100, a tri-band GSM Pocket PC device with built-in
phone functionality.
Operating on the 850, 1800 and 1900 MHz GSM frequencies,
the PPC4100 allows for seamless nationwide coverage
as well as offering state-of-the-art,
user-friendly features.
The PPC4100 has Intel
®
Mobile Media Technology at
400 MHz with 64 MB RAM and 64 MB ROM. It also
offers a 3.5” TFT LCD with QVGA resolution, speed
dialing, two-way speakerphone, and GPRS functionality
for wireless internet connection.
Your new PPC4100 Pocket PC provides you with
something only an Audiovox phone can: the proven
reliability that has made us a leading wireless handset
provider. Read through this owner’s manual to help
make the most efficient use of this valuable
communications tool.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:01 PM Page 1
2 3
TTAABBLLEE OOFF CCOONNTTEENNTTSS
CCHHAAPPTTEERR 11 FFIIRRSSTT TTHHIINNGGSS FFIIRRSSTT .. .. .. .. .. .. .. .. ..
PPaacckkaaggee CCoonntteennttss
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
HHaannddsseett SSeettuupp.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. .. ..
Minimum PC Computer Requirements
.......
Installing Microsoft ActiveSync
..............

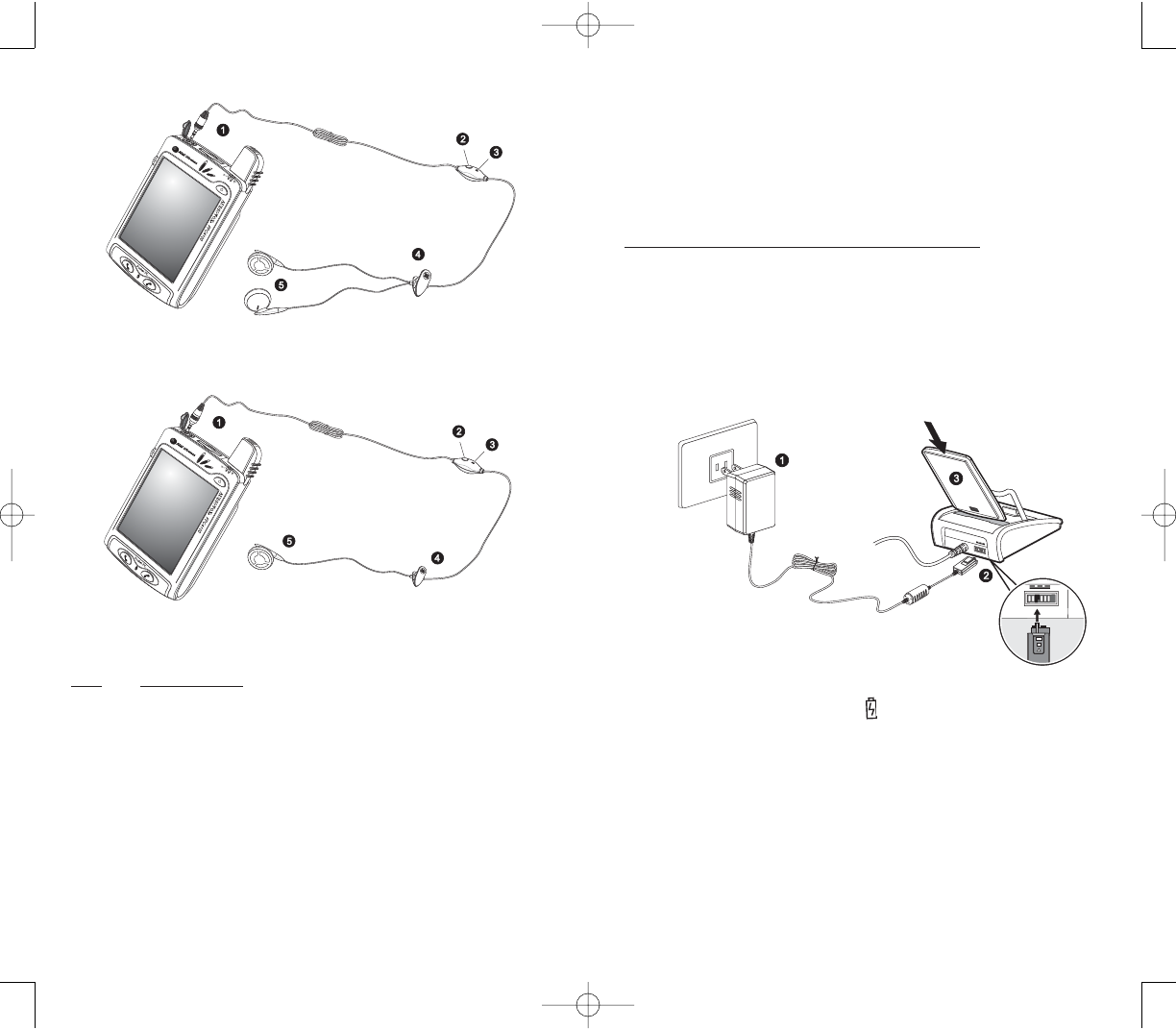

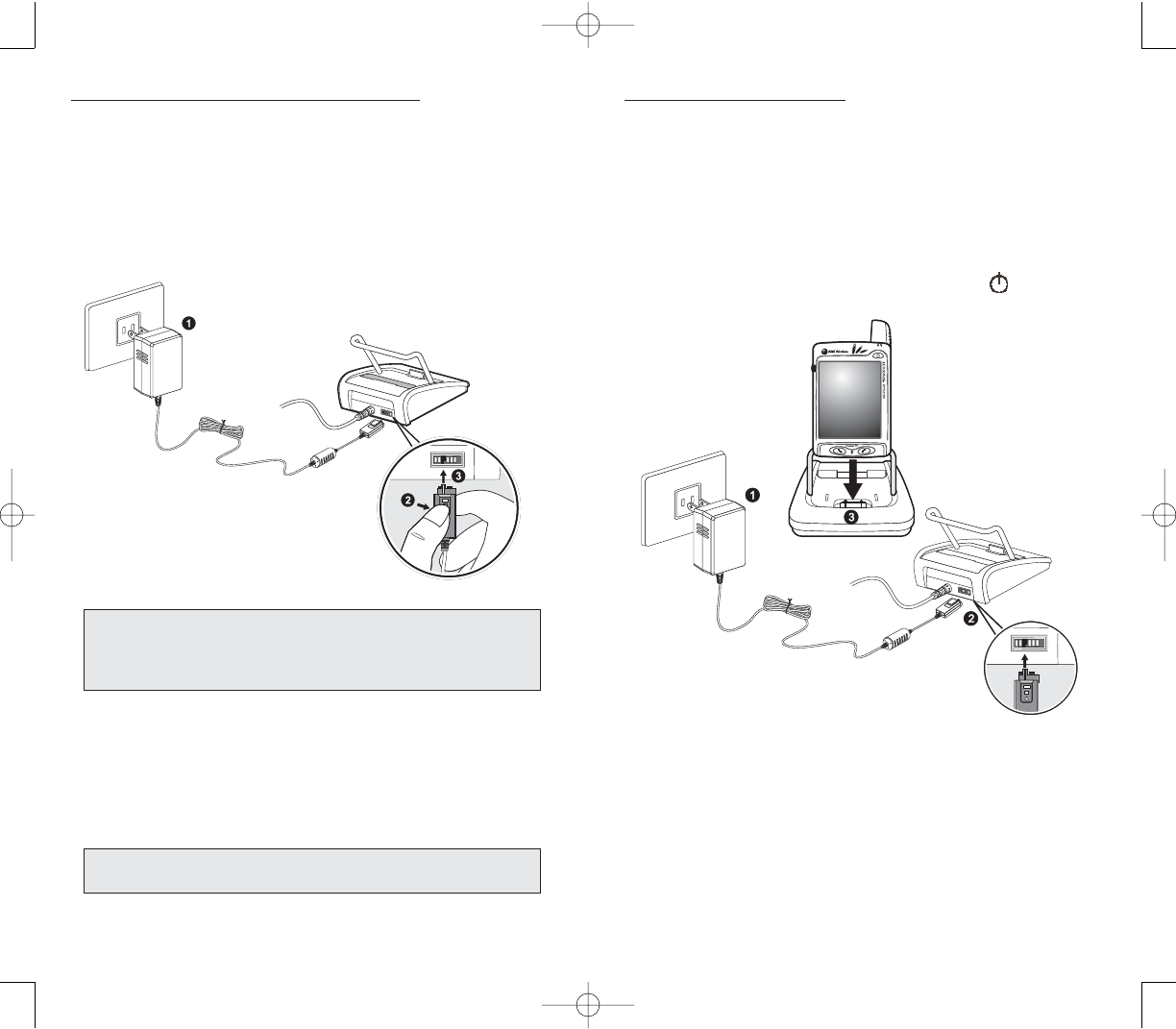

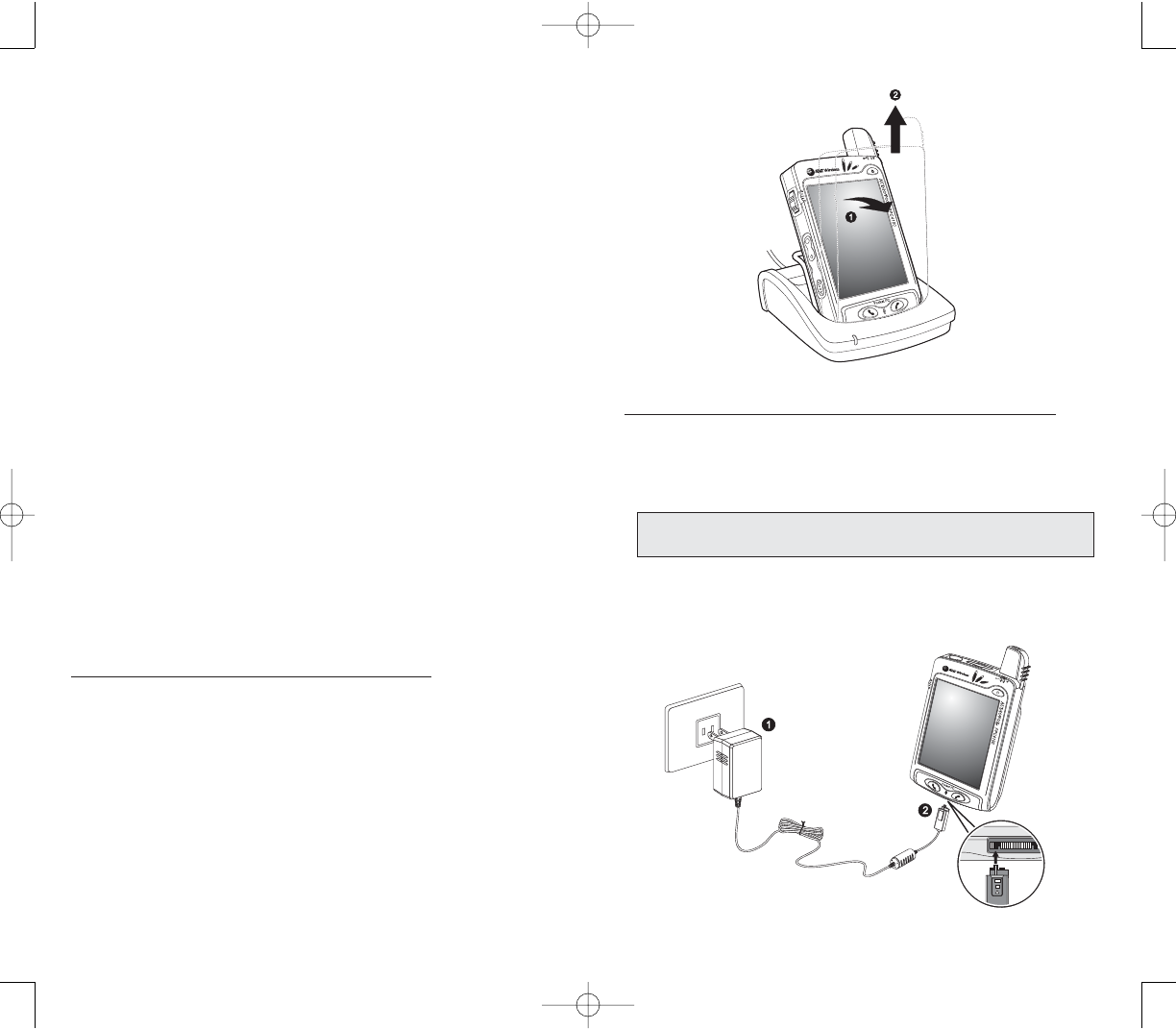

Connecting the USB Cradle
................
Charging Your Handset
.............. .....
Setting Up Your Handset
.............. ....
SSyysstteemm PPrroocceedduurreess .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

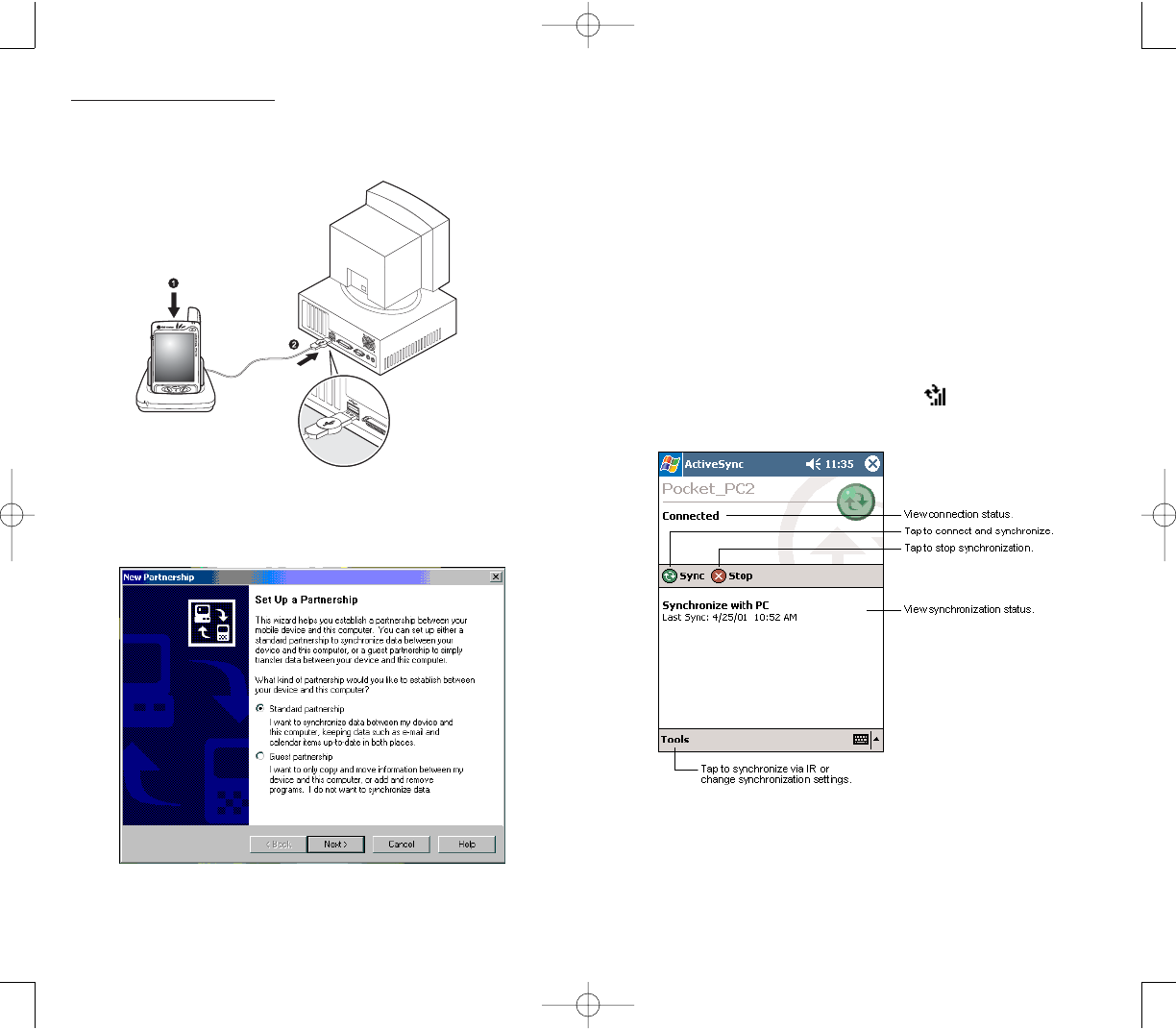

Performing the First Synchronization
.........

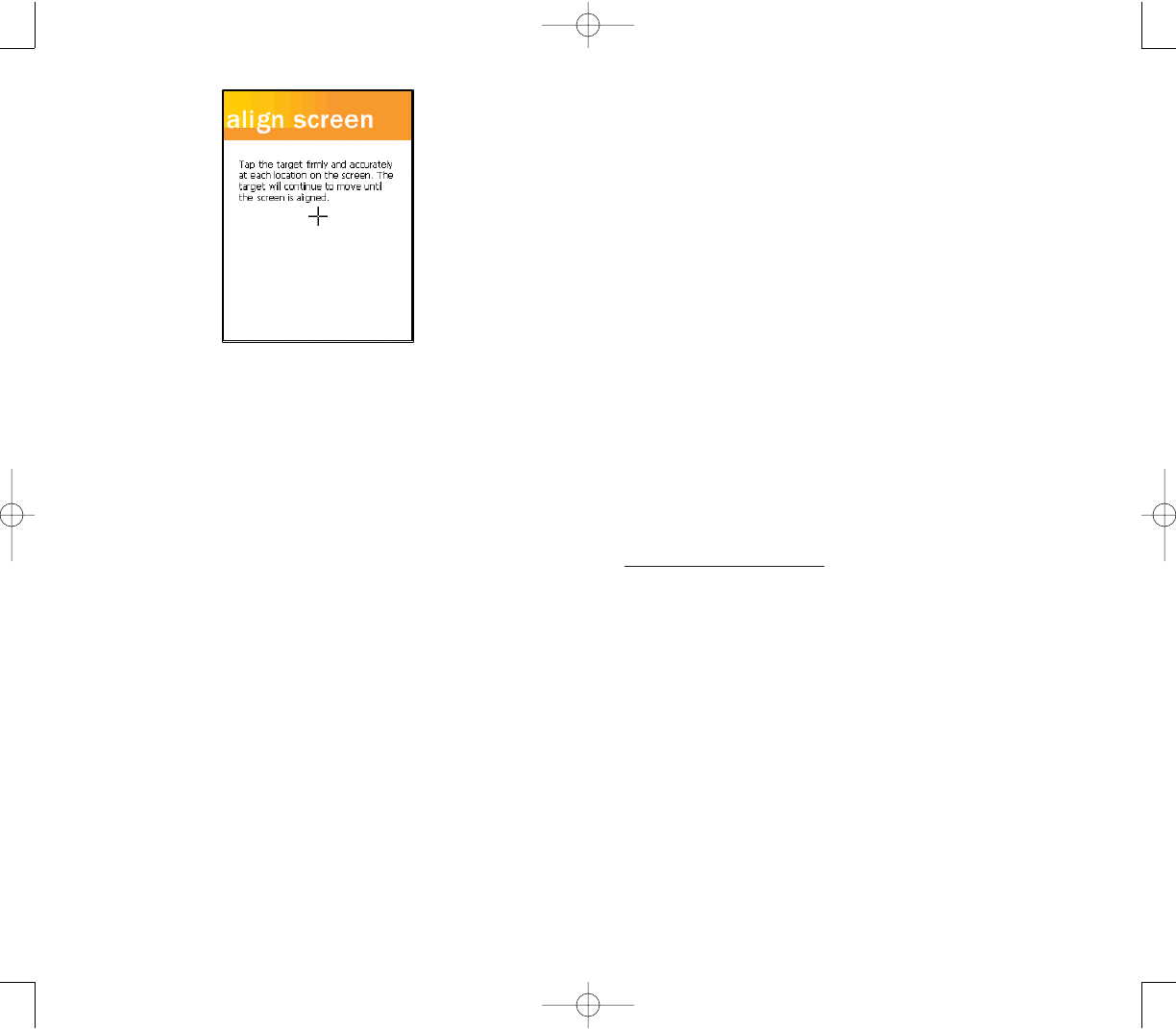

Screen Recalibration ......................
Creating Backup Files . ....................
Resetting Your Handset ...................
Locking Your Handset . . . . . . . . . . . . . ........
CCHHAAPPTTEERR 22 GGEETTTTIINNGG SSTTAARRTTEEDD
.. .. .. .. .. .... .. .. .. ..
HHaannddsseett FFeeaattuurreess .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... ..
HHaannddsseett TToouurr .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

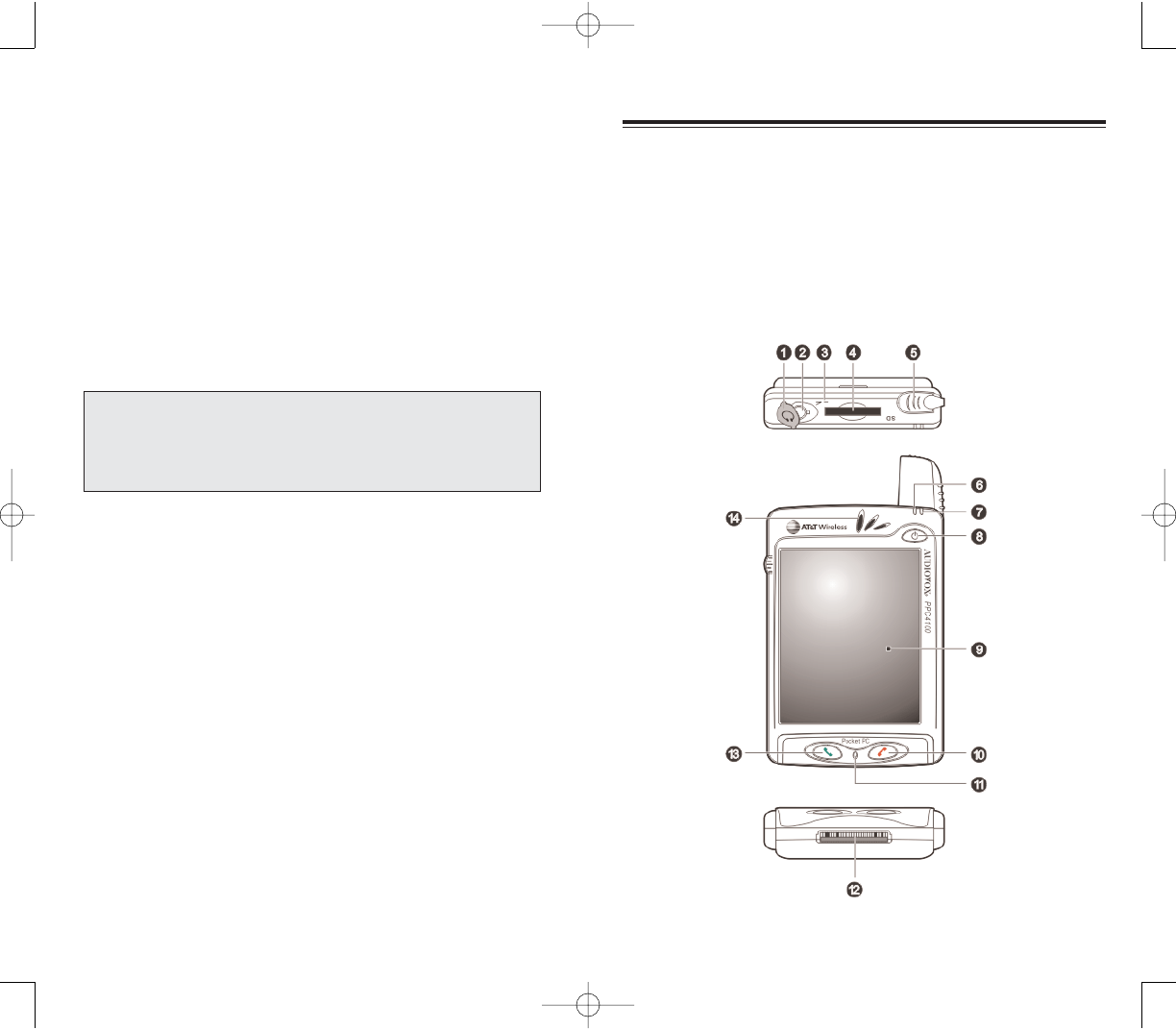

Front View
..............................

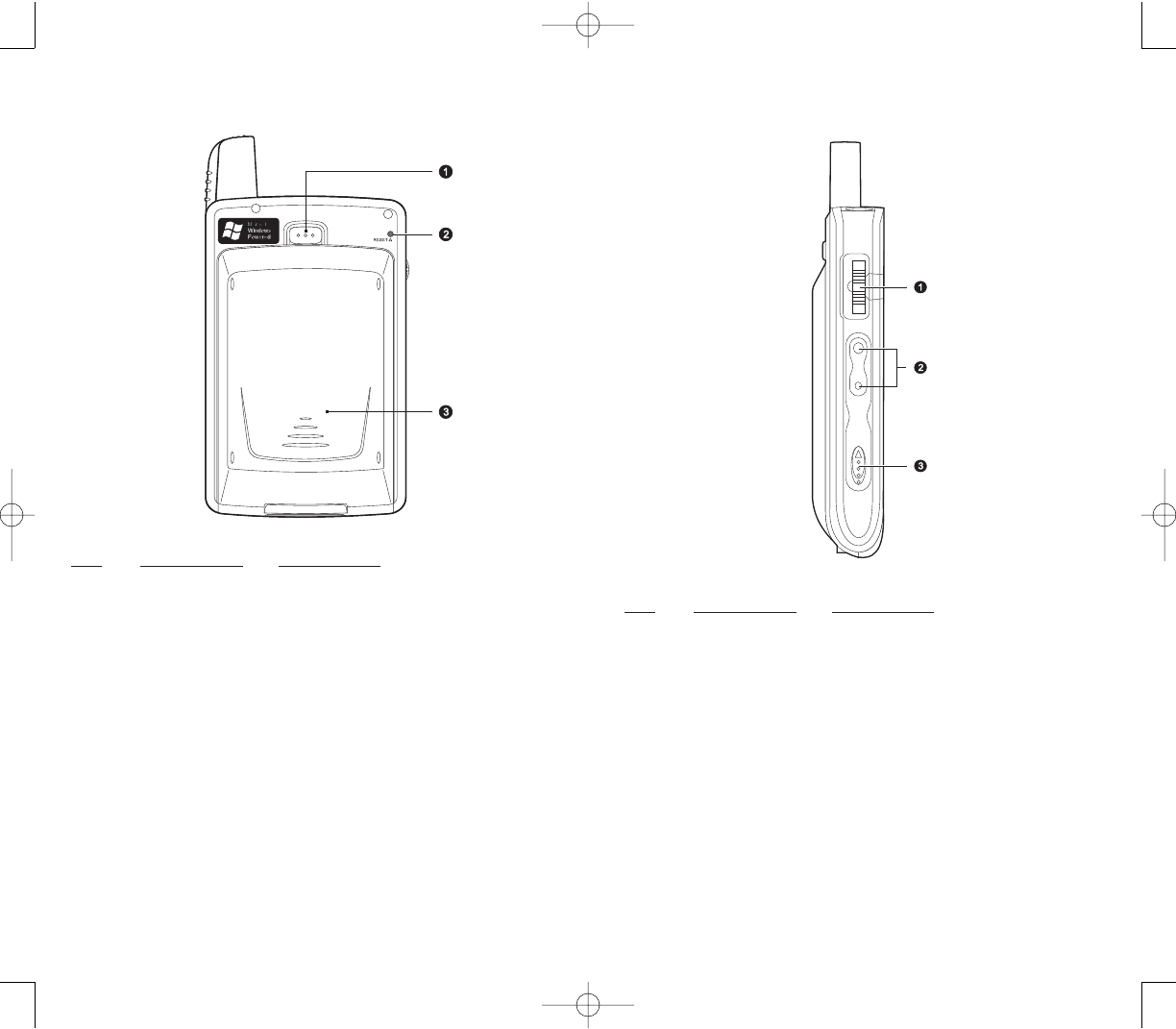

Rear View . ....................
.........
Left View . . ..................
...........
Using the Backlight . ......................
Using the SD/MMC Slot . ..................
PPeerriipphheerraallss TToouurr .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
USB Cradle
.............................
Stereo Headset and Earphone Microphone . . .
Charging an Optional Spare Battery Pack . . . .
Send/End Button Operation . . . . . . . . . . . . . . . .
CCoommmmaanndd IInntteerrffaaccee .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Hardware Buttons and the Stylus . ...........

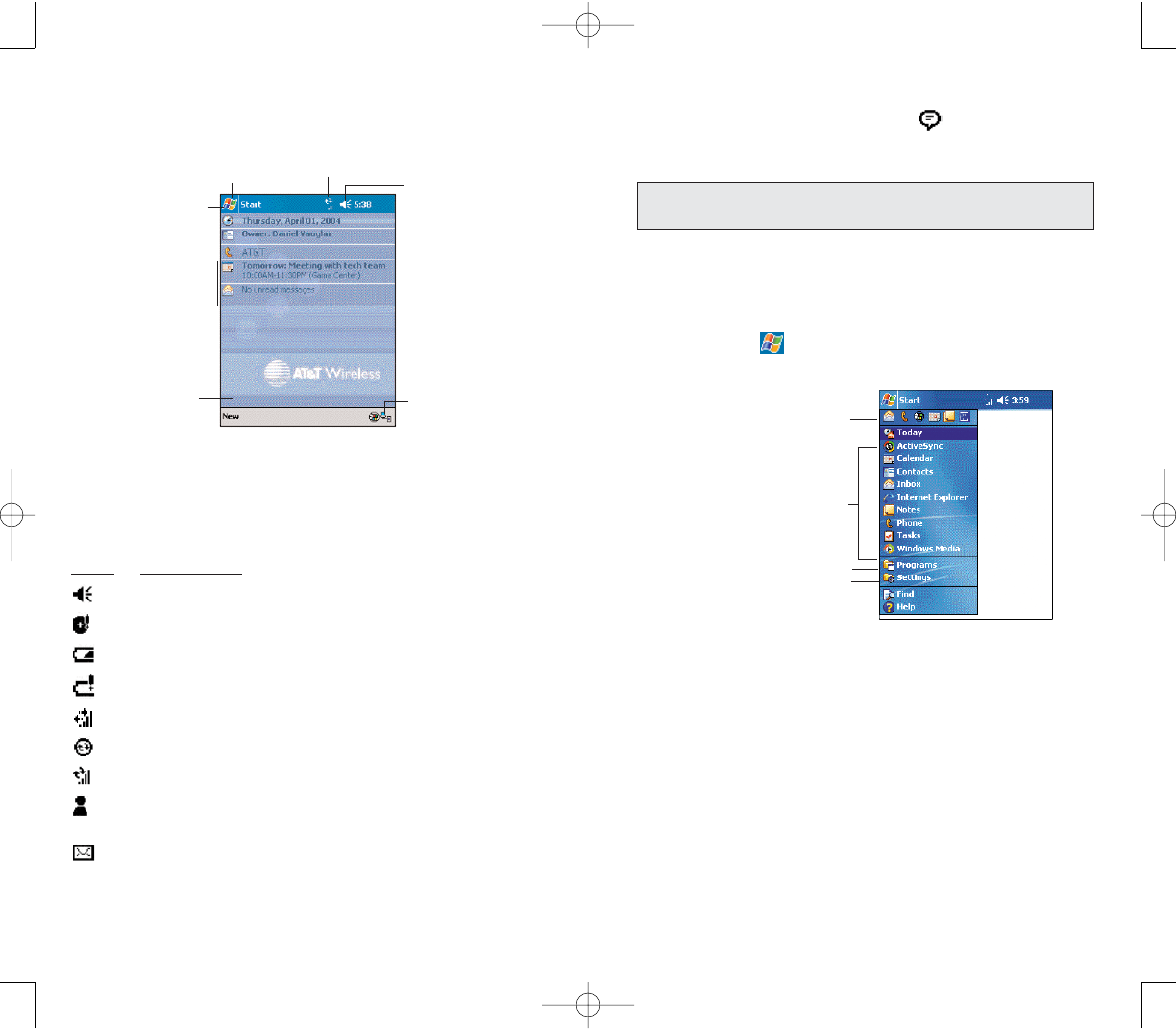

Today Screen . ............................
Status Icons . ............................
Navigation Bar ...........................

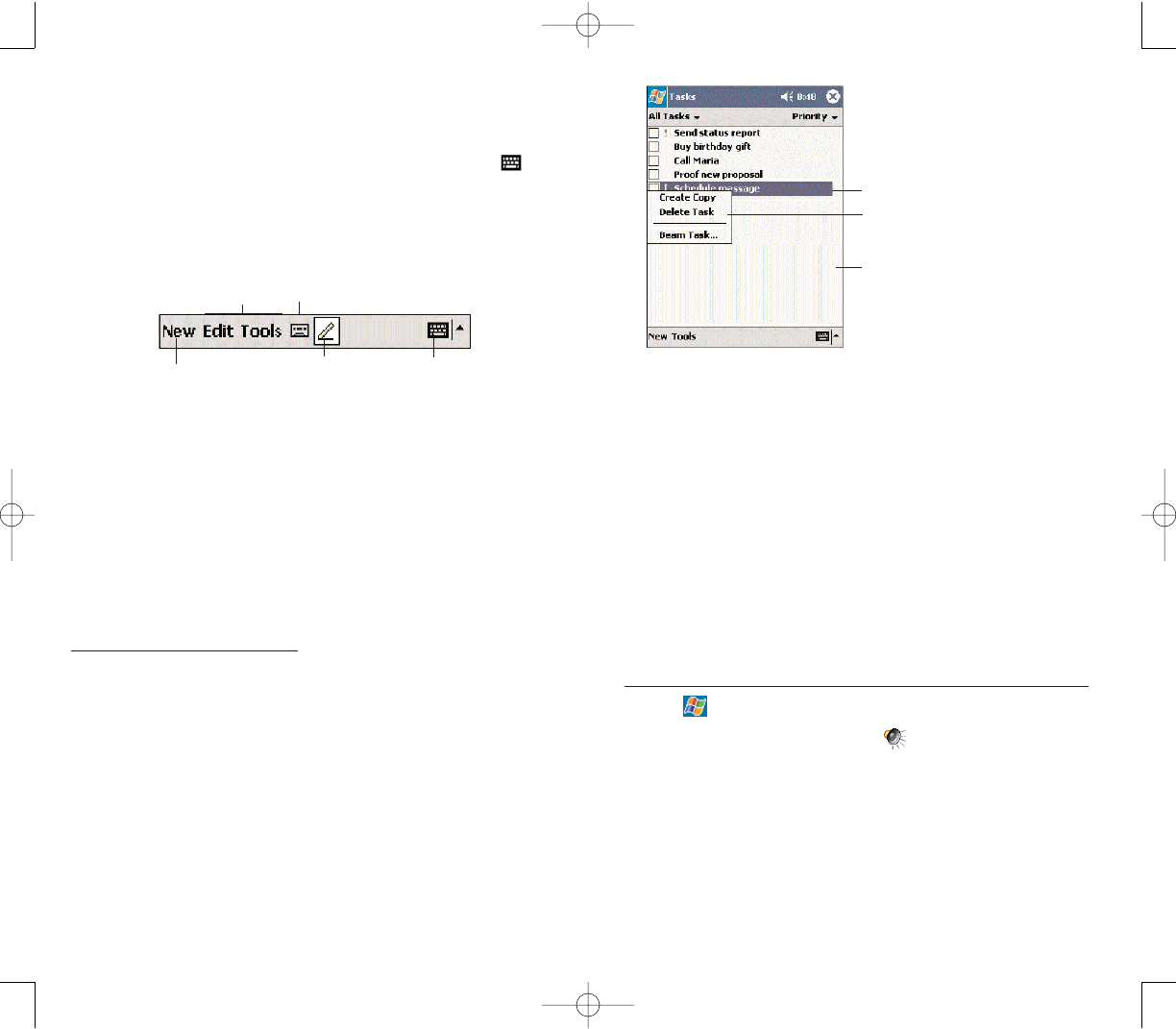

Command Bar . ...........................
Notifications . .............. ........ .....
99
1100
1111
11
12
15
16
20
2211
21
23
24
25
27
3311
3322
3355
35
38
39
41
42
4444
44
45
47
48
4499
49
49
50
51
52
53
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:01 PM Page 2
4 5
TTAABBLLEE OOFF CCOONNTTEENNTTSS TTAABBLLEE OOFF CCOONNTTEENNTTSS

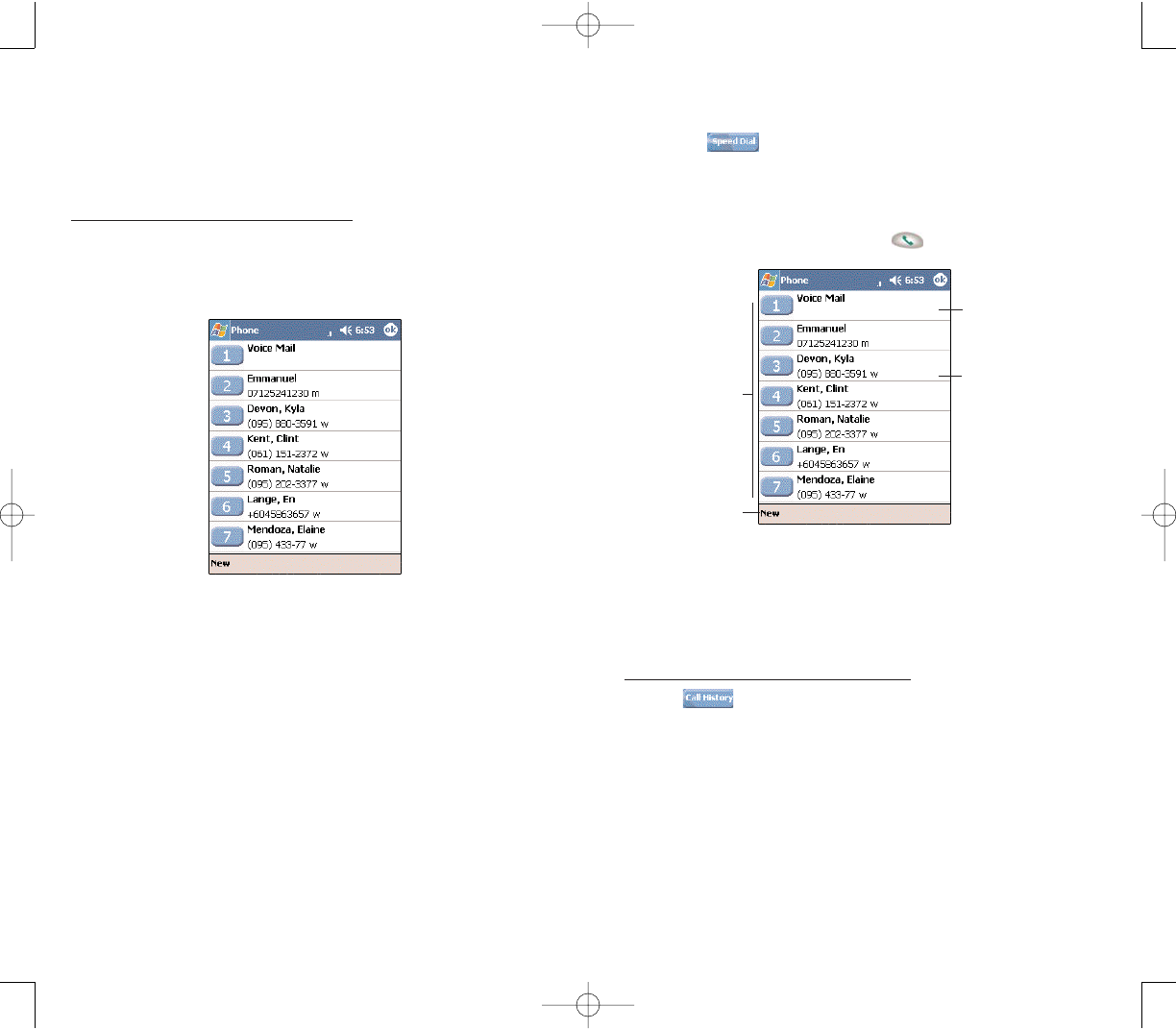

Making a Call Using Speed Dial
............
Making a Call Using Call History
............
Making a Call Using SIM Manager
..........
Making an International Call
...............
Making an Emergency Call
........ ........
PPhhoonnee FFeeaattuurreess.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. ..
Call Notification
.........................
Call Hold
..............................
Conference Call
.........................
Call Notes
.......................... ...
SMS Service
............................
Voice Mail
..............................
Contacts Integration
......................
CCoonnffiigguurriinngg CCaallll HHiissttoorryy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Call History Categories
...................
Call History Limit
.........................
Deleting Call History Entries
...............
PPhhoonnee PPrreeffeerreenncceess.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... ..
Phone Tab
..............................
Services Tab
............................
Network Tab
............................
CCHHAAPPTTEERR 33 MMAANNAAGGIINNGG PPRROOGGRRAAMMSS .. .. .. .. ..
AAcccceessssiinngg PPrrooggrraammss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ....
Opening a Program. .......................
Switching Between Programs ...............
UUssiinngg FFiinndd.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. .. .. .. .. .. ..

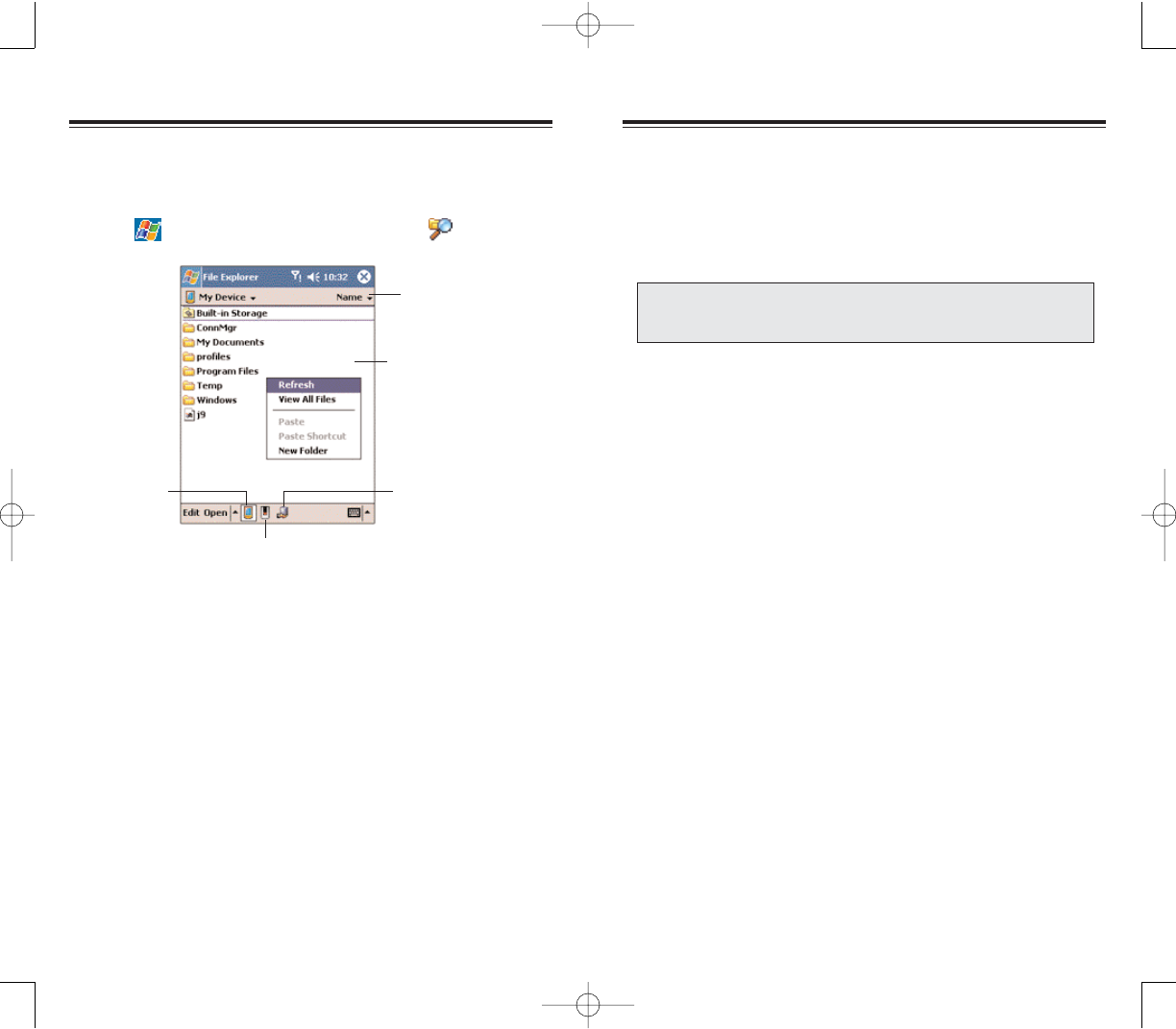

UUssiinngg FFiillee EExxpplloorreerr .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. ..
UUssiinngg AAccttiivveeSSyynncc .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. ....
CCHHAAPPTTEERR 44 EENNTTEERRIINNGG DDAATTAA .. .. .. .. .. .. .. .. .. .. .. .. ..
UUssiinngg tthhee IInnppuutt PPaanneell.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ....

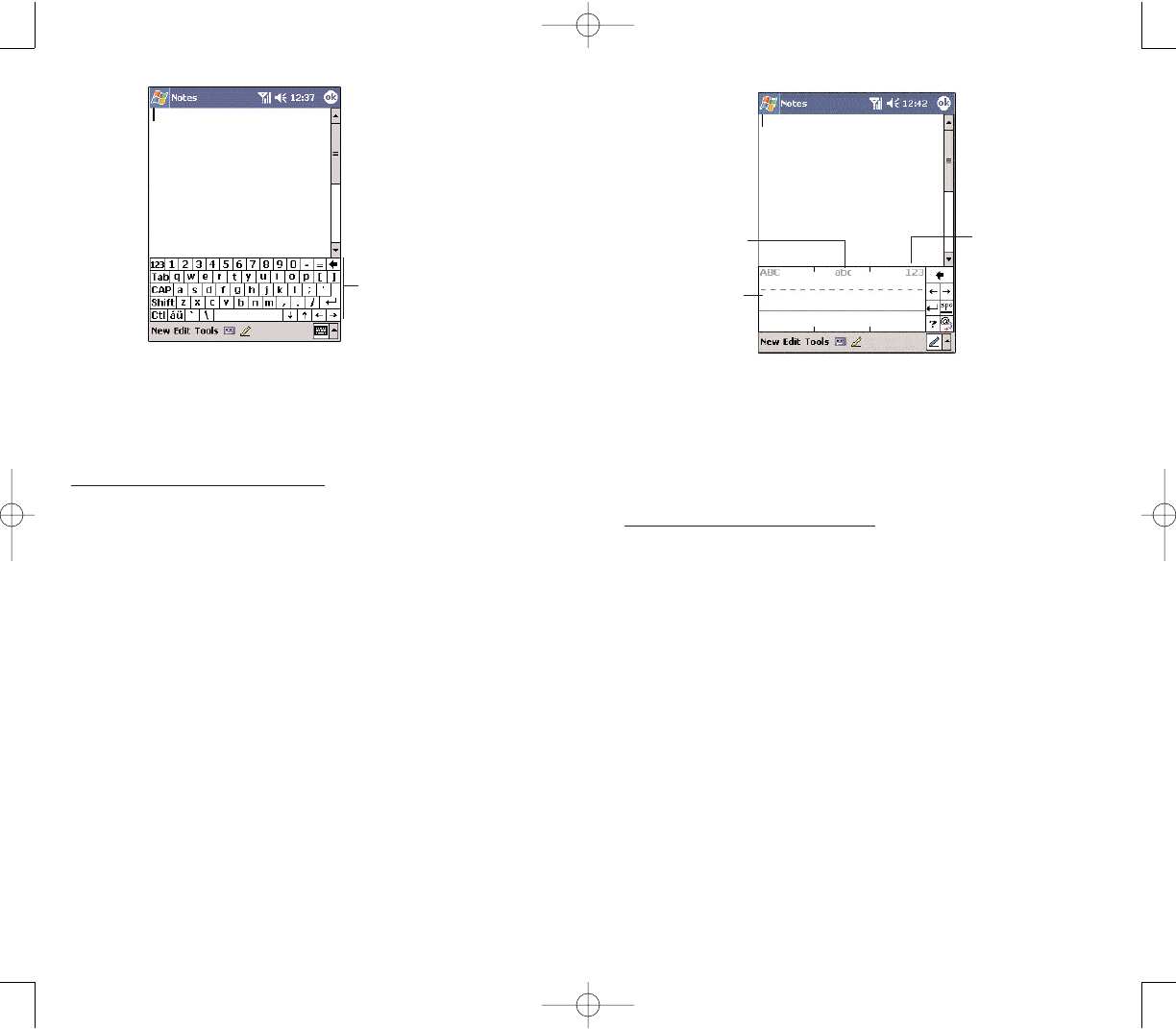

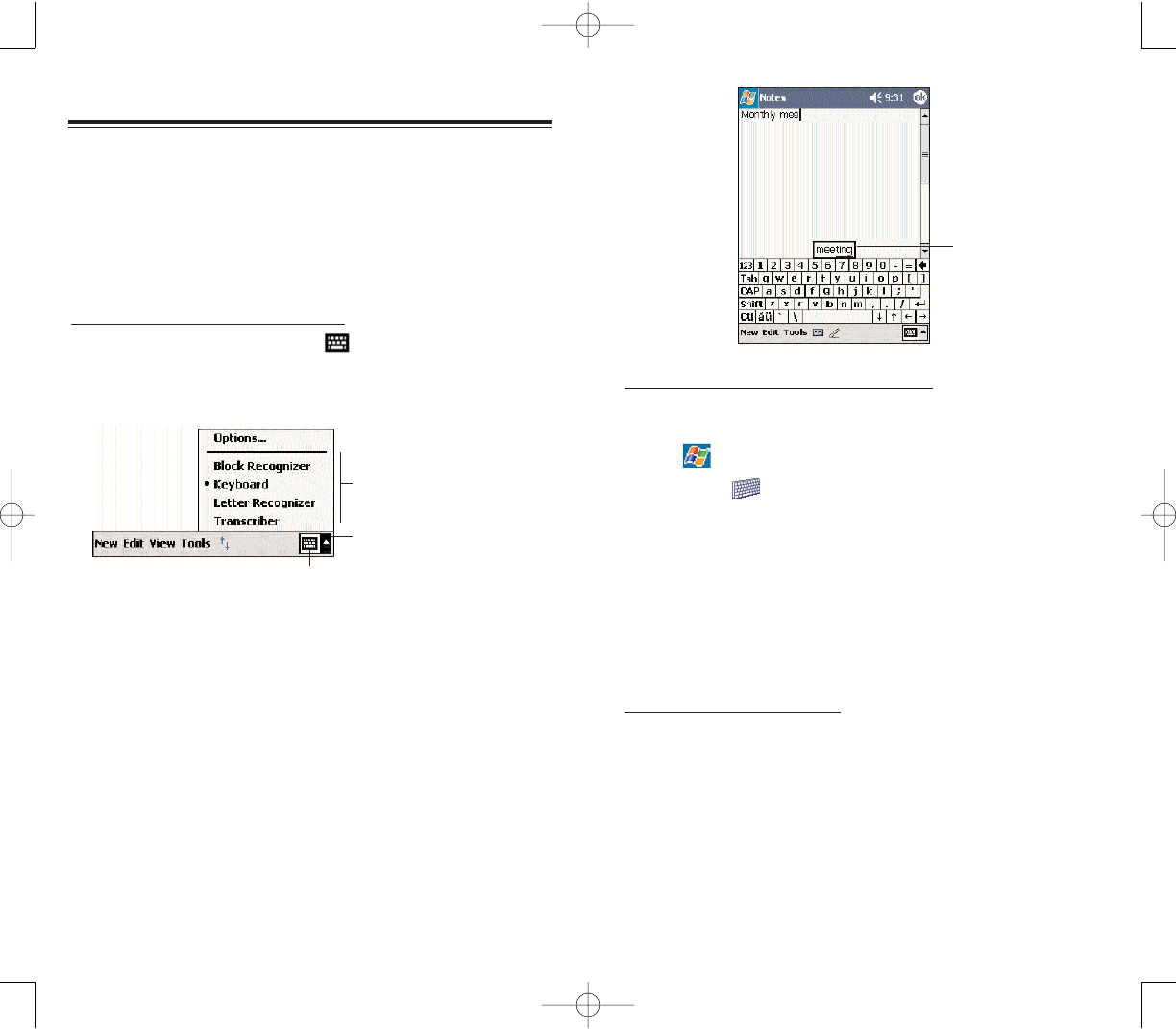

Using the Soft Keyboard ..................

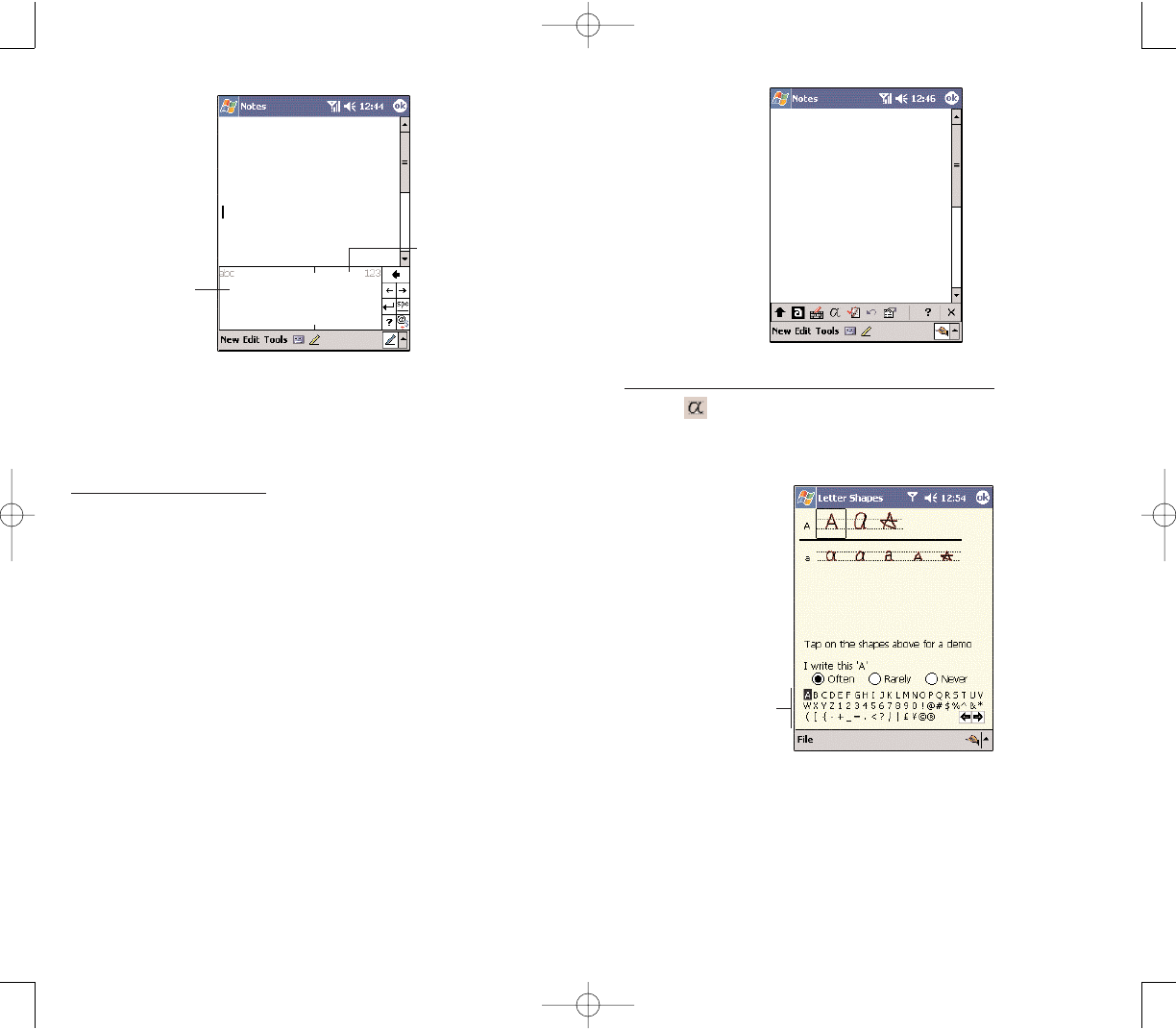

Using Letter Recognizer .................
Using Block Recognizer ..................
Using Transcriber .......................

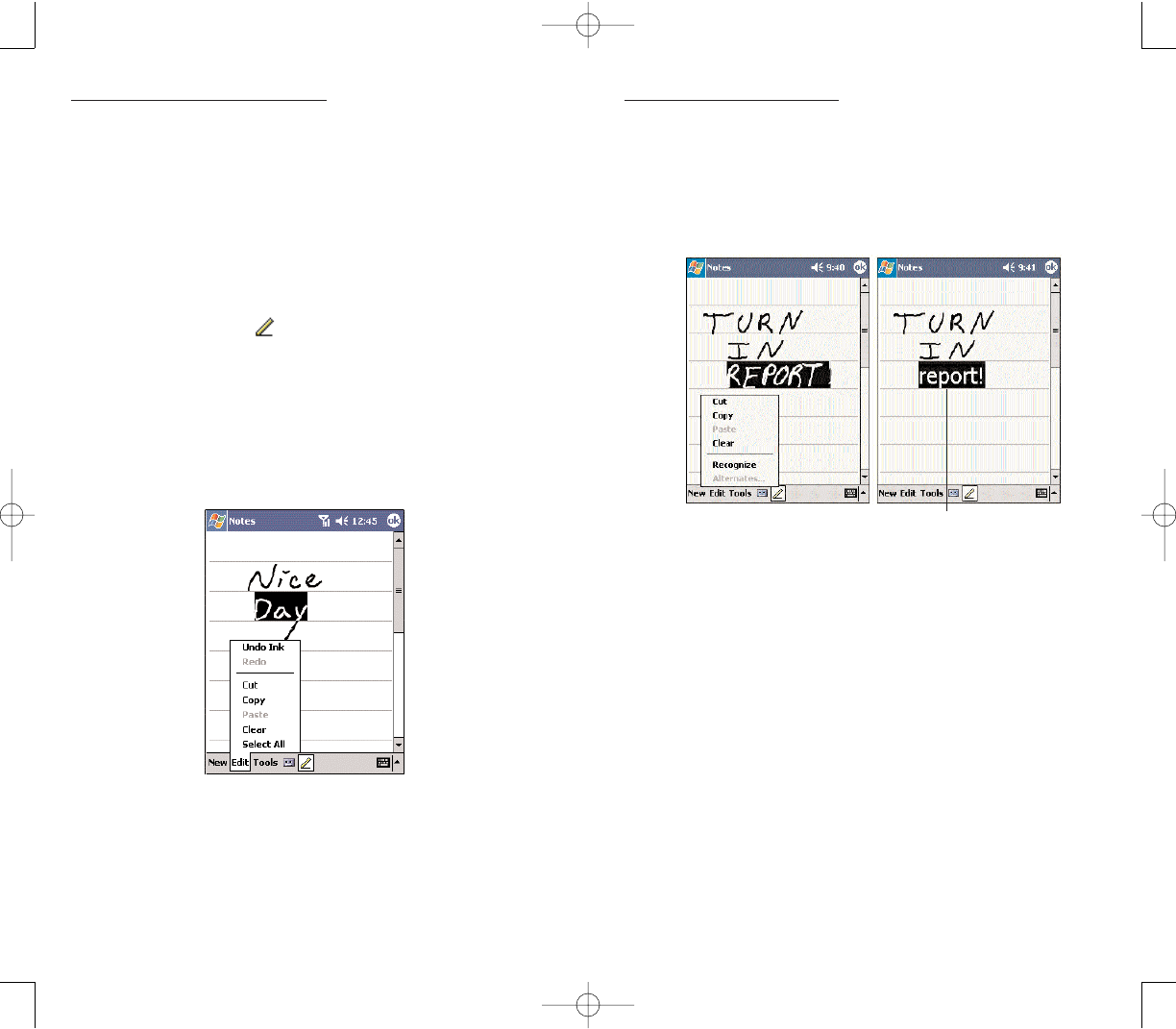

Selecting and Editing Typed Text . ...........

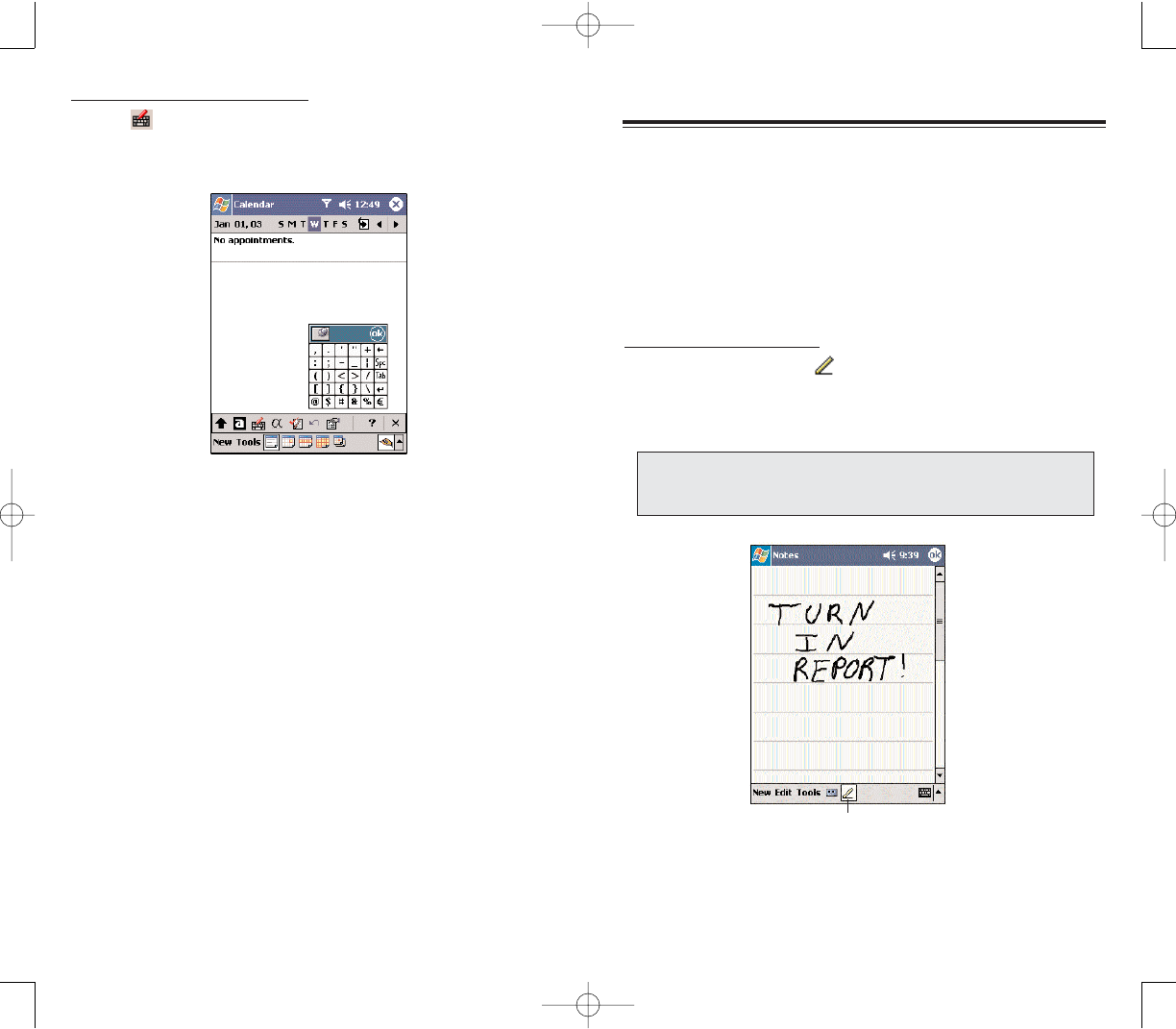

WWrriittiinngg oonn tthhee SSccrreeeenn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ....
DDrraawwiinngg oonn tthhee SSccrreeeenn .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ....

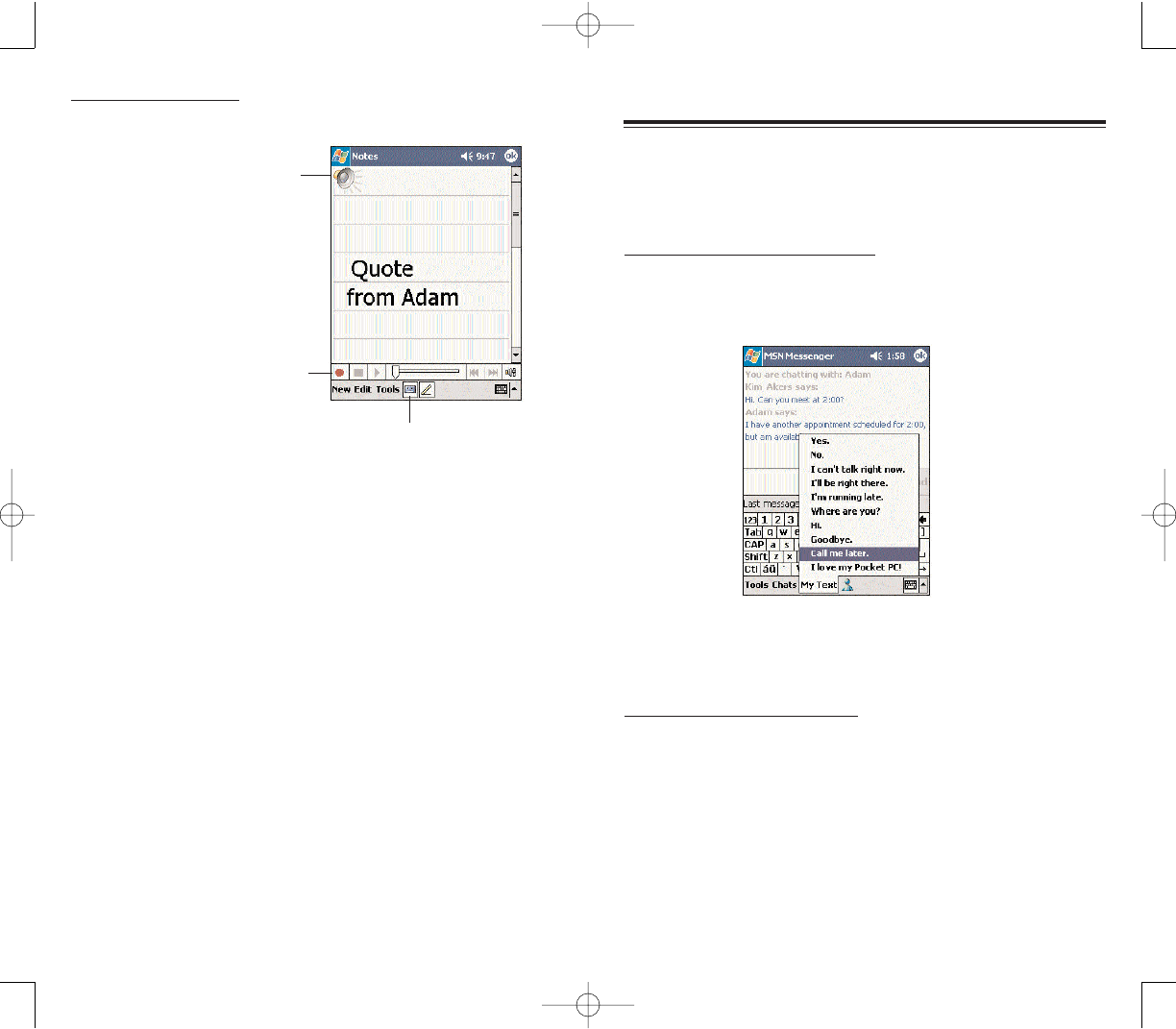

RReeccoorrddiinngg aa MMeessssaaggee .... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ....
UUssiinngg MMyy TTeexxtt .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
CCHHAAPPTTEERR 55 UUSSIINNGG TTHHEE PPHHOONNEE
FFUUNNCCTTIIOONN .. ..
PPhhoonnee SSeettuupp.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. .. .. .. ..

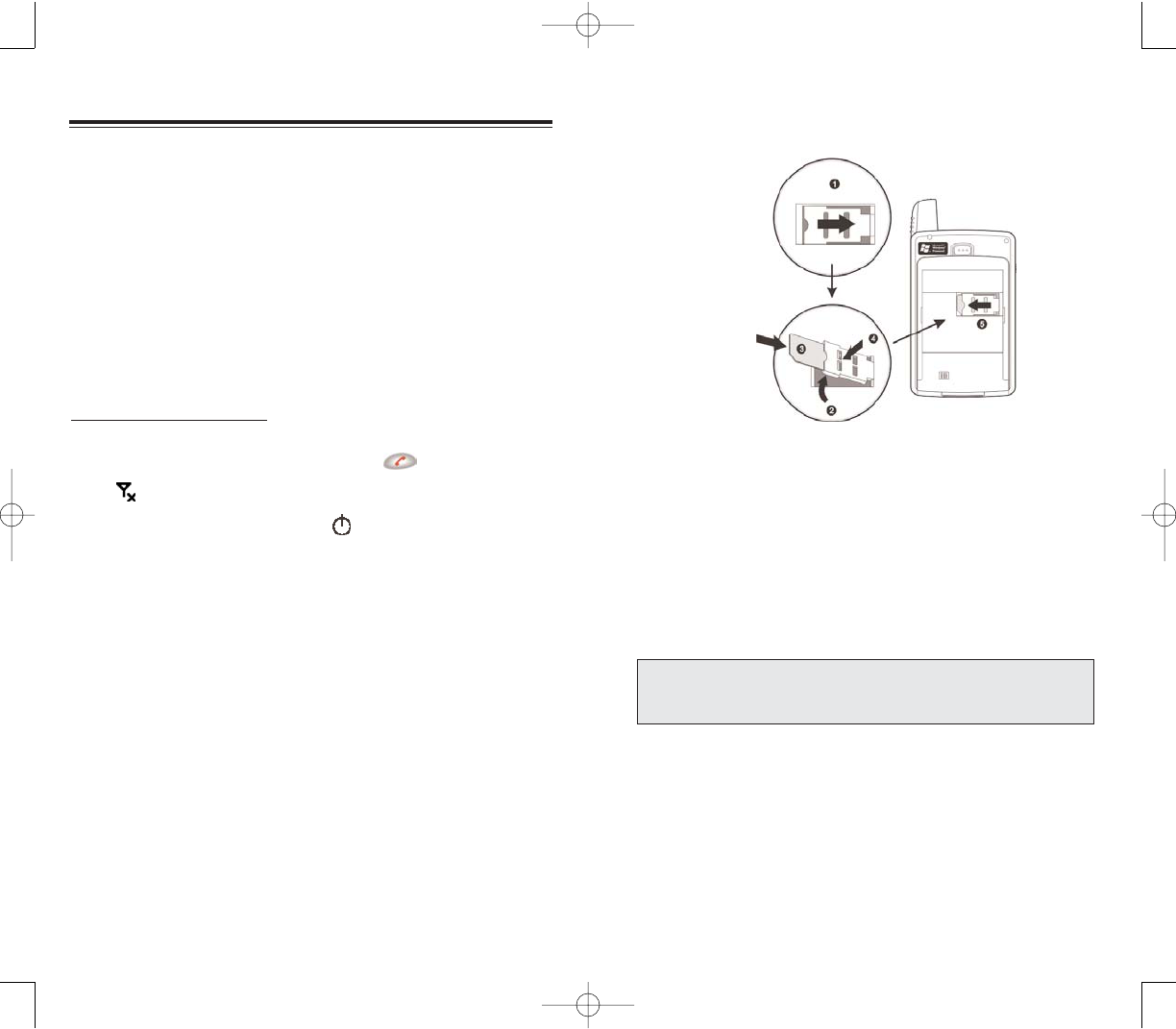

Installing the SIM Card ...................

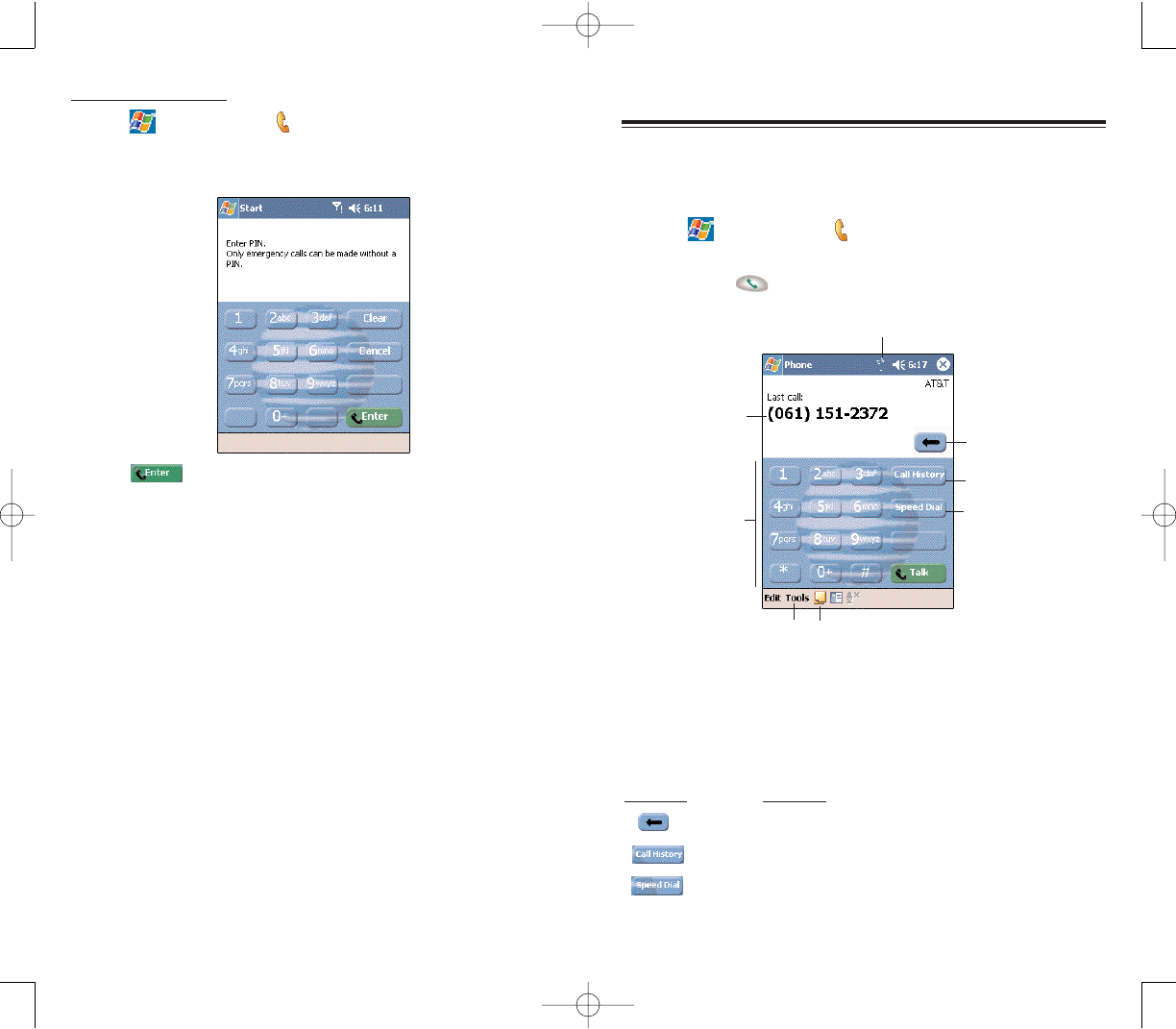

Entering Your PIN .......................

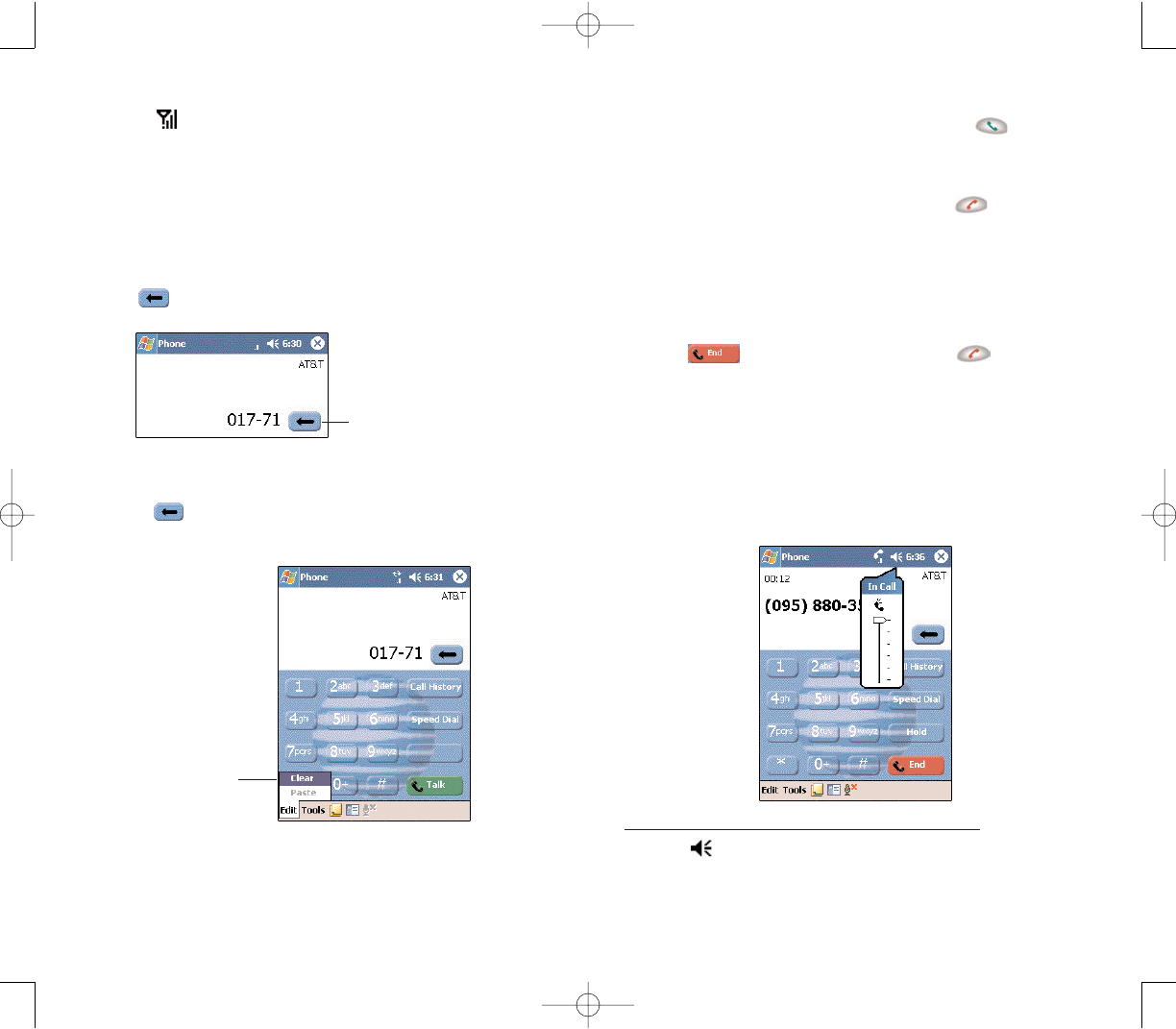

DDiiaalleerr SSccrreeeenn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. .. .... ..
PPhhoonnee OOppeerraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. ..

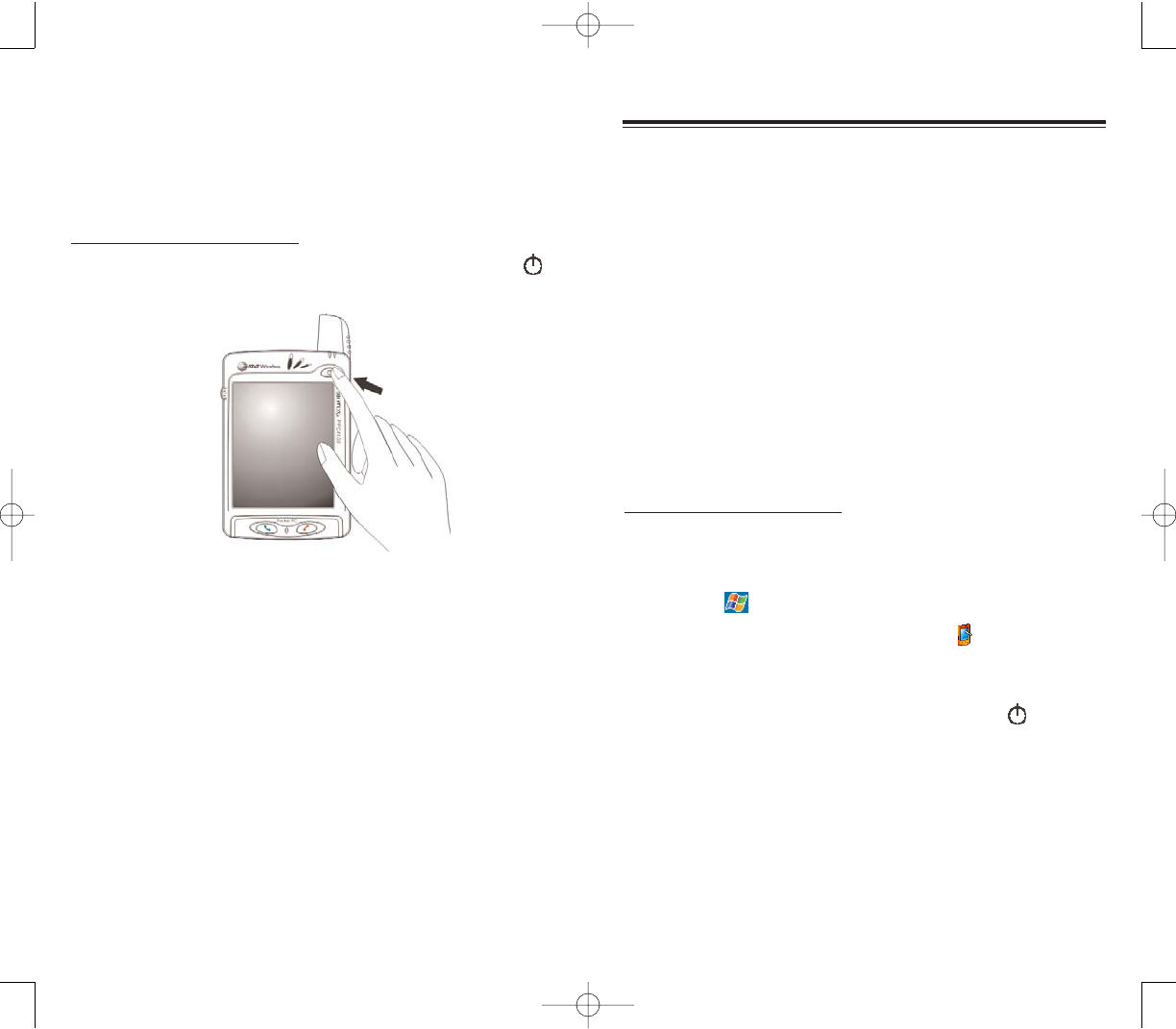

Turning the Phone On and Off
..............
Erasing Number Input
.....................
Answering a Call
.........................
Ignoring a Call
..........................
Ending a Call
...........................
Adjusting the Phone Volume
...............

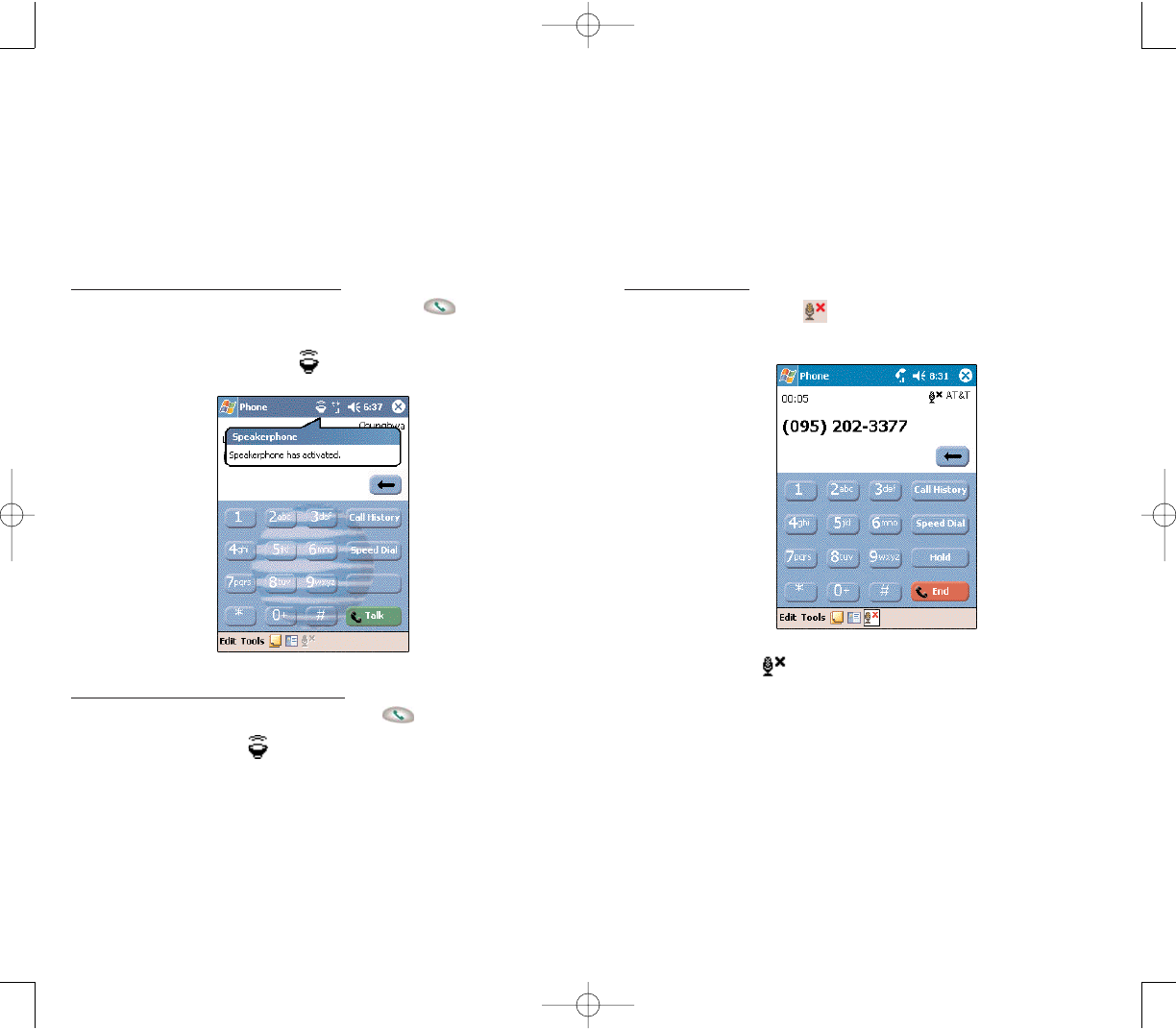

Using the Speakerphone
..................
MMaakkiinngg PPhhoonnee CCaallllss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Making a Call Using Dialer
.................
Making a Call Using Microsoft Contacts
......
5555
5566
56
56
5599
6600
6611
6655
6666
67
68
69
70
72
7733
7777
7799
8811
8833
8844
84
85
8877
8899
89
90
90
91
91
91
92
9933
93
94
95
97
98
99
100
110011
101
102
103
104
106
107
108
111133
113
114
114
111155
116
116
120
125
112277
112299
130
130
135
114422
144
144
114466
148
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:01 PM Page 4
76
TTAABBLLEE OOFF CCOONNTTEENNTTSS
CCHHAAPPTTEERR 77 GGEETTTTIINNGG CCOONNNNEECCTTEEDD .. .. .. .. .. .. .. ..
..
IInnffrraarreedd CCoonnnneeccttiioonn .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Sending Information . ......................
Receiving Information . ....................
IInntteerrnneett CCoonnnneeccttiioonn ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .... .. .. .. .. ..
NNeettwwoorrkk CCoonnnneeccttiioonn
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Creating a Modem Connection to a Network . .
SSttaarrtt aa CCoonnnneeccttiioonn .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
EEnndd aa CCoonnnneeccttiioonn .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
EEmmaaiill SSeerrvveerr CCoonnnneeccttiioonn .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. ..
Setting Up An Email Account . . ............
CCHHAAPPTTEERR 88 MMIICCRROOSSOOFFTT PPOOCCKKEETT OOUUTTLLOOOOKK
..
PPoocckkeett OOuuttllooookk OOvveerrvviieeww
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
CCaalleennddaarr .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
..
CCoonnttaaccttss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
TTaasskkss .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
NNootteess .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
CCHHAAPPTTEERR 99 CCOOMMPPAANNIIOONN PPRROOGGRRAAMMSS .. .. .. .. .. ..
..
PPoocckkeett WWoorrdd .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
PPoocckkeett EExxcceell .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
WWiinnddoowwss MMeeddiiaa PPllaayyeerr .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
MMiiccrroossoofftt RReeaaddeerr .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
CCHHAAPPTTEERR 1100 WWIIRREELLEESSSS DDAATTAA PPRROOGGRRAAMMSS
.. .. ..
PPoocckkeett IInntteerrnneett EExxpplloorreerr .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
Mobile Favorites . ........................
IInnbbooxx .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
MMSSNN MMeesssseennggeerr .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
TTeerrmmiinnaall SSeerrvviicceess CClliieenntt .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
CCHHAAPPTTEERR 1111 UUSSEERR SSUUPPPPOORRTT .. .. .. .. .. .. .. .. .. .. .. .. .. ..
CCuussttoommeerr SSuuppppoorrtt .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. ..
TTrroouubblleesshhoooottiinngg .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. ..
Troubleshooting Reminders . ................
Troubleshooting Procedures ... ..............
115511
115522
152
153
115544
115555
155
114455
114466
115533
154
116633
116644
116655
116688
117711
117744
117777
117799
118833
118866
118877
119955
119966
197
220011
220088
221111
221155
221166
221177
217
217
TTAABBLLEE OOFF CCOONNTTEENNTTSS
CCHHAAPPTTEERR 1122 SSAAFFEETTYY IINNFFOORRMMAATTIIOONN .. .. .. .. .. .. .. ..
SSaaffeettyy IInnffoorrmmaattiioonn .. .. .. .. ..
Radiofrequency (RF) Energy Emission
......
Usage Precautions
............
Storage Precautions
............
Usage Instructions
..........
Device Damage and/or Data Loss Prevention
.
Antenna Care
......
Battery Pack Information
............
AC Adapter Precautions
............
Phone Operation
..........
Phone Usage Regulations
........
SSAARR IInnffoorrmmaattiioonn .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
FFDDAACCoonnssuummeerr UUppddaattee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
CCHHAAPPTTEERR 1133 WWAARRRRAANNTTYY IINNFFOORRMMAATTIIOONN .. .. .. ..
WWaarrrraannttyy PPrrootteeccttiioonn .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
1122 MMoonntthh LLiimmiitteedd WWaarrrraannttyy .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. ..
222299
223300
230
233
235
236
237
240
240
241
244
245
224466
224488
225599
226600
226611
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 6
8
FFIIRRSSTT TTHHIINNGGSS FFIIRRSSTT
Please read this manual before using your PPC4100
Pocket PC.
This chapter describes the procedures you need to follow
to prepare your handset for operation.
1. Package Contents
2. Handset Setup
3. System Procedures
9
CCHHAAPPTTEERR 11
CCHHAAPPTTEERR 11
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 8
Perform the following tasks before using your device:
1. Insert the SIM card.
2. Install the battery pack.
3. Connect the USB cradle.
4. Charge your device.
5. Start up your device.

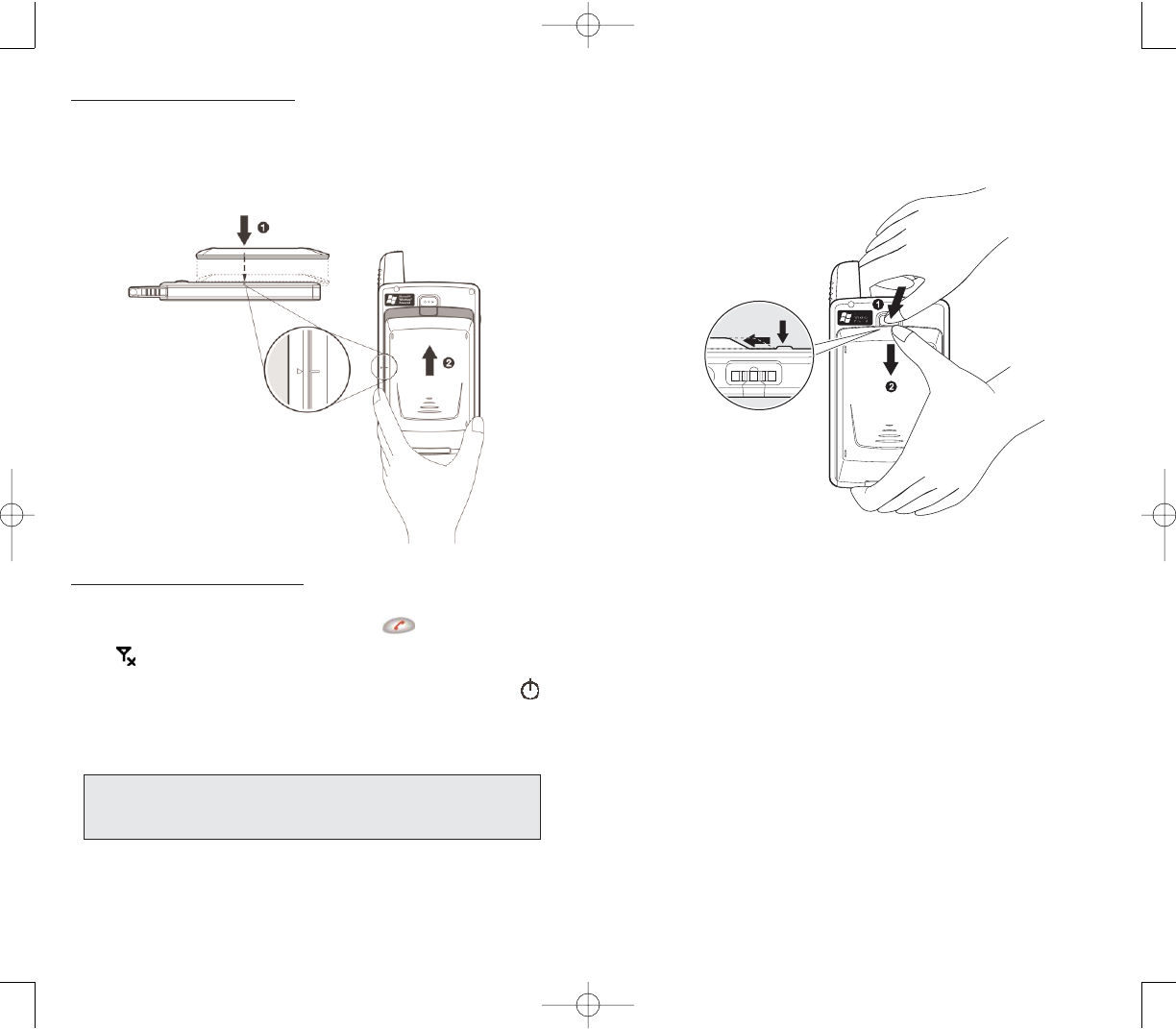

IINNSSTTAALLLLIINNGG TTHHEE BBAATTTTEERRYY PPAACCKK
Your PPC4100 uses a high-density removable and
rechargeable 1480 mAh Lithium Ion battery pack.
A backup battery cell is embedded into your device to
prevent data loss in instances when the battery pack is
removed or completely discharged. This backup battery
cell will support the system for a maximum of
30 minutes.
For information on conserving power to make your
battery pack last longer, see page 218.
1110
Thank you for purchasing the PPC4100 wireless handset.
The PPC4100's giftbox contains all of the items listed
below.
PPC4100 Pocket PC with Built-in Phone
AT&T SIM card
Stylus
Lithium Ion Battery Pack
USB Cradle
AC/DC Adapter
Stereo Headset
Earphone Microphone
Leather Cover
PPC4100 Companion CD
PPC4100 Owner’s Manual with Warranty
Validation Card
PPC4100 Quick Reference Guide
PPC4100 Features and Service Guide
PPC4100 Activations Instructions Guide
PPAACCKKAAGGEE CCOONNTTEENNTTSS
PPAACCKKAAGGEE CCOONNTTEENNTTSSHHAANNDDSSEETT SSEETTUUPP
HHAANNDDSSEETT SSEETTUUPP
NNOOTTEE:: RReeppoorrtt aannyy pprroodduucctt ddeeffeeccttss ttoo tthhee ppllaaccee ooff ppuurrcchhaassee
iimmmmeeddiiaatteellyy..
WWAARRNNIINNGG:: TThheerree iiss aa rriisskk ooff ffiirree aanndd bbuurrnnss iiff tthhee bbaatttteerryy ppaacckk
iiss hhaannddlleedd iimmpprrooppeerrllyy.. DDOO NNOOTT ddiissaasssseemmbbllee,, ccrruusshh,,
ppuunnccttuurree,, sshhoorrtt eexxtteerrnnaall ccoonnttaaccttss,, oorr ddiissppoossee tthhee bbaatttteerryy ppaacckk
iinn ffiirree oorr wwaatteerr.. DDOO NNOOTT aatttteemmpptt ttoo ooppeenn oorr sseerrvviiccee tthhee
bbaatttteerryy ppaacckk.. DDiissppoossee ooff uusseedd bbaatttteerriieess aaccccoorrddiinngg ttoo llooccaall
rreeccyycclliinngg gguuiiddeelliinneess iinn yyoouurr aarreeaa..
NNOOTTEE::TToo eennaabbllee tthhee iinntteerrnnaall bbaatttteerryy cceellll ttoo pprroovviiddee bbaacckkuupp
ppoowweerr ssuuppppllyy,, cchhaarrggee yyoouurr ddeevviiccee wwiitthh tthhee mmaaiinn bbaatttteerryy ppaacckk,,
ffoorr aatt lleeaasstt eeiigghhtt ((88)) hhoouurrss..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 10
1312

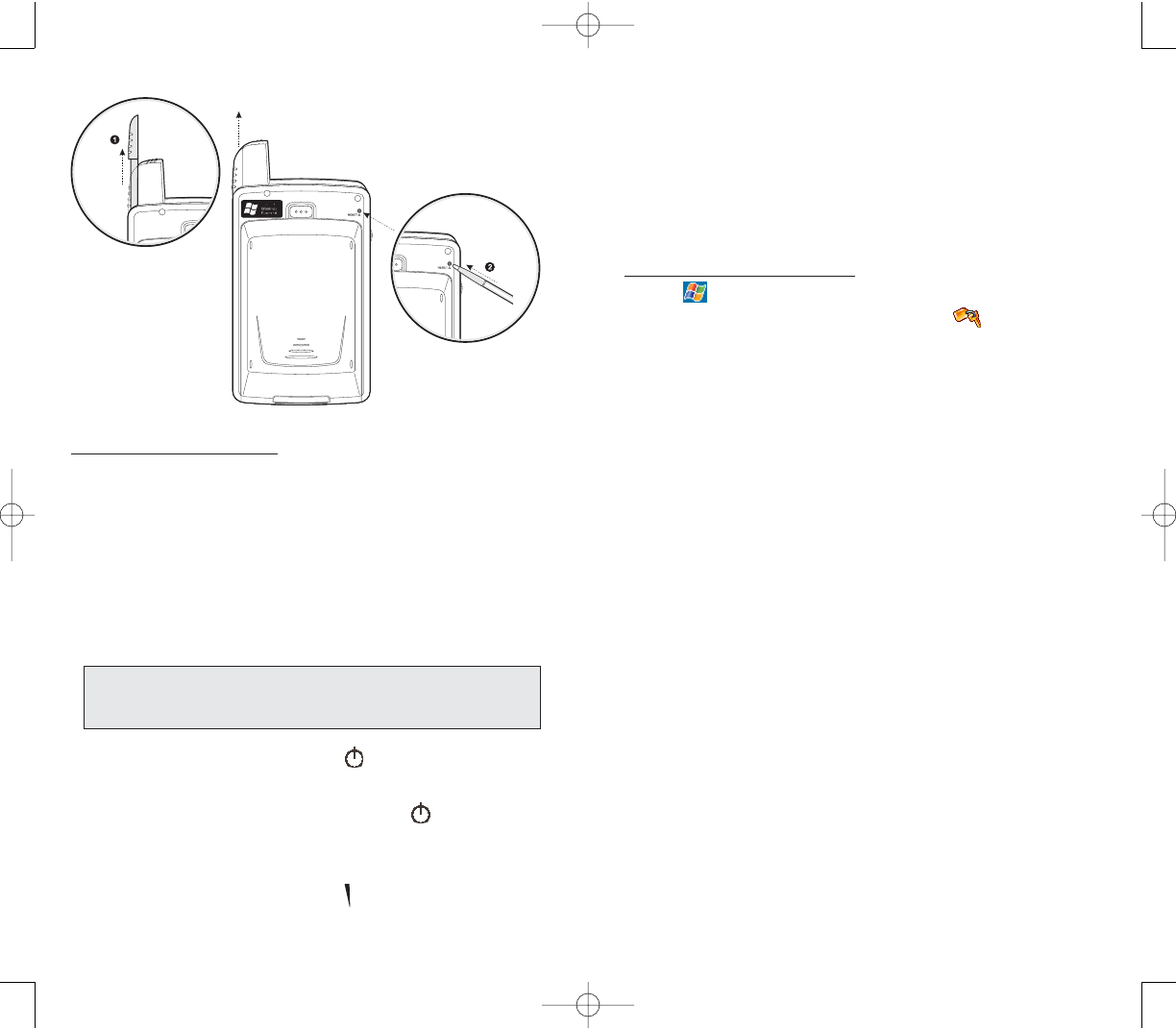

2. Follow the substeps below:
(1) With one hand, press and hold the battery release
switch, then
(2) Slide the battery pack out from its bay.
CCOONNNNEECCTTIINNGG TTHHEE UUSSBB CCRRAADDLLEE
The cradle that comes with your device enables you to
charge your device, as well as synchronize the
information on your device with those on your computer
using ActiveSync technology. The dual-pocket design
also allows simultaneous charging of the device and an
optional spare battery pack if you have purchased one.
To install the battery pack:
1. Align the battery marker on the battery pack with the
one located on the device.
2. Slide the battery pack into the battery bay until it clicks
into place.
To detach the battery pack:
1. If the device is on:
a. Press and hold the EEnnddbutton on your device
until appears in the navigation bar.
b. To turn off the device, press the PPoowweerrbutton .
c. Wait for five (5) seconds to allow the device to
completely enter sleep mode.
IIMMPPOORRTTAANNTT:: FFaaiilluurree ttoo pprrooppeerrllyy ttuurrnn ooffff tthhee ddeevviiccee bbeeffoorree
uunniinnssttaalllliinngg tthhee bbaatttteerryy ppaacckk mmaayy rreessuulltt iinn tthhee lloossss ooff aallll ddaattaa
ssttoorreedd iinn tthhee iinntteerrnnaall mmeemmoorryy ooff yyoouurr ddeevviiccee..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 12
1514
To charge your PPC4100:
1. Plug the AC adapter into any AC current outlet.
2. Connect the AC adapter cord to the power socket at
the back of the cradle.
3. Slide the device into the front pocket of the cradle until
it clicks into place.
The connection is secure when the bottom edge of the
device is aligned smoothly with the cradle, and the LED
indicator on the device’s power button lights up
green.
LED status during charging:
Flashing green: Charging
Solid green: Charging complete
To connect the cradle to a power source:
1. Connect the AC adapter cord to the power socket at
the back of the cradle.
2. Press and hold the connector button on the AC
adapter cord.
3. Plug it into the power socket at the back of the
cradle.
4. Plug the AC adapter into any AC current outlet.
CCHHAARRGGIINNGG YYOOUURR HHAANNDDSSEETT
For initial use, you need to charge your device for about
eight (8) hours. After that, you can charge it everyday to
recharge the battery to full capacity.
IIMMPPOORRTTAANNTT:: TToo aavvooiidd ddaammaaggiinngg tthhee AACC aaddaapptteerr,, mmaakkee ssuurree
ttoo pprreessss aanndd hhoolldd tthhee ccoonnnneeccttoorr bbuuttttoonn bbeeffoorree ccoonnnneeccttiinngg oorr
ddiissccoonnnneeccttiinngg tthhee ccoorrdd ffrroomm tthhee ppoowweerr ssoocckkeett ooff tthhee
ccrraaddllee//ddeevviiccee..
IIMMPPOORRTTAANNTT::MMaakkee ssuurree tthhaatt tthhee SSIIMM ccaarrdd hhoollddeerr iiss cclloosseedd
bbeeffoorree cchhaarrggiinngg tthhee ddeevviiccee..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 14
1716
To recharge the device using the AC adapter cord:
When traveling, you can still recharge your device and
avoid the bulk of carrying the cradle by using the AC
adapter cord to directly connect to a power outlet.
1. Plug the AC adapter into any AC current outlet.
2. Connect the AC adapter cord to the universal
IIMMPPOORRTTAANNTT::MMaakkee ssuurree tthhaatt tthhee SSIIMM ccaarrdd hhoollddeerr iiss cclloosseedd
bbeeffoorree cchhaarrggiinngg tthhee ddeevviiccee..
If the battery level becomes low in the course of normal
use, a status icon appears on the device screen
indicating low or very low battery status (see "Status
icons" on page 50). In both cases, perform an
ActiveSync operation to back up your data, then
recharge your device as soon as possible.
If the battery level reaches low status, the device will
enter sleep mode; if the battery level reaches very low
status, the device will enter deep sleep mode. In this
case, you have about 72 hours to recharge your device
after which you risk losing all data on your device’s
internal memory.
For information on how to wake up your device from
sleep mode, refer to page 219.
The battery pack is removable. Refer to page 14 for
instructions on how to remove it from the battery bay.
You have the option to purchase a spare battery pack for
your device. You can charge this spare battery pack in
the back pocket of the cradle. Refer to page 47 for
instructions.
To remove your PPC4100 from the cradle:
1. Gently tilt the device forward.
2. Pull the device up to detach it from the cradle.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 16
1918
The following sections describe various system
procedures that will help you use the device more
efficiently.
SSCCRREEEENN RREECCAALLIIBBRRAATTIIOONN
When you first startup your PPC4100, you will be asked
to calibrate the screen by tapping the center of a cross
with your stylus as it moves around the screen. This
process ensures that when you tap the screen with your
stylus the item tapped is activated.If, however, while
using your device, you discover tapping an item doesn’t
bring up the appropriate response, it means your device
has lost its calibration.
To recalibrate the screen:
1. Launched the Align Screen window by doing either of
the following:
Software launching
a. Tap , then Settings.
b. On the System tab, tap Screen .
c. On the Screen window, tap AAlliiggnn SSccrreeeenn.
Hardware launching
Simultaneously press the PPoowweerrbutton and the
jog dial.
2.Tap the center of the cross with your stylus as it moves
around the screen.
SSYYSSTTEEMM PPRROOCCEEDDUURREESS
SSYYSSTTEEMM PPRROOCCEEDDUURREESS
SSTTAARRTT UUPP YYOOUURR HHAANNDDSSEETT
After initially charging your device for about eight (8)
hours it is ready to be used. You can now start up your
device where you’ll calibrate the display, learn some
basic stylus usage, and set up the system date and time.
To start up your PPC4100:
1. Turn on your device by pressing the PPoowweerrbutton
on the front panel.
2. Follow the onscreen instructions on the Welcome
Screen Wizard.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 18
2120
To back up individual Word, Excel or Notes files using
the Rename/Move command. Follow the steps below.
1. Insert an SD or MMC card into the SD/MMC slot on
the top edge of your device.
2. Open the file you want to back up.
3. Tap TToooollss, then RReennaammee//MMoovvee.
4. On the Rename/Move screen, enter a filename on the
Name field.
5. Tap the Location pick list, then select SSttoorraaggee CCaarrdd.
6. Tap the Folder pick list, then select the folder where
you want to save the file.
7. Tap OOKK.
8. After the backup process, remove the card from the
slot.
RREESSEETTTTIINNGG YYOOUURR HHAANNDDSSEETT
You may have to perform a reset if the device freezes
(i.e., device no longer responds to the buttons on the
screen).
To perform a soft reset:
A soft reset allows your device to get a fresh start,
similar to rebooting a computer. This will restart your
device and adjust memory allocation. All records and
entries are retained after a soft reset. Unsaved data in
open programs may in some cases be lost.
1. Remove the stylus from its holder.
2. Lightly press the tip of the stylus to the reset button
located on the rear panel of the device.
CCRREEAATTIINNGG BBAACCKKUUPP FFIILLEESS
Any additional programs or new data on your device are
stored in RAM (random access memory). These items
will be lost if you have to perform a hard reset or your
device loses all power for any other reason. Because of
this it is imperative that you regularly back up files to
your computer via ActiveSync or to a storage card using
the device’s built-in SD/MMC slot.
If have access to your computer, use ActiveSync to
synchronize files to create backup files of information
stored on your device. Refer to page 61 for more
information on using ActiveSync.
In instances where you are unable to access your
computer, you can back up files to an SD or MMC card.
You have the following options:
Back up individual files using the Cut and Paste
commands in File Explorer.
Back up all stored data files or all PIM data using
WiBackup - For instructions on using WiBackup, go to
page ___.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 20
2322
LLOOCCKKIINNGG YYOOUURR HHAANNDDSSEETT
Your device is not just a financial investment but a
wealthy source of personal information, some of which
may be confidential so it is only logical to protect it from
any unauthorized access. The Security setting gives you
the option of assigning a lock password that will be
required to access your device after a set period of
inactivity.
To assign a lock password:
1. Tap , then
SSeettttiinnggss.
2. On the Personal tab, tap PPaasssswwoorrdd.
The Password Settings window appears.
3. On the Password tab, select the check box to enable
the password function.
4. Tap the pick list to select the period of inactivity before
the lock password will be required for access.
5. Tap a radio button corresponding to the password
mode you want to apply.You have two options.
Simple 4 digit password
This password mode requires a 4-digit password.
Strong alphanumeric password
This password mode requires an alphanumeric
password (i.e., a combination of upper- and lower case
letters, numbers, and symbols) consisting of at least
seven characters.
6. If you want to set a keyword to serve as a password
reminder in case you forget it, tap the HHiinntttab.
7. Tap OOKK.
To perform a hard reset:
A hard reset will cut off power to your device. This will
erase all records and entries, delete all programs you
have added, and restore the device default factory
settings. Never perform a hard reset unless a soft reset
does not correct your problem. When you perform your
next ActiveSync operation, you can restore any data that
you previously synchronized to your computer or you
can restore data that you backed up to a storage card.
1. Hold down the PPoowweerrbutton on the front panel of
your device.
2. While holding down the power button , gently press
the tip of the stylus to the reset button.
The Confirmation message box appears.
3. Press the volume rocker key up.
NNOOTTEE::WWhheenn yyoouu ppeerrffoorrmm aa hhaarrdd rreesseett,, tthhee ccuurrrreenntt ddaattee aanndd
ttiimmee aarree nnoott bbee rreettaaiinneedd.. FFoorrmmaattss,, pprreeffeerreenncceess,, aanndd ootthheerr
sseettttiinnggss aarree rreessttoorreedd ttoo tthheeiirr ffaaccttoorryy ddeeffaauulltt sseettttiinnggss..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 22
25
GGEETTTTIINNGG SSTTAARRTTEEDD
After completing the setup procedures, you can now
familiarize yourself with the hardware and software
functions of your handset to better understand the
basics on how to use your device.
This chapter explains the handset features. It also gives
you a tour of both the hardware and software
interface of your device.
1. Handset Features
2. Handset Tour
3. Peripherals Tour
4. Command Interface
CCHHAAPPTTEERR 22
CCHHAAPPTTEERR 22
24
NNOOTTEESS
NNOOTTEESS
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 24
2726
PPHHOONNEE FFEEAATTUURREESS
Tri-band GSM broadband function (900/1800/1900)
Contacts migration service using SIM Manager
Integration with Microsoft Contacts
Features include Speed Dial, Caller ID, Conference
Call, Call Waiting, Call Barring, Call History,
speakerphone mode, note taking, voice mail, and emer-
gency number setting
SMS mailbox/Inbox integration
Seamless transition between voice and data
connection
Hardware and software launch function
Operation time:
- Talk Time: up to 3 hours
- Standby Time: up to 100 hours
- Typical Time: up to 12 hours of PDA usage only
- Data Time: up to 5 hours
CCOONNNNEECCTTIIVVIITTYY
19-pin universal connector
Built-in SD/MMC (Standard Digital/MultiMedia Card)
expansion slot
IrDA-standard Infrared wireless function
Wireless Internet access via AT&T’s GPRS (General
Packet Radio Service)
Connection Manager for one-touch ability to toggle on
and off all wireless functions
Listed below are the system features of your new
PPC4100 Pocket PC.
PPEERRFFOORRMMAANNCCEE
IntelMobile Media Technology of up to 400 MHz
Integrated Intel XScaleTM Technology
System memory:
- 64 MB SDRAM for application storage
- 64 MB Flash ROM for operating system
Windows Mobile™ 2003 software for Pocket PC
Phone Edition
DDIISSPPLLAAYY
3.5" Transreflective TFT LCD (Thin Film Transistor
Liquid Crystal Display)
with QVGA resolution
240 x 320 resolution
16-bit color depth support
Software-configurable backlight and contrast
settings
Microsoft ClearType technology for clearer, crisper
font display
AAUUDDIIOO
Embedded AC '97 CODEC with CD-quality stereo
output
Built-in industry-standard 2.5-mm earphone jack
Built-in speaker and microphone
Dual volume control for the phone function's ringer
Playback support for both Windows Media and MIDI
sound files for personalizing ring tones and sound
notifications
HHAANNDDSSEETT FFEEAATTUURREESS
HHAANNDDSSEETT FFEEAATTUURREESS
IIMMPPOORRTTAANNTT::TThhiiss ddeevviiccee iiss nnoott ddeessiiggnneedd ffoorr hheelldd--aatt--eeaarr uussee
aanndd sshhoouulldd nneevveerr bbee uusseedd aaggaaiinnsstt tthhee eeaarr.. IItt iiss ddeessiiggnneedd ttoo
bbee uusseedd wwiitthh aann eeaarrpphhoonnee mmiiccrroopphhoonnee oorr aass aa ssppeeaakkeerrpphhoonnee..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:02 PM Page 26
2928
The following sections gives you a tour of the hardware
interface.
FFRROONNTT VVIIEEWW
The illustration below show the front panel of your device
as well as the top and bottom edges.
HHAANNDDSSEETT TTOOUURR
HHAANNDDSSEETT TTOOUURR
BBAATTTTEERRYY PPAACCKK
Removable and rechargeable 1480 mAh Lithium Ion
battery pack
Embedded backup battery cell
Charging time from empty to full capacity: 8 hours
Operation time
- MP3 Playback Time (LCD off): up to 12 hours
- WMV Playback Time (LCD on, average level
backlight, phone function off): up to 7 hours
- Internet Browsing Time: up to 4 hours
DDEESSIIGGNN AANNDD EERRGGOONNOOMMIICCSS
Stylish and sleek design
Dimensions
- Length: 4.3 in.
- Width: 2.7 in.
- Depth: .85 in. (battery pack attached)
- Weight (with battery): 5.6 oz.
User-friendly navigation features
- 3-way jog dial for one-hand operation
- Rocker key for volume control
- Hold switch lets you lock all buttons from being
accidentally pressed when device is placed in pocket
or in a bag.
NNOOTTEE::LLeennggtthh ooff bbaatttteerryy ooppeerraattiioonn wwiillll ddeeppeenndd oonn ppoowweerr
ccoonnssuummppttiioonn wwhhiicchh iinn ttuurrnn iiss bbaasseedd oonn ssyysstteemm rreessoouurrcceess uussee..
FFoorr eexxaammppllee,, ccoonnssttaannttllyy uussiinngg tthhee bbaacckklliigghhtt oorr uussiinngg
ppoowweerr--ddeemmaannddiinngg aapppplliiccaattiioonnss wwiillll sshhoorrtteenn tthhee lleennggtthh ooff
bbaatttteerryy ooppeerraattiioonn..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 28
3130
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
10 End button When there’s an incoming call, press
to reject the call.
During an ongoing call, press to end
the call.
When manually dialing a number,
press to delete the number input.
11 Microphone Inputs audio into your device when
receiving/making a call or recording
voice notes.
12 Universal Connects your device to the cradle,
connector which in turn connects to the back of
your computer and through the AC
adapter to an external power source.
This allows you to recharge your device
and perform an ActiveSync operation.
You can also use the universal
connector to connect peripheral
hardware devices, such as an external
keyboard, to your device.
NNOOTTEE::YYoouu nneeeedd ttoo iinnssttaallll aann
aapppprroopprriiaattee ddrriivveerr ttoo yyoouurr ddeevviiccee bbeeffoorree
uussiinngg aa ppeerriipphheerraall ddeevviiccee..
13 Send button When there’s an incoming call, press
to accept the call.
During an ongoing call, press and
hold to toggle on/off the speakerphone
mode.
From Speed Dial, press to call the
currently selected number.
From Call History, press to call the
currently selected log item.
In mailbox, press to send a
composed email/SMS message or
display options for a received
email/SMS.
From a PDA application, press to
display the Dialer screen or press twice
to redial the last called number.
14 Speaker Emits system sounds.
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
1 Earphone jack A non-detachable protective covering
cap for the earphone jack.
2 Earphone jack Connects to audio line-out devices
(earphones/headphones).
3 Infrared (IR) Uses infrared technology to transmit
port and receive data from other
IR-enabled devices.
4 SD/MMC Accepts SD, MMC, and SDIO (Secure
expansion slot Digital Input Output) cards, allowing
you to add more memory. Install add-on
applications or use audio or text files
stored in it for use with internal
applications. You can also use it to
back up data from your device.
5 Antenna/stylus The antenna includes a neatly hidden
holder slot for holding the stylus. To use the
stylus, remove it from its holder and
hold it the same way you hold a pen or
pencil.
6 Notification Lights up solid amber for alarm
indicator reminders and email receipt.
7 Phone Lights up green to indicate
indicator phone function status.
8 Power button If the device is off, press the button to
turn it on (LED lights up green).
If the device is on, press to turn it off.
The status of the power LED indicates
the charging status.
Flashing green - Charging device
Solid green - Charging complete
As a backlight control, press and hold
to toggle the backlight on/off.
9 LCD Displays the applications and data
touchscreen stored on your device. It is
touch-sensitive and responds to the
stylus or your finger.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 30
3332
LLEEFFTT VVIIEEWW
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
1 Jog dial Pressing the jog dial results in an
action similar to pressing the Enter key
on a regular keyboard. For example, to
open any of the applications in the Start
menu simply select that application
then press the jog dial; or in using a
Help menu, simply select a hyperlink
then press the jog dial to display the
linked information.
In pop-up menus:
Rotate up/down to go through menu
options.
Press to select a highlighted option.
RREEAARR VVIIEEWW
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
1 Main battery Press to release the main battery from
release latch its bay.
2 Reset button Press the end of the stylus into the
hole to reset your device.
3 Main battery Removable and rechargeable
1480 mAh Lithium Ion battery pack.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 32
3534
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
Hold switch When the hold switch is enabled:
Backlight is turned off and all
hardware buttons are disabled
Auto power off function is still active
Sound notification for alarms,
reminders and SD/MMC/SDIO card
movement are enabled
When there’s an incoming call and the
hold switch is enabled:
Backlight is turned on with the caller
ID displayed
All hardware keys except for the
SSeennddor EEnndd buttons are
disabled
Backlight turns off after ending call
NNOOTTEE:: EEnnaabblliinngg tthhee hhoolldd sswwiittcchh ddooeess
nnoott lloocckk tthhee rreesseett bbuuttttoonn;; yyoouu ccaann ssttiillll
rreesseett yyoouurr ddeevviiccee eevveenn iiff tthhee hhoolldd
sswwiittcchh iiss ttuurrnneedd oonn..
UUSSIINNGG TTHHEE BBAACCKKLLIIGGHHTT
If lighting conditions make it difficult for you to see the
information on your device, use the backlight to
illuminate your screen. You can change the backlight
settings. Refer to "Brightness" on page 137.
To activate the backlight:
Press and hold the PPoowweerrbutton until the
backlight turns on.
- or -
If the hold switch is enabled, disable it.
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
Jog dial In Dialer:
Rotate up to access Call History.
Rotate down to access Speed Dial.
From Speed Dial:
Rotate up/down to scroll through the
list.
Press to call the currently selected
number.
From Call History:
Rotate up/down to scroll through the
log items.
Press to call the currently selected
log item.
Press and hold to display the pop-up
menu for the currently selected log
item.
From SIM Manager:
Rotate up/down to scroll through the
numbers stored in your SIM card.
Press and hold to display the pop-up
menu for the currently selected entry.
2 Volume Press the key up to increase volume,
rocker key press down to decrease volume.
3 Hold switch Slide up to lock all buttons from being
accidentally pressed when the device
is placed in pocket or in a bag.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 34
37
36
To remove a storage card:
1. Hold your device securely, then push against the top
of the card, as if you were pushing it further into the slot,
letting the card spring out. An audible system sound will
signal that the card has been released.
2. Gently remove the card from the slot.
To turn off the backlight:
Press and hold the PPoowweerrbutton until the
backlight turns off.
- or -
If the hold switch is disabled, enable it.
UUSSIINNGG TTHHEE SSDD//MMMMCC SSLLOOTT
Your device has an expansion slot compatible with a
range of SD and MMC storage cards, which are
primarily used to back up or transfer files and data.
To insert a storage card:
Hold your device securely, then push the card into the
slot until you hear an audible system sound; this will
signal that the card is already properly seated within the
slot.The card is secure when it is not protruding from the
base.
NNOOTTEE::TThhiiss ddeevviiccee ccoommeess wwiitthh aa pprrootteeccttiivvee ppiieeccee iinn tthhee ccaarrdd
sslloott.. RReemmoovvee tthhee ppllaassttiicc ccaarrdd ffrroomm tthhee sslloott bbeeffoorree ttrryyiinngg ttoo
iinnsseerrtt aann SSDD oorr MMMMCC ccaarrdd..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 36
3938
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
4 Front pocket Recharges your device.
5 Spare battery Lights up to indicate charging status
indicator for the spare battery pack.
LED status description:
Flashing green - Charging battery
pack
Solid green - Charging complete
6 Rear pocket Recharges a spare battery pack.
SSTTEERREEOO HHEEAADDSSEETT AANNDD
EEAARRPPHHOONNEE MMIICCRROOPPHHOONNEE
The ergonomically designed stereo headset (dual
earpiece) and earphone microphone (single earpiece)
that come with your device provides quality sound
output and maximum comfort fit.
Use the stereo headset to play your favorite audio and
video files; and to attend to phone calls during
non-driving sessions. For safety reasons, DO NOT use
the headset while driving.
Use the earphone microphone to enjoy hands-free
phone operation while driving.
You can configure the operation of these two peripherals
under the Phone Settings - Special tab. Go to page 127
for more information.
NNOOTTEE::WWhheenn uussiinngg tthhee mmiiccrroopphhoonnee oonn tthhee sstteerreeoo hheeaaddsseett//
eeaarrpphhoonnee dduurriinngg aann oonnggooiinngg ccaallll,, tthhee bbuuiilltt--iinn ddeevviiccee
mmiiccrroopphhoonnee iiss ddiissaabblleedd..
This sections provides an overview of the peripheral
devices bundled with your handset.This include the USB
cradle, headset stereo, and the earphone microphone.
UUSSBB CCRRAADDLLEE
The USB cradle that comes with your device enables
you to charge your device, as well as synchronize the
information on your device with those on your computer
using ActiveSync technology. The dual-pocket design
also allows simultaneous charging of the device and an
optional spare battery pack.
NNOO..CCOOMMPPOONNEENNTTDDEESSCCRRIIPPTTIIOONN
1 USB Connects the cradle to a USB
port connector on your computer.
2 Power Connects the cradle to a power outlet.
connector
3 Support Holds the device in place during
bracket charging.
PPEERRIIPPHHEERRAALLSS TTOOUURR
PPEERRIIPPHHEERRAALLSS TTOOUURR
NNOOTTEE::WWhheenn yyoouurr ddeevviiccee iiss ddoocckkeedd iinn tthhee UUSSBB ccrraaddllee wwhhiillee
tthhee GGPPRRSS ffuunnccttiioonn iiss oonn,, yyoouu wwiillll nnoott bbee aabbllee ttoo bbrroowwssee wweebb
ppaaggeess..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 38
4140
CCHHAARRGGIINNGG AANN OOPPTTIIOONNAALL SSPPAARREE
BBAATTTTEERRYY PPAACCKK
The dual-pocket design of the USB cradle that comes
with your device allows you to simultaneously charge the
the device and an optional spare battery pack.
To charge an optional spare battery pack:
1. Plug the AC adapter into any AC current outlet.
2. Press and hold the connector button on the AC
adapter cord, then plug it into the power socket at the
back of the cradle.
3. Slide the spare battery pack into the rear pocket of the
cradle until it clicks into place.
The spare battery indicator on the cradle will light up
green to indicate that the battery pack is properly
inserted into the cradle pocket.
NNOO..CCOOMMPPOONNEENNTT
1 6-pole, 2.5 mm headset plug
2 Remote Send/End button
3 Microphone
4 Clip
5 Stereo headset: Dual earpiece
Earphone microphone: Single earpiece
Headset Stereo
Earphone Microphone
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 40
4342
HHAARRDDWWAARREE BBUUTTTTOONNSS AANNDD TTHHEE SSTTYYLLUUSS
Your device has hardware buttons that control actions
and scroll functions, and a stylus for selecting items and
entering information.
On your device, the stylus replaces the mouse.
Tap - Touch the screen once with the stylus to open
items and select options.
Drag - Hold the stylus on the screen and drag across
the screen to select text and images. Drag in a list to
select multiple items.
Tap and hold - Tap and hold the stylus on an item to
see a list of actions available for that item. In the
pop-up menu that appears, tap the action you want to
perform.
TTOODDAAYY SSCCRREEEENN
When you turn on your device for the first time each day
(or after a preset period of inactivity), you'll see the
Today screen.You can also display it by tapping and
then TTooddaayy.
To define a preset period of inactivity after which the
Today screen is displayed:
1. Tap ,
SSeettttiinnggss, then PPeerrssoonnaalltab.
2. Tap TTooddaayy.
3. On the Items tab, select the “Display Today screen... “
check box.
4. Tap the pick list below the check box to set the period
of inactivity.
5. Tap OOKK.
CCOOMMMMAANNDD IINNTTEERRFFAACCEE
CCOOMMMMAANNDD IINNTTEERRFFAACCEE
SSEENNDD//EENNDD BBUUTTTTOONN OOPPEERRAATTIIOONN
This section describes the action of the Send/End button
on the stereo headset/earphone microphone when
there’s an active mobile phone connection.When there’s
no active mobile phone connection or when the Phone
application is turned off, the headset's Send/End button
is disabled.
During an incoming call:
Quick Press - Accept the call
Press and hold for more than 2 seconds - Accept the
call
During an ongoing call:
Quick Press - Terminate the call
Press and hold for more than 2 seconds - Record the
ongoing call
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:03 PM Page 42
4544
If more notification icons need to be displayed than there
is room for, the Notification icon appears. Tap the
icon to view all notification icons.
NNAAVVIIGGAATTIIOONN BBAARR
The navigation bar is located at the top of the screen. It
displays the active program and current time, as well as
the Start menu , which allows you to switch to other
programs.
Tap to quickly select a
recently used program.
Tap a program
icon to open it.
Tap to see more programs.
Tap to customize your device.
NNOOTTEE::FFoorr ssttaattuuss iiccoonnss rreellaatteedd ttoo tthhee pphhoonnee ffuunnccttiioonn,, rreeffeerr ttoo
ppaaggee 8888..
The Today screen provides an at-a-glance view of
important reminders and details for the day.
SSTTAATTUUSS IICCOONNSS
The table below describes some of the status icons you
may see on your device.
IICCOONNDDEESSCCRRIIPPTTIIOONN
Turns all sounds on and off
Backup battery is low
Main battery is low
Main battery is very low
Data connection is active
Synchronization is beginning or ending
Synchronization is occurring
Notification that one or more instant messages were
received
Notification that one or more email/SMS messages were
received
Tap to view
the Start menu
Indicates the mobile
connection status.
Tap to adjust
volume or mute all
sounds.
Tap to change
date and time.
Tap to view the
connection status.
Your day at
a glance.
Tap to create a
new item (e.g. new
appointment).
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:04 PM Page 44
4746
NNOOTTIIFFIICCAATTIIOONNSS
Your device reminds you in a variety of ways when you
have something to do or when you receive an
email/SMS message. For example, if you've set up an
appointment in Calendar, a task with a due date in
Tasks, or an alarm in Clock, you'll be notified in any of
the following ways:
A message box appears on the screen.
A sound, which you can specify, is played.
The notification indicator on the front panel of your
device lights up amber.
To choose reminder types and sounds for your device:
1. Tap ,
SSeettttiinnggss, then PPeerrssoonnaalltab.
2. Tap SSoouunnddss && NNoottiiffiiccaattiioonnss.
3. On the Notifications tab, select the kind of events you
want to be notified of and the manner of
notification you prefer. The options you choose here are
applied globally on your device.
4. Tap OOKK.
Lift the stylus and tap
the action you want.
Tap and hold a selected item
to display a pop-up menu.
Tap outside the menu to
close it without performing
an action.
CCOOMMMMAANNDD BBAARR
Use the command bar at the bottom of the screen to
perform tasks in programs. The command bar includes
menu names, buttons, and the Input Panel button .
To create a new item in the current program, tap NNeeww.
To see the name of a button, tap and hold the stylus
on the button. Drag the stylus off the button so that the
command is not carried out.
PPOOPP--UUPP MMEENNUUSS
With pop-up menus, you can quickly choose an action
for an item. For example, you can use the pop-up menu
in the contact list to quickly delete a contact, make a
copy of a contact, or send an email message to a
contact. The actions in the pop-up menus vary from
program to program.
To access a pop-up menu:
1. Tap and hold the stylus on the item that you want to
perform the action on.
2. When the menu appears, lift the stylus, then do any of
the following:
3. Tap the action you want to perform.
4. Tap anywhere outside the menu to close the menu
without performing an action.
Input
Panel
button
Menus
New button
Record button
Pen button
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:04 PM Page 46
4948
MMAANNAAGGIINNGG PPRROOGGRRAAMMSS
Your handset has several preinstalled programs that you
can use to organize your daily activities. These include
programs that will help you search, organize, and
synchronize information.
This chapter describes the procedures for launching
programs. It also shows how to use Find and File
Explorer, as well as procedures for performing an
ActiveSync operation.
1. Accessing Programs
2. Using Find
2. Using File Explorer
4. Using ActiveSync
CCHHAAPPTTEERR 33
CCHHAAPPTTEERR 33
NNOOTTEESS
NNOOTTEESS
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:04 PM Page 48
5150

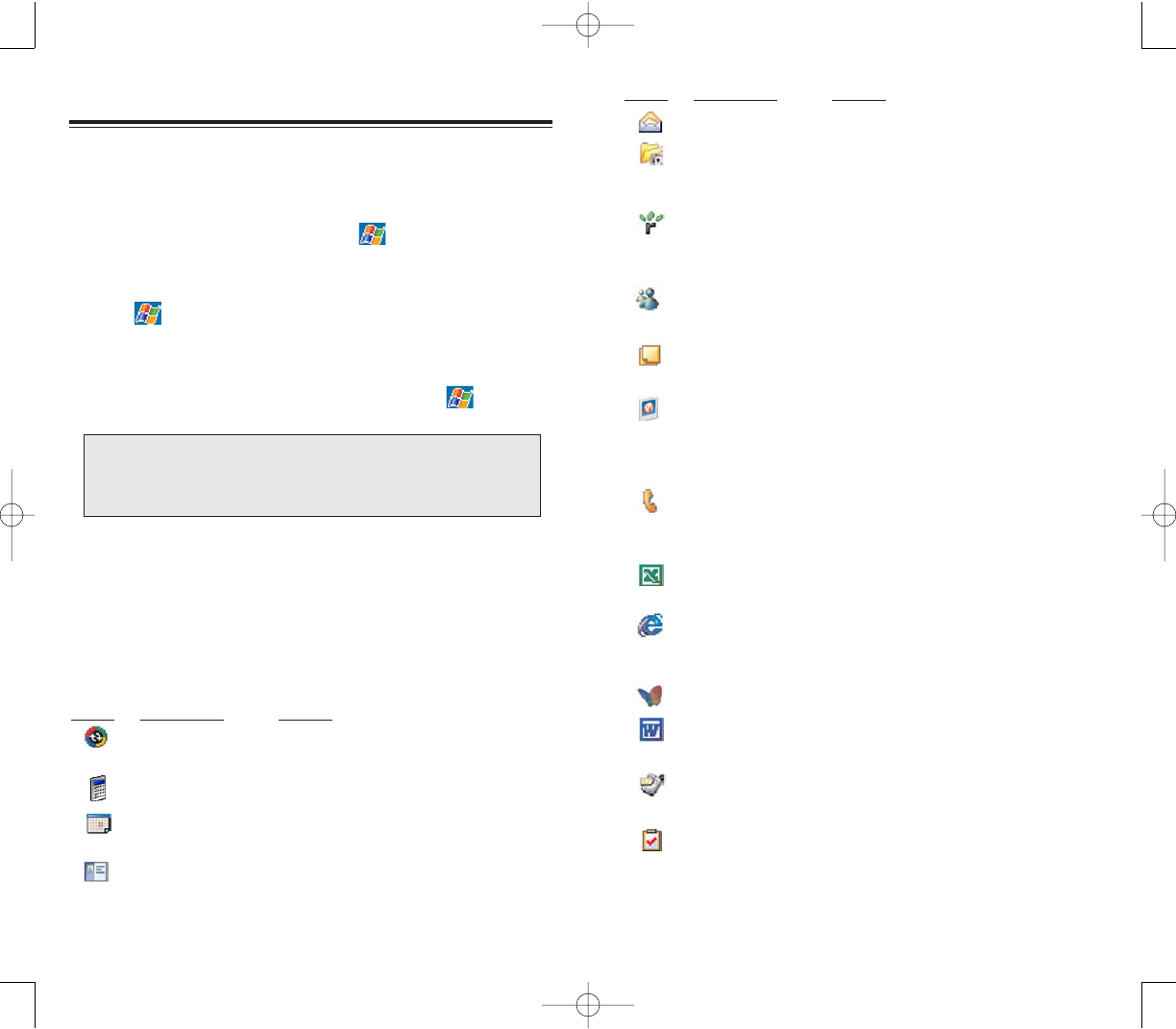

IICCOONNPPRROOGGRRAAMMUUSSAAGGEE
Inbox Send and receive email messages.
Games Play your favorite computer games,
including Jawbreaker and Solitaire,
for on-the-road entertainment.
Microsoft Reader Download and read eBooks on your
for Pocket PC device.
MSN®Messenger Send and receive instant messages
from your MSN Messenger contacts.
Notes Create handwritten or typed notes,
drawings, and recordings.
Pictures Access and edit image files on your
device.You can view images in a variety
of ways--individually, in slide show
mode or using thumbnails.
Phone Make and receive calls and SMS messages;
swap between calls and set up conference
calling.
Pocket Excel Create new workbooks or view and edit
Excel workbooks created on your computer.
Pocket Internet Browse Web and WAP sites, and
Explorer download new programs and files from
the Internet.
Pocket MSN Subscribe to popular MSN services.
Pocket Word Create new documents or view and edit
Word documents created on your computer.
SIM Manager Loads contents of your SIM card to
your device and transfer it to Contacts.
Tasks Keep track of your tasks.
OOPPEENNIINNGG AA PPRROOGGRRAAMM
You can open programs in the following ways:
Tap a program name from the menu.
You can customize which programs you see on the
menu. For instructions, see page 146.
Tap , then
PPrrooggrraammss,, to see more programs.
SSWWIITTCCHHIINNGG BBEETTWWEEEENN PPRROOGGRRAAMMSS
Select another program from the menu.
PPRROOGGRRAAMM LLIISSTT
The following is a partial list of programs that are
available on your device. Refer to the PPC4100
Companion CD for additional programs that you can
install on your device.
IICCOONNPPRROOGGRRAAMMUUSSAAGGEE
ActiveSync Synchronize information between your
device and your computer.
Calculator Perform basic arithmetic calculations.
Calendar Keep track of your appointments and
create meeting requests.
Contacts Keep track of your friends and
colleagues.
AACCCCEESSSSIINNGG PPRROOGGRRAAMMSS
AACCCCEESSSSIINNGG PPRROOGGRRAAMMSS
NNOOTTEE::
SSoommee pprrooggrraammss hhaavvee aabbbbrreevviiaatteedd llaabbeellss ffoorr
cchheecckk
bbooxxeess aanndd ddrroopp--ddoowwnn mmeennuuss.. TToo sseeee tthheeffuullll ssppeelllliinngg ooff aann
aabbbbrreevviiaatteedd llaabbeell,, ttaapp aanndd hhoolldd
tthhee ssttyylluuss oonn tthhee llaabbeell.. DDrraagg tthhee
ssttyylluuss ooffff tthhee
llaabbeell ssoo tthhaatt tthhee ccoommmmaanndd iiss nnoott ccaarrrriieedd oouutt..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:05 PM Page 50
5352
The Find function helps you quickly locate specific files.
1. Tap , then Find .
2. Enter the text you want to find, then select a data type.
3. To quickly find information that is taking up storage
space on your device, select the “Larger than 64 KB”
option from the Type drop-down box.
3. Tap the GGoobutton to start the search.
UUSSIINNGG FFIINNDD
UUSSIINNGG FFIINNDD
Type the text you
want to find.
Tap to start the
search.
IICCOONNPPRROOGGRRAAMMUUSSAAGGEE
Terminal Services Log onto a Windows NT server type
Client PC that is running Terminal Services
software and use all of the programs
that are available on that PC from your
device.
Windows MediaTM Play digital audio and video files that
Player are stored on your device or on a
network.
WiBackup Create backup files of data and
applications stored on your device.
NNOOTTEE:: GGeett ddeettaaiilleedd iinnffoorrmmaattiioonn oonn uussiinngg aannyy ooff aapppplliiccaattiioonnss lliisstteedd
iinn tthhiiss sseeccttiioonn ((eexxcceepptt SSIIMM MMaannaaggeerr)),, ooppeenn tthhee pprrooggrraamm,, ttaapp SSttaarrtt,,
tthheenn HHeellpp..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:05 PM Page 52
5554
Microsoft®ActiveSync®technology synchronizes
information between your Pocket PC and your computer
and/or a server so you always have the most up-to-date
information wherever you are.
Each time you synchronize, ActiveSync compares the
information on your device with the information on your
computer and/or the server and updates all locations.
This means you’ll always have the most recent
information at all times. Use ActiveSync to:
Keep Pocket Outlook data up-to-date by
synchronizing your device with the Microsoft Outlook
data on your computer.
Synchronize Inbox, Calendar, and Contacts with a
server so that you have the latest information, even
when you don’t have access to your computer.
Open and edit your Microsoft Word and Microsoft
Excel files in your device and synchronize it back to your
computer. Files are automatically converted to the
correct format.
Copy (rather than synchronize) files between your
device and your computer.
Control when synchronization occurs by selecting a
synchronisation schedule. For example, you can
synchronize continually while connected to your
computer or only when you select the synchronize
command.
UUSSIINNGG AACCTTIIVVEESSYYNNCC
UUSSIINNGG AACCTTIIVVEESSYYNNCC
Use File Explorer to locate files on your device and to
organize these files into folders.
Tap ,
PPrrooggrraammss, then FFiillee EExxpplloorreerr.
UUSSIINNGG FFIILLEE EEXXPPLLOORREERR
UUSSIINNGG FFIILLEE EEXXPPLLOORREERR
Tap here to select a
sort order for the list.
Tap and hold a blank
area to display the New
Folder command.
Tap to view the files
stored in your storage card.
Tap to open a file in
the network you’re
connected to.
Tap to view the
files stored on
your device.
NNOOTTEE::YYoouu ccaann oonnllyy ssyynncchhrroonniissee iinnffoorrmmaattiioonn wwiitthh aa sseerrvveerr iiff yyoouurr
ccoommppaannyy iiss rruunnnniinngg MMiiccrroossoofftt EExxcchhaannggee SSeerrvveerr wwiitthh EExxcchhaannggee
AAccttiivveeSSyynncc..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:05 PM Page 54
5756
To install Microsoft ActiveSync on your computer:
1. Exit any open programs, including those that run at
startup, and disable any virus-scanning software.
2. Insert the PPC4100 Companion CD into the
computer’s CD-ROM drive.
The CD's welcome page appears.
3. To go to the next screen, click the animated forward
icon .
4. Click the SSttaarrtt HHeerreetab on the right side of the screen.
5. Read the instructions and installation notes indicated
on the Start Here screen.
6. Click the buttons on the left pane to install each of the
individual applications.
After installation, the ActiveSync icon will appear on
your computer’s system tray (on the lower right-hand
corner of the screen).
For detailed information about using ActiveSync on your
computer, start ActiveSync on your computer, click HHeellpp,
then MMiiccrroossoofftt AAccttiivveeSSyynncc HHeellpp.
CCRREEAATTIINNGG AA PPAARRTTNNEERRSSHHIIPP
After completing the installation procedures you can now
set up a partnership between your PPC4100 Pocket PC
and your computer and/or a server with the help of the
New Partnership setup wizard. This wizard will help you:
Set up a partnership so you can synchronize
information between your device and your computer
Customize your synchronization settings
If you choose continuous synchronization, changes
made on the computer or device are duplicated
immediately. To recover a sudden loss of data, you can
configure ActiveSync to back up data on your device.
Choose whether to copy all information in the
internal storage on your device, or just the information
that has changed since the last backup.
Select which information types are synchronized and
control how much information is synchronised. To
illustrate, when synchronizing Calendar, you can set
ActiveSync to synchronize appointments within a certain
date range and for specific categories only. For example
business appointments from the past two weeks only.
IINNSSTTAALLLLIINNGG MMIICCRROOSSOOFFTT AACCTTIIVVEESSYYNNCC
ActiveSync is already installed on your PPC4100 Pocket
PC; you only need to install it on your computer.
MMIINNIIMMUUMM PPCC CCOOMMPPUUTTEERR RREEQQUUIIRREEMMEENNTTSS
MicrosoftWindows®XP, 2000, ME, NT Workstation 4.0
with SP 6 or later, or 98
Microsoft Outlook®98 or later required for
synchronization
MicrosoftInternet Explorer 4.01 SP1 or later
Hard disk drive with 12 to 65MB of available hard disk
space (actual requirements will vary based on selection
of features and user’s current system configuration)
Available infrared port or USB port
CD-ROM drive
VGA graphics card or compatible video graphics
adapter at 256 color or higher
Keyboard and mouse
NNOOTTEE::IIff tthhee wwiizzaarrdd ddooeess nnoott aauuttoommaattiiccaallllyy aappppeeaarr,, llaauunncchh
AAccttiivveeSSyynncc oonn yyoouurr ccoommppuutteerr bbyy cclliicckkiinngg oonn iittss iiccoonn ffrroomm
SSttaarrtt,, tthheenn PPrrooggrraammss..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 56
5958
To prevent synchronization problems, select the
“Synchronize with Microsoft Mobile Information
Server and/or this desktop computer” option in the
New Partnership setup wizard only if you are
certain that your company is running Microsoft
Exchange Server with Exchange ActiveSync and you
know the server name. Otherwise, select the
“Synchronize with this desktop computer” option.
For more information, contact your corporate
network administrator or service provider.
The initial synchronization process will automatically
begin when you finish using the wizard. During the
synchronization process this icon appears on your
device’s navigation bar.
To create a partnership:
1. Dock your device in the front pocket of the cradle.
2. Plug the cradle’s USB connector into a USB port on
your computer.
The New Partnership setup wizard will automatically
start on your computer screen.
3. Follow the onscreen instructions.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 58
6160
5. Select one or both of the following options:
Use mobile schedule to sync with this PC - to set
synchronization at scheduled intervals
Sync with this PC during manual sync - to set
your device to sync with the selected computer
everytime you sync rmanually
4. Tap OOKK.
To set mobile schedule during wireless synchronization
with your computer:
You can set two seperate mobile schedules when
wirelessly synchronizing your device with your
computer.
Peak time schedule - to synchronize during work
hous or other times you receive higher mail volumes
Off-peak schedule - to synchronize during times
when you receive lower mail volumes
1. On your device tap , then AAccttiivveeSSyynncc.
2. Tap TToooollss, OOppttiioonnss, then MMoobbiillee SScchheedduulleetab.
3. Select the frequency of synchronization for of the
three conditions—during peak times, off-peak times, and
when roaming.
4. Tap PPeeaakk TTiimmeessto set the days and hours of your
peak time schedule.
5. Tap OOKK.
After the initial synchronization, take a look at Calendar,
Contacts, and Tasks on your device. You'll notice that
information you've stored in Microsoft Outlook on your
computer has been copied to your device, and you
didn't have to type a word. Disconnect your device from
your computer and you're ready to go!
Once you have completed the first synchronization
process, you can initiate synchronization from your
device anytime, using either the USB cradle or via
infrared.
To start and stop synchronization:
1. Connect your device and computer via:
USB cradle - Follow steps 1-2 under the “To create
a partnership” section on page __.
Infrared - Go to page __ for more information.
2. On your device tap , then AAccttiivveeSSyynncc.
3. To start synchronization, tap Sync __.
To stop synchronisation, tap Stop __.
SSYYNNCCHHRROONNIIZZIINNGG WWIITTHH YYOOUURR CCOOMMPPUUTTEERR
You can define settings for remote synchronization with
your computer, and set a mobile schedule during
wireless synchronization.
To set remote synchronization with your computer:
1. On your device tap , then AAccttiivveeSSyynncc.
2. Tap TToooollss, OOppttiioonnss, then PPCCtab.
3. Select PC Settings, and then press the Action button.
4. Under “Use this PC:”, tap the pick list and select the
appropriate computer name.
NNOOTTEE:: TToo ssyynncchhrroonniizzee rreemmootteellyy wwiitthh aa yyoouurr ccoommppuutteerr,, iitt mmuusstt bbee
ttuurrnneedd oonn..
NNOOTTEE:: WWhheenn yyoouu aarree iinn aa rrooaammiinngg mmooddee,, yyoouu ccaann ssyynncchhrroonniizzee
mmaannuuaallllyy ttoo rreedduuccee rrooaammiinngg cchhaarrggeess,, oorr yyoouu ccaann uussee tthhee mmoobbiillee
sscchheedduullee yyoouu’’vvee sseett..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 60
9. Define the synchronization settings for each
information type by tapping the type of information, then
SSeettttiinnggss.
10. Tap OOKK
To set up automatic synchronization with a Microsoft
Exchange server:
Enabling automatic synchronization between your
device and Microsoft Exchange server ensures that you
always get real-time information from the server
everytime an item arrives or is changed on the server.
1. On your device tap , then AAccttiivveeSSyynncc.
2. Tap TToooollss, OOppttiioonnss, then MMoobbiillee SScchheedduulleetab.
3. Tap AAss iitteemmss aarrrriivvee for the peak time and/or off-peak
time mobile schedule.
4. Tap the SSeerrvveerrtab.
5. Tap OOppttiioonnss.
6. Tap DDeevviiccee AAddddrreessss.
7. Tap one of the option below:
Corporate Service Provider - If your company has
instructed you to use a predefined service provider
profile.
a. Enter the profile name under Service Provider
Name.
b. Enter your device’s phone number under Device
Phone number (optional)
Device SMS Address
- Enter the address that identifies your device on
the network.This is the same address that other Internet
users use to send SMS messages to your device.
8. Tap OOKK
63
SSYYNNCCHHRROONNIIZZIINNGG WWIITTHH AA SSEERRVVEERR
The option to synchronize your device with a server is
available when you first create a partnership. Before you
can begin to synchronize information with a server, you
need to request the following server configuration
information, either from your service provider or from
your corporate network administrator:
Your user name and password in your corporate
network
The name of the Microsoft Exchange server
To set up synchronization with a Microsoft Exchange
server:
1. On your device tap , then AAccttiivveeSSyynncc.
2. Tap TToooollss, OOppttiioonnss, then SSeerrvveerrtab.
3. In the “Use this server” box, enter the name of the
Microsoft Exchange server to which you want to
connect.
Select the “This server uses an SSL connection”
check box if it’s applicable to your corporate network.
4. Tap OOppttiioonnss.
5. On the Connection tab, enter your user name,
password, and domain name under “Logon credentials”.
If you intend to enable automatic synchronization,
select the “Save password” check box.
6. On the Rules tab:
a. Select the frequency of synchronization with
server when you are connected to your computer.
b. Define the rules for resolving conflicts if items
change on both your device and on the server.
7. Tap OOKK.
8. Under “Sync these items”, select the check box
opposite the types of information that you want to
synchronize with the server.
62
NNOOTTEE:: NNoottee tthhaatt tthheerree aarree nnoo ssyynncchhrroonniizzaattiioonn sseettttiinnggss ffoorr
CCoonnttaaccttss..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 62
Messages in subfolders in other email folders in
Outlook are synchronized only if the folders have been
selected for synchronization in Inbox on your device.
SSYYNNCCHHRROONNIIZZIINNGG CCAALLEENNDDAARR
Calendar items created on your device are copied to
your computer and/or on a Microsoft Exchange server
during synchronization, and vice versa. By default,
Calendar items from the last two weeks will be
synchronized.
Similarly, Calendar items that are deleted from your
device are deleted from your computer and/or server
during synchronization, and vice versa.
SSYYNNCCHHRROONNIIZZIINNGG CCOONNTTAACCTTSS
Contacts created on your device are copied to your
computer or on a Microsoft Exchange server during
synchronization, and vice versa.. By default, all of your
contacts will be synchronized.
Similarly, contacts that are deleted from your device
are deleted from your computer and/or server during
synchronization, and vice versa.
SSYYNNCCHHRROONNIISSIINNGG TTAASSKKSS
Task synchronization is, by default, automatically
selected in ActiveSync.
Tasks can only be synchronized only with your
computer; they cannot be synchronized with a server.
65
To stop synchronizing with a server:
You can stop synchronizing an information type with a
server, and instead synchronize it with your computer.
1. On your device tap , then AAccttiivveeSSyynncc.
2. Tap TToooollss, OOppttiioonnss, then SSeerrvveerrtab.
3. Under “Sync these items”, deselect the check box
opposite the types of information that you no longer want
to synchronize with the server.
4. Tap OOKK.
SSYYNNCCHHRROONNIIZZIINNGG IINNFFOORRMMAATTIIOONN
By default, ActiveSync does not enable automatic
synchronization of all types of information. To select the
types of information you want synchronized, on either
your device or your computer, go to TToooollss, then OOppttiioonnss.
This section gives you an overview of the types of
Outlook information you can synchronize.
SSYYNNCCHHRROONNIIZZIINNGG IINNBBOOXX
When you select Inbox for synchronization in
ActiveSync, email messages are synchronized as part
of the general synchrozisation process. During
synchronization, the following events occur:
Messages are copied from the Outlook Inbox folder on
your computer, or from a Microsoft Exchange server, to
the Inbox folder (under the ActiveSync account) on your
device.
By default, when synchronising Inbox information with
your computer, you will receive only messages from the
last three days and the first .5 KB of each new message.
You can also choose to download file attachments.
The messages on your device and on your computer
are linked. When you delete a message on your device,
it is also deleted from your computer the next time you
synchronize, and vice versa.
64
NNOOTTEE:: SSMMSS mmeessssaaggeess aarree nnoott rreecceeiivveedd iinn IInnbbooxx tthhrroouugghh
ssyynncchhrroonniizzaattiioonn..IInnsstteeaadd,, tthheeyy aarree sseenntt ttoo yyoouurr ddeevviiccee bbyy wwaayy ooff
yyoouurr mmoobbiillee sseerrvviiccee pprroovviiddeerr..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 64
UUSSIINNGG AACCTTIIVVEESSYYNNCC TTOO EEXXCCHHAANNGGEE FFIILLEESS
You can use ActiveSync to exchange information from
your device your computer and vice versa. Changes you
make to the information on one location will not affect
the information on the other one. If you want to
automatically update information on both your device
and computer, synchronize the information instead.
You can copy two types of information to your device:
files and Pocket Access Windows CE Store information.
The procedure below only applies to copying files. Refer
to the ActiveSync Help on your computer for instructions
on how to copy Pocket Access Windows CE Store
information.
To copy files:
1. Connect your device to your computer.
2. In ActiveSync on your computer, click EExxpplloorree.
Windows Explorer will open the Mobile Device
window for your device.
3. Locate the file that you want to copy on your device or
computer.
4. Do one of the following:
To copy the file to your device, right-click the file and
click CCooppyy. Place the cursor in the desired folder for your
device, right-click, and click PPaassttee.
To copy the file to your computer, right-click the file
and click CCooppyy. Place the cursor in the desired folder for
your computer, right-click, and click PPaassttee.
67
Tasks created on your device are copied to your
computer during synchronization, and vice versa. By
default, only incomplete tasks will be
synchronized.
Similarly, tasks that are deleted from your device are
deleted from your computer during synchronization, and
vice versa.
SSYYNNCCHHRROONNIIZZIINNGG UUSSIINNGG IINNFFRRAARREEDD
Your device is equipped with an IrDA-standard infrared
port that you can use to synchronize information with
your computer. Simply align the infrared port of your
device with that on your computer. This method is ideal
for quickly switching between multiple devices since
there are no cables or adapters to change.
To synchronize information via infrared connection:
1. Perform the steps below on your computer:
a. Install and configure an infrared port on your
computer following the manufacturer’s instructions.
b. Once your computer’s IR port is ready, open
ActiveSync.
c. Click FFiillee, then CCoonnnneeccttiioonn SSeettttiinnggss.
d. Under the “In the Allow serial cable or infrared
connection to this COM port” list, select IInnffrraarreedd PPoorrtt
((IIRR)).
2. Perform the steps below on your device:
a. Align the IR port of your device with that on
your computer so that they are unobstructed and within
a close range.
b. Initiate connection by tapping , AAccttiivveeSSyynncc,
TToooollss, then CCoonnnneecctt vviiaa IIRR.
66
NNOOTTEE:: FFiilleess ccrreeaatteedd oonn yyoouurr ccoommppuutteerr mmaayy nneeeedd ttoo bbee ccoonnvveerrtteedd
bbyy AAccttiivveeSSyynncc ssoo tthhaatt tthheeyy ccaann bbee vviieewweedd aanndd eeddiitteedd oonn yyoouurr
ddeevviiccee,, aanndd vviiccee vveerrssaa..
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 66
69
EENNTTEERRIINNGG DDAATTAA
This chapter describes how to use the different text entry
methods on your device.
1. Using the Input Panel
2. Writing on the Screen
3. Drawing on the Screen
4. Recording a Message
5. Using My Text
CCHHAAPPTTEERR 44
CCHHAAPPTTEERR 44
68
NNOOTTEESS
NNOOTTEESS
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 68
7170
To change word suggestion options:
To set word suggestion options such as the number of
words suggested at one time:
1. Tap , then
SSeettttiinnggss, then the PPeerrssoonnaalltab.
2. Tap IInnppuutt.
3. On the WWoorrdd CCoommpplleettiioonntab, define the word
suggestion settings.
4. Tap OOKK.
UUSSIINNGG TTHHEE SSOOFFTT KKEEYYBBOOAARRDD
The soft keyboard allows you to “type” information just
like in a regular keyboard, by tapping the onscreen keys.
To use the soft keyboard:
1. Tap the arrow next to the Input Panel button, then tap
KKeeyybbooaarrdd.
2. On the soft keyboard that is displayed, tap the keys
with your stylus.
Tap here if this is
the correct word.
UUSSIINNGG TTHHEE IINNPPUUTT PPAANNEELL
UUSSIINNGG TTHHEE IINNPPUUTT PPAANNEELL
Use the input panel to enter information in any program
on your device. You can either type using the soft
keyboard or write using Letter Recognizer, Block
Recognizer, or Transcriber. In either case, the characters
appear as typed text on the screen.
To show or hide the input panel:
1. Tap the IInnppuutt PPaanneellbutton .
2. Tap the arrow next to the Input Panel button to see
your choices.
When you use the input panel, your device anticipates
the word you are typing or writing and displays it above
the input panel. When you tap the displayed word, it is
inserted into your text at the insertion point. The more
you use your device, the more words it learns to anticipate.
Tap to see your choices.
Select an input method.
Input Panel button
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:06 PM Page 70
7372
UUSSIINNGG BBLLOOCCKK RREECCOOGGNNIIZZEERR
With Block Recognizer you can input character strokes
using the stylus that are similar to those used on other
devices.
To use the Block Recognizer:
1. Tap the arrow next to the Input Panel button, then tap
BBlloocckk RReeccooggnniizzeerr.
2. Write a letter in the box.
When you write a letter, it is converted to typed text
that appears on the screen.
For specific instructions on using Block Recognizer, with
Block Recognizer open, tap the question mark next to
the writing area.
Write all caps
letters here.
Write lower case
letters here. Write numbers here.
UUSSIINNGG LLEETTTTEERR RREECCOOGGNNIIZZEERR
With Letter Recognizer you can write letters using the
stylus just as you would on paper.
To use the Letter Recognizer:
1. Tap the arrow next to the Input Panel button, then tap
LLeetttteerr RReeccooggnniizzeerr.
2. Write a letter in the box.
When you write a letter, it is converted to typed text that
appears on the screen.
For specific instructions on using Letter Recognizer, with
Letter Recognizer open, tap the question mark next to
the writing area.
Tap the onscreen keys
with your stylus.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:07 PM Page 72
7574
To learn how to write a letter in Transcriber:
1. Tap on the toolbar.
2. In the screen that appears, select the letter you want
to learn about, then tap one of the examples.
Click a character for
a demonstration.
UUssiinngg TTrraannssccrriibbeerr
Transcriber allows you to write anywhere on the screen
using the stylus just as you would on paper.
To use the Transcriber:
1. Tap the arrow next to the Input Panel button, then tap
TTrraannssccrriibbeerr.
2. Write anywhere on the screen.
Pause and let Transcriber change the written
characters to typed characters.
For specific instructions on using Transcriber, with
Transcriber open, tap the question mark in the lower
right hand corner of the screen.
Write letters here.
Write numbers here.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:07 PM Page 74
7776
In any program that accepts writing, such as Notes, and
in the Notes tab of Calendar, Contacts, and Tasks, you
can use your stylus to write directly on the screen. Write
the way you do on paper. You can edit and format what
you've written and convert the information to text at a
later time.
To write on the screen:
Tap the PPeennbutton to switch to writing mode.
This action displays lines on the screen to help you
write.
WWRRIITTIINNGG OONN TTHHEE SSCCRREEEENN
WWRRIITTIINNGG OONN TTHHEE SSCCRREEEENN
Tap the Pen button to use
your stylus like a pen
NNOOTTEE::SSoommee pprrooggrraammss tthhaatt aacccceepptt wwrriittiinngg mmaayy nnoott hhaavvee tthhee PPeenn
bbuuttttoonn.. SSeeee tthhee ddooccuummeennttaattiioonn ffoorr tthhaatt pprrooggrraamm ttoo ffiinndd oouutt hhooww ttoo
sswwiittcchh ttoo wwrriittiinngg mmooddee..
To punctuate in Transcriber:
1. Tap on the toolbar.
2. Tap the punctuation mark you need.
3. Tap OOKKto hide the toolbar.
SSEELLEECCTTIINNGG AANNDD EEDDIITTIINNGG TTYYPPEEDD TTEEXXTT
If you want to edit or format typed text, you must select
it first.
1. Drag the stylus across the text to select it.
2. To cut, copy, and paste typed text:
a. Tap and hold the selected words
b.Tap an editing command on the pop-up menu, or tap
EEddiitton the command bar, then tap an editing command.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:08 PM Page 76
7978
To convert writing to text:
Tap TToooollss, then RReeccooggnniizzee.
If you want to convert only certain words, select them
before tapping Recognize on the Tools menu (or tap and
hold the selected words and then tap RReeccooggnniizzeeon the
pop-up menu). If a word is not recognized, it is left as
writing.
If the conversion is incorrect, you can select different
words from a list of alternates or return to the original
writing. To do so:
1. Tap and hold the incorrect word (tap one word at a
time).
2. In the pop-up menu, tap AAlltteerrnnaatteess.
A menu with a list of alternate words appears.
3. Do either of the following:
Tap the word you want to use.
Tap the writing at the top of the menu to return to
the original writing.
Select the text you want to
convert and tap RReeccooggnniizzee
on the pop-up menu.
The writing is
turned into text.
To select and edit written text:
If you want to edit or format written text, you must select
it first.
1. Tap and hold the stylus next to the text you want to
select until the insertion point appears.
2.Without lifting, drag the stylus across the text you want
to select.
If you accidentally write on the screen, tap EEddiitt, then
UUnnddoo, and try again.
-or-
Tap the PPeennbutton to deselect it and then drag the
stylus across the screen.
3. You cut, copy, and paste written text in the same way
you work with typed text:
a. Tap and hold the selected words.
b. Tap an editing command on the pop-up menu, or
tap EEddiitton the command bar, then tap an editing
command.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:08 PM Page 78
8180
You can draw on the screen in the same way that you
write on the screen. The difference between writing and
drawing on the screen is how you select items and how
they can be edited. For example, selected drawings can
be resized, while writing cannot.
To create a drawing:
1. Cross three ruled lines on your first stroke.
A drawing box appears.
2. Subsequent strokes in or touching the drawing box
become part of the drawing. Drawings that do not cross
three ruled lines will be treated as writing.
You may want to change the zoom level so that it is
easier to work on or view your drawing. Tap TToooollssand
then select a zoom level.
DDRRAAWWIINNGG OONN TTHHEE SSCCRREEEENN
DDRRAAWWIINNGG OONN TTHHEE SSCCRREEEENN
The drawing box indicates the
boundaries of the drawing
CCOONNVVEERRSSIIOONN RREEMMIINNDDEERRSS
Hyphenated and foreign words that use special
characters such as accents and some punctuation
cannot be converted.
If you add writing to a word to change it (such as
changing a "3" to an "8") after you attempt to recognize
the word, the writing you add will not be included if you
attempt to recognize the writing again.
TTIIPPSS FFOORR GGEETTTTIINNGG GGOOOODD RREECCOOGGNNIITTIIOONN
Write neatly.
Write on the lines. Write the cross of the "t" and
apostrophes below the top line so that they are not
confused with the word above. Write periods and
commas above the line.
For better recognition, try increasing the zoom level to
300% using the Tools menu.
Write the letters of a word closely and leave big gaps
between words so that your device can easily tell where
words begin and end.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:09 PM Page 80
8382
In any program where you can write or draw on the
screen, you can also quickly capture thoughts,
reminders, and phone numbers by recording a
message.
In Calendar, Tasks, and Contacts, you can include a
recording in an item.
In Notes, you can either create a stand-alone
recording or include a recording in a written note.
In Phone, you can create a note during an active call.
In Inbox, you can add a recording to an email
message.
To create a recording in Notes:
1. Tap , then
NNootteess.
If you want to include the recording in a note, open the
note first.
2. Tap on the command bar.
3. Position your device's built-in microphone near your
mouth or other source of sound.
You can also use the microphone built-in the headset
stereo/earphone microphone bundled with your device
to create a recording.
4. On the Recording toolbar, tap .
5. Tap to stop recording.
The new recording appears in the note list or as an
embedded icon.
RREECCOORRDDIINNGG AA MMEESSSSAAGGEE
RREECCOORRDDIINNGG AA MMEESSSSAAGGEE
To select a drawing:
If you want to edit or format a drawing, you must select
it first.
Tap and hold the stylus on the drawing until the
selection handle appears.
To select multiple drawings, deselect the PPeennbutton
and then drag to select the drawings you want.
To edit a drawing:
1. Tap and hold the selected drawing.
2. Tap an editing command on the pop-up menu, or tap
EEddiitton the command bar, then tap an editing command.
To resize a drawing:
1. Make sure the PPeennbutton is not selected.
2. Drag a selection handle until the desired size is
attained.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:09 PM Page 82
8584
When using Inbox or MSN Messenger, use My Text to
quickly insert preset messages into the text entry area.
To insert a My Text message:
1. Tap MMyy TTeexxtton the screen’s command bar.
2. Tap a message.
3. Tap OOKK.
You can add text after inserting a My Text message
before sending it.
To edit a My Text message:
1. In the Tools menu, tap EEddiittand then tap EEddiitt MMyy TTeexxtt
MMeessssaaggeess.
2. Select the message you wish to edit and make the
desired changes.
UUSSIINNGG MMYY TTEEXXTT
UUSSIINNGG MMYY TTEEXXTT
To play a recording:
Tap it in the list or tap its icon in the note.
Indicates an embedded recording
Tap to begin recording.
Tap to show or hide the Recording toolbar.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:09 PM Page 84
87
86
UUSSIINNGG TTHHEE PPHHOONNEE FFUUNNCCTTIIOONN
The phone function of your PPC4100 Pocket PC boasts
of standard cell phone features—such as mailbox and
SMS—as well as several handy call features including
Speed Dial, Caller ID, Conference Call, Call Waiting,
Call Barring, Call History, speakerphone mode, note
taking, voice mail, and emergency number setting.
The Phone program is integrated with both Microsoft
Contacts and Inbox. This means you can make a call
and send email/SMS messages from any of these three
programs. This fully integrated functionality of Phone
also makes sharing contact information between
programs an easier task.
This chapter shows you how to install a SIM card on
your device. It also describes basic phone operations
and features, as well as ways of customizing the phone
function based on your preferences.
1. Phone Setup
2. Dialer Screen
3. Phone Operation
4. Making Phone Calls
5. Phone Features
6. Phone Preferences
CCHHAAPPTTEERR 55
CCHHAAPPTTEERR 55
NNOOTTEESS
NNOOTTEESS
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:09 PM Page 86
8988
(4) Press the SIM card holder down.
(5) Slide the SIM card holder to the left to lock it into
place.
4. Reinstall the battery pack. See page 14 for instructions.
The default settings for your device are programmed on
the assumption that you’ll be using the phone
function so once you’ve properly installed a SIM card
(and in some cases, entered a PIN), you can then
proceed to establishing a connection to your mobile
service provider’s network.
EENNTTEERRIINNGG YYOOUURR PPIINN
After you have installed the SIM card you’ll be able to
activate your mobile service connection. In most cases,
SIM cards are preset with a PIN (Personal Identity
Number), provided by your mobile service provider,
which you need to enter to establish mobile service
connection.
NNOOTTEE::IIff yyoouu’’rree nnoott ggooiinngg ttoo iinnssttaallll aa SSIIMM ccaarrdd oonn yyoouurr ddeevviiccee,,
kkeeeepp tthhee PPhhoonnee aapppplliiccaattiioonn cclloosseedd ttoo mmiinniimmiizzee ppoowweerr
ccoonnssuummppttiioonn..
IINNSSTTAALLLLIINNGG TTHHEE SSIIMM CCAARRDD
If you wish to use the Phone application, you need to
first install a valid SIM (Subscriber Identity Module) card.
A SIM card is a small printed circuit board that must be
installed when signing on as a subscriber in a
GSM-based mobile phone like your PPC4100. It
contains subscriber details, security information and
memory for a personal directory of numbers. An AT&T
SIM card is included in your PPC4100 gitftbox.
To install the SIM card:
1. If the device is switched on:
(1) Press and hold the EEnnddbutton on your device
until appears in the navigation bar.
(2) Press the PPoowweerrbutton to turn off the device.
(3) Wait five (5) seconds to allow the device to
completely enter sleep mode.
2. Remove the battery pack. See page 14 for instructions.
3. Perform the following steps with the open rear panel
facing you:
(1) Slide the SIM card holder to the right.
(2) Lift the holder halfway from the recess area.
(3) Insert the SIM card into SIM card holder.
Note the proper position of the SIM card—the card
connector (i.e., gold area) should be facing downward
with the bevelled corner fitting the lower-left corner of the
recess area.
PPHHOONNEE SSEETTUUPP
PPHHOONNEE SSEETTUUPP
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:10 PM Page 88
9190
Launching the Phone application opens the Dialer
screen. To do this you can do either of the following:
Tap , then
PPhhoonnee .
On your device’s front panel, press the
SSeennddbutton .
DDIIAALLEERR BBUUTTTTOONNSS
The list below shows the actions of the Dialer screen
buttons.
BBUUTTTTOONNAACCTTIIOONN
Tap to erase the number you entered.
Tap to see all received, made, and missed calls.
Tap to view the Speed Dial list.
DDIIAALLEERR SSCCRREEEENN
DDIIAALLEERR SSCCRREEEENN
This icon indicates the status of
the mobile service connection.
Tap to back space
over individual
numbers
Tap to view the
Call History entries
Tap to view the
Speed Dial list.
The last number
called is displayed
here.
Soft keypad
for inputting
Tap to create a call note.
Tap TToooollss, then OOppttiioonnssto
view phone settings.
To enter your PIN:
1. Tap , then
PPhhoonnee .
2. On the Dialer screen, enter the preset PIN from your
mobile phone service provider.
3. Tap .
If you consecutively enter a wrong PIN for three times,
the SIM card will be blocked. If that happens, you can
unblock it with the PIN Unblocking Key also provided by
your mobile phone service provider.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:10 PM Page 90
9392
TTUURRNNIINNGG TTHHEE PPHHOONNEE FFUUNNCCTTIIOONN OONN AANNDD OOFFFF
If you have turned the phone function off, removed and
then reinstalled the SIM card, the connection to your
mobile service provider’s network is not automatically
enabled. You have the option to just use the device’s
PDA features or you can reestablish the mobile service
connection.
To turn on the phone function:
Press and hold the EEnnddbutton on your device
until appears.
- or -
Tap on the navigation bar, then from the
Connectivity callout, tap TTuurrnn ooffff fflliigghhtt mmooddee.
This icon will change indicating your device is
getting ready to search for a mobile connection. This
may take a few seconds. During connection, the icon
changes to then to once a mobile connection is
established.
To turn off the phone function:
Press and hold the EEnnddbutton on your device
until appears in the navigation bar.
PPHHOONNEE OOPPEERRAATTIIOONN
PPHHOONNEE OOPPEERRAATTIIOONN
IIMMPPOORRTTAANNTT::IInn mmaannyy ccoouunnttrriieess iitt iiss rreeqquuiirreedd bbyy llaaww ttoo ttuurrnn ooffff
cceellll pphhoonneess wwhheenn bbooaarrddiinngg ccoommmmeerrcciiaall fflliigghhttss.. TTuurrnniinngg ooffff yyoouurr
PPPPCC44110000 ddooeess nnoott ttuurrnn ooffff tthhee ddeevviiccee’’ss pphhoonnee ffuunnccttiioonn;; yyoouu mmuusstt
ddiissccoonnnneecctt tthhee mmoobbiillee sseerrvviiccee ccoonnnneeccttiioonn bbyy eennaabblliinngg fflliigghhtt mmooddee..
BBUUTTTTOONNAACCTTIIOONN
Tap to call the displayed number.
Tap to end a call.
Tap during a call to create a note for that
particular call.
PPhhoonnee SSttaattuuss IIccoonnss
The list below shows the Phone-related status icons.
IICCOONNNNAAMMEEDDEESSCCRRIIPPTTIIOONN
Network Indicates that the device is attempting
search to establish mobile service connection.
No network Indicates that the device is not able to
establish mobile service connection.
Phone off Tap to display the Connectivity callout.
In network Tap to turn off the phone function.
service
Signal status The number of bars indicates the
strength of the connection signal. As
the strength of the signal diminishes,
so will the number of bars in the icon,
with no bars indicating no signal.
Active call Notifies you that a call is being made or
there is an incoming call.
Speakerphone Indicates speakerphone mode is
enabled.
Missed call Tap to view missed calls.
Unread email Tap to view unread SMS or email
message(s).
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:11 PM Page 92
AANNSSWWEERRIINNGG AA CCAALLLL
Tap AAnnsswweerror press the SSeennddbutton .
RREEJJEECCTTIINNGG AA CCAALLLL
Tap IIggnnoorreeor press the EEnnddbutton .
Depending on your mobile service subscription, either
a busy tone will be sent out, or the call will be forwarded
to your voice mailbox.
EENNDDIINNGG AA CCAALLLL
Tap or press the EEnnddbutton .
AADDJJUUSSTTIINNGG TTHHEE PPHHOONNEE VVOOLLUUMMEE
To adjust the phone volume, you must do it during a call.
If you adjust the volume at another time it will only affect
the level of the system sounds (i.e., ring and notification
alerts, .wmv/MP3 playback).
To adjust the phone conversation volume:
1. Tap on the navigation bar or press the volume
rocker key down to bring up the In Call callout.
2. Drag the slider to adjust the phone volume.
9594
- or -
Tap on the navigation bar, then from the
Connectivity callout, tap TTuurrnn oonn fflliigghhtt mmooddee.
EERRAASSIINNGG NNUUMMBBEERR IINNPPUUTT
If you entered a wrong phone number when dialing, you
can either backspace to erase individual digits or you
can delete the entire phone number
Tap to backspace over digits.
From the command bar, tap EEddiitt, then CClleeaarror tap
and hold .
Tap to backspace and
erase individual numbers.
Tap to delete the entire
phone number entry.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:11 PM Page 94
9796
MMUUTTIINNGG AA CCAALLLL
During a call you can mute the microphone so that the
person with whom you are speaking cannot hear you,
but you can still hear him or her. This is useful if, for
example, you do not want the other person to hear a
conversation or background noise on your side of the
call.
To mute a call:
During a call, tap to toggle the mute function on
and off.
The mute icon is displayed on the Dialer screen’s
entry area to indicate that the mute function is enabled.
UUSSIINNGG TTHHEE SSPPEEAAKKEERRPPHHOONNEE
Your device is not designed for held-at-ear use and
should never be used against the ear. To attend to phone
calls, activate the speakerphone mode or attach the
earphone microphone. Your device’s speakerphone
function allows you to talk hands-free and/or let other
people listen to the caller.
To enable speakerphone mode:
Press and hold the SSeennddbutton until the
speakerphone turns on as indicated by the appearance
of the Speakerphone icon on the navigation bar.
To disable speakerphone mode:
Press and hold the SSeennddbutton again until the
Speakerphone icon disappears from the navigation
bar.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:12 PM Page 96
9998
MMAAKKIINNGG AA CCAALLLL UUSSIINNGG MMIICCRROOSSOOFFTT
CCOONNTTAACCTTSS
There are several ways to make a call in Contacts. In this
section, only the method using the hardware buttons will be
described. For instructions on other methods, go to page
___.
1. Tap , then
CCoonnttaaccttss.
Contacts will open to the contact list.
2. Rotate the jog dial up/down to scroll through the
contact list and select the contact you want to call.
3. Press the SSeennddbutton twice—once to launch
Phone and another to make the call. The call will be
made to that contact’s priority number.
The integrated nature of your device’s phone function
lets you make calls in a variety of ways across different
applications.You can make a call by:
Manually entering a phone number using the Dialer
keypad.
Accessing numbers using Speed Dial, Call History,
Microsoft Contacts or SIM Manager.
Once a call has been initiated this icon changes to
indicating an active call.
MMAAKKIINNGG AA CCAALLLL UUSSIINNGG DDIIAALLEERR
1. On the Dialer keypad, tap the phone number you want
to call.
2. Tap or press the SSeennddbutton .
MMAAKKIINNGG PPHHOONNEE CCAALLLLSS
MMAAKKIINNGG PPHHOONNEE CCAALLLLSS
This icon indicates a call is being
made and the strength of the signal.
The number
being called is
displayed here.
Tap to terminate
the call.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:12 PM Page 98
101100
Alternatively, if you don’t remember the position of a
number in the Speed Dial list follow the steps below:
1. Tap or rotate down the jog dial.
2. On the Speed Dial window, use the jog dial to go
through the list to find the number you want to call.
3. Once the number is selected, you can either press
the jog dial or the SSeennddbutton to initiate the call.
MMAAKKIINNGG AA CCAALLLL UUSSIINNGG CCAALLLL HHIISSTTOORRYY
Call History is a record of all incoming, outgoing, and
missed calls.
To make a call using Call History:
1. Tap or rotate the jog dial up.
2. Find the number you want to call.You can select a call
category—All Calls, Missed, Outgoing, Incoming, and
By Caller—by tapping the pick list in the top-left corner
of the screen.
Tap a Speed Dial
number to call
that contact.
Tap to adjust voice
mail settings.
Tap to edit
contact details.
Tap to add a
contact to the
Speed Dial list.
MMAAKKIINNGG AA CCAALLLL UUSSIINNGG SSPPEEEEDD DDIIAALL
Speed Dial is a list you create for numbers you call
regularly. Only numbers stored in Microsoft Contacts can
be added to this list.
To make a call using Speed Dial:
You can make a call in two ways:
By memorizing the position in the Speed Dial list of a
number, you can dial the number by entering its location
number.
In the picture above, Kyla Devon is at position 3.To dial
her number, tap and hold 3 on the Dialer keypad until
you hear a beep.
If a number holds a position of 10 or higher tap the first
number, and then tap and hold the second to dial. For
instance, to call the number in position 12, tap 1 then tap
and hold 2.
PPC4100 Owner’s Manual - EN 3.7.qxd 4/22/2004 4:13 PM Page 100
