Wulfsberg Electronics Division RT-5000A VHF/ UHF Tactical Transeiver User Manual PRINTING INSTRUCTIONS
Wulfsberg Electronics Division VHF/ UHF Tactical Transeiver PRINTING INSTRUCTIONS
Contents
users manual 3
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page B-11
Rev. C Appendix B
May 2006

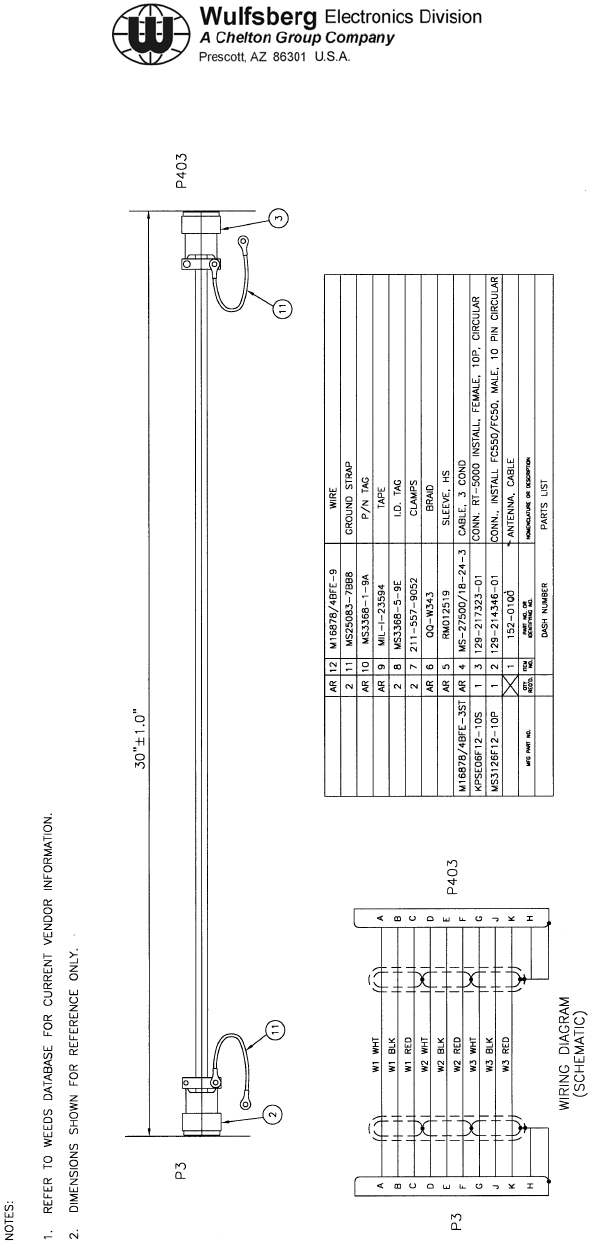

Figure B-8. Cable, Transceiver Logic
FLEXCOMM I / FLEXCOMM II (Sheet 1 of 1)
Dwg No. 153-041054, Rev C
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Page B-12 Publication No. 150-041118
Appendix B Rev. C
May 2006
Figure B-9. Cable, Antenna
FLEXCOMM I / FLEXCOMM II (Sheet 1 of 1)
Dwg No. 153-041055, Rev C
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Page B-13
Rev. C Appendix B
May 2006

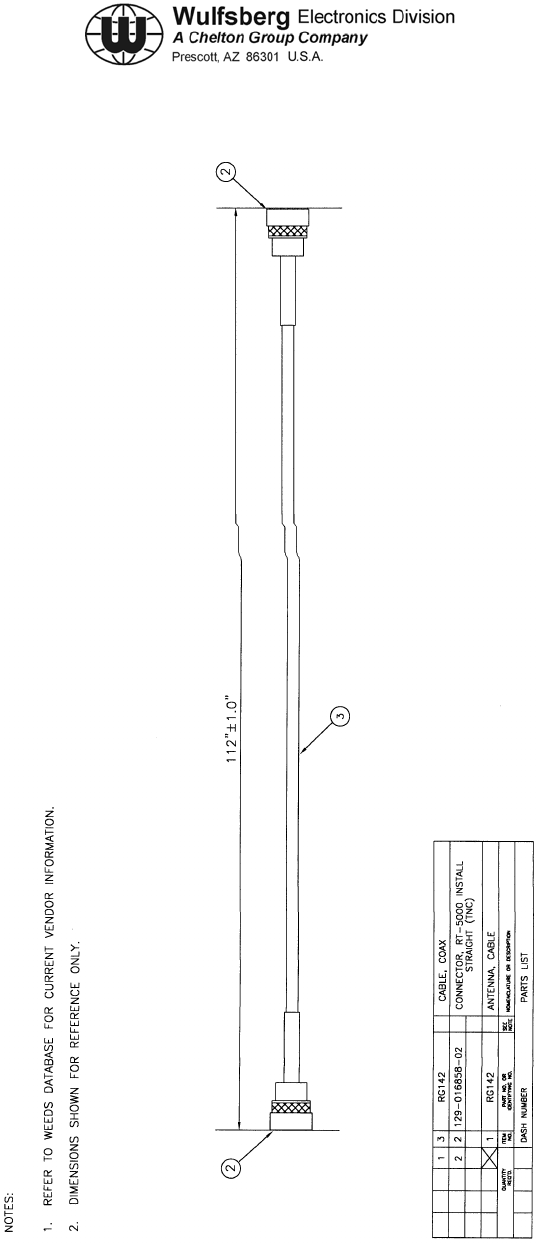

Figure B-10. Cable, Coax, Antenna (RG142)
FLEXCOMM I / FLEXCOMM II (Sheet 1 of 1)
Dwg No. 153-041057, Rev C
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Page B-14 Publication No. 150-041118
Appendix B Rev. C
May 2006

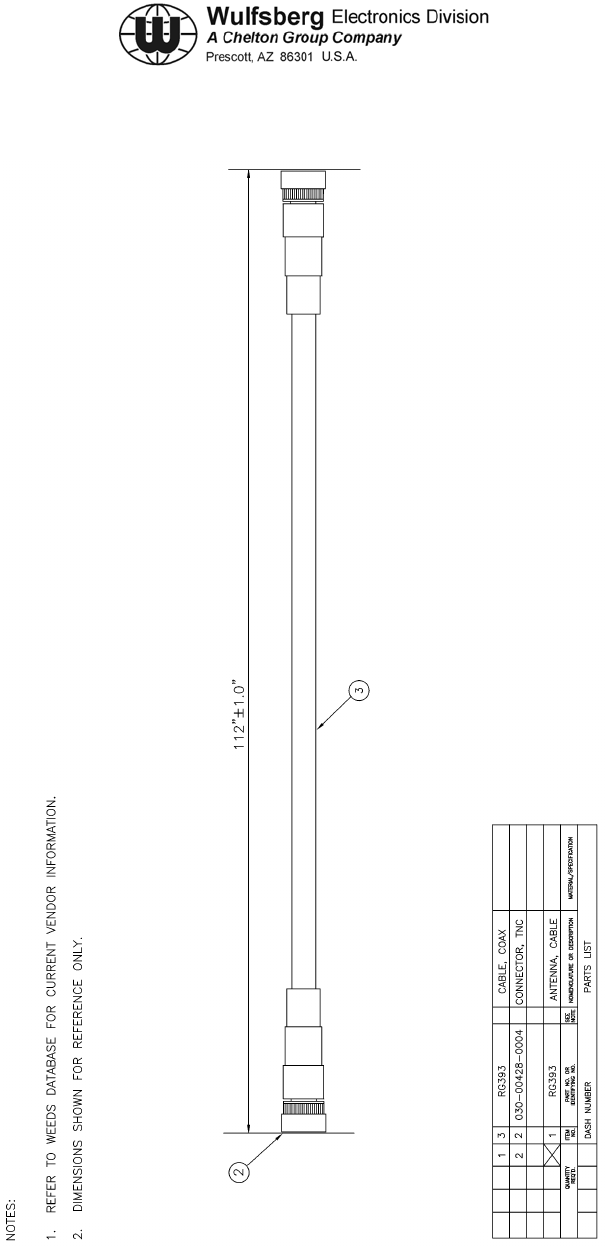

Figure B-11. Cable, Coax, Antenna (RG393)
FLEXCOMM I / FLEXCOMM II (Sheet 1 of 1)
Dwg No. 153-041058, Rev D
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

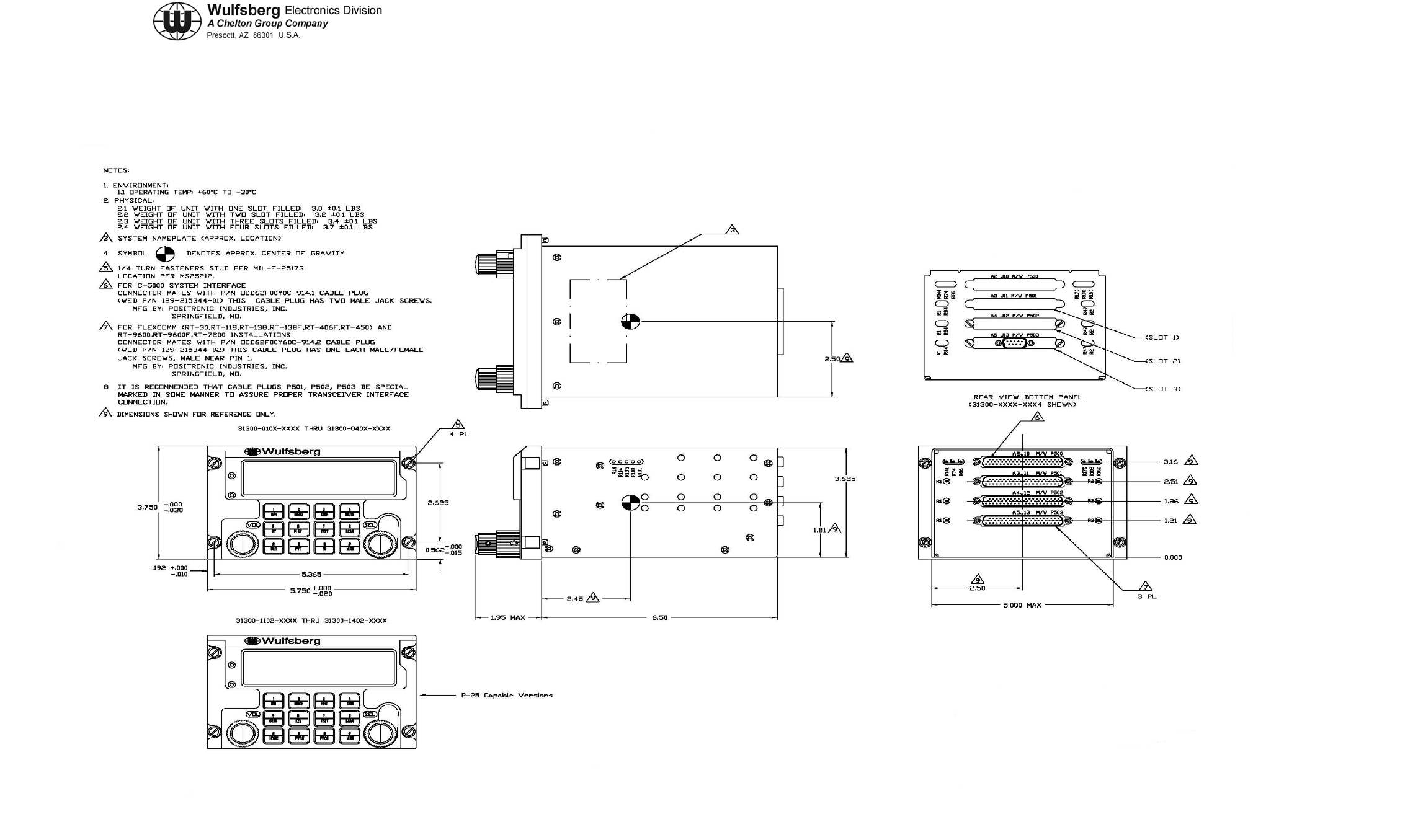

Figure 3-1. C-5000 Envelope Drawing (Sheet 1 of 1)
Dwg No. 154-031300, Rev. K
Publication No. 150-041118 Section 3 – Mechanical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

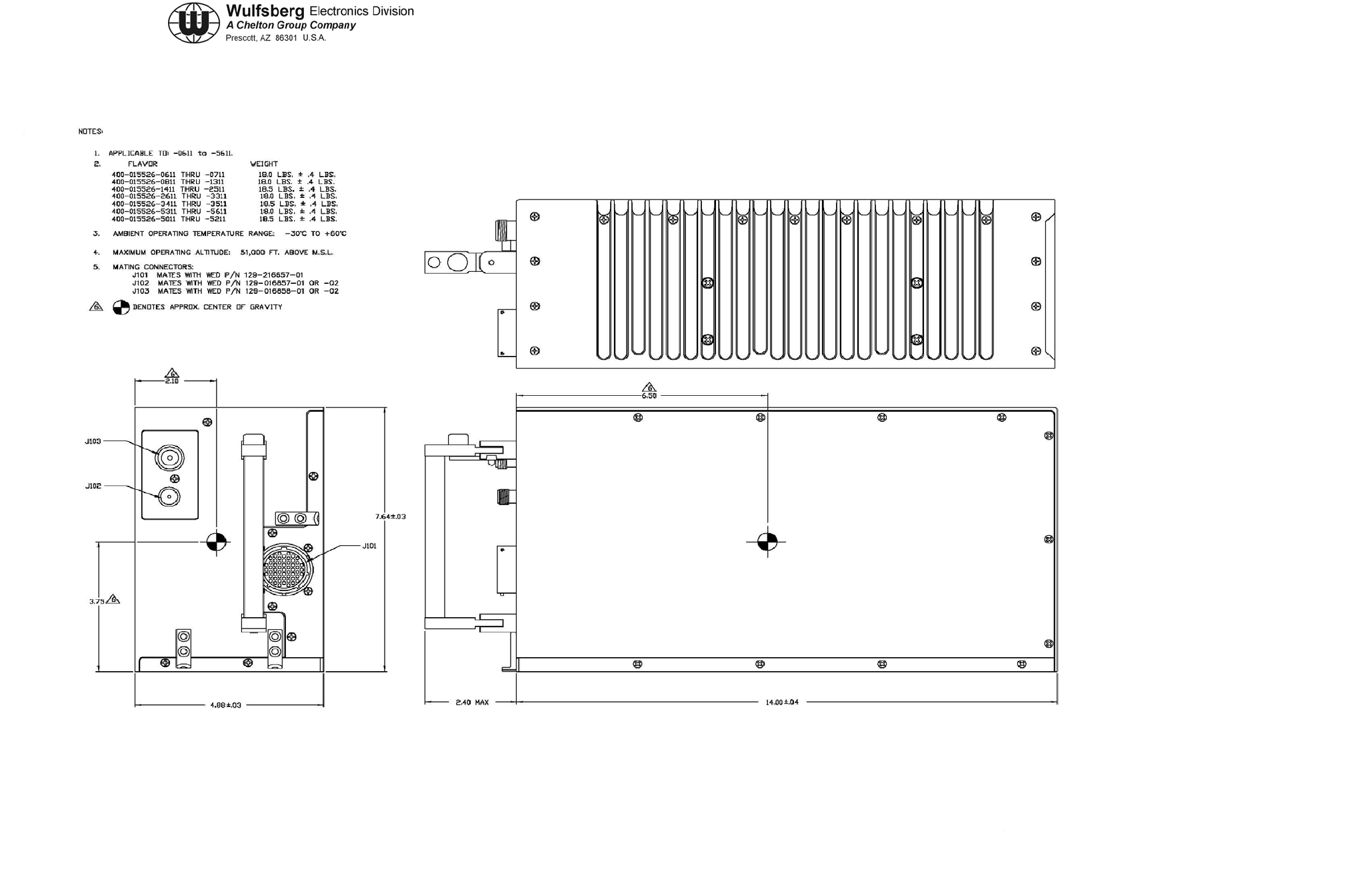

Figure 3-2. RT-5000 Envelope Drawing (Sheet 1 of 1)
Dwg No.154-015526, Rev E
Publication No. 150-041118 Section 3 – Mechanical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

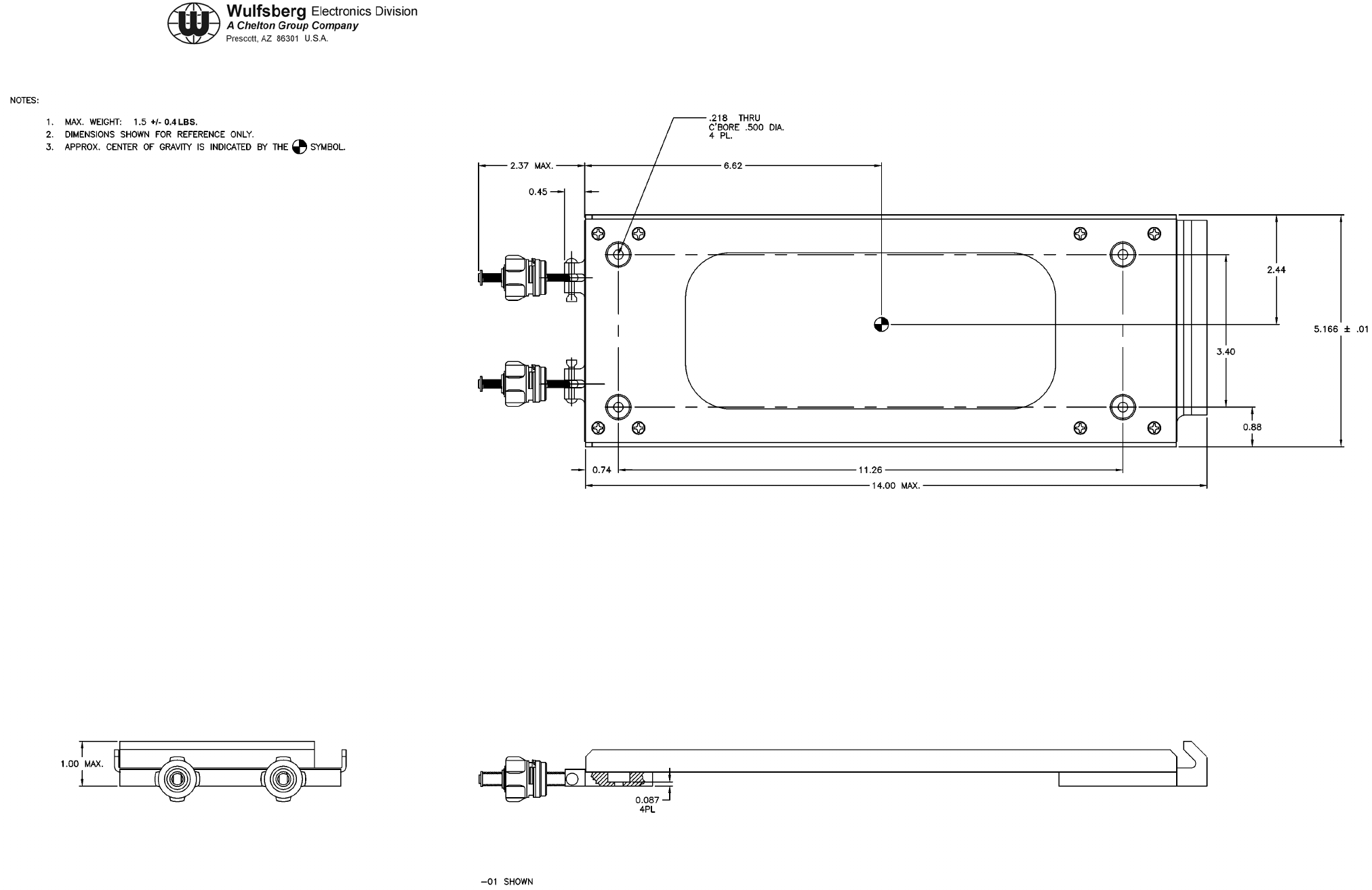

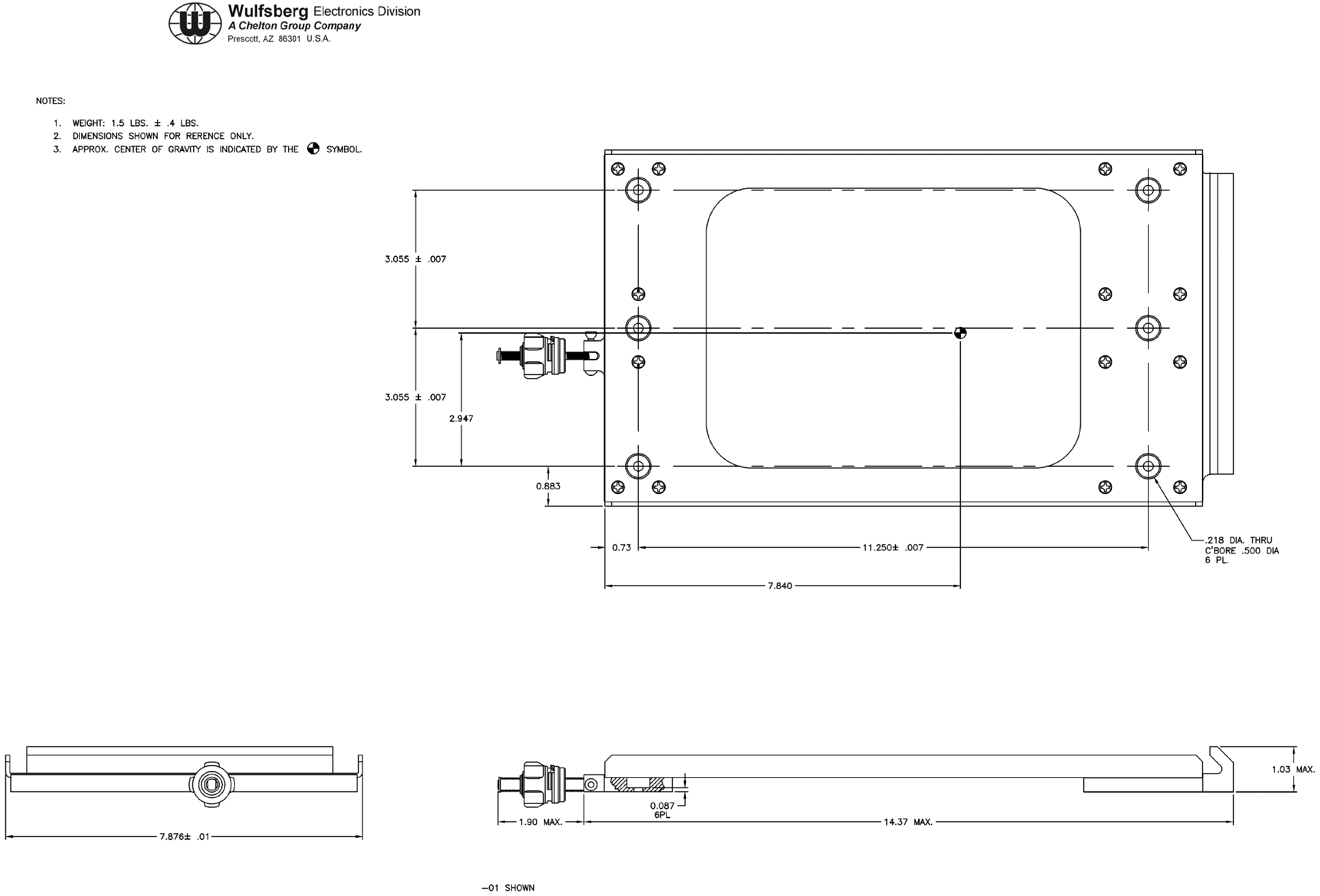

Figure 3-3. RT-5000 Tray Horizontal Mount (Sheet 1 of 1)
Dwg No. 154-016835, Rev A
Publication No. 150-041118 Section 3 – Mechanical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Figure 3-4. RT-5000 Tray Vertical Mount (Sheet 1 of 1)
Dwg No. 154-016605, Rev B
Publication No. 150-041118 Section 3 – Mechanical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

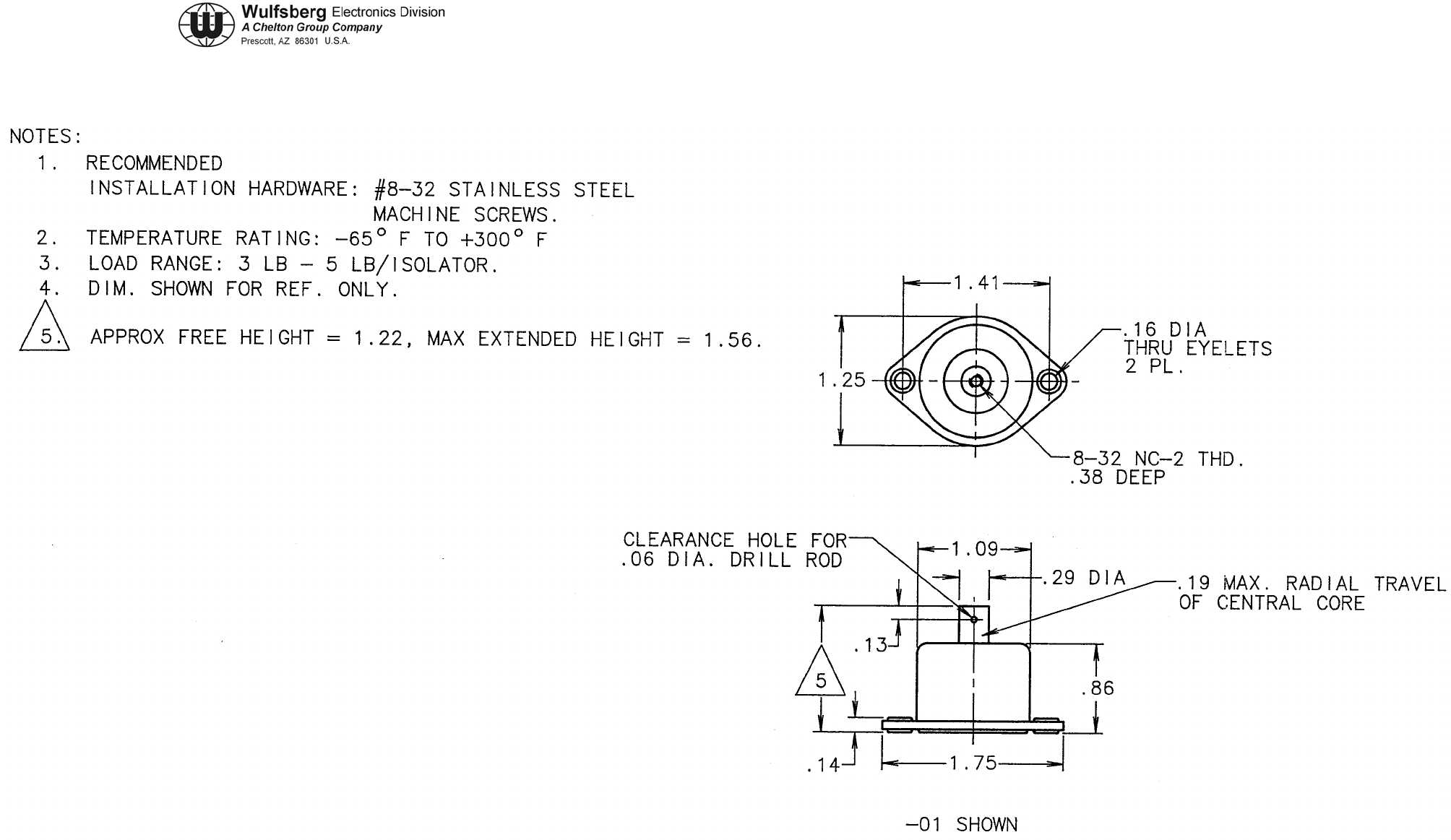

Figure 3-5. Vibration Isolator (Sheet 1 of 1)
Dwg No. 246-017812, Rev A
Publication No. 150-041118 Section 3 – Mechanical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

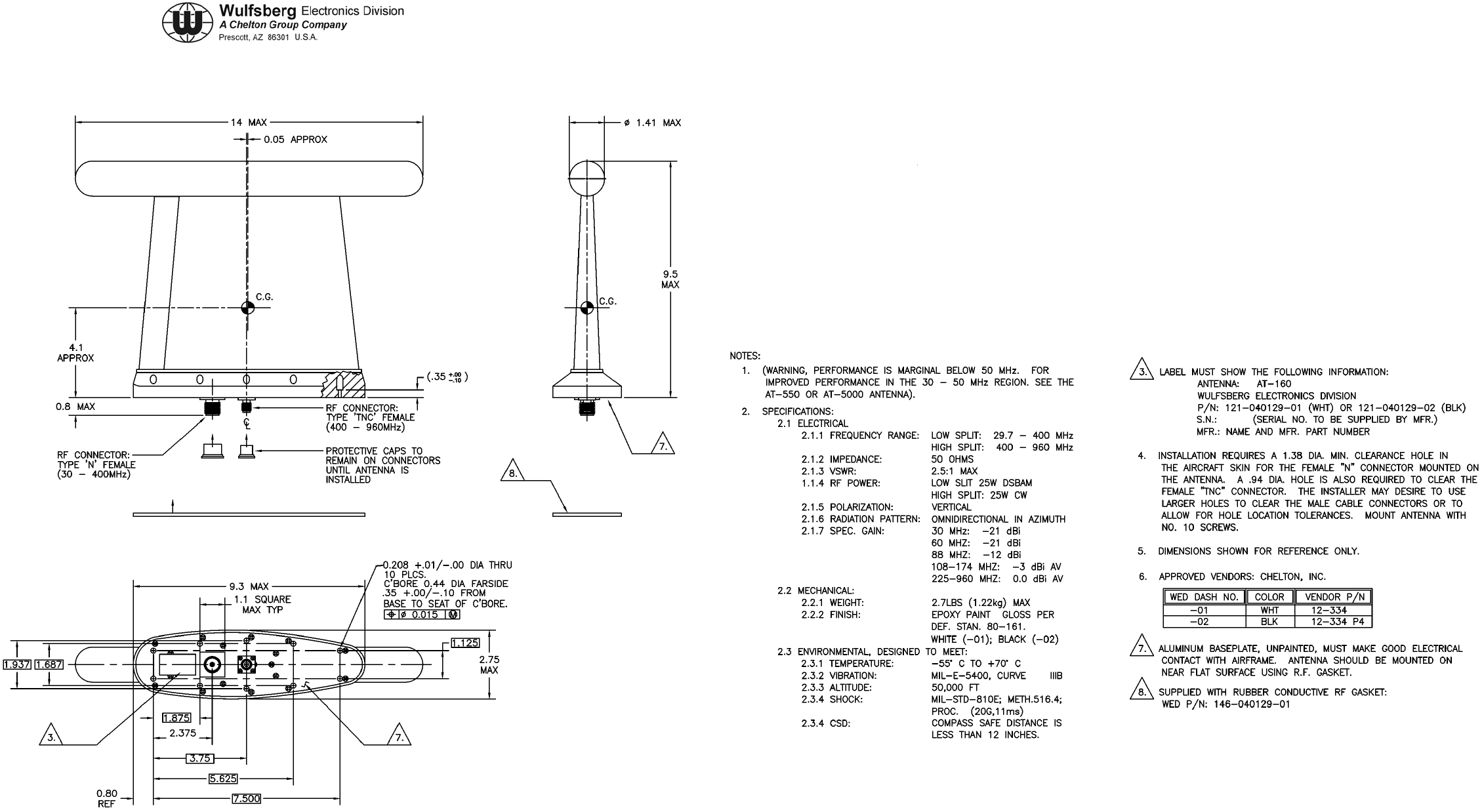

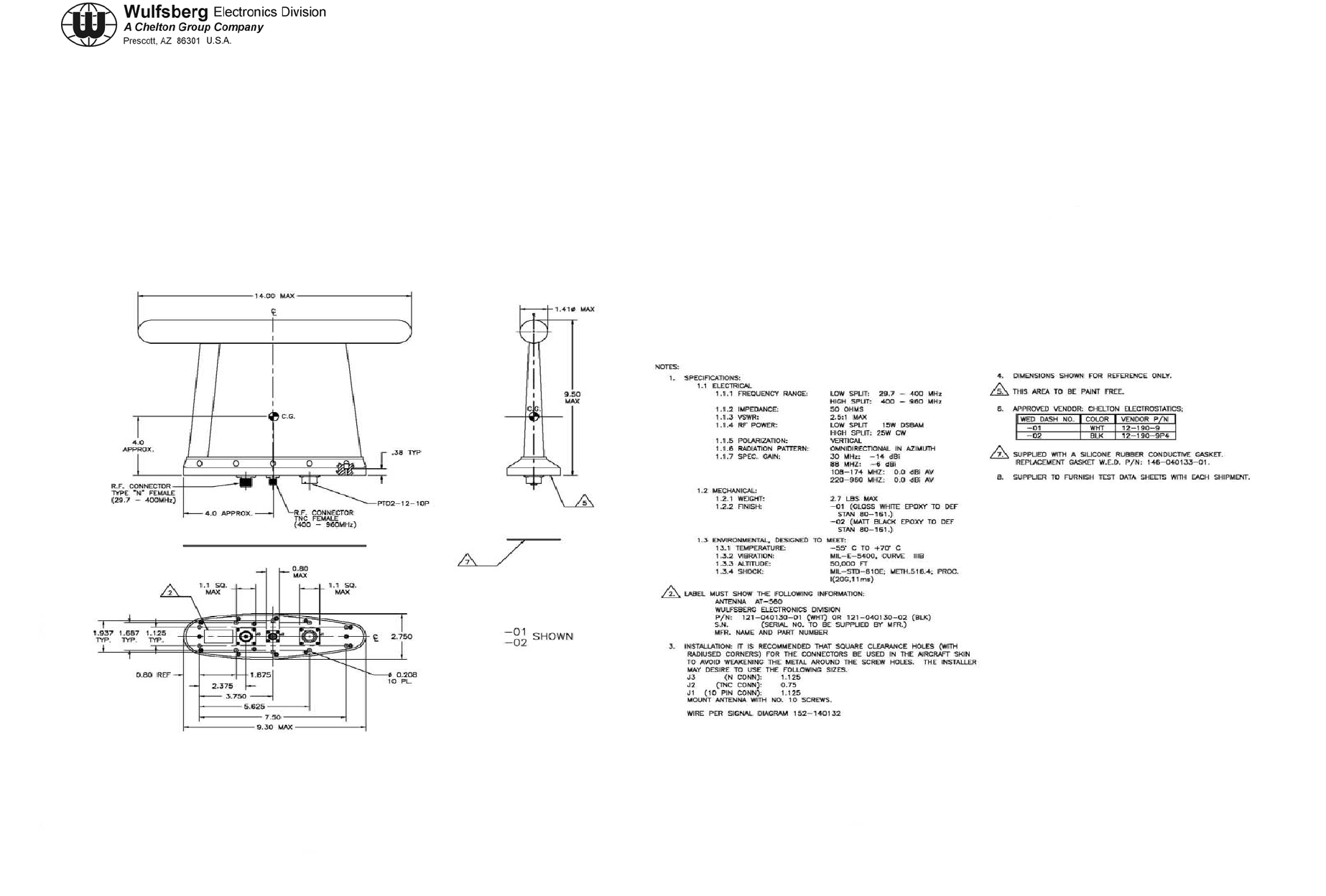

Figure 3-6. AT-560 Envelope Drawing (Sheet 1 of 1)
Publication No. 150-041118 Section 3 – Mechanical Installation
Dwg No. 121-040130, Rev F
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Figure 3-7. AT-160 Envelope Drawing (Sheet 1 of 1)
Dwg No. 121-040129, Rev E
Publication No. 150-041118 Section 3 – Mechanical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Section 3 – Mechanical Installation
Figure 3-8. AT-5000 Envelope Drawing (Sheet 1 of 1)
Dwg No. 121-040045, Rev D
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

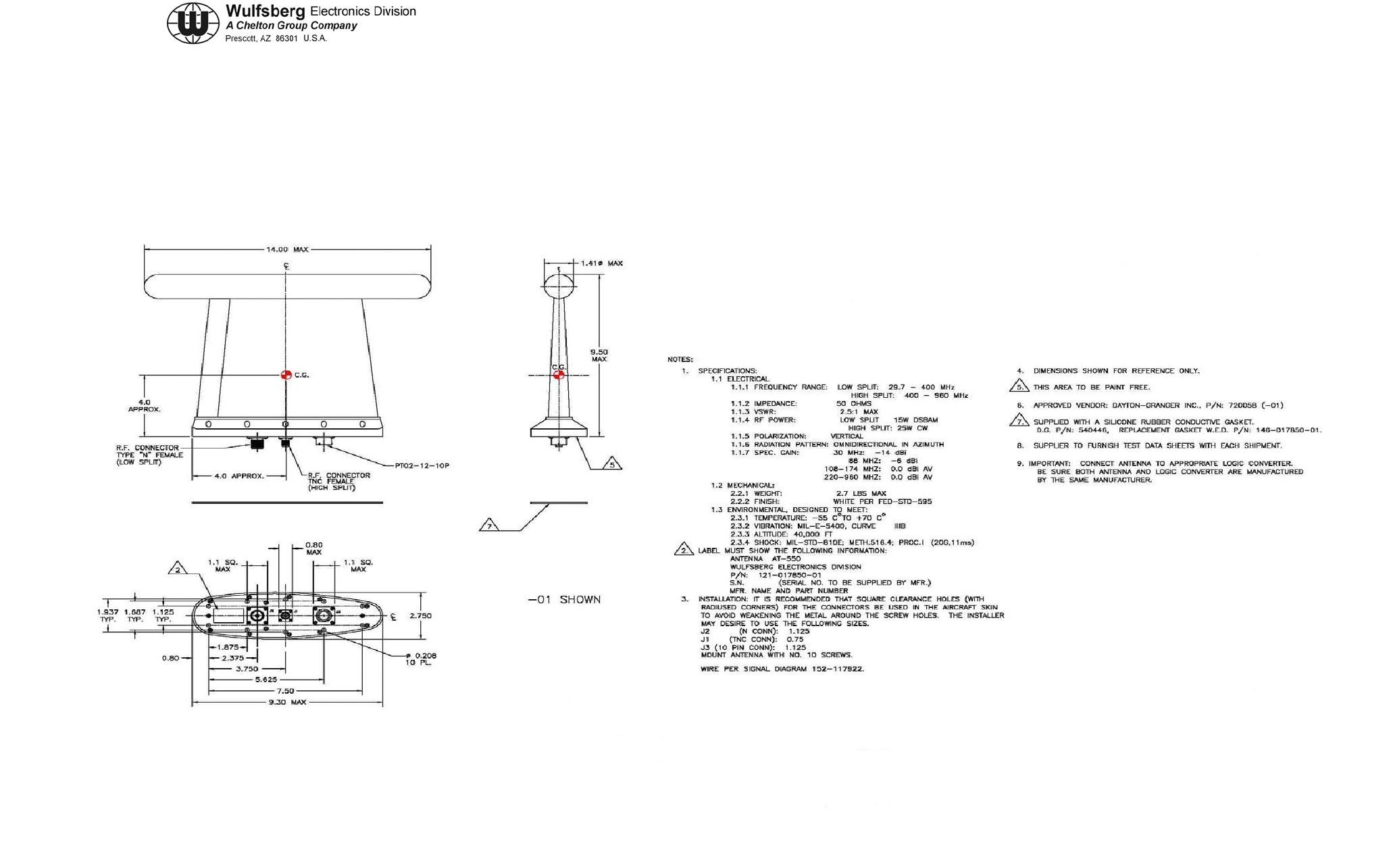

Figure 3-9. AT-550 Envelope Drawing (Sheet 1 of 1)
Publication No. 150-041118 Section 3 – Mechanical Installation
Dwg No. 121-017850, Rev H
