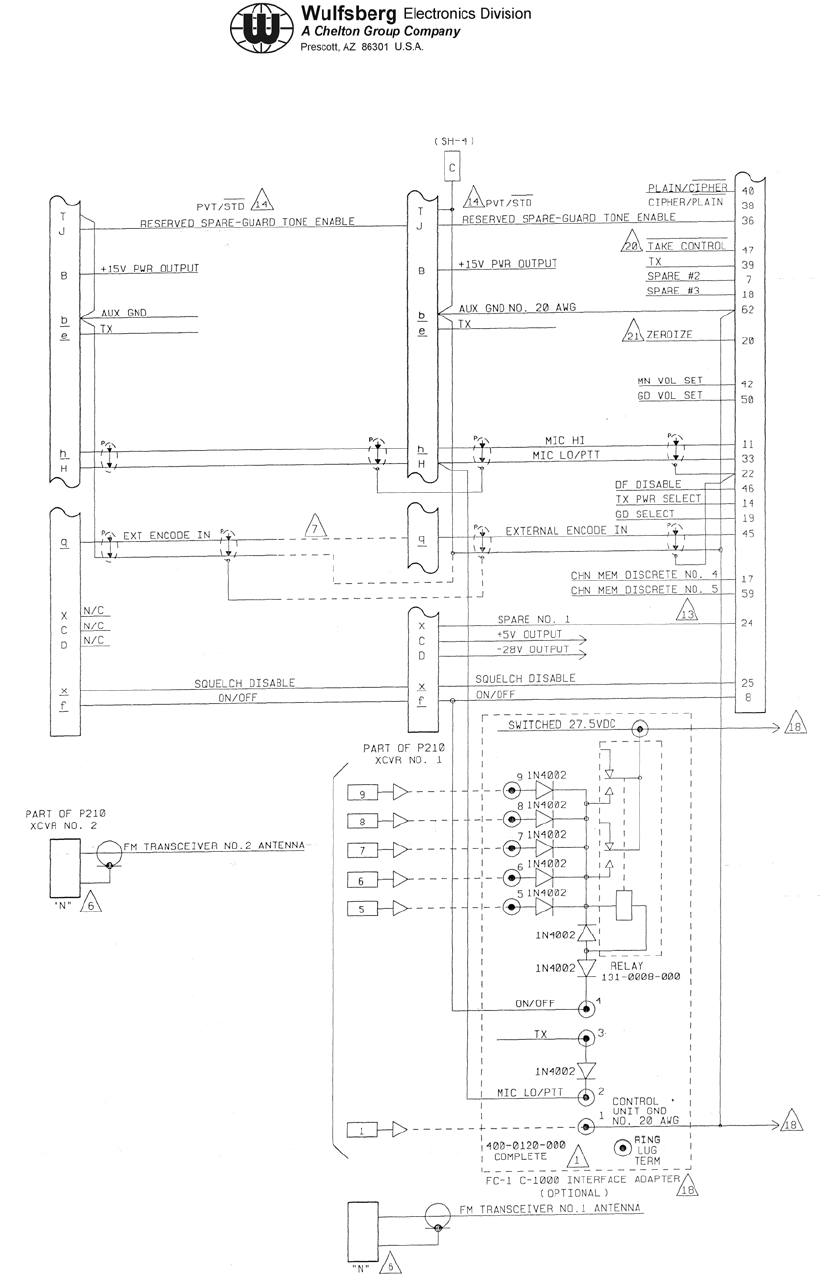

Figure 4-13c. FLEXCOMM I Transceivers Installation Wiring Diagram (Sheet 3 of 5)
RT-30, RT-118, RT-138, RT-138F,RT-450 and RT-406F
(Dwg No 147-014991, Rev B)
Publication No. 150-041118 Section 4 –Electrical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

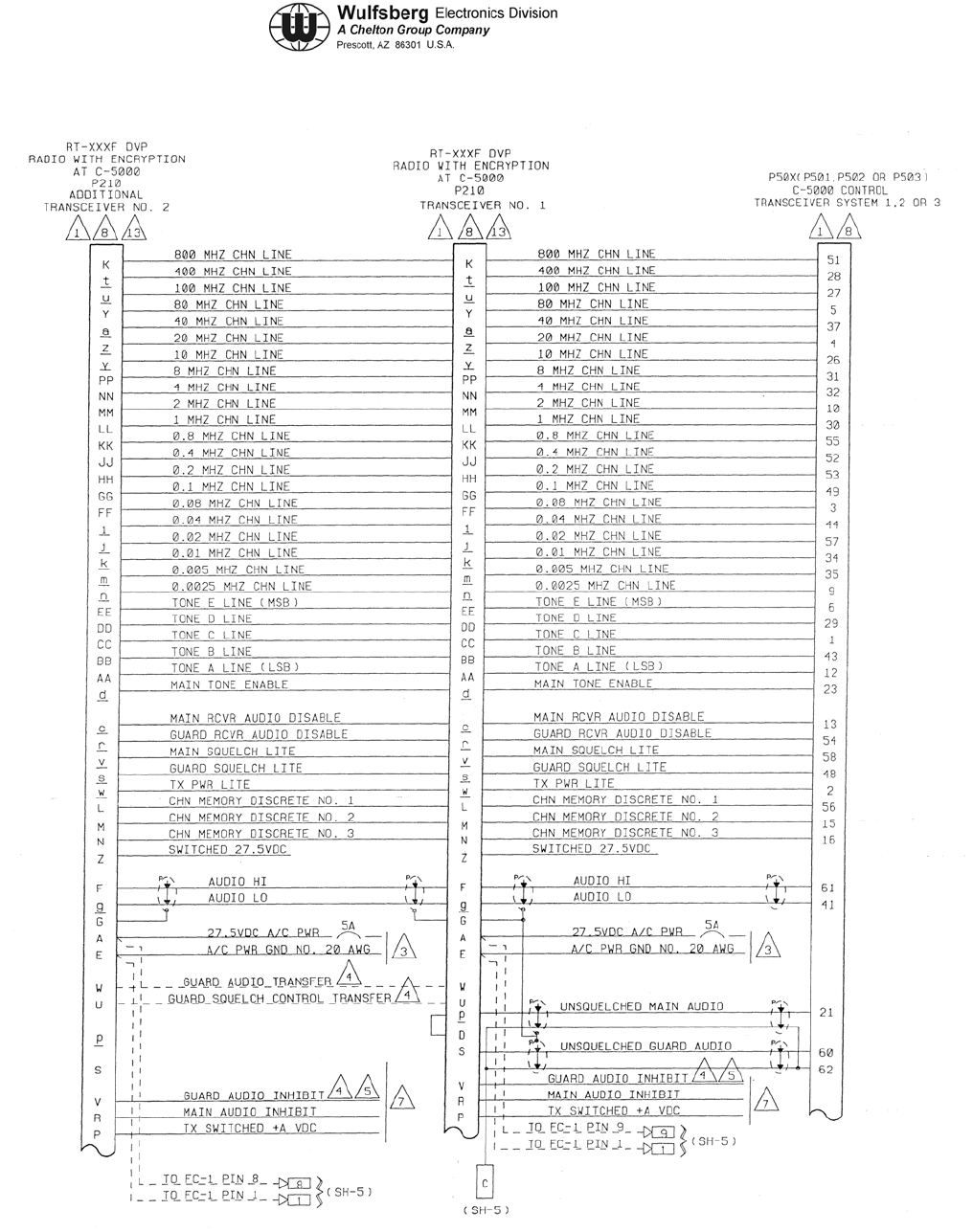

Figure 4-13d. FLEXCOMM I Transceivers Installation Wiring Diagram (Sheet 4 of 5)
RT-30, RT-118, RT-138, RT-138F,RT-450 and RT-406F
(Dwg No 147-014991, Rev B)
Publication No. 150-041118 Section 4 –Electrical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

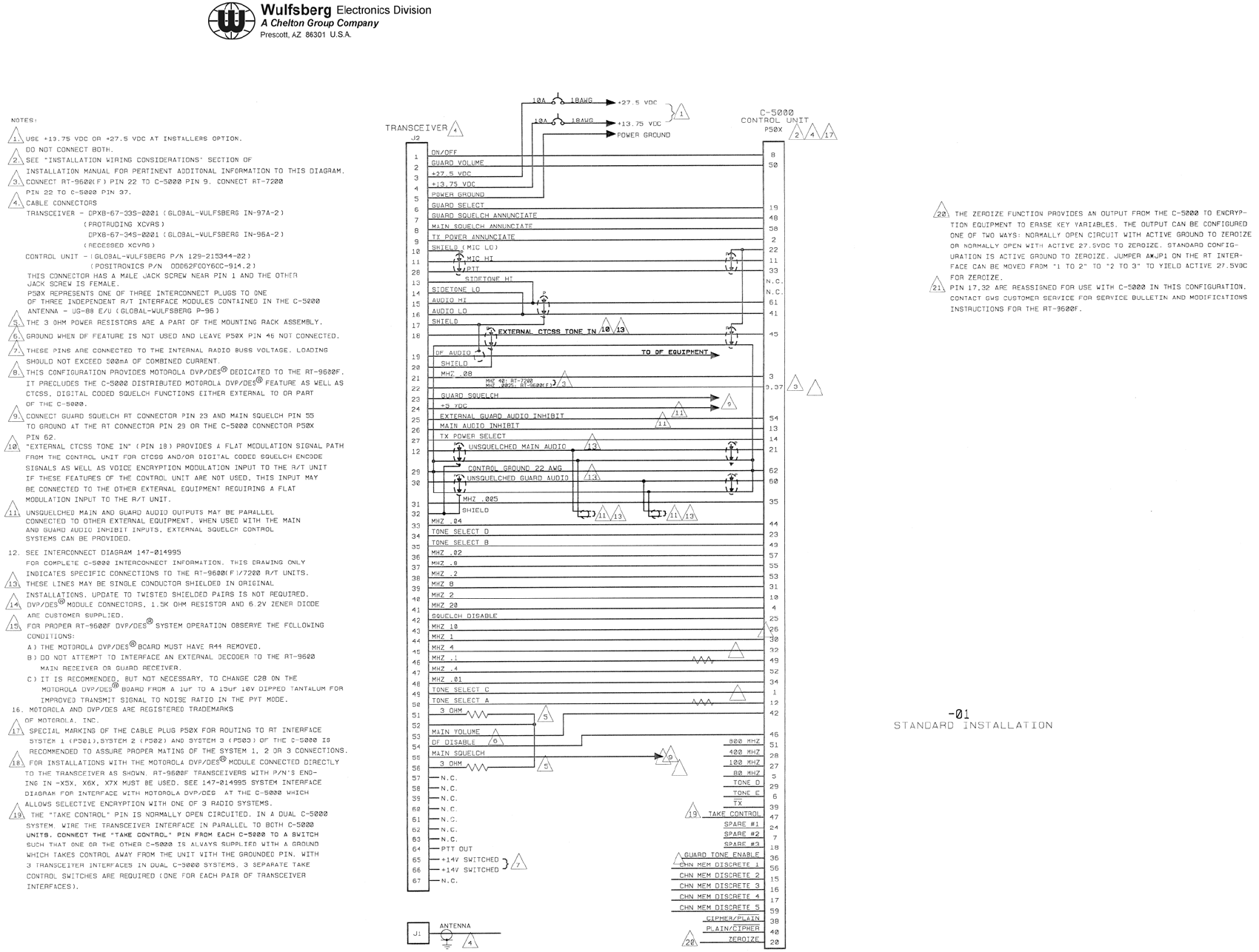

Figure 4-13e. FLEXCOMM I Transceivers Installation Wiring Diagram (Sheet 5 of 5)
RT-30, RT-118, RT-138, RT-138F,RT-450 and RT-406F
(Dwg No 147-014991, Rev B)
Publication No. 150-041118 Section 4 –Electrical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

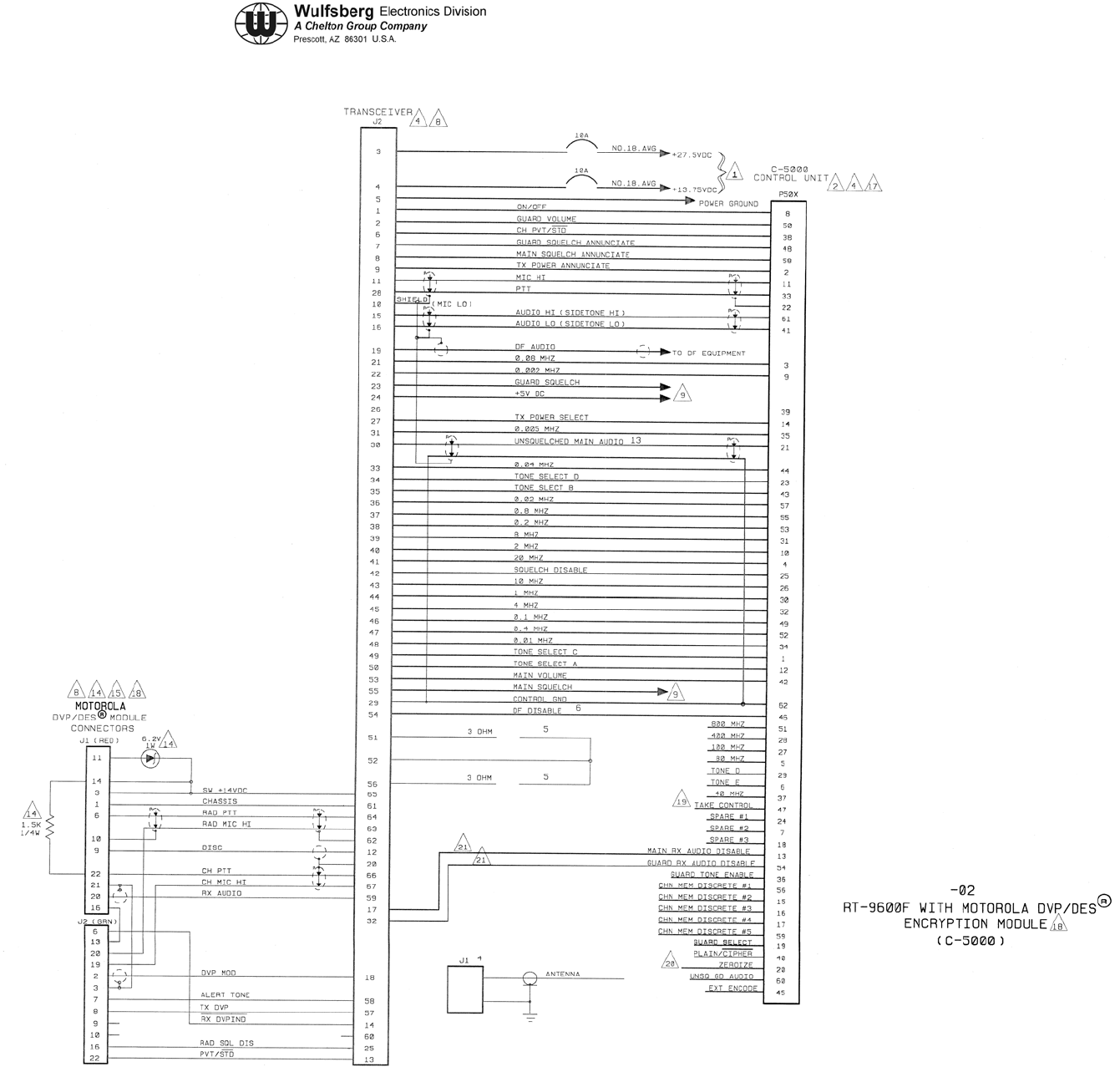

Figure 4-15a. Installation Wiring Diagram (Sheet 1 of 3)
RT-9600 / RT-9600F / RT-7200
(Dwg No 147-014992, Rev 4)
Publication No. 150-041118 Section 4 –Electrical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Figure 4-15b. Installation Wiring Diagram (Sheet 2 of 3)
RT-9600 / RT-9600F / RT-7200
(Dwg No 147-014992, Rev 4)
Publication No. 150-041118 Section 4 –Electrical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Figure 4-15c. Installation Wiring Diagram (Sheet 3 of 3)
RT-9600 / RT-9600F / RT-7200
(Dwg No 147-014992, Rev 4)
Publication No. 150-041118 Section 4 –Electrical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Section 4 –Electrical Installation

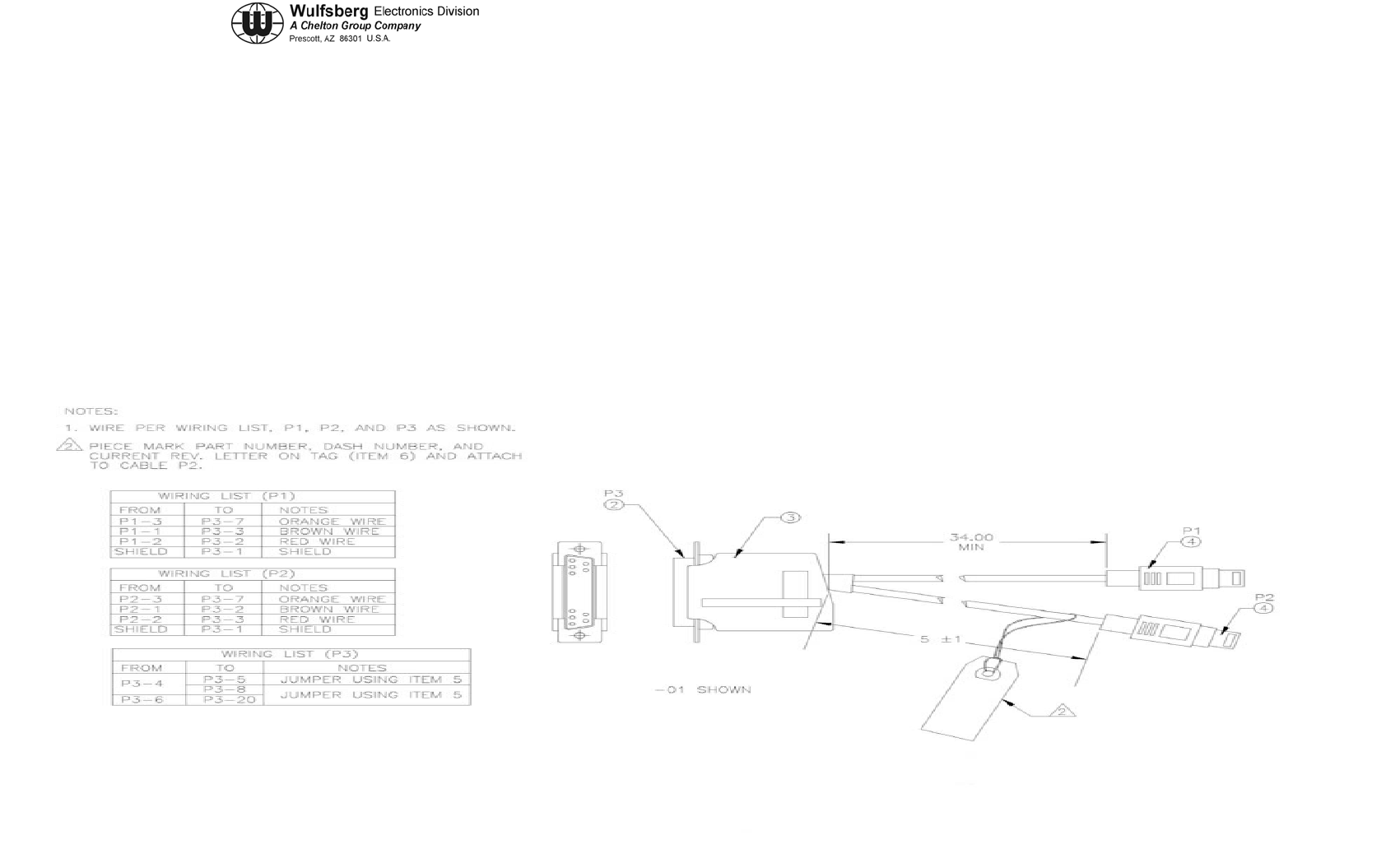

Figure 4-17a. Cable Assembly, C-5000 Digital Interface (Sheet 1 of 2)
(Dwg No 124-015911, Rev E)
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

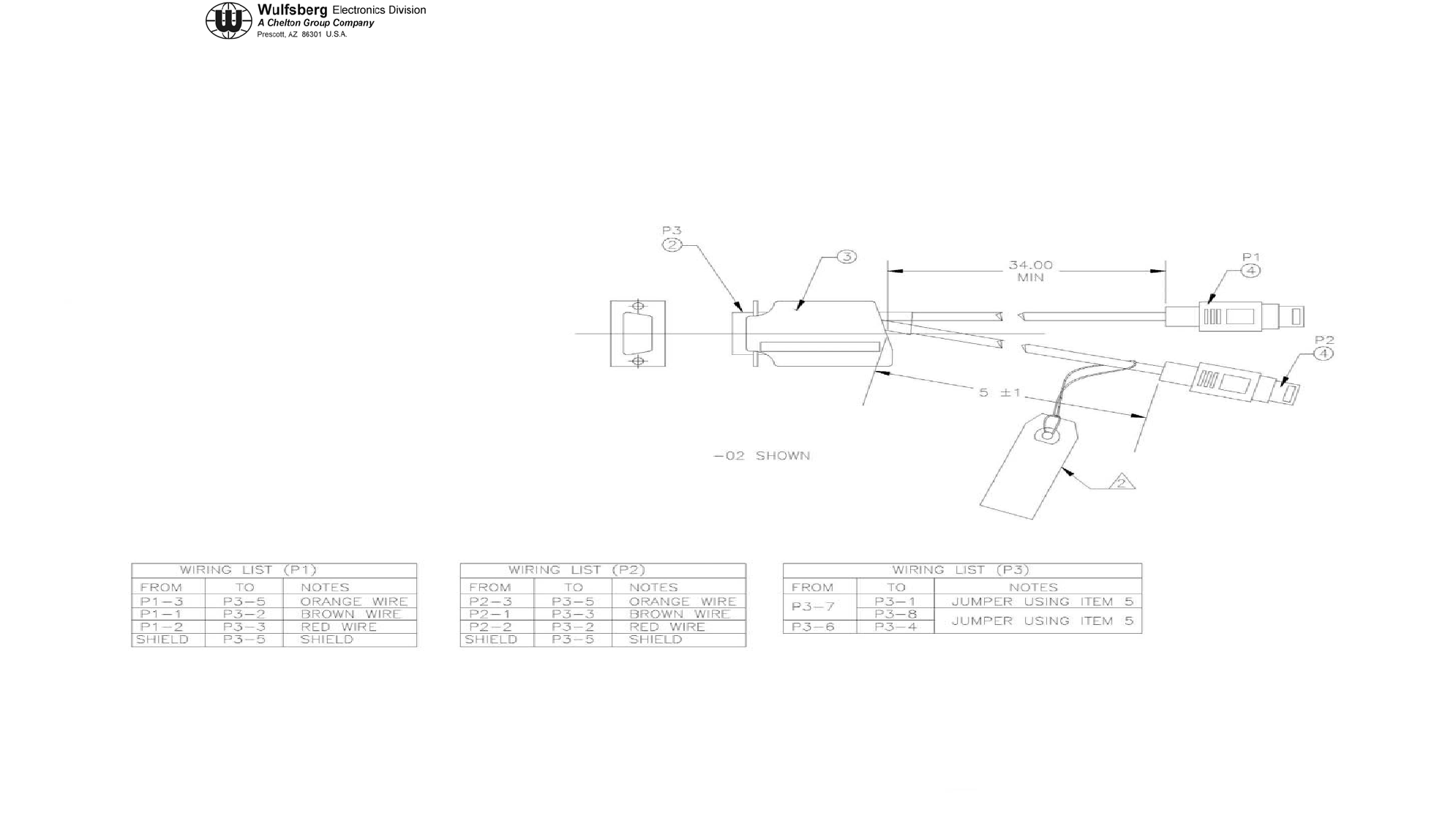

Figure 4-17b. Cable Assembly, C-5000 Digital Interface (Sheet 2 of 2)
(Dwg No 124-015911, Rev E)
Publication No. 150-041118 Section 4 –Electrical Installation
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL
Publication No. 150-041118 Section 4 –Electrical Installation

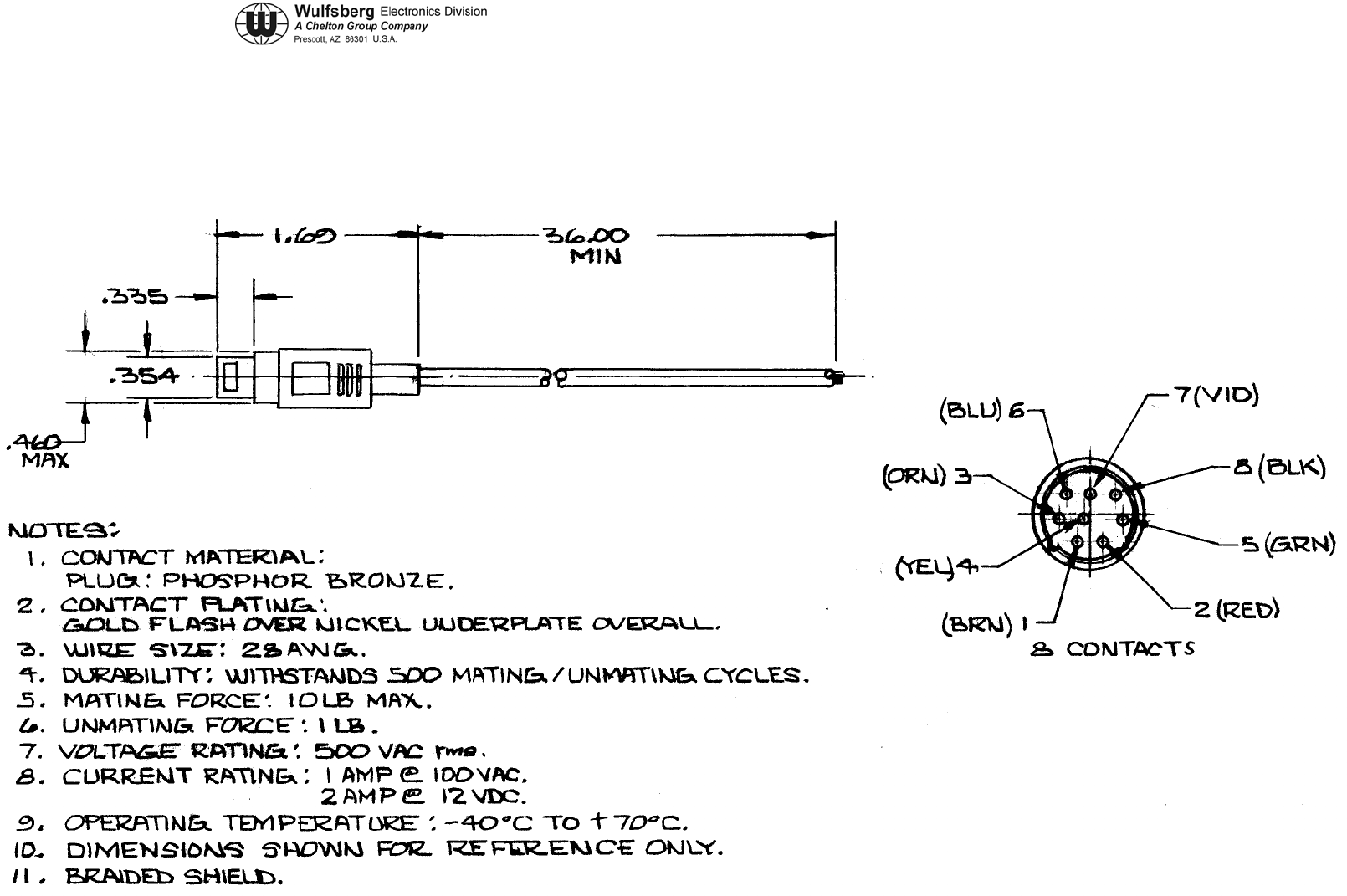

Figure 4-18. Cable Assembly, 8-Pin Mini Din with Cable (Sheet 1 of 1)
(Dwg No 124-015910, Rev B)
C-5000 COMMUNICATION MANAGEMENT CONTROLLER
INSTALLATION MANUAL

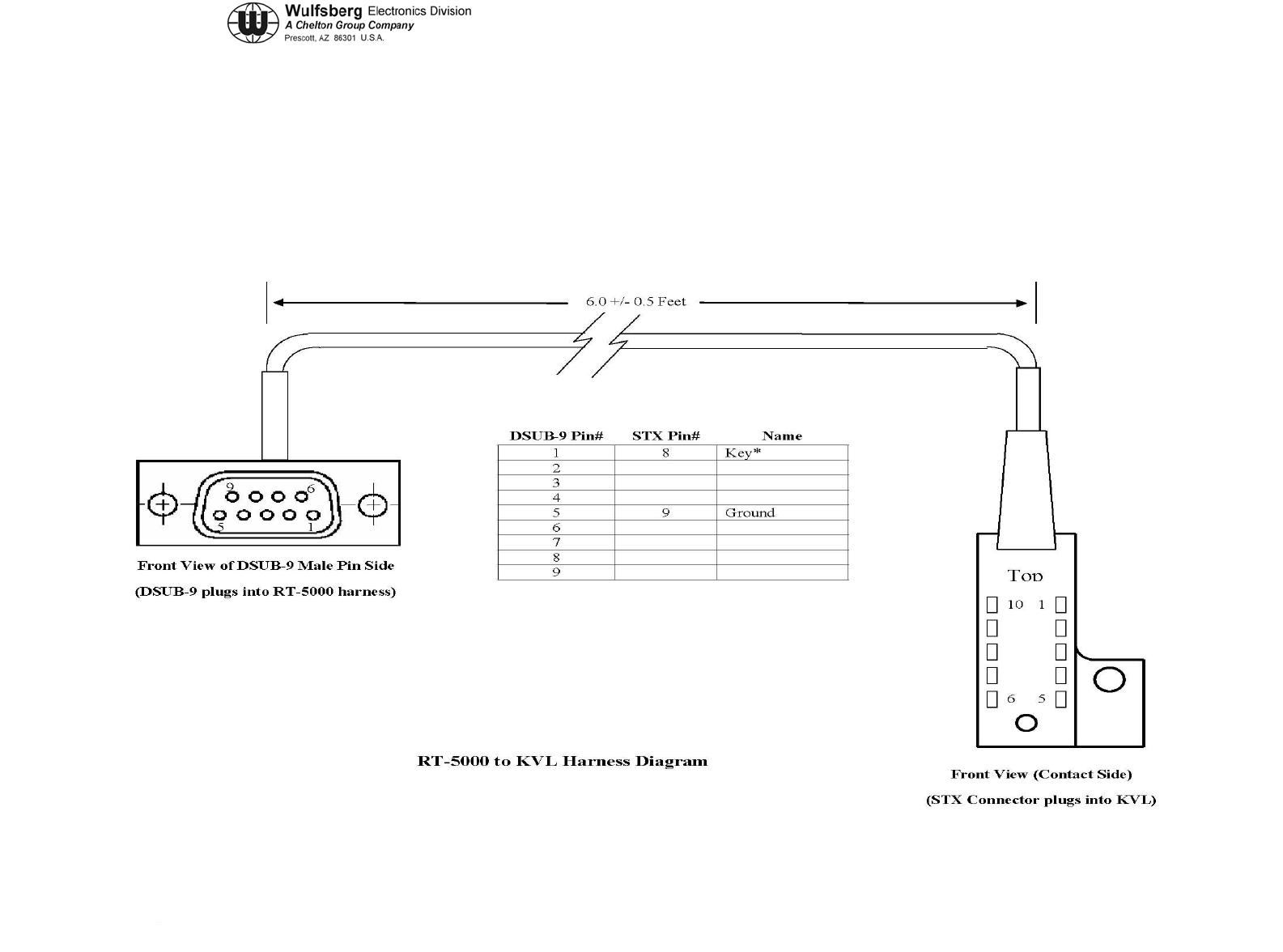

Figure 4-19. Wiring Harness Diagram KVL TO RT-5000 (Sheet 1 of 1)
(Dwg No 152-241520, Rev C)
Publication No. 150-041118 Section 4 –Electrical Installation
