Contents

Users Manual Part II

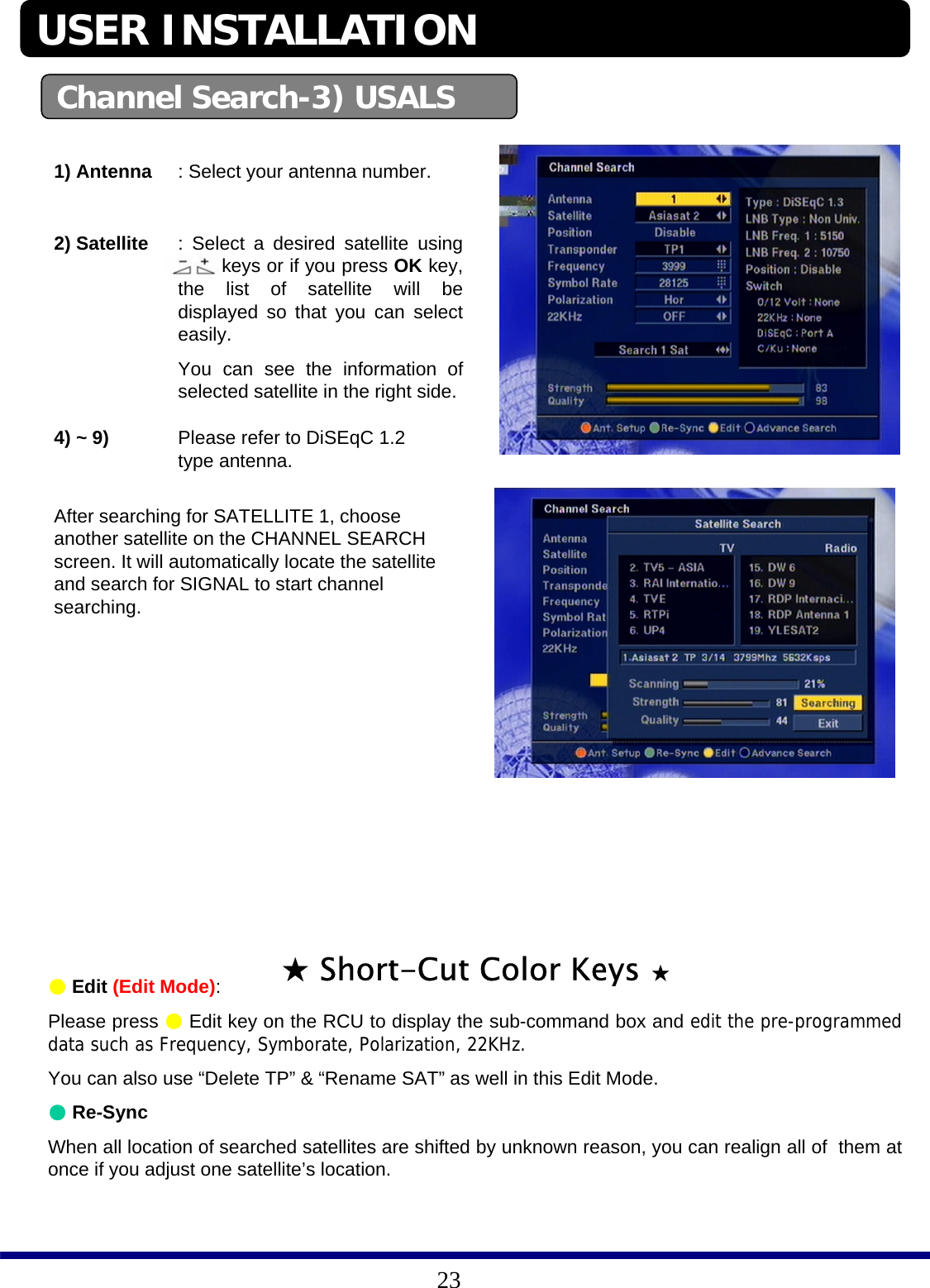

231) Antenna : Select your antenna number.Channel Search-3) USALS 2) Satellite : Select a desired satellite using  keys or if you press OK key, the list of satellite will be displayed so that you can select easily. You can see the information of selected satellite in the right side.4) ~ 9) Please refer to DiSEqC 1.2 type antenna. USER INSTALLATIONAfter searching for SATELLITE 1, choose another satellite on the CHANNEL SEARCH screen. It will automatically locate the satellite and search for SIGNAL to start channel searching.●Edit (Edit Mode): Please press ●Edit key on the RCU to display the sub-command box and edit the pre-programmed data such as Frequency, Symborate, Polarization, 22KHz.You can also use “Delete TP” & “Rename SAT” as well in this Edit Mode.●Re-SyncWhen all location of searched satellites are shifted by unknown reason, you can realign all of them at once if you adjust one satellite’s location.★Short-Cut Color Keys ★
24MultiSAT Search USER INSTALLATIONXTC 5000 enables end users to have a multi-SAT search in each antenna type such as Fixed, DiSEqC1.2 and DiSEqC1.3.After all the necessary antenna set-up, simply press ●CH Search/ Advance key to open a search options.You can choose one of the options and press SEARCH and you are automatically moved to multi-sat search box and you can choose all the satellites you are searching for.●Edit (Edit Mode): Please press ●Edit key on the RCU to display the sub-command box and edit the pre-programmed data such as Frequency, Symborate, Polarization, 22KHz.You can also use “Delete TP” & “Rename SAT” as well in this Edit Mode.●Re-SyncWhen all location of searched satellites are shifted by unknown reason, you can realign all of them at once if you adjust one satellite’s location.★Short-Cut Color Keys ★
25USER INSTALLATIONSystem SettingSystem Setting menu allows you to change the the principal option and to set other items proper to your environment by pressing OK key on the RCU.1) OSD Language : Select your desired OSD Language.2) Audio Language : Select your desired audio language to be in the top priority under the condition that this language is supported from the channel.3) Subtitle Language: Select your desired Subtitle Language.4) LNB power : The default value of LNB power is ON. Select Off in the case of the LNB power is not necessary.5) Screen Format : If your TV supports 16:9 screen format and selected channel provides 16:9 format program, select 16:9. 6) TV type : Select the type according to your TV type. 7) Display Info Bar : You can select the second Info Bar displayed on the screen.8) Start On Channel: If you press OK key, then the channel list is displayed. You can select one channel of the list, the selected channel starts whenever you turn on AD-9700 PLUS.9) DiSEqC Repeat : Select your DiSEqC.

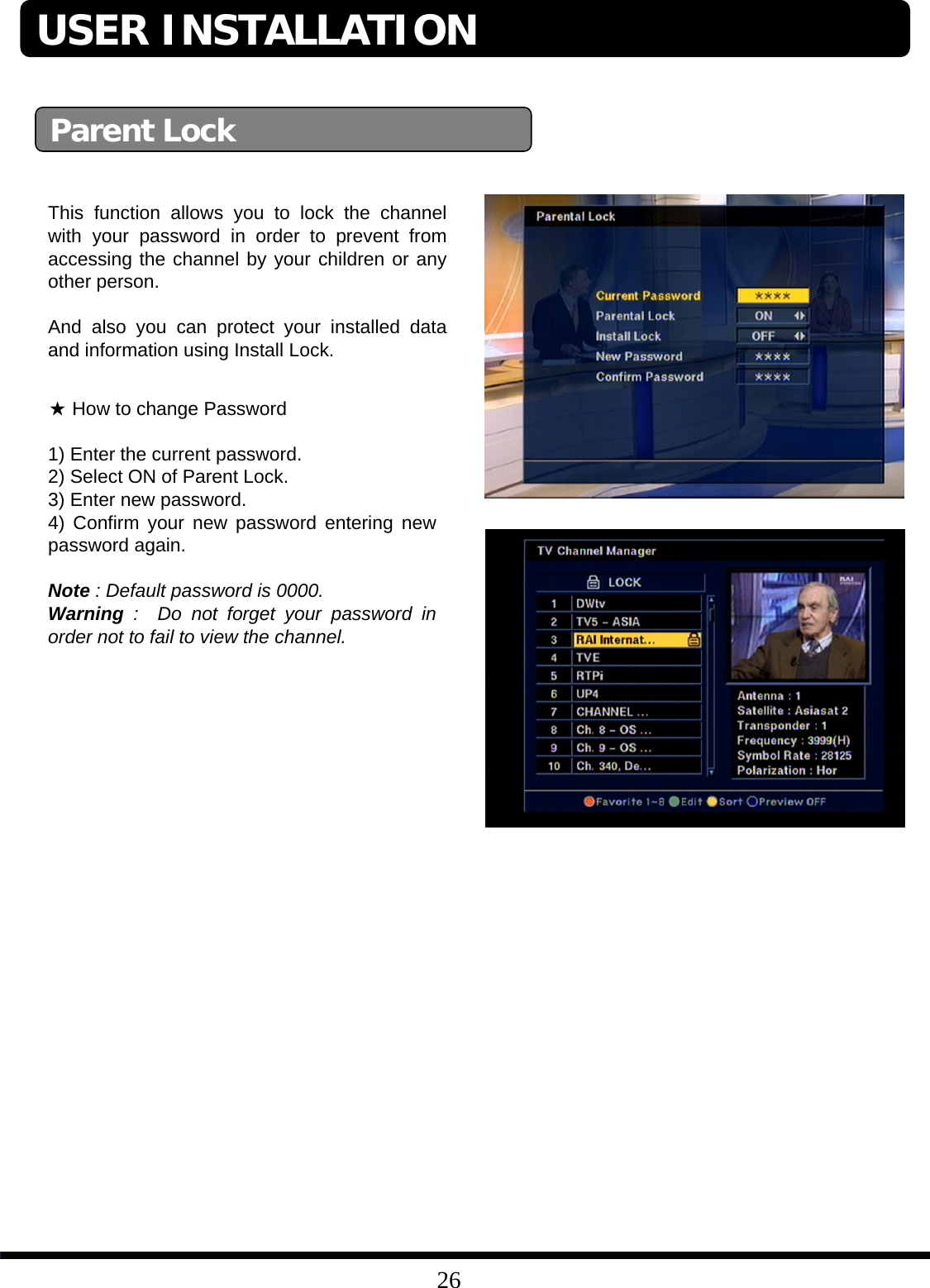

26Parent LockThis function allows you to lock the channel with your password in order to prevent from accessing the channel by your children or any other person.And also you can protect your installed data and information using Install Lock.★How to change Password1) Enter the current password.2) Select ON of Parent Lock.3) Enter new password.4) Confirm your new password entering new password again. Note : Default password is 0000.Warning : Do not forget your password in order not to fail to view the channel. USER INSTALLATION

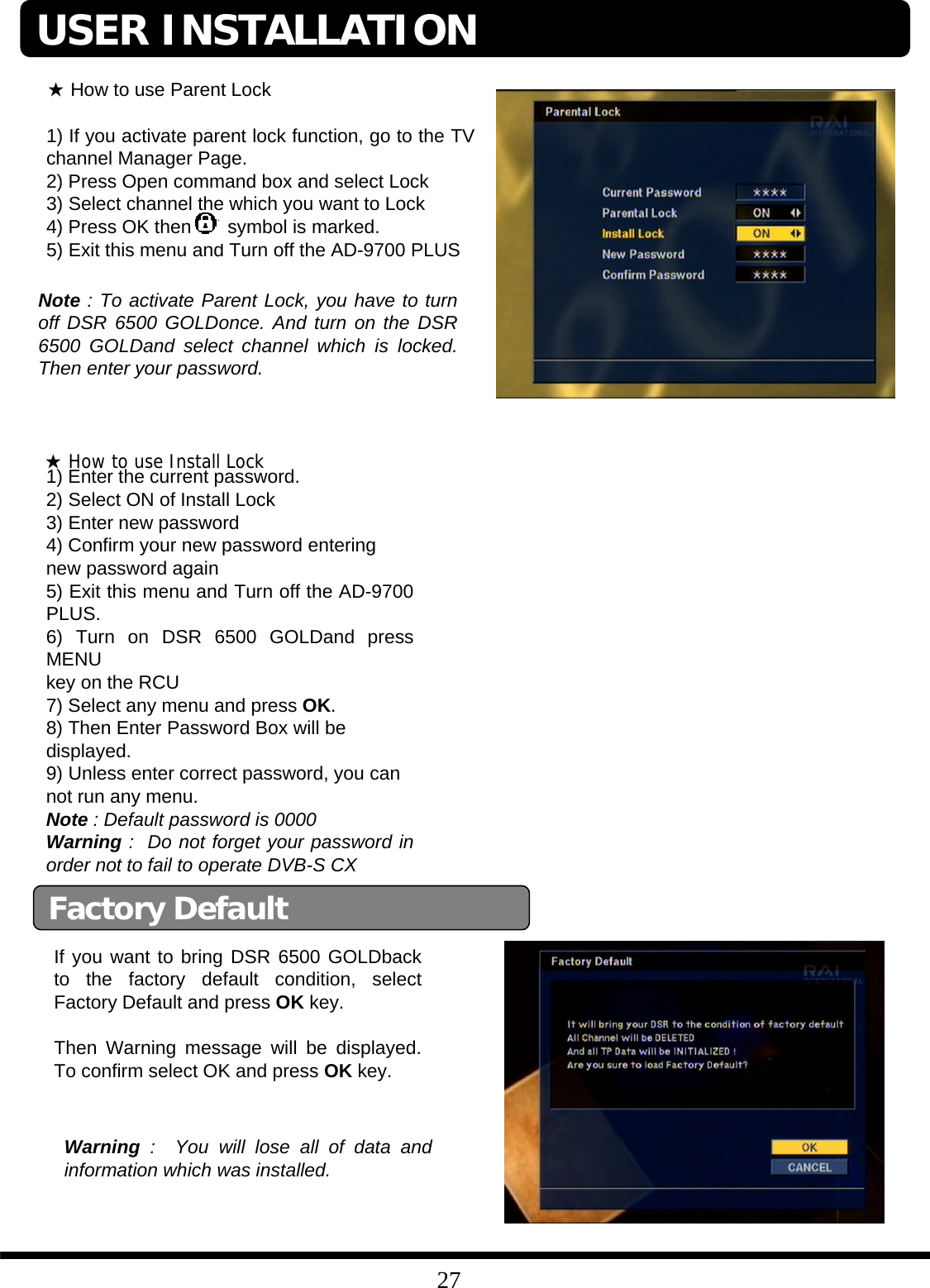

271) Enter the current password.2) Select ON of Install Lock3) Enter new password4) Confirm your new password enteringnew password again 5) Exit this menu and Turn off the AD-9700 PLUS.6) Turn on DSR 6500 GOLDand press MENUkey on the RCU7) Select any menu and press OK.8) Then Enter Password Box will bedisplayed.9) Unless enter correct password, you cannot run any menu. Note : Default password is 0000Warning : Do not forget your password in order not to fail to operate DVB-S CX★How to use Install LockFactory DefaultIf you want to bring DSR 6500 GOLDbackto the factory default condition, select Factory Default and press OK key.Then Warning message will be displayed. To confirm select OK and press OK key.Warning : You will lose all of data and information which was installed. USER INSTALLATIONNote : To activate Parent Lock, you have to turn off DSR 6500 GOLDonce. And turn on the DSR 6500 GOLDand select channel which is locked. Then enter your password.★How to use Parent Lock1) If you activate parent lock function, go to the TV channel Manager Page.2) Press Open command box and select Lock3) Select channel the which you want to Lock4) Press OK then symbol is marked.5) Exit this menu and Turn off the AD-9700 PLUS

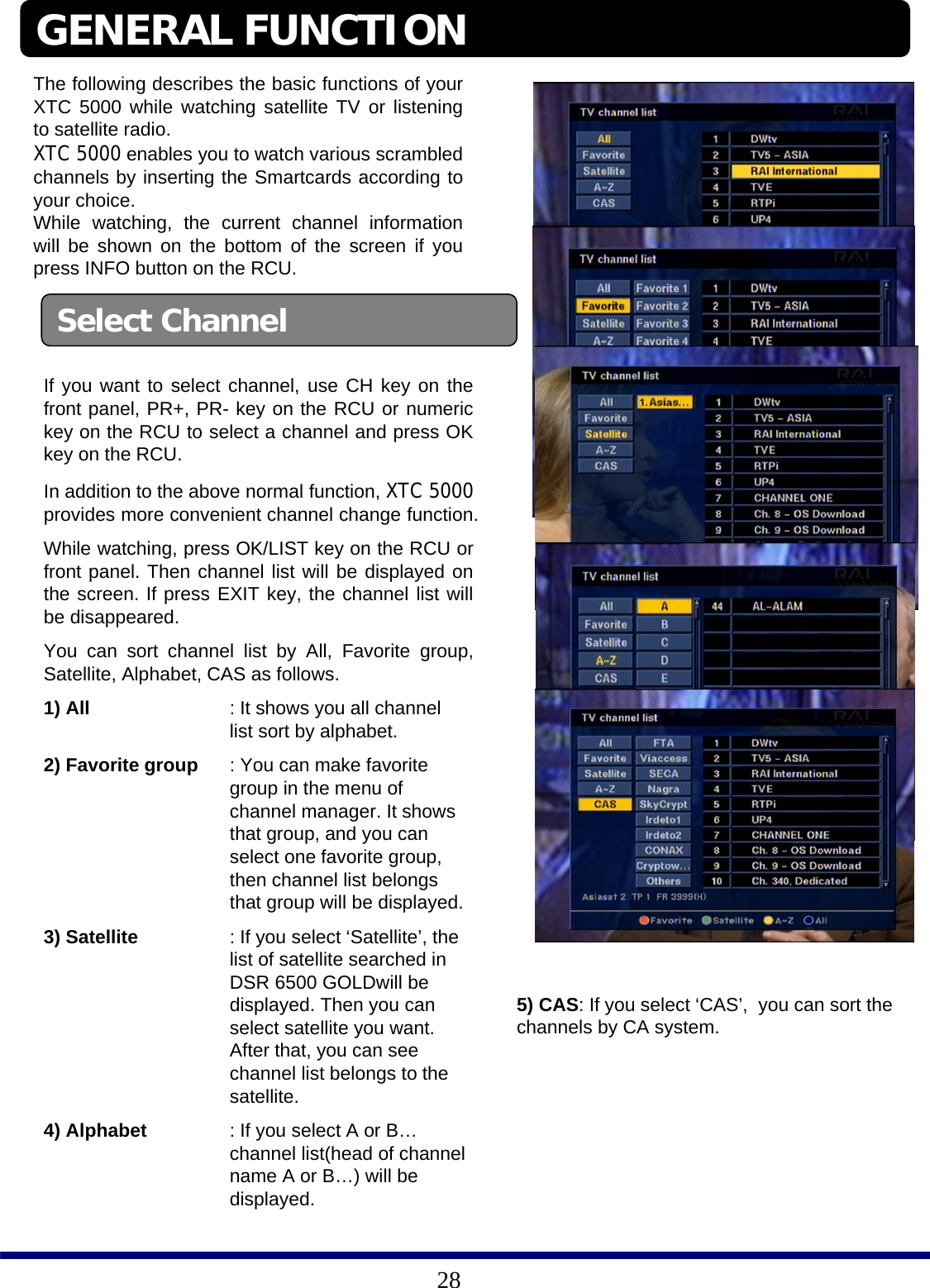

28If you want to select channel, use CH key on the front panel, PR+, PR- key on the RCU or numeric key on the RCU to select a channel and press OK key on the RCU.In addition to the above normal function, XTC 5000provides more convenient channel change function.While watching, press OK/LIST key on the RCU or front panel. Then channel list will be displayed on the screen. If press EXIT key, the channel list will be disappeared.You can sort channel list by All, Favorite group, Satellite, Alphabet, CAS as follows.1) All : It shows you all channel list sort by alphabet.2) Favorite group : You can make favorite group in the menu of channel manager. It shows that group, and you can select one favorite group, then channel list belongs that group will be displayed.3) Satellite : If you select ‘Satellite’, the list of satellite searched in DSR 6500 GOLDwill be displayed. Then you can select satellite you want. After that, you can see channel list belongs to the satellite.4) Alphabet : If you select A or B…channel list(head of channel name A or B…) will be displayed.The following describes the basic functions of your XTC 5000 while watching satellite TV or listening to satellite radio.XTC 5000 enables you to watch various scrambled channels by inserting the Smartcards according to your choice.While watching, the current channel information will be shown on the bottom of the screen if you press INFO button on the RCU.Select ChannelGENERAL FUNCTION5) CAS: If you select ‘CAS’, you can sort the channels by CA system.
29Pause the frame Previous channel recallPress PAUSE key on the RCU to pause the screen. To bring it back to the normal mode, press PAUSE key once again. * Only video will be paused during PAUSE function. (Audio is active.)Press ←PR key on the RCU to move the previous channel which you watched before.TV & Radio switching While viewing TV channel, press TV/RADIO key on the RCU to move radio mode. Press this key once again, it will bring you back to the TV mode.. TV & VCR mode While viewing satellite channel, press TV/AV key on the RCU to move TV mode. Press this key once again, it will bring you to the VCR mode. To move satellite channel, press this key once again. Note : In this case, you can see the current mode through LED display on the front panel.*This function will be provided with “Scart”Connector.GENERAL FUNCTION

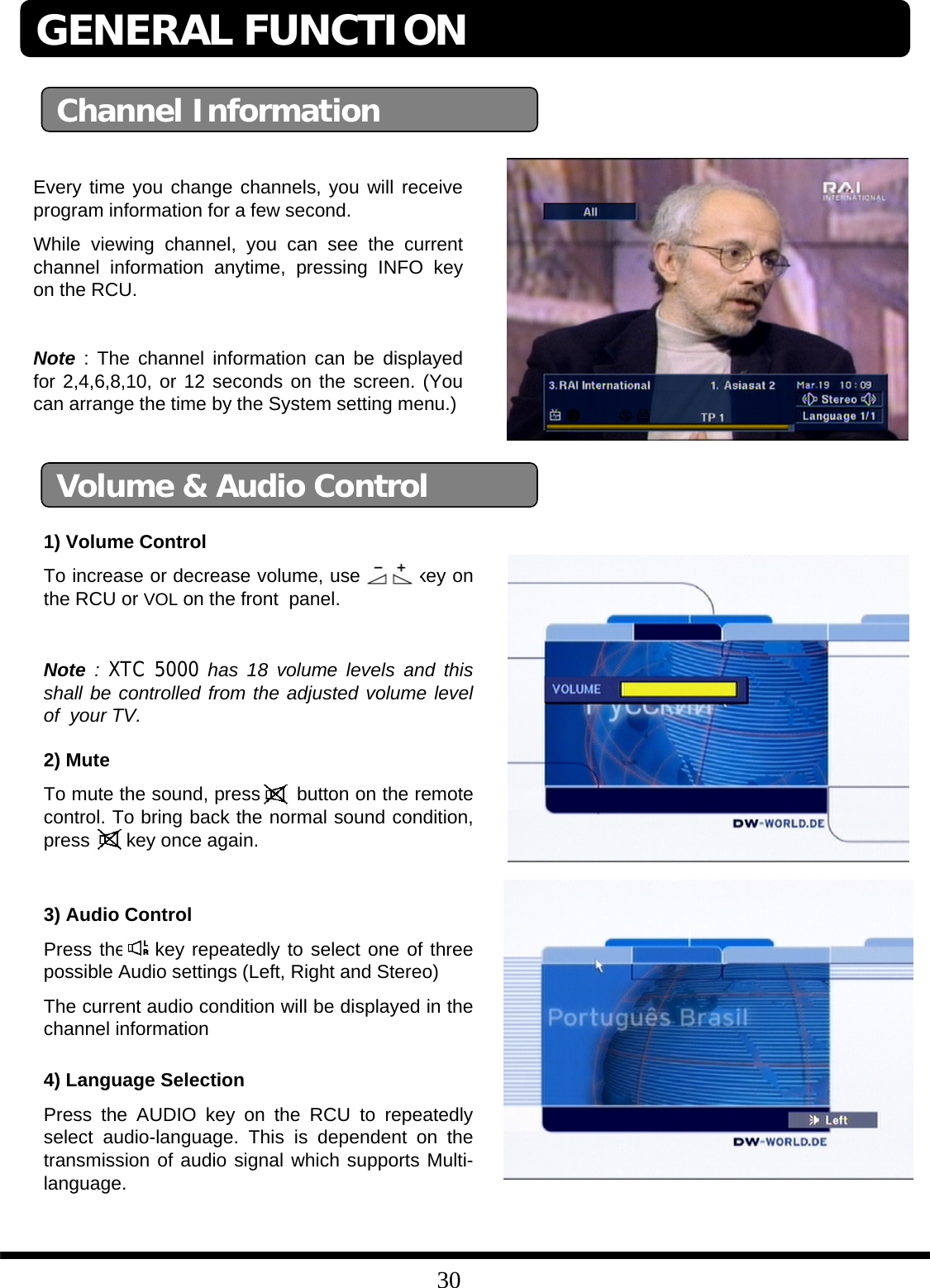

303) Audio ControlPress the key repeatedly to select one of three possible Audio settings (Left, Right and Stereo) The current audio condition will be displayed in the channel informationChannel InformationEvery time you change channels, you will receive program information for a few second.While viewing channel, you can see the current channel information anytime, pressing INFO key on the RCU. Note : The channel information can be displayed for 2,4,6,8,10, or 12 seconds on the screen. (You can arrange the time by the System setting menu.) Volume & Audio Control4) Language SelectionPress the AUDIO key on the RCU to repeatedly select audio-language. This is dependent on the transmission of audio signal which supports Multi-language. 1) Volume ControlTo increase or decrease volume, use key on the RCU or VOL on the front panel. Note : XTC 5000 has 18 volume levels and this shall be controlled from the adjusted volume level of your TV. 2) MuteTo mute the sound, press button on the remote control. To bring back the normal sound condition, press key once again.GENERAL FUNCTION

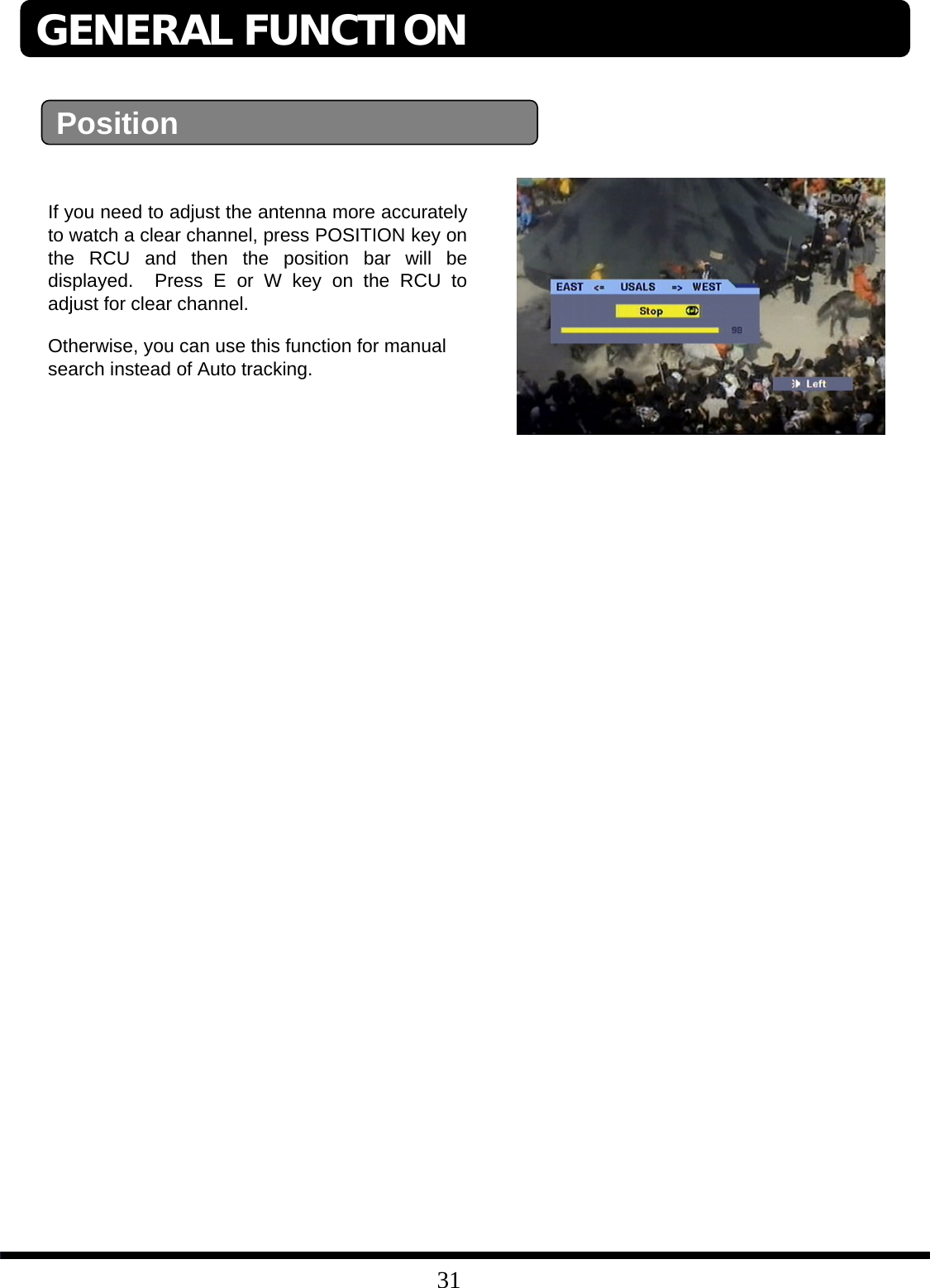

31PositionIf you need to adjust the antenna more accurately to watch a clear channel, press POSITION key on the RCU and then the position bar will be displayed. Press E or W key on the RCU to adjust for clear channel. Otherwise, you can use this function for manual search instead of Auto tracking.GENERAL FUNCTION

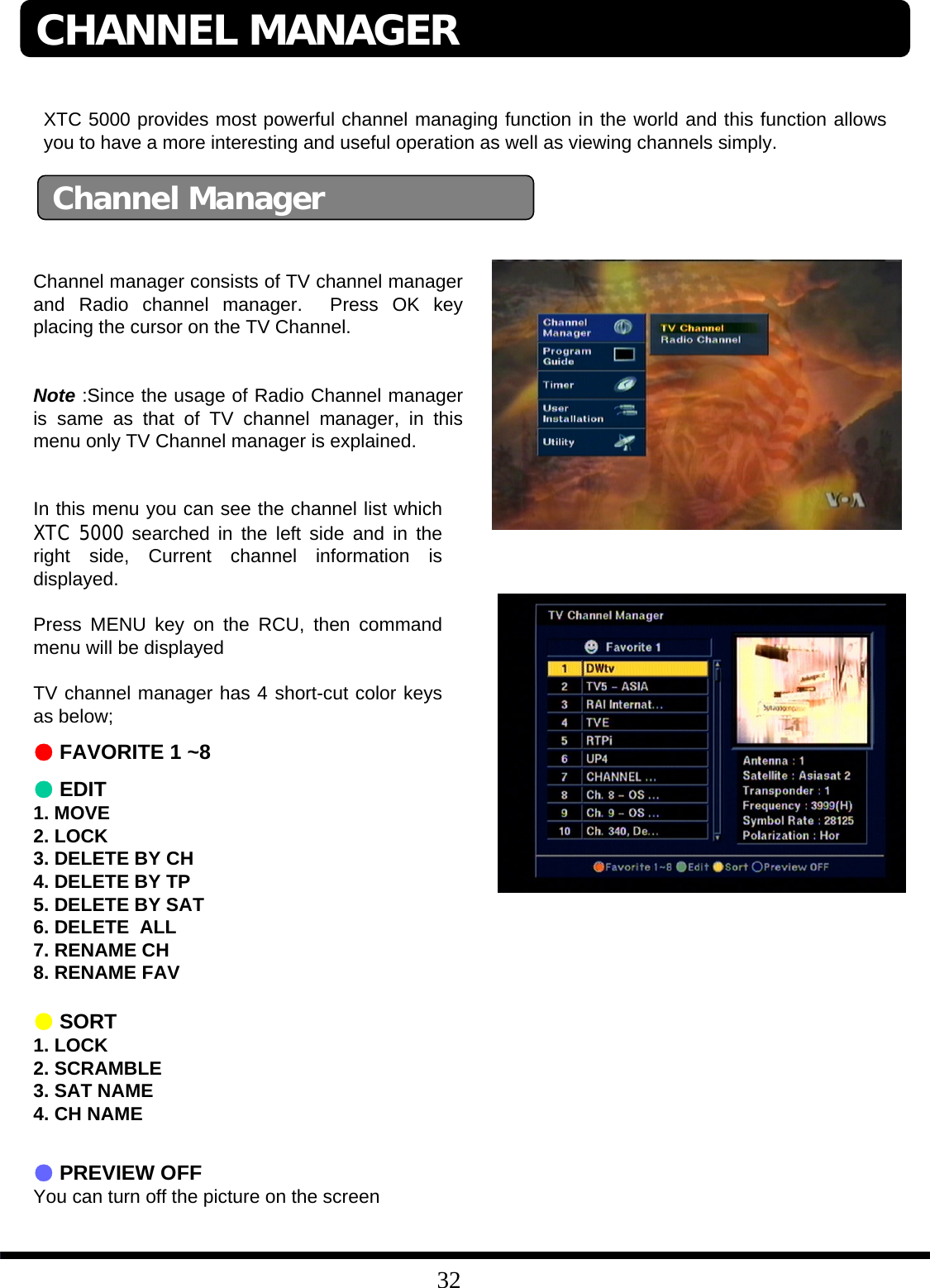

32Channel ManagerChannel manager consists of TV channel manager and Radio channel manager. Press OK key placing the cursor on the TV Channel. Note :Since the usage of Radio Channel manager is same as that of TV channel manager, in this menu only TV Channel manager is explained. XTC 5000 provides most powerful channel managing function in the world and this function allows you to have a more interesting and useful operation as well as viewing channels simply. In this menu you can see the channel list which XTC 5000 searched in the left side and in the right side, Current channel information is displayed. Press MENU key on the RCU, then command menu will be displayedTV channel manager has 4 short-cut color keys as below;●FAVORITE 1 ~8 ●EDIT1. MOVE2. LOCK3. DELETE BY CH4. DELETE BY TP5. DELETE BY SAT6. DELETE ALL7. RENAME CH8. RENAME FAV●SORT1. LOCK2. SCRAMBLE3. SAT NAME4. CH NAME●PREVIEW OFFYou can turn off the picture on the screen CHANNEL MANAGER
33Favorite ChannelMove channelCHANNEL MANAGER★How to make favorite group 1. When you enter channel manager, the default favorite group will be showed once on the screen as Favorite 1.2. In the channel manager page, press ●FAVORITE 1 ~8 key and select FAVORITE, then Favorite group 1,2,3 will be displayed. After that, select group and cursor channel what you want and press ok key by group.After the selection of favorite channels press EXIT key and press FAV key to see if each of the favorite groups are properly selected.* means scrambled channel.When you select channel manager, default favorite list will be showed on the screen as Favorite 1. Select your favorite channel and then press OK key. Then will be marked at rear of your selected channel name.And if you want to delete the channel name in the favorite channel list, press OK key once again, then the mark will be disappeared.In the TV channel Manager Page, press ●Editkey on the RCU and select MOVE in the command box.Select a channel by pressing OK key and move the cursor to the location in which you want to move the selected channel and press OK key. Then, you will find the selected channel has moved to the desired location and channel no. also changed in order accordingly.And check whether the channel number is changed on the channel list or not.
