Contents

Users Manual Part III

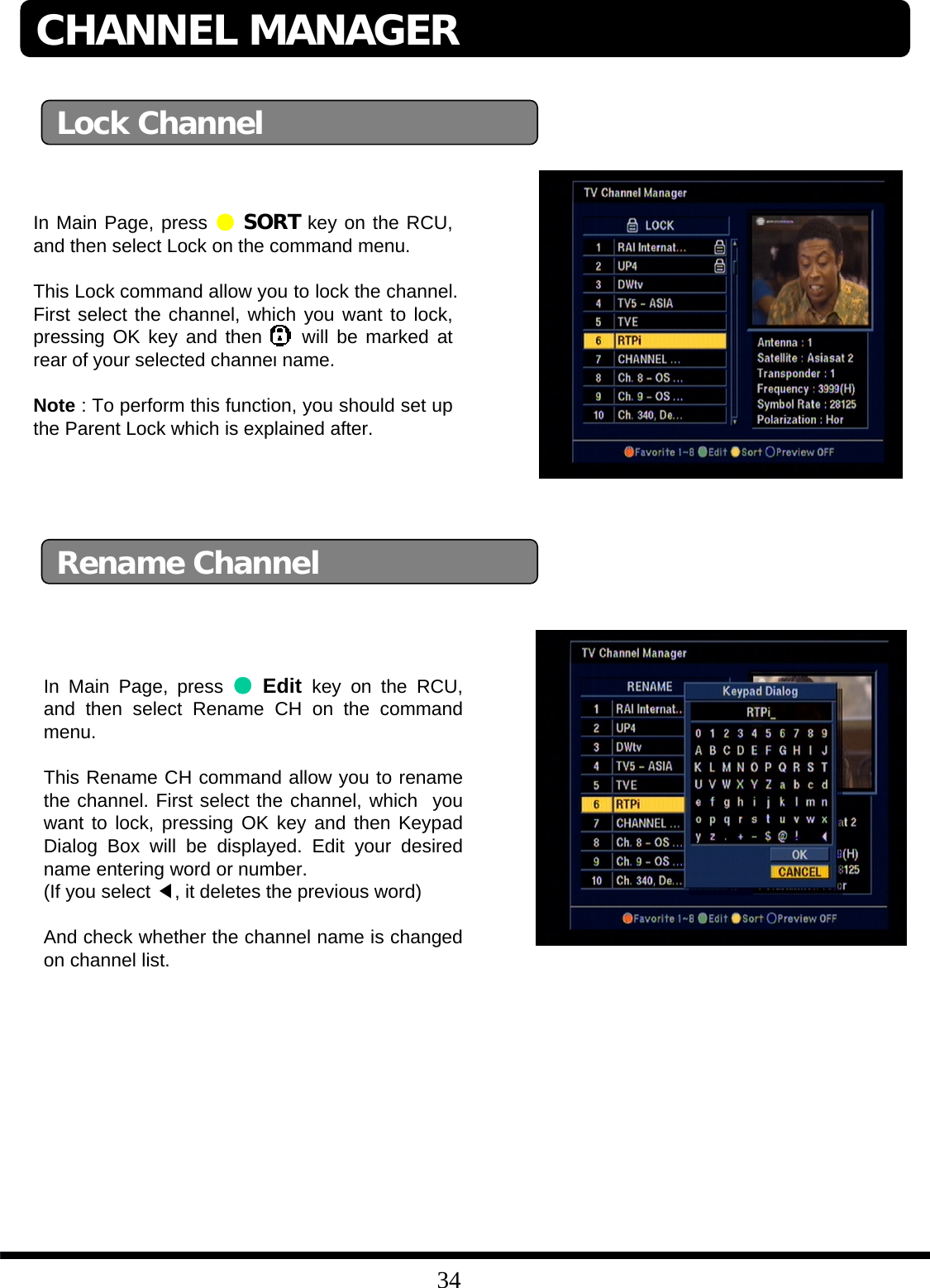

34In Main Page, press ●Edit key on the RCU, and then select Rename CH on the command menu.This Rename CH command allow you to rename the channel. First select the channel, which you want to lock, pressing OK key and then Keypad Dialog Box will be displayed. Edit your desired name entering word or number. (If you select ◀, it deletes the previous word) And check whether the channel name is changed on channel list. Lock ChannelRename ChannelCHANNEL MANAGERIn Main Page, press ●SORT key on the RCU, and then select Lock on the command menu.This Lock command allow you to lock the channel. First select the channel, which you want to lock, pressing OK key and then will be marked at rear of your selected channel name.Note : To perform this function, you should set up the Parent Lock which is explained after.
35In Main Page, press ●SORT key on the RCU, and Sort Method will be displayed.This Sort method has 4 sub commands and it allows you to sort the channels as provided. You can sort the channels by Lock, Scramble, SAT name and CH name. Place the cursor on your desired line, and then press OK key. And check whether the channels are sorted exiting on the channel list.Delete channelIn Main Page, press ●Edit key on the RCU, and then select Delete on the command menu.This Delete command allows you to delete the channel permanently. First select the channels, which you want to delete, then selected channel number will be changed to If you cancel the selection, press OK key again, then the number will be back as it wasIf you decided to delete, press EXIT key and then Message box will be displayed. Press OK to delete. And check whether the channel number is changed exiting on channel list. Warning : The deleted channel can not be recovered unless you search again. Please be careful when you decide to delete channel.Sort MethodNote : Radio Channel Manager is same operation as TV channel Manager.CHANNEL MANAGER

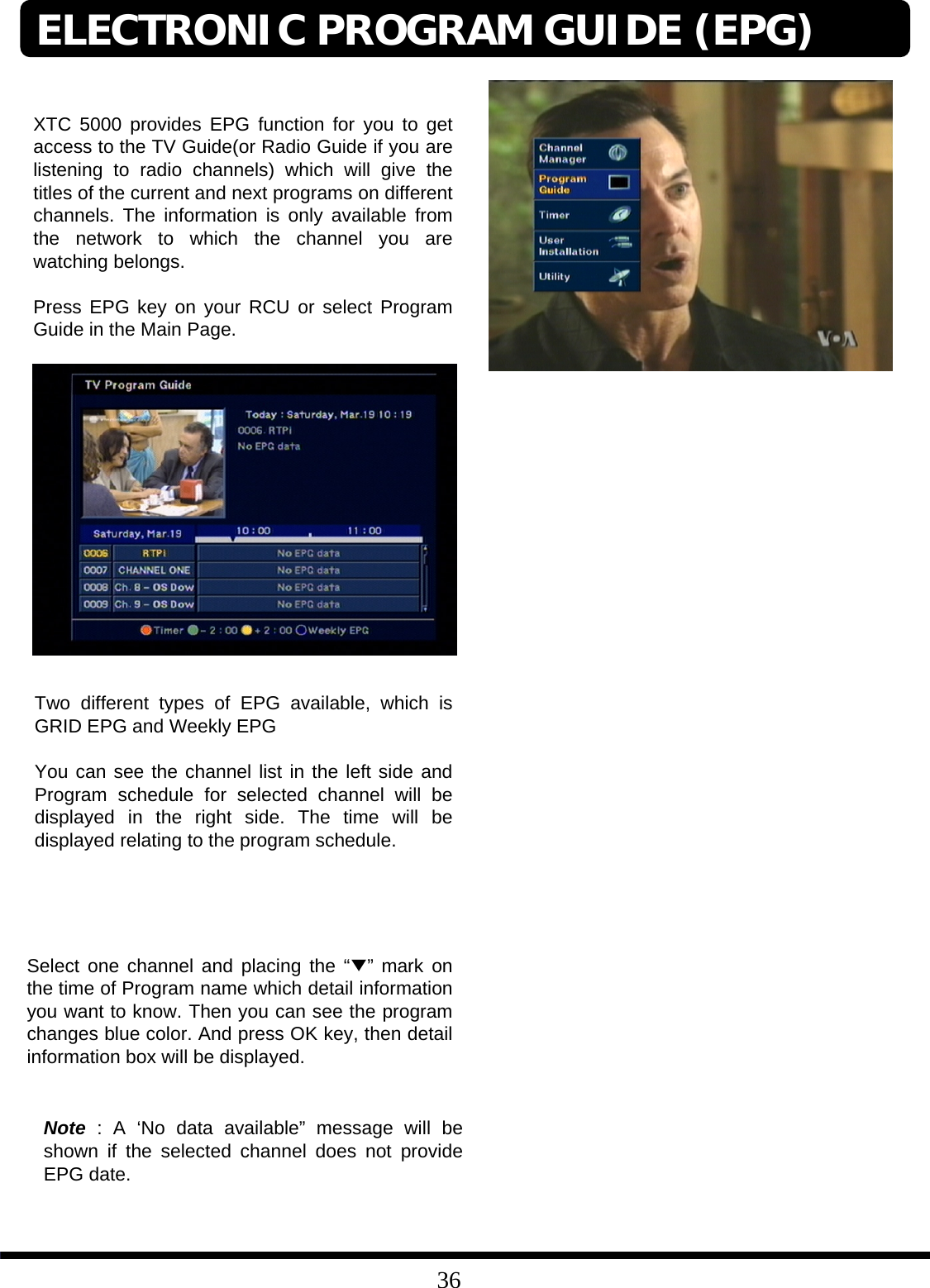

36XTC 5000 provides EPG function for you to get access to the TV Guide(or Radio Guide if you are listening to radio channels) which will give the titles of the current and next programs on different channels. The information is only available from the network to which the channel you are watching belongs.Press EPG key on your RCU or select Program Guide in the Main Page.Two different types of EPG available, which is GRID EPG and Weekly EPGYou can see the channel list in the left side and Program schedule for selected channel will be displayed in the right side. The time will be displayed relating to the program schedule. Select one channel and placing the “▼”mark on the time of Program name which detail information you want to know. Then you can see the program changes blue color. And press OK key, then detail information box will be displayed. Note : A ‘No data available” message will be shown if the selected channel does not provide EPG date. ELECTRONIC PROGRAM GUIDE (EPG)

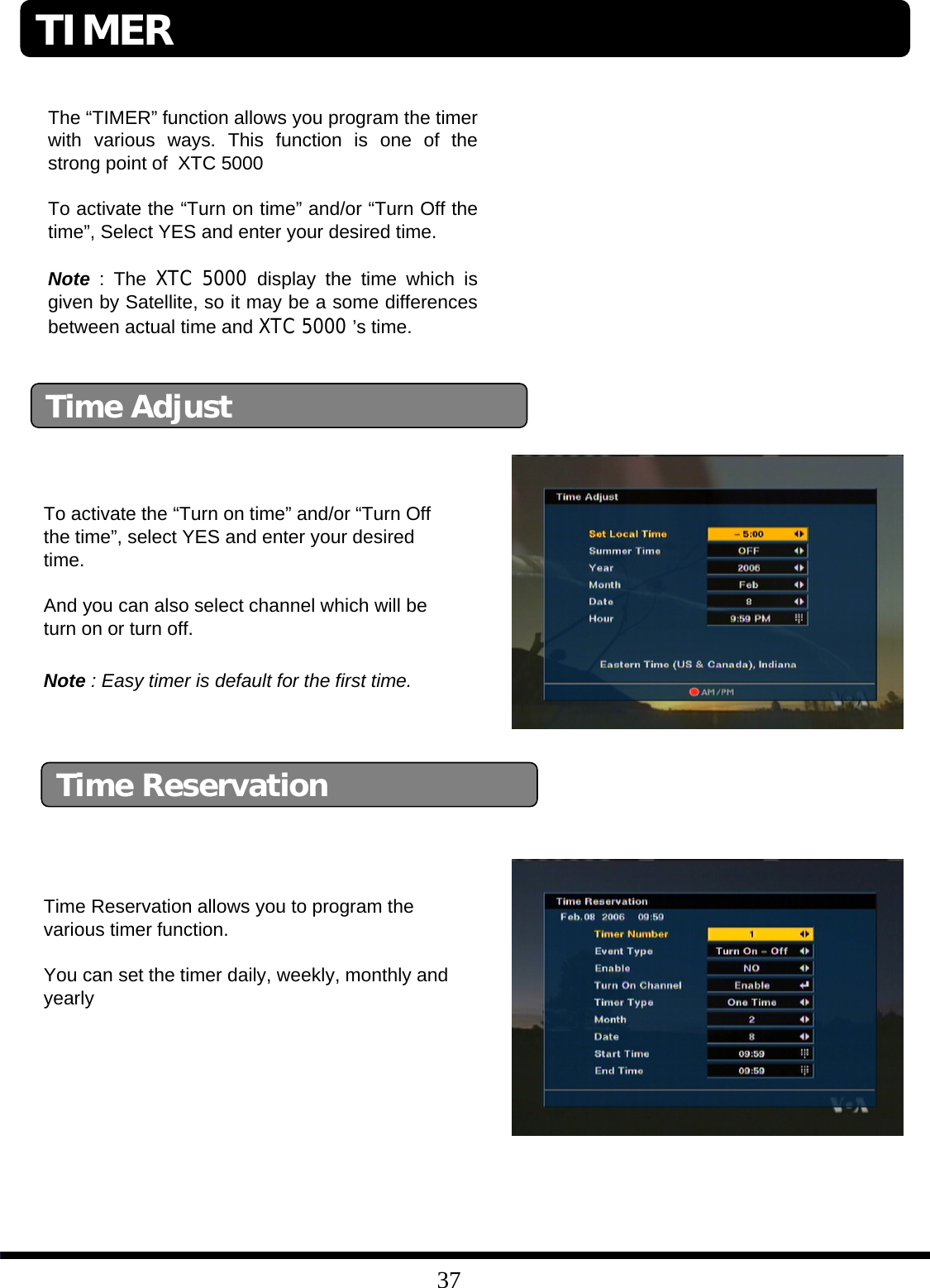

37The “TIMER” function allows you program the timer with various ways. This function is one of the strong point of XTC 5000To activate the “Turn on time” and/or “Turn Off the time”, Select YES and enter your desired time.Note : The XTC 5000 display the time which is given by Satellite, so it may be a some differences between actual time and XTC 5000 ’s time.Time AdjustTo activate the “Turn on time” and/or “Turn Off the time”, select YES and enter your desired time.And you can also select channel which will be turn on or turn off. Time ReservationTime Reservation allows you to program the various timer function.You can set the timer daily, weekly, monthly and yearlyNote : Easy timer is default for the first time. TIMER

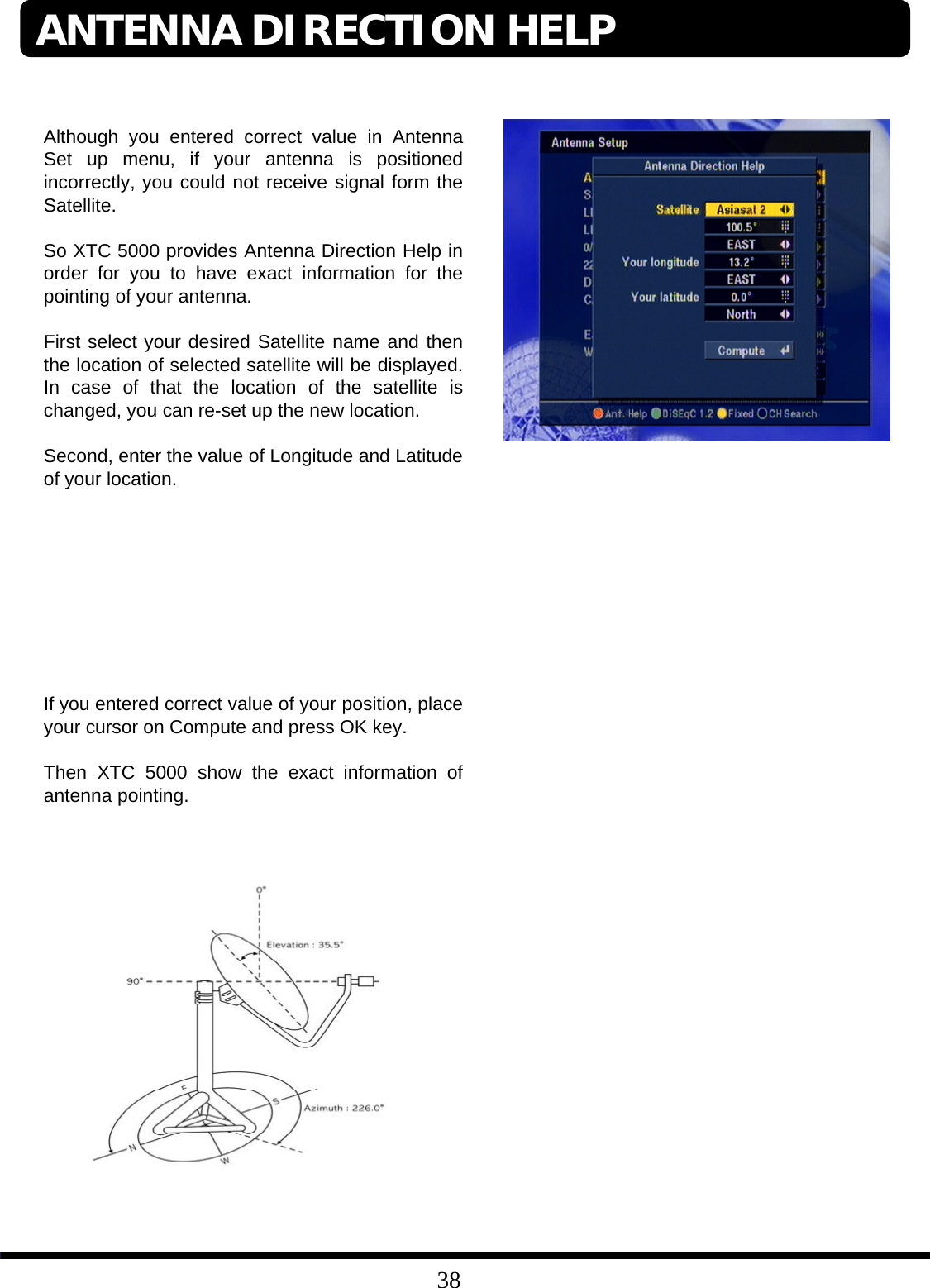

38Although you entered correct value in Antenna Set up menu, if your antenna is positioned incorrectly, you could not receive signal form the Satellite. So XTC 5000 provides Antenna Direction Help in order for you to have exact information for the pointing of your antenna. First select your desired Satellite name and then the location of selected satellite will be displayed. In case of that the location of the satellite is changed, you can re-set up the new location.Second, enter the value of Longitude and Latitude of your location.If you entered correct value of your position, place your cursor on Compute and press OK key. Then XTC 5000 show the exact information of antenna pointing.ANTENNA DIRECTION HELP

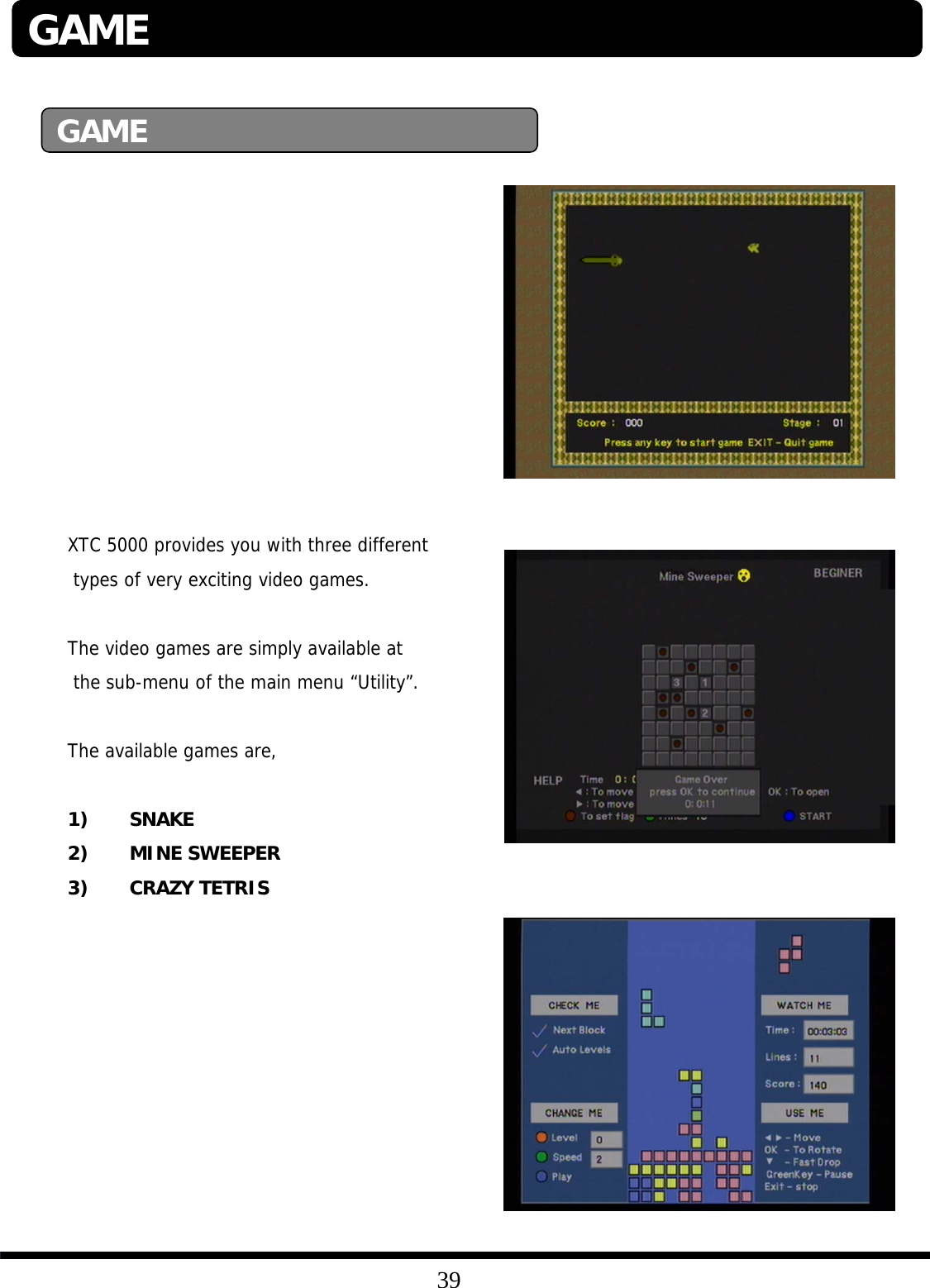

39GAMEGAMEXTC 5000 provides you with three differenttypes of very exciting video games.The video games are simply available at the sub-menu of the main menu “Utility”.The available games are,1) SNAKE2) MINE SWEEPER3) CRAZY TETRIS
40: UP LOAD PROCEDURE : DOWN LOAD PROCEDURE : ERROR IN DATA TRANSMITTING: TV MODE: VCR MODE: SYSTEM WAITTING : FLASH ROM ERROR: SYSTEM BOOTINGIn the Receiver Information, you can show the information of the product, its version and contact point of supplier. If you have a problem on this products and any question, please feel free to contact the supplier which contact point is mentioned in this Receiver Information. RECEIVER INFO & FRONT PANEL DISPLAYReceiver InformationFront Panel Display

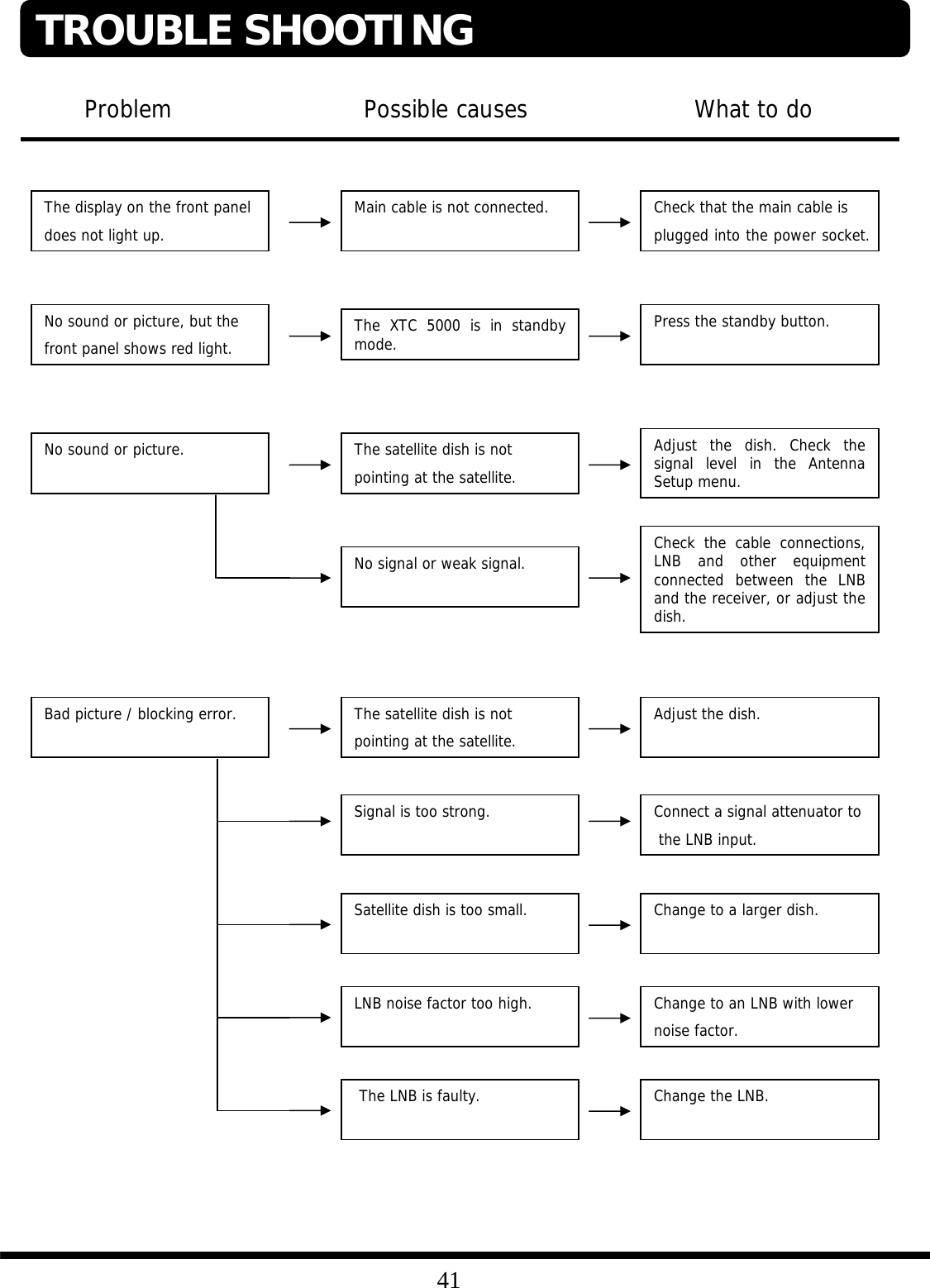

41Problem Possible causes What to doThe display on the front panel does not light up.Main cable is not connected. Check that the main cable is plugged into the power socket.No sound or picture, but thefront panel shows red light. The XTC 5000 is in standby mode. Press the standby button.No sound or picture. The satellite dish is notpointing at the satellite.Adjust the dish. Check the signal level in the Antenna Setup menu.No signal or weak signal. Check the cable connections, LNB and other equipment connected between the LNB and the receiver, or adjust the dish.Bad picture / blocking error. The satellite dish is notpointing at the satellite. Adjust the dish.Signal is too strong. Connect a signal attenuator tothe LNB input.Satellite dish is too small. Change to a larger dish.LNB noise factor too high. Change to an LNB with lowernoise factor.The LNB is faulty. Change the LNB.TROUBLE SHOOTING

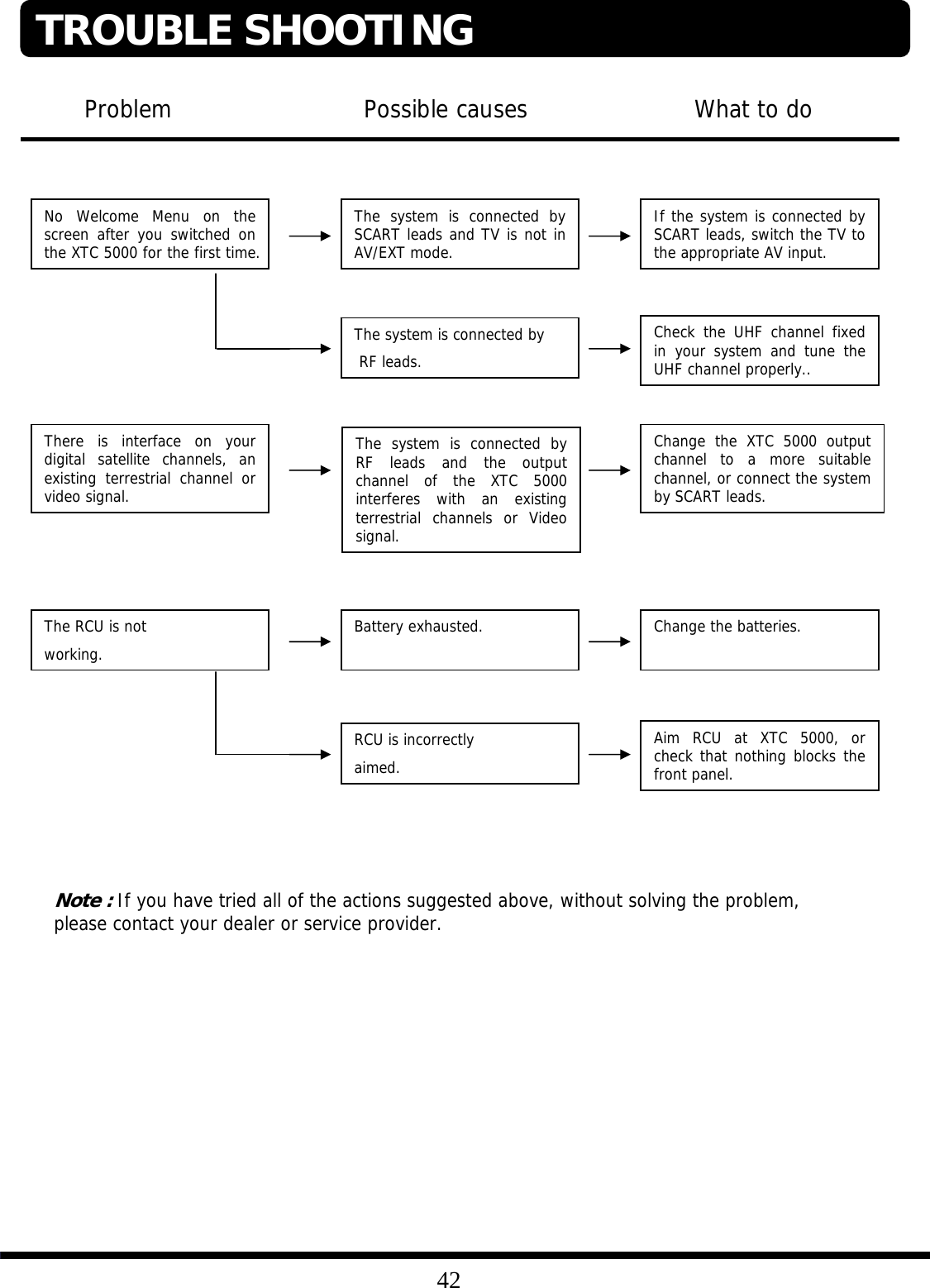

42Problem Possible causes What to doNo Welcome Menu on the screen after you switched on the XTC 5000 for the first time.The system is connected by SCART leads and TV is not in AV/EXT mode.If the system is connected by SCART leads, switch the TV to the appropriate AV input.The system is connected byRF leads.Check the UHF channel fixed in your system and tune the UHF channel properly..There is interface on your digital satellite channels, an existing terrestrial channel or video signal.The system is connected by RF leads and the output channel of the XTC 5000 interferes with an existing terrestrial channels or Video signal.Change the XTC 5000 output channel to a more suitable channel, or connect the system by SCART leads.The RCU is notworking. Battery exhausted. Change the batteries.RCU is incorrectlyaimed.Aim RCU at XTC 5000, or check that nothing blocks the front panel. Note : If you have tried all of the actions suggested above, without solving the problem, please contact your dealer or service provider.TROUBLE SHOOTING
43SYSTEM SPECIFICATION1) SYSTEM CAPACITYFully MPEG2, DVB complaint 2) DEMODULATION QPSK demodulation and FEC decodingSymbol rate (Rs) 2 < Rs < 45 Mbaud3) VIDEO DECODER MPEG-2 Main Profile @ Main Level With Letter Box filterData rate up to 15Mbits/sVideo Formats 4:3, 16:9 4) AUDIO DECODER MPEG-1 layer I and II, MusicamStereo Channel, Dual Mono, Joint Stereo Channel, Mono5) PROCESSOR RESSOURCES Processor SGS-Thomson Sti5518SDRAM 8 MbyteFlash 2 Mbyte6) LNB INPUT Connector 2 x F-Type, 3/8-32UNEF-2A (1 Input / 1 Loop through)Input Frequency 950 to 2150 MhzLNB Supply 13.5±0.5V / 18.5±0.7V, max.500mABand Switch Control 22 KHz 7) Component Outputs (YUV)Connector type : 3 x RCA (Y Pb Pr)Output impedance 75Ωunbalanced8) S-VHS OutputVideo format Y,COutput impedance 75W unbalanced
44SYSTEM SPECIFICATION9) VIDEO OUTPUT/ AUDIO OUTPUT Connector one RCA/ Connector two RCA (L/R) 10) Digital Audio OutputConnector type 1 x OpticSampling frequency rate 32 , 44.1 or 48khz11) RF MODULATOR Connector two IEC(M/F) RF Output Signal NTSC MVideo Carrier Frequency 61.25 ±90 ㎑US 3 CH 67.25 ±90 ㎑US 4 CH12) RS232 SERIAL DATA PORT Connector 9 pin DB9(M) Data protocol RS232C interface13) POWER SUPPLYType Switching mode Input Voltage 90 - 250V AC @ 50Hz/60Hz±5%Norminal Power Consumption 27W 14) CONNECTORS 1 LNB Input / 1 Loop through output (2F-type : IEC169-24)1 x 0/12 Volt (RCA)2 x Audio L/R (RCA)1 x CVBS (RCA)3 x YUV (RCA)1 x RS-232 (9-pin D-sub male)1 x RF Modulator (2F-type : IEC169-24)1 x S-VHS (4-pin Mini-Din)1 x Digital Audio Output (optic)
