Users Manual R4M Part 1
User Guide
Zebra R4Mplus
Industrial/Commercial Printer
Copyright © ZIH Corp.
The copyrights in this manual and the label printer described therein are owned
by Zebra Technologies. All rights are reserved. Unauthorized reproduction of
this manual or the software in the label printer may result in imprisonment of
up to one year and fines of up to $10,000 (17 U.S.C.506). Copyright violators
may be subject to civil liability.
IBM® is a registered trademark of IBM Corporation.
Adobe® and Acrobat® are registered trademarks of Adobe Systems
Incorporated.
Zebra®, Stripe®, ZPL®, ZebraNet®, ZebraLink™, and ZPL II® are registered
trademarks of Zebra Technologies.
All other brand names, product names, trademarks, and registered trademarks
are property of their respective holders.
Customer Order # 21067L
Manufacturer Part # 21067L Rev. A
R4Mplus User Guide i
Your Feedback Is Important
Your feedback helps us improve our documents to better serve you!
Please take a few minutes to evaluate your experience using this document.
Product and Personal Information
1. What printer are you using? ____________________________
2. What document are you using? ___________________________
3. Have you ever worked with our product before? Yes No
If Yes, how many ___years? ___months?
4. What is your education level?______________
Document Usability
Check the rating that applies to your experience using this document:
Additional Comments
Write any additional comments on the lines provided on the next page.
Content Excellent Good Poor
The information I needed was available.
The information I needed was easy to find.
The information and directions were clear.
The illustrations were helpful.
The document was arranged logically.
The Table of Contents and Index were helpful.
The Glossary was helpful.
The level of information was appropriate for my
technical expertise.
ii R4Mplus User Guide
Thank you for taking the time to provide us with feedback.
Fax: 1.847.821.1795 Attention: TechPubs — CTC
E-mail: techpubs@zebra.com
Note • _____________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
___________________________________________________________________________
R4Mplus User Guide iii
Table of Contents
Proprietary Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vii
Product Improvements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii
FCC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .vii
FCC Radiation Exposure Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Canadian DOC Compliance Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Liability Disclaimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Limitation of Liability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Copyrights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii
Declaration of Conformity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .ix
Warranty Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xi
Printer Products . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xi
Printer Software and Firmware License Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . xiii
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xix
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx
Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xx
About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxi
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxii
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxiv
Chapter 1 • Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

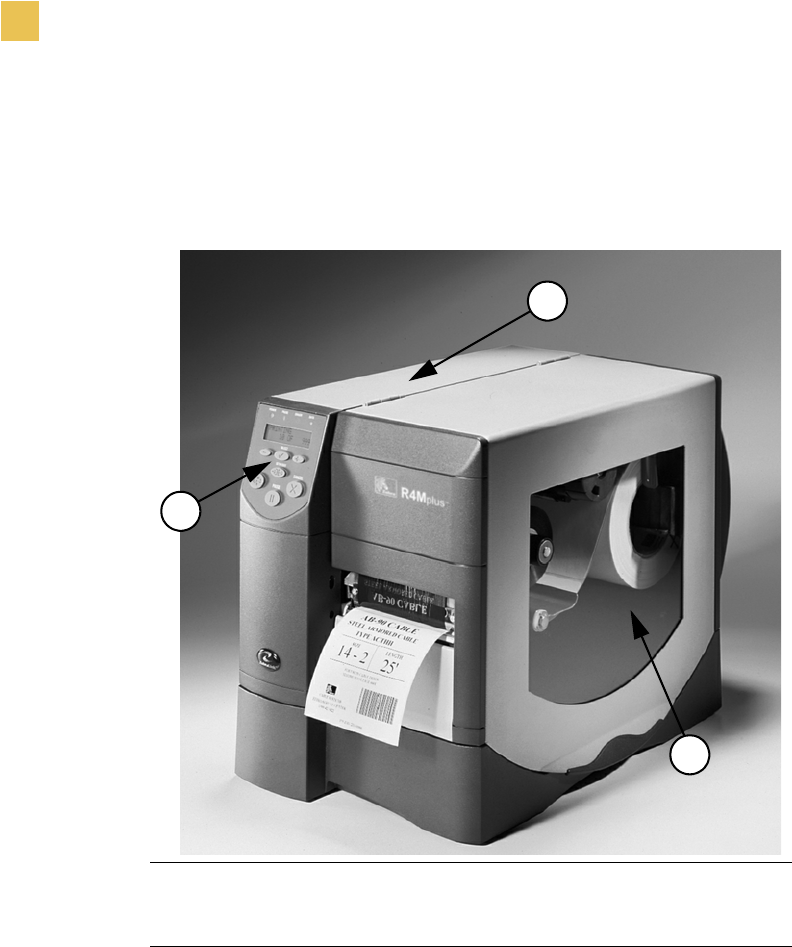

External View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LCD Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Print Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

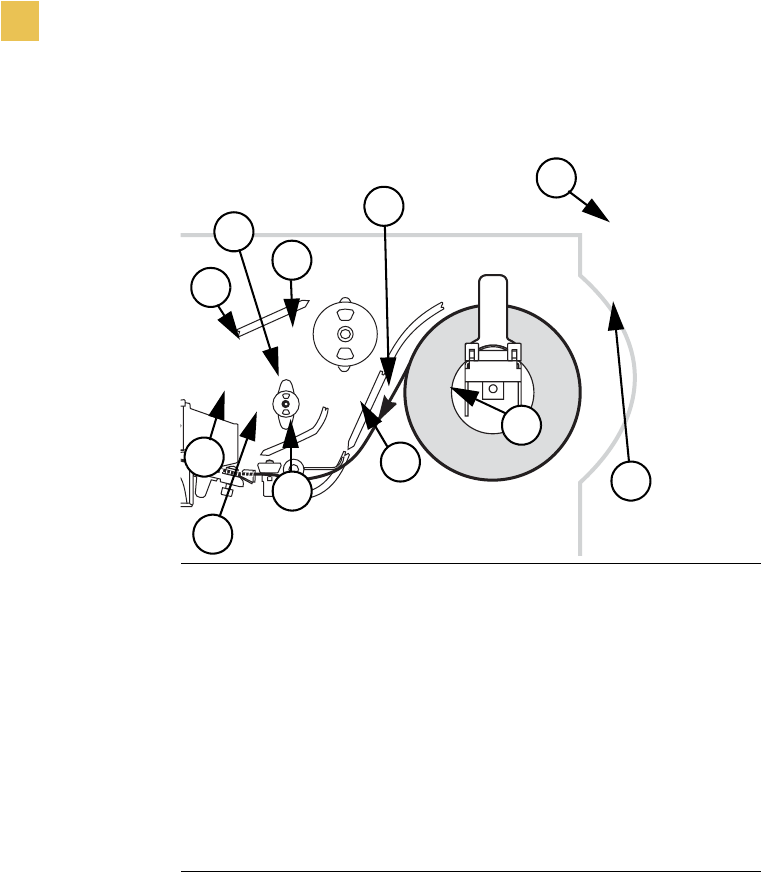

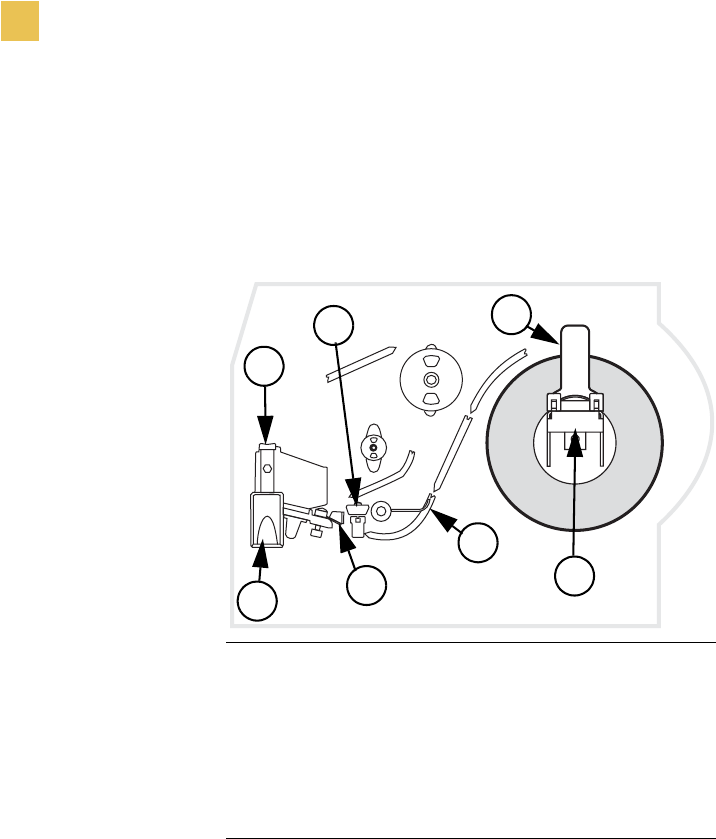

Printer Media Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
iv R4Mplus User Guide
Table of Contents
Chapter 2 • Printer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unpack and Inspect the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Report Damage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Select a Site for the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Select a Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Provide Proper Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Allow Proper Space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Provide a Data Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect the Printer to a Power Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

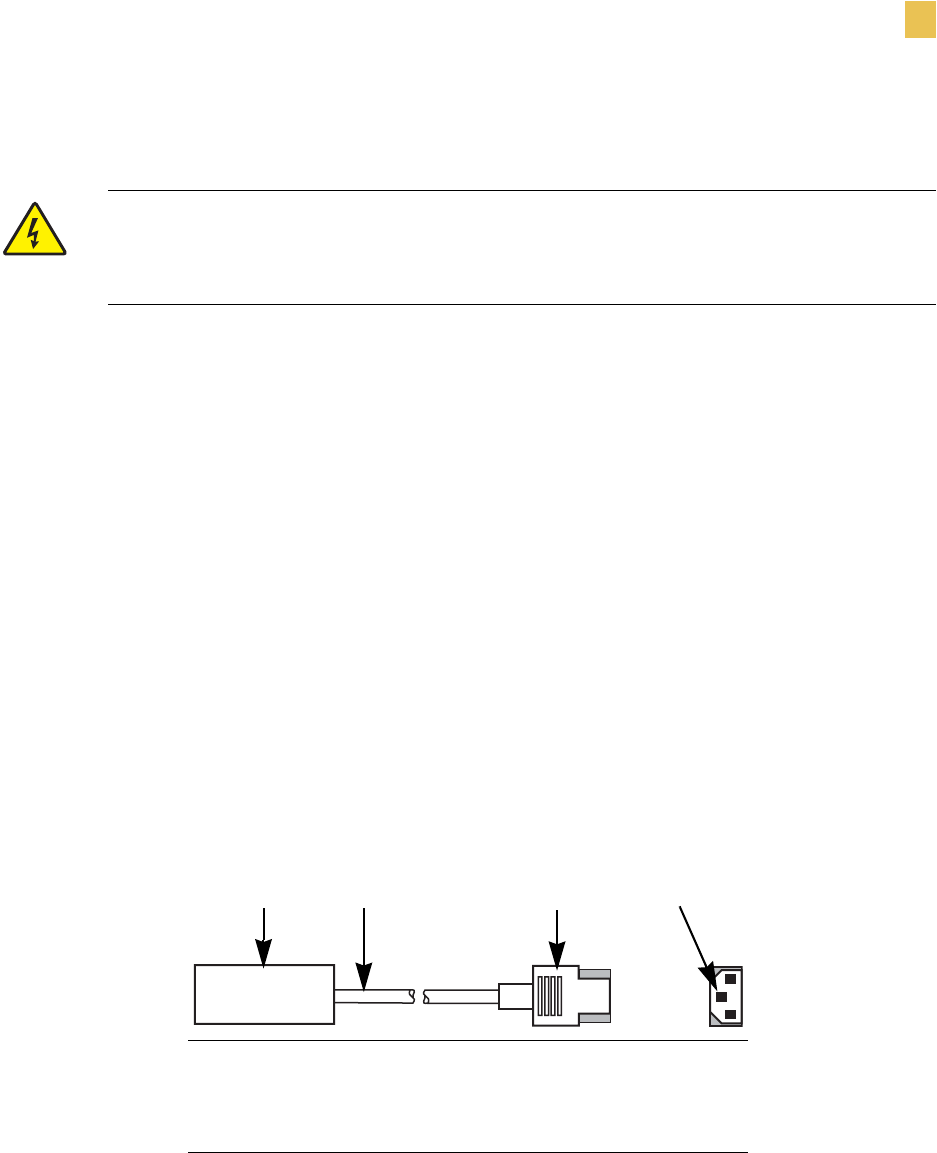

Power Cord Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

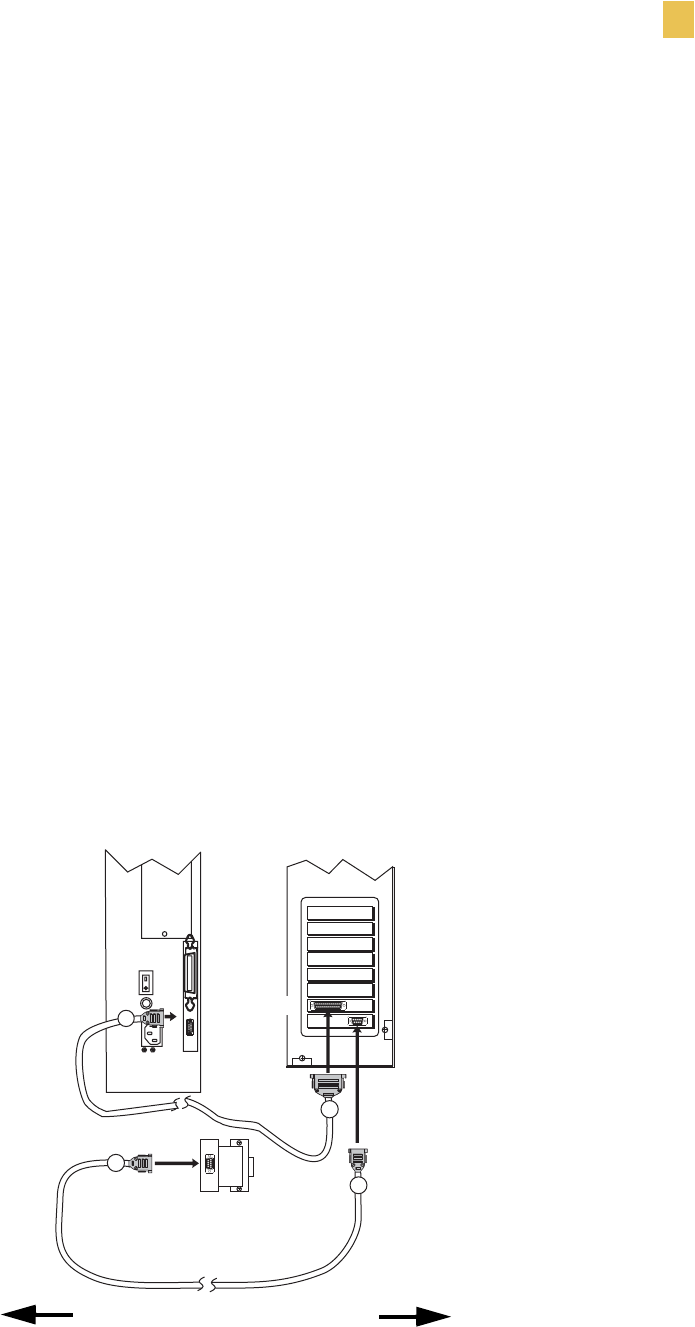

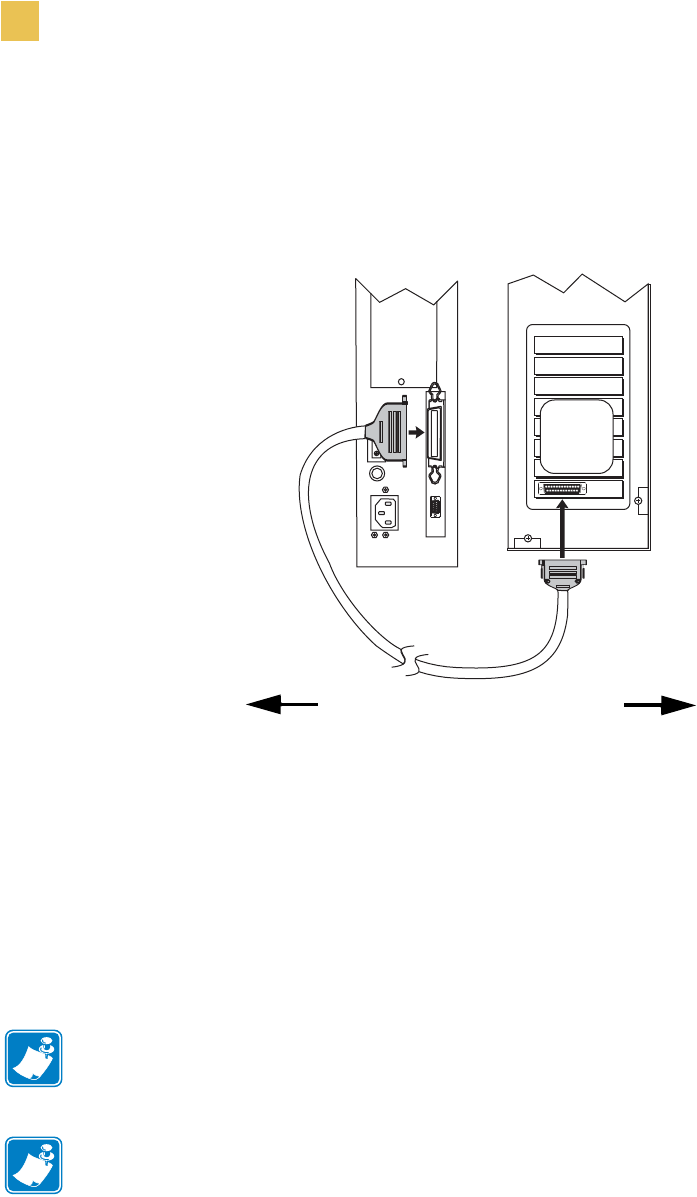

Select a Communication Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Cable Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

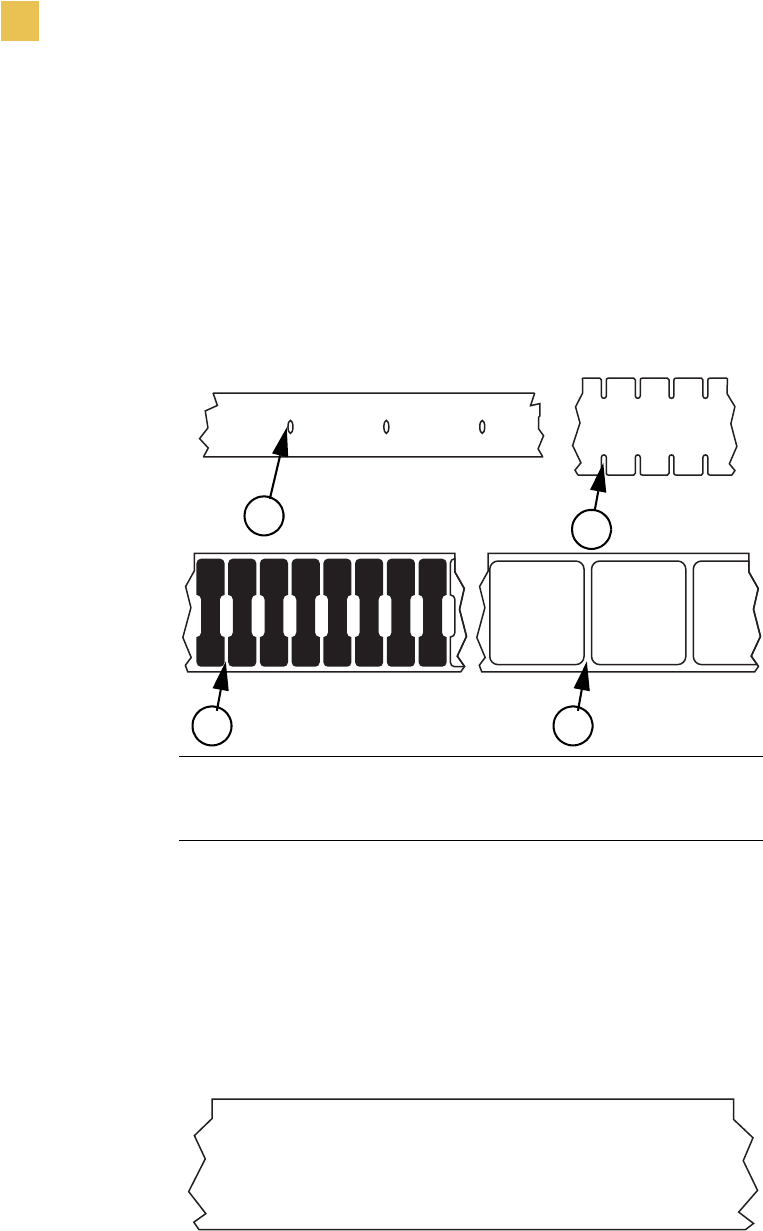

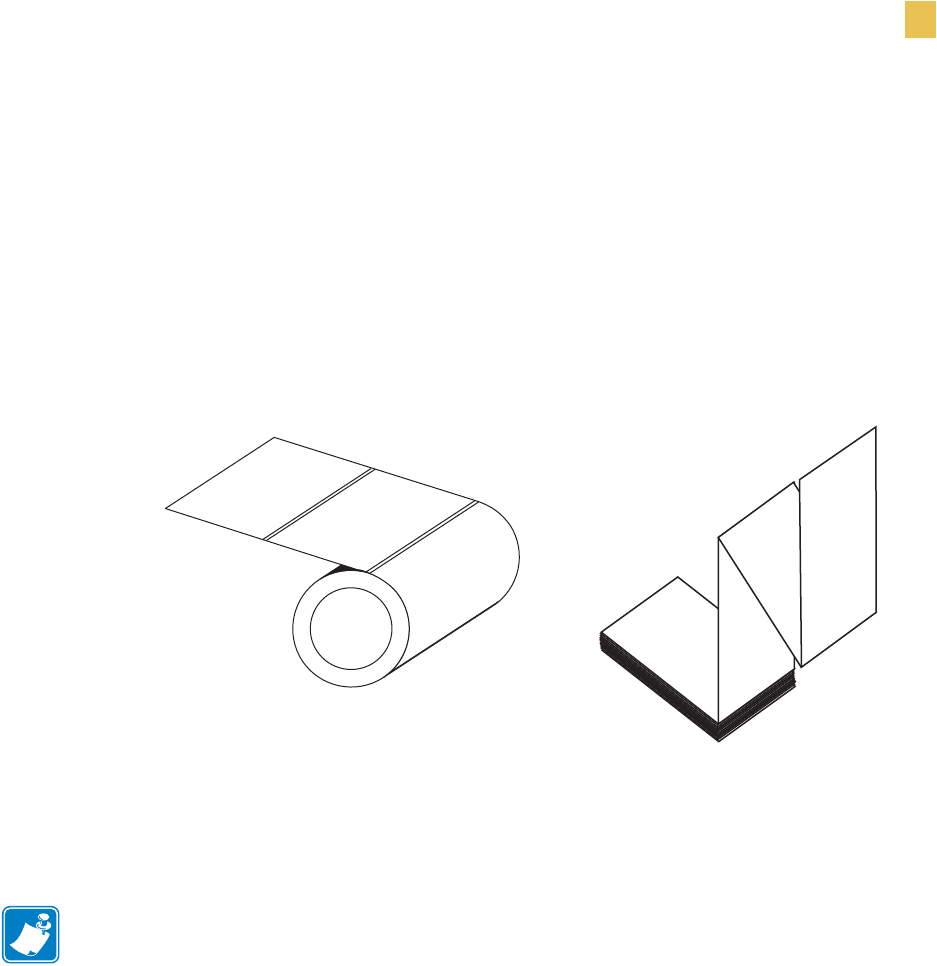

Types of Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Non-Continuous Web Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Continuous Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

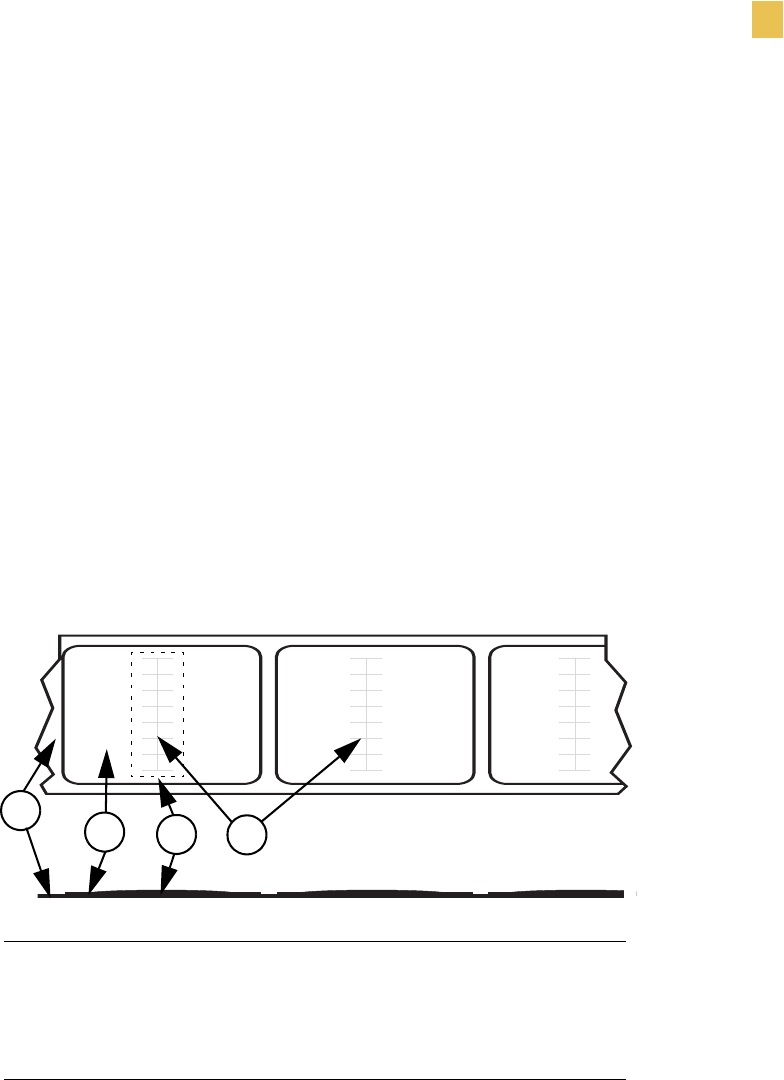

RFID “Smart” Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
When to Use Ribbon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Ribbon Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Coated Side of Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Chapter 3 • Printer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

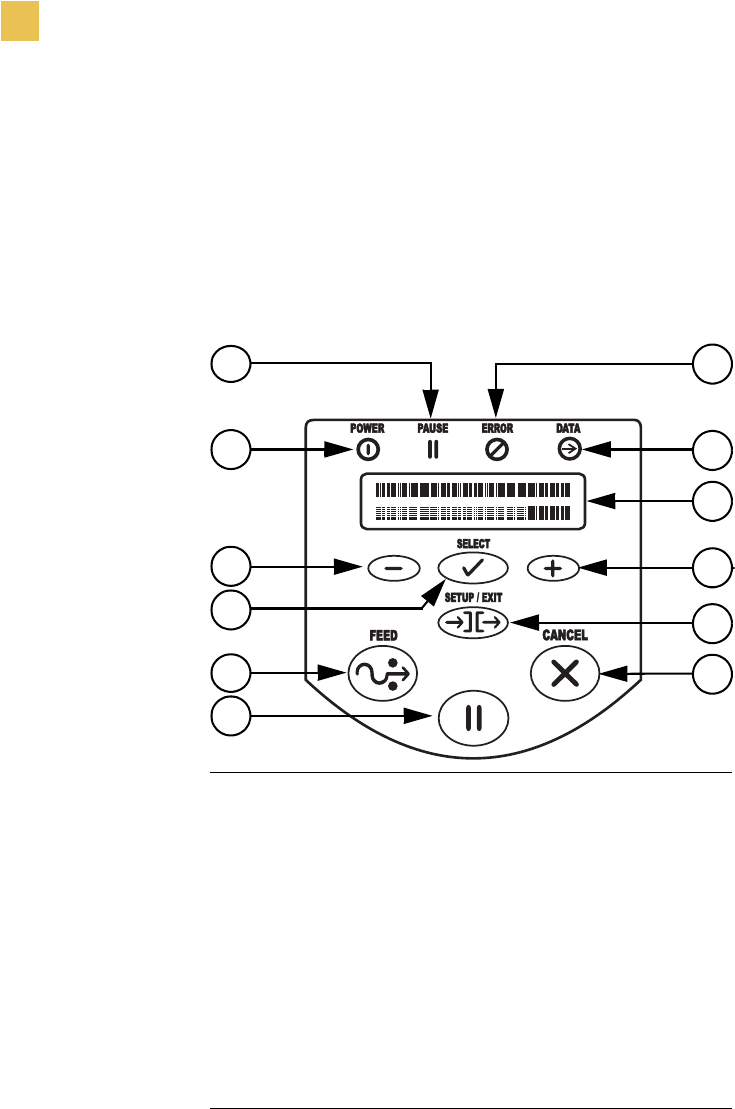

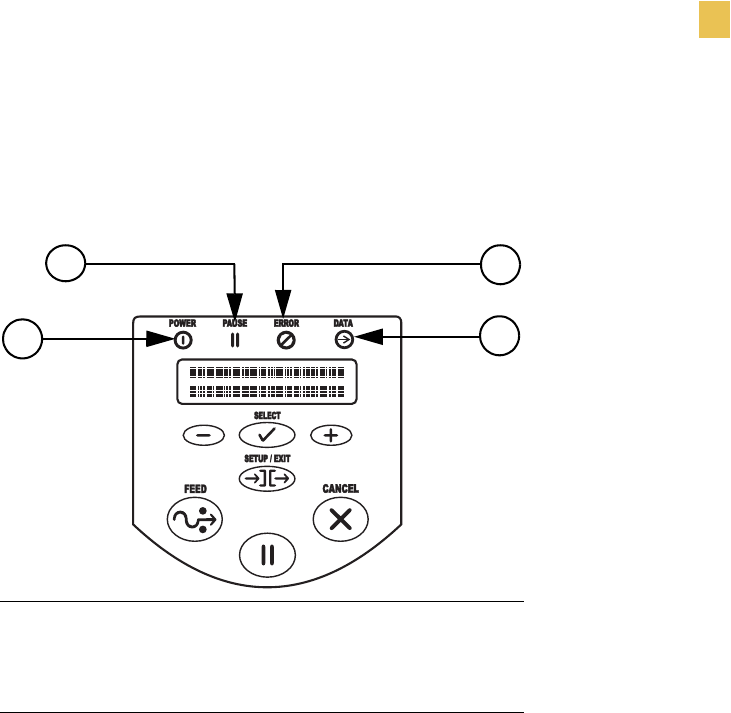

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Panel Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Front Panel Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

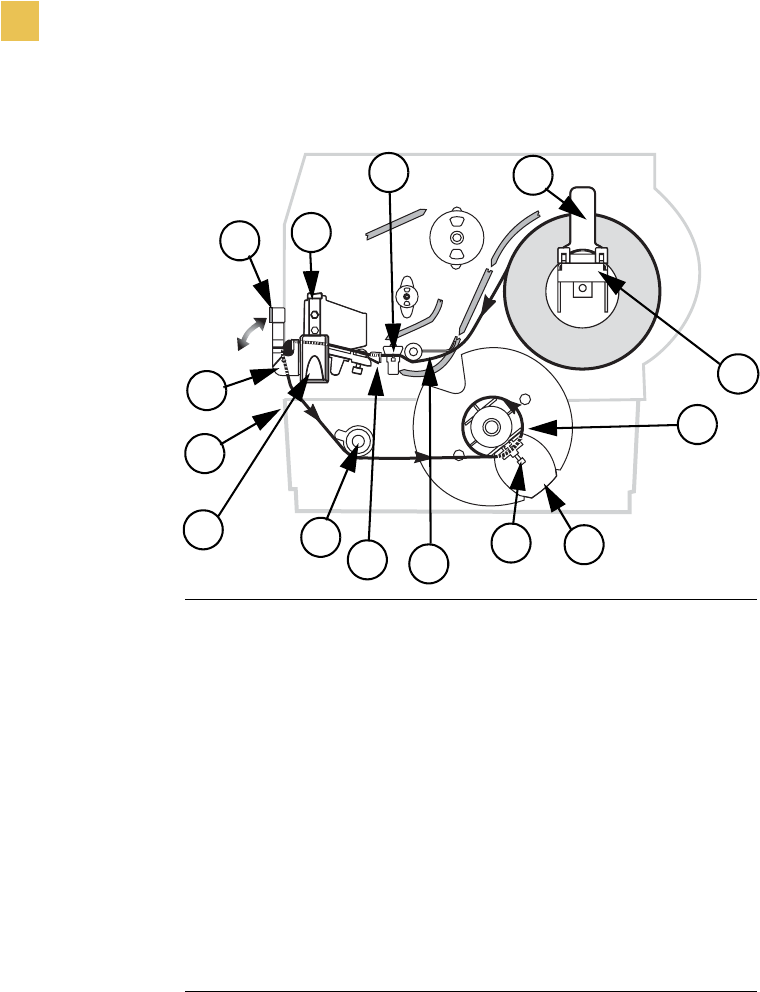

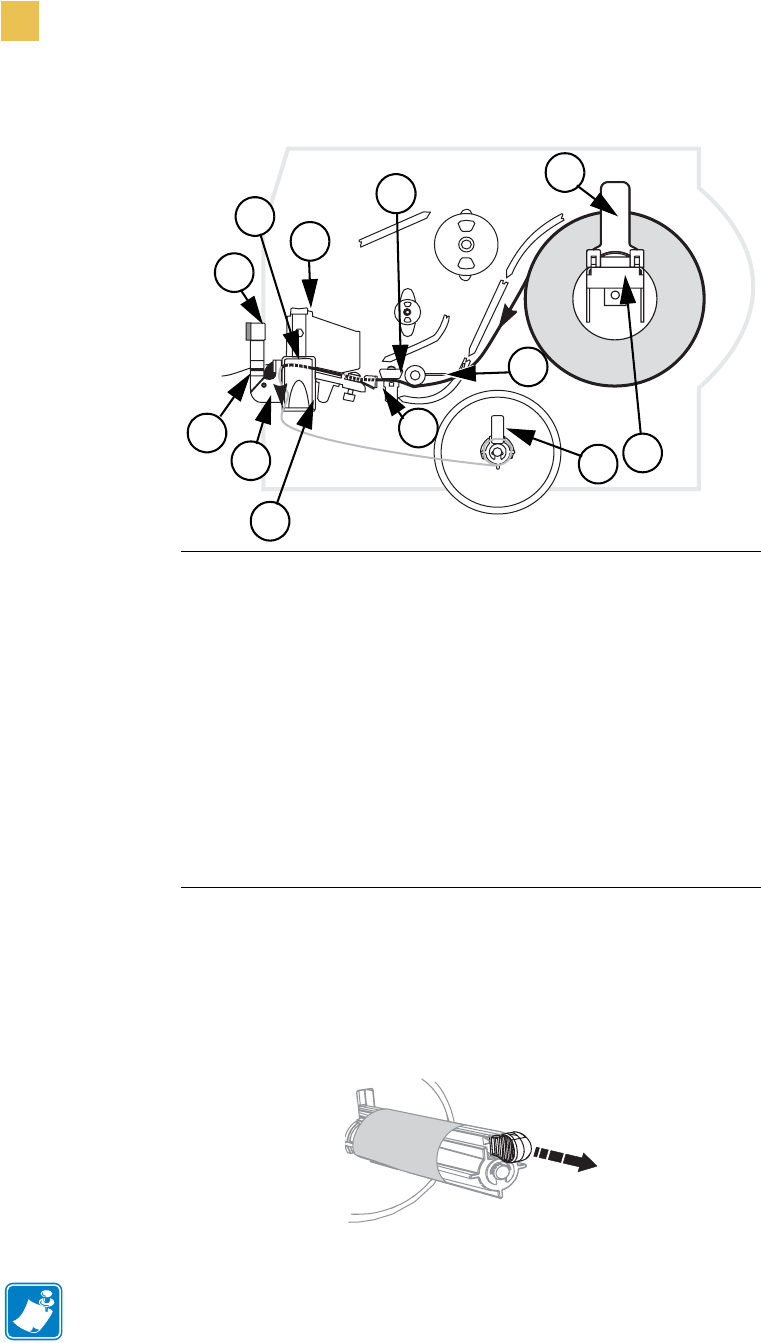

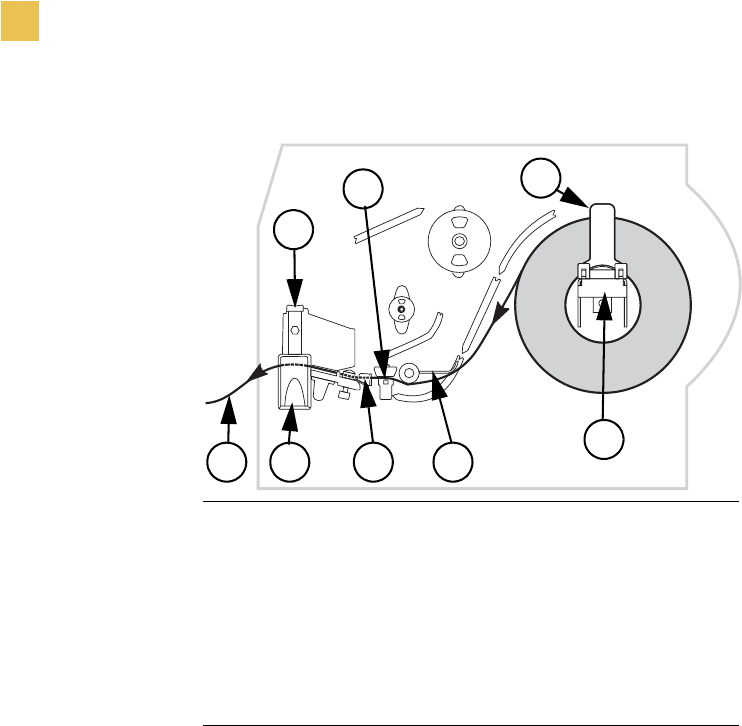

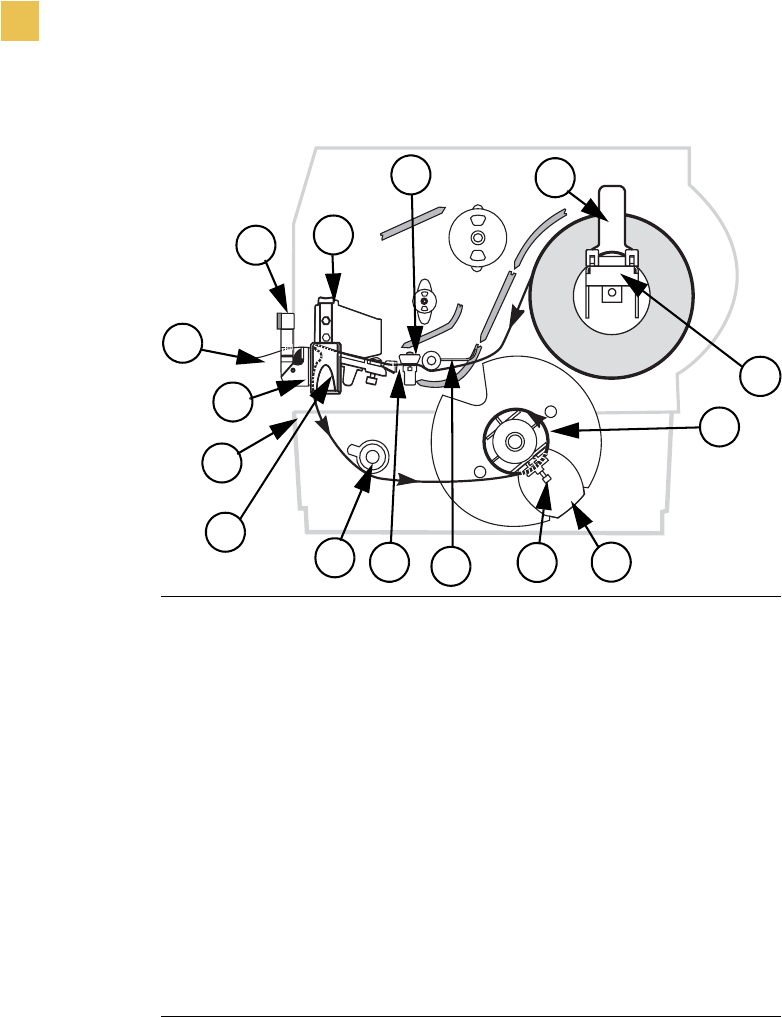

Load Roll Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Tear-Off Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Peel-Off Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Liner Take-Up Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rewind/Peel-Off Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

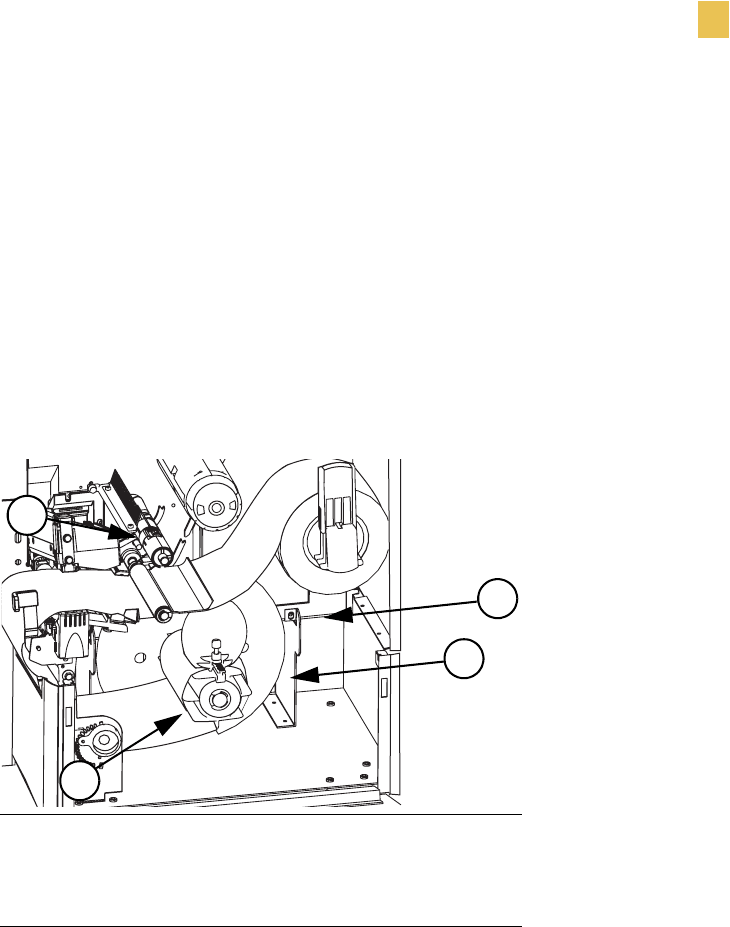

Rewind Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adjust Media Alignment for Rewind Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

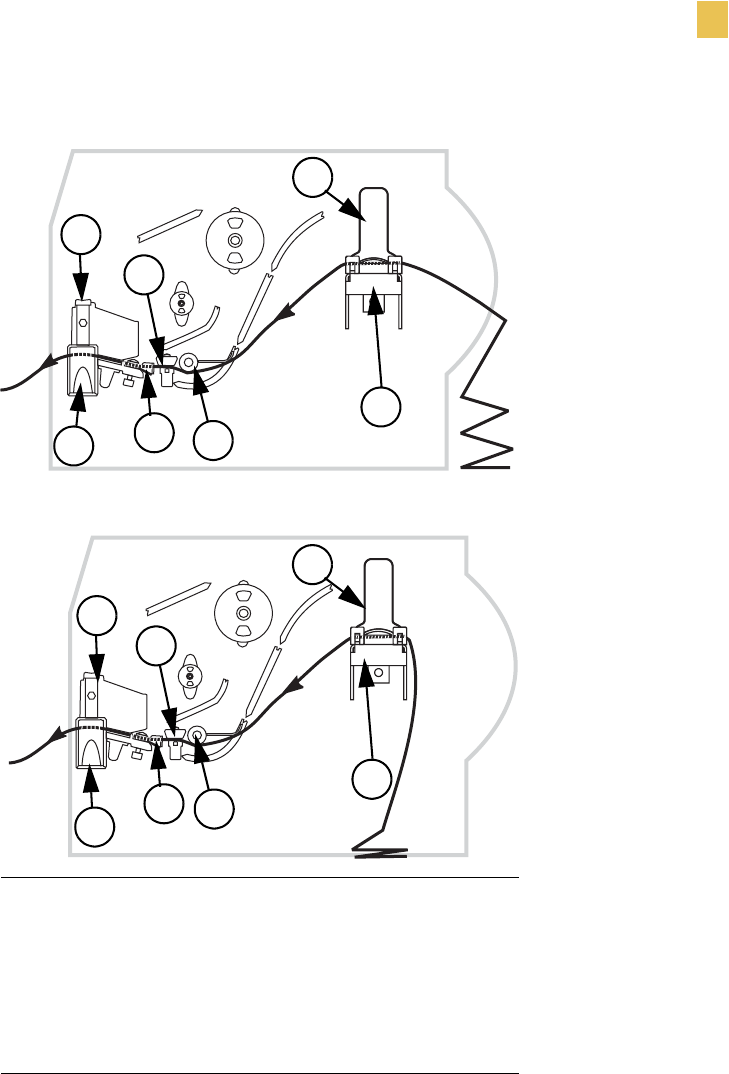

Load Fanfold Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

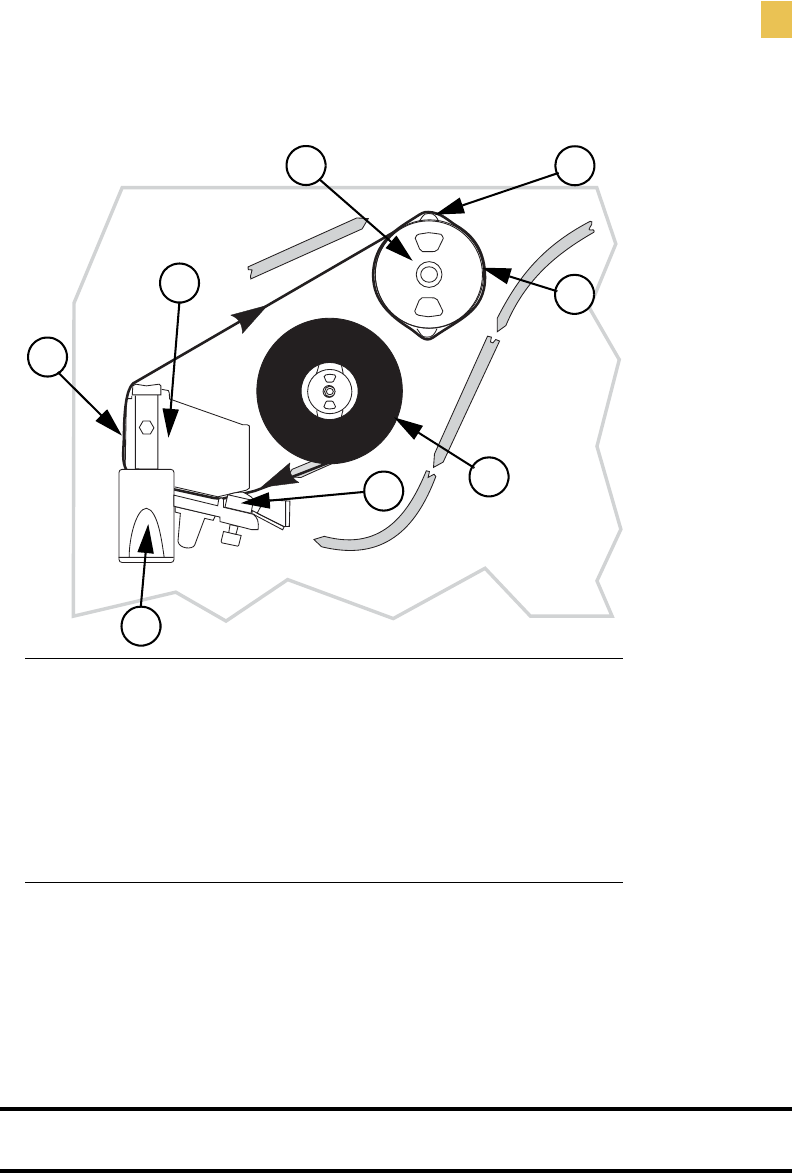

Load the Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Remove the Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Calibrate the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Auto Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Manual Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

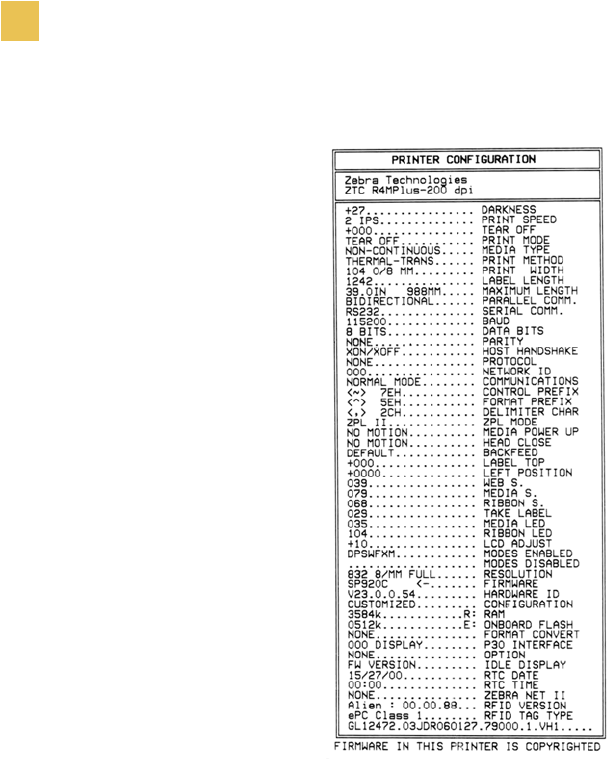

Print a Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

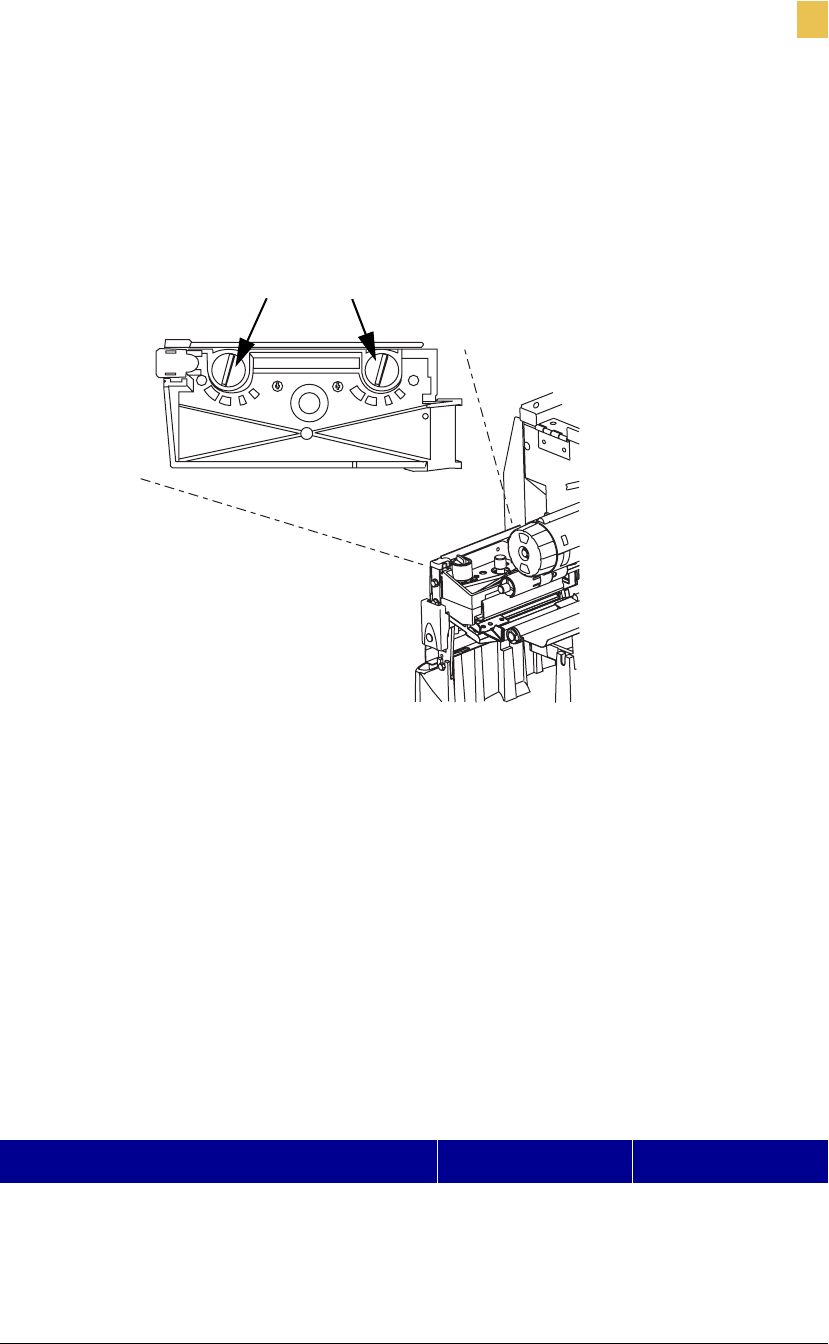

Adjust Printhead Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Table of Contents
R4Mplus User Guide v

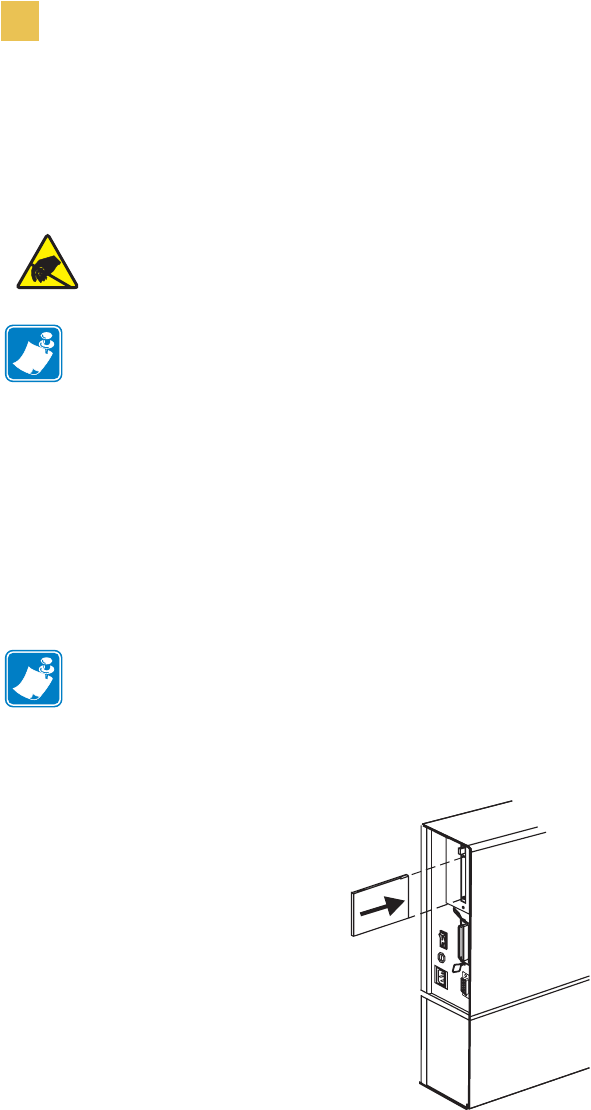

Install Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Chapter 4 • Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Enter Configuration Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Exit Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Change Password-Protected Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Basic Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Configuration and Calibration LCD Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Chapter 5 • RFID Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Transponder Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
ZPL II Commands for RFID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
^WT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
^RT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
^HV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
^RS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
Sample of RFID Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Chapter 6 • Routine Care and Adjustments. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Cleaning Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Clean the Exterior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Clean the Interior . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Clean the Sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Clean the Rewind Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Clean the Peel-Off Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Fuse Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Chapter 7 • Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
LCD Error Conditions and Warnings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Print Quality Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Calibration Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Communication Problems. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Printer Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
Power-On Self Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100
CANCEL Self Test. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
PAUSE Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
FEED Self Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

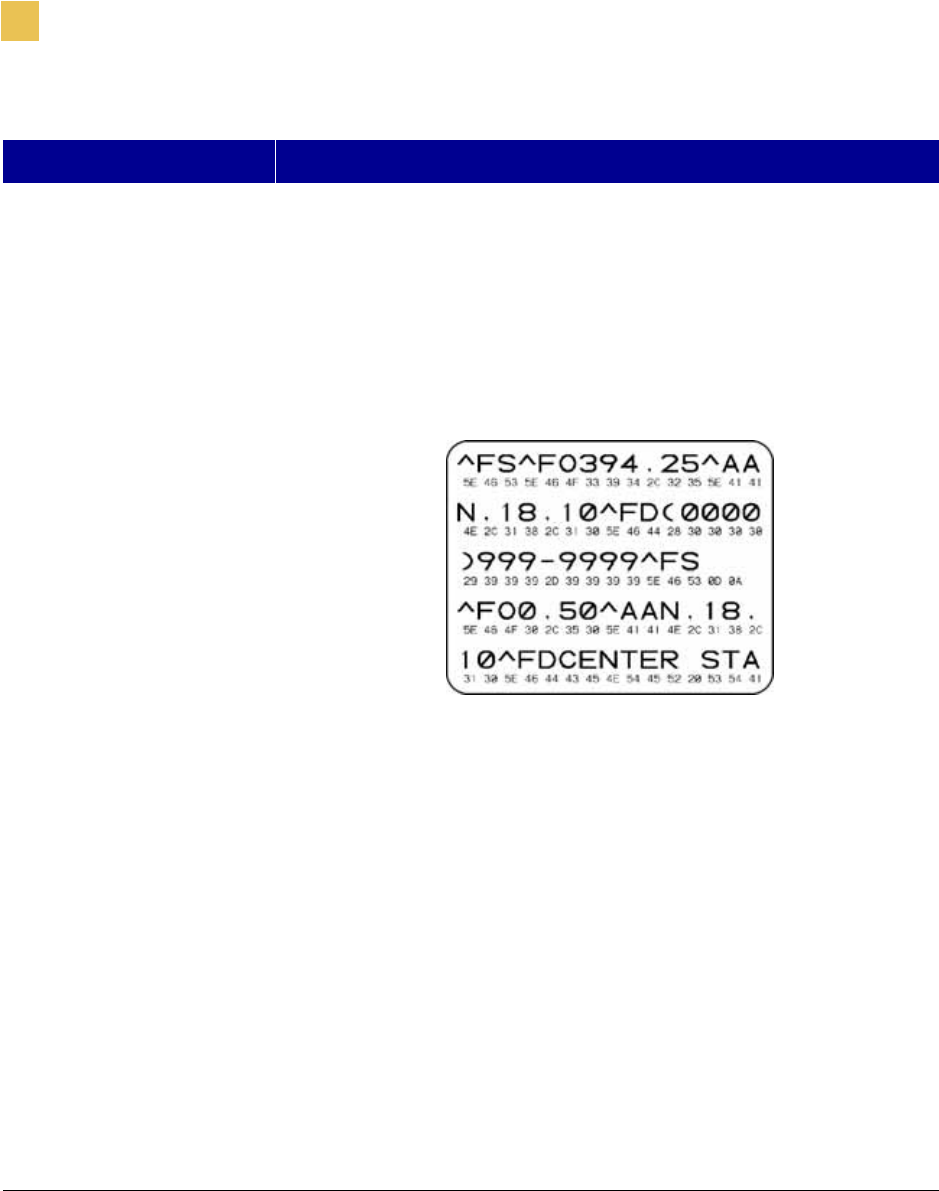

Communication Diagnostics Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
RFID Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Loading Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
vi R4Mplus User Guide
Table of Contents
Appendix A • Data Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
Serial Data Port. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Hardware Control Signal Descriptions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
RS-232 Serial Data Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Parallel Data Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Parallel Cabling Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Parallel Port Interconnections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .112
Appendix B • Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Printing Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .115
Media Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Ribbon Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Printer Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .118
Zebra Programming Language (ZPL II) Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Supported Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .119
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
R4Mplus User Guide vii
Proprietary Statement
This manual contains proprietary information of Zebra Technologies Corporation and its
subsidiaries (“Zebra Technologies”). It is intended solely for the information and use of parties
operating and maintaining the equipment described herein. Such propriety information may
not be used, reproduced, or disclosed to any other parties for any other purpose without the
expressed written permission of Zebra Technologies Corporation.
Product Improvements
Continuous improvement of products is a policy of Zebra Technologies Corporation. All
specifications and designs are subject to change without notice.
FCC Compliance Statement
FCCID: I28RFID-Z4M-01
Manufacturer:Zebra Technologies Corporation
333 Corporate Woods Parkway
Vernon Hills, Illinois, 60061-3109 U.S.A.
This equipment has been tested and found to comply with the limits for a Class B Digital
Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a residential
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the product manuals, may cause harmful interference
to radio communications.
In order to ensure compliance, this printer must be used with Shielded Communication Cables.
This device complies with Part 15 rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause
undesired operation.
Caution • The Part 15 radio device operates on a non-interference basis with other devices
operating at this frequency when using the Zebra-supplied antenna. Any changes or
modifications to the product not expressly approved by Zebra could void the user’s authority
to operate this device.
viii R4Mplus User Guide
Proprietary Statement
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator and your body.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
Canadian DOC Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
ICID: 3798A-RFIDZ4M1
Liability Disclaimer
Zebra Technologies Corporation takes steps to assure that its published Engineering
specifications and manuals are correct; however, errors do occur. Zebra Technologies
Corporation reserves the right to correct any such errors and disclaims liability resulting
therefrom.
Limitation of Liability
In no event shall Zebra Technologies Corporation or anyone else involved in the creation,
production or delivery of the accompanying product (including hardware and software) be
liable for any damages whatsoever (including, without limitation, consequential damages
including loss of business profits, business interruption or loss of business information) arising
out of the use of or the results of use of or inability to use such product, even if Zebra
Technologies Corporation has been advised of the possibility of such damages. Some states do
not allow the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you.
Copyrights
The copyrights in this manual and the label printer described therein are owned by Zebra
Technologies Corporation. All rights are reserved. Unauthorized reproduction of this manual
or the software in the label printer may result in imprisonment of up to one year and fines of up
to $10,000 (17 U.S.C.506). Copyright violators may be subject to civil liability.
All trademarks and registered trademarks are property of their respective owners.
Copyright ZIH Corp. All rights reserved.
Declaration of Conformity
R4Mplus User Guide ix
DECLARATION OF CONFORMITY
I have determined that the Zebra printers identified as the
Z4Mplus/Z6Mplus™-series
manufactured by:
Zebra Technologies Corporation
333 Corporate Woods Parkway
Vernon Hills, Illinois 60061-3109 U.S.A.
Have been shown to comply with the applicable technical standards of the FCC
For Home, Office, Commercial, and Industrial use
If no unauthorized change is made in the equipment,
and if the equipment is properly maintained and operated.
x R4Mplus User Guide
Declaration of Conformity
R4Mplus User Guide xi
Warranty Information
Effective November 1, 2001
All Zebra Technologies Corporation products are sold with warranties. Following is some
general information:
Printer Products
Printers. All printers (excluding printheads) are warranted against defect in material or
workmanship for twelve (12) months from the purchase date.
Proof of purchase or shipment date is required to validate the warranty period. The warranty
becomes void if the equipment is modified, improperly installed or used, damaged by accident
or neglect, or if any parts are improperly installed or replaced by the user.
Note: Products returned must be packaged in the original or comparable packing and shipping
container. In the event equipment is not so packaged, or if shipping damage is evident, it will
not be accepted for service under warranty. Surface transportation charges for return to
customers in the continental United States is paid by Zebra. Otherwise, Zebra pays CPT
(carriage paid to) nearest airport; customer pays customs, duties, taxes, and freight from
airport to destination. If Zebra determines that the product returned for warranty service or
replacement is not defective as herein defined, the customer will pay all handling and
transportation costs.
Printheads. Since printhead wear is part of normal operation, the original printhead is covered
by a limited warranty as indicated below. Warranty period begins on purchase date.
To qualify for this warranty, the printhead must be returned to the factory or to an authorized
service center. Customers are not required to purchase Zebra supplies (media and/or ribbons)
for warranty qualification. However, if it is determined that the use of other manufacturer
supplies has caused any defect in the printhead for which a warranty claim is made, the user is
responsible for Zebra’s labor and material charges required to repair the defect. The warranty
becomes void if the printhead is physically worn or damaged; also if it is determined that
failure to follow the preventive maintenance schedule listed in the User’s Guide has caused
defect in the thermal printhead for which a warranty claim is made.
Printhead Warranty Period
Bar code label printer printheads 6 months
Card printer printheads 12 months
xii R4Mplus User Guide
Warranty Information
Printer Products
Software. Software is warranted to be free of defects in material and workmanship for 30 days
from the date of purchase. In the event of notification within the warranty period of defects,
Zebra will replace the defective diskette or documentation.
Batteries. Mobile printer batteries are warranted to be free of defects in material and
workmanship for 90 days from date of purchase. In the event of notification within the
warranty period, Zebra will replace the defective battery provided there has not been damage
resulting from user abuse.
Parts. All parts, maintenance kits, options kits, and accessories are warranted to be free of
defects in material and workmanship for 90 days (except where otherwise noted) from date of
purchase. This warranty becomes void if the item is modified, improperly installed or used, or
damaged by accident or neglect.
Supplies Products
Supplies are warranted to be free from defect in material and workmanship for a period of six
(6) months for media and twelve (12) months for ribbon from the date of shipment by Zebra.
This is provided the user has complied with storage guidelines, handling, and usage of the
supplies in Zebra printers.
Zebra’s sole obligation under these warranties is to furnish parts and labor for the repair or
possible replacement of products found to be defective in material or workmanship during the
warranty period. Zebra may in its discretion issue a credit for any such defective products in
such amount as it deems reasonable.
Warranty Exclusions & Conditions Statement
The warranties provided above are the only warranties applicable. No other warranties,
expressed or implied, are given. Zebra does not make any IMPLIED WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE in connection with
its sale of products or services. While Zebra’s desire is to be responsive to specific needs and
questions, Zebra does not assume responsibility for any specific application to which any
products are applied including, but not limited to, compatibility with other equipment. All
statements, technical information or recommendations relating to Zebra products are based
upon tests believed to be reliable yet do not constitute a guaranty or warranty.
Zebra’s maximum liability for warranty claims is limited to the invoice price of the product
claimed defective. Zebra does not assume responsibility for delays or replacement or repair of
products. Zebra shall not under any circumstances whatsoever be liable to any party for loss of
profits, lost data, diminution of good will, or any other special or consequential damages
whatsoever with respect to any claim made under agreement with Zebra. Specifically for
software, Zebra is not liable for any incidental or consequential damages caused by abuse or
misapplication of the software or by its use in violation of the U.S. copyright law or
international treaty.
No salesperson, representative, or agent of Zebra is authorized to make any guaranty,
warranty, or representation that contradicts the foregoing. Any waiver, alteration, addition or
modification to the foregoing warranties must be in writing and signed by an executive officer
of Zebra to be valid.
Warranty Information
Printer Software and Firmware License Agreement
R4Mplus User Guide xiii
Zebra Link License Agreement
Printer Software and Firmware License
Agreement
YOU SHOULD CAREFULLY READ THE FOLLOWING TERMS AND CONDITIONS OF
THIS ZEBRA TECHNOLOGIES CORPORATION PRINTER SOFTWARE AND
FIRMWARE LICENSE AGREEMENT (“PSFLA”) BEFORE USING THE PRINTER
WHICH IS ENCLOSED OR OTHERWISE ASSOCIATED WITH THIS AGREEMENT. IF
YOU DO NOT AGREE WITH THESE TERMS AND CONDITIONS, DO NOT OPERATE
THE PRINTER AND PLEASE PROMPTLY RETURN THE PRINTER, ENCLOSURES
AND ALL PACKAGING FOR A FULL REFUND.
Zebra Technologies Corporation (“ZEBRA”) hereby grants you a non-exclusive, non-
transferable license to use the SOFTWARE and FIRMWARE embedded in the printer and the
accompanying documentation according to the following terms:
1. The printer enclosed with or otherwise associated with this Agreement has or includes
certain SOFTWARE and FIRMWARE therein which is protected by copyright laws and
international copyright treaties, as well as other intellectual property laws and treaties. The
SOFTWARE and FIRMWARE is licensed, not sold. Such SOFTWARE and/or
FIRMWARE may include, but is not limited to, SOFTWARE and/or FIRMWARE that is
licensed under one or more of the following trademarks: ZPL (Zebra Programming
Language), Zebralink, Web View, Web Alert, ZBI (Zebra Basic Interpreter), BAR-ONE,
ZTools, Utilities, ZebraNet View for IP, ZebraNet Alert, PC Management Program,
ZebraNet View for Networks and ZebraNet Connect.
2. GRANT OF LICENSE. This License grants you the following rights:
•SOFTWARE and FIRMWARE. You may use, access, display, run, or otherwise
interact with (“RUN”) the SOFTWARE and FIRMWARE in connection with operating
the printer which is enclosed with or otherwise associated with this PSFLA
(“PRINTER”). The primary user of the PRINTER may make a second copy for his or
her exclusive use on a portable computer/printer.
•Storage/Network Use. You may also store or install a copy of the SOFTWARE and
FIRMWARE on a storage device, such as a network server, used only to RUN the
SOFTWARE and FIRMWARE on your other PRINTERS over an internal network;
however, you must acquire and dedicate a license for each separate PRINTER on
which the SOFTWARE and FIRMWARE is RUN from the storage device. A license
for the SOFTWARE and FIRMWARE may not be shared or used concurrently on
different PRINTERS.
• Reservation of Rights. All rights not expressly granted are reserved by ZEBRA.
xiv R4Mplus User Guide
Warranty Information
Printer Software and Firmware License Agreement
•Accessing Services Using the SOFTWARE and FIRMWARE. Your use of any service
accessible using the SOFTWARE and FIRMWARE is not covered by this PSFLA and
may be governed by separate terms of use, conditions or notices.
3. RESTRICTIONS.
•You must maintain all copyright notices on all copies of the SOFTWARE and
FIRMWARE.
•Limitations on modification. You may not modify, adapt, translate, or create derivative
works based on this SOFTWARE OR FIRMWARE or the accompanying
documentation.
•Limitations of Reverse Engineering, Decompilation and Disassembly. You may not
reverse engineer, decompile, or disassemble the SOFTWARE or the FIRMWARE,
except and only to the extent that such activity is permitted by applicable law
notwithstanding this limitation.
•Rental. You may not rent or lease or lend the SOFTWARE or FIRMWARE.
•Support Services. ZEBRA may provide you with support services related to the
SOFTWARE and/or FIRMWARE (“SUPPORT SERVICES”), in its discretion. Use of
SUPPORT SERVICES, if any, is governed by the ZEBRA policies and programs
described in the user manual, in “online” documentation, and/or other ZEBRA
provided materials. Any supplemental SOFTWARE or FIRMWARE code provided to
you as a part of SUPPORT SERVICES shall be considered part of the SOFTWARE
and/or FIRMWARE and is subject to the terms of this PSFLA. With respect to
technical information you provide to ZEBRA as part of the SUPPORT SERVICES,
ZEBRA may use such information for its business purposes, including for product
support and development. ZEBRA will not utilize such technical information in a form
that personally identifies you except to the extent necessary to provide you with
support.
•Replacement, Modification and Upgrade of the SOFTWARE and/or FIRMWARE.
ZEBRA reserves the right to replace, modify or upgrade the SOFTWARE and/or
FIRMWARE at any time by offering you a replacement or modified version of the
SOFTWARE and/or FIRMWARE or such upgrade and to charge for such replacement,
modification or upgrade. Any such replacement or modified SOFTWARE and/or
FIRMWARE code or upgrade to the SOFTWARE and/or FIRMWARE offered to you
by ZEBRA shall be considered part of the SOFTWARE and/or FIRMWARE and
subject to the terms of this PSFLA (unless this PSFLA is superseded by a further
PSFLA accompanying such replacement or modified version of or upgrade to the
SOFTWARE and/or FIRMWARE). In the event that ZEBRA offers a replacement or
modified version of or any upgrade to the SOFTWARE and/or FIRMWARE, (a) your
continued use of the SOFTWARE and/or FIRMWARE is conditioned on your
acceptance of such replacement or modified version of or upgrade to the SOFTWARE
and/or FIRMWARE and any accompanying superseding PSFLA and (b) in the case of
the replacement or modified SOFTWARE and/or FIRMWARE, your use of all prior
versions of the SOFTWARE and/or FIRMWARE is terminated.
Warranty Information
Printer Software and Firmware License Agreement
R4Mplus User Guide xv
4. TERMINATION. Without prejudice to any other rights, ZEBRA may terminate this
PSFLA if you fail to comply with the terms and conditions of this PSFLA. ZEBRA may
terminate this PSFLA by offering you a superseding PSFLA for the SOFTWARE and/or
FIRMWARE or any replacement or modified version of or upgrade to the SOFTWARE
and/or FIRMWARE and conditioning your continued use of the SOFTWARE and/or
FIRMWARE or such replacement, modified or upgraded version on your acceptance of
such superseding PSFLA. In addition, ZEBRA may terminate this PSFLA by notifying
you that your continued use of the SOFTWARE and/or FIRMWARE is prohibited. In the
event that ZEBRA terminates this PSFLA, you must immediately stop using the
SOFTWARE and/or FIRMWARE and destroy all copies of the SOFTWARE and/or
FIRMWARE and all of its component parts.
5. COPYRIGHT. All title and copyrights in and to the SOFTWARE and FIRMWARE, the
accompanying printed materials, and any copies of the SOFTWARE and FIRMWARE, are
owned by ZEBRA or its suppliers. All title and intellectual property rights in and to the
content which may be accessed through use of the SOFTWARE and/or FIRMWARE is the
property of the respective content owner and may be protected by applicable copyright or
other intellectual property laws and treaties. This PSFLA grants you no rights to use such
content. If this SOFTWARE and/or FIRMWARE contains documentation which is
provided only in electronic form, you may print one copy of such electronic
documentation. You may not copy the printed materials accompanying the SOFTWARE
and/or FIRMWARE.
6. U.S. GOVERNMENT RESTRICTED RIGHTS. All SOFTWARE and/or FIRMWARE
provided to the U.S. Government pursuant to solicitations issued on or after December 1,
1995 is provided with the commercial rights and restrictions described elsewhere herein.
All SOFTWARE and/or FIRMWARE provided to the U.S. Government pursuant to
solicitations issued prior to December 1, 1995 is provided with RESTRICTED RIGHTS
as provided for in FAR, 48 CFR 52.227-14 (JUNE 1987) or DFAR, 48 CFR 252.227-7013
(OCT 1988), as applicable.
7. EXPORT RESTRICTIONS. You agree that you will not export or re-export the
SOFTWARE and/or FIRMWARE, any part thereof, or any process or service that is the
direct product of the SOFTWARE and/or FIRMWARE (the foregoing collectively referred
to as the “RESTRICTED COMPONENTS”), to any country, person or entity subject to
U.S. export restrictions. You specifically agree not to export or re-export any of the
RESTRICTED COMPONENTS (i) to any country to which the U.S. has embargoed or
restricted the export of goods or services, which currently include, but are not necessarily
limited to Cuba, Iran, Iraq, Libya, North Korea, Sudan and Syria, or to any national of any
such country, wherever located, who intends to transmit or transport the RESTRICTED
COMPONENTS back to such country; (ii) to any person or entity who you know or have
reason to know will utilize the RESTRICTED COMPONENTS in the design,
development or production of nuclear, chemical or biological weapons; or (iii) to any
person or entity who has been prohibited from participating in U.S. export transactions by
any federal agency of the U.S. government. You warrant and represent that neither the
U.S. Commerce Department, Bureau of Export Administration nor any other U.S. federal
agency has suspended, revoked or denied your export privileges.
xvi R4Mplus User Guide
Warranty Information
Printer Software and Firmware License Agreement
8. DISCLAIMER OF WARRANTIES. ZEBRA AND ITS SUPPLIERS PROVIDE THE
SOFTWARE AND/OR FIRMWARE “AS IS” AND WITH ALL FAULTS, AND
HEREBY DISCLAIM ALL OTHER WARRANTIES AND CONDITIONS, EITHER
EXPRESS, IMPLIED OR STATUTORY, INCLUDING BUT NOT LIMITED TO ANY
(IF ANY) IMPLIED WARRANTIES OR CONDITIONS OF MERCHANTABILITY, OF
FITNESS FOR A PARTICULAR PURPOSE, OF LACK OF VIRUSES, AND OF LACK
OF NEGLIGENCE OR LACK OF WORKMANLIKE EFFORT. ALSO, THERE IS NO
WARRANTY OR CONDITION OF TITLE, OF QUIET ENJOYMENT, OR OF
NONINFRINGEMENT. THE ENTIRE RISK ARISING OUT OF THE USE OR
PERFORMANCE OF THE SOFTWARE AND FIRMWARE IS WITH YOU. ZEBRA
DOES NOT WARRANT THAT THE OPERATION OF THE SOFTWARE OR
FIRMWARE WILL BE UNINTERRUPTED OR ERROR FREE.
9. EXCLUSION OF ALL DAMAGES. TO THE MAXIMUM EXTENT PERMITTED BY
APPLICABLE LAW, IN NO EVENT SHALL ZEBRA OR ITS SUPPLIERS BE
LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, DIRECT, INDIRECT,
SPECIAL, PUNITIVE, OR OTHER DAMAGES WHATSOEVER (INCLUDING,
WITHOUT LIMITATION, DAMAGES FOR ANY INJURY TO PERSON OR
PROPERTY, DAMAGES FOR LOSS OF PROFITS, BUSINESS INTERRUPTION,
LOSS OF BUSINESS INFORMATION, FOR LOSS OF PRIVACY FOR FAILURE TO
MEET ANY DUTY INCLUDING OF GOOD FAITH OR OF REASONABLE CARE,
FOR NEGLIGENCE, AND FOR ANY PECUNIARY OR OTHER LOSS
WHATSOEVER) ARISING OUT OF OR IN ANY WAY RELATED TO THE USE OF
OR INABILITY TO USE THE SOFTWARE OR FIRMWARE, WHETHER BASED ON
CONTRACT, TORT, NEGLIGENCE, STRICT LIABILITY OR OTHERWISE, EVEN IF
ZEBRA OR ANY SUPPLIER HAS BEEN ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. THIS EXCLUSION OF DAMAGES SHALL BE EFFECTIVE
EVEN IF ANY REMEDY FAILS OF ITS ESSENTIAL PURPOSE.
10. LIMITATIONS AND RELEASE OF LIABILITY.
•To the extent that the SOFTWARE and/or FIRMWARE covered by this PSFLA
includes emulation libraries, emulation libraries are offered “as is”. ZEBRA does not
provide any warranty associated with the emulation libraries.
•The emulation library does not work 100% correctly or cover 100% of the
functionality of the printer language being emulated. Modifications may be required
for each target application. If such modification is necessary, prior to making any such
modification, you are required to contact ZEBRA to obtain express written consent to
make such modification.
•If the emulation library is sold separately by an authorized party other than ZEBRA
(“RESELLER”—A party other than ZEBRA which is authorized by ZEBRA to
distribute the SOFTWARE and/or FIRMWARE with its application so long as the
SOFTWARE and/or FIRMWARE is used with a ZEBRA printer) or is sold bundled
with a printer to an end-user by a RESELLER, and if claims are made by the
RESELLER that the emulation library performs as a 100% emulation solution,
ZEBRA is not responsible if the emulation library does not work as advertised by the
RESELLER. Furthermore, ZEBRA is not liable for any damages directly or indirectly
relating to such emulation library which is sold separately by the RESELLER or which
is sold bundled with a printer to an end-user by the RESELLER.
Warranty Information
Printer Software and Firmware License Agreement
R4Mplus User Guide xvii
•The SOFTWARE and FIRMWARE was provided to you at no additional charge and
ZEBRA has included in this PSFLA terms that disclaim all warranties and liability for
the SOFTWARE and FIRMWARE. To the full extent allowed by law, YOU HEREBY
RELEASE ZEBRA AND ITS SUPPLIERS FROM ANY AND ALL LIABILITY
ARISING FROM OR RELATED TO ALL CLAIMS CONCERNING THE
SOFTWARE AND/OR FIRMWARE OR ITS USE. If you do not wish to accept the
SOFTWARE OR FIRMWARE under the terms of this PSFLA, do not use the
PRINTER enclosed with or otherwise associated with this PSFLA.
11. GOVERNING LAW. If you acquired the SOFTWARE and/or FIRMWARE in the United
States of America, the laws of the State of Illinois, U.S.A. will apply to this contract. If
you acquired this SOFTWARE and/or FIRMWARE outside of the United States of
America, then local law may apply. If any provision of this PSFLA is held invalid, the
remainder of this PSFLA shall continue in full force and effect.
12. QUESTIONS. Should you have any questions, or if you desire to contact ZEBRA for any
reason, please contact the ZEBRA subsidiary serving your country, or write:
Zebra Technologies Corporation
333 Corporate Woods Parkway
Vernon Hills, IL 60061
xviii R4Mplus User Guide
Warranty Information
Printer Software and Firmware License Agreement
R4Mplus User Guide xix
Preface
The Preface discusses the topics and illustrates standards that are used throughout this guide.
Contents
Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xx
About this Document . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .xxi
Document Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxii
Related Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . xxiv
xx R4Mplus User Guide
Preface
Contacts
Contacts
You can contact Zebra Technologies Corporation, USA at any of the following:
Visit us at: www.zebra.com
Our Mailing Address:
Zebra Technologies Corporation
333 Corporate Woods Parkway
Vernon Hills, Illinois 60061.3109 U.S.A
Telephone: +1 847.634.6700
Facsimile: +1 847.913.8766
Zebra Technologies Europe Limited
Zebra House
The Valley Centre, Gordon Road
High Wycombe
Buckinghamshire HP13 6EQ, UK
Telephone: +44 (0)1494 472872
Facsimile: +44 (0)1494 450103
Support
You can contact Zebra support at any of the following:
Web address: www.zebra.com/SS/service_support.htm
US Phone Number: +1 847.913.2259
UK/International Phone Number: +44 (0) 1494 768289
Caution • The Web address is case-sensitive. The SS must be all caps.
Preface
About this Document
R4Mplus User Guide xxi
About this Document
The User Guide contains the following chapters:
Table 1 • User Guide Contents
Title Content Description
Introduction This chapter shows the operational controls and location of
major components needed in the loading of media and ribbon.
Printer Setup The chapter provides the tasks that you must complete and the
issues that you must consider before you load and configure
your printer.
Printer Operation This chapter provides instructions for loading media, loading
ribbon, and basic printer operation.
Configuration This chapter discusses detailed configuration settings and
instructs you how to view or change parameters through the
front panel.
RFID Guidelines This chapter provides an overview of how RFID works and the
ZPL commands used to create RFID labels.
Routine Care and Adjustments This chapter discusses printer cleaning and minor adjustments.
Troubleshooting This chapter discusses typical problems and their probable
solutions.
Data Connections This appendix provides details about the serial port and parallel
port data connections.
Specifications This appendix contains specifications for the R4Mplus printer.
xxii R4Mplus User Guide
Preface
Document Conventions
Document Conventions
The following conventions are used throughout this document to convey certain information:
About this Chapter: This section lists and describes each main section of the chapter,
including the initial page number of that section. These sections primarily serve as hyperlink
components for the Adobe Acrobat.pdf version of this guide.
Alternate Color (on-line only): Cross-references contain hot links to other sections in this
guide. If you are viewing this guide on-line in.pdf format, you can click a cross-reference
(royal blue text) to jump directly to the other location.
Command Line Examples: All command line examples appear in Courier font. For
example, you would type the following to get to the Post-Install scripts in the bin
directory: Ztools
Files and Directories: All file names and directories appear in Courier New font. For
example, the Zebra<version number>.tar file and the /root directory.
Caution, Important, Note, and Example: These types of paragraphs are defined in the
following examples:
Caution • Advises you that failure to take or avoid a specific action could result in physical
harm to you or the hardware.
Caution • Advises you that failure to take or avoid a specified action could result in loss of
data or hardware damage.
!Important • Provides information that is essential to the completion of a task.
Note • Indicates neutral or positive information that emphasizes or supplements important
points of the main text.
Example • Provides an example, often a scenario, to better clarify a section of text.
Preface
Document Conventions
R4Mplus User Guide xxiii
Illustration Callouts: Callouts are used when an illustration contains information that
needs to be labeled and described. A table that contains the labels and descriptions follows the
illustration. See Figure 1.
Figure 1 • Example of an Illustration with Callouts
1Power LED
2Pause LED
3Error LED
4Data LED
PAUSE
2
1
3
4
xxiv R4Mplus User Guide
Preface
Related Documents
Related Documents
In addition to this user guide, the following documents might be helpful references:
•The ZPL II Programming Guide Volume I and Volume II (Zebra part number 45540L)
details how to create the perfect label format for your application. The guide explains how
the optional ZBI™ extends the power of ZPL II by allowing custom programs to be
written that operate within the printer, directly interfacing with bar code scanners,
keyboard display devices, etc. The guide also contains information about the enhanced
operating system features of your printer. There are three ways to obtain this guide: on the
accessory CD-ROM (supplied with the printer), on our web site (www.zebra.com), or by
ordering printed manuals from your distributor.
•The PrintServer II User and Reference Guide (Zebra part number 45537L) explains how
you can quickly set up your printer on an IP network and experience ZebraLink, our
revolutionary real-time connectivity and control solution for Zebra printers (optional
ZebraNet PrintServer II required).
•The Z4Mplus and Z6Mplus Maintenance Manual (Zebra part number 13358L) contains
the information you need to maintain your printer.
Note • This maintenance manual applies to the R4Mplus, but the RFID components are not
included.
R4Mplus User Guide 1
CHAPTER 1
Introduction
This chapter shows the operational controls and location of major components needed in the
loading of media and ribbon.
Contents
External View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
LCD Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Print Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Printer Media Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Introduction
Front Panel
R4Mplus User Guide 3
Front Panel
The front panel keys and lights are shown in Figure 2.
Figure 2 • Front Panel Controls and LEDs
1Power LED
2Pause LED
3Error LED
4Data LED
5LCD
6PLUS (+) Key
7SETUP/EXIT Key
8CANCEL Key
9PAUSE Key
10 FEED Key
11 SELECT Key
12 MINUS (–) Key
PAUSE
23
4
5
6
7
8
1
9
10
11
12
4 R4Mplus User Guide
Introduction
Front Panel
LCD Display Settings
Table 1 shows front panel LCD display settings that you may wish to adjust and what they
mean. Refer to Basic Configuration on page 48 for more detailed information on each setting.
Table 1 • Front Panel LCD Display Settings
LCD Display Meaning/Available Settings
PRINTER READY
Ready to print labels or to configure the printer. All printer
self-tests have been performed successfully.
DARKNESS
The larger the number, the darker the print. The range is
0 to 30, with a default setting of 10.
PRINT SPEED
The print speed is given in inches per second. The larger the
number, the faster the label prints.
TEAR OFF
Establishes the position of the media over the tear-off bar after
printing.
PRINT MODE
Tear-Off (default setting), Peel-Off, Cutter, Rewind. For more
details, see Table 2.
MEDIA TYPE
Non-continuous (default setting), Continuous
SENSOR TYPE
Web (default setting), Mark
PRINT METHOD
Thermal transfer (default setting using a ribbon),
Direct thermal (no ribbon)
Introduction
Front Panel
R4Mplus User Guide 5
Print Modes
You can view the current print mode on the LCD on the front panel of the printer. Refer to
Configuration and Calibration LCD Displays on page 51 for more detailed information. Print
modes should match the media and printer options chosen. Print mode choices are listed in
Table 2.
Table 2• Print Mode Options
Mode Printer Option Action
Tear-Off Mode
(Default setting) Use for most applications. Each label or strip of labels can be torn
off after printing.
Peel-Off Mode Use only if printer has the peel option. Liner material is peeled away from the
label as it is printed. After the printed
label is removed the next label prints.
Cutter Mode Use only if printer has a cutter option. Printer automatically cuts the label after
it is printed.
Rewind Mode Use only if printer has the rewind
option. The media and/or liner are rewound
onto a core as they are printed.
6 R4Mplus User Guide
Introduction
Printer Media Compartment
Printer Media Compartment
Figure 3 shows a simplified view of your printer. Depending on installed options, your
printer may look slightly different.
Figure 3 • Media Compartment
1Printhead Assembly
2Transmissive Sensor
3Label Supply Guide
4Label Supply Hanger
5Dancer
6Label Guide
7Printhead Open Lever
1
23
4
5
6
7
R4Mplus User Guide 7
CHAPTER 2
Printer Setup
The chapter provides the tasks that you must complete and the issues that you must consider
before you load and configure your printer.
Contents
Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Unpack and Inspect the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Report Damage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Select a Site for the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Select a Surface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Provide Proper Operating Conditions. . . . . . . . . . . . . . . . . . . . . 10
Allow Proper Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Provide a Data Source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Connect the Printer to a Power Source . . . . . . . . . . . . . . . . . . . . . 11
Power Cord Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Select a Communication Interface . . . . . . . . . . . . . . . . . . . . . . . . . 13
Types of Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Non-Continuous Web Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Continuous Media. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
RFID “Smart” Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
8 R4Mplus User Guide
Printer Setup
Before You Begin
Before You Begin
Review this checklist, and resolve any issues before you begin setting up your printer. When
you are ready, continue with Printer Operation on page 21.
Unpack and Inspect Have you unpacked the printer and inspected it for damage? If you
have not, see Unpack and Inspect the Printer on page 9.
Select a Site Have you selected an appropriate location for the printer? If you have not,
see Select a Site for the Printer on page 10.
Attach Power Cord Do you have the correct power cord for your printer? If you are
unsure, see Power Cord Specifications on page 11. To attach the power cord and connect
the printer to a power source, see Connect the Printer to a Power Source on page 11.
Connect to a Data Source Have you determined how the printer will be connected to a
data source (usually a computer)? For more information, see Select a Communication
Interface on page 13.
Select Media Do you have the correct media for your application? If you are unsure, see
Types of Media on page 15.
Select Ribbon Do you need to use ribbon, and is the appropriate ribbon available, if
needed? If you are unsure, see Ribbon on page 18.
Printer Setup
Unpack and Inspect the Printer
R4Mplus User Guide 9
Unpack and Inspect the Printer
• Check all exterior surfaces.
• Raise the media door, and inspect the media compartment.
• Save the carton and all packing material in case the printer needs to be shipped. Contact
your authorized Zebra reseller for instructions.
• Depending on how your printer was ordered, a power cord may or may not be included. If
one is not included, or if the one included is not suitable for your requirements, see
Connect the Printer to a Power Source on page 11.
Report Damage
If you discover shipping damage:
• Immediately notify the shipping company and file a damage report.
• Keep the carton and all packing material for inspection.
• Notify your local Zebra reseller.
Storage
If you are not placing the printer into operation immediately, repackage it using the original
packing materials. The printer may be stored under the following conditions:
• Temperature: –40°F to 140°F (–40°C to 60°C)
• Relative humidity: 5% to 85%, non-condensing
Electric Shock Caution • For personnel and equipment safety, always use a three-prong
plug with an earth-ground connection to the AC power source.
!Important • Zebra Technologies Corporation is not responsible for any damage incurred
during the shipment of the equipment and will not repair this damage under warranty
10 R4Mplus User Guide
Printer Setup
Select a Site for the Printer
Select a Site for the Printer
Consider the following when selecting an appropriate location for your printer.
Select a Surface
Select a solid, level surface of sufficient size and strength to accommodate the printer and
other equipment (such as a computer), if necessary. The choices include a table, countertop,
desk, or cart.
Provide Proper Operating Conditions
Because the printer was designed and is fabricated as an industrial-type unit, it functions
satisfactorily in a location that conforms to specified environmental and electrical conditions,
including a warehouse or factory floor. For more information on the required conditions, see
General Specifications on page 114.
Table 3 shows the temperature and relative humidity requirements for the printer when it is
operating.
Allow Proper Space
The printer should have enough space around it for you to be able to open the media door. To
allow for proper ventilation and cooling, leave open space on all sides of the printer.
Provide a Data Source
If the printer will be located away from the data source, the selected site must provide the
appropriate connections to that data source. For more information on the types of
communication interfaces, see Select a Communication Interface on page 13.
Table 3 • Operating Temperature and Humidity
Mode Temperature Relative Humidity
Thermal Transfer 41° to 104°F (5° to 40°C) 20 to 85% non-condensing
Direct Thermal 32° to 104°F (0° to 40°C) 20 to 85% non-condensing
Caution • Do not place any padding or cushioning material behind or under the printer
because this restricts air flow and could cause the printer to overheat.
Printer Setup
Connect the Printer to a Power Source
R4Mplus User Guide 11
Connect the Printer to a Power Source
To connect the printer to a power source, complete these steps:
1. Turn the printer power switch (located on the rear of the printer) to the Off (O) position.
2. Plug the power cord into the mating connector on the rear of the printer.
3. Plug the other end of the power cord into the power source.
Power Cord Specifications
Depending on how your printer was ordered, a power cord may or may not be included. The
power cord used must meet your local electrical requirements. If a power cord is not included
or if the one included is not suitable for your requirements, refer to the following guidelines.
Your power cord must meed these standards:
• The overall length must be less than 9.8 ft. (3.0 m).
• It must be rated for at least 5A, 250 VAC.
• The chassis ground (earth) must be connected to ensure safety and reduce electromagnetic
interference. The ground connection is handled by the third wire (earth) in the power cord
as shown in Figure 4.
Figure 4 • Power Cord Specifications
Electric Shock Caution • For personnel and equipment safety, always use an approved
three-conductor power cord specific to the region or country intended for installation. This
cord must use an IEC 320 female connector and the appropriate region-specific three-
conductor grounded plug configuration.
1AC power plug for your country
23-conductor HAR cable
3IEC 320 connector
4Neutral earth live in contact view
1 2 3 4
Printer Setup
Select a Communication Interface
R4Mplus User Guide 13
Select a Communication Interface
The way that you connect your printer to a data source depends on the communication options
installed in the printer.
Standard interfaces: the RS-232 DB-9 serial data port and the IEEE 1284 compliant
bidirectional parallel port. For further information, see Data Connections on page 107.
Optional interfaces:
• Socket Card for PCMCIA cards. For further information on PCMCIA cards, see Install
Memory Card on page 44.
Optional Print Servers:
• ZebraNet external PrintServer II (PSII)
• PSII internal PrintServer (factory installed only)
Enables the printer to be connected to 10Base-T Ethernet networks.
For further information on PrintServer II, see the PrintServer II User and Reference Guide
(Zebra part number 45537L).
Serial Port Communicating using a serial data port (see Figure 6) requires choosing the baud
rate, number of data bits, stop bits, parity, and handshake (default settings are 9600 baud, 8
data bits, 1 stop bit, no parity, and XON/XOFF). Parity only applies to data transmitted by the
printer since the parity of received data is ignored. See Serial Data Port on page 108 to
configure the communication parameters. The values selected must be the same as those used
by the host equipment connected to the printer.
Figure 6 • Communicating Using a Serial Data Port
Printer Computer
Null modem adaptor
(if using a standard
modem cable)
Male
25
9
9
9
50 ft. (15 mm) maximum
14 R4Mplus User Guide
Printer Setup
Select a Communication Interface
Parallel Port Communicating using the parallel port (see Figure 7) does not require special
settings. The serial settings do not affect the parallel port. Refer to Parallel Data Port
on page 112 for further information.
Figure 7 • Communicating Using a Parallel Port
Cable Requirements
Data cables must be fully shielded and fitted with metal or metallized connector shells. Shielded cables and
connectors are required to prevent radiation and reception of electrical noise.
To minimize electrical noise pickup in the cable:
• Keep data cables as short as possible.
• Do not bundle the data cables tightly with the power cords.
• Do not tie the data cables to power wire conduits.
Note • Zebra printers comply with FCC Rules and Regulations, Part 15 for Class B
Equipment using fully shielded, 6.5 ft (2 m) data cables. Use of unshielded cables may
increase radiation above the Class B limits.
Note • RS-422 and RS-485 applications should use twisted shielded pairs as recommended in
the TIA/EIA-485 Specification.
Printer Computer
36-pin
male
25-pin
male
PC
25-pin
female
10 ft. (3 mm) maximum
Printer Setup
Types of Media
R4Mplus User Guide 15
Types of Media
Your printer is capable of using various types of media. These include continuous roll and
fanfold media (Figure 8) that may be labels or card stock and that may have optional
perforations or registration holes. The media also may have a radio frequency identification
(RFID) chip and antenna inlay embedded in it (sometimes called “smart” labels). The
following sections contain descriptions of the various types of media approved for use in your
printer.
We strongly recommend the use of Zebra-brand supplies for continuous high-quality printing.
A wide range of paper, polypropylene, polyester, and vinyl stock has been specifically
engineered to enhance the printing capabilities of the printer and to ensure against premature
printhead wear.
Figure 8 • Roll and Fanfold Media
Roll Media Fanfold Media
Note • Because print quality is affected by media and ribbon, printing speeds, and printer
operating modes, it is very important to run tests for your applications.
16 R4Mplus User Guide
Printer Setup
Types of Media
Non-Continuous Web Media
Non-continuous web media refers to individual labels that are separated by a gap, notch, or
hole (Figure 9). When you look at the media, you can tell where one label ends and the next
one begins.
Figure 9 • Non-Continuous Web Media
Continuous Media
Continuous media (Figure 10) is one uninterrupted roll of material without gaps, holes,
notches, or black marks. This allows the image to be printed anywhere on the label. The
individual labels can be cut apart or stored in a roll for later use.
Figure 10 • Continuous Media
!Important • Printhead life may be reduced by abrasion from exposed paper fibers when using
perforated media.
1Hole
2Notch
3Label Gap
1
3 3
2
Printer Setup
Types of Media
R4Mplus User Guide 17
RFID “Smart” Labels
“Smart” labels are usually made from two components: media and an embedded RFID
transponder (Figure 11). For more information about reading and encoding RFID tags, see
RFID Guidelines on page 71.
• The media (usually a label with a UHF transponder embedded between the label and liner)
is usually comprised of synthetic- or paper-based material that can be printed upon using
direct thermal or thermal transfer printing techniques. The media is typically made from
the same materials and adhesives that a non-RFID barcode printer would use.
• The UHF transponder, which is sometimes called the RFID tag, is usually comprised of an
antenna that is bonded to an integrated circuit (IC) chip. If you hold a “smart” label up to
the light, you can see the transponder’s antenna embedded within the label, and you can
feel a bump in the label where the IC chip is located.
The IC chip contains the RF circuit, coders, decoders, and memory. At a minimum,
“smart” labels have memory that can be read, while the vast majority also have memory
that can be encoded by the user as well. For more information about encoding “smart”
labels, see ZPL II Commands for RFID on page 73.
Figure 11 • RFID “Smart” Labels
1Liner
2Label
3Location of embedded transponder
4Outline of transponder antenna
(shape varies by manufacturer)
(label profile)
1234
18 R4Mplus User Guide
Printer Setup
Ribbon
Ribbon
Ribbon is a thin film that is coated on one side with wax or wax resin, which is transferred to
the media during the thermal transfer process. The media determines whether you need to use
ribbon and how wide the ribbon must be.
When to Use Ribbon
Thermal transfer media requires ribbon for printing while direct thermal media does not.
To determine if ribbon must be used with a particular label, perform a media scratch test.

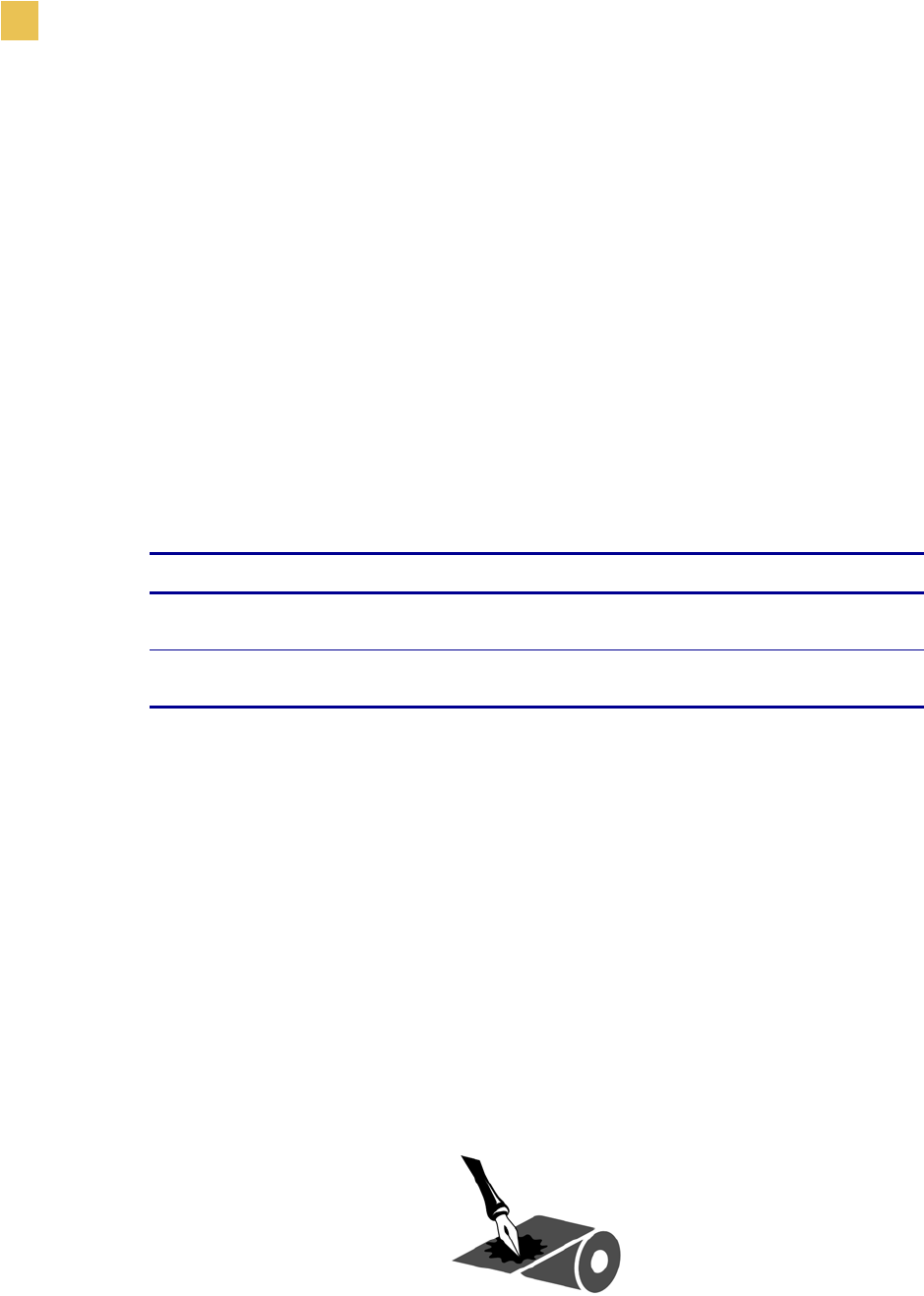

To perform a label scratch test, complete these steps:
1. Scratch the print surface of the media with your fingernail.
2. Did a black mark appear on the media?
Ribbon Width
When ribbon is used, it must be as wide as or wider than the media being used. If the ribbon is
narrower than the media, areas of the printhead are unprotected and subject to premature wear.
Though it is not required, ribbon may be used with direct thermal media to help protect the
printhead from abrasion with the media.

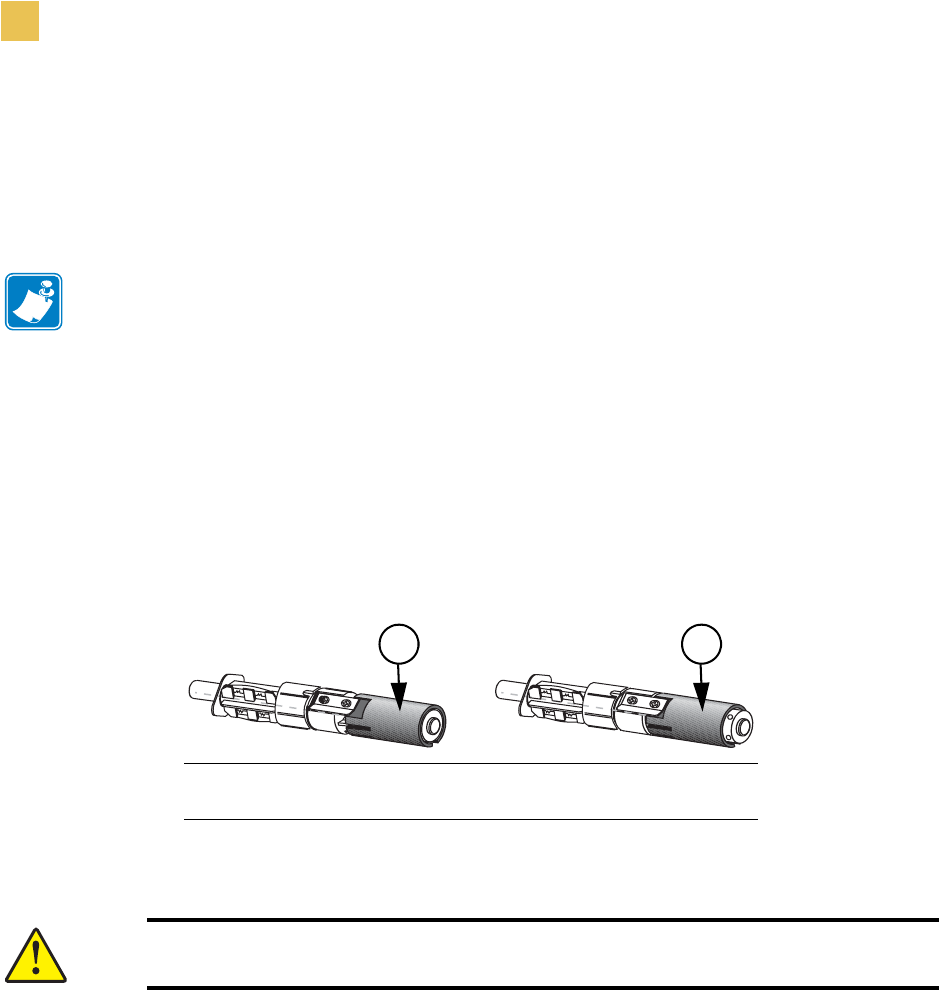

Coated Side of Ribbon
Ribbon can be wound with the coated side on the inside or outside (see Figure 12 and
Figure 13), which affects how it will be loaded in the printer. This printer can only use ribbon
that is coated on the outside. If you do not know which side is coated on of a particular roll of
ribbon, perform a ribbon scratch test.
Figure 12 • Ribbon Coated on Outside
If a black mark... Then...
Does not appear on the media The media is thermal transfer. A ribbon is required
with this type of media.
Appears on the media The media is direct thermal. No ribbon is required
for this type of media.
Printer Setup
Ribbon
R4Mplus User Guide 19
Figure 13 • Ribbon Coated on Inside
To perform a ribbon scratch test, complete these steps:
1. Unroll a short length of ribbon.
2. Place the unrolled section of ribbon on a piece of paper with the outside surface of the
ribbon in contact with the paper.
3. Scratch the surface of the unrolled ribbon with your fingernail.
4. Lift the ribbon from the paper.
5. Did the ribbon leave a mark on the paper?
If the ribbon... Then...
Left a mark on the paper The ribbon is coated on the side that was in contact with the
paper.
Did not leave a mark on
the paper The ribbon is likely coated on the side that you scratched.
a. Flip the ribbon over on the paper.
b. Repeat the test by scratching on the side that was previously
in contact with the paper.
c. Observe the results again. The ribbon should have left a mark
on the paper. If not, repeat the test, starting with the first side
again. You may need to scratch the surface of the ribbon
harder.
20 R4Mplus User Guide
Printer Setup
Ribbon
R4Mplus User Guide 21
CHAPTER 3
Printer Operation
This chapter provides instructions for loading media, loading ribbon, and basic printer
operation.
Contents
Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Front Panel Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Front Panel Lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Load Roll Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Tear-Off Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Liner Take-Up Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Rewind/Peel-Off Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Rewind Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Adjust Media Alignment for Rewind Option . . . . . . . . . . . . . . . . 35
Load Fanfold Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Load the Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Remove the Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Calibrate the Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Auto Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Manual Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Print a Configuration Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Adjust Printhead Pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Install Memory Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
22 R4Mplus User Guide
Printer Operation
Front Panel
Front Panel
The front panel display shows the printer’s operating status and allows you to change settings
as needed to work with your media and label formats.
The front panel keys and lights are shown in Figure 14. Descriptions for each are located in
Table 4 and Table 5.
Figure 14 • Front Panel
1Power LED
2Pause LED
3Error LED
4Data LED
5LCD
6PLUS (+) Key
7SETUP/EXIT Key
8CANCEL Key
9PAUSE Key
10 FEED Key
11 SELECT Key
12 MINUS (–) Key
PAUSE
3
4
5
6
7
8
2
1
9
10
11
12
Printer Operation
Front Panel
R4Mplus User Guide 23
Front Panel Keys
Table 4 • Front Panel Keys
Key Function
FEED Forces the printer to feed one blank label each time the key is pressed.
Printer not printing: one blank label immediately feeds.
Printing: one blank label feeds after the current batch of labels is complete.
PAUSE Starts and stops the printing process.
Printer not printing: no printing occurs. (Press PAUSE again to resume printing.)
Printing: printing stops after the current label is complete.
CANCEL Cancels print jobs when in the pause mode.
Printer not printing: the next stored label format does not print.
Printing: current label completes printing and the next label format is cancelled.
Press and hold for several seconds to cancel all print jobs in memory.
SETUP/EXIT Enters and exits the configuration mode.
SELECT Toggles the function of PLUS (+) and MINUS (–) between the Scroll and Change
Modes.
Press once to use PLUS (+) and MINUS (–) to change the values of the selection.
Press again to use PLUS (+) and MINUS (–) to scroll through the menu items.
PLUS (+)
(scroll mode) Scrolls to the next selection.
PLUS (+)
(change mode) Increases the value.
Answers yes.
Prints a label (when applicable).
MINUS (–)
(scroll mode) Scrolls to the previous selection.
MINUS (–)
(change mode) Decreases the value.
Selects the digit you wish to change.
Answers no.
24 R4Mplus User Guide
Printer Operation
Front Panel
Front Panel Lights
Table 5 • Front Panel Lights
Light Status Indication
POWER Off The printer is off or no power is applied.
On The printer is on.
PAUSE Off Normal printer operation.
On The printer has stopped all printing operations.
Flashing The Pause light flashes when when initializing FLASH or
PCMCIA memory and in Peel-Off Mode when the label is
available.
ERROR Off Normal printer operation (no errors).
Slow flashing RIBBON IN warning, HEAD UNDER TEMP warning, or HEAD
OVER TEMP error.
Fast flashing HEAD OPEN error.
On PAPER OUT or RIBBON OUT errors.
DATA Off Normal printer operation (no data being received or processed).
One flash CANCEL is pressed and a format is successfully cancelled.
Slow flashing The printer is unable to accept more data from the host.
Fast flashing The printer is receiving data.
On A partial format has been received and no subsequent data activity.
Printer Operation
Load Roll Media
R4Mplus User Guide 25
Load Roll Media
Tear-Off Mode
Tear-Off Mode is the default mode. The printer is set to this mode in the factory.
To load media in Tear-Off Mode, complete these steps:
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide out the media guide as far from the printer frame as possible.
4. Place the roll of media on the media supply hanger and orient the media properly.
5. Flip up the media supply guide.
6. Slide in the media supply guide until it touches, but does not restrict, the edge of the roll.
7. Feed the media under the dancer, through the slot in the transmissive sensor, under the
ribbon sensor, and out the front of the printer.
8. Ensure the media is against the back of the transmissive sensor. Slide in the media guide
until it touches, but does not restrict, the edge of the label.
9. Close the printhead assembly.
10. The printer is paused (the Pause light is on), press PAUSE to enable printing.
Caution • Ensure that the printhead is fully open and engaged in the upright position.
If you fail to latch the printhead, it could fall on your hand during the procedure.
26 R4Mplus User Guide
Printer Operation
Load Roll Media
Figure 15 • Tear-Off Mode
1Printhead Assembly
2Transmissive Sensor
3Label Supply Guide
4Label Supply Hanger
5Dancer
6Label Guide
7Printhead Open Lever
8Printed Label
1
23
4
7
86 5
Printer Operation
Load Roll Media
R4Mplus User Guide 27
Peel-Off Mode
This setting works only with the Peel-Off Option installed on the printer. Figure 16 shows the
printer with the Peel-Off Option.
To load media in Peel-Off Mode, complete these steps:
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide the media guide as far from the printer main frame as possible.
4. Place a roll of media onto the media supply hanger as shown.
5. Flip up the media supply guide.
6. Slide in the media supply guide until it just touches, but does not restrict, the edge of the
media.
7. Feed the media under the dancer, through the slot in the transmissive sensor, under the
ribbon sensor, and through the Peel Assembly.
8. Pull approximately 12 in. (30 mm) of media through the front of the printer.
9. Ensure the media is against the rear of the transmissive sensor. Slide in the media guide
until it just touches, but does not restrict, the edge of the media.
10. Pull down the peel lever to open the peel assembly.
11. Feed the liner over the tear-off/peel-off bar and behind the peel assembly.
12. Close the printhead assembly.
13. Close the peel assembly using the peel lever.
14. The printer is paused (the Pause light is on), press PAUSE to enable printing.
Peeling starts automatically. Press FEED to test.
Caution • Ensure that the printhead is fully open and engaged in the upright position. If
you fail to latch the printhead, it could fall on your hand during the procedure.
28 R4Mplus User Guide
Printer Operation
Load Roll Media
Figure 16 • Peel-Off Mode
1Printhead Assembly
2Transmissive Sensor
3Media Supply Guide
4Media Supply Hanger
5Dancer
6Media Guide
7Printhead Open Lever
8Peel Assembly
9Label
10 Peel Lever
11 Tear-Off/Peel/Off Bar
2
1
3
4
5
6
7
8
9
101
11
Printer Operation
Load Roll Media
R4Mplus User Guide 29
Liner Take-Up Mode
The Liner Take-up option must be installed to use this mode. See Figure 18.
To load media in Liner Take-Up Mode, complete these steps:
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide the media guide as far from the maim frame as possible.
4. Place a roll of media onto the media supply hanger as shown.
5. Flip up the media supply guide.
6. Slide in the media supply guide until it just touches, but does not restrict, the edge of the
media.
7. Feed the media under the dancer, through the slot in the transmissive sensor, and under the
ribbon sensor.
8. Pull approximately 18 in. (500 mm) of media through the front of the printer.
9. Remove the labels from the exposed media until only liner remains.
10. Ensure that the media is against the back of the transmissive sensor. Slide in the media
guide until it just touches, but does not restrict, the edge of the media.
11. Pull down the peel lever to open the peel assembly.
12. Feed the media over the tear-off/peel-off bar and behind the peel assembly.
13. Close the printhead assembly.
14. Close the peel assembly.
15. Slide the liner into the slot (see Figure 17) in the spindle of the liner take-up. Ensure that
the liner is resting against the back plate of the spindle assembly.

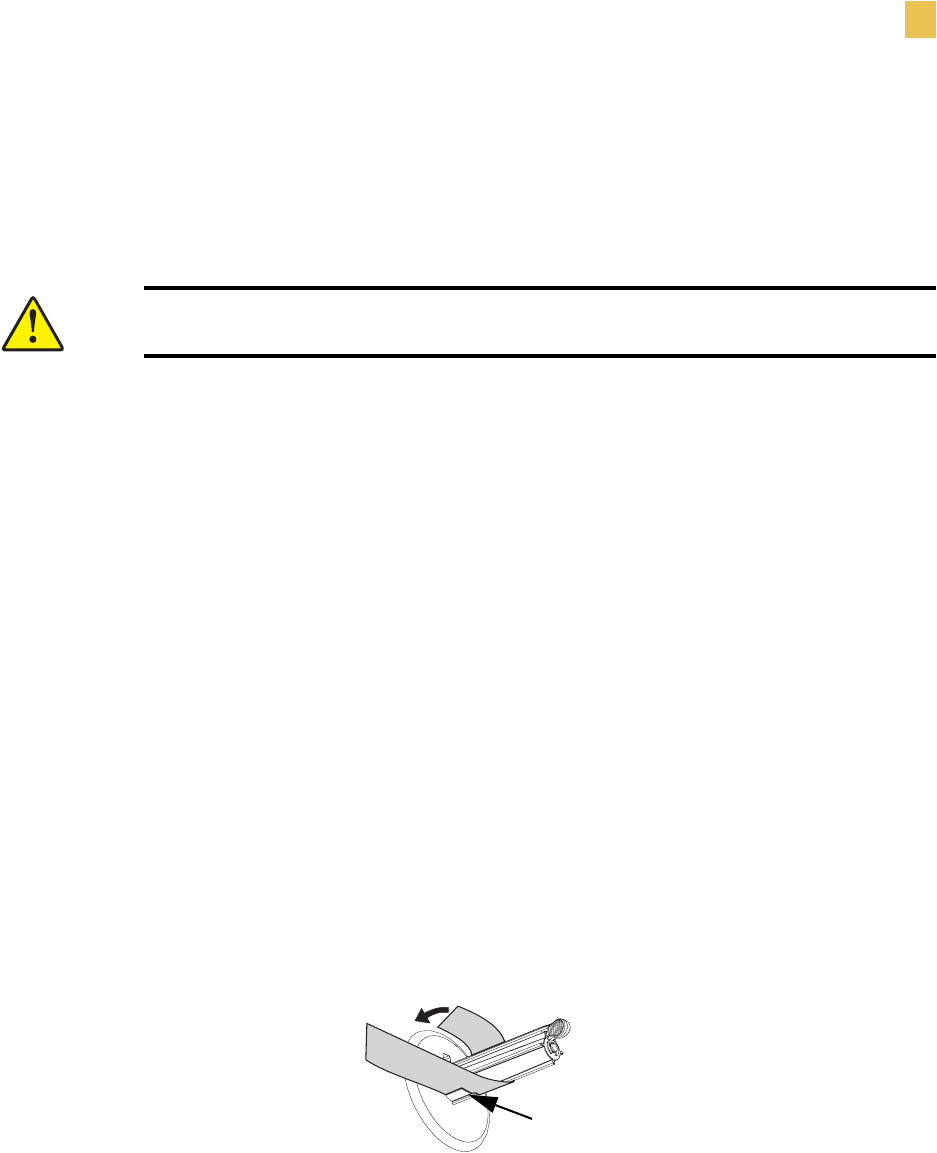

Figure 17 • Liner Take-Up Spindle
16. Turn the spindle assembly counterclockwise a few times to snug the liner.
17. If the printer is paused (the pause light is on), press PAUSE to enable printing. Peeling
starts automatically. Press FEED to test.
Caution • Ensure that the printhead is fully open and engaged in the upright position. If
you fail to latch the printhead, it could fall on your hand during the procedure.
Slot
30 R4Mplus User Guide
Printer Operation
Load Roll Media
Figure 18 • Liner Take-Up Mode
Liner Removal
1. Pull the liner slide toward you (see inset) until it stops (about a third of the way down the
liner take-up spindle).
Figure 19 • Removing Liner from Liner Take-Up Spindle
2. Slide the liner from the take-up spindle.
1Printhead Assembly
2Transmissive Sensor
3Label Supply Guide
4Label Supply Hanger
5Liner Take-Up
6Dancer
7Label Guide
8Printhead Open Lever
9Peel Assembly
10 Label
11 Peel Lever
12 Tear-Off/Peel-Off Bar
Note • The liner slide moves back in place once the liner is removed.
1
2
3
4
5
6
7
8
9
10
11
12
Printer Operation
Load Roll Media
R4Mplus User Guide 31
Rewind/Peel-Off Mode
The Rewind option must be installed to use this mode. The option is shown in Figure 20.
To load media in Rewind/Peel-Off Mode, complete these steps:
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide the media guide as far from the main frame as possible.
4. Place the roll of labels on the media supply hanger as shown.
5. Flip up the media supply guide.
6. Slide in the media supply guide until it just touches, but does not restrict, the edge of the
media.
7. Feed the labels under the dancer, through the slot in the transmissive sensor, and under the
ribbon sensor.
8. Pull approximately 36 in. (900 mm) of label through the front of the printer.
9. Remove the labels from the first 18 in. (450 mm) of media.
10. Ensure the media is against the back of the transmissive sensor. Slide in the media guide
until it touches, but does not restrict, the edge of the media.
11. Pull down the peel lever to open the peel assembly.
12. Feed the media over the tear-off/peel-off bar, and through the slot in the peel assembly.
13. Loosen the thumbscrew and slide out the rewind media guide to the end of the take-up
spindle.
14. Slide an empty core onto the take-up spindle; wrap the liner around the core and turn the
take-up spindle counterclockwise to wind up the excess liner.
15. Slide the rewind media guide against the liner and tighten the thumbscrew.
16. Close the printhead assembly.
17. Close the peel assembly using the peel lever.
18. If the printer is paused (the Pause light is on), press PAUSE to enable printing.
Peeling starts automatically. Press FEED to test.
Caution • Ensure that the printhead is fully open and engaged in the upright position. If
you fail to latch the printhead, it could fall on your hand during the procedure.
Note • The liner must be attached to the take-up spindle for the printer to operate
properly. Ensure the edge of the liner is flush against the backplate of the take-up spindle.
32 R4Mplus User Guide
Printer Operation
Load Roll Media
Figure 20 • Rewind/Peel Mode
Liner Removal
To remove liner from the rewind spindle, complete these steps:
1. Cut the liner between the media alignment spindle and the rewind spindle.
2. Rotate the take-up spindle counterclockwise until the rewind media guide is in the
12 o’clock position.
3. Loosen the thumbscrew and slide the rewind media guide to the end of the take-up
spindle.
4. Slide the core with the liner from the take-up spindle.
1Printhead Assembly
2Transmissive Sensor
3Label Supply Guide
4Label Supply Hanger
5Rewind Spindle
6Rewind Label Guide
7Thumbscrew
8Dancer
9Label Guide
10 Media Alignment Spindle
11 Printhead Open Lever
12 Peel Assembly
13 Label
14 Rewind Base Assembly
15 Peel Lever
1
23
4
5
6
7
8
9
10
11
12
13
14
15
Printer Operation
Load Roll Media
R4Mplus User Guide 33
Rewind Mode
The Rewind option must be installed to use this mode. The option is shown in Figure 21.
To load media in Rewind Mode, complete these steps:
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide the media guide as far from the main frame as possible.
4. Place a roll of media on the media supply hanger as shown.
5. Flip up the media supply guide.
6. Slide in the media supply guide until it just touches, but does not restrict, the edge of the
media.
7. Feed the media under the dancer, through the slot in the transmissive sensor, and under the
ribbon sensor.
8. Pull approximately 36 in. (900 mm) of media through the front of the printer.
9. Remove the labels from the first 18 in. (450 mm) of media.
10. Ensure the media is against the back of the transmissive sensor. Slide in the media guide
until it just touches, but does not restrict, the edge of the media.
11. Feed the media over the peel assembly and through the rewind base assembly.
12. Loosen the thumbscrew and slide out the rewind media guide to the end of the take-up
spindle.
13. Slide an empty core onto the take-up spindle; wrap the media liner around the core, and
turn the take-up spindle counterclockwise to wind up the excess material.
14. Slide the rewind media guide against the media, and tighten the thumbscrew.
15. Close the printhead assembly.
16. If the printer is paused (the Pause light is on), press PAUSE to enable printing.
Caution • Ensure that the printhead is fully open and engaged in the upright position. If
you fail to latch the printhead, it could fall on your hand during the procedure.
Note • The liner must be attached to the take-up spindle for the printer to operate
properly. Ensure that the edge of the liner is flush against the backplate of the take-up
spindle.
34 R4Mplus User Guide
Printer Operation
Load Roll Media
Figure 21 • Rewind Mode
Media Removal
To remove printed media from the rewind spindle, complete these steps:
1. Cut the media between the media alignment spindle and the rewind spindle.
2. Rotate the take-up spindle counterclockwise until the rewind media guide is in the
12 o’clock position.
3. Loosen the thumbscrew and slide out the rewind media guide to the end of the take-up
spindle.
4. Slide the core with the roll of media from the take-up spindle.
1Printhead Assembly
2Transmissive Sensor
3Label Supply Guide
4Label Supply Hanger
5Rewind Spindle
6Rewind Label Guide
7Thumbscrew
8Dancer
9Label Guide
10 Media Alignment Spindle
11 Printhead Open Lever
12 Rewind Base Assembly
13 Peel Assembly
14 Peel Lever
1
23
4
5
6
7
8
9
10
11
12
13
14
Printer Operation
Load Roll Media
R4Mplus User Guide 35
Adjust Media Alignment for Rewind Option
The instructions below apply only if the printer has a Rewind option. The liner should be
installed flush against the backplate of the rewind spindle to prevent the media/backing from
winding too loosely. See Figure 22.
Do the adjustments in the order given. Do only what is needed to solve the problem.
To adjust the Media Alignment for Rewind Mode, complete these steps:
1. Turn the adjustment dial clockwise to move the media toward the mainframe.
2. Turn the dial counter clockwise to move the media away from the mainframe.
Figure 22 • Rewind Option Adjustment Dial
1Rewind Spindle Backplate
2Rewind Spindle
3Adjustment Dial
4Printhead Assembly
1
2
4
3
36 R4Mplus User Guide
Printer Operation
Load Fanfold Media
Load Fanfold Media
Fanfold media feeds through either the bottom or rear access slot. See Figure 23.
To load fanfold media, complete these steps:
1. Press the printhead open lever. The printhead assembly springs up.
2. Flip down the media supply guide.
3. Slide the media guide as far from the main frame as possible.
4. Pass the fanfold media over the media supply hanger.
5. Flip up the media supply guide. Slide in the media supply guide until it just touches, but
does not restrict, the edge of the media.
6. Thread the media under the dancer, through the slot in the transmissive sensor, under the
ribbon sensor, and out the front of the printer.
7. Ensure the media is against the back of the transmissive sensor. Then, slide in the media
guide until it just touches, but does not restrict, the edge of the media.
8. Close the printhead assembly.
9. Press PAUSE.
Caution • Ensure that the printhead is fully open and engaged in the upright position.
If you fail to latch the printhead, it could fall on your hand during the procedure.
Printer Operation
Load Fanfold Media
R4Mplus User Guide 37
Figure 23 • Loading Fanfold Media
1Printhead Assembly
2Transmissive Sensor
3Label Supply Guide
4Label Supply Hanger
5Dancer
6Label Guide
7Printhead Open Lever
3
2
1
4
5
6
7
3
2
1
4
5
6
7
38 R4Mplus User Guide
Printer Operation
Load the Ribbon
Load the Ribbon
The ribbon supply spindle in your printer is a dual-tension variety. Most applications require
the spindle to be in the normal position. The low tension position is recommended only when a
wide ribbon is used or normal tension hampers the ribbon movement.
To load ribbon, complete these steps:
1. Set the spindle for normal or low tension.
• To place the spindle in the normal position, firmly pull out the spindle end cap until it
extends and clicks in place, as shown in Figure 24.
• To place the spindle in the low-tension position, firmly push in the end cap until it
retracts and clicks in place, as shown in Figure 24.
Figure 24 • Ribbon Spindle—Normal and Low Tension
2. See Figure 25. Press the printhead open lever.
The printhead assembly springs up.
3. Orient the ribbon as shown. Push the ribbon roll completely onto the ribbon supply
spindle.
4. Pull the end of the ribbon over the ribbon sensor, under the printhead assembly, and out
the front of the printer.
5. Hold the ribbon snug and free of wrinkles and in line with the guide mark near the left
edge of the strip plate. Close the printhead assembly.
6. Wind the ribbon clockwise onto the ribbon take-up spindle.
Note • Always use ribbon that is wider than the media. The smooth liner of the ribbon
protects the printhead from wear. For direct thermal printing, do not load ribbon in the printer.
1Normal Position (Spindle End Cap Extended)
2Low-Tension Position (Spindle End Cap Retracted)
Caution • Ensure that the printhead is fully open and engaged in the upright position.
If you fail to latch the printhead, it could fall on your hand during the procedure.
1 2
Printer Operation
Load the Ribbon
R4Mplus User Guide 39
Figure 25 • Ribbon Path
Remove the Ribbon
To remove used ribbon, complete these steps:
1. If the ribbon has not run out, break it between the strip plate and the ribbon take-up
spindle.
2. While turning the ribbon take-up spindle release knob counterclockwise, squeeze the
ribbon against the ribbon take-up spindle tension blades.
3. When the tension blades collapse into the ribbon take-up spindle, hold the release knob
and rotate the spent ribbon toward the rear of the printer. Then, slide the ribbon off the
ribbon take-up spindle.
1Strip Plate
2Printhead Assembly
3Release Knob
4Tension Blades
5Ribbon Take-Up Spindle
6Ribbon Supply Spindle
7Ribbon Sensor
8Printhead Open Lever
Caution • Do not cut the ribbon on the ribbon take-up spindle. Doing so may damage the
spindle.
3
2
1
4
5
6
7
8
40 R4Mplus User Guide
Printer Operation
Calibrate the Printer
Calibrate the Printer
Auto Calibration
The R4Mplus automatically calibrates on power up. During auto calibration, the printer
determines the label length and sensor settings.
Auto calibration occurs when the printer is turned on and each time the printer recovers from
an error condition. To clear an error, open and close the printhead assembly and then press
PAUSE. The printer begins auto calibration when all errors have been cleared.
The results of the auto calibration are stored in the printer’s memory and are retained even if
printer power is removed. These parameters remain in effect until the next calibration is
performed.
Manual Calibration
Perform a media and ribbon sensor calibration to reset the sensitivity of the sensors so the
media and ribbon are detected more accurately. If you change the type of ribbon or media,
your printer may operate better if this calibration is performed.
For instructions, refer to Media and Ribbon Sensor Calibration (Manual Calibration)
on page 58.
,Note • If the front panel setting for MEDIA POWER UP or HEAD CLOSE are set to
LENGTH, NO MOTION, or FEED, the printer starts printing without auto calibrating.
Printer Operation
Print a Configuration Label
R4Mplus User Guide 41
Print a Configuration Label
Print a configuration label to test the printer setup. Do this when the printer is first installed, or
when the printer cannot properly detect the top of the label.
To print a configuration label, complete these steps:
1. Turn the printer power Off (O).
2. Press and hold CANCEL while turning the printer On (l). See Figure 2, Front Panel
Controls and LEDs, on page 3.
3. Release CANCEL after the DATA light turns off (approximately five seconds).
A configuration label prints showing the printer’s currently stored parameters (similar to
the label shown in Figure 26).
4. Did the configuration label print correctly?
• If yes, go to Configuration on page 45.
• If the configuration label did not print or if the labels are aligned improperly, review
the following items in the order shown. Do only as many steps as needed to solve the
printing problem.
•Review Types of Media on page 15 to make sure that you have the correct type of
media for your application.
•Review Ribbon on page 18. If you are using direct thermal media, you do not need
to use ribbon. If you are using thermal media, ribbon is required for printing.
•Review Load Roll Media on page 25 or Load Fanfold Media on page 36.
• Configure the printer according to the directions given in Basic Configuration
on page 48.
42 R4Mplus User Guide
Printer Operation
Print a Configuration Label
Figure 26 • Sample Configuration Label
Printer Operation
Adjust Printhead Pressure
R4Mplus User Guide 43
Adjust Printhead Pressure
See Figure 27. This adjustment may be necessary if printing is too light on one side or if thick
media is used.
Figure 27 • Printhead Pressure Adjustment Dials
The pressure adjustment dials for the R4Mplus each have four possible settings designated by
blocks of increasing size embossed on the print mechanism. The smallest block (fully
counterclockwise) is considered position 1 and the largest block (fully clockwise) is
considered position 4.
Set Printhead Pressure
Depending on which printer you have, use Table 6 to select the initial dial settings for your
media.
Some media types require higher pressure to print well. For these media, increase both dials
one position. If the media tends to shift to the left while printing, increase the right dial setting
one position or decrease the left dial setting one position. If the media tends to shift to the right
while printing, increase the left dial setting one position or decrease the right dial setting one
position.
Table 6 • R4Mplus Printhead Pressure
Media Width Left Dial Right Dial
1 in. (25.4 mm) 3 1
2 in. (51 mm) 4 1
3 in. (76 mm) 3 2
3.5 in. and up (89 mm and up) 3 3
Pressure Adjustment Dials
RL
44 R4Mplus User Guide
Printer Operation
Install Memory Card
Install Memory Card
The printer can use Type I or Type II compliant PCMCIA memory cards.
To install the PCMCIA memory card, complete these steps:
1. Remove the PCMCIA card shield from the rear of the printer.
2. Insert the PCMCIA card, with the notch UP, into the card slot as shown (see Figure 28).
Insert the card far enough to cause the eject button to pop out.
3. Reinstall the PCMCIA card shield over the PCMCIA card and card slot.
The printer is now ready to operate with the additional memory or font option.
Figure 28 • Installing the PCMCIA Card
Electrostatic Discharge Caution • Observe proper electrostatic safety precautions
when handling any static-sensitive components such as circuit boards and printheads.
Note • The PCMCIA card is hot-swappable. It can be installed while the printer is On (l).
Note • Initialization of the PCMCIA card may take a few minutes; the Pause LED flashes
while the card initializes. If the card is already initialized, the Pause LED flashes only once or
twice. To verify that the card has successfully initialized, print a configuration label and
review it to see if the new memory card information is listed.
F
u
s
e
F
u
s
e
R4Mplus User Guide 45
CHAPTER 4
Configuration
This chapter discusses detailed configuration settings and instructs you how to view or change
parameters through the front panel.
Contents
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Enter Configuration Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Exit Configuration Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Change Password-Protected Parameters . . . . . . . . . . . . . . . . . 47
Basic Configuration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Configuration and Calibration LCD Displays . . . . . . . . . . . . . . . . . 51
46 R4Mplus User Guide
Configuration
Overview
Overview
After you have installed the media and ribbon and the Power-On Self Test (POST) is complete
(see Power-On Self Test on page 100 for more information), the front panel displays
PRINTER
READY
. Use the front panel display and the four keys directly below it to set printer
parameters for your application.
Enter Configuration Mode
To enter configuration mode, complete these steps:
1. From the front panel, press SETUP/EXIT:
2. Press PLUS (+) or MINUS (–) to scroll to the setting you wish to change.
3. Press SELECT to toggle the functionality of PLUS (+) and MINUS (–) keys.
4. Press PLUS (+) or MINUS (–) to increase or decrease the value, answer yes or no, print a
label, or select the digit you wish to change.
5. Press SELECT again to use PLUS (+) and MINUS (–) to scroll to the desired menu item.
Exit Configuration Mode
You can leave configuration mode at any time.
To exit configuration mode, complete these steps:
1. From the front panel, press SETUP/EXIT.
The
SAVE CHANGES
display appears. Press PLUS (+) or MINUS (–) to display other
choices.
•
PERMANENT
— Permanently saves the changes. Values are stored in the printer even
when power is turned off. This is the default selection.
•
TEMPORARY
— Saves the changes until you change them again or until power is
turned off.
•
CANCEL
— Cancels all changes from the time you pressed SETUP/EXIT, except for
darkness and tear-off settings (if they were changed).
•
LOAD DEFAULTS
— Loads factory defaults.
•
LOAD LAST SAVE
— Loads values from the last permanent save.
2. Press SELECT to select the displayed choice.
3. Press SETUP/EXIT to save your choice.
Note • Printers operating on an IP network can be quickly configured using ZebraNet View
(optional ZebraNet PrintServer II required). For more information, see the PrintServer II User
and Reference Guide.
Note • An asterisk (*) in the upper left-hand corner of the display indicates that the value
displayed is different than the currently stored value.
Configuration
Overview
R4Mplus User Guide 47
Change Password-Protected Parameters
Certain parameters are password-protected by factory default. If you press SELECT when a
password-protected parameter is displayed on the front panel, the printer prompts you for a
password. If you do not know the password, press SETUP/EXIT to leave the prompt. You will
not be allowed to modify the parameter without entering the password.
The default password is 1234. You can change the password using the ^KP (Define Password)
ZPL II command.
Password-Protect All Parameters You have the option of making all parameters
password protected. Refer to Password Level on page 69 for details.
Disable Password You can disable the password protection feature to no longer prompt you
for a password by setting the password to ØØØØ via the ^KPØ ZPL/ZPL II command. To
reenable the password-protection feature, send the ZPL/ZPL II command ^KPx, where x can
be any number that is one to four digits in length, except Ø.
To enter a password, complete these steps:
1. From the front panel, enter a four-digit password at the
ENTER PASSWORD
prompt.
MINUS (–) changes the selected digit position. PLUS (+) increases value of the selected
digit.
2. After entering the password, press SELECT.
The parameter that you selected is displayed, and the value may be modified if the
password was entered correctly.
Note • After you enter the password correctly, you do not have to enter it again until you leave
and reenter the configuration mode.
48 R4Mplus User Guide
Configuration
Basic Configuration
Basic Configuration
If your labels are not printing correctly, the configuration may need to be changed because the
printer defaults may not reflect the options that you need. Media, ribbon, darkness, print mode,
media type, sensor type, and print method all affect the way the printer is configured. This
section covers how to change these basic configuration options for your printer through the
printer’s front panel. Review Figure 2 on page 3 to familiarize yourself with the front panel
controls.
Refer to Configuration and Calibration LCD Displays on page 51 for more detailed
information on all of the configuration options available on your printer.
Many printer settings may also be controlled by your printer’s driver or label preparation
software. See the driver or software documentation for more information.
To perform basic a configuration, complete these steps:
1. Enter the configuration mode by pressing SETUP/EXIT.
DARKNESS
displays.
Adjust Darkness
2. Is the printed image too dark or too light? Or does the ribbon stick to the media?
• If no, press PLUS (+) to move to the next option:
PRINT SPEED
. Continue with
Adjust Image Crispness and Print Speed.
• If yes, complete the following steps:
2.1. Press SELECT.
2.2. If the labels moved forward, but the print is light or there is no print, press PLUS
(+) to increase the darkness. If the print is too dark, or the ribbon sticks to the
media, press MINUS (–) to decrease the darkness.
2.3. Press SELECT to accept the change.
2.4. Press PLUS (+) to move to the next option.
PRINT SPEED
displays. Continue with Adjust Image Crispness and Print Speed.
Adjust Image Crispness and Print Speed
3. Is the printed image crisp?
• If yes, press PLUS (+) to move to the next option:
TEAR-OFF
. Continue with Adjust
Tear-Off Position.
• If the print is dark enough but the image is not crisp, slow down the print speed by
completing the following steps. Print speed is given in inches per second (ips).
3.1. Press SELECT.
3.2. Press PLUS (+) to increase the speed or MINUS (–) to decrease the speed.
3.3. Press SELECT to accept the changes.
3.4. Press PLUS (+) to move to the next option.
TEAR OFF
displays. Continue with Adjust Tear-Off Position.
Configuration
Basic Configuration
R4Mplus User Guide 49
Adjust Tear-Off Position
The Tear-Off position defines the position of the label on the tear-off bar. When working with
non-continuous labels, the inter-label gap should be on the tear bar. This setting does not apply
to continuous media.
4. Are you using continuous media?
• If yes, press PLUS (+) to move to the next option:
PRINT MODE
. Continue with Select
Print Mode.
• If no, continue with Step 5.
5. Does the inter-label gap line up on the tear bar?
• If yes, press PLUS (+) to move to the next option:
PRINT MODE
. Continue with Select
Print Mode.
• If no, complete the following steps:
5.1. Press SELECT.
5.2. Press PLUS (+) to move the label forward or MINUS (–) to move the label
backward. Repeat this until the label lines up correctly.
5.3. Press SELECT to accept the changes.
5.4. Press PLUS (+) to move to the next option.
PRINT MODE
displays. Continue with Select Print Mode.
Select Print Mode
When the wrong Print Mode is selected, the top of the label is not found by the printer.
Examples of common problems include when the gaps between noncontinuous labels do not
line up on the tear bar or when continuous media is not being cut at the right interval.
6. Do the labels line up or cut correctly?
If yes, press PLUS (+) to move to the next option:
MEDIA TYPE
. Continue with Select
Media Type.
If no, review the media and the printer options, then complete the following steps:
6.1. Press SELECT.
6.2. Press PLUS (+) or MINUS (–) to scroll through the setting options. Stop at the
setting that matches your printer options (Tear-Off, Peel-Off, or Rewind).
6.3. Press SELECT to accept the change.
6.4. Press PLUS (+) to move to the next option.
MEDIA TYPE
displays. Continue with Select Media Type.
Select Media Type
For examples of non-continuous and continuous media, see Types of Media on page 15.
7. Does the media type on the display match the type of media that you are using?
• If yes, press PLUS (+) to move to the next option:
PRINT METHOD
. Continue with
Select Print Method.
• If your label media does not match the Media Type, complete the following steps:
7.1. Press SELECT.
50 R4Mplus User Guide
Configuration
Basic Configuration
7.2. Press PLUS (+) or MINUS (–) to scroll through the setting options. Stop at the
setting that matches your printer options (Continuous or Noncontinuous).
7.3. Press SELECT to accept the change.
7.4. Press PLUS (+) to move to the next option.
PRINT METHOD
displays. Continue with Select Print Method.
Select Print Method
The two choices for print method are thermal transfer and direct thermal transfer. You can find
out if a label is thermal transfer or direct thermal transfer by scratching it with your fingernail.
If your nail leaves a black mark, the media is direct thermal. If it does not leave a mark, the
media is thermal transfer.
• Use Thermal Transfer if you are using ribbon with your label material.
• Use Direct Thermal if you are not using ribbon. Direct thermal label media has ink
embedded in the label material that is brought out by the heat of the printhead.
8. Does the Print Method setting match your media type?
• If yes, continue with Save Changes and Exit.
• If no, complete the following steps:
8.1. Press SELECT.
8.2. Press PLUS (+) or MINUS (–) to scroll through the setting options. Stop at the
setting that matches your printer options (Thermal Transfer or Direct Thermal).
8.3. Press SELECT to accept the change.
Save Changes and Exit
9. Press SETUP/EXIT to leave the front panel menu.
SAVE CHANGES PERMANENT
displays. For other save options, see Exit Configuration
Mode on page 46.
10. Press SETUP/EXIT again.
SAVING PERMANENT
displays. One or more labels may feed out, depending on your
settings. The LCD displays
PRINTER READY
.
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 51
Configuration and Calibration LCD Displays
Table 7 covers all of the configuration options for your printer. Parameters are shown in the
order in which they are displayed when you press PLUS (+) after entering the setup mode.
Throughout this process, press PLUS (+) to continue to the next parameter, or press
MINUS (–) to return to the previous parameter in the cycle. Refer to Basic Configuration
on page 48 for information on changing just the basic print settings.
Table 7 • Printer Parameters and Other LCD Displays (Page 1 of 20)
Parameter/LCD Display Action/Explanation
DARKNESS Adjusting Print Darkness
Set the darkness to the lowest setting that provides good print quality.
Darkness set too high may cause ink to smear or the printer may burn
through the ribbon.
Darkness settings are dependent upon a variety of factors, including
ribbon type, media, and the condition of the printhead. You may adjust
the darkness for consistent high-quality printing. Darkness settings also
may be changed by the driver or software settings. To determine if your
print darkness setting is optimal, perform the FEED Self Test
on page 103.
You may want to adjust the printer’s darkness while performing the
PAUSE Self Test on page 102. Because the darkness setting takes effect
immediately, you can see the results on labels that are currently printing
during the test.
Default: +10
Range: 0 to +30
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase darkness if printing is too light or if there
are voids in printed areas.
3. Press MINUS (–) to decrease darkness if printing is too dark or if
there is spreading or bleeding of printed areas.
4. Press SELECT to accept any changes and deselect the parameter.
PRINT SPEED Adjusting Print Speed
Speed is measured in inches per second (ips).
Default: 2 ips
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase print speed.
3. Press MINUS (–) to decrease print speed.
4. Press SELECT to accept any changes and deselect the parameter.
52 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
TEAR OFF Adjusting the Tear-Off Position
This parameter establishes the position of the media over the
tear-off/peel-off bar after printing. The label and liner can be torn off or
cut between labels.
Default: +0
Range: –120 to +120
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value. Each press adjusts the tear-off
position by four dot rows.
3. Press MINUS (–) to decrease the value.
4. Press SELECT to accept any changes and deselect the parameter.
PRINT MODE Selecting Print Mode
Print mode settings tell the printer the method of media delivery that you
wish to use. Be sure to select a print mode that your hardware
configuration supports as some selections displayed are for optional
printer features.
Default: Tear-off
Selections: Tear-off, cutter, peel-off, rewind
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
MEDIA TYPE Setting Media Type
This parameter tells the printer the type of media you are using. Selecting
continuous media requires that you include a label length instruction in
your label format (^LLxxxx if you are using ZPL or ZPL II).
When non-continuous media is selected, the printer feeds media to
calculate label length (the distance between two detections of the
inter-label gap, webbing, or alignment notch or hole).
Default: Non-Continuous
Selections: Non-Continuous, Continuous
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 2 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 53
PRINT METHOD Selecting Print Method
The print method parameter tells the printer the method of printing you
wish to use: direct thermal (no ribbon) or thermal transfer (using thermal
transfer media and ribbon).
Selecting direct thermal when using thermal transfer media and ribbon
creates a warning condition, but printing continues.
Default: Thermal transfer
Selections: Thermal transfer, direct thermal
1. Press SELECT to select the parameter.
2. Press PLUS (+) for the next value.
3. Press MINUS (–) for the previous value.
4. Press SELECT to accept any changes and deselect the parameter.
PRINT WIDTH Setting Print Width
Print width determines the printable area across the width of the label.
Default, Range: The default and range of acceptable values may vary
depending on what printer you have. See Printing Specifications
on page 115 for further information about the ranges available for your
model.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. To change the unit of measurement, press MINUS (–) until the unit of
measurement is active, then press PLUS (+) to toggle to a different
unit of measure (inches, mm, or dots).
5. Press SELECT to accept any changes and deselect the parameter.
MAXIMUM LENGTH Setting Maximum Length
Always set the value to at least 1 in. (25.4 mm) longer than the longest
label to be used in the printer.
Default: 39 in. (991 mm) for non-continuous material
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value
3. Press MINUS (–) to decrease the value.
4. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 3 of 20)
Parameter/LCD Display Action/Explanation
54 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
LIST FONTS List Fonts
This selection is used to print a label that lists all of the fonts currently
available in the printer, including standard printer fonts plus any optional
fonts. Fonts may be stored in RAM, FLASH memory, font EPROMs, or
font cards.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to print a label listing all of the available fonts.
3. Press SELECT to deselect the parameter.
LIST BAR CODES List Bar Codes
This selection is used to print a label that lists all of the bar codes
currently available in the printer.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to print a label listing all of the available bar codes.
3. Press SELECT to deselect the parameter.
LIST IMAGES List Images
This selection is used to print a label that lists all of the images currently
stored in the printer’s RAM, FLASH memory, optional EPROM, or
optional memory card.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to print a label listing all of the available images.
3. Press SELECT to deselect the parameter.
LIST FORMATS List Formats
This selection is used to print a label that lists all of the formats currently
stored in the printer’s RAM, FLASH memory, optional EPROM, or
optional memory card.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to print a label listing all of the available formats.
3. Press SELECT to deselect the parameter.
LIST SETUP List Setup
This selection is used to print a label that lists the current printer
configuration information. (Same label as CANCEL Self Test
on page 101.)
1. Press SELECT to select the parameter.
2. Press PLUS (+) to print a label listing the current printer
configuration.
3. Press SELECT to deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 4 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 55
LIST ALL List All
This selection is used to print a label that lists the five previous selections,
as described.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to print a label listing all of the available fonts, bar
codes, images, formats, and the current printer configuration.
3. Press SELECT to deselect the parameter.
FORMAT CARD
A B Initialize Memory Card
Caution • Perform this operation only when it is necessary to erase all
previously stored information from the optional memory card. Press
PLUS (+) to bypass this function.
1. Press SELECT to select the parameter.
If your printer is set to require a password, you are prompted to enter
the password.
2. Enter the password, then press SELECT.
3. Press the PLUS (+) to select B memory (PCMCIA card) or press
MINUS (–) to select the A memory (internal compact flash).
The front panel LCD asks
ARE YOU SURE?
.
4. Press MINUS (–) to select
No
and cancel the request. The
INITIALIZE
CARD
prompt is displayed.
or
Press PLUS (+) to select
YES
and begin initialization.
FORMATTING CARD
displays. Depending on the amount of memory
in the memory card, initialization may take up to three minutes to
complete. When formatting is complete,
FORMAT CARD
displays.
5. Press SELECT to continue with the next prompt.
Table 7 • Printer Parameters and Other LCD Displays (Page 5 of 20)
Parameter/LCD Display Action/Explanation
56 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
INIT FLASH MEM Initialize Flash Memory
Caution • Perform this operation only when it is necessary to erase all
previously stored information from the FLASH memory. Press PLUS (+)
to bypass this function.
1. Press SELECT to select the parameter.
If your printer is set to require a password, you are prompted to enter
the password.
2. Enter the password, then press SELECT.
3. Press PLUS (+) to select YES.
The display asks
INITIALIZE FLASH?
.
4. Press PLUS (+) to select
YES
.
The front panel LCD asks
ARE YOU SURE?
.
5. Press MINUS (–) to select
NO
and cancel the request. The
INITIALIZE
FLASH
prompt is displayed.
or
Press PLUS (+) to select
YES
and begin initialization. Depending on
the amount of free FLASH memory, initialization may take up to one
minute to complete.
6. Press SETUP/EXIT followed by SELECT. If initialization is still in
process, the front panel display flashes back and forth between the
phrases
CHECKING E: MEMORY
and
PRINTER IDLE
.
When initialization is complete, the printer automatically exits the
configuration mode and the front panel displays
PRINTER READY
.
7. Press SELECT to continue with the next prompt.
Table 7 • Printer Parameters and Other LCD Displays (Page 6 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 57
SENSOR PROFILE Sensor Profile
The media sensor profile may be used to troubleshoot registration
problems that may be caused when the media sensor detects preprinted
areas on the media or experiences difficulty in determining web location.
If the sensitivity of the media and/or ribbon sensors MUST be adjusted,
use the manual calibration procedure.

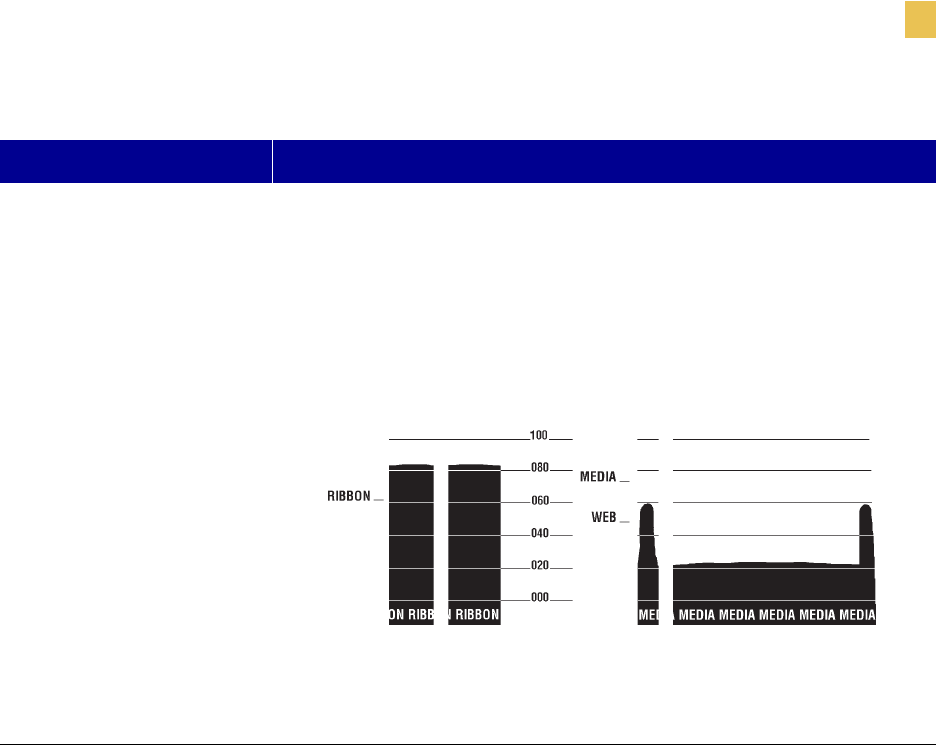

Figure 29 • Media Sensor Profile
1. Press SELECT to select the parameter.
2. Press PLUS (+) to print a media sensor profile.
3. Press SELECT to deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 7 of 20)
Parameter/LCD Display Action/Explanation
58 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
MEDIA AND RIBBON Media and Ribbon Sensor Calibration (Manual Calibration)
Performing the manual calibration procedure resets the sensitivity of the sensors to detect
the media and ribbon you are using more accurately. With the sensors at their new
sensitivity, the printer then performs the manual calibration. Changing the type of ribbon
and/or media may require resetting the sensitivity of the media and ribbon sensors.
1. Press SELECT to display
CALIBRATE
.
2. Press PLUS (+) to start the calibration procedure.
LOAD BACKiNG
is displayed.
3. Open the printhead.
4. Remove approximately 8 in. (200 mm) of labels from the media roll, enough so that
only the liner material is threaded between the media sensors when the media is loaded.
5. Press PLUS (+) to continue. To cancel the operation, press MINUS (–).
REMOVE RiBBON
is displayed.
6. Remove the ribbon (sliding it as far to the right as possible has the same effect as
removing it).
7. Close the printhead.
8. Press PLUS (+) to continue. To cancel the operation, press MINUS (–).
CALIBRATING PLEASE WAIT
is displayed.
The printer automatically adjusts the scale (gain) of the signals it receives from the
media and ribbon sensors based on the specific media and ribbon combination you are
using. On the sensor profile, this corresponds to moving the graph up or down to
optimize the readings for your application.
RELOAD ALL
is displayed.
9. Open the printhead and pull the media forward until a label is positioned under the
media sensor.
10. Move the ribbon back to its proper position.
11. Close the printhead.
MEDIA AND RIBBON
is displayed.
Now that the scale has changed, the printer performs another calibration. During this
process, the printer checks the readings for the media and ribbon based on the new scale
that you established, determines the label length, and determines whether you are in
Direct Thermal or Thermal Transfer Print Mode. The process is now complete. To see
the new readings, print a sensor profile. See Sensor Profile on page 57.
12. Press SELECT to deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 8 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 59
Setting Communication Parameters (next nine parameters)
Communication parameters must be set correctly for the printer to communicate with the host computer.
These parameters make sure that the printer and host computer are speaking the same language. All
communication parameters are password protected.
PARALLEL COMM Setting Parallel Communications
Note • Unidirectional will not support ZebraNet two-way
communications.
Default: Bidirectional
Selections: Bidirectional, Unidirectional
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
SERIAL COMM Setting Serial Communications
Select the communications port that matches the one being used by the
host computer.
Default: RS-232
Selections: RS-232, RS-422/485, RS-485 multidrop
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
BAUD Setting Baud
The baud setting of the printer must match the baud setting of the host
computer for accurate communications to take place. Select the value that
matches the one being used by the host computer.
Default: 9600
Selections: 110, 300, 600, 1200, 2400, 4800, 9600, 14400, 19200, 28800,
38400, 57600, 115200
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 9 of 20)
Parameter/LCD Display Action/Explanation
60 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
DATA BITS Setting Data Bits
The data bits of the printer must match the data bits of the host computer
for accurate communications to take place. Set the data bits to match the
setting being used by the host computer.
Note • Must be set to 8 data bits to use Code Page 850.
Default: 7-bits
Selections: 7-bits, 8-bits
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
PARITY Setting Parity
The parity of the printer must match the parity of the host computer for
accurate communications to take place. Select the parity that matches the
one being used by the host computer.
Default: None
Selections: None, even, odd
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
HOST HANDSHAKE Setting Host Handshake
The handshake protocol of the printer must match the handshake protocol
of the host computer for communications to take place. Select the
handshake protocol that matches the one being used by the host computer.
Default: XON/XOFF
Selections: XON/XOFF, DTR/DSR, RTS/CTS
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 10 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 61
PROTOCOL Setting Protocol
Protocol is a type of error checking system. Depending on the selection,
an indicator may be sent from the printer to the host computer signifying
that data has been received. Select the protocol that is requested by the
host computer. Further details on protocol can be found in the ZPL II
Programming Guide Volume I.
Default: None
Selections: None, Zebra, ACK_NACK
Zebra is the same as ACK_NACK except that with Zebra the response
messages are sequenced. If Zebra is selected, the printer must use
DTR/DSR host handshake protocol.
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
NETWORK ID Setting Network ID
Network ID is used to assign a unique number to a printer used in an
RS-422/RS-485 network. This gives the host computer the means to
address a specific printer. If the printer is used in a network, you must
select a network ID number. This does not affect TCP/IP or IPX
networks.
Default: 000
Range: 000 to 999
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 11 of 20)
Parameter/LCD Display Action/Explanation
62 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
COMMUNICATIONS Setting Communication Diagnostics Mode
The communication diagnostics mode is a troubleshooting tool for
checking the interconnection between the printer and the host computer.
When “diagnostics” is selected, all data sent from the host computer to
the printer is printed as straight ASCII hex characters. The printer prints
all characters received, including control codes, such as CR (carriage
return). A sample printout is shown in Figure 30.
Figure 30 • Communication Diagnostics Test Printout
Default: Normal mode
Selections: Normal mode, diagnostics
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
4. Turn the printer Off (O) to exit the communication diagnostics test
and return to Normal mode.
Notes on diagnostic printouts
• FE indicates a framing error
• OE indicates an overrun error
• PE indicates a parity error
• NE indicates noise
For any errors, check that your communication parameters are correct.
Set the print width equal to or less than the label width used for the test.
See Setting Print Width on page 53 for more information.
Table 7 • Printer Parameters and Other LCD Displays (Page 12 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 63
Selecting Prefix and Delimiter Characters (next three parameters)
Prefix and delimiter characters are 2-digit hex values used within the ZPL/ZPL II formats sent to the
printer. The printer uses the last prefix and delimiter characters sent to it, whether from a ZPL II
instruction or from the front panel.
Do not use the same hex value for the control, format, and delimiter characters. The printer must see
different characters to function properly.
CONTROL PREFIX Control Prefix Character
The printer looks for this 2-digit hex character to indicate the start of a
ZPL/ZPL II control instruction.
Default: 7E (tilde - displayed as a black square)
Range: 00 to FF
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
FORMAT PREFIX Format Prefix Character
The printer looks for this 2-digit hex character to indicate the start of a
ZPL/ZPL II format instruction.
Default: 5E (caret)
Range: 00 to FF
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
DELIMITER CHAR Delimiter Character
The delimiter character is a 2-digit hex value used as a parameter place
marker in ZPL/ZPL II format instructions. See the ZPL II Programming
Guide Volume I for more information.
Default: 2C (comma)
Range: 00 to FF
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 13 of 20)
Parameter/LCD Display Action/Explanation
64 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
ZPL MODE Selecting ZPL Mode
The printer remains in the selected mode until it is changed by this front
panel instruction or by using a ZPL/ZPL II command. The printer accepts
label formats written in either ZPL or ZPL II. This eliminates the need to
rewrite any ZPL formats you already have. See the ZPL II Programming
Guide Volume II for more information on the differences between ZPL
and ZPL II.
Default: ZPL II
Selections: ZPL II, ZPL
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
MEDIA POWER UP Media Power Up
Establishes the action of the media when the printer is turned on.
Default: Calibration
Selections:
•Calibration: Recalibrates the media and ribbon sensors.
•Length: Determines the length of the label.
•No Motion: Media does not move.
•Feed: Feeds the label to the first web.
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
HEAD CLOSE Head Close
Determines the action of the media after the printhead has been opened
and then closed.
Default: Calibration
Selections:
•Calibration: Recalibrates the media and ribbon sensors.
•Length: Determines the length of the label.
•No Motion: Media does not move.
•Feed: Feeds the label to the first web.
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 14 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 65
BACKFEED Backfeed Sequence
This parameter establishes when and how much label backfeed occurs
after a label is removed or cut in the peel-off or cutter modes. It has no
effect in rewind or tear-off modes. This parameter setting can be
superseded by the ~JS instruction when received as part of a label
format (see the ZPL II Programming Guide Volume I).
The difference between the value entered and 100% establishes how
much backfeed occurs before the next label is printed. For example, a
value of 40 means that 40% of the backfeed takes place after the label is
removed or cut. The remaining 60% takes place before the next label is
printed. A value of “before” means that all backfeed takes place before
the next label is printed.
Default: Default (90%)
Selections: Default, after, before, 10%, 20%, 30%, 40%, 50%, 60%,
70%, 80%, off
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
LABEL TOP Adjusting Label Top Position
The label top position adjusts the print position vertically on the label.
Positive numbers adjust the label top position further down the label
(away from the printhead); negative numbers adjust the position up the
label (toward the printhead).
Default: +0
Range: –120 to +120 dot rows
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value. The displayed value represents
dots.
3. Press MINUS (–) to decrease the value.
4. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 15 of 20)
Parameter/LCD Display Action/Explanation
66 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
LEFT POSITION Adjusting Left Position
This parameter establishes how far from the left edge of a label the format
begins to print by adjusting horizontal positioning on the label. Positive
numbers adjust the printing to the left by the number of dots selected;
negative numbers shift printing to the right.
Default: 0000
Range: –9999 to +9999
1. Press SELECT to select the parameter.
2. Press MINUS (–) to move to the next position.
3. Press PLUS (+) to change between +/– or to increase the value of the
digit. The displayed value represents dots. For a negative value, enter
the value before changing to the minus sign.
4. Press SELECT to accept any changes and deselect the parameter.
WEB S.
MEDIA S.
RIBBON S.
TAKE LABEL S.
MEDIA LED
RIBBON LED
These parameters are automatically set during the calibration procedure.
They should be changed only by a qualified service technician. See the
Maintenance Manual for more information on these parameters.
Press PLUS (+) repeatedly to skip these parameters.
LCD ADJUST LCD Display Adjustment
This parameter allows you to adjust the brightness of your display if your
display is difficult to read.
Range: 00 to 19
1. Press SELECT to select the parameter.
2. Press MINUS (–) to decrease the value (reduce brightness).
3. Press PLUS (+) to increase the value (increase brightness).
4. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 16 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 67
FORMAT CONVERT Format Convert
The Format Convert setting is used when upgrading from a printer of
lower resolution to a printer of higher resolution and the user does not
wish to modify their formats.
Example: If your original formats were written for a 150 dpi printer and
your new printer is 300 dpi, you would choose150-300.
Default: None
Selections: None, 150–300, 150–600, 200–600, 300–600
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
IDLE DISPLAY Idle Display
If a real-time clock (RTC) is installed, this parameter selects the LCD
options for the RTC.
Default: FW Version
Selections: FW Version, MM/DD/YY 24HR, MM/DD/YY 12HR,
DD/MM/YY 24HR, DD/MM/YY 12HR
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
RTC DATE RTC Date
If the RTC is installed, this parameter allows changing of the date.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
RTC TIME RTC Time
If the RTC is installed, this parameter allows changing of time.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 17 of 20)
Parameter/LCD Display Action/Explanation
68 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
IP RESOLUTION* IP Resolution
Depending on the selection, allows either the user (permanent) or the
server (dynamic) to select the IP address. For more information, see
ZebraNet Networking: PrintServer II Installation and Users Guide.
Default: Dynamic
Selections: Dynamic, permanent
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
IP PROTOCOLS* IP Protocols
If dynamic was chosen in the previous parameter, this selection
determines the method(s) by which the PrintServer II receives the IP
address from the server. For more information, see ZebraNet Networking:
PrintServer II Installation and Users Guide.
Default: All
Selections: All, gleaning only, RARP, BOOTP, DHCP, DHCP/BOOTP
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
IP ADDRESS* IP Address
This parameter allows you to select the IP address if permanent was
chosen in IP RESOLUTION. (If dynamic was chosen, the user cannot
select the address.) For more information, see ZebraNet Networking:
PrintServer II Installation and Users Guide.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
SUBNET MASK* Subnet Mask
This parameter selects the part of the IP address that is considered to be
part of the local network. It can be reached without going through the
default gateway.
Default: Permanent (user must set)
Selections: Dynamic (user may set, but server can assign), permanent
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 18 of 20)
Parameter/LCD Display Action/Explanation
Configuration
Configuration and Calibration LCD Displays
R4Mplus User Guide 69
DEFAULT GATEWAY* Default Gateway
This parameter allows you to select the IP address that the network traffic
is routed through if the destination address is not part of the local
network.
1. Press SELECT to select the parameter.
2. Press PLUS (+) to increase the value of the selected digit.
3. Press MINUS (–) to move to the next digit.
4. Press SELECT to accept any changes and deselect the parameter.
RFID TEST
QUICK SLOW RFID Test
In both versions of this test, the printer attempts to read and write to a
transponder. In the slow test, the printer also checks the reader version
number. If the printer fails the test, the front panel displays an error
message.
1. Place an RFID label over the reader (no movement occurs with the
test).
2. Press SELECT to select the parameter.
3. Press MINUS (–) to select
QUICK
.
OR
Press PLUS (+) to select
SLOW
.
4. If necessary, press PLUS (+) to select
CONTINUE
.
5. Press SELECT to deselect the parameter.
RFID ERR STATUS RFID Error Status
If an error condition exists, a message may be displayed here.
PASSWORD LEVEL* Password Level
This parameter allows you to select whether certain Zebra-selected menu
items (selected items) or all menu items (all items) are password
protected.
Default: Selected items
Selections: Selected items, all items
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
Table 7 • Printer Parameters and Other LCD Displays (Page 19 of 20)
Parameter/LCD Display Action/Explanation
70 R4Mplus User Guide
Configuration
Configuration and Calibration LCD Displays
LANGUAGE Selecting the Display Language
This parameter allows you to change the language used on the front panel
display.
Default: English
Selections: English, Spanish, French, German, Italian, Norwegian,
Portuguese, Swedish, Danish, Spanish 2, Dutch, Finnish, Japanese
1. Press SELECT to select the parameter.
2. Press PLUS (+) or MINUS (–) to display other choices.
3. Press SELECT to accept any changes and deselect the parameter.
* ZebraNet PrintServer II External or Internal option required
Table 7 • Printer Parameters and Other LCD Displays (Page 20 of 20)
Parameter/LCD Display Action/Explanation
