Zida Technologies MB-P845GL Motherboard User Manual 845 SERIES MANUAL V2 0 ENGLISH

Zida Technologies Ltd. Motherboard 845 SERIES MANUAL V2 0 ENGLISH

manual 3 of 9

chapter 2:Product IntroductionP845GL mainboard* Support Intel 478pin Pentium4 FC-PGA2 (Willamette/Northwood)* Support 400MHz Bus* Intel 845GL + ICH4 Chipset* Two DIMM slots support up to 2G Memory Capacity* Support PC1600 and PC2100 DDR DIMM(DDR200/DDR266)* Jumperless for CPU Frequency setting* 3x PCI slots* 6x USB2.0 ports (4xUSB2.0 in the Front panel,2xUSB2.0 in the rearpanel) , 1x IrDA port header* 1 x FDD port, 1 x Parallel port with ESD/EMI protection, 2 x COM ports* Dual IDE Channels support Four Ultra-DMA33/66/100 IDE Devices* WAKEUP-LINK Header to Support Wake-On-LAN* Integrated 2D&3D Graphic Accelerate Port* Integrated AC97 Audio Onboard(Select 2ch,4ch,5.1ch)(optional)* AC97 2.1(or AC97 2.2) Compliant Codec with 3D Stereo Enhancement* 1 xSpeaker(Front speaker), 1 x Mic-in(Center and Sub-woofer), 1 x Line-in(Rear-speaker)* 1 x CD-in, 1 x Game Port* 1xstandard Audio Front Panel Header* Overcurrent protection over Keyboard & Mouse* Coloured Connectors : FDD, IDE, COMs etc.* Phoenix BIOS PC99/ACPI/DMI Compliant* ATX Power Supply Interface* Micro ATX form factor 245mm x 190mmpage 10Mainboard Manual

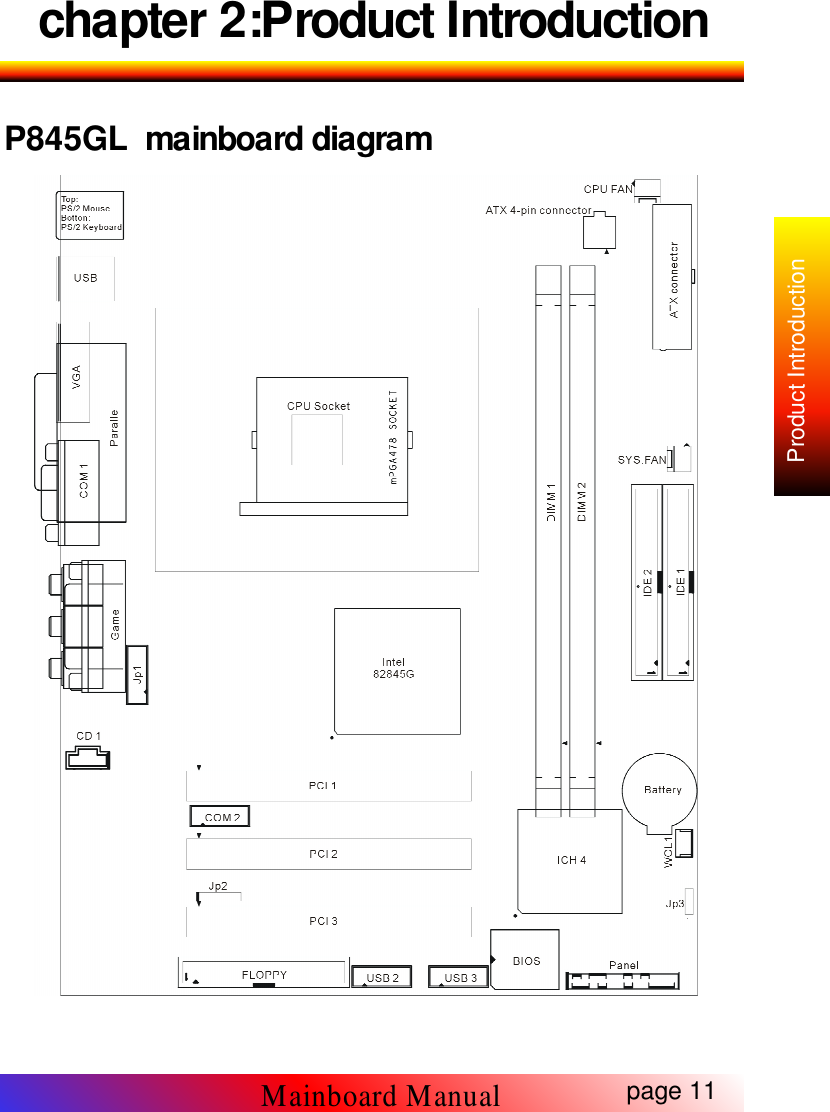

chapter 2:Product IntroductionP845GL mainboard diagrampage 11Mainboard ManualProduct Introduction
chapter 2:Product IntroductionP845GLP mainboard* Support Intel 478pin Pentium4 FC-PGA2 (Willamette/Northwood)* Support 400MHz Bus* Intel 845GL + ICH4 Chipset* Two DIMM slots support up to 2G Memory Capacity* Support PC1600 and PC2100 DDR DIMM(DDR200/DDR266)* Jumperless for CPU Frequency setting* 3x PCI slots* 6x USB2.0 ports (4xUSB2.0 in the Front panel,2xUSB2.0 in the rearpanel) , 1x IrDA port header* 1 x FDD port, 1 x Parallel port with ESD/EMI protection, 2 x COM ports* Dual IDE Channels support Four Ultra-DMA33/66/100 IDE Devices* WAKEUP-LINK Header to Support Wake-On-LAN* Integrated 2D&3D Graphic Accelerate Port* Integrated AC97 Audio Onboard(Select 2ch,4ch,5.1ch)(optional)* AC97 2.1(or AC97 2.2) Compliant Codec with 3D Stereo Enhancement* 1 xSpeaker(Front speaker), 1 x Mic-in(Center and Sub-woofer), 1 x Line-in(Rear-speaker)* 1 x CD-in, 1 x Game Port* 1xstandard Audio Front Panel Header* Overcurrent protection over Keyboard & Mouse* Coloured Connectors : FDD, IDE, COMs etc.* Phoenix BIOS PC99/ACPI/DMI Compliant* ATX Power Supply Interface* DIP mPGA 478 CPU Socket* Micro ATX form factor 245mm x 190mmpage 12Mainboard Manual

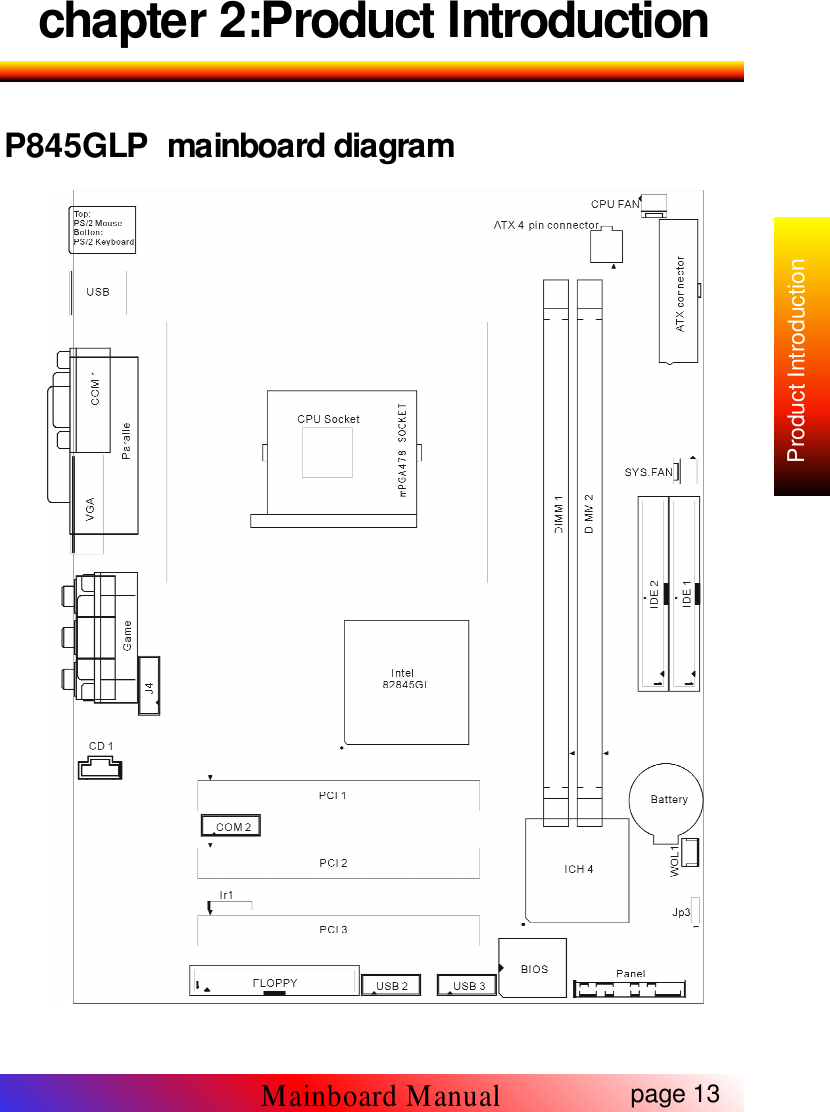

chapter 2:Product IntroductionP845GLP mainboard diagrampage 13Mainboard ManualProduct Introduction
chapter 2:Product Introduction2.1 Connection ConfigurationPS/2 Keyboard and Mouse connectorThe Connector for the PS/2 Mouse & PS/2 KeyboardUSB Bus ConnectorA845E,P845GL,P845GS mainboard provide usb connector,support pnpfunction accord with spec of 2.0. Its data transmission rate support up to480Mb/s.A845DD,A845SD,P845SD mainboard provide usb connector,supportpnp function accord with spec of 1.1. Its data transmission rate support upto 12Mb/s.COM 1& COM 2 ConnectorThe COM Connector for the COM Devices.Caution : COM2 in P845GL and P845GLP is a 9pin header.page 14Mainboard Manual

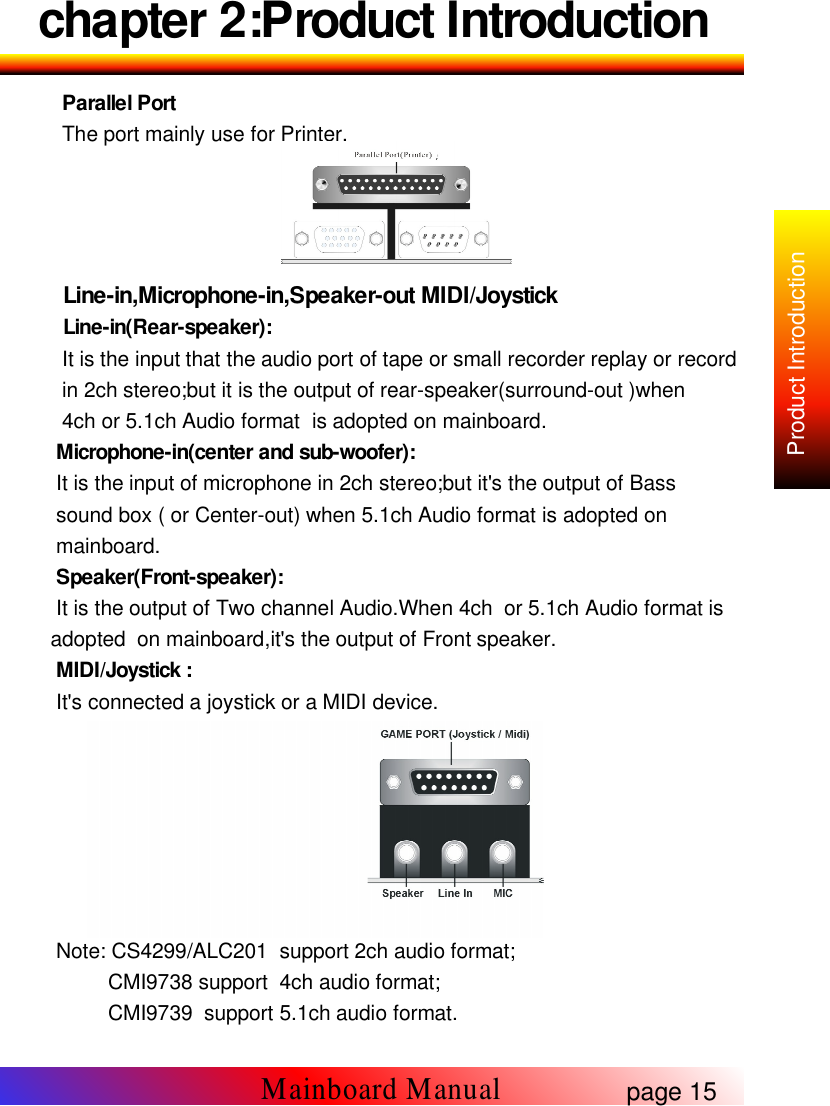

chapter 2:Product IntroductionParallel PortThe port mainly use for Printer.Line-in,Microphone-in,Speaker-out MIDI/JoystickLine-in(Rear-speaker):It is the input that the audio port of tape or small recorder replay or recordin 2ch stereo;but it is the output of rear-speaker(surround-out )when4ch or 5.1ch Audio format is adopted on mainboard.Microphone-in(center and sub-woofer):It is the input of microphone in 2ch stereo;but it's the output of Basssound box ( or Center-out) when 5.1ch Audio format is adopted onmainboard.Speaker(Front-speaker):It is the output of Two channel Audio.When 4ch or 5.1ch Audio format isadopted on mainboard,it's the output of Front speaker.MIDI/Joystick :It's connected a joystick or a MIDI device.Note: CS4299/ALC201 support 2ch audio format;CMI9738 support 4ch audio format;CMI9739 support 5.1ch audio format.page 15Mainboard ManualProduct Introduction

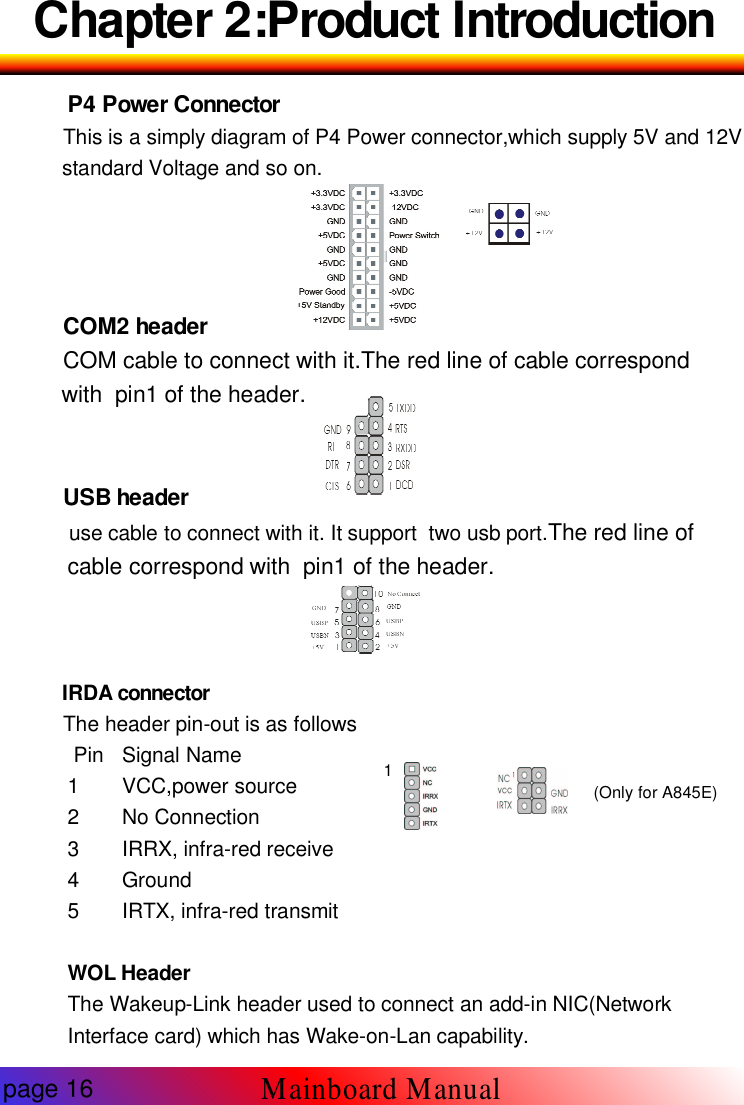

Chapter 2:Product IntroductionP4 Power ConnectorThis is a simply diagram of P4 Power connector,which supply 5V and 12Vstandard Voltage and so on.COM2 headerCOM cable to connect with it.The red line of cable correspondwith pin1 of the header.USB headeruse cable to connect with it. It support two usb port.The red line ofcable correspond with pin1 of the header.IRDA connectorThe header pin-out is as followsPin Signal Name1 VCC,power source2 No Connection3 IRRX, infra-red receive4 Ground5 IRTX, infra-red transmitWOL HeaderThe Wakeup-Link header used to connect an add-in NIC(NetworkInterface card) which has Wake-on-Lan capability.page 16Mainboard Manual1(Only for A845E)
