chapter 2:Product Introduction
P845GL mainboard
* Support Intel 478pin Pentium4 FC-PGA2 (Willamette/Northwood)
* Support 400MHz Bus
* Intel 845GL + ICH4 Chipset
* Two DIMM slots support up to 2G Memory Capacity
* Support PC1600 and PC2100 DDR DIMM(DDR200/DDR266)
* Jumperless for CPU Frequency setting
* 3x PCI slots
* 6x USB2.0 ports (4xUSB2.0 in the Front panel,2xUSB2.0 in the rear
panel) , 1x IrDA port header
* 1 x FDD port, 1 x Parallel port with ESD/EMI protection, 2 x COM ports
* Dual IDE Channels support Four Ultra-DMA33/66/100 IDE Devices
* WAKEUP-LINK Header to Support Wake-On-LAN
* Integrated 2D&3D Graphic Accelerate Port
* Integrated AC97 Audio Onboard(Select 2ch,4ch,5.1ch)(optional)
* AC97 2.1(or AC97 2.2) Compliant Codec with 3D Stereo Enhancement
* 1 xSpeaker(Front speaker), 1 x Mic-in(Center and Sub-woofer), 1 x Line-
in(Rear-speaker)
* 1 x CD-in, 1 x Game Port
* 1xstandard Audio Front Panel Header
* Overcurrent protection over Keyboard & Mouse
* Coloured Connectors : FDD, IDE, COMs etc.
* Phoenix BIOS PC99/ACPI/DMI Compliant
* ATX Power Supply Interface
* Micro ATX form factor 245mm x 190mm
page 10
Mainboard Manual
chapter 2:Product Introduction

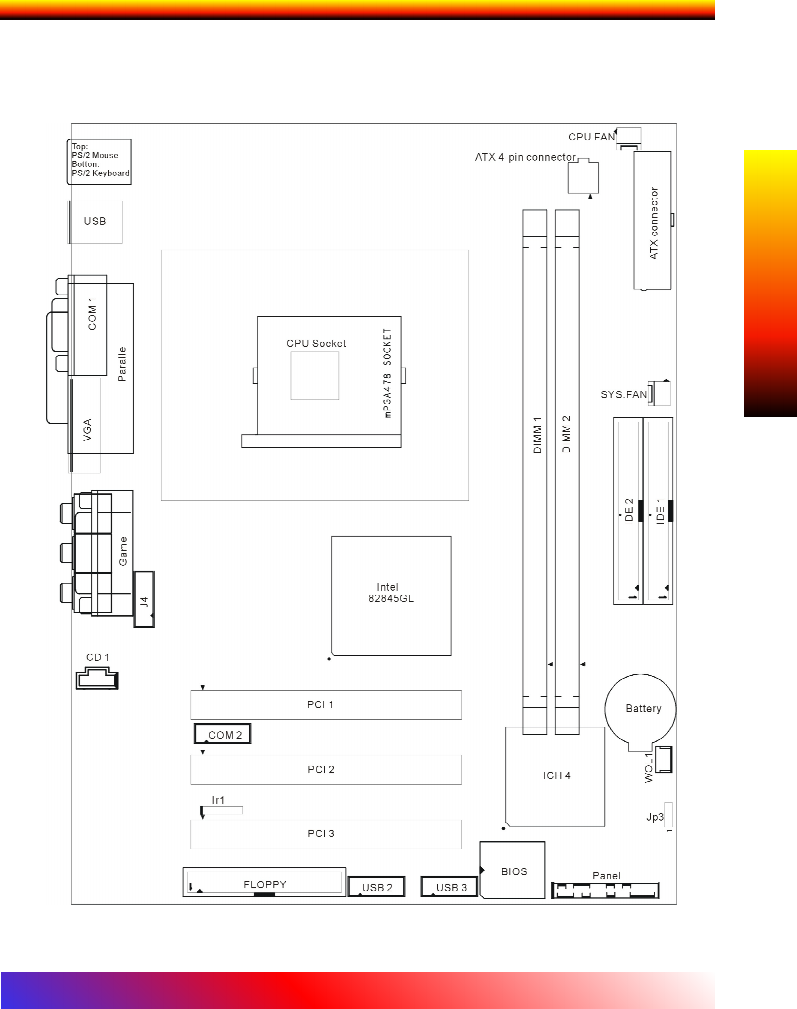

P845GL mainboard diagram
page 11
Mainboard Manual
Product Introduction
chapter 2:Product Introduction
P845GLP mainboard
* Support Intel 478pin Pentium4 FC-PGA2 (Willamette/Northwood)
* Support 400MHz Bus
* Intel 845GL + ICH4 Chipset
* Two DIMM slots support up to 2G Memory Capacity
* Support PC1600 and PC2100 DDR DIMM(DDR200/DDR266)
* Jumperless for CPU Frequency setting
* 3x PCI slots
* 6x USB2.0 ports (4xUSB2.0 in the Front panel,2xUSB2.0 in the rear
panel) , 1x IrDA port header
* 1 x FDD port, 1 x Parallel port with ESD/EMI protection, 2 x COM ports
* Dual IDE Channels support Four Ultra-DMA33/66/100 IDE Devices
* WAKEUP-LINK Header to Support Wake-On-LAN
* Integrated 2D&3D Graphic Accelerate Port
* Integrated AC97 Audio Onboard(Select 2ch,4ch,5.1ch)(optional)
* AC97 2.1(or AC97 2.2) Compliant Codec with 3D Stereo Enhancement
* 1 xSpeaker(Front speaker), 1 x Mic-in(Center and Sub-woofer), 1 x Line-
in(Rear-speaker)
* 1 x CD-in, 1 x Game Port
* 1xstandard Audio Front Panel Header
* Overcurrent protection over Keyboard & Mouse
* Coloured Connectors : FDD, IDE, COMs etc.
* Phoenix BIOS PC99/ACPI/DMI Compliant
* ATX Power Supply Interface
* DIP mPGA 478 CPU Socket
* Micro ATX form factor 245mm x 190mm
page 12
Mainboard Manual
chapter 2:Product Introduction

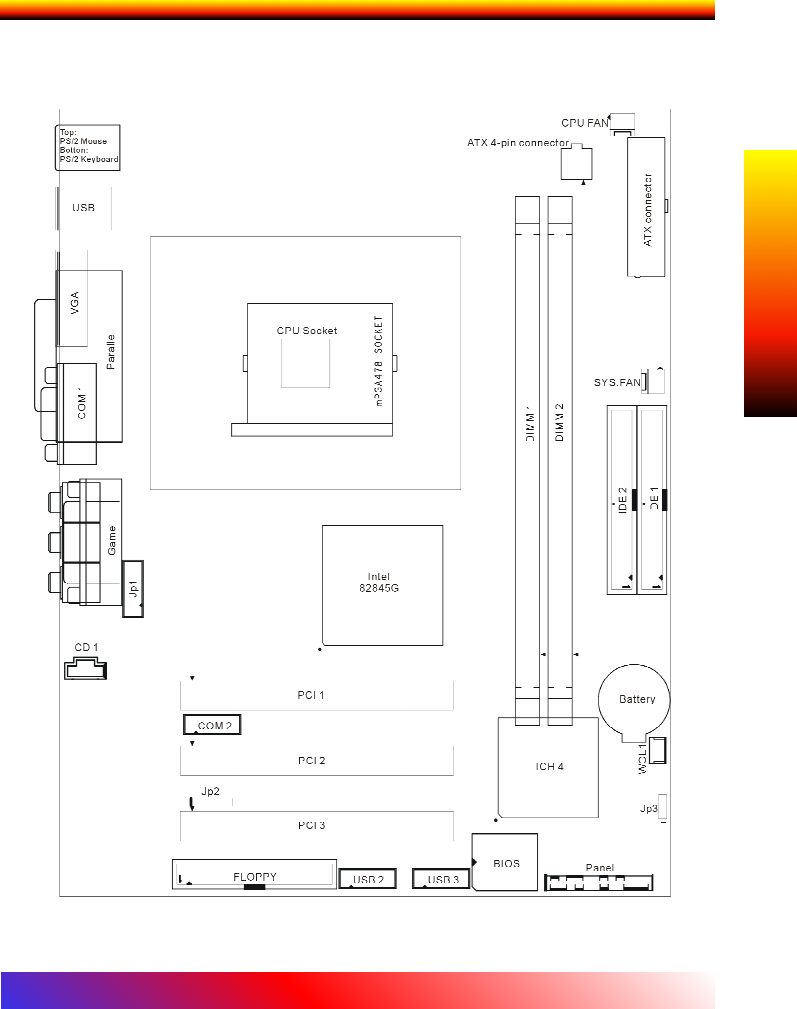

P845GLP mainboard diagram
page 13
Mainboard Manual
Product Introduction
chapter 2:Product Introduction
2.1 Connection Configuration
PS/2 Keyboard and Mouse connector
The Connector for the PS/2 Mouse & PS/2 Keyboard
USB Bus Connector
A845E,P845GL,P845GS mainboard provide usb connector,support pnp
function accord with spec of 2.0. Its data transmission rate support up to
480Mb/s.
A845DD,A845SD,P845SD mainboard provide usb connector,support
pnp function accord with spec of 1.1. Its data transmission rate support up
to 12Mb/s.
COM 1& COM 2 Connector
The COM Connector for the COM Devices.
Caution : COM2 in P845GL and P845GLP is a 9pin header.
page 14
Mainboard Manual
chapter 2:Product Introduction

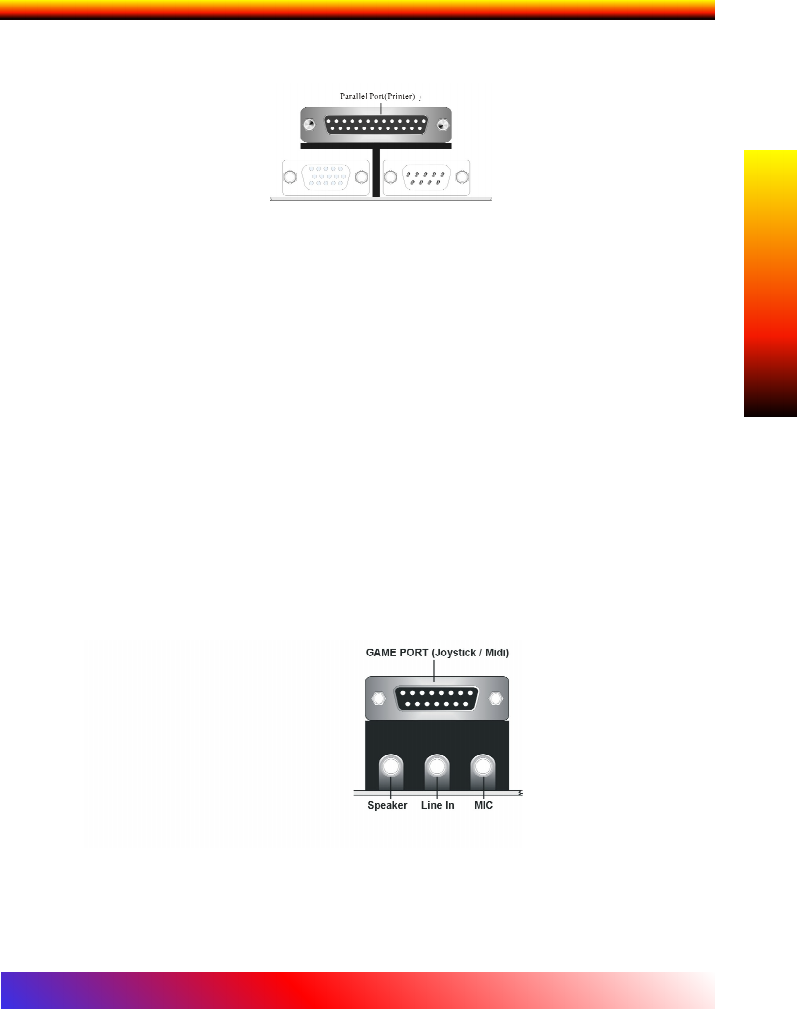

Parallel Port
The port mainly use for Printer.
Line-in,Microphone-in,Speaker-out MIDI/Joystick
Line-in(Rear-speaker):
It is the input that the audio port of tape or small recorder replay or record
in 2ch stereo;but it is the output of rear-speaker(surround-out )when
4ch or 5.1ch Audio format is adopted on mainboard.
Microphone-in(center and sub-woofer):
It is the input of microphone in 2ch stereo;but it's the output of Bass
sound box ( or Center-out) when 5.1ch Audio format is adopted on
mainboard.
Speaker(Front-speaker):
It is the output of Two channel Audio.When 4ch or 5.1ch Audio format is
adopted on mainboard,it's the output of Front speaker.
MIDI/Joystick :
It's connected a joystick or a MIDI device.
Note: CS4299/ALC201 support 2ch audio format;
CMI9738 support 4ch audio format;
CMI9739 support 5.1ch audio format.
page 15
Mainboard Manual
Product Introduction
Chapter 2:Product Introduction

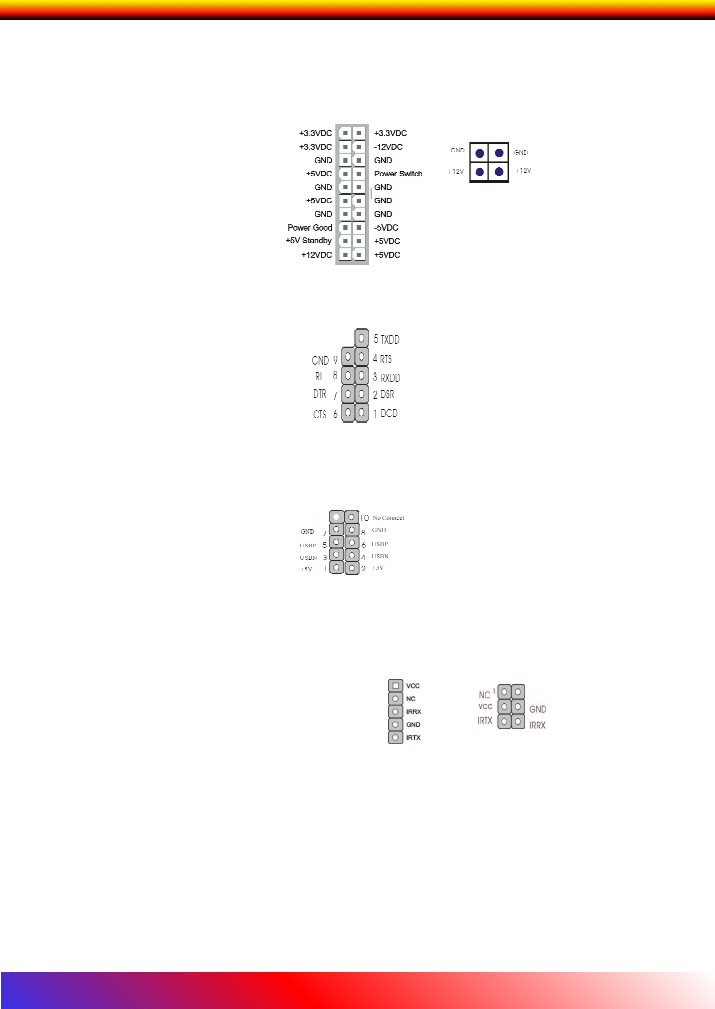

P4 Power Connector
This is a simply diagram of P4 Power connector,which supply 5V and 12V
standard Voltage and so on.
COM2 header
COM cable to connect with it.The red line of cable correspond
with pin1 of the header.
USB header
use cable to connect with it. It support two usb port.The red line of
cable correspond with pin1 of the header.
IRDA connector
The header pin-out is as follows
Pin Signal Name
1 VCC,power source
2 No Connection
3 IRRX, infra-red receive
4 Ground
5 IRTX, infra-red transmit
WOL Header
The Wakeup-Link header used to connect an add-in NIC(Network
Interface card) which has Wake-on-Lan capability.
page 16
Mainboard Manual
1
(Only for A845E)
