Contents
manual 4 of 9
chapter 2:Production Introduction

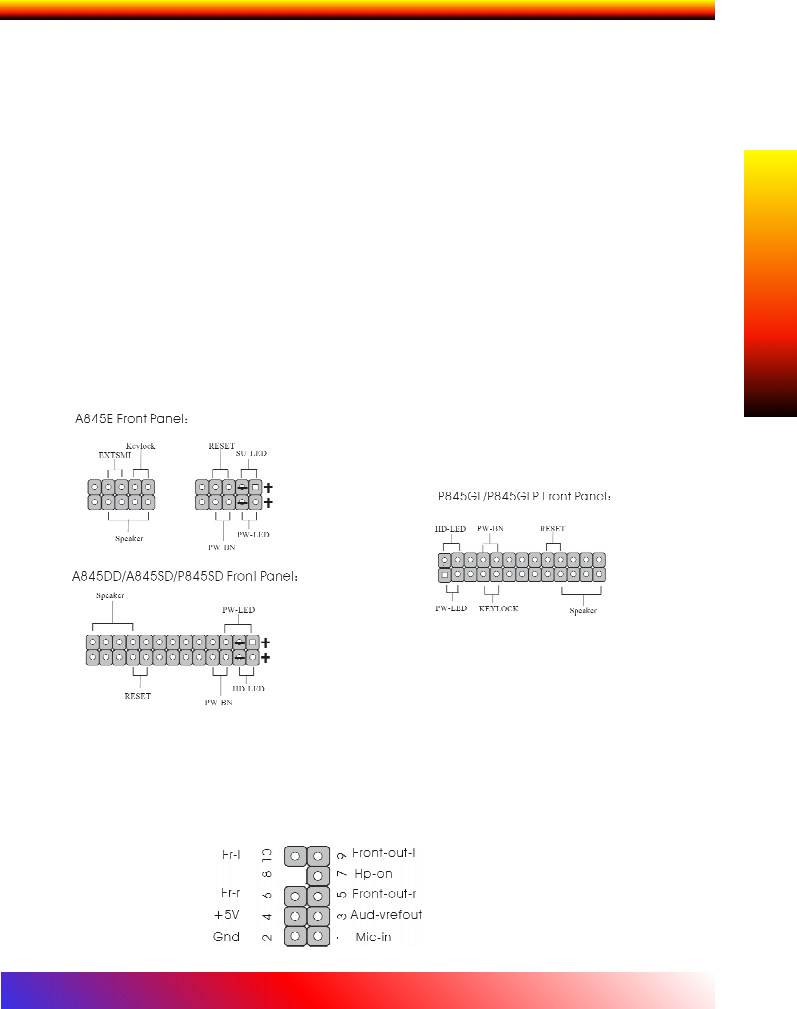

Front Panel Function Header
The mainboard PANEL header has a standard set of switch and indicator
connectors that are commonly found on ATX system cases.Use the
illustration below to make the correct connections to the case switches
and indicators.Front Panel Function Header include connections the
following features:
Function Connector Pin-Out Label
System Reset RESET
Power LED PW-LED
Hard Drive Activity LED HD-LED
Soft-Touch Button Power On/Off PW-BN
External Speaker Speaker
Audio Front Panel Header
It provides the earphone output and microphone input in the Front
panel of computer box.
page 17
Mainboard Manual
Product Introduction
chapter 2:Product Introduction
The header pin-out is as follows
Pin Signal Name
1 mic-in
2 Gnd
3 Audio Vref-out
4 +5V
5 right channel output
6 right channel return
7 Hp-on
9 left channel output
10 left channel return

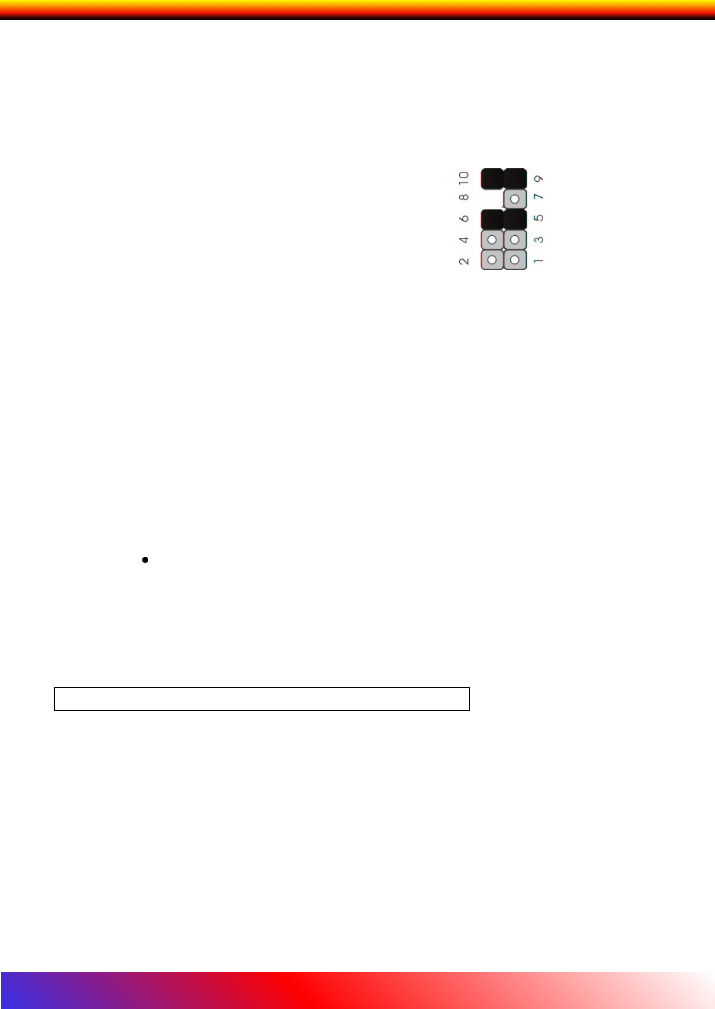

Please add two jumper in 5-6 & 9-10 according to the picture when you
don't need install Front Audio panel.
CPU&System FAN
Mainboard supply three FAN header with measure FAN speed function,
which can be watched in BIOS.
Caution Assure CPU FAN run in work state,or CPU will damage for
overheat.
CNR(Communication Audio Modem Riser)
Support the CNR card with Audio/Modem/Lan function.
Only for A845E / A845DD / A845SD / P845SD
CD Audio connector
It's connected to CD-ROM by a CD cable.
AUX-IN Audio header
It receive audio output from CD-ROM,TV or MPEG card.
page 18
Mainboard Manual
chapter 3:Setup Quickly
Before you use this M/B,Please check chapter follow as below!

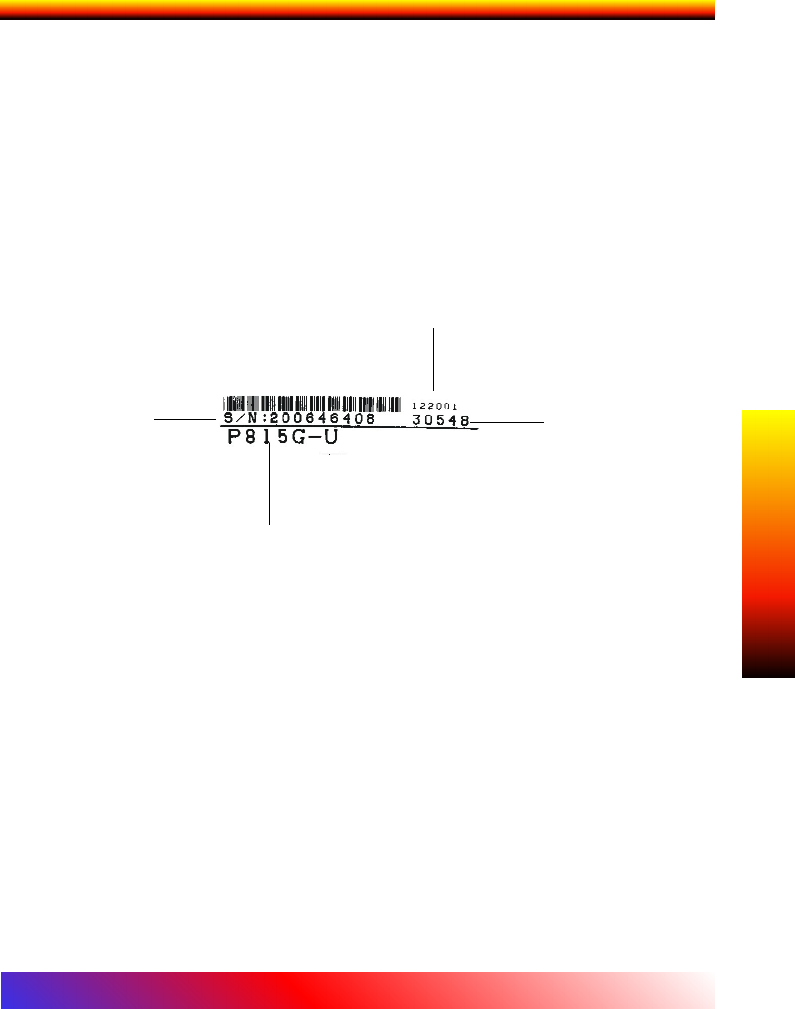

3.1 How to identify then product's mode?
There is a bar-code that had adhibited on our product's box
and mainboard.The bar-code follow as below(include serial
number, production date ,classific -code,product's name and
model).
page 19
Mainboard Manual
Setup Quickly
Production date
Classific code
Serial number
Mainboard name/model
P815G-U
chapter 3:Setup Quickly
3.2 Set the jumper

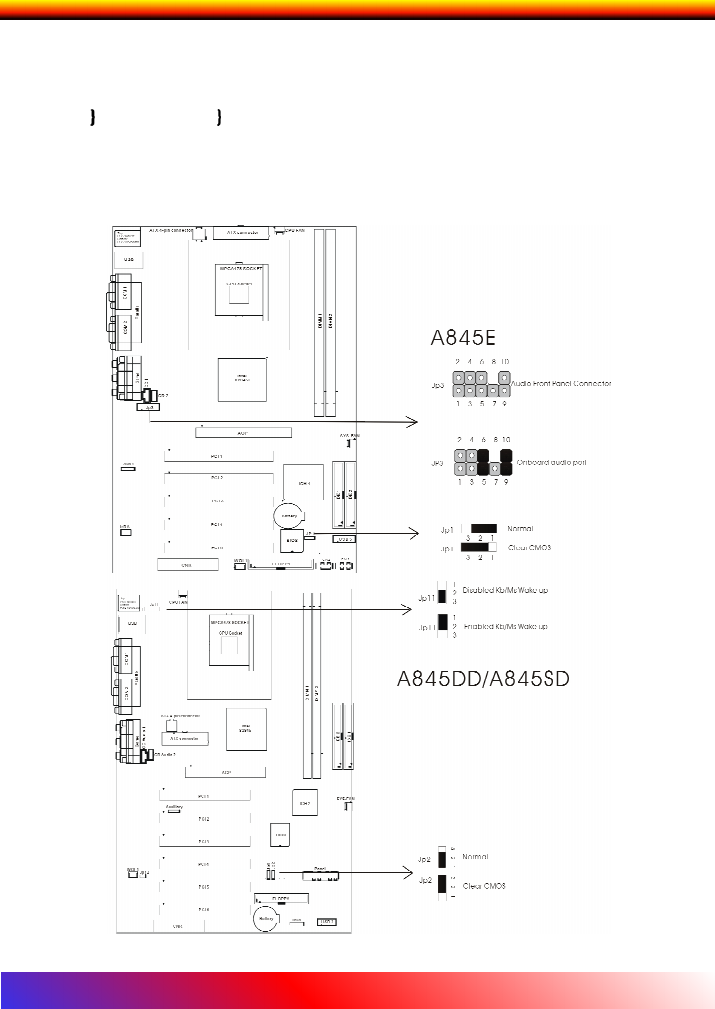

A845E A845DD A845SD jumper setting
Notice:You must turn off the power of computer before you set the
jumper or install hardware.
page 20
Mainboard Manual
chapter 3:Setup Quickly
P845SD P845GL P845GLP jumper setting
page 21
Mainboard Manual
Setup Quickly
chapter 3:Setup Quickly

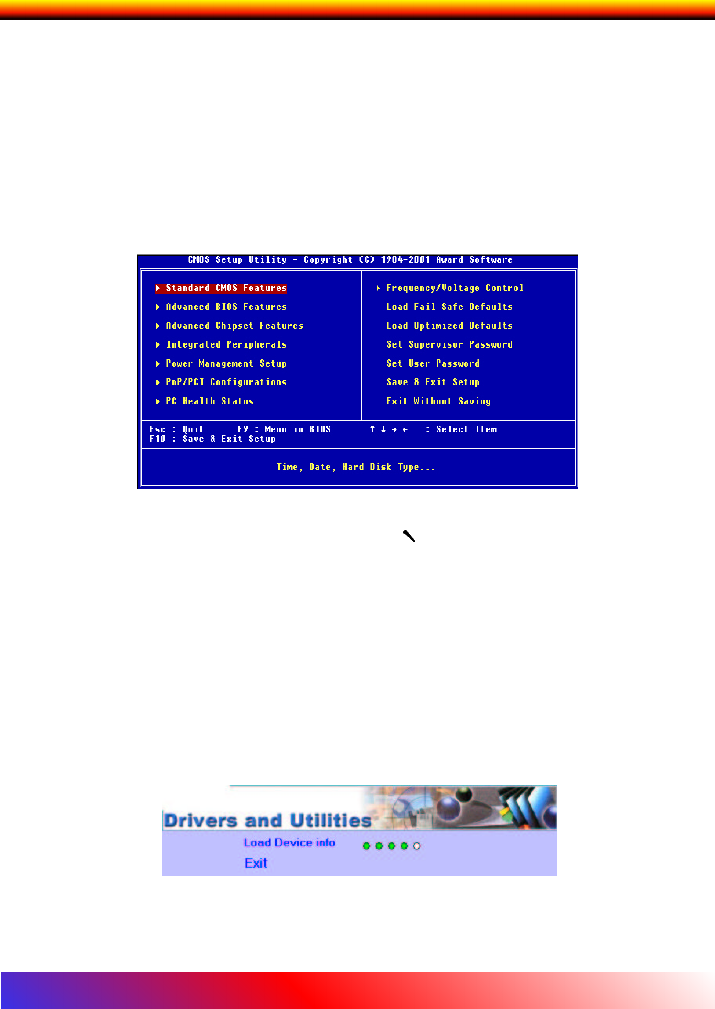

3.3 How to setup BIOS quickly?
1.Press "DEL" key inter BIOS setup when boot-strart.
2.Select "Load Optimized Defaults", press "Y",then "enter".
3.Enter "Advanced BIOS Feature""First Boot Device" to setup
start-up order.
4.Enter "Save&Exit Setup",select "Y",then reboot.
3.4 How to install mainboard driver
Our driver CD supports Windows 98/98SE/ME/NT4.0/2000/XP OS.It's
support Autosetup and Manualsetup model.
A:Place the driver CD in your CD-ROM when you have installed the OS.
And the CD will load device information ,the opening screen of CD
appears.
page 22
Mainboard Manual
chapter 3:Setup Quickly

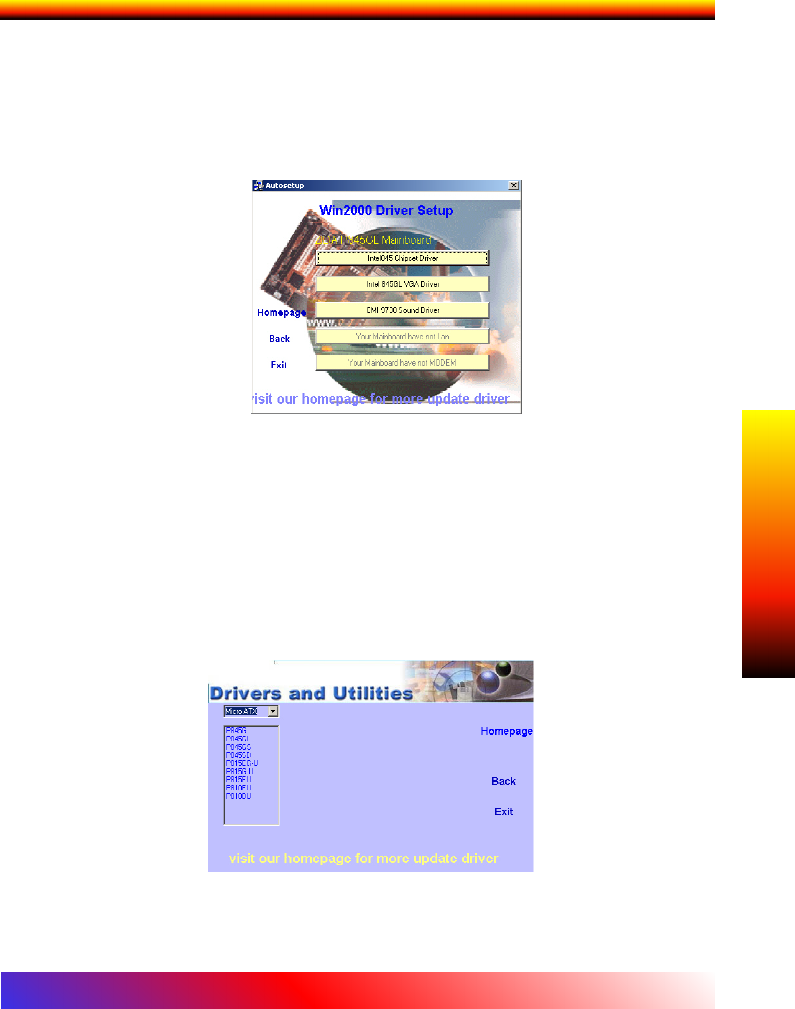

After a while,appear following menu.(Accord different mainboard the
menu is different) etc:M/B:P845GL, with onboard sound(CMI9738,Four
channel Audio).
Click highlight item and complete the driver install with the prompt
Notice:If window appear introduction"You need not install this drive in
Winxx" that means the OS has included the device driver and you don't
need to install it.
B: When your need to Manualsetup, please follow the list:
First :You need to select the type of M/B which your purchased .We
provide 3 types in our CD : ATX ,MICRO-ATX ,BABY-AT
page 23
