chapter 5:Hardware Installation

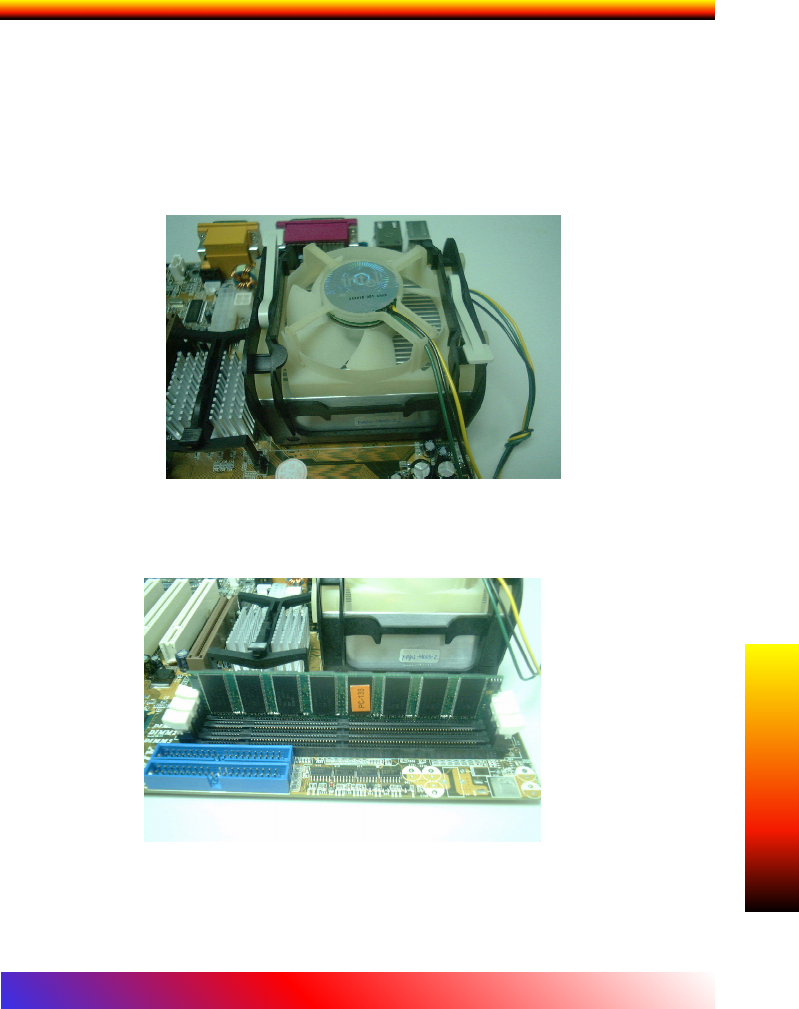

3.Installing the CPU Fan

The CPU should have a fan attached to prevent overheating. If a fan is not

resent, user should purchase a fan prior to turning on the system. The

recommended heatsink for the Socket 370 processor are those with three-pin

fans that can be connected to the fan connectors on the mainboard. It provides

the +12 Volts DC for your CPU cooling fan.

4.Installing the Memory

Memory is installed in DIMM Sockets as follows :

After you have set the DIMM firmly into its socket, snap the white clip holders up

to lock in the DIMM.
