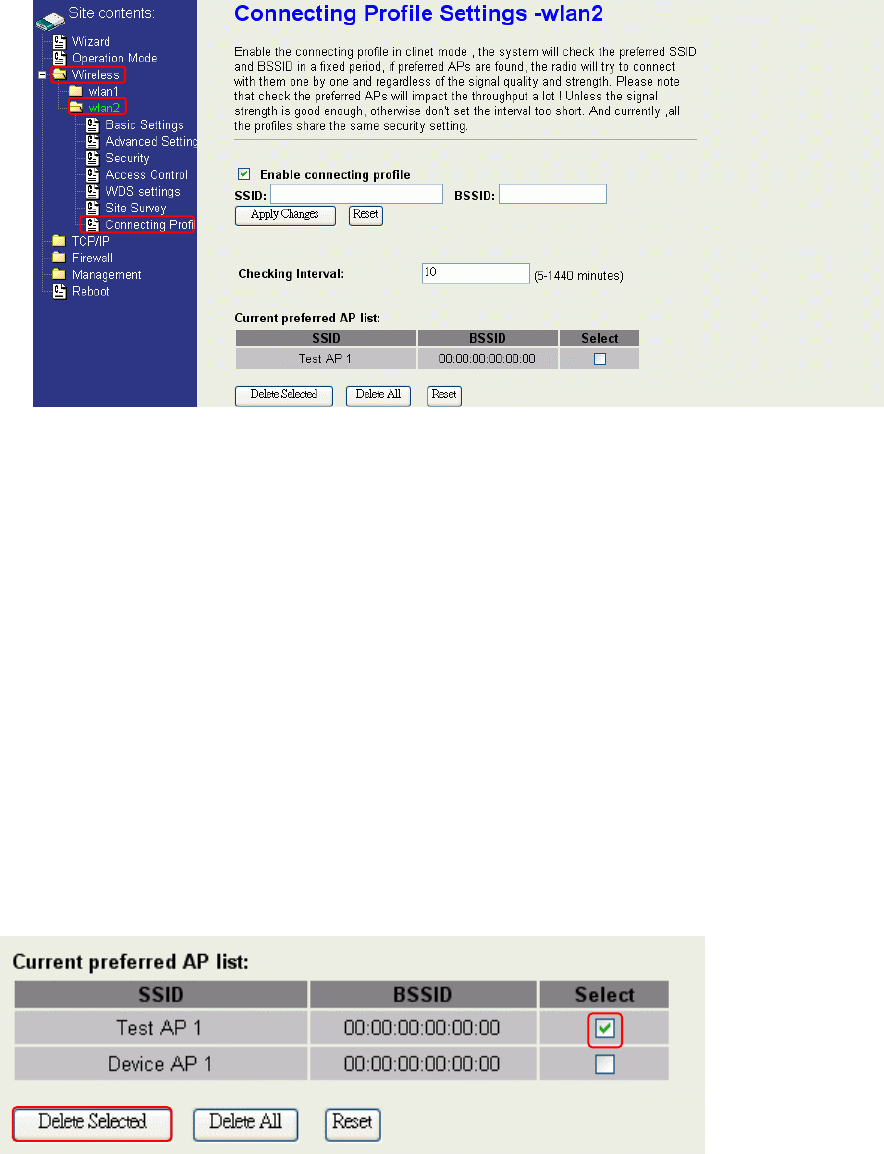

Connecting Profile
To enable this function, this device must be in the client mode. User clicks to enable
this function and input the SSID of preferred AP and then click “Apply Changes”. The
BSSID field is an option in case of two preferred APs having the same SSID. In this
case, this device will check both SSID and BSSID and connect to the matching AP. We
can leave it empty in the normal case.
After enabling the connecting profile, the system will check the preferred SSID in a
fixed period. If preferred APs are found, the radio will try to connect with them one by
one from top to down of the list and regardless of the signal quality and strength. The
users can put their most favorite AP on the top so it will be connected first. Please note
that check the preferred APs will impact the throughput a lot! Unless the signal strength
is good enough, otherwise don't set the interval too short. The default value is 10
minutes. And currently, all the profiles share the same security setting.
To delete one SSID in the list, users click the square to select it and click “Delete
Selected” and then click “OK” in the pop-up window to confirm it. The user can delete
the whole list once for all! Just click “Delete All” and then click “OK” in the pop-up
window to confirm it.
45
To simply disable this function, the user just clicks to disable “Enable connecting
profile”. The preferred AP list will be preserved for the next use.
MAC Clone for Single Ethernet Client

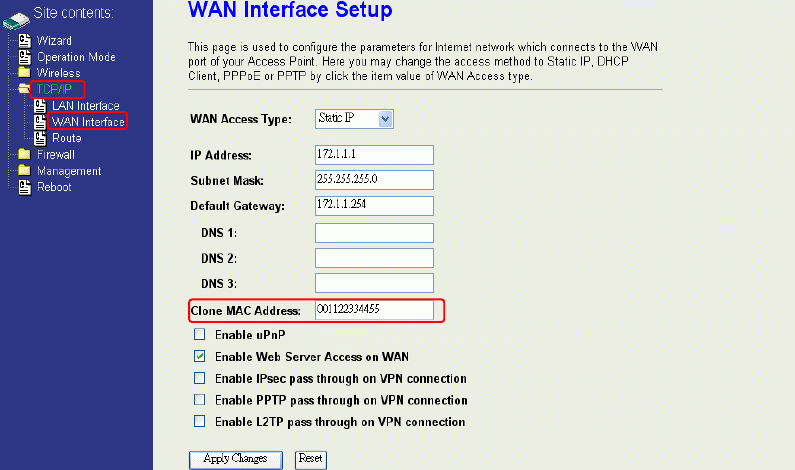

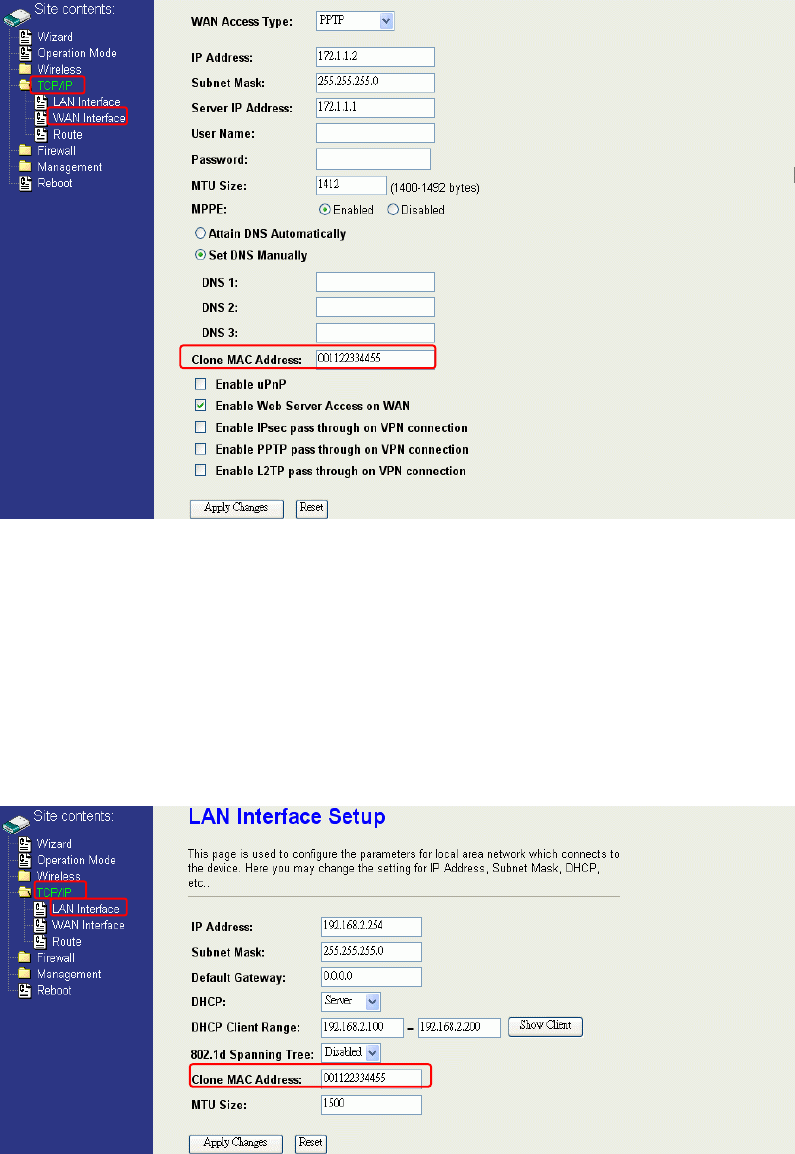

Enable/Disable Mac Clone (Single Ethernet Client) in Wireless-Basic Settings page
determines whether the Ethernet Client use it’s own MAC address or AP-Client’s MAC
address to transmit data. Enable MAC Clone, the single Ethernet client can use its own
MAC address. Disable MAC Clone, the single Ethernet client must to use AP-Client’s
MAC address.
While you use this device act as AP-Client and only one host connect to this device via
Ethernet, you need to check this option in this page, otherwise the other device can’t
recognize your host behind AP-Client. If you use hub/switch connect multi-device to this
AP-Client, you should uncheck this option.
Configuring as WLAN Client Adapter
This device can be configured as a wireless Ethernet adapter. In this mode, the device
can connect to the other wireless stations (Ad-Hoc network type) or Access Point
(Infrastructure network type) and you don’t need to install any driver.
Quick start to configure

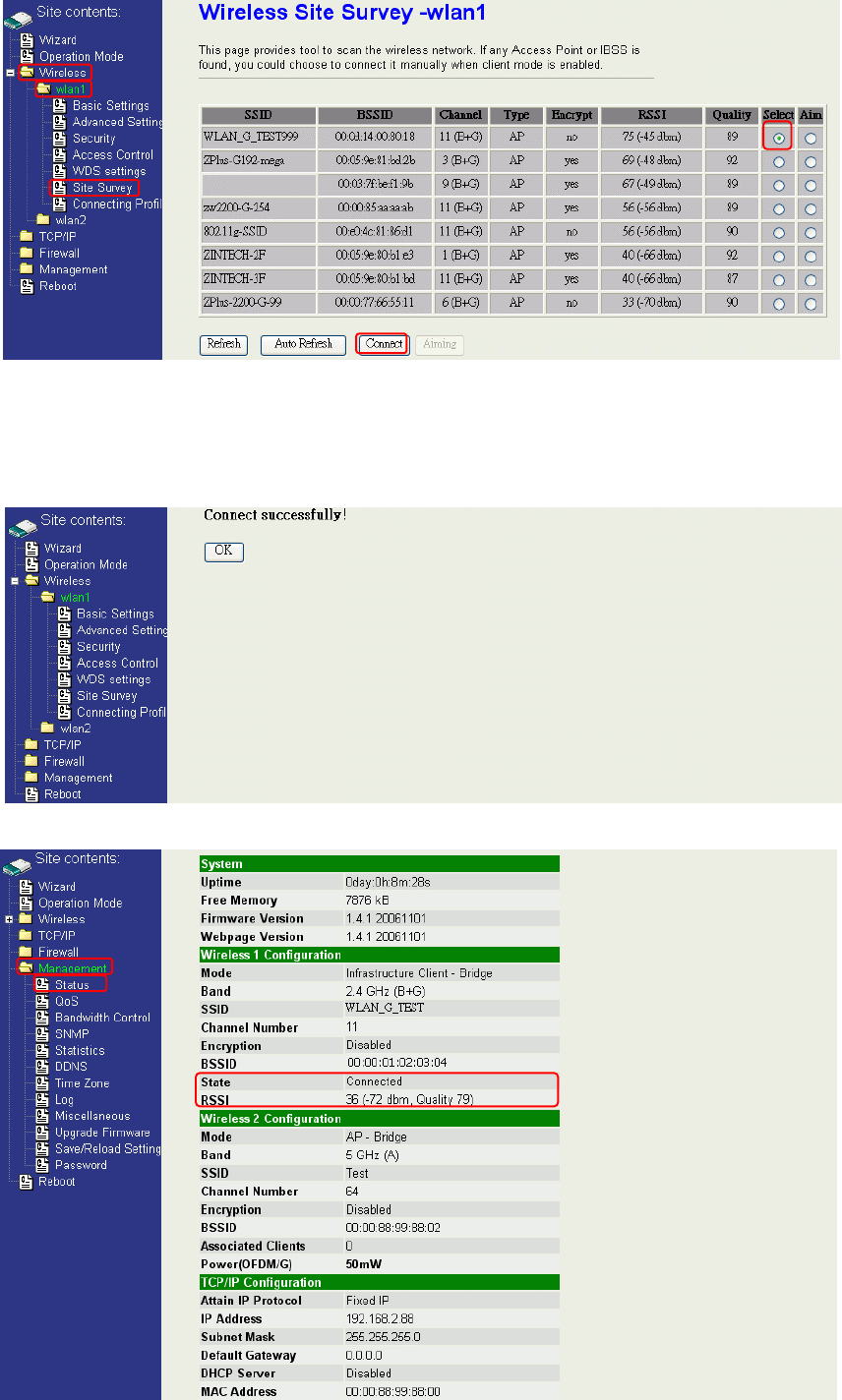

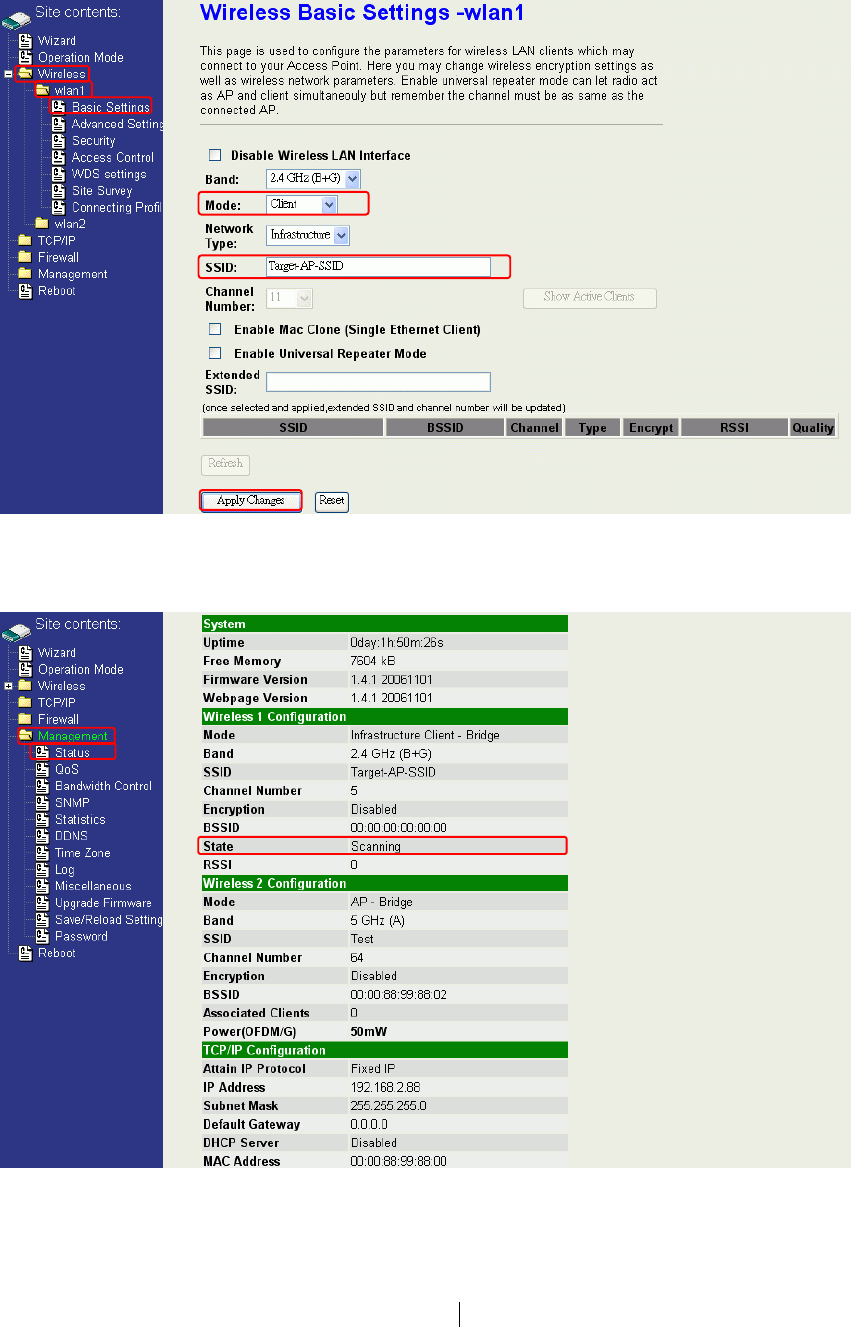

Step 3. In “Basic Settings” page, change the Mode to “Client” mode. And key in the SSID of the
AP you want to connect then press “Apply Changes” button to apply the change.
46
Step 4. Check the status of connection in “Status” web page
The alternative way to configure as following:
Step 4. In “Wireless Site Survey” page, select one of the SSIDs you want to connect and then
press “Connect” button to establish the link.
1
2
3
47
Step 5. If the linking is established successfully. It will show the message “Connect
successfully”. Then press “OK”.
Step 6. Then you can check the linking information in “Status” page.
1
2
48
Note ：
If the available network requires authentication and data encryption, you need to
setup the authentication and encryption before step1 and all the settings must be as
same as the Access Point or Station. About the detail authentication and data
encryption settings, please refer the security section.
Authentication Type
In client mode, the device also supports two Authentication Types “Open system” and
“Shared Key”. Although the default setting is “Auto”, not every Access Points can
support “Auto” mode. If the authentication type on the Access Point is knew by user,
we suggest to set the authentication type as same as the Access Point.
Data Encryption
In client mode, the device supports WEP and WPA Personal/Enterprise except WPA2
mixed mode data encryption. About the detail data encryption settings, please refer the
security section.
Ch 5. Configuring WDS
Wireless Distribution System (WDS) uses wireless media to communicate with the other
devices, like the Ethernet does. This function allows one or more remote LANs connect
with the local LAN. To do this, you must set these devices in the same channel and set
MAC address of other devices you want to communicate with in the WDS AP List and
then enable the WDS.
When you decide to use the WDS to extend your WLAN, please refer the following
instructions for configuration.
The bridging devices by WDS must use the same radio channel.
When the WDS function is enabled, all wireless stations can’t connect the device.
If your network topology has a loop, you need to enable the 802.1d Spanning Tree
function.
You don’t need to add all MAC address of devices existed in your network to WDS
AP List. WDS AP List only needs to specify the MAC address of devices you need to
directly connect to.
The bandwidth of device is limited, to add more bridging devices will split the more
bandwidth to every bridging device.
WDS network topology
In this section, we will demonstrate the WDS network topologies and WDS AP List
configuration. You can setup the four kinds of network topologies: bus, star, ring and
mesh.
49
In this case, there are five devices with WDS enabled: WDS1, WDS2, WDS3, WDS4 and
WDS5.

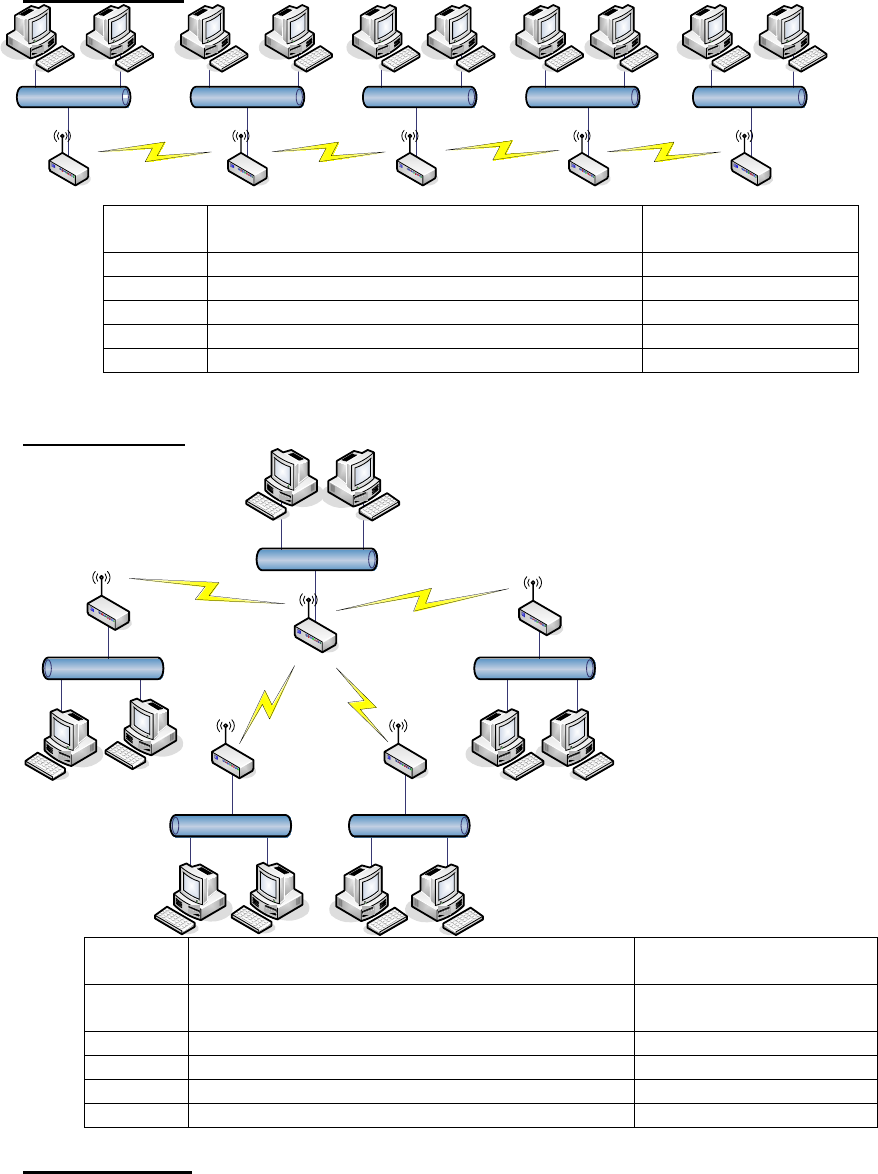

Bus topology:
LAN1 LAN2 LAN3 LAN4 LAN5
WDS #1 WDS #4WDS #3WDS #2 WDS #5
Device Entries of WDS AP List Spanning Tree
Protocol Required
WDS1 The MAC Address of WDS2 No
WDS2 The MAC Addresses of WDS1 and WDS3 No
WDS3 The MAC Addresses of WDS2 and WDS4 No
WDS4 The MAC Addresses of WDS3 and WDS5 No
WDS5 The MAC Address of WDS4 No
Star topology:
LAN3LAN 4
LAN 1
LAN 2LAN 5
WDS #5 WDS #2
WDS #3WDS #4
WDS #1
Device Entries of WDS AP List Spanning Tree
Protocol Required
WDS1 The MAC Addresses of WDS2, WDS3, WDS4
and WDS5
No
WDS2 The MAC Address of WDS1 No
WDS3 The MAC Address of WDS1 No
WDS4 The MAC Address of WDS1 No
WDS5 The MAC Address of WDS1 No

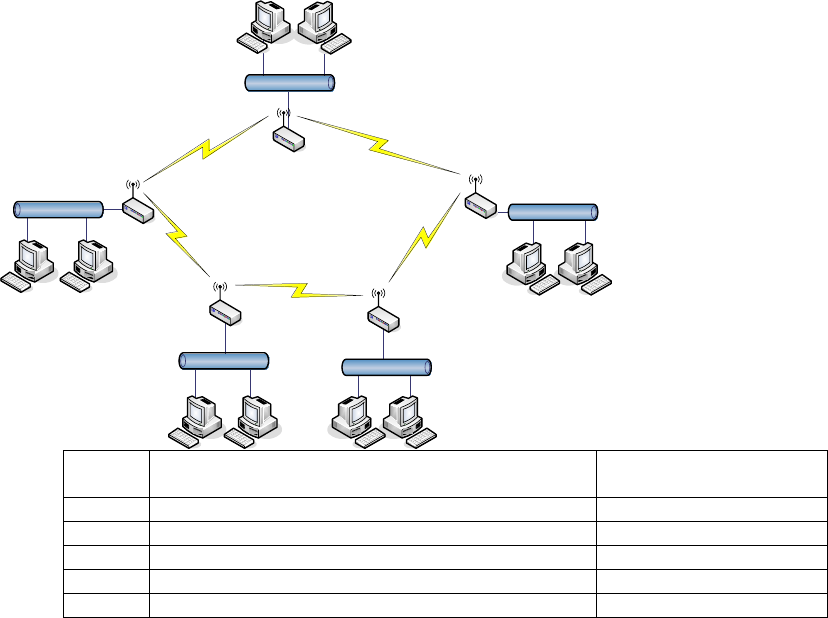

Ring topology:
50
LAN3
LAN 4
LAN 1
LAN 2
LAN 5
WDS #5 WDS #2
WDS #3
WDS #4
WDS #1
Device Entries of WDS AP List Spanning Tree
Protocol Required
WDS1 The MAC Addresses of WDS2 and WDS5 Yes
WDS2 The MAC Addresses of WDS1 and WDS3 Yes
WDS3 The MAC Addresses of WDS2 and WDS4 Yes
WDS4 The MAC Addresses of WDS3 and WDS5 Yes
WDS5 The MAC Addresses of WDS4 and WDS1 Yes
51
Mesh topology：
LAN3
LAN 4
LAN 1
LAN 2
LAN 5
WDS #5 WDS #2
WDS #3
WDS #4
WDS #1
Device Entries of WDS AP List Spanning Tree
Protocol Required
WDS1 The MAC Addresses of WDS2, WDS3, WDS4 and WDS5 Yes
WDS2 The MAC Addresses of WDS1, WDS3, WDS4 and WDS5 Yes
WDS3 The MAC Addresses of WDS1, WDS2, WDS4 and WDS5 Yes
WDS4 The MAC Addresses of WDS1, WDS2, WDS3 and WDS5 Yes
WDS5 The MAC Addresses of WDS1, WDS2, WDS3 and WDS4 Yes
WDS Application
Wireless Repeater

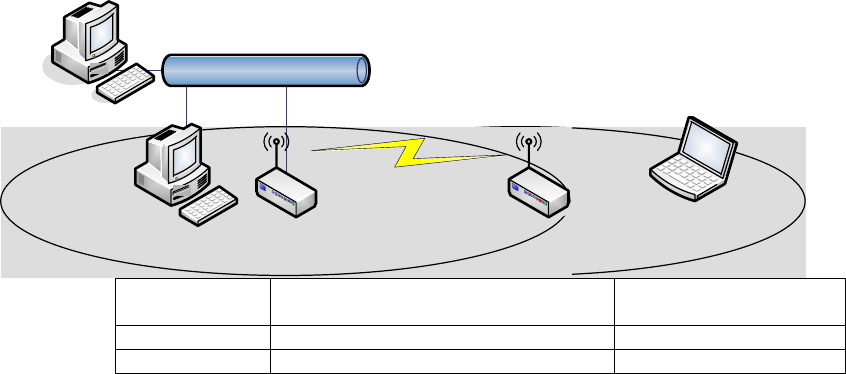

Wireless Repeater can be used to increase the coverage area of another device (Parent
AP). Between the Parent AP and the Wireless Repeater, wireless stations can move
among the coverage areas of both devices. When you decide to use the WDS as a
Repeater, please refer the following instructions for configuration.
In AP mode, enable the WDS function.
You must set these connected devices with the same radio channel and SSID.
Choose “WDS+AP” mode.
Using the bus or star network topology.
52
Ethernet
Wireless station
AP Repeater
Description Entries of WDS AP List Spanning Tree
Protocol Required
Access Point The MAC Address of Repeater Yes
Repeater The MAC Address of Access Point Yes
Wireless Bridge
Wireless Bridge can establish a wireless connection between two or more Wired LANs.
When you decide to use the WDS as a Wireless Bridge, please refer the following
instructions for configuration.
In AP mode, enable the WDS function.
You must set these connected devices with the same radio channel, but you may
use different SSID.
Choose “WDS” mode for only wireless backbone extension purpose.
You can use any network topology, please refer the WDS topology section.
Ch 6. Advanced Configurations
Configuring LAN to WAN Firewall
Filtering function is used to block or permit packets from LAN to WAN. The device
supports three kinds of filter Port Filtering, IP Filtering and MAC Filtering. All the entries in
53
current filter table are used to restrict or allow certain types of packets from your local
network to through the device. Use of such filters can be helpful in securing or restricting
your local network. Denied or Allowed list depends on your IP forwarding default policy in
Route page. The IP forwarding default policy is “ACCEPT”.

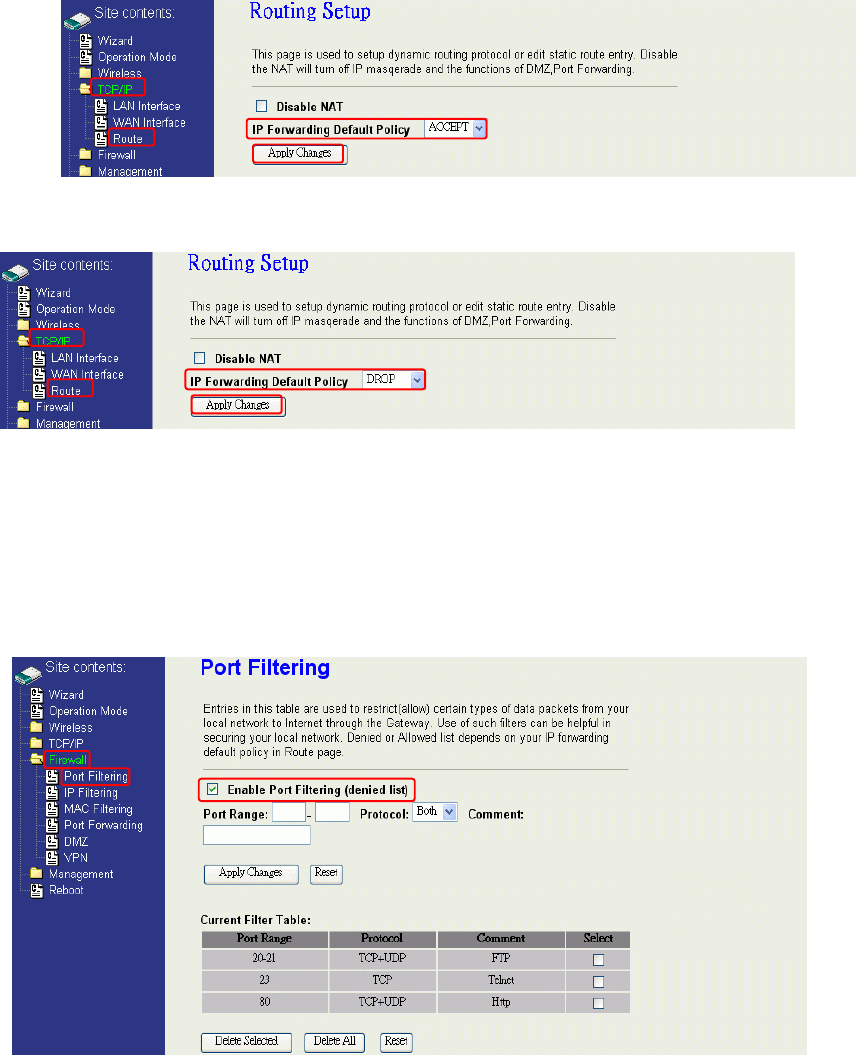

If you want block some application from LAN to WAN, you can go to Route page to select
“ACCEPT” for IP Forwarding Default Policy.
If you want permit some application from LAN to WAN, you can go to Route page to
select “DROP” for IP Forwarding Default Policy.

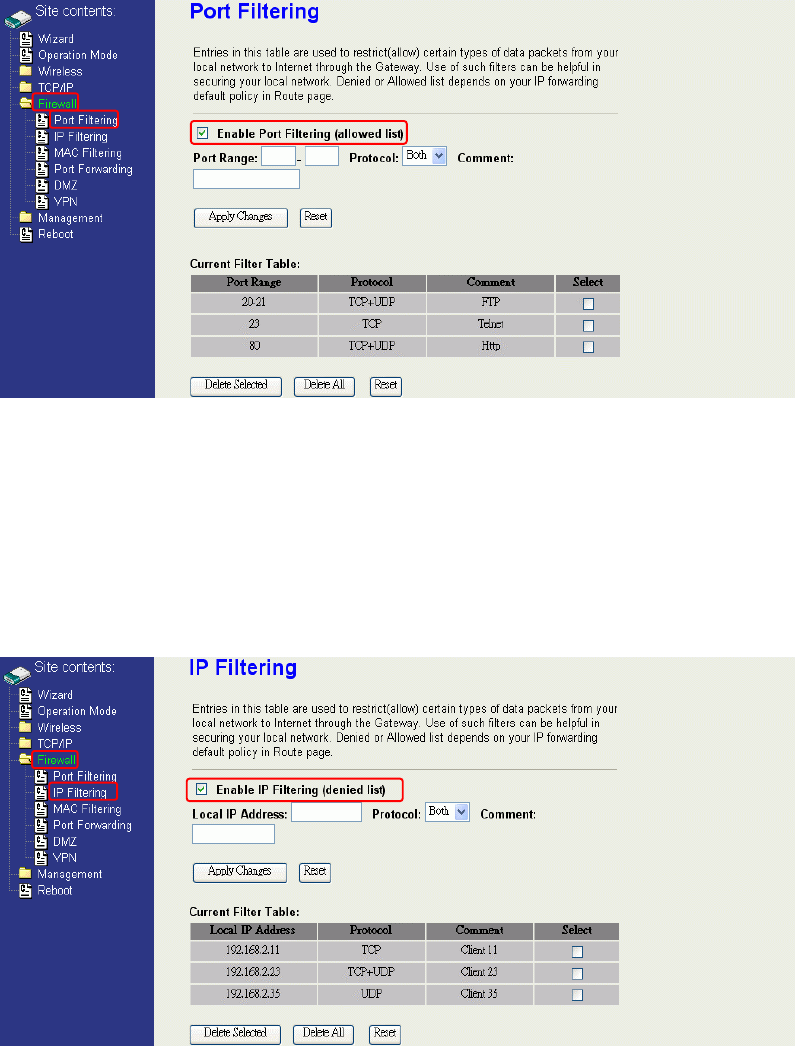

Port Filtering
When you enable the Port Filtering function, you can specify a single port or port
ranges in current filter table. If you select ACCEPT for the IP forwarding default policy,
once the source port of outgoing packets match the port definition or within the port
ranges in the table, the firewall will block those packets form LAN to WAN.
If you select DROP for the IP forwarding default policy, once the source port of
outgoing packets match the port definition or within the port ranges in the table, the
firewall will allow those packets form LAN to WAN.
1
2
3
4
1
2
3
4
54

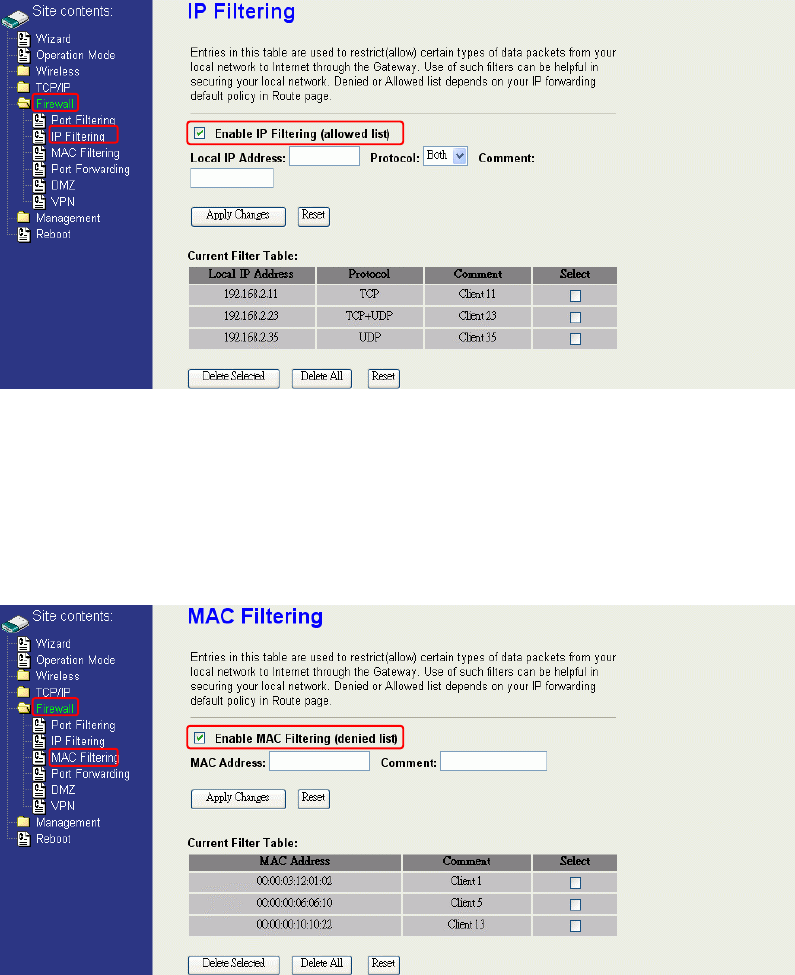

IP Filtering
When you enable the IP Filtering function, you can specify local IP Addresses in
current filter table. If you select ACCEPT for the IP forwarding default policy, once the
source IP address of outgoing packets match the IP address definition in the table, the
firewall will block those packets form LAN to WAN.
If you select DROP for the IP forwarding default policy, once the source IP address of
outgoing packets match the IP address definition in the table, the firewall will allow
those packets form LAN to WAN.
55
MAC Filtering
When you enable the MAC Filtering function, you can specify the MAC Addresses in
current filter table. If you select ACCEPT for the IP forwarding default policy, once the
source MAC Address of outgoing packets match the MAC Address definition in the
table, the firewall will block those packets form LAN to WAN.
If you select DROP for the IP forwarding default policy, once the source MAC Address
of outgoing packets match the MAC Address definition in the table, the firewall will
allow those packets form LAN to WAN.
56
NAT (Network Address Translation)
NAT is the translation between public IP address and private IP address. While NAT is
enabling, you can use port forwarding or DMZ to redirect your common network services.
If you want to disable NAT, you can go to Management-Route page to disable it and the
functions of DMZ, Port Forwarding will be disabled.
Configuring Port Forwarding (Virtual Server)
This function allows you to automatically redirect common network services to a specific
machine behind the NAT firewall. These settings are only necessary if you wish to host
some sort of server like a web server or mail server on the private local network behind
the device's NAT firewall.
1
2
3
4
57
The most often used port numbers are shown in the following table.
About the other
well-known ports, please search in http://www.iana.org/assignments/port-numbers.

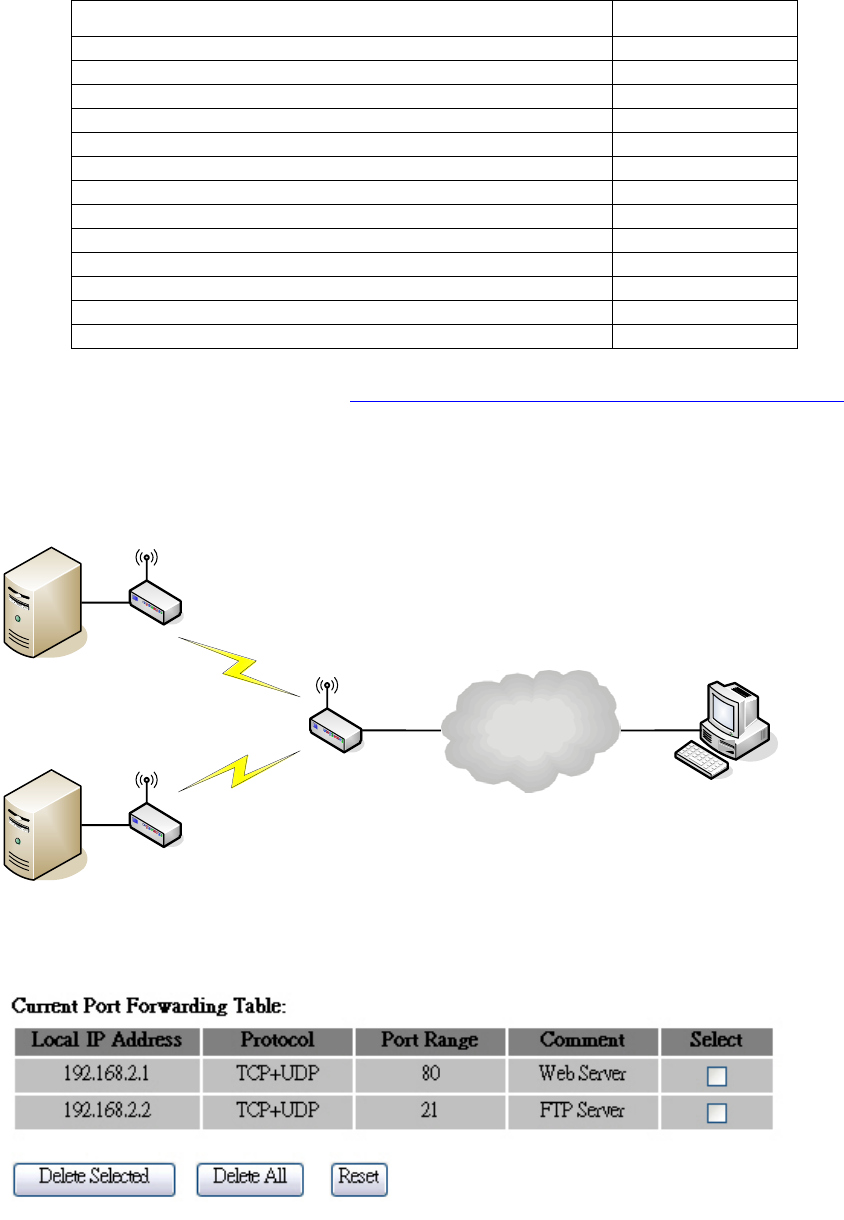

Multiple Servers behind NAT Example:
In this case, there are two PCs in the local network accessible for outside users.
Internet
Device with Router Mode enabled
WLAN IP Address:192.168.2.254
Web Server
IP Address:192.168.2.1
Port:80
FTP Server
IP Address:192.168.2.2
Port:21
User
AP
AP Client #2
AP Client #1
Configuring DMZ

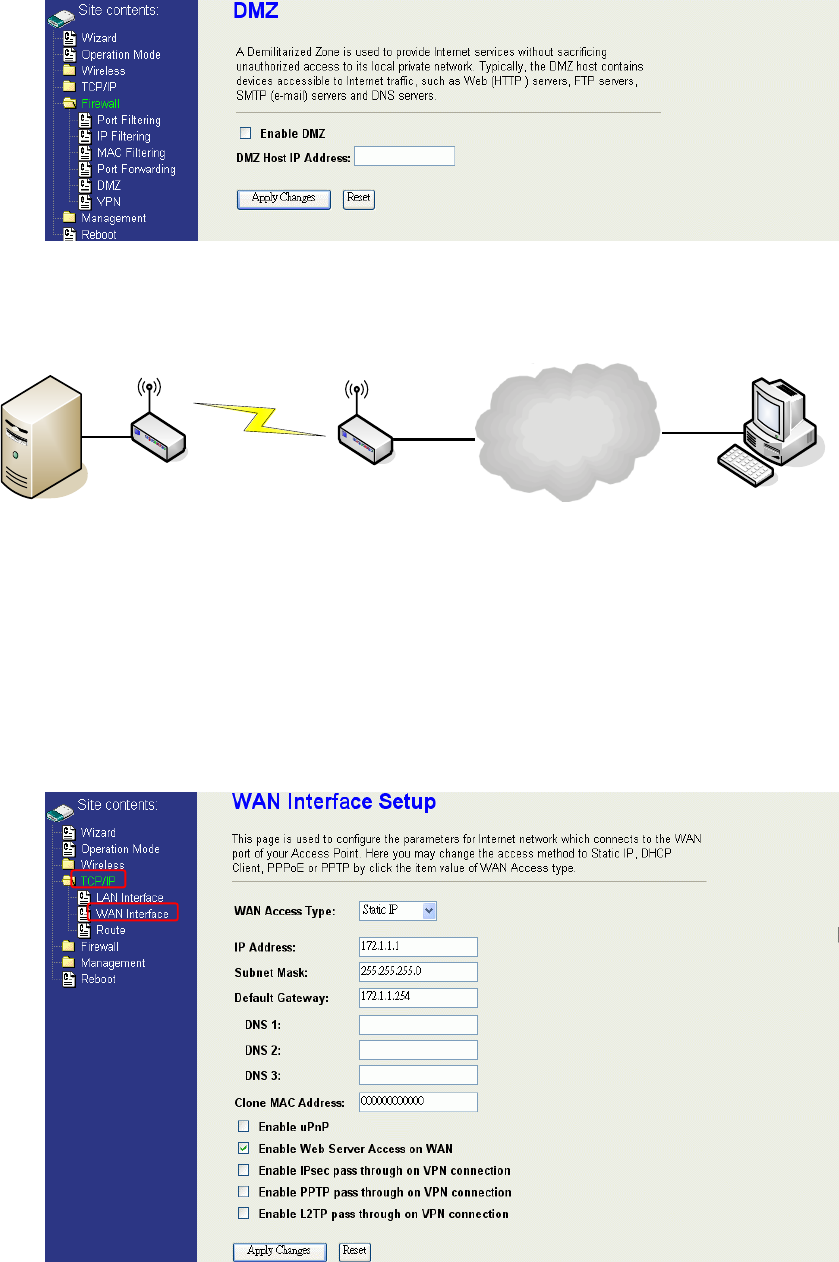

A Demilitarized Zone is used to provide Internet services without sacrificing
unauthorized access to its local private network. Typically, the DMZ host contains
Services Port Number
ECHO 7
FTP (File Transfer Protocol) 21
Telnet 23
SMTP (Simple Mail Transfer Protocol) 25
DNS (Domain Name System) 53
Finger 79
HTTP (Hyper Text Transfer Protocol) 80
POP3 (Post Protocol) 110
NNTP (Network News Transport Protocol) 119
SNMP (Simple Network Management Protocol) 161
SNMP trap 162
SIP (Session Initiation Protocol) 5060
PPTP (Point-to-Point Tunneling Protocol) 1723
58
devices accessible to Internet traffic, such as Web (HTTP) servers, FTP servers,
SMTP (e-mail) servers and DNS servers. So that all inbound packets will be redirected
to the computer you set. It also is useful while you run some applications (ex. Internet
game) that use uncertain incoming ports.
Enable DMZ: Enable the “Enable DMZ”, and then click “Apply Changes” button to
save the changes.
DMZ Host IP Address: Input the IP Address of the computer that you want to expose to
Internet.
Internet
Device with Router Mode enabled
DNS Host
AP Client

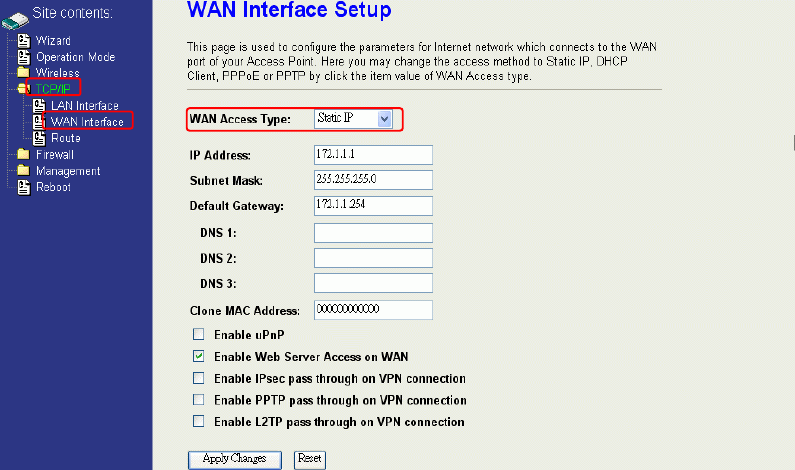

Configuring WAN Interface

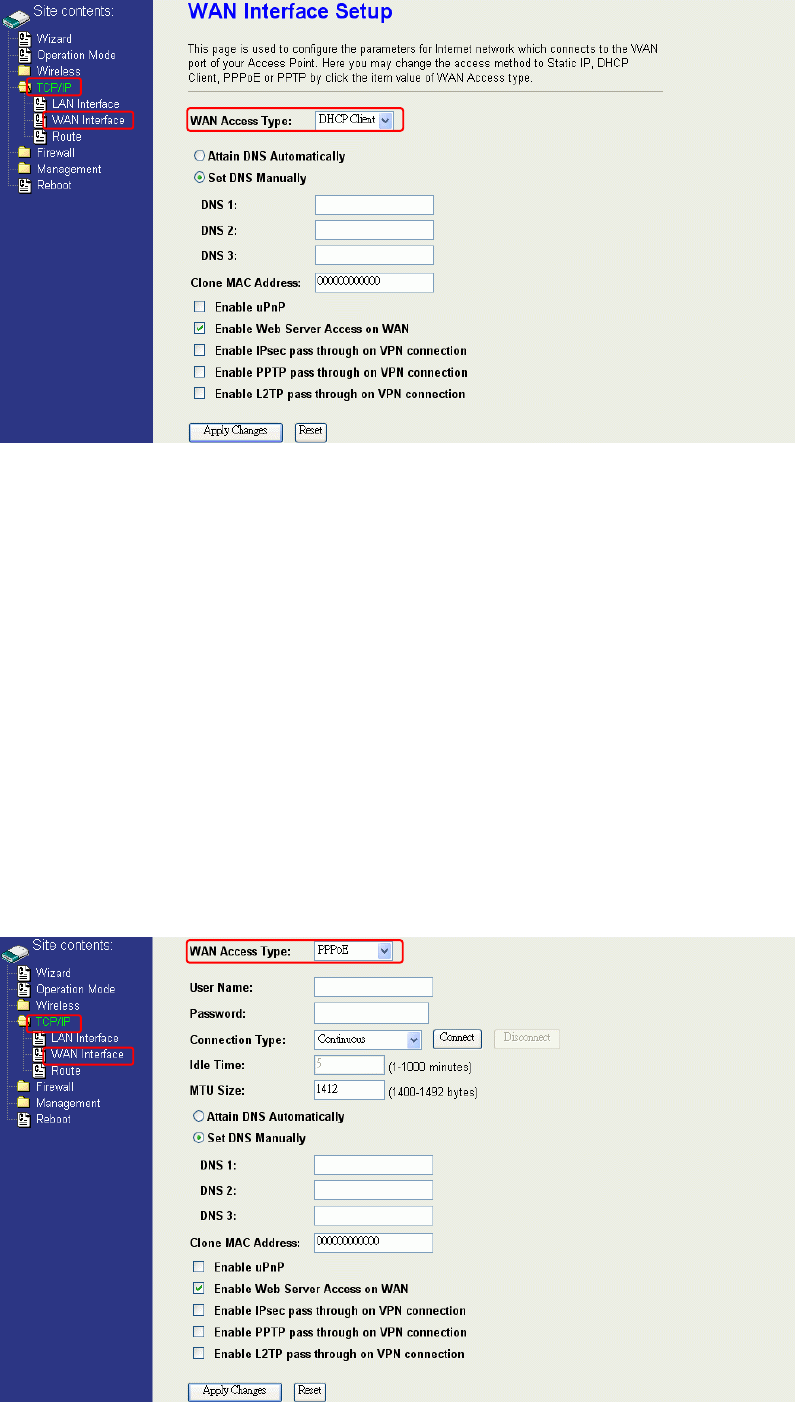

The device supports four kinds of IP configuration for WAN interface, including Static IP,
DHCP Client, PPPoE and PPTP. You can select one of the WAN Access Types depend
on your ISP required. The default WAN Access Type is “Static IP”.
59
Static IP
You can get the IP configuration data of Static-IP from your ISP. And you will need to fill
the fields of IP address, subnet mask, gateway address, and one of the DNS
addresses.
IP Address: The Internet Protocol (IP) address of WAN interface provided by your
ISP or MIS. The address will be your network identifier besides your
local network.
Subnet Mask: The number used to identify the IP subnet network, indicating whether
the IP address can be recognized on the LAN or if it must be reached
through a gateway.
Default Gateway: The IP address of Default Gateway provided by your ISP or MIS.
Default Gateway is the intermediate network device that has knowledge
of the network IDs of the other networks in the Wide Area Network, so it
can forward the packets to other gateways until they are delivered to the
one connected to the specified destination.
DNS 1~3: The IP addresses of DNS provided by your ISP.
DNS (Domain Name Server) is used to map domain names to IP
addresses. DNS maintain central lists of domain name/IP addresses and
map the domain names in your Internet requests to other servers on the
Internet until the specified web site is found.
Clone MAC
Address:
Clone device MAC address to the specify MAC address required by your
ISP
Enable uPnP: Enable uPnP, this function allows the device to be found and configured
automatically by the system. (Ex. Window XP)
DHCP Client (Dynamic IP)
All IP configuration data besides DNS will obtain from the DHCP server when
DHCP-Client WAN Access Type is selected.
60
DNS1~3: The IP addresses of DNS provided by your ISP.
DNS (Domain Name Server) is used to map domain names to IP
addresses. DNS maintain central lists of domain name/IP
addresses and map the domain names in your Internet requests
to other servers on the Internet until the specified web site is
found.
Clone MAC
Address:
Clone device MAC address to the specify MAC address required
by your ISP
Enable uPnP: Enable uPnP, this function allows the device to be found and
configured automatically by the system. (Ex. Window XP)
PPPoE
When the PPPoE (Point to Point Protocol over Ethernet) WAN Access Type is selected,
you must fill the fields of User Name, Password provided by your ISP. The IP
configuration will be done when the device successfully authenticates with your ISP.
61
User Name: The account provided by your ISP
Password: The password for your account.
Connect Type: “Continuous “ : connect to ISP permanently
“Manual” : Manual connect/disconnect to ISP
“On-Demand”: Automatically connect to ISP when user needs to
access the Internet.
Idle Time: The number of inactivity minutes to disconnect from ISP. This
setting is only available when “Connect on Demand” connection
type is selected.
MTU Size: Maximum Transmission Unit, 1412 is the default setting; you may
need to change the MTU for optimal performance with your specific
ISP.
DNS1~3: The IP addresses of DNS provided by your ISP.
DNS (Domain Name Server) is used to map domain names to IP
addresses. DNS maintain central lists of domain name/IP
addresses and map the domain names in your Internet requests to
other servers on the Internet until the specified web site is found.
Clone MAC
Address:
Clone device MAC address to the specify MAC address required
by your ISP.
Enable UPnP: Enable UPnP, this function allows the device to be found and
configured automatically by the system. (Ex. Window XP)
PPTP
Point to Point Tunneling Protocol (PPTP) is a service that applies to connections in
Europe only.
IP Address: The Internet Protocol (IP) address of WAN interface provided by
your ISP or MIS. The address will be your network identifier
besides your local network.
62
Subnet Mask: The number used to identify the IP subnet network, indicating
whether the IP address can be recognized on the LAN or if it
must be reached through a gateway.
Server IP Address:
(Default Gateway)
The IP address of PPTP server
User Name: The account provided by your ISP
Password: The password of your account
MTU Size: Maximum Transmission Unit, 1412 is the default setting, you
may need to change the MTU for optimal performance with your
specific ISP.
DNS1~3: The IP addresses of DNS provided by your ISP.
DNS (Domain Name Server) is used to map domain names to IP
addresses. DNS maintain central lists of domain name/IP
addresses and map the domain names in your Internet requests
to other servers on the Internet until the specified web site is
found.
Clone MAC Address: Clone device MAC address to the specify MAC address required
by your ISP.
Enable uPnP: Enable uPnP, this function allows the device to be found and
configured automatically by the system. (Ex. Window XP)
Configuring Clone MAC Address
The device provides MAC address clone feature to fit the requirement of some ISP need
to specify the client MAC address.

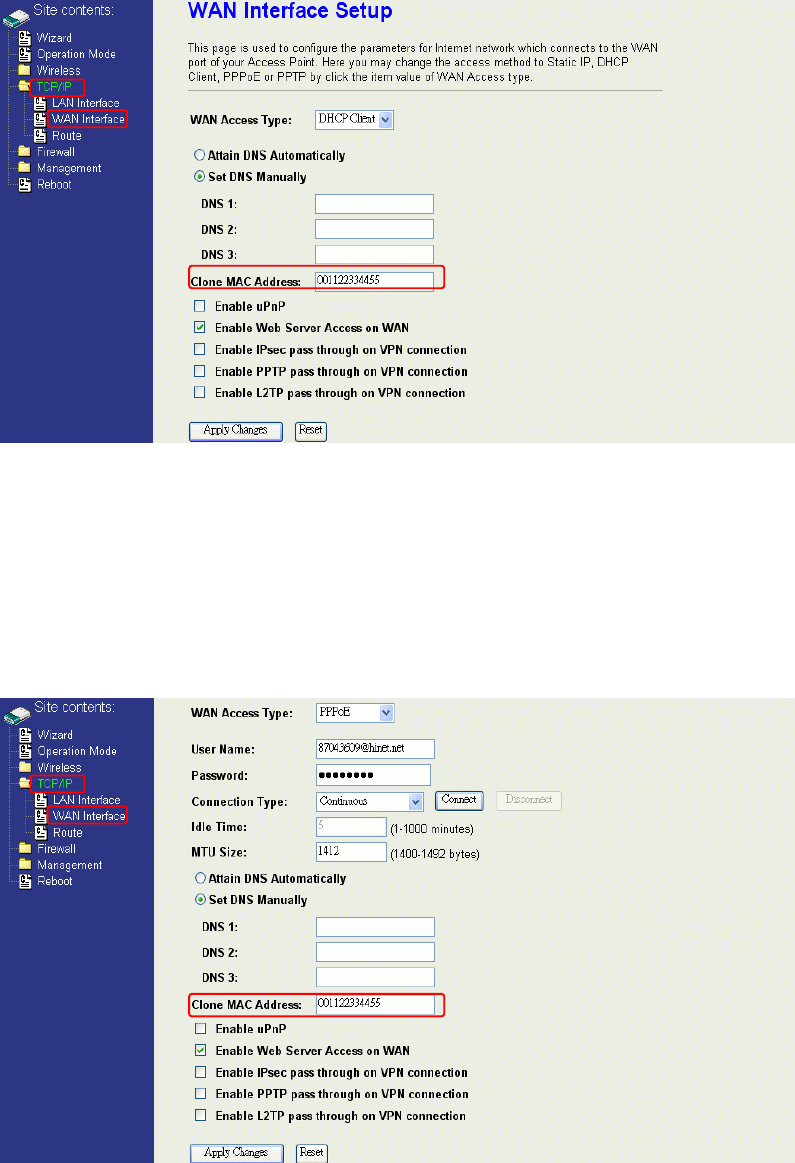

Physical WAN interface MAC Address clone
1. Clone MAC address for Static IP WAN access type
2. Clone MAC address for DHCP Client WAN access type
63
3. Clone MAC address for PPPoE WAN access type
4. Clone MAC address for PPTP WAN access type
64
5. Physical LAN interface MAC address clone
Configuring DHCP Server
1. To use the DHCP server inside the device, please make sure there is no other DHCP
server existed in the same network as the device.
2. Enable the DHCP Server option and assign the client range of IP addresses as
following page.
65
3. When the DHCP server is enabled and also the device router mode is enabled then
the default gateway for all the DHCP client hosts will set to the IP address of device.
Bandwidth Control
This functionality can control Bandwidth of Up/Downstream

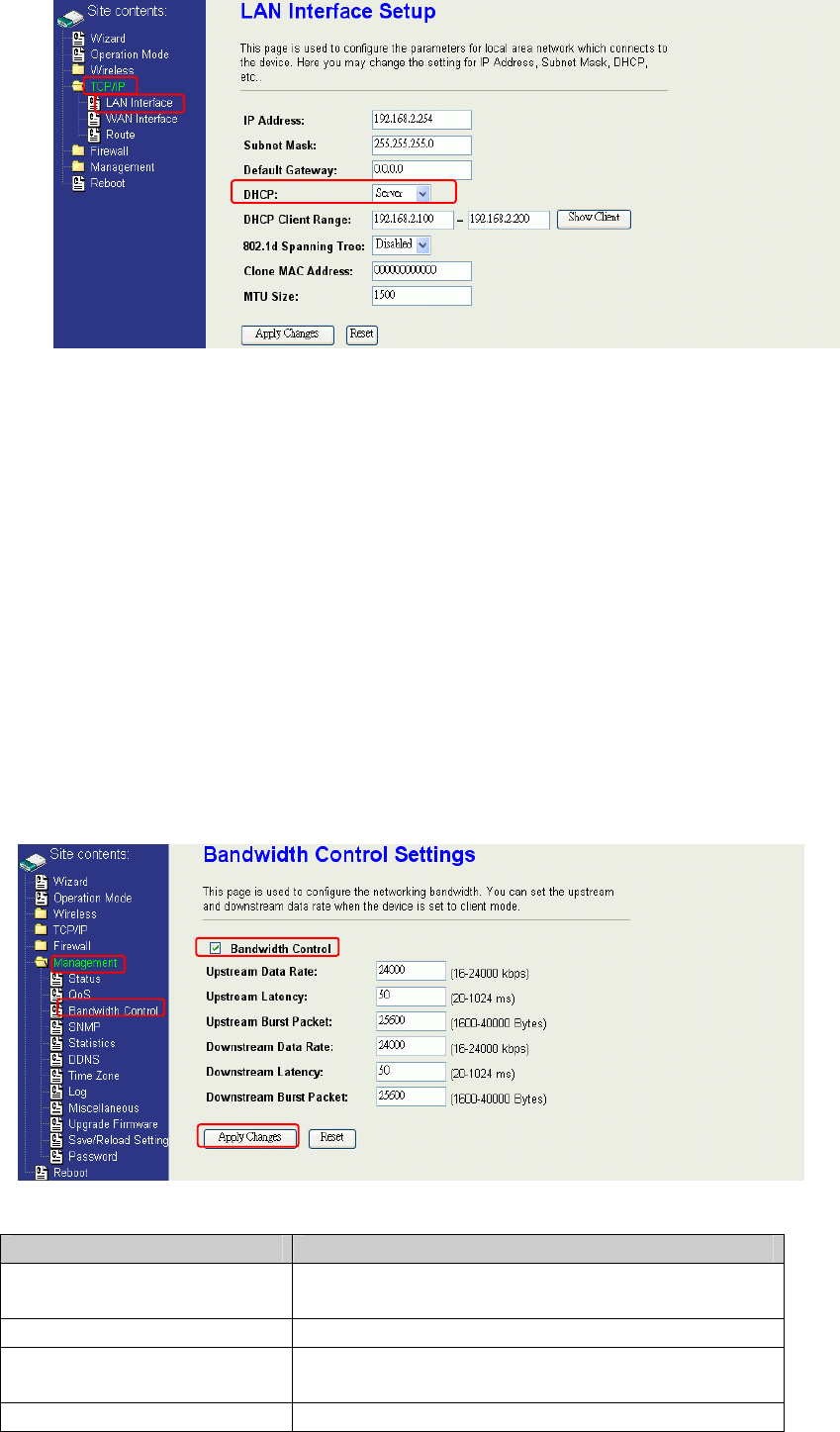

1. Enable Bandwidth Control and then enter Data Rate、Latency and Burst Packet in the
specific field.
Note: Only device on Client mode or WISP mode this functionality can take effective.
2. Parameter Definition
Label Description
Upstream Data Rate Speed of transmit data that from Ethernet
interface to Wireless interface.
Upstream Latency Similar a waiting time the data queuing- time.
Upstream Burst Packet Similar a buffer the data will into the buffer
while the data is transmit or receive.
Downstream Data Rate S
p
eed of transmit data that from Wireless
1
2
3
4
66
interface to Ethernet interface.
Downstream Latency Similar a waiting time the data queuing- time.
Downstream Burst
Packet
Similar a buffer the data will into the buffer
while the data is transmit or receive.
QoS (Quality of Service)
Filter Priority and IP-ToS have not finished yet and also fine tuning.
QoS allows you to specify some rules, to ensure the quality of service in your network.
Such as use Bandwidth Priority concept to allocate bandwidth. This function can be helpful
in shaping and queuing traffic from LAN (WLAN) to WAN or LAN to WLAN, but not WLAN
to WLAN.
Enable the QoS and then fill in Bandwidth Ratio (H/M/L) the device has three Bandwidth
Priorities High, Medium and Low user can allocation Bandwidth to these and default is
High:50％, Medium:30％ and Low:20％.
The following table describes the priorities that you can apply to bandwidth.
Priority Level Description
High Typically used for voice or video applications that is
especially sensitive to the variations in delay.
Medium Typically used for important traffic that can tolerate
some delay.
Low Typically used for non-critical traffic such as a large
number of transfers but that should not affect other
application.

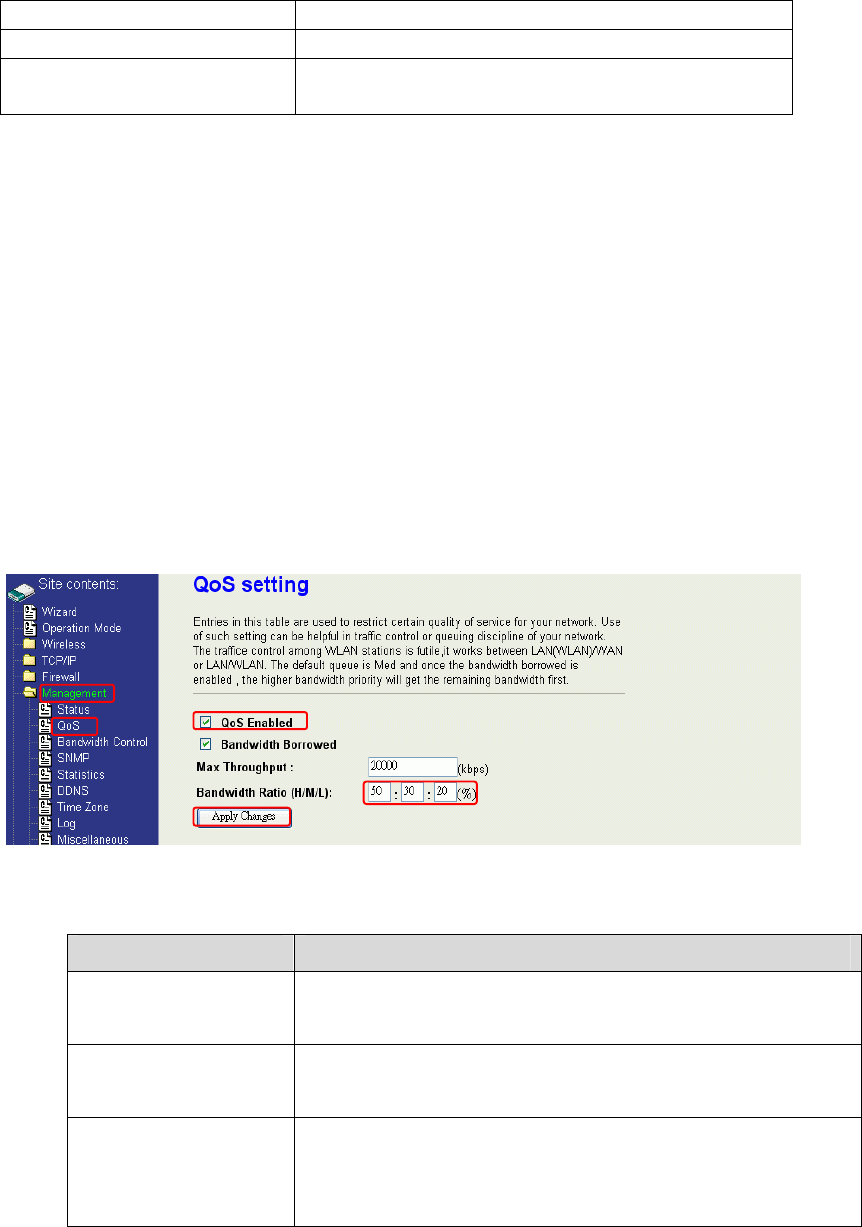

Click the QoS link under Management to open the QoS Setting page. This page is divided
into three parts: basic settings, QoS rule settings, and current QoS setting table.
1. Enable QoS and enter Max Throughput (default 20Mbps) 、Bandwidth
Ratio (default H:50%, M:30%, L:20%)
67

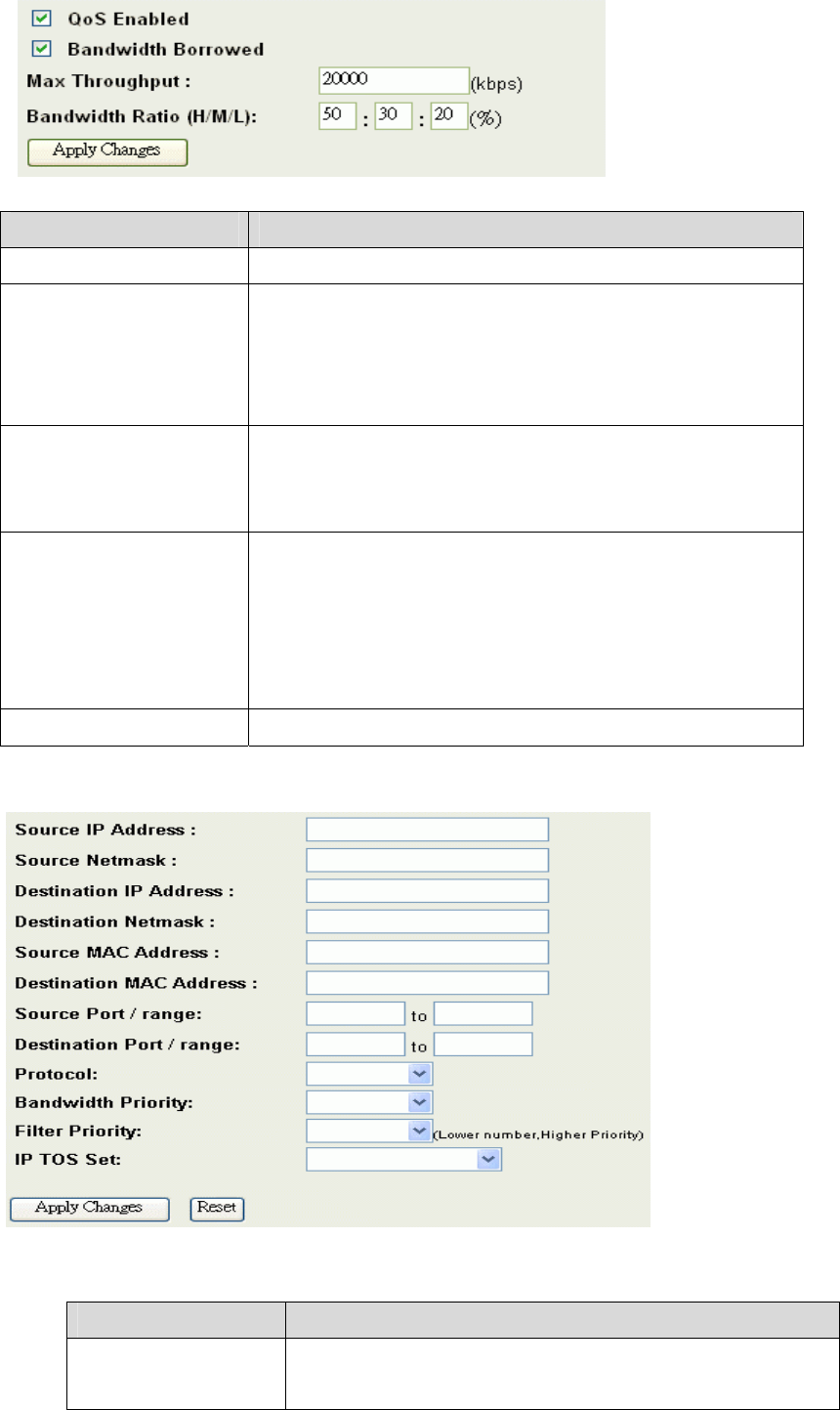

The following table describes the labels in this part.
Label Description
QoS Enabled Select this check box to enable quality of service.
Bandwidth Borrowed Select this check box to allow a rule to borrow
unused bandwidth. Bandwidth borrowing is decided
by priority of the rules. Higher priority will get the
remaining bandwidth first.
Max Throughput Enter the value of max throughput in kbps that you
want to allocate for one rule. The value should
between 1200 kbps and 24000 kbps.
Bandwidth Ratio
(H/M/L)
You can specify the ratio of priority in these fields.
The range from 1 to 99. The High priority’s ratio
should higher than Medium priority’s ratio and
Medium priority’s ratio should higher than Low
priority’s ratio.
Apply Changes Click this button to save and apply your settings.
2. QoS Rule settings
The following table describes the labels in this part.
Label Description
IP Address Enter source/destination IP Address in dotted
decimal notation.
68
Netmask Once the source/destination IP Address is entered,
the subnet mask address must be filled in this field.
MAC Address Enter source/destination MAC Address.
Port / range You can enter specific port number or port range of
the source/destination
Protocol Select a protocol from the drop down list box.
Choose TCP/UDP, TCP or UDP.
Bandwidth Priority Select a bandwidth priority from the drop down list
box. Choose Low, Medium or High.
Filter Priority Select a filter priority number from the drop down
list box. Lower number gets higher priority while
two rules have the same bandwidth priority.
IP TOS Set Select an IP type-of-service value from the drop
down list box. Choose Normal Service, Minimize
Cost, Maximize Reliability, Maximize Throughput,
or Minimize Delay.
Apply Changes Click this button to save and apply your settings.
Reset Click this button to begin re-input the parameters.
Current QoS setting table

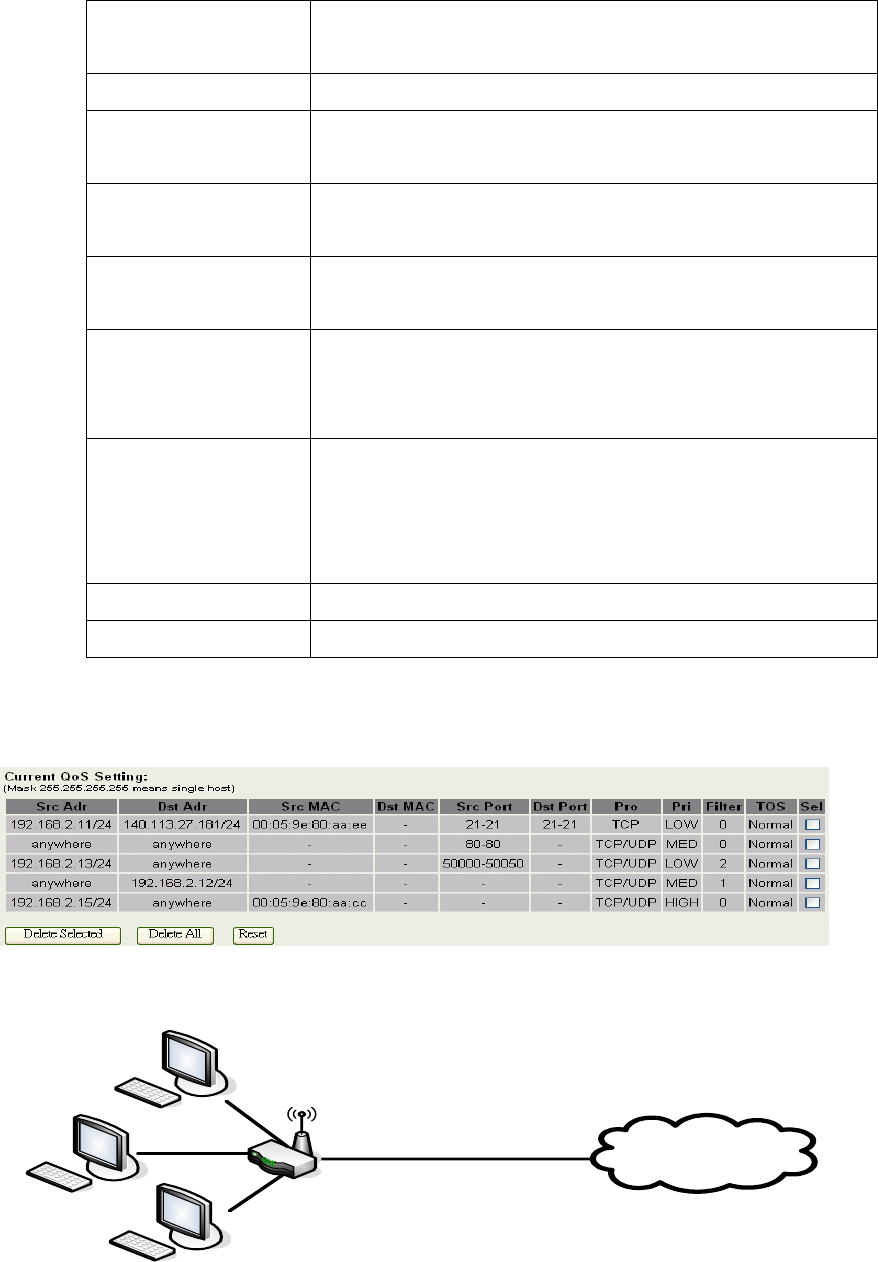

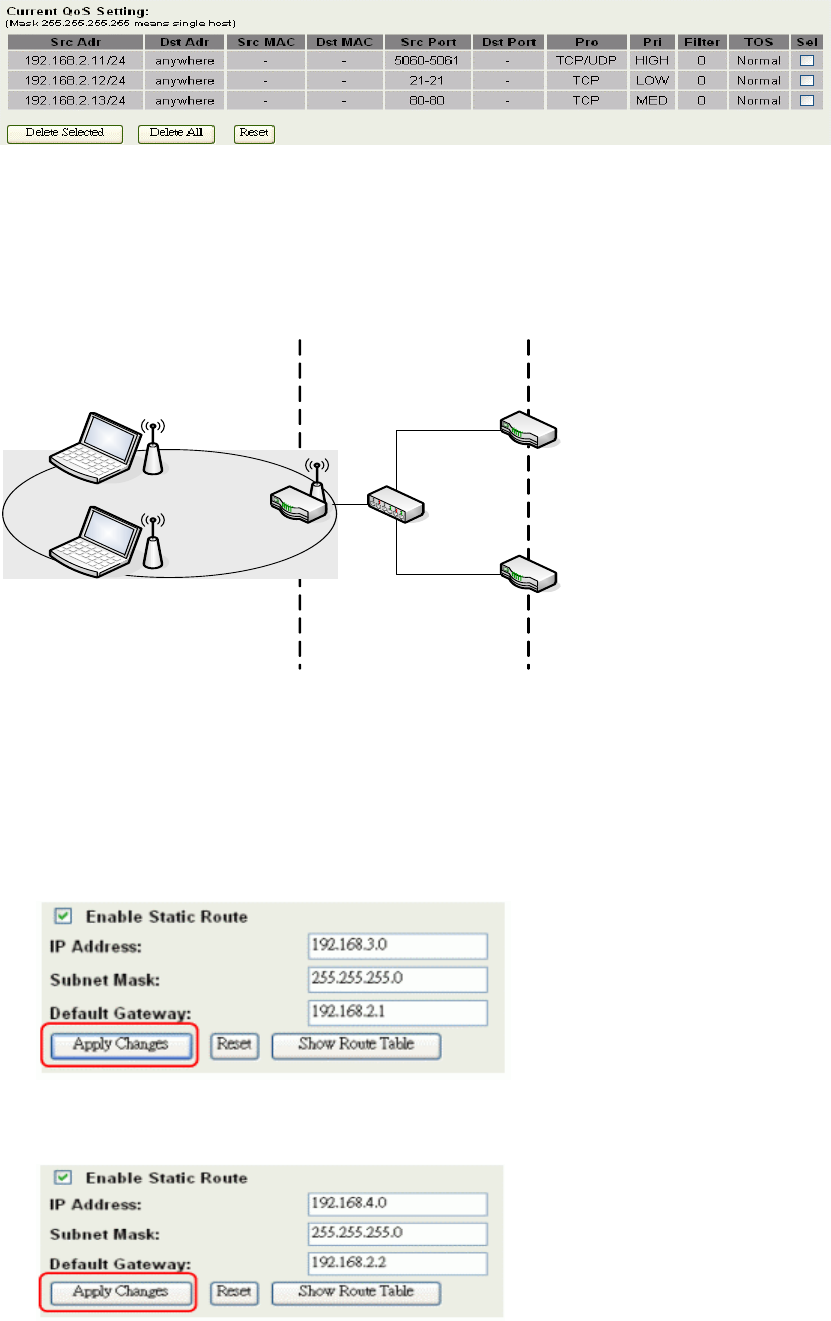

In this part, you can see how many rules have been specified. And you can see the detail
about the rules and manage the rules. This table can input 50 rules at most.
An example for usage
User B
Internet
AP
WANLAN
VoIP
FTP
Web
User A
User C
For
example, there are three users in your network.
User A wants to browse the websites to retrieve information.
User B wants to use FTP connection to download a large file.
User C wants to use software phone to connect with customer.
69
The voice is sensitive to the variations in delay; you can set High priority for User C. The
FTP transmission may take a long time; you can set Low priority for User B.
Static Route Setup
User can set the routing information let the Router knows what routing is correct also it can
not learn automatically through other means.
Network 1 Network 2
Network 3
Network 4
R1
R2
HUB
For example, if user wants to link the Network 3 and Network 4 separately from Network 1
that Routing Table configuration as below:
1. Enable Static Route in Route Setup of TCP/IP page and then enter IP Address of
Network 3、Subnet Mask and IP Address of Router (R1) in Default Gateway field final
click Apply Change button.
2. Enter IP Address of Network 4、Subnet Mask and IP Address of Router (R2) in Default
Gateway field final click Apply Change button.
70

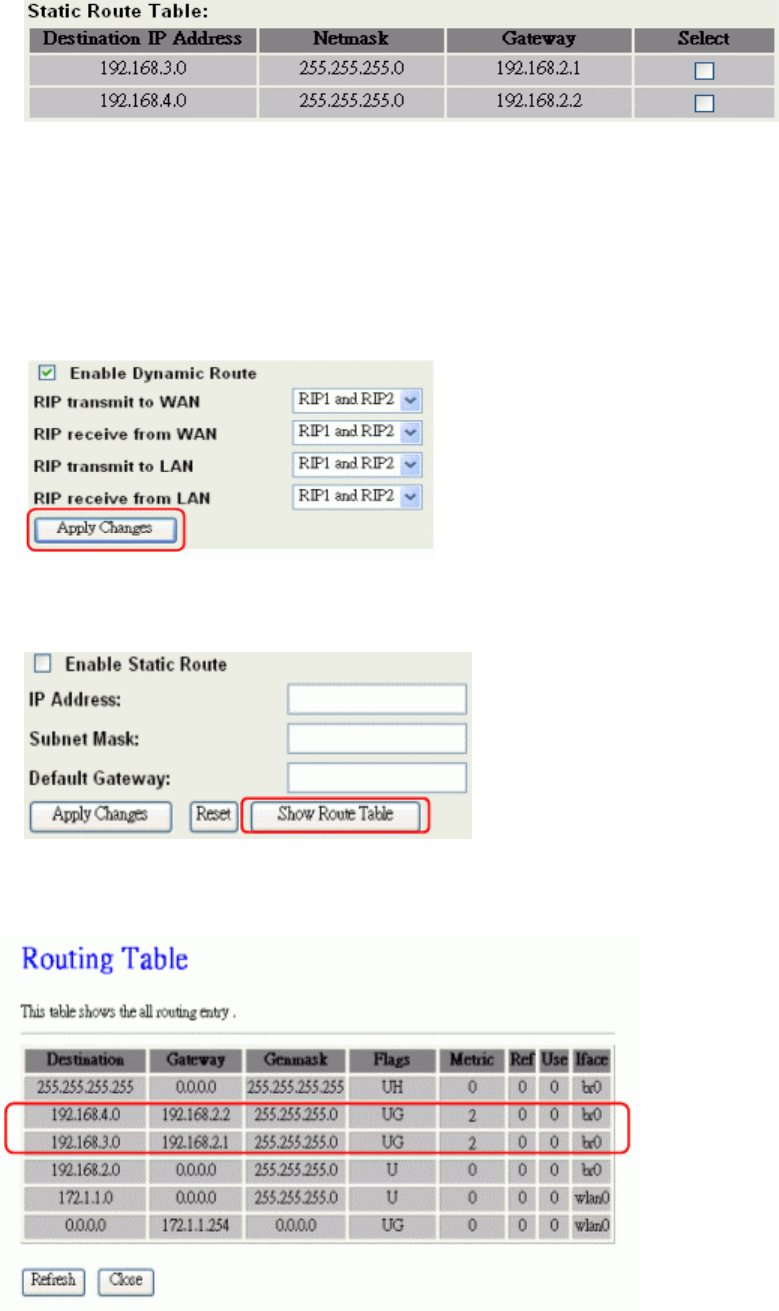

3. In Static Route Table there have two routings for Network 3 and Network 4
Dynamic Route Setup
The Dynamic Route utilizes RIP1/2 to transmit and receive the route information with other
Routers.
1. Enable Dynamic Route and then select RIP 1、RIP2 or Both to transmit/receive packets
final click Apply Change button.
2. Click Show Route Table button to show Dynamic Route Table.
3. In Dynamic Routing Table there have two routings for Network 3 and Network 4
71
VPN Pass-through
This functionality let the device can Pass-through the VPN packets including PPTP/
L2TP/IPsec VPN Connection.
VPN Server
(VPN Passthrough)
WAN
Laptop 1 VPN Client
VPN Connection
LAN

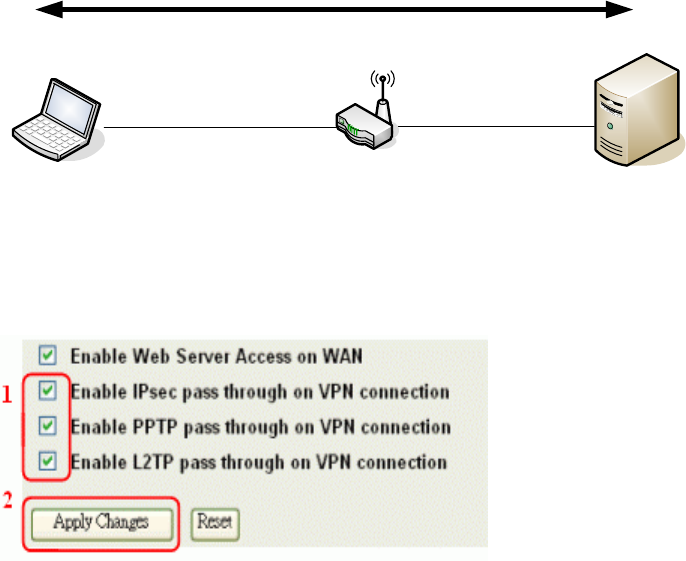

1. Check the VPN Pass-through in WAN Interface of TCP/IP Page that you want and then
click Apply Changes button.
Using CLI Menu
Start a SSH(Secure Shell) client session to login the device
The SSH server daemon inside device uses well-known TCP port 22. User must use
SSH client utility such like Putty to login the device. The default password for user
“root” is “qwert”, once user login the device then can change the password by CLI
command.
Execute CLI program
This program won’t execute automatically when user login the device. User must
manually execute it by typing the case-sensitive command “cli”. Please note that any
modified settings won’t save permanently until user “Apply Changes to Flash” or
reboot it. The new settings modified by CLI will take effect after rebooting the device.
Menu Tree List
72
A. Operation Mode
B. Wireless Setting
C. TCP/IP-LAN Setting
D. TCP/IP-WAN Setting
E. Route Setting
F. Firewall Setting
G. Management
H. Apply Changes to Flash
I. Reboot to take effect
0. Exit
Wireless Setting
A. Basic Settings
B. A dv a nced Setti ngs
C. Security Settings
D. Access Control Settings
E. WDS Settings
0. Ex it
TCP/IP WAN Settings
A. WAN Type
B. IP Address
C. Subnet Mask
D. Default Gateway
E. DNS1
F. DNS2
G. DNS3
U. Clone MAC Address
V. uPNP
W. Web Server Access on WAN
X. IPSec passthrough on VPN connection
Y. PPTP passthrough on VPN connection
Z. L2TP passthrough on VPN connection
0. Exit
Route Settings
-[NAT]-------------------------------
A. NAT
B. IP Forwarding Default Policy
-[Dynamic Route]------------------
C. Dynamic Route
D. RIP transmit to WAN
E. RIP receive from WAN
F. RIP transmit to LAN
G. RIP receive from LAN
-[Static Route ]---------------------- -
H. Static Route
I. Add Static Route Setting
J. Delete Static Route Setting
K. Delete all Static Route Setting
L. Current Static Route Setting List
-[Route Table]------------------------
M. Show Route Table List
0. Exit
Wireless Basic Settings
A. Access Point Status
B. QoS Settings
C. Bandwidth Control
D. SNMP Settings
E. Miscellaneous Settings
F. Password
0. Exit
Firewall Settings
A. Port Filtering
B. IP Filtering
C. MAC Filtering
D. Port Forwarding
E. DMZ
F. VPN
0. Exit
Operation Mode
1: Router
2: Bridge
0: Cancel
TCP/IP-LAN Setting
A. IP Address
B. Subnet Mask
C. D efault Gateway
D. D HCP
E. DHCP Client Range
F. 802.1d Spanning Tree
G. Clone MAC Address
H. MTU Size
I. DHCP Client Table
0. Exit
The System Management
Password Protection

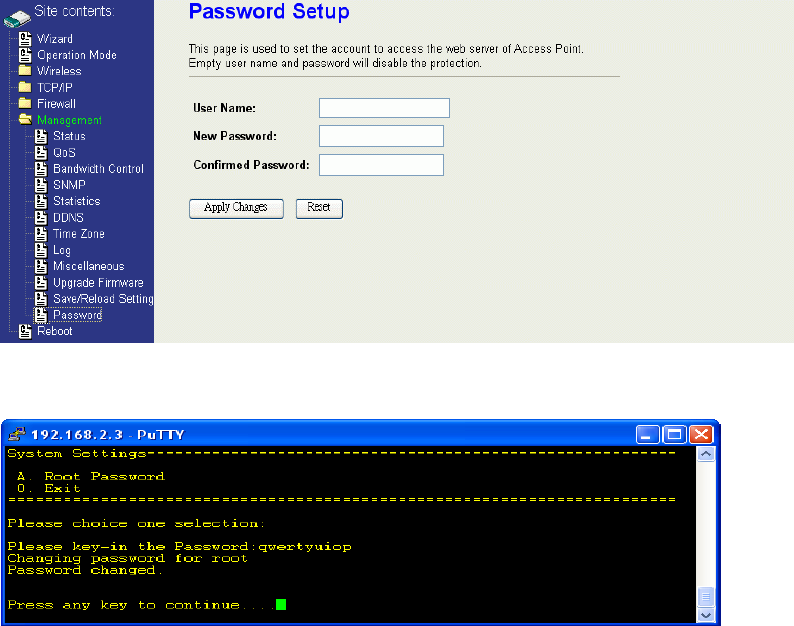

Both Web-Browser and SSH configuration interfaces have password protection.
73
To disable the Web-Browser password protection just leave the “User Name” field to
blank then click “Apply Changes” button.
To change the password of user “root” for SSH session, please use the CLI menu
item G. ManagementF. Password
SNMP Agent
This device is compatible with SNMP v1/v2c and provides standard MIB II. Currently
only the “public” community string is available and the modified settings by SNMP SET
request will be lost after rebooting the device.

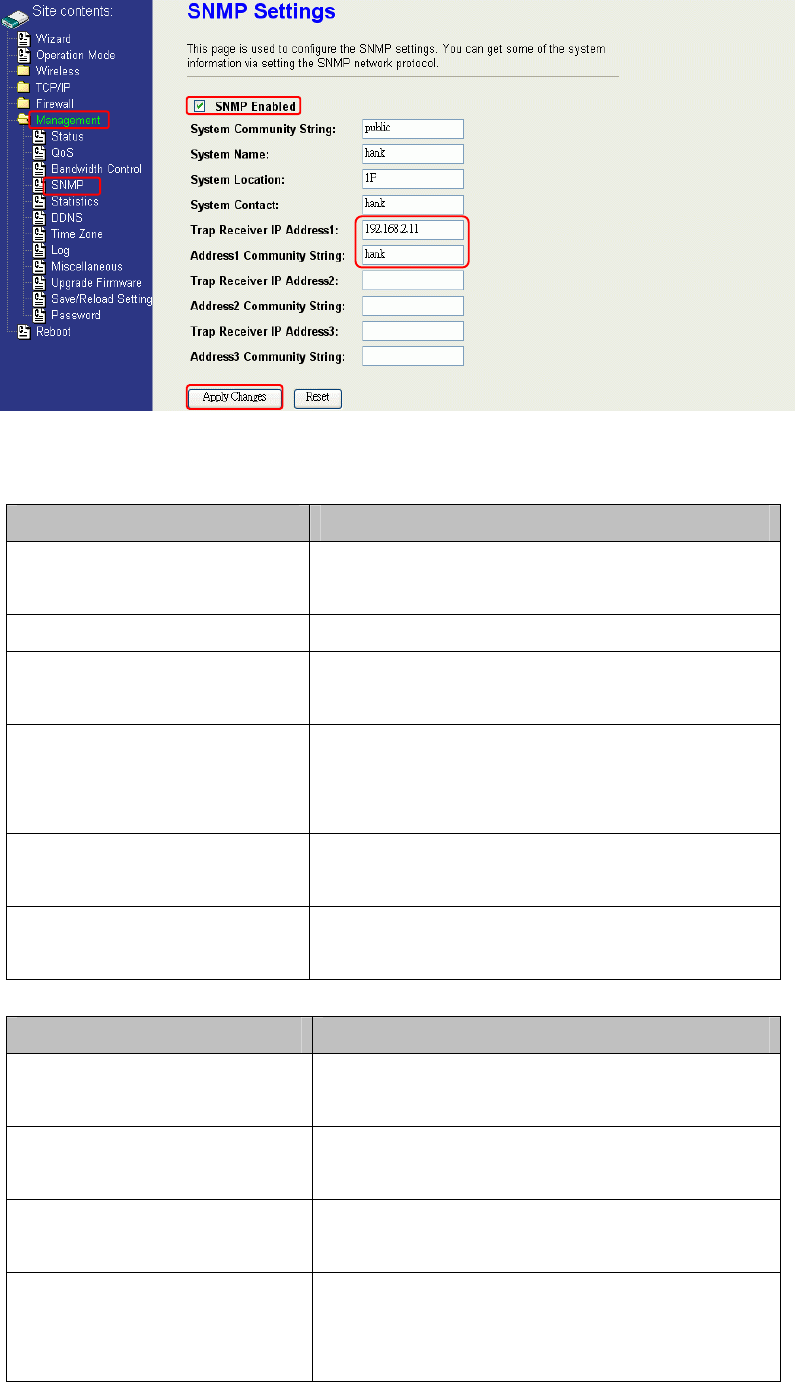

1. Enable SNMP and then enter IP Address of SNMP Manager in Trap Receiver IP
Address field and Community String in System Community String field. Final click
Apply Changes button.
74
2. Following Table describes the SNMP configuration parameter
Label Description
System Community String This is password sent with each trap to the
SNMP Manager.
System Name Type the Name which is name of device.
System Location Type the Location which is location of
device
System Contact Type the Name which is person or group
when the device has problem can find
they.
Trap Receiver IP Address Type the IP Address which is address of
SNMP Manager.
Trap Receiver Community
String
This is password receive with trap from
the device (SNMP Agent).
3. SNMP Traps
Traps Description
coldStart(0) The trap from device after reboot the
device
linkDown(2) The trap is sent when any of the links are
down. See the following table.
linkup(3) The trap is sent when any of the links are
UP. See the following table.
authenticationFailure(4) The trap is sent when the device receiving
gets or sets requirement with wrong
community.
4. Private MIBs
1
2
3
4
5
75
OID Description
1.3.6.1.4.1.99.1 Mode, Operation Mode in device.
1.3.6.1.4.1.99.2 SSID, SSID of the device
1.3.6.1.4.1.99.3 Channel, Channel of the device in WLAN
1.3.6.1.4.1.99.4 Band, 802.11g / 802.11b only
1.3.6.1.4.1.99.5 RSSI, Receive Signal Strength Index
(Support AP and Client RSSI)
1.3.6.1.4.1.99.6 Active_Clients, The number of associate
clients
1.3.6.1.4.1.99.7 Active_Clients_List, Client’s Information
(MAC Address, Data Rate, RSSI…etc)
1.3.6.1.4.1.99.8 Encryption, Encryption type of device in
Wireless Network

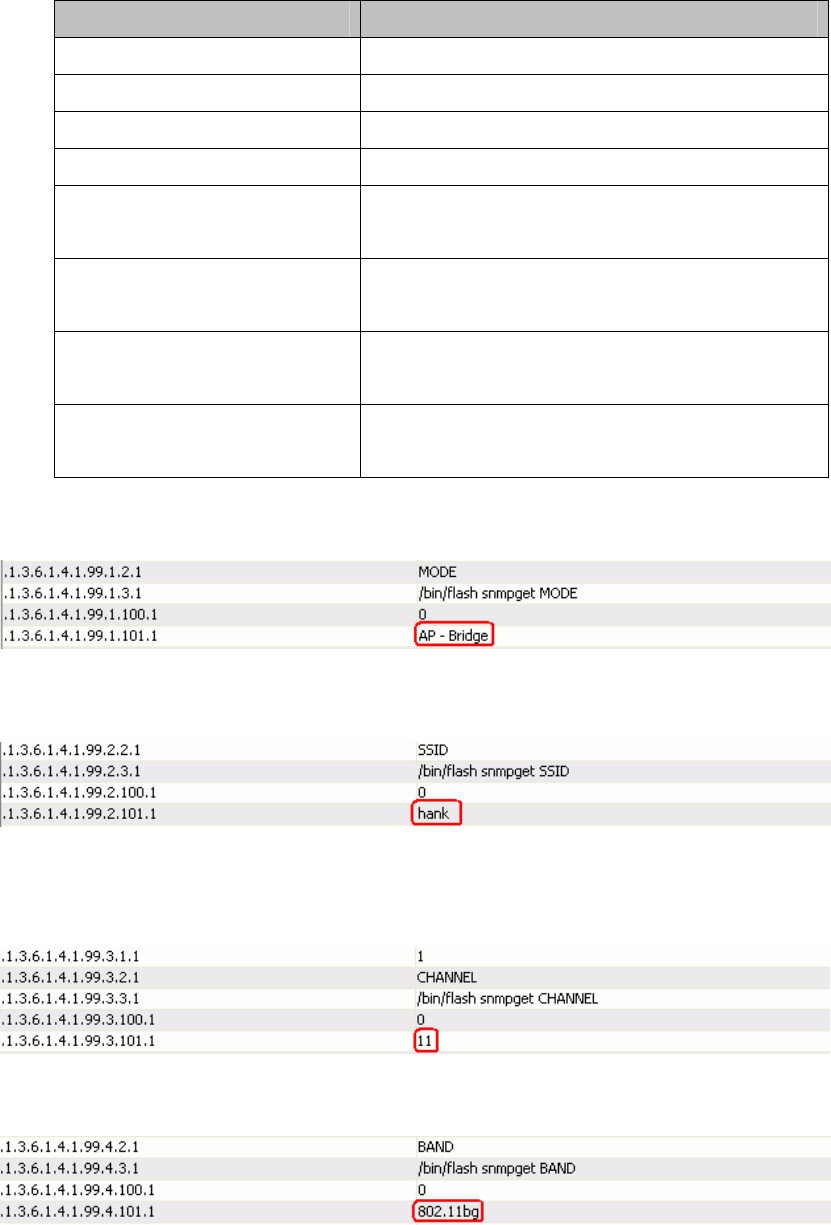

1.3.6.1.4.1.99.1 - Mode
1.3.6.1.4.1.99.2 - SSID
1.3.6.1.4.1.99.3 - Channel
1.3.6.1.4.1.99.4 - Band

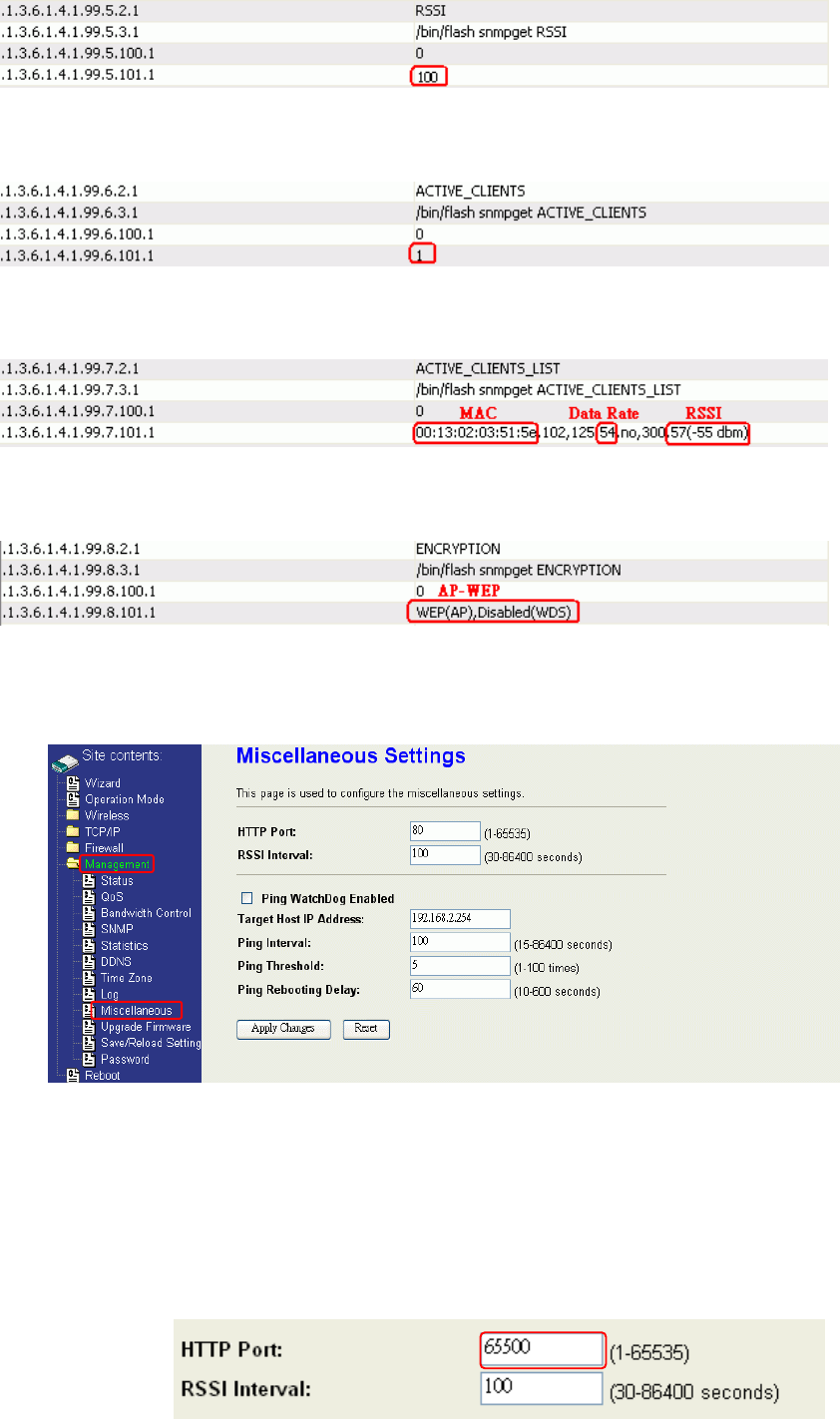

1.3.6.1.4.1.99.5 - RSSI
76
1.3.6.1.4.1.99.6 - Active_Clients
1.3.6.1.4.1.99.7 - Active_Clients_List
1.3.6.1.4.1.99.8 - Encryption
Miscellaneous Settings
HTTP Port
The default http port is 80. For security concern, you can change the device’s http port, to
protect this web server from intrusion and attack.
1. Entering the port number you want to change in HTTP PORT field, then click Apply
Changes button.
77

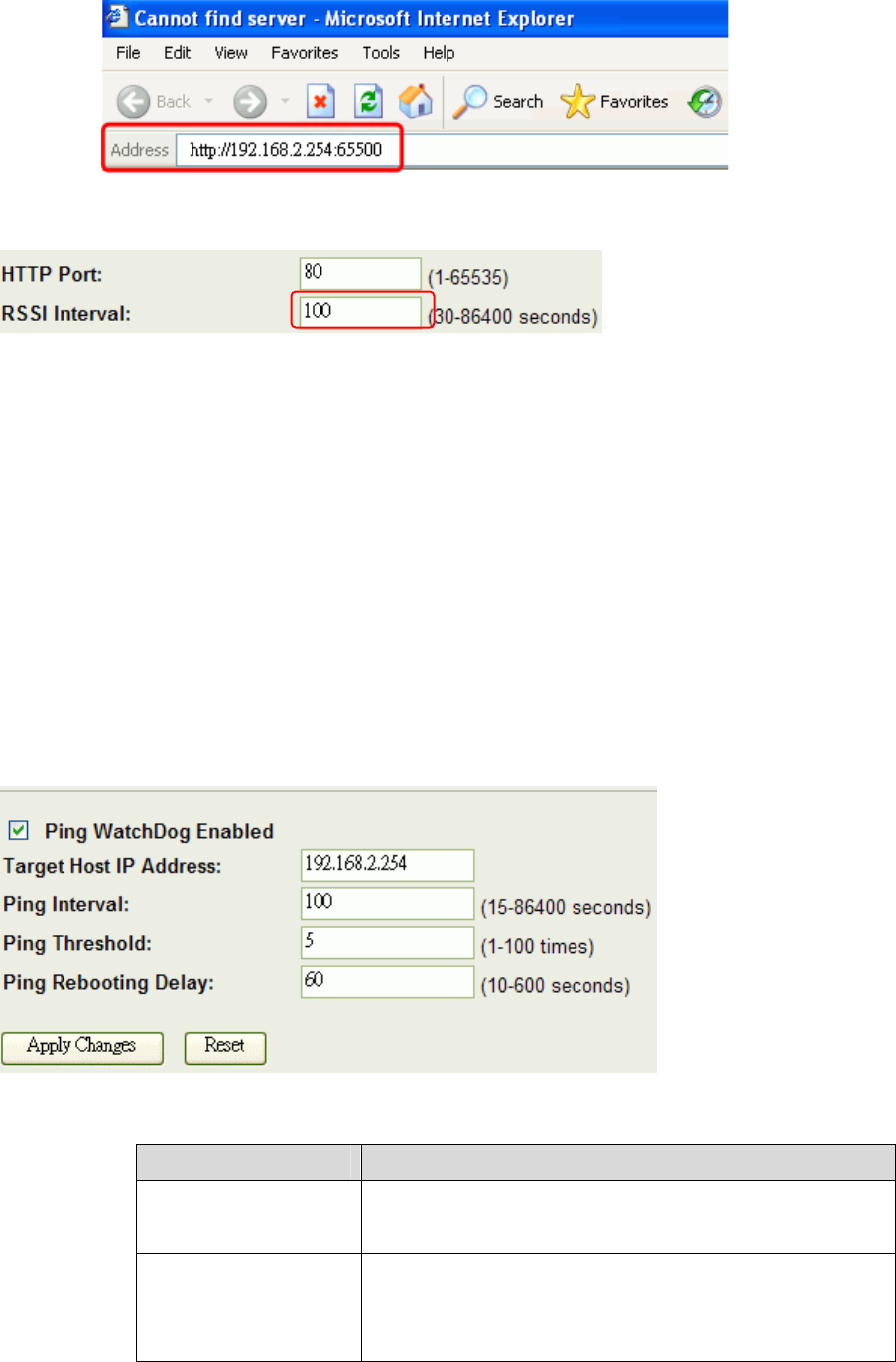

2. After apply change, you should re-login the web server. Type
http://192.168.2.254:65500/ in URL field.
RSSI Interval
Input your RSSI Interval to specify the refresh time of RSSI information. The RSSI
information can be found on the page of Wireless Basic Setting, Active Client Table, Wireless
Site Survey and Status. Because it has to wait to receive the radio signal, the throughput of
this device will be impacted if the interval is too short. The default interval is 100 seconds.
Ping WatchDog
Ping WatchDog Enabled:
Click to enable this function. This device can check its own status by ping another host.
When user enable this option, the device perform ping to a specific network host. Once the
ping is timeout, it may be caused by its network function crashes, and the device will reboot
to fix it.
Following Table describes the Ping WatchDog configuration parameter
Label Description
Target Host IP
Address
Specify the IP Address of the Network host to ping.
Ping Interval Specify the waiting time for the next ping. If this time
is too short, it will impact the through of this AP. The
default value is 100.
78
Ping Threshold Specify the Ping-fail times of criteria. If this device
ping fails several times continuously, and the fail
times meet this criterion, it will perform reboot. The
default value is 5.
Ping Rebooting
Delay
The time before it starting rebooting. When it meets
the Ping Threshold, it will wait for this time and then
reboot. The default value is 60.

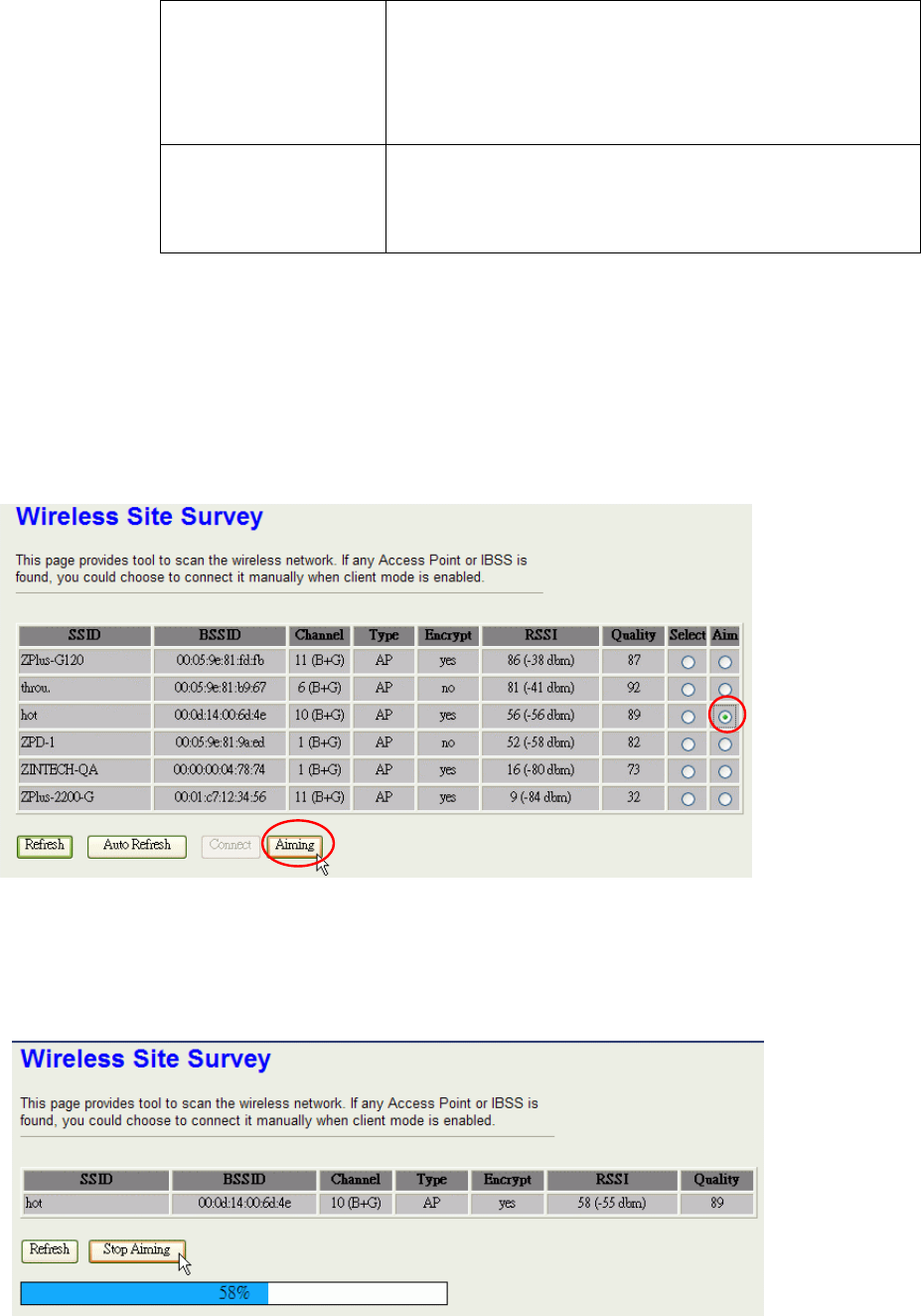

Aiming Tool
The “Aiming tool” can help the installer of the device to find the best direction targeting
the specific Access Point or IBSS. It displays the RSSI of the specify SSID on the
Wireless Site Survey page on the web and LED, so the installer can adjust the antenna
of this device and visually check RSSI by LED.
When this device is in AP Client mode, the user can click the “Aim” option of one SSID
on the list in the Wireless Site Survey page and then click the “Aiming” button.
After clicking the “Aiming” button, RSSI will be displayed on the web page. It’s also

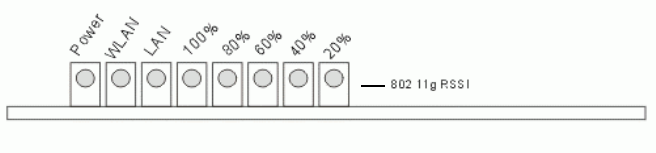

displayed by the LED. The flashing frequency of each LED shows the RSSI; the more
79
frequency the LED flashing, the more RSSI it detected. From 20% to100% on the
following picture, the more LED on means the more RSSI detected. For example, if
the 20% LED and 40% LED are both on and flash quickly, that means the RSSI of the
specific SSID is approaching 40%.
To stop the Aiming tool, the user just click “Stop Aiming” button.
Firmware Upgrade
Firmware Types
The firmware for this device is divided into 2 parts, one is web pages firmware the
other is application firmware, and the naming usually are
zwa-2200webpages_adv.bin and zwa-2200linux_adv_led2.bin. To upgrade
firmware, we suggest user first upgrade the application firmware then web pages
firmware.
Upgrading Firmware
The Web-Browser upgrading interface is the simplest and safest way for user, it will
check the firmware checksum and signature, and the wrong firmware won’t be
accepted. After upgrading, the device will reboot and please note that depends on
the version of firmware, the upgrading may cause the device configuration to be
restored to the factory default setting, and the original configuration data will be lost!

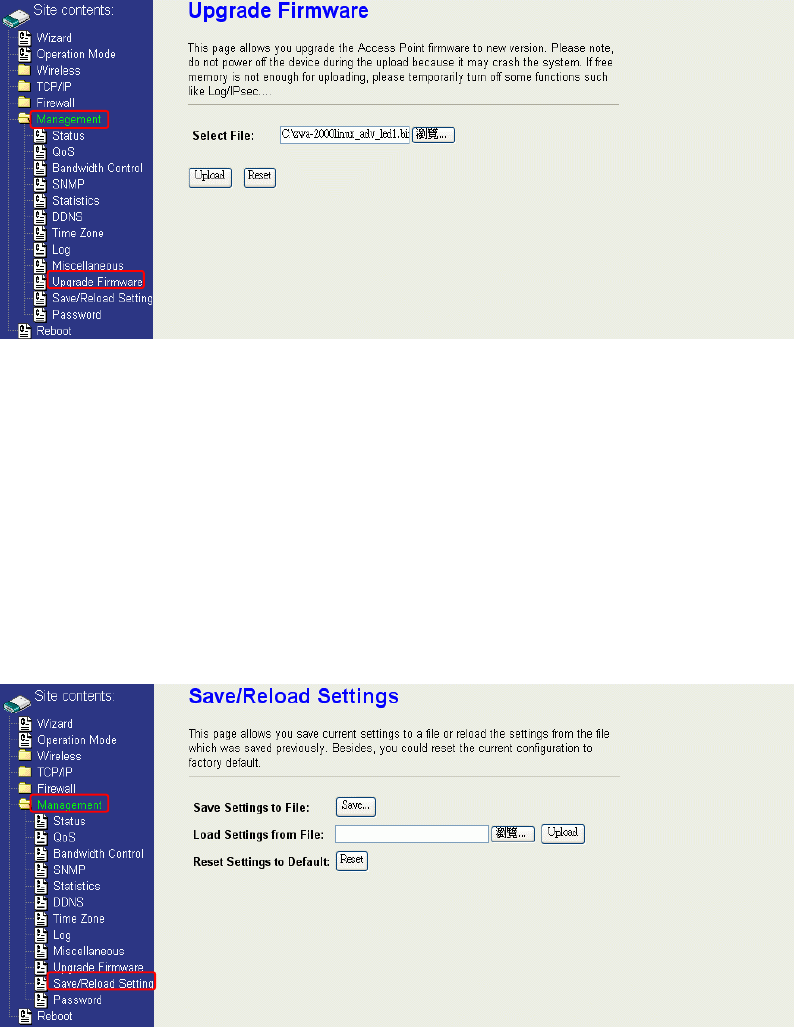

To upgrade firmware, just assign the file name with full path then click “Upload”
button as the following page.
Memory Limitation
To make sure the device have enough memory to upload firmware, the system will
check the capacity of free memory, if the device lack of memory to upload firmware,
please temporarily turn-off some functions then reboot the device to get enough
memory for firmware uploading.
80
Configuration Data Backup & Restore
Rest Setting to Factory Default Value
Since the device is designed for outdoor used, there is no interface outside the
housing to reset the configuration value to the factory default value. The device
provides the Web-Browser interface to rest the configuration data. After resetting it,
the current configuration data will be lost and restored to factory default value.
Saving & Restoring Configuration Data
To save & restore configuration data of device, just assign the target filename with
full path at your local host, then you can backup configuration data to local host or
restore configuration data to the device.
Auto Discovery Tool
User can use this tool to find out how many devices in your local area network. The name
of tool is WirelessConf.exe it in the packing CD.
Login:
81

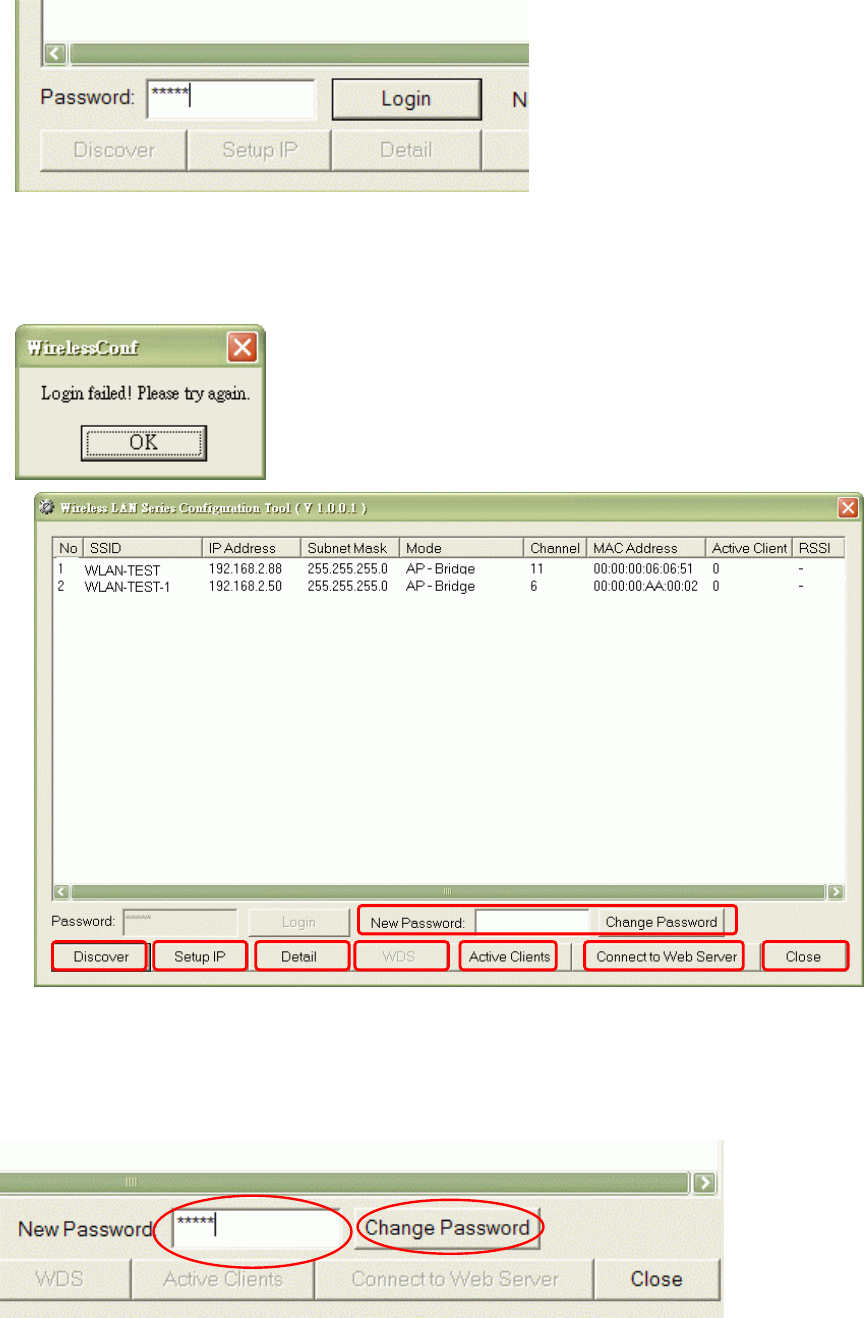

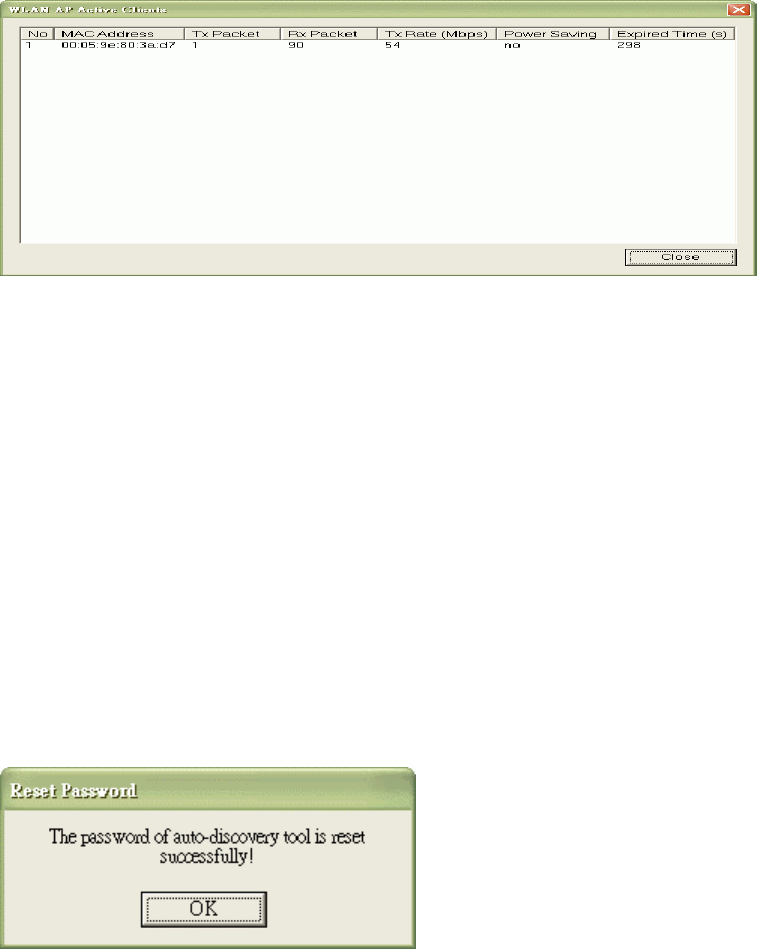

When the user opens this Auto Discovery tool, the login password must be inputted. The
default password is “qwert”. After inputting the password, click “Login” button to open the tool.
If the user doesn’t input the password or input a wrong password, he can’t login the tool and
see the alert window.

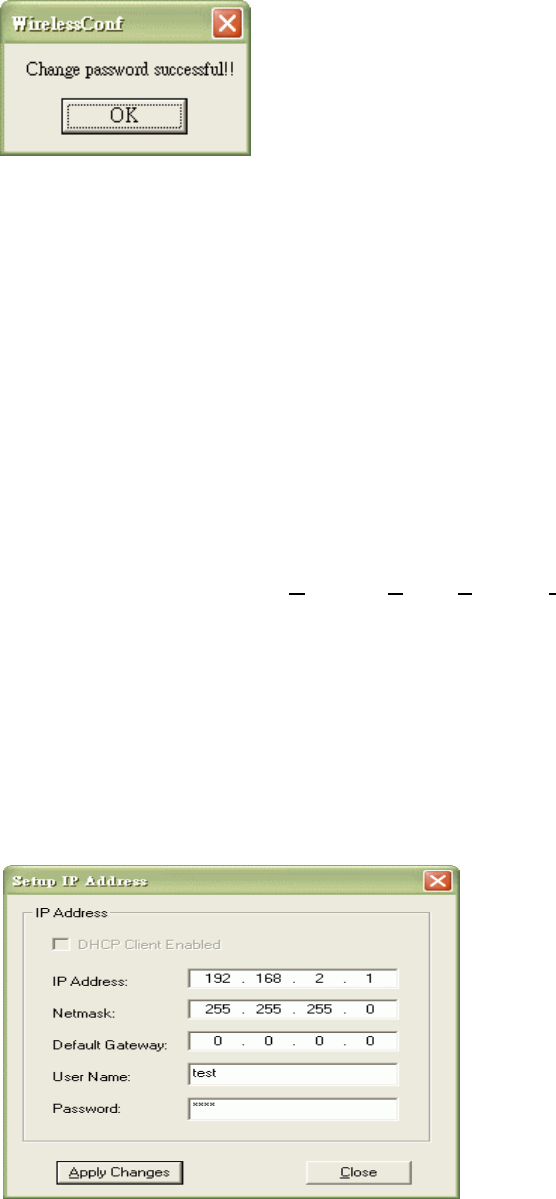

1. Change Password
The user can change the default login password. Just enter new password after login this tool
and click “Change Password” button.
The pop-up window shows that the password has been successfully changed.
82

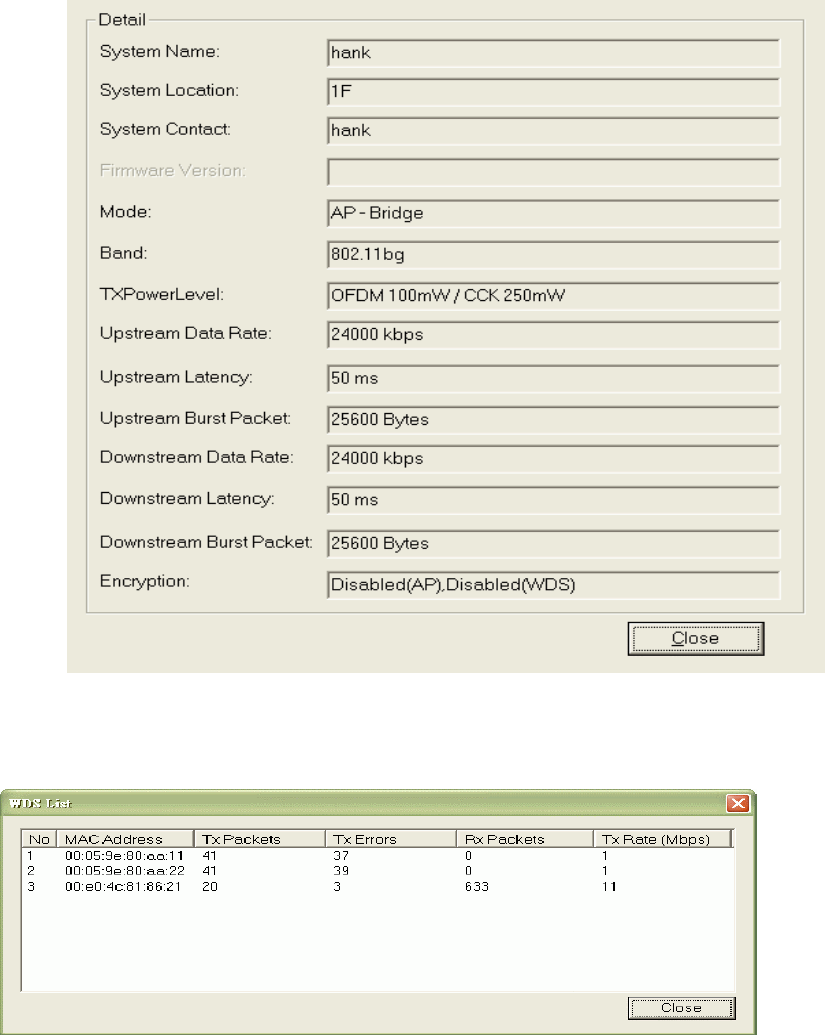

2. Discover
After press this button, you could see there are how many devices in your network. And you
would see the basic information about these devices, such as:
SSID
IP Address
Subnet Mask
Operation Mode
Channel number
MAC Address
Active Client: this field shows how many clients associated with the device
RSSI: this field shows Received Signal Strength Indication while device is on AP-Client
mode
3. Setup IP
After you press the Setup IP button, you would see Setup IP Address window. You could
change device’s IP Address, Netmask, and Default Gateway in this window. But if the device’s
web server needs User Name and Password to login, you should fill in these two fields and then
apply changes.
4. Detail
If you want to see more detailed information, you could press the Detail button, and then you
would see the Detail Information window.
83
5. WDS
If the device you selected is on WDS mode or AP+WDS mode, you could press WDS button,
and then you would see the WDS List window.
6. Active Clients
After press Active Clients button, you would see WLAN AP Active Clients window. In this
window, you could see client’s information, such as:
84
7. Connect to Web Server
If you want connect to device’s web server, you could press this button, or double-click on the
device.
8. Close
You could press this button to leave this tool.
9. Reset the password to default password
If the user had changed the login password and forgot it, he can execute “ResetPassword.exe”
to reset to the default password. When the password has been reset by this program, the
following message window will be prompt on screen. Then the user can use the default
password “qwert” to login the tool.
85
Notes and Warnings to the User and Installer
Caution：
※This Installation Guide is intended for use by the professional wireless LAN system installer.
※The device cannot be sold retail, to the general public or by mail order. It must be sold to
dealers or have strict marketing control.
WARNING：It is the responsibility of the professional installer to ensure that the system is used
exclusively for fixed, point-to-multipoint operations.
Warning：When using the ZW-2200IA / ZW-2200OD in the United States(or where FCC rules
apply),it is the responsibility of the professional installer to ensure to control the output power not
greater then the application(ZW-2200IA / ZW-2200OD：IEEE802.11a mode: 61mW;
IEEE802.11b mode: 94.4mW; IEEE802.11g mode: 92.04mW)
Who Should Use this Guide
Installation of this device should be accomplished only by a qualified wireless LAN system installer
who is ：
◎Knowledgeable of the use, installation and configuration procedures and associated network
components.
◎Knowledgeable of each system component’s equipment User and Installation Guide.
◎Knowledgeable of the installation and configuration procedures for the site’s network
infrastructure system and wiring.
◎Knowledgeable of the installation procedures, safety, and code requirements for the site’s
antenna, antenna mast, antenna cabling, and installation. We highly recommends that the
antenna installation be preformed by a qualified antenna installation professional.
Users should not attempt to make such connections themselves, but should contact the
appropriate electrical inspection authority, or electrician, as appropriate.
Item
No.
Antenna Type Antenna Gain Type of Operation
1 2.4GHz Dipole Antenna (OA-2450-12) 12dBi Point to Multipoint
2 2.4GHz Dipole Antenna (OA-2450-15) 15dBi Point to Multipoint
3 2.4GHz Panel Antenna (PA-2450-16) 16dBi Point to Multipoint
4 5GHz Panel Antenna (PA-5825-16) 16dBi Point to Multipoint
5 5GHz Panel Antenna 18dBi Point to Multipoint
6 5GHz Omni Antenna 12dBi Point to Multipoint
86
REMARK: This device must be installed by professional.
