ZyXEL Communications MAX200HW2 WiMAX Router User Manual UserMan I88MAX200HW2 revised
ZyXEL Communications Corporation WiMAX Router UserMan I88MAX200HW2 revised
Contents
- 1. User manual revised 1
- 2. User manual revised 2
- 3. User manual revised 3
- 4. User manal revised 3
User manual revised 1
About This User's Guide
MAX-200HW2 Series User s Guide 3
About This User's Guide
Congratulations on your purchase of the ZyXEL MAX-200HW2 Series WiMAX WiFi Router
with Built-In Switch and VOIP. Your ZyXEL Device allows you to access WiMAX wireless
networks, set up a WiFi network and make Voice over Internet (VoIP) phone calls.
Your ZyXEL Device is easy to install and configure.
Intended Audience
This manual is designed to guide you through the configuration of your ZyXEL Device for its
various applications.
Related Documentation
Quick Start Guide
The Quick Start Guide is designed to help you get up and running right away. It contains
information on setting up your network and configuring for Internet access.
Supporting Disk
Refer to the included CD for support documents.
ZyXEL Web Site
Please refer to www.zyxel.com for additional support documentation and product
certifications.
User s Guide Feedback
Help us help you. Send all User!s Guide-related comments, questions or suggestions for
improvement to the following address, or use e-mail instead. Thank you!
The Technical Writing Team,
ZyXEL Communications Corp.,
6 Innovation Road II,
Science-Based Industrial Park,
Hsinchu, 300, Taiwan.
E-mail: techwriters@zyxel.com.tw
Document Conventions
MAX-200HW2 Series User s Guide
4
Document Conventions
Warnings and Notes
These are how warnings and notes are shown in this User!s Guide.
Warnings tell you about things that could harm you or your ZyXEL Device.
Notes tell you other important information (for example, other things you may
need to configure or helpful tips) or recommendations.
Syntax Conventions
The ZyXEL MAX-200HW2 Series may be referred to as the "ZyXEL Device#, the
"device#, the "system# or the "product# in this User!s Guide.
Product labels, screen names, field labels and field choices are all in bold font.
A key stroke is denoted by square brackets and uppercase text, for example, [ENTER]
means the "enter# or "return# key on your keyboard.
"Enter# means for you to type one or more characters and then press the [ENTER] key.
"Select# or "choose# means for you to use one of the predefined choices.
A right angle bracket ( > ) within a screen name denotes a mouse click. For example,
Maintenance > Log > Log Setting means you first click Maintenance in the navigation
panel, then the Log sub menu and finally the Log Setting tab to get to that screen.
Units of measurement may denote the "metric# value or the "scientific# value. For
example, "k# for kilo may denote "1000# or "1024#, "M# for mega may denote "1000000#
or "1048576# and so on.
"e.g.,# is a shorthand for "for instance#, and "i.e.,# means "that is# or "in other words#.

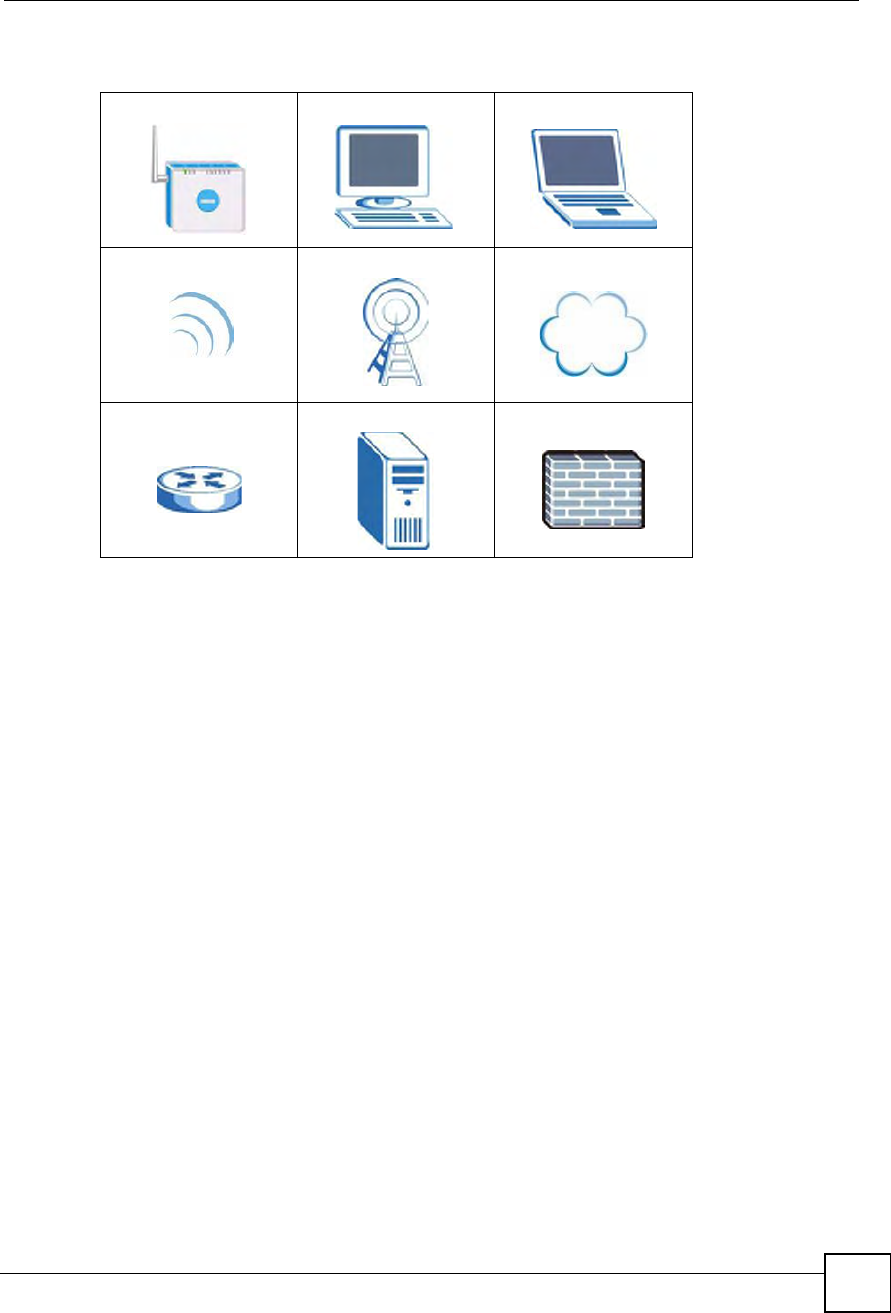

Icons Used in Figures
Figures in this User!s Guide may use the following generic icons. The ZyXEL Device icon is
not an exact representation of your ZyXEL Device.
Document Conventions
MAX-200HW2 Series User s Guide 5
Table 1 Common Icons
ZyXEL DeviceComputerNotebook
Wireless SignalWireless Base StationInternet Cloud
RouterServerFirewall
Safety Warnings
MAX-200HW2 Series User s Guide
6
Safety Warnings
For your safety, be sure to read and follow all warning notices and instructions.
For your safety, be sure to read and follow all warning notices and instructions.
Do NOT use this product near water, for example, in a wet basement or near a swimming
pool.
Do NOT expose your device to dampness, dust or corrosive liquids.
Do NOT store things on the device.
Do NOT install, use, or service this device during a thunderstorm. There is a remote risk
of electric shock from lightning.
Connect ONLY suitable accessories to the device.
ONLY qualified service personnel should service or disassemble this device.
Make sure to connect the cables to the correct ports.
Place connecting cables carefully so that no one will step on them or stumble over them.
Always disconnect all cables from this device before servicing or disassembling.
Use ONLY an appropriate power adaptor or cord for your device.
Connect the power adaptor or cord to the right supply voltage (for example, 110V AC in
North America or 230V AC in Europe).
Do NOT allow anything to rest on the power adaptor or cord and do NOT place the
product where anyone can walk on the power adaptor or cord.
Do NOT use the device if the power adaptor or cord is damaged as it might cause
electrocution.
If the power adaptor or cord is damaged, remove it from the power outlet.
Do NOT attempt to repair the power adaptor or cord. Contact your local vendor to order a
new one.
Do not use the device outside, and make sure all the connections are indoors. There is a
remote risk of electric shock from lightning.
Do NOT obstruct the device ventilation slots, as insufficient airflow may harm your
device.
Use only No. 26 AWG (American Wire Gauge) or larger telecommunication line cord.
Antenna Warning! This device meets ETSI and FCC certification requirements when
using the included antenna(s). Only use the included antenna(s).
Safety Warnings
MAX-200HW2 Series User s Guide 7

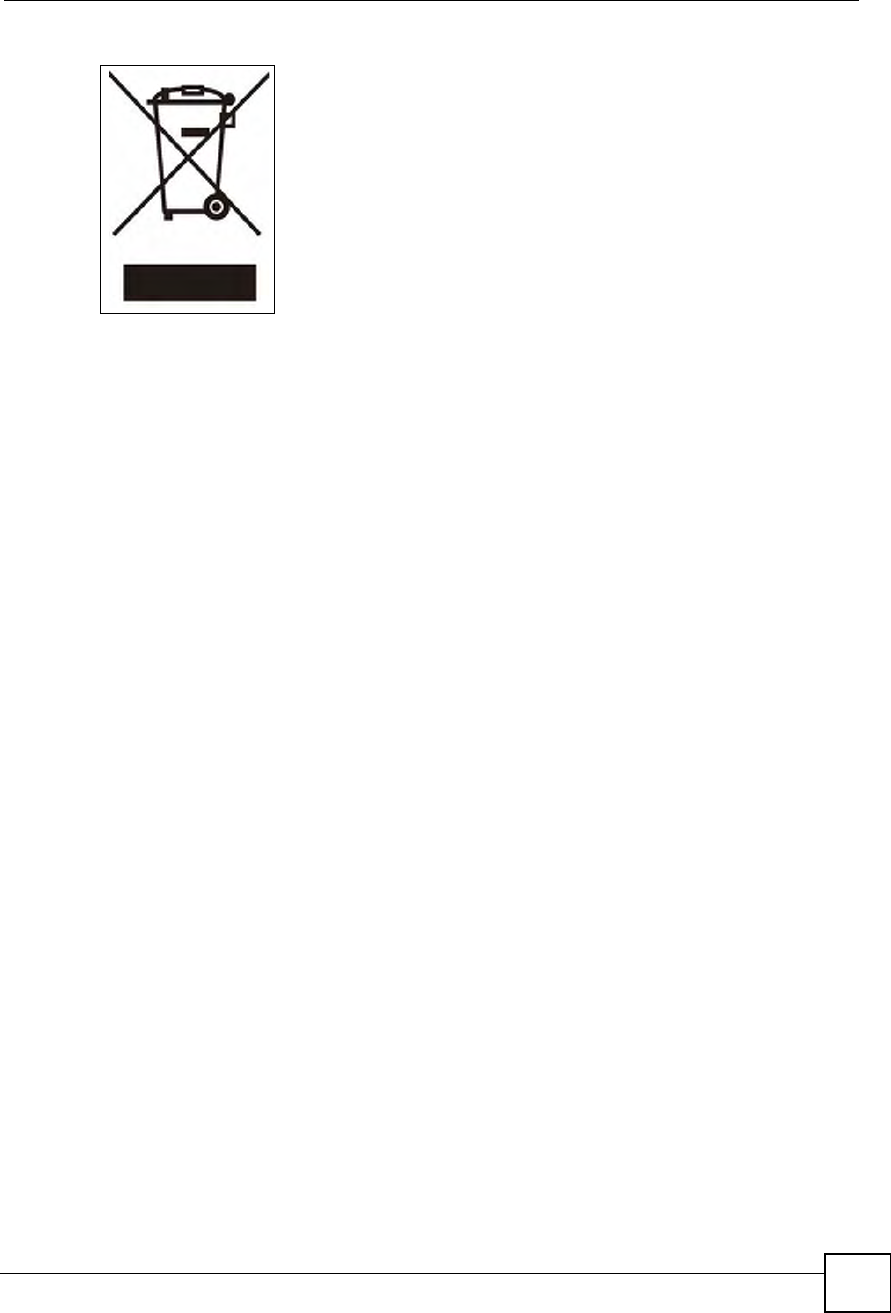

This product is recyclable. Dispose of it properly.
Safety Warnings
MAX-200HW2 Series User s Guide
8
Contents Overview
MAX-200HW2 Series User s Guide 9
Contents Overview
Introduction ............................................................................................................................31
Getting Started ...........................................................................................................................33
Introducing the Web Configurator ..............................................................................................39
Tutorials and Wizard ..............................................................................................................47
Tutorial .......................................................................................................................................49
Internet Setup Wizard................................................................................................................ 61
VoIP Wizard ...............................................................................................................................73
Web Configurator ...................................................................................................................77
Status Screens ..........................................................................................................................79
Wireless LAN .............................................................................................................................91
WAN Setup ..............................................................................................................................107
LAN ...........................................................................................................................................119
NAT ..........................................................................................................................................129

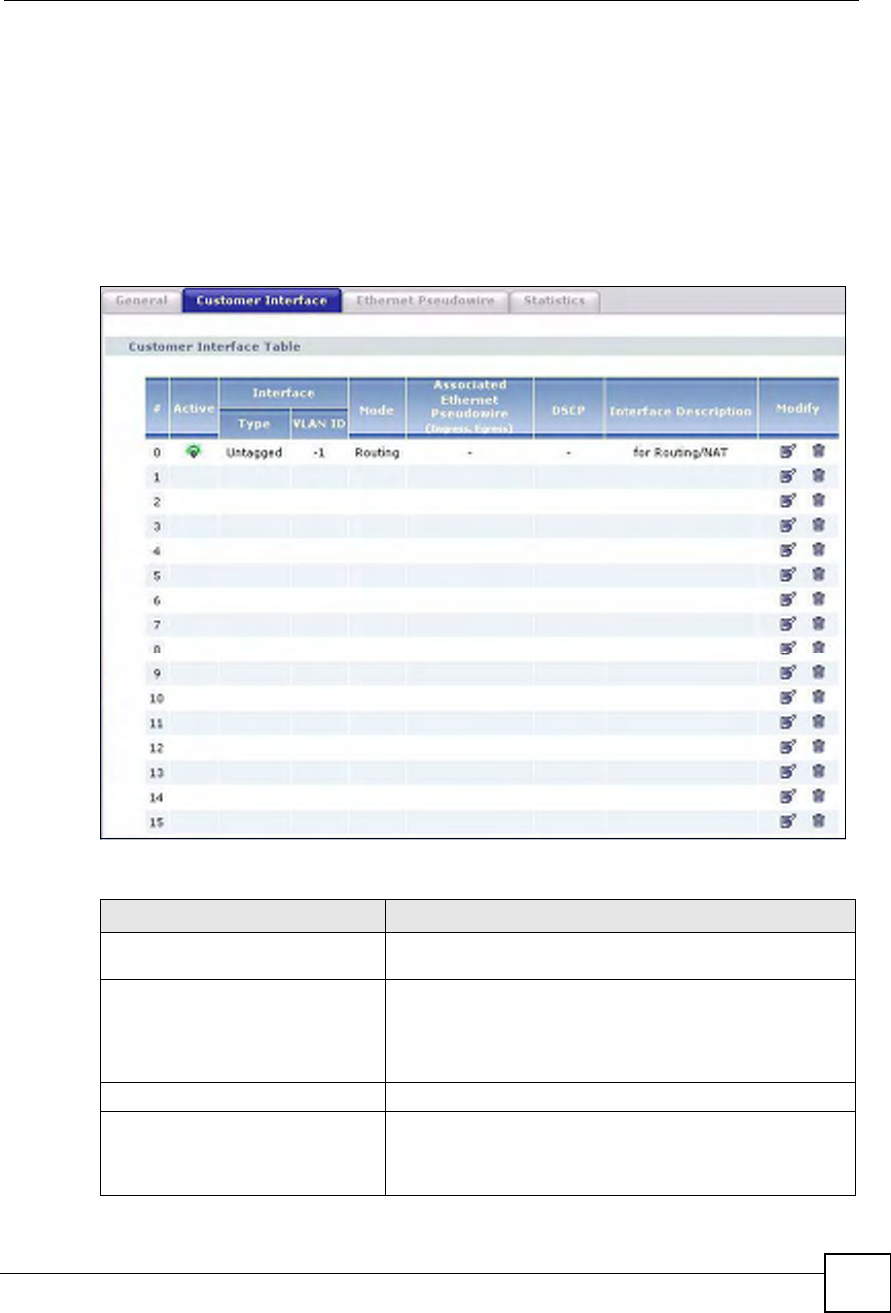

VPN Transport .........................................................................................................................137
SIP ...........................................................................................................................................149
Phone ......................................................................................................................................165
Phone Book .............................................................................................................................173
Firewall ....................................................................................................................................179
Certificates ...............................................................................................................................187
Content Filter ...........................................................................................................................205
Static Route .............................................................................................................................209
Remote MGMT ........................................................................................................................213
UPnP .......................................................................................................................................221
System .....................................................................................................................................233
Logs .........................................................................................................................................241
Tools ........................................................................................................................................255
Troubleshooting and Specifications ..................................................................................261
Troubleshooting .......................................................................................................................263
Product Specifications .............................................................................................................269
Appendices and Index .........................................................................................................273
Contents Overview
MAX-200HW2 Series User s Guide
10
Table of Contents
MAX-200HW2 Series User s Guide 11
Table of Contents
About This User's Guide..........................................................................................................3
Document Conventions............................................................................................................4
Safety Warnings........................................................................................................................6
Contents Overview...................................................................................................................9
Table of Contents....................................................................................................................11
List of Figures.........................................................................................................................21
List of Tables...........................................................................................................................27
Part I: Introduction.................................................................................31
Chapter 1
Getting Started........................................................................................................................33
1.1 About Your ZyXEL Device .................................................................................................33
1.1.1 Wireless Internet Access ............................................................................................33
1.1.2 WiFi Network ..............................................................................................................34
1.1.3 Make Calls via Internet Telephony Service Provider ..................................................34
1.2 ZyXEL Device Hardware .....................................................................................................35
1.2.1 LEDs ..........................................................................................................................35
1.2.2 Antennas ....................................................................................................................36
1.3 Good Habits for Managing the ZyXEL Device .....................................................................37
Chapter 2
Introducing the Web Configurator........................................................................................39
2.1 Web Configurator Overview .................................................................................................39
2.1.1 Accessing the Web Configurator ................................................................................39
2.1.2 The RESET Button .....................................................................................................41

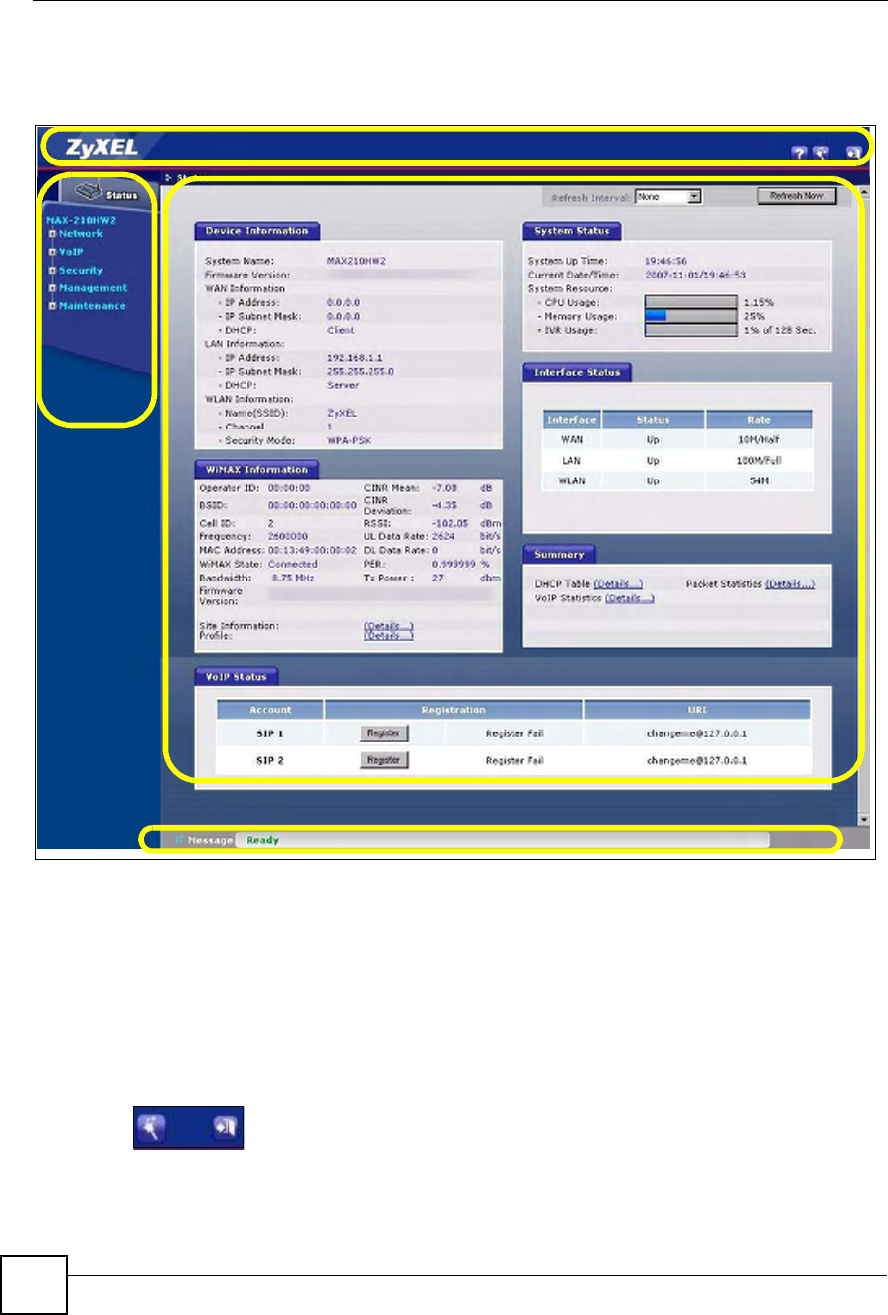

2.2 Web Configurator Main Screen ...........................................................................................42
2.2.1 Title Bar ......................................................................................................................42
2.2.2 Navigation Panel ........................................................................................................43
2.2.3 Main Window ..............................................................................................................45
2.2.4 Status Bar ...................................................................................................................45
Table of Contents
MAX-200HW2 Series User s Guide
12
Part II: Tutorials and Wizard..................................................................47
Chapter 3
Tutorial.....................................................................................................................................49
3.1 Connect to the Internet ........................................................................................................49
3.1.1 Configure Internet Access Settings ............................................................................49
3.1.2 Configure WiMAX Settings .........................................................................................52
3.2 Set Up a WiFi Network ........................................................................................................53
3.2.1 Configuring the AP (Your ZyXEL Device) ...................................................................53
3.3 Connect to the WiFi Network ...............................................................................................54
3.3.1 Connecting to a Wireless LAN ...................................................................................55
3.4 Make a Telephone Call Over the Internet ............................................................................57
3.4.1 Configure Your SIP Account ......................................................................................57
3.4.2 Configure a Phone .....................................................................................................58
3.4.3 Set Up Speed Dialing and Make a Call ......................................................................59
Chapter 4
Internet Setup Wizard.............................................................................................................61
4.1 Wizard Setup Overview .......................................................................................................61
4.2 Internet Connection Wizard Setup .......................................................................................61
4.3 Step One: System Information .............................................................................................62
4.4 Step Two: Wireless LAN Wizard ..........................................................................................63

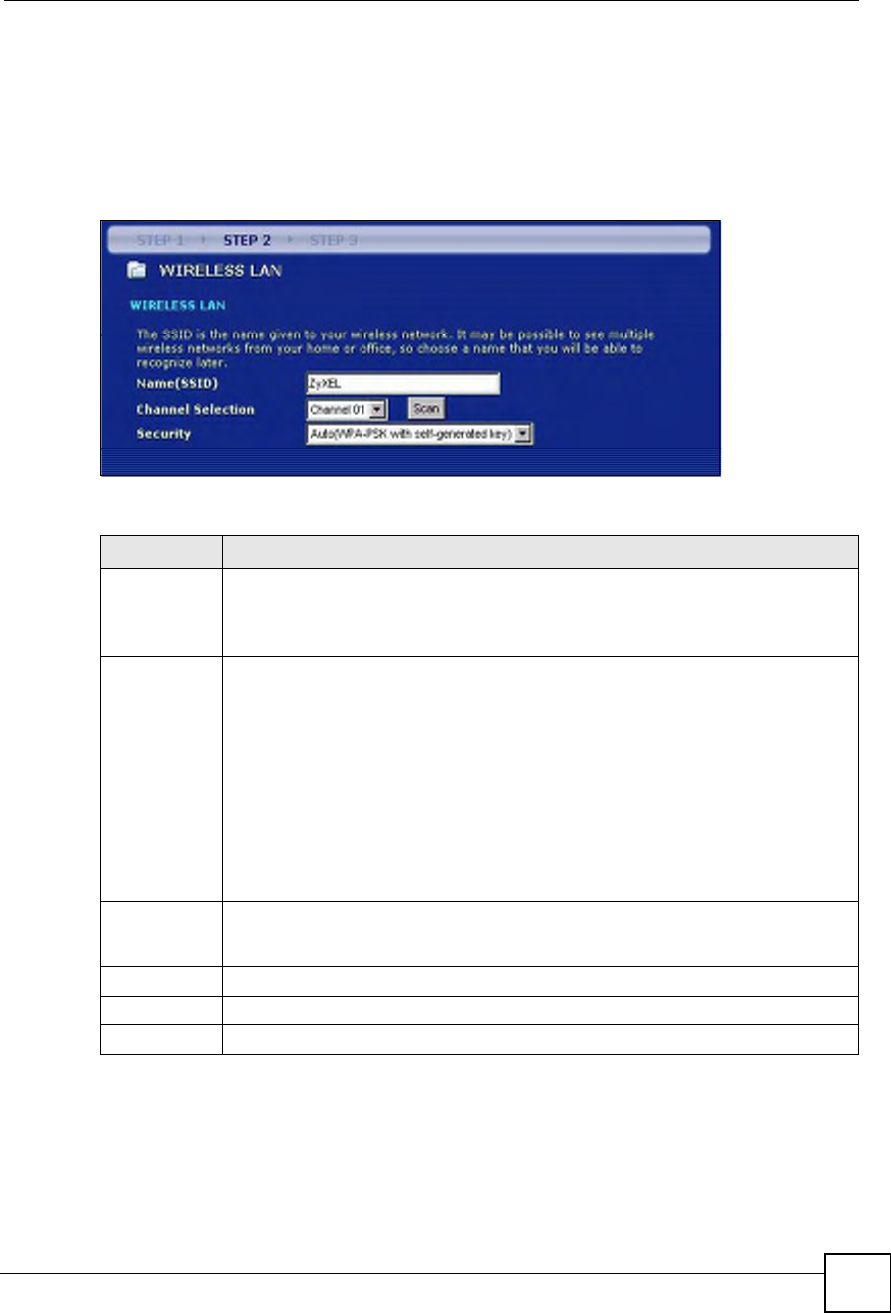

4.4.1 Wireless LAN Screen .................................................................................................63
4.4.2 Basic (WEP) Security .................................................................................................64
4.4.3 Extend (WPA-PSK or WPA2-PSK) Security ...............................................................65

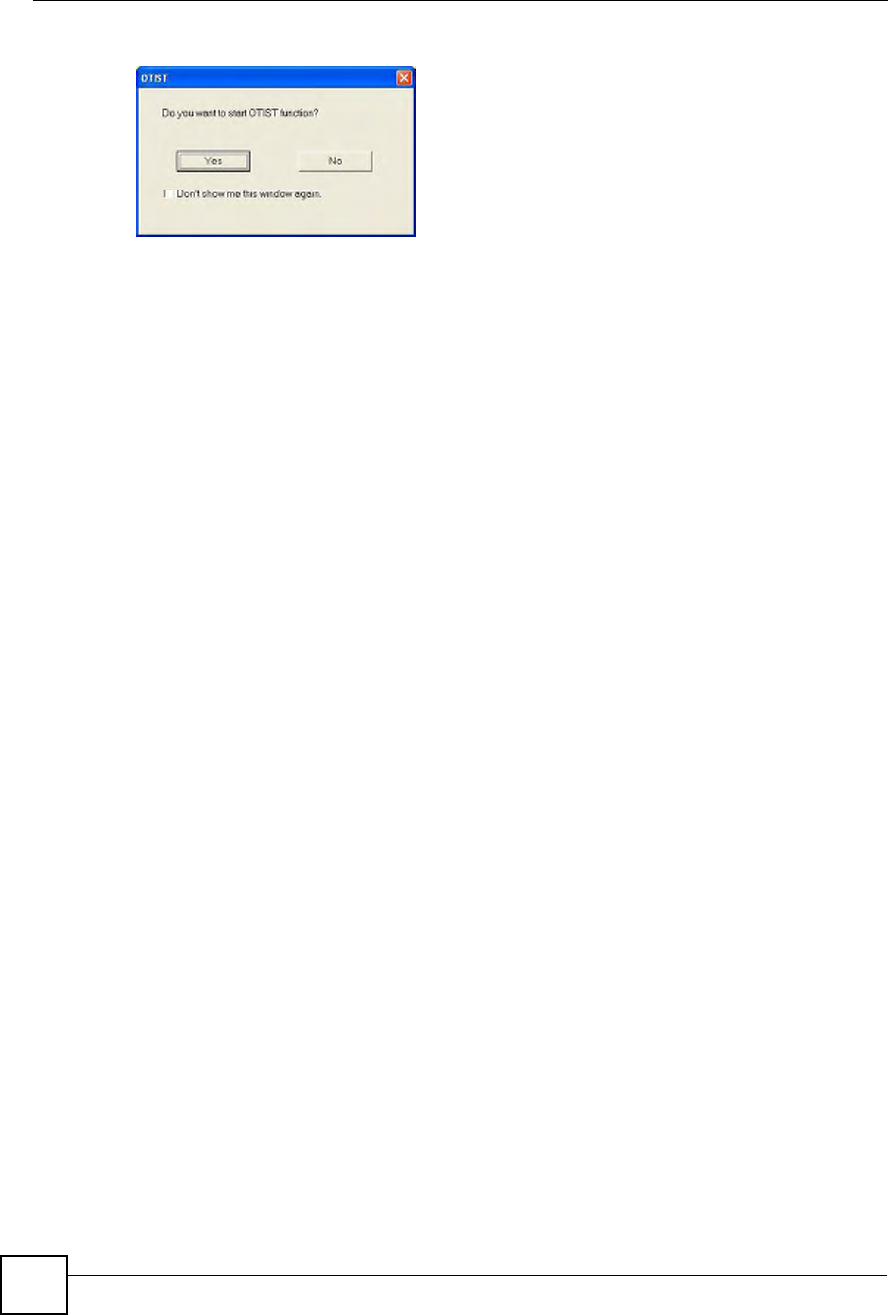

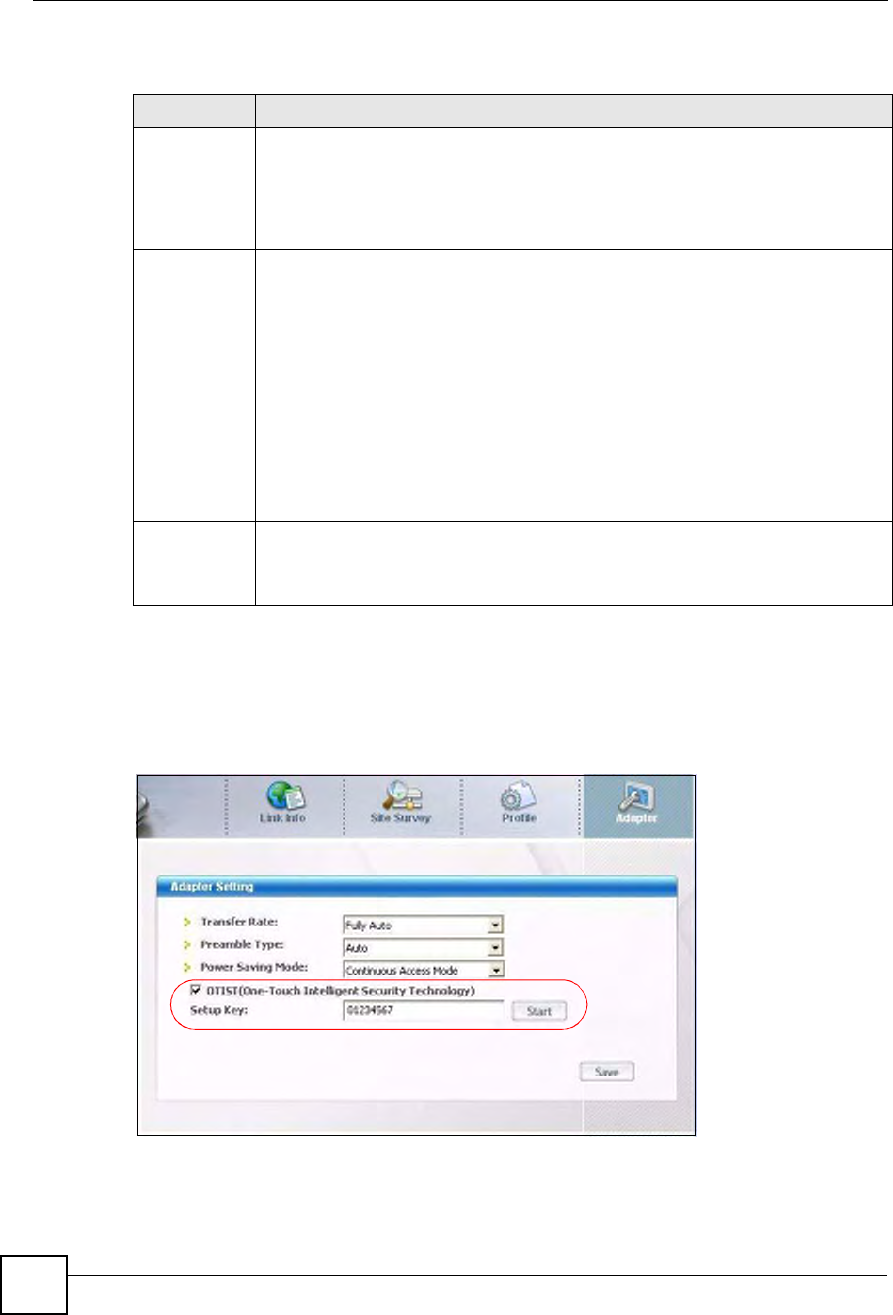

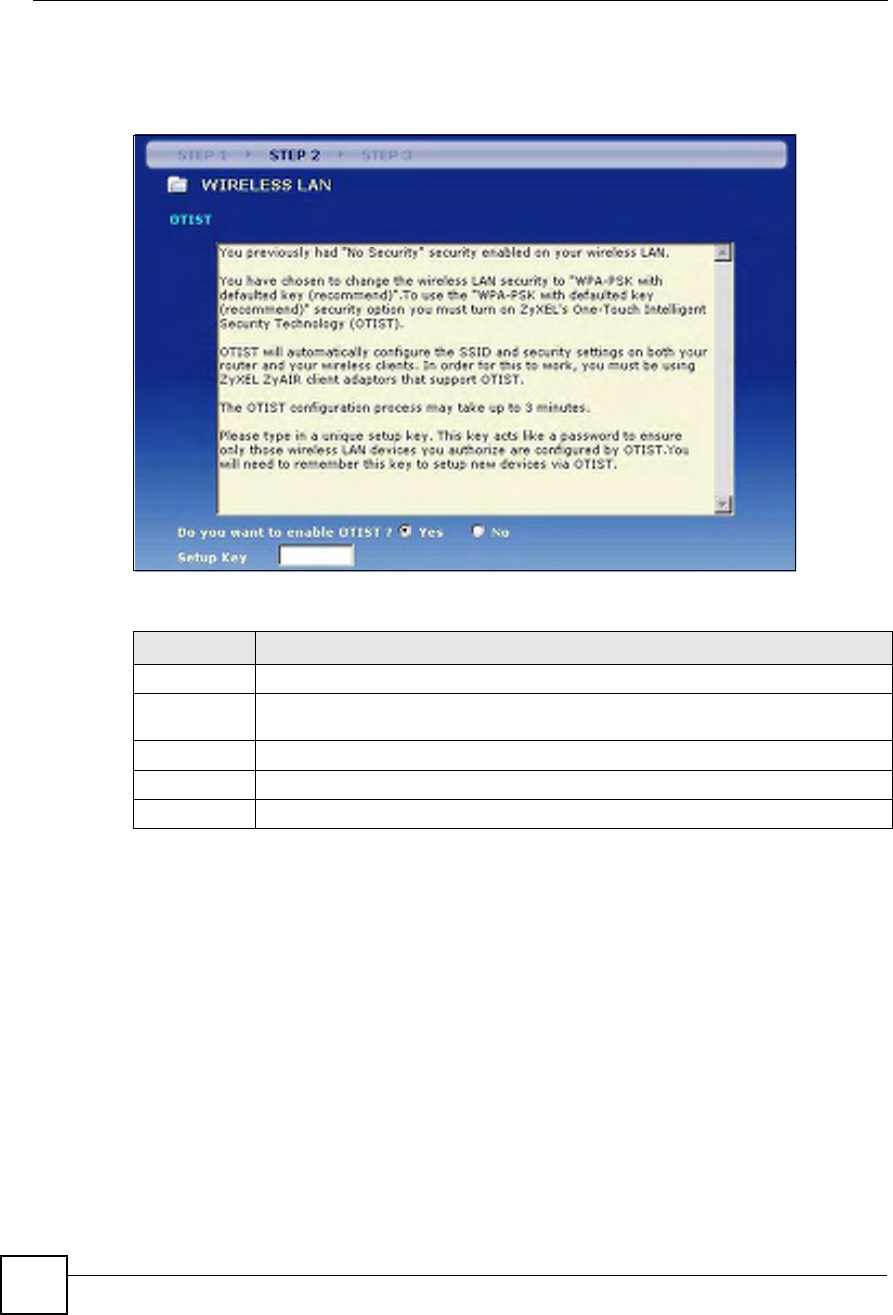

4.4.4 The OTIST Screen .....................................................................................................65
4.5 Step Three: Internet Configuration ......................................................................................66
4.5.1 Connection Type Screen ............................................................................................66
4.5.2 ISP Parameters for Internet Access Screen ..............................................................67
4.5.3 Antenna Selection Screen ..........................................................................................68
4.5.4 IP Address Screen .....................................................................................................69

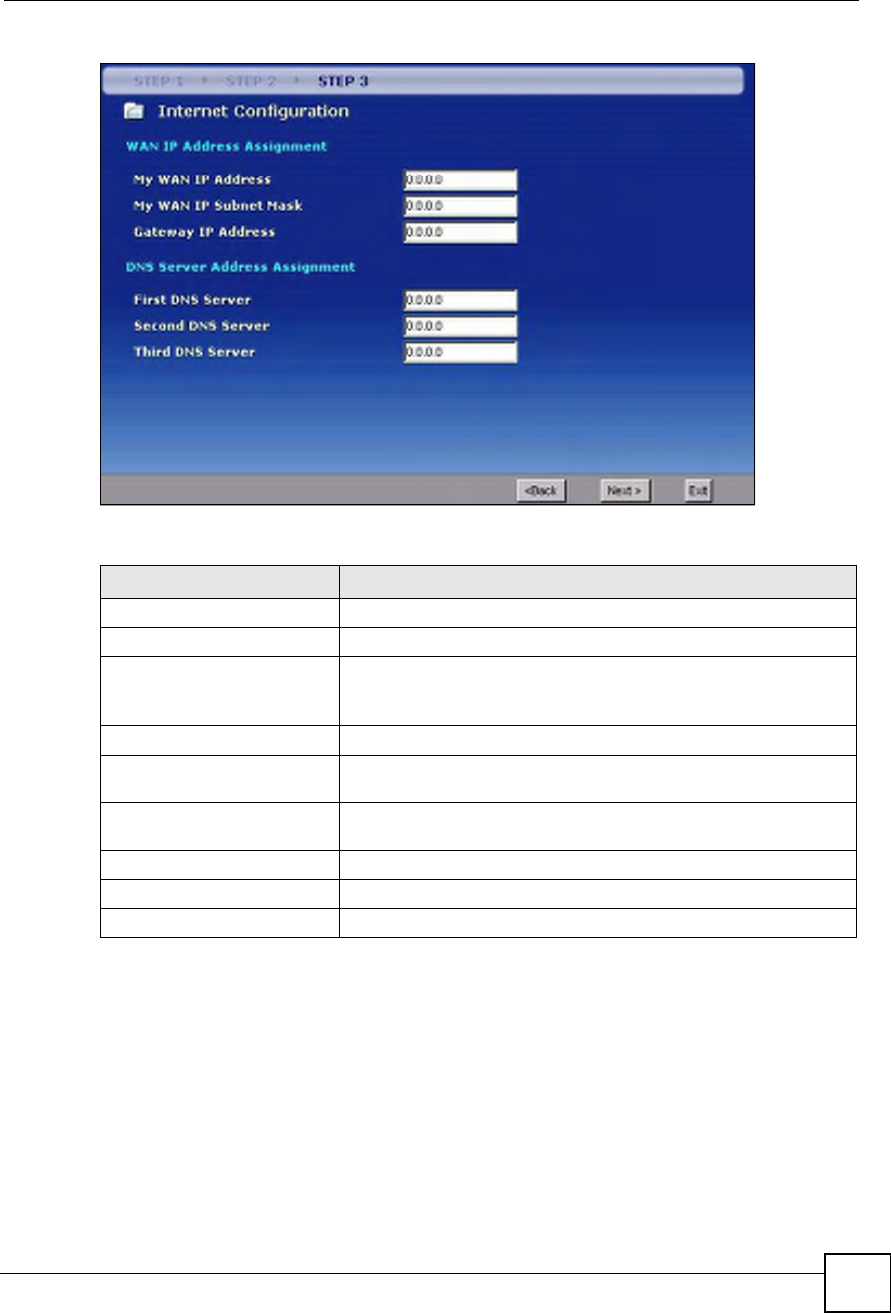

4.5.5 WAN IP Address Assignment .....................................................................................70

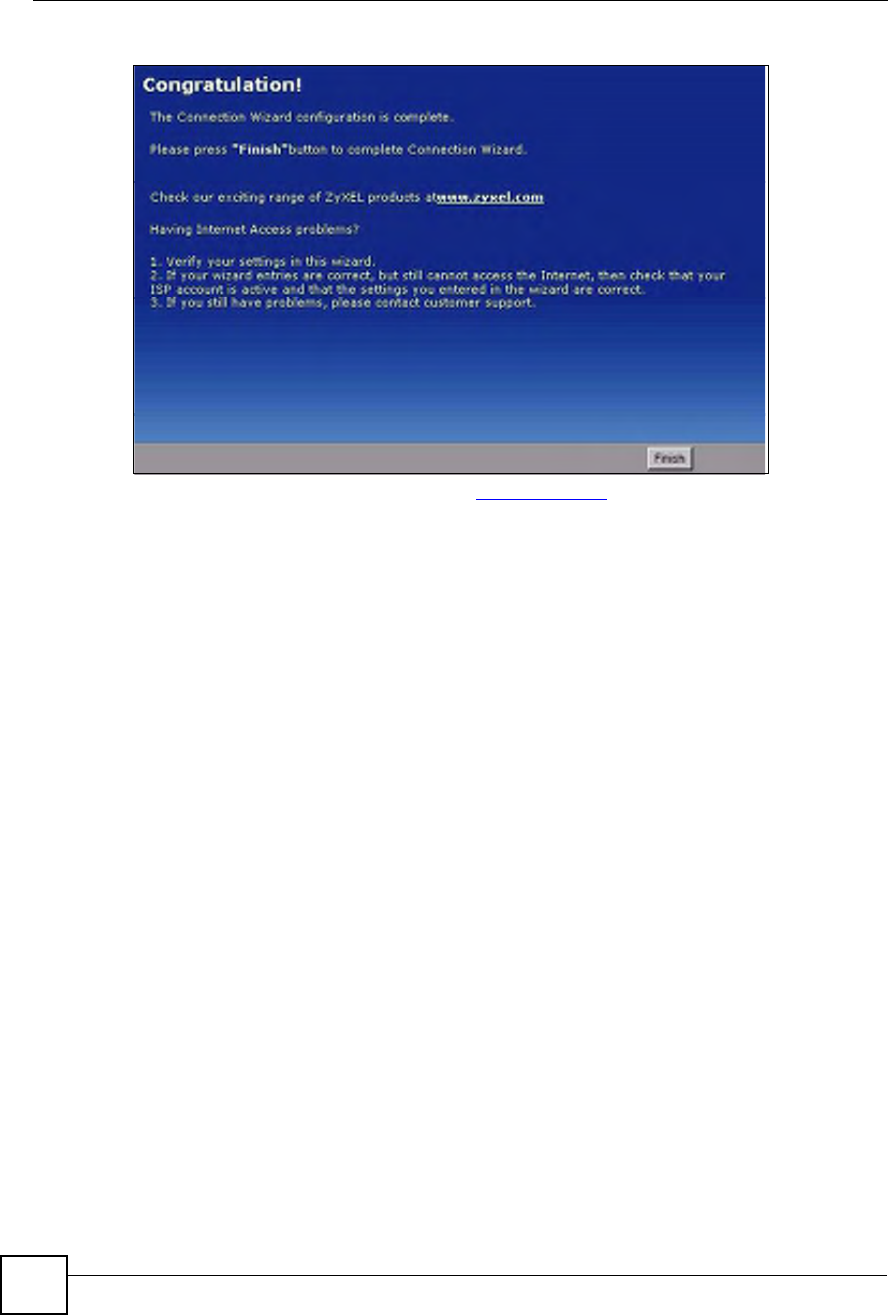

4.5.6 Wizard Complete ........................................................................................................71
Chapter 5

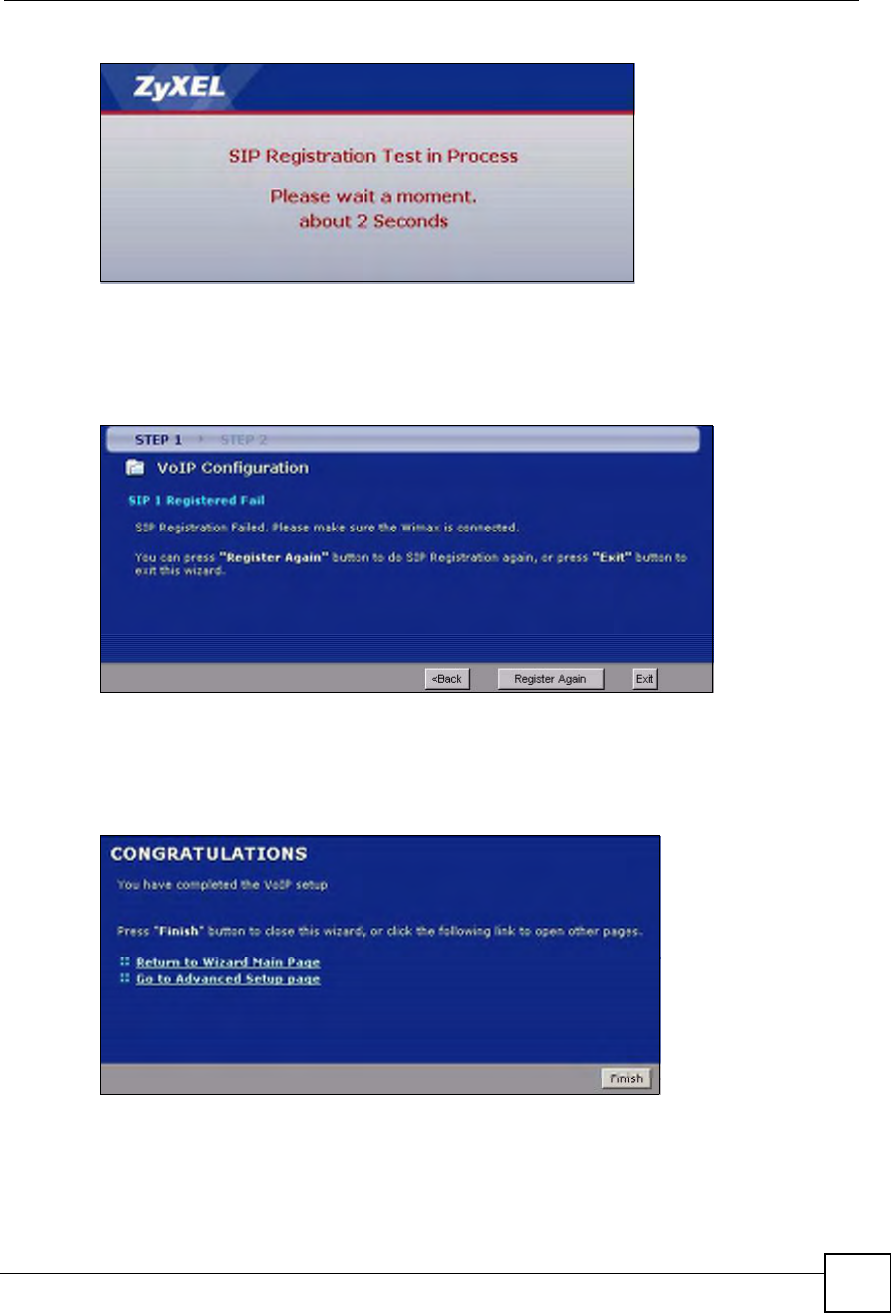

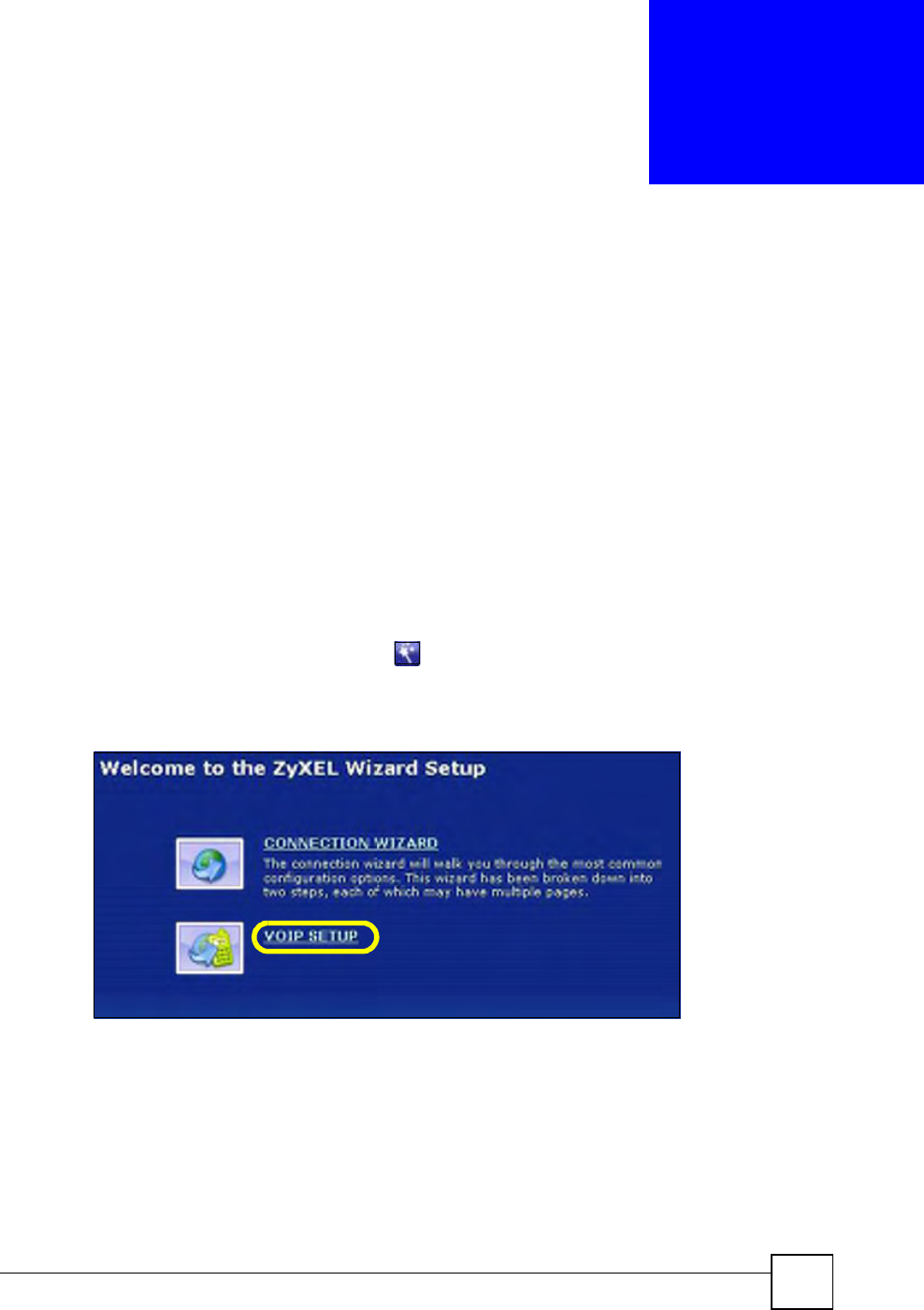

VoIP Wizard.............................................................................................................................73
5.1 Introduction ..........................................................................................................................73

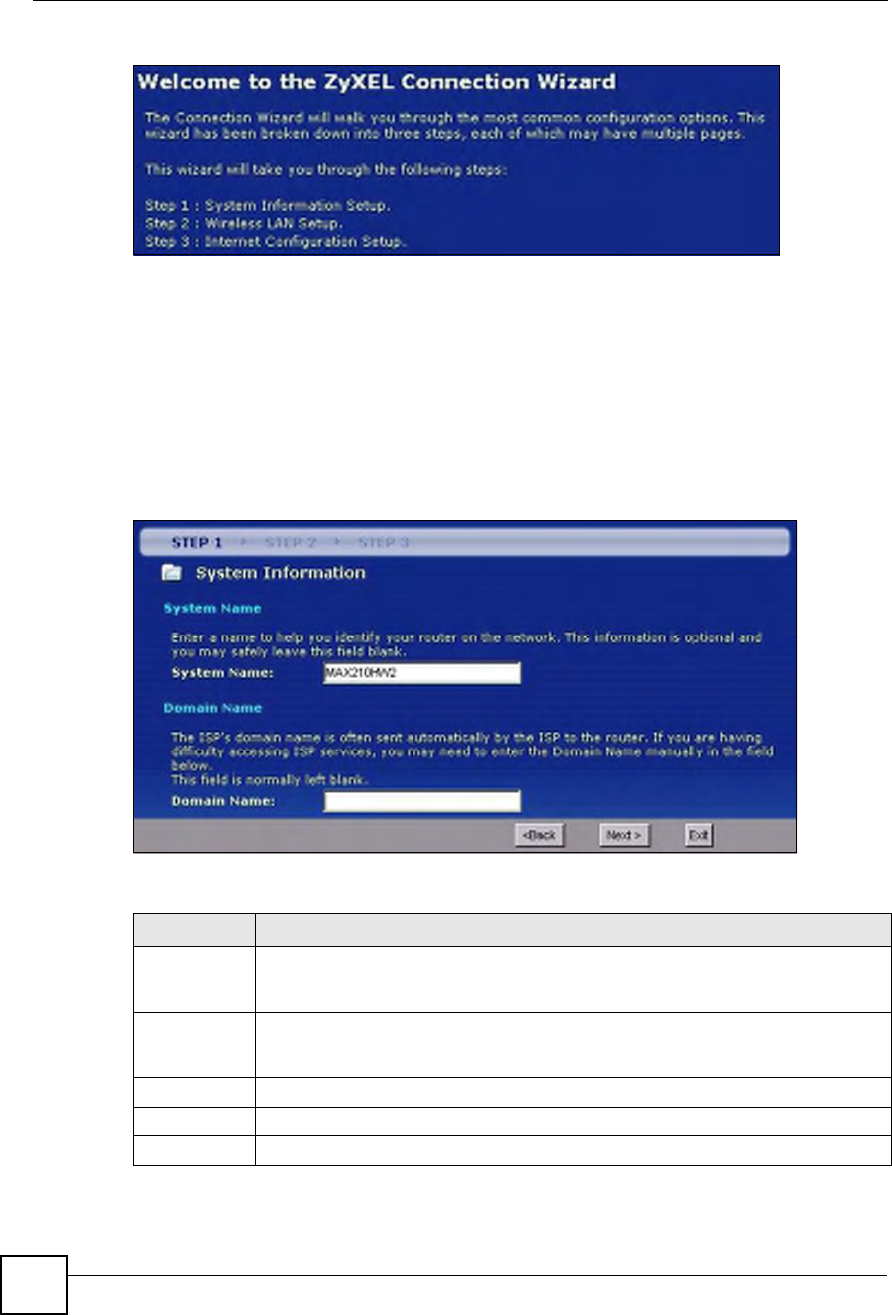

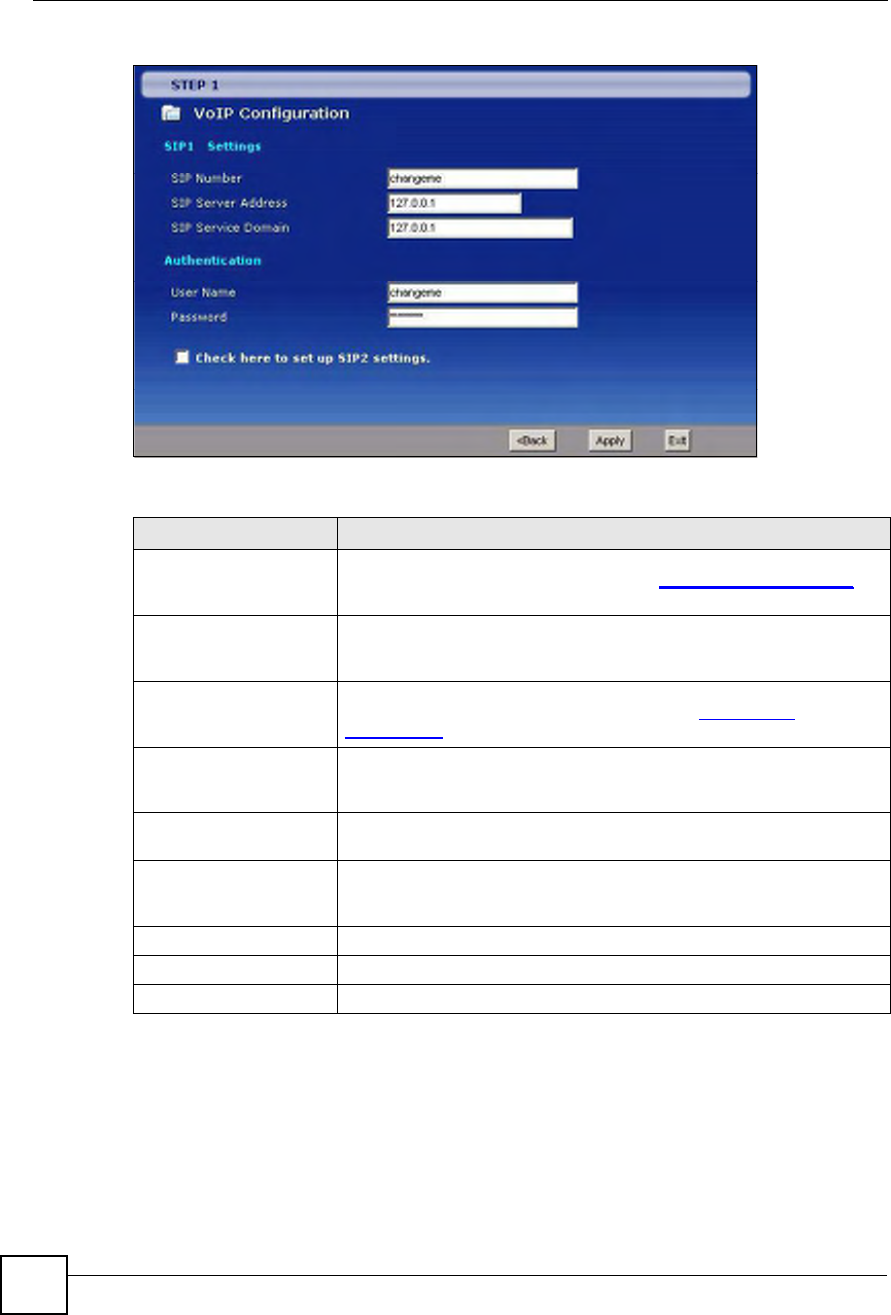

5.2 VOIP Wizard Setup .............................................................................................................73
Part III: Web Configurator.....................................................................77
Table of Contents
MAX-200HW2 Series User s Guide 13
Chapter 6
Status Screens........................................................................................................................79

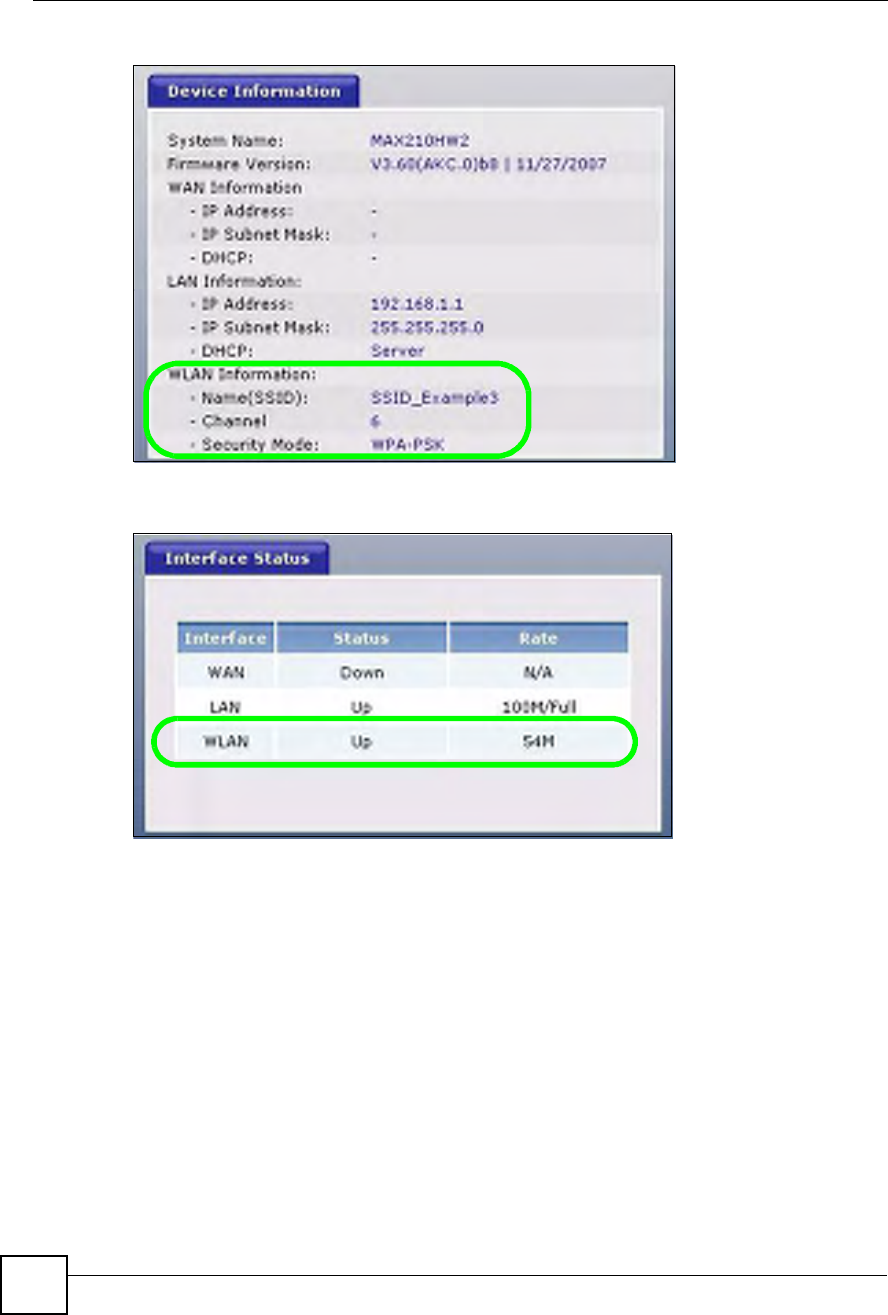

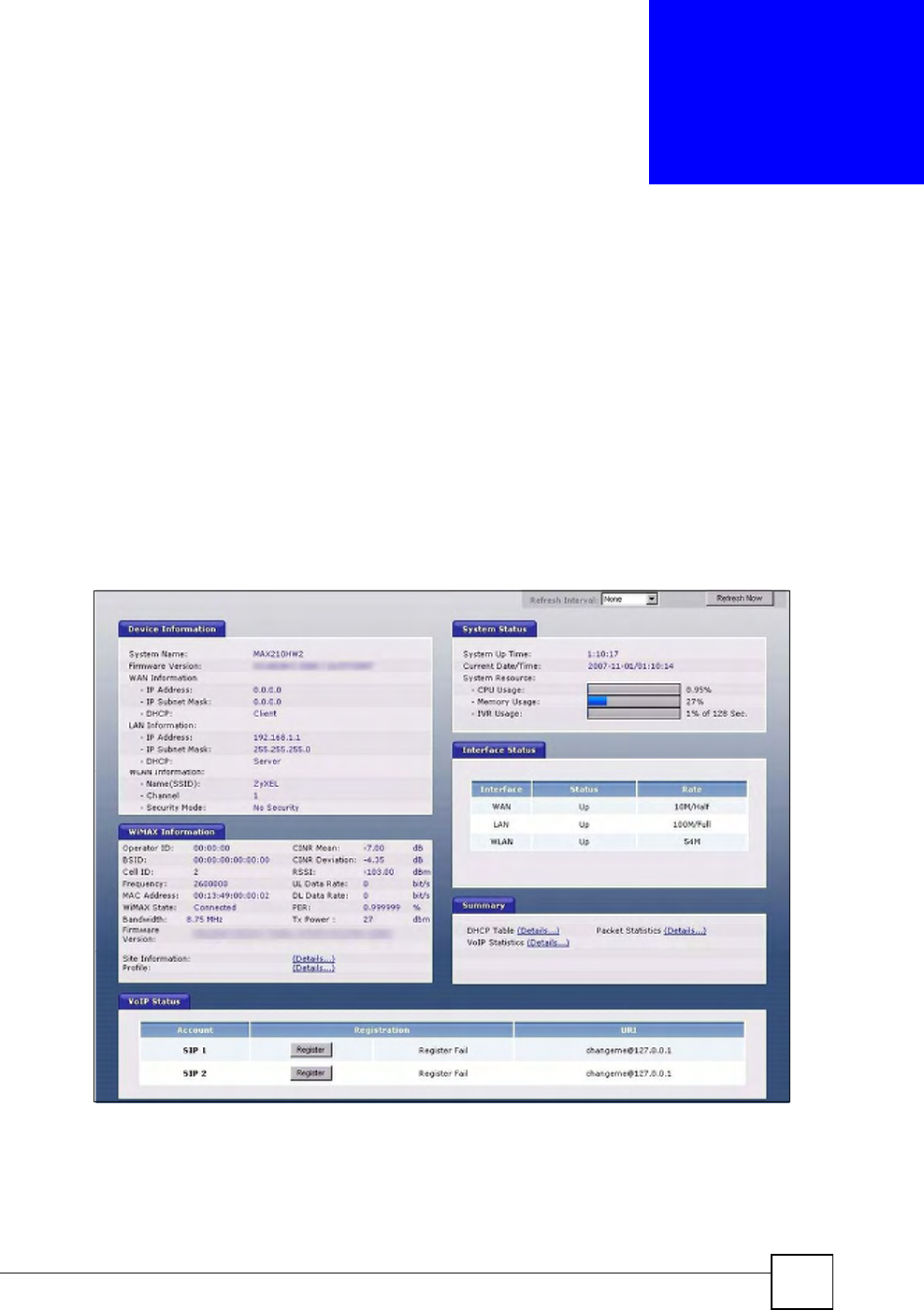

6.1 Status Screen ......................................................................................................................79

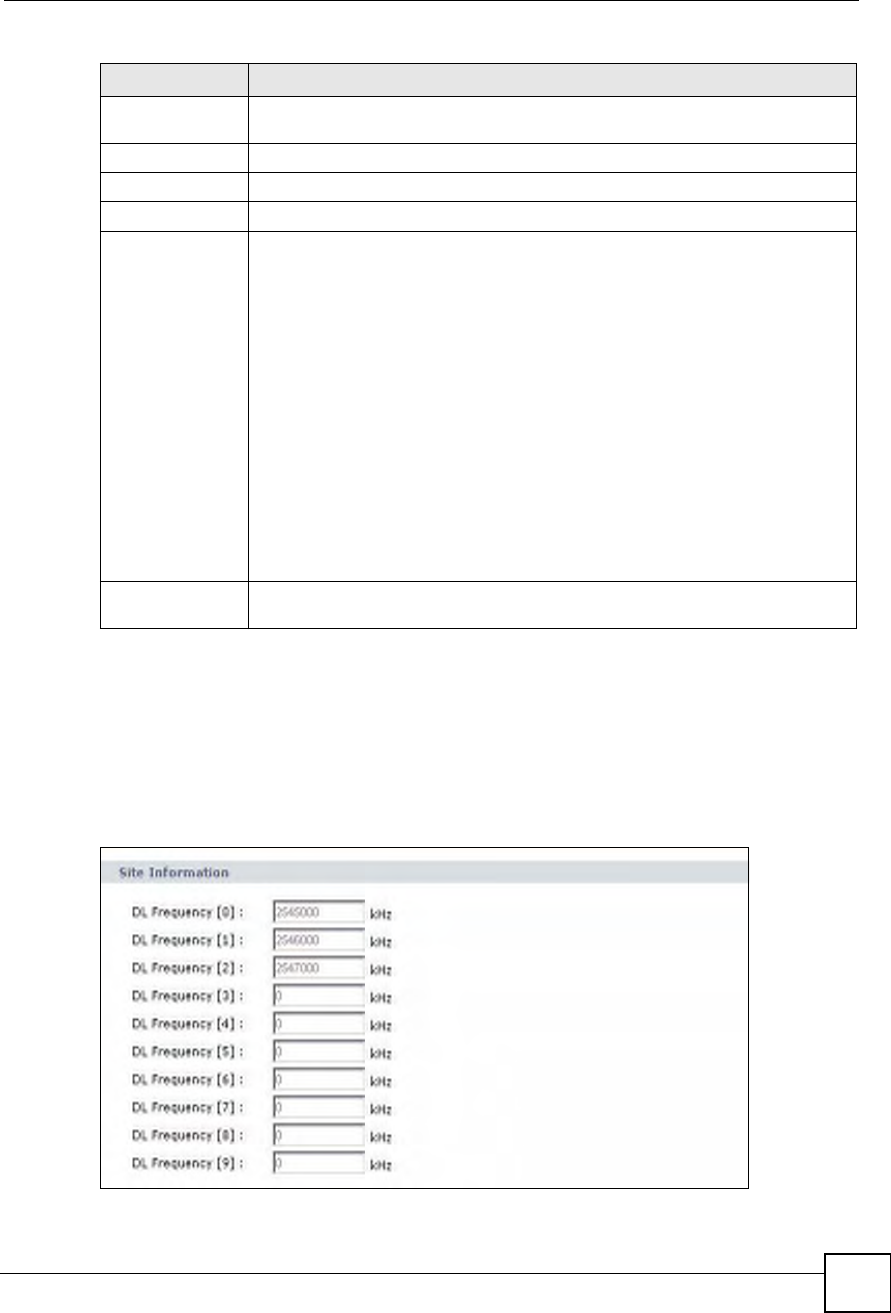

6.2 Site Information ...................................................................................................................83

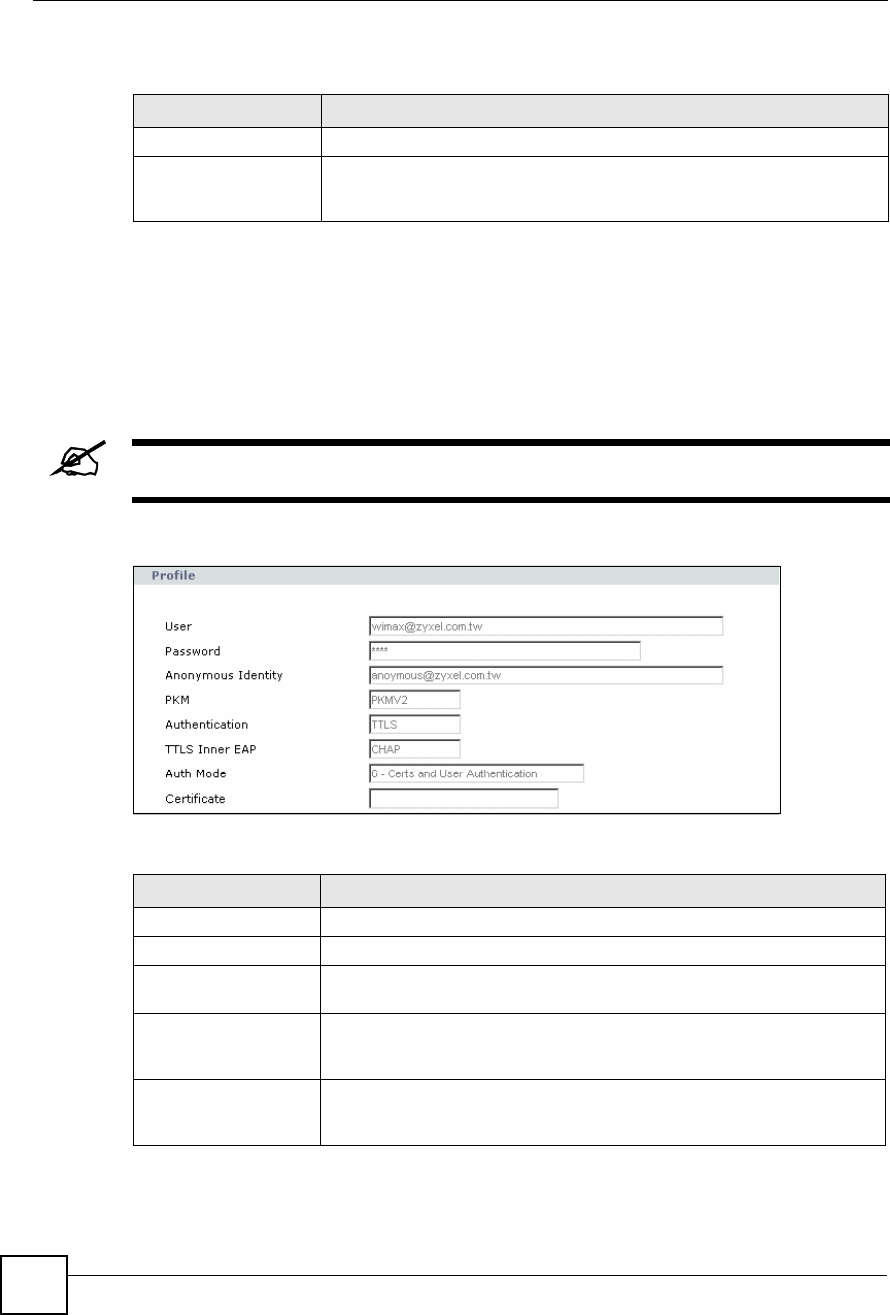

6.3 Profile ..................................................................................................................................84

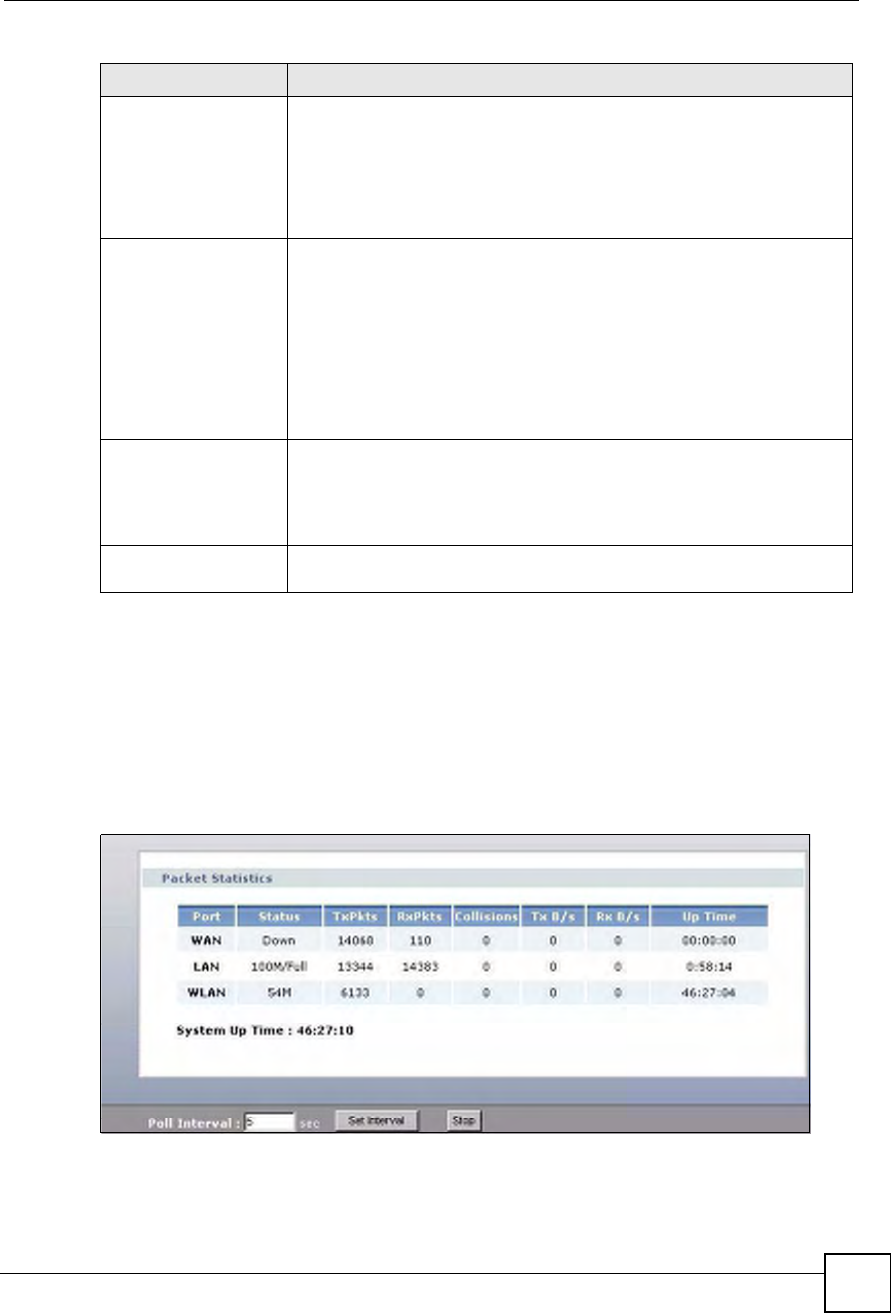

6.4 Packet Statistics ..................................................................................................................85

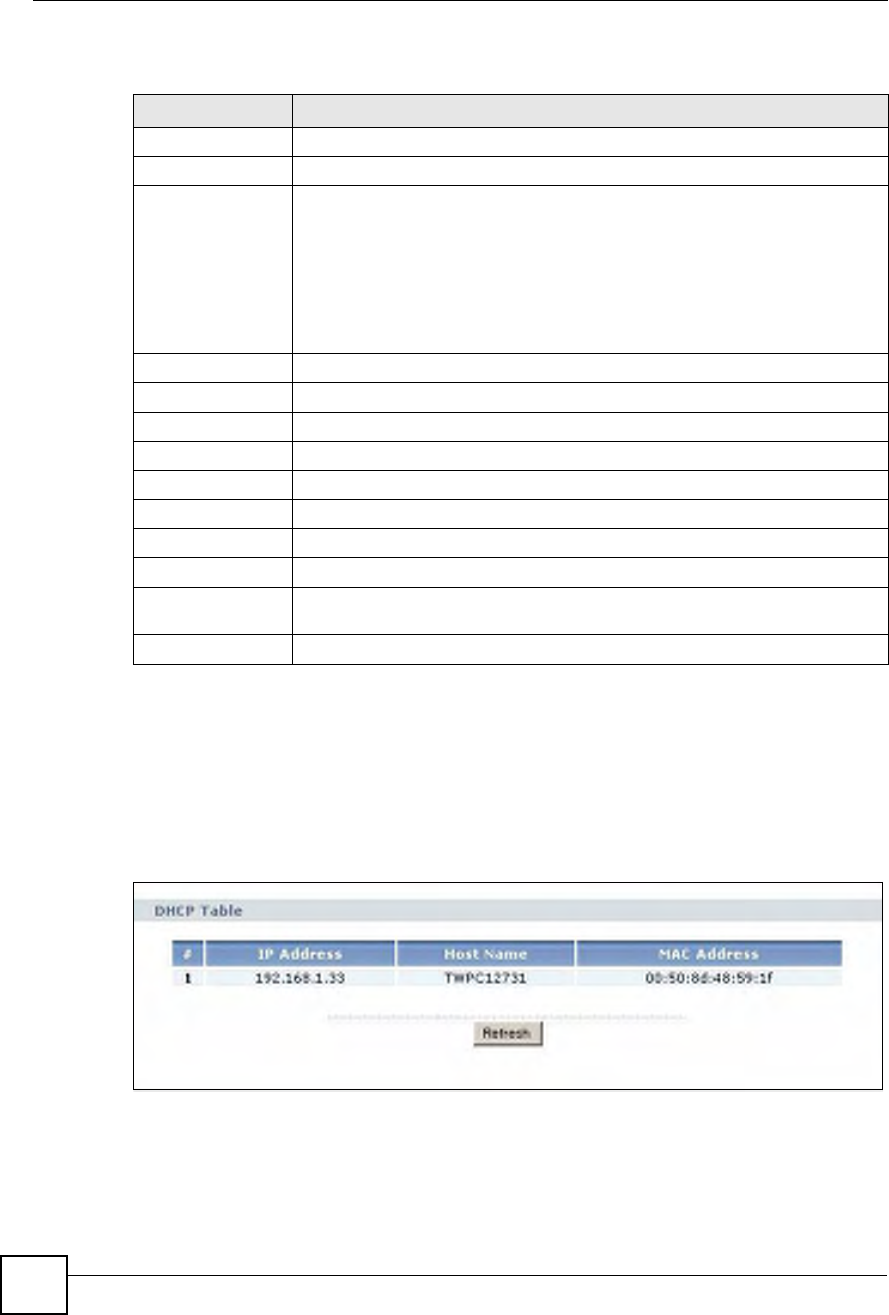

6.5 DHCP Table Screen ............................................................................................................86

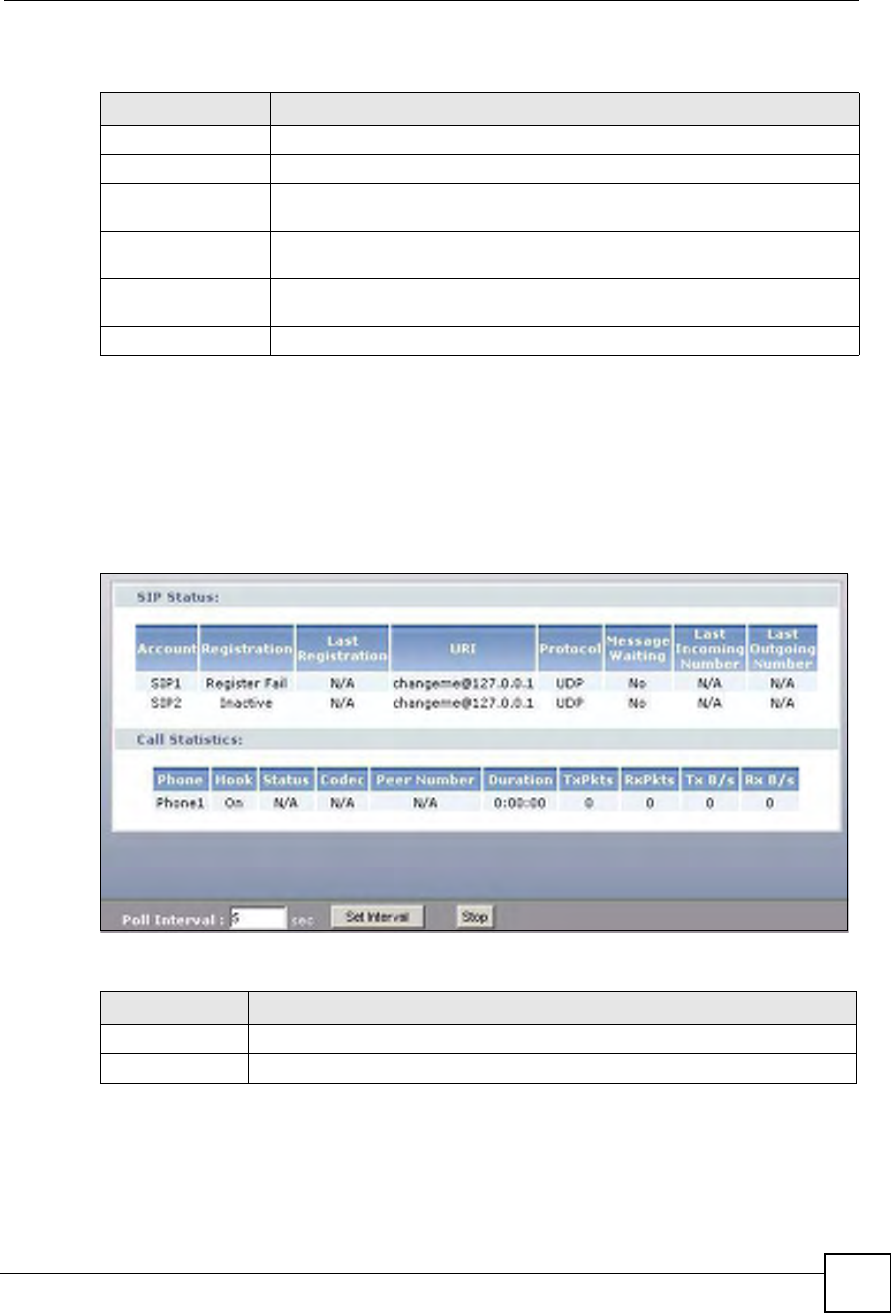

6.6 VoIP Statistics Window ........................................................................................................87
Chapter 7
Wireless LAN...........................................................................................................................91

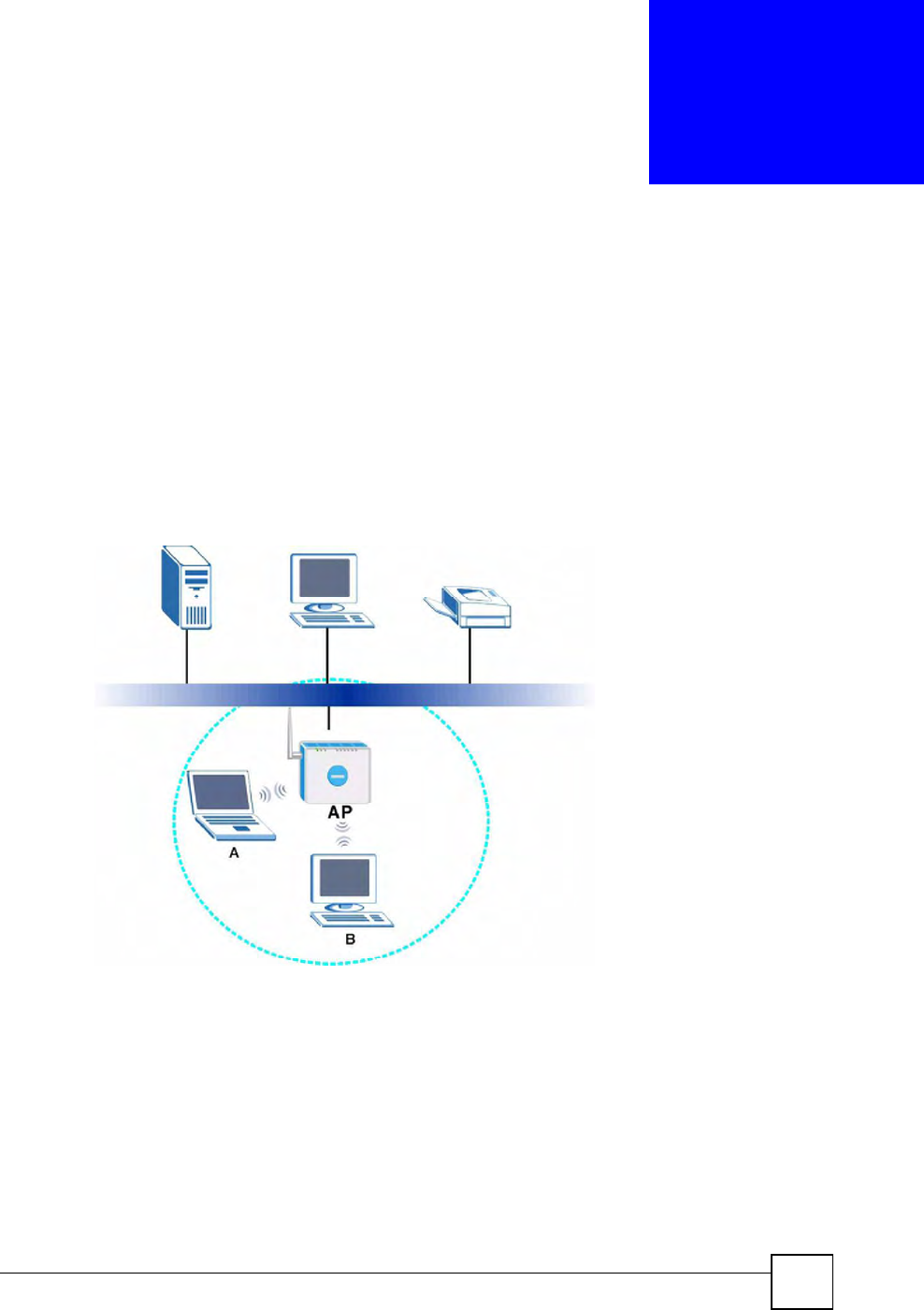

7.1 Wireless Network Overview .................................................................................................91
7.2 Wireless Security Overview .................................................................................................92
7.2.1 SSID ...........................................................................................................................92
7.2.2 MAC Address Filter ....................................................................................................92
7.2.3 User Authentication ....................................................................................................92
7.2.4 Encryption ..................................................................................................................93
7.2.5 One-Touch Intelligent Security Technology (OTIST) ..................................................94

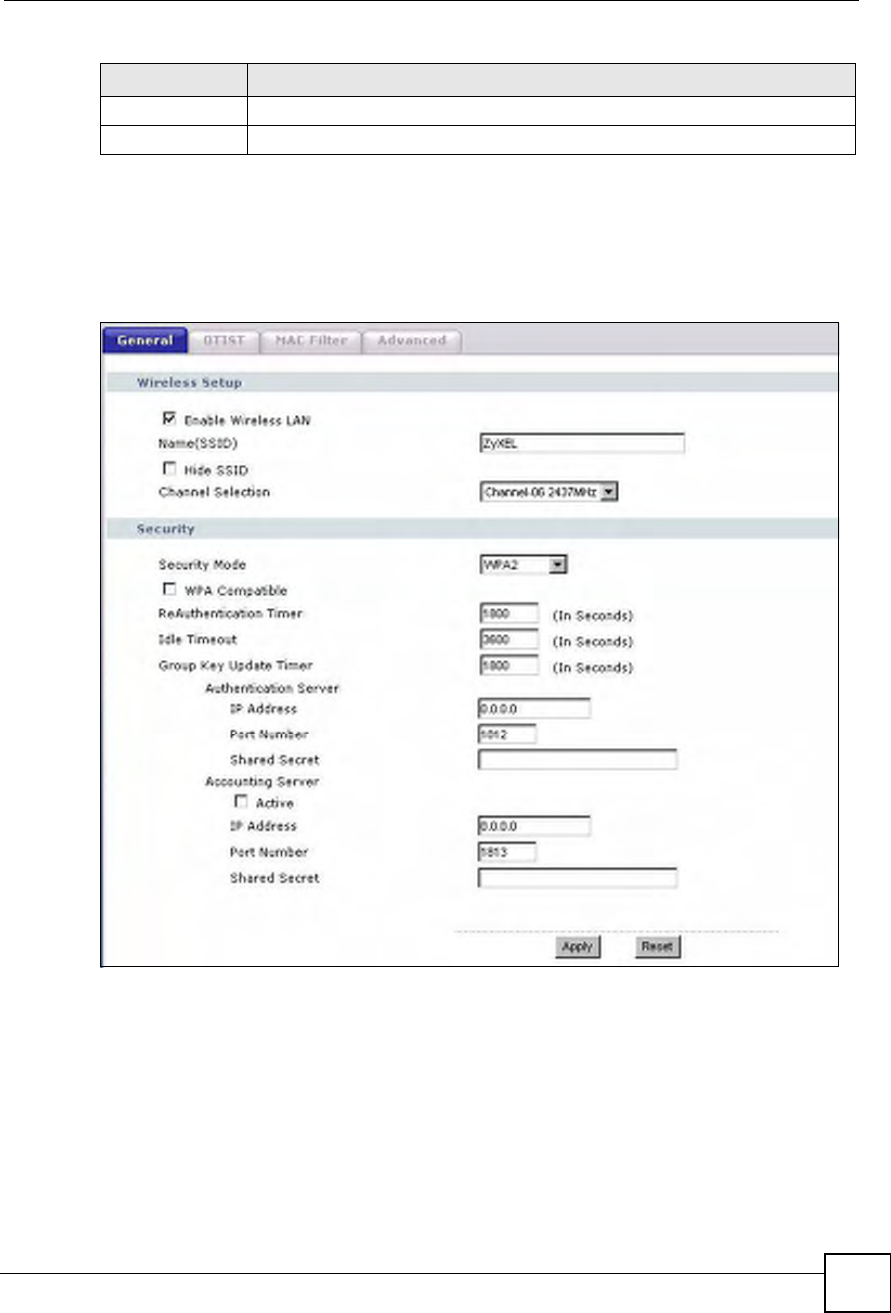

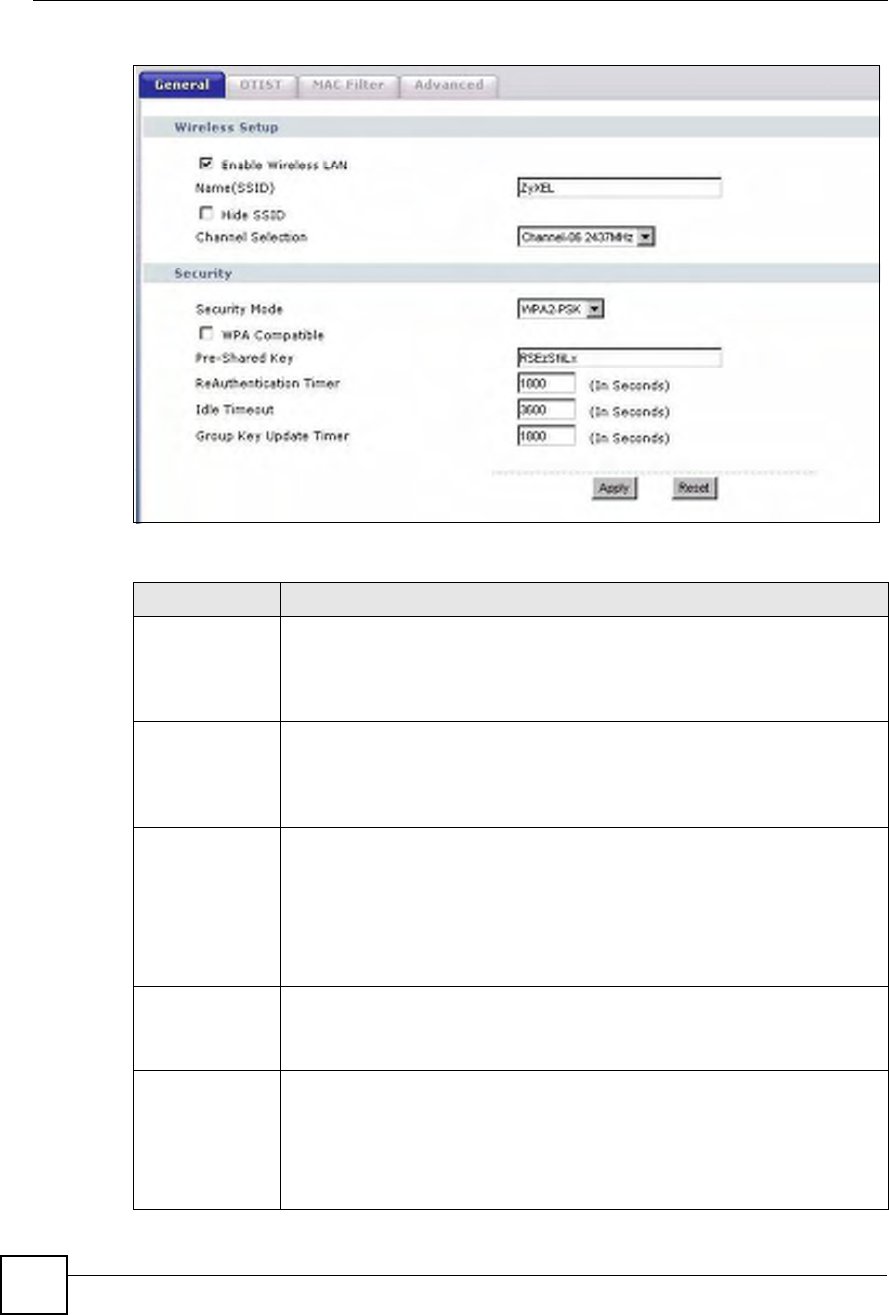

7.3 General Wireless LAN Screen ............................................................................................94

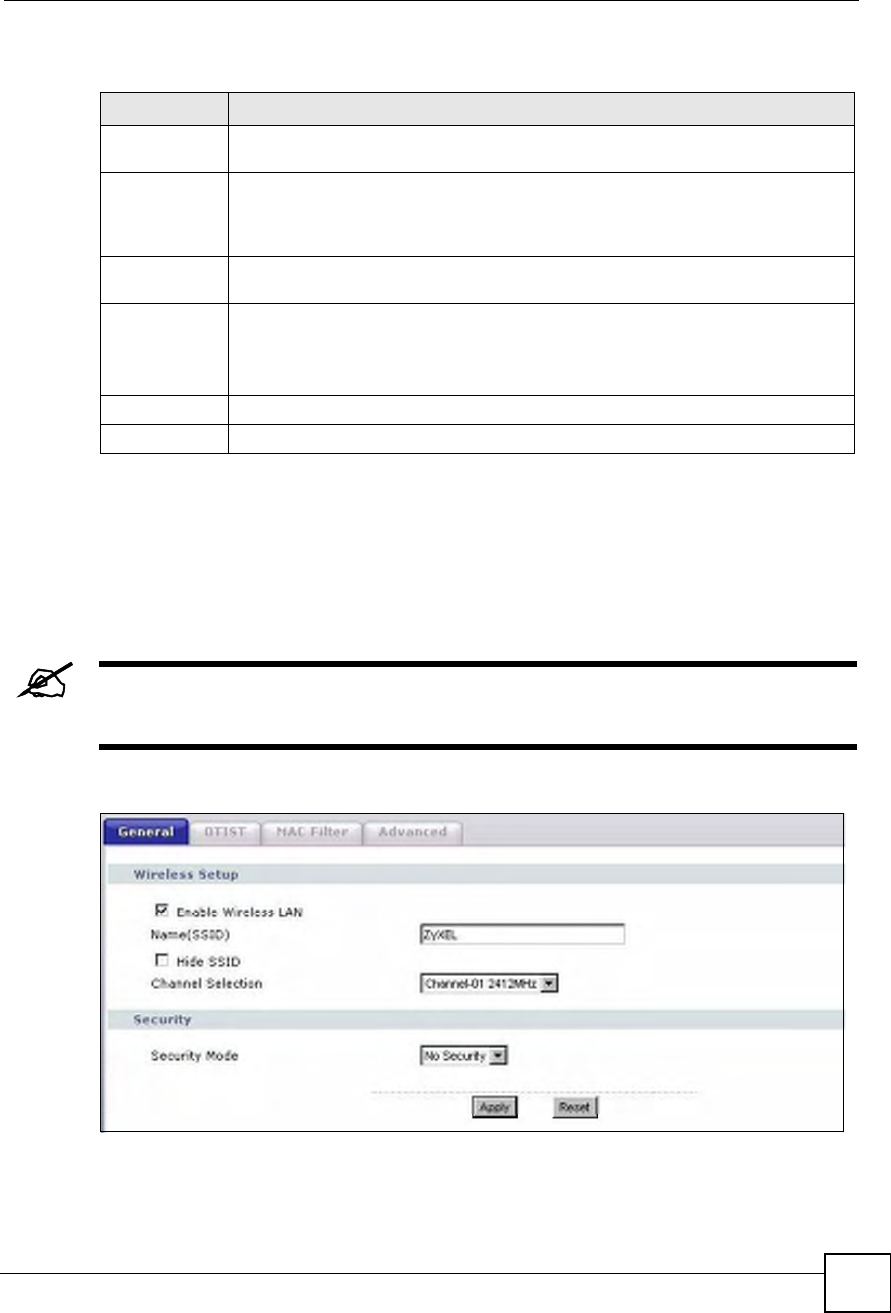

7.3.1 No Security .................................................................................................................95

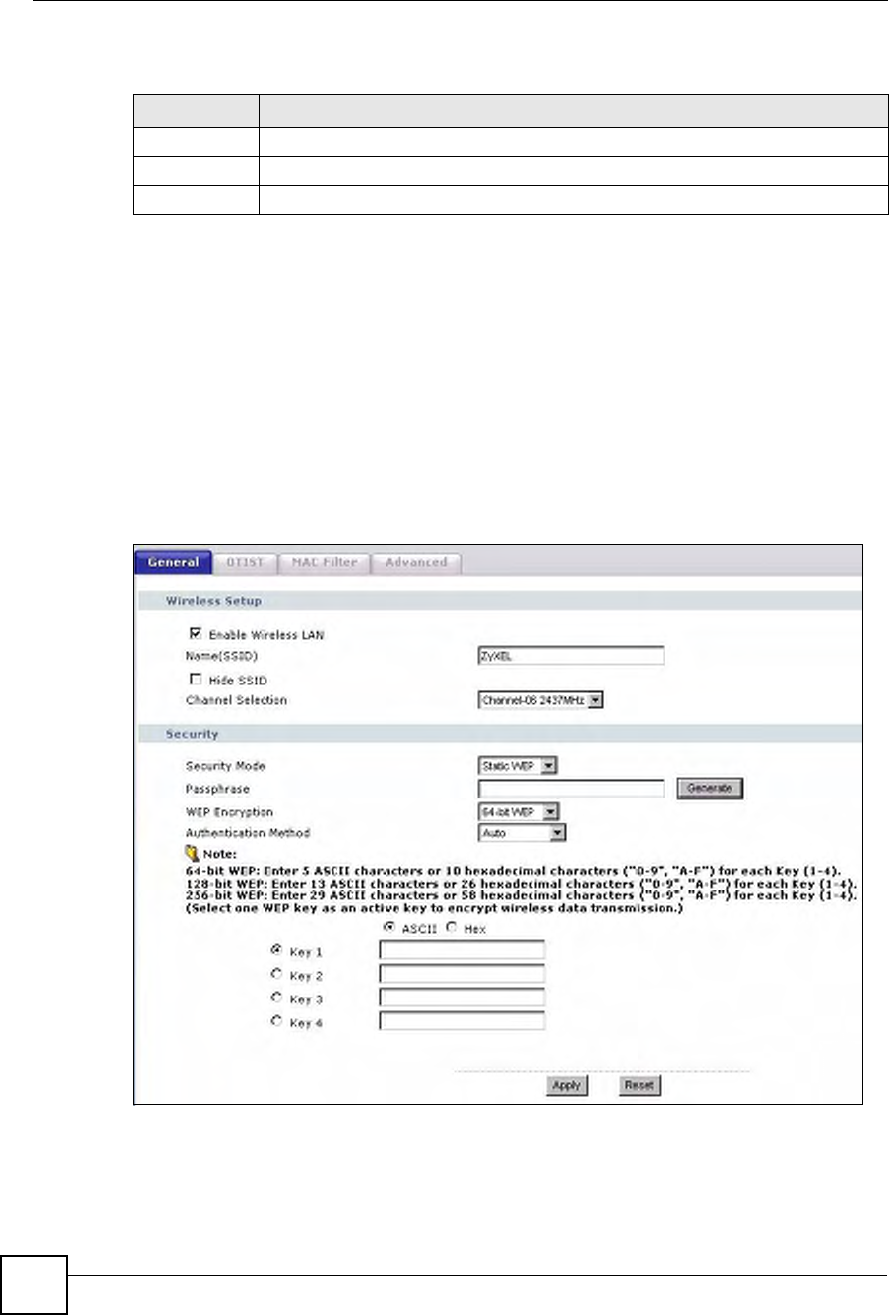

7.3.2 WEP Encryption .........................................................................................................96

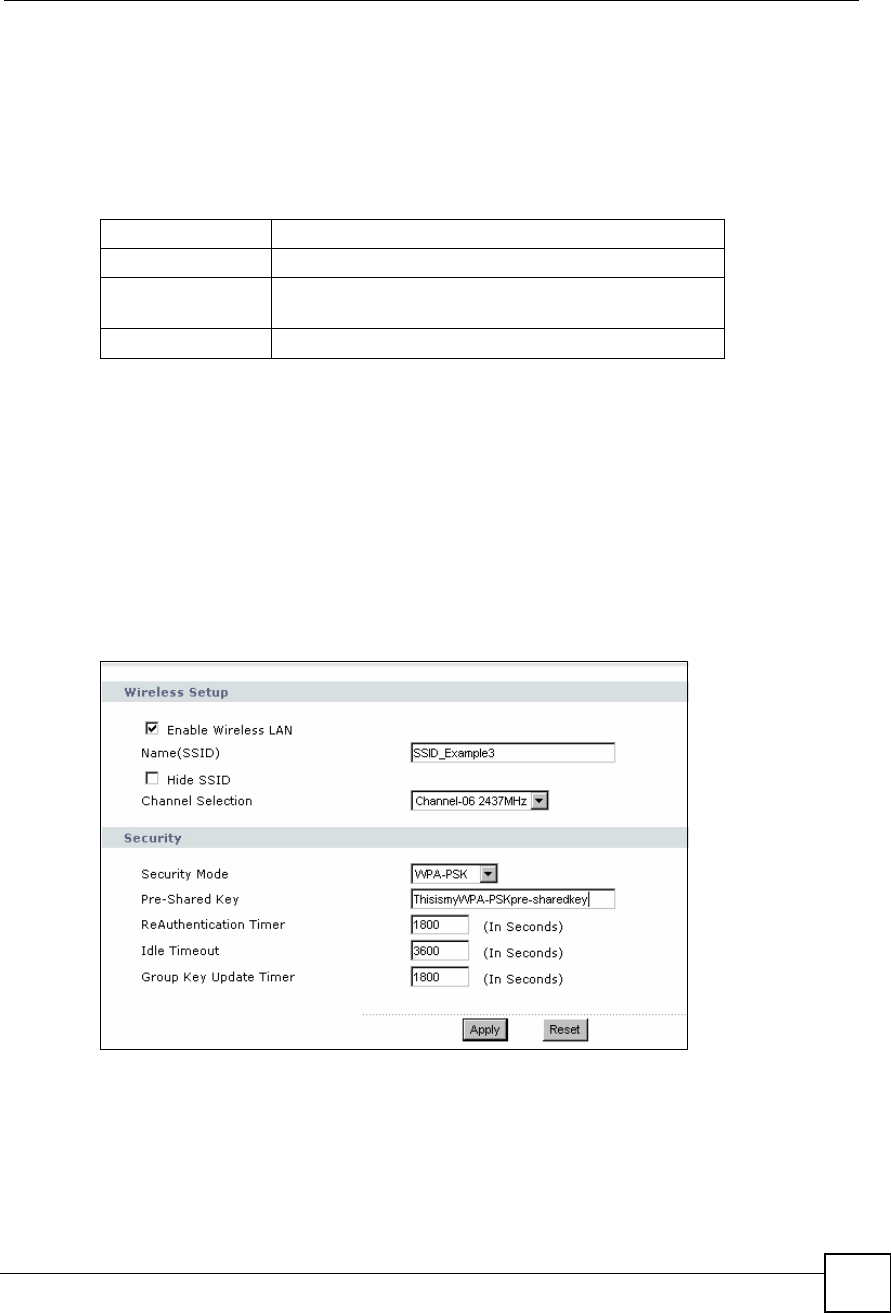

7.3.3 WPA-PSK/WPA2-PSK ................................................................................................97
7.3.4 WPA/WPA2 ................................................................................................................99
7.4 OTIST ...............................................................................................................................101
7.4.1 Enabling OTIST ........................................................................................................101

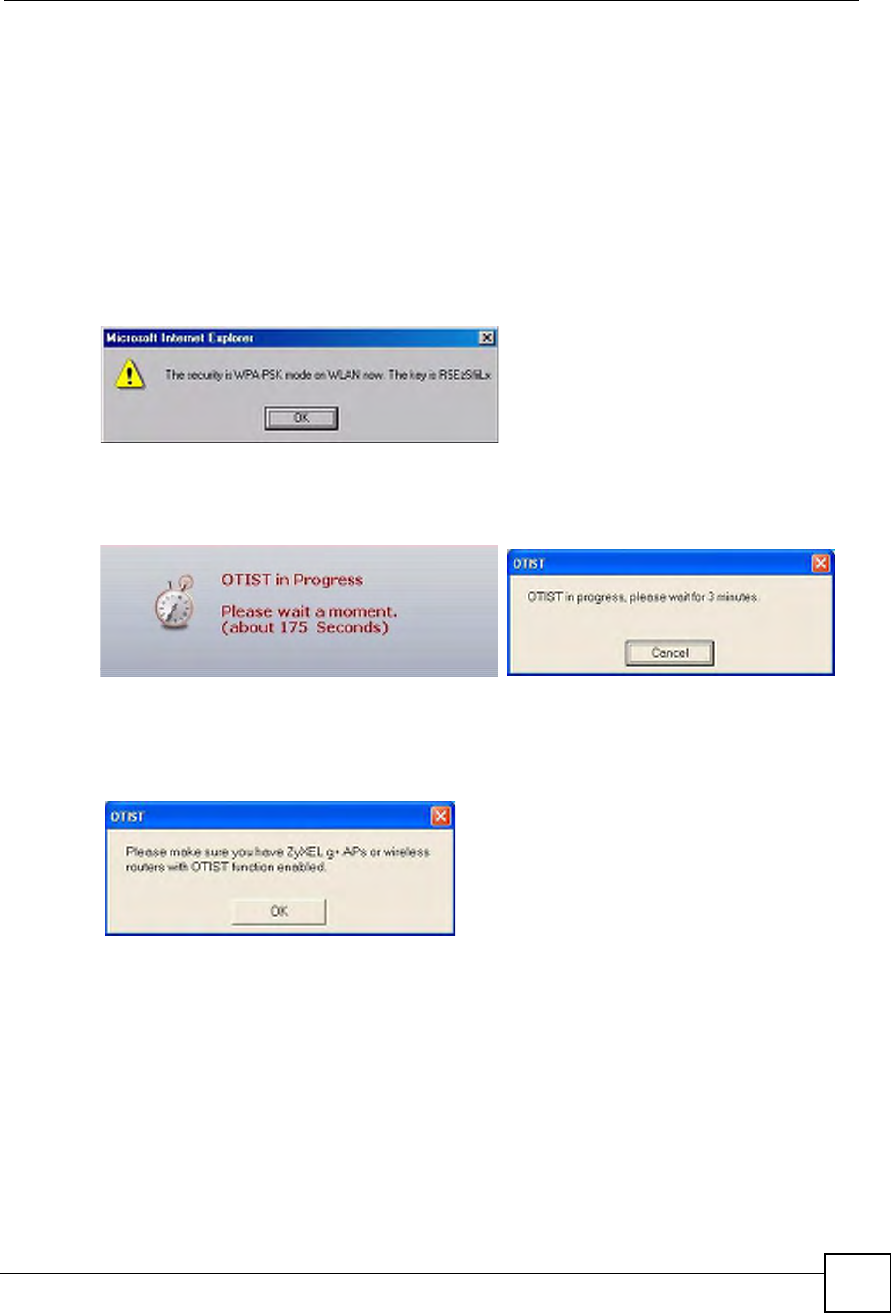

7.4.2 Starting OTIST .........................................................................................................103
7.4.3 Notes on OTIST .......................................................................................................103

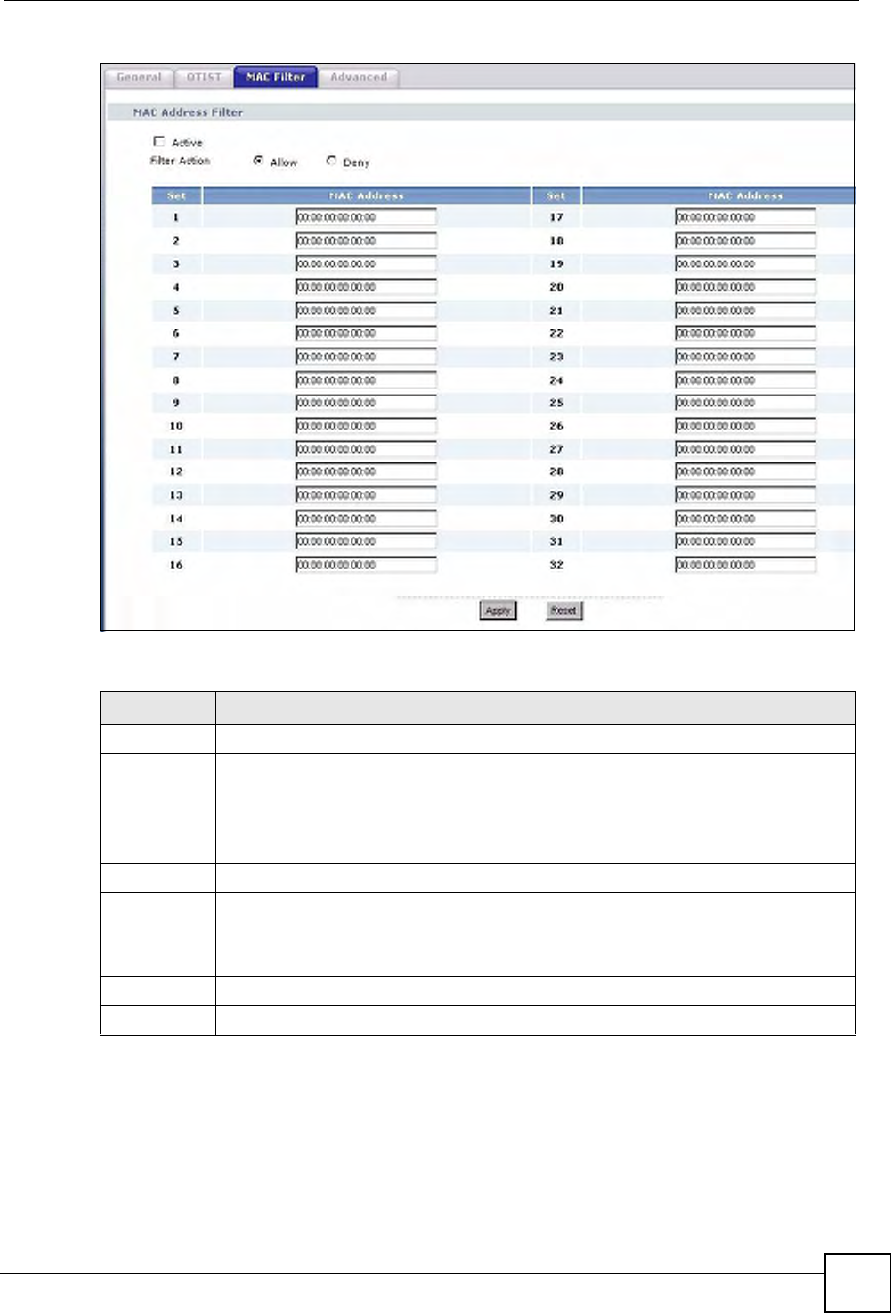

7.5 MAC Filter ..........................................................................................................................104

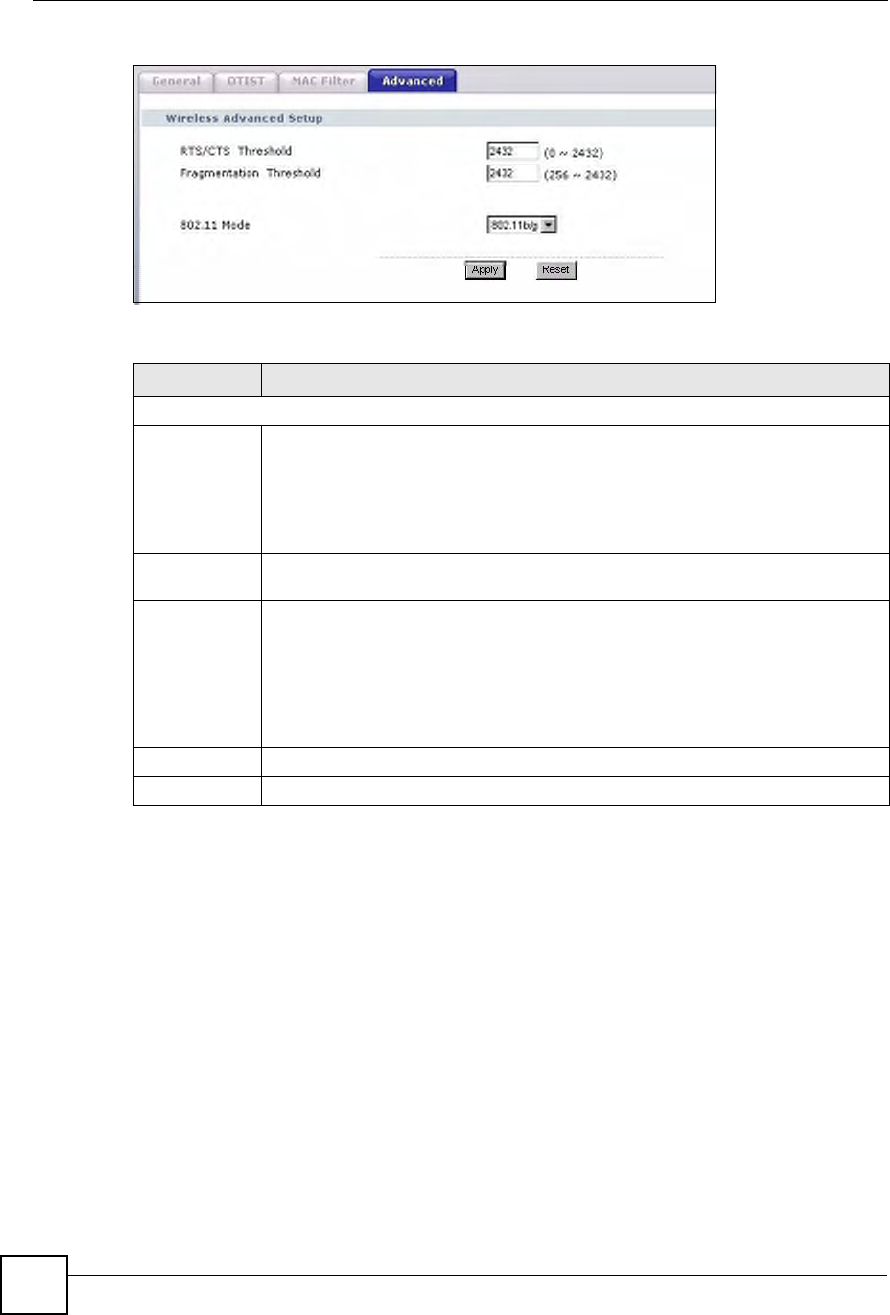

7.6 Wireless LAN Advanced Screen .......................................................................................105
Chapter 8
WAN Setup.............................................................................................................................107
8.1 WAN Overview .................................................................................................................107
8.2 WiMAX ...............................................................................................................................107
8.2.1 Authentication ..........................................................................................................108
8.3 Internet Access Setup ......................................................................................................108

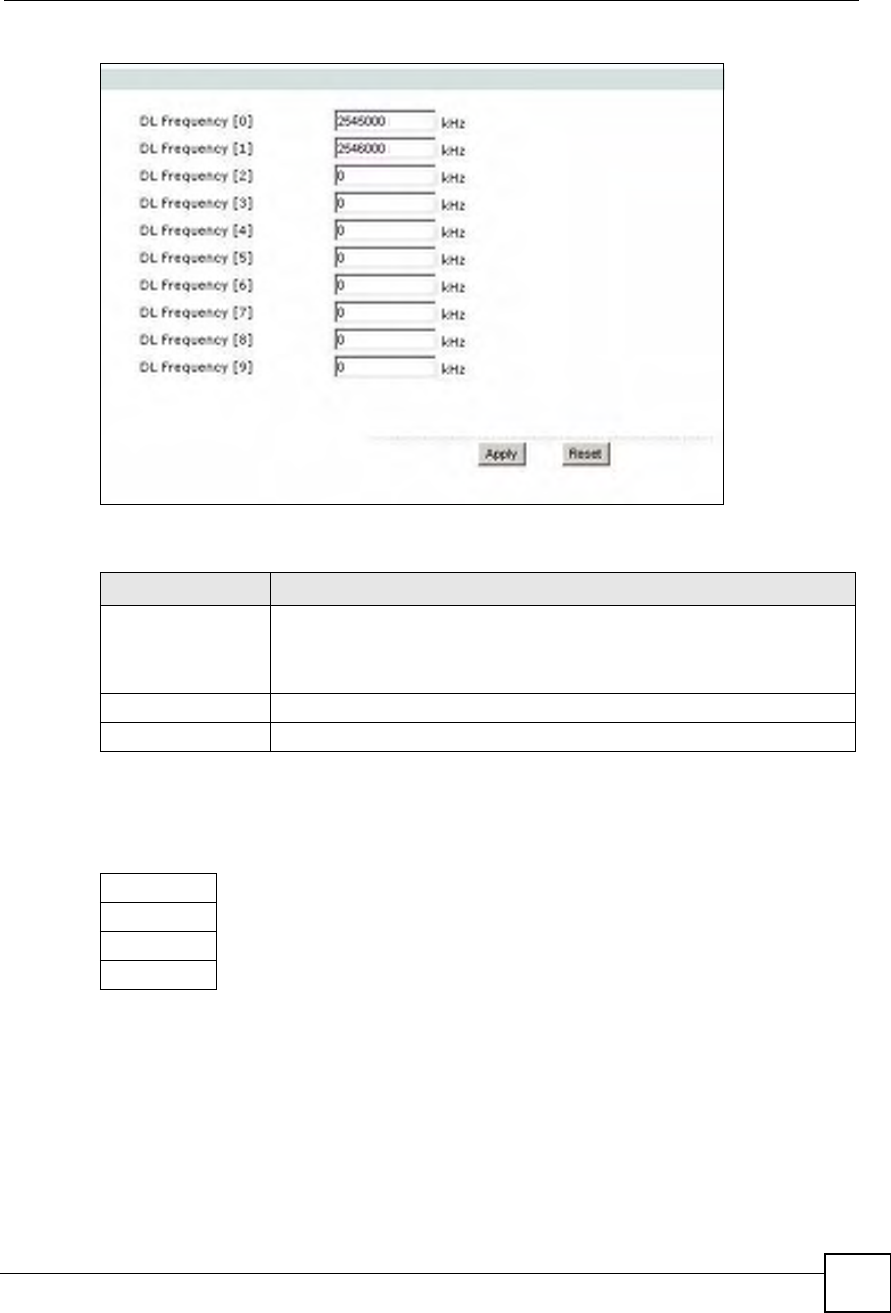

8.4 Frequency Settings .............................................................................................................111
8.4.1 Frequency Ranges ....................................................................................................111

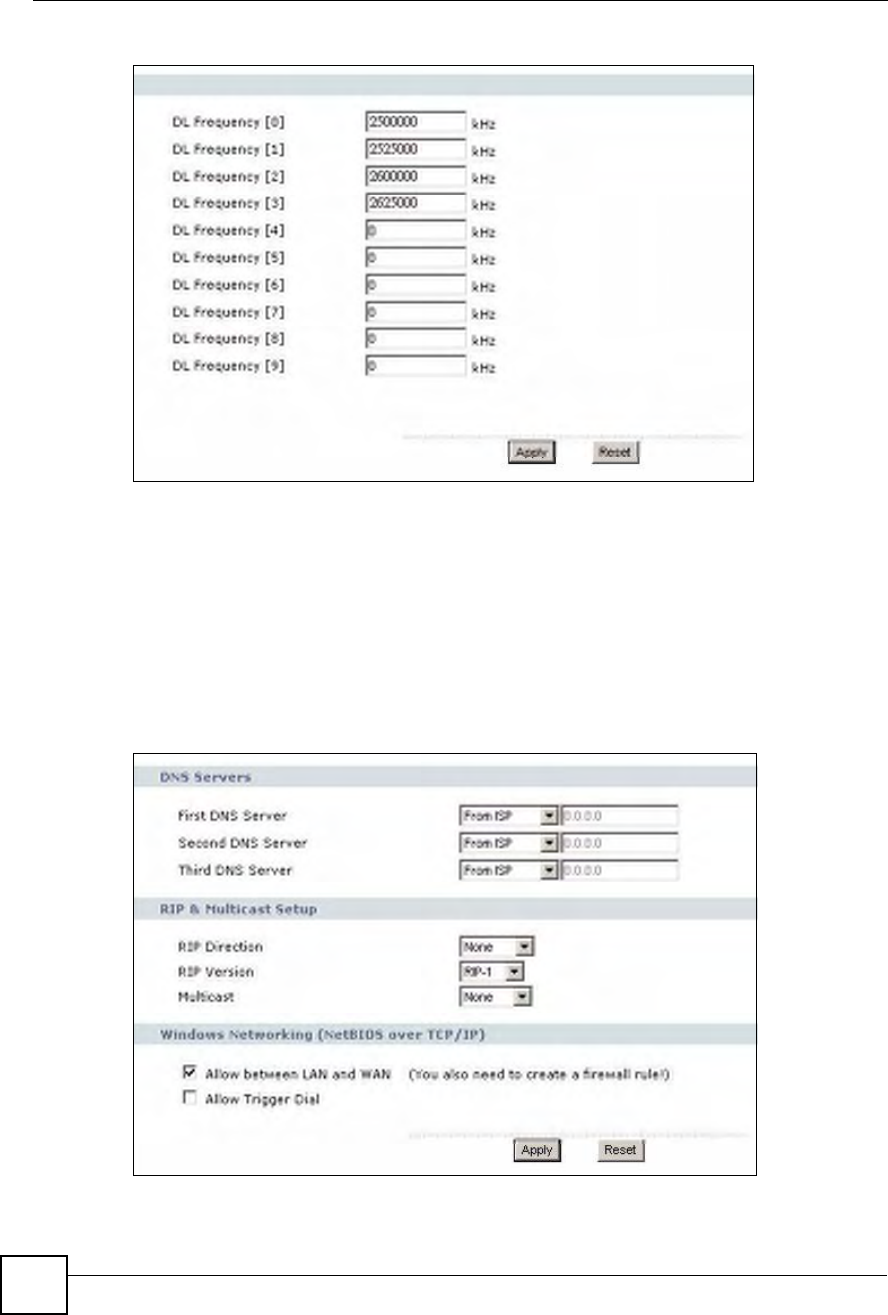

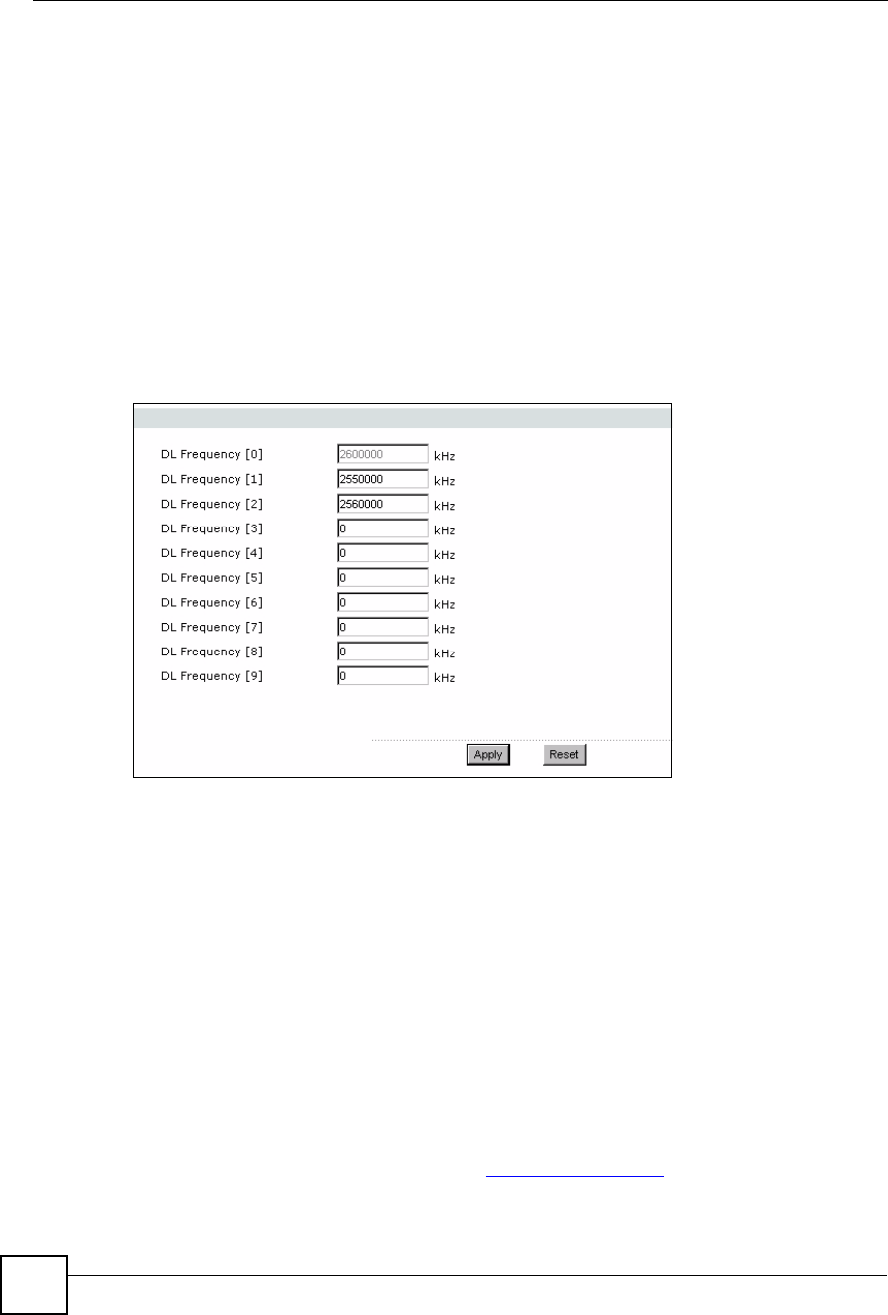

8.4.2 Configuring Frequency Settings ................................................................................111
8.5 Configuring Advanced WAN Settings .................................................................................114

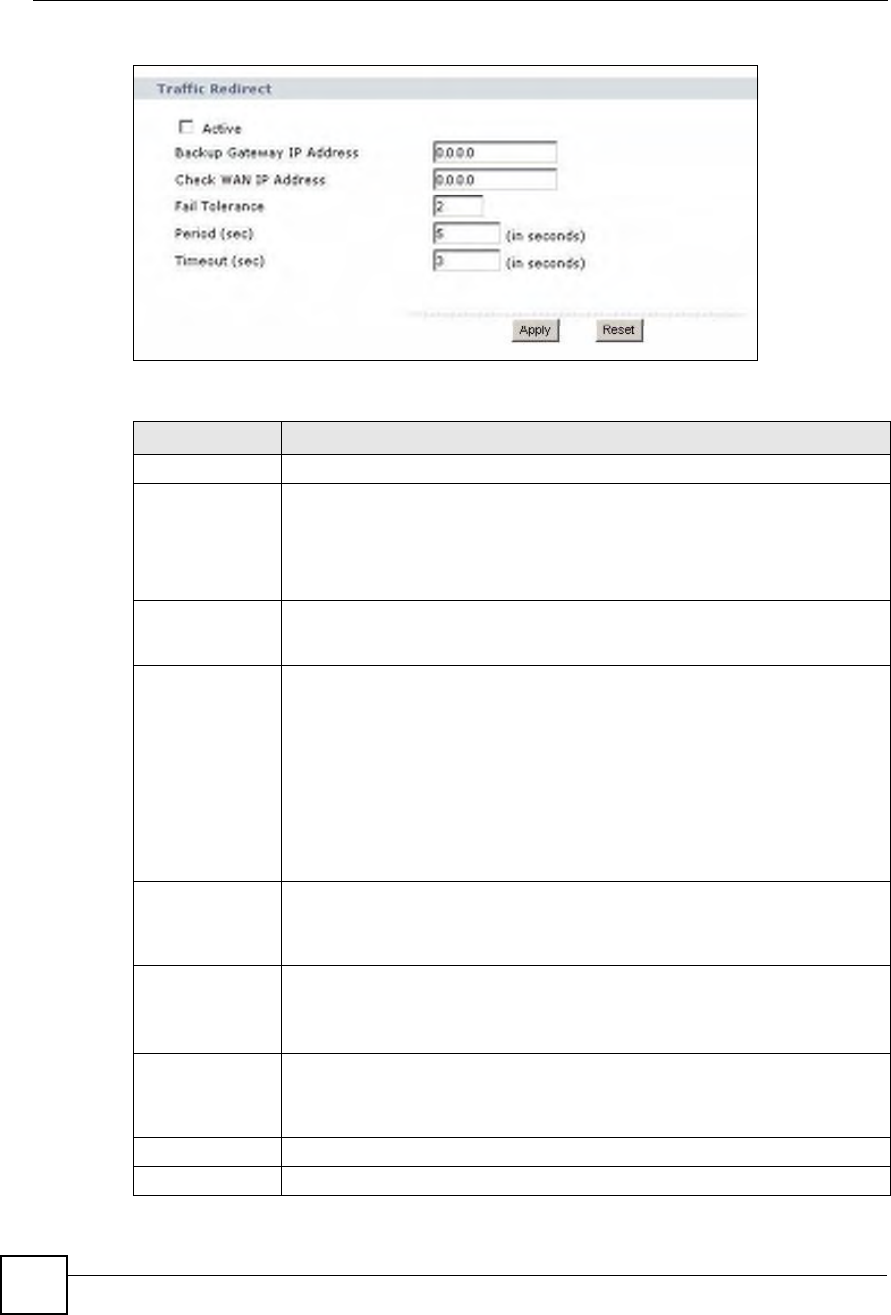

8.6 Configuring Traffic Redirect Settings ..................................................................................115

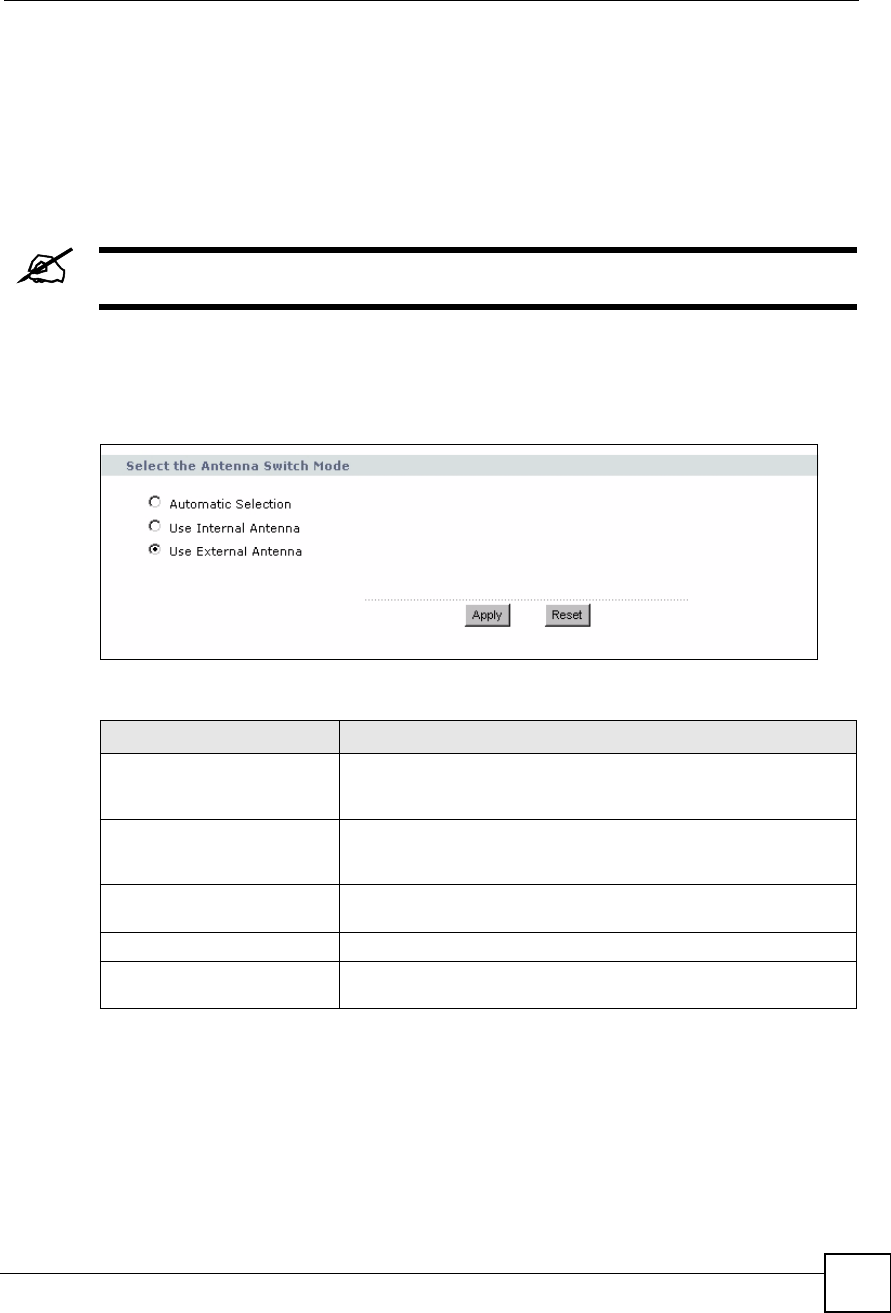

8.6.1 Configuring The Antenna ..........................................................................................117
Table of Contents
MAX-200HW2 Series User s Guide
14
Chapter 9
LAN.........................................................................................................................................119

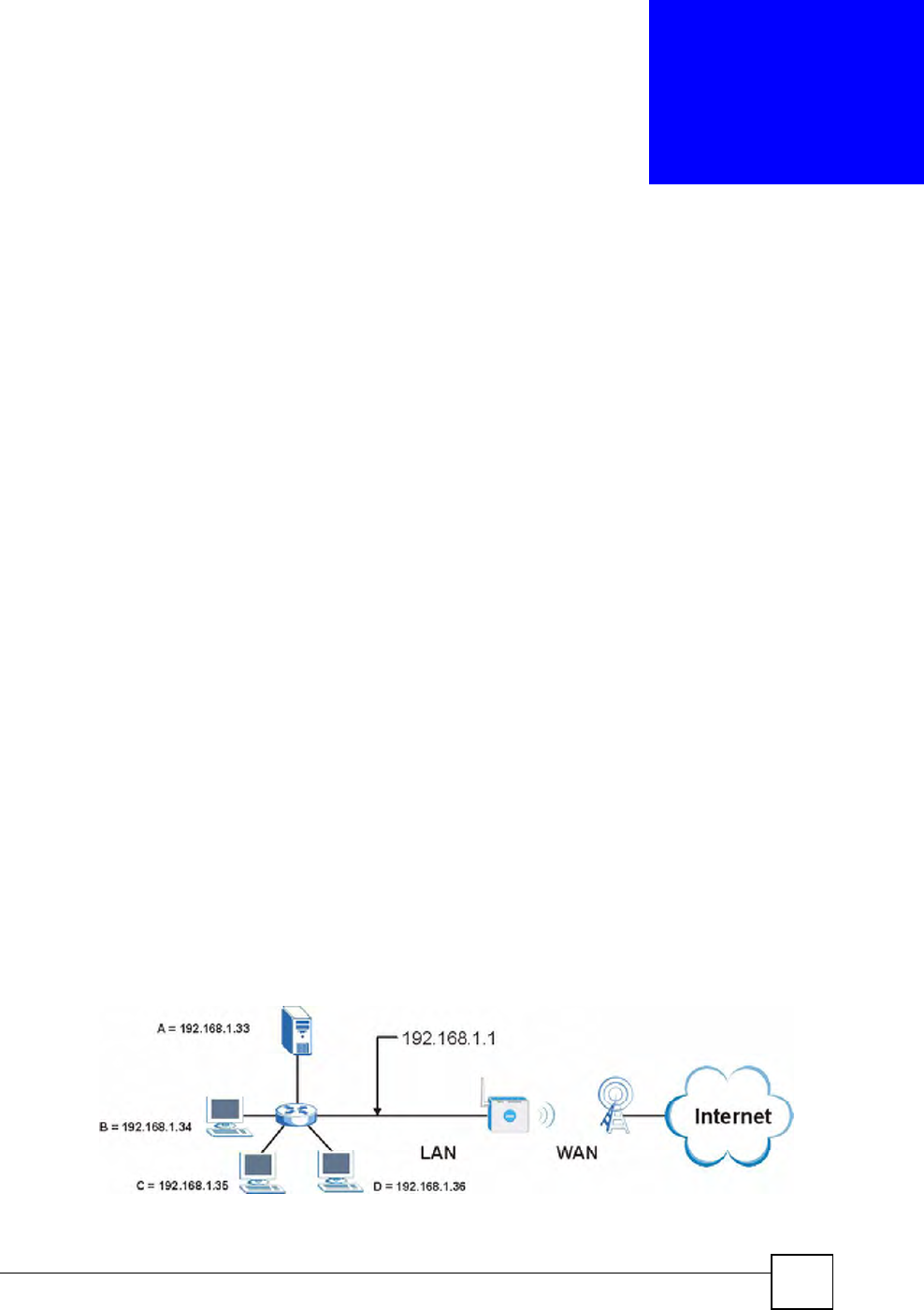

9.1 LAN Overview .....................................................................................................................119
9.1.1 IP Address and Subnet Mask ....................................................................................119
9.1.2 DHCP Setup .............................................................................................................120

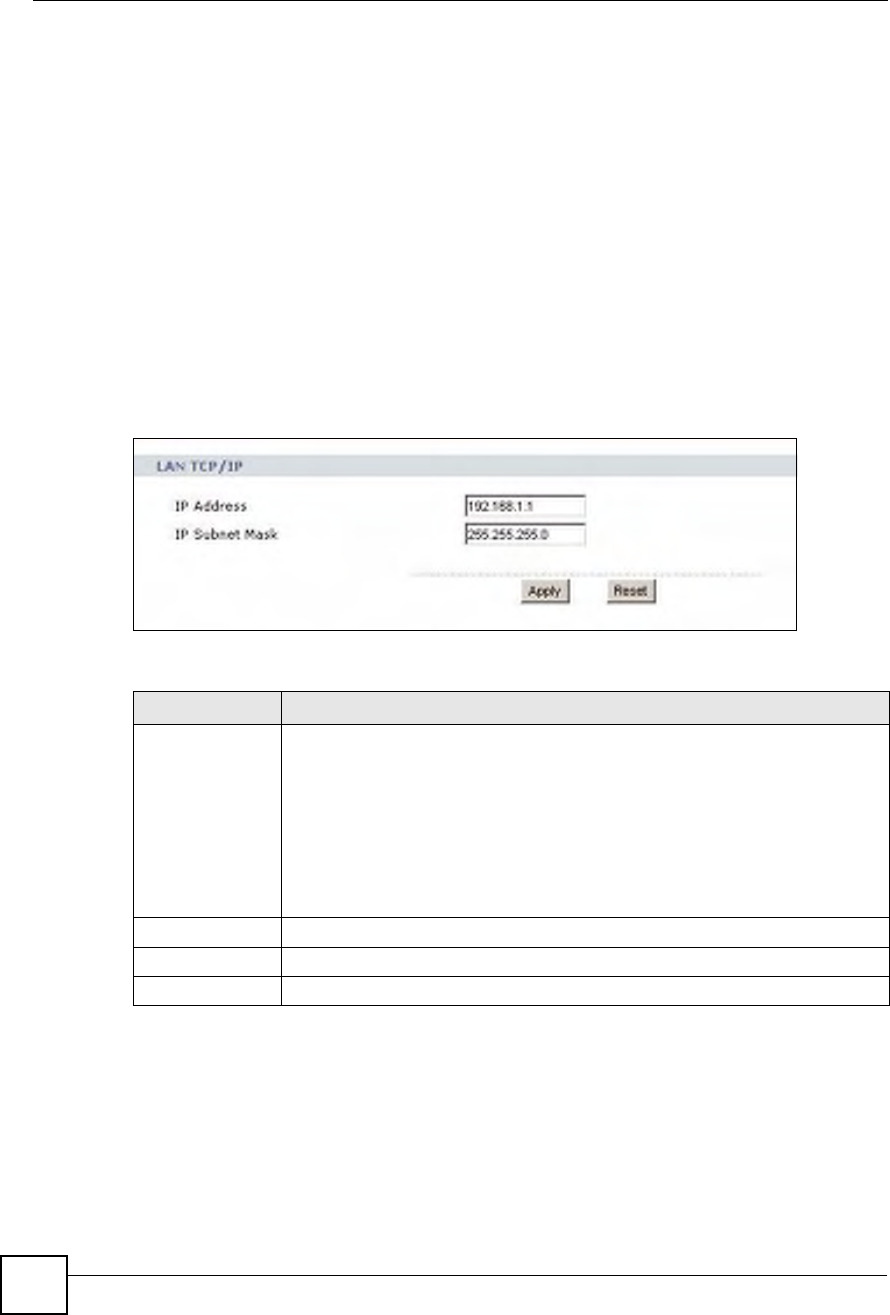

9.1.3 LAN TCP/IP ..............................................................................................................120
9.1.4 DNS Server Address ................................................................................................120
9.1.5 RIP Setup .................................................................................................................121
9.1.6 Multicast ...................................................................................................................121
9.2 LAN Screens .....................................................................................................................122
9.2.1 LAN IP Screen .........................................................................................................122

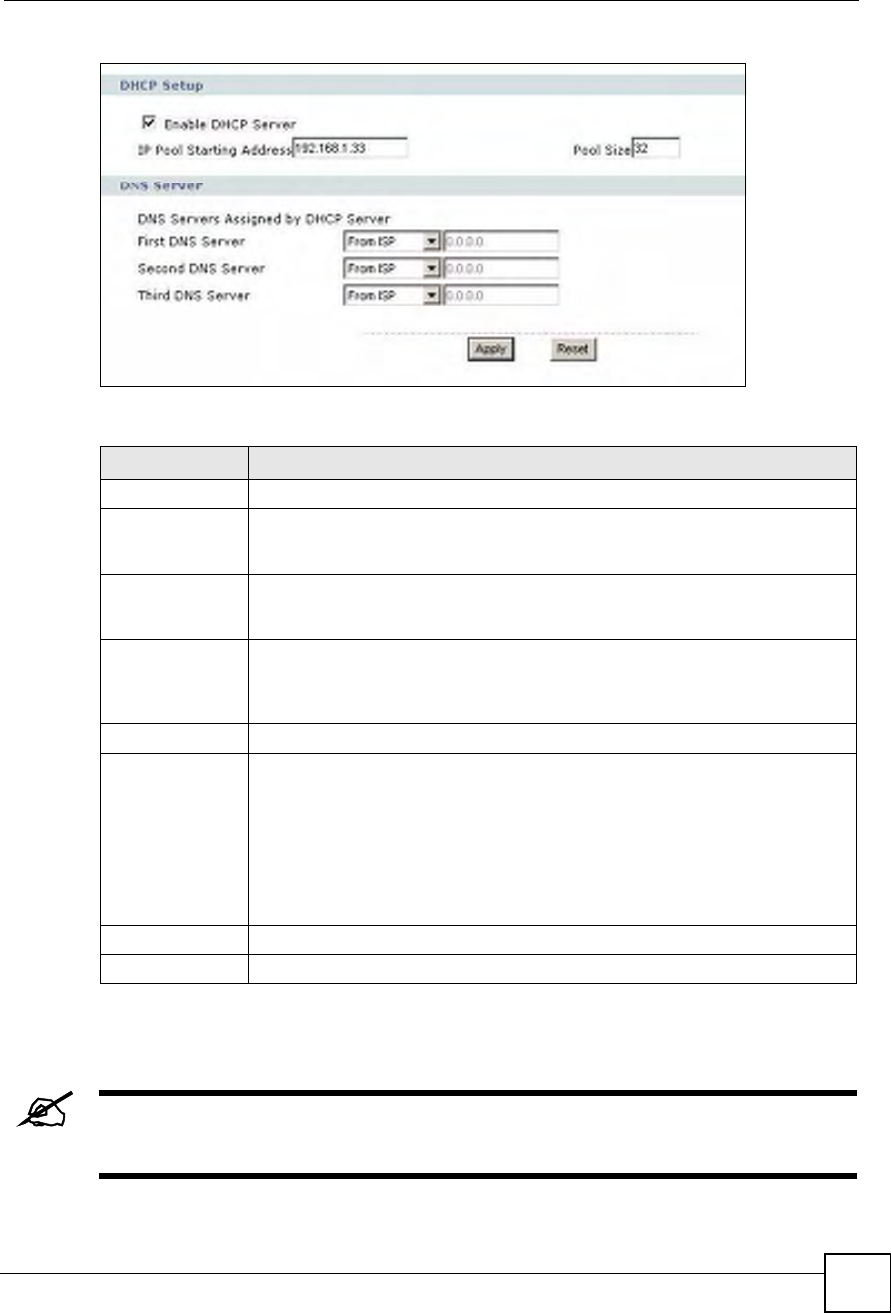

9.2.2 LAN DHCP Setup Screen ........................................................................................122

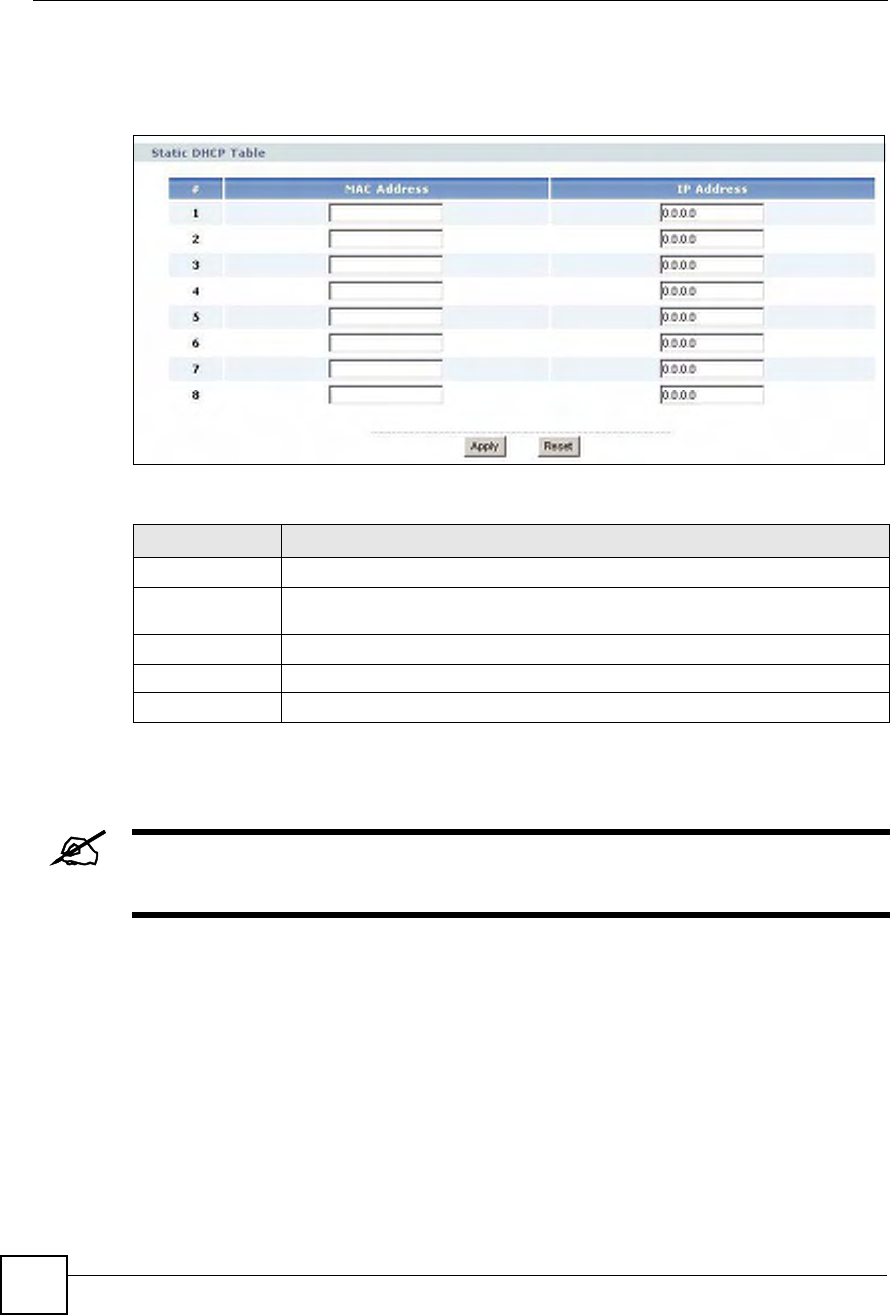

9.2.3 LAN Static DHCP Screen .........................................................................................123

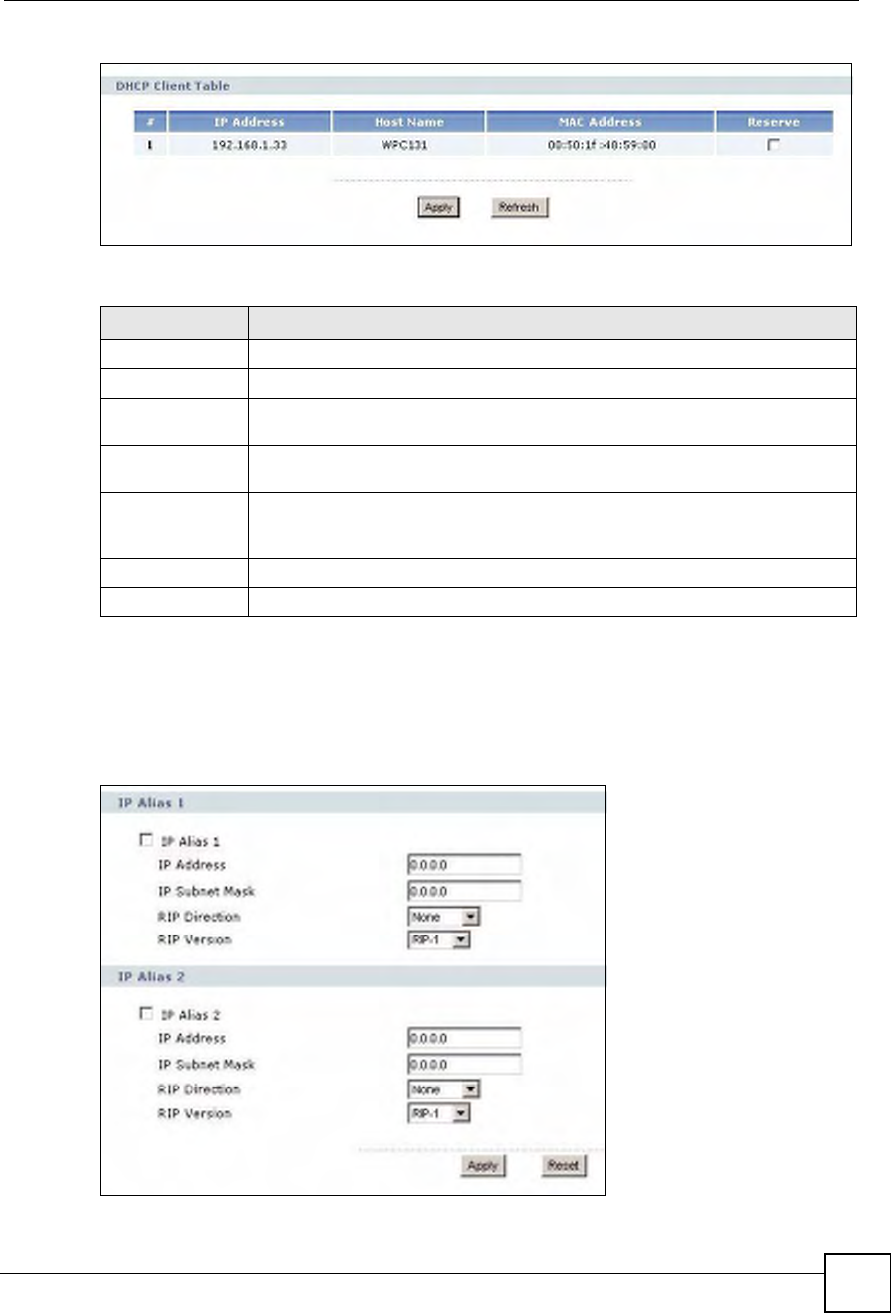

9.2.4 LAN Client List Screen .............................................................................................124
9.2.5 LAN IP Alias Screen .................................................................................................125

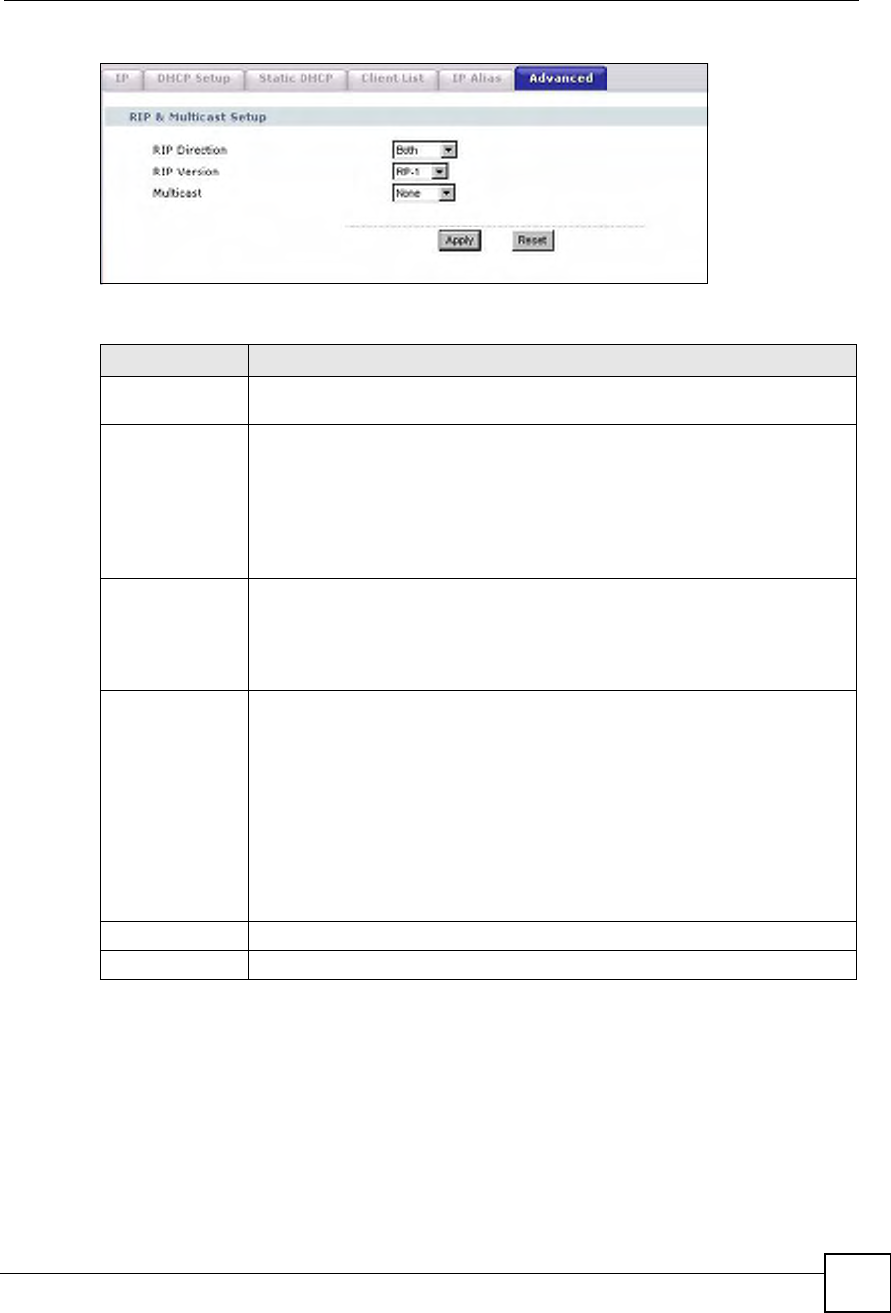

9.2.6 LAN Advanced Screen .............................................................................................126
Chapter 10
NAT.........................................................................................................................................129
10.1 NAT Overview ..................................................................................................................129
10.1.1 Port Forwarding: Services and Port Numbers ........................................................129
10.1.2 Trigger Port Forwarding .........................................................................................130
10.1.3 SIP ALG .................................................................................................................131
10.2 NAT Screens ....................................................................................................................131

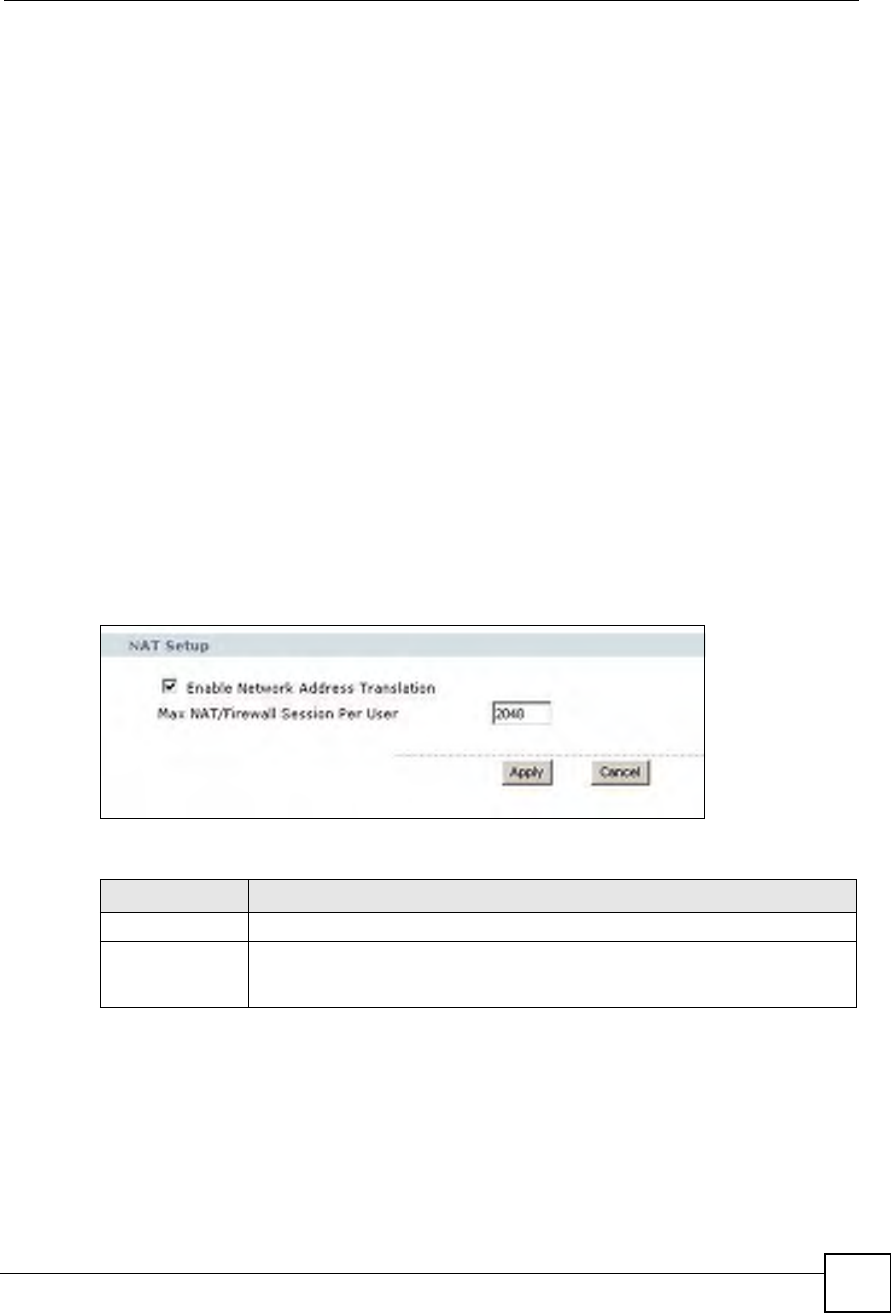

10.2.1 NAT General Screen ..............................................................................................131

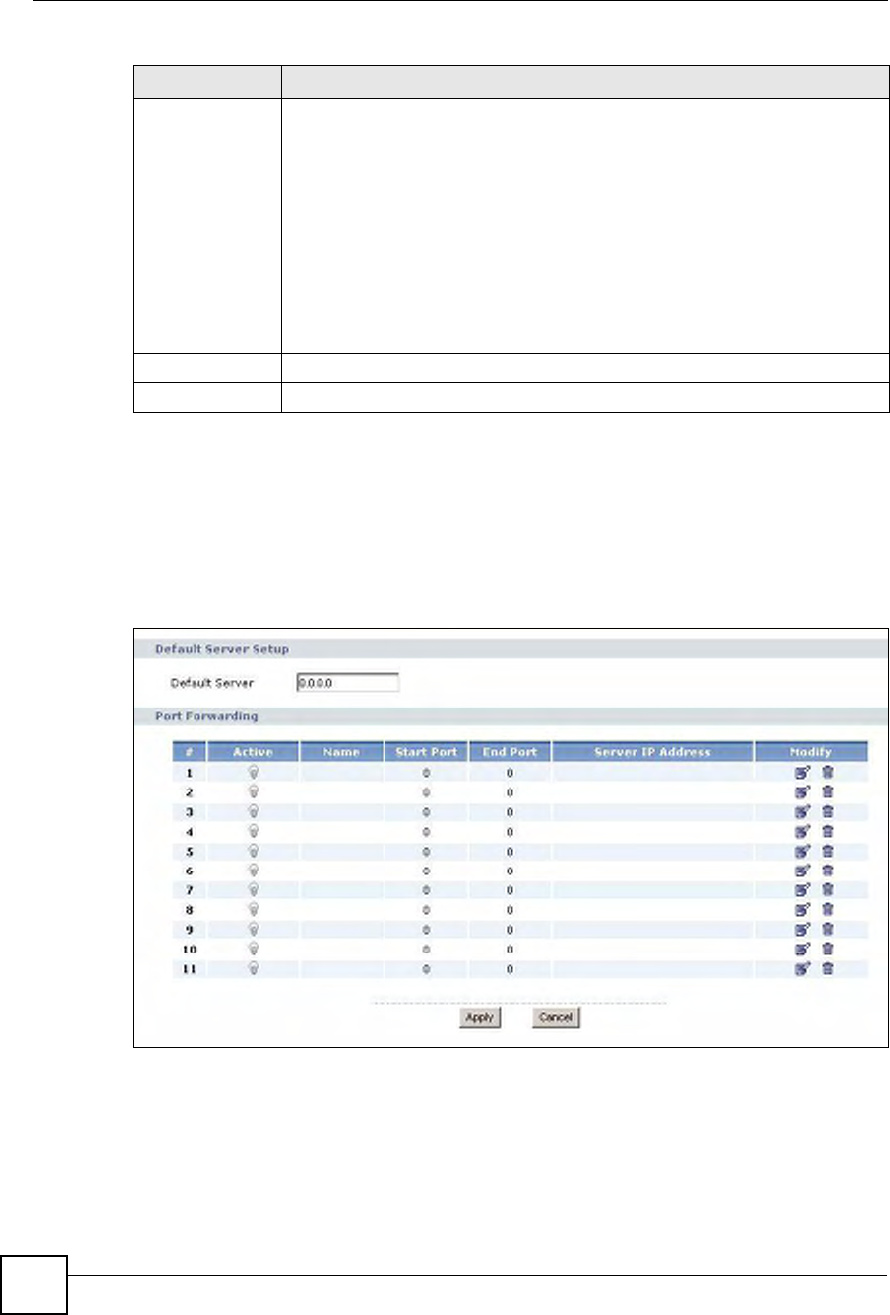

10.2.2 NAT Port Forwarding Screen .................................................................................132

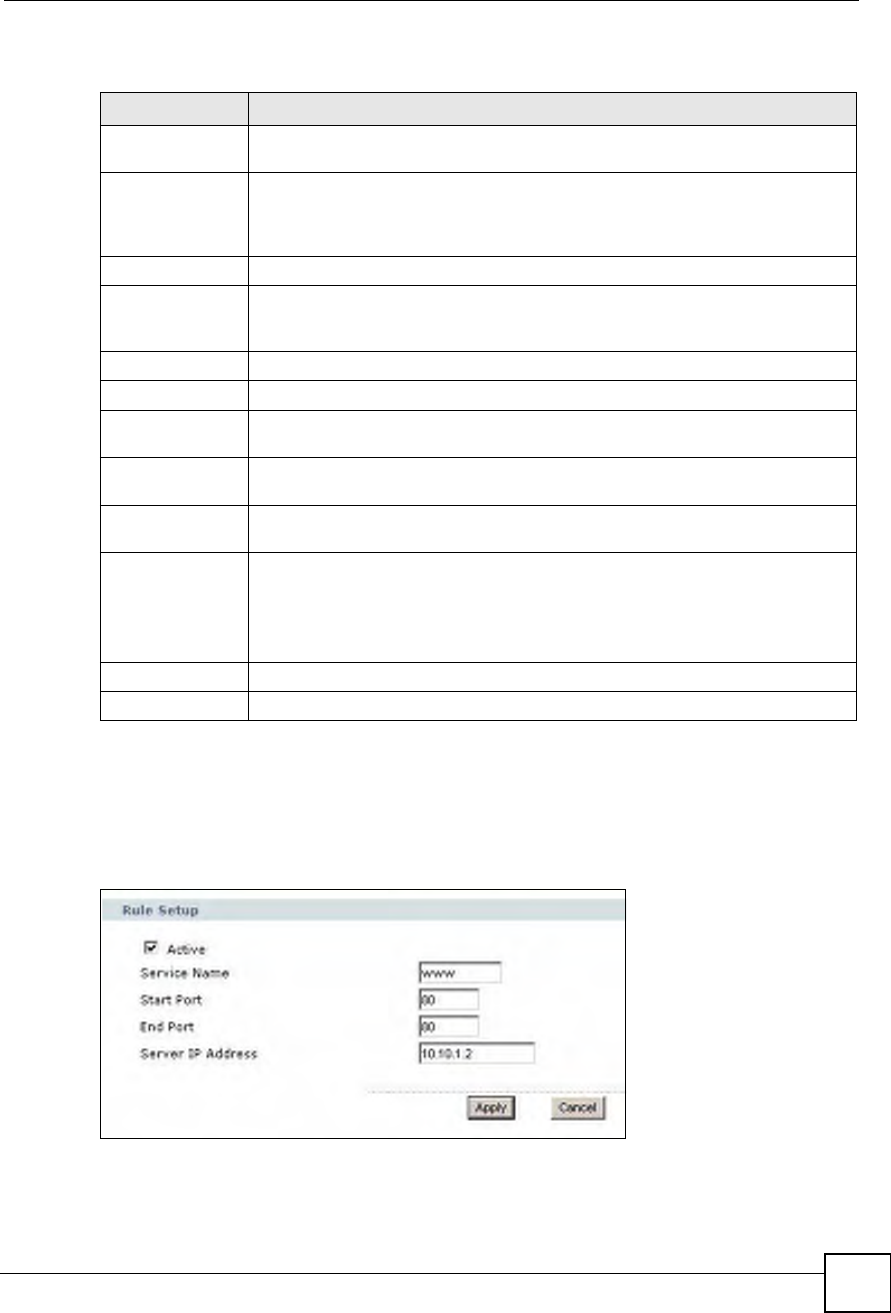

10.2.3 NAT Port Forwarding Edit Screen ..........................................................................133

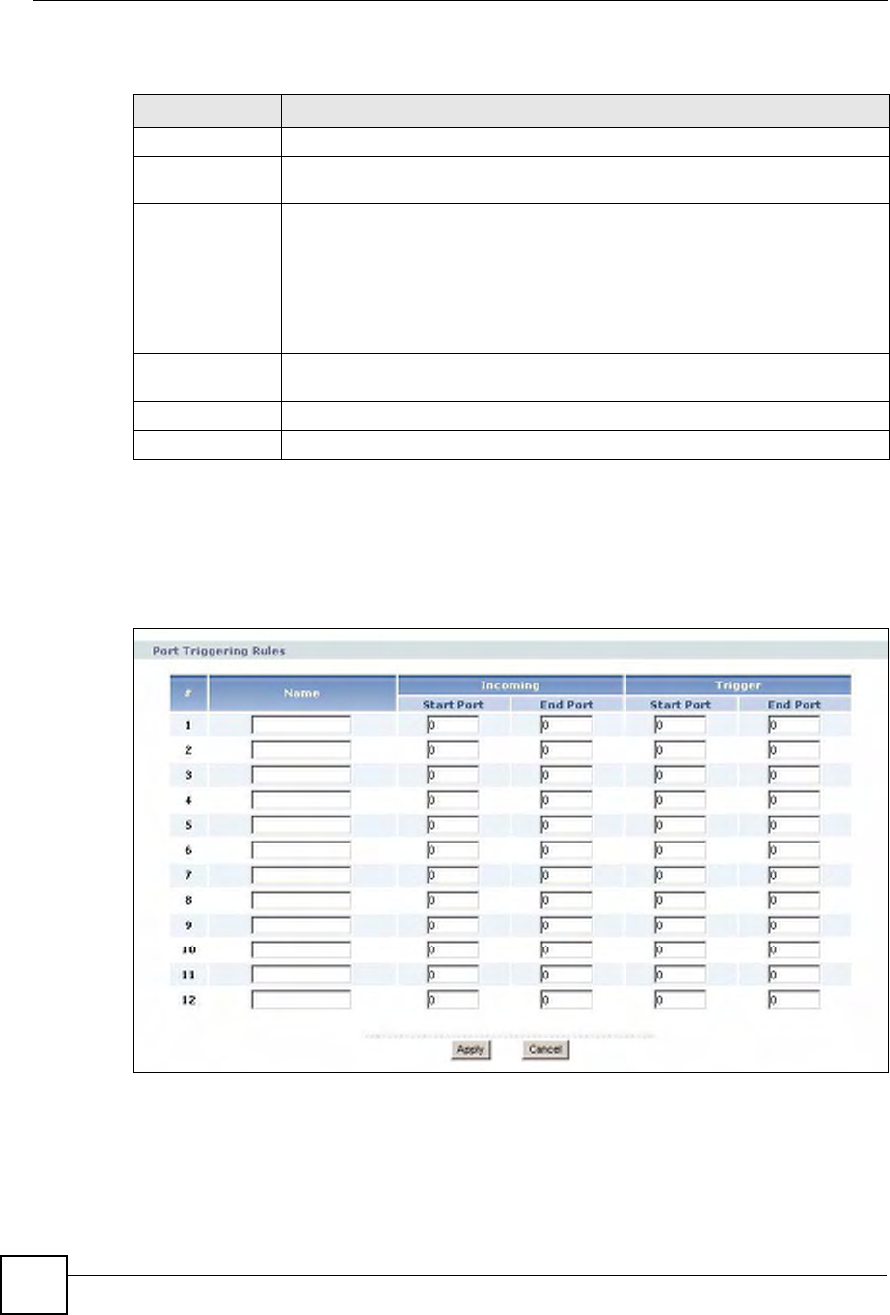

10.2.4 NAT Trigger Port Screen ........................................................................................134
10.2.5 NAT ALG Screen ....................................................................................................135
Chapter 11
VPN Transport.......................................................................................................................137
11.1 Overview ..........................................................................................................................137
11.1.1 What You Can Do in the VPN Transport Screens ..................................................138
11.1.2 What You Need to Know about VPN Transport ......................................................138
11.1.3 Before You Begin ....................................................................................................140

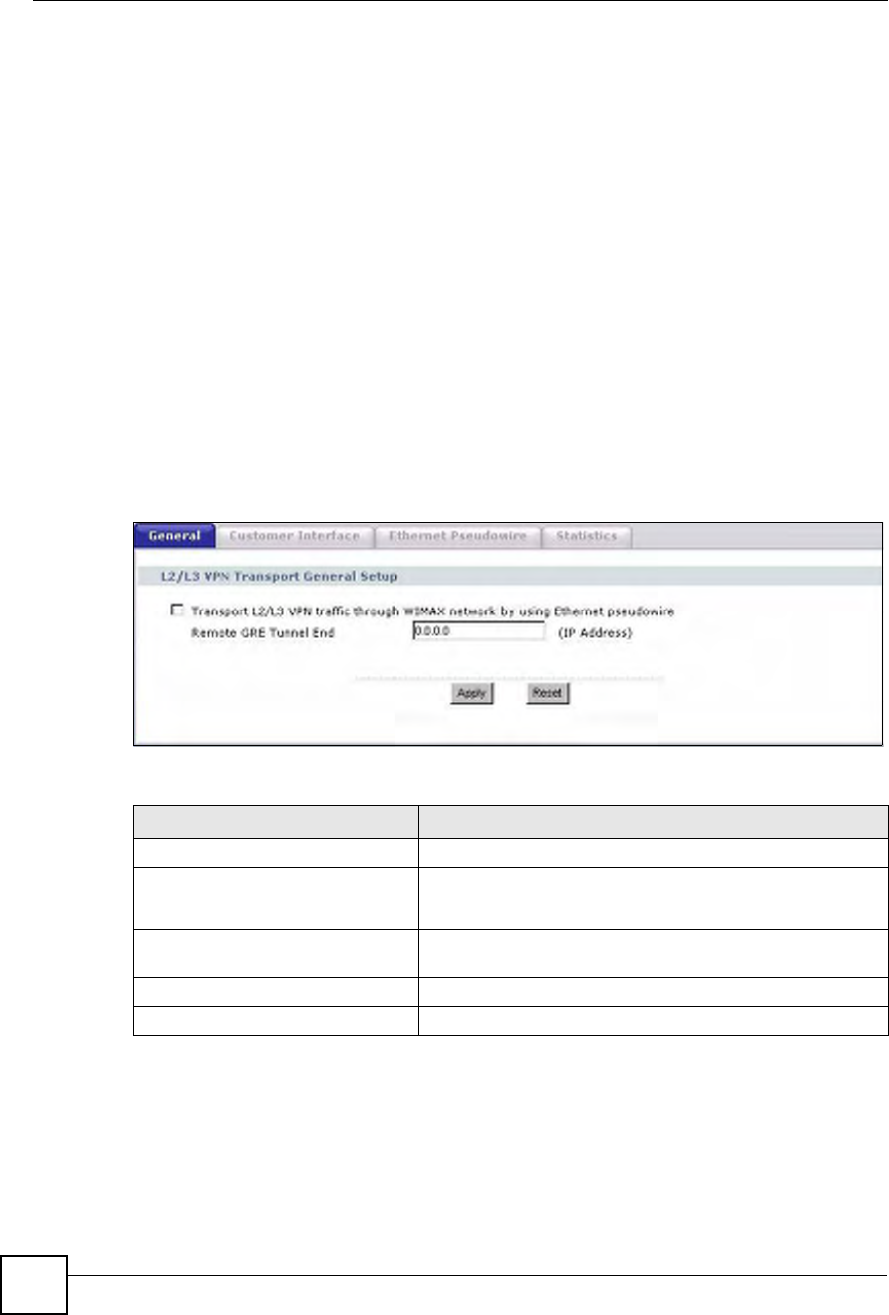

11.2 The General Screen .........................................................................................................140
11.3 The Customer Interface Screen .......................................................................................141

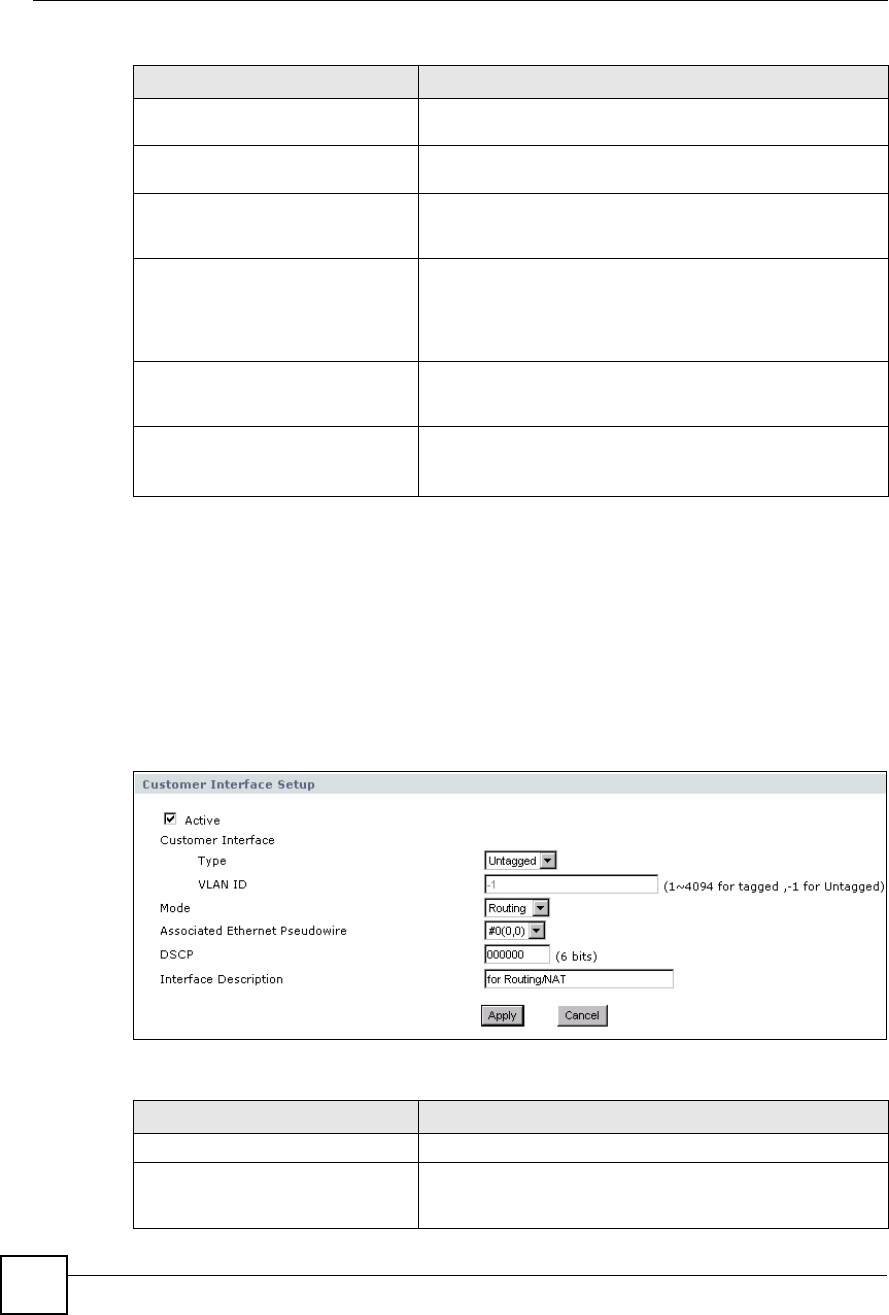

11.4 The Customer Interface Edit Screen ................................................................................142

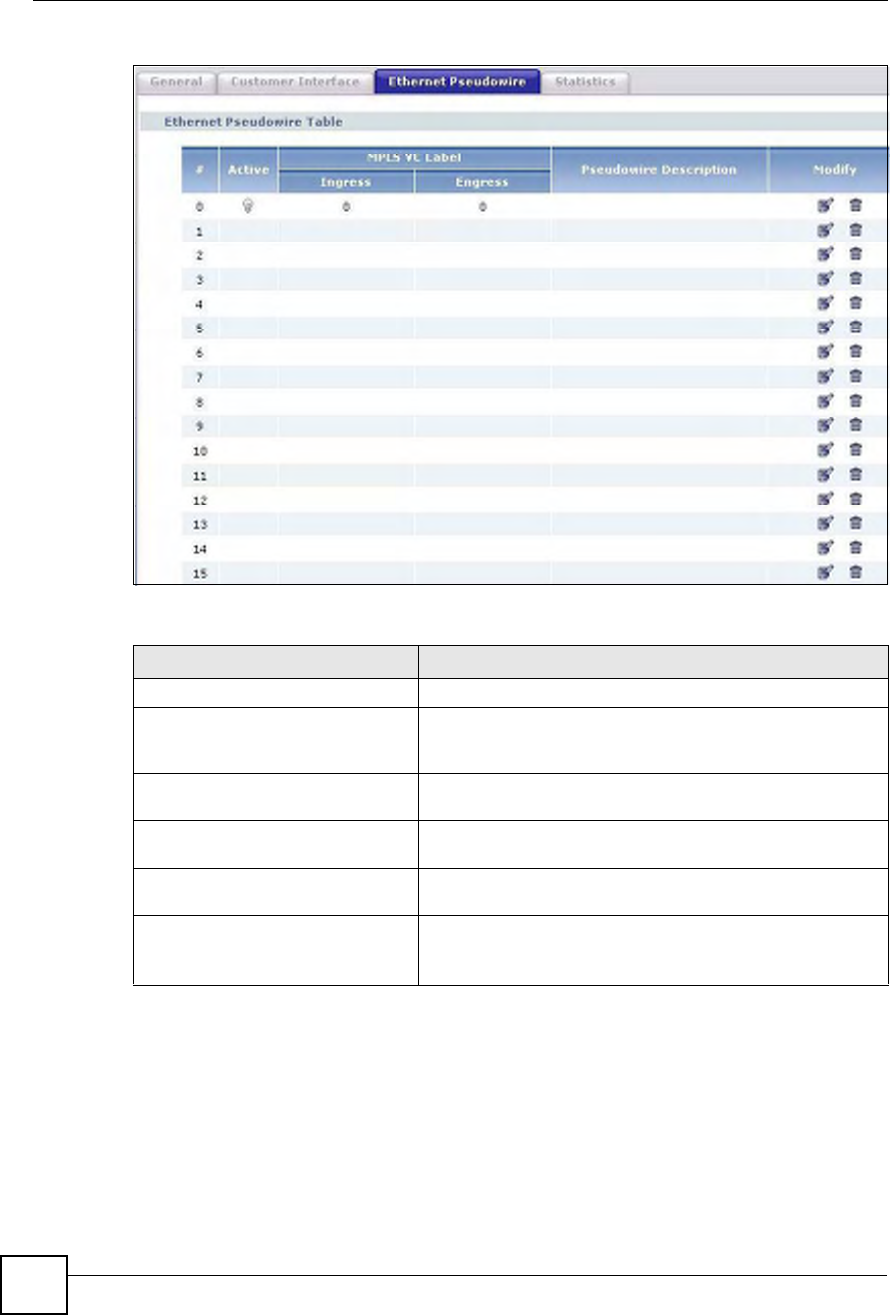

11.5 The Ethernet Pseudowire Screen ....................................................................................143

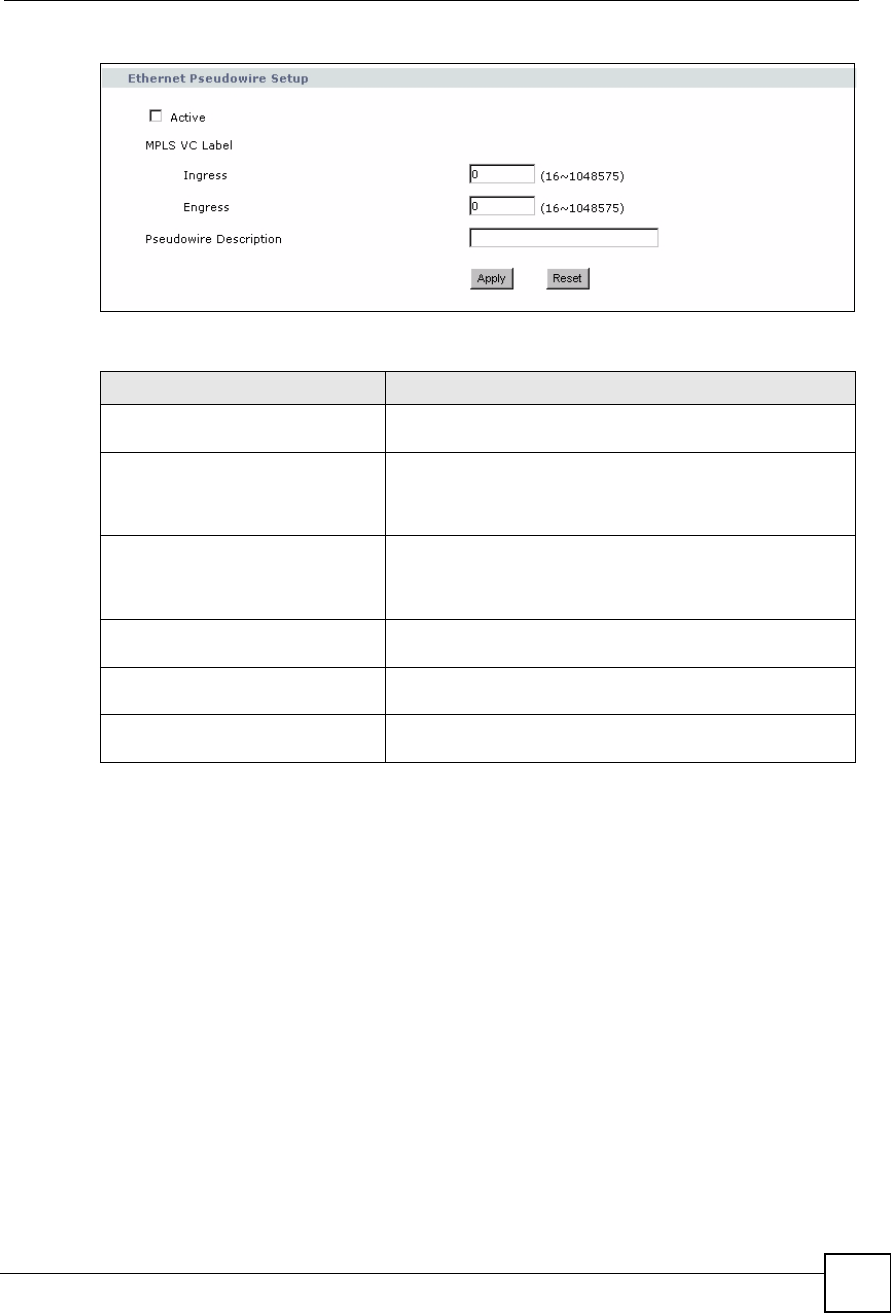

11.6 The Ethernet Pseudowire Edit Screen .............................................................................144

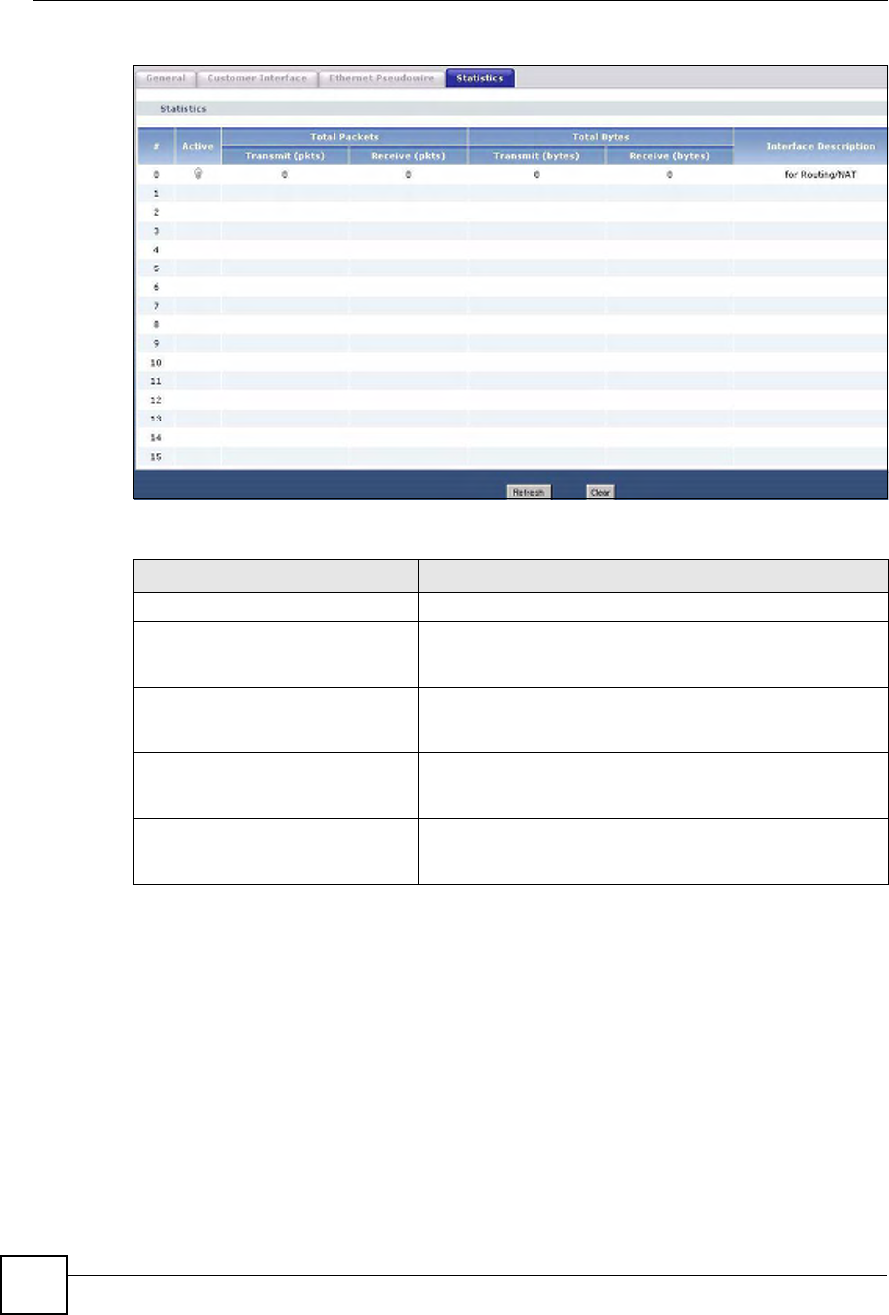

11.7 The Statistics Screen .......................................................................................................145

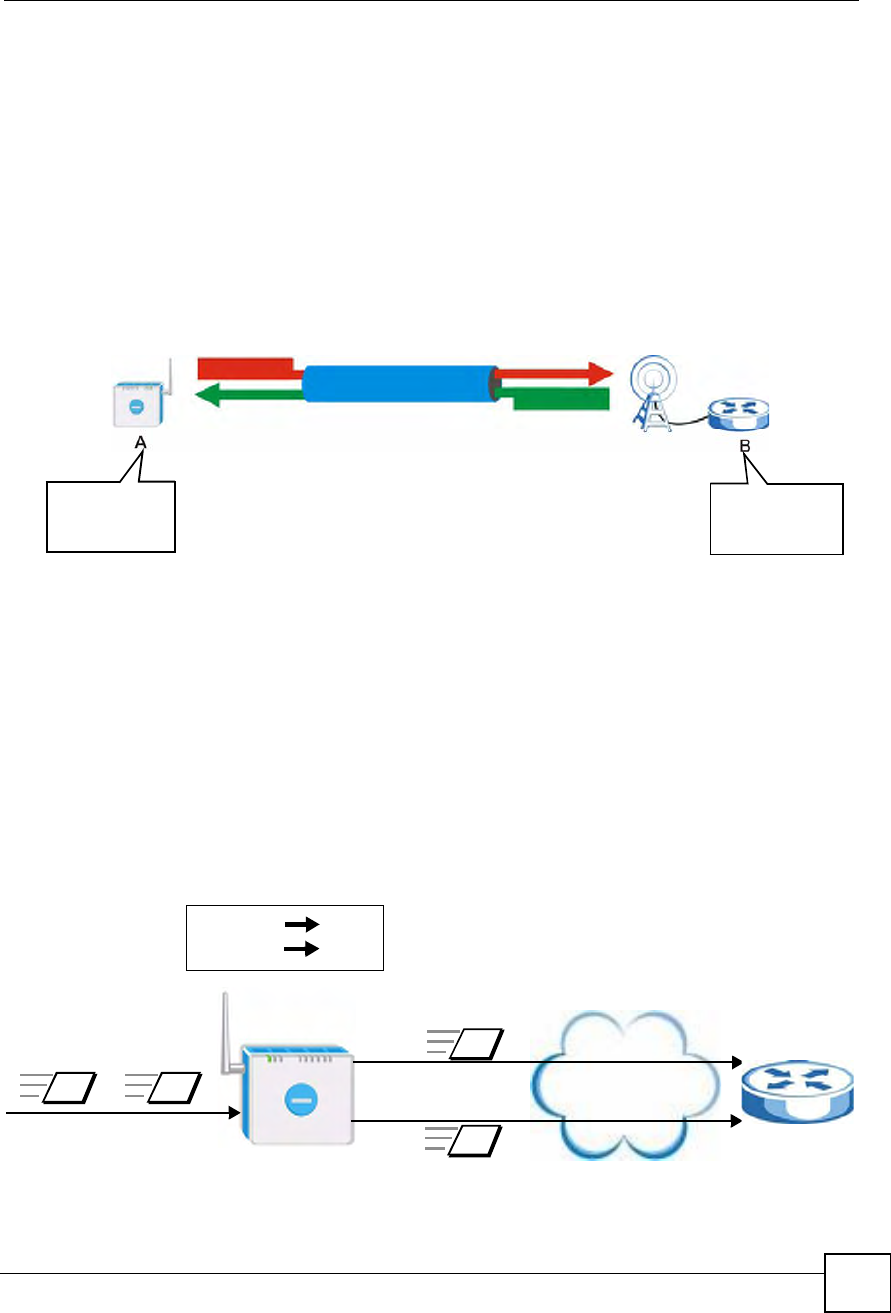

11.8 VPN Transport Technical Reference ................................................................................146
Table of Contents
MAX-200HW2 Series User s Guide 15
11.8.1 Multi-Protocol Label Switching ...............................................................................146
11.8.2 Generic Routing Encapsulation ..............................................................................147
Chapter 12
SIP..........................................................................................................................................149
12.1 SIP Overview ...................................................................................................................149
12.1.1 Introduction to VoIP ................................................................................................149
12.1.2 Introduction to SIP ..................................................................................................149
12.1.3 SIP Identities ..........................................................................................................149
12.1.4 SIP Call Progression ..............................................................................................150

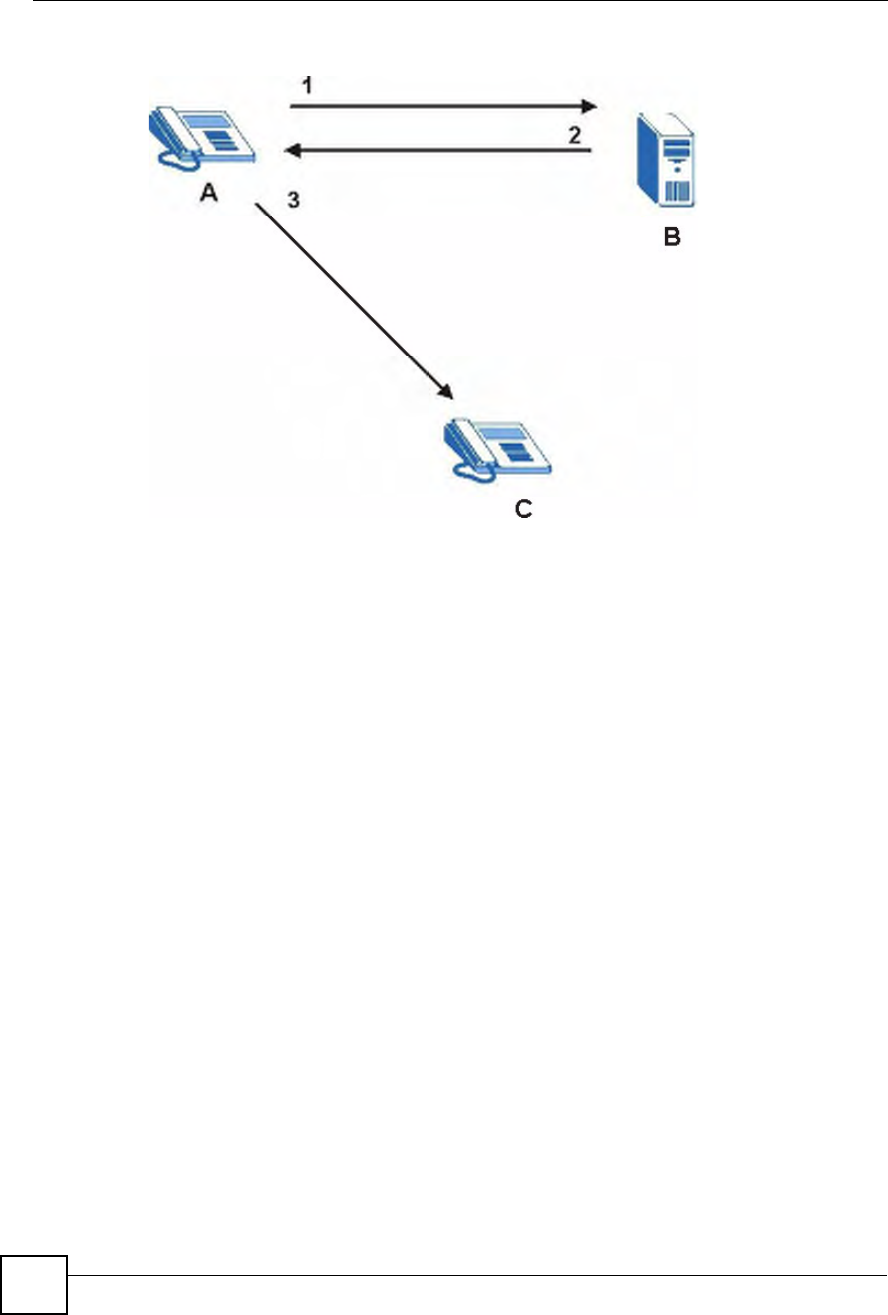

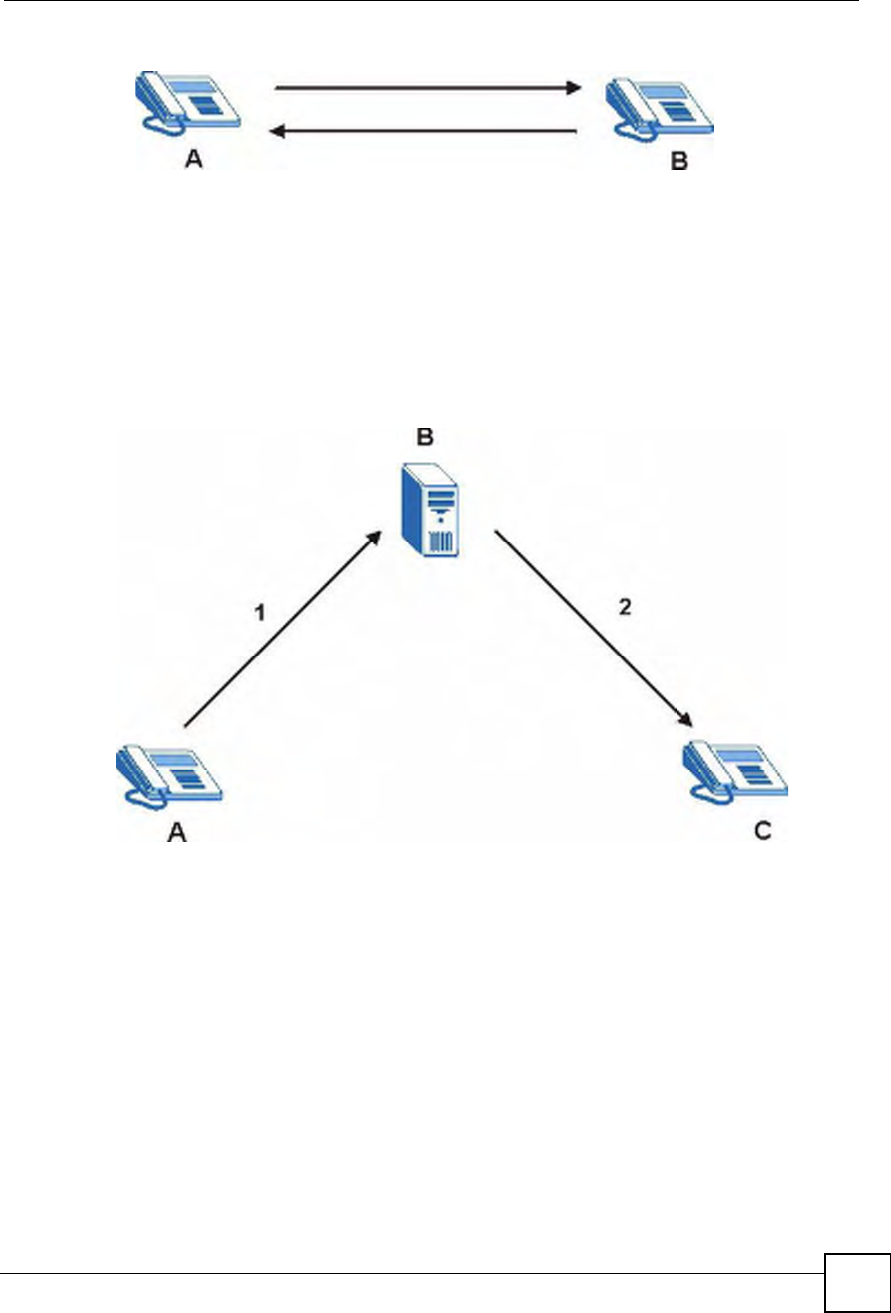

12.1.5 SIP Client Server ....................................................................................................150
12.1.6 RTP ........................................................................................................................152
12.1.7 NAT and SIP ..........................................................................................................152
12.1.8 Voice Coding ..........................................................................................................153
12.1.9 PSTN Call Setup Signaling ....................................................................................154
12.1.10 MWI (Message Waiting Indication) .......................................................................154
12.1.11 Custom Tones (IVR) .............................................................................................155
12.1.12 Quality of Service (QoS) ......................................................................................155
12.2 SIP Screens .....................................................................................................................157
12.2.1 SIP Settings Screen ...............................................................................................157
12.2.2 Advanced SIP Setup Screen ..................................................................................158
12.2.3 SIP QoS Screen .....................................................................................................162
Chapter 13
Phone.....................................................................................................................................165
13.1 Phone Overview ..............................................................................................................165
13.1.1 Voice Activity Detection/Silence Suppression/Comfort Noise ................................165
13.1.2 Echo Cancellation ..................................................................................................165
13.1.3 Supplementary Phone Services Overview .............................................................165
13.2 Phone Screens ................................................................................................................169

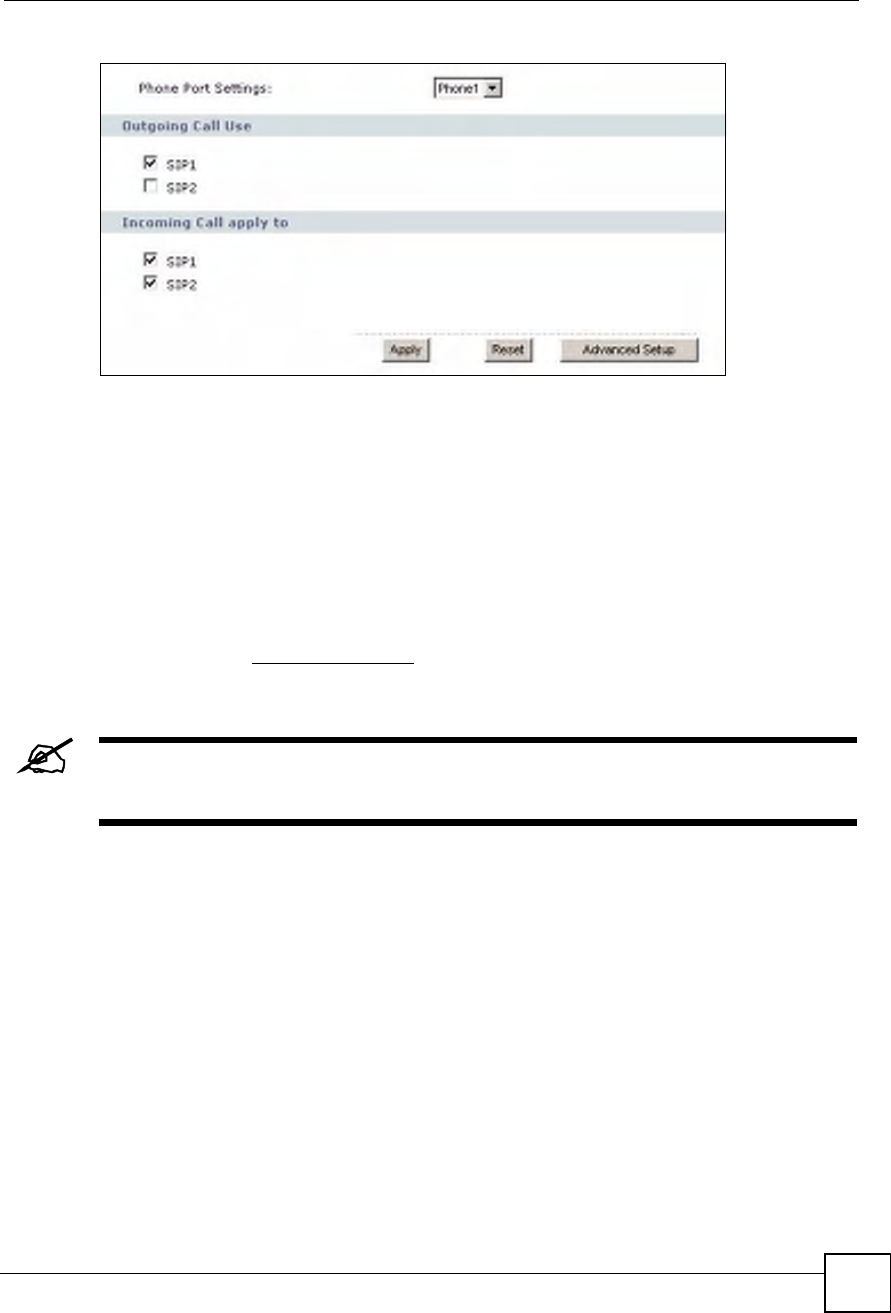

13.2.1 Analog Phone Screen ............................................................................................169
13.2.2 Advanced Analog Phone Setup Screen .................................................................170
13.2.3 Common Phone Settings Screen ...........................................................................171
13.2.4 Phone Region Screen ............................................................................................171
Chapter 14
Phone Book...........................................................................................................................173
14.1 Phone Book Overview .....................................................................................................173
14.2 Phone Book Screens .......................................................................................................173
14.2.1 Incoming Call Policy Screen ..................................................................................173
14.2.2 Speed Dial Screen .................................................................................................175
Chapter 15
Firewall...................................................................................................................................179
Table of Contents
MAX-200HW2 Series User s Guide
16
15.1 Firewall Overview ............................................................................................................179
15.1.1 Stateful Inspection Firewall. ...................................................................................179
15.1.2 About the ZyXEL Device Firewall ...........................................................................179
15.1.3 Guidelines For Enhancing Security With Your Firewall ..........................................180
15.1.4 The Firewall, NAT and Remote Management ........................................................180
15.2 Triangle Route .................................................................................................................181
15.2.1 The !Triangle Route" Problem ................................................................................181
15.2.2 Solving the !Triangle Route" Problem ....................................................................182
15.3 Firewall Screens ..............................................................................................................183
15.3.1 General Firewall Screen .........................................................................................183
15.3.2 Firewall Services Screen ........................................................................................183
Chapter 16
Certificates............................................................................................................................187
16.1 Certificates Overview .......................................................................................................187
16.1.1 Advantages of Certificates .....................................................................................188
16.2 Self-signed Certificates ....................................................................................................188
16.3 Factory Default Certificate ...............................................................................................188
16.3.1 Certificate File Formats ..........................................................................................188
16.4 Certificate Configuration Screens Summary ...................................................................189
16.5 Verifying a Certificate .......................................................................................................189
16.5.1 Checking the Fingerprint of a Certificate on Your Computer ..................................189
16.6 My Certificates Screen ....................................................................................................190
16.6.1 My Certificates Create Screen .............................................................................192
16.6.2 My Certificate Details Screen ................................................................................195
16.6.3 My Certificate Import Screen .................................................................................198
16.7 Trusted CAs ...................................................................................................................199
16.8 Trusted CA Details ..........................................................................................................201
16.9 Trusted CA Import .........................................................................................................203
Chapter 17
Content Filter.........................................................................................................................205
17.1 Content Filtering Overview ..............................................................................................205
17.2 Content Filtering Screens ................................................................................................205
17.2.1 Content Filter Screen .............................................................................................205
17.2.2 Content Filter Schedule Screen .............................................................................207
Chapter 18
Static Route...........................................................................................................................209
18.1 Static Route Overview .....................................................................................................209
18.2 Static Route Screens .......................................................................................................209
18.2.1 IP Static Route Screen ...........................................................................................209
18.2.2 IP Static Route Edit Screen ....................................................................................210
Table of Contents
MAX-200HW2 Series User s Guide 17
Chapter 19
Remote MGMT.......................................................................................................................213
19.1 Remote Management Overview ......................................................................................213
19.1.1 Remote Management Limitations ..........................................................................213
19.1.2 Remote Management and NAT ..............................................................................213
19.1.3 System Timeout .....................................................................................................214
19.2 Remote Management Screens ........................................................................................214
19.2.1 WWW Screen .........................................................................................................214
19.2.2 Telnet Screen .........................................................................................................214
19.2.3 FTP Screen ............................................................................................................215
19.3 SNMP ..............................................................................................................................216
19.3.1 Supported MIBs .....................................................................................................217
19.3.2 SNMP Traps ...........................................................................................................217
19.3.3 Configuring SNMP .................................................................................................217
19.3.4 DNS Screen ...........................................................................................................218
19.3.5 Security Screen ......................................................................................................219
Chapter 20
UPnP......................................................................................................................................221
20.1 Introducing Universal Plug and Play ................................................................................221
20.1.1 How do I know if I'm using UPnP? .........................................................................221
20.1.2 NAT Traversal ........................................................................................................221
20.1.3 Cautions with UPnP ...............................................................................................221
20.1.4 UPnP and ZyXEL ...................................................................................................222
20.2 UPnP Examples ..............................................................................................................222
20.2.1 Installing UPnP in Windows Example ....................................................................222
20.2.2 Using UPnP in Windows XP Example ...................................................................225
20.3 UPnP Screen ...................................................................................................................231
Chapter 21
System...................................................................................................................................233
21.1 System Features Overview .............................................................................................233
21.1.1 System Name .........................................................................................................233
21.1.2 Domain Name ........................................................................................................233
21.1.3 DNS Server Address Assignment ..........................................................................233
21.1.4 Dynamic DNS .........................................................................................................234
21.1.5 Pre-defined NTP Time Servers List ........................................................................234
21.1.6 Resetting the Time .................................................................................................235
21.2 System Screens ..............................................................................................................235
21.2.1 General System Screen .........................................................................................235
21.2.2 Dynamic DNS Screen ............................................................................................236
21.2.3 Time Setting Screen ...............................................................................................237
Table of Contents
MAX-200HW2 Series User s Guide
18
Chapter 22
Logs.......................................................................................................................................241
22.1 Logs Overview .................................................................................................................241
22.1.1 Alerts ......................................................................................................................241
22.1.2 Syslog Logs ............................................................................................................241
22.2 Logs Screens ...................................................................................................................243
22.2.1 Log Viewer Screen .................................................................................................243
22.2.2 Log Settings Screen ...............................................................................................243
22.3 Log Message Descriptions ..............................................................................................245
Chapter 23
Tools.......................................................................................................................................255
23.1 Tools Overview ................................................................................................................255
23.1.1 Firmware ................................................................................................................255
23.2 Tools Screens ..................................................................................................................255
23.2.1 Firmware Screen ....................................................................................................255
23.2.2 Firmware Upload Screens ......................................................................................256
23.2.3 Configuration Screen .............................................................................................257
23.2.4 Restore Configuration Screens ..............................................................................258
23.2.5 Restart Screen .......................................................................................................259
Part IV: Troubleshooting and Specifications.....................................261
Chapter 24
Troubleshooting....................................................................................................................263
24.1 Power, Hardware Connections, and LEDs ......................................................................263
24.2 ZyXEL Device Access and Login ....................................................................................264
24.3 Internet Access ................................................................................................................265
24.4 Phone Calls and VoIP ......................................................................................................267
24.5 Reset the ZyXEL Device to Its Factory Defaults ..............................................................267
24.5.1 Pop-up Windows, JavaScripts and Java Permissions ...........................................268
24.6 Wireless LAN Troubleshooting ........................................................................................268
Chapter 25
Product Specifications.........................................................................................................269
Part V: Appendices and Index............................................................273
Appendix A WiMAX Security................................................................................................275
Appendix B Setting up Your Computer s IP Address............................................................279
Table of Contents
MAX-200HW2 Series User s Guide 19
Appendix C Pop-up Windows, JavaScripts and Java Permissions......................................301
Appendix D IP Addresses and Subnetting...........................................................................309
Appendix E Wireless LANs..................................................................................................319
Appendix F Common Services.............................................................................................333
Appendix G Legal Information..............................................................................................337
Appendix H Customer Support.............................................................................................341
Index.......................................................................................................................................347
Table of Contents
MAX-200HW2 Series User s Guide
20
List of Figures
MAX-200HW2 Series User s Guide 21
List of Figures
Figure 1 Mobile Station and Base Station ...............................................................................................34
Figure 2 WLAN Application Example .....................................................................................................34

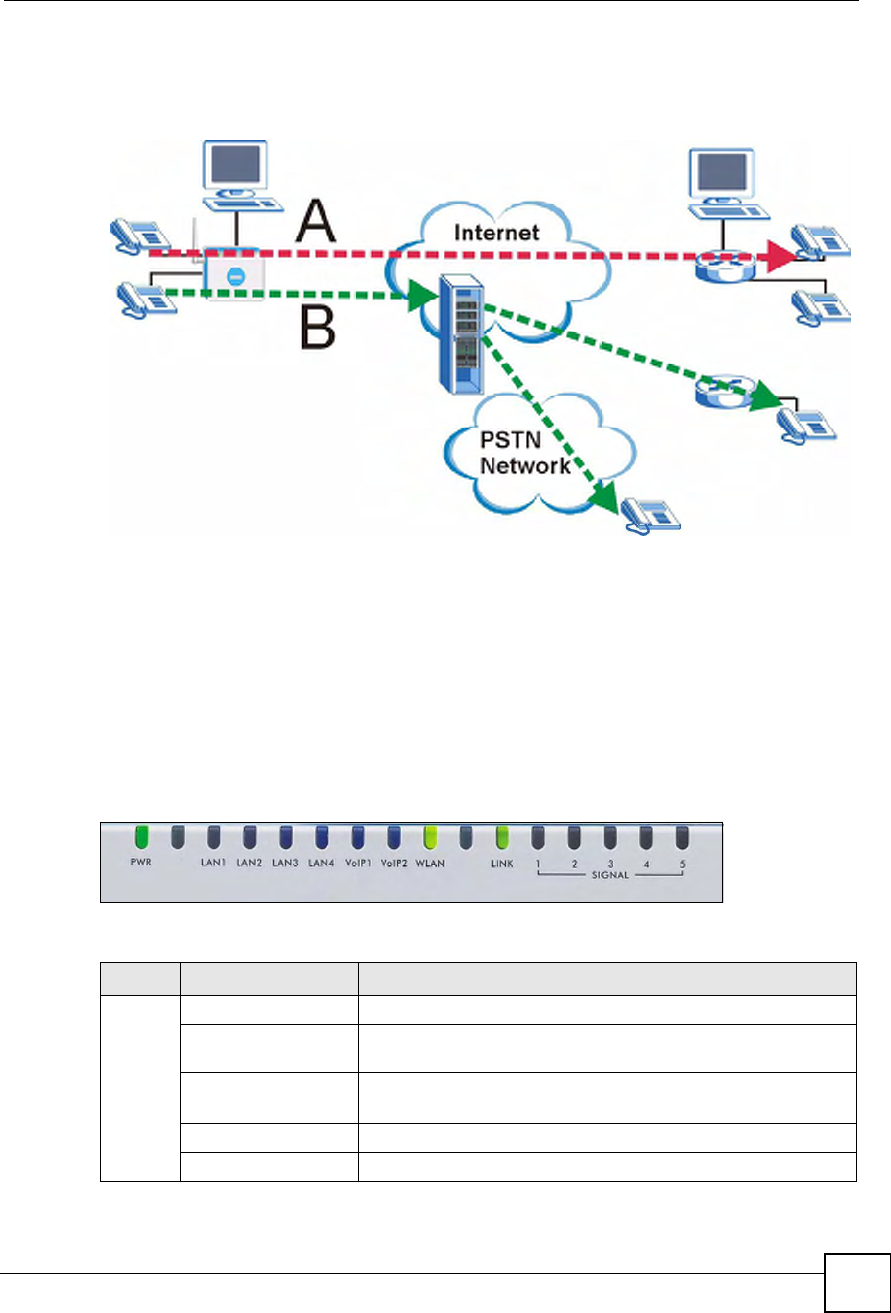

Figure 3 ZyXEL Device s VoIP Features ................................................................................................35
Figure 4 The ZyXEL Device ...................................................................................................................35

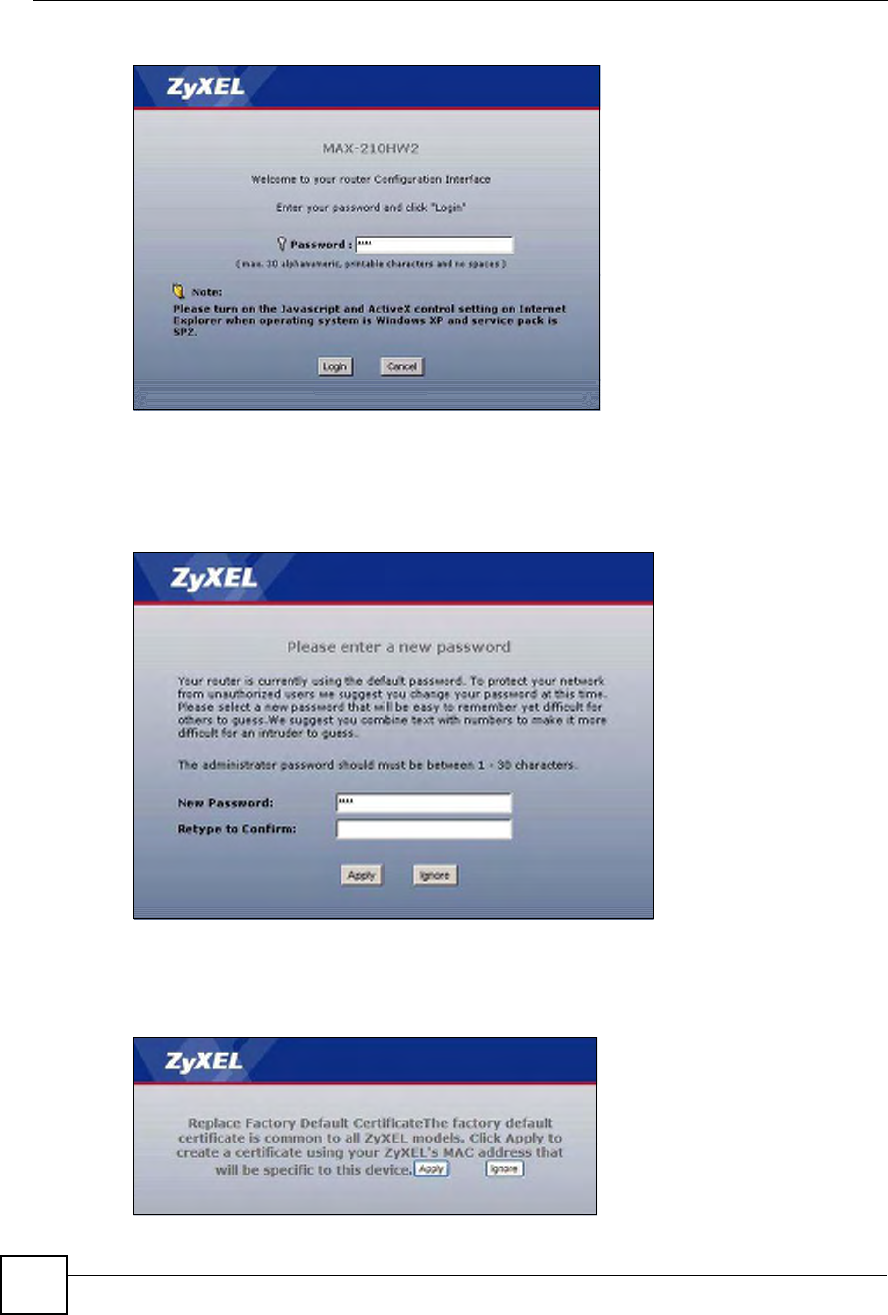

Figure 5 Password Screen .....................................................................................................................40
Figure 6 Change Password Screen ........................................................................................................40
Figure 7 Replace Certificate Screen .......................................................................................................40

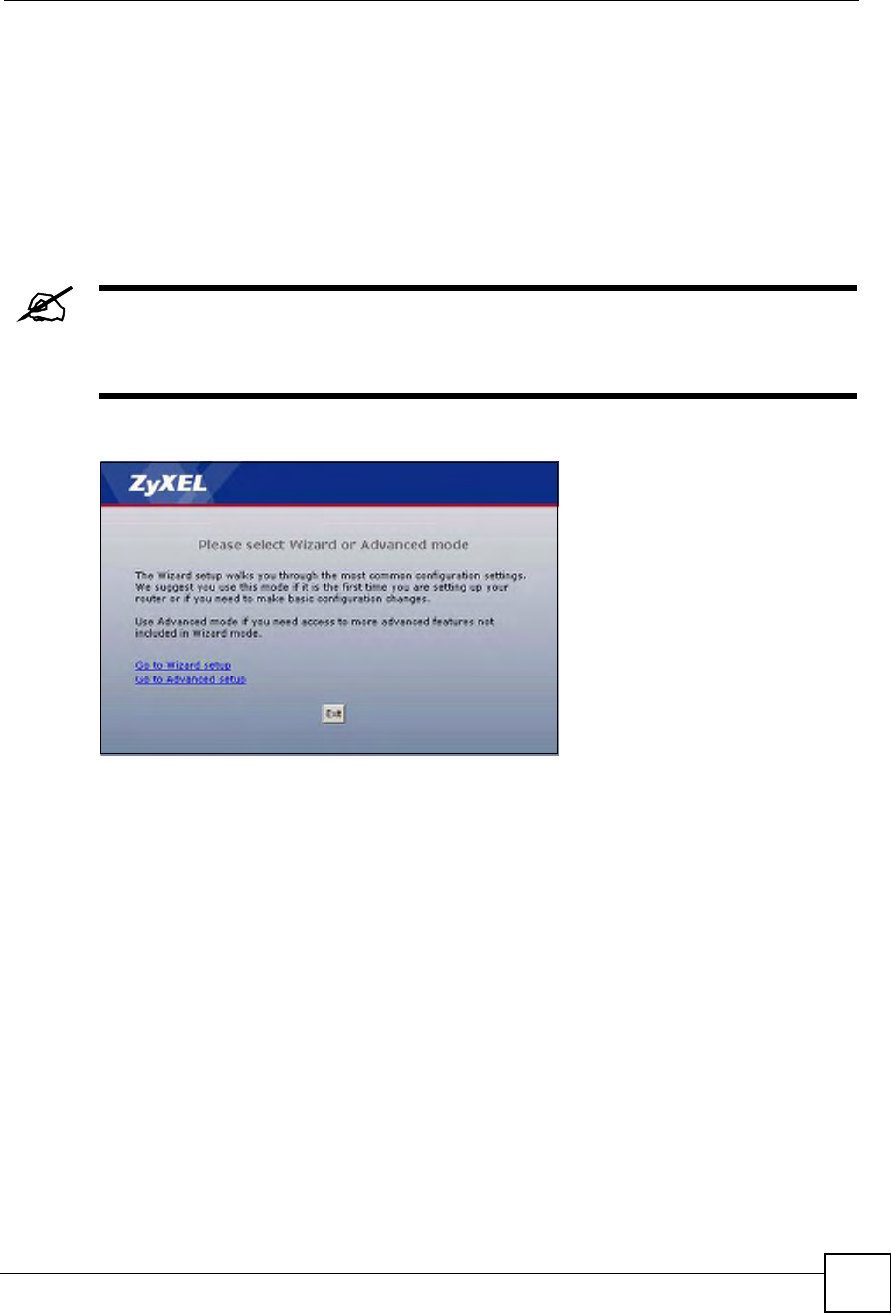

Figure 8 Wizard or Advanced Screen ....................................................................................................41
Figure 9 Main Screen .............................................................................................................................42
Figure 10 Tutorial: Security .....................................................................................................................50
Figure 11 Tutorial: Trusted CAs Tab .......................................................................................................50
Figure 12 Tutorial: Trusted CAs Screen .................................................................................................50
Figure 13 Tutorial: Network ....................................................................................................................51
Figure 14 Tutorial: Internet Access Settings ..........................................................................................51
Figure 15 Tutorial: WiMAX Frequency Setup .........................................................................................52
Figure 16 Network > Wireless LAN > General .......................................................................................53
Figure 17 Network > Wireless LAN > Device Information ......................................................................54
Figure 18 Network > Wireless LAN > Interface Status ...........................................................................54
Figure 19 ZyXEL Utility: Security Settings .............................................................................................56
Figure 20 ZyXEL Utility: Confirm Save ...................................................................................................56
Figure 21 ZyXEL Utility: Link Info ..........................................................................................................56

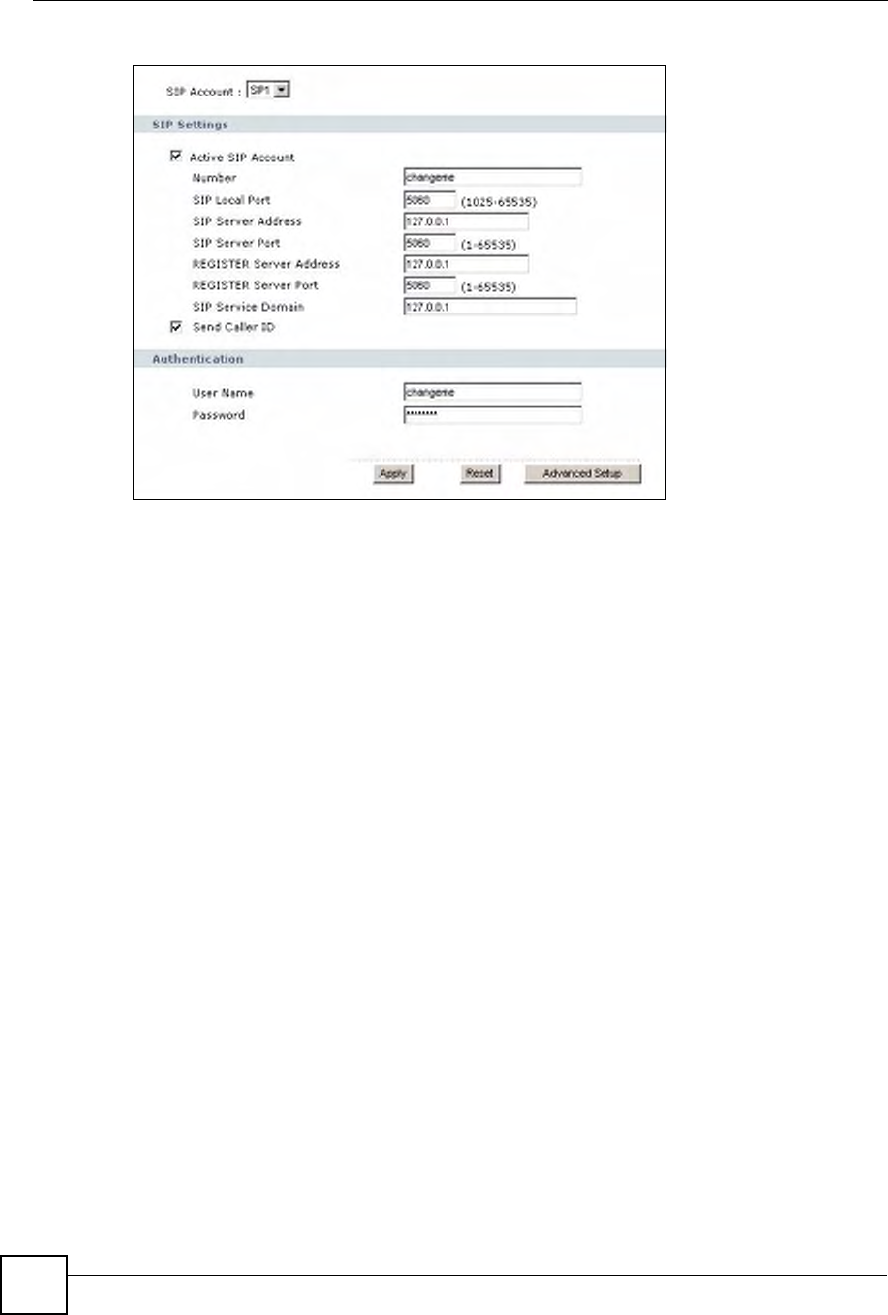

Figure 22 Tutorial: SIP Account Setup ...................................................................................................58
Figure 23 Tutorial: the Analog Phone Screen .........................................................................................59

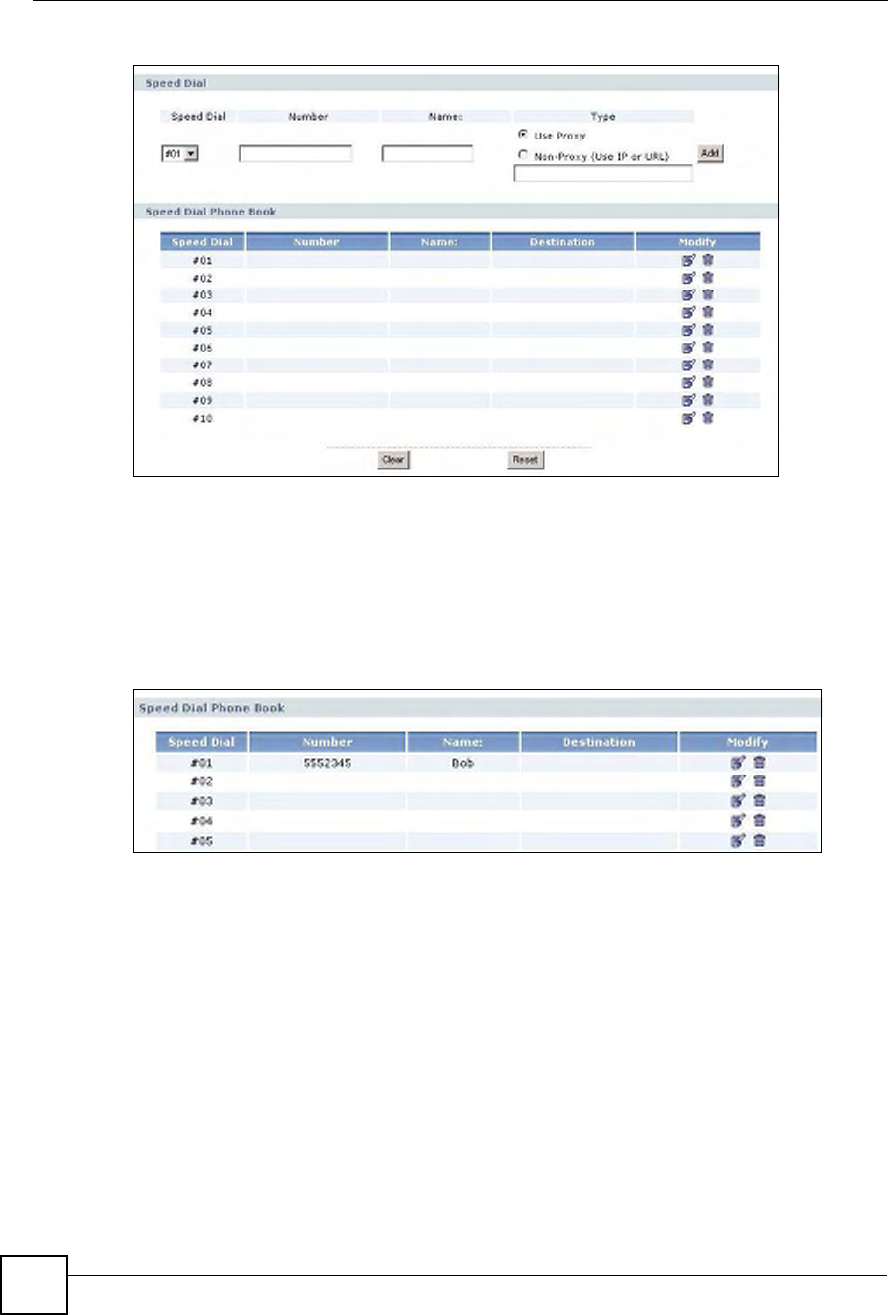

Figure 24 Tutorial: the Speed Dial Screen ..............................................................................................60
Figure 25 Tutorial: New Speed Dial Rule ................................................................................................60
Figure 26 Select a Mode ........................................................................................................................61
Figure 27 Connection Wizard: Introduction ............................................................................................62
Figure 28 Wizard > Step 1 > System Information ...................................................................................62
Figure 29 Wizard > Step 2 > Wireless LAN ...........................................................................................63
Figure 30 Wizard > Step 2 > Basic (WEP) Security ...............................................................................64

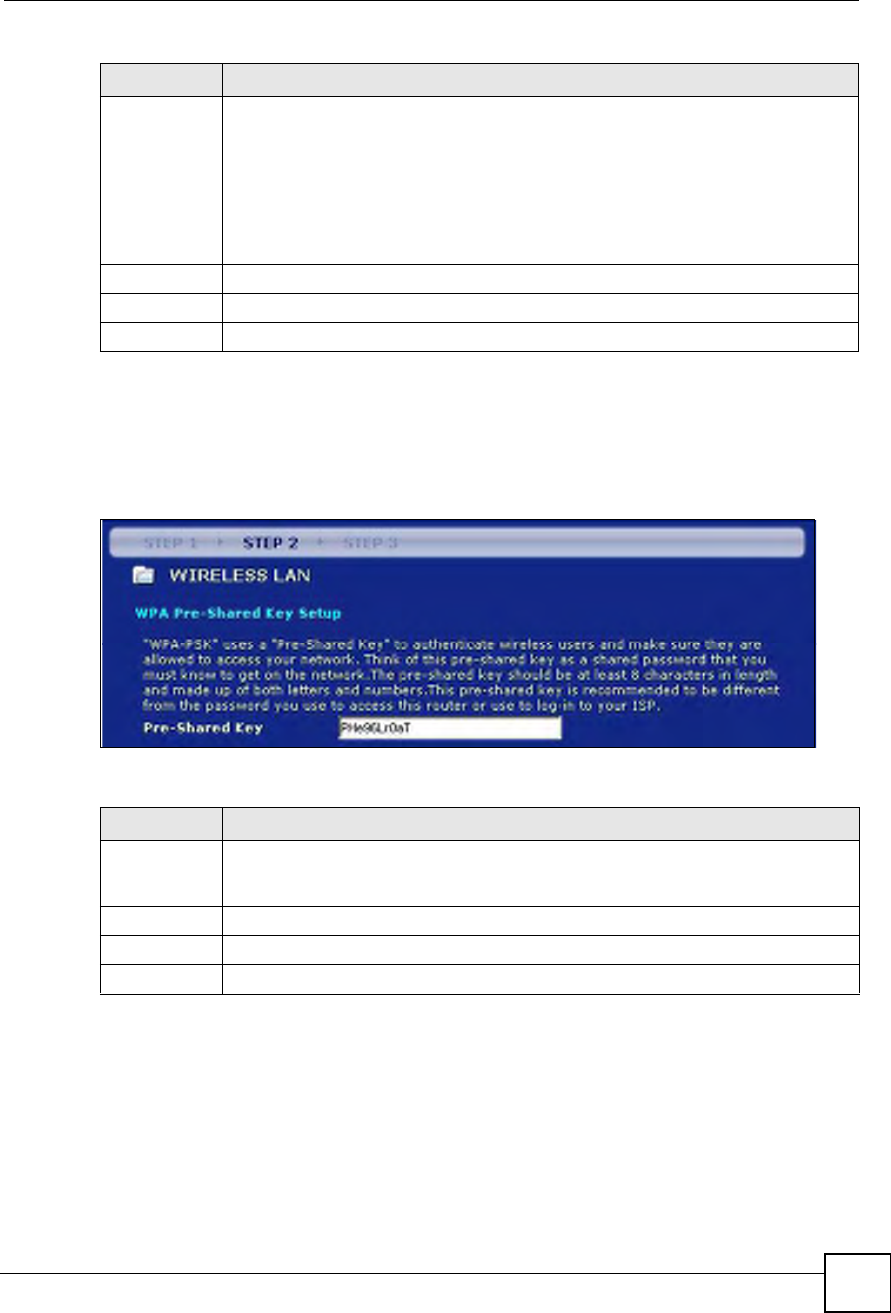

Figure 31 Wizard > Step 2 > Extend (WPA-PSK or WPA2-PSK) Security .............................................65
Figure 32 Wizard > Step 2 > OTIST .......................................................................................................66

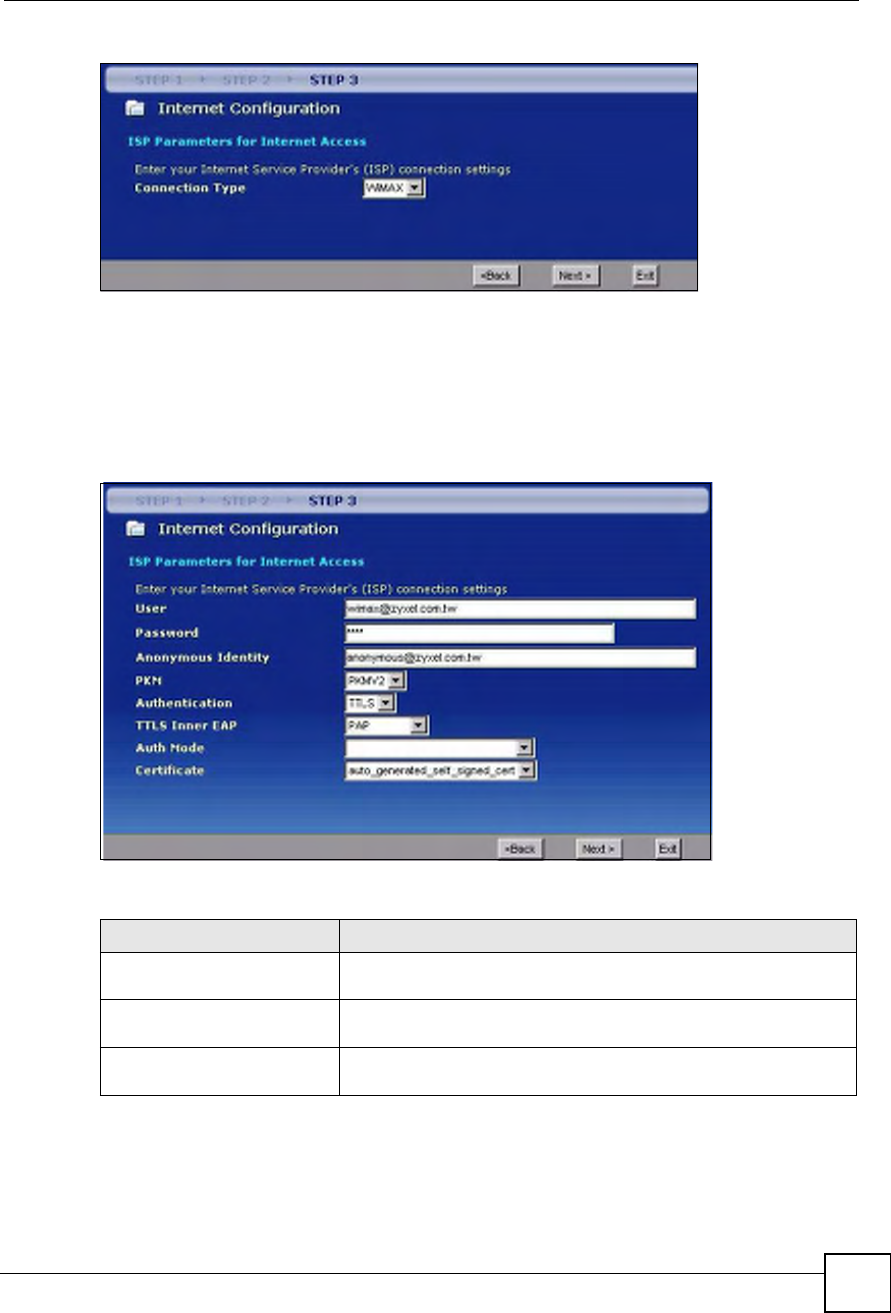

Figure 33 Wizard > Step 3 > Connection Type Screen ..........................................................................67

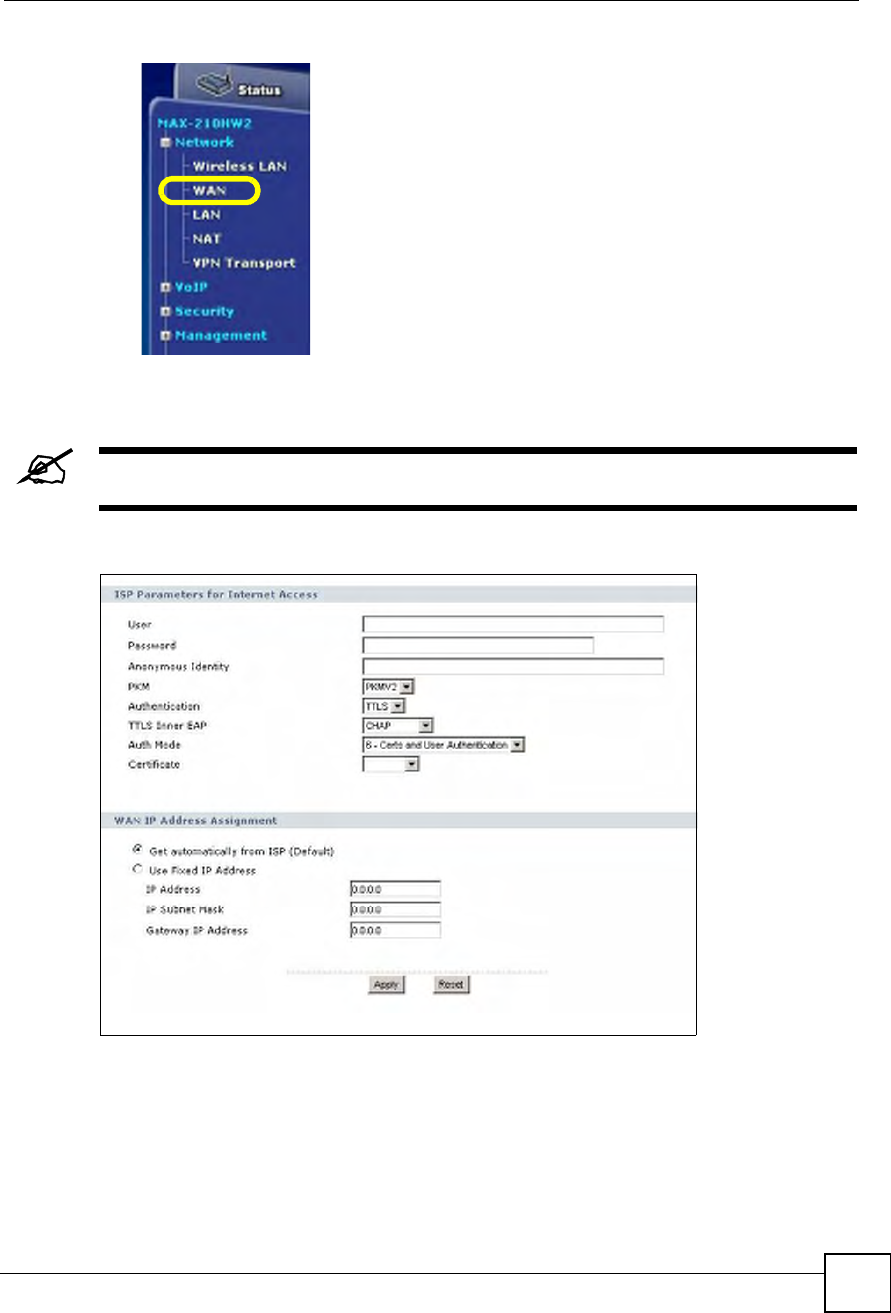

Figure 34 Wizard > Step 3 > ISP Parameters for Internet Access Screen .............................................67
Figure 35 Wizard > Step 3 > Antenna Selection .....................................................................................69
Figure 36 Wizard > Step 3 > IP Address ................................................................................................70
Figure 37 Wizard > Step 3 > WAN IP Address Assignment ...................................................................71
Figure 38 The Connection Wizard: Congratulations ...............................................................................72
List of Figures
MAX-200HW2 Series User s Guide
22
Figure 39 Select a Mode ........................................................................................................................73
Figure 40 VOIP Wizard: Configuration ...................................................................................................74
Figure 41 VoIP Wizard: SIP Registration Test ........................................................................................75
Figure 42 VoIP Wizard: Fail ....................................................................................................................75
Figure 43 VOIP Wizard: Finish ..............................................................................................................75
Figure 44 Status Screen .........................................................................................................................79
Figure 45 The Site Information Screen ...................................................................................................83
Figure 46 The WiMAX Profile Screen ....................................................................................................84
Figure 47 Packet Statistics .....................................................................................................................85
Figure 48 DHCP Table ............................................................................................................................86
Figure 49 VoIP Statistics .........................................................................................................................87

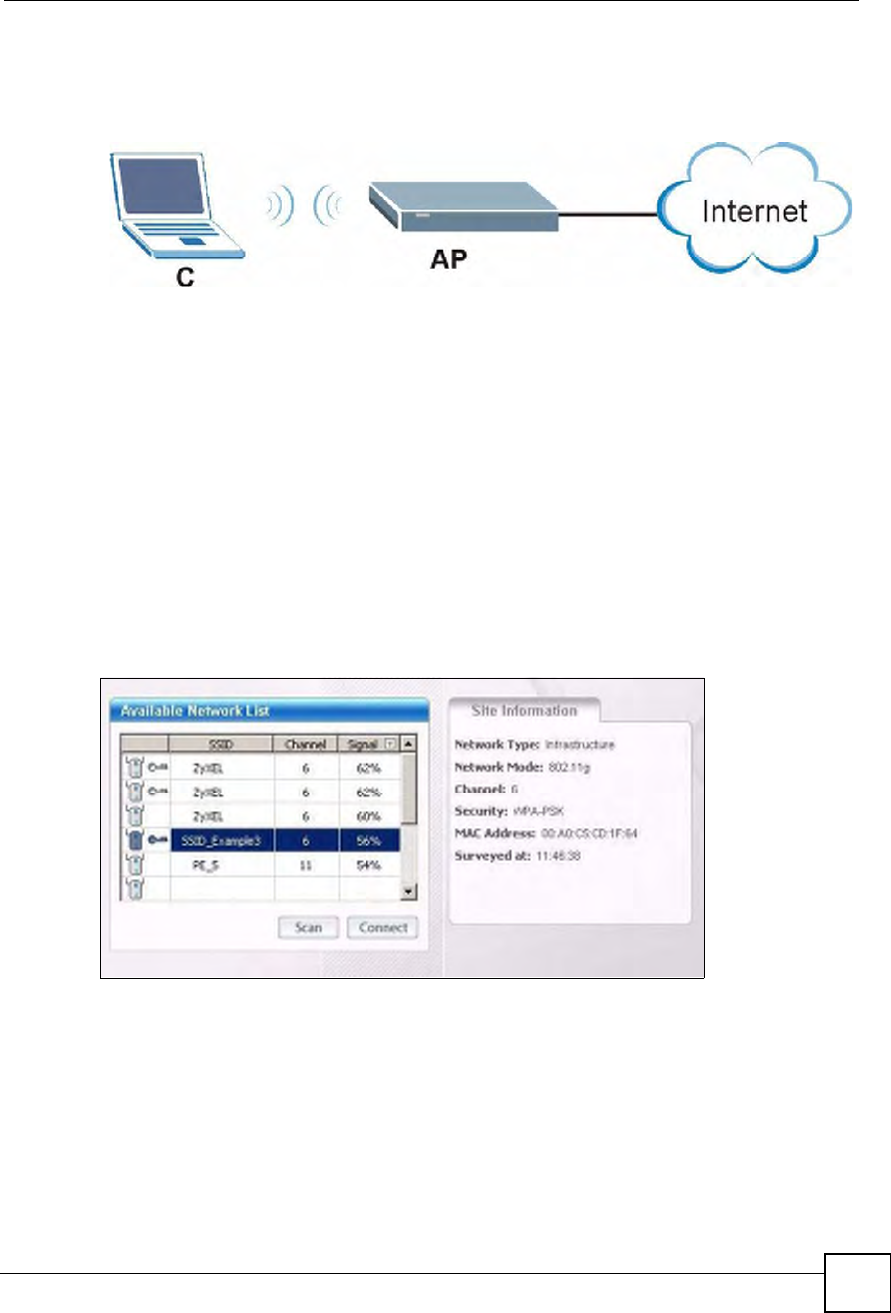

Figure 50 Example of a Wireless Network .............................................................................................91
Figure 51 Network > Wireless LAN > General ......................................................................................94
Figure 52 Network > Wireless LAN > General: No Security ...................................................................95
Figure 53 Network > Wireless LAN > General: Static WEP ...................................................................96
Figure 54 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK ..................................................98
Figure 55 Network > Wireless LAN > General: WPA/WPA2 ...................................................................99

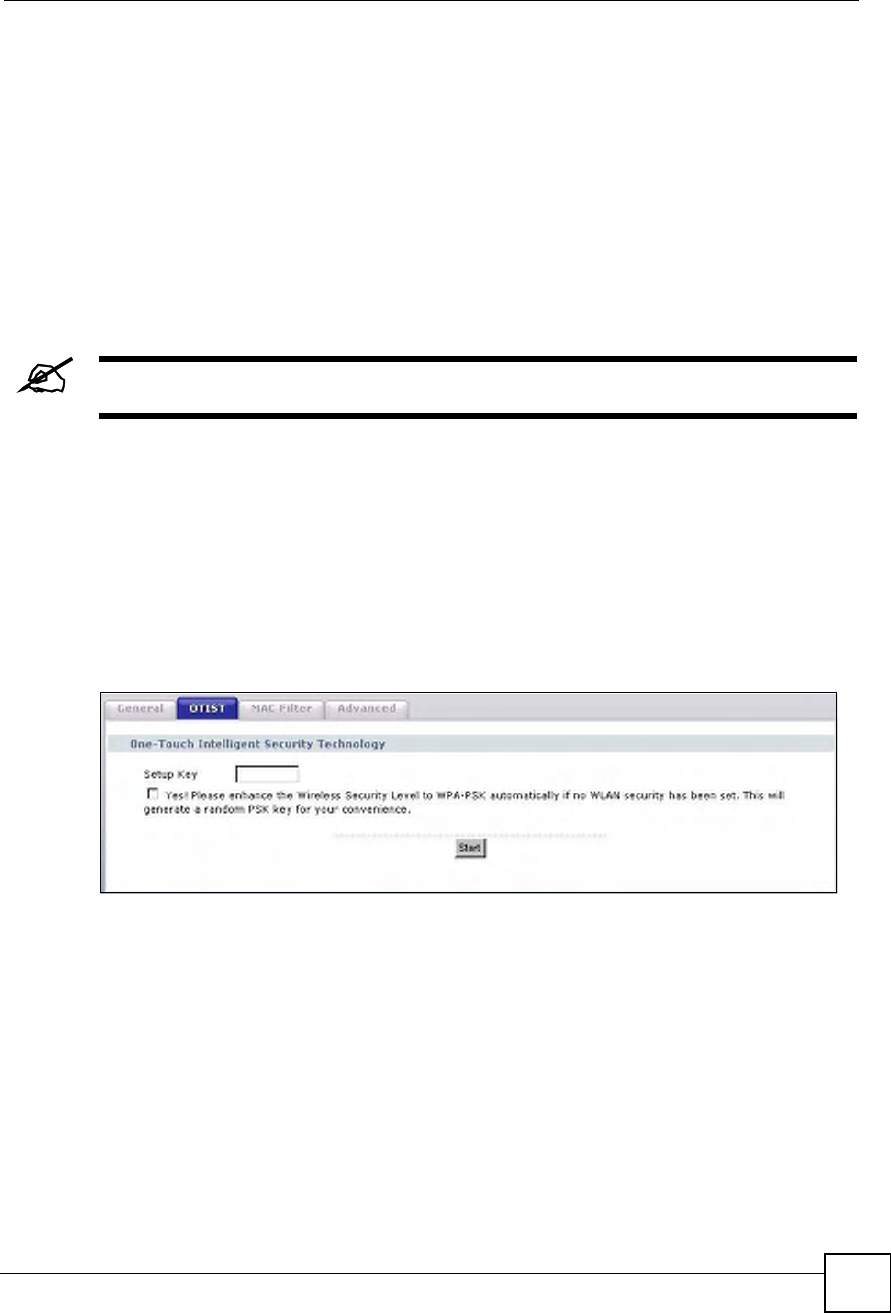

Figure 56 Network > Wireless LAN > OTIST .......................................................................................101
Figure 57 Example Wireless Client OTIST Screen ..............................................................................102
Figure 58 Security Key .........................................................................................................................103
Figure 59 OTIST in Progress (AP) .......................................................................................................103
Figure 60 OTIST in Progress (Client) ...................................................................................................103
Figure 61 No AP with OTIST Found .....................................................................................................103
Figure 62 Start OTIST? ........................................................................................................................104
Figure 63 Network > Wireless LAN > MAC Filter .................................................................................105
Figure 64 Network > Wireless LAN > Advanced ..................................................................................106
Figure 65 WiMax: Mobile Station ..........................................................................................................107
Figure 66 WiMAX: Multiple Mobile Stations ..........................................................................................108
Figure 67 Using an AAA Server ...........................................................................................................108
Figure 68 Network > WAN > Internet Connection ................................................................................109
Figure 69 Frequency Ranges ................................................................................................................111
Figure 70 Network > WAN >WiMAX Frequency ....................................................................................113
Figure 71 Completing the WiMAX Frequency Screen ...........................................................................114
Figure 72 Network > WAN > Advanced .................................................................................................114
Figure 73 Network > WAN > Traffic Redirect .........................................................................................116
Figure 74 Network > WAN > Antenna Selection ....................................................................................117
Figure 75 Network > LAN > IP ..............................................................................................................122
Figure 76 Network > LAN > DHCP Setup ............................................................................................123
Figure 77 Network > LAN > Static DHCP .............................................................................................124
Figure 78 Network > LAN > Client List .................................................................................................125
Figure 79 Network > LAN > IP Alias .....................................................................................................125
Figure 80 Network > LAN > Advanced .................................................................................................127
Figure 81 Multiple Servers Behind NAT Example ................................................................................129
List of Figures
MAX-200HW2 Series User s Guide 23
Figure 82 Trigger Port Forwarding Process: Example ..........................................................................130
Figure 83 Network > NAT > General ....................................................................................................131
Figure 84 Network > NAT > Port Forwarding .......................................................................................132
Figure 85 Network > NAT > Port Forwarding > Edit .............................................................................133
Figure 86 Network > NAT > Trigger Port ..............................................................................................134

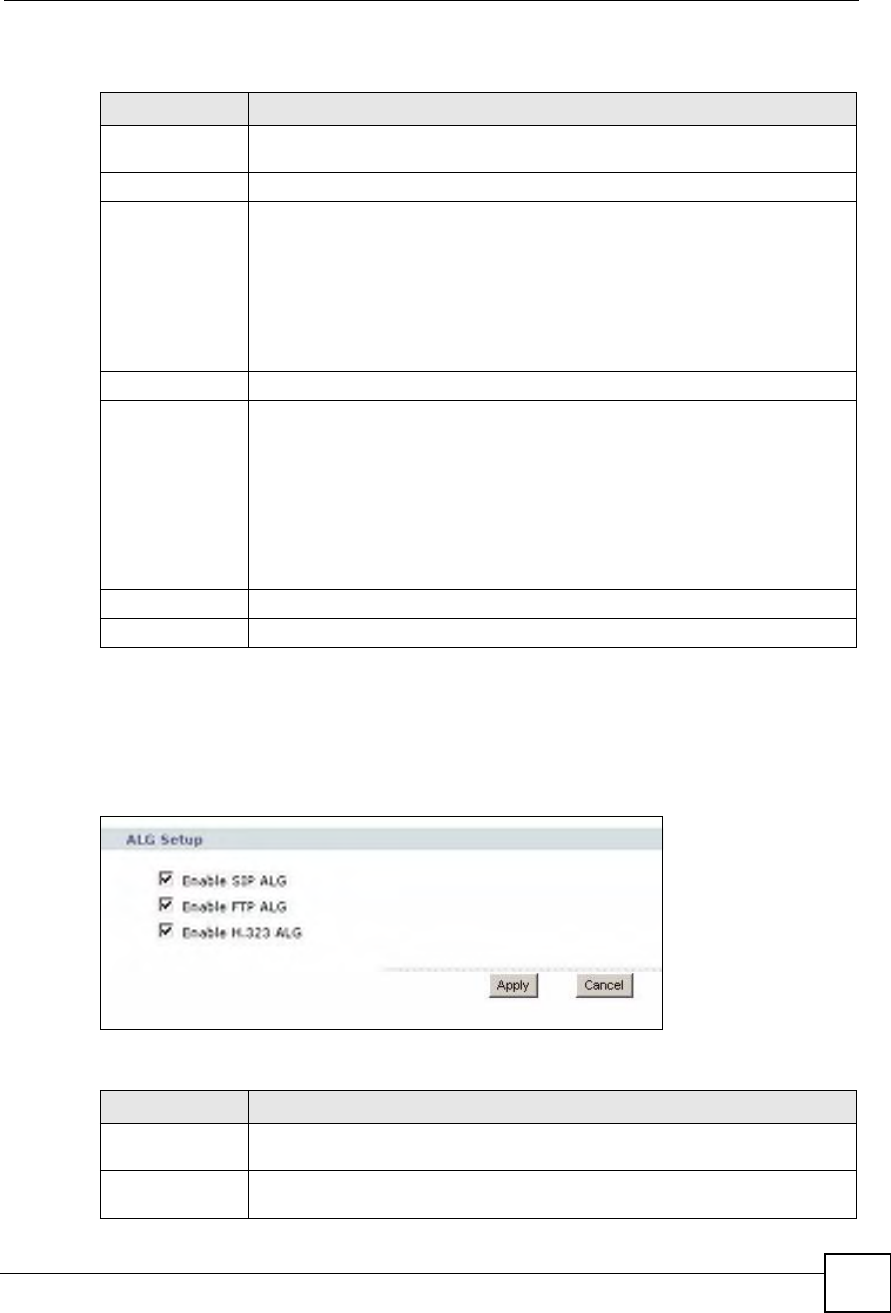

Figure 87 Network > NAT > ALG ..........................................................................................................135

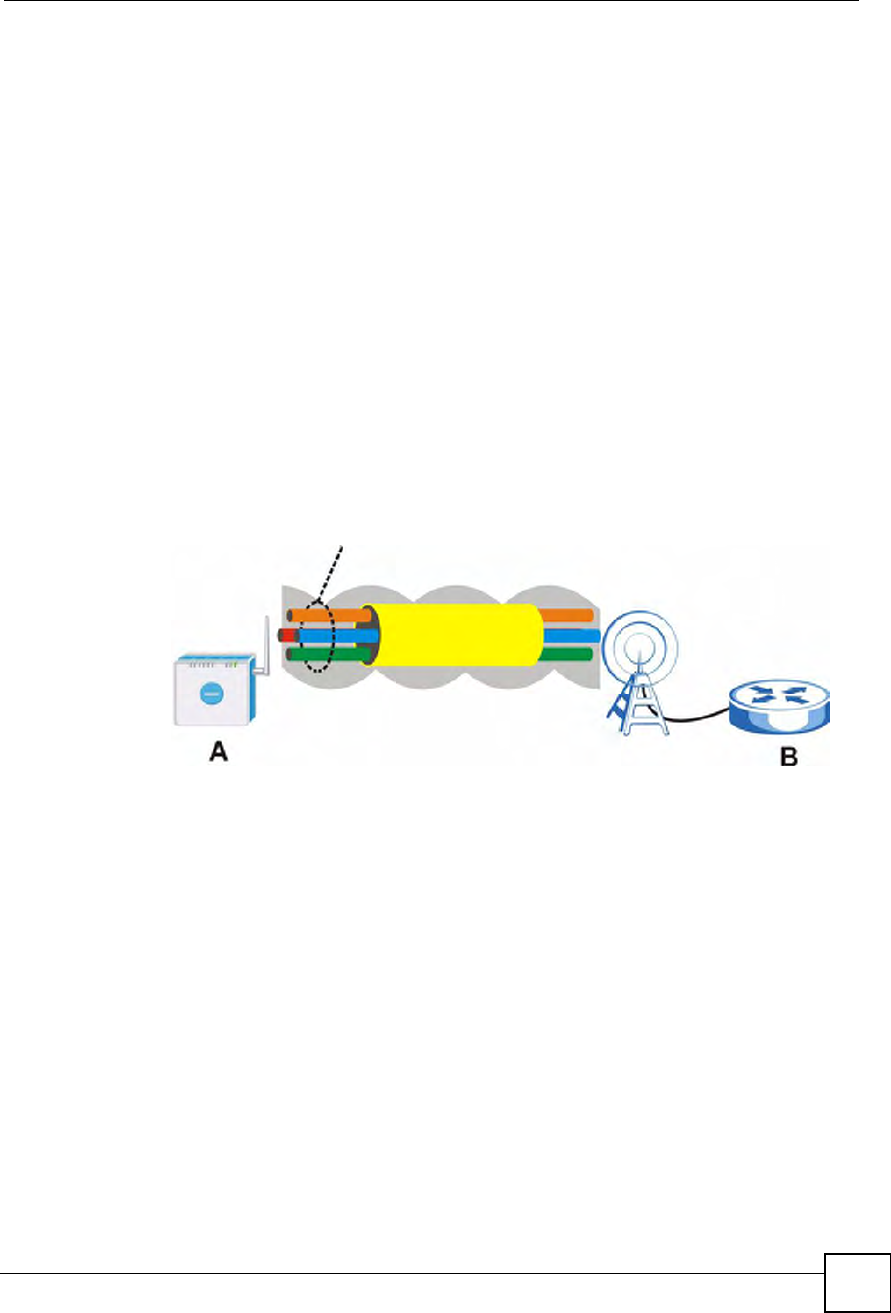

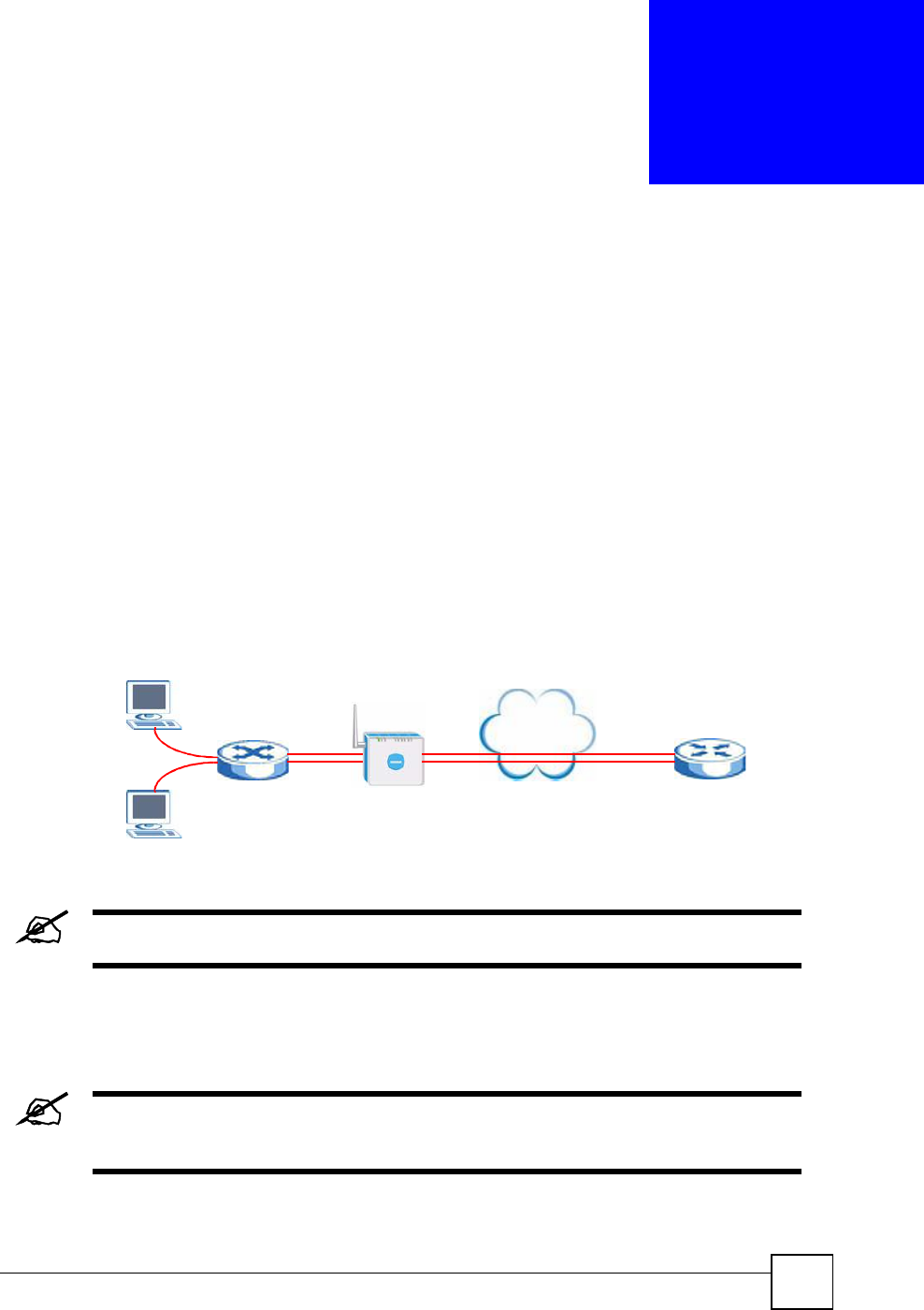

Figure 88 VPN Transport example .......................................................................................................137
Figure 89 Identifying Users ...................................................................................................................138
Figure 90 Ethernet Pseudowire Settings Example .............................................................................139
Figure 91 Pseudowire Mapping ............................................................................................................139
Figure 92 Network > VPN Transport > General ....................................................................................140
Figure 93 Network > VPN Transport > Customer Interface ..................................................................141
Figure 94 Network > VPN Transport > Customer Interface Edit ...........................................................142
Figure 95 Network > VPN Transport > Ethernet Pseudowire ...............................................................144
Figure 96 Network > VPN Transport > Ethernet Pseudowire > Edit .....................................................145
Figure 97 Network > VPN Transport > Statistics ..................................................................................146
Figure 98 VPLS Tunneling ....................................................................................................................147
Figure 99 SIP User Agent .....................................................................................................................151
Figure 100 SIP Proxy Server ................................................................................................................151
Figure 101 SIP Redirect Server ............................................................................................................152
Figure 102 STUN ..................................................................................................................................153
Figure 103 DiffServ: Differentiated Service Field ..................................................................................156
Figure 104 VoIP > SIP > SIP Settings ..................................................................................................157
Figure 105 VoIP > SIP > SIP Settings > Advanced ..............................................................................159
Figure 106 VoIP > SIP > QoS ...............................................................................................................163
Figure 107 VoIP > Phone > Analog Phone ...........................................................................................169
Figure 108 VoIP > Phone > Analog Phone > Advanced ......................................................................170
Figure 109 VoIP > Phone > Common ...................................................................................................171
Figure 110 VoIP > Phone > Region ......................................................................................................171
Figure 111 VoIP > Phone Book > Incoming Call Policy ........................................................................174
Figure 112 VoIP > Phone Book > Speed Dial .......................................................................................176
Figure 113 Firewall Rule Directions ......................................................................................................180
Figure 114 Ideal Firewall Setup ............................................................................................................181
Figure 115 !Triangle Route" Problem ...................................................................................................182
Figure 116 IP Alias ...............................................................................................................................182
Figure 117 Security > Firewall > General .............................................................................................183
Figure 118 Security > Firewall > Services ............................................................................................184
Figure 119 Remote Host Certificates ....................................................................................................189
Figure 120 Certificate Details ..............................................................................................................190
Figure 121 Security > Certificates > My Certificates .........................................................................191
Figure 122 Security > Certificates > My Certificates > Create ..............................................................193
Figure 123 Security > Certificates > My Certificates > Details ............................................................196
Figure 124 Security > Certificates > My Certificates > Import ..............................................................199
List of Figures
MAX-200HW2 Series User s Guide
24
Figure 125 Security > Certificates > Trusted CAs ................................................................................200
Figure 126 Security > Certificates > Trusted CAs > Details .................................................................201
Figure 127 Security > Certificates > Trusted CAs > Import ..................................................................204
Figure 128 Security > Content Filter > Filter .........................................................................................206
Figure 129 Security > Content Filter > Schedule ..................................................................................207
Figure 130 Example of Static Routing Topology ...................................................................................209
Figure 131 Management > Static Route > IP Static Route ...................................................................210
Figure 132 Management > Static Route > IP Static Route > Edit ..........................................................211
Figure 133 Management > Remote MGMT > WWW ...........................................................................214
Figure 134 Management > Remote MGMT > Telnet ............................................................................215
Figure 135 Management > Remote MGMT > FTP ...............................................................................215
Figure 136 SNMP Management Model ................................................................................................216
Figure 137 Management > Remote MGMT > SNMP ...........................................................................218
Figure 138 Management > Remote MGMT > DNS ..............................................................................219
Figure 139 Management > Remote MGMT > Security .........................................................................219
Figure 140 Add/Remove Programs: Windows Setup: Communication ................................................222
Figure 141 Add/Remove Programs: Windows Setup: Communication Components ...........................223
Figure 142 Network Connections .........................................................................................................223
Figure 143 Windows Optional Networking Components Wizard ..........................................................224
Figure 144 Networking Services ...........................................................................................................224
Figure 145 Network Connections .........................................................................................................225
Figure 146 Internet Connection Properties ..........................................................................................226
Figure 147 Internet Connection Properties: Advanced Settings ...........................................................227
Figure 148 Internet Connection Properties: Advanced Settings: Add ..................................................227
Figure 149 System Tray Icon ................................................................................................................228
Figure 150 Internet Connection Status .................................................................................................228
Figure 151 Network Connections .........................................................................................................229
Figure 152 Network Connections: My Network Places ........................................................................230
Figure 153 Network Connections: My Network Places: Properties: Example ......................................230
Figure 154 Management > UPnP .........................................................................................................231
Figure 155 Maintenance > System > General ......................................................................................235
Figure 156 Maintenance > System > Dynamic DNS ............................................................................236
Figure 157 Maintenance > System > Time Setting ...............................................................................238
Figure 158 Maintenance > Logs > View Log ........................................................................................243
Figure 159 Maintenance > Logs > Log Settings ...................................................................................244
Figure 160 Maintenance > Tools > Firmware .......................................................................................256
Figure 161 Firmware Upload In Process ..............................................................................................256
Figure 162 Network Temporarily Disconnected ....................................................................................257
Figure 163 Firmware Upload Error .......................................................................................................257
Figure 164 Maintenance > Tools > Configuration .................................................................................257
Figure 165 Configuration Upload Successful .......................................................................................258
Figure 166 Network Temporarily Disconnected ....................................................................................259
Figure 167 Configuration Upload Error .................................................................................................259
List of Figures
MAX-200HW2 Series User s Guide 25
Figure 168 Maintenance > Tools > Restart ...........................................................................................259
Figure 169 Maintenance > Tools > Restart > In Progress ....................................................................260
Figure 170 WIndows 95/98/Me: Network: Configuration ......................................................................280
Figure 171 Windows 95/98/Me: TCP/IP Properties: IP Address ..........................................................281
Figure 172 Windows 95/98/Me: TCP/IP Properties: DNS Configuration ..............................................282
Figure 173 Windows XP: Start Menu ....................................................................................................283
Figure 174 Windows XP: Control Panel ...............................................................................................283
Figure 175 Windows XP: Control Panel: Network Connections: Properties .........................................284
Figure 176 Windows XP: Local Area Connection Properties ...............................................................284
Figure 177 Windows XP: Internet Protocol (TCP/IP) Properties ..........................................................285
Figure 178 Windows XP: Advanced TCP/IP Properties .......................................................................286
Figure 179 Windows XP: Internet Protocol (TCP/IP) Properties ..........................................................287
Figure 180 Windows Vista: Start Menu .................................................................................................288
Figure 181 Windows Vista: Control Panel ............................................................................................288
Figure 182 Windows Vista: Network And Internet ................................................................................288
Figure 183 Windows Vista: Network and Sharing Center .....................................................................288
Figure 184 Windows Vista: Network and Sharing Center .....................................................................289
Figure 185 Windows Vista: Local Area Connection Properties ............................................................289
Figure 186 Windows Vista: Internet Protocol Version 4 (TCP/IPv4) Properties ...................................290
Figure 187 Windows Vista: Advanced TCP/IP Properties ....................................................................291
Figure 188 Windows Vista: Internet Protocol Version 4 (TCP/IPv4) Properties ...................................292
Figure 189 Macintosh OS 8/9: Apple Menu ..........................................................................................293
Figure 190 Macintosh OS 8/9: TCP/IP .................................................................................................293
Figure 191 Macintosh OS X: Apple Menu ............................................................................................294
Figure 192 Macintosh OS X: Network ..................................................................................................295
Figure 193 Red Hat 9.0: KDE: Network Configuration: Devices .........................................................296
Figure 194 Red Hat 9.0: KDE: Ethernet Device: General ..................................................................296
Figure 195 Red Hat 9.0: KDE: Network Configuration: DNS ...............................................................297
Figure 196 Red Hat 9.0: KDE: Network Configuration: Activate ........................................................297
Figure 197 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0 ...............................................298
Figure 198 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0 ...................................................298
Figure 199 Red Hat 9.0: DNS Settings in resolv.conf ........................................................................298
Figure 200 Red Hat 9.0: Restart Ethernet Card .................................................................................298
Figure 201 Red Hat 9.0: Checking TCP/IP Properties .......................................................................299
Figure 202 Pop-up Blocker ...................................................................................................................301
Figure 203 Internet Options: Privacy ....................................................................................................302
Figure 204 Internet Options: Privacy ....................................................................................................303
Figure 205 Pop-up Blocker Settings .....................................................................................................303
Figure 206 Internet Options: Security ...................................................................................................304
Figure 207 Security Settings - Java Scripting .......................................................................................305
Figure 208 Security Settings - Java ......................................................................................................305
Figure 209 Java (Sun) ..........................................................................................................................306
Figure 210 Mozilla Firefox: Tools > Options .........................................................................................307
List of Figures
MAX-200HW2 Series User s Guide
26
Figure 211 Mozilla Firefox Content Security .........................................................................................307
Figure 212 Network Number and Host ID ............................................................................................310
Figure 213 Subnetting Example: Before Subnetting ............................................................................312
Figure 214 Subnetting Example: After Subnetting ...............................................................................313
Figure 215 Conflicting Computer IP Addresses Example ....................................................................317
Figure 216 Conflicting Computer IP Addresses Example ....................................................................317
Figure 217 Conflicting Computer and Router IP Addresses Example ..................................................318
Figure 218 Peer-to-Peer Communication in an Ad-hoc Network .........................................................319
Figure 219 Basic Service Set ...............................................................................................................320
Figure 220 Infrastructure WLAN ...........................................................................................................321
Figure 221 RTS/CTS ...........................................................................................................................322
Figure 222 WPA(2) with RADIUS Application Example .......................................................................329
Figure 223 WPA(2)-PSK Authentication ...............................................................................................330
List of Tables
MAX-200HW2 Series User s Guide 27
List of Tables
Table 1 Common Icons ............................................................................................................................5
Table 2 Models Covered ........................................................................................................................33
Table 3 The ZyXEL Device ....................................................................................................................35
Table 4 Web Configurator Icons in the Title Bar ....................................................................................43
Table 5 Navigation Panel Summary ......................................................................................................43
Table 6 Example Internet Access Information .......................................................................................49
Table 7 Wizard > Step 1 > System Information .....................................................................................62
Table 8 Wizard > Step 2 > Wireless LAN ...............................................................................................63
Table 9 Wizard > Step 2 > Basic (WEP) Security ..................................................................................64
Table 10 Wizard > Step 2 > Extend (WPA-PSK or WPA2-PSK) Security ..............................................65
Table 11 Wizard > Step 2 > OTIST ........................................................................................................66
Table 12 Wizard > Step 3 > ISP Parameters for Internet Access Screen ..............................................67
Table 13 Wizard > Step 3 > Antenna Selection .....................................................................................69
Table 14 Wizard > Step 3 > IP Address .................................................................................................70
Table 15 Wizard > Step 3 > WAN IP Address Assignment ....................................................................71
Table 16 VOIP Wizard Configuration .....................................................................................................74
Table 17 Status Screen ..........................................................................................................................80
Table 18 The Site Information Screen ...................................................................................................84
Table 19 The WiMAX Profile Screen .....................................................................................................84
Table 20 Packet Statistics ......................................................................................................................86
Table 21 DHCP Table ............................................................................................................................87
Table 22 VoIP Statistics .........................................................................................................................87
Table 23 Types of Encryption for Each Type of Authentication .............................................................93
Table 24 Network > Wireless LAN > General ........................................................................................95
Table 25 Wireless No Security ...............................................................................................................96
Table 26 Network > Wireless LAN > General: Static WEP ....................................................................97
Table 27 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK ..................................................98
Table 28 Network > Wireless LAN > General: WPA/WPA2 .................................................................100
Table 29 Network > Wireless LAN > OTIST ........................................................................................102
Table 30 Network > Wireless LAN > MAC Filter ..................................................................................105
Table 31 Network > Wireless LAN > Advanced ...................................................................................106
Table 32 Network > WAN > Internet Connection .................................................................................109
Table 33 Radio Frequency Conversion ................................................................................................111
Table 34 DL Frequency Example Settings ...........................................................................................112
Table 35 Network > WAN > WiMAX Frequency ...................................................................................113
Table 36 Example Supported Frequencies (GHz) ................................................................................113
Table 37 Network > WAN > Advanced .................................................................................................115
Table 38 Network > WAN > Traffic Redirect .........................................................................................116
List of Tables
MAX-200HW2 Series User s Guide
28
Table 39 Network > WAN > Antenna Selection ....................................................................................117
Table 40 Network > LAN > IP ..............................................................................................................122
Table 41 Network > LAN > DHCP Setup .............................................................................................123
Table 42 Network > LAN > Static DHCP ..............................................................................................124
Table 43 Network > LAN > Client List ..................................................................................................125
Table 44 Network > LAN > IP Alias .....................................................................................................126
Table 45 Network > LAN > Advanced ..................................................................................................127
Table 46 Network > NAT > General .....................................................................................................131
Table 47 Network > NAT > Port Forwarding ........................................................................................133
Table 48 Network > NAT > Port Forwarding > Edit ..............................................................................134
Table 49 Network > NAT > Trigger Port ...............................................................................................135
Table 50 Network > NAT > ALG ..........................................................................................................135
Table 51 Network > VPN Transport > General ....................................................................................140
Table 52 Network > VPN Transport > Customer Interface ..................................................................141
Table 53 Network > VPN Transport > Customer Interface Edit ...........................................................142
Table 54 Network > VPN Transport > Ethernet Pseudowire ................................................................144
Table 55 Network > VPN Transport > Ethernet Pseudowire > Edit .....................................................145
Table 56 Network > VPN Transport > Statistics ...................................................................................146
Table 57 SIP Call Progression .............................................................................................................150
Table 58 Custom Tones Details ...........................................................................................................155
Table 59 VoIP > SIP > SIP Settings .....................................................................................................157
Table 60 VoIP > SIP > SIP Settings > Advanced ................................................................................160
Table 61 VoIP > SIP > QoS .................................................................................................................163
Table 62 European Type Flash Key Commands .................................................................................166
Table 63 USA Type Flash Key Commands .........................................................................................168
Table 64 VoIP > Phone > Analog Phone .............................................................................................169
Table 65 VoIP > Phone > Analog Phone > Advanced .........................................................................170
Table 66 VoIP > Phone > Common .....................................................................................................171
Table 67 VoIP > Phone > Region ........................................................................................................171
Table 68 VoIP > Phone Book > Incoming Call Policy ..........................................................................174
Table 69 VoIP > Phone Book > Speed Dial .........................................................................................176
Table 70 Security > Firewall > General ................................................................................................183
Table 71 Security > Firewall > Services ...............................................................................................184
Table 72 Security > Certificates > My Certificates ...............................................................................191
Table 73 Security > Certificates > My Certificates > Create ................................................................193
Table 74 Security > Certificates > My Certificates > Details ................................................................196
Table 75 Security > Certificates > My Certificates > Import .................................................................199
Table 76 Security > Certificates > Trusted CAs ...................................................................................200
Table 77 Security > Certificates > Trusted CAs > Details ....................................................................202
Table 78 Security > Certificates > Trusted CAs Import ........................................................................204
Table 79 Security > Content Filter > Filter ...........................................................................................206
Table 80 Security > Content Filter > Schedule ....................................................................................207
Table 81 Management > Static Route > IP Static Route ......................................................................210
List of Tables
MAX-200HW2 Series User s Guide 29
Table 82 Management > Static Route > IP Static Route > Edit ............................................................211
Table 83 ..............................................................................................................................................213
Table 84 Management > Remote MGMT > WWW ..............................................................................214
Table 85 Management > Remote MGMT > Telnet ...............................................................................215
Table 86 Management > Remote MGMT > FTP .................................................................................215
Table 87 SNMP Traps ..........................................................................................................................217
Table 88 Remote Management: SNMP ...............................................................................................218
Table 89 Management > Remote MGMT > DNS .................................................................................219
Table 90 Management > Remote MGMT > Security ...........................................................................220
Table 91 Management > UPnP ............................................................................................................231
Table 92 Pre-defined NTP Time Servers .............................................................................................234
Table 93 Maintenance > System > General ........................................................................................235
Table 94 Maintenance > System > Dynamic DNS ...............................................................................237
Table 95 Maintenance > System > Time Setting .................................................................................238
Table 96 Syslog Logs ..........................................................................................................................242
Table 97 RFC-2408 ISAKMP Payload Types ......................................................................................242
Table 98 Maintenance > Logs > View Log ...........................................................................................243
Table 99 Maintenance > Logs > Log Settings .....................................................................................244
Table 100 System Error Logs ..............................................................................................................245
Table 101 System Maintenance Logs ..................................................................................................246
Table 102 Access Control Logs ...........................................................................................................246
Table 103 TCP Reset Logs ..................................................................................................................247
Table 104 Packet Filter Logs ...............................................................................................................248
Table 105 ICMP Logs ..........................................................................................................................248
Table 106 CDR Logs ...........................................................................................................................248
Table 107 PPP Logs ............................................................................................................................248
Table 108 UPnP Logs ..........................................................................................................................249
Table 109 Content Filtering Logs .........................................................................................................249
Table 110 Attack Logs ..........................................................................................................................249
Table 111 Remote Management Logs .................................................................................................250
Table 112 ICMP Notes .........................................................................................................................251
Table 113 SIP Logs ..............................................................................................................................252
Table 114 RTP Logs ............................................................................................................................252
Table 115 FSM Logs: Caller Side ........................................................................................................252
Table 116 FSM Logs: Callee Side .......................................................................................................253
Table 117 Lifeline Logs ........................................................................................................................253
Table 118 Maintenance > Tools > Firmware ........................................................................................256
Table 119 Maintenance > Tools > Configuration ..................................................................................258
Table 120 Product Specifications .........................................................................................................269
Table 121 Physical Features ...............................................................................................................270
Table 122 Non-Physical Features ........................................................................................................270
Table 123 IP Address Network Number and Host ID Example ...........................................................310
Table 124 Subnet Masks ......................................................................................................................311
List of Tables
MAX-200HW2 Series User s Guide
30
Table 125 Maximum Host Numbers .....................................................................................................311
Table 126 Alternative Subnet Mask Notation ........................................................................................311
Table 127 Subnet 1 ..............................................................................................................................313
Table 128 Subnet 2 ..............................................................................................................................314
Table 129 Subnet 3 ..............................................................................................................................314
Table 130 Subnet 4 ..............................................................................................................................314
Table 131 Eight Subnets ......................................................................................................................314
Table 132 24-bit Network Number Subnet Planning ............................................................................315
Table 133 16-bit Network Number Subnet Planning ............................................................................315
Table 134 IEEE 802.11g ......................................................................................................................323
Table 135 Wireless Security Levels .....................................................................................................324
Table 136 Comparison of EAP Authentication Types ..........................................................................327
Table 137 Wireless Security Relational Matrix ....................................................................................330
Table 138 Commonly Used Services ...................................................................................................333
31
PART I
Introduction
Getting Started (33)
Introducing the Web Configurator (39)
32
MAX-200HW2 Series User s Guide 33
CHAPTER 1
Getting Started
This chapter introduces the main features and applications of the ZyXEL Device.
1.1 About Your ZyXEL Device
The ZyXEL Device is a WiMAX WiFi router with built-in switch and VoIP. It allows you to
access the Internet by connecting to a WiMAX wireless network.
You can create a WiFi network using the Wireless LAN feature.
You can use a traditional analog telephone to make Internet calls using the ZyXEL Device!s
Voice over IP (VoIP) communication capabilities.
You can configure firewall and content filtering for secure Internet access, as well as a host of
other features.
The web browser-based Graphical User Interface (GUI), also known as the web configurator,
provides easy management.
See Chapter 25 on page 269 for a complete list of features for your model.
At the time of writing, this User!s Guide covers the following models:
This User!s Guide uses screens and example settings from the MAX-210HW2 model.
1.1.1 Wireless Internet Access
Connect your computer or network to the ZyXEL Device for wireless Internet access. See the
Quick Start Guide for instructions on hardware connection.
In a wireless metropolitan area network (MAN), the ZyXEL Device connects to a base station
(BS) for Internet access.
The following diagram shows a notebook computer equipped with the ZyXEL Device
connecting to the Internet through a base station (marked BS).
Table 2 Models Covered
MAX-200HW22.5Ghz
MAX-210HW23.5Ghz
MAX-230HW22.3Ghz
Chapter 1Getting Started
MAX-200HW2 Series User s Guide
34
Figure 1 Mobile Station and Base Station
You can also configure firewall and content filtering on the ZyXEL Device for secure Internet
access. When the firewall is on, all incoming traffic from the Internet to your network is
blocked unless it is initiated from your network. This means that probes from the outside to
your network are not allowed, but you can safely browse the Internet and download files.
Use content filtering to block access to web sites with URLs containing keywords that you
specify. You can define time periods and days during which content filtering is enabled and
include or exclude particular computers on your network from content filtering. For example,
you could block access to certain web sites for the kids.
1.1.2 WiFi Network
The ZyXEL Device Wireless LAN feature allows IEEE 802.11b or IEEE 802.11g compatible
wireless clients to access the Internet or the local network as well as to communicate with each
other. Wireless stations can move freely anywhere in the coverage area and use resources on
the wired network.
Figure 2 WLAN Application Example
1.1.3 Make Calls via Internet Telephony Service Provider
In a home or small office environment, you can use the ZyXEL Device to make and receive
the following types of VoIP telephone calls:
Peer-to-Peer calls (A) - Use the ZyXEL Device to make a call to the recipient!s IP address
without using a SIP proxy server.
Chapter 1Getting Started
MAX-200HW2 Series User s Guide 35
Calls via a VoIP service provider (B) - The ZyXEL Device sends your call to a VoIP
service provider!s SIP server which forwards your calls to either VoIP or PSTN phones.
Figure 3 ZyXEL Device s VoIP Features
1.2 ZyXEL Device Hardware
Follow the instructions in the Quick Start Guideto make hardware connections.
1.2.1 LEDs
The following figure shows the LEDs (lights) on the ZyXEL Device.
Figure 4 The ZyXEL Device
The following table describes your ZyXEL Device!s LEDs.
Table 3 The ZyXEL Device
LED STATE DESCRIPTION
PWROFFThe ZyXEL Device is not receiving power.
REDThe ZyXEL Device is receiving power but has been unable to start
up correctly. See the Troubleshooting section for more information.
RED / ORANGE
(BLINKING)
The ZyXEL Device is starting up.
GREENThe ZyXEL Device is receiving power and functioning correctly.
GREEN (BLINKING)The ZyXEL Device is performing a self-test.
Chapter 1Getting Started
MAX-200HW2 Series User s Guide
36
1.2.2 Antennas
If you have a MAX-210HW2 you should have a 2dBi WiFi omni antenna and a 2dBi WiMAX
omni antenna. Connect the WiFi antenna to the SMA connector port labelled WiFi. Connect
the WiMAX antenna to the SMA connector port labelled WiMAX. Make sure you connect the
correct antenna to the correct connector port.
LAN 1 to
4
OFFThe LAN is not connected.
GREENThe ZyXEL Device has a successful Local Area Network
(Ethernet) connection.
GREEN
(BLINKING)
Your device is sending/receiving data through the wireless LAN.
VoIP 1
to 2
OFFNo SIP account is registered, or the ZyXEL Device is not receiving
power.
GREENA SIP account is registered.
GREEN
(BLINKING)
A SIP account is registered, and the phone attached to the LINE
port is in use (off the hook).
ORANGEA SIP account is registered and has a voice message.
ORANGE
(BLINKING)
A SIP account is registered and has a voice message, and the
phone attached to the LINE port is in use (off the hook).
LINKOFFThe ZyXEL Device is not connected to a wireless (WiMAX)
network.
GREENThe ZyXEL Device is successfully connected to a wireless
(WiMAX) network.
GREEN
(BLINKING SLOWLY)
The ZyXEL Device is searching for a wireless (WiMAX) network.
GREEN
(BLINKING QUICKLY)
The ZyXEL Device has found a wireless (WiMAX) network and is
connecting.
WLANOFFThe wireless LAN is not ready or has failed.
GREENThe wireless LAN is active.
GREEN
(BLINKING)
The ZyXEL Device is sending/receiving data through the wireless
LAN.
SIGNAL
1 ~ 5
The SIGNAL LEDs display the Received Signal Strength Indication (RSSI) of the wireless
(WiMAX) connection.
NO SIGNAL LEDS
ON
There is no wireless connection.
SIGNAL 1 ONThe signal strength is less than -80 dBm
SIGNAL 2 ONThe signal strength is between -79 and -70 dBm
SIGNAL 3 ONThe signal strength is between -69 and -60 dBm
SIGNAL 4 ONThe signal strength is between -59 and -50 dBm
SIGNAL 5 ONThe signal strength is more than -50 dBm
Table 3 The ZyXEL Device
LED STATE DESCRIPTION
Chapter 1Getting Started
MAX-200HW2 Series User s Guide 37
If you have a MAX-200HW2 or MAX-210HW2 you should have a 2dBi Wifi omni antenna
and a panel directional antenna. Connect the WiFi omni antenna to the connector port labelled
WiFi. Connect the cable to the panel directional antenna and connector port labelled WiMAX.
Make sure you position the panel directional antenna as far away from the device as possible
to minimize interference. See the panel directional antenna documentation on how to set it up.
The MAX-210HW2 is also equipped with one internal 6dBi directional patch antenna for
WiMAX. If your signal strength is poor (use the SIGNAL LEDs to gauge received signal
strength) orient the front of the ZyXEL Device (the side with the LEDs) towards the base
station. If you do not know the location of the base station, experiment with moving the
ZyXEL Device while observing the SIGNAL LEDs.
1.3 Good Habits for Managing the ZyXEL Device
Do the following things regularly to make the ZyXEL Device more secure and to manage the
ZyXEL Device more effectively.
Change the password. Use a password that!s not easy to guess and that consists of
different types of characters, such as numbers and letters.
Write down the password and put it in a safe place.
Back up the configuration (and make sure you know how to restore it). Restoring an
earlier working configuration may be useful if the ZyXEL Device becomes unstable or
even crashes. If you forget your password, you will have to reset the ZyXEL Device to its
factory default settings. If you backed up an earlier configuration file, you would not have
to totally re-configure the ZyXEL Device. You could simply restore your last
configuration.
Chapter 1Getting Started
MAX-200HW2 Series User s Guide
38
MAX-200HW2 Series User s Guide 39
CHAPTER 2
Introducing the Web
Configurator
This chapter describes how to access and navigate the web configurator.
2.1 Web Configurator Overview
The web configurator is an HTML-based management interface that allows easy device setup
and management via Internet browser. Use Internet Explorer 6.0 and later or Netscape
Navigator 7.0 and later versions. The recommended screen resolution is 1024 by 768 pixels.
In order to use the web configurator you need to allow:
Web browser pop-up windows from your device. Web pop-up blocking is enabled by
default in Windows XP SP (Service Pack) 2.
JavaScripts (enabled by default).
Java permissions (enabled by default).
See the Troubleshooting chapter if you need to make sure these functions are allowed in
Internet Explorer.
2.1.1 Accessing the Web Configurator
1Make sure your ZyXEL Device hardware is properly connected (refer to the Quick Start
Guide).
2Launch your web browser.
3Type "192.168.1.1" as the URL.
4A password screen displays. The default password ("1234#) displays in non-readable
characters. If you haven!t changed the password yet, you can just click Login. Click
Cancel to revert to the default password in the password field. If you have changed the
password, enter your password and click Login.
Chapter 2Introducing the Web Configurator
MAX-200HW2 Series User s Guide
40
Figure 5 Password Screen
5The following screen displays if you have not yet changed your password. It is highly
recommended you change the default password. Enter a new password, retype it to
confirm and click Apply; alternatively click Ignore to proceed to the main menu if you
do not want to change the password now.
Figure 6 Change Password Screen
6Click Apply in the next screen to create a certificate using your ZyXEL Device!s MAC
address that will be specific to this device. This certificate is used for authentication
when using a secure HTTPS connection over the Internet.
Figure 7 Replace Certificate Screen
Chapter 2Introducing the Web Configurator
MAX-200HW2 Series User s Guide 41
7 A screen displays to let you choose whether to go to the wizard or the advanced screens.
Click Go to Wizard setup if you are logging in for the first time or if you want to make
basic changes. The wizard selection screen appears after you click Apply. See Chapter 4
on page 61 for more information.
Click Go to Advanced setup if you want to configure features that are not available in the
wizards. The main screen appears after you click Apply. See Section 2.2 on page 42 for
more information.
Click Exit if you want to log out.
For security reasons, by default the ZyXEL Device automatically logs you out if
you do not use the web configurator for five minutes. If this happens, log in
again.
Figure 8 Wizard or Advanced Screen
2.1.2 The RESET Button
If you forget your password or cannot access the web configurator, you will need to use the
RESET button to reload the factory-default configuration file. This means that you will lose
all configurations that you had previously and the password will be reset to "1234#.
2.1.2.1 Using The Reset Button
1Make sure the POWER light is on (not blinking).
2To set the device back to the factory default settings, press the RESET button for ten
seconds or until the POWER light begins to blink and then release it. When the
POWER light begins to blink, the defaults have been restored and the device restarts.
3Reconfigure the ZyXEL Device, following the steps in your Quick Start Guide.
Chapter 2Introducing the Web Configurator
MAX-200HW2 Series User s Guide
42
2.2 Web Configurator Main Screen
Figure 9 Main Screen
As illustrated above, the main screen is divided into these parts:
A - title bar
B - navigation panel
C - main window
D - status bar
2.2.1 Title Bar
The title bar provides some icons in the upper right corner.
C
B
A
D
Chapter 2Introducing the Web Configurator
MAX-200HW2 Series User s Guide 43
The icons have the following functions.
2.2.2 Navigation Panel
Use the menu items on the navigation panel to open screens to configure ZyXEL Device
features. The following table describes the menu items.
Table 4 Web Configurator Icons in the Title Bar
ICON DESCRIPTION
Wizards: Click this icon to go to the configuration wizards. See Chapter 4 on page
61 for more information.
Logout: Click this icon to log out of the web configurator.
Table 5 Navigation Panel Summary
LINK TAB FUNCTION
Status This screen contains administrative and system-related information.
Network
Wireless LAN General Use this screen to enable Wireless LAN and configure WiFi security.
OTIST Use this screen to enable OTIST.
MAC Filter Use this screen to configure the MAC address filtering options.
Advanced Use this screen to set the 802.11 mode.
WAN Internet
Connection
Use this screen to configure ISP parameters, WAN IP address assignment
and other advanced properties.
WiMAX
Frequency
Use this screen to set the radio frequencies the ZyXEL Device searches for
a WiMAX connection.
Advanced Use this screen to configure DNS servers, RIP & Multicast, and Windows
networking settings.
Traffic Redirect Use this screen to configure your traffic redirect properties
Antenna
Selection
Use this screen to choose which antenna (external or internal) you want the
ZyXEL Device to use.
LAN IP Use this screen to configure LAN TCP/IP settings.
DHCP Setup Use this screen to configure LAN DHCP and DNS settings.
Static DHCP Use this screen to always assign specific IP addresses to individual MAC
addresses.
Client List Use this screen to view current DHCP client information.
IP Alias Use this screen to partition your LAN interface into subnets.
Advanced Use this screen to configure RIP and Multicast setup settings.
NAT General Use this screen to enable NAT.
Port Forwarding Use this screen to make your localservers visible to the outside world.
Trigger Port Use this screen to set port triggering rules.
ALG Use this screen to configure Application Level Gateway settings.
Chapter 2Introducing the Web Configurator
MAX-200HW2 Series User s Guide
44
VPN Transport General Use the General screen to turn VPN transport on or off, and to set the VPN
transport endpoint (your service provider s router).
Customer
Interface
Use this screen to configure the VPNs used by the ZyXEL Device.
Ethernet
Pseudowire
Use this screen to configure Ethernet pseudowires. Each Ethernet
pseudowire mimics a regular wired Ethernet connection, transporting VPLS
data over the WiMAX network.
Statistics Use this screen to view details and performance information of each active
customer interface and its associated Ethernet pseudowire.
VoIP
SIP SIP Settings Use this screen to configure your ZyXEL Device s Voice over IP settings.
QoS Use this screen to configure your ZyXEL Device s Quality of Service
settings for VoIP.
Phone Analog Phone Use this screen to set which SIP account to use for outgoing or incoming
calls.
Common Use this screen to configure general phone settings.
Region Use this screen to select your location and call service mode.
Phone Book Incoming Call
Policy
Use this screen to configure call-forwarding.
Speed Dial Use this screen to configure speed dial for SIP phone numbers that you call
often.
Security
Firewall General Use this screen to activate/deactivate the firewall and the default action to
take on network traffic going in specific directions.
Services Use this screen to set the days and times for your device to perform service
blocking.
Certificates My Certificates Use this screen to generate and export self-signed certificates or
certification requests and import the ZyXEL Device s CA-signed certificates.
Trusted CAs Use this screen to save CA certificates and trusted remote host certificates
to the ZyXEL Device.
Content Filter Filter Use this screen to block sites containing certain keywords in the URL,
exclude a range of users on the LAN from content filtering on your ZyXEL
Device and restrict certain web features.
Schedule Use this screen to set the days and times for your ZyXEL Device to perform
content filtering.
Management
Static Route IP Static Route Use this screen to configure IP static routes to tell your device about
networks beyond the directly connected remote nodes.
Table 5 Navigation Panel Summary
LINK TAB FUNCTION
Chapter 2Introducing the Web Configurator
MAX-200HW2 Series User s Guide 45
2.2.3 Main Window
The main window displays information and configuration fields. It is discussed in the rest of
this document.
Right after you log in, the Status screen is displayed. See Chapter 6 on page 79 for more
information about the Status screen.
2.2.4 Status Bar
Check the status bar when you click Apply or OK to verify that the configuration has been
updated.
Remote MGMT WWW Use this screen to configure through which interface(s) and from which IP
address(es) users can use HTTP to manage the ZyXEL Device.
Telnet Use this screen to configure through which interface(s) and from which IP
address(es) users can use Telnet to manage the ZyXEL Device.
FTP Use this screen to configure through which interface(s) and from which IP
address(es) users can use FTP to access the ZyXEL Device.
SNMP Use this screen to configure your ZyXEL Device s settings for Simple
Network Management Protocol management.
DNS Use this screen to configure through which interface(s) and from which IP
address(es) users can send DNS queries to the ZyXEL Device.
Security Use this screen to set whether or not your device will respond to pings and
probes for services that you have not made available.
UPnP General Use this screen to turn UPnP on or off.
Maintenance
System General This screen contains administrative and system-related information and
also allows you to change your password.
Dynamic DNS Use this screen to set up Dynamic DNS.
Time Setting Use this screen to change your ZyXEL Device s time and date.
Logs View Log Use this screen to display your device s logs.
Log Settings Use this screen to select which logs and/or immediate alerts your device is
to record. You can also set it to e-mail the logs to you.
Tools Firmware Use this screen to upload firmware to your device.
Configuration Use this screen to backup and restore your device s configuration (settings)
or reset the factory default settings.
Restart This screen allows you to reboot the ZyXEL Device without turning the
power off.
Table 5 Navigation Panel Summary
LINK TAB FUNCTION
Chapter 2Introducing the Web Configurator
MAX-200HW2 Series User s Guide
46
47
PART II
Tutorials and Wizard
Tutorial (49)
Internet Setup Wizard (61)
VoIP Wizard (73)
48
MAX-200HW2 Series User s Guide 49
CHAPTER 3
Tutorial
This chapter provides examples showing how to use the ZyXEL Device to access the Internet,
set up a WiFi network, set up VoIP and make a telephone call over the Internet using the
ZyXEL Device!s speed dial feature.
3.1 Connect to the Internet
This section shows how to set up your Internet access details on the ZyXEL Device and
configure your WiMAX frequency settings. See Section 8.2 on page 107 for more information
on how WiMAX works.
3.1.1 Configure Internet Access Settings
To access the Internet, you need information from your Internet Service Provider (ISP) about
your account and the network. In this example, your ISP has given you the following
information.
The information provided by your ISP may be quite different from this example
information. When you enter user information, always enter the information
supplied by your service provider and leave other fields at their defaults.
Your ISP has also told you that you will be assigned a dynamic IP address each time you
connect to the Internet. See Section 8.3 on page 108 for more details about dynamic and static
IP addresses.
Table 6 Example Internet Access Information
UsernameUser1234
Password4321
CertificateIncluded on CD
Authentication
Type
TTLS
TTLS Inner EAP
mode
CHAP
Chapter 3Tutorial
MAX-200HW2 Series User s Guide
50
Once you have connected the ZyXEL Device to your computer and accessed the Web
Configurator (see the Quick Start Guide for details) follow the steps below to connect to a
network.
1First, install your security certificate. In the Web Configurator, click Security >
Certificates.

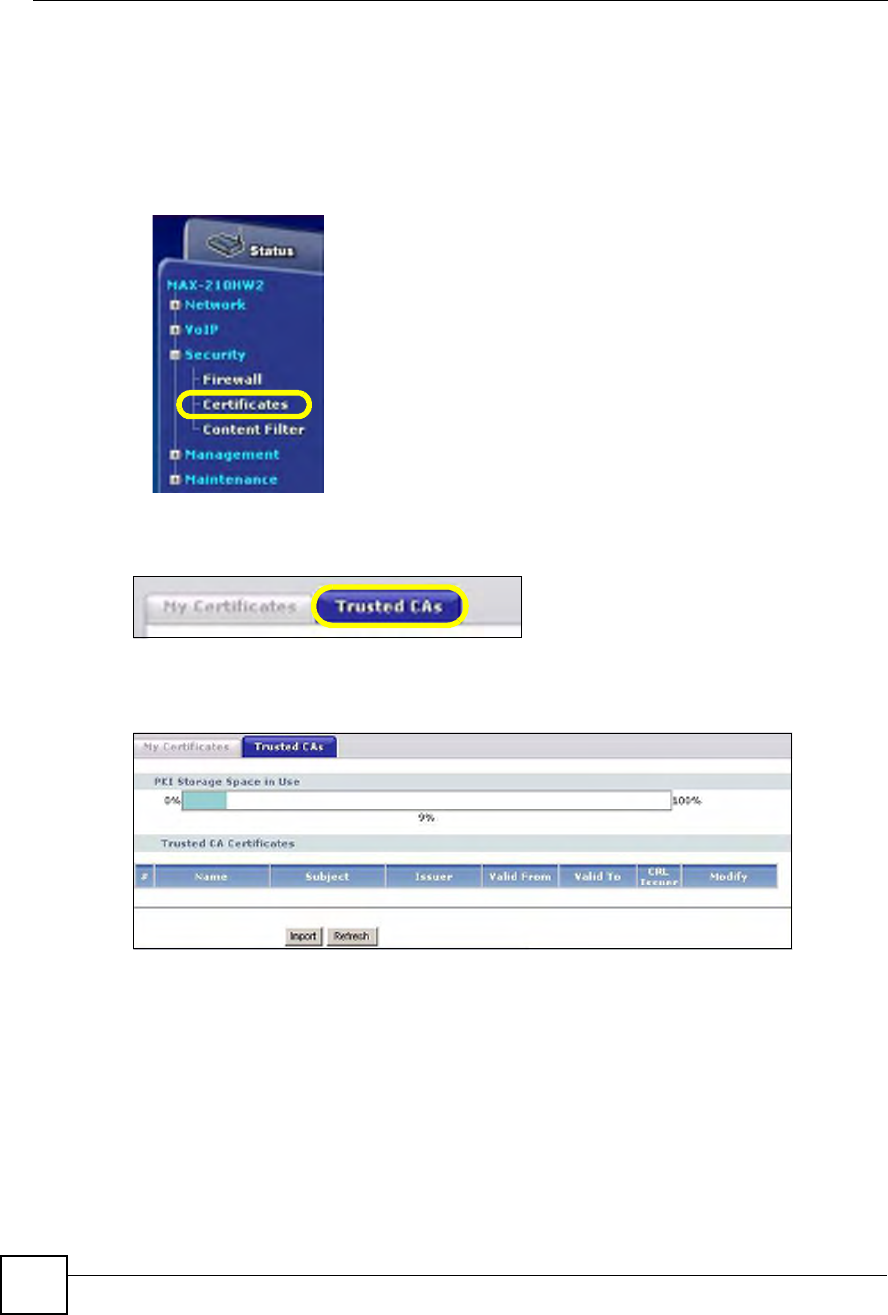

Figure 10 Tutorial: Security
2Click the Trusted CAs tab.
Figure 11 Tutorial: Trusted CAs Tab
3The following screen displays. This is where you can choose a security certificate for the
ZyXEL Device to use.
Figure 12 Tutorial: Trusted CAs Screen
4Click Import, then click Browse in the screen that appears. Browse to the location of
your certificate (on the CD from your ISP in this example) and click Open.
5The certificate!s location displays in the File Path field. Click Apply. The Trusted CAs
screen displays again, showing the certificate!s details in the Trusted CA Certificates
section. You have successfully uploaded your certificate!
6Next, configure your Internet access settings. In the Web Configurator, click Network >
WAN in the navigation panel.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide 51
Figure 13 Tutorial: Network
7The following screen displays. This screen is where you enter your Internet access
details.
Not all fields are available in all ZyXEL Devices.
Figure 14 Tutorial: Internet Access Settings
In the ISP Parameters for Internet Access area, enter your username ($User1234!) in
the User field, and enter your password ($4321!) in the Password field. Select TTLS
from the Authentication list, and select CHAP from the TTLS Inner EAP list. Leave
PKM at its default.
In the WAN IP Address Assignment area, make sure that Get Automatically from ISP
(Default) is selected. Leave all other fields at their default values.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide
52
8Click Apply. Your Internet access settings are saved to the ZyXEL Device, and are used
automatically each time you connect to the Internet.
3.1.2 Configure WiMAX Settings
The WiMAX Frequency screen allows you to specify a set of frequencies to search for a
connection to a base station. Before you start, you need information from your ISP about the
supported frequencies.
In this example, your ISP has told you that the supported WiMAX frequencies are at 2.55 and
2.56 Gigahertz (GHz). See Section 8.4 on page 111 for more information on radio frequencies.
Follow the steps below to configure your frequency settings.
1Click Network > WAN > WiMAX Frequency to open the screen shown next.
Figure 15 Tutorial: WiMAX Frequency Setup
2Enter the frequency settings your ISP gave you in the DL Frequency fields. Note that
these fields are in kilohertz (kHz).
2.55 GHz is equal to 2550000 kHz, so enter 2550000 in the DL Frequency [1] field.
2.56 GHz is equal to 2560000 kHZ, so enter 2560000 in the DL Frequency [2] field.
3Click Apply to save your settings. The ZyXEL Device scans for an available wireless
connection at the DL Frequency [1] setting (2.55 GHz) and, if it does not find an
available connection, searches at the DL Frequency [2] setting (2.56 GHz). When it
finds an available connection, the fields in this screen will be automatically set to use
that frequency.
For an example of using the WiMAX Frequency screen to configure more frequencies,
see Section 8.4.2.1 on page 113.
4Look at the LEDs on your ZyXEL Device. When the ZyXEL Device successfully
connects to a base station, the LINK LED shines green steadily. The SIGNAL 1 ~ 5
LEDs indicate the signal strength, with SIGNAL 5 showing a very strong signal and
SIGNAL 1 showing a very weak signal.
5Open your Internet browser and enter http://www.zyxel.com or the URL of any other
web site in the address bar. If you are able to access the web site, your wireless
Chapter 3Tutorial
MAX-200HW2 Series User s Guide 53
connection is successfully configured. If you cannot access the web site, check the
Troubleshooting section of this User's Guide.
3.2 Set Up a WiFi Network
An access point (AP) or wireless router is referred to as an "AP# and a computer with a
wireless network card or USB/PCI adapter is referred to as a "wireless client# here.
We use the M-302 utility screens as an example for the wireless client. The screens may vary
for different models.
3.2.1 Configuring the AP (Your ZyXEL Device)
Follow the steps below to configure the wireless settings on your ZyXEL Device.
1Open the Wireless LAN > General screen in the ZyXEL Device!s web configurator.
Figure 16 Network > Wireless LAN > General
2Make sure the Enable Wireless LAN check box is selected.
3Enter SSID_Example3 as the SSID and select a channel.
4Set security mode to WPA-PSK and enter ThisismyWPA-PSKpre-sharedkey in the
Pre-Shared Key field. Click Apply.
5Open the Status screen.Verify your wireless and wireless security settings under Device
Information.
SSID SSID_Example3
Channel 6
Security WPA-PSK
(Pre-Shared Key: ThisismyWPA-PSKpre-sharedkey)
802.11 mode IEEE 802.11b/g
Chapter 3Tutorial
MAX-200HW2 Series User s Guide
54
Figure 17 Network > Wireless LAN > Device Information
6Check if the WLAN connection is up under Interface Status.
Figure 18 Network > Wireless LAN > Interface Status
3.3 Connect to the WiFi Network
This section describes how to connect the wireless client to your WiFi network.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide 55
3.3.1 Connecting to a Wireless LAN
The following sections show you how to join a wireless network using the ZyXEL utility, as in
the following diagram. The wireless client is labelled C and the access point is labelled AP.
There are three ways to connect the client to an access point.
Configure nothing and leave the wireless client to automatically scan for and connect to
any available network that has no wireless security configured.
Manually connect to a network.
Configure a profile to have the wireless client automatically connect to a specific network
or peer computer.
This example illustrates how to manually connect your wireless client to an access point (AP)
which is configured for WPA-PSK security and connected to the Internet. Before you connect
to the access point, you must know its Service Set IDentity (SSID) and WPA-PSK pre-shared
key. In this example, the SSID is "SSID_Example3# and the pre-shared key is
"ThisismyWPA-PSKpre-sharedkey#.
After you install the ZyXEL utility and then insert the wireless client, follow the steps below
to connect to a network using the Site Survey screen.
1Open the ZyXEL utility and click the Site Survey tab to open the screen shown next.
2The wireless client automatically searches for available wireless networks. Click Scan if
you want to search again. If no entry displays in the Available Network List, that means
there is no wireless network available within range. Make sure the AP or peer computer
is turned on or move the wireless client closer to the AP or peer computer.
3When you try to connect to an AP with security configured, a window will pop up
prompting you to specify the security settings. Enter the pre-shared key and leave the
encryption type at the default setting.
Use the Next button to move on to the next screen. You can use the Back button at any
time to return to the previous screen, or the Exit button to return to the Site Survey
screen.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide
56
Figure 19 ZyXEL Utility: Security Settings
4The Confirm Save window appears. Check your settings and click Save to continue.
Figure 20 ZyXEL Utility: Confirm Save
5The ZyXEL utility returns to the Link Info screen while it connects to the wireless
network using your settings. When the wireless link is established, the ZyXEL utility
icon in the system tray turns green and the Link Info screen displays details of the active
connection. Check the network information in the Link Info screen to verify that you
have successfully connected to the selected network. If the wireless client is not
connected to a network, the fields in this screen remain blank.
Figure 21 ZyXEL Utility: Link Info
6Open your Internet browser and enter http://www.zyxel.com or the URL of any other
web site in the address bar. If you are able to access the web site, your wireless
connection is successfully configured.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide 57
If you cannot access the web site, try changing the encryption type in the Security
Settings screen, check the Troubleshooting section of this User's Guide or contact your
network administrator.
3.4 Make a Telephone Call Over the Internet
To make a call over the Internet using the ZyXEL Device, first do the following things:
Set up hardware connections from the ZyXEL Device to your computer, your telephone
and the power supply (see the Quick Start Guide for more details on hardware
connections).
Set up your Internet access and WiMAX settings on the ZyXEL Device (see Section 3.1.1
on page 49 and Section 3.1.2 on page 52 for examples).
Set up an account with a Voice over IP (VoIP) provider. This account (called a SIP
account) allows you to make calls over the Internet. See Chapter 12 on page 149 for more
information on SIP accounts.
Use the sections below to set up your SIP account and speed dialing, and place a VoIP call.
3.4.1 Configure Your SIP Account
Your ZyXEL Device needs to be configured with the details of your SIP account before you
can use it to make calls over the Internet. In this example, your SIP identity is
"id123@abcvoip.com#, your user name is "id123# and your password is "zyx987#. Your VoIP
provider has told you that the SIP server address is "sipserver-abcvoip.com#. See Section
12.1.3 on page 149 for more information on SIP identities.
Once you have connected the ZyXEL Device to your computer and accessed the Web
Configurator (see the Quick Start Guide for details) follow the steps below to configure your
SIP settings.
1In the Web Configurator, click VoIP > SIP in the navigation panel.
The following screen displays. This screen is where you enter your SIP account details.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide
58
Figure 22 Tutorial: SIP Account Setup
2Select SIP1 from the SIP Account list and make sure that the Active SIP Account box
is selected.
3Enter your SIP user name ($id123!) in the Number field.
4Enter your VoIP provider!s SIP server name ($sipserver-abcvoip.com!) in the SIP Server
Address field. As your VoIP provider did not give you a different REGISTER Server
Address, enter $sipserver-abcvoip.com! again.
Enter your VoIP provider!s domain name ($abcvoip.com!) in the SIP Service Domain
field.
5In the Authentication area, enter $id123! in the User Name field, and $zyx987! in the
Password field. Leave the SIP Local Port,SIP Server Port and REGISTER Server
Port fields at their default values, as your VoIP provider did not supply port details.
Click Apply.
6Click on the Status button in the navigation panel to check that your SIP account is
correctly registered.
Look in the VoIP Status area towards the bottom of the Status screen. If the SIP 1
account displays Registered in the Registration field, it is ready to use.
If the Registration field for the SIP 1 account displays Register Fail or Inactive, click
the Register button, check your settings in the VoIP > SIP screen or contact your VoIP
provider to confirm that you have the correct settings and that your account is active.
3.4.2 Configure a Phone
Once you have set up your SIP account, click VoIP > Phone > Analog Phone in the
navigation panel. The following screen displays.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide 59
Figure 23 Tutorial: the Analog Phone Screen
Use this screen to make sure that the phone connected to your ZyXEL Device uses the correct
SIP account.
1Select Phone1 from the drop-down list box.
2In the Outgoing Call Use area, select SIP1.
3In the Incoming Call apply to area, select both SIP1 and SIP2.
4Click Apply. Your analog phone settings are saved.
3.4.3 Set Up Speed Dialing and Make a Call
In this example you want to set up speed dialling to make calls to a friend, Bob, whose SIP
account number is 2345@xyzvoip.com. Your voIP provider, abcvoip.com, has told you that to
call an xyzvoip.com number you must add $555! at its start.
Different VoIP providers implement calls to other networks in different ways.
Check with your provider for details.
To configure speed dialling on the ZyXEL Device, click VoIP > Phone Book > Speed Dial.
The following screen displays.
Chapter 3Tutorial
MAX-200HW2 Series User s Guide
60
Figure 24 Tutorial: the Speed Dial Screen
Use the following steps to set up a speed dial entry.
1You can have up to ten speed dial rules. Select the rule number (1, in this example) from
the Speed Dial drop-down list box.
2In the Number field, enter "5552345# and in the Name field enter "Bob#. Under Type,
select Use Proxy and click Add.
The new speed dial rule is displayed in the Speed Dial Phone book List.
Figure 25 Tutorial: New Speed Dial Rule
Use the following steps to call a number from the speed dial list.
1Ensure that your phone is correctly connected to the ZyXEL Device. See the Quick Start
Guide for details of hardware connections.
2Lift the phone!s receiver and type the speed dial number exactly as it appears in the
Speed Dial Phone Book list. In this case, Bob!s phone number occupies rule #01, so dial
"#01# on the phone!s keypad to make the call.
MAX-200HW2 Series User s Guide 61
CHAPTER 4
Internet Setup Wizard
This chapter provides information on the wizard setup screens for Internet access.
4.1 Wizard Setup Overview
The wizard will guide you through several steps. You will need to enter some information for
identification purposes, then the wizard will guide you through configuring your Internet
settings.
4.2 Internet Connection Wizard Setup
1After you enter the password to access the web configurator, select Go to Wizard setup.
Otherwise, click the wizard icon () in the top right corner of the web configuratorto
go to the wizards.

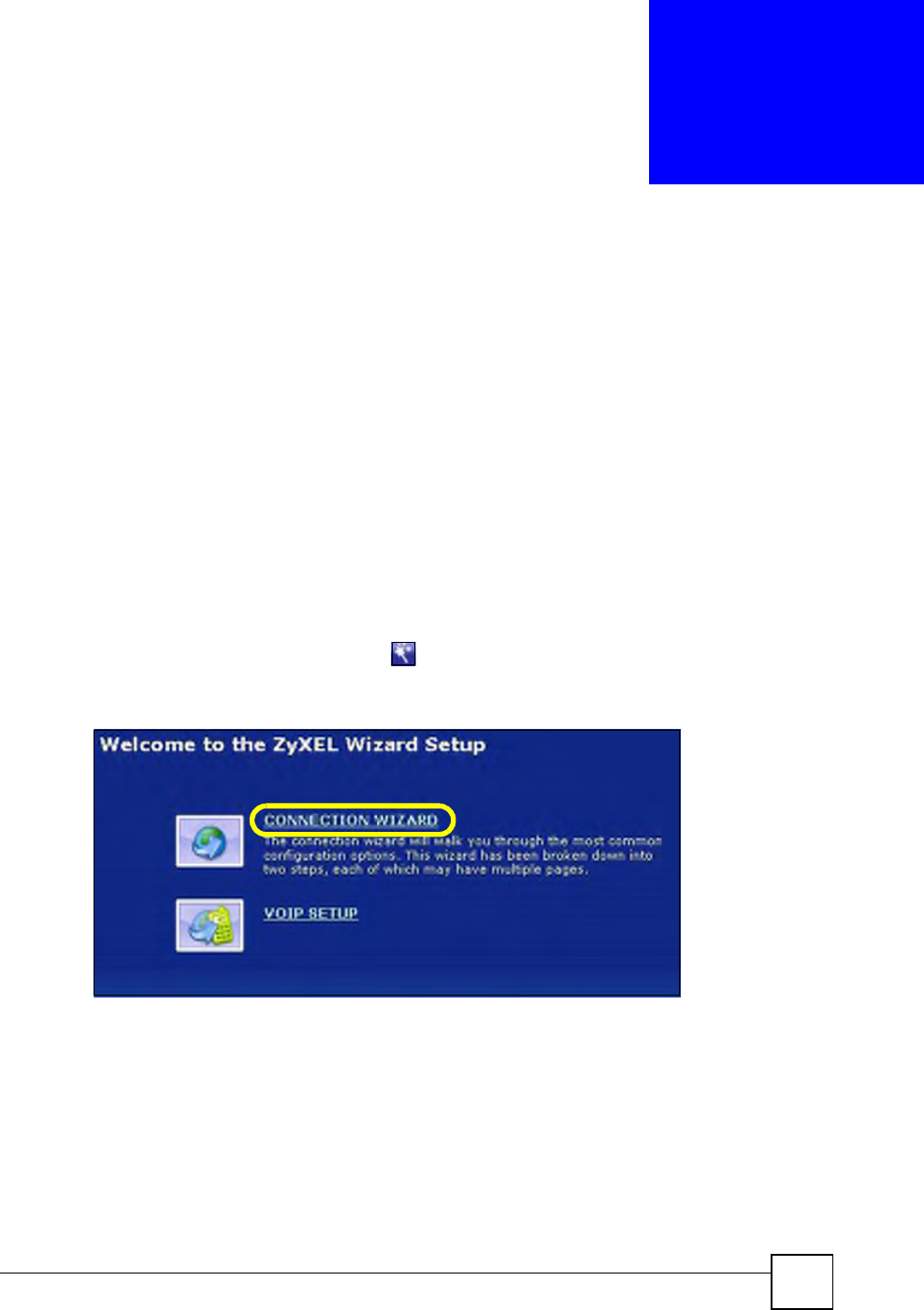

Figure 26 Select a Mode
2Click CONNECTION WIZARD to configure the system for Internet access.
3The following screen displays. Click Next to continue. Click Back at any time to return
to the previous screen, or Exit to leave the wizard setup.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide
62
Figure 27 Connection Wizard: Introduction
4.3 Step One: System Information
In the next screen you can give your ZyXEL Device a name (optional) in the System Name
field. Enter up to thirty letters (this field is case-sensitive) or numbers. The $at! symbol (@),
dash (-), underscore (_) and period (.) are also permitted. Enter your ISP!s IP address in the
Domain Name field if your ISP has instructed you to do so, or if you are having trouble
accessing the Internet. Otherwise, leave this field blank. Click Next.
Figure 28 Wizard > Step 1 > System Information
The following table describes the labels in this screen.
Table 7 Wizard > Step 1 > System Information
LABEL DESCRIPTION
System Name System Name is a unique name to identify the ZyXEL Device in an Ethernet network.
Enter a descriptive name. This name can be up to 30 alphanumeric characters long.
Spaces are not allowed, but dashes "-" and underscores "_" are accepted.
Domain Name Type the domain name (if you know it) here. If you leave this field blank, the ISP may
assign a domain name via DHCP. The domain name entered by you is given priority
over the ISP assigned domain name.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide 63
4.4 Step Two: Wireless LAN Wizard
Set up your wireless LAN using the following screens.
4.4.1 Wireless LAN Screen
Figure 29 Wizard > Step 2 > Wireless LAN
The following table describes the labels in this screen.
Table 8 Wizard > Step 2 > Wireless LAN
LABEL DESCRIPTION
Name (SSID) Enter a descriptive name (up to 32 printable 7-bit ASCII characters) for the wireless
LAN.
If you change this field on the ZyXEL Device, make sure all wireless stations use the
same SSID in order to access the network.
Security Select a Security level from the drop-down list box.
Choose Auto to have the ZyXEL Device generate a pre-shared key automatically. If
you choose this option go directly to Section 4.4.4 on page 65.
Choose None to have no wireless LAN security configured. If you do not enable any
wireless security on your ZyXEL Device, your network is accessible to any wireless
networking device that is within range. If you choose this option, skip directly to
Section 4.4.4 on page 65.
Choose Basic (WEP) security if you want to configure WEP Encryption parameters. If
you choose this option, go directly to Section 4.4.2 on page 64.
Choose Extend (WPA-PSK or WPA2-PSK) security to configure a Pre-Shared Key.
Choose this option only if your wireless clients support WPA-PSK or WPA2-PSK
respectively. If you choose this option, skip directly to Section 4.4.3 on page 65.
Channel
Selection
The range of radio frequencies used by IEEE 802.11b/g wireless devices is called a
channel. Click the Scan button to have the ZyXEL Device automatically select a
channel.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide
64
The ZyXEL Device and other wireless devices must use the same SSID,
channel ID and WEP encryption key (if WEP is enabled), WPA-PSK (if WPA-
PSK is enabled) or WPA2-PSK (if WPA2-PSK is enabled) for wireless
communication.
4.4.2 Basic (WEP) Security
Choose Basic (WEP) to set up WEP Encryption parameters.
Figure 30 Wizard > Step 2 > Basic (WEP) Security
The following table describes the labels in this screen.
Table 9 Wizard > Step 2 > Basic (WEP) Security
LABEL DESCRIPTION
Passphrase Type a Passphrase (up to 32 printable characters) and click Generate. The ZyXEL
Device automatically generates a WEP key.
WEP
Encryption
Select 64-bit WEP or 128-bit WEP to allow data encryption.
ASCII Select this option in order to enter ASCII characters as the WEP keys. ASCII
characters include the characters available on a standard English language keyboard.
HEX Select this option to enter hexadecimal characters as the WEP keys.
The preceding !0x" is entered automatically.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide 65
4.4.3 Extend (WPA-PSK or WPA2-PSK) Security
Choose Extend (WPA-PSK) or Extend (WPA2-PSK) security in the Wireless LAN setup
screen to set up a Pre-Shared Key.
Figure 31 Wizard > Step 2 > Extend (WPA-PSK or WPA2-PSK) Security
The following table describes the labels in this screen.
4.4.4 The OTIST Screen
After configuring your security settings or choosing Auto or None the OTIST screen will
display.
You mustenable OTIST if you have selected Auto. For the other security types you may click
No if you do not plan to use OTIST. OTIST is only compatible with certain wireless devices,
please check your other device!s documentation to see if it supports OTIST. For more
information on OTIST see Section 7.4 on page 101.
Key 1 to Key 4 The WEP keys are used to encrypt data. Both the ZyXEL Device and the wireless
stations must use the same WEP key for data transmission.
If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal
characters ("0-9", "A-F").
If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal
characters ("0-9", "A-F").
You must configure at least one key, only one key can be activated at any one time.
The default key is key 1.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen. Proceed to Section 4.4.4 on page 65.
Exit Click Exit to close the wizard screen without saving.
Table 9 Wizard > Step 2 > Basic (WEP) Security
LABEL DESCRIPTION
Table 10 Wizard > Step 2 > Extend (WPA-PSK or WPA2-PSK) Security
LABEL DESCRIPTION
Pre-Shared
Key
Type from 8 to 63 case-sensitive ASCII characters. You can set up the most secure
wireless connection by configuring WPA in the wireless LAN screens. You need to
configure an authentication server to do this.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen. Proceed to
Exit Click Exit to close the wizard screen without saving.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide
66
Note: The text in the screen below may be different depending on your chosen security
settings.
Figure 32 Wizard > Step 2 > OTIST
The following table describes the labels in this screen.
4.5 Step Three: Internet Configuration
Set up your Internet access using the following screens.
4.5.1 Connection Type Screen
Leave the Connection Type at the default setting WIMAX and click Next.
Table 11 Wizard > Step 2 > OTIST
LABEL DESCRIPTION
Enable OTIST Select Yes to enable OTIST. Select No to not use OTIST.
Setup Key If you select Yes then type an OTIST Setup Key of exactly eight ASCII characters in
length.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen. Proceed to Section 4.5 on page 66
Exit Click Exit to close the wizard screen without saving.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide 67
Figure 33 Wizard > Step 3 > Connection Type Screen
4.5.2 ISP Parameters for Internet Access Screen
Enter your Internet account information (username and password) exactly as provided by your
ISP. Leave the fields for which you were not given information at their default settings. Click
Next to continue.
Figure 34 Wizard > Step 3 > ISP Parameters for Internet Access Screen
The following table describes the labels in this screen.
Table 12 Wizard > Step 3 > ISP Parameters for Internet Access Screen
LABEL DESCRIPTION
ISP Parameters for Internet
Access
UserUse this field to enter the username associated with your Internet
access account. You can enter up to 61 printable ASCII characters.
PasswordUse this field to enter the password associated with your Internet
access account. You can enter up to 47 printable ASCII characters.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide
68
4.5.3 Antenna Selection Screen
If you have the MAX-210HW2 you can choose to use the internal antenna or external antenna
for WiMAX. The internal antenna is fixed, and the external antenna is removable.
Anonymous IdentityEnter the anonymous identity provided by your Internet Service
Provider. Anonymous identity (also known as outer identity) is used
with EAP-TTLS encryption. The anonymous identity is used to route
your authentication request to the correct authentication server, and
does not reveal your real user name. Your real user name and
password are encrypted in the TLS tunnel, and only the anonymous
identity can be seen.
Leave this field blank if your ISP did not give you an anonymous
identity to use.
PKMThis field displays the Privacy Key Management version number.
PKM provides security between the ZyXEL Device and the base
station. At the time of writing, the ZyXEL Device supports PKMv2
only. See the WiMAX security appendix for more information.
AuthenticationThis field displays the user authentication method. Authentication is
the process of confirming the identity of a mobile station (by means of
a username and password, for example).
Check with your service provider if you are unsure of the correct
setting for your account.
Choose from the following user authentication methods:
#TTLS (Tunnelled Transport Layer Security)
#TLS (Transport Layer Security)
Note: Not all ZyXEL Devices support TLS authentication.
Check with your service provider for details.
TTLS Inner EAPThis field displays the type of secondary authentication method. Once
a secure EAP-TTLS connection is established, the inner EAP is the
protocol used to exchange security information between the mobile
station, the base station and the AAA server to authenticate the
mobile station. See the WiMAX security appendix for more details.
The ZyXEL Device supports the following inner authentication types:
#CHAP (Challenge Handshake Authentication Protocol)
#MSCHAP (Microsoft CHAP)
#MSCHAPV2 (Microsoft CHAP version 2)
#PAP (Password Authentication Protocol)
Auth ModeSelect the authentication mode from the drop-down list box.
This field is not available in all ZyXEL Devices. Check with your
service provider for details.
The ZyXEL Device supports the following authentication modes:
#User Only
#Device Only with Cert
#Certs and User Authentication
CertificateThis is the security certificate the ZyXEL Device uses to authenticate
the AAA server. Use the Security > Certificates > Trusted CA
screen to import certificates to the ZyXEL Device.
Back Click Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Table 12 Wizard > Step 3 > ISP Parameters for Internet Access Screen
LABEL DESCRIPTION
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide 69
In the screen that appears, you can select which antenna to use. Select Automatic Selection to
have the ZyXEL Device use whichever antenna has the best reception (recommended).
Alternatively, if you do not want to use the external antenna, select Use Internal Antenna,
and if you do not want to use the internal antenna, select Use External Antenna. Click Next.
The MAX-200HW2 and MAX-230HW2 do not have an internal antenna.
Figure 35 Wizard > Step 3 > Antenna Selection
The following table describes the labels in this screen.
4.5.4 IP Address Screen
A fixed IP address is a static IP that your ISP gives you. An automatic (dynamic) IP address is
not fixed; the ISP assigns you a different one each time you connect to the Internet.
In the following screen, select Use fixed IP address provided by your ISP if your ISP gave
you an IP address to use.Otherwise, select Get automatically from your ISP.
Table 13 Wizard > Step 3 > Antenna Selection
LABEL DESCRIPTION
Automatic SelectionSelect Automatic Selection to have the ZyXEL Device choose which
antenna to use. This setting is recommend as it will choose the
antenna with the best signal to the base station.
Use Internal AntennaSelect Use Internal Antenna to have the ZyXEL Device use it s
internal antenna. This option is not applicable for the MAX-200HW2
and MAX-230HW2.
Use External AntennaSelect Use External Antenna to have the ZyXEL Device use it s
external antenna.
BackClick Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide
70
Figure 36 Wizard > Step 3 > IP Address
The following table describes the labels in this screen.
4.5.5 WAN IP Address Assignment
If you selected Get automatically from your ISP in the previous screen, skip this step. If you
selected Use fixed IP address provided by your ISP, the following screen appears.
Enter your IP address, subnet mask, gateway address and DNS details exactly as they were
given to you by your ISP.
Table 14 Wizard > Step 3 > IP Address
LABEL DESCRIPTION
Your IP Address
Get automatically from ISP
(Default)
Select this if you have a dynamic IP address. A dynamic IP address is
not fixed; the ISP assigns you a different one each time you connect
to the Internet.
Use Fixed IP Address
provided by your ISP
A static IP address is a fixed IP that your ISP gives you.
BackClick Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide 71
Figure 37 Wizard > Step 3 > WAN IP Address Assignment
The following table describes the labels in this screen.
4.5.6 Wizard Complete
Click Finish to complete and save the Connection Wizard settings.
Table 15 Wizard > Step 3 > WAN IP Address Assignment
LABEL DESCRIPTION
WAN IP Address Assignment
My WAN IP AddressType your ISP assigned IP address in this field.
My WAN IP Subnet MaskEnter a subnet mask in dotted decimal notation.
Refer to the appendicesto calculate a subnet mask If you are
implementing subnetting.
Gateway IP AddressSpecify a gateway IP address (supplied by your ISP).
DNS Server Address
Assignment
First, Second and Third
DNS Server
Enter the DNS server's IP address in the field(s). Leave the IP
address set to 0.0.0.0 to ignore the field.
BackClick Back to display the previous screen.
Next Click Next to proceed to the next screen.
Exit Click Exit to close the wizard screen without saving.
Chapter 4Internet Setup Wizard
MAX-200HW2 Series User s Guide
72
Figure 38 The Connection Wizard: Congratulations
Launch your web browser and navigate to www.zyxel.com. Internet access is just the
beginning. Refer to the rest of this guide for more detailed information on the complete range
of ZyXEL Device features. If you cannot access the Internet, open the web configurator again
to confirm that the Internet settings you configured in the wizard setup are correct.
MAX-200HW2 Series User s Guide 73
CHAPTER 5
VoIP Wizard
This chapter shows you how to use the wizard to set up your SIP account(s).
5.1 Introduction
The ZyXEL Device has Voice over IP (VoIP) communication capabilities that allow you to use
a traditional analog telephone to make Internet calls. You can configure the ZyXEL Device to
use up to two SIP based VoIP accounts.
5.2 VOIP Wizard Setup
1After you enter the password to access the web configurator, select Go to Wizard setup.
Otherwise, click the wizard icon ( ) in the top right corner of the web configuratorto
display the wizard main screen. Click VOIP SETUP to configure the system for Voice
Over Internet connection.
Figure 39 Select a Mode
2The following screen displays. This wizard screen allows you to configure your voice
settings for SIP account 1. Fill in the fields with information from your VoIP service
provider. Leave the default settings in fields for which no information was provided
(except if otherwise specified). See Chapter 12 on page 149 for background information
on these fields.
Chapter 5VoIP Wizard
MAX-200HW2 Series User s Guide
74
Figure 40 VOIP Wizard: Configuration
The following table describes the labels in this screen
3The ZyXEL Device attempts to register your SIP account with the SIP server.
Table 16 VOIP Wizard Configuration
LABEL DESCRIPTION
SIP NumberEnter your SIP number in this field (use the number or text that comes
before the @ symbol in a SIP account like 1234@VoIP-provider.com).
You can use up to 127 ASCII characters.
SIP Server AddressType the IP address or domain name of the SIP server in this field. It
doesn t matter whether the SIP server is a proxy, redirect or register
server. You can use up to 95 ASCII characters.
SIP Service DomainEnter the SIP service domain name in this field (the domain name that
comes after the @ symbol in a SIP account like 1234@VoIP-
provider.com). You can use up to 127 ASCII Extended set characters.
User NameThis is the user name for registering this SIP account with the SIP register
server. Type the user name exactly as it was given to you. You can use up
to 95 ASCII characters.
PasswordType the password associated with the user name above. You can use up
to 95 ASCII Extended set characters.
Check here to set up
SIP2 settings.
This screen configures SIP account 1. Select the check box if you have
a second SIP account that you want to use. You will need to configure
the same fields for the second SIP account.
Back Click Back to return to the previous screen.
Apply Click Apply to complete the wizard setup and save your configuration.
Exit Click Exit to close the wizard without saving your settings.
Chapter 5VoIP Wizard
MAX-200HW2 Series User s Guide 75
Figure 41 VoIP Wizard: SIP Registration Test
4This screen displays if SIP account registration fails. Check your WiMAX connection
using the LINK and SIGNAL LEDs on the front of the ZyXEL Device. Then wait a few
seconds and click Register Again. If your Internet connection was already working, you
can click Back and try re-entering your SIP account settings.
Figure 42 VoIP Wizard: Fail
5This screen displays if your SIP account registration was successful. Click Return to
Wizard Main Page if you want to use another configuration wizard. Click Go to
Advanced Setup page or Finish to close the wizard and go to the main web
configurator screens.
Figure 43 VOIP Wizard: Finish
Chapter 5VoIP Wizard
MAX-200HW2 Series User s Guide
76
77
PART III
Web Configurator
Status Screens (79)
Network
Wireless LAN (91)
WAN Setup (107)
LAN (119)
NAT (129)
VPN Transport (137)
VoIP
SIP (149)
Phone (165)
Phone Book (173)
Security
Firewall (179)
Certificates (187)
Content Filter (205)
Management
Static Route (209)
Remote MGMT (213)
UPnP (221)
Maintenance
System (233)
Logs (241)
Tools (255)
78
MAX-200HW2 Series User s Guide 79
CHAPTER 6
Status Screens
Use the Status screens to look at the current status of the device, system resources, interfaces
(LAN, WAN and WLAN), and SIP accounts. You can also register and unregister SIP
accounts. The Status screen also provides detailed information from DHCP and statistics from
WiMAX, VoIP, bandwidth management, and traffic.
6.1 Status Screen
Click Status to open this screen.
Figure 44 Status Screen
Chapter 6Status Screens
MAX-200HW2 Series User s Guide
80
Each field is described in the following table.
Table 17 Status Screen
LABEL DESCRIPTION
Refresh IntervalSelect how often you want the ZyXEL Device to update this screen.
Refresh NowClick this to update this screen immediately.
Device
Information
System NameThis field displays the ZyXEL Device system name. It is used for identification. You
can change this in the Maintenance > System > General screen s System Name
field.
Firmware
Version
This field displays the current version of the firmware inside the device. It also
shows the date the firmware version was created. You can change the firmware
version by uploading new firmware in Maintenance > Tools > Firmware.
WAN Information
IP AddressThis field displays the current IP address of the ZyXEL Device in the WAN.
IP Subnet
Mask
This field displays the current subnet mask on the WAN.
DHCPThis field displays what DHCP services the ZyXEL Device is using in the WAN.
Choices are:
Client - The ZyXEL Device is a DHCP client in the WAN. Its IP address comes
from a DHCP server on the WAN.
None - The ZyXEL Device is not using any DHCP services in the WAN. It has a
static IP address.
If you are not using Roadrunner on Ethernet, you can change this in Network >
WAN. If you are using Roadrunner on Ethernet, this is controlled by Roadrunner.
LAN Information
IP AddressThis field displays the current IP address of the ZyXEL Device in the LAN.
IP Subnet
Mask
This field displays the current subnet mask in the LAN.
DHCPThis field displays what DHCP services the ZyXEL Device is providing to the LAN.
Choices are:
Server - The ZyXEL Device is a DHCP server in the LAN. It assigns IP addresses
to other computers in the LAN.
Relay - The ZyXEL Device is routing DHCP requests to one or more DHCP
servers. The DHCP server(s) may be on another network.
None - The ZyXEL Device is not providing any DHCP services to the LAN.
You can change this in Network > LAN > DHCP Setup.
WLAN
Information
Name (SSID) This is the descriptive name used to identify the ZyXEL Device in the wireless
LAN.
Channel This is the channel number used by the ZyXEL Device.
Security Mode This is the WiFi security mode used by the ZyXEL Device.
WiMAX
Information
Operator ID Every WiMAX service provider has a unique Operator ID number, which is
broadcast by each base station it owns. You can only connect to the Internet
through base stations belonging to your service provider s network.
Chapter 6Status Screens
MAX-200HW2 Series User s Guide 81
BSID This field displays the identification number of the wireless base station to which
the ZyXEL Device is connected. Every base station transmits a unique BSID,
which identifies it across the network.
Cell ID A base station s coverage area can be divided into multiple cells. This field shows
the identification number of the cell in which the ZyXEL Device is connected.
Frequency This field displays the radio frequency of the ZyXEL Device s wireless connection
to a base station.
MAC address This field displays the Media Access Control address of the ZyXEL Device. Every
network device has a unique MAC address which identifies it across the network.
WiMAX StateThis field displays the status of the ZyXEL Device s current connection.
#NA: the ZyXEL Device is starting up.
#Fail: The ZyXEL Device is unable to connect to a base station.
#Initial Synchronization: the ZyXEL Device is attempting to locate a base
station.
#Initial DCD (Downlink Channel Descriptor): the ZyXEL Device has located a
base station and is receiving information about a possible downlink
connection.
#Initial UCD (Uplink Channel Descriptor): the ZyXEL Device is receiving
information from the base station about a possible uplink connection.
#Initial Ranging and Calibration: the ZyXEL Device and the base station are
transmitting and receiving information about the distance between them.
Ranging allows the ZyXEL Device to use a lower transmission power level
when communicating with a nearby base station, and a higher transmission
power level when communicating with a distant base station.
#Initial Negotiation: the ZyXEL Device and the base station are exchanging
information about their capabilities.
#Initial PKM (Privacy Key Management): the ZyXEL Device and the base
station are exchanging security information.
#Initial Registration: the ZyXEL Device is registering with a RADIUS server.
#Running: the ZyXEL Device has successfully registered with the base station.
Traffic can now flow between the ZyXEL Device and the base station.
#Sleep: the ZyXEL Device is in power saving mode, but periodically checks
whether a base station has traffic waiting.
#Idle: the ZyXEL Device is in power saving mode, but can connect when a base
station alerts it that there is traffic waiting.
#Handover: the ZyXEL Device is moving from one coverage area to another,
and is connecting to the new base station.
Bandwidth This field shows the size of the bandwidth step the ZyXEL Device uses to connect
to a base station in megahertz (MHz).
CINR mean This field shows the average Carrier to Interference plus Noise Ratio of the current
connection. This value is an indication of overall radio signal quality. A higher
value indicates a higher signal quality, and a lower value indicates a lower signal
quality.
CINR
deviation
This field shows the amount of change in the CINR level. This value is an
indication of radio signal stability. A lower number indicates a more stable signal,
and a higher number indicates a less stable signal.
RSSI This field shows the Received Signal Strength Indication. This value is a
measurement of overall radio signal strength. A higher RSSI level indicates a
stronger signal, and a lower RSSI level indicates a weaker signal.
A strong signal does not necessarily indicate a good signal: a strong signal may
have a low signal-to-noise ratio (SNR).
UL Data Rate This field shows the number of data packets uploaded from the ZyXEL Device to
the base station each second.
DL Data Rate This field shows the number of data packets downloaded to the ZyXEL Device
from the base station each second.
Table 17 Status Screen
LABEL DESCRIPTION
Chapter 6Status Screens
MAX-200HW2 Series User s Guide
82
PER This field shows the Packet Error Rate. The PER is the percentage of data
packets transmitted across the network but not successfully received.
Tx Power This field shows the output transmission (Tx) level of the ZyXEL Device.
Firmware
Version
This shows the WiMAX chipset firmware version.
Site
Information
Click the Details... link to view details of the radio frequencies used by the ZyXEL
Device to connect to a base station.
Profile Click the Details... link to view details of the current wireless security settings.
System Status
System Up
Time
This field displays how long the ZyXEL Device has been running since it last
started up. The ZyXEL Device starts up when you plug it in, when you restart it
(Maintenance > Tools > Restart), or when you reset it (see Section 2.1.2 on page
41).
Current Date/
Time
This field displays the current date and time in the ZyXEL Device. You can change
this in Maintenance > System > Time Setting.
CPU UsageThis field displays what percentage of the ZyXEL Device s processing ability is
currently being used. The higher the CPU usage, the more likely the ZyXEL
Device is to slow down. You can reduce this by disabling some services, such as
DHCP, NAT, or content filtering.
Memory
Usage
This field displays what percentage of the ZyXEL Device s memory is currently
used. The higher the memory usage, the more likely the ZyXEL Device is to slow
down. Some memory is required just to start the ZyXEL Device and to run the web
configurator. You can reduce the memory usage by disabling some services (see
CPU Usage); by reducing the amount of memory allocated to NAT and firewall
rules (you may have to reduce the number of NAT rules or firewall rules to do so);
or by deleting rules in functions such as incoming call policies, speed dial entries,
and static routes.
IVR UsageThis field displays what percentage of the ZyXEL Device s IVR memory is
currently used. IVR (Interactive Voice Response) refers to the customizable ring
tone and on-hold music you set. See Section 12.1.11 on page 155 for more
information.
Interface Status
InterfaceThis column displays each interface of the ZyXEL Device.
StatusThis field indicates whether or not the ZyXEL Device is using the interface.
For the WAN interface, this field displays Up when the ZyXEL Device is connected
to a WiMAX network, and Down when the ZyXEL Device is not connected to a
WiMAX network.
For the LAN interface, this field displays Up when the ZyXEL Device is using the
interface and Down when the ZyXEL Device is not using the interface.
For the WLAN port, it displays Up when WLAN is enabled or Down when WLAN is
disabled.
RateFor the LAN ports this displays the port speed and duplex setting.
For the WAN interface, it displays the downstream and upstream transmission rate
or N/A if the ZyXEL Device is not connected to a base station.
For the WLAN port, it displays the transmission rate when WLAN is enabled or N/
A when WLAN is disabled.
Summary
Packet
Statistics
Click this link to view port status and packet specific statistics.
Table 17 Status Screen
LABEL DESCRIPTION
Chapter 6Status Screens
MAX-200HW2 Series User s Guide 83
6.2 Site Information
Click Status > Site Information to view this screen. This read-only screen shows information
about the ZyXEL Device!s connection with a WiMAX base station. To configure these
settings, go to the Network > WAN > WiMAX Frequency screen.
Figure 45 The Site Information Screen
DHCP TableClick this link to see details of computers to which the ZyXEL Device has given an
IP address.
VoIP StatisticsClick this link to view statistics about your VoIP usage.
VoIP Status
AccountThis column displays each SIP account in the ZyXEL Device.
RegistrationThis field displays the current registration status of the SIP account. You have to
register SIP accounts with a SIP server to use VoIP.
If the SIP account is already registered with the SIP server,
Click Unregister to delete the SIP account s registration in the SIP server. This
does not cancel your SIP account, but it deletes the mapping between your SIP
identity and your IP address or domain name.
The second field displays Registered.
If the SIP account is not registered with the SIP server,
Click Register to have the ZyXEL Device attempt to register the SIP account with
the SIP server.
The second field displays the reason the account is not registered.
Inactive - The SIP account is not active. You can activate it in VoIP > SIP > SIP
Settings.
Register Fail - The last time the ZyXEL Device tried to register the SIP account
with the SIP server, the attempt failed. The ZyXEL Device automatically tries to
register the SIP account when you turn on the ZyXEL Device or when you activate
it.
URIThis field displays the account number and service domain of the SIP account.
You can change these in VoIP > SIP > SIP Settings.
Table 17 Status Screen
LABEL DESCRIPTION
Chapter 6Status Screens
MAX-200HW2 Series User s Guide
84
The following table describes the labels in this screen.
6.3 Profile
Click Status > Profile to view this screen. This read-only screen displays information about
the security settings you are using. To configure these settings, go to the Network > WAN >
Internet Connection screen.
Not all ZyXEL Device models have all the fields shown here.
Figure 46 The WiMAX Profile Screen
The following table describes the labels in this screen.
Table 18 The Site Information Screen
LABEL DESCRIPTION
Site Information
DL Frequency
[0] ~ [9]
These fields show the downlink frequency settings in kilohertz (kHz). These
settings determine how the ZyXEL Device searches for an available wireless
connection. See Section 8.4 on page 111 for more information.
Table 19 The WiMAX Profile Screen
LABEL DESCRIPTION
Profile
UserThis is the username for your Internet access account.
PasswordThis is the password for your Internet access account. The password
displays as a row of asterisks.
Anonymous IdentityThis is the anonymous identity provided by your Internet Service Provider.
Anonymous identity (also known as outer identity) is used with EAP-TTLS
encryption.
PKMThis field displays the Privacy Key Management version number. PKM
provides security between the ZyXEL Device and the base station. See the
WiMAX security appendix for more information.
Chapter 6Status Screens
MAX-200HW2 Series User s Guide 85
6.4 Packet Statistics
To access this screen, open the Status screen (see Section 6.1 on page 79), and click
(Details...) next to Packet Statistics. Read-only information here includes port status and
packet specific statistics. Also provided are "system up time" and "poll interval(s)". The Poll
Interval(s) field is configurable.
Figure 47 Packet Statistics
AuthenticationThis field displays the user authentication method. Authentication is the
process of confirming the identity of a user (by means of a username and
password, for example).
EAP-TTLS allows an MS/SS and a base station to establish a secure link (or
$tunnel ) with an AAA (Authentication, Authorization and Accounting) server
in order to exchange authentication information. See the WiMAX security
appendix for more details.
TTLS Inner EAPThis field displays the type of secondary authentication method. Once a
secure EAP-TTLS connection is established, the inner EAP is the protocol
used to exchange security information between the mobile station, the base
station and the AAA server to authenticate the mobile station. See the
WiMAX security appendix for more details.
The ZyXEL Device supports the following inner authentication types:
#CHAP (Challenge Handshake Authentication Protocol)
#MSCHAP (Microsoft CHAP)
#MSCHAPV2 (Microsoft CHAP version 2)
#PAP (Password Authentication Protocol)
Auth ModeThis is the authentication mode. The ZyXEL Device supports the following
authentication modes:
#User Only
#Device Only with Cert
#Certs and User Authentication
CertificateThis is the security certificate the ZyXEL Device uses to authenticate the
AAA server.
Table 19 The WiMAX Profile Screen
LABEL DESCRIPTION
Chapter 6Status Screens
MAX-200HW2 Series User s Guide
86
The following table describes the fields in this screen.
6.5 DHCP Table Screen
This screen displays information about computers that received an IP address from the ZyXEL
Device. To access this screen, open the Status screen (see Section 6.1 on page 79), and click
(Details...) next to DHCP Table.
Figure 48 DHCP Table
Table 20 Packet Statistics
LABEL DESCRIPTION
Packet Statistics
PortThis column displays each interface of the ZyXEL Device.
Status This field indicates whether or not the ZyXEL Device is using the interface.
For the WAN interface, this field displays Up when the ZyXEL Device is
connected to a WiMAX network, and Down when the ZyXEL Device is not
connected to a WiMAX network.
For the LAN interface, this field displays Up when the ZyXEL Device is using the
interface and Down when the ZyXEL Device is not using the interface.
For the WLAN port, it displays Up when WLAN is enabled or Down when WLAN
is disabled.
TxPkts This field displays the number of packets transmitted on this interface.
RxPkts This field displays the number of packets received on this interface.
Collisions This field displays the number of collisions on this port.
Tx B/s This field displays the number of bytes transmitted in the last second.
Rx B/s This field displays the number of bytes received in the last second.
Up Time This field displays the elapsed time this interface has been connected.
System up Time This is the elapsed time the system has been on.
Poll Interval(s) Type the time interval for the browser to refresh system statistics.
Set Interval Click this button to apply the new poll interval you entered in the Poll Interval
field above.
Stop Click this button to halt the refreshing of the system statistics.
Chapter 6Status Screens
MAX-200HW2 Series User s Guide 87
Each field is described in the following table.
6.6 VoIP Statistics Window
This screen displays SIP registration information, status of calls and VoIP traffic statistics. To
access this screen, open the Status screen (see Section 6.1 on page 79), and click (Details...)
next to VoIP Statistics.
Figure 49 VoIP Statistics
Each field is described in the following table.
Table 21 DHCP Table
LABEL DESCRIPTION
DHCP Table
#This field is a sequential value. It is not associated with a specific entry.
IP AddressThis field displays the IP address the ZyXEL Device assigned to a computer in
the network.
Host NameThis field displays the system name of the computer to which the ZyXEL Device
assigned the IP address.
MAC AddressThis field displays the MAC address of the computer to which the ZyXEL
Device assigned the IP address.
RefreshClick this to update this screen.
Table 22 VoIP Statistics
LABEL DESCRIPTION
SIP Status
AccountThis column displays each SIP account in the ZyXEL Device.
Chapter 6Status Screens
MAX-200HW2 Series User s Guide
88
RegistrationThis field displays the current registration status of the SIP account. You can
change this in the Status screen.
Registered - The SIP account is registered with a SIP server.
Register Fail - The last time the ZyXEL Device tried to register the SIP account
with the SIP server, the attempt failed. The ZyXEL Device automatically tries to
register the SIP account when you turn on the ZyXEL Device or when you activate
it.
Inactive - The SIP account is not active. You can activate it in VoIP > SIP > SIP
Settings.
Last RegistrationThis field displays the last time you successfully registered the SIP account. It
displays N/A if you never successfully registered this account.
URIThis field displays the account number and service domain of the SIP account.
You can change these in VoIP > SIP > SIP Settings.
ProtocolThis field displays the transport protocol the SIP account uses. SIP accounts
always use UDP.
Message WaitingThis field indicates whether or not there are any messages waiting for the SIP
account.
Last Incoming
Number
This field displays the last number that called the SIP account. It displays N/A if no
number has ever dialed the SIP account.
Last Outgoing
Number
This field displays the last number the SIP account called. It displays N/A if the
SIP account has never dialed a number.
Call Statistics
PhoneThis field displays the ZyXEL Device s phone port number.
HookThis field indicates whether the phone is on the hook or off the hook.
On - The phone is hanging up or already hung up.
Off - The phone is dialing, calling, or connected.
StatusThis field displays the current state of the phone call.
N/A - There are no current VoIP calls, incoming calls or outgoing calls being
made.
DIAL - The callee s phone is ringing.
RING - The phone is ringing for an incoming VoIP call.
Process - There is a VoIP call in progress.
DISC - The callee s line is busy, the callee hung up or your phone was left off the
hook.
CodecThis field displays what voice codec is being used for a current VoIP call through a
phone port.
Peer NumberThis field displays the SIP number of the party that is currently engaged in a VoIP
call through a phone port.
DurationThis field displays how long the current call has lasted.
Tx PktsThis field displays the number of packets the ZyXEL Device has transmitted in the
current call.
Rx PktsThis field displays the number of packets the ZyXEL Device has received in the
current call.
Tx B/sThis field displays how quickly the ZyXEL Device has transmitted packets in the
current call. The rate is the average number of bytes transmitted per second.
Rx B/sThis field displays how quickly the ZyXEL Device has received packets in the
current call. The rate is the average number of bytes transmitted per second.
Table 22 VoIP Statistics
LABEL DESCRIPTION
Chapter 6Status Screens
MAX-200HW2 Series User s Guide 89
Poll Interval(s)Enter how often you want the ZyXEL Device to update this screen, and click Set
Interval.
Set IntervalClick this to make the ZyXEL Device update the screen based on the amount of
time you specified in Poll Interval.
StopClick this to make the ZyXEL Device stop updating the screen.
Table 22 VoIP Statistics
LABEL DESCRIPTION
Chapter 6Status Screens
MAX-200HW2 Series User s Guide
90
MAX-200HW2 User s Guide 91
CHAPTER 7
Wireless LAN
This chapter discusses how to configure the wireless network settings in your ZyXEL Device.
See the appendices for more detailed information about wireless networks.
7.1 Wireless Network Overview
The following figure provides an example of a wireless network.
Figure 50 Example of a Wireless Network
The wireless network is the part in the blue circle. In this wireless network, devices A and B
are called wireless clients. The wireless clients use the access point (AP) to interact with other
devices (such as the printer) or with the Internet. Your ZyXEL Device is the AP.
Every wireless network must follow these basic guidelines.
Every wireless client in the same wireless network must use the same SSID.
The SSID is the name of the wireless network. It stands for Service Set IDentity.
If two wireless networks overlap, they should use different channels.
Like radio stations or television channels, each wireless network uses a specific channel,
or frequency, to send and receive information.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
92
Every wireless client in the same wireless network must use security compatible with the
AP.
Security stops unauthorized devices from using the wireless network. It can also protect
the information that is sent in the wireless network.
7.2 Wireless Security Overview
The following sections introduce different types of wireless security you can set up in the
wireless network.
7.2.1 SSID
Normally, the AP acts like a beacon and regularly broadcasts the SSID in the area. You can
hide the SSID instead, in which case the AP does not broadcast the SSID. In addition, you
should change the default SSID to something that is difficult to guess.
This type of security is fairly weak, however, because there are ways for unauthorized devices
to get the SSID. In addition, unauthorized devices can still see the information that is sent in
the wireless network.
7.2.2 MAC Address Filter
Every wireless client has a unique identification number, called a MAC address.1 A MAC
address is usually written using twelve hexadecimal characters2; for example, 00A0C5000002
or 00:A0:C5:00:00:02. To get the MAC address for each wireless client, see the appropriate
User!s Guide or other documentation.
You can use the MAC address filter to tell the AP which wireless clients are allowed or not
allowed to use the wireless network. If a wireless client is allowed to use the wireless network,
it still has to have the correct settings (SSID, channel, and security). If a wireless client is not
allowed to use the wireless network, it does not matter if it has the correct settings.
This type of security does not protect the information that is sent in the wireless network.
Furthermore, there are ways for unauthorized devices to get the MAC address of an authorized
wireless client. Then, they can use that MAC address to use the wireless network.
7.2.3 User Authentication
You can make every user log in to the wireless network before they can use it. This is called
user authentication. However, every wireless client in the wireless network has to support
IEEE 802.1x to do this.
For wireless networks, there are two typical places to store the user names and passwords for
each user.
In the AP: this feature is called a local user database or a local database.
In a RADIUS server: this is a server used in businesses more than in homes.
1.Some wireless devices, such as scanners, can detect wireless networks but cannot use wireless networks.
These kinds of wireless devices might not have MAC addresses.
2.Hexadecimal characters are 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E, and F.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide 93
If your AP does not provide a local user database and if you do not have a RADIUS server,
you cannot set up user names and passwords for your users.
Unauthorized devices can still see the information that is sent in the wireless network, even if
they cannot use the wireless network. Furthermore, there are ways for unauthorized wireless
users to get a valid user name and password. Then, they can use that user name and password
to use the wireless network.
Local user databases also have an additional limitation that is explained in the next section.
7.2.4 Encryption
Wireless networks can use encryption to protect the information that is sent in the wireless
network. Encryption is like a secret code. If you do not know the secret code, you cannot
understand the message.
The types of encryption you can choose depend on the type of user authentication. (See
Section 7.2.3 on page 92 for information about this.)
For example, if the wireless network has a RADIUS server, you can choose WPA or WPA2. If
users do not log in to the wireless network, you can choose no encryption, Static WEP,WPA-
PSK, or WPA2-PSK.
Usually, you should set up the strongest encryption that every wireless client in the wireless
network supports. For example, suppose the AP does not have a local user database, and you
do not have a RADIUS server. Therefore, there is no user authentication. Suppose the wireless
network has two wireless clients. Device A only supports WEP, and device B supports WEP
and WPA. Therefore, you should set up Static WEP in the wireless network.
It is recommended that wireless networks use WPA-PSK,WPA, or stronger
encryption. IEEE 802.1x and WEP encryption are better than none at all, but it
is still possible for unauthorized devices to figure out the original information
pretty quickly.
It is not possible to use WPA-PSK,WPA or stronger encryption with a local
user database. In this case, it is better to set up stronger encryption with no
authentication than to set up weaker encryption with the local user database.
Table 23 Types of Encryption for Each Type of Authentication
NO AUTHENTICATION RADIUS SERVER
Weakest No SecurityWPA
Static WEP
WPA-PSK
Strongest WPA2-PSKWPA2
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
94
When you select WPA2 or WPA2-PSK in your ZyXEL Device, you can also select an option
(WPA Compatible) to support WPA as well. In this case, if some wireless clients support
WPA and some support WPA2, you should set up WPA2-PSK or WPA2 (depending on the
type of wireless network login) and select the WPA Compatible option in the ZyXEL Device.
Many types of encryption use a key to protect the information in the wireless network. The
longer the key, the stronger the encryption. Every wireless client in the wireless network must
have the same key.
7.2.5 One-Touch Intelligent Security Technology (OTIST)
With ZyXEL!s OTIST, you set up the SSID and WPA-PSK on the ZyXEL Device. Then, the
ZyXEL Device transfers them to the devices in the wireless networks. As a result, you do not
have to set up the SSID and encryption on every device in the wireless network.
The devices in the wireless network have to support OTIST, and they have to be in range of the
ZyXEL Device when you activate it. See Section 7.4 on page 101 for more details.
7.3 General Wireless LAN Screen
If you are configuring the ZyXEL Device from a computer connected to the
wireless LAN and you change the ZyXEL Device s SSID, channel or security
settings, you will lose your wireless connection when you press Apply to
confirm. You must then change the wireless settings of your computer to
match the ZyXEL Device s new settings.
Click Network > Wireless LAN to open the General screen.
Figure 51 Network > Wireless LAN > General
Chapter 7Wireless LAN
MAX-200HW2 User s Guide 95
The following table describes the general wireless LAN labels in this screen.
See the rest of this chapter for information on the other labels in this screen.
7.3.1 No Security
Select No Security to allow wireless stations to communicate with the access points without
any data encryption.
If you do not enable any wireless security on your ZyXEL Device, your network
is accessible to any wireless networking device that is within range.

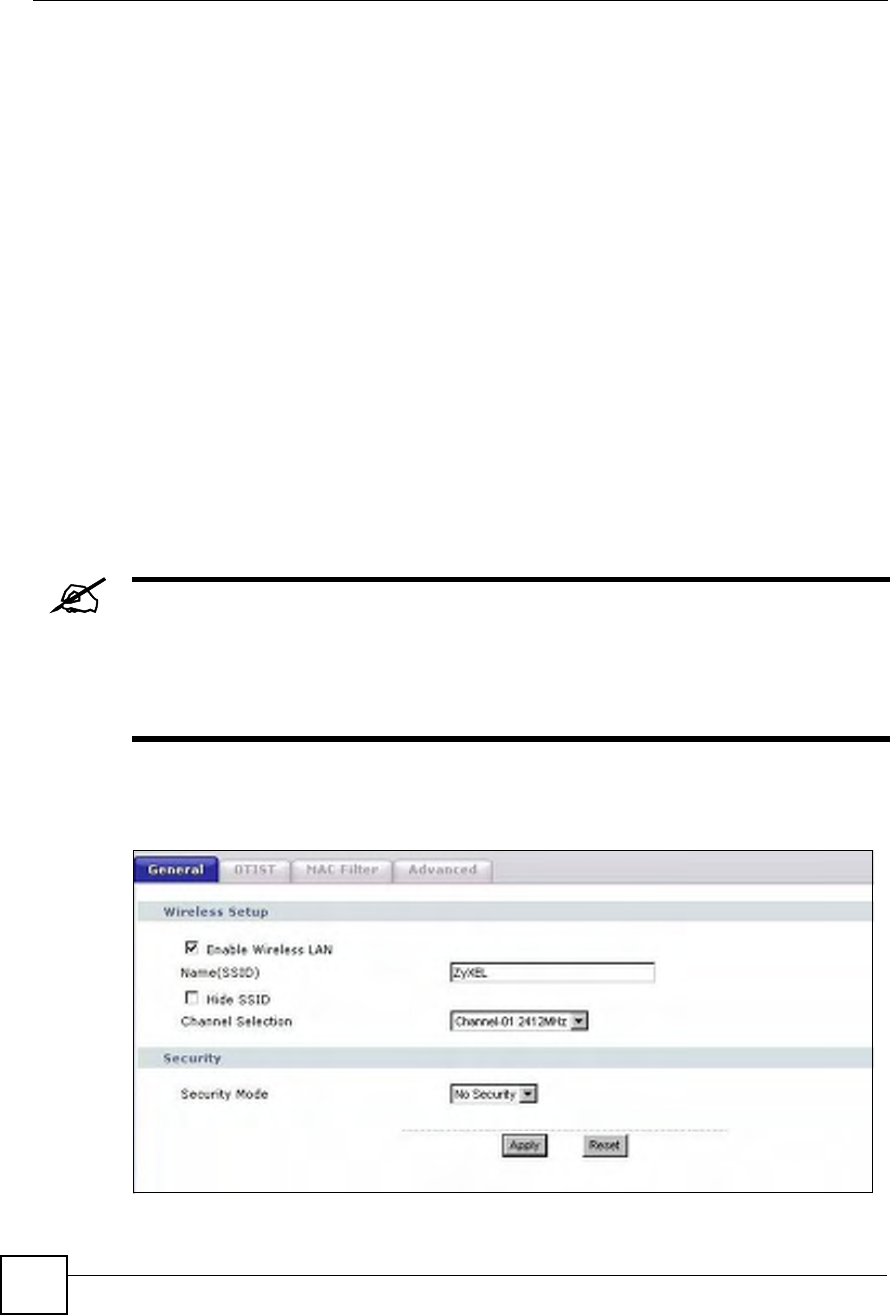

Figure 52 Network > Wireless LAN > General: No Security
Table 24 Network > Wireless LAN > General
LABEL DESCRIPTION
Enable
Wireless LAN
Click the check box to activate wireless LAN.
Name(SSID) (Service Set IDentity) The SSID identifies the Service Set with which a wireless
station is associated. Wireless stations associating to the access point (AP) must
have the same SSID. Enter a descriptive name (up to 32 printable 7-bit ASCII
characters) for the wireless LAN.
Hide SSID Select this check box to hide the SSID in the outgoing beacon frame so a station
cannot obtain the SSID through scanning using a site survey tool.
Channel
Selection
Set the operating frequency/channel depending on your particular region.
Select a channel from the drop-down list box. The options vary depending on
whether you are using A or B/G frequency band and the country you are in.
Refer to the Connection Wizard chapter for more information on channels.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
96
The following table describes the labels in this screen.
7.3.2 WEP Encryption
WEP encryption scrambles the data transmitted between the wireless stations and the access
points to keep network communications private. It encrypts unicast and multicast
communications in a network. Both the wireless stations and the access points must use the
same WEP key.
Your ZyXEL Device allows you to configure up to four 64-bit or 128-bit WEP keys but only
one key can be enabled at any one time.
In order to configure and enable WEP encryption; click Network > Wireless LAN to display
the General screen. Select Static WEP from the Security Mode list.
Figure 53 Network > Wireless LAN > General: Static WEP
Table 25 Wireless No Security
LABEL DESCRIPTION
Security Mode Choose No Security from the drop-down list box.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide 97
The following table describes the wireless LAN security labels in this screen.
7.3.3 WPA-PSK/WPA2-PSK
Click Network > Wireless LAN to display the General screen. Select WPA-PSK or WPA2-
PSK from the Security Mode list.
Table 26 Network > Wireless LAN > General: Static WEP
LABEL DESCRIPTION
Passphrase Enter a passphrase (password phrase) of up to 32 printable characters and click
Generate. The ZyXEL Device automatically generates four different WEP keys and
displays them in the Key fields below.
WEP
Encryption
Select 64-bit WEP or 128-bit WEP to enable data encryption.
Authentication
Method
This field is activated when you select 64-bit WEP or 128-bit WEP in the WEP
Encryption field.
Select Auto,Open System or Shared Key from the drop-down list box.
ASCII Select this option in order to enter ASCII characters as WEP key.
Hex Select this option in order to enter hexadecimal characters as a WEP key.
The preceding "0x", that identifies a hexadecimal key, is entered automatically.
Key 1 to Key 4 The WEP keys are used to encrypt data. Both the ZyXEL Device and the wireless
stations must use the same WEP key for data transmission.
If you chose 64-bit WEP, then enter any 5 ASCII characters or 10 hexadecimal
characters ("0-9", "A-F").
If you chose 128-bit WEP, then enter 13 ASCII characters or 26 hexadecimal
characters ("0-9", "A-F").
You must configure at least one key, only one key can be activated at any one time.
The default key is key 1.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
98
Figure 54 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK
The following table describes the labels in this screen.
Table 27 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the
Security Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the ZyXEL Device even when the ZyXEL Device is using
WPA2-PSK or WPA2.
Pre-Shared Key The encryption mechanisms used for WPA/WPA2 and WPA-PSK/WPA2-PSK are
the same. The only difference between the two is that WPA-PSK/WPA2-PSK uses
a simple common password, instead of user-specific credentials.
Type a pre-shared key from 8 to 63 case-sensitive ASCII characters (including
spaces and symbols).
ReAuthentication
Timer (in
seconds)
Specify how often wireless stations have to resend usernames and passwords in
order to stay connected. Enter a time interval between 10 and 9999 seconds. The
default time interval is 1800 seconds (30 minutes).
Note: If wireless station authentication is done using a RADIUS
server, the reauthentication timer on the RADIUS server has
priority.
Idle Timeout The ZyXEL Device automatically disconnects a wireless station from the wired
network after a period of inactivity. The wireless station needs to enter the
username and password again before access to the wired network is allowed. The
default time interval is 3600 seconds (or 1 hour).
Group Key
Update Timer
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUSserver (if using WPA/WPA2 key
management) sends a new group key out to all clients. The re-keying process is
the WPA/WPA2 equivalent of automatically changing the WEP key for an AP and
all stations in a WLAN on a periodic basis. Setting of the Group Key Update
Timer is also supported in WPA-PSK/WPA2-PSK mode. The default is 1800
seconds (30 minutes).
Chapter 7Wireless LAN
MAX-200HW2 User s Guide 99
7.3.4 WPA/WPA2
Click Network > Wireless LAN to display the General screen. Select WPA or WPA2 from
the Security Mode list.
Figure 55 Network > Wireless LAN > General: WPA/WPA2
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Table 27 Network > Wireless LAN > General: WPA-PSK/WPA2-PSK
LABEL DESCRIPTION
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
100
The following table describes the labels in this screen.
Table 28 Network > Wireless LAN > General: WPA/WPA2
LABEL DESCRIPTION
WPA Compatible This check box is available only when you select WPA2-PSK or WPA2 in the
Security Mode field.
Select the check box to have both WPA2 and WPA wireless clients be able to
communicate with the ZyXEL Device even when the ZyXEL Device is using
WPA2-PSK or WPA2.
ReAuthentication
Timer (in seconds)
Specify how often wireless stations have to resend usernames and passwords in
order to stay connected. Enter a time interval between 10 and 9999 seconds.
The default time interval is 1800 seconds (30 minutes).
Note: If wireless station authentication is done using a RADIUS
server, the reauthentication timer on the RADIUS server
has priority.
Idle Timeout The ZyXEL Device automatically disconnects a wireless station from the wired
network after a period of inactivity. The wireless station needs to enter the
username and password again before access to the wired network is allowed.
The default time interval is 3600 seconds (or 1 hour).
Group Key Update
Timer
The Group Key Update Timer is the rate at which the AP (if using WPA-PSK/
WPA2-PSK key management) or RADIUSserver (if using WPA/WPA2 key
management) sends a new group key out to all clients. The re-keying process is
the WPA/WPA2 equivalent of automatically changing the WEP key for an AP and
all stations in a WLAN on a periodic basis. Setting of the Group Key Update
Timer is also supported in WPA-PSK/WPA2-PSK mode. The ZyXEL Device
default is 1800 seconds (30 minutes).
Authentication Server
IP Address Enter the IP address of the external authentication server in dotted decimal
notation.
Port Number Enter the port number of the external authentication server. The default port
number is 1812.
You need not change this value unless your network administrator instructs you
to do so with additional information.
Shared Secret Enter a password (up to 31 alphanumeric characters) as the key to be shared
between the external authentication server and the ZyXEL Device.
The key must be the same on the external authentication server and your ZyXEL
Device. The key is not sent over the network.
Accounting Server
Active Select the checkbox to enable user accounting through an external
authentication server.
IP Address Enter the IP address of the external accounting server in dotted decimal notation.
Port Number Enter the port number of the external accounting server. The default port number
is 1813.
You need not change this value unless your network administrator instructs you
to do so with additional information.
Shared Secret Enter a password (up to 31 alphanumeric characters) as the key to be shared
between the external accounting server and the ZyXEL Device.
The key must be the same on the external accounting server and your ZyXEL
Device. The key is not sent over the network.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide 101
7.4 OTIST
In a wireless network, the wireless clients must have the same SSID and security settings as
the access point (AP) or wireless router (we will refer to both as "AP# here) in order to
associate with it. Traditionally this meant that you had to configure the settings on the AP and
then manually configure the exact same settings on each wireless client.
OTIST (One-Touch Intelligent Security Technology) allows you to transfer your AP!s SSID
and WPA-PSK security settings to wireless clients that support OTIST and are within
transmission range. You can also choose to have OTIST generate a WPA-PSK key for you if
you didn!t configure one manually.
OTIST replaces the pre-configured wireless settings on the wireless clients.
7.4.1 Enabling OTIST
You must enable OTIST on both the AP and wireless client before you start transferring
settings.
The AP and wireless client(s) MUST use the same Setupkey.
Click the Network > Wireless LAN >OTIST. The following screen displays.
Figure 56 Network > Wireless LAN > OTIST
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
102
The following table describes the labels in this screen.
7.4.1.1 Wireless Client
Start the ZyXEL utility and click the Adapter tab. Select the OTIST check box, enter the
same Setup Key as your AP!s and click Save.
Figure 57 Example Wireless Client OTIST Screen
Table 29 Network > Wireless LAN > OTIST
LABEL DESCRIPTION
Setup KeyType an OTIST Setup Key of exactly eight ASCII characters in length.
The default OTIST setup key is "01234567".
Note: If you change the OTIST setup key here, you must also make
the same change on the wireless client(s).
Yes! If you want OTIST to automatically generate a WPA-PSK, you must:
#Change your security to any security other than WPA-PSK in the Wireless LAN >
General screen.
#Select the Yes! checkbox in the OTIST screen and click Start.
#The wireless screen displays an auto generated WPA-PSK and is now in WPA-
PSK security mode.
The WPA-PSK security settings are assigned to the wireless client when you start
OTIST.
Note: If you already have a WPA-PSK configured in the Wireless LAN
> General screen, and you run OTIST with Yes! selected,
OTIST will use the existing WPA-PSK.
Start Click Start to encrypt the wireless security data using the setup key and have the
ZyXEL Device set the wireless client to use the same wireless settings as the ZyXEL
Device. You must also activate and start OTIST on the wireless client all within three
minutes.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide 103
7.4.2 Starting OTIST
Note: You must click Start in the AP OTIST web configurator screen and in the
wireless client(s) Adapter screen all within three minutes (at the time of
writing). You can start OTIST in the wireless clients and AP in any order but
they must all be within range and have OTIST enabled.
1In the AP, a web configurator screen pops up showing you the security settings to transfer.
You can use the key in this screen to set up WPA-PSK encryption manually for non-
OTIST devices in the wireless network. After reviewing the settings, click OK.
Figure 58 Security Key
2This screen appears while OTIST settings are being transferred. It closes when the
transfer is complete.
In the wireless client, you see this screen if it can't find an OTIST-enabled AP (with the
same Setup key). Click OK to go back to the ZyXEL utility main screen.
Figure 61 No AP with OTIST Found
If there is more than one OTIST-enabled AP within range, you see a screen asking you to
select one AP to get settings from.
7.4.3 Notes on OTIST
1If you enabled OTIST in the wireless client, you see this screen each time you start the
utility. Click Yes for it to search for an OTIST-enabled AP.
Figure 59 OTIST in Progress (AP) Figure 60 OTIST in Progress (Client)
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
104
Figure 62 Start OTIST?
2If an OTIST-enabled wireless client loses its wireless connection for more than ten
seconds, it will search for an OTIST-enabled AP for up to one minute. (If you manually
have the wireless client search for an OTIST-enabled AP, there is no timeout; click
Cancel in the OTIST progress screen to stop the search.)
3When the wireless client finds an OTIST-enabled AP, you must still click Start in the AP
OTIST web configurator screen for the AP to transfer settings.
4If you change the SSID or the keys on the AP after using OTIST, you need to run OTIST
again or enter them manually in the wireless client(s).
5If you configure OTIST to generate a WPA-PSK key, this key changes each time you run
OTIST. Therefore, if a new wireless client joins your wireless network, you need to run
OTIST on the AP and ALL wireless clients again.
7.5 MAC Filter
The MAC filter screen allows you to configure the ZyXEL Device to give exclusive access to
up to 32 devices (Allow) or exclude up to 32 devices from accessing the ZyXEL Device
(Deny). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC
address is assigned at the factory and consists of six pairs of hexadecimal characters, for
example, 00:A0:C5:00:00:02. You need to know the MAC address of the devices to configure
this screen.
To change your ZyXEL Device!s MAC filter settings, click Network > Wireless LAN >
MAC Filter. The screen appears as shown.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide 105
Figure 63 Network > Wireless LAN > MAC Filter
The following table describes the labels in this menu.
7.6 Wireless LAN Advanced Screen
Click Network > Wireless LAN > Advanced. The screen appears as shown.
Table 30 Network > Wireless LAN > MAC Filter
LABEL DESCRIPTION
Active Select Yes from the drop down list box to enable MAC address filtering.
Filter Action Define the filter action for the list of MAC addresses in the MAC Address table.
Select Deny to block access to the ZyXEL Device, MAC addresses not listed will be
allowed to access the ZyXEL Device.
Select Allow to permit access to the ZyXEL Device, MAC addresses not listed will be
denied access to the ZyXEL Device.
Set This is the index number of the MAC address.
MAC
Address
Enter the MAC addresses of the wireless station that are allowed or denied access to
the ZyXEL Device in these address fields. Enter the MAC addresses in a valid MAC
address format, that is, six hexadecimal character pairs, for example,
12:34:56:78:9a:bc.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
Chapter 7Wireless LAN
MAX-200HW2 User s Guide
106
Figure 64 Network > Wireless LAN > Advanced
The following table describes the labels in this screen.
Table 31 Network > Wireless LAN > Advanced
LABEL DESCRIPTION
Wireless Advanced Setup
RTS/CTS
Threshold
Data with its frame size larger than this value will perform the RTS (Request To
Send)/CTS (Clear To Send) handshake.
If the RTS/CTS value is greater than the Fragmentation Threshold value, then the
RTS/CTS handshake will never occur as data frames will be fragmented before they
reach RTS/CTS size.
Enter a value between 0 and 2432.
Fragmentation
Threshold
It is the maximum data fragment size that can be sent. Enter a value between 256
and 2432.
802.11 Mode Select 802.11b to allow only IEEE 802.11b compliant WLAN devices to associate
with the ZyXEL Device.
Select 802.11g to allow only IEEE 802.11g compliant WLAN devices to associate
with the ZyXEL Device.
Select 802.11b/g to allow either IEEE802.11b or IEEE802.11g compliant WLAN
devices to associate with the ZyXEL Device. The transmission rate of your ZyXEL
Device might be reduced.
Apply Click Apply to save your changes back to the ZyXEL Device.
Reset Click Reset to reload the previous configuration for this screen.
MAX-200HW2 Series User s Guide 107
CHAPTER 8
WAN Setup
This chapter describes how to configure WAN settings.
8.1 WAN Overview
A WAN (Wide Area Network) is an outside connection to another network or the Internet.
Your ZyXEL Device uses the IEEE 802.16e WiMAX standard to connect wirelessly to a
WiMAX base station (see Section 1.1 on page 33).
8.2 WiMAX
WiMAX (Worldwide Interoperability for Microwave Access) is the IEEE 802.16 wireless
networking standard, which provides high-bandwidth, wide-range wireless service across
wireless Metropolitan Area Networks (MANs). ZyXEL is a member of the WiMAX Forum,
the industry group dedicated to promoting and certifying interoperability of wireless
broadband products.
In a wireless MAN, a wireless-equipped computer is known either as a mobile station (MS) or
a subscriber station (SS). Mobile stations use the IEEE 802.16e standard and are able to
maintain connectivity while switching their connection from one base station to another base
station (handover) while subscriber stations use other standards that do not have this capability
(IEEE 802.16-2004, for example). The following figure shows an MS-equipped notebook
computer MS1 moving from base station BS1!s coverage area and connecting to BS2.
Figure 65 WiMax: Mobile Station
WiMAX technology uses radio signals (around 2 to 10 GHz) to connect subscriber stations
and mobile stations to local base stations. Numerous subscriber stations and mobile stations
connect to the network through a single base station (BS), as in the following figure.
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide
108
Figure 66 WiMAX: Multiple Mobile Stations
A base station's coverage area can extend over many hundreds of meters, even under poor
conditions. A base station provides network access to subscriber stations and mobile stations,
and communicates with other base stations.
The radio frequency and bandwidth of the link between the ZyXEL Device and the base
station are controlled by the base station. The ZyXEL Device follows the base station!s
configuration.
8.2.1 Authentication
When authenticating a user, the base station uses a third-party RADIUS or Diameter server
known as an AAA (Authentication, Authorization and Accounting) server to authenticate the
mobile or subscriber stations.
The following figure shows a base station using an AAA server to authenticate mobile station
MS, allowing it to access the Internet.
Figure 67 Using an AAA Server
In this figure, the dashed arrow shows the PKM (Privacy Key Management) secured
connection between the mobile station and the base station, and the solid arrow shows the EAP
secured connection between the mobile station, the base station and the AAA server. See the
WiMAX security appendix for more details.
8.3 Internet Access Setup
To change your ZyXEL Device!s Internet access settings, click Network > WAN. The
Internet Connection screen displays.
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide 109
Not all ZyXEL Device models have all the fields shown here.
Figure 68 Network > WAN > Internet Connection
The following table describes the labels in this screen.
Table 32 Network > WAN > Internet Connection
LABEL DESCRIPTION
ISP Parameters for Internet
Access
UserUse this field to enter the username associated with your Internet
access account. You can enter up to 61 printable ASCII characters.
PasswordUse this field to enter the password associated with your Internet
access account. You can enter up to 47 printable ASCII characters.
Anonymous IdentityEnter the anonymous identity provided by your Internet Service
Provider. Anonymous identity (also known as outer identity) is used
with EAP-TTLS encryption. The anonymous identity is used to route
your authentication request to the correct authentication server, and
does not reveal your real user name. Your real user name and
password are encrypted in the TLS tunnel, and only the anonymous
identity can be seen.
Leave this field blank if your ISP did not give you an anonymous
identity to use.
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide
110
PKMThis field displays the Privacy Key Management version number.
PKM provides security between the ZyXEL Device and the base
station. At the time of writing, the ZyXEL Device supports PKMv2
only. See the WiMAX security appendix for more information.
AuthenticationThis field displays the user authentication method. Authentication is
the process of confirming the identity of a mobile station (by means of
a username and password, for example).
Check with your service provider if you are unsure of the correct
setting for your account.
Choose from the following user authentication methods:
#TTLS (Tunnelled Transport Layer Security)
#TLS (Transport Layer Security)
Note: Not all ZyXEL Devices support TLS authentication.
Check with your service provider for details.
TTLS Inner EAPThis field displays the type of secondary authentication method. Once
a secure EAP-TTLS connection is established, the inner EAP is the
protocol used to exchange security information between the mobile
station, the base station and the AAA server to authenticate the
mobile station. See the WiMAX security appendix for more details.
This field is available only when TTLS is selected in the
Authentication field.
The ZyXEL Device supports the following inner authentication types:
#CHAP (Challenge Handshake Authentication Protocol)
#MSCHAP (Microsoft CHAP)
#MSCHAPV2 (Microsoft CHAP version 2)
#PAP (Password Authentication Protocol)
Auth ModeSelect the authentication mode from the drop-down list box.
This field is not available in all ZyXEL Devices. Check with your
service provider for details.
The ZyXEL Device supports the following authentication modes:
#User Only
#Device Only with Cert
#Certs and User Authentication
CertificateThis is the security certificate the ZyXEL Device uses to authenticate
the AAA server. Use the Security > Certificates > Trusted CA
screen to import certificates to the ZyXEL Device.
WAN IP Address Assignment
Get automatically from ISP
(Default)
Select this if you have a dynamic IP address. A dynamic IP address is
not fixed; the ISP assigns you a different one each time you connect
to the Internet.
Use Fixed IP AddressA static IP address is a fixed IP that your ISP gives you. Type your
ISP assigned IP address in the IP Address field below.
IP Subnet MaskEnter a subnet mask in dotted decimal notation.
Refer to the appendicesto calculate a subnet mask If you are
implementing subnetting.
Gateway IP AddressSpecify a gateway IP address (supplied by your ISP).
ApplyClick this button to save your settings.
ResetClick this button to return all the fields in this screen to their default
values.
Table 32 Network > WAN > Internet Connection
LABEL DESCRIPTION
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide 111
8.4 Frequency Settings
In a WiMAX network, a mobile or subscriber station must use a radio frequency supported by
the base station to communicate. When the ZyXEL Device looks for a connection to a base
station, it can search a range of frequencies.
Radio frequency is measured in Hertz (Hz).
8.4.1 Frequency Ranges
The following figure shows the ZyXEL Device searching a range of frequencies to find a
connection to a base station.

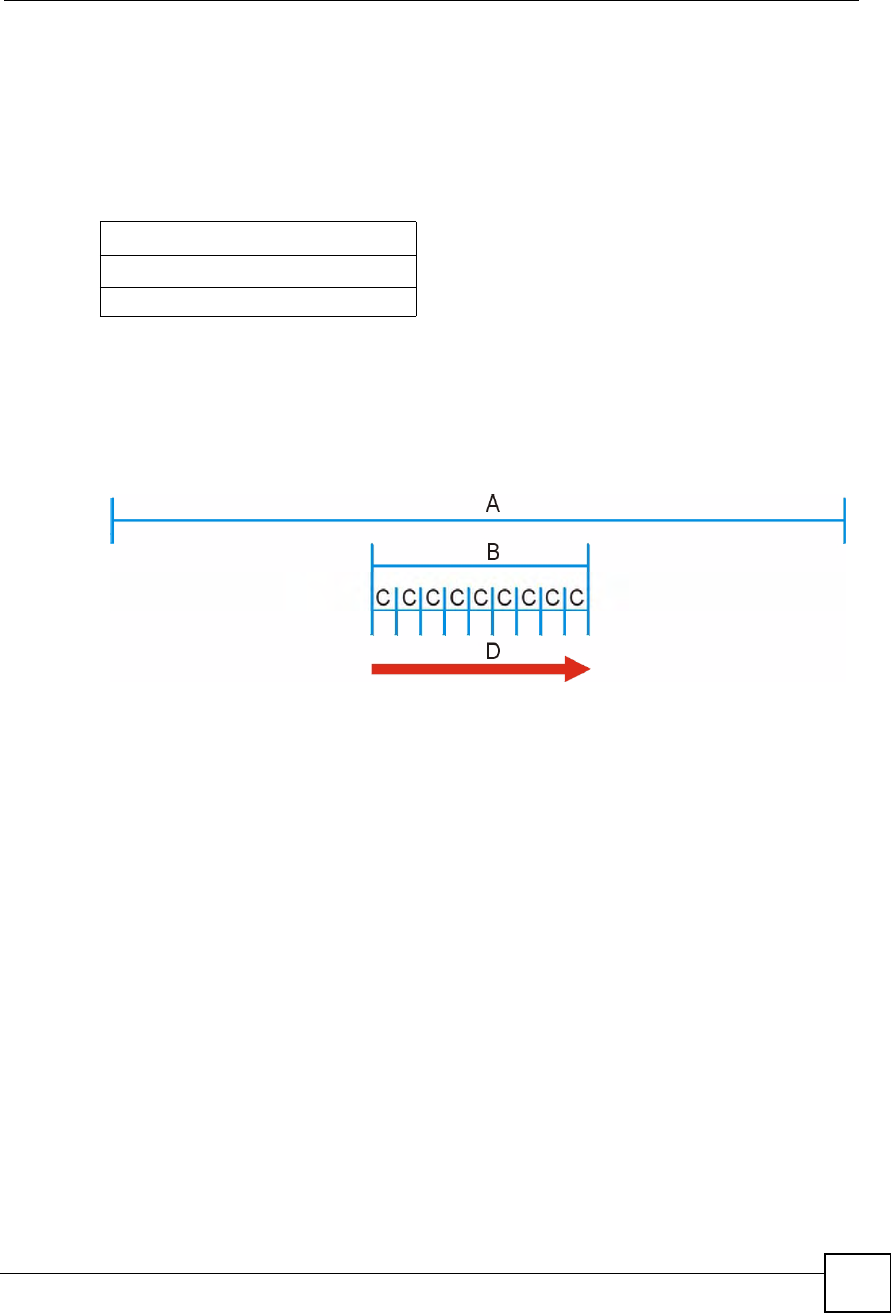

Figure 69 Frequency Ranges
In this figure, A is the WiMAX frequency range. "WiMAX frequency range# refers to the
entire range of frequencies the ZyXEL Device is capable of using to transmit and receive (see
the Product Specifications appendix for details).
In the figure, B shows the operator frequency range. This is the range of frequencies within the
WiMAX frequency range supported by your operator (service provider).
The operator range is subdivided into bandwidth steps. In the figure, each C is a bandwidth
step.
The arrow D shows the ZyXEL Device searching for a connection.
Have the ZyXEL Device search only certain frequencies by configuring the downlink
frequencies. Your operator can give you information on the supported frequencies.
The downlink frequencies are points of the frequency range your ZyXEL Device searches for
an available connection. Use the Site Survey screen to set these bands. You can set the
downlink frequencies anywhere within the WiMAX frequency range. In this example, the
downlink frequencies have been set to search all of the operator range for a connection.
8.4.2 Configuring Frequency Settings
You need to set the ZyXEL Device to scan one or more specific radio frequencies to find an
available connection to a WiMAX base station.
Table 33 Radio Frequency Conversion
1 kHz = 1000 Hz
1 MHz = 1000 kHz (1000000 Hz)
1 GHz = 1000 MHz (1000000 kHz)
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide
112
Use the WiMAX Frequency screen to define the radio frequencies to be searched for
available wireless connections. See Section 8.4.2.1 on page 113 for an example of using the
WiMAX Frequency screen.
It may take several minutes for the ZyXEL Device to find a connection.
The ZyXEL Device searches the DL Frequency settings in ascending numerical order,
from [0] to [9].
If you enter a 0 in a DL Frequency field, the ZyXEL Device immediately moves on to the
next DL Frequency field.
When the ZyXEL Device connects to a base station, the values in this screen are
automatically set to the base station!s frequency. The next time the ZyXEL Device
searches for a connection, it searches only this frequency. If you want the ZyXEL Device
to search other frequencies, enter them in the DL Frequency fields.
The following table describes some examples of DL Frequency settings.
Click Network > WAN > WiMAX Frequency to display the screen shown next.
Table 34 DL Frequency Example Settings
EXAMPLE 1 EXAMPLE 2
DL Frequency
[0]:
25000002500000
DL Frequency
[1]:
25500002550000
DL Frequency [2] 02600000
DL Frequency
[3]:
00
DL Frequency
[4]:
00
The ZyXEL Device
searches at 2500000
kHz, and then searches
at 2550000 kHz if it has
not found a connection.
The ZyXEL Device
searches at 2500000 kHz
and then at 2550000 kHz
if it has not found an
available connection. If it
still does not find an
available connection, it
searches at 2600000
kHz.
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide 113
Figure 70 Network > WAN >WiMAX Frequency
The following table describes the labels in this screen.
8.4.2.1 Using the WiMAX Frequency Screen: Example
In this example, your Internet service provider has given you a list of supported frequencies, as
follows.
Use the WiMAX Frequency screen to enter the frequencies you want the ZyXEL Device to
scan for a connection to a base station.
1In the DL Frequency [0] field, enter 2500000 (2500000 kilohertz (kHz) is equal to 2.5
gigahertz).
2In the DL Frequency [1] field, enter 2525000.
3In the DL Frequency [2] field, enter 2600000.
4In the DL Frequency [3] field, enter 2625000.
Leave the rest of the DL Frequency fields at zero. The screen appears as follows.
Table 35 Network > WAN > WiMAX Frequency
LABEL DESCRIPTION
DL Frequency
[0] ~ [9]
These fields show the downlink frequency settings in kilohertz (kHz). Enter
values in these fields to have the ZyXEL Device scan these frequencies for
available channels in ascending numerical order.
Contact your service provider for details of supported frequencies.
ApplyClick this button to save your settings.
ResetClick this button to return all the fields in this screen to their default values.
Table 36 Example Supported Frequencies (GHz)
2.5
2.525
2.6
2.625
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide
114
Figure 71 Completing the WiMAX Frequency Screen
5Click Apply. The ZyXEL Device stores your settings.
When the ZyXEL Device searches for available frequencies, it scans all frequencies
from DL Frequency [0] to DL Frequency [3]. When it finds an available connection,
the fields in this screen will be automatically set to use that frequency.
8.5 Configuring Advanced WAN Settings
Click Network > WAN > Advanced to display the following screen.
Figure 72 Network > WAN > Advanced
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide 115
The following table describes the labels in this screen.
8.6 Configuring Traffic Redirect Settings
To change your ZyXEL Device!s traffic redirect settings, click Network > WAN > Traffic
Redirect. The screen appears as shown.
Table 37 Network > WAN > Advanced
LABEL DESCRIPTION
DNS Servers
First, Second and
Third DNS Server
Select Obtainedfrom ISP if your ISP dynamically assigns DNS server
information (and the ZyXEL Device's WAN IP address). Use the drop-down
list box to select a DNS server IP address that the ISP assigns in the field to
the right.
Select UserDefined if you have the IP address of a DNS server. Enter the
DNS server's IP address in the field to the right. If you chose UserDefined,
but leave the IP address set to 0.0.0.0, UserDefined changes to None after
you click Apply. If you set a second choice to UserDefined, and enter the
same IP address, the second UserDefined changes to None after you click
Apply.
Select None if you do not want to configure DNS servers. You must have
another DHCP server on your LAN, or else the computers must have their
DNS server addresses manually configured. If you do not configure a DNS
server, you must know the IP address of a computer in order to access it.
RIP & Multicast Setup
RIP DirectionSelect the RIP direction from None,Both,In Only and Out Only.
RIP VersionSelect the RIP version from RIP-1,RIP-2B and RIP-2M.
MulticastIGMP (Internet Group Multicast Protocol) is a network-layer protocol used to
establish membership in a multicast group. The ZyXEL Device supports both
IGMP version 1 (IGMP-v1) and IGMP-v2. Select None to disable it.
Windows Networking
(NetBIOS over TCP/IP)
NetBIOS (Network Basic Input/Output System) are TCP or UDP packets that
enable a computer to connect to and communicate with a LAN. For some
dial-up services such as PPPoE or PPTP, NetBIOS packets cause unwanted
calls. However it may sometimes be necessary to allow NetBIOS packets to
pass through to the WAN in order to find a computer on the WAN.
Allow between LAN
and WAN
Select this check box to forward NetBIOS packets from the LAN to the WAN
and from the WAN to the LAN. If your firewall is enabled with the default
policy set to block WAN to LAN traffic, you also need to enable the default
WAN to LAN firewall rule that forwards NetBIOS traffic.
Clear this check box to block all NetBIOS packets going from the LAN to the
WAN and from the WAN to the LAN.
Allow Trigger DialSelect this option to allow NetBIOS packets to initiate calls.
ApplyClick this button to save your settings.
ResetClick this button to return all the fields in this screen to their default values.
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide
116
Figure 73 Network > WAN > Traffic Redirect
The following table describes the labels in this screen.
Table 38 Network > WAN > Traffic Redirect
LABEL DESCRIPTION
Traffic Redirect
ActiveSelect this check box to have the ZyXEL Device use traffic redirect if the normal
WAN connection goes down.
Note: If you activate traffic redirect, you must configure the Check
WAN IP Address field.
Backup Gateway
IP Address
Type the IP address of your backup gateway in dotted decimal notation. The
ZyXEL Device automatically forwards traffic to this IP address if the ZyXEL
Device's Internet connection terminates.
Check WAN IP
Address
Configure this field to test your ZyXEL Device's WAN accessibility. Type the IP
address of a reliable nearby computer (for example, your ISP's DNS server
address).
Note: If you activate either traffic redirect or dial backup, you must
configure an IP address here.
When using a WAN backup connection, the ZyXEL Device periodically pings the
addresses configured here and uses the other WAN backup connection (if
configured) if there is no response.
Fail ToleranceType the number of times (2 recommended) that your ZyXEL Device may ping the
IP addresses configured in the Check WAN IP Address field without getting a
response before switching to a WAN backup connection (or a different WAN
backup connection).
Period (sec)The ZyXEL Device tests a WAN connection by periodically sending a ping to either
the default gateway or the address in the Check WAN IP Address field.
Type a number of seconds (5 to 300) to set the time interval between checks.
Allow more time if your destination IP address handles lots of traffic.
Timeout (sec)Type the number of seconds (1 to 10) for your ZyXEL Device to wait for a
response to the ping before considering the check to have failed. This setting must
be less than the Period. Use a higher value in this field if your network is busy or
congested.
ApplyClick this button to save your settings.
ResetClick this button to return all the fields in this screen to their default values.
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide 117
8.6.1 Configuring The Antenna
In this screen you can select whether to use the internal or external antenna for WiMAX.
Select Automatic Selection to have the ZyXEL Device use whichever antenna has the best
signal reception (recommended). Alternatively, if you do not want to use the external antenna,
select Use Internal Antenna, and if you do not want to use the internal antenna, select Use
External Antenna.
The MAX-200HW2 and MAX-230HW2 does not have an internal antenna.
To choose which antenna to use, click Network > WAN > Antenna Selection. The screen
appears as shown.
Figure 74 Network > WAN > Antenna Selection
The following table describes the labels in this screen.
Table 39 Network > WAN > Antenna Selection
LABEL DESCRIPTION
Automatic SelectionSelect Automatic Selection to have the ZyXEL Device choose which
antenna to use. This setting is recommend as it will choose the
antenna with the stronger signal reception.
Use Internal AntennaSelect Use Internal Antenna to have the ZyXEL Device use it s
internal antenna. This option is not applicable for the MAX-200HW2
and MAX-230HW2.
Use External AntennaSelect Use External Antenna to have the ZyXEL Device use it s
external antenna.
ApplyClick this button to save your settings.
ResetClick this button to return the fields in this screen to their default
settings.
Chapter 8WAN Setup
MAX-200HW2 Series User s Guide
118
MAX-200HW2 Series User s Guide 119
CHAPTER 9
LAN
Use these screens to set up the ZyXEL Device on the LAN. You can configure its IP address
and subnet mask, DHCP services, and other subnets. You can also control how the ZyXEL
Device sends routing information using RIP.
9.1 LAN Overview
A Local Area Network (LAN) is a shared communication system to which many computers
are attached. A LAN is usually a computer network limited to the immediate area, such as the
same building or floor of a building.
9.1.1 IP Address and Subnet Mask
Similar to the way houses on a street share a common street name, computers on a LAN share
one common network number.
Where you obtain your network number depends on your particular situation. If the ISP or
your network administrator assigns you a block of registered IP addresses, follow their
instructions in selecting the IP addresses and the subnet mask.
If the ISP did not explicitly give you an IP network number, then most likely you have a single
user account and the ISP will assign you a dynamic IP address when the connection is
established. If this is the case, it is recommended that you select a network number from
192.168.0.0 to 192.168.255.0 and you must enable the Network Address Translation (NAT)
feature of the ZyXEL Device. The Internet Assigned Number Authority (IANA) reserved this
block of addresses specifically for private use; please do not use any other number unless you
are told otherwise. Let's say you select 192.168.1.0 as the network number; which covers 254
individual addresses, from 192.168.1.1 to 192.168.1.254 (zero and 255 are reserved). In other
words, the first three numbers specify the network number while the last number identifies an
individual computer on that network.
Once you have decided on the network number, pick an IP address that is easy to remember,
for instance, 192.168.1.1, for your ZyXEL Device, but make sure that no other device on your
network is using that IP address.
The subnet mask specifies the network number portion of an IP address. Your ZyXEL Device
will compute the subnet mask automatically based on the IP address that you entered. You
don't need to change the subnet mask computed by the ZyXEL Device unless you are
instructed to do otherwise.
Chapter 9LAN
MAX-200HW2 Series User s Guide
120
9.1.2 DHCP Setup
DHCP (Dynamic Host Configuration Protocol, RFC 2131 and RFC 2132) allows individual
clients to obtain TCP/IP configuration at start-up from a server. You can configure the ZyXEL
Device as a DHCP server or disable it. When configured as a server, the ZyXEL Device
provides the TCP/IP configuration for the clients. If DHCP service is disabled, you must have
another DHCP server on your LAN, or else each computer must be manually configured.
The ZyXEL Device is pre-configured with a pool of IP addresses for the DHCP clients (DHCP
Pool). See the product specifications in the appendices. Do not assign static IP addresses from
the DHCP pool to your LAN computers.
These parameters should work for the majority of installations. If your ISP gives you explicit
DNS server address(es), see Section 9.2.2 on page 122.
9.1.3 LAN TCP/IP
The ZyXEL Device has built-in DHCP server capability that assigns IP addresses and DNS
servers to systems that support DHCP client capability.
The LAN parameters of the ZyXEL Device are preset in the factory with the following values:
IP address of 192.168.1.1 with subnet mask of 255.255.255.0 (24 bits)
DHCP server enabled with 32 client IP addresses starting from 192.168.1.33.
These parameters should work for the majority of installations. If your ISP gives you explicit
DNS server address(es), see Section 9.2.2 on page 122.
9.1.4 DNS Server Address
DNS (Domain Name System) is for mapping a domain name to its corresponding IP address
and vice versa. The DNS server is extremely important because without it, you must know the
IP address of a machine before you can access it. The DNS server addresses that you enter in
the DHCP setup are passed to the client machines along with the assigned IP address and
subnet mask.
There are two ways that an ISP disseminates the DNS server addresses. The first is for an ISP
to tell a customer the DNS server addresses, usually in the form of an information sheet, when
s/he signs up. If your ISP gives you the DNS server addresses, enter them in the DNS Server
fields in DHCP Setup, otherwise, leave them blank.
Some ISPs choose to pass the DNS servers using the DNS server extensions of PPP IPCP (IP
Control Protocol) after the connection is up. If your ISP did not give you explicit DNS servers,
chances are the DNS servers are conveyed through IPCP negotiation. The ZyXEL Device
supports the IPCP DNS server extensions through the DNS proxy feature.
If the Primary and Secondary DNS Server fields in the LAN Setup screen are notspecified,
for instance, left as 0.0.0.0, the ZyXEL Device tells the DHCP clients that it itself is the DNS
server. When a computer sends a DNS query to the ZyXEL Device, the ZyXEL Device
forwards the query to the real DNS server learned through IPCP and relays the response back
to the computer.
Chapter 9LAN
MAX-200HW2 Series User s Guide 121
Please note that DNS proxy works only when the ISP uses the IPCP DNS server extensions. It
does not mean you can leave the DNS servers out of the DHCP setup under all circumstances.
If your ISP gives you explicit DNS servers, make sure that you enter their IP addresses in the
LAN Setup screen. This way, the ZyXEL Device can pass the DNS servers to the computers
and the computers can query the DNS server directly without the ZyXEL Device!s
intervention.
9.1.5 RIP Setup
RIP (Routing Information Protocol) allows a router to exchange routing information with
other routers. The RIP Direction field controls the sending and receiving of RIP packets.
When set to:
Both - the ZyXEL Device will broadcast its routing table periodically and incorporate the
RIP information that it receives.
In Only - the ZyXEL Device will not send any RIP packets but will accept all RIP packets
received.
Out Only - the ZyXEL Device will send out RIP packets but will not accept any RIP
packets received.
None - the ZyXEL Device will not send any RIP packets and will ignore any RIP packets
received.
The Version field controls the format and the broadcasting method of the RIP packets that the
ZyXEL Device sends (it recognizes both formats when receiving). RIP-1 is universally
supported; but RIP-2 carries more information. RIP-1 is probably adequate for most networks,
unless you have an unusual network topology.
Both RIP-2B and RIP-2M sends the routing data in RIP-2 format; the difference being that
RIP-2B uses subnet broadcasting while RIP-2M uses multicasting.
9.1.6 Multicast
Traditionally, IP packets are transmitted in one of either two ways - Unicast (1 sender - 1
recipient) or Broadcast (1 sender - everybody on the network). Multicast delivers IP packets to
a group of hosts on the network - not everybody and not just 1.
IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish
membership in a Multicast group - it is not used to carry user data. IGMP version 2 (RFC
2236) is an improvement over version 1 (RFC 1112) but IGMP version 1 is still in wide use. If
you would like to read more detailed information about interoperability between IGMP
version 2 and version 1, please see sections 4 and 5 of RFC 2236. The class D IP address is
used to identify host groups and can be in the range 224.0.0.0 to 239.255.255.255. The address
224.0.0.0 is not assigned to any group and is used by IP multicast computers. The address
224.0.0.1 is used for query messages and is assigned to the permanent group of all IP hosts
(including gateways). All hosts must join the 224.0.0.1 group in order to participate in IGMP.
The address 224.0.0.2 is assigned to the multicast routers group.
Chapter 9LAN
MAX-200HW2 Series User s Guide
122
The ZyXEL Device supports both IGMP version 1 (IGMP-v1) and IGMP version 2 (IGMP-
v2). At start up, the ZyXEL Device queries all directly connected networks to gather group
membership. After that, the ZyXEL Device periodically updates this information. IP
multicasting can be enabled/disabled on the ZyXEL Device LAN and/or WAN interfaces in
the web configurator (LAN; WAN). Select None to disable IP multicasting on these
interfaces.
9.2 LAN Screens
9.2.1 LAN IP Screen
Use this screen to set up the ZyXEL Device!s IP address and subnet mask. To access this
screen, click Network > LAN > IP.
Figure 75 Network > LAN > IP
Each field is described in the following table.
9.2.2 LAN DHCP Setup Screen
Use this screen to enable, disable, and configure the DHCP server in the ZyXEL Device. To
access this screen, click Network > LAN > DHCP Setup.
Table 40 Network > LAN > IP
LABEL DESCRIPTION
IP Address Enter the IP address of the ZyXEL Device on the LAN.
Note: This field is the IP address you use to access the ZyXEL
Device on the LAN. If the web configurator is running on a
computer on the LAN, you lose access to the web
configurator as soon as you change this field and click
Apply. You can access the web configurator again by typing
the new IP address in the browser.
IP Subnet Mask Enter the subnet mask of the LAN.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its default value.
Chapter 9LAN
MAX-200HW2 Series User s Guide 123
Figure 76 Network > LAN > DHCP Setup
Each field is described in the following table.
9.2.3 LAN Static DHCP Screen
This screen has no effect if the DHCP server is not enabled. You can enable it
in Network > LAN > DHCP Setup.
Table 41 Network > LAN > DHCP Setup
LABEL DESCRIPTION
DHCP Setup
Enable DHCP
Server
Select this if you want the ZyXEL Device to be the DHCP server on the LAN. As a
DHCP server, the ZyXEL Device assigns IP addresses to DHCP clients on the
LAN and provides the subnet mask and DNS server information.
IP Pool Starting
Address
Enter the IP address from which the ZyXEL Device begins allocating IP
addresses, if you have not specified an IP address for this computer in Network >
LAN > Static DHCP.
Pool Size Enter the number of IP addresses to allocate. This number must be at least one
and is limited by a subnet mask of 255.255.255.0 (regardless of the subnet the
ZyXEL Device is in). For example, if the IP Pool Start Address is 10.10.10.10, the
ZyXEL Device can allocate up to 10.10.10.254, or 245 IP addresses.
DNS Server
First DNS Server
Second DNS
Server
Third DNS Server
Specify the IP addresses of a maximum of three DNS servers that the network can
use. The ZyXEL Device provides these IP addresses to DHCP clients. You can
specify these IP addresses two ways.
From ISP - provide the DNS servers provided by the ISP on the WAN port.
User Defined - enter a static IP address.
DNS Relay - this setting will relay DNS information from the DNS server obtained
by the ZyXEL Device.
None - no DNS service will be provided by the ZyXEL Device.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its default value.
Chapter 9LAN
MAX-200HW2 Series User s Guide
124
Use this screen to make the ZyXEL Device assign a specific IP address to a specific computer
on the LAN. To access this screen, click Network > LAN > Static DHCP.
Figure 77 Network > LAN > Static DHCP
Each field is described in the following table.
9.2.4 LAN Client List Screen
This screen is empty if the DHCP server is not enabled. You can enable it in
Network > LAN > DHCP Setup.
Use this screen to look at the IP addresses the ZyXEL Device has assigned to DHCP clients on
the LAN. To access this screen, click Network > LAN > Client List.
Table 42 Network > LAN > Static DHCP
LABEL DESCRIPTION
#This field is a sequential value. It is not associated with a specific entry.
MAC Address Enter the MAC address of the computer to which you want the ZyXEL Device to
assign the same IP address.
IP Address Enter the IP address you want the ZyXEL Device to assign to the computer.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its default value.
Chapter 9LAN
MAX-200HW2 Series User s Guide 125
Figure 78 Network > LAN > Client List
Each field is described in the following table.
9.2.5 LAN IP Alias Screen
Use this screen to add subnets on the LAN port. You can also control what routing information
is sent and received by each subnet. To access this screen, click Network > LAN > IP Alias.
Figure 79 Network > LAN > IP Alias
Table 43 Network > LAN > Client List
LABEL DESCRIPTION
#This field is a sequential value. It is not associated with a specific entry.
IP Address This field displays the IP address the ZyXEL Device assigned to the computer.
Host Name This field displays the system name of the computer to which the ZyXEL Device
assigned the IP address.
MAC Address This field displays the MAC address of the computer to which the ZyXEL Device
assigned the IP address.
Reserve Select this if you want to always assign this IP address to this MAC address. Then,
click Apply. The ZyXEL Device creates an entry in the LAN Static DHCP screen.
See Section 9.2.2 on page 122.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Reset Click this to set every field in this screen to its default value.
Chapter 9LAN
MAX-200HW2 Series User s Guide
126
Each field is described in the following table.
9.2.6 LAN Advanced Screen
Use this screen to control what routing information is sent and received by each subnet. To
access this screen, click Network > LAN > Advanced.
Table 44 Network > LAN > IP Alias
LABEL DESCRIPTION
IP Alias 1
IP Alias 1 Select this to add the specified subnet to the LAN port.
IP Address Enter the IP address of the ZyXEL Device on the subnet.
IP Subnet Mask Enter the subnet mask of the subnet.
RIP Direction Use this field to control how much routing information the ZyXEL Device sends
and receives on the subnet.
None - The ZyXEL Device does not send or receive routing information on the
subnet.
Both - The ZyXEL Device sends and receives routing information on the subnet.
In Only - The ZyXEL Device only receives routing information on the subnet.
Out Only - The ZyXEL Device only sends routing information on the subnet.
RIP Version Select which version of RIP the ZyXEL Device uses when it sends or receives
information on the subnet.
RIP-1 - The ZyXEL Device uses RIPv1 to exchange routing information.
RIP-2B - The ZyXEL Device broadcasts RIPv2 to exchange routing information.
RIP-2M - The ZyXEL Device multicasts RIPv2 to exchange routing information.
IP Alias 2
IP Alias 2 Select this to add the specified subnet to the LAN port.
IP Address Enter the IP address of the ZyXEL Device on the subnet.
IP Subnet Mask Enter the subnet mask of the subnet.
RIP Direction Use this field to control how much routing information the ZyXEL Device sends
and receives on the subnet.
None - The ZyXEL Device does not send or receive routing information on the
subnet.
Both - The ZyXEL Device sends and receives routing information on the subnet.
In Only - The ZyXEL Device only receives routing information on the subnet.
Out Only - The ZyXEL Device only sends routing information on the subnet.
RIP Version Select which version of RIP the ZyXEL Device uses when it sends or receives
information on the subnet.
RIP-1 - The ZyXEL Device uses RIPv1 to exchange routing information.
RIP-2B - The ZyXEL Device broadcasts RIPv2 to exchange routing information.
RIP-2M - The ZyXEL Device multicasts RIPv2 to exchange routing information.
Apply Click this to save your changes.
Reset Click this to set every field in this screen to its default value.
Chapter 9LAN
MAX-200HW2 Series User s Guide 127
Figure 80 Network > LAN > Advanced
Each field is described in the following table.
Table 45 Network > LAN > Advanced
LABEL DESCRIPTION
RIP & Multicast
Setup
RIP Direction Use this field to control how much routing information the ZyXEL Device sends
and receives on the subnet.
None - The ZyXEL Device does not send or receive routing information on the
subnet.
Both - The ZyXEL Device sends and receives routing information on the subnet.
In Only - The ZyXEL Device only receives routing information on the subnet.
Out Only - The ZyXEL Device only sends routing information on the subnet.
RIP Version Select which version of RIP the ZyXEL Device uses when it sends or receives
information on the subnet.
RIP-1 - The ZyXEL Device uses RIPv1 to exchange routing information.
RIP-2B - The ZyXEL Device broadcasts RIPv2 to exchange routing information.
RIP-2M - The ZyXEL Device multicasts RIPv2 to exchange routing information.
Multicast You do not have to enable multicasting to use RIP-2M. (See RIP Version.)
Select which version of IGMP the ZyXEL Device uses to support multicasting on
the LAN. Multicasting sends packets to some computers on the LAN and is an
alternative to unicasting (sending packets to one computer) and broadcasting
(sending packets to every computer).
None - The ZyXEL Device does not support multicasting.
IGMP-v1 - The ZyXEL Device supports IGMP version 1.
IGMP-v2 - The ZyXEL Device supports IGMP version 2.
Multicasting can improve overall network performance. However, it requires extra
processing and generates more network traffic. In addition, other computers on
the LAN have to support the same version of IGMP.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Reset Click this to set every field in this screen to its default value.
Chapter 9LAN
MAX-200HW2 Series User s Guide
128
MAX-200HW2 Series User s Guide 129
CHAPTER 10
NAT
Use these screens to configure port forwarding and trigger ports for the ZyXEL Device. You
can also enable and disable SIP, FTP, and H.323 ALG.
10.1 NAT Overview
10.1.1 Port Forwarding: Services and Port Numbers
A NAT server set is a list of inside (behind NAT on the LAN) servers, for example, web or
FTP, that you can make accessible to the outside world even though NAT makes your whole
inside network appear as a single machine to the outside world.
Use the NAT Port Forwarding Screen to forward incoming service requests to the server(s) on
your local network. You may enter a single port number or a range of port numbers to be
forwarded, and the local IP address of the desired server. The port number identifies a service;
for example, web service is on port 80 and FTP on port 21. In some cases, such as for
unknown services or where one server can support more than one service (for example both
FTP and web service), it might be better to specify a range of port numbers.
In addition to the servers for specified services, NAT supports a default server. A service
request that does not have a server explicitly designated for it is forwarded to the default
server. If the default is not defined, the service request is simply discarded.
See Appendix F on page 333 for some examples of services.
For example, let's say you want to assign ports 21-25 to one FTP, Telnet and SMTP server (A
in the example), port 80 to another (B in the example) and assign a default server IP address of
192.168.1.35 to a third (C in the example). You assign the LAN IP addresses and the ISP
assigns the WAN IP address. The NAT network appears as a single host on the Internet.
Figure 81 Multiple Servers Behind NAT Example
Chapter 10NAT
MAX-200HW2 Series User s Guide
130
10.1.2 Trigger Port Forwarding
Some services use a dedicated range of ports on the client side and a dedicated range of ports
on the server side. With regular port forwarding you set a forwarding port in NAT to forward a
service (coming in from the server on the WAN) to the IP address of a computer on the client
side (LAN). The problem is that port forwarding only forwards a service to a single LAN IP
address. In order to use the same service on a different LAN computer, you have to manually
replace the LAN computer's IP address in the forwarding port with another LAN computer's IP
address,
Trigger port forwarding solves this problem by allowing computers on the LAN to
dynamically take turns using the service. The ZyXEL Device records the IP address of a LAN
computer that sends traffic to the WAN to request a service with a specific port number and
protocol (a "trigger" port). When the ZyXEL Device's WAN port receives a response with a
specific port number and protocol ("incoming" port), the ZyXEL Device forwards the traffic
to the LAN IP address of the computer that sent the request. After that computer!s connection
for that service closes, another computer on the LAN can use the service in the same manner.
This way you do not need to configure a new IP address each time you want a different LAN
computer to use the application.
10.1.2.1 Trigger Port Forwarding Example
The following is an example of trigger port forwarding. In this example, J is Jane!s computer
and S is the Real Audio server.

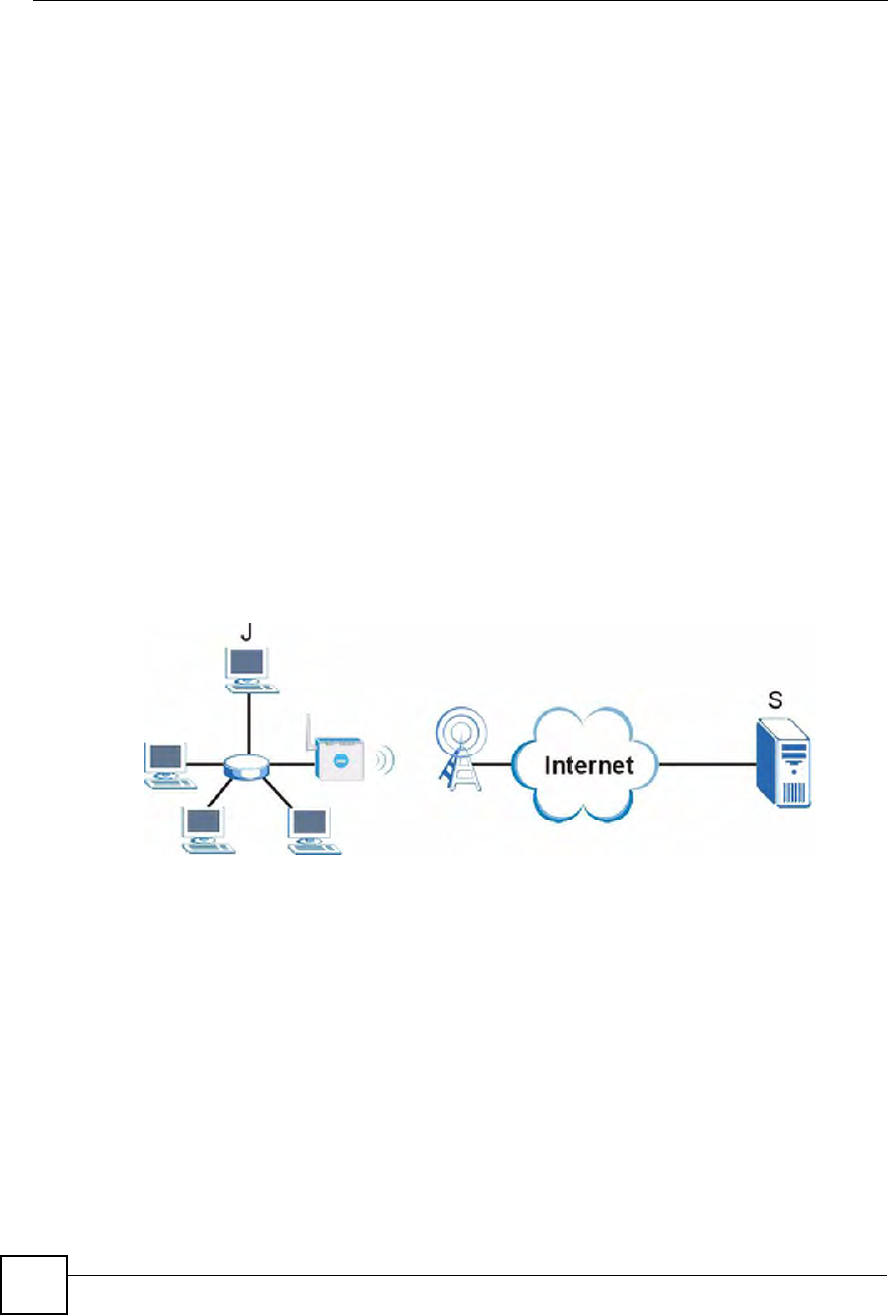

Figure 82 Trigger Port Forwarding Process: Example
1Jane requests a file from the Real Audio server (port 7070).
2Port 7070 is a "trigger# port and causes the ZyXEL Device to record Jane!s computer IP
address. The ZyXEL Device associates Jane's computer IP address with the "incoming"
port range of 6970-7170.
3The Real Audio server responds using a port number ranging between 6970-7170.
4The ZyXEL Device forwards the traffic to Jane!s computer IP address.
5Only Jane can connect to the Real Audio server until the connection is closed or times
out. The ZyXEL Device times out in three minutes with UDP (User Datagram Protocol),
or two hours with TCP/IP (Transfer Control Protocol/Internet Protocol).
10.1.2.2 Two Points To Remember About Trigger Ports
1Trigger events only happen on data that is coming from inside the ZyXEL Device and
going to the outside.
Chapter 10NAT
MAX-200HW2 Series User s Guide 131
2If an application needs a continuous data stream, that port (range) will be tied up so that
another computer on the LAN can!t trigger it.
10.1.3 SIP ALG
Some applications, such as SIP, cannot operate through NAT (are NAT un-friendly) because
they embed IP addresses and port numbers in their packets! data payload.
Some NAT routers may include a SIP Application Layer Gateway (ALG). An Application
Layer Gateway (ALG) manages a specific protocol (such as SIP, H.323 or FTP) at the
application layer.
A SIP ALG allows SIP calls to pass through NAT by examining and translating IP addresses
embedded in the data stream. See Section 10.2.5 on page 135 for information on configuring
the ZyXEL Device!s ALG.
10.2 NAT Screens
10.2.1 NAT General Screen
Use this screen to enable and disable NAT and to allocate memory for NAT and firewall rules.
To access this screen, click Network > NAT > General.
Figure 83 Network > NAT > General
Each field is described in the following table.
Table 46 Network > NAT > General
LABEL DESCRIPTION
NAT Setup
Enable Network
Address
Translation
Select this if you want to use port forwarding, trigger ports, or any of the ALG.
Chapter 10NAT
MAX-200HW2 Series User s Guide
132
10.2.2 NAT Port Forwarding Screen
Use this screen to look at the current port-forwarding rules in the ZyXEL Device, and to
enable, disable, activate, and deactivate each one. You can also set up a default server to
handle ports not covered by rules. To access this screen, click Network > NAT > Port
Forwarding.
Figure 84 Network > NAT > Port Forwarding
Max NAT/Firewall
Session Per User
When computers use peer to peer applications, such as file sharing
applications, they may use a large number of NAT sessions. If you do not
limit the number of NAT sessions a single client can establish, this can result in all
of the available NAT sessions being used. In this case, no additional NAT sessions
can be established, and users may not be able to access the Internet.
Each NAT session establishes a corresponding firewall session. Use this field to
limit the number of NAT/firewall sessions each client computer can establish
through the ZyXEL Device.
If your network has a small number of clients using peer to peer applications, you
can raise this number to ensure that their performance is not degraded by the
number of NAT sessions they can establish. If your network has a large number of
users using peer to peer applications, you can lower this number to ensure no
single client is using all of the available NAT sessions.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Cancel Click this to set every field in this screen to its last-saved value.
Table 46 Network > NAT > General
LABEL DESCRIPTION
Chapter 10NAT
MAX-200HW2 Series User s Guide 133
Each field is described in the following table.
10.2.3 NAT Port Forwarding Edit Screen
Use this screen to activate, deactivate, and edit each port-forwarding rule in the ZyXEL
Device. To access this screen, click an Edit icon in Network > NAT > Port Forwarding.
Figure 85 Network > NAT > Port Forwarding > Edit
Table 47 Network > NAT > Port Forwarding
LABEL DESCRIPTION
Default Server
Setup
Default Server Enter the IP address of the server to which the ZyXEL Device should forward
packets for ports that are not specified in the Port Forwarding section below or in
the Management > Remote MGMT screens. Enter 0.0.0.0 if you want the ZyXEL
Device to discard these packets instead.
Port Forwarding
#This field is a sequential value, and it is not associated with a specific rule. The
sequence is important, however. The ZyXEL Device checks each rule in order,
and it only follows the first one that applies.
Active Select this to enable this rule. Clear this to disable this rule.
Name This field displays the name of the rule. It does not have to be unique.
Start Port This field displays the beginning of the range of port numbers forwarded by this
rule.
End Port This field displays the end of the range of port numbers forwarded by this rule. If it
is the same as the Start Port, only one port number is forwarded.
Server IP Address This field displays the IP address of the server to which packet for the selected
port(s) are forwarded.
Modify This column provides icons to edit and delete rules.
To edit a rule, click the Edit icon next to the rule. The NAT Port Forwarding Edit
screen appears.
To delete a rule, click the Remove icon next to the rule. All the information in the
rule returns to the default settings.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Reset Click this to set every field in this screen to its last-saved value.
Chapter 10NAT
MAX-200HW2 Series User s Guide
134
Each field is described in the following table.
10.2.4 NAT Trigger Port Screen
Use this screen to maintain port-triggering rules in the ZyXEL Device. To access this screen,
click Network > NAT > Trigger Port.
Figure 86 Network > NAT > Trigger Port
Table 48 Network > NAT > Port Forwarding > Edit
LABEL DESCRIPTION
Active Select this to enable this rule. Clear this to disable this rule.
Service Name Enter a name to identify this rule. You can use 1 - 31 printable ASCII characters, or
you can leave this field blank. It does not have to be a unique name.
Start Port
End Port
Enter the port number or range of port numbers you want to forward to the
specified server.
To forward one port number, enter the port number in the Start Port and End Port
fields.
To forward a range of ports,
#enter the port number at the beginning of the range in the Start Port field
#enter the port number at the end of the range in the End Port field.
Server IP Address Enter the IP address of the server to which to forward packets for the selected port
number(s). This server is usually on the LAN.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Cancel Click this to set every field in this screen to its last-saved value.
Chapter 10NAT
MAX-200HW2 Series User s Guide 135
Each field is described in the following table.
10.2.5 NAT ALG Screen
Use this screen to enable and disable SIP (VoIP), FTP (file transfer), and H.323 (audio-visual)
ALG in the ZyXEL Device. To access this screen, click Network > NAT > ALG.
Figure 87 Network > NAT > ALG
Each field is described in the following table.
Table 49 Network > NAT > Trigger Port
LABEL DESCRIPTION
Name Enter a name to identify this rule. You can use 1 - 15 printable ASCII characters, or
you can leave this field blank. It does not have to be a unique name.
Incoming
Start Port
End Port
Enter the incoming port number or range of port numbers you want to forward to
the IP address the ZyXEL Device records.
To forward one port number, enter the port number in the Start Port and End Port
fields.
To forward a range of ports,
#enter the port number at the beginning of the range in the Start Port field
#enter the port number at the end of the range in the End Port field.
If you want to delete this rule, enter zero in the Start Port and End Port fields.
Trigger
Start Port
End Port
Enter the outgoing port number or range of port numbers that makes the ZyXEL
Device record the source IP address and assign it to the selected incoming port
number(s).
To select one port number, enter the port number in the Start Port and End Port
fields.
To select a range of ports,
#enter the port number at the beginning of the range in the Start Port field
#enter the port number at the end of the range in the End Port field.
If you want to delete this rule, enter zero in the Start Port and End Port fields.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Cancel Click this to discard your changes.
Table 50 Network > NAT > ALG
LABEL DESCRIPTION
Enable SIP ALG Select this to make sure SIP (VoIP) works correctly with port-forwarding and port-
triggering rules.
Enable FTP ALG Select this to make sure FTP (file transfer) works correctly with port-forwarding
and port-triggering rules.
Chapter 10NAT
MAX-200HW2 Series User s Guide
136
Enable H.323
ALG
Select this to make sure H.323 (audio-visual programs, such as NetMeeting)
works correctly with port-forwarding and port-triggering rules.
Apply Click this to save your changes and to apply them to the ZyXEL Device.
Cancel Click this to discard your most recent changes.
Table 50 Network > NAT > ALG
LABEL DESCRIPTION
MAX-200HW2 Series User s Guide 137
CHAPTER 11
VPN Transport
11.1 Overview
This chapter describes the Network > VPN Transport screens.
The ZyXEL Device!s VPN Transport feature allows traffic from multiple users to pass through
the WiMAX network, to the service provider!s router. Each user has his own personal
connection to the service provider, even though there is only a single WiMAX connection.
This allows the service provider to identify which user traffic comes from.
The following figure shows two users (A and B), connecting to the ZyXEL Device (Z)
through a switch (S). Each user has his own connection over the WiMAX network to the
service provider!s router (R).
Figure 88 VPN Transport example
The services available may vary, depending upon the service provider.
VPN stands for "Virtual Private Network#. There are many types of VPN; the type used by the
ZyXEL Device is known as Virtual Private LAN Service, or VPLS.
Unlike some other types of VPN (such as IPSec VPNs) VPLS VPNs do not
use authentication or encryption to secure the data they carry.
A
BSZR
WiMAX
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide
138
11.1.1 What You Can Do in the VPN Transport Screens
Use the Network > VPN Transport > General screen (see Section 11.2 on page 140) to
turn VPN transport on or off, and to set the VPN transport endpoint (your service
provider!s router).
Use the Network > VPN Transport > Customer Interface screen (see Section 11.3 on
page 141) to specify which users can use which WiMAX network links.
Use the Network > VPN Transport > Ethernet Pseudowire screen (see Section 11.5 on
page 143) to configure the links over the WiMAX network between the ZyXEL Device
and the service provider!s router.
Use the Network > VPN Transport > Statistics screen (see Section 11.7 on page 145) to
view performance information about the VPN transport connections.
11.1.2 What You Need to Know about VPN Transport
Identifying Users
For the ZyXEL Device!s VPN Transport feature to work, it must be able to identify users on
the LAN. It does this by examining VLAN (Virtual Local Area Network) tags.
These tags must be added to the data packets by a switch on the LAN. In the following
example, two users (A and B) are connected to a switch (C). A and B are connected to
different ports on the switch (port 1 and port 2). A and B send untagged packets to the switch.
The switch adds tags to packets depending on the physical port on which they arrive. Packets
arriving on port 1 are given a VLAN ID (VLAN IDentifier) of 1, and packets arriving on port
2 are given a VLAN ID of 2. When the packets reach the ZyXEL Device (D), their source is
identified by examining their VLAN tags.

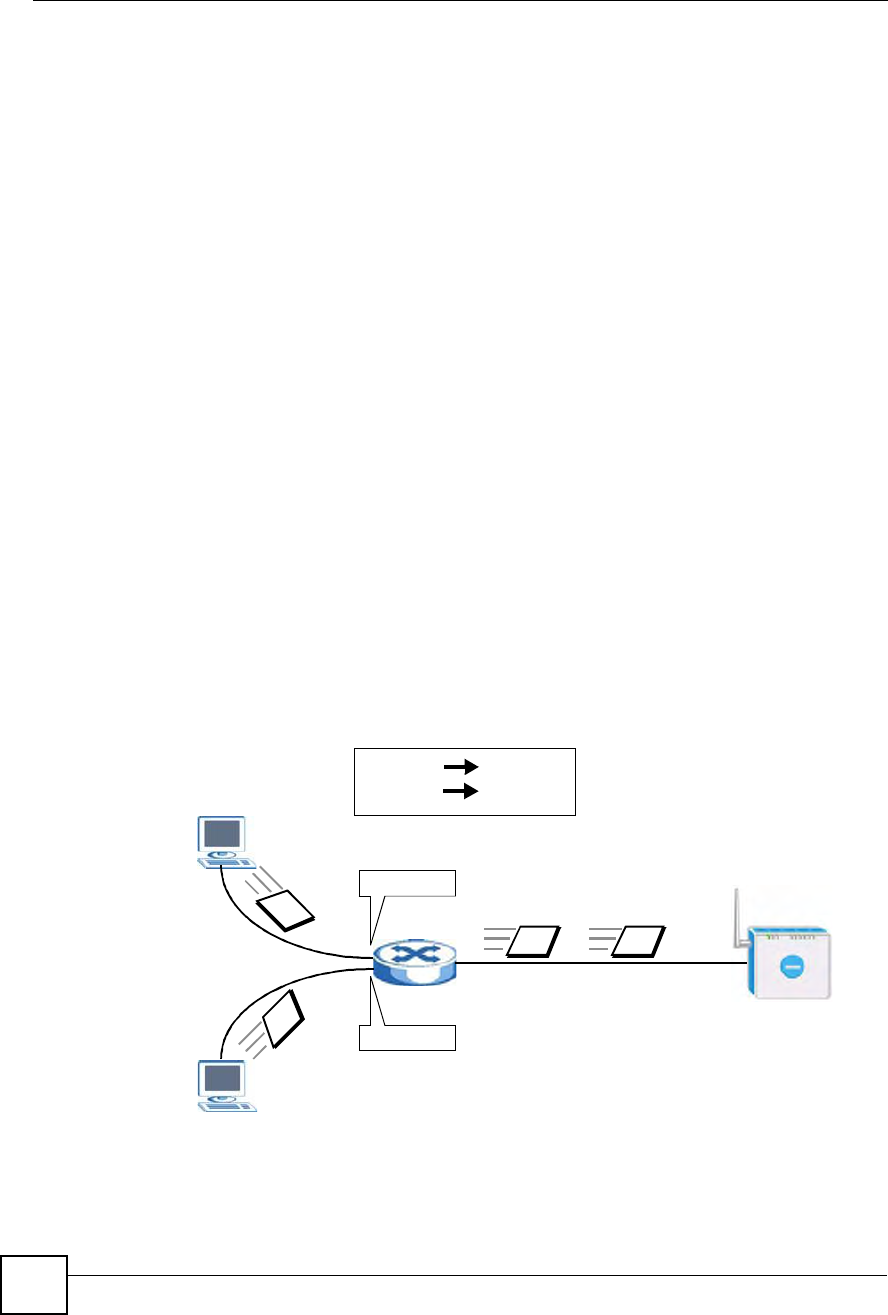

Figure 89 Identifying Users
A
B
PORT 1
PORT 2
PORT 1 VLAN 1
PORT 2 VLAN 2
12
C
D
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide 139
Ethernet Pseudowires
Because VPLS mimics a simple wired Ethernet connection to your service provider!s router,
the connection between the ZyXEL Device and the peer device is known as an "Ethernet
pseudowire# or "PW#.
The Ethernet pseudowires use MPLS (MultiProtocol Label Switching) virtual circuit labels to
define the connection. In any such pseudowire, the ingress label on one device must be the
same as the egress label on the peer device, as shown in the following figure. A is your ZyXEL
Device and B is your service provider!s router.
Figure 90 Ethernet Pseudowire Settings Example
Customer Interface Mapping
Once the ZyXEL Device has examined a frame!s VLAN tag, it is able to assign the frame to a
specified path. This is done using a customer interface. The customer interface is simply a set
of information that takes frames from a VLAN and put them on an Ethernet pseudowire, and
vice versa.
In the following example, the ZyXEL Device takes frames tagged with two different VLAN
IDs (10 and 20) and using the customer interfaces, assigns them to specific pseudowires (PW1
and PW2).
Figure 91 Pseudowire Mapping
INGRESS LABEL: X
EGRESS LABEL: Y
INGRESS LABEL: Y
EGRESS LABEL: X
PSEUDOWIRE
TO Y
TO X
VLAN 10 PW1
VLAN 20 PW2
10 20
PW1
PW2
1
2
WiMAX
R
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide
140
The ZyXEL Device has a default customer interface configured for frames that arrive at the
ZyXEL Device without VLAN tags.
11.1.3 Before You Begin
Before you start configuring your ZyXEL Device to use VPN transport, ensure that you have
the following from the service provider.
The IP address or domain name of the service provider!s edge router.
Virtual circuit (VC) labels for each Ethernet Pseudowire you want to create.
Also, ensure you know the VLAN IDs (Virtual LAN IDentifiers) of the VLANs on your LAN.
11.2 The General Screen
Use this screen to turn VPN transport on or off, and to set the VPN transport endpoint (your
service provider!s router). Click Network > VPN Transport > General. The following screen
displays.
Figure 92 Network > VPN Transport > General
The following table describes the labels in this screen.
Table 51 Network > VPN Transport > General
LABEL DESCRIPTION
L2/L3 VPN Transport General Setup
Transport L2/L3 VPN traffic
through WiMAX network by using
Ethernet pseudowire
Select this to turn the VPN transport feature on. Deselect it to
turn the VPN transport feature off.
Remote GRE Tunnel EndEnter the domain name or IP address of your service provider s
router.
ApplyClick this to save your settings.
ResetClick this to return the fields in this screen to their defaults.
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide 141
11.3 The Customer Interface Screen
Use this screen to configure the VPNs used by the ZyXEL Device. The customer interfaces
connect data coming from your computers to Ethernet pseudowires, according to the data!s
VLAN (Virtual Local Area Network) information. One customer interface is for traffic that
has no tag; this is the default interface (rule 0) which cannot be deleted in the GUI. All other
customer interfaces are identified by their VLAN ID.
Click Network > VPN Transport > Customer Interface. The following screen displays.
Figure 93 Network > VPN Transport > Customer Interface
The following table describes the labels in this screen.
Table 52 Network > VPN Transport > Customer Interface
LABEL DESCRIPTION
#This displays the interface index number. Interface 0 is the
default rule for routing, and cannot be deleted.
ActiveThis icon is green if the associated interface is enabled. The
icon is grey if the associated interface is disabled. Enable or
disable an interface by clicking its Edit icon and selecting or
deselecting Active and clicking Apply in the screen that
displays.
Interface
TypeThis displays either Tagged or Untagged. A tagged interface
controls traffic with a specific IEEE 802.1Q VLAN tag, whereas
an untagged interface controls traffic that does not have a
VLAN tag. There can be only one untagged interface.
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide
142
11.4 The Customer Interface Edit Screen
Customer interfaces map traffic onto specific Ethernet pseudowires for transport over the
WiMAX network. There is also a default customer interface for routing traffic that does not
possess a VLAN tag.
Use this screen to configure the customer interface settings. Click the Edit icon in the
Network > VPN Transport > Customer Interface screen. The following screen displays.
Figure 94 Network > VPN Transport > Customer Interface Edit
The following table describes the labels in this screen.
VLAN IDFor a tagged interface, this displays the IEEE 802.1Q VLAN ID
number. For the untagged interface, -1 displays.
Mode (B, R)This displays either B (bridging) or R (routing). Only the default
interface, interface 0, can be a routing interface.
Associated Ethernet Pseudowire This displays the number of the Ethernet pseudowire that this
interface uses, as well as the ingress and egress MPLS (Multi-
Protocol Label Switching) VC (Virtual Circuit) label numbers.
dscpThis displays the DiffServ Control Point value you previously
entered in binary (see Section 12.1.12 on page 155 for more
information on DSCP). This determines the pseudowire s
priority on the network. The DSCP value is displayed in binary
notation and has six bits.
Interface DescriptionThis displays the information you previously entered describing
the interface. For the default interface, interface 0, the
description reads !for routing / NAT".
ModifyClick the Edit icon to set up a new interface or alter the
configuration of an existing interface.
Click the Delete icon to remove an existing interface.
Table 52 Network > VPN Transport > Customer Interface
LABEL DESCRIPTION
Table 53 Network > VPN Transport > Customer Interface Edit
LABEL DESCRIPTION
Customer Interface
TypeA customer interface can be tagged (controlling traffic that has
a specific VLAN ID) or untagged (controlling traffic without a
specific VLAN ID). There can be only one untagged interface.
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide 143
11.5 The Ethernet Pseudowire Screen
Use this screen to configure Ethernet pseudowires. Each Ethernet pseudowire mimics a
regular wired Ethernet connection, transporting VPLS data over the WiMAX network between
the ZyXEL Device and the peer device (the endpoint you specify in the Network > VPN
Transport > General screen).
Click Network > VPN Transport > Ethernet Pseudowire. The following screen displays.
VLAN IDEnter the Virtual Local Area Network Identifier number (1 ~
4094) for this interface. This VLAN ID must not be used by any
other customer interface.
For the untagged interface, -1 displays.
ModeThis displays Bridging or Routing. A tagged interface can
operate in bridging mode only.
Associated Ethernet PseudowireSelect the Ethernet pseudowire this interface should use for
communications over the WiMAX network. You should
configure the pseudowire (in the Network > VPN Transport >
Ethernet Pseudowire screen) before you select it.
DSCPIf you wish to prioritize an interface, enter a DiffServ Code
Point value of six bits in binary notation. The higher the value,
the higher the interface s priority on the ZyXEL Device s
WiMAX link. See Section 12.1.12 on page 155 for more
information on DSCP.
Interface DescriptionEnter a brief (up to 31 characters) name or description for this
interface.
ApplyClick this to save your changes and return to the previous
screen.
CancelClick this to return to the previous screen without saving your
changes.
Table 53 Network > VPN Transport > Customer Interface Edit
LABEL DESCRIPTION
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide
144
Figure 95 Network > VPN Transport > Ethernet Pseudowire
The following table describes the labels in this screen.
11.6 The Ethernet Pseudowire Edit Screen
Use this screen to set up or modify an Ethernet pseudowire!s configuration. Click a
pseudowire entry!s Edit icon in the Network > VPN Transport >Ethernet Pseudowire
screen. The following screen displays.
Table 54 Network > VPN Transport > Ethernet Pseudowire
LABEL DESCRIPTION
#This displays the pseudowire index number.
ActiveThis icon is green if the associated pseudowire is enabled. The
icon is grey if the associated pseudowire is disabled. Enable or
disable a pseudowire by clicking its Edit icon.
IngressThis is the MPLS virtual circuit label number for traffic coming
from the peer device.
EgressThis is the MPLS virtual circuit label number for traffic going to
the peer device.
Pseudowire DescriptionThis displays the information you previously entered describing
the pseudowire.
ModifyClick the Edit icon to set up a new interface or alter the
configuration of an existing pseudowire.
Click the Delete icon to remove an existing pseudowire.
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide 145
Figure 96 Network > VPN Transport > Ethernet Pseudowire > Edit
The following table describes the labels in this screen.
11.7 The Statistics Screen
Use this screen to view details and performance information of each active customer interface
and its associated Ethernet pseudowire. Click Network > VPN Transport > Statistics. The
following screen displays.
Table 55 Network > VPN Transport > Ethernet Pseudowire > Edit
LABEL DESCRIPTION
ActiveSelect this to enable the pseudowire. Deselect it to disable the
pseudowire.
IngressEnter the VC ingress label number for this pseudowire. This
must be the egress label number of the peer device. This
should not be the ingress label number of any other Ethernet
pseudowire configured on the ZyXEL Device.
EgressEnter the egress label number for this pseudowire. This must
be the ingress label of the peer device. This should not be the
egress label number of any other Ethernet pseudowire
configured on the ZyXEL Device.
Pseudowire DescriptionEnter a brief (up to 31 characters) description for this
pseudowire.
ApplyClick this to save your settings and return to the previous
screen.
ResetClick this to reset the fields in this screen to their last-saved
values.
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide
146
Figure 97 Network > VPN Transport > Statistics
The following table describes the labels in this screen.
11.8 VPN Transport Technical Reference
This section includes background information about VPN Transport.
11.8.1 Multi-Protocol Label Switching
The ZyXEL Device uses MPLS VPNs to create virtual private LANs. MPLS stands for Multi-
Protocol Label Switching, and is a packet-switching technology that allows packets with
different VLAN tags to be transported on different paths (known as LSPs, or Label Switched
Paths). Each packet is identified by its VLAN tag and sent to a specific LSP for transport over
the WiMAX network.
Table 56 Network > VPN Transport > Statistics
LABEL DESCRIPTION
#This is the index number of the customer interface.
ActiveThis icon is green if the associated interface is enabled. The
icon is grey if the associated interface is disabled. Enable or
disable an interface by clicking its Edit icon.
Total PacketsThis displays the number of packets received (Receive) and
sent (Transmit) on the customer interface since the interface
was activated, or the Clear button pressed.
Total BytesThis displays the number of bytes received (Receive) and sent
(Transmit) on the customer interface since the interface was
activated, or the Clear button pressed.
Interface DescriptionThis is the brief name or description of the customer interface
you configured in the Network > VPN Transport > Customer
Interface > Edit screen.
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide 147
Each LSP has a defined start-point and end-point. Since MPLS creates mono-directional paths
(traffic flows in only one direction), each Ethernet pseudowire uses two LSPs so that traffic
can flow both ways. One LSP carries upstream traffic, and the other carries downstream
traffic.
11.8.2 Generic Routing Encapsulation
In order to transport the VPLS traffic over the WiMAX network, the ZyXEL Device uses the
Generic Routing Encapsulation (GRE) protocol. Like MPLS, GRE is a tunneling protocol that
has specified endpoints. The GRE tunnel is bi-directional, and transports both LSPs. The GRE
tunnel runs across the WiMAX network between the ZyXEL Device and your service
provider!s router.
It is necessary to encapsulate the Ethernet pseudowire since the WiMAX connection is IP-
only. MPLS information is carried in a packet!s Ethernet header and, without encapsulation,
would be stripped from the packet prior to the packet!s transmission over the WiMAX link.
The following figure shows the VPLS connection between your ZyXEL Device (A) and your
service provider!s router (B), consisting of GRE-encapsulated Ethernet pseudowire traffic.
Figure 98 VPLS Tunneling
ETHERNET PSEUDOWIRES
GRE
TUNNEL
WiMAX CONNECTION
Chapter 11VPN Transport
MAX-200HW2 Series User s Guide
148
MAX-200HW2 Series User s Guide 149
CHAPTER 12
SIP
Use these screens to set up your SIP accounts and to configure QoS settings.
12.1 SIP Overview
12.1.1 Introduction to VoIP
VoIP (Voice over IP) is the sending of voice signals over the Internet Protocol. This allows you
to make phone calls and send faxes over the Internet at a fraction of the cost of using the
traditional circuit-switched telephone network. You can also use servers to run telephone
service applications like PBX services and voice mail. Internet Telephony Service Provider
(ITSP) companies provide VoIP service. A company could alternatively set up an IP-PBX and
provide it!s own VoIP service.
Circuit-switched telephone networks require 64 kilobits per second (kbps) in each direction to
handle a telephone call. VoIP can use advanced voice coding techniques with compression to
reduce the required bandwidth.
12.1.2 Introduction to SIP
The Session Initiation Protocol (SIP) is an application-layer control (signaling) protocol that
handles the setting up, altering and tearing down of voice and multimedia sessions over the
Internet.
SIP signaling is separate from the media for which it handles sessions. The media that is
exchanged during the session can use a different path from that of the signaling. SIP handles
telephone calls and can interface with traditional circuit-switched telephone networks.
12.1.3 SIP Identities
A SIP account uses an identity (sometimes referred to as a SIP address). A complete SIP
identity is called a SIP URI (Uniform Resource Identifier). A SIP account's URI identifies the
SIP account in a way similar to the way an e-mail address identifies an e-mail account. The
format of a SIP identity is SIP-Number@SIP-Service-Domain.
12.1.3.1 SIP Number
The SIP number is the part of the SIP URI that comes before the "@# symbol. A SIP number
can use letters like in an e-mail address (johndoe@your-ITSP.com for example) or numbers
like a telephone number (1122334455@VoIP-provider.com for example).
Chapter 12SIP
MAX-200HW2 Series User s Guide
150
12.1.3.2 SIP Service Domain
The SIP service domain of the VoIP service provider (the company that lets you make phone
calls over the Internet) is the domain name in a SIP URI. For example, if the SIP address is
1122334455@VoIP-provider.com, then "VoIP-provider.com# is the SIP service domain.
12.1.4 SIP Call Progression
The following figure displays the basic steps in the setup and tear down of a SIP call. A calls
B.
1A sends a SIP INVITE request to B. This message is an invitation for B to participate in
a SIP telephone call.
2B sends a response indicating that the telephone is ringing.
3B sends an OK response after the call is answered.
4A then sends an ACK message to acknowledge that B has answered the call.
5Now A and B exchange voice media (talk).
6After talking, A hangs up and sends a BYE request.
7B replies with an OK response confirming receipt of the BYE request and the call is
terminated.
12.1.5 SIP Client Server
SIP is a client-server protocol. A SIP client is an application program or device that sends SIP
requests. A SIP server responds to the SIP requests.
When you use SIP to make a VoIP call, it originates at a client and terminates at a server. A
SIP client could be a computer or a SIP phone. One device can act as both a SIP client and a
SIP server.
12.1.5.1 SIP User Agent
A SIP user agent can make and receive VoIP telephone calls. This means that SIP can be used
for peer-to-peer communications even though it is a client-server protocol. In the following
figure, either A or B can act as a SIP user agent client to initiate a call. A and B can also both
act as a SIP user agent to receive the call.
Table 57 SIP Call Progression
A B
1. INVITE
2. Ringing
3. OK
4. ACK
5.Dialogue (voice traffic)
6. BYE
7. OK
Chapter 12SIP
MAX-200HW2 Series User s Guide 151
Figure 99 SIP User Agent
12.1.5.2 SIP Proxy Server
A SIP proxy server receives requests from clients and forwards them to another server.
