NBG-460N User’s Guide 251
CHAPTER 22
Tools
This chapter shows you how to upload a new firmware, upload or save backup configuration
files and restart the NBG-460N.

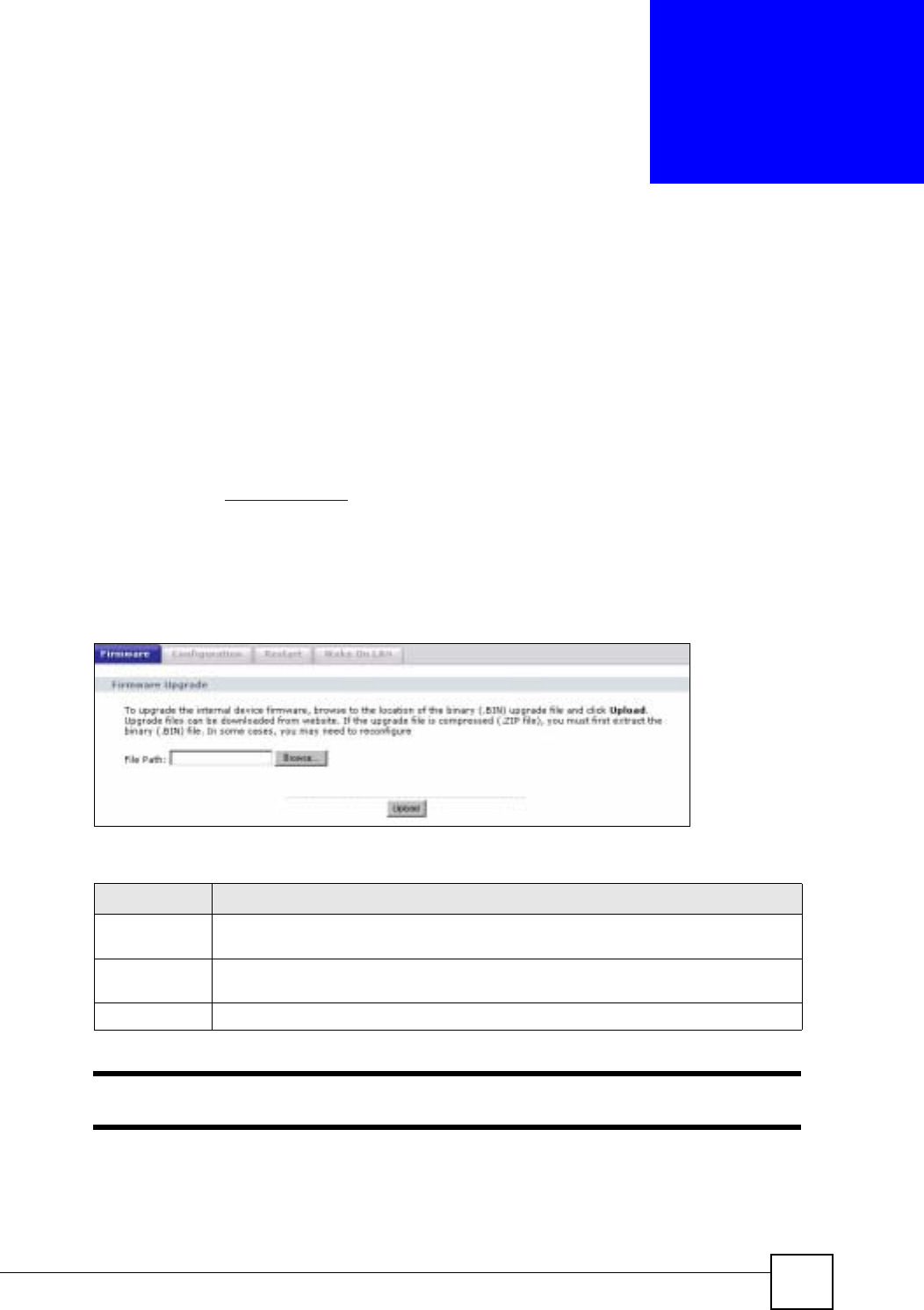

22.1 Firmware Upload Screen
Find firmware at www.zyxel.com in a file that (usually) uses the system model name with a
“*.bin” extension, e.g., “NBG-460N.bin”. The upload process uses HTTP (Hypertext Transfer
Protocol) and may take up to two minutes. After a successful upload, the system will reboot.
Click Maintenance > Tools. Follow the instructions in this screen to upload firmware to your
NBG-460N.
Figure 149 Maintenance > Tools > Firmware
The following table describes the labels in this screen.
"Do not turn off the NBG-460N while firmware upload is in progress!
After you see the Firmware Upload In Process screen, wait two minutes before logging into
the NBG-460N again.
Table 107 Maintenance > Tools > Firmware
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse... to find
it.
Browse... Click Browse... to find the .bin file you want to upload. Remember that you must
decompress compressed (.zip) files before you can upload them.
Upload Click Upload to begin the upload process. This process may take up to two minutes.
Chapter 22 Tools
NBG-460N User’s Guide
252

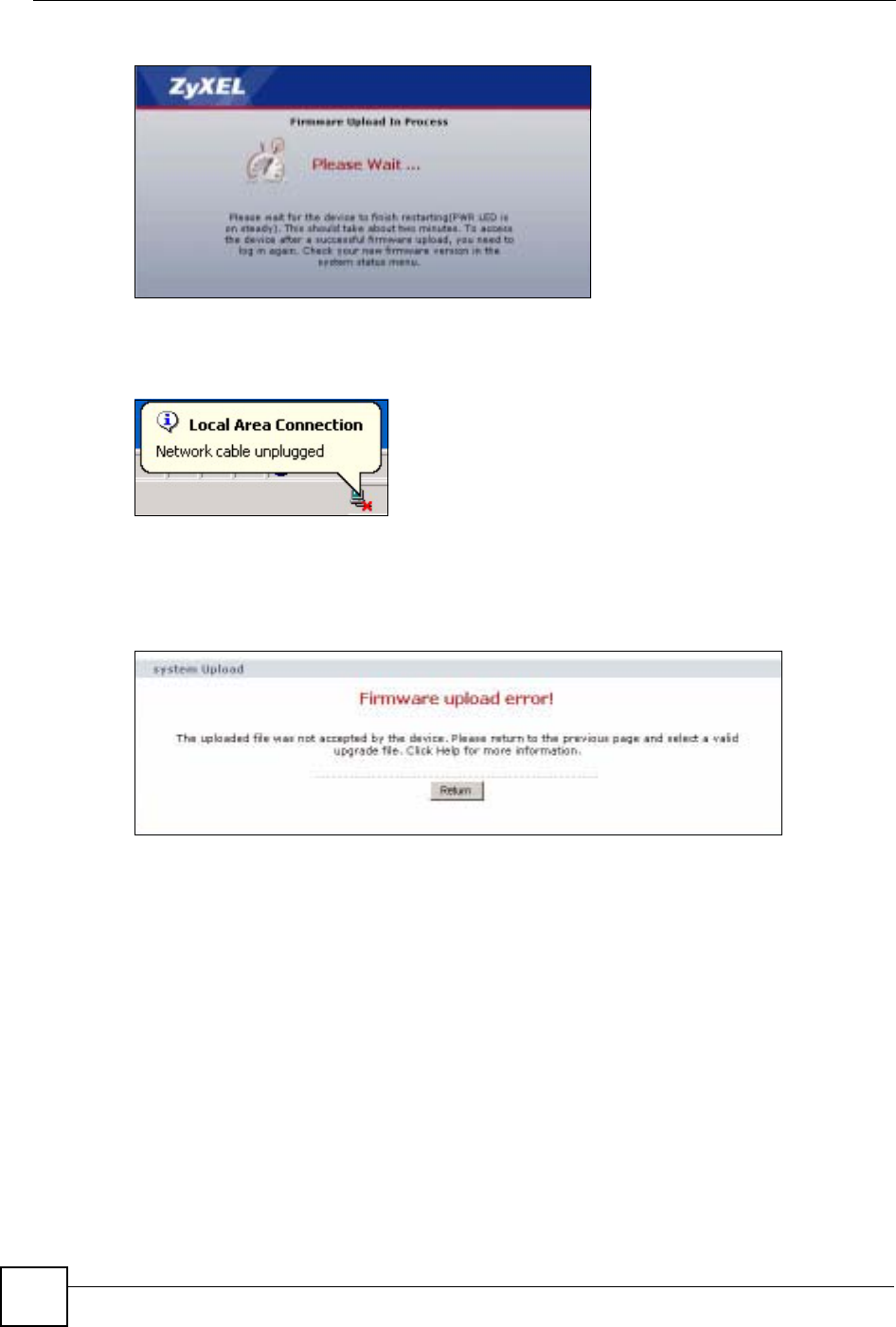

Figure 150 Upload Warning
The NBG-460N automatically restarts in this time causing a temporary network disconnect. In
some operating systems, you may see the following icon on your desktop.
Figure 151 Network Temporarily Disconnected
After two minutes, log in again and check your new firmware version in the Status screen.
If the upload was not successful, the following screen will appear. Click Return to go back to
the Firmware screen.
Figure 152 Upload Error Message
22.2 Configuration Screen
Click Maintenance > Tools > Configuration. Information related to factory defaults, backup
configuration, and restoring configuration appears as shown next.
Chapter 22 Tools
NBG-460N User’s Guide 253

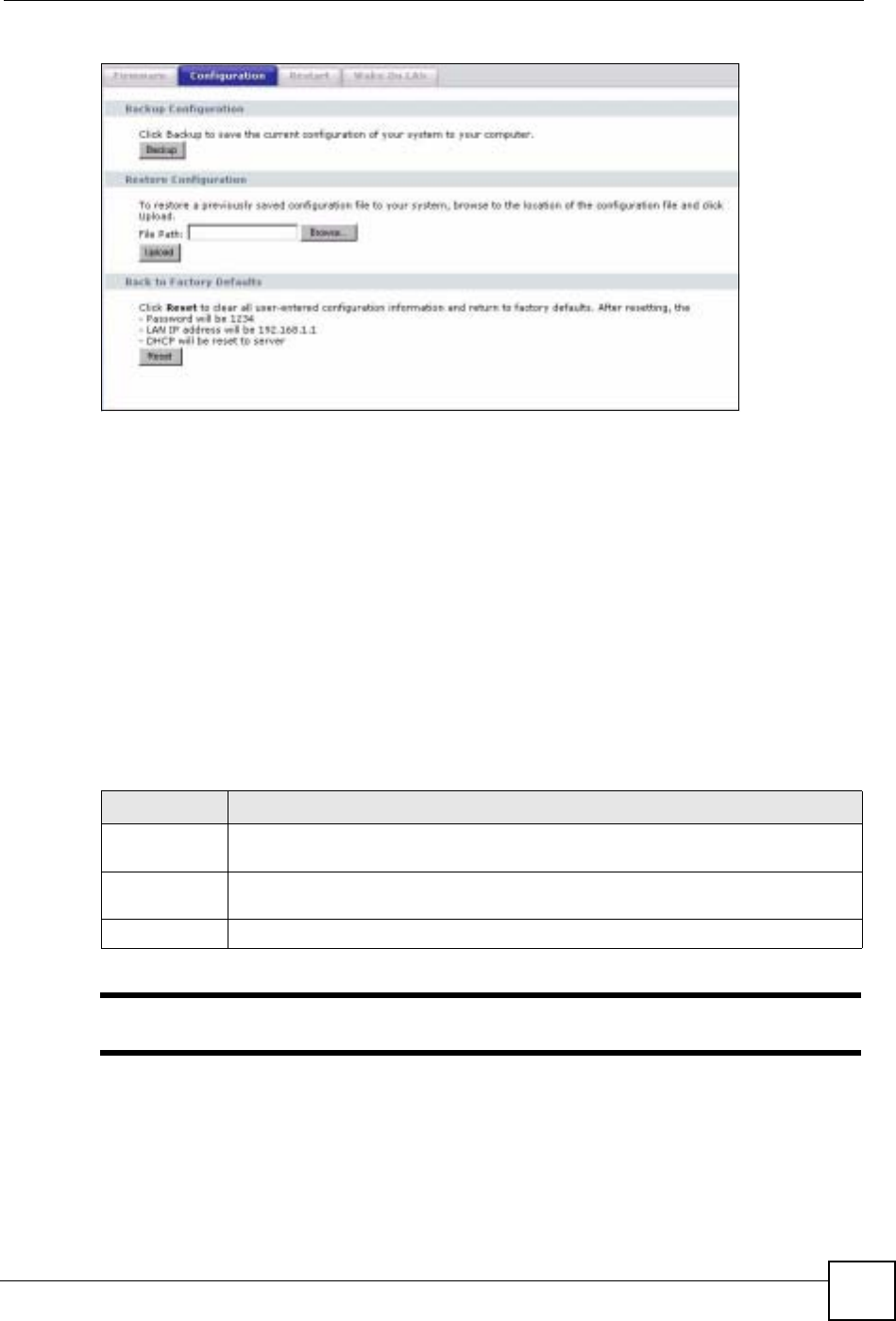

Figure 153 Maintenance > Tools > Configuration
22.2.1 Backup Configuration
Backup configuration allows you to back up (save) the NBG-460N’s current configuration to a
file on your computer. Once your NBG-460N is configured and functioning properly, it is
highly recommended that you back up your configuration file before making configuration
changes. The backup configuration file will be useful in case you need to return to your
previous settings.
Click Backup to save the NBG-460N’s current configuration to your computer.
22.2.2 Restore Configuration
Restore configuration allows you to upload a new or previously saved configuration file from
your computer to your NBG-460N.
"Do not turn off the NBG-460N while configuration file upload is in progress
After you see a “configuration upload successful” screen, you must then wait one minute
before logging into the NBG-460N again.
Table 108 Maintenance Restore Configuration
LABEL DESCRIPTION
File Path Type in the location of the file you want to upload in this field or click Browse... to find
it.
Browse... Click Browse... to find the file you want to upload. Remember that you must
decompress compressed (.ZIP) files before you can upload them.
Upload Click Upload to begin the upload process.
Chapter 22 Tools
NBG-460N User’s Guide
254
Figure 154 Configuration Restore Successful
The NBG-460N automatically restarts in this time causing a temporary network disconnect. In
some operating systems, you may see the following icon on your desktop.
Figure 155 Temporarily Disconnected
If you uploaded the default configuration file you may need to change the IP address of your
computer to be in the same subnet as that of the default NBG-460N IP address (192.168.1.1).
See Appendix D on page 293 for details on how to set up your computer’s IP address.
If the upload was not successful, the following screen will appear. Click Return to go back to
the Configuration screen.
Figure 156 Configuration Restore Error
22.2.3 Back to Factory Defaults
Pressing the Reset button in this section clears all user-entered configuration information and
returns the NBG-460N to its factory defaults.
You can also press the RESET button on the rear panel to reset the factory defaults of your
NBG-460N. Refer to the chapter about introducing the web configurator for more information
on the RESET button.
22.3 Restart Screen
System restart allows you to reboot the NBG-460N without turning the power off.
Chapter 22 Tools
NBG-460N User’s Guide 255

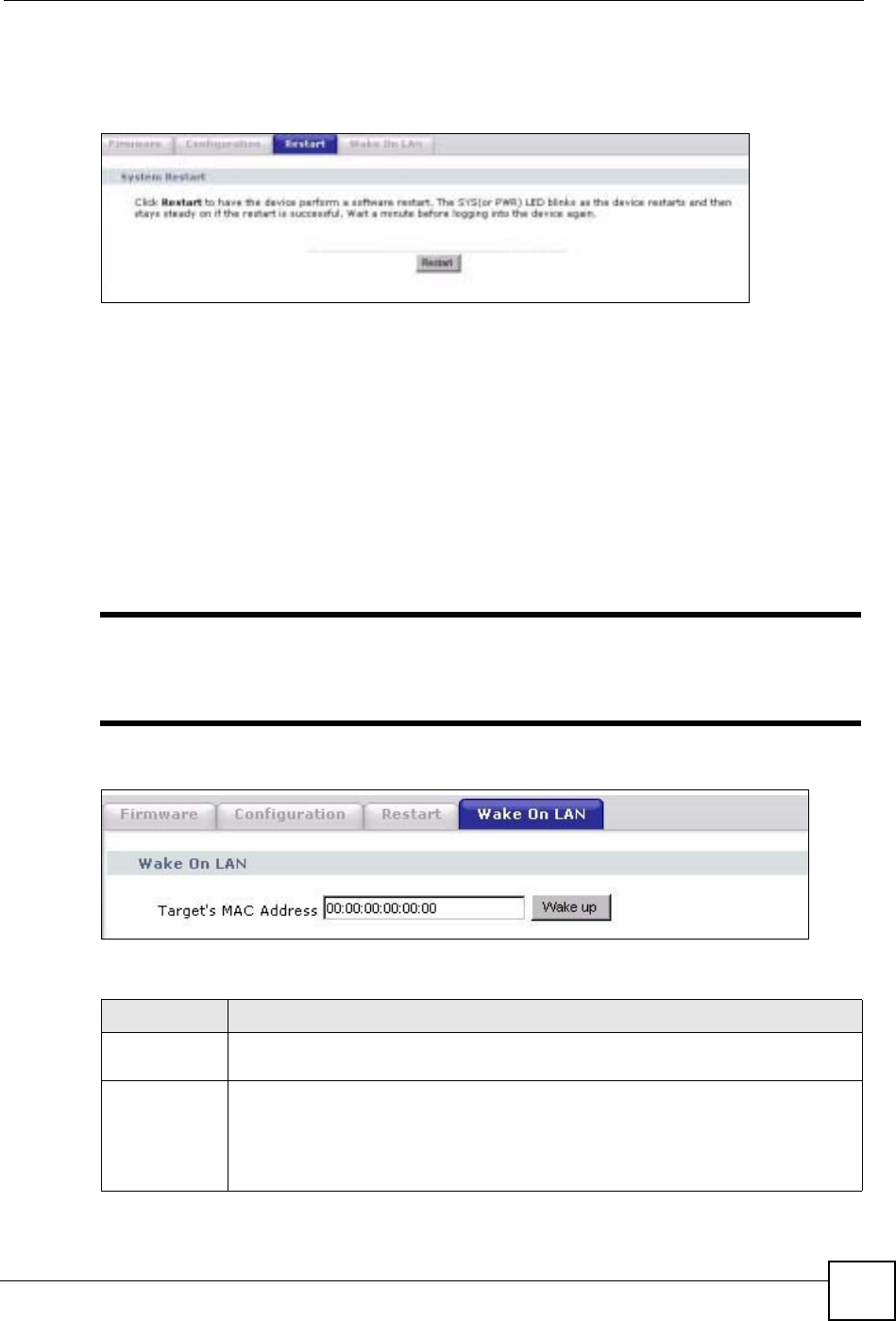

Click Maintenance > Tools > Restart. Click Restart to have the NBG-460N reboot. This
does not affect the NBG-460N's configuration.
Figure 157 Maintenance > Tools > Restart
22.4 Wake On LAN
Wake On LAN (WoL) allows you to remotely turn on a device on the network. To use this
feature the remote hardware (for example the network adapter on your computer) must support
Wake On LAN using the “Magic Packet” method.
You need to know the MAC address of the remote device. It may be on a label on the device or
in it’s documentation.
Click Maintenance > Tools > Wake On LAN to use this feature.
"The NBG-460N can only wake up remote devices that exist in it’s ARP table.
For the remote device to exist in the NBG-460N’s ARP table it should have
had a prior connection with the NBG-460N.
Figure 158 Maintenance > Tools > Wake On LAN
The following table describes the labels in this screen.
Table 109 Maintenance > Tools > Wake On LAN
LABEL DESCRIPTION
Target’s MAC
Address Enter the MAC Address of the device on the network that will be turned on. A MAC
address consists of six hexadecimal character pairs.
Wake up Click this to turn the specified device on. The status bar will refresh and indicate
either Ready or MAC Address error.
If it displays Ready you should check if the remote device has turned on.
If the status bar displays MAC Address error it means you may have input the MAC
Address incorrectly. Make sure you are entering it in the correct format.
Chapter 22 Tools
NBG-460N User’s Guide
256
NBG-460N User’s Guide 257
CHAPTER 23
Configuration Mode

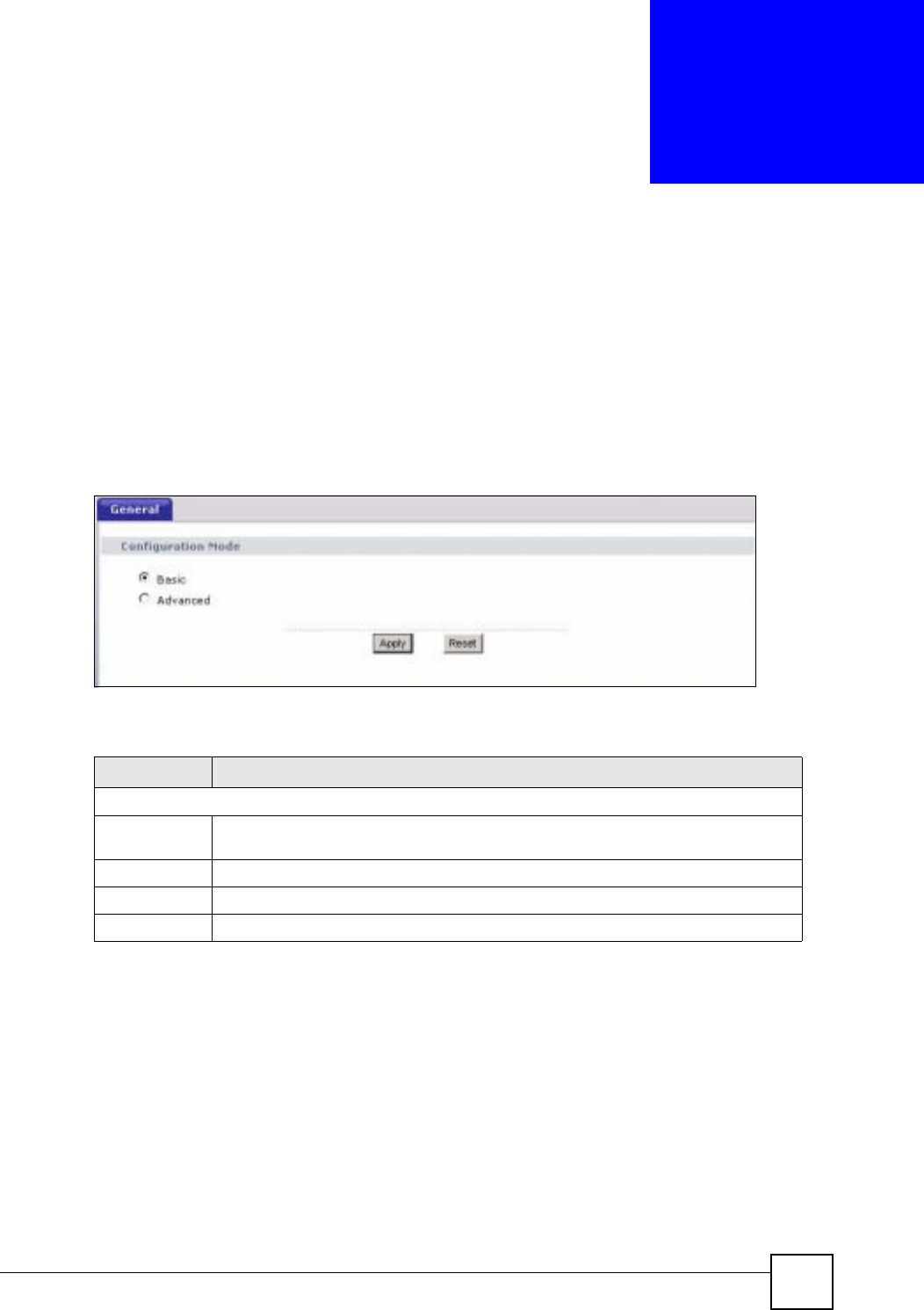

Click Maintenance > Config Mode to open the following screen. This screen allows you to
hide or display the advanced screens of some features or the advanced features, such as MAC
filter or static route. Basic is selected by default and you cannot see the advanced screens or
features. If you want to view and configure all screens including the advanced ones, select
Advanced and click Apply.
Figure 159 Maintenance > Config Mode > General
The following table describes the labels in the screen.
Table 110 Maintenance > Config Mode > General
The following table includes the screens that you can view and configure only when you select
Advanced.
LABEL DESCRIPTION
Configuration Mode
Basic Select Basic mode to enable or disable features and to monitor the status of your
device.
Advanced Select Advanced mode to set advanced settings.
Apply Click on this to set the mode.
Reset Click on this to reset your selection.
Chapter 23 Configuration Mode
NBG-460N User’s Guide
258
Table 111 Advanced Configuration Options
"In AP Mode many screens will not be available. See Chapter 5 on page 65 for
more information.
CATEGORY LINK TAB
Network Wireless LAN MAC Filter
Advanced
QoS
Scheduling
WAN Advanced
LAN IP Alias
Advanced
DHCP Server Advanced
NAT Advanced
Security Firewall Services
Content Filter Schedule
Management Static Route IP Static Route
Bandwidth MGMT Advanced
Monitor
Remote MGMT Telnet
FTP
DNS
Maintenance Logs Log Settings
NBG-460N User’s Guide 259
CHAPTER 24
Sys Op Mode
24.1 Overview
The Sys Op Mode (System Operation Mode) function lets you configure whether your NBG-
460N is a router or AP. You can choose between Router Mode and AP Mode depending on
your network topology and the features you require from your device. See Section 1.1 on page
31 for more information on which mode to choose.
24.1.1 Router
A router connects your local network with another network, such as the Internet. The router
has two IP addresses, the LAN IP address and the WAN IP address.

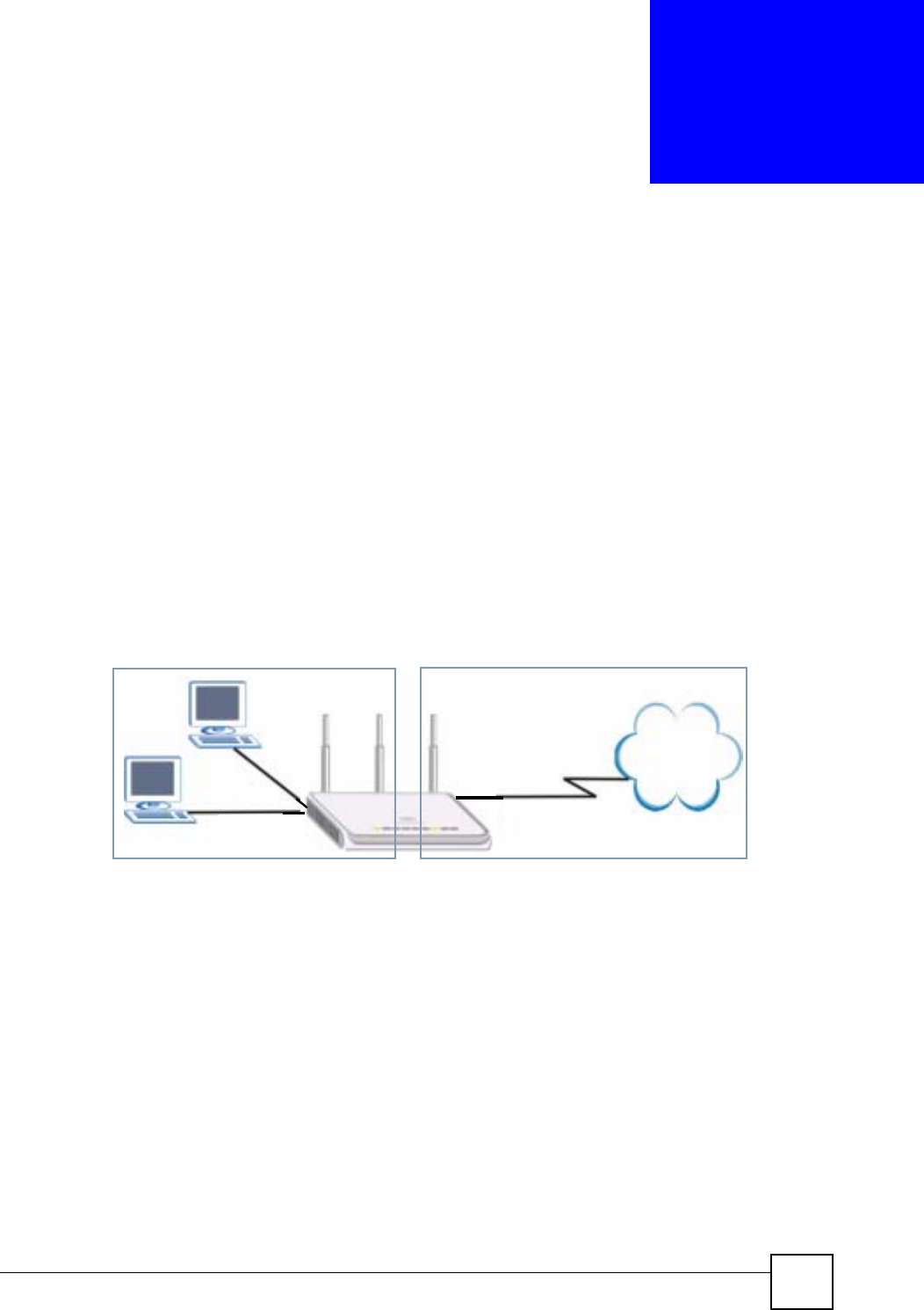

Figure 160 LAN and WAN IP Addresses in Router Mode
24.1.2 AP
An AP extends one network and so has just one IP address. All Ethernet ports on the AP have
the same IP address. To connect to the Internet, another device, such as a router, is required.
WAN IP
Internet
LAN WAN
LAN IP
Chapter 24 Sys Op Mode
NBG-460N User’s Guide
260

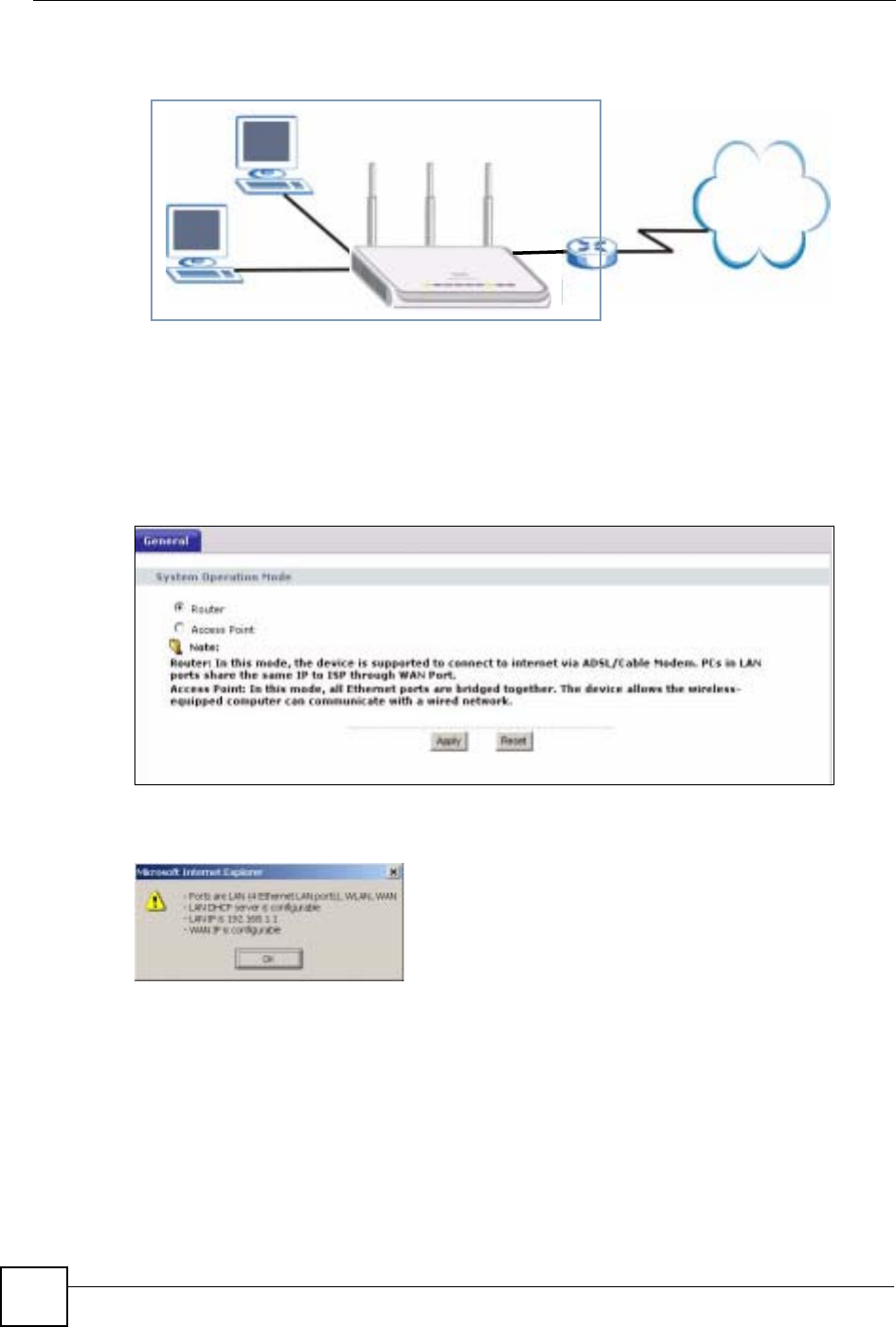

Figure 161 IP Address in AP Mode
24.2 Selecting System Operation Mode
Use this screen to select how you connect to the Internet.
Figure 162 Maintenance > Sys OP Mode > General
If you select Router Mode, the following pop-up message window appears.
Figure 163 Maintenance > Sys Op Mode > General: Router
• In this mode there are both LAN and WAN ports. The LAN Ethernet and WAN Ethernet
ports have different IP addresses.
• The DHCP server on your device is enabled and allocates IP addresses to other devices on
your local network.
• The LAN IP address of the device on the local network is set to 192.168.1.1.
• You can configure the IP address settings on your WAN port. Contact your ISP or system
administrator for more information on appropriate settings.
If you select Access Point the following pop-up message window appears.
1 IP
LAN
Internet
Chapter 24 Sys Op Mode
NBG-460N User’s Guide 261

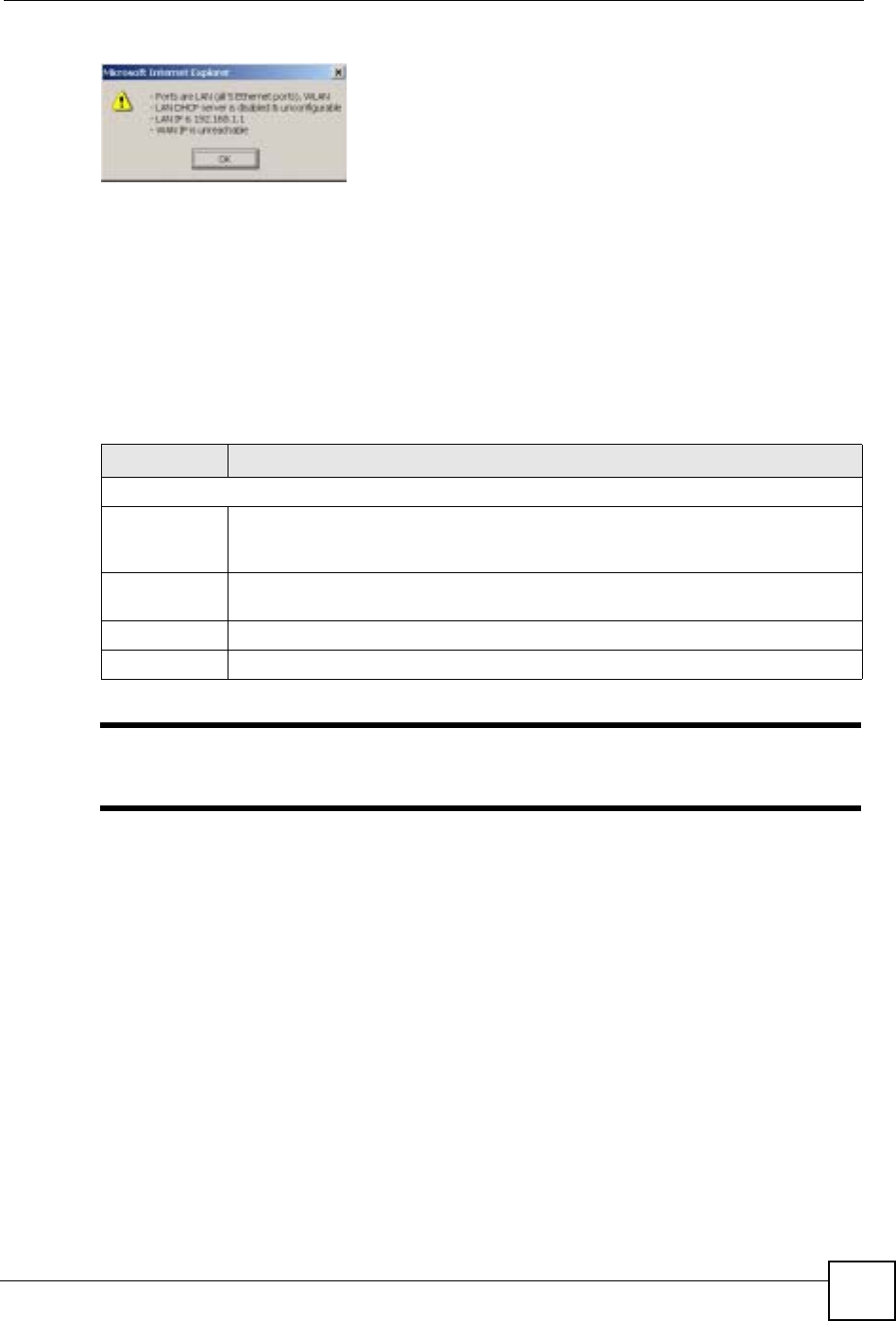

Figure 164 Maintenance > Sys Op Mode > General: AP
•In AP Mode all Ethernet ports have the same IP address.
• All ports on the rear panel of the device are LAN ports, including the port labeled WAN.
There is no WAN port.
• The DHCP server on your device is disabled. In AP mode there must be a device with a
DHCP server on your network such as a router or gateway which can allocate IP
addresses.
The IP address of the device on the local network is set to 192.168.1.1.
The following table describes the labels in the General screen.
Table 112 Maintenance > Sys OP Mode > General
"If you select the incorrect System Operation Mode you cannot connect to the
Internet.
LABEL DESCRIPTION
System Operation Mode
Router Select Router if your device routes traffic between a local network and another
network such as the Internet. This mode offers services such as a firewall or
bandwidth management.
Access Point Select Access Point if your device bridges traffic between clients on the same
network.
Apply Click Apply to save your settings.
Reset Click Reset to return your settings to the default (Router)
Chapter 24 Sys Op Mode
NBG-460N User’s Guide
262
NBG-460N User’s Guide 263
CHAPTER 25
Language
Use this screen to change the language for the web configurator display.

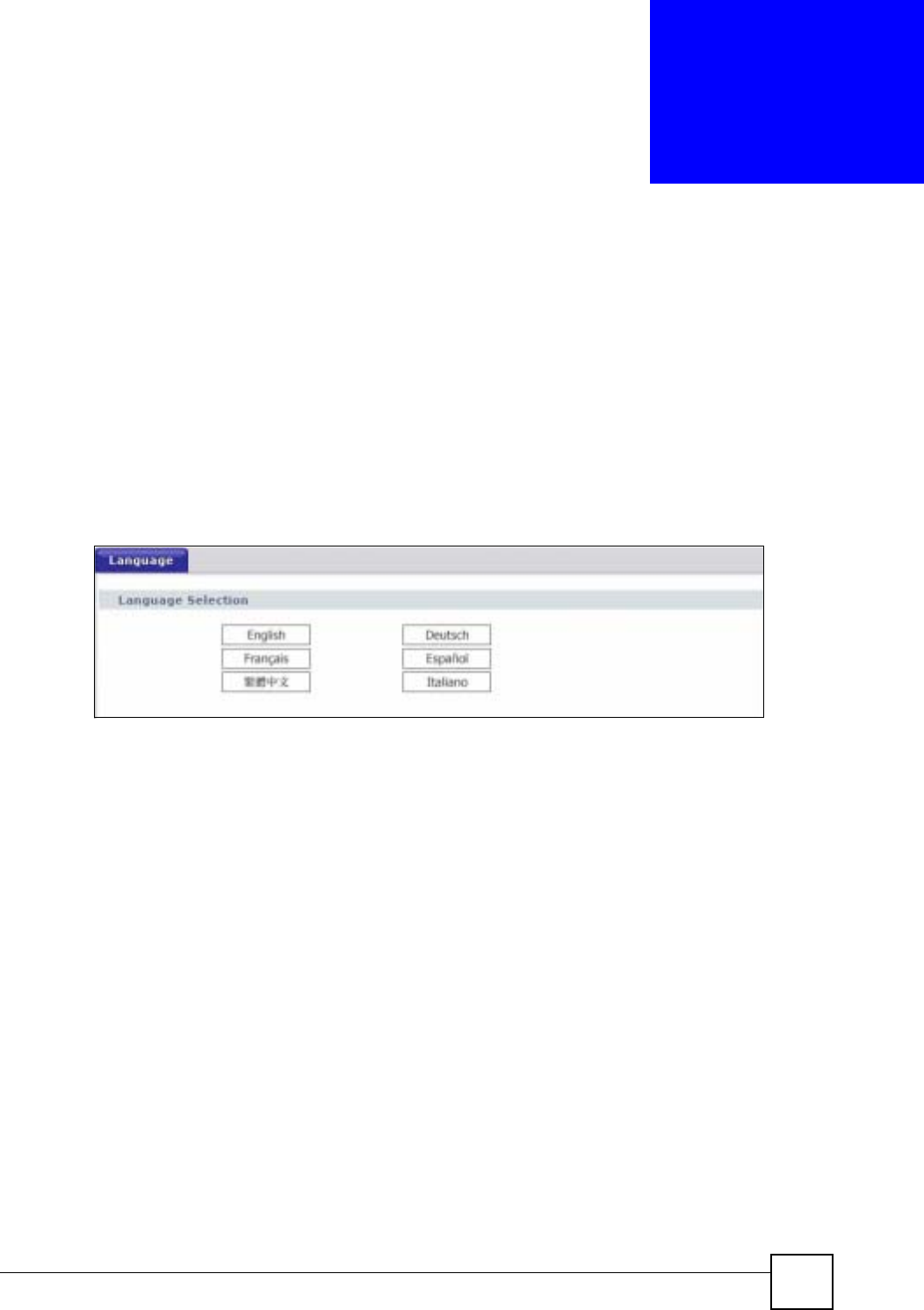

25.1 Language Screen
Click the language you prefer. The web configurator language changes after a while without
restarting the NBG-460N.
Figure 165 Language
Chapter 25 Language
NBG-460N User’s Guide
264
NBG-460N User’s Guide 265
CHAPTER 26
Troubleshooting
This chapter offers some suggestions to solve problems you might encounter. The potential
problems are divided into the following categories.
•Power, Hardware Connections, and LEDs
•NBG-460N Access and Login
•Internet Access
•Resetting the NBG-460N to Its Factory Defaults
•Wireless Router/AP Troubleshooting
•Advanced Features
26.1 Power, Hardware Connections, and LEDs
VThe NBG-460N does not turn on. None of the LEDs turn on.
1Make sure you are using the power adaptor or cord included with the NBG-460N.
2Make sure the power adaptor or cord is connected to the NBG-460N and plugged in to
an appropriate power source. Make sure the power source is turned on.
3Disconnect and re-connect the power adaptor or cord to the NBG-460N.
4If the problem continues, contact the vendor.
VOne of the LEDs does not behave as expected.
1Make sure you understand the normal behavior of the LED. See Section 1.7 on page 33.
2Check the hardware connections. See the Quick Start Guide.
3Inspect your cables for damage. Contact the vendor to replace any damaged cables.
4Disconnect and re-connect the power adaptor to the NBG-460N.
5If the problem continues, contact the vendor.
Chapter 26 Troubleshooting
NBG-460N User’s Guide
266
26.2 NBG-460N Access and Login
VI don’t know the IP address of my NBG-460N.
1The default IP address is 192.168.1.1.
2If you changed the IP address and have forgotten it, you might get the IP address of the
NBG-460N by looking up the IP address of the default gateway for your computer. To
do this in most Windows computers, click Start > Run, enter cmd, and then enter
ipconfig. The IP address of the Default Gateway might be the IP address of the NBG-
460N (it depends on the network), so enter this IP address in your Internet browser.Set
your device to Router Mode, login (see the Quick Start Guide for instructions) and go to
the Device Information table in the Status screen. Your NBG-460N’s IP address is
available in the Device Information table.
• If the DHCP setting under LAN information is None, your device has a fixed IP
address.
• If the DHCP setting under LAN information is Client, then your device receives an
IP address from a DHCP server on the network.
3If your NBG-460N is a DHCP client, you can find your IP address from the DHCP
server. This information is only available from the DHCP server which allocates IP
addresses on your network. Find this information directly from the DHCP server or
contact your system administrator for more information.
4Reset your NBG-460N to change all settings back to their default. This means your
current settings are lost. See Section 26.4 on page 269 in the Troubleshooting for
information on resetting your NBG-460N.
VI forgot the password.
1The default password is 1234.
2If this does not work, you have to reset the device to its factory defaults. See Section
26.4 on page 269.
VI cannot see or access the Login screen in the web configurator.
1Make sure you are using the correct IP address.
• The default IP address is 192.168.1.1.
• If you changed the IP address (Section 7.3 on page 102), use the new IP address.
• If you changed the IP address and have forgotten it, see the troubleshooting
suggestions for I don’t know the IP address of my NBG-460N.
Chapter 26 Troubleshooting
NBG-460N User’s Guide 267
2Check the hardware connections, and make sure the LEDs are behaving as expected. See
the Quick Start Guide.

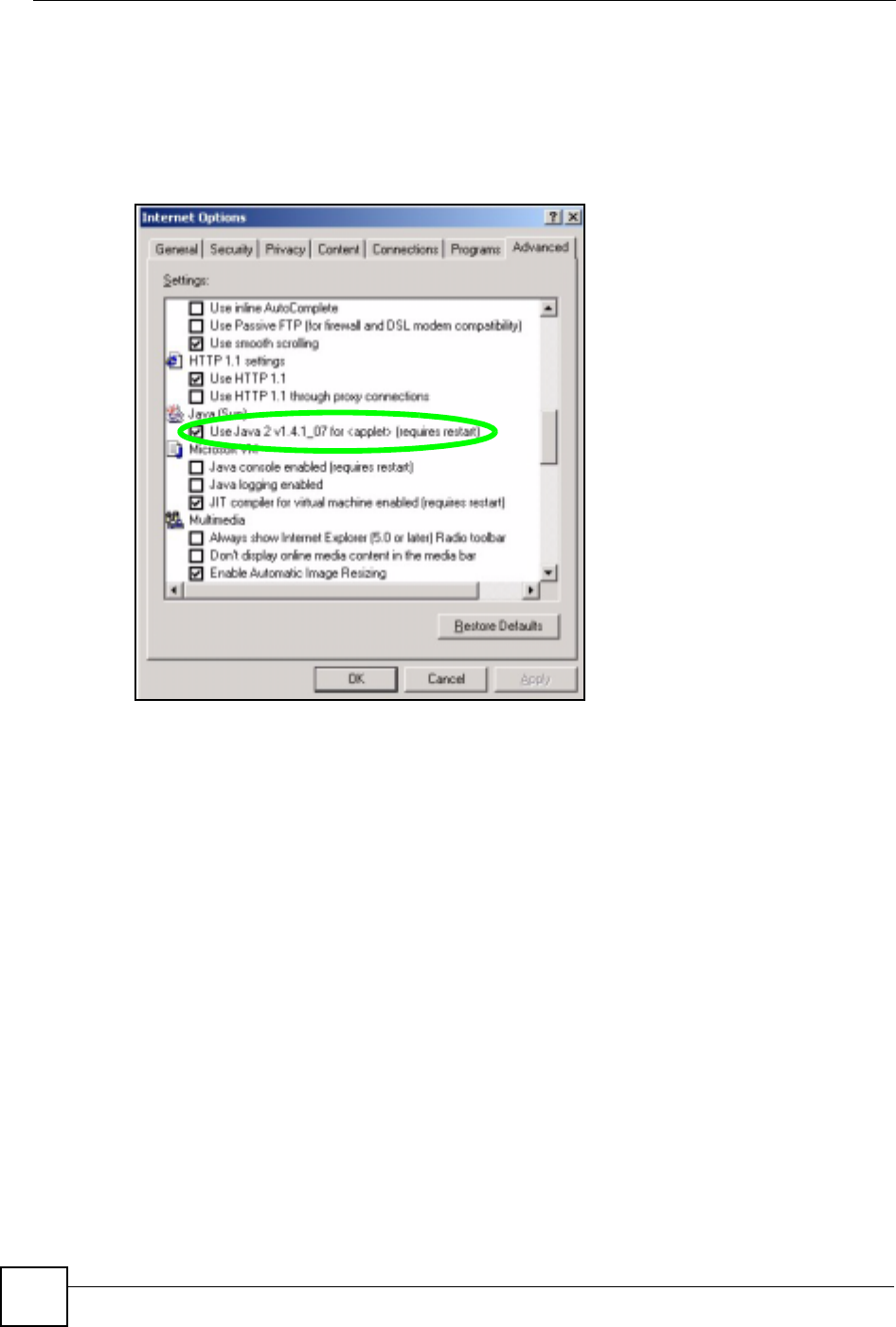

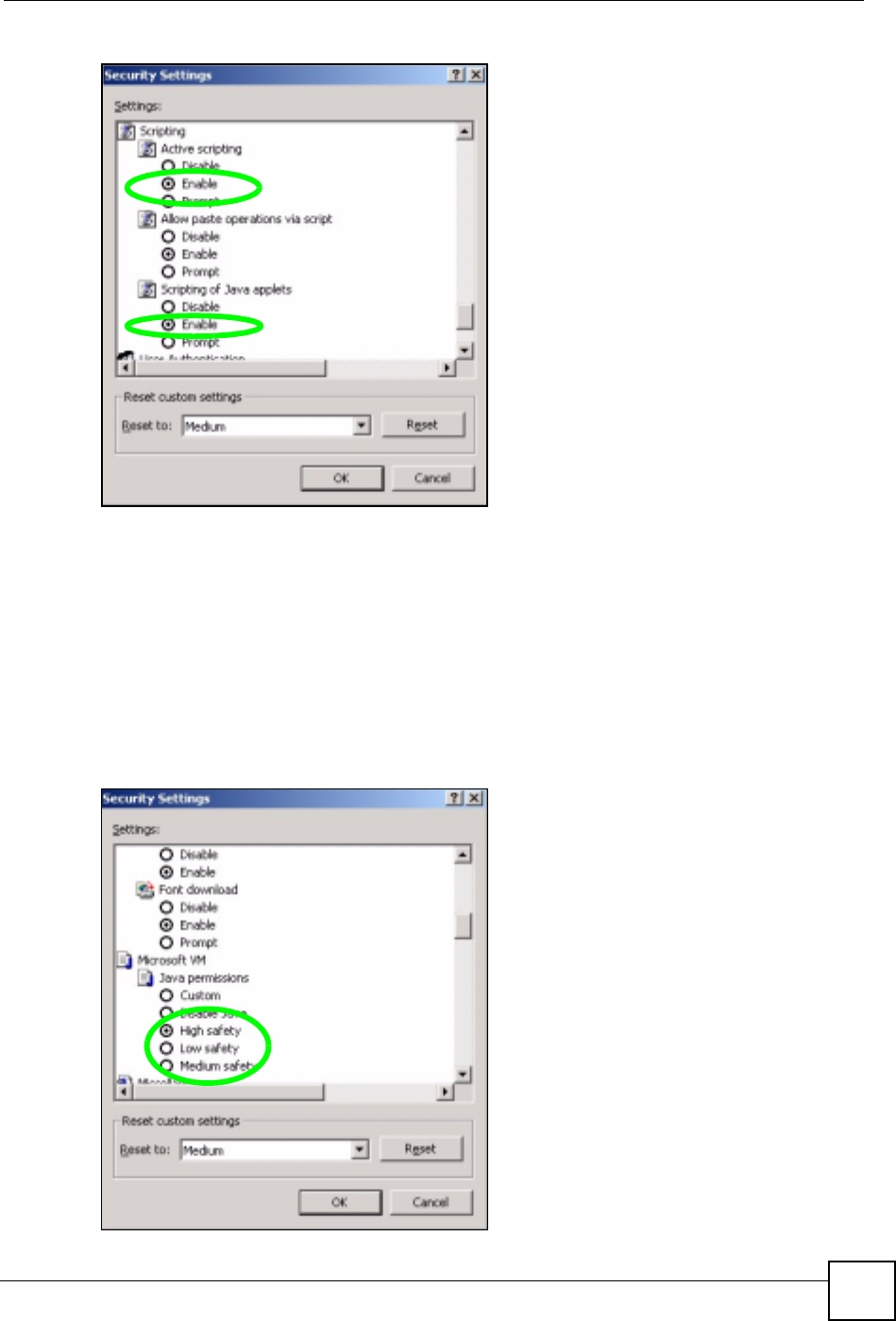

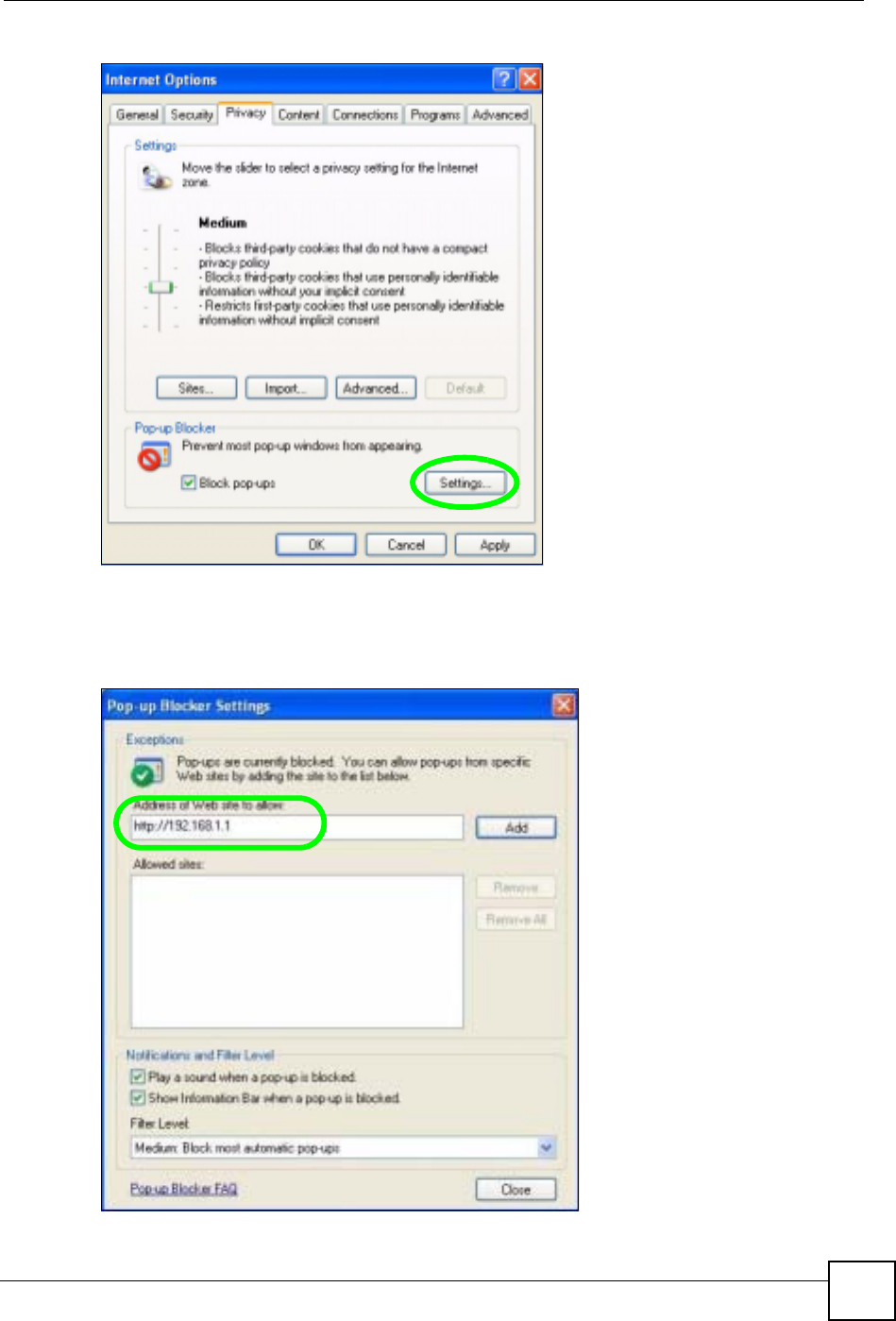

3Make sure your Internet browser does not block pop-up windows and has JavaScripts
and Java enabled. See Appendix B on page 279.
4Make sure your computer is in the same subnet as the NBG-460N. (If you know that
there are routers between your computer and the NBG-460N, skip this step.)

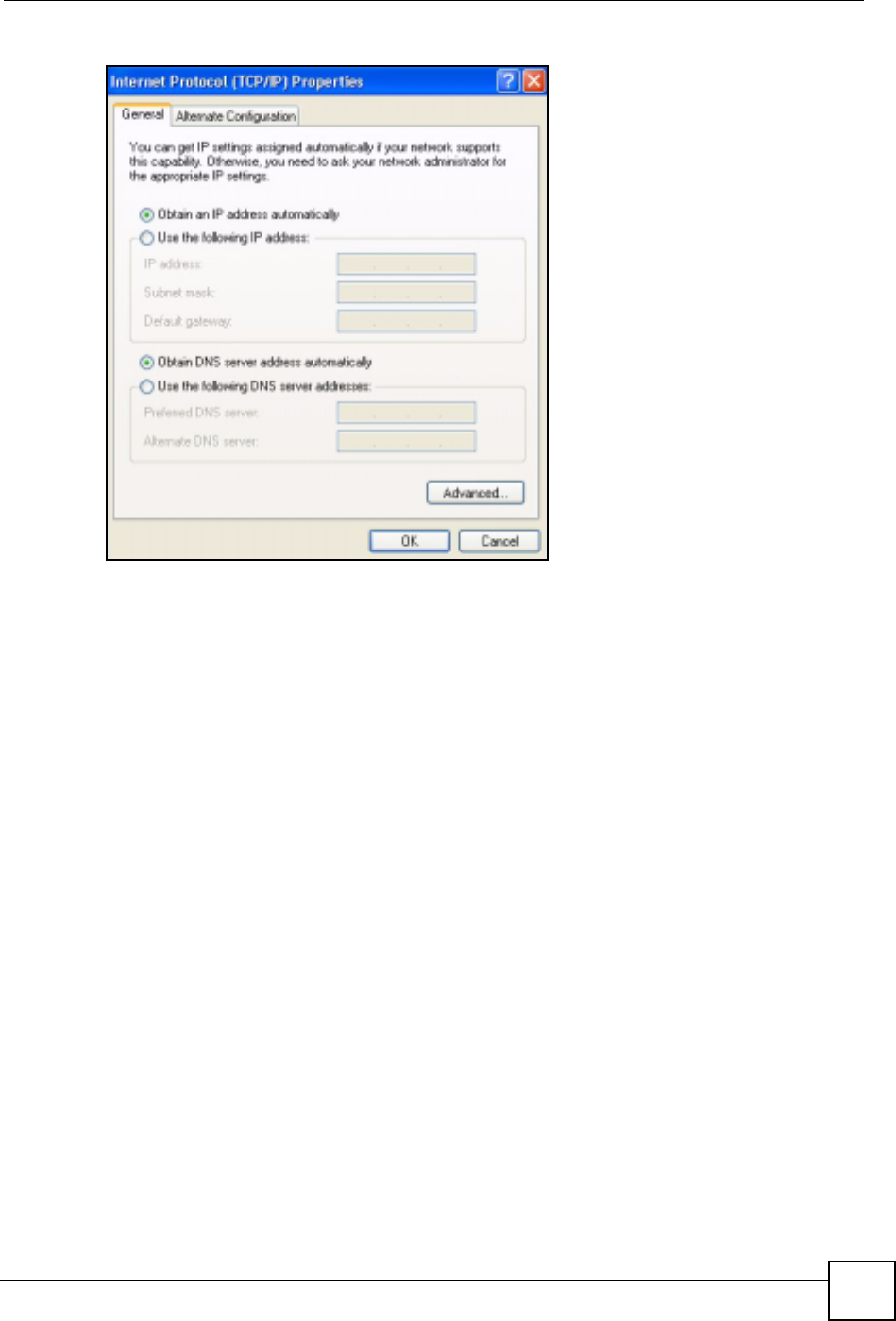

• If there is a DHCP server on your network, make sure your computer is using a
dynamic IP address. See Section 7.3 on page 102.
• If there is no DHCP server on your network, make sure your computer’s IP address is
in the same subnet as the NBG-460N. See Section 7.3 on page 102.
5Reset the device to its factory defaults, and try to access the NBG-460N with the default
IP address. See Section 7.3 on page 102.
6If the problem continues, contact the network administrator or vendor, or try one of the
advanced suggestions.
Advanced Suggestions
• Try to access the NBG-460N using another service, such as Telnet. If you can access the
NBG-460N, check the remote management settings and firewall rules to find out why the
NBG-460N does not respond to HTTP.
• If your computer is connected to the WAN port or is connected wirelessly, use a computer
that is connected to a LAN/ETHERNET port.
VI can see the Login screen, but I cannot log in to the NBG-460N.
1Make sure you have entered the password correctly. The default password is 1234. This
field is case-sensitive, so make sure [Caps Lock] is not on.
2You cannot log in to the web configurator while someone is using Telnet to access the
NBG-460N. Log out of the NBG-460N in the other session, or ask the person who is
logged in to log out.
3Disconnect and re-connect the power adaptor or cord to the NBG-460N.
4If this does not work, you have to reset the device to its factory defaults. See Section
26.4 on page 269.
VI cannot Telnet to the NBG-460N.
See the troubleshooting suggestions for I cannot see or access the Login screen in the web
configurator. Ignore the suggestions about your browser.
VI cannot use FTP to upload / download the configuration file. / I cannot use
FTP to upload new firmware.
Chapter 26 Troubleshooting
NBG-460N User’s Guide
268
See the troubleshooting suggestions for I cannot see or access the Login screen in the web
configurator. Ignore the suggestions about your browser.
26.3 Internet Access
VI cannot access the Internet.
1Check the hardware connections, and make sure the LEDs are behaving as expected. See
the Quick Start Guide.
2Make sure you entered your ISP account information correctly in the wizard. These
fields are case-sensitive, so make sure [Caps Lock] is not on.
3If you are trying to access the Internet wirelessly, make sure the wireless settings in the
wireless client are the same as the settings in the AP.
4Disconnect all the cables from your device, and follow the directions in the Quick Start
Guide again.
5Go to Maintenance > Sys OP Mode > General. Check your System Operation Mode
setting.
• Select Router if your device routes traffic between a local network and another
network such as the Internet.
• Select Access Point if your device bridges traffic between clients on the same
network.
6If the problem continues, contact your ISP.
VI cannot access the Internet anymore. I had access to the Internet (with the
NBG-460N), but my Internet connection is not available anymore.
1Check the hardware connections, and make sure the LEDs are behaving as expected. See
the Quick Start Guide and Section 1.7 on page 33.
2Reboot the NBG-460N.
3If the problem continues, contact your ISP.
VThe Internet connection is slow or intermittent.
1There might be a lot of traffic on the network. Look at the LEDs, and check Section 1.7
on page 33. If the NBG-460N is sending or receiving a lot of information, try closing
some programs that use the Internet, especially peer-to-peer applications.
2Check the signal strength. If the signal strength is low, try moving the NBG-460N closer
to the AP if possible, and look around to see if there are any devices that might be
Chapter 26 Troubleshooting
NBG-460N User’s Guide 269
interfering with the wireless network (for example, microwaves, other wireless
networks, and so on).
3Reboot the NBG-460N.
4If the problem continues, contact the network administrator or vendor, or try one of the
advanced suggestions.
Advanced Suggestions
• Check the settings for bandwidth management. If it is disabled, you might consider
activating it. If it is enabled, you might consider changing the allocations.
• Check the settings for QoS. If it is disabled, you might consider activating it. If it is
enabled, you might consider raising or lowering the priority for some applications.
26.4 Resetting the NBG-460N to Its Factory Defaults
If you reset the NBG-460N, you lose all of the changes you have made. The NBG-460N re-
loads its default settings, and the password resets to 1234. You have to make all of your
changes again.
VYou will lose all of your changes when you push the RESET button.
To reset the NBG-460N,
1Make sure the power LED is on and not blinking.
2Press and hold the RESET button for five to ten seconds. Release the RESET button
when the power LED begins to blink. The default settings have been restored.
If the NBG-460N restarts automatically, wait for the NBG-460N to finish restarting, and log in
to the web configurator. The password is “1234”.
If the NBG-460N does not restart automatically, disconnect and reconnect the NBG-460N’s
power. Then, follow the directions above again.
26.5 Wireless Router/AP Troubleshooting
VI cannot access the NBG-460N or ping any computer from the WLAN (wireless
AP or router).
1Make sure the wireless LAN is enabled on the NBG-460N
2Make sure the wireless adapter on the wireless station is working properly.
3Make sure the wireless adapter installed on your computer is IEEE 802.11 compatible
and supports the same wireless standard as the NBG-460N.
Chapter 26 Troubleshooting
NBG-460N User’s Guide
270
4Make sure your computer (with a wireless adapter installed) is within the transmission
range of the NBG-460N.
5Check that both the NBG-460N and your wireless station are using the same wireless
and wireless security settings.
6Make sure traffic between the WLAN and the LAN is not blocked by the firewall on the
NBG-460N.
7Make sure you allow the NBG-460N to be remotely accessed through the WLAN
interface. Check your remote management settings.
• See the chapter on Wireless LAN in the User’s Guide for more information.
26.6 Advanced Features
VI can log in, but I cannot see some of the screens or fields in the Web
Configurator.
You may be accessing the Web Configurator in Basic mode. Some screens and fields are
available only in Advanced mode. Use the Maintenance > Config Mode screen to select
Advanced mode.
You may be accessing the Web Configurator in AP Mode. Some screens and fields are
available only in Router Mode. Use the Maintenance > Sys OP Mode screen to select Router
Mode.
VI set up URL keyword blocking, but I can still access a website that should be
blocked.
Make sure that you select the Enable URL Keyword Blocking check box in the Content
Filtering screen. Make sure that the keywords that you type are listed in the Keyword List.
If a keyword that is listed in the Keyword List is not blocked when it is found in a URL,
customize the keyword blocking using commands. See the Customizing Keyword Blocking
URL Checking section in the Content Filter chapter.
271
PART VI
Appendices and
Index
Product Specifications and Wall-Mounting Instructions (273)
Pop-up Windows, JavaScripts and Java Permissions (279)
IP Addresses and Subnetting (285)
Setting up Your Computer’s IP Address (293)
Wireless LANs (309)
Services (321)
Legal Information (325)
Customer Support (329)
Index (335)
272
NBG-460N User’s Guide 273
APPENDIX A
Product Specifications and Wall-
Mounting Instructions
The following tables summarize the NBG-460N’s hardware and firmware features.
Table 113 Hardware Features
Dimensions (W x D x H) 190 x 150 x 33 mm
Weight 362g
Power Specification Input: 120~240 AC, 50~60 Hz
Output: 18 V DC 1A
Ethernet ports Auto-negotiating: 10 Mbps, 100 Mbps or 1000Mbps in either half-duplex or
full-duplex mode.
Auto-crossover: Use either crossover or straight-through Ethernet cables.
4-5 Gigabit Port Switch A combination of switch and router makes your NBG-460N a cost-effective
and viable network solution. You can add up to four computers to the NBG-
460N without the cost of a hub when connecting to the Internet through the
WAN port. You can add up to five computers to the NBG-460N when you
connect to the Internet in AP mode. Add more than four computers to your
LAN by using a hub.
LEDs PWR, LAN1-4, WAN, WLAN, WPS
Reset Button The reset button is built into the rear panel. Use this button to restore the
NBG-460N to its factory default settings. Press for 1 second to restart the
device. Press for 5 seconds to restore to factory default settings.
WPS button Press the WPS on two WPS enabled devices within 120 seconds for a
security-enabled wireless connection.
Antenna The NBG-460N is equipped with three 2dBi (2.4GHz) detachable antennas
to provide clear radio transmission and reception on the wireless network.
Operation Environment Temperature: 0º C ~ 40º C
Humidity: 20% ~ 85% RH (Non-condensing)
Storage Environment Temperature: -20º C ~ 60º C
Humidity: 20% ~ 90% RH (Non-condensing)
Distance between the
centers of the holes on
the device’s back.
137 mm

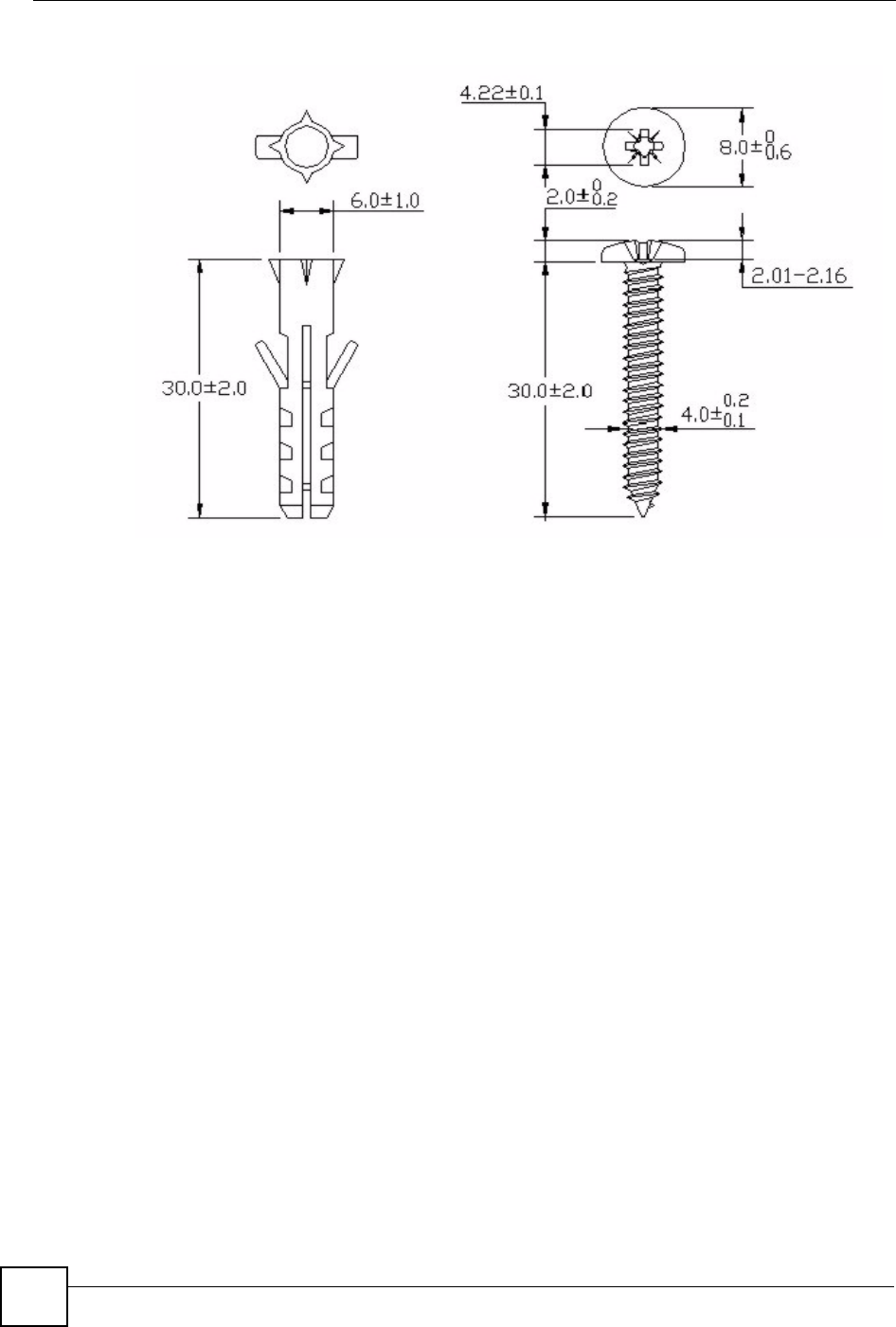

Screw size for wall-
mounting M4 Tap Screw
Appendix A Product Specifications and Wall-Mounting Instructions
NBG-460N User’s Guide
274
Table 114 Firmware Features
FEATURE DESCRIPTION
Default IP Address 192.168.1.1
Default Subnet Mask 255.255.255.0 (24 bits)
Default Password 1234
DHCP Pool 192.168.1.33 to 192.168.1.64
Wireless Interface Wireless LAN
Default Wireless SSID Wireless LAN: ZyXEL
Wireless LAN when WPS enabled: ZyXEL WPS
Default Wireless IP Address Wireless LAN: Same as LAN (192.168.1.1)
Default Wireless Subnet
Mask Wireless LAN: Same as LAN (255.255.255.0)
Default Wireless DHCP
Pool Size Wireless LAN: Same as LAN (32 from 192.168.1.33 to 192.168.1.64)
Device Management Use the web configurator to easily configure the rich range of features on
the NBG-460N.
Wireless Functionality Allows IEEE 802.11b and/or IEEE 802.11g and/or IEEE 802.11n
wireless clients to connect to the NBG-460N wirelessly. Enable wireless
security (WEP, WPA(2), WPA(2)-PSK) and/or MAC filtering to protect
your wireless network.

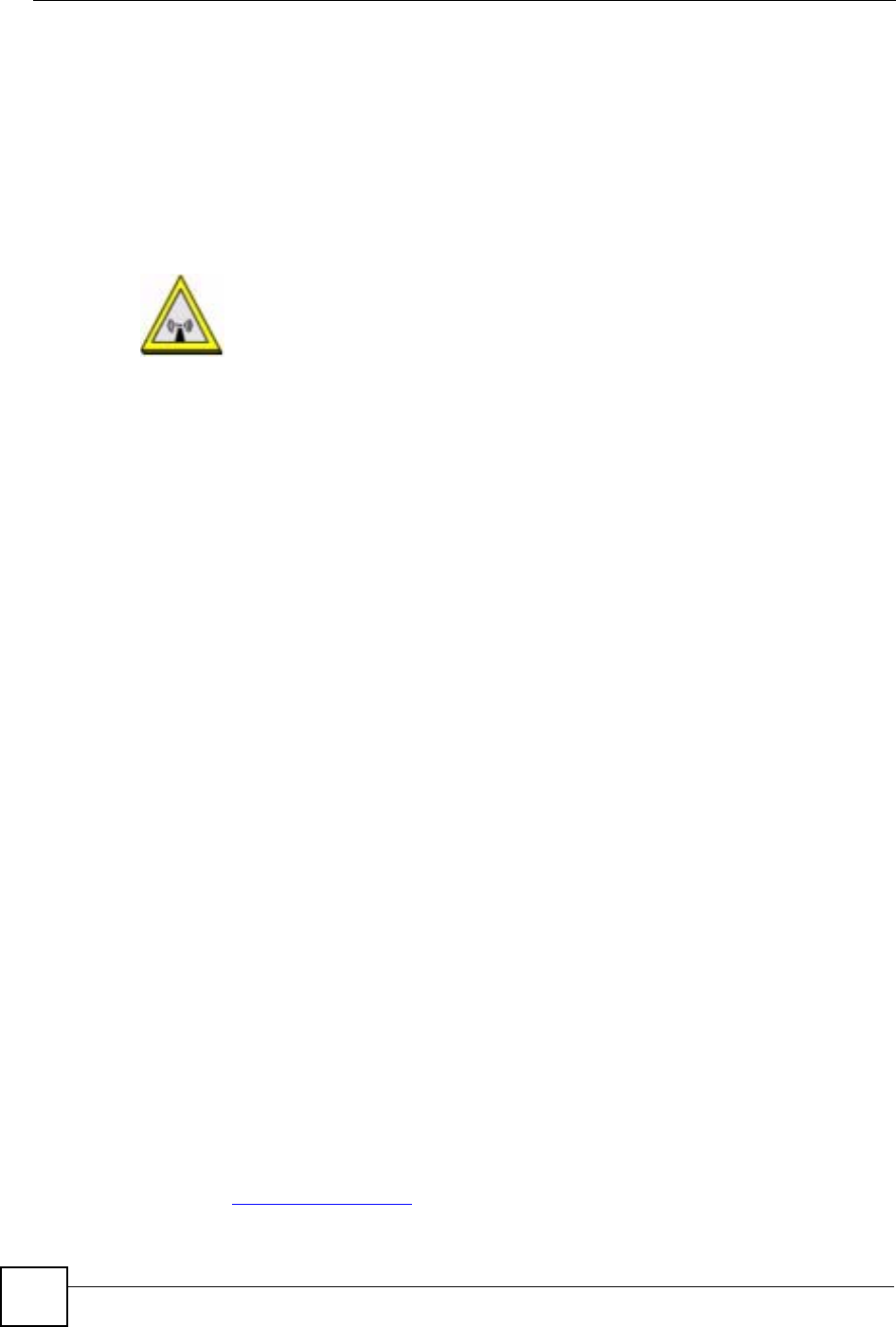

Note: The NBG-460N may be prone to RF (Radio
Frequency) interference from other 2.4 GHz devices
such as microwave ovens, wireless phones,
Bluetooth enabled devices, and other wireless LANs.
Firmware Upgrade Download new firmware (when available) from the ZyXEL web site and
use the web configurator, an FTP or a TFTP tool to put it on the NBG-
460N.
Note: Only upload firmware for your specific model!
Configuration Backup &
Restoration Make a copy of the NBG-460N’s configuration and put it back on the
NBG-460N later if you decide you want to revert back to an earlier
configuration.
Network Address
Translation (NAT) Each computer on your network must have its own unique IP address.
Use NAT to convert a single public IP address to multiple private IP
addresses for the computers on your network.
Firewall You can configure firewall on the NBG-460N for secure Internet access.
When the firewall is on, by default, all incoming traffic from the Internet to
your network is blocked unless it is initiated from your network. This
means that probes from the outside to your network are not allowed, but
you can safely browse the Internet and download files for example.
Content Filter The NBG-460N blocks or allows access to web sites that you specify
and blocks access to web sites with URLs that contain keywords that
you specify. You can define time periods and days during which content
filtering is enabled. You can also include or exclude particular computers
on your network from content filtering.
You can also subscribe to category-based content filtering that allows
your NBG-460N to check web sites against an external database.
Appendix A Product Specifications and Wall-Mounting Instructions
NBG-460N User’s Guide 275
IPSec VPN This allows you to establish a secure Virtual Private Network (VPN)
tunnel to connect with business partners and branch offices using data
encryption and the Internet without the expense of leased site-to-site
lines. The NBG-460N VPN is based on the IPSec standard and is fully
interoperable with other IPSec-based VPN products.
Bandwidth Management You can efficiently manage traffic on your network by reserving
bandwidth and giving priority to certain types of traffic and/or to particular
computers.
Wireless LAN Scheduler You can schedule the times the Wireless LAN is enabled/disabled.
Time and Date Get the current time and date from an external server when you turn on
your NBG-460N. You can also set the time manually. These dates and
times are then used in logs.
Port Forwarding If you have a server (mail or web server for example) on your network,
then use this feature to let people access it from the Internet.
DHCP (Dynamic Host
Configuration Protocol) Use this feature to have the NBG-460N assign IP addresses, an IP
default gateway and DNS servers to computers on your network.
Dynamic DNS Support With Dynamic DNS (Domain Name System) support, you can use a
fixed URL, www.zyxel.com for example, with a dynamic IP address. You
must register for this service with a Dynamic DNS service provider.
IP Multicast IP Multicast is used to send traffic to a specific group of computers. The
NBG-460N supports versions 1 and 2 of IGMP (Internet Group
Management Protocol) used to join multicast groups (see RFC 2236).
IP Alias IP Alias allows you to subdivide a physical network into logical networks
over the same Ethernet interface with the NBG-460N itself as the
gateway for each subnet.
Logging and Tracing Use packet tracing and logs for troubleshooting. You can send logs from
the NBG-460N to an external syslog server.
PPPoE PPPoE mimics a dial-up Internet access connection.
PPTP Encapsulation Point-to-Point Tunneling Protocol (PPTP) enables secure transfer of
data through a Virtual Private Network (VPN). The NBG-460N supports
one PPTP connection at a time.
Universal Plug and Play
(UPnP) The NBG-460N can communicate with other UPnP enabled devices in a
network.
Table 115 Feature Specifications
FEATURE SPECIFICATION
Number of Static Routes 8
Number of Port Forwarding Rules 10
Number of NAT Sessions 16000
Number of Address Mapping Rules 10
Number of VPN Tunnels 2
Number of Bandwidth Management
Classes 3
Number of DNS Name Server Record
Entries 3
Table 114 Firmware Features
FEATURE DESCRIPTION
Appendix A Product Specifications and Wall-Mounting Instructions
NBG-460N User’s Guide
276
The following list, which is not exhaustive, illustrates the standards supported in the NBG-
460N.
Wall-mounting Instructions
Do the following to hang your NBG-460N on a wall.
"See the Figure 167 on page 278 for the size of screws to use and how far
apart to place them.
1Locate a high position on a wall that is free of obstructions. Use a sturdy wall.
2Drill two holes for the screws. Make sure the distance between the centers of the holes
matches what is listed in the product specifications appendix.
Table 116 Standards Supported
STANDARD DESCRIPTION
RFC 867 Daytime Protocol
RFC 868 Time Protocol.
RFC 1058 RIP-1 (Routing Information Protocol)
RFC 1112 IGMP v1
RFC 1305 Network Time Protocol (NTP version 3)
RFC 1631 IP Network Address Translator (NAT)
RFC 1723 RIP-2 (Routing Information Protocol)
RFC 2236 Internet Group Management Protocol, Version 2.
RFC 2516 A Method for Transmitting PPP Over Ethernet (PPPoE)
RFC 2766 Network Address Translation - Protocol
IEEE 802.11 Also known by the brand Wi-Fi, denotes a set of Wireless LAN/WLAN
standards developed by working group 11 of the IEEE LAN/MAN
Standards Committee (IEEE 802).
IEEE 802.11b Uses the 2.4 gigahertz (GHz) band
IEEE 802.11g Uses the 2.4 gigahertz (GHz) band
IEEE 802.11n
IEEE 802.11d Standard for Local and Metropolitan Area Networks: Media Access
Control (MAC) Bridges
IEEE 802.11x Port Based Network Access Control.
IEEE 802.11e QoS IEEE 802.11 e Wireless LAN for Quality of Service
Microsoft PPTP MS PPTP (Microsoft's implementation of Point to Point Tunneling
Protocol)
MBM v2 Media Bandwidth Management v2
Appendix A Product Specifications and Wall-Mounting Instructions
NBG-460N User’s Guide 277
1Be careful to avoid damaging pipes or cables located inside the wall when
drilling holes for the screws.
3Do not screw the screws all the way into the wall. Leave a small gap of about 0.5 cm
between the heads of the screws and the wall.
4Make sure the screws are snugly fastened to the wall. They need to hold the weight of
the NBG-460N with the connection cables.
5Align the holes on the back of the NBG-460N with the screws on the wall. Hang the
NBG-460N on the screws.
Figure 166 Wall-mounting Example
The following are dimensions of an M4 tap screw and masonry plug used for wall mounting.
All measurements are in millimeters (mm).
Appendix A Product Specifications and Wall-Mounting Instructions
NBG-460N User’s Guide
278
Figure 167 Masonry Plug and M4 Tap Screw
NBG-460N User’s Guide 279
APPENDIX B
Pop-up Windows, JavaScripts
and Java Permissions
In order to use the web configurator you need to allow:
• Web browser pop-up windows from your device.
• JavaScripts (enabled by default).
• Java permissions (enabled by default).
"Internet Explorer 6 screens are used here. Screens for other Internet Explorer
versions may vary.
Internet Explorer Pop-up Blockers
You may have to disable pop-up blocking to log into your device.
Either disable pop-up blocking (enabled by default in Windows XP SP (Service Pack) 2) or
allow pop-up blocking and create an exception for your device’s IP address.
Disable pop-up Blockers
1In Internet Explorer, select Tools,Pop-up Blocker and then select Turn Off Pop-up
Blocker.
Figure 168 Pop-up Blocker
You can also check if pop-up blocking is disabled in the Pop-up Blocker section in the
Privacy tab.
1In Internet Explorer, select Tools,Internet Options,Privacy.
Appendix B Pop-up Windows, JavaScripts and Java Permissions
NBG-460N User’s Guide
280
2Clear the Block pop-ups check box in the Pop-up Blocker section of the screen. This
disables any web pop-up blockers you may have enabled.

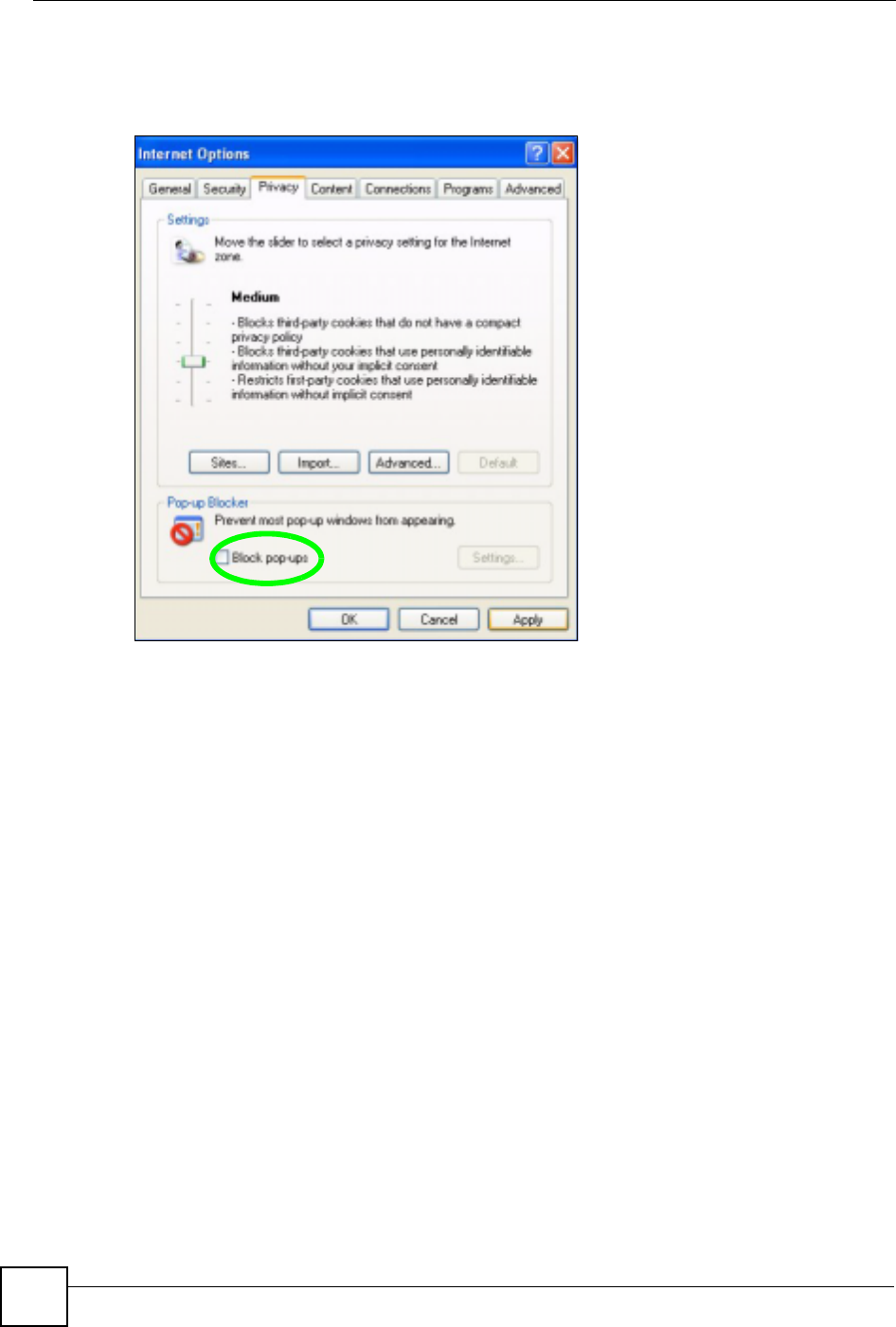

Figure 169 Internet Options: Privacy
3Click Apply to save this setting.
Enable pop-up Blockers with Exceptions
Alternatively, if you only want to allow pop-up windows from your device, see the following
steps.
1In Internet Explorer, select Tools,Internet Options and then the Privacy tab.
2Select Settings…to open the Pop-up Blocker Settings screen.
Appendix B Pop-up Windows, JavaScripts and Java Permissions
NBG-460N User’s Guide 281
Figure 170 Internet Options: Privacy
3Type the IP address of your device (the web page that you do not want to have blocked)
with the prefix “http://”. For example, http://192.168.167.1.
4Click Add to move the IP address to the list of Allowed sites.
Figure 171 Pop-up Blocker Settings
Appendix B Pop-up Windows, JavaScripts and Java Permissions
NBG-460N User’s Guide
282
5Click Close to return to the Privacy screen.
6Click Apply to save this setting.
JavaScripts
If pages of the web configurator do not display properly in Internet Explorer, check that
JavaScripts are allowed.

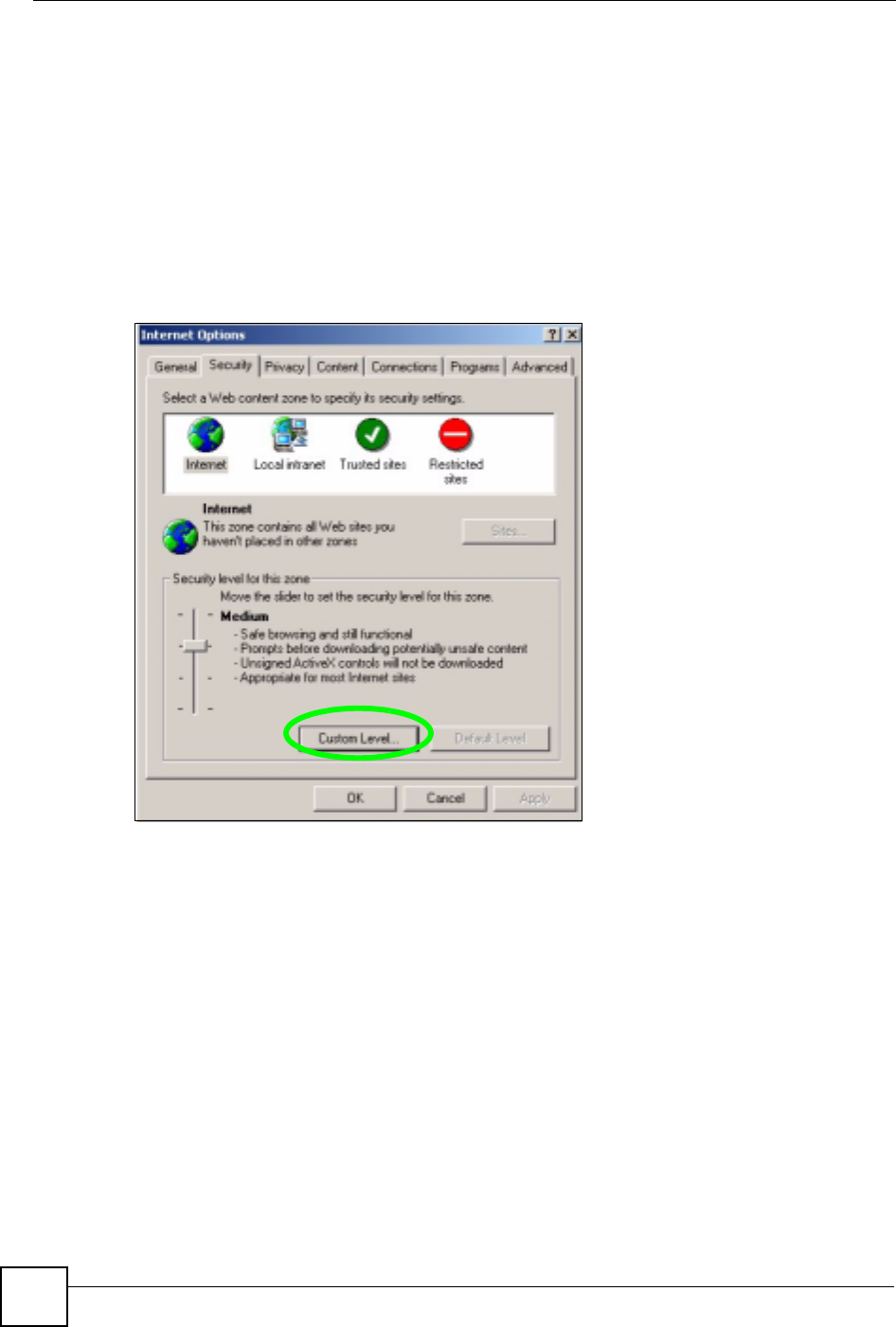

1In Internet Explorer, click Tools,Internet Options and then the Security tab.
Figure 172 Internet Options: Security
2Click the Custom Level... button.
3Scroll down to Scripting.
4Under Active scripting make sure that Enable is selected (the default).
5Under Scripting of Java applets make sure that Enable is selected (the default).
6Click OK to close the window.
Appendix B Pop-up Windows, JavaScripts and Java Permissions
NBG-460N User’s Guide 283
Figure 173 Security Settings - Java Scripting
Java Permissions
1From Internet Explorer, click Tools,Internet Options and then the Security tab.
2Click the Custom Level... button.
3Scroll down to Microsoft VM.
4Under Java permissions make sure that a safety level is selected.
5Click OK to close the window.
Figure 174 Security Settings - Java
Appendix B Pop-up Windows, JavaScripts and Java Permissions
NBG-460N User’s Guide
284
JAVA (Sun)
1From Internet Explorer, click Tools,Internet Options and then the Advanced tab.
2Make sure that Use Java 2 for <applet> under Java (Sun) is selected.
3Click OK to close the window.
Figure 175 Java (Sun)
NBG-460N User’s Guide 285
APPENDIX C
IP Addresses and Subnetting
This appendix introduces IP addresses and subnet masks.
IP addresses identify individual devices on a network. Every networking device (including
computers, servers, routers, printers, etc.) needs an IP address to communicate across the
network. These networking devices are also known as hosts.
Subnet masks determine the maximum number of possible hosts on a network. You can also
use subnet masks to divide one network into multiple sub-networks.
Introduction to IP Addresses
One part of the IP address is the network number, and the other part is the host ID. In the same
way that houses on a street share a common street name, the hosts on a network share a
common network number. Similarly, as each house has its own house number, each host on
the network has its own unique identifying number - the host ID. Routers use the network
number to send packets to the correct network, while the host ID determines to which host on
the network the packets are delivered.
Structure
An IP address is made up of four parts, written in dotted decimal notation (for example,
192.168.1.1). Each of these four parts is known as an octet. An octet is an eight-digit binary
number (for example 11000000, which is 192 in decimal notation).
Therefore, each octet has a possible range of 00000000 to 11111111 in binary, or 0 to 255 in
decimal.

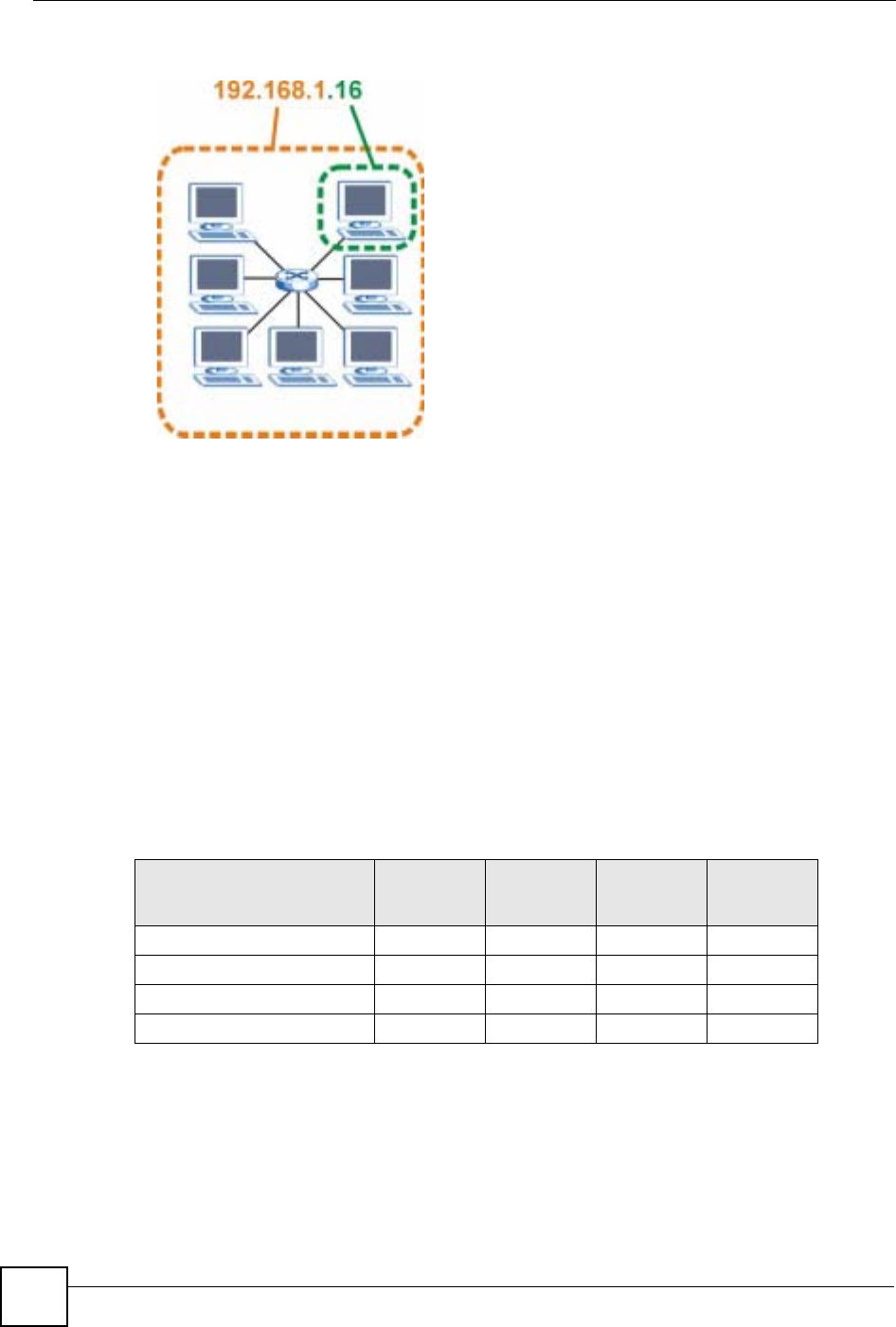

The following figure shows an example IP address in which the first three octets (192.168.1)
are the network number, and the fourth octet (16) is the host ID.
Appendix C IP Addresses and Subnetting
NBG-460N User’s Guide
286
Figure 176 Network Number and Host ID
How much of the IP address is the network number and how much is the host ID varies
according to the subnet mask.
Subnet Masks
A subnet mask is used to determine which bits are part of the network number, and which bits
are part of the host ID (using a logical AND operation). The term “subnet” is short for “sub-
network”.
A subnet mask has 32 bits. If a bit in the subnet mask is a “1” then the corresponding bit in the
IP address is part of the network number. If a bit in the subnet mask is “0” then the
corresponding bit in the IP address is part of the host ID.
The following example shows a subnet mask identifying the network number (in bold text)
and host ID of an IP address (192.168.1.2 in decimal).
By convention, subnet masks always consist of a continuous sequence of ones beginning from
the leftmost bit of the mask, followed by a continuous sequence of zeros, for a total number of
32 bits.
Subnet masks can be referred to by the size of the network number part (the bits with a “1”
value). For example, an “8-bit mask” means that the first 8 bits of the mask are ones and the
remaining 24 bits are zeroes.
Table 117 Subnet Mask - Identifying Network Number
1ST
OCTET:
(192)
2ND
OCTET:
(168)
3RD
OCTET:
(1)
4TH OCTET
(2)
IP Address (Binary) 11000000 10101000 00000001 00000010
Subnet Mask (Binary) 11111111 11111111 11111111 00000000
Network Number 11000000 10101000 00000001
Host ID 00000010
Appendix C IP Addresses and Subnetting
NBG-460N User’s Guide 287
Subnet masks are expressed in dotted decimal notation just like IP addresses. The following
examples show the binary and decimal notation for 8-bit, 16-bit, 24-bit and 29-bit subnet
masks.
Network Size
The size of the network number determines the maximum number of possible hosts you can
have on your network. The larger the number of network number bits, the smaller the number
of remaining host ID bits.
An IP address with host IDs of all zeros is the IP address of the network (192.168.1.0 with a
24-bit subnet mask, for example). An IP address with host IDs of all ones is the broadcast
address for that network (192.168.1.255 with a 24-bit subnet mask, for example).
As these two IP addresses cannot be used for individual hosts, calculate the maximum number
of possible hosts in a network as follows:
Notation
Since the mask is always a continuous number of ones beginning from the left, followed by a
continuous number of zeros for the remainder of the 32 bit mask, you can simply specify the
number of ones instead of writing the value of each octet. This is usually specified by writing
a “/” followed by the number of bits in the mask after the address.
For example, 192.1.1.0 /25 is equivalent to saying 192.1.1.0 with subnet mask
255.255.255.128.
The following table shows some possible subnet masks using both notations.
Table 118 Subnet Masks
BINARY
DECIMAL
1ST
OCTET 2ND
OCTET 3RD
OCTET 4TH OCTET
8-bit mask 11111111 00000000 00000000 00000000 255.0.0.0
16-bit mask 11111111 11111111 00000000 00000000 255.255.0.0
24-bit mask 11111111 11111111 11111111 00000000 255.255.255.0
29-bit mask 11111111 11111111 11111111 11111000 255.255.255.248
Table 119 Maximum Host Numbers
SUBNET MASK HOST ID SIZE MAXIMUM NUMBER OF HOSTS
8 bits 255.0.0.0 24 bits 224 – 2 16777214
16 bits 255.255.0.0 16 bits 216 – 2 65534
24 bits 255.255.255.0 8 bits 28 – 2 254
29 bits 255.255.255.248 3 bits 23 – 2 6
Table 120 Alternative Subnet Mask Notation
SUBNET MASK ALTERNATIVE
NOTATION LAST OCTET
(BINARY) LAST OCTET
(DECIMAL)
255.255.255.0 /24 0000 0000 0
255.255.255.128 /25 1000 0000 128
Appendix C IP Addresses and Subnetting
NBG-460N User’s Guide
288
Subnetting
You can use subnetting to divide one network into multiple sub-networks. In the following
example a network administrator creates two sub-networks to isolate a group of servers from
the rest of the company network for security reasons.
In this example, the company network address is 192.168.1.0. The first three octets of the
address (192.168.1) are the network number, and the remaining octet is the host ID, allowing a
maximum of 28 – 2 or 254 possible hosts.
The following figure shows the company network before subnetting.

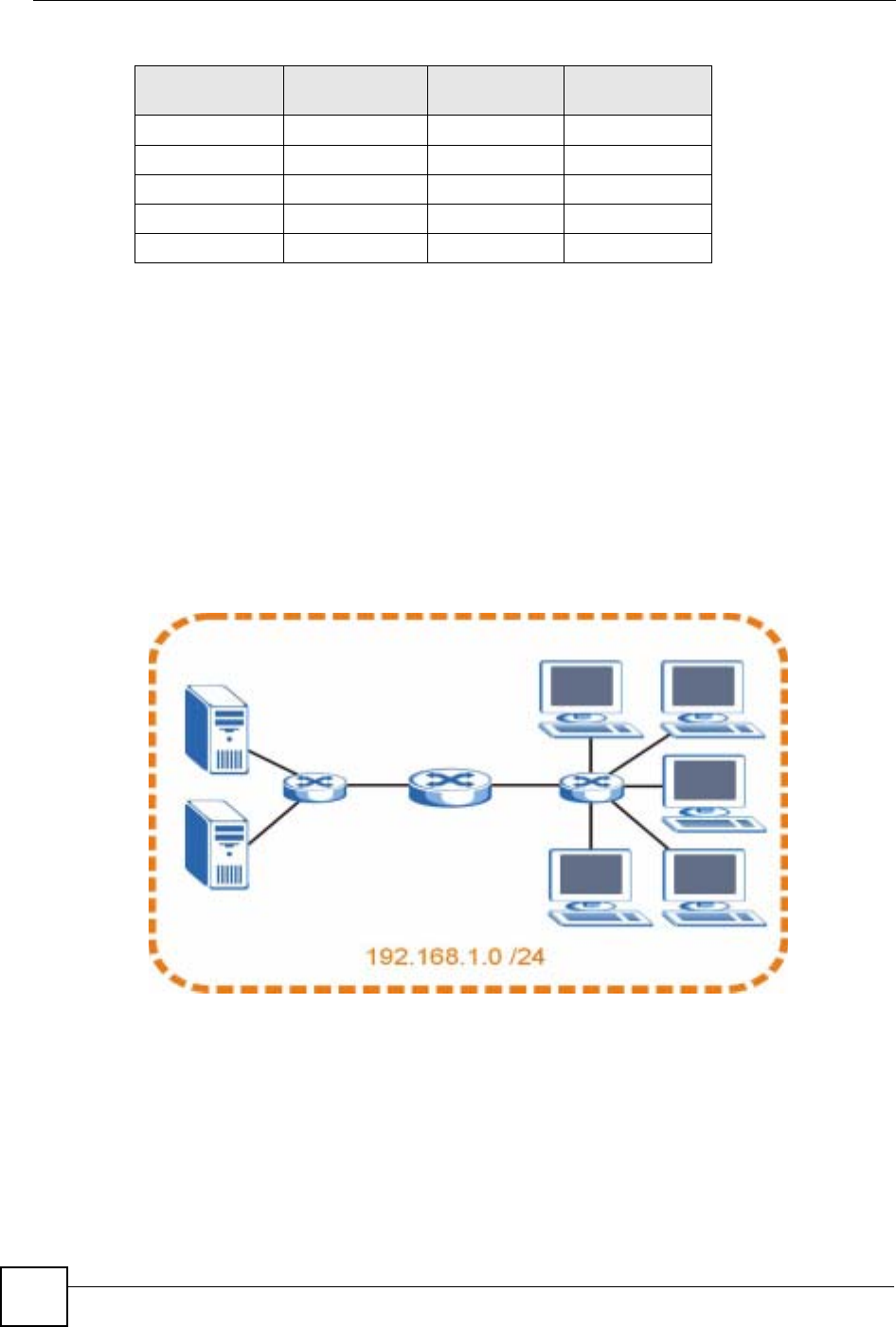

Figure 177 Subnetting Example: Before Subnetting
You can “borrow” one of the host ID bits to divide the network 192.168.1.0 into two separate
sub-networks. The subnet mask is now 25 bits (255.255.255.128 or /25).
The “borrowed” host ID bit can have a value of either 0 or 1, allowing two subnets;
192.168.1.0 /25 and 192.168.1.128 /25.
The following figure shows the company network after subnetting. There are now two sub-
networks, A and B.
255.255.255.192 /26 1100 0000 192
255.255.255.224 /27 1110 0000 224
255.255.255.240 /28 1111 0000 240
255.255.255.248 /29 1111 1000 248
255.255.255.252 /30 1111 1100 252
Table 120 Alternative Subnet Mask Notation (continued)
SUBNET MASK ALTERNATIVE
NOTATION LAST OCTET
(BINARY) LAST OCTET
(DECIMAL)
Appendix C IP Addresses and Subnetting
NBG-460N User’s Guide 289

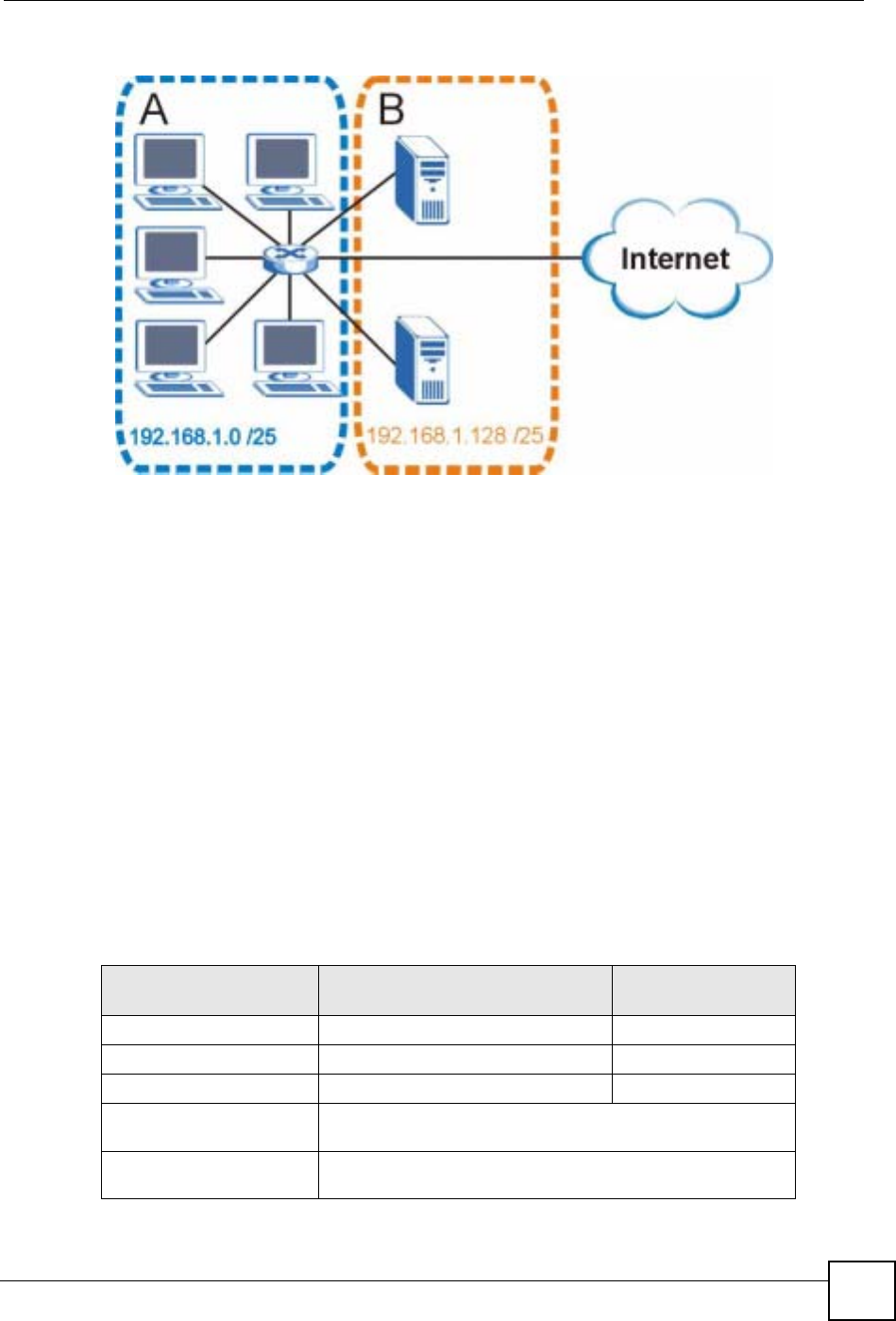

Figure 178 Subnetting Example: After Subnetting
In a 25-bit subnet the host ID has 7 bits, so each sub-network has a maximum of 27 – 2 or 126
possible hosts (a host ID of all zeroes is the subnet’s address itself, all ones is the subnet’s
broadcast address).
192.168.1.0 with mask 255.255.255.128 is subnet A itself, and 192.168.1.127 with mask
255.255.255.128 is its broadcast address. Therefore, the lowest IP address that can be assigned
to an actual host for subnet A is 192.168.1.1 and the highest is 192.168.1.126.
Similarly, the host ID range for subnet B is 192.168.1.129 to 192.168.1.254.
Example: Four Subnets
The previous example illustrated using a 25-bit subnet mask to divide a 24-bit address into two
subnets. Similarly, to divide a 24-bit address into four subnets, you need to “borrow” two host
ID bits to give four possible combinations (00, 01, 10 and 11). The subnet mask is 26 bits
(11111111.11111111.11111111.11000000) or 255.255.255.192.
Each subnet contains 6 host ID bits, giving 26 - 2 or 62 hosts for each subnet (a host ID of all
zeroes is the subnet itself, all ones is the subnet’s broadcast address).
Table 121 Subnet 1
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address (Decimal) 192.168.1. 0
IP Address (Binary) 11000000.10101000.00000001. 00000000
Subnet Mask (Binary) 11111111.11111111.11111111. 11000000
Subnet Address:
192.168.1.0 Lowest Host ID: 192.168.1.1
Broadcast Address:
192.168.1.63 Highest Host ID: 192.168.1.62
Appendix C IP Addresses and Subnetting
NBG-460N User’s Guide
290
Example: Eight Subnets
Similarly, use a 27-bit mask to create eight subnets (000, 001, 010, 011, 100, 101, 110 and
111).
The following table shows IP address last octet values for each subnet.
Table 122 Subnet 2
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address 192.168.1. 64
IP Address (Binary) 11000000.10101000.00000001. 01000000
Subnet Mask (Binary) 11111111.11111111.11111111. 11000000
Subnet Address:
192.168.1.64 Lowest Host ID: 192.168.1.65
Broadcast Address:
192.168.1.127 Highest Host ID: 192.168.1.126
Table 123 Subnet 3
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address 192.168.1. 128
IP Address (Binary) 11000000.10101000.00000001. 10000000
Subnet Mask (Binary) 11111111.11111111.11111111. 11000000
Subnet Address:
192.168.1.128 Lowest Host ID: 192.168.1.129
Broadcast Address:
192.168.1.191 Highest Host ID: 192.168.1.190
Table 124 Subnet 4
IP/SUBNET MASK NETWORK NUMBER LAST OCTET BIT
VALUE
IP Address 192.168.1. 192
IP Address (Binary) 11000000.10101000.00000001. 11000000
Subnet Mask (Binary) 11111111.11111111.11111111. 11000000
Subnet Address:
192.168.1.192 Lowest Host ID: 192.168.1.193
Broadcast Address:
192.168.1.255 Highest Host ID: 192.168.1.254
Table 125 Eight Subnets
SUBNET SUBNET
ADDRESS FIRST ADDRESS LAST
ADDRESS BROADCAST
ADDRESS
1 0 1 30 31
232 33 62 63
364 65 94 95
496 97 126 127
Appendix C IP Addresses and Subnetting
NBG-460N User’s Guide 291
Subnet Planning
The following table is a summary for subnet planning on a network with a 24-bit network
number.
The following table is a summary for subnet planning on a network with a 16-bit network
number.
5128 129 158 159
6160 161 190 191
7192 193 222 223
8224 225 254 255
Table 125 Eight Subnets (continued)
SUBNET SUBNET
ADDRESS FIRST ADDRESS LAST
ADDRESS BROADCAST
ADDRESS
Table 126 24-bit Network Number Subnet Planning
NO. “BORROWED”
HOST BITS SUBNET MASK NO. SUBNETS NO. HOSTS PER
SUBNET
1255.255.255.128 (/25) 2126
2255.255.255.192 (/26) 462
3255.255.255.224 (/27) 830
4255.255.255.240 (/28) 16 14
5255.255.255.248 (/29) 32 6
6255.255.255.252 (/30) 64 2
7255.255.255.254 (/31) 128 1
Table 127 16-bit Network Number Subnet Planning
NO. “BORROWED”
HOST BITS SUBNET MASK NO. SUBNETS NO. HOSTS PER
SUBNET
1255.255.128.0 (/17) 232766
2255.255.192.0 (/18) 416382
3255.255.224.0 (/19) 88190
4255.255.240.0 (/20) 16 4094
5255.255.248.0 (/21) 32 2046
6255.255.252.0 (/22) 64 1022
7255.255.254.0 (/23) 128 510
8255.255.255.0 (/24) 256 254
9255.255.255.128 (/25) 512 126
10 255.255.255.192 (/26) 1024 62
11 255.255.255.224 (/27) 2048 30
12 255.255.255.240 (/28) 4096 14
13 255.255.255.248 (/29) 8192 6
Appendix C IP Addresses and Subnetting
NBG-460N User’s Guide
292
Configuring IP Addresses
Where you obtain your network number depends on your particular situation. If the ISP or
your network administrator assigns you a block of registered IP addresses, follow their
instructions in selecting the IP addresses and the subnet mask.
If the ISP did not explicitly give you an IP network number, then most likely you have a single
user account and the ISP will assign you a dynamic IP address when the connection is
established. If this is the case, it is recommended that you select a network number from
192.168.0.0 to 192.168.255.0. The Internet Assigned Number Authority (IANA) reserved this
block of addresses specifically for private use; please do not use any other number unless you
are told otherwise. You must also enable Network Address Translation (NAT) on the
NBG460N.
Once you have decided on the network number, pick an IP address for your NBG460N that is
easy to remember (for instance, 192.168.1.1) but make sure that no other device on your
network is using that IP address.
The subnet mask specifies the network number portion of an IP address. Your NBG460N will
compute the subnet mask automatically based on the IP address that you entered. You don't
need to change the subnet mask computed by the NBG460N unless you are instructed to do
otherwise.
Private IP Addresses
Every machine on the Internet must have a unique address. If your networks are isolated from
the Internet (running only between two branch offices, for example) you can assign any IP
addresses to the hosts without problems. However, the Internet Assigned Numbers Authority
(IANA) has reserved the following three blocks of IP addresses specifically for private
networks:
• 10.0.0.0 — 10.255.255.255
• 172.16.0.0 — 172.31.255.255
• 192.168.0.0 — 192.168.255.255
You can obtain your IP address from the IANA, from an ISP, or it can be assigned from a
private network. If you belong to a small organization and your Internet access is through an
ISP, the ISP can provide you with the Internet addresses for your local networks. On the other
hand, if you are part of a much larger organization, you should consult your network
administrator for the appropriate IP addresses.
Regardless of your particular situation, do not create an arbitrary IP address; always follow the
guidelines above. For more information on address assignment, please refer to RFC 1597,
Address Allocation for Private Internets and RFC 1466, Guidelines for Management of IP
Address Space.
14 255.255.255.252 (/30) 16384 2
15 255.255.255.254 (/31) 32768 1
Table 127 16-bit Network Number Subnet Planning (continued)
NO. “BORROWED”
HOST BITS SUBNET MASK NO. SUBNETS NO. HOSTS PER
SUBNET
NBG-460N User’s Guide 293
APPENDIX D
Setting up Your Computer’s IP
Address
All computers must have a 10M or 100M Ethernet adapter card and TCP/IP installed.
Windows 95/98/Me/NT/2000/XP, Macintosh OS 7 and later operating systems and all
versions of UNIX/LINUX include the software components you need to install and use TCP/
IP on your computer. Windows 3.1 requires the purchase of a third-party TCP/IP application
package.
TCP/IP should already be installed on computers using Windows NT/2000/XP, Macintosh OS
7 and later operating systems.
After the appropriate TCP/IP components are installed, configure the TCP/IP settings in order
to "communicate" with your network.
If you manually assign IP information instead of using dynamic assignment, make sure that
your computers have IP addresses that place them in the same subnet as the Prestige’s LAN
port.
Windows 95/98/Me
Click Start,Settings,Control Panel and double-click the Network icon to open the Network
window.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
294

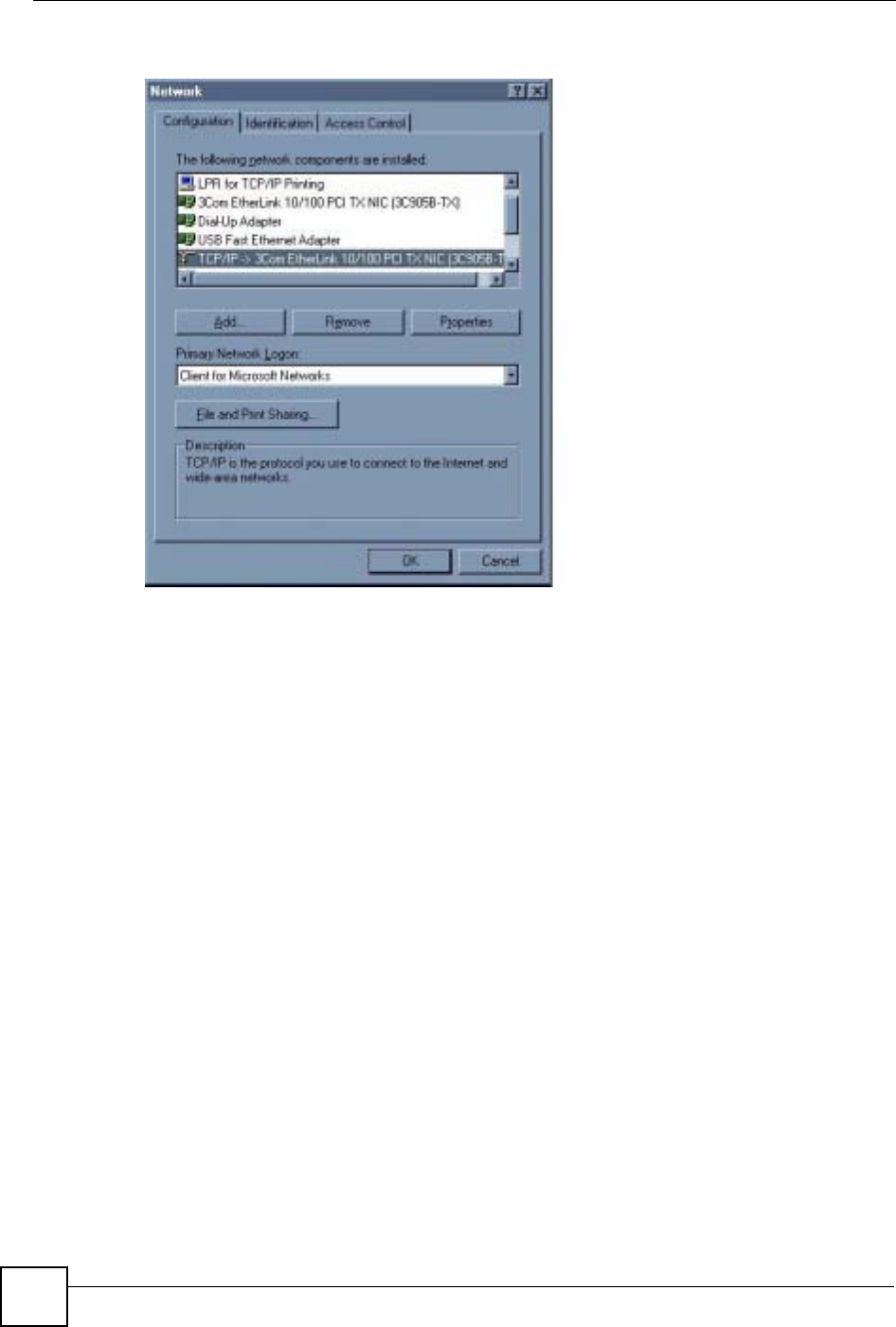

Figure 179 WIndows 95/98/Me: Network: Configuration
Installing Components
The Network window Configuration tab displays a list of installed components. You need a
network adapter, the TCP/IP protocol and Client for Microsoft Networks.
If you need the adapter:
1In the Network window, click Add.
2Select Adapter and then click Add.
3Select the manufacturer and model of your network adapter and then click OK.
If you need TCP/IP:
1In the Network window, click Add.
2Select Protocol and then click Add.
3Select Microsoft from the list of manufacturers.
4Select TCP/IP from the list of network protocols and then click OK.
If you need Client for Microsoft Networks:
1Click Add.
2Select Client and then click Add.
3Select Microsoft from the list of manufacturers.
4Select Client for Microsoft Networks from the list of network clients and then click
OK.
5Restart your computer so the changes you made take effect.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide 295
Configuring
1In the Network window Configuration tab, select your network adapter's TCP/IP entry
and click Properties
2Click the IP Address tab.
• If your IP address is dynamic, select Obtain an IP address automatically.
• If you have a static IP address, select Specify an IP address and type your
information into the IP Address and Subnet Mask fields.

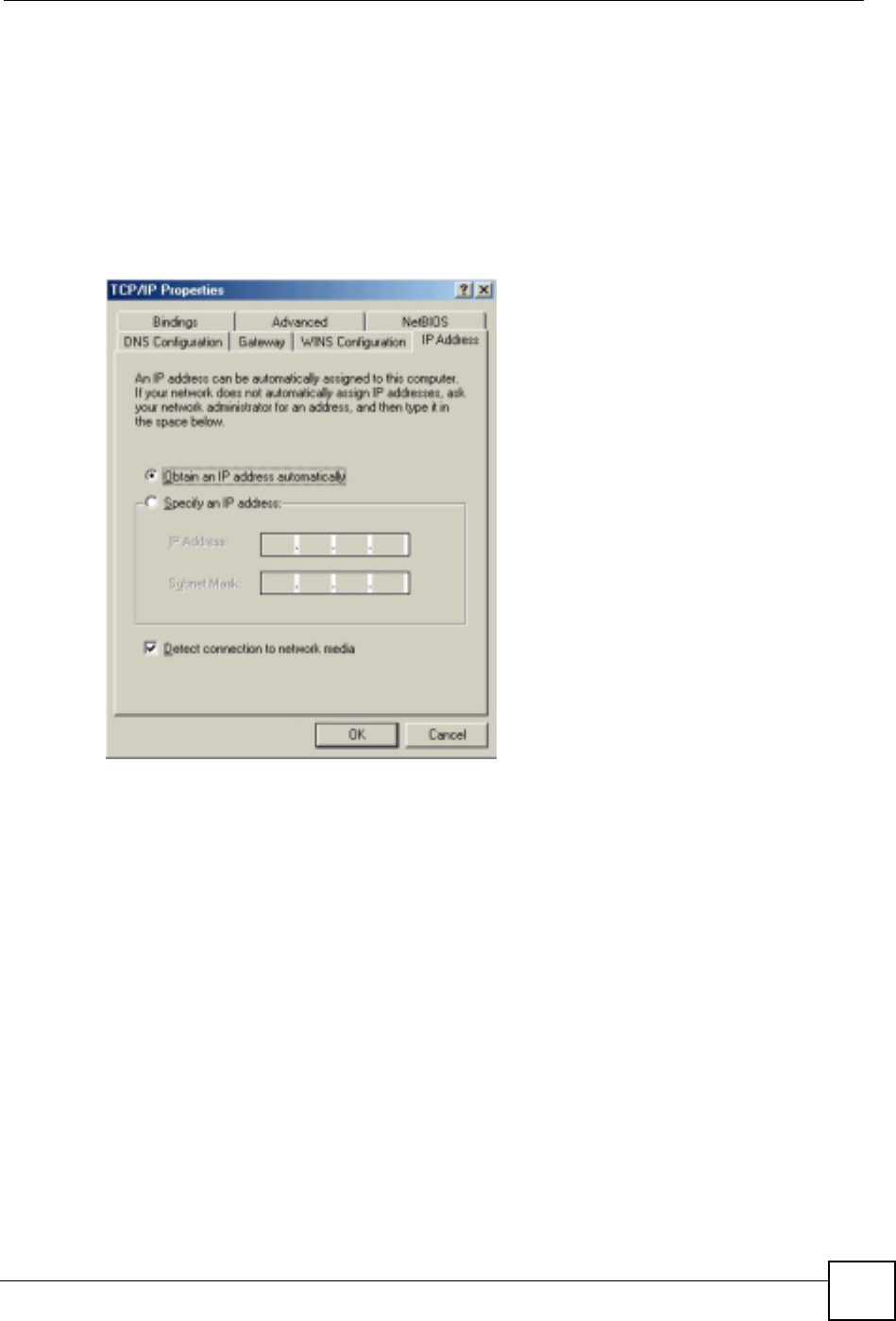

Figure 180 Windows 95/98/Me: TCP/IP Properties: IP Address
3Click the DNS Configuration tab.
• If you do not know your DNS information, select Disable DNS.
• If you know your DNS information, select Enable DNS and type the information in
the fields below (you may not need to fill them all in).
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
296

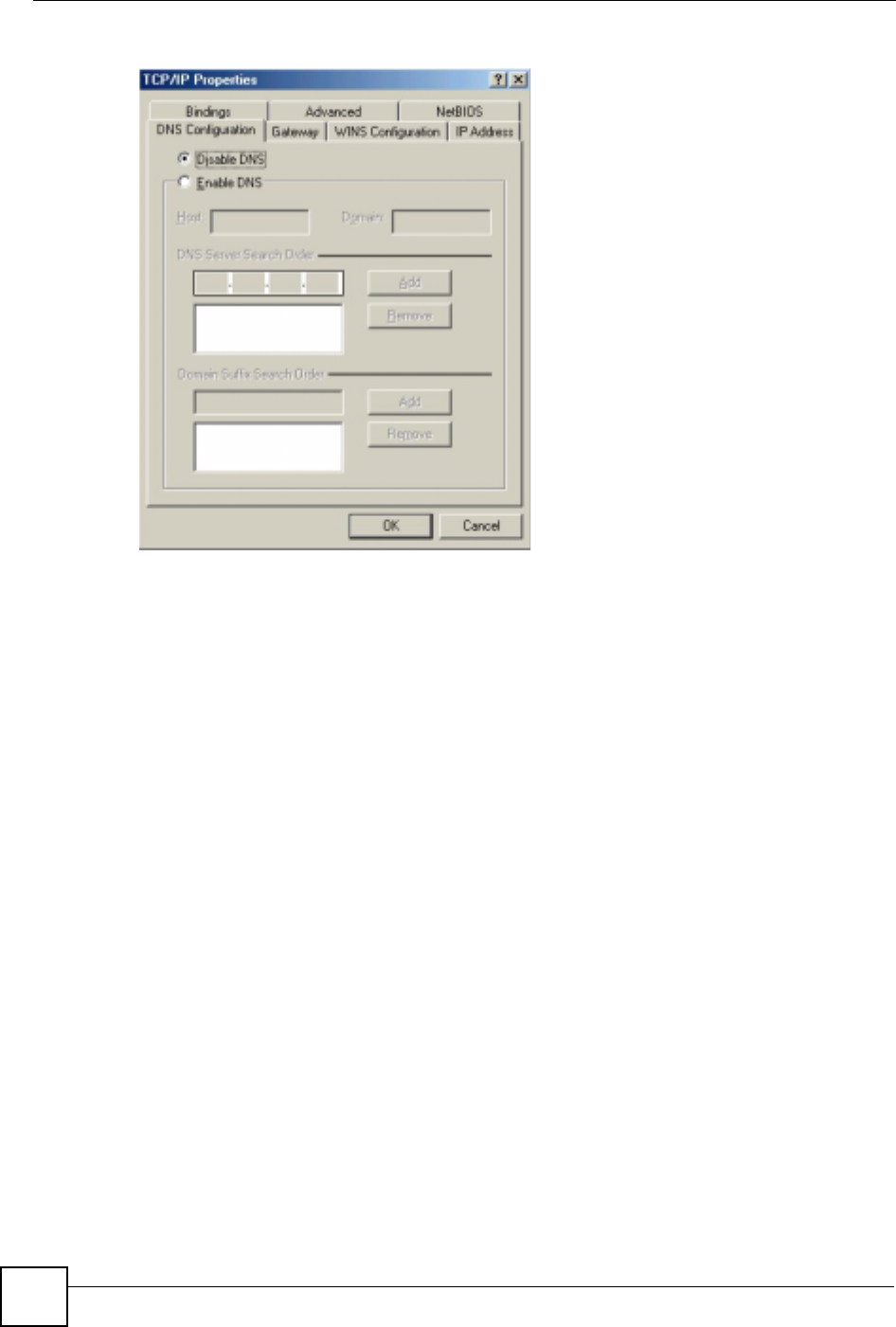

Figure 181 Windows 95/98/Me: TCP/IP Properties: DNS Configuration
4Click the Gateway tab.
• If you do not know your gateway’s IP address, remove previously installed gateways.
• If you have a gateway IP address, type it in the New gateway field and click Add.
5Click OK to save and close the TCP/IP Properties window.
6Click OK to close the Network window. Insert the Windows CD if prompted.
7Turn on your Prestige and restart your computer when prompted.
Verifying Settings
1Click Start and then Run.
2In the Run window, type "winipcfg" and then click OK to open the IP Configuration
window.
3Select your network adapter. You should see your computer's IP address, subnet mask
and default gateway.
Windows 2000/NT/XP
The following example figures use the default Windows XP GUI theme.
1Click start (Start in Windows 2000/NT), Settings,Control Panel.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide 297

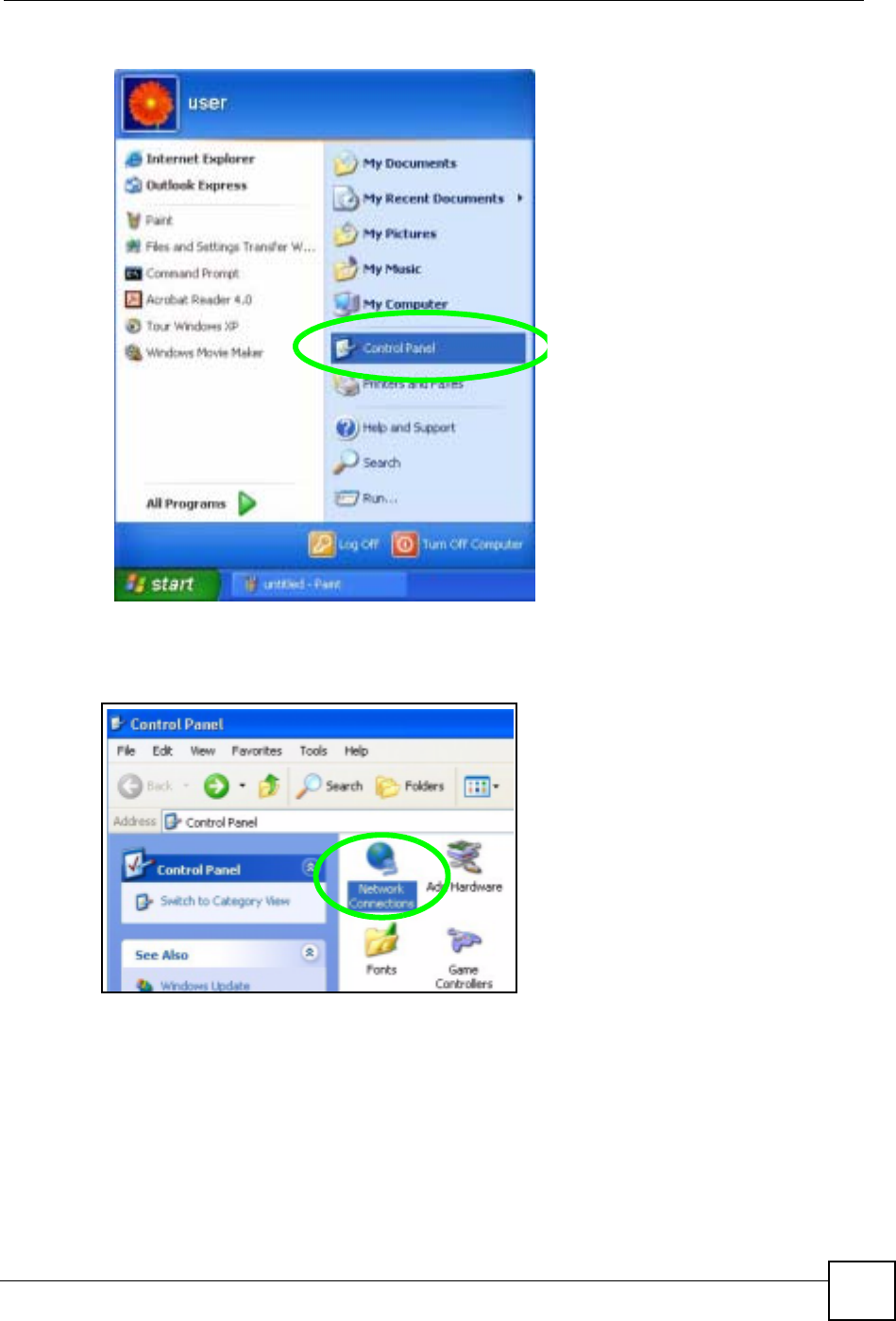

Figure 182 Windows XP: Start Menu
2In the Control Panel, double-click Network Connections (Network and Dial-up
Connections in Windows 2000/NT).
Figure 183 Windows XP: Control Panel
3Right-click Local Area Connection and then click Properties.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
298

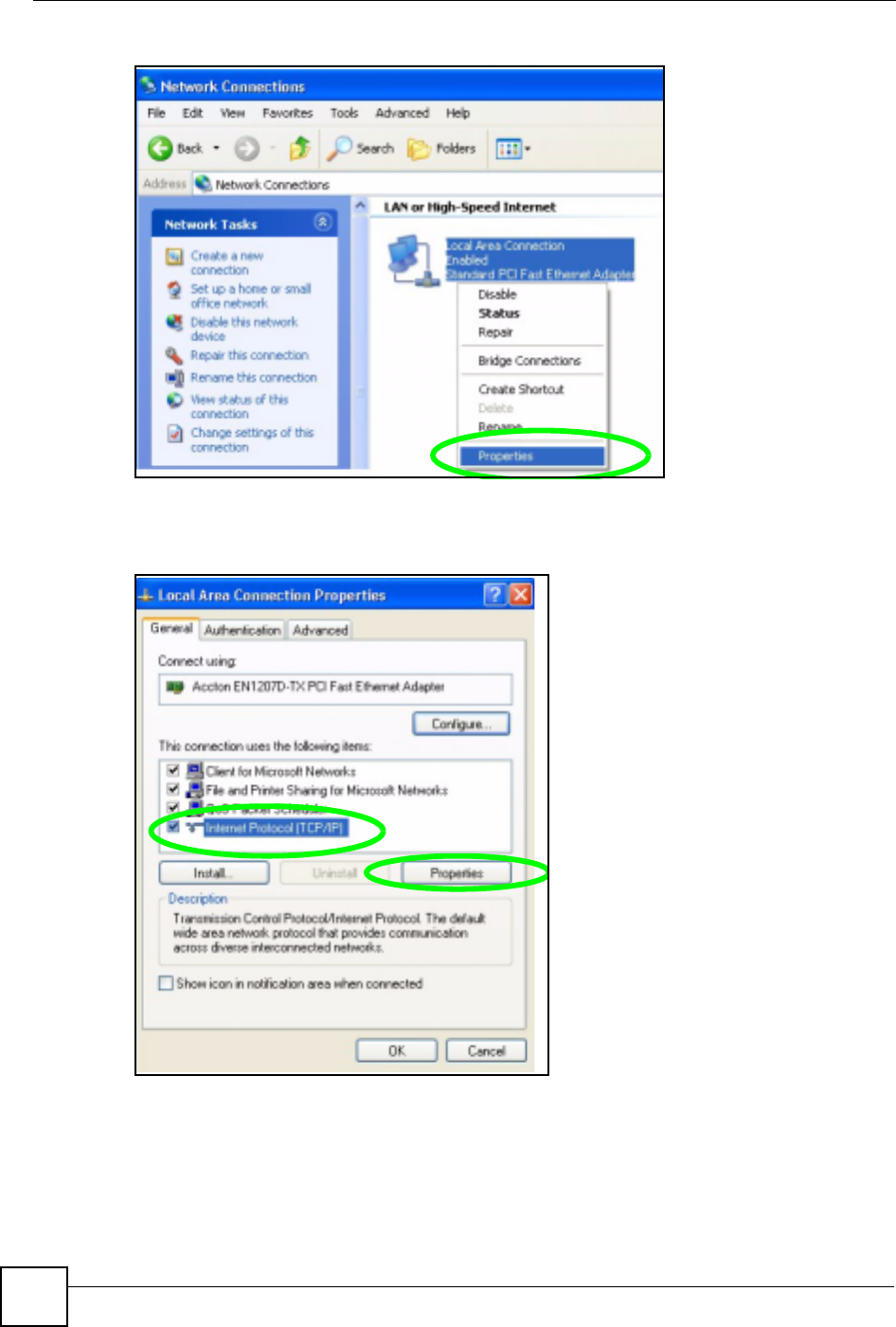

Figure 184 Windows XP: Control Panel: Network Connections: Properties
4Select Internet Protocol (TCP/IP) (under the General tab in Win XP) and then click
Properties.
Figure 185 Windows XP: Local Area Connection Properties
5The Internet Protocol TCP/IP Properties window opens (the General tab in
Windows XP).
• If you have a dynamic IP address click Obtain an IP address automatically.
• If you have a static IP address click Use the following IP Address and fill in the IP
address,Subnet mask, and Default gateway fields.
• Click Advanced.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide 299
Figure 186 Windows XP: Internet Protocol (TCP/IP) Properties
6 If you do not know your gateway's IP address, remove any previously installed
gateways in the IP Settings tab and click OK.
Do one or more of the following if you want to configure additional IP addresses:
•In the IP Settings tab, in IP addresses, click Add.
•In TCP/IP Address, type an IP address in IP address and a subnet mask in Subnet
mask, and then click Add.
• Repeat the above two steps for each IP address you want to add.
• Configure additional default gateways in the IP Settings tab by clicking Add in
Default gateways.
•In TCP/IP Gateway Address, type the IP address of the default gateway in Gateway.
To manually configure a default metric (the number of transmission hops), clear the
Automatic metric check box and type a metric in Metric.
• Click Add.
• Repeat the previous three steps for each default gateway you want to add.
• Click OK when finished.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
300

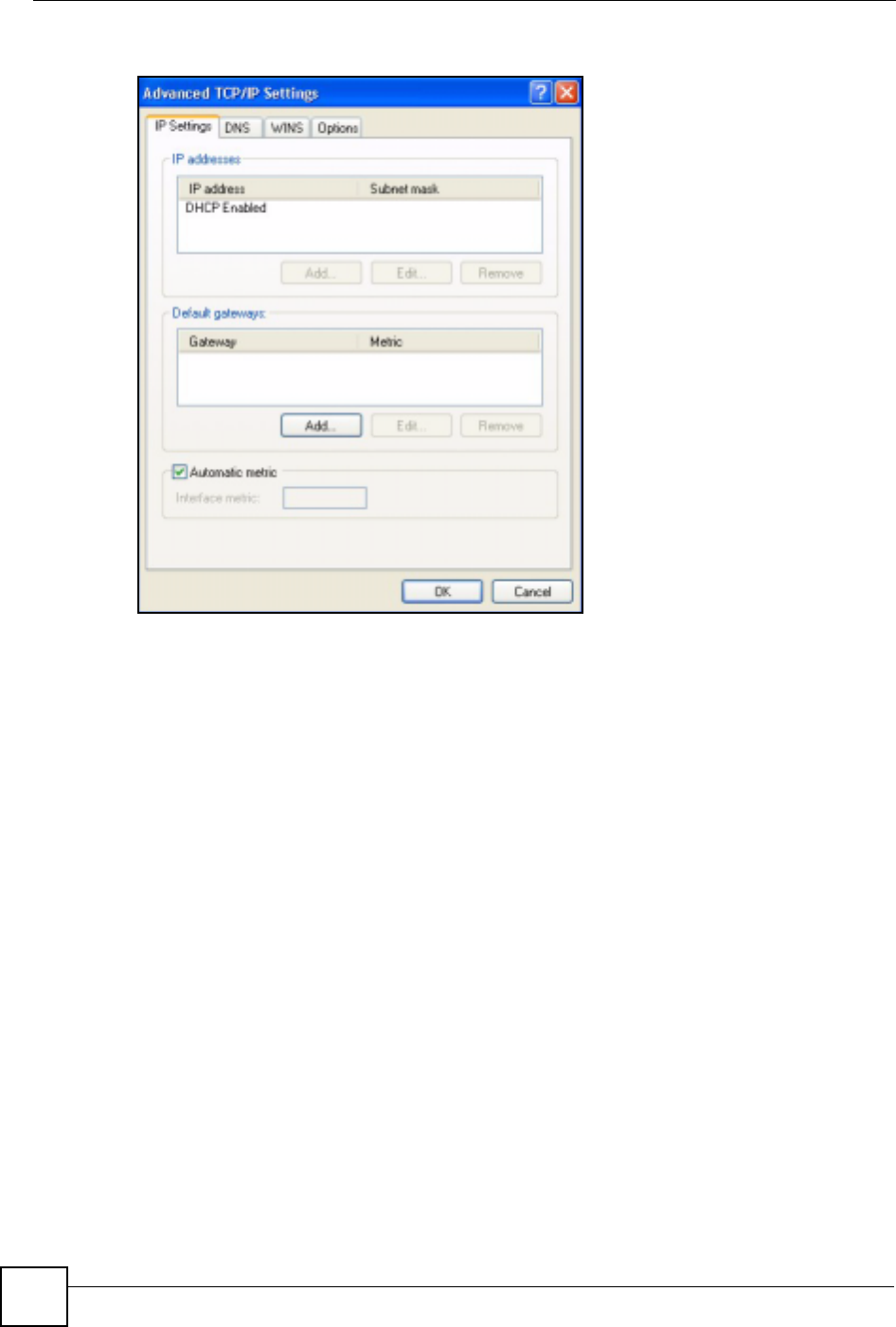

Figure 187 Windows XP: Advanced TCP/IP Properties
7In the Internet Protocol TCP/IP Properties window (the General tab in Windows
XP):
• Click Obtain DNS server address automatically if you do not know your DNS
server IP address(es).
• If you know your DNS server IP address(es), click Use the following DNS server
addresses, and type them in the Preferred DNS server and Alternate DNS server
fields.
If you have previously configured DNS servers, click Advanced and then the DNS
tab to order them.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide 301

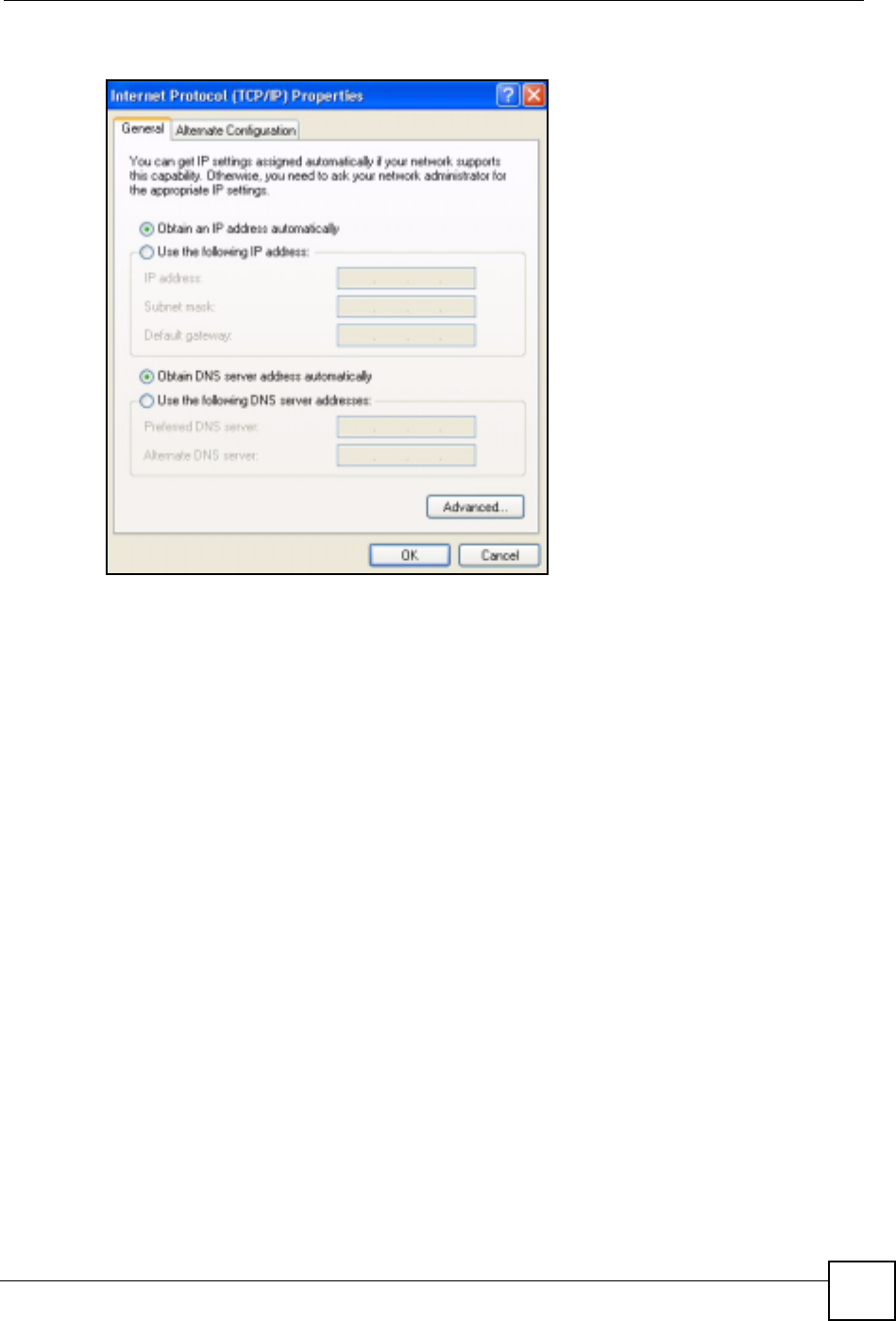

Figure 188 Windows XP: Internet Protocol (TCP/IP) Properties
8Click OK to close the Internet Protocol (TCP/IP) Properties window.
9Click Close (OK in Windows 2000/NT) to close the Local Area Connection
Properties window.
10 Close the Network Connections window (Network and Dial-up Connections in
Windows 2000/NT).
11 Turn on your Prestige and restart your computer (if prompted).
Verifying Settings
1Click Start,All Programs,Accessories and then Command Prompt.
2In the Command Prompt window, type "ipconfig" and then press [ENTER]. You can
also open Network Connections, right-click a network connection, click Status and
then click the Support tab.
Macintosh OS 8/9
1Click the Apple menu, Control Panel and double-click TCP/IP to open the TCP/IP
Control Panel.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
302

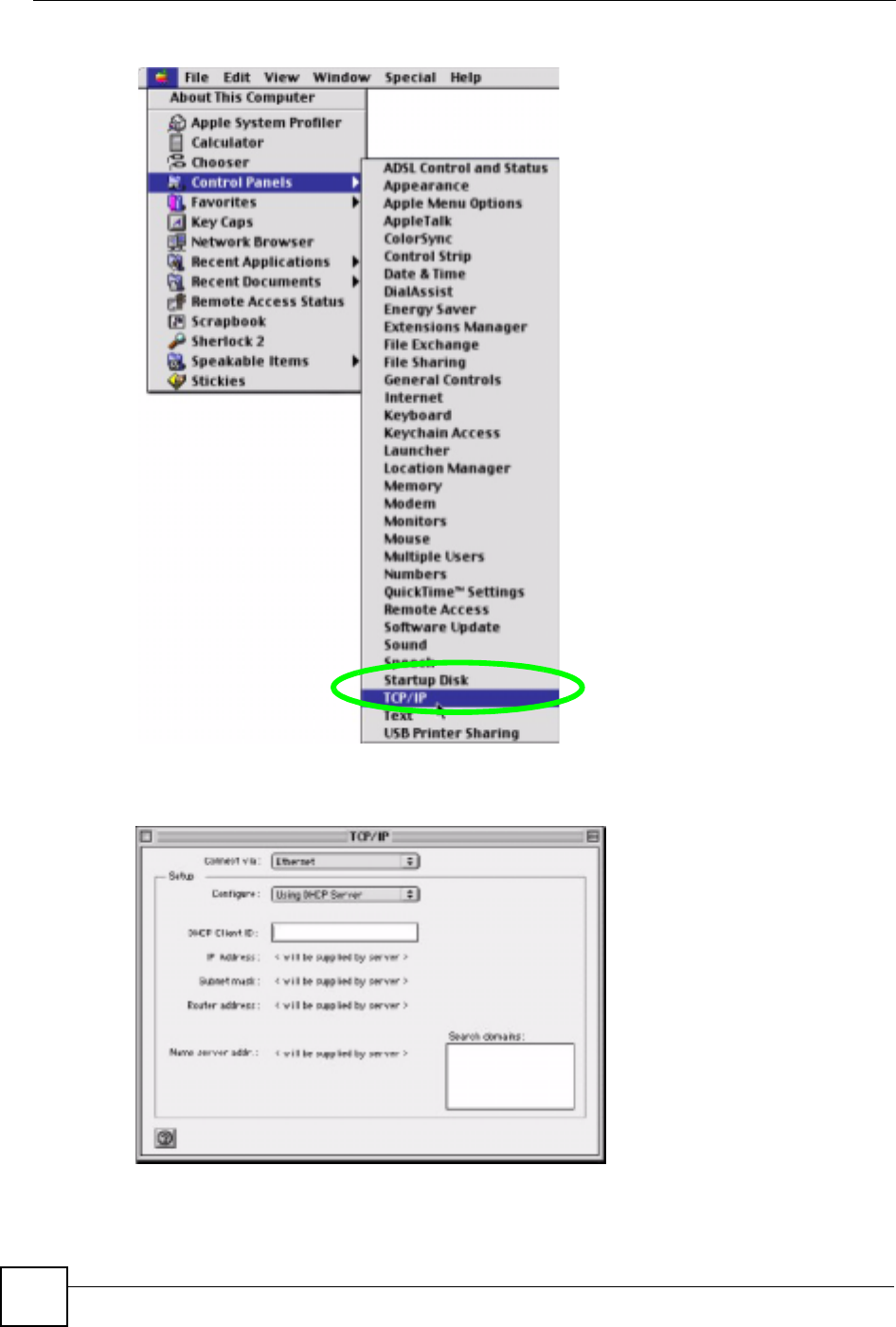

Figure 189 Macintosh OS 8/9: Apple Menu
2Select Ethernet built-in from the Connect via list.
Figure 190 Macintosh OS 8/9: TCP/IP
3For dynamically assigned settings, select Using DHCP Server from the Configure: list.
4For statically assigned settings, do the following:
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide 303
•From the Configure box, select Manually.
• Type your IP address in the IP Address box.
• Type your subnet mask in the Subnet mask box.
• Type the IP address of your Prestige in the Router address box.
5Close the TCP/IP Control Panel.
6Click Save if prompted, to save changes to your configuration.
7Turn on your Prestige and restart your computer (if prompted).
Verifying Settings
Check your TCP/IP properties in the TCP/IP Control Panel window.
Macintosh OS X
1Click the Apple menu, and click System Preferences to open the System Preferences
window.

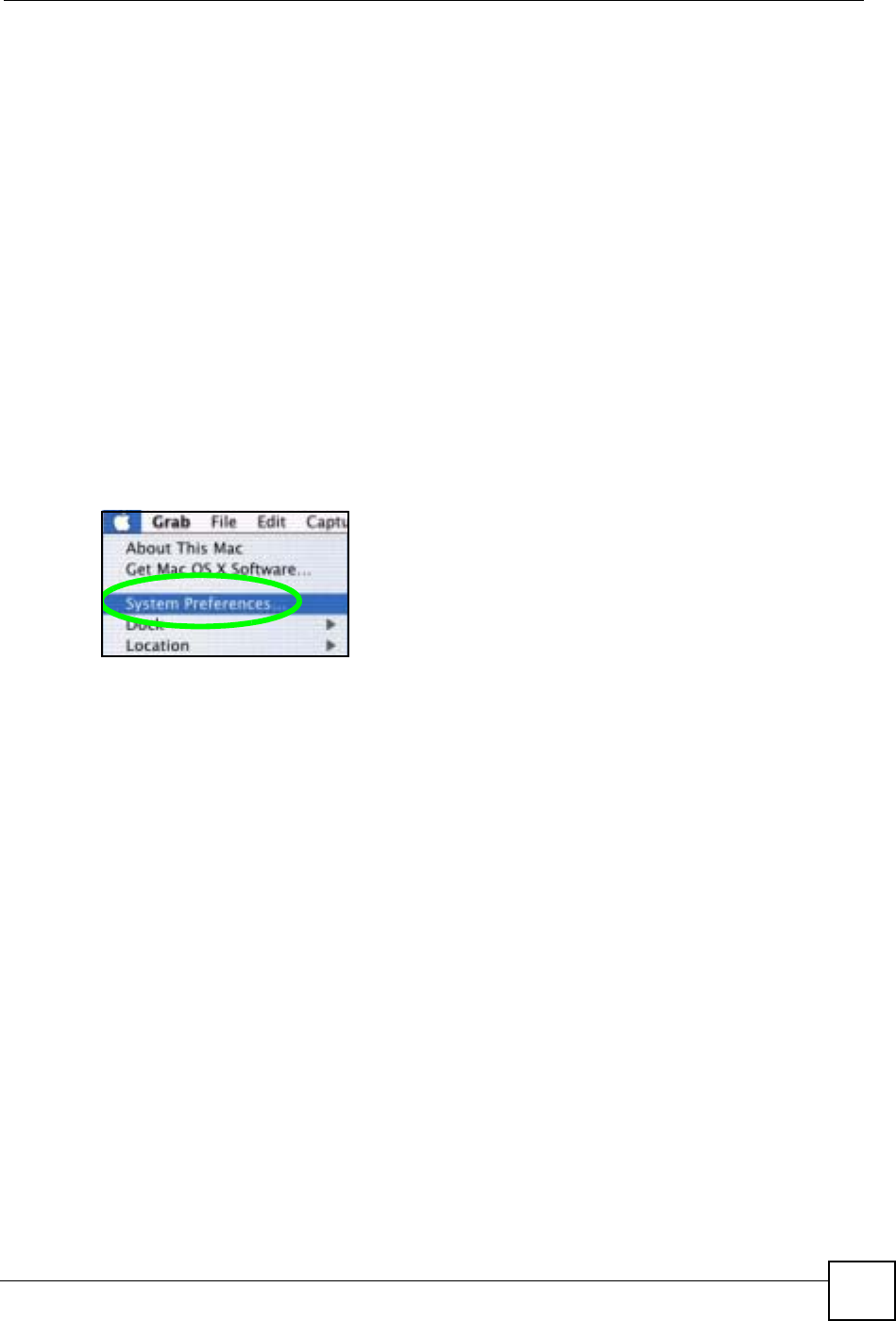

Figure 191 Macintosh OS X: Apple Menu
2Click Network in the icon bar.
• Select Automatic from the Location list.
• Select Built-in Ethernet from the Show list.
• Click the TCP/IP tab.
3For dynamically assigned settings, select Using DHCP from the Configure list.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
304

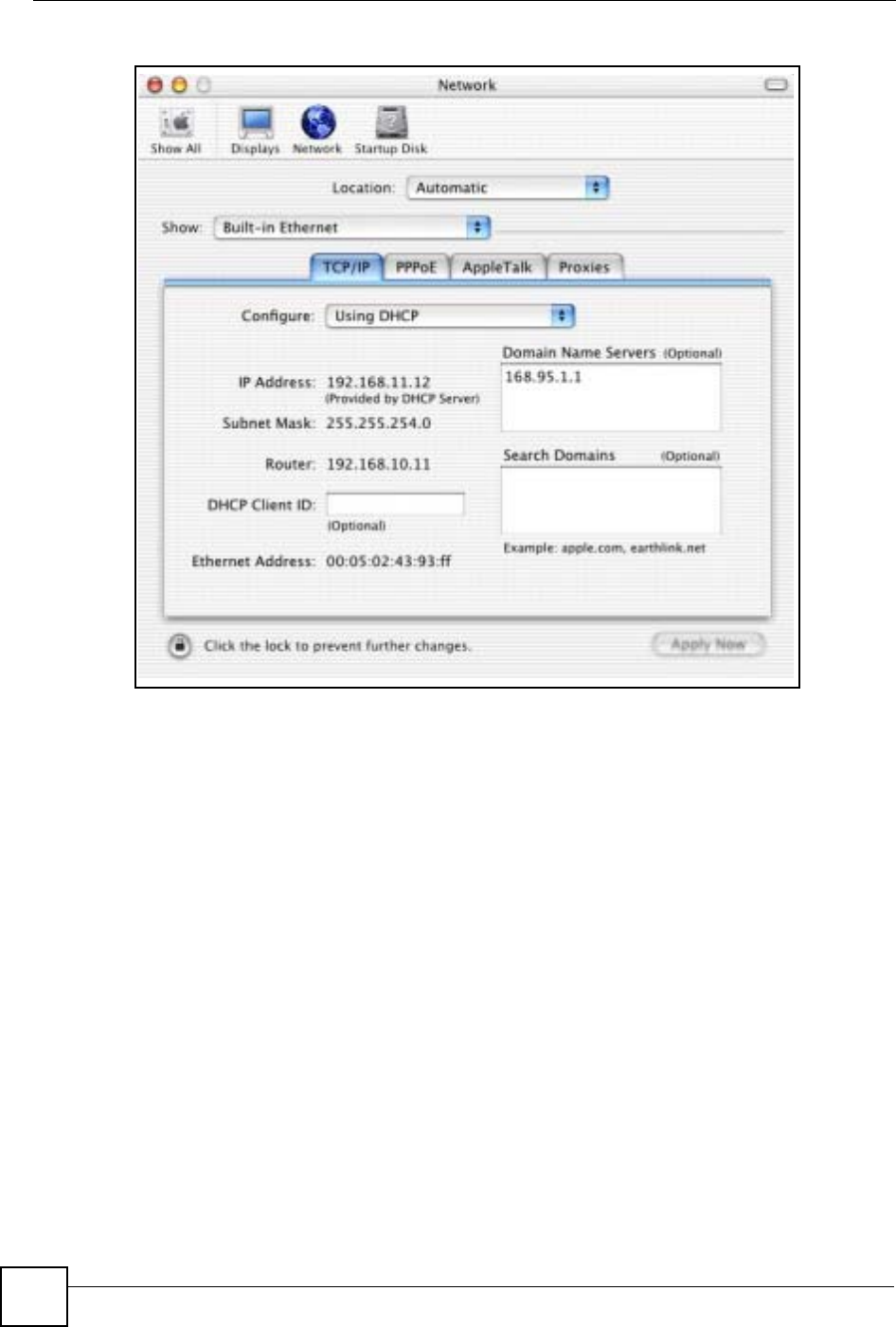

Figure 192 Macintosh OS X: Network
4For statically assigned settings, do the following:
•From the Configure box, select Manually.
• Type your IP address in the IP Address box.
• Type your subnet mask in the Subnet mask box.
• Type the IP address of your Prestige in the Router address box.
5Click Apply Now and close the window.
6Turn on your Prestige and restart your computer (if prompted).
Verifying Settings
Check your TCP/IP properties in the Network window.
Linux
This section shows you how to configure your computer’s TCP/IP settings in Red Hat Linux
9.0. Procedure, screens and file location may vary depending on your Linux distribution and
release version.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide 305
"Make sure you are logged in as the root administrator.
Using the K Desktop Environment (KDE)
Follow the steps below to configure your computer IP address using the KDE.
1Click the Red Hat button (located on the bottom left corner), select System Setting and
click Network.

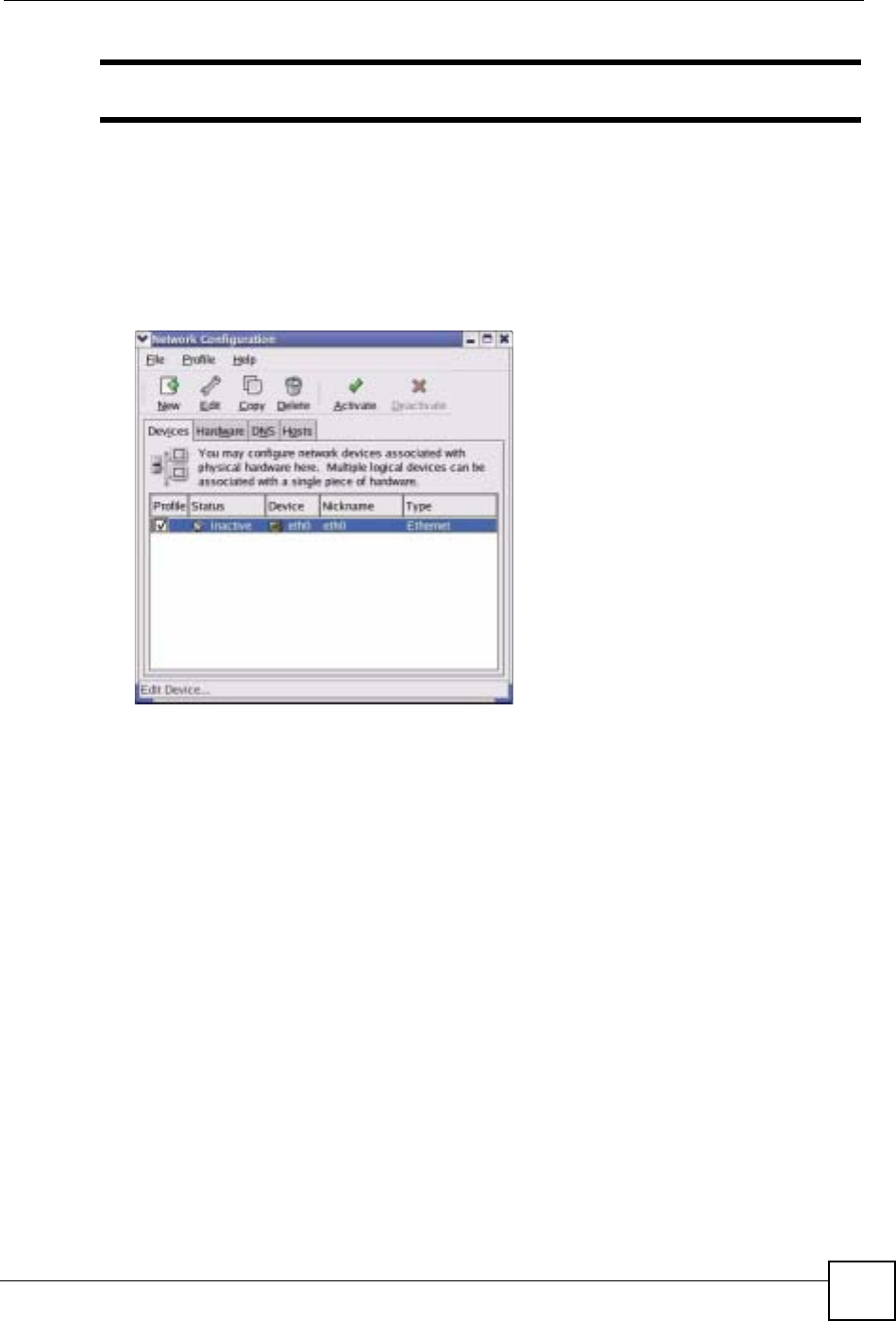

Figure 193 Red Hat 9.0: KDE: Network Configuration: Devices
2Double-click on the profile of the network card you wish to configure. The Ethernet
Device General screen displays as shown.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
306

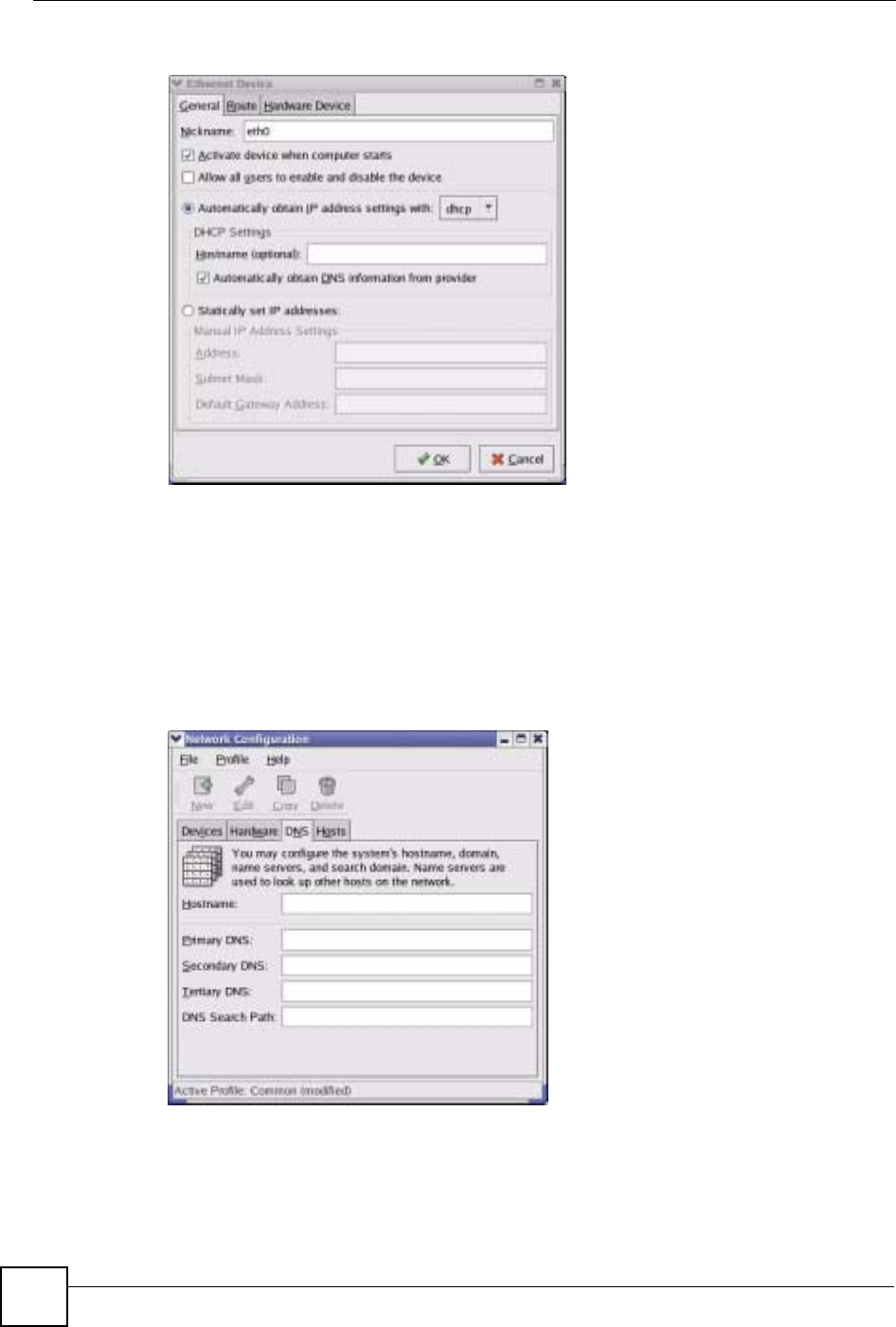

Figure 194 Red Hat 9.0: KDE: Ethernet Device: General
• If you have a dynamic IP address click Automatically obtain IP address settings
with and select dhcp from the drop down list.
• If you have a static IP address click Statically set IP Addresses and fill in the
Address,Subnet mask, and Default Gateway Address fields.
3Click OK to save the changes and close the Ethernet Device General screen.
4If you know your DNS server IP address(es), click the DNS tab in the Network
Configuration screen. Enter the DNS server information in the fields provided.
Figure 195 Red Hat 9.0: KDE: Network Configuration: DNS
5Click the Devices tab.
6Click the Activate button to apply the changes. The following screen displays. Click Yes
to save the changes in all screens.
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide 307

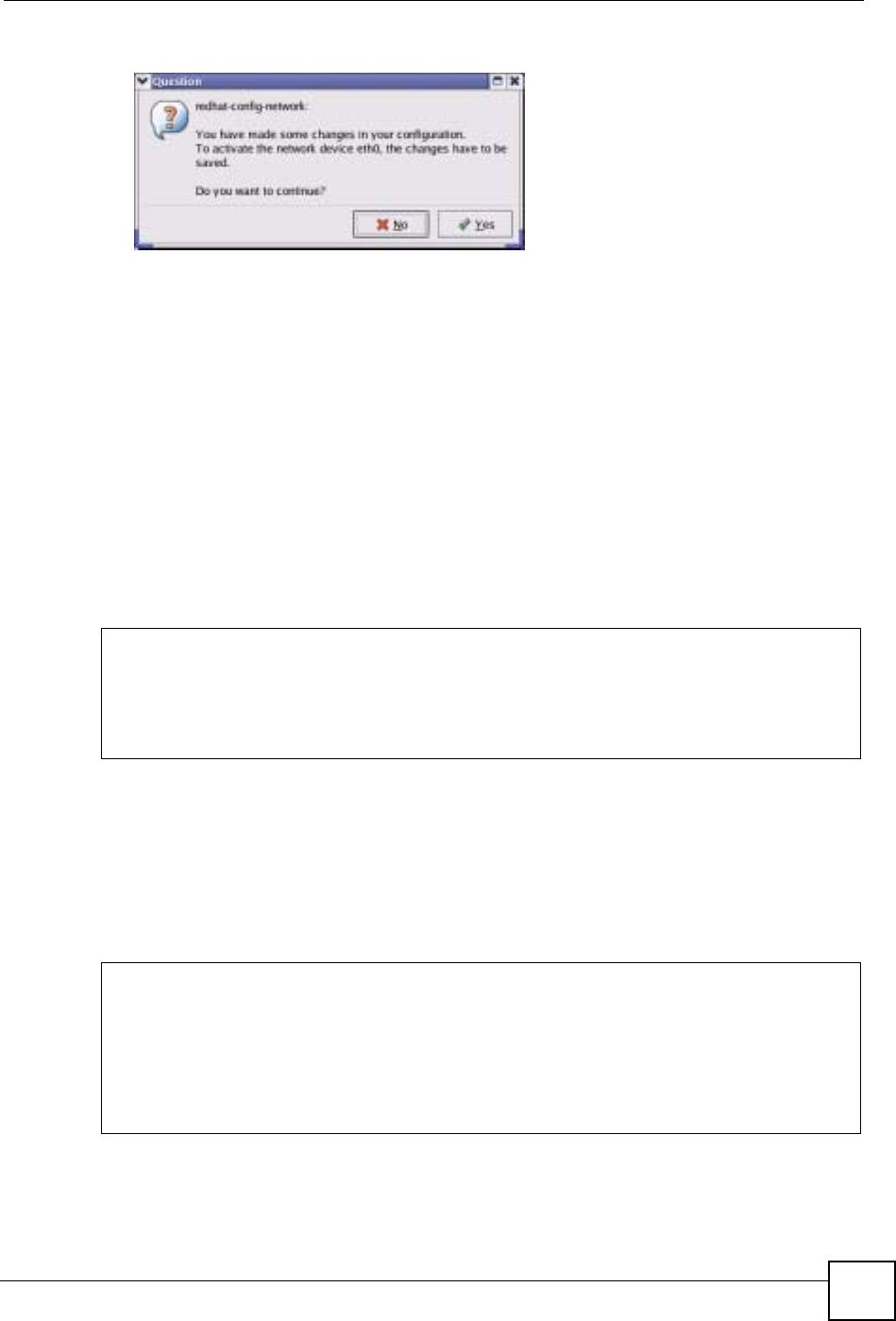

Figure 196 Red Hat 9.0: KDE: Network Configuration: Activate
7After the network card restart process is complete, make sure the Status is Active in the
Network Configuration screen.
Using Configuration Files
Follow the steps below to edit the network configuration files and set your computer IP
address.
1Assuming that you have only one network card on the computer, locate the ifconfig-
eth0 configuration file (where eth0 is the name of the Ethernet card). Open the
configuration file with any plain text editor.
• If you have a dynamic IP address, enter dhcp in the BOOTPROTO= field. The following
figure shows an example.
Figure 197 Red Hat 9.0: Dynamic IP Address Setting in ifconfig-eth0
• If you have a static IP address, enter static in the BOOTPROTO= field. Type
IPADDR= followed by the IP address (in dotted decimal notation) and type NETMASK=
followed by the subnet mask. The following example shows an example where the
static IP address is 192.168.1.10 and the subnet mask is 255.255.255.0.
Figure 198 Red Hat 9.0: Static IP Address Setting in ifconfig-eth0
DEVICE=eth0
ONBOOT=yes
BOOTPROTO=dhcp
USERCTL=no
PEERDNS=yes
TYPE=Ethernet
DEVICE=eth0
ONBOOT=yes
BOOTPROTO=static
IPADDR=192.168.1.10
NETMASK=255.255.255.0
USERCTL=no
PEERDNS=yes
TYPE=Ethernet
Appendix D Setting up Your Computer’s IP Address
NBG-460N User’s Guide
308
2If you know your DNS server IP address(es), enter the DNS server information in the
resolv.conf file in the /etc directory. The following figure shows an example where
two DNS server IP addresses are specified.
Figure 199 Red Hat 9.0: DNS Settings in resolv.conf
3After you edit and save the configuration files, you must restart the network card.
Enter./network restart in the /etc/rc.d/init.d directory. The following
figure shows an example.
Figure 200 Red Hat 9.0: Restart Ethernet Card
26.6.1 Verifying Settings
Enter ifconfig in a terminal screen to check your TCP/IP properties.
Figure 201 Red Hat 9.0: Checking TCP/IP Properties
nameserver 172.23.5.1
nameserver 172.23.5.2
[root@localhost init.d]# network restart
Shutting down interface eth0: [OK]
Shutting down loopback interface: [OK]
Setting network parameters: [OK]
Bringing up loopback interface: [OK]
Bringing up interface eth0: [OK]
[root@localhost]# ifconfig
eth0 Link encap:Ethernet HWaddr 00:50:BA:72:5B:44
inet addr:172.23.19.129 Bcast:172.23.19.255 Mask:255.255.255.0
UP BROADCAST RUNNING MULTICAST MTU:1500 Metric:1
RX packets:717 errors:0 dropped:0 overruns:0 frame:0
TX packets:13 errors:0 dropped:0 overruns:0 carrier:0
collisions:0 txqueuelen:100
RX bytes:730412 (713.2 Kb) TX bytes:1570 (1.5 Kb)
Interrupt:10 Base address:0x1000
[root@localhost]#
NBG-460N User’s Guide 309
APPENDIX E
Wireless LANs
Wireless LAN Topologies
This section discusses ad-hoc and infrastructure wireless LAN topologies.
Ad-hoc Wireless LAN Configuration
The simplest WLAN configuration is an independent (Ad-hoc) WLAN that connects a set of
computers with wireless stations (A, B, C). Any time two or more wireless adapters are within
range of each other, they can set up an independent network, which is commonly referred to as
an Ad-hoc network or Independent Basic Service Set (IBSS). The following diagram shows an
example of notebook computers using wireless adapters to form an Ad-hoc wireless LAN.

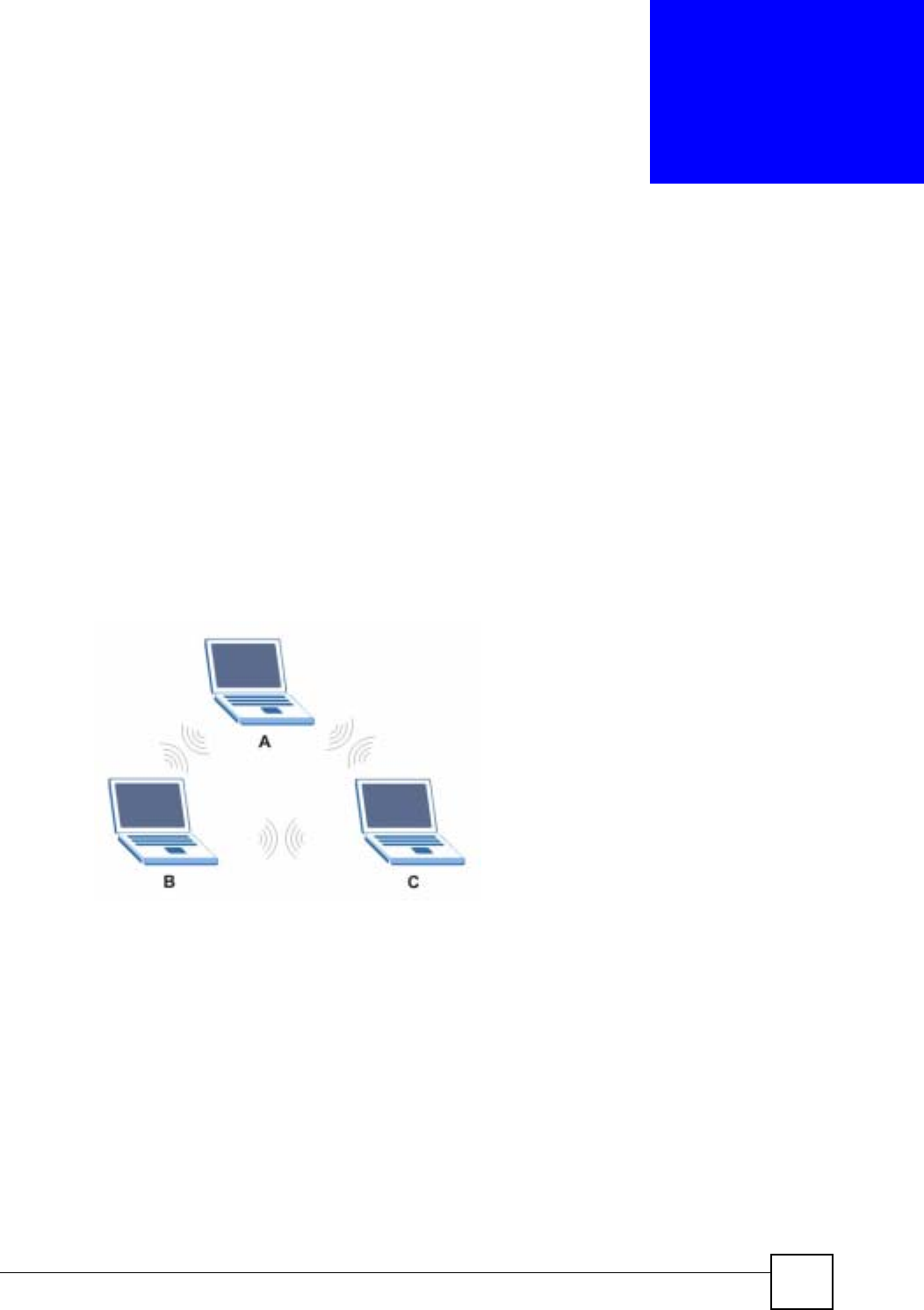

Figure 202 Peer-to-Peer Communication in an Ad-hoc Network
BSS
A Basic Service Set (BSS) exists when all communications between wireless stations or
between a wireless station and a wired network client go through one access point (AP).
Intra-BSS traffic is traffic between wireless stations in the BSS. When Intra-BSS is enabled,
wireless station A and B can access the wired network and communicate with each other.
When Intra-BSS is disabled, wireless station A and B can still access the wired network but
cannot communicate with each other.
Appendix E Wireless LANs
NBG-460N User’s Guide
310

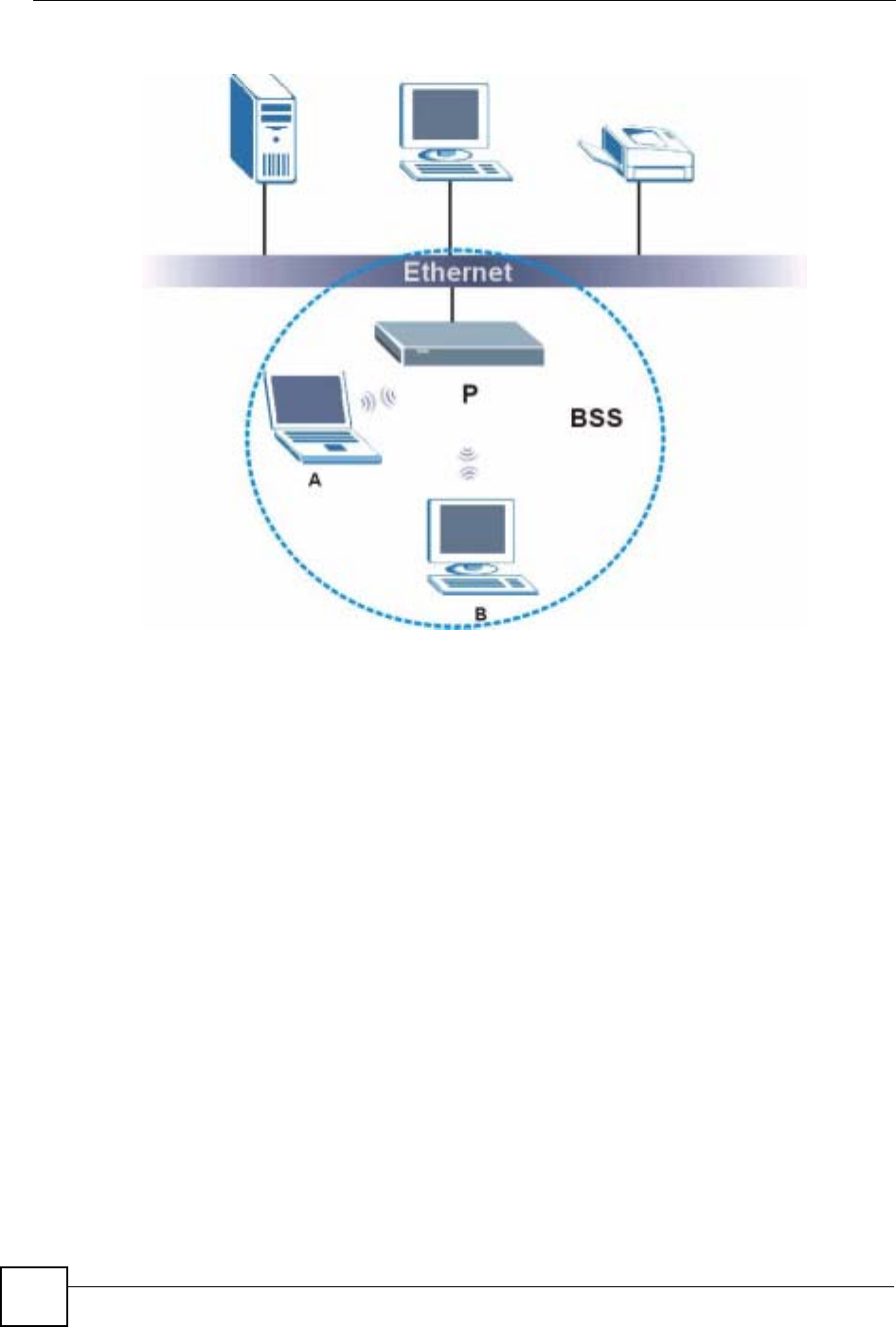

Figure 203 Basic Service Set
ESS
An Extended Service Set (ESS) consists of a series of overlapping BSSs, each containing an
access point, with each access point connected together by a wired network. This wired
connection between APs is called a Distribution System (DS).
This type of wireless LAN topology is called an Infrastructure WLAN. The Access Points not
only provide communication with the wired network but also mediate wireless network traffic
in the immediate neighborhood.
An ESSID (ESS IDentification) uniquely identifies each ESS. All access points and their
associated wireless stations within the same ESS must have the same ESSID in order to
communicate.
Appendix E Wireless LANs
NBG-460N User’s Guide 311
Figure 204 Infrastructure WLAN
Channel
A channel is the radio frequency(ies) used by IEEE 802.11a/b/g wireless devices. Channels
available depend on your geographical area. You may have a choice of channels (for your
region) so you should use a different channel than an adjacent AP (access point) to reduce
interference. Interference occurs when radio signals from different access points overlap
causing interference and degrading performance.
Adjacent channels partially overlap however. To avoid interference due to overlap, your AP
should be on a channel at least five channels away from a channel that an adjacent AP is using.
For example, if your region has 11 channels and an adjacent AP is using channel 1, then you
need to select a channel between 6 or 11.
RTS/CTS
A hidden node occurs when two stations are within range of the same access point, but are not
within range of each other. The following figure illustrates a hidden node. Both stations (STA)
are within range of the access point (AP) or wireless gateway, but out-of-range of each other,
so they cannot "hear" each other, that is they do not know if the channel is currently being
used. Therefore, they are considered hidden from each other.
Appendix E Wireless LANs
NBG-460N User’s Guide
312

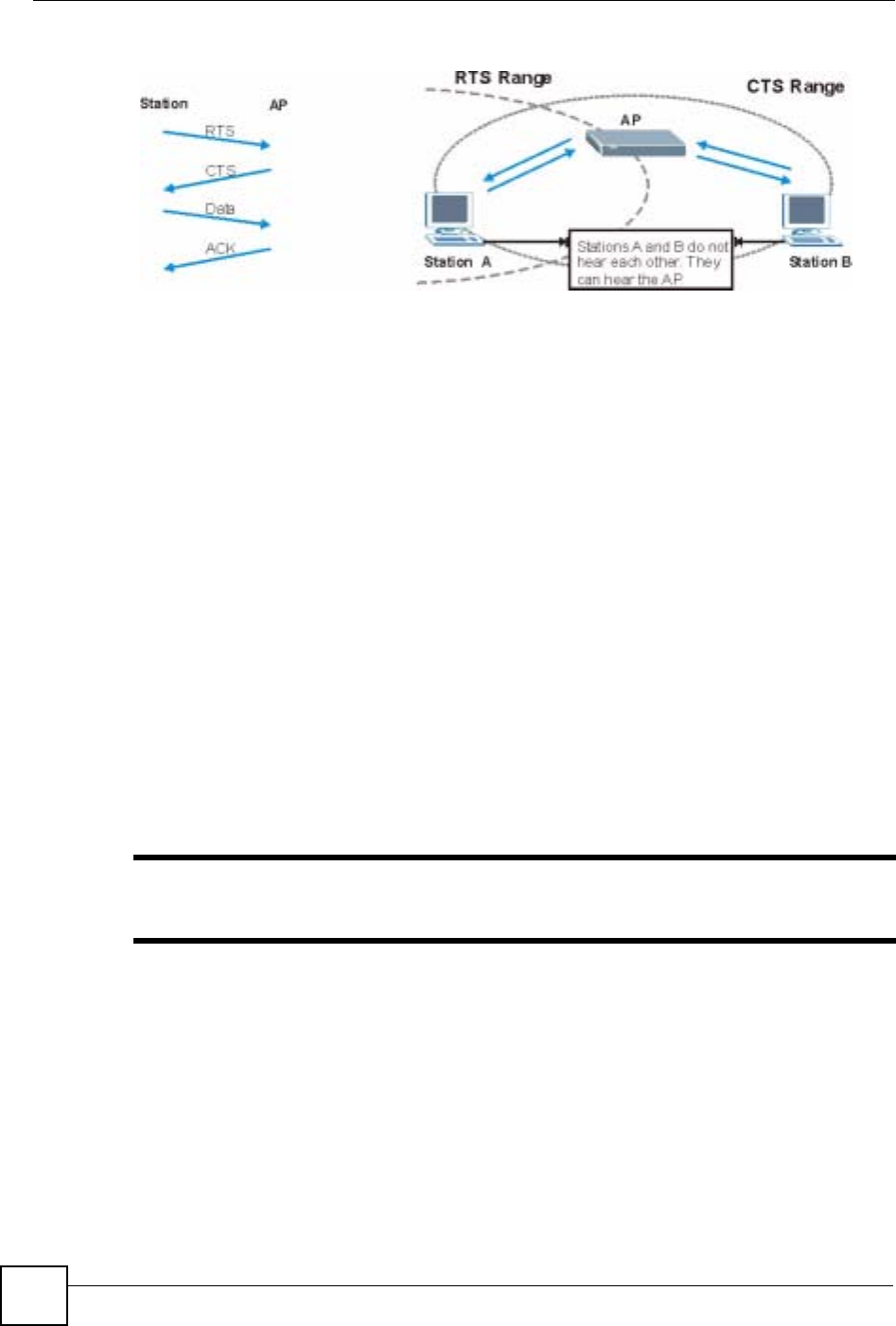

Figure 205 RTS/CTS
When station A sends data to the AP, it might not know that the station B is already using the
channel. If these two stations send data at the same time, collisions may occur when both sets
of data arrive at the AP at the same time, resulting in a loss of messages for both stations.
RTS/CTS is designed to prevent collisions due to hidden nodes. An RTS/CTS defines the
biggest size data frame you can send before an RTS (Request To Send)/CTS (Clear to Send)
handshake is invoked.
When a data frame exceeds the RTS/CTS value you set (between 0 to 2432 bytes), the station
that wants to transmit this frame must first send an RTS (Request To Send) message to the AP
for permission to send it. The AP then responds with a CTS (Clear to Send) message to all
other stations within its range to notify them to defer their transmission. It also reserves and
confirms with the requesting station the time frame for the requested transmission.
Stations can send frames smaller than the specified RTS/CTS directly to the AP without the
RTS (Request To Send)/CTS (Clear to Send) handshake.
You should only configure RTS/CTS if the possibility of hidden nodes exists on your network
and the "cost" of resending large frames is more than the extra network overhead involved in
the RTS (Request To Send)/CTS (Clear to Send) handshake.
If the RTS/CTS value is greater than the Fragmentation Threshold value (see next), then the
RTS (Request To Send)/CTS (Clear to Send) handshake will never occur as data frames will
be fragmented before they reach RTS/CTS size.
"Enabling the RTS Threshold causes redundant network overhead that could
negatively affect the throughput performance instead of providing a remedy.
Fragmentation Threshold
AFragmentation Threshold is the maximum data fragment size (between 256 and 2432
bytes) that can be sent in the wireless network before the AP will fragment the packet into
smaller data frames.
A large Fragmentation Threshold is recommended for networks not prone to interference
while you should set a smaller threshold for busy networks or networks that are prone to
interference.
Appendix E Wireless LANs
NBG-460N User’s Guide 313
If the Fragmentation Threshold value is smaller than the RTS/CTS value (see previously)
you set then the RTS (Request To Send)/CTS (Clear to Send) handshake will never occur as
data frames will be fragmented before they reach RTS/CTS size.
Preamble Type
A preamble is used to synchronize the transmission timing in your wireless network. There are
two preamble modes: Long and Short.
Short preamble takes less time to process and minimizes overhead, so it should be used in a
good wireless network environment when all wireless stations support it.
Select Long if you have a ‘noisy’ network or are unsure of what preamble mode your wireless
stations support as all IEEE 802.11b compliant wireless adapters must support long preamble.
However, not all wireless adapters support short preamble. Use long preamble if you are
unsure what preamble mode the wireless adapters support, to ensure interpretability between
the AP and the wireless stations and to provide more reliable communication in ‘noisy’
networks.
Select Dynamic to have the AP automatically use short preamble when all wireless stations
support it, otherwise the AP uses long preamble.
"The AP and the wireless stations MUST use the same preamble mode in order
to communicate.
IEEE 802.11g Wireless LAN
IEEE 802.11g is fully compatible with the IEEE 802.11b standard. This means an IEEE
802.11b adapter can interface directly with an IEEE 802.11g access point (and vice versa) at
11 Mbps or lower depending on range. IEEE 802.11g has several intermediate rate steps
between the maximum and minimum data rates. The IEEE 802.11g data rate and modulation
are as follows:
IEEE 802.1x
In June 2001, the IEEE 802.1x standard was designed to extend the features of IEEE 802.11 to
support extended authentication as well as providing additional accounting and control
features. It is supported by Windows XP and a number of network devices. Some advantages
of IEEE 802.1x are:
Table 128 IEEE 802.11g
DATA RATE (MBPS) MODULATION
1 DBPSK (Differential Binary Phase Shift Keyed)
2 DQPSK (Differential Quadrature Phase Shift Keying)
5.5 / 11 CCK (Complementary Code Keying)
6/9/12/18/24/36/48/54 OFDM (Orthogonal Frequency Division Multiplexing)
Appendix E Wireless LANs
NBG-460N User’s Guide
314
• User based identification that allows for roaming.
• Support for RADIUS (Remote Authentication Dial In User Service, RFC 2138, 2139) for
centralized user profile and accounting management on a network RADIUS server.
• Support for EAP (Extensible Authentication Protocol, RFC 2486) that allows additional
authentication methods to be deployed with no changes to the access point or the wireless
stations.
RADIUS
RADIUS is based on a client-server model that supports authentication, authorization and
accounting. The access point is the client and the server is the RADIUS server. The RADIUS
server handles the following tasks:
• Authentication
Determines the identity of the users.
• Authorization
Determines the network services available to authenticated users once they are connected
to the network.
• Accounting
Keeps track of the client’s network activity.
RADIUS is a simple package exchange in which your AP acts as a message relay between the
wireless station and the network RADIUS server.
Types of RADIUS Messages
The following types of RADIUS messages are exchanged between the access point and the
RADIUS server for user authentication:
• Access-Request
Sent by an access point requesting authentication.
• Access-Reject
Sent by a RADIUS server rejecting access.
• Access-Accept
Sent by a RADIUS server allowing access.
• Access-Challenge
Sent by a RADIUS server requesting more information in order to allow access. The
access point sends a proper response from the user and then sends another Access-Request
message.
The following types of RADIUS messages are exchanged between the access point and the
RADIUS server for user accounting:
• Accounting-Request
Sent by the access point requesting accounting.
• Accounting-Response
Sent by the RADIUS server to indicate that it has started or stopped accounting.
Appendix E Wireless LANs
NBG-460N User’s Guide 315
In order to ensure network security, the access point and the RADIUS server use a shared
secret key, which is a password, they both know. The key is not sent over the network. In
addition to the shared key, password information exchanged is also encrypted to protect the
network from unauthorized access.
Types of Authentication
This appendix discusses some popular authentication types: EAP-MD5,EAP-TLS,EAP-
TTLS,PEAP and LEAP.
The type of authentication you use depends on the RADIUS server or the AP. Consult your
network administrator for more information.
EAP-MD5 (Message-Digest Algorithm 5)
MD5 authentication is the simplest one-way authentication method. The authentication server
sends a challenge to the wireless station. The wireless station ‘proves’ that it knows the
password by encrypting the password with the challenge and sends back the information.
Password is not sent in plain text.
However, MD5 authentication has some weaknesses. Since the authentication server needs to
get the plaintext passwords, the passwords must be stored. Thus someone other than the
authentication server may access the password file. In addition, it is possible to impersonate an
authentication server as MD5 authentication method does not perform mutual authentication.
Finally, MD5 authentication method does not support data encryption with dynamic session
key. You must configure WEP encryption keys for data encryption.
EAP-TLS (Transport Layer Security)
With EAP-TLS, digital certifications are needed by both the server and the wireless stations
for mutual authentication. The server presents a certificate to the client. After validating the
identity of the server, the client sends a different certificate to the server. The exchange of
certificates is done in the open before a secured tunnel is created. This makes user identity
vulnerable to passive attacks. A digital certificate is an electronic ID card that authenticates the
sender’s identity. However, to implement EAP-TLS, you need a Certificate Authority (CA) to
handle certificates, which imposes a management overhead.
EAP-TTLS (Tunneled Transport Layer Service)
EAP-TTLS is an extension of the EAP-TLS authentication that uses certificates for only the
server-side authentications to establish a secure connection. Client authentication is then done
by sending username and password through the secure connection, thus client identity is
protected. For client authentication, EAP-TTLS supports EAP methods and legacy
authentication methods such as PAP, CHAP, MS-CHAP and MS-CHAP v2.
Appendix E Wireless LANs
NBG-460N User’s Guide
316
PEAP (Protected EAP)
Like EAP-TTLS, server-side certificate authentication is used to establish a secure connection,
then use simple username and password methods through the secured connection to
authenticate the clients, thus hiding client identity. However, PEAP only supports EAP
methods, such as EAP-MD5, EAP-MSCHAPv2 and EAP-GTC (EAP-Generic Token Card),
for client authentication. EAP-GTC is implemented only by Cisco.
LEAP
LEAP (Lightweight Extensible Authentication Protocol) is a Cisco implementation of IEEE
802.1x.
Dynamic WEP Key Exchange
The AP maps a unique key that is generated with the RADIUS server. This key expires when
the wireless connection times out, disconnects or reauthentication times out. A new WEP key
is generated each time reauthentication is performed.
If this feature is enabled, it is not necessary to configure a default encryption key in the
Wireless screen. You may still configure and store keys here, but they will not be used while
Dynamic WEP is enabled.
"EAP-MD5 cannot be used with dynamic WEP key exchange
For added security, certificate-based authentications (EAP-TLS, EAP-TTLS and PEAP) use
dynamic keys for data encryption. They are often deployed in corporate environments, but for
public deployment, a simple user name and password pair is more practical. The following
table is a comparison of the features of authentication types.
WPA(2)
Wi-Fi Protected Access (WPA) is a subset of the IEEE 802.11i standard. WPA2 (IEEE
802.11i) is a wireless security standard that defines stronger encryption, authentication and
key management than WPA.
Table 129 Comparison of EAP Authentication Types
EAP-MD5 EAP-TLS EAP-TTLS PEAP LEAP
Mutual Authentication No Yes Yes Yes Yes
Certificate – Client No Yes Optional Optional No
Certificate – Server No Yes Yes Yes No
Dynamic Key Exchange No Yes Yes Yes Yes
Credential Integrity None Strong Strong Strong Moderate
Deployment Difficulty Easy Hard Moderate Moderate Moderate
Client Identity Protection No No Yes Yes No
Appendix E Wireless LANs
NBG-460N User’s Guide 317
Key differences between WPA(2) and WEP are improved data encryption and user
authentication.
Encryption
Both WPA and WPA2 improve data encryption by using Temporal Key Integrity Protocol
(TKIP), Message Integrity Check (MIC) and IEEE 802.1x. In addition to TKIP, WPA2 also
uses Advanced Encryption Standard (AES) in the Counter mode with Cipher block chaining
Message authentication code Protocol (CCMP) to offer stronger encryption.
Temporal Key Integrity Protocol (TKIP) uses 128-bit keys that are dynamically generated and
distributed by the authentication server. It includes a per-packet key mixing function, a
Message Integrity Check (MIC) named Michael, an extended initialization vector (IV) with
sequencing rules, and a re-keying mechanism.
TKIP regularly changes and rotates the encryption keys so that the same encryption key is
never used twice. The RADIUS server distributes a Pairwise Master Key (PMK) key to the AP
that then sets up a key hierarchy and management system, using the pair-wise key to
dynamically generate unique data encryption keys to encrypt every data packet that is
wirelessly communicated between the AP and the wireless clients. This all happens in the
background automatically.
WPA2 AES (Advanced Encryption Standard) is a block cipher that uses a 256-bit
mathematical algorithm called Rijndael.
The Message Integrity Check (MIC) is designed to prevent an attacker from capturing data
packets, altering them and resending them. The MIC provides a strong mathematical function
in which the receiver and the transmitter each compute and then compare the MIC. If they do
not match, it is assumed that the data has been tampered with and the packet is dropped.
By generating unique data encryption keys for every data packet and by creating an integrity
checking mechanism (MIC), TKIP makes it much more difficult to decode data on a Wi-Fi
network than WEP, making it difficult for an intruder to break into the network.
The encryption mechanisms used for WPA and WPA-PSK are the same. The only difference
between the two is that WPA-PSK uses a simple common password, instead of user-specific
credentials. The common-password approach makes WPA-PSK susceptible to brute-force
password-guessing attacks but it's still an improvement over WEP as it employs an easier-to-
use, consistent, single, alphanumeric password.
User Authentication
WPA or WPA2 applies IEEE 802.1x and Extensible Authentication Protocol (EAP) to
authenticate wireless clients using an external RADIUS database.
If both an AP and the wireless clients support WPA2 and you have an external RADIUS
server, use WPA2 for stronger data encryption. If you don't have an external RADIUS server,
you should use WPA2 -PSK (WPA2 -Pre-Shared Key) that only requires a single (identical)
password entered into each access point, wireless gateway and wireless client. As long as the
passwords match, a wireless client will be granted access to a WLAN.
If the AP or the wireless clients do not support WPA2, just use WPA or WPA-PSK depending
on whether you have an external RADIUS server or not.
Select WEP only when the AP and/or wireless clients do not support WPA or WPA2. WEP is
less secure than WPA or WPA2.
Appendix E Wireless LANs
NBG-460N User’s Guide
318
26.6.2 WPA(2)-PSK Application Example
A WPA(2)-PSK application looks as follows.
1First enter identical passwords into the AP and all wireless clients. The Pre-Shared Key
(PSK) must consist of between 8 and 63 ASCII characters (including spaces and
symbols).
2The AP checks each wireless client's password and (only) allows it to join the network if
the password matches.
3The AP derives and distributes keys to the wireless clients.
4The AP and wireless clients use the TKIP or AES encryption process to encrypt data
exchanged between them.

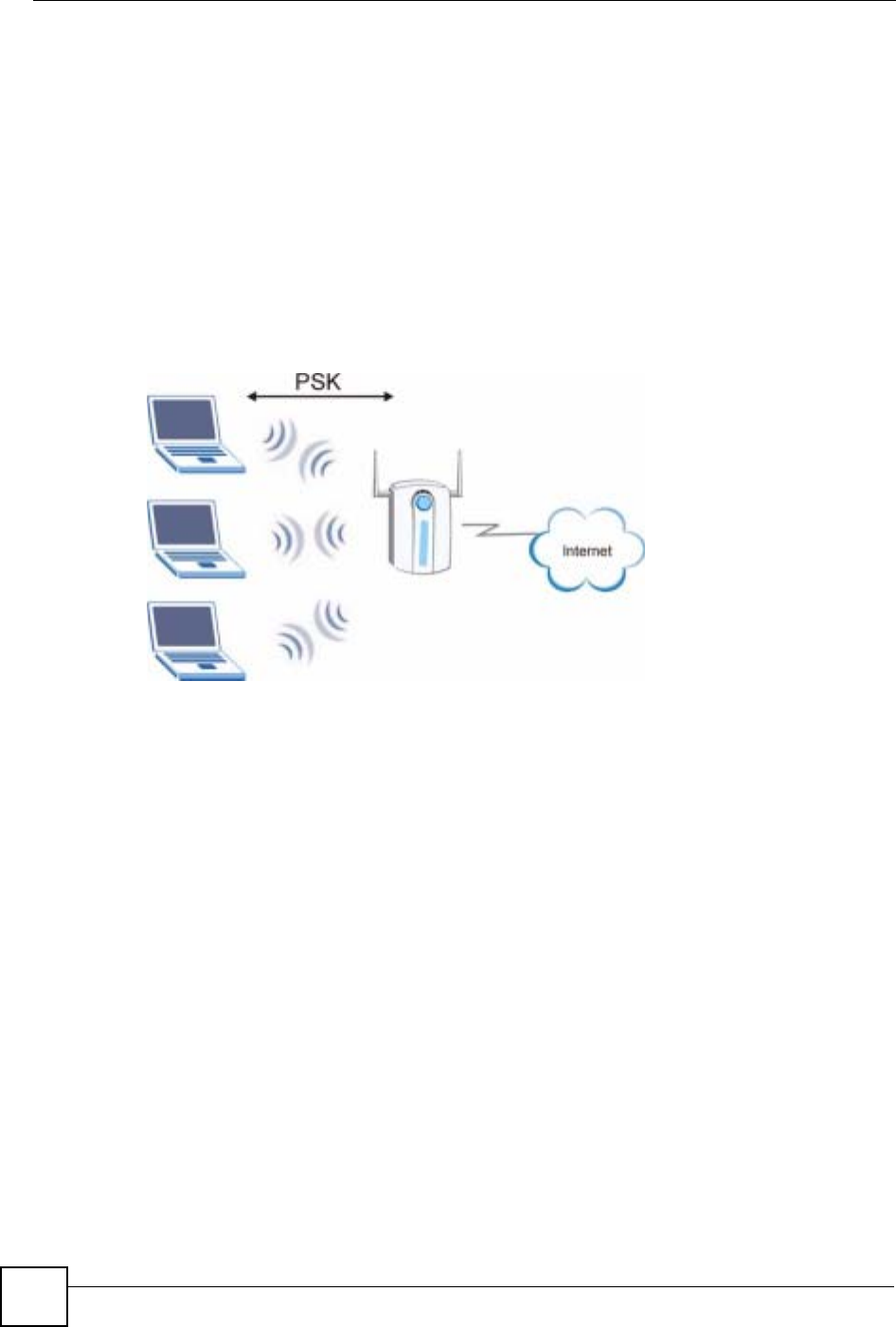

Figure 206 WPA(2)-PSK Authentication
26.6.3 WPA(2) with RADIUS Application Example
You need the IP address of the RADIUS server, its port number (default is 1812), and the
RADIUS shared secret. A WPA(2) application example with an external RADIUS server
looks as follows. "A" is the RADIUS server. "DS" is the distribution system.
1The AP passes the wireless client's authentication request to the RADIUS server.
2The RADIUS server then checks the user's identification against its database and grants
or denies network access accordingly.
3The RADIUS server distributes a Pairwise Master Key (PMK) key to the AP that then
sets up a key hierarchy and management system, using the pair-wise key to dynamically
generate unique data encryption keys to encrypt every data packet that is wirelessly
communicated between the AP and the wireless clients.
Appendix E Wireless LANs
NBG-460N User’s Guide 319
Security Parameters Summary
Refer to this table to see what other security parameters you should configure for each
Authentication Method/ key management protocol type. MAC address filters are not
dependent on how you configure these security features.
Table 130 Wireless Security Relational Matrix
AUTHENTICATION
METHOD/ KEY
MANAGEMENT PROTOCOL
ENCRYPTIO
N METHOD ENTER
MANUAL KEY IEEE 802.1X
Open None No Disable
Enable without Dynamic WEP
Key
Open WEP No Enable with Dynamic WEP Key
Yes Enable without Dynamic WEP
Key
Yes Disable
Shared WEP No Enable with Dynamic WEP Key
Yes Enable without Dynamic WEP
Key
Yes Disable
WPA TKIP No Enable
WPA-PSK TKIP Yes Enable
WPA2 AES No Enable
WPA2-PSK AES Yes Enable
Appendix E Wireless LANs
NBG-460N User’s Guide
320
NBG-460N User’s Guide 321
APPENDIX F
Services
The following table lists some commonly-used services and their associated protocols and port
numbers.
•Name: This is a short, descriptive name for the service. You can use this one or create a
different one, if you like.
•Protocol: This is the type of IP protocol used by the service. If this is TCP/UDP, then the
service uses the same port number with TCP and UDP. If this is User-Defined, the Port(s)
is the IP protocol number, not the port number.
•Port(s): This value depends on the Protocol.
• If the Protocol is TCP,UDP, or TCP/UDP, this is the IP port number.
• If the Protocol is USER, this is the IP protocol number.
•Description: This is a brief explanation of the applications that use this service or the
situations in which this service is used.
Table 131 Examples of Services
NAME PROTOCOL PORT(S) DESCRIPTION
AH
(IPSEC_TUNNEL) User-Defined 51 The IPSEC AH (Authentication Header)
tunneling protocol uses this service.
AIM TCP 5190 AOL’s Internet Messenger service.
AUTH TCP 113 Authentication protocol used by some
servers.
BGP TCP 179 Border Gateway Protocol.
BOOTP_CLIENT UDP 68 DHCP Client.
BOOTP_SERVER UDP 67 DHCP Server.
CU-SEEME TCP/UDP
TCP/UDP
7648
24032
A popular videoconferencing solution from
White Pines Software.
DNS TCP/UDP 53 Domain Name Server, a service that
matches web names (e.g. www.zyxel.com)
to IP numbers.
ESP
(IPSEC_TUNNEL) User-Defined 50 The IPSEC ESP (Encapsulation Security
Protocol) tunneling protocol uses this
service.
FINGER TCP 79 Finger is a UNIX or Internet related
command that can be used to find out if a
user is logged on.
FTP TCP
TCP
20
21
File Transfer Program, a program to enable
fast transfer of files, including large files that
may not be possible by e-mail.
Appendix F Services
NBG-460N User’s Guide
322
H.323 TCP 1720 NetMeeting uses this protocol.
HTTP TCP 80 Hyper Text Transfer Protocol - a client/
server protocol for the world wide web.
HTTPS TCP 443 HTTPS is a secured http session often used
in e-commerce.
ICMP User-Defined 1Internet Control Message Protocol is often
used for diagnostic purposes.
ICQ UDP 4000 This is a popular Internet chat program.
IGMP (MULTICAST) User-Defined 2Internet Group Multicast Protocol is used
when sending packets to a specific group of
hosts.
IKE UDP 500 The Internet Key Exchange algorithm is
used for key distribution and management.
IMAP4 TCP 143 The Internet Message Access Protocol is
used for e-mail.
IMAP4S TCP 993 This is a more secure version of IMAP4 that
runs over SSL.
IRC TCP/UDP 6667 This is another popular Internet chat
program.
MSN Messenger TCP 1863 Microsoft Networks’ messenger service
uses this protocol.
NetBIOS TCP/UDP
TCP/UDP
TCP/UDP
TCP/UDP
137
138
139
445
The Network Basic Input/Output System is
used for communication between
computers in a LAN.
NEW-ICQ TCP 5190 An Internet chat program.
NEWS TCP 144 A protocol for news groups.
NFS UDP 2049 Network File System - NFS is a client/
server distributed file service that provides
transparent file sharing for network
environments.
NNTP TCP 119 Network News Transport Protocol is the
delivery mechanism for the USENET
newsgroup service.
PING User-Defined 1Packet INternet Groper is a protocol that
sends out ICMP echo requests to test
whether or not a remote host is reachable.
POP3 TCP 110 Post Office Protocol version 3 lets a client
computer get e-mail from a POP3 server
through a temporary connection (TCP/IP or
other).
POP3S TCP 995 This is a more secure version of POP3 that
runs over SSL.
PPTP TCP 1723 Point-to-Point Tunneling Protocol enables
secure transfer of data over public
networks. This is the control channel.
Table 131 Examples of Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
Appendix F Services
NBG-460N User’s Guide 323
PPTP_TUNNEL
(GRE) User-Defined 47 PPTP (Point-to-Point Tunneling Protocol)
enables secure transfer of data over public
networks. This is the data channel.
RCMD TCP 512 Remote Command Service.
REAL_AUDIO TCP 7070 A streaming audio service that enables real
time sound over the web.
REXEC TCP 514 Remote Execution Daemon.
RLOGIN TCP 513 Remote Login.
ROADRUNNER TCP/UDP 1026 This is an ISP that provides services mainly
for cable modems.
RTELNET TCP 107 Remote Telnet.
RTSP TCP/UDP 554 The Real Time Streaming (media control)
Protocol (RTSP) is a remote control for
multimedia on the Internet.
SFTP TCP 115 The Simple File Transfer Protocol is an old
way of transferring files between
computers.
SMTP TCP 25 Simple Mail Transfer Protocol is the
message-exchange standard for the
Internet. SMTP enables you to move
messages from one e-mail server to
another.
SMTPS TCP 465 This is a more secure version of SMTP that
runs over SSL.
SNMP TCP/UDP 161 Simple Network Management Program.
SNMP-TRAPS TCP/UDP 162 Traps for use with the SNMP (RFC:1215).
SQL-NET TCP 1521 Structured Query Language is an interface
to access data on many different types of
database systems, including mainframes,
midrange systems, UNIX systems and
network servers.
SSDP UDP 1900 The Simple Service Discovery Protocol
supports Universal Plug-and-Play (UPnP).
SSH TCP/UDP 22 Secure Shell Remote Login Program.
STRM WORKS UDP 1558 Stream Works Protocol.
SYSLOG UDP 514 Syslog allows you to send system logs to a
UNIX server.
TACACS UDP 49 Login Host Protocol used for (Terminal
Access Controller Access Control System).
TELNET TCP 23 Telnet is the login and terminal emulation
protocol common on the Internet and in
UNIX environments. It operates over TCP/
IP networks. Its primary function is to allow
users to log into remote host systems.
Table 131 Examples of Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
Appendix F Services
NBG-460N User’s Guide
324
TFTP UDP 69 Trivial File Transfer Protocol is an Internet
file transfer protocol similar to FTP, but
uses the UDP (User Datagram Protocol)
rather than TCP (Transmission Control
Protocol).
VDOLIVE TCP
UDP
7000
user-
defined
A videoconferencing solution. The UDP port
number is specified in the application.
Table 131 Examples of Services (continued)
NAME PROTOCOL PORT(S) DESCRIPTION
NBG-460N User’s Guide 325
APPENDIX G
Legal Information
Copyright
Copyright © 2008 by ZyXEL Communications Corporation.
The contents of this publication may not be reproduced in any part or as a whole, transcribed,
stored in a retrieval system, translated into any language, or transmitted in any form or by any
means, electronic, mechanical, magnetic, optical, chemical, photocopying, manual, or
otherwise, without the prior written permission of ZyXEL Communications Corporation.
Published by ZyXEL Communications Corporation. All rights reserved.
Disclaimer
ZyXEL does not assume any liability arising out of the application or use of any products, or
software described herein. Neither does it convey any license under its patent rights nor the
patent rights of others. ZyXEL further reserves the right to make changes in any products
described herein without notice. This publication is subject to change without notice.
Trademarks
ZyNOS (ZyXEL Network Operating System) is a registered trademark of ZyXEL
Communications, Inc. Other trademarks mentioned in this publication are used for
identification purposes only and may be properties of their respective owners.
Certifications
Federal Communications Commission (FCC) Interference Statement
The device complies with Part 15 of FCC rules. Operation is subject to the following two
conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause
undesired operations.
This device has been tested and found to comply with the limits for a Class B digital device
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This device generates,
uses, and can radiate radio frequency energy, and if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation.
Appendix G Legal Information
NBG-460N User’s Guide
326
If this device does cause harmful interference to radio/television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1Reorient or relocate the receiving antenna.
2Increase the separation between the equipment and the receiver.
3Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
4Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
• This transmitter must not be co-located or operating in conjunction with any other antenna
or transmitter.
• IEEE 802.11b or 802.11g operation of this product in the U.S.A. is firmware-limited to
channels 1 through 11.
• To comply with FCC RF exposure compliance requirements, a separation distance of at
least 20 cm must be maintained between the antenna of this device and all persons.
ࣹრʳʴ
ࠉᖕʳʳ܅פሽंᘿ୴ࢤሽᖲጥᙄऄ
รԼԲයʳʳᆖীڤᎁᢞٽհ܅פ୴᙮ሽᖲΔॺᆖױΔֆΕᇆࢨࠌش
ृ݁լᖐ۞᧢ޓ᙮ΕףՕפࢨ᧢ޓૠհࢤ֗פ౨Ζ
รԼයʳʳ܅פ୴᙮ሽᖲհࠌشլᐙଆڜ٤֗եឫٽऄຏॾΙᆖ࿇
ڶեឫွழΔᚨمܛೖشΔࠀޏ۟ྤեឫழֱᤉᥛࠌشΖ
ছႈٽऄຏॾΔਐࠉሽॾࡳ܂ᄐհྤᒵሽॾΖ܅פ୴᙮ሽᖲႊݴ
࠹ٽऄຏॾࢨՠᄐΕઝᖂ֗᠔᛭شሽंᘿ୴ࢤሽᖲໂհեឫΖʳ
ءᖲૻڇլեឫٽऄሽፕፖլ࠹եឫঅᎽයٙՀ࣍փࠌشΖ!
྇֟ሽंᐙΔᓮݔᔞࠌشΖ
Notices
Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
This device has been designed for the WLAN 2.4 GHz network throughout the EC region and
Switzerland, with restrictions in France.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
Viewing Certifications
1Go to http://www.zyxel.com.
2Select your product on the ZyXEL home page to go to that product's page.
Appendix G Legal Information
NBG-460N User’s Guide 327
3Select the certification you wish to view from this page.
ZyXEL Limited Warranty
ZyXEL warrants to the original end user (purchaser) that this product is free from any defects
in materials or workmanship for a period of up to two years from the date of purchase. During
the warranty period, and upon proof of purchase, should the product have indications of failure
due to faulty workmanship and/or materials, ZyXEL will, at its discretion, repair or replace the
defective products or components without charge for either parts or labor, and to whatever
extent it shall deem necessary to restore the product or components to proper operating
condition. Any replacement will consist of a new or re-manufactured functionally equivalent
product of equal or higher value, and will be solely at the discretion of ZyXEL. This warranty
shall not apply if the product has been modified, misused, tampered with, damaged by an act
of God, or subjected to abnormal working conditions.
Note
Repair or replacement, as provided under this warranty, is the exclusive remedy of the
purchaser. This warranty is in lieu of all other warranties, express or implied, including any
implied warranty of merchantability or fitness for a particular use or purpose. ZyXEL shall in
no event be held liable for indirect or consequential damages of any kind to the purchaser.
To obtain the services of this warranty, contact your vendor. You may also refer to the
warranty policy for the region in which you bought the device at http://www.zyxel.com/web/
support_warranty_info.php.
Registration
Register your product online to receive e-mail notices of firmware upgrades and information
at www.zyxel.com for global products, or at www.us.zyxel.com for North American products.
Appendix G Legal Information
NBG-460N User’s Guide
328
NBG-460N User’s Guide 329
APPENDIX H
Customer Support
In the event of problems that cannot be solved by using this manual, you should contact your
vendor. If you cannot contact your vendor, then contact a ZyXEL office for the region in
which you bought the device. Regional offices are listed below (see also http://
www.zyxel.com/web/contact_us.php). Please have the following information ready when you
contact an office.
Required Information
• Product model and serial number.
• Warranty Information.
• Date that you received your device.
• Brief description of the problem and the steps you took to solve it.
“+” is the (prefix) number you dial to make an international telephone call.
Corporate Headquarters (Worldwide)
• Support E-mail: support@zyxel.com.tw
• Sales E-mail: sales@zyxel.com.tw
• Telephone: +886-3-578-3942
• Fax: +886-3-578-2439
• Web: www.zyxel.com, www.europe.zyxel.com
• Regular Mail: ZyXEL Communications Corp., 6 Innovation Road II, Science Park,
Hsinchu 300, Taiwan
China - ZyXEL Communications (Beijing) Corp.
• Support E-mail: cso.zycn@zyxel.cn
• Sales E-mail: sales@zyxel.cn
• Telephone: +86-010-82800646
• Fax: +86-010-82800587
• Address: 902, Unit B, Horizon Building, No.6, Zhichun Str, Haidian District, Beijing
• Web: http://www.zyxel.cn
China - ZyXEL Communications (Shanghai) Corp.
• Support E-mail: cso.zycn@zyxel.cn
• Sales E-mail: sales@zyxel.cn
• Telephone: +86-021-61199055
• Fax: +86-021-52069033
Appendix H Customer Support
NBG-460N User’s Guide
330
• Address: 1005F, ShengGao International Tower, No.137 XianXia Rd., Shanghai
• Web: http://www.zyxel.cn
Costa Rica
• Support E-mail: soporte@zyxel.co.cr
• Sales E-mail: sales@zyxel.co.cr
• Telephone: +506-2017878
• Fax: +506-2015098
• Web: www.zyxel.co.cr
• FTP: ftp.zyxel.co.cr
• Regular Mail: ZyXEL Costa Rica, Plaza Roble Escazú, Etapa El Patio, Tercer Piso, San
José, Costa Rica
Czech Republic
• E-mail: info@cz.zyxel.com
• Telephone: +420-241-091-350
• Fax: +420-241-091-359
• Web: www.zyxel.cz
• Regular Mail: ZyXEL Communications, Czech s.r.o., Modranská 621, 143 01 Praha 4 -
Modrany, Ceská Republika
Denmark
• Support E-mail: support@zyxel.dk
• Sales E-mail: sales@zyxel.dk
• Telephone: +45-39-55-07-00
• Fax: +45-39-55-07-07
• Web: www.zyxel.dk
• Regular Mail: ZyXEL Communications A/S, Columbusvej, 2860 Soeborg, Denmark
Finland
• Support E-mail: support@zyxel.fi
• Sales E-mail: sales@zyxel.fi
• Telephone: +358-9-4780-8411
• Fax: +358-9-4780-8448
• Web: www.zyxel.fi
• Regular Mail: ZyXEL Communications Oy, Malminkaari 10, 00700 Helsinki, Finland
France
• E-mail: info@zyxel.fr
• Telephone: +33-4-72-52-97-97
• Fax: +33-4-72-52-19-20
• Web: www.zyxel.fr
• Regular Mail: ZyXEL France, 1 rue des Vergers, Bat. 1 / C, 69760 Limonest, France
Appendix H Customer Support
NBG-460N User’s Guide 331
Germany
• Support E-mail: support@zyxel.de
• Sales E-mail: sales@zyxel.de
• Telephone: +49-2405-6909-69
• Fax: +49-2405-6909-99
• Web: www.zyxel.de
• Regular Mail: ZyXEL Deutschland GmbH., Adenauerstr. 20/A2 D-52146, Wuerselen,
Germany
Hungary
• Support E-mail: support@zyxel.hu
• Sales E-mail: info@zyxel.hu
• Telephone: +36-1-3361649
• Fax: +36-1-3259100
• Web: www.zyxel.hu
• Regular Mail: ZyXEL Hungary, 48, Zoldlomb Str., H-1025, Budapest, Hungary
India
• Support E-mail: support@zyxel.in
• Sales E-mail: sales@zyxel.in
• Telephone: +91-11-30888144 to +91-11-30888153
• Fax: +91-11-30888149, +91-11-26810715
• Web: http://www.zyxel.in
• Regular Mail: India - ZyXEL Technology India Pvt Ltd., II-Floor, F2/9 Okhla Phase -1,
New Delhi 110020, India
Japan
• Support E-mail: support@zyxel.co.jp
• Sales E-mail: zyp@zyxel.co.jp
• Telephone: +81-3-6847-3700
• Fax: +81-3-6847-3705
• Web: www.zyxel.co.jp
• Regular Mail: ZyXEL Japan, 3F, Office T&U, 1-10-10 Higashi-Gotanda, Shinagawa-ku,
Tokyo 141-0022, Japan
Kazakhstan
• Support: http://zyxel.kz/support
• Sales E-mail: sales@zyxel.kz
• Telephone: +7-3272-590-698
• Fax: +7-3272-590-689
• Web: www.zyxel.kz
• Regular Mail: ZyXEL Kazakhstan, 43 Dostyk Ave., Office 414, Dostyk Business Centre,
050010 Almaty, Republic of Kazakhstan
Appendix H Customer Support
NBG-460N User’s Guide
332
Malaysia
• Support E-mail: support@zyxel.com.my
• Sales E-mail: sales@zyxel.com.my
• Telephone: +603-8076-9933
• Fax: +603-8076-9833
• Web: http://www.zyxel.com.my
• Regular Mail: ZyXEL Malaysia Sdn Bhd., 1-02 & 1-03, Jalan Kenari 17F, Bandar
Puchong Jaya, 47100 Puchong, Selangor Darul Ehsan, Malaysia
North America
• Support E-mail: support@zyxel.com
• Support Telephone: +1-800-978-7222
• Sales E-mail: sales@zyxel.com
• Sales Telephone: +1-714-632-0882
• Fax: +1-714-632-0858
• Web: www.zyxel.com
• Regular Mail: ZyXEL Communications Inc., 1130 N. Miller St., Anaheim, CA 92806-
2001, U.S.A.
Norway
• Support E-mail: support@zyxel.no
• Sales E-mail: sales@zyxel.no
• Telephone: +47-22-80-61-80
• Fax: +47-22-80-61-81
• Web: www.zyxel.no
• Regular Mail: ZyXEL Communications A/S, Nils Hansens vei 13, 0667 Oslo, Norway
Poland
• E-mail: info@pl.zyxel.com
• Telephone: +48-22-333 8250
• Fax: +48-22-333 8251
• Web: www.pl.zyxel.com
• Regular Mail: ZyXEL Communications, ul. Okrzei 1A, 03-715 Warszawa, Poland
Russia
• Support: http://zyxel.ru/support
• Sales E-mail: sales@zyxel.ru
• Telephone: +7-095-542-89-29
• Fax: +7-095-542-89-25
• Web: www.zyxel.ru
• Regular Mail: ZyXEL Russia, Ostrovityanova 37a Str., Moscow 117279, Russia
Appendix H Customer Support
NBG-460N User’s Guide 333
Singapore
• Support E-mail: support@zyxel.com.sg
• Sales E-mail: sales@zyxel.com.sg
• Telephone: +65-6899-6678
• Fax: +65-6899-8887
• Web: http://www.zyxel.com.sg
• Regular Mail: ZyXEL Singapore Pte Ltd., No. 2 International Business Park, The Strategy
#03-28, Singapore 609930
Spain
• Support E-mail: support@zyxel.es
• Sales E-mail: sales@zyxel.es
• Telephone: +34-902-195-420
• Fax: +34-913-005-345
• Web: www.zyxel.es
• Regular Mail: ZyXEL Communications, Arte, 21 5ª planta, 28033 Madrid, Spain
Sweden
• Support E-mail: support@zyxel.se
• Sales E-mail: sales@zyxel.se
• Telephone: +46-31-744-7700
• Fax: +46-31-744-7701
• Web: www.zyxel.se
• Regular Mail: ZyXEL Communications A/S, Sjöporten 4, 41764 Göteborg, Sweden
Taiwan
• Support E-mail: support@zyxel.com.tw
• Sales E-mail: sales@zyxel.com.tw
• Telephone: +886-2-27399889
• Fax: +886-2-27353220
• Web: http://www.zyxel.com.tw
• Address: Room B, 21F., No.333, Sec. 2, Dunhua S. Rd., Da-an District, Taipei
Thailand
• Support E-mail: support@zyxel.co.th
• Sales E-mail: sales@zyxel.co.th
• Telephone: +662-831-5315
• Fax: +662-831-5395
• Web: http://www.zyxel.co.th
• Regular Mail: ZyXEL Thailand Co., Ltd., 1/1 Moo 2, Ratchaphruk Road, Bangrak-Noi,
Muang, Nonthaburi 11000, Thailand.
Appendix H Customer Support
NBG-460N User’s Guide
334
Turkey
• Support E-mail: cso@zyxel.com.tr
• Telephone: +90 212 222 55 22
• Fax: +90-212-220-2526
• Web: http:www.zyxel.com.tr
• Address: Kaptanpasa Mahallesi Piyalepasa Bulvari Ortadogu Plaza N:14/13 K:6
Okmeydani/Sisli Istanbul/Turkey
Ukraine
• Support E-mail: support@ua.zyxel.com
• Sales E-mail: sales@ua.zyxel.com
• Telephone: +380-44-247-69-78
• Fax: +380-44-494-49-32
• Web: www.ua.zyxel.com
• Regular Mail: ZyXEL Ukraine, 13, Pimonenko Str., Kiev 04050, Ukraine
United Kingdom
• Support E-mail: support@zyxel.co.uk
• Sales E-mail: sales@zyxel.co.uk
• Telephone: +44-1344-303044, 08707-555779 (UK only)
• Fax: +44-1344-303034
• Web: www.zyxel.co.uk
• FTP: ftp.zyxel.co.uk
• Regular Mail: ZyXEL Communications UK Ltd., 11 The Courtyard, Eastern Road,
Bracknell, Berkshire RG12 2XB, United Kingdom (UK)
Index
NBG-460N User’s Guide 335
Index
A
active protocol 189
AH 189
and encapsulation 190
ESP 189
ActiveX 162
address resolution protocol (ARP) 129
AH 189
and transport mode 190
Alert 234
alternative subnet mask notation 287
any IP
note 129
AP 259
AP (Access Point) 311
AP Mode 259
menu 68
overview 65
status screen 66
AP network 259
Asymmetrical routes 154
and IP alias 154
see also triangle routes 154
authentication algorithms 186,191
and active protocol 186
Authentication Header. See AH.
Auto-bridge 126
B
Backup configuration 253
Bandwidth management 62
application-based 199
classes and priorities 202
monitor 206
overview 199
priority 200
services 201
subnet-based 199
Bandwidth management monitor 44
Basic wireless security 53
BitTorrent 201
BSS 309
C
CA 315
Certificate Authority 315
certifications 325
notices 326
viewing 326
Channel 41,67,311
Interference 311
channel 89
command interface 33
Configuration
backup 253
reset the factory defaults 254
restore 253
contact information 329
Content Filtering
Days and Times 161
Restrict Web Features 161
Cookies 162
copyright 325
CPU usage 41,67
CTS (Clear to Send) 312
customer support 329
D
Daylight saving 231
DDNS 147
see also Dynamic DNS
DHCP 45,133
DHCP server
see also Dynamic Host Configuration Protocol
DHCP client information 135
DHCP client list 135
DHCP server 127,133
DHCP table 45,135
DHCP client information
DHCP status
Diffie-Hellman key group 186
Perfect Forward Secrecy (PFS) 190
Dimensions 273
disclaimer 325
DNS 59,135
Index
NBG-460N User’s Guide
336
DNS server
see also Domain name system
DNS (Domain Name System) 212
DNS Server
For VPN Host 191
DNS server 135
Domain name 51
vs host name. see also system name
Domain Name System 135
duplex setting 42,68
Dynamic DNS 147
Dynamic Host Configuration Protocol 133
Dynamic WEP Key Exchange 316
DynDNS Wildcard 147
E
EAP Authentication 315
e-mail 105
Encapsulating Security Payload. See ESP.
encapsulation
and active protocol 190
transport mode 189
tunnel mode 189
VPN 189
Encryption 317
encryption 91
and local (user) database 91
key 92
WPA compatible 92
encryption algorithms 186,191
and active protocol 186
ESP 189
and transport mode 190
ESS 310
ESSID 269
Extended Service Set 310
Extended wireless security 54
F
Factory LAN defaults 127
FCC interference statement 325
feature specifications 275
File Transfer Program 201
Firewall 153
Firewall overview
guidelines 154
ICMP packets 156
network security
Stateful inspection 153
ZyXEL device firewall 153
Firmware upload 251
file extension
using HTTP
firmware version 40,67
Fragmentation Threshold 312
FTP 33,212
FTP. see also File Transfer Program 201
G
gateway 196
General wireless LAN screen 94
H
Hidden Node 311
HTTP 201
Hyper Text Transfer Protocol 201
I
IANA 292
IBSS 309
IEEE 802.11g 313
IGMP 117,128
see also Internet Group Multicast Protocol
version
IGMP version 117,128
IKE SA
aggressive mode 166,188
authentication algorithms 186,191
Diffie-Hellman key group 186
encryption algorithms 186,191
ID content 187
ID type 187
IP address, remote IPSec router 167
IP address, ZyXEL Device 166
local identity 187
main mode 166,188
NAT traversal 189
negotiation mode 166
peer identity 187
pre-shared key 187
proposal 186
Index
NBG-460N User’s Guide 337
SA life time 191
IKE SA. See also VPN.
Independent Basic Service Set 309
Install UPnP 217
Windows Me 217
Windows XP 218
Internet Assigned Numbers Authority
See IANA
Internet connection
Ethernet
PPPoE. see also PPP over Ethernet
PPTP
WAN connection
Internet connection wizard 54
Internet Group Multicast Protocol 117,128
Internet Protocol Security. See IPSec.
IP Address 130,139
IP address 59
dynamic
IP alias 130
IP packet transmission 128
Broadcast
Multicast
Unicast
IP Pool 133
IPSec 165
IPSec SA
active protocol 189
authentication algorithms 186,191
authentication key (manual keys) 180
encapsulation 189
encryption algorithms 186,191
encryption key (manual keys) 180
local policy 167
manual keys 179
Perfect Forward Secrecy (PFS) 190
proposal 190
remote policy 167
SA life time 191
Security Parameter Index (SPI) (manual keys) 180
transport mode 189
tunnel mode 189
when IKE SA is disconnected 167,191
IPSec SA. See also VPN.
IPSec. See also VPN.
J
Java 162
K
Keep alive 191
L
LAN 127
IP pool setup 127
LAN overview 127
LAN Setup 117
LAN setup 127
LAN TCP/IP 127
Language 263
Link type 41,67
local (user) database 90
and encryption 91
Local Area Network 127
Log 233
M
MAC 101
MAC address 90,117
cloning 61,117
MAC address filter 90
MAC address filtering 101
MAC filter 101
managing the device
good habits 33
using FTP. See FTP.
using Telnet. See command interface.
using the command interface. See command
interface.
using the web configurator. See web configurator.
Media access control 101
Memory usage 41,67
Metric 197
MSN messenger 201
MSN Webcam 201
Multicast 117,128
IGMP 117,128
N
NAT 137,139,292
Index
NBG-460N User’s Guide
338
and VPN 188
overview 137
port forwarding 137
see also Network Address Translation
server sets 137
NAT session 144
NAT Traversal 215
NAT traversal 189
Navigation Panel 42,68
navigation panel 42,68
NetBIOS 125,132
see also Network Basic Input/Output System 125
Network Address Translation 137,139
Network Basic Input/Output System 132
O
Operating Channel 41,67
P
P2P 201
peer-to-peer 201
Perfect Forward Secrecy. see PFS.
PFS 190
Diffie-Hellman key group 190
Pocket GUI 108
Point-to-Point Protocol over Ethernet 55,119
Point-to-Point Tunneling Protocol 56,122
Pool Size 133
Port forwarding 137,139
default server 137
example 138
local server 139
port numbers
services
port speed 42,68
Power Specification 273
PPPoE 55,119
benefits 56
dial-up connection
see also Point-to-Point Protocol over Ethernet 55
PPTP 56,122
see also Point-to-Point Tunneling Protocol 56
Preamble Mode 313
priorities 94
Private 197
product registration 327
Q
QoS 94
QoS priorities 94
Quality of Service (QoS) 103
R
RADIUS 314
Shared Secret Key 315
RADIUS Message Types 314
RADIUS Messages 314
RADIUS server 90
registration
product 327
related documentation 3
Remote management 209
and NAT 210
and the firewall 209
FTP 212
limitations 209
remote management session 209
system timeout 210
remote management
Telnet 211
Reset button 39,254
Reset the device 39
Restore configuration 253
Restrict Web Features 162
RF (Radio Frequency) 274
RFC 2402. See AH.
RFC 2406. See ESP.
RoadRunner 119
Roaming 102
roaming 92
requirements 93
router 259
Router Mode 259
RTS (Request To Send) 312
RTS Threshold 311,312
RTS/CTS Threshold 103
S
SAlife time 191
safety warnings 6
Index
NBG-460N User’s Guide 339
Scheduling 107
security associations. See VPN.
Security Parameters 319
Service and port numbers 201
Service Set 95
Service Set IDentification 95
Service Set IDentity. See SSID.
services
and port numbers 321
and protocols 321
Session Initiated Protocol 201
Simple Mail Transfer Protocol 236
SIP 201
SMTP 236
SNMP 154
SSID 41,67,89,95
Static DHCP 134
Static Route 195
Status 39
subnet 285
Subnet Mask 130
subnet mask 59,286
subnetting 288
Summary 44
Bandwidth management monitor 44
DHCP table 45
Packet statistics 46
Wireless station status 47
syntax conventions 4
Sys Op Mode 259
selecting 260
System General Setup 229
System Name 229
System name 50
vs computer name
System restart 254
T
TCP/IP configuration 133
Telnet 211
Temperature 273
Time setting 230
trademarks 325
Triangle routes
and IP alias 154
see also asymmetrical routes 154
trigger port 142
Trigger port forwarding 142
example 142
process 142
U
Universal Plug and Play 215
Application 215
UPnP 215
Forum 216
security issues 215
URL Keyword Blocking 162
Use Authentication 317
user authentication 90
local (user) database 90
RADIUS server 90
User Name 148
V
Virtual Private Network. See VPN.
VoIP 201
VPN 80,122,165
active protocol 189
and NAT 188
established in two phases 166
IKE SA. See IKE SA.
IPSec 165
IPSec SA. See IPSec SA.
local network 165
proposal 186
remote IPSec router 165
remote network 165
security associations (SA) 166
VPN. See also IKE SA, IPSec SA.
W
Wake On LAN 139,141,255
WAN
IP address assignment 58
WAN advanced 125
WAN IP address 58
WAN IP address assignment 60
WAN MAC address 117
warranty 327
note 327
Web Configurator
how to access 37
Index
NBG-460N User’s Guide
340
Overview 37
Web configurator
navigating 39
web configurator 33
Web Proxy 162
WEP Encryption 97
WEP encryption 96
WEP key 97
Wi-Fi Multimedia QoS 94
Wildcard 147
Windows Networking 132
Wireless association list 47
wireless channel 269
wireless LAN 269
wireless LAN scheduling 107
Wireless LAN wizard 51
Wireless network
basic guidelines 89
channel 89
encryption 91
example 89
MAC address filter 90
overview 89
security 90
SSID 89
Wireless security 90
overview 90
type 90
wireless security 269
Wireless tutorial 65,73
WPS 73
Wizard setup 49
Bandwidth management 62
complete 63
Internet connection 54
system information 50
wireless LAN 51
WLAN
Interference 311
Security Parameters 319
WMM 94
WMM priorities 94
WoL. See Wake On LAN.
World Wide Web 201
WPA compatible 92
WPA, WPA2 316
WPS 34
WWW 105,201
X
Xbox Live 201
Z
ZyNOS 40,67
