zBoost ZB570-TRI-VLTE Model ZB570-V Signal Booster User Manual ZBC775 Manual indd

zBoost, LLC Model ZB570-V Signal Booster ZBC775 Manual indd

ZBC775_Manual_Rev1

zBoost® TRIO Pro
ZBC775 Manual
zBoost® products have a 30-day money back guarantee when purchased directly from
zBoost. If product is purchased from a reseller or third party, the purchaser is subject to the
policies of the third party.
2 year manufacturer warranty. Warranty registration at www.zBoost.com
v.0314
Models:
• ZBC775-A
• ZBC775-V
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
i ii
About zBoost®
zBoost, the leader in cell phone signal boosters, manufactures an award-winning line of cell
phone signal boosters that enhance the performance of your cell phone, smartphone and
wireless data card.
Uses patented technologies and protects the carrier networks.
2-year manufacturer warranty – register your product at www.zBoost.com.
Industry Canada Regulations
IC ID: 5544A-ZB570TRIVLT, 5544A-ZB570TRIALT
This Class B digital apparatus meets all requirements of the Canadian Interference Causing
Equipment Regulations. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
The term “IC:” before the radio certifi cation number only signifi es that Industry Canada technical
specifi cations were met.
RF Exposure: The manufacturer’s rated output power of this equipment is for single carrier
operation. For situations when multiple carrier signals are present, the rating would have to be
reduced by 3.5 dB, especially where the output is re-radiated and can cause interference to
adjacent band users. This power reduction is to be by means of input power or gain reduction and
not by an attenuator at the output of the device.
Cet appareillage numérique de la classe [B] répond à toutes les exigences de l’interférence
canadienne causant des règlements d’équipement. L’opération est sujette aux deux conditions
suivantes: (1) ce dispositif peut ne pas causer l’interférence nocive, et (2) ce dispositif doit accepter
n’importe quelle interférence reçue, y compris l’interférence qui peut causer l’opération peu désirée.
Le fabricant nominale de la puissance de sortie de ce matériel est simple transporteur. Pour les
situations lorsque plusieurs signauxporteurs sont présents, l’évaluation devrait être réduite de
3.5 dB, en particulier lorsque le signal de sortie est ré-émise et peut provoquer des interférences
adjacentes à la bande utilisateurs. Ce pouvoir est de la réduction par le biais de la sortie
d’alimentation ou la réduction de gain et non par un atténuateur à la sortie du dispositif.
Please note: This unit has been approved for use in Canada under RSS 131, however, consent
for the use of this device to improve cellular or PCS coverage, must be obtained through your
cellular or PCS provider, prior to placing the unit in operation. Please refer to the Industry Canada
document CPC 2-1-05, Section 6.1 available or viewable at:
http://www.ic.gc.ca/epic/site/smt-gst.nsf/en/sf08942e.html
Copyright Notice
This manual is copyrighted. All rights reserved. This manual, whole or in part, may not be copied,
photocopied, reproduced, translated or reduced to any electronic medium or machine readable
form for distribution. This manual whole or in part, may not be modifi ed without prior consent, in
writing, from zBoost.
Copyright © 2013 by zBoost, Inc.
Trademarks
Wireless Extenders, Wi-Ex, the Wi-Ex logo, zBoost, the zBoost logo and Extending Cell Zones are
registered trademarks of zBoost, Inc.
FCC Requirements
This is a CONSUMER Device.
BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your
provider’s consent. Most wireless providers consent to the use of signal boosters. AT&T, Sprint,
T-Mobile, Verizon and 90 additional have already given consent for all consumers to use this device.
Some providers may not consent to the use of this device on their network. If you are unsure, contact
your provider.
You MUST operate this device with approved antennas and cables as specifi ed by the manufacturer.
Antennas MUST be installed at least 20 cm (8 inches) from any person.
You MUST cease operating this device immediately if requested by the FCC or a licensed wireless
service provider.
WARNING. E911 location information may not be provided or may be inaccurate for calls served by
using this device.
FCC contact information: www.fcc.gov/signal-boosters/registration
FCC Information
FCC ID: SO4ZB570-TRI-VLTE, SO4ZB570-TRI-ALTE
Warning: Changes or modifi cations to this device not expressly approved by zBoost could void the
user’s authority to operate the equipment.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If the equipment does cause
harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected
• Consult the dealer or an experienced radio/TV technician for help
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter. In accordance with FCC requirements of human exposure to radiofrequency
fi elds, the radiating element (antenna) shall be installed such that a minimum separation distance
of 20cm (8in) is maintained from all persons. Additionally, the device must not be used above 10 m
above ground.
Warning
Any product modifi cations that use unauthorized
antennas, cables, and/or coupling devices is no longer
FCC compliant and will void the product warranty.
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
iii iv

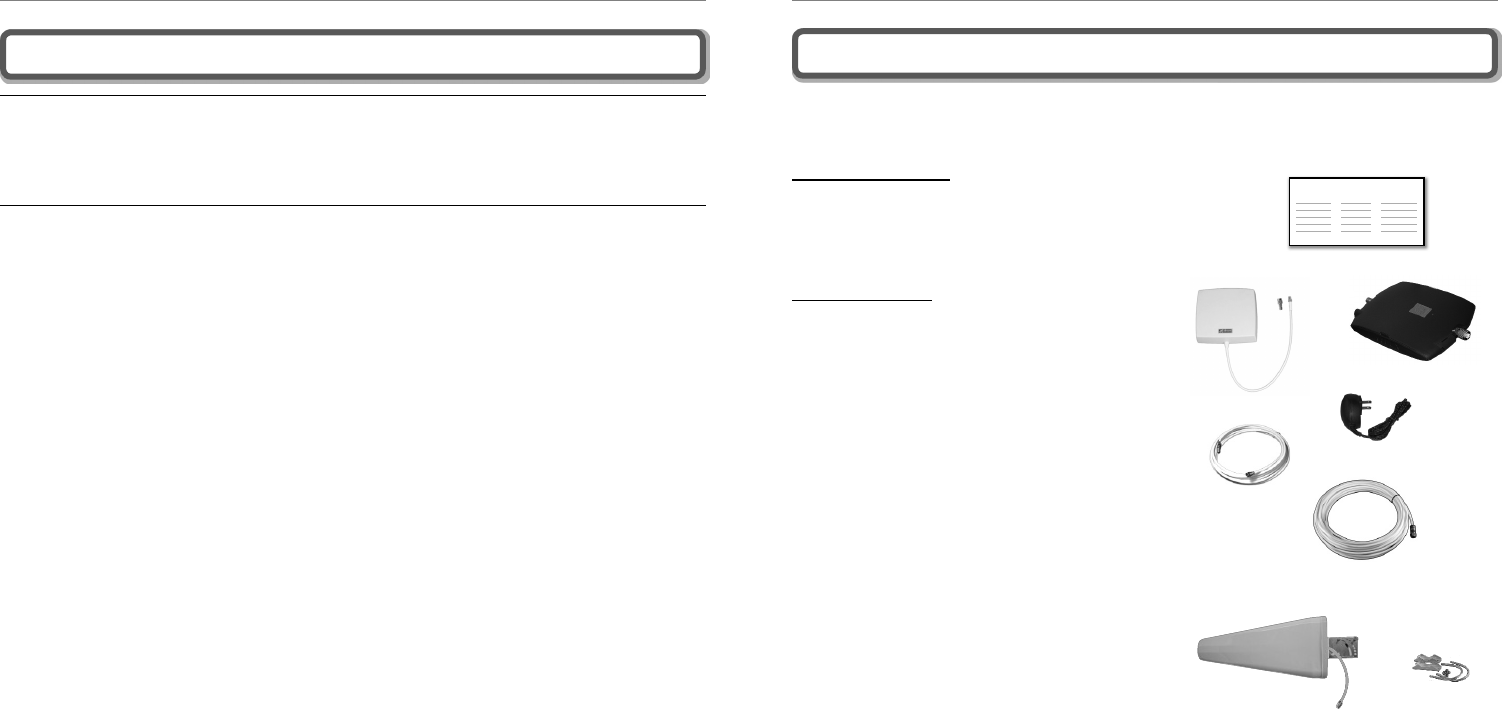

Package Contents
③
④
⑧
Before you begin, make sure all of the following parts came with your zBoost TRIO Pro:
Literature Contents:
① Setup overview for zBoost TRIO Pro
Product Contents:
② zBoost Base Unit
③ Indoor Antenna with TNC-F adaptor
④ Power Supply
⑤ RG-6 Coax Cable (15 ft.)
⑥ RG-6 Coax Cable (50 ft.)
⑦ External Antenna
⑧ External Antenna Mounting Hardware
Safety Guidelines
In accordance with FCC requirements of human exposure to radio frequency fi elds, the radiating
element (antenna) shall be positioned such that a minimum separation distance of 8 inches (20cm)
is maintained between the radiating element and the user and/or general population.
Limited Liability
In no event shall zBoost be liable for any direct, indirect, special, punitive, incidental, exemplary
or consequential damages, or any damages, whether in an action under contract, negligence,
or any other theory, arising out of or in connection with the set up of, use of, inability to use, or
performance of the information, services, products, and materials available from this manual.
These limitations shall apply notwithstanding any failure of essential purpose of any limited
remedy. Because some jurisdictions do not allow limitations on how long an implied warranty
last, or the exclusion or limitation of liability for consequential or incidental damages, the above
limitations may not apply to you.
For full warranty guidelines, see page 13.
Safety and Product Warranty Information
②

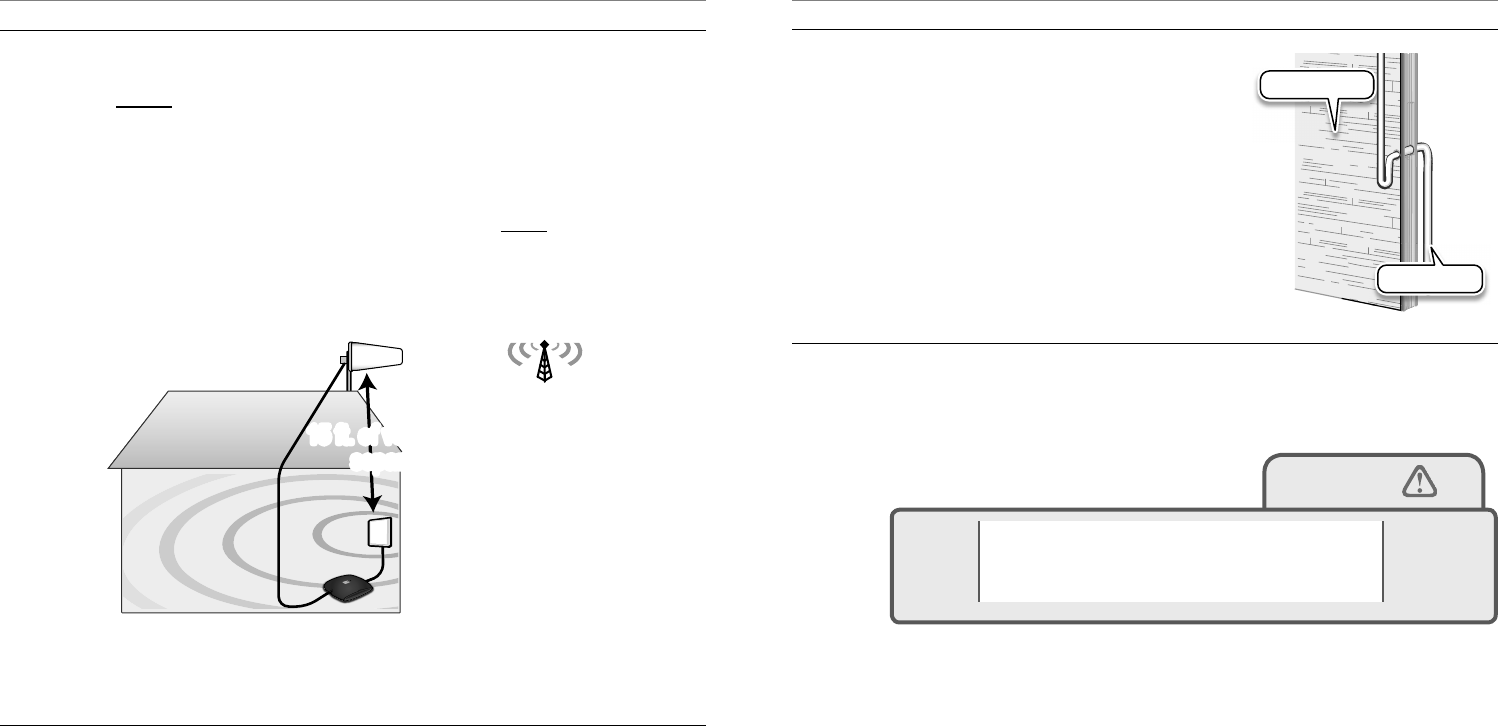

SETUP OVERVIEW
①
⑥
⑦
⑤
②
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
v 1
Optional Accessories Table of Contents
FCC Requirements ........................................................................................................................i
FCC Information ............................................................................................................................i
Industry Canada Regulations .......................................................................................................ii
Copyright Notice ..........................................................................................................................ii
Trademarks ..................................................................................................................................ii
Safety Guidelines ........................................................................................................................iii
Limited Liability ........................................................................................................................... iii
Safety and Product Warranty Information ................................................................................... iii
Package Contents ........................................................................................................................ iv
Optional Accessories .................................................................................................................... v
Table of Contents .......................................................................................................................... 1
Overview ........................................................................................................................................ 2
Why Indoor Signals Can Be Weak ............................................................................................... 2
Preparing to Set Up Your zBoost Product .................................................................................... 3
Tools Needed .............................................................................................................................. 3
Check for External Strength ........................................................................................................ 3
IMPORTANT: Before Installing, Note These Important Factors in Determining Performance ....... 4
Grounding the External Antenna .................................................................................................. 4
Securing Cable with a Drip Loop ................................................................................................. 5
Power Requirements ................................................................................................................... 5
Setting Up Your zBoost Signal Booster ....................................................................................... 6
FIRST: Mount the External Antenna............................................................................................. 6
SECOND: Position the Base Unit and Indoor Antenna ................................................................. 6
THIRD: Run the Coaxial Cable between the External Antenna and Base Unit ............................. 7
FOURTH: Connect the zBoost Base Unit to Power ...................................................................... 7
FIFTH: Antenna Aiming ............................................................................................................... 8
Confi rm That Your zBoost is Working Properly ............................................................................ 9
Improving Your Coverage Area ..................................................................................................... 9
zBoost Base Unit Light Indicators .............................................................................................. 10
Technical Specifi cations ..............................................................................................................11
Frequently Asked Questions ...................................................................................................... 12
Warranty Information .................................................................................................................. 13
The following accessories are authorized for this zBoost product. Please see our website for
complete selection. To order, call 1-800-871-1612, or visit www.zBoost.com.
* The FCC requires that this panel antenna has a minimum horizontal separation of 6 feet (2 meters)
from other CMRS (commercial mobile radio service) devices.
Broadcast Antennas - Indoor
CANT-0039 Indoor Broadcast Antenna, Omni Whip Direct to Booster, Black, Wideband, LTE-
CEL-AWS-PCS (1 dBi)
CANT-0045* Indoor Broadcast Antenna, Wideband Directional Panel, LTE-CEL-AWS-PCS
(8 / 7.5 dBi)
YX052 Indoor Broadcast Antenna, Wideband Omnidirectional Ceiling Mount, LTE-CEL-
AWS-PCS (1 / 2 dBi)
External Antennas - Outdoor
CANT-0040 Outdoor External Antenna, Wideband Omni Directional, LTE-CEL-AWS-PCS
(3 / 5 dBi)
CANT-0042 Outdoor External Antenna, Wideband Directional Log Periodic, LTE-CEL-AWS-PCS
(10 / 12 dBi)
CANT-0043 Window-Mount External Antenna, Wideband Directional Panel, LTE-CEL-AWS-PCS
(6 / 7 dBi)
Coax Cable - To be used in addition to the cable included in your kit
YX030-0W8 8 Inch Window Entry Cable with F-Female Connectors
YX030-15W 15 Foot RG-6 Coaxial Extension Cable with F-Male Connectors
YX030-35W 35 Foot RG-6 Coaxial Extension Cable with F-Male Connectors
YX030-50W 50 Foot RG-6 Coaxial Cable with F-Male Connectors
YX031-100W 100 Foot Low Loss RG-11 Coaxial Cable with F-Male Connectors
Accessories
YX012 Outdoor External Antenna Grounding Kit
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
2 3
Preparing to Set Up Your zBoost Product
Tools Needed
The following tools are needed to set up your booster:
• #2 Phillips screwdriver
• Cellular phone operating in the band supported by your zBoost unit
• Drill (may be required for outdoor or attic antenna placement)
Check for External Strength
Before placing the unit in your home, make sure that you have reliable signal and fast/reliable data
speeds outside your home, in the attic, at roof level or wherever you plan to place the External
Antenna. zBoost can only bring signal into your home when it reaches the External Antenna. If
there is no signal, zBoost will not work for you.
If a weak signal is available at ground level, check the signal strength in your attic or at roof level
location where the signal will likely be stronger and where the External Antenna can be placed for
best performance.
If you have reliable, fast data speeds outside your home, then zBoost can bring the signal into your
home.
Note
Cell phone signal bars are approximate and vary from
phone to phone. The number of bars can fl uctuate
widely, depending on the location of the phone, the
position or angle of the phone, weather, etc. Most cell
phone signal meters update every 6 to 10 seconds. An
increase of only one bar typically indicates a 4x to 10x
signal increase.
Overview
Thank you for choosing zBoost! You will now be able to use your cell phone INSIDE your home.
Gone are the days when you had to go to the window upstairs or walk outside to use your cell
phone. Like a skylight that brings sunlight into your home, zBoost TRIO transports and amplifi es the
outdoor 2G/3G and 4G data signal into your home.
Why Indoor Signals Can Be Weak
There are several obstacles that can contribute to the poor reception you receive in your home:
1. Location of the Cell Phone Tower in Relation to Your Home
While cell phone providers have tried to place cell phone towers to provide the best overall
coverage, local ordinances and terrain features can impose restrictions on where these
towers can be placed, thus, limiting the signal strength available at your location.
2. Obstructions Caused by Buildings, Terrain and Trees
Cell phone signals can be completely blocked or refl ected by buildings, walls, trees, hills
and other terrain features resulting in low signal strength.
3. Energy Effi cient Windows
Energy effi cient windows contain a metal fi lm that can affect signal penetration into the
house.
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
4 5
IMPORTANT: Before Installing, Note These Important Factors in Determining
Performance
1. At least 15 vertical feet is needed between the External Antenna (receives the outside signal)
and the Indoor Antenna (rebroadcasts the signal indoors). Separation less than 15 vertical feet
will result in decreased performance.
If the antennas are too close together, a solid ORANGE light will appear on the Base Unit -
see the Base Unit Light Indicators section (page 10). To capture the best signal, place the
External Antenna as high as possible.
2. Position the External Antenna vertically and keep it at least 3 feet above any metal.
Grounding the External Antenna
If the External Antenna is placed outdoors, it must be properly grounded. (See page v for a
recommended grounding kit).
The setup must be in accordance with Article 810 of the National Electric Code (NEC). A listed
antenna discharge unit must be provided for the lead-in coaxial cable per NEC article 8.10.20 or the
shield of the coaxial cable must be permanently and effectively grounded in accordance with NEC
article 8.10.21. Please consult a professional installer or electrician for more information
Securing Cable with a Drip Loop
If the External Antenna is placed outdoors, create a drip loop
with the coaxial cable at the point where the cable enters the
home through an outside wall. This can be done by twisting and
securing the cable into a loop (no less than 4” across) near the
entry point. This will help prevent moisture from gathering at
entry point and leaking into the home. Consult a professional
installer for more information.
Power Requirements
The Base Unit can be plugged into a standard 2 or 3 prong 110 VAC receptacle using the included
power supply. The power supply consumes less than 10W (less than 0.2A).For more information on
power consumption, see “Technical Specifi cations” on page 11.
Warning
The zBoost TRIO Pro base unit MUST only be used
with the provided power adaptor. Use of other power
adaptors will void the warranty and may damage the
unit. Use of other equipment is not FCC approved.

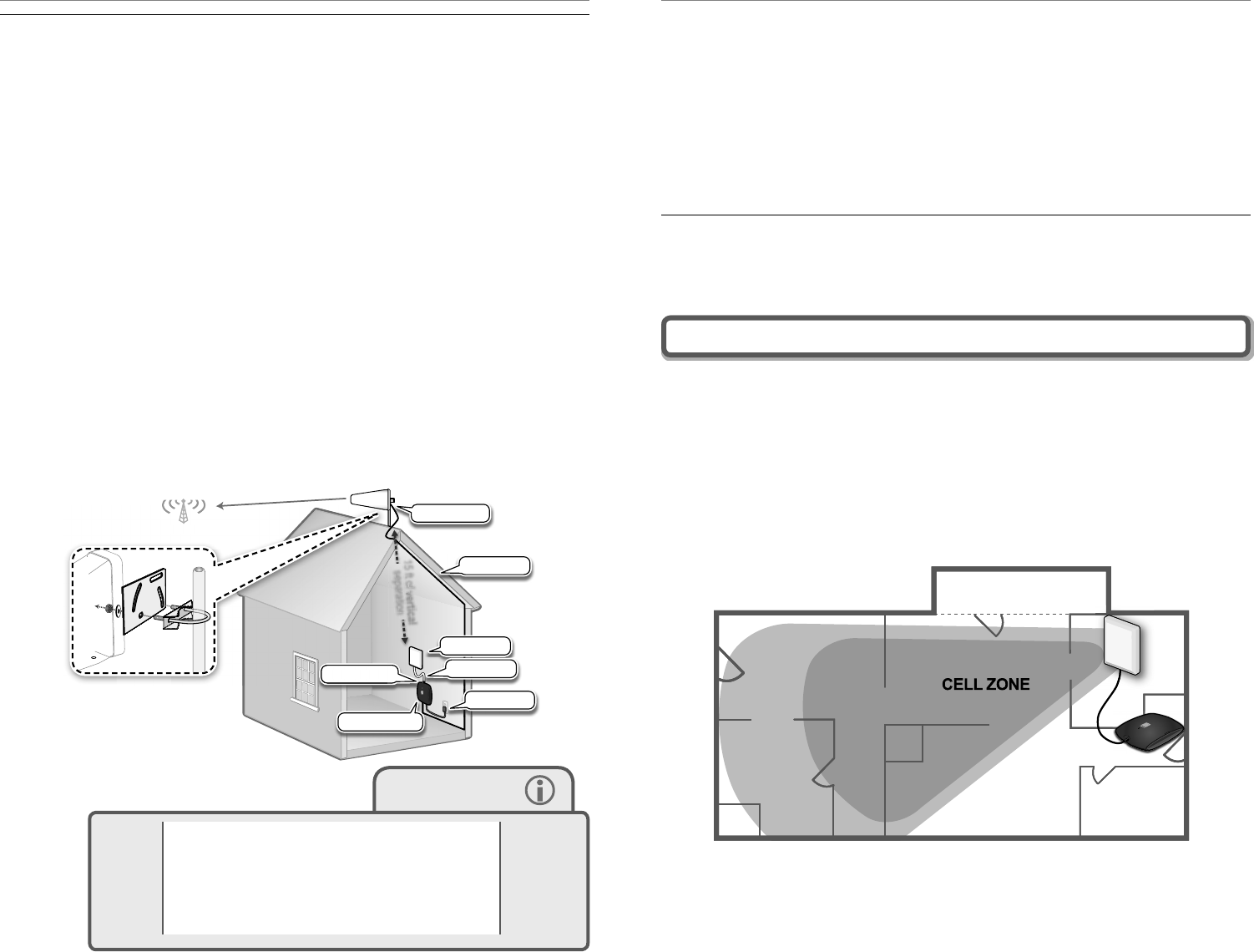

Coax Cable
Exterior Wall
15 ft. of vertical
separation
15 ft. of vertical
separation
15 ft. of vertical
separation
Cell Tower
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
6 7
FIRST: Mount the External Antenna
Choosing the best location for the External Antenna provides the best performance and the largest
area of improved signal. Choose a location for the External Antenna using your cell phone to
determine the area of strongest signal - typically found outside, above the roofl ine or in an attic.
Keep in mind that if your best signal is one bar, your coverage will be limited to one small room.
Maximum performance will be achieved when the antenna is aimed at the strongest signal from
your wireless provider. If you know the direction of your provider’s tower, simply point the antenna
in that direction. If you are unsure of the location of the nearest tower, loosely secure the antenna
to the mounting surface or mast (not provided) to allow adjustment or rotation around mast. Before
securing antenna hardware, take care in fi nding the optimum angle at which to aim the antenna –
See Antenna Aiming section on page 8 for further instruction.

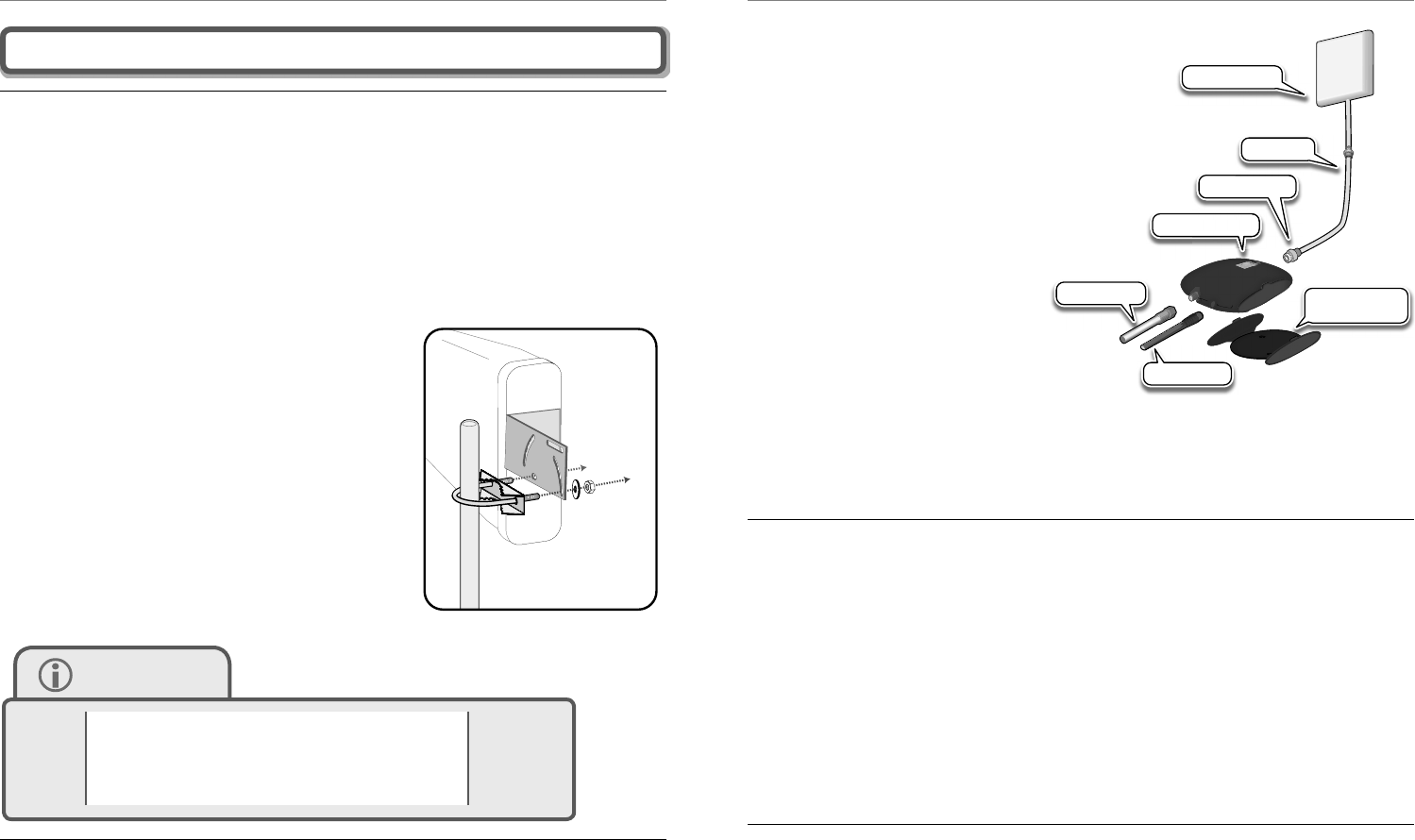

Once you have determined the optimum location and
angle, connect the L-bracket to the antenna and secure the
antenna bracket to a mast (not provided) or a fl at surface
using the provided antenna hardware.(see bracket assembly
illustration). Ensure that the antenna remains at least 3 feet
above any metal objects (such as pipes, metal siding, A/C
unit etc.) and parallel to the ground with the two holes on the
side of the antenna are facing down.
► To mount antenna to a pole: Attach bracket end
of antenna to pole bracket as pictured. Use U-Bolt to
secure bracket to pole and fasten.
► To mount antenna to a fl at surface: Attach bracket
end of antenna desired surface. Secure bracket using
provided screws. The of the U-Bolt is not necessary for
this option.
SECOND: Position the Base Unit and Indoor Antenna
Mount the Base Unit (optional) and the Indoor Antenna on a wall facing the direction where
increased coverage is desired (see “Indoor antenna aiming” on page 9). Keep it 4 - 5 feet from
the fl oor and at least 3 feet away from other cords, metal objects or other wireless devices such as
wireless routers or wireless access points. The zBoost TRIO Pro performs best when there are no
obstructions between the Indoor Antenna and your mobile device.
Note that signal is broadcast in a beamwidth of 70° horizontally and 60° vertically from the front of
the Indoor Antenna.
Connect the Indoor Antenna to the 15 feet of RG-6. Then, using the TNC-F adaptor, connect the
Setting Up Your zBoost Signal Booster
RG-6 to the Base Unit (see “zBoost Base
Unit Assembly” ).
Note: The FCC requires that the Panel
Antenna has a minimum horizontal
separation of 6 feet (2 meters) from other
CMRS (commercial mobile radio service)
devices.
Wall Mounting the Base Unit (Optional)
The Base Unit should be a minimum
distance of 4-5 feet off from the fl oor so
there is clearance for the Indoor Antenna
extension.
1. Remove the mounting bracket from
the Base Unit by slightly spreading
the tabs on the mounting bracket.
2. Fasten the mounting bracket to the
wall using the self-tapping wall/ceiling
anchors.
3. Snap the Base Unit into the mounting
bracket.
Remember, the zBoost TRIO Pro requires at least 15 feet of vertical separation between the Indoor
Antenna and the outdoor External Antenna. Generally, increasing this distance (up to 40 feet) will
increase the performance and decreasing the distance will limit zBoost performance.
THIRD: Run the Coaxial Cable between the External Antenna and Base Unit
Connect one end of the provided 50 feet of RG-6 coax cable to the External Antenna then run the
cable to the location in the home where you have installed the Base Unit.
Should you need additional cable length, 15 foot extensions (Part #: YX030-15W) are available
at www.zBoost.com. The total cable length should not exceed 65 feet unless you also purchase
an upgraded External Antenna or replace your existing cable with our 100 foot RG-11 coax cable
(Part# YX031-100W). A longer cable is helpful only if it allows you to place the External Antennas in
a location where you measure stronger signal.
It is highly recommended that you refrain from securing your cable, drilling any holes, etc. until you
complete and test the installation of the system.
Caution: Before drilling any holes into a wall to run your cable, make sure you know where existing
electrical wiring is located. Drilling into live electrical wiring could cause an electrical shock and
sever the wire.
FOURTH: Connect the zBoost Base Unit to Power
Connect the zBoost Base Unit to the provided power supply and plug into a power outlet.
Upon initial power up, the LED will cycle RED, GREEN and ORANGE for 30 seconds. After 30
seconds, a series of GREEN fl ashes will indicate the quality of your setup. Following this, a solid
GREEN light indicates normal conditions. If it is not solid GREEN, follow the instructions in the
Base Unit LED Indicators section. Adjustments may be needed to optimize performance. If you fi nd
the increased signal coverage is acceptable, however, no additional adjustments are needed. See
“zBoost Base Unit Light Indicators” on page 10) for more information.
Note
Avoid placing the External Antenna near metal such as
wiring, A/C ducts, metal siding, truss plates, etc.
When connecting the cable to the antenna, run the
cable straight down from the antenna. Avoid draping
the coax near the antenna.
zBoost Base Unit
Power Supply
s
t Ba
s
e
U
nit
TNC-F Adaptor
RG-6 (15 ft.)
Indoor Antenna
Coaxial Cable Base Unit Wall
Mounting Bracket
zBoost Base Unit Assembly
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
8 9
FIFTH: Antenna Aiming
To get the maximum benefi t, you will want to take special care to make sure you point the antenna
in the direction of the best signal for your wireless service provider. You may wish to use a YX699
RF signal meter to help during this process or try our zBoost Signal Finder Android App. The
majority of the time a cell tower will hold more than 1 frequency band and/or service provider.
To aim the antenna for maximum signal, you will need a phone operating on the same wireless
network(s) in use at the install location.
Note: A 1 dBm increase is 25% gain in signal strength.
If you do not know which direction the best signal is coming from, once the unit is installed, rotate
the External Antenna in 90 degree increments while measuring the results inside the desired
coverage area.
1. Place the cell phone(s) on a non-metal surface about 6-8 feet from the Base Unit.
2. Turn the signal booster on and wait 30 seconds. Note the number of signal bars displayed
on your cell phone. For best results, you want to place your phone where the phone’s signal
meter displays in the middle of the signal meter range or less so that it can indicate as you
rotate the External Antenna to the optimum direction. If it is reading too high, move the phone
farther from the Indoor Antenna.
3. Record the number of signal bars or dBm________(A) on your cell phone. You can use our
YX699 RF Signal Meter or an application on a smart phone to get the dBm. Leave the phone
in exactly the same place and pointing in the same direction for the following steps. Note the
direction External Antenna starting position ________________.
4. Rotate the External Antenna 90 degrees and then record the phone signal bars ______(B).
Note
Cell phone signal bars are approximate and vary from
phone to phone. The number of bars can fl uctuate
widely, depending on the location of the phone, the
position or angle of the phone, weather, etc. Most cell
phone signal meters update every 6 to 10 seconds. An
increase of only one bar typically indicates a 4x to 10x
signal increase.
5. Continue to rotate the antenna another 90 degrees in the same direction and record the phone
signal bars _________(C).
6. Again, rotate the antenna another 90 degrees in the same direction and again record the
phone signal bars _________(D).
7. If you desire to optimize further, then look for the two highest signal bar readings above and
move the antenna between these two points to fi nd the highest signal bars reading.
8. Look for the highest reading above. Set the antenna to that position and tighten the antenna to
the mast of your choosing. We suggest PVC pipe that is at least 1.5” or J-Pole (part # YX014,
not included).
Confi rm That Your zBoost is Working Properly
When your zBoost system is in place and fully connected, walk throughout your home and verify
that you have fast, reliable data speeds. If the signal strength has improved, your zBoost is working.
Remember, coverage varies based on outdoor signal level, house construction, and antenna
placement. Coverage in adjoining rooms will be reduced by walls and building materials.
Should you desire to improve coverage, you may:
• Relocate the External Antenna in order to capture a better signal –higher is usually better.
• Increase the distance between the Indoor Antenna and the External Antenna.
Keep the Base Unit off the fl oor and at least 2 feet away from other cords, metal objects or other
wireless devices such as wireless routers or wireless access points. The zBoost TRIO Pro performs
best when there are no obstructions between the zBoost Base Unit and your mobile device.
Cell Tower
Power Supply
Indoor Antenna
Coaxial Cable
TNC-F Connector
Coaxial Cable
External Antenna
15 ft of vertical
separation
C
ell Tower
T
N
C
-F
C
on
t
o
15
ft
of
vertical
v
aration
sep
a
zBoost Base Unit
Indoor antenna aiming: Note that signal is broadcast in a beamwidth
of 70° horizontally and 60° vertically from the front of the Indoor
Antenna.
Improving Your Coverage Area
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
10 11
zBoost Base Unit Light Indicators Technical Specifi cations
This product is covered by patent US 7,706,744. Other U.S. and foreign patents pending.
Product Specifi cations for zBoost TRIO Pro ZBC775-V
Verizon LTE PCS CEL
Frequency Uplink: 776—787 MHz
Downlink: 746—757 MHz
Uplink: 1850—1910 MHz
Downlink: 1930—1990 MHz
Uplink: 824—849 MHz
Downlink: 869—894 MHz
Band supported 13 A, D, B, E, F, C A, B, A’, B’
System gain 73 dB 85 dB 74 dB
Output power 3 dBm 4 dBm 3 dBm
Networks LTE (Verizon) CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS,
HSPA, 3G
General Specifi cations
Power Consumption 3W standby; 7W max signal - 2.5A Max
Wall Supply Input ; Voltage 100-240VAC, 50-60 Hz; 5.0VDC
Input and Output Impedance TNC Connector: 50 Ohm; F Connector: 75 Ohm
System Certifi cations FCC Parts 15 & 20, Industry Canada
Base Unit Size and Weight 5” x 7” x 1.25” – 9 oz.
Operating Conditions Indoor Use Only (40° - 105° F)
Coverage (open areas) Up to 8,000 sq. ft.
Product Specifi cations for zBoost TRIO Pro ZBC775-A
AT&T LTE PCS CEL
Frequency Uplink: 704—716 MHz
Downlink: 734—746 MHz
Uplink: 1850—1910 MHz
Downlink: 1930—1990 MHz
Uplink: 824—849 MHz
Downlink: 869—894 MHz
Band supported 17 A, D, B, E, F, C A, B, A’, B’
System gain 73 dB 85 dB 74 dB
Output power 3 dBm 4 dBm 3 dBm
Networks LTE (AT&T) CDMA, GSM, GPRS, EDGE, EVDO, 1xRTT, UMTS,
HSPA, 3G
General Specifi cations
Power Consumption 3W standby; 7W max signal - 2.5A Max
Wall Supply Input ; Voltage 100-240VAC, 50-60 Hz; 5.0VDC
Input and Output Impedance TNC Connector: 50 Ohm; F Connector: 75 Ohm
System Certifi cations FCC Parts 15 & 20, Industry Canada
Base Unit Size and Weight 5” x 7” x 1.25” – 9 oz.
Operating Conditions Indoor Use Only (40° - 105° F)
Coverage (open areas) Up to 8,000 sq. ft.
The Manufacturer’s rated output power of this equipment is for single carrier operation. For
situations when multiple carrier signals are present, the rating would have to be reduced by 3.5 dB,
especially where the output signal is re-radiated and can cause interference to adjacent band users.
This power reduction is to be by means of input power or gain reduction and not by an attenuator at
the output of the device.
During Initial Power Up
Light Mode Status Solution
Cycle RED,
GREEN,
ORANGE
System is
powering up.
Please allow up
to 30 seconds.
N/A
Flashing
GREEN
BASE UNIT will
fl ash GREEN
once for every
2 dB less than
optimal system
gain. Three
fl ashes or less
indicates the
system will still
operate properly.
1. Unplug the BASE UNIT power supply.
2. Relocate the EXTERNAL ANTENNA to pick up the
strongest signal from your wireless carrier.
3. Move the EXTERNAL ANTENNA as far away from the
INDOOR ANTENNA as possible, with at least 15 ft. of
vertical separation (height difference).
4. Plug the BASE UNIT power supply back in.
5. Wait 30 secs. for the BASE UNIT to power cycle on.
Solution #1
After Initial Power Up
Light Mode Status Solution
SOLID
GREEN
zBoost is ready. N/A
Flashing
GREEN
zBoost is in use. N/A
SOLID
ORANGE
EXTERNAL
ANTENNA
and INDOOR
ANTENNA
are too close
together.
1. Unplug the BASE UNIT power supply.
2. Move the EXTERNAL ANTENNA as far away from the
INDOOR ANTENNA as possible, with at least 15 ft. of
vertical separation (height difference).
3. Plug the BASE UNIT power supply back in.
4. Wait 30 secs. for the BASE UNIT to power cycle on.
Solution #2
SOLID RED Signal from the
carrier’s cell
tower is too
strong for the
BASE UNIT to
operate properly.
1. Unplug the BASE UNIT power supply.
2. Relocate the EXTERNAL ANTENNA to another spot.
3. If you have a directional antenna re-aim it to reduce
carrier signal strength.
4. Plug the BASE UNIT power supply back in.
5. Wait 30 secs. for the BASE UNIT to power cycle on.
Solution #3
Flashing
RED
Excessive
electronic noise
in the system –
the BASE UNIT
will not operate.
^ Refer to Solution #2
zBoost® TRIO Pro ZBC775 Manual zBoost® TRIO Pro ZBC775 Manual
12 13
Frequently Asked Questions
What can I expect my cell phone signal range and strength to be inside my home?
The closer you are to the base, the stronger the signal. This will vary with different conditions. Some
of the conditions that will affect the improved data coverage area are signal strength outdoors, the
type of building materials in the home, the placement of the unit and the antenna’s proximity to
cellular towers.
You can expect that your indoor coverage will be improved. You will experience faster, more reliable
data where you didn’t before. The degree of improvement will depend upon many factors. The
intent of zBoost products are to bring outside coverage inside. Just as the signal bars move up and
down when outside, the boosted signal will fl uctuate in a similar fashion.
Is a cellular phone signal booster the same as a wireless router; will it help my WiFi signal?
The zBoost unit will not help your WiFi service. The WiFi in your home operates on a different
frequency.
Why isn’t my cell phone indicating more signal with more bars?
You may not always observe more bars on your signal meter because of the signal spreading out
from the antenna. If your phone has a dB meter, 3 dB is a signifi cant increase of 2x, 6 dB is 4x, and
10 dB is 10x. On a four bar phone, one "bar" equals about 10 dB.
The increase in signal you will see depends upon:
• The level of signal at the External Antenna (outdoor)
• The care of the antenna placement (two feet away from metal, adequate antenna
separation [15 vertical feet of separation is recommended])
• The signal already present inside (related to building losses)
• The distance of your phone/device from the Base Unit (signal spreads or diminishes rapidly
with distance.)
There are usually several mobile devices in use at one time in my home, will your product
boost all of our signals simultaneously?
The zBoost TRIO Pro is designed to cover multiple signals simultaneously and will allow multiple
users to operate at the same time.
Does the zBoost work if you have no bars?
No, if no signal is present outdoors zBoost products will not work for you. Also, keep in mind if your
best signal is 1 bar at the External Antenna, your coverage will be limited to a small room.
Limited 2 Year Warranty
Warranty Registration at www.zBoost.com
zBoost warrants every zBoost product to be free from defects in material and workmanship under
normal use for the warranty period of two years.
Who Is Covered?
You must have proof of purchase to receive warranty service. A sales receipt or other
documentation showing the product purchased and the purchase date is considered proof of
purchase. This limited warranty extends only to the original consumer purchaser or any person
receiving the product as a gift from the original consumer purchaser and to no other purchaser or
transferee.
What is Covered?
Warranty coverage begins the day you purchase the product. For two years from the original date,
the zBoost Cell Phone Signal Booster will be repaired or replaced with a new, repaired, refurbished
or comparable product (whichever is deemed necessary by zBoost) if it becomes defective or
inoperative. The exchange will be made without charge to you for parts and labor. You will be
responsible for the cost of shipping to the location designated by zBoost.
All products, including replacement products, are covered only for the original warranty period.
When the warranty on the original product expires, the warranty on the replacement product also
expires.
What is Excluded?
Your warranty does NOT cover:
• Labor charges for set up of the unit.
• Product replacement because of misuse, accident, lightning damage, unauthorized repair or
other cause not within the control of zBoost.
• Incidental or consequential damages resulting from the product. Some states do not allow
the exclusion of incidental or consequential damages, so the above exclusion may not apply
to you.
• Any modifi cations or other changes to the product, including but not limited to software or
hardware modifi cations in any way other than as expressly authorized by zBoost will void
this limited warranty.
• Product that has been modifi ed or adapted to enable it to operate in any country other than
the country for which it was designed, manufactured, approved and/or authorized, or repair
of products damaged by these modifi cations.
Warranty Information
zBoost® TRIO Pro ZBC775 Manual
14
Make sure you keep…
Please keep your sales receipt or other document showing proof of purchase. Also, keep the
original box and packing material in case you need to return your product.
Before requesting repair service…
Make sure you have at least 15 feet of vertical separation between External Antenna and Base Unit
and that the External Antenna is at least 3 feet above metal.
If red light is on, system is receiving signals from either the mobile device or the base station
transceiver which are too strong for proper operation. Please unplug your system. Re-orient your
External Antenna and/or Base Unit to reduce the excessive signal source. Plug your system back
in. If still solid red, call customer support 1-800-871-1612.
To get warranty service…
Warranty service will be provided by zBoost. If you believe you need service for your unit,
contact zBoost at 1-800-871-1612 or support@zBoost.com. A representative will go through a
diagnostic checklist with you. If it is determined that the product needs to be returned for service or
exchanged, you will receive a return merchandise authorization (RMA) number. The representative
will give you complete shipping details. Do not return products to zBoost without a Return
Authorization Number.
To get out of warranty service…
To obtain out of warranty service, contact zBoost at 1-800-871-1612 or support@zBoost.com for
information on the possibility of any costs for repair or replacement of out-of-warranty products.
Reminder
Record the model and serial number found on the product below:
Model #: ___________________________________
Serial #: ___________________________________
Purchase Date: _____________________________

Navigation menu
