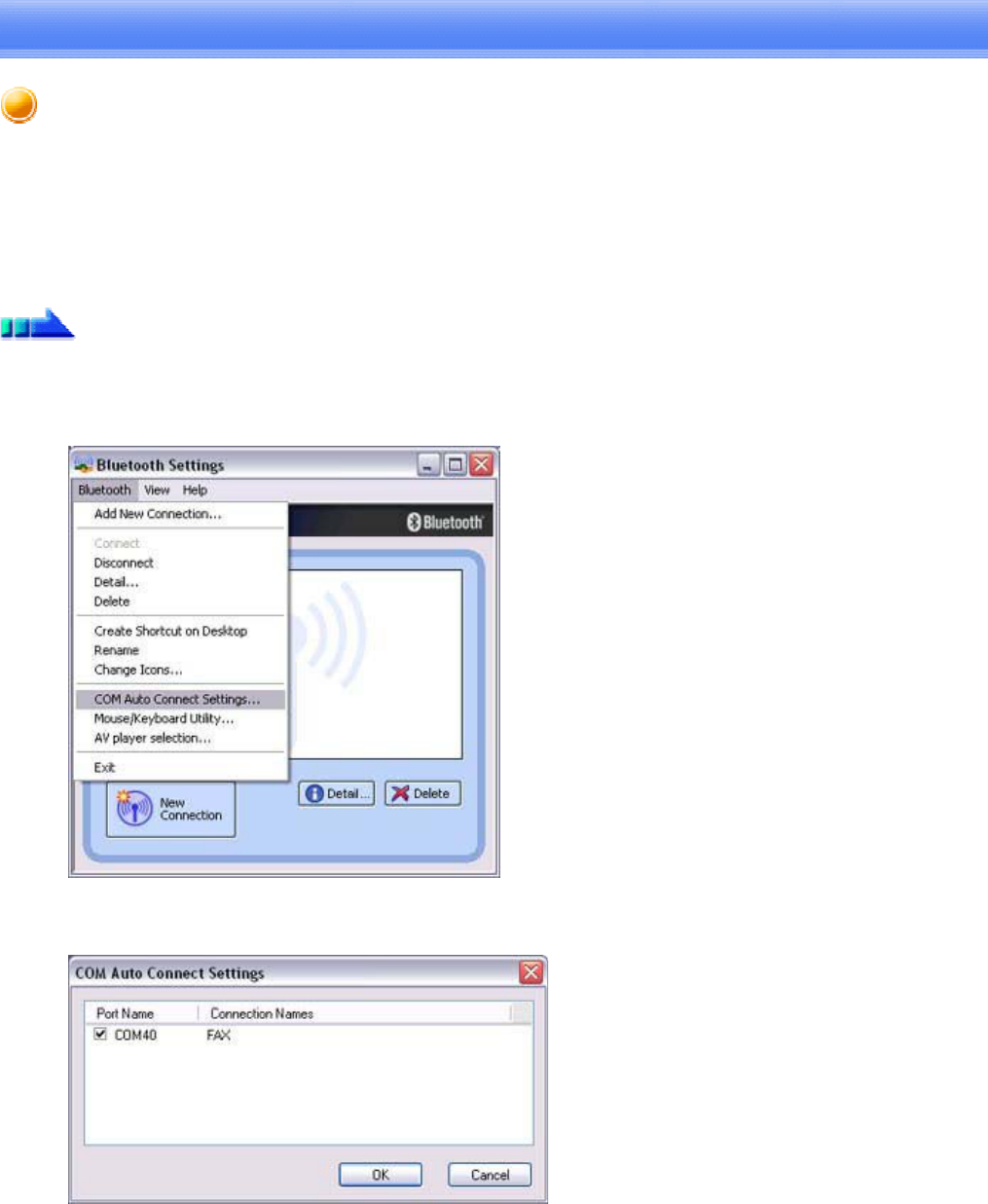

Certain modems require you to configure initialization commands separately.
Please click on the [Additional initialization Command Settings] button, enter the
initialization commands in the following window, and then click on the [OK]
button.
Note
oPlease refer to the modem or mobile phone instruction manual for further
details on the initialization commands.

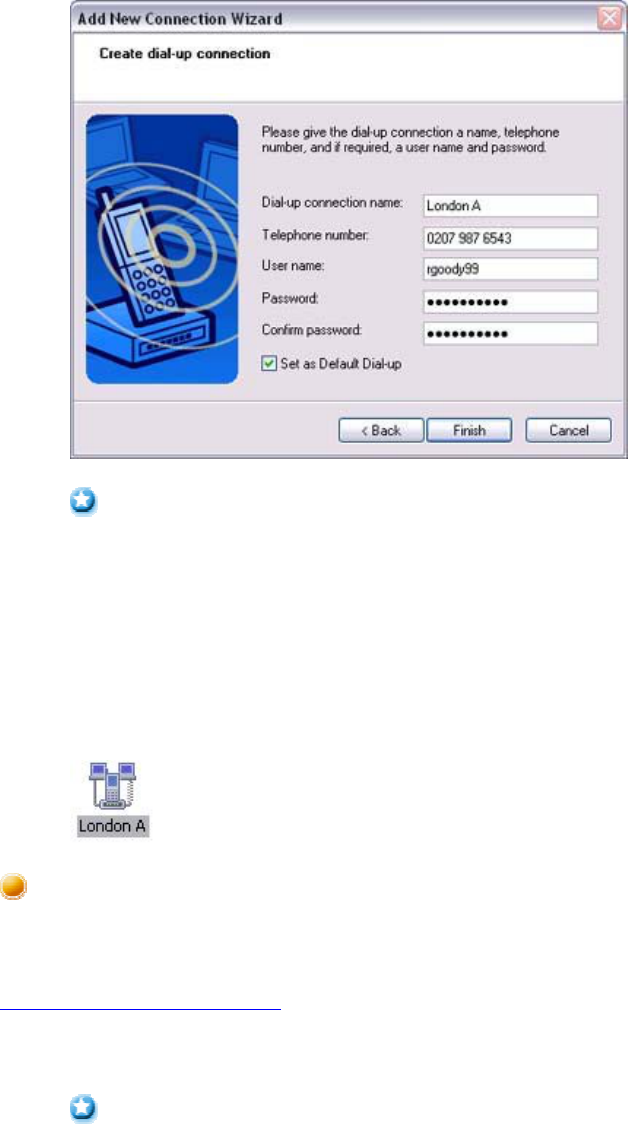

7. Enter the connection name (optional), telephone number (of your provider's
access point), user name and password (as issued by your provider), and then
click on the [Finish] button.
Important
oThe sample entries shown in the window are provided solely for purpose
of explanation. Please use your own telephone number, ID and password
according to the arrangement with your provider.
The settings will be registered, and an icon will appear in the [Bluetooth Settings]
window.
Connecting to the Internet
You can connect to the Internet by following the procedure below if the connection
destination registered when you configured the wireless modem has been set as the
default connection destination.
1. Start your browser, e-mail application or other application
Important
oPlease enter the e-mail settings separately if you are going to use e-mail
(the set-up method will vary with the application).
2. Enter the URL of the Web page you wish to display and then press the
[Enter] key, or use the e-mail tool to send/receive items or perform other
activities.

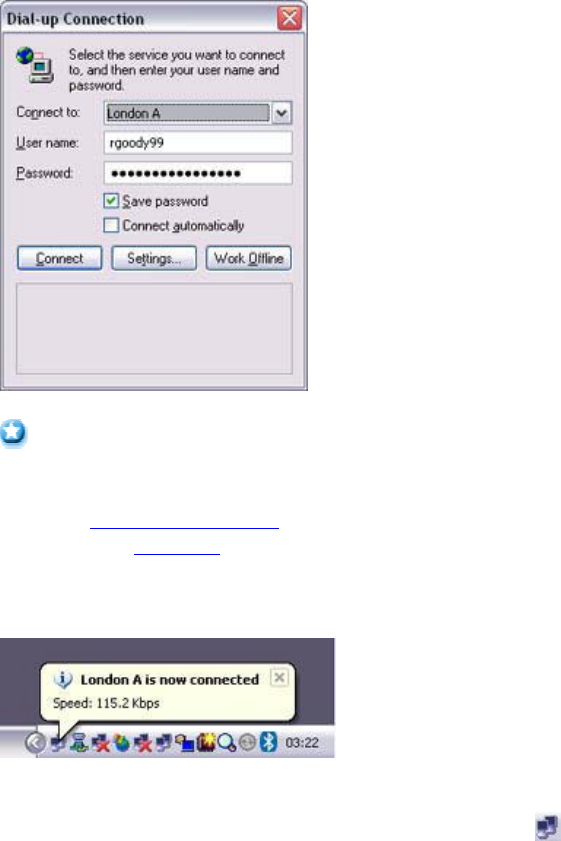

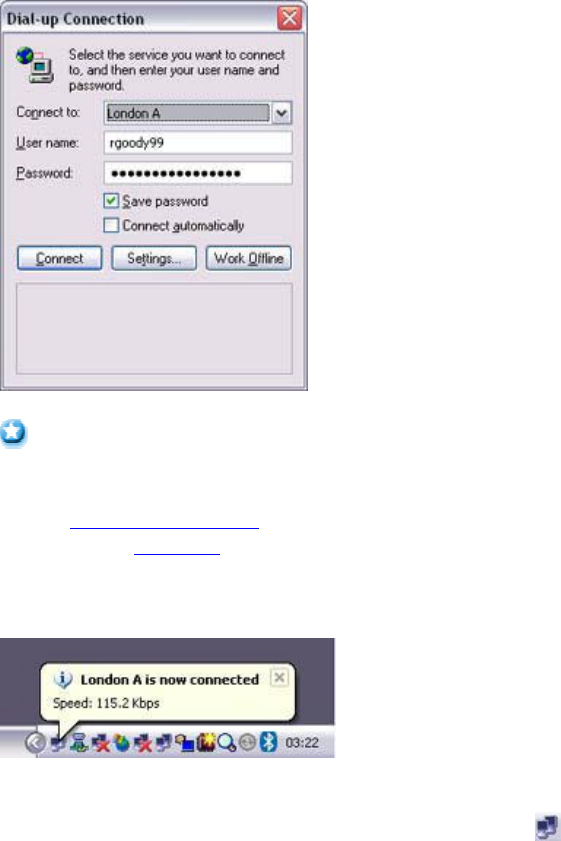

The [Dial-up Connection] window will appear.
3. Click on the [Connect] button
Important
oA connection will be automatically established with the modem station if

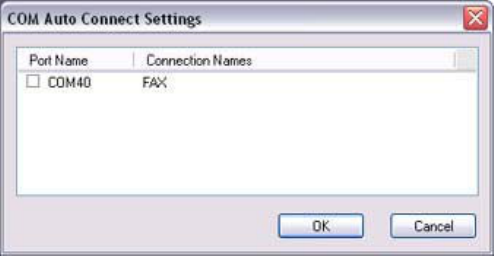

COM Auto Connect is available. If COM Auto Connect is not available,
please manually connect to the modem station.
The following message will appear once you have connected to the Internet.
4. End the connection

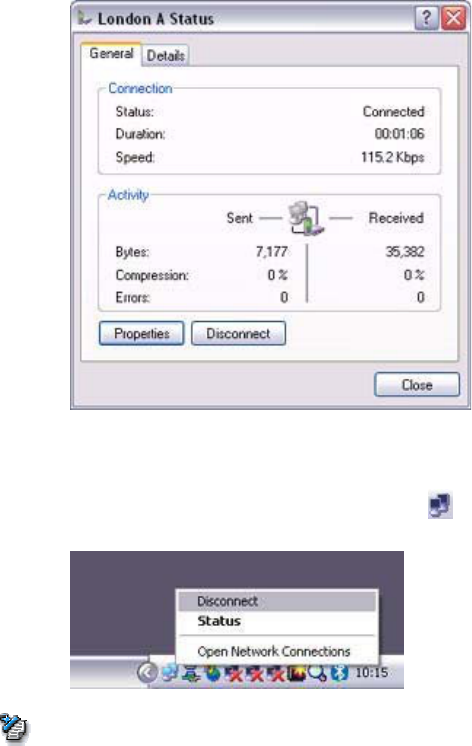

The window below will appear if you double-click on the icon in the task bar.
Please click on the [Disconnect] button when you want to disconnect from the
Internet.
Alternatively, please right-click on the icon,andthenclickon[Disconnect].
Note
• You can start an application to make an automatic connection to the Internet, but
you can also make a manual connection using the connection destination icon.
The procedure is described below.

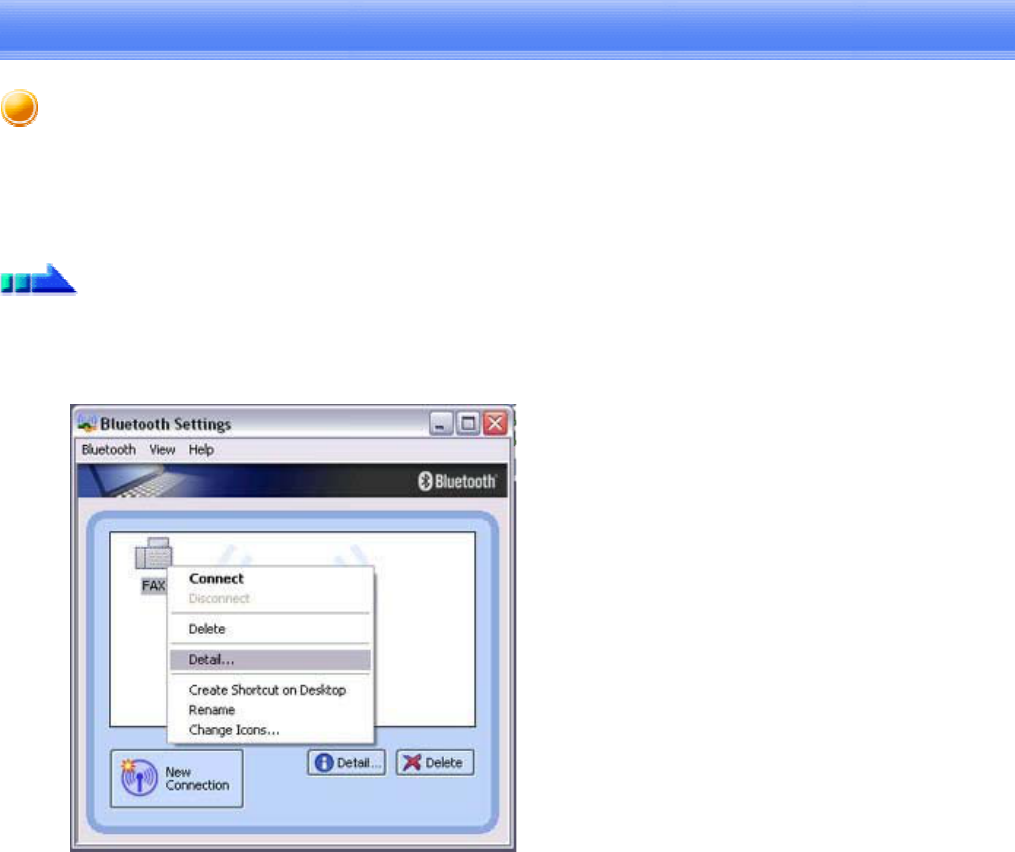

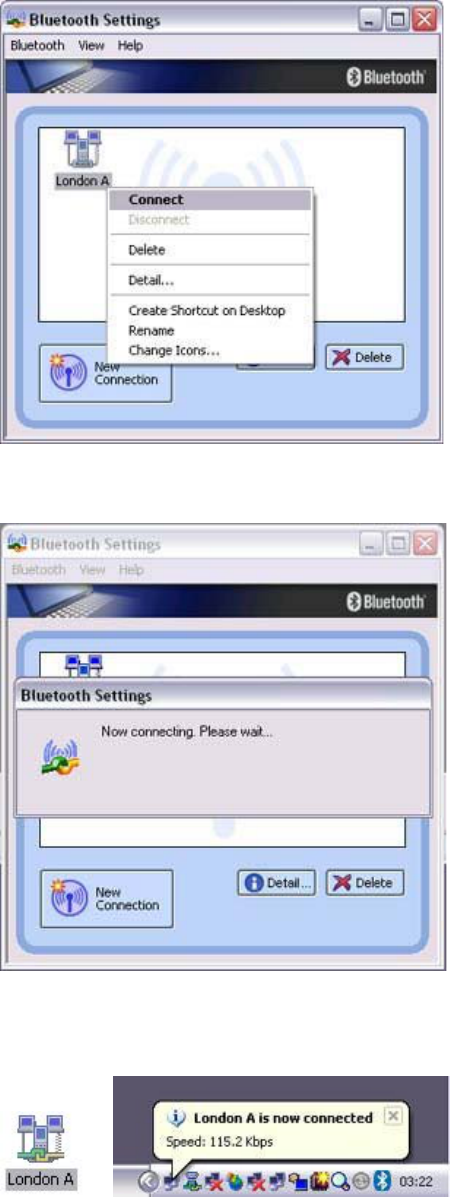

1. From the [Bluetooth Settings] window, right-click on the connection
destination icon, and then click on [Connect] from the menu that appears
A window indicating that the connection is being established will appear.
If the connection has been established successfully, the connection icon and task
tray will appear as shown below.
You will be able to browse Web pages using your browser and send and receive
e-mail.
Important
oPlease enter the e-mail settings separately if you are going to use e-mail
(the set-up method will vary with the application).
2. End the connection

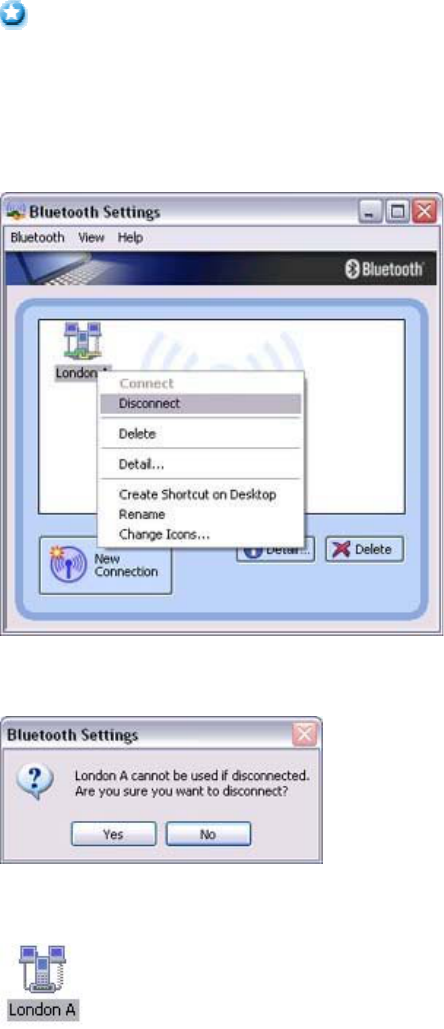

Right-click on the icon, and then click [Disconnect] to end the connection.
The following message will appear. Click on the [Yes] button.
When the icon appears as shown below, the connection will have ended.

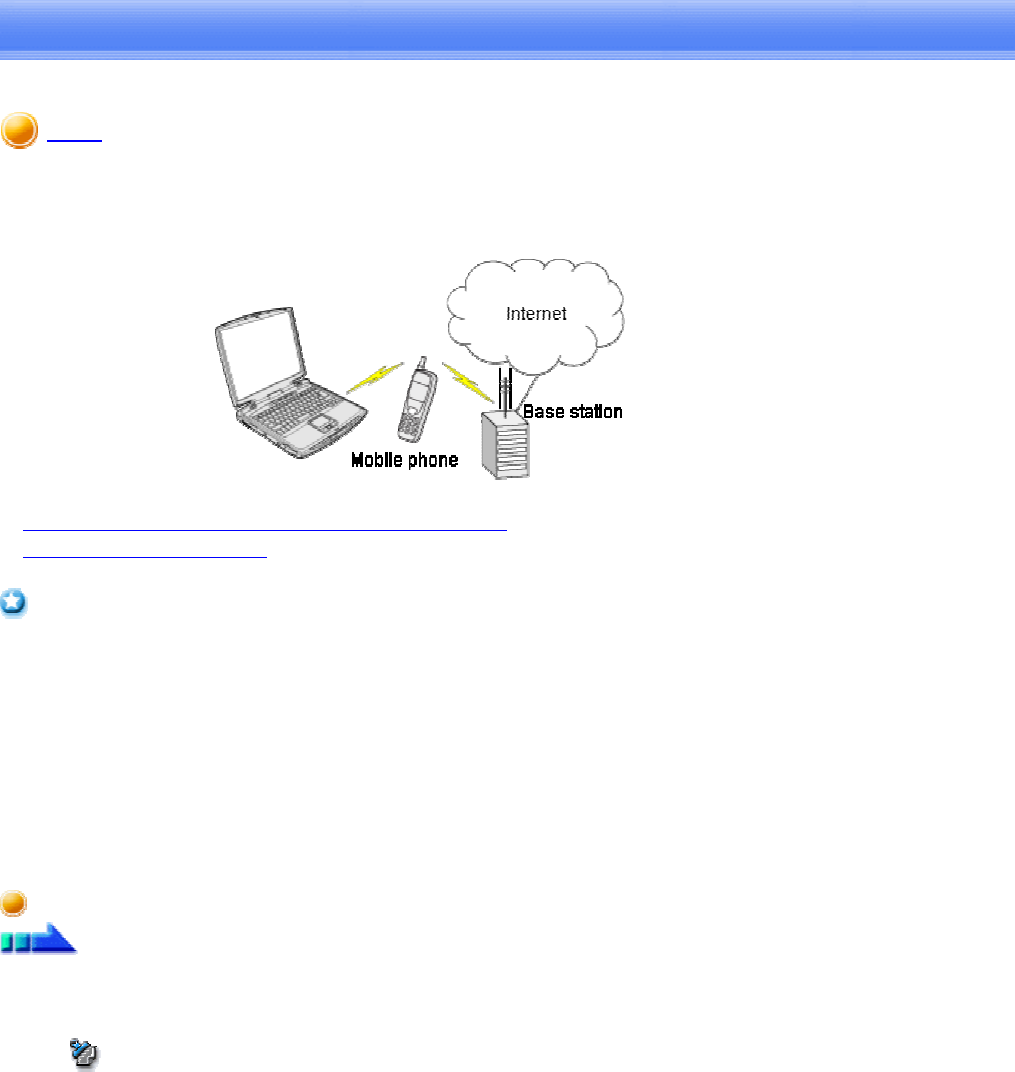

Connecting to the Internet using a mobile telephone
[DUN]
This section describes how to connect to the Internet via a telephone line, using a mobile
telephone.
Configuring a mobile telephone for use as a modem
Connecting to the Internet
Important
• In order to connect to the Internet, you must have already signed up with a
provider and obtained a connection ID and password. Please ensure you have
confirmed the ID, password and telephone number of your provider's access point
before you begin the set-up process.
• A Bluetooth passkey (PIN code) is required for you to connect to the mobile
telephone. Please make a note of your Bluetooth passkey before you start the set-
up process.
Configuring a mobile telephone for use as a modem
Procedure
1. Turn on the mobile telephone, and set it to be connectable via Bluetooth
Note
oPlease refer to the mobile telephone instruction manual for information on
how to operate the device.

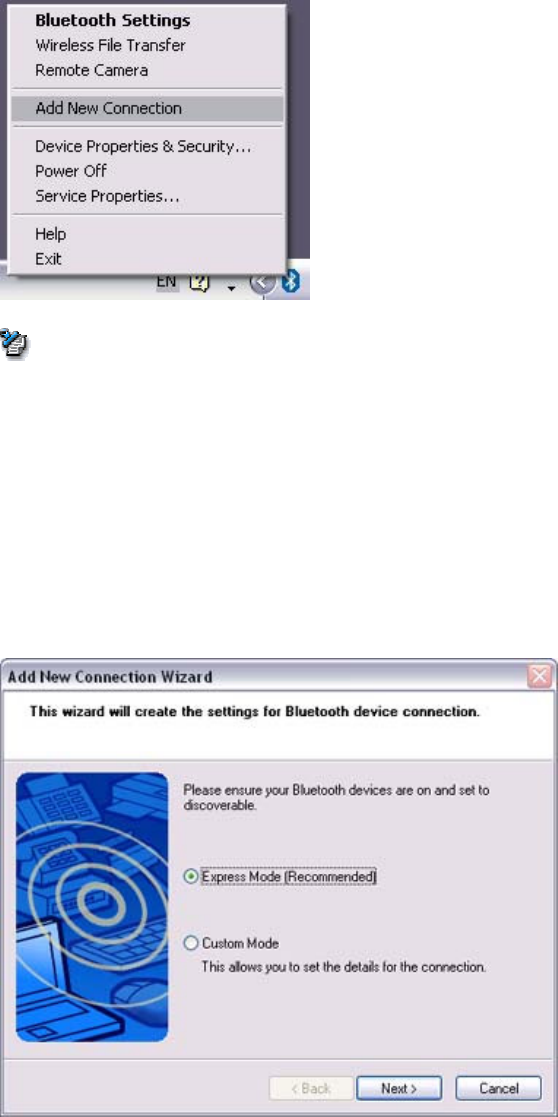

2. Right-clickontheBluetoothiconinthetasktray,andthenclickon[Add
New Connection]
Note
oAlternatively, click [Start][All Programs][Bluetooth][Bluetooth
Settings], and then click on [New Connection] from the active [Bluetooth
Settings] window.
The [Add New Connection Wizard (Welcome to the Add New Connection
Wizard)] window will appear.
3. Confirm that [Express Mode] has been selected, and then click on the [Next]
button

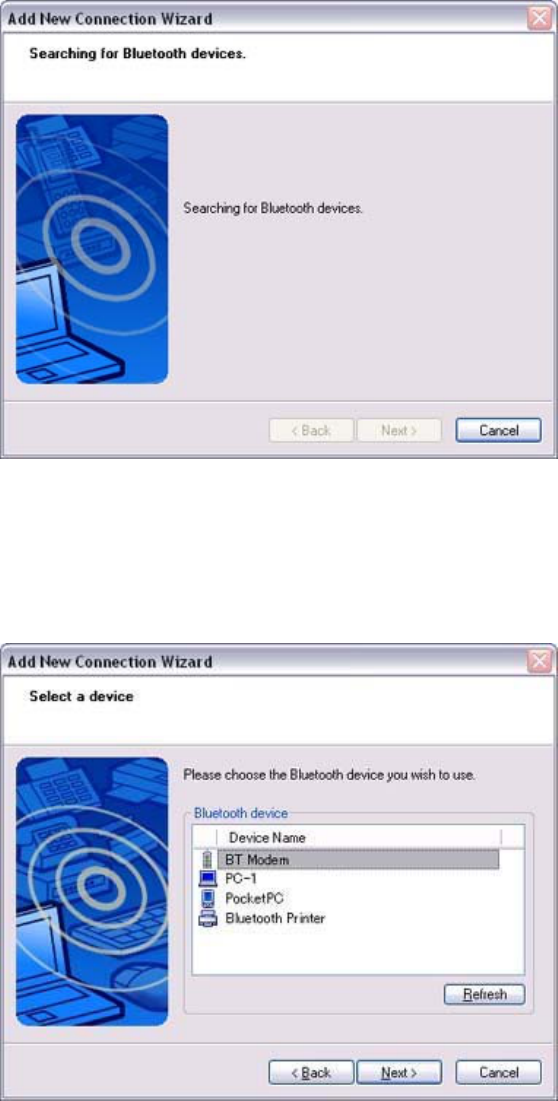

The [Add New Connection Wizard (Searching for Bluetooth devices)] window
will appear.
4. Select the device name of the mobile telephone from [Device List], and then
click on the [Next] button
The [Add New Connection Wizard (Searching for Services)] window will appear.
Once a service has been detected successfully, connection to the device and COM
port creation will be performed automatically, after which the [Add New
Connection Wizard (Modem Settings)] window will appear.
5. If you are connecting to a mobile telephone for the first time, enter the
passkey for the wireless modem station under [Bluetooth Passkey (PIN
code)],andthenclickonthe[OK]button
Once the program has finished searching for the devices, the [Add New
Connection Wizard (Device Selection)] window will appear.
6. Click on the [Next] button

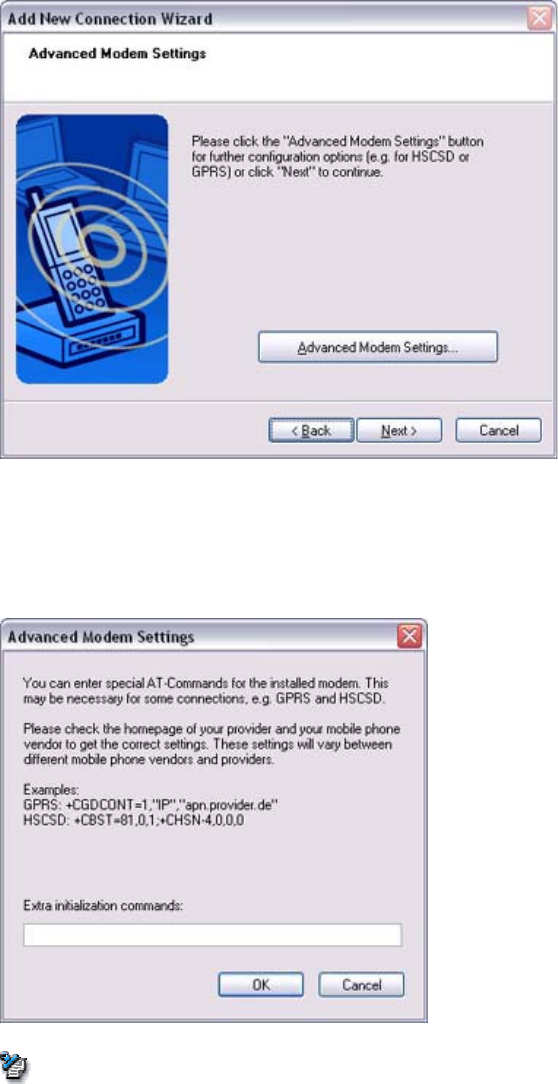

Certain modems require you to configure initialization commands separately.
Please click on the [Additional Initialization Command Settings] button, enter the
initialization commands in the following window, and then click on the [OK]
button.
Note
oPlease refer to the modem or mobile phone instruction manual for further
details on the initialization commands.
7. Enter the connection name (optional), telephone number (of your provider's
access point), user name and password (as issued by your provider), and then
click on the [Finish] button.
Important
oThe sample entries shown in the window are provided solely for purpose
of explanation. Please use your own telephone number, ID and password
according to the arrangement with your provider.
The settings will be registered, and an icon will appear in the [Bluetooth Settings]
window.
Connecting to the Internet
You can connect to the Internet by following the procedure below if the connection
destination registered when you configured the mobile telephone has been set as the
default connection destination.
1. Start your browser, e-mail application or other application
Important
oPlease enter the e-mail settings separately if you are going to use e-mail
(the set-up method will vary with the application).
2. Enter the URL of the Web page you wish to display and then press the
[Enter] key, or use the e-mail tool to send/receive items or perform other
activities.
The [Dial-up Connection] window will appear.
3. Click on the [Connect] button
Important
oA connection will be automatically established with the mobile telephone
if COM Auto Connect is available. If COM Auto Connect is not available,
please manually connect to the mobile telephone.
The following message will appear once you have connected to the Internet.
4. End the connection
The window below will appear if you double-click on the icon in the task bar.
Please click on the [Disconnect] button when you want to disconnect from the
Internet.
Alternatively, please right-click on the icon,andthenclickon[Disconnect].
Note
• You can start an application to make an automatic connection to the Internet, but
you can also make a manual connection using the connection destination icon.
The procedure is described below.
1. From the [Bluetooth Settings] window, right-click on the connection
destination icon, and then click on [Connect] from the menu that appears
A window indicating that the connection is being established will appear.
If the connection has been established successfully, the connection icon and task
tray will appear as shown below.
You will be able to browse Web pages using your browser and send and receive
e-mail.
Important
oPlease enter the e-mail settings separately if you are going to use e-mail
(the set-up method will vary with the application).
2. End the connection
Right-clickontheicon,andthenclick [Disconnect] to end a connection.
The following message will appear. Click on the [Yes] button.
When the icon appears as shown below, the connection will have been ended.

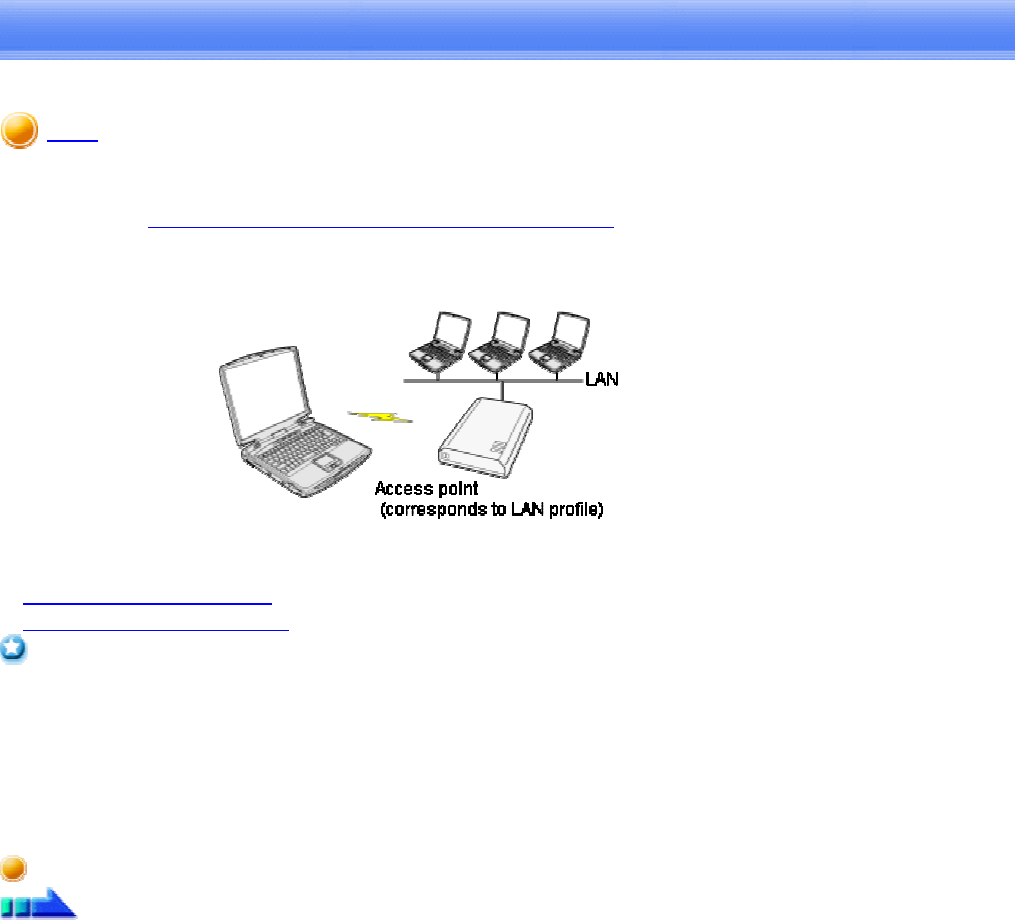

Connecting to a LAN using an access point (PAN)
[PAN]

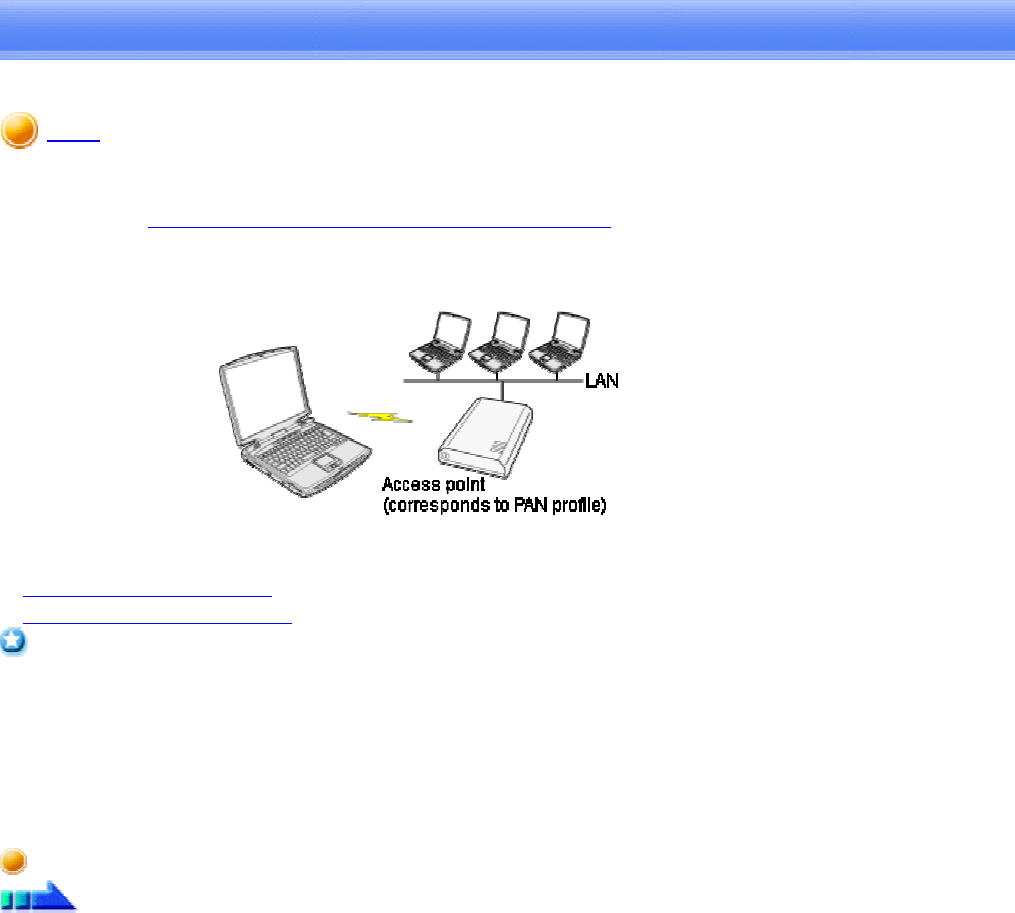

This section describes how to connect to a network (for example, a company LAN or a
personal home network) using a PAN profile-compatible access point.
Please refer to "Using an access point (LAP) to connect to a LAN" if you are using a
LAP profile-compatible access point.
Setting up the access point
Connecting to a LAN (PAN)
Important
• The access point must be started and a normal connection already established to
the network before the access point is set up. Please refer to the access point
instruction manual for information on how to set up the access point.
• A Bluetooth passkey (PIN code) is required for you to connect to the access point.
Please make a note of your Bluetooth passkey before you start the set-up process.
Setting up the access point
Procedure
1. Turn on the access point, and confirm that a connection has been established
with the network
2. Right-clicktheBluetoothiconinthetasktray,andthenclickon[AddNew
Connection]
Note
oAlternatively, click [Start][All Programs][Bluetooth][Bluetooth
Settings], and then click on [New Connection] from the active [Bluetooth
Settings] window.
The [Add New Connection Wizard (Welcome to the Add New Connection
Wizard)] window will appear.
3. Confirm that [Express Mode] has been selected, and then click on the [Next]
button

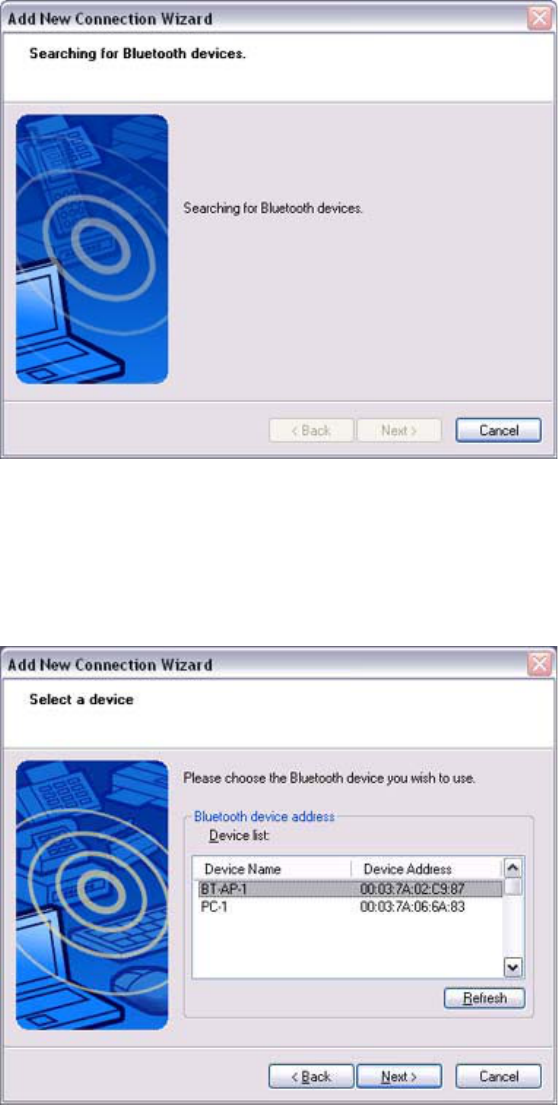

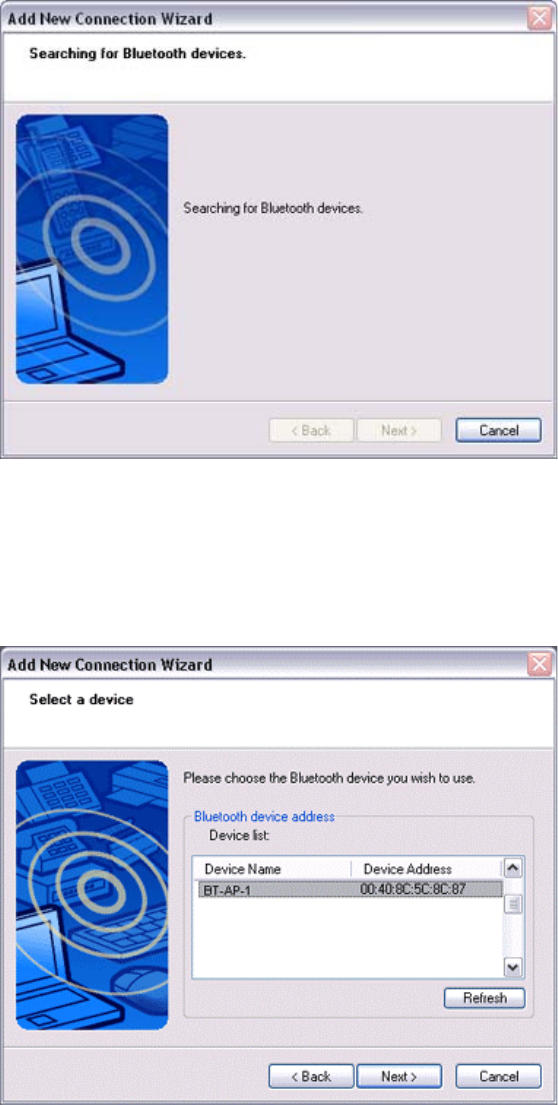

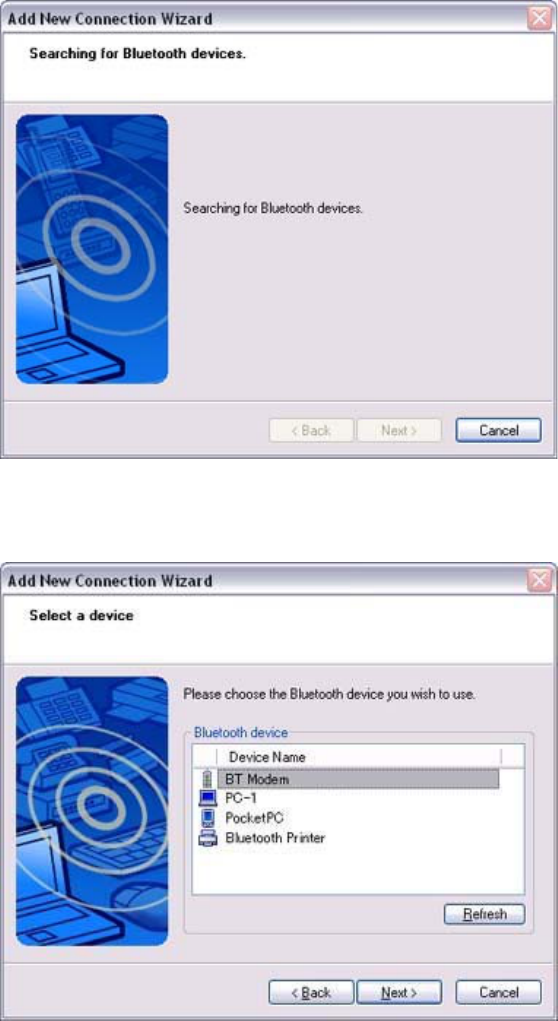

The [Add New Connection Wizard (Searching for Bluetooth devices)]
window will appear.
Once the program has finished searching for the devices, the [Add New
Connection Wizard (Device Selection)] window will appear.
4. Select the device name of the access point from [Device List], and then click
on the [Next] button

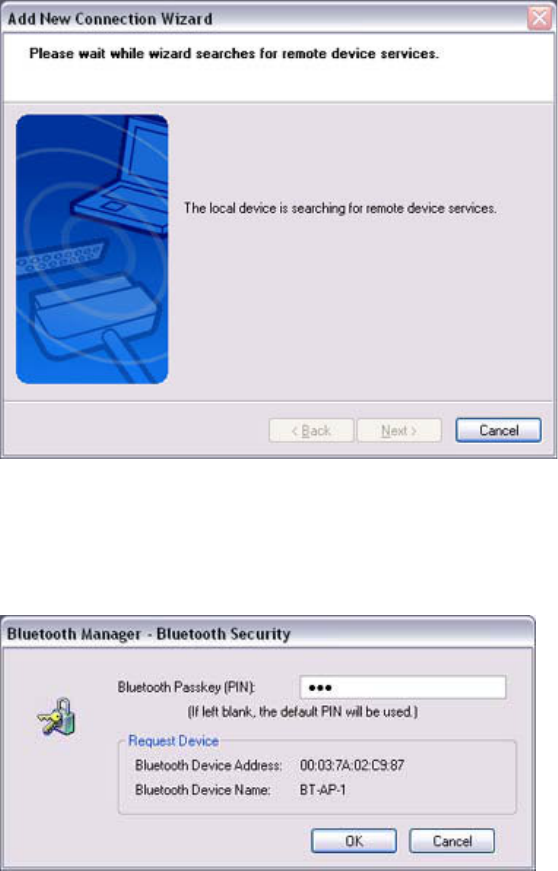

The [Add New Connection Wizard (Searching for Services)] window will appear.
You will be asked for the Bluetooth passkey in the window that appears.
5. Enter the passkey under [Bluetooth Passkey (PIN code)], and then click on
the [OK] button
Service detection and COM port creation will be performed automatically.
The [Add New Connection Wizard (Connection Name Settings)] window will
appear.

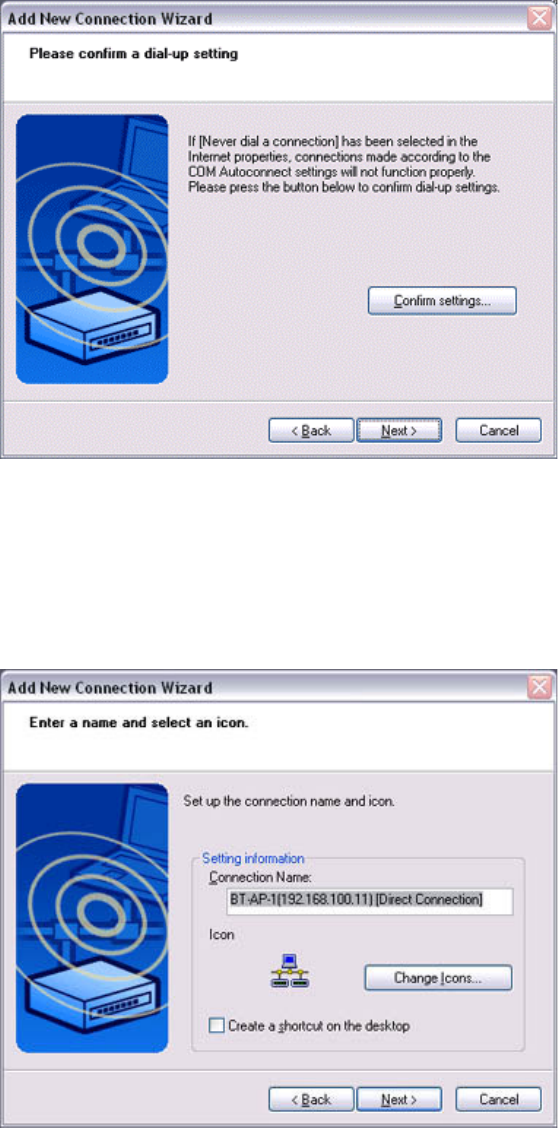

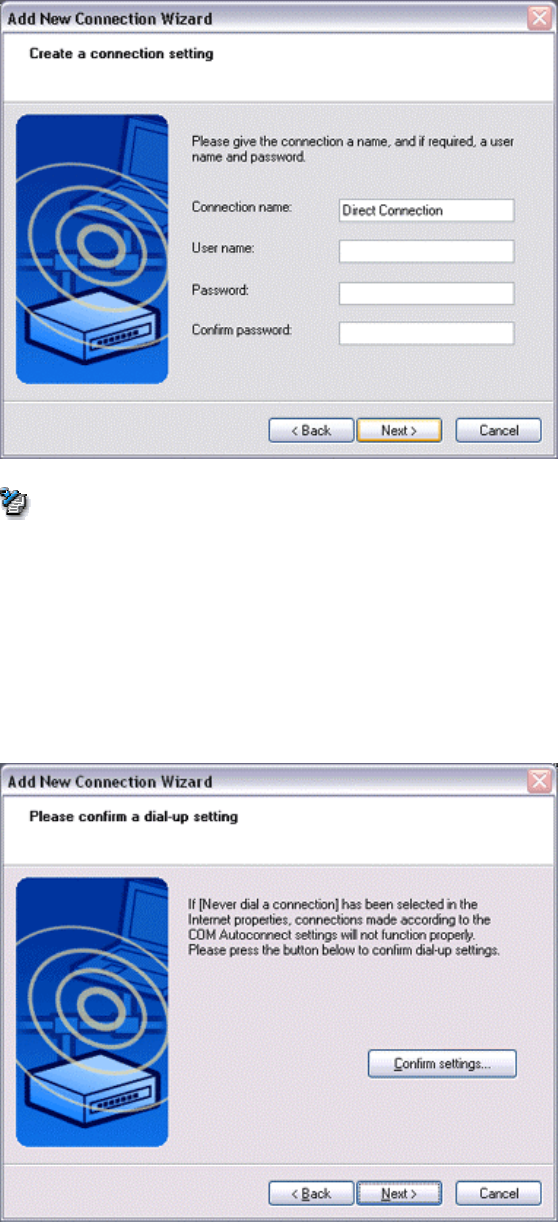

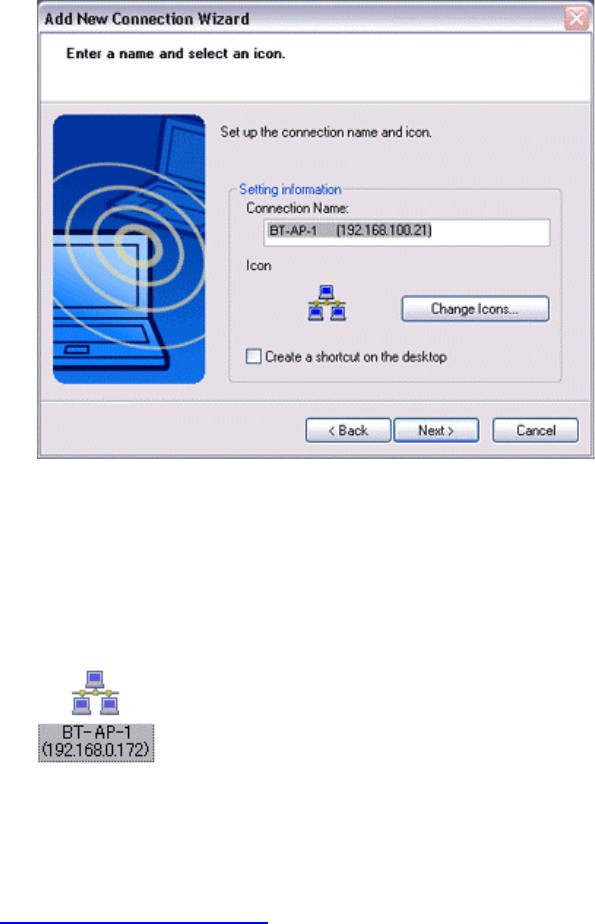

6. Enter the type and name of the icon displayed after registration, and then
click on the [Next] button
Please click on the [Next] button if you are satisfied with the settings.
The [Add New Connection Wizard (Completing the Add New Connection
Wizard)] window will appear.
7. Click on the [Finish] button
The access point icon will be registered in the [Bluetooth Settings] window.
This will complete the access point set-up process.
"Connecting to a LAN (PAN)"
Connecting to a LAN (PAN)
Procedure

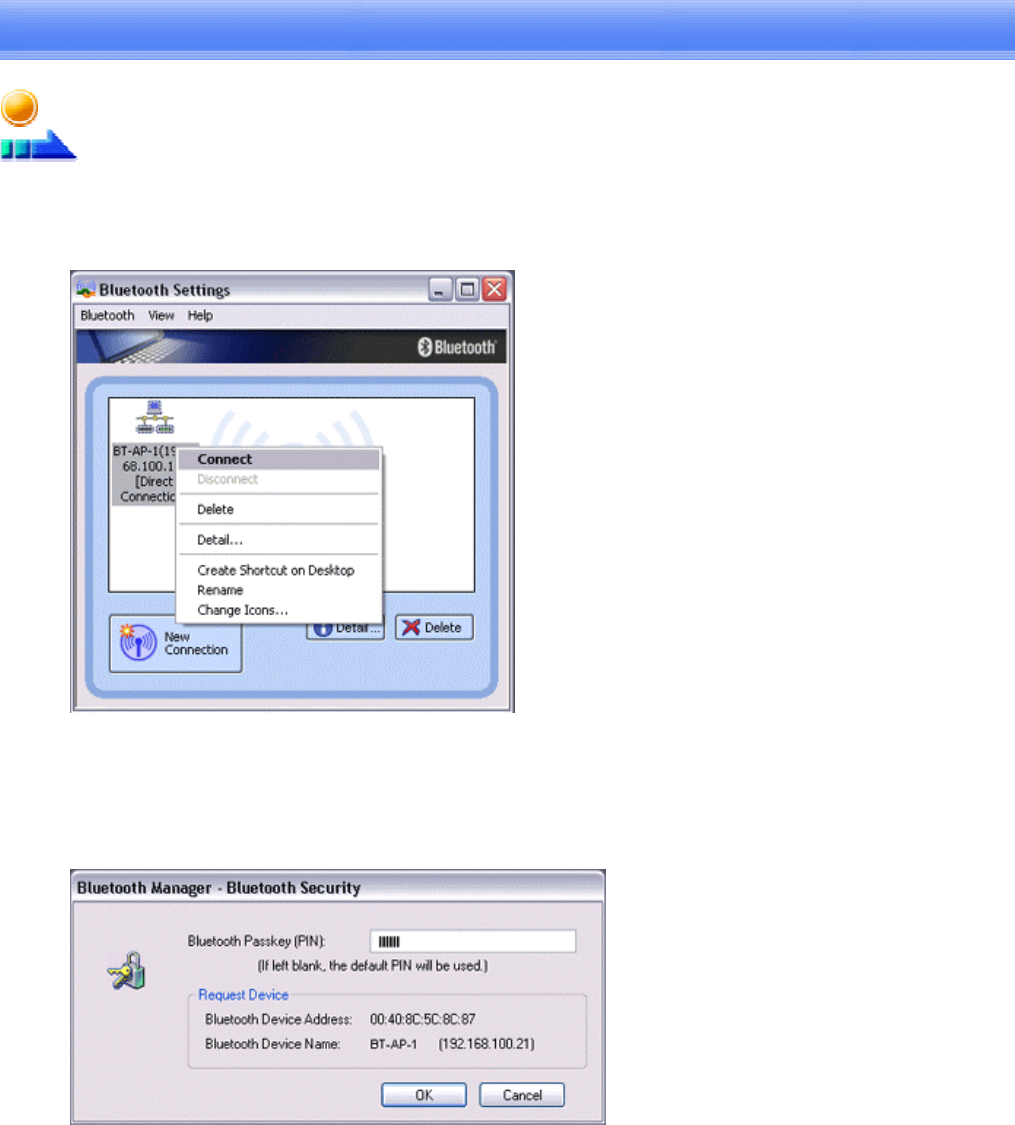

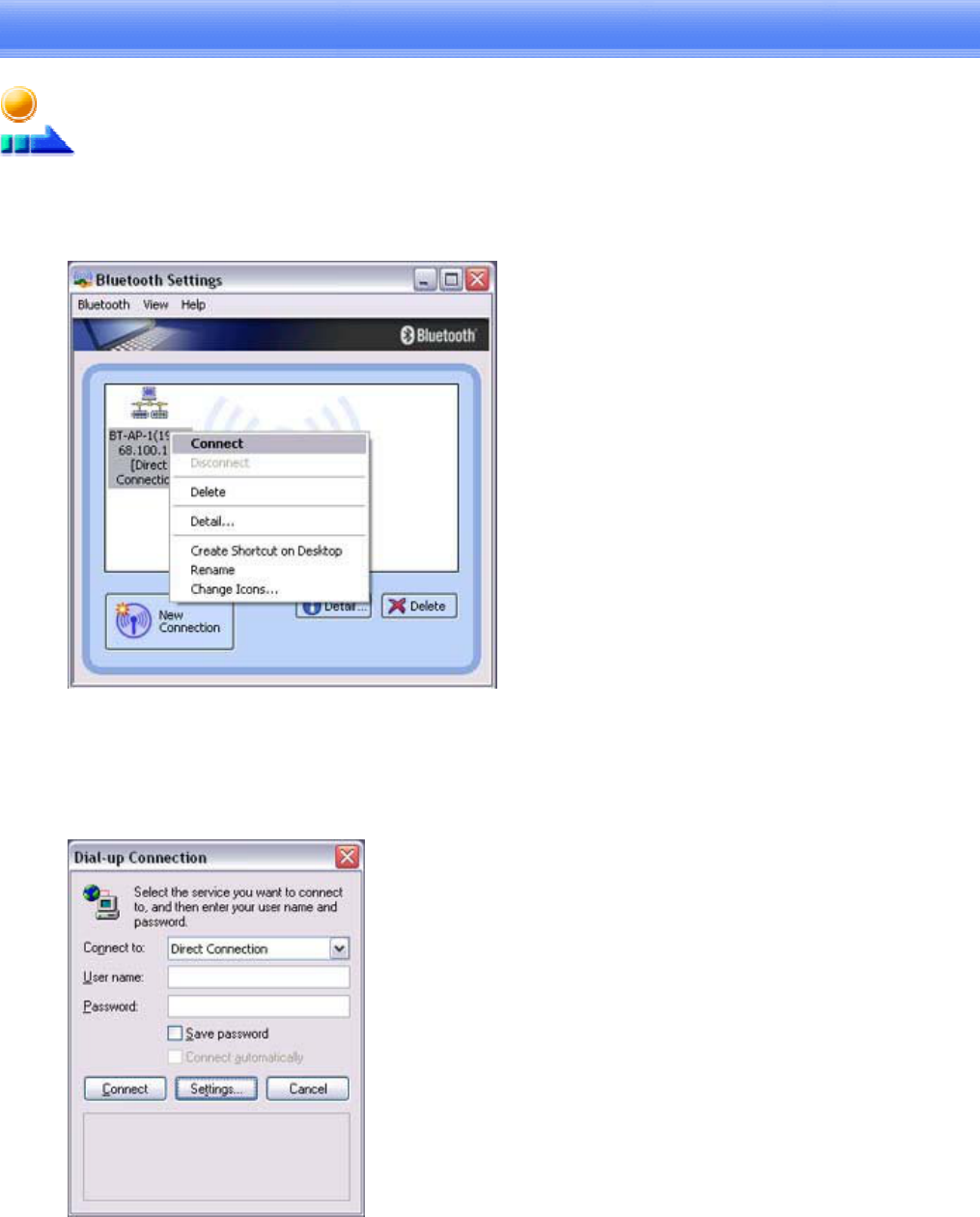

1. Right-clickontheconnectioniconinthe[BluetoothSettings]window,and
then click on [Connect]
You will be asked for the Bluetooth passkey in the window that appears.
2. Enter the passkey under [Bluetooth Passkey (PIN code)], and then click on
the [OK] button
A connection will be initiated.
Once you have connected to the network, Internet Explorer will start
automatically, and you will be able to exchange data with other computers on the
network.
Note

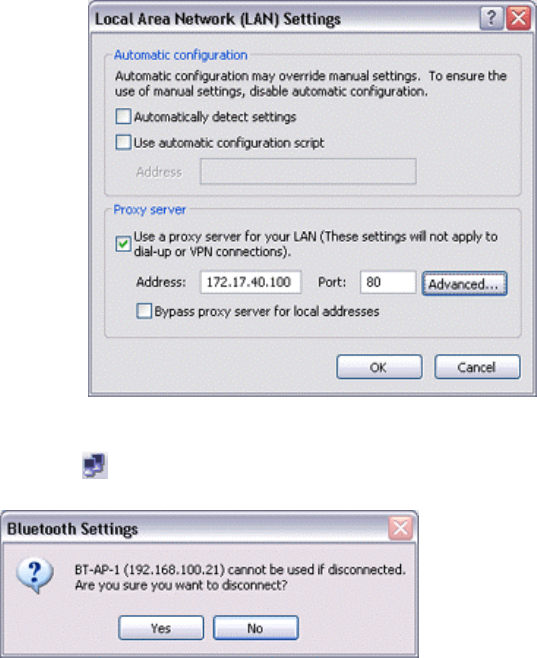

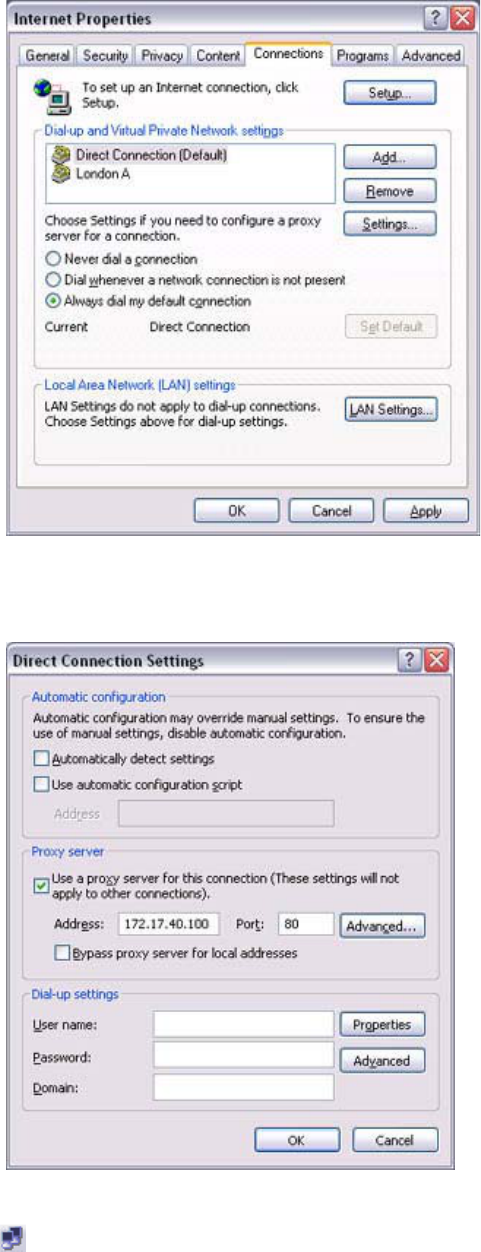

oPlease follow the procedure below if you need to set up a proxy server to
connect to the Internet (the following procedure is not necessary if the PC
you are going to use has already been set up as a proxy server).

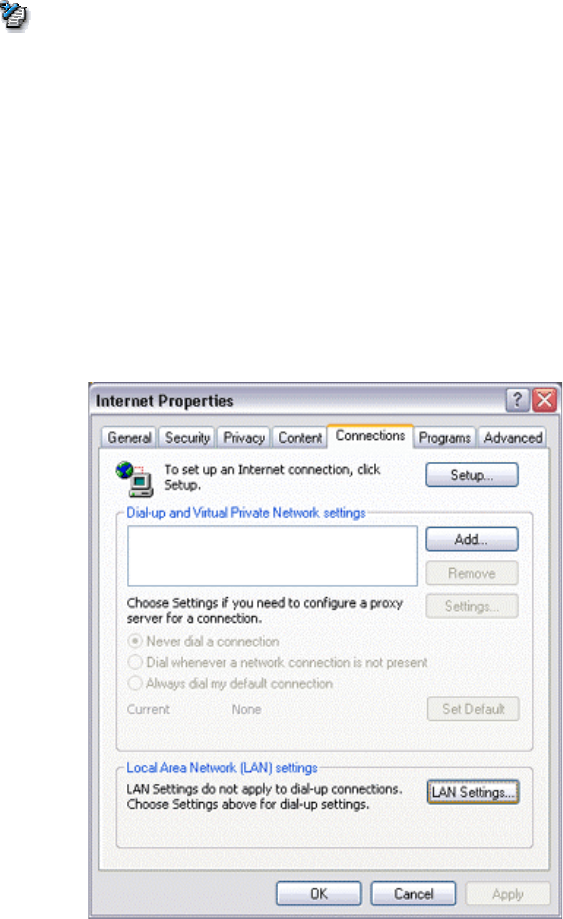

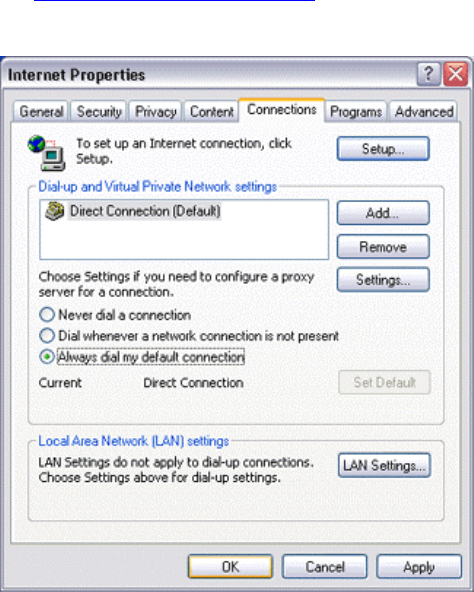

1 Select [Internet Options...] from the [Tools] menu in Internet
Explorer
The [Internet Options] window will appear.
2 Click on the [Connections] tab, and then click on the [LAN
Settings...] button
3 Enter the IP address and port number of the proxy server under
[Proxy Server], and then click on the [OK] button
3. End the connection
Right-click either on the connection icon under the [Bluetooth Settings] window
or on the iconinthetasktray,andthenclickon[Disconnect].
Click on the "Yes" button in the disconnection confirmation dialog box that
appears.
Connecting to a LAN using an access point (LAP)
[LAP]
This section describes how to connect to a network (for example, a company LAN or a
personal home network) using a LAP profile-compatible access point.
Please refer to "Using an access point (PAN) to connect to a LAN if you are using a PAN
profile-compatible access point.
Setting up the access point
Connecting to a LAN (LAP)
Important
• The access point must have been started and a normal connection already
established to the network before the access point is set up. Please refer to the
access point instruction manual for information on how to set up the access point.
• A Bluetooth passkey (PIN code) is required for you to connect to the access point.
Please make a note of your Bluetooth passkey before you start the set-up process.
Setting up the access point
Procedure
1. Turn on the access point, and confirm that a connection has been established
with the network
2. Right-clicktheBluetoothiconinthetasktray,andthenclickon[AddNew
Connection]
Note
oAlternatively, click [Start][All Programs][Bluetooth][Bluetooth
Settings], and then click on [New Connection] from the active [Bluetooth
Settings] window.
The [Add New Connection Wizard (Welcome to the Add New Connection
Wizard)] window will appear.
3. Confirm that [Express Mode] has been selected, and then click on the [Next]
button
The [Add New Connection Wizard (Searching for Bluetooth devices)]
window will appear.
Once the program has finished searching for the devices, the [Add New
Connection Wizard (Device Selection)] window will appear.
4. Select the device name of the access point from [Device List], and then click
on the [Next] button
The [Add New Connection Wizard (Searching for Services)] window will appear.
You will be asked for the Bluetooth passkey in the window that appears.
5. Enter the passkey under [Bluetooth Passkey (PIN code)], and then click on
the [OK] button
Service detection and COM port creation will be performed automatically.
The [Add New Connection Wizard (Create Connection Destination)] window will
appear.
6. Enter the connection name, user name and password, then click on the [Next]
button
Note
oThe user name and password are entered here to allow you to connect to
the access point.
The [Add New Connection Wizard (Confirm Dial-up Settings)] window will
appear.
7. Click on the [Confirm Settings] button
The [Internet Options] window will appear.
8. Configure the connection method, and then click on the [OK] button
Set the connection destination used for the LAN connection set up in (6) above as
the default connection destination, and then select "Always dial my default
connection."
9. Click on the [Next] button
The [Add New Connection Wizard (Connection Name Settings)] window will
appear.
10. Enter the type and name of the icon displayed after registration, and then
click on the [Next] button
Please click on the [Next] button if you are satisfied with the settings.
The [Add New Connection Wizard (Completing the Add New Connection
Wizard)] window will appear.
11. Click on the [Finish] button
The access point icon will be registered in the [Bluetooth Settings] window.
This will complete the access point set-up process.
"Connecting to a LAN (LAP)"
Connecting to a LAN (LAP)
Procedure
1. Right-clickontheconnectioniconinthe[BluetoothSettings]window,and
then click on [Connect]
The [Dial-up Connection] window will appear.

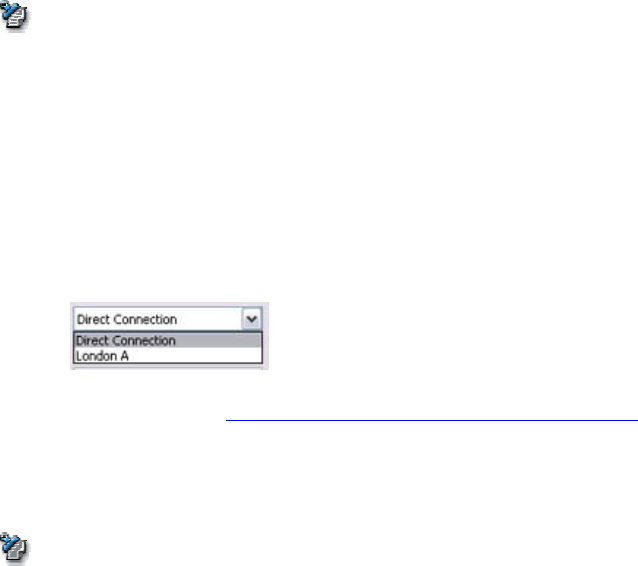

2. Confirm that "Direct connection" has been selected under [Connection
Destination], and then click on the [Connect] button
A connection will be initiated.
Note
oThis is an example of what happens when you use "Direct connection" as
a connection name under "Connect to access point." If a name different
from the connection name is used, that name will appear under
[Connection Destination].
oPlease simply click on [Settings] if no user name or password have been
entered (i.e., if those fields have been left blank)
oPlease change the connection destination if a different connection name
(for a dial-up connection) appears in [Connection Destination].
Related topic"Changing the default connection destination"
Once you connect to the network, Internet Explorer will start automatically, and
you will be able to exchange data with other computers on the network.
Note
oPlease follow the procedure below if you need to set up a proxy server to
connect to the Internet (the following procedure is not necessary if the PC
you are going to use has already been set up as a proxy server).
1 Select [Internet Options...] from the [Tools] menu in Internet
Explorer
The [Internet Options] window will appear.
2 Click on the [Connections] tab, and then click on the [Settings...]
button
3 Enter the IP address and port number of the proxy server under
[Proxy Server], and then click on the [OK] button
3. End the connection

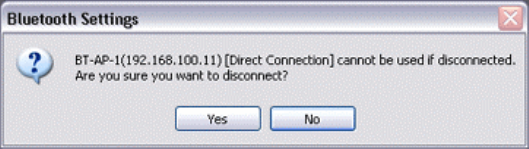

Right-click either on the connection icon under the [Bluetooth Settings] window
or on the iconinthetasktray,andthenclickon[Disconnect].
Click on the "Yes" button in the disconnection confirmation dialog box that
appears.

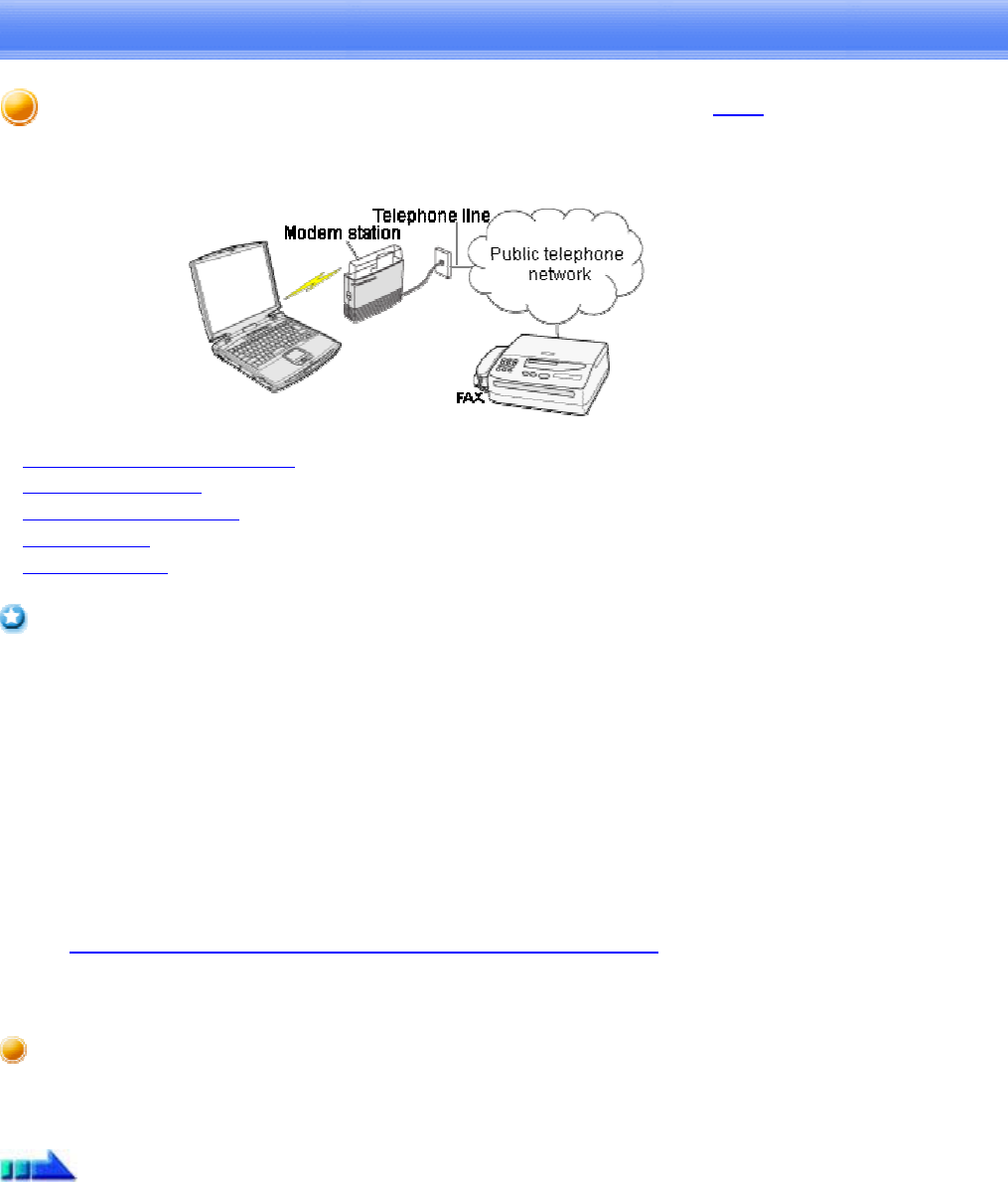

Using a modem station for fax transmissions [FAX]
This section describes how to send a fax using a Bluetooth wireless modem station.
Setting up the modem station
Installing a modem
Setting fax information
Sending a fax
Receiving a fax
Important
• Please refer to the modem station instruction manual for information on how to
connect the station to a telephone line.
• Please ensure that any drivers used to connect the PC to the modem have been
installed.
• A Bluetooth passkey (PIN code) is required for you to connect to the modem
station. Please make a note of your Bluetooth passkey before you start the set-up
process.
• A fax application is required for you to be able to send and receive faxes. The
description below is based on a example using Microsoft Fax, which is installed
with Windows XP as standard.
If you are going to use a commercially available fax application, then please refer
to the manual that came with the application for information on how to send and
receive faxes.
Setting up the modem station
Set up and register the modem station as a fax service.
Procedure
1. Turn on the wireless modem station
2. Right-clickontheBluetoothiconinthetasktray,andthenclickon[Add
New Connection]
Note
oAlternatively, click [Start][All Programs][Bluetooth][Bluetooth
Settings], and then click on [New Connection] from the active [Bluetooth
Settings] window.
The [Add New Connection Wizard (Welcome to the Add New Connection
Wizard)] window will appear.
3. Select [Custom Mode], and then click on the [Next] button
The [Add New Connection Wizard (Searching for Bluetooth devices)] window
will appear.
Once the program has finished searching for the devices, the [Add New
Connection Wizard (Select Device)] window will appear.
4. Select the device name of the wireless modem station from [Device List], and
then click on the [Next] button
The [Add New Connection Wizard (Searching for Services)] window will appear.
5. If you are connecting to the wireless modem station for the first time, enter
the passkey for the device from the [Bluetooth Passkey (PIN Code)] window,
andthenclickonthe[OK]button
Once the program has finished searching for the services, the [Add New
Connection Wizard (Select Service)] window will appear.

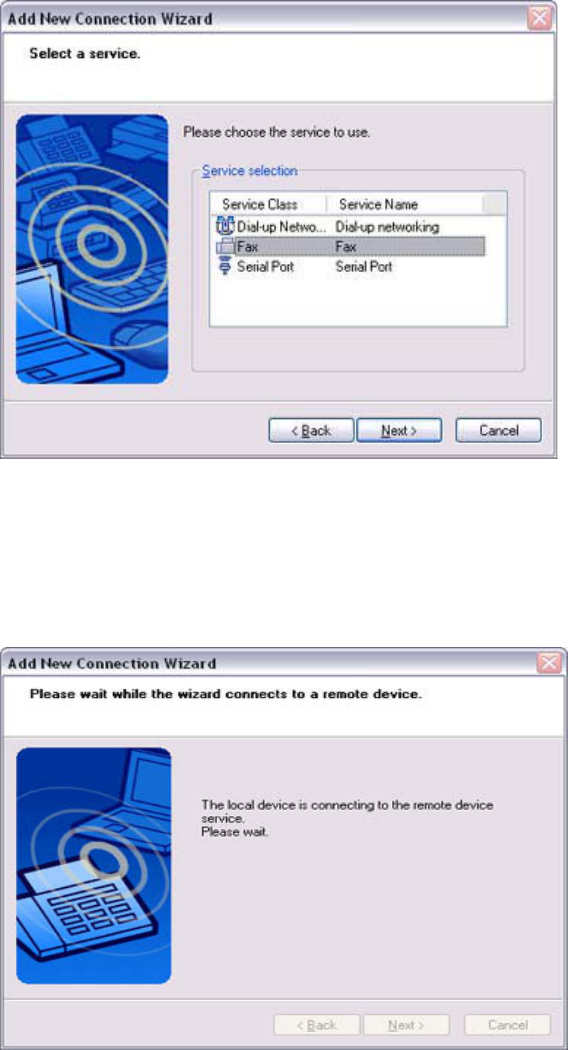

6. Select "Fax" under [Select Service], and then click on the [Next] button
The [Add New Connection Wizard (Connecting to Remote Device)] screen will
appear.
The COM port and modem registration process will then be automatically
performed.
Once the COM port and modem (standard 33600 bps type) registration is
complete,
the [Add New Connection Wizard (Setting Connection Name)] screen will
appear.

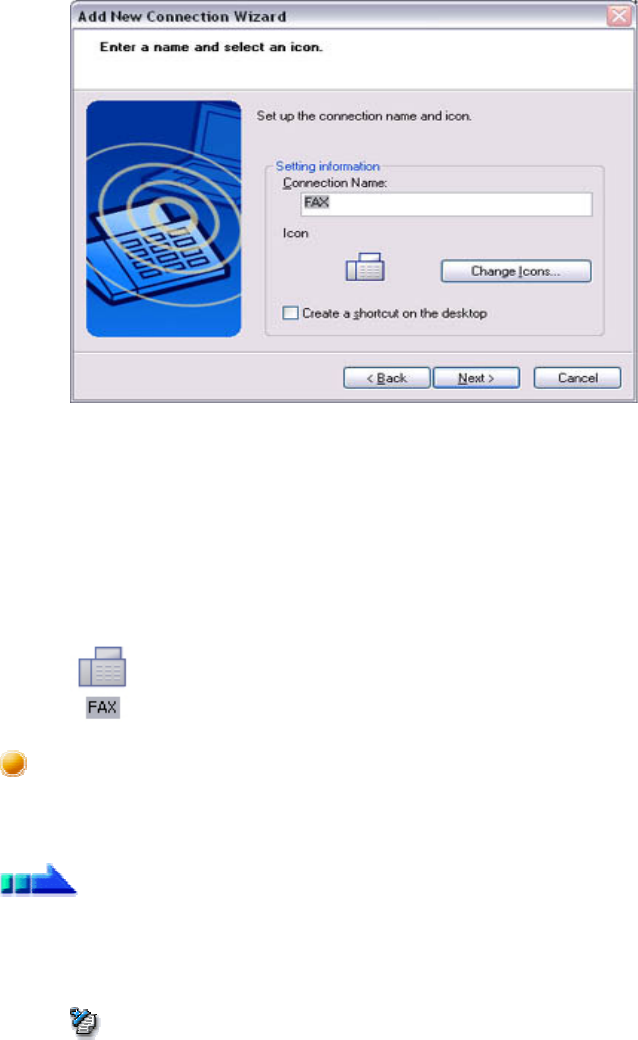

7. Configure the type and name of the icon to appear after registration,
and click on the [Next] button.
Please click only on the [Next] button once you are satisfied with the
configuration.
The [Add New Connection Wizard (Completing the Add New Connection
Wizard)] screen will appear.
8. Click on the [Finish] button
The settings will be registered, and the icon will appear on the [Bluetooth
Settings] screen.
Setting FAX information
Configure send/receive settings and register fax information.
Procedure
1. Select [Start][Control Panel], and then double-click on the [Printers and
Other Hardware] icon
Note
oIf the control panel is displayed in "Classic view", and you use Windows
2000, please start from Step (2).

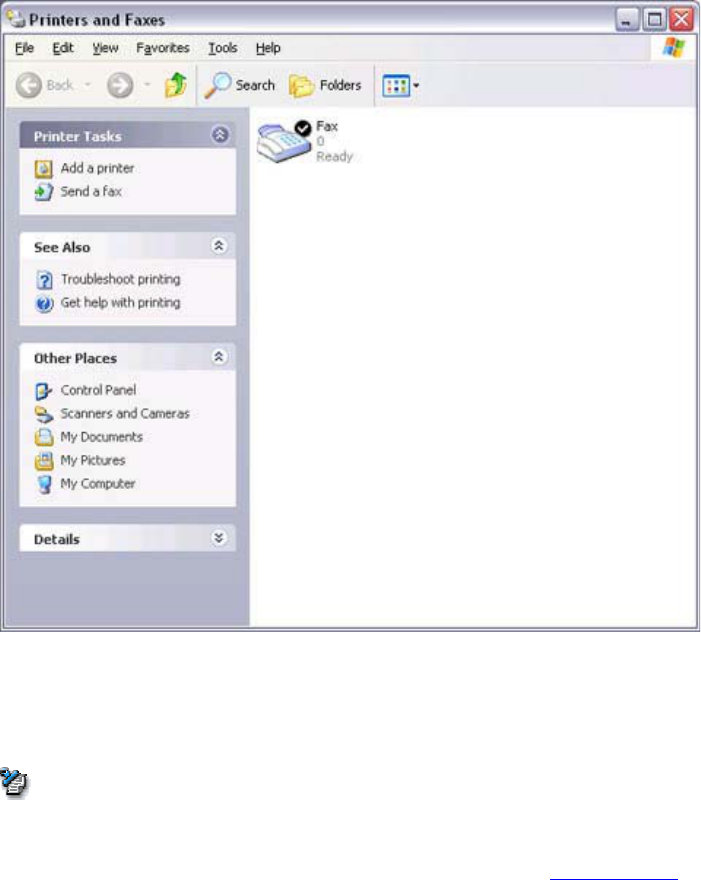

2. Double-click on the [Printers and Faxes] icon
The [Printers & Faxes] window will appear.

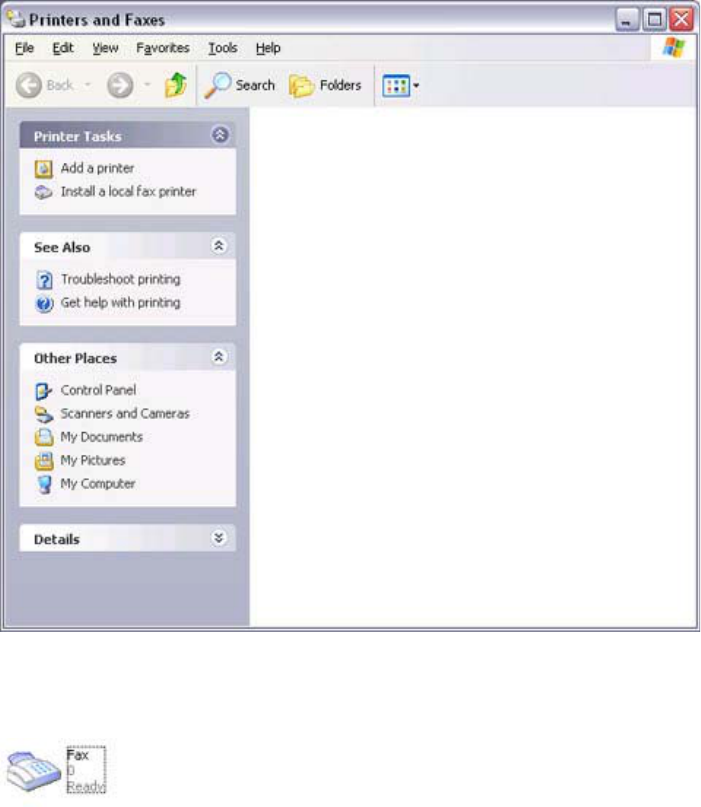

3. Click on "Install a local fax printer" in the [Printers and Faxes] window
A window showing installed programs will appear, and a Fax icon will have been
created in the [Printers and Faxes] screen.
4. Click on "Send a fax" under "Printer Tasks" on the left side of the window
If you have not yet configured a fax device, the [Fax Configuration Wizard]
window will appear. In the window you can enter settings pertaining to the sender
(yourself).
Note
oIf the fax configuration information has already been registered, the [Send
Fax Wizard] window, which can be viewed under "Sending a fax" below,
will appear instead of the [Fax Configuration Wizard] window.

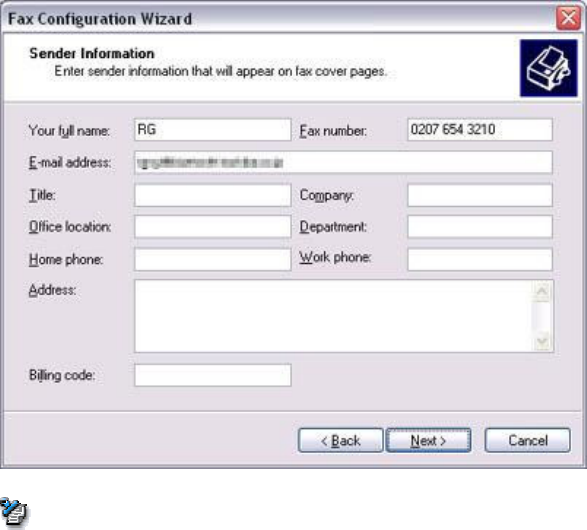

5. Enter the sender information, and click on the [Next] button
Note
oThe sender information that you configure here will be automatically
appended as header information when you send a fax.

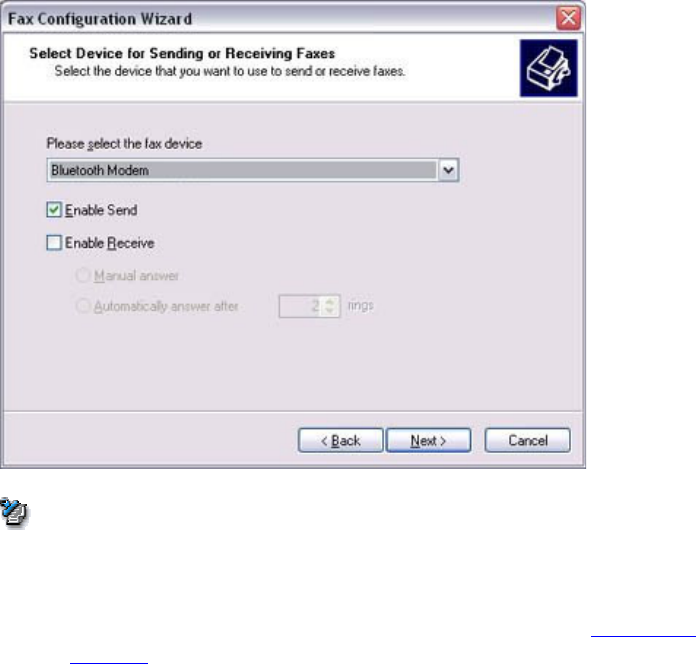

The [Fax Configuration Wizard (Select Device for Sending or Receiving Faxes)]
window will appear.
6. Select a device to be used for fax transmissions, enable the device for sending
or receiving, and then click on the [Next] button
Note
oIf [Enable Receive] is selected, the device will be on standby for receiving
faxes even if it is not sending or receiving anything, and therefore will be
in continuous connection to the wireless modem (when COM Auto
Connect is on).
Please decide whether to select this option based on the desired objective
and/or frequency of transmission.

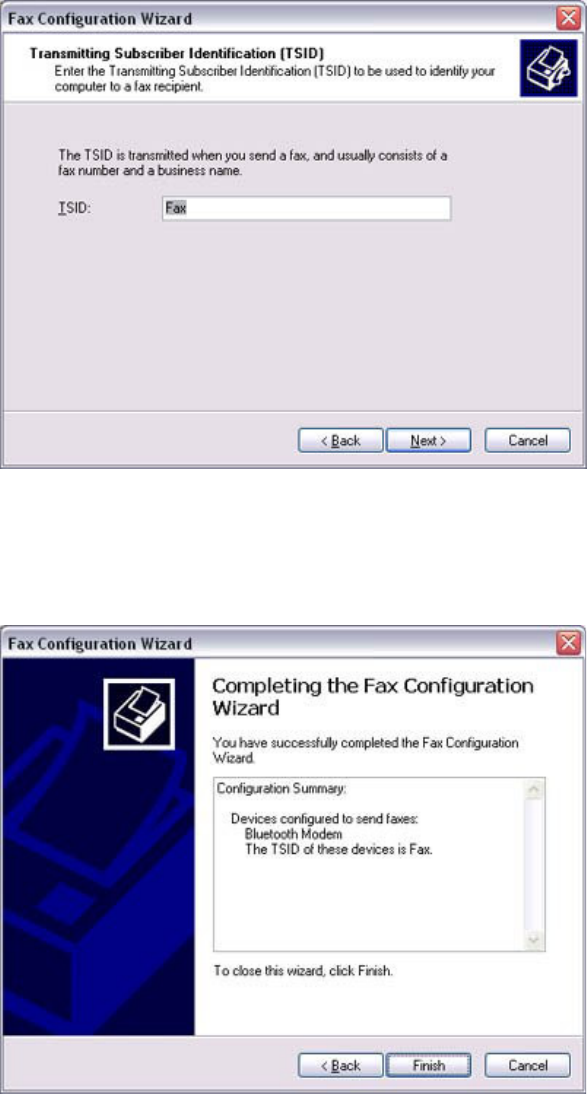

The [Fax Configuration Wizard (Transmitting Subscriber Identification (TSID))]
window will appear.
7. Click on the [Next] button
It is important that you do not change the transmitter subscriber identification.
The [Fax Configuration Wizard (Completing the Fax Configuration Wizard)]
window will appear.
8. Click on the [Finish] button

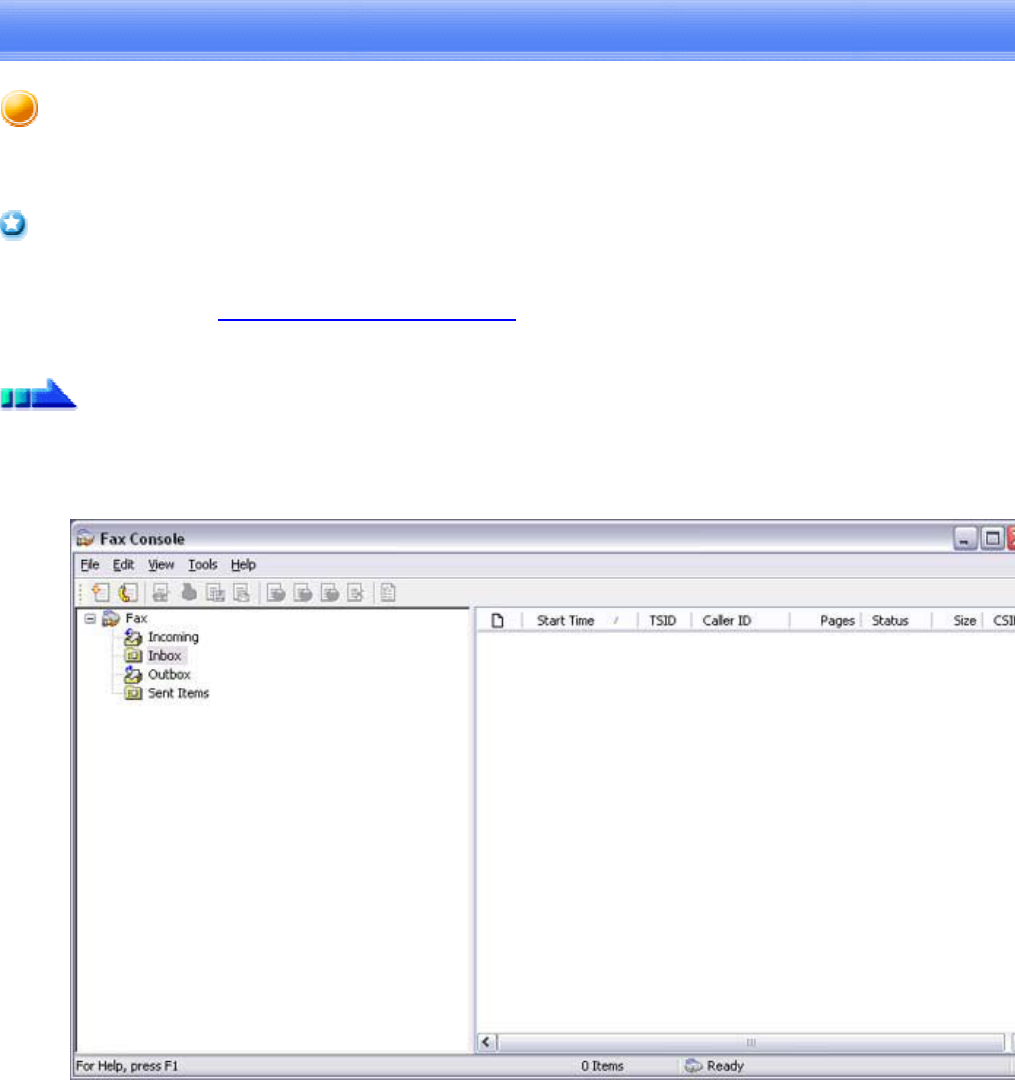

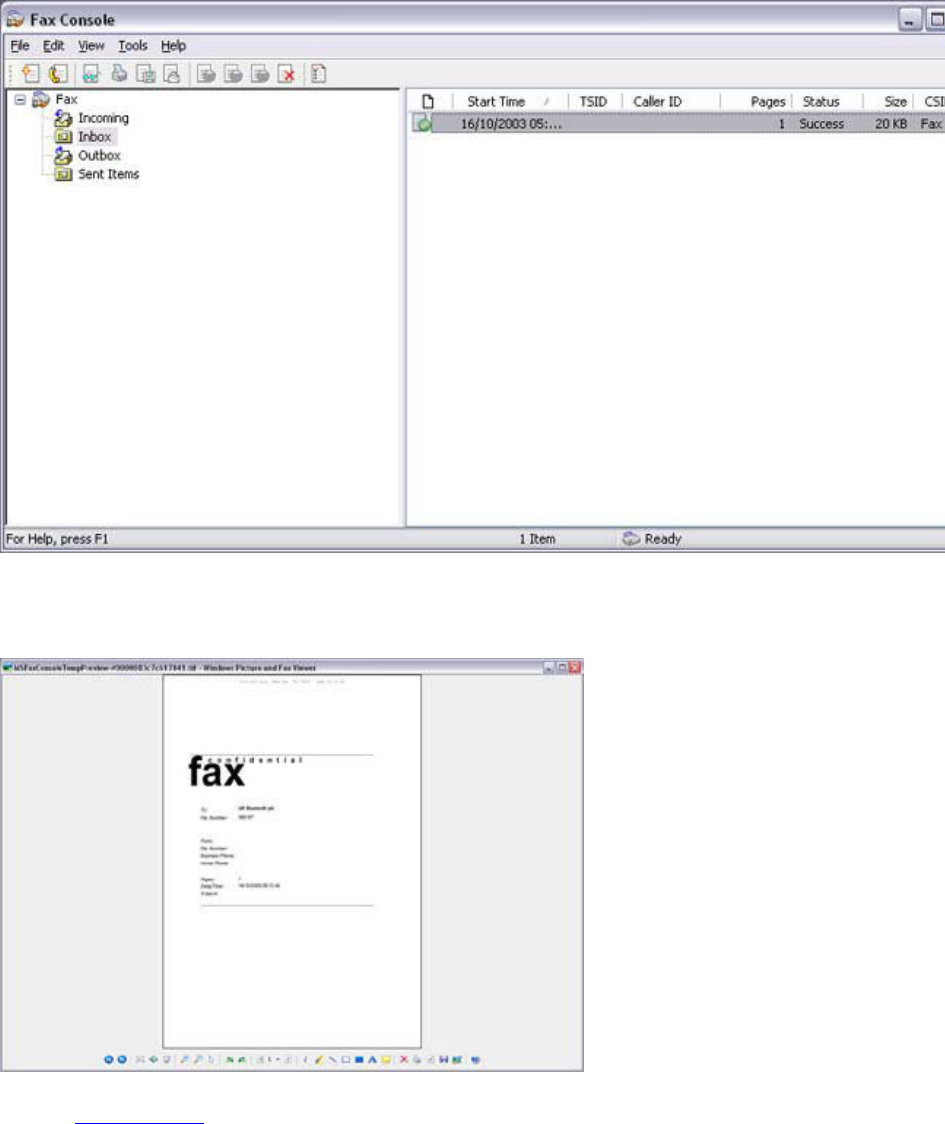

The fax information will be have been registered, and the [Fax Console] window
will appear.
This will complete the fax set-up process.
Related topics: "Sending a fax" and "Receiving a fax"
Receiving a fax
This section describes what to do when a fax arrives after you have established a
connection to a modem station.
Important
• The Fax service must be enabled for receiving in order for you to receive a fax.
Please refer to "Using a wireless modem station" under "Troubleshooting" for
information on how to change the send and receive settings once the fax service
has been configured.
• Please ensure you have connected to a modem station before you receive a fax
(the device will be connected to the modem if "Enable Receive" has been selected
or COM Auto Connect has been activated).
Procedure

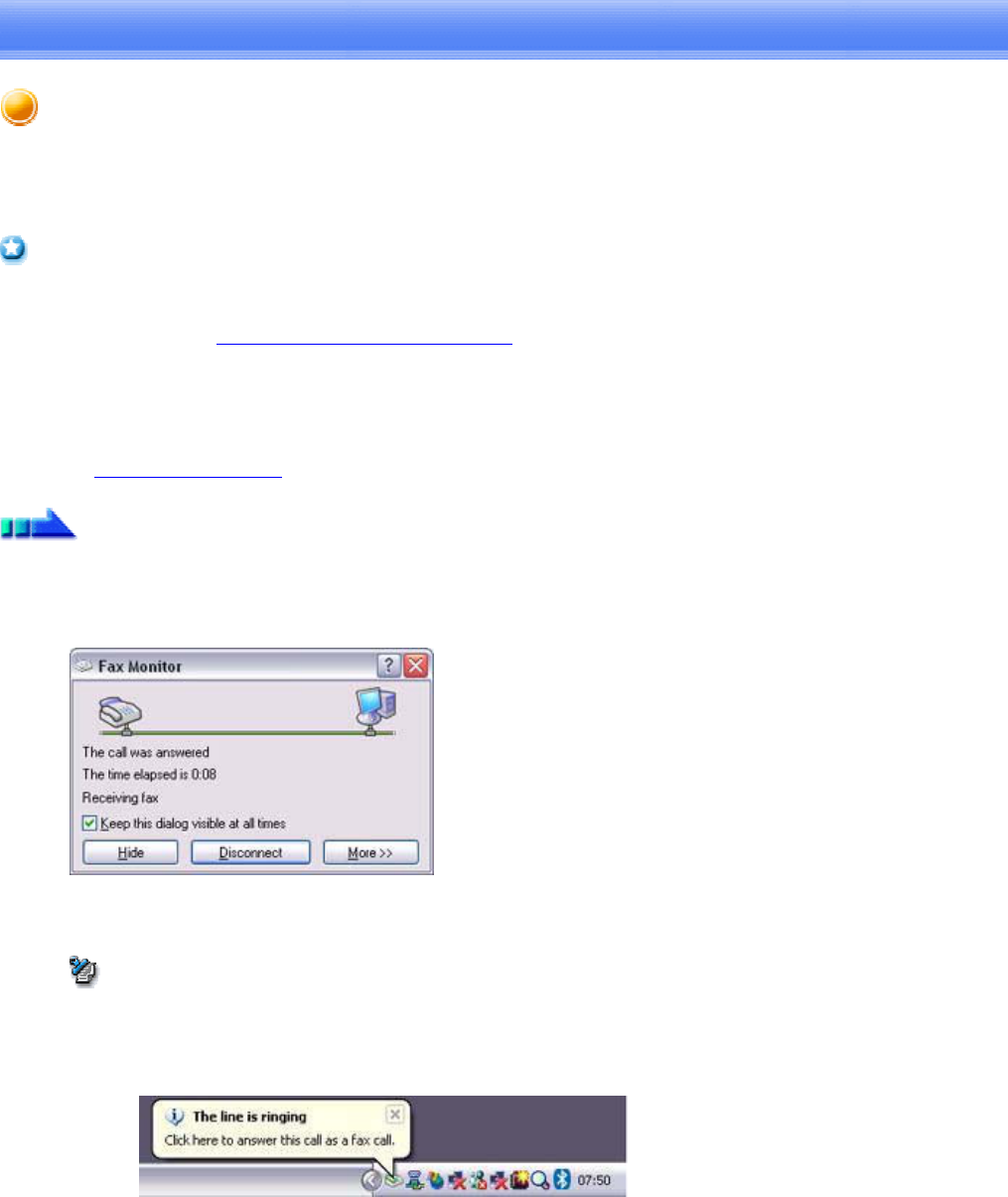

1. When a fax arrives, the Fax Monitor will start automatically as the fax is
received
Once the fax has been received, the Fax Monitor will revert to standby mode.
Note
oIf you have enabled manual fax reception, the message below will appear
when a fax arrives.
Click on the message with your mouse to receive the fax.
2. Double-click on the [Fax] icon in the Control Panel
The [Fax Console] window will appear.
3. In the [Fax Console] window, double-click on the fax that has arrived
An image of the received fax will be displayed.
Related topic: "Sending a fax"
Sending a fax
This section describes how to send a fax from the Fax Console.
Important
• The Fax service must be enabled for sending in order for you to send a fax.
Please refer to "Using a wireless modem station" under "Troubleshooting" for
how to change the send and receive settings once the service has been configured.
Procedure
1. Double-click on the [Fax] icon in the Control Panel
The [Fax Console] window will appear.
2. In the [Fax Console] window, click [File][Send fax]

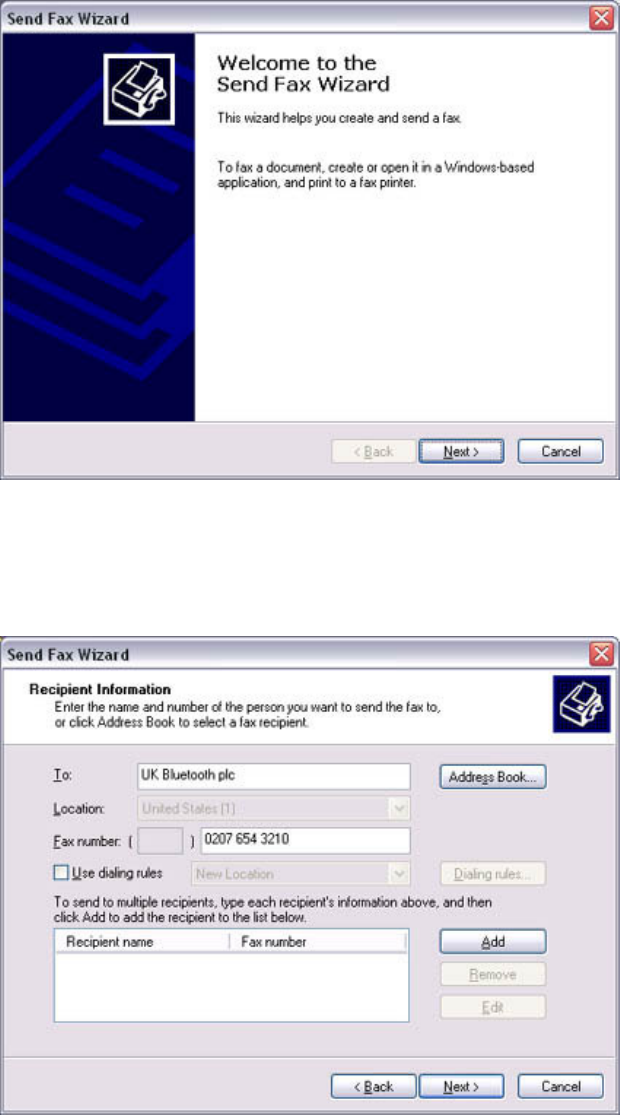

The [Send Fax Wizard (Starting the Send Fax Wizard)] window will appear.
3. Click on the [Next] button
The [Send Fax Wizard (Recipient Information)] window will appear.
4. Enter the name and fax number of the destination party, and then click on
the [Next] button

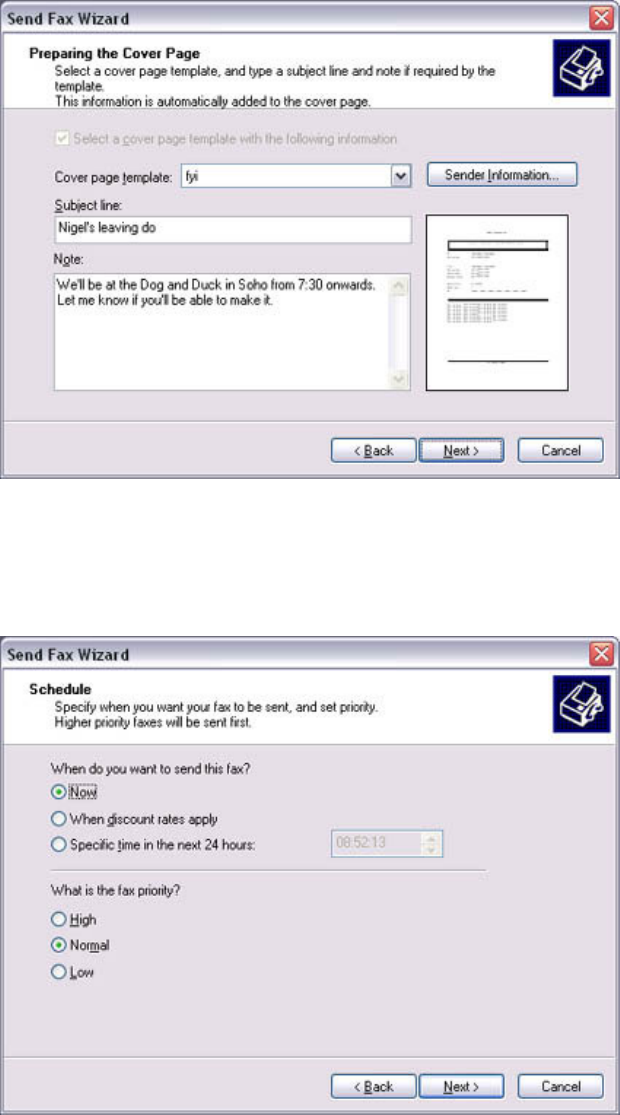

The [Send Fax Wizard (Preparing the Cover Page)] window will appear.
5. Specify the cover page template, subject line, and note (body text), and then
click on the [Next] button
The [Send Fax Wizard (Schedule)] window will appear.
6. If you wish to send the fax immediately,select"Now",andthenclickonthe
[Next] button

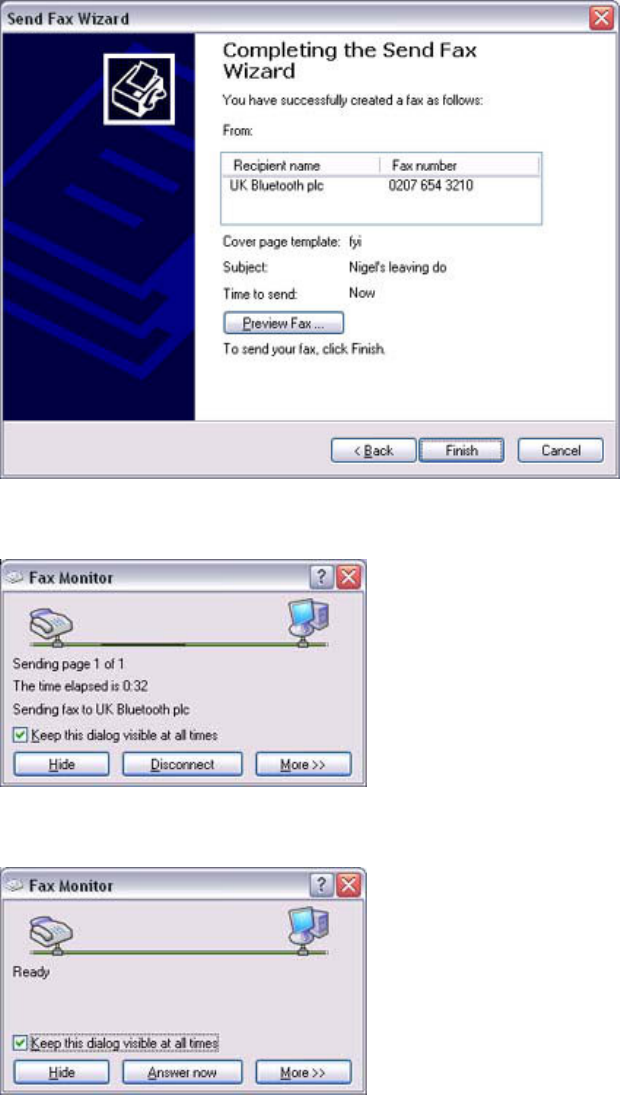

The [Send Fax Wizard (Completing the Send Fax Wizard)] window will appear.
7. Confirm the destination information and transmission details, and then click
on the [Finish] button
The software will automatically dial the number and send the fax.
Once the fax has been sent, Fax Monitor will revert to standby mode.
Related topic: "Receiving a fax"
Setting COM Auto Connect
The Auto Connect mode will normally be enabled when you set up a fax transmission (a
connection will automatically be established to the modem when you try to send a fax).
If the fax transmission fails, the PC will automatically attempt to re-send the fax;
however, if the Auto Connect mode has been enabled, transmission errors will repeatedly
appear if the PC cannot establish a Bluetooth connection to the modem relatively quickly.
In such cases, please deactivate the Auto Connect mode as instructed below.
Procedure
1. In the [Bluetooth Settings] window, click on [File][COM Auto Connect
Settings]
The [COM Auto Connect Settings] window will appear.
2. Remove the check next to the port you use for faxing, and then click on the
[OK] button.
Please establish manual fax connections for future fax transmissions.
Using a commercially available fax application
Commercially available fax applications will not automatically start on receipt of a fax,
even if you have specified that faxes should be received automatically.
Please follow the instructions below to enable the application to start automatically on
receipt of a fax transmission.
Procedure
1. In the [Bluetooth Settings] window, right-click on the fax icon pertaining to
the connection destination, and then click on [Details]

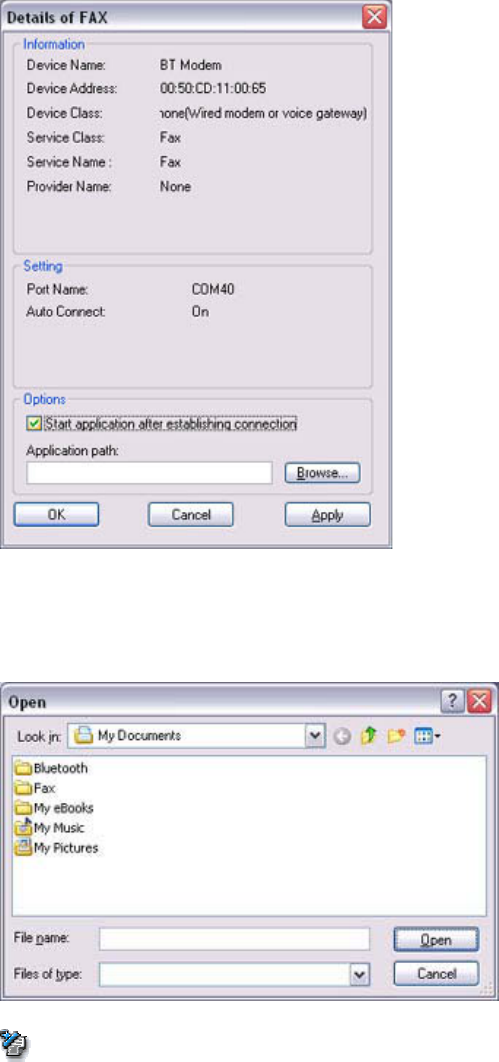

The detailed modem settings window will appear.
2. Check [Start application when connected] under [Options]
Clicking on the [Browse...] button will open the [Open File] window.
Please select the executable file (*.exe) pertaining to the desired fax application,
and then click on the [Open...] button.
Note
oThe specified file will differ depending on your desired application. For
further information, please either refer to the application instruction
manual, or contact the relevant manufacturer.
3. Click on the [OK] button
When you next start Fax, the specified fax application will start automatically.
