USERS MANUAL 1
Introduction 第 1 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Thank you very much for selecting the Bluetooth Utility.
This Hel
p
facilit
y
will show
y
ou how to use the Bluetooth Utilit
y
for confi
g
urin
g
Bluetooth devices
and how it can be used in other convenient ways.
We hope that the Help facility will enable you to be able to make full use of the Bluetooth Utility.
zWhat is Bluetooth?
zWhat you need to know about using Bluetooth
zVarieties of Bluetooth devices you can use
zContents of the Bluetooth Utility
[Trademark information]
(C) 2003, 2004 TOSHIBA Corporation All Rights Reserved

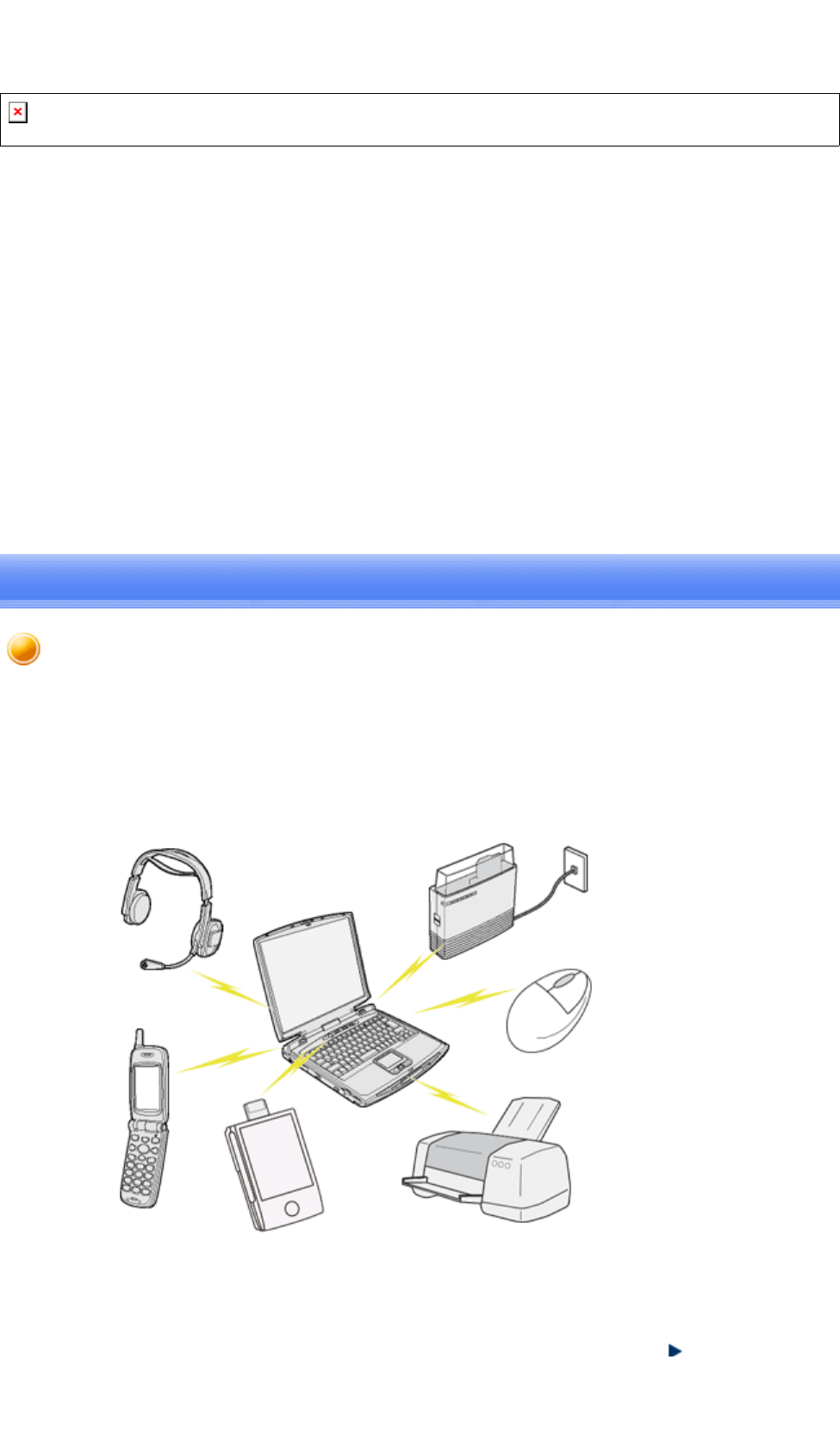

Bluetooth is a global standard telecommunications method that enables data to be exchanged
wirelessly between personal computers, peripheral components, mobile telephones and other
electronic devices.
Data can be readily exchanged between Bluetooth devices if they have been registered as
components able to communicate with each other.
A maximum of seven Bluetooth devices may be connected together. By using Bluetooth to connect
to a mouse, keyboard, modem, printer, or other device, you can do away with messy cabling and
not have to be concerned about space restrictions, which will allow you to work more comfortably.
Next
Introduction
What is Bluetooth?
Introduction 第 2 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Next

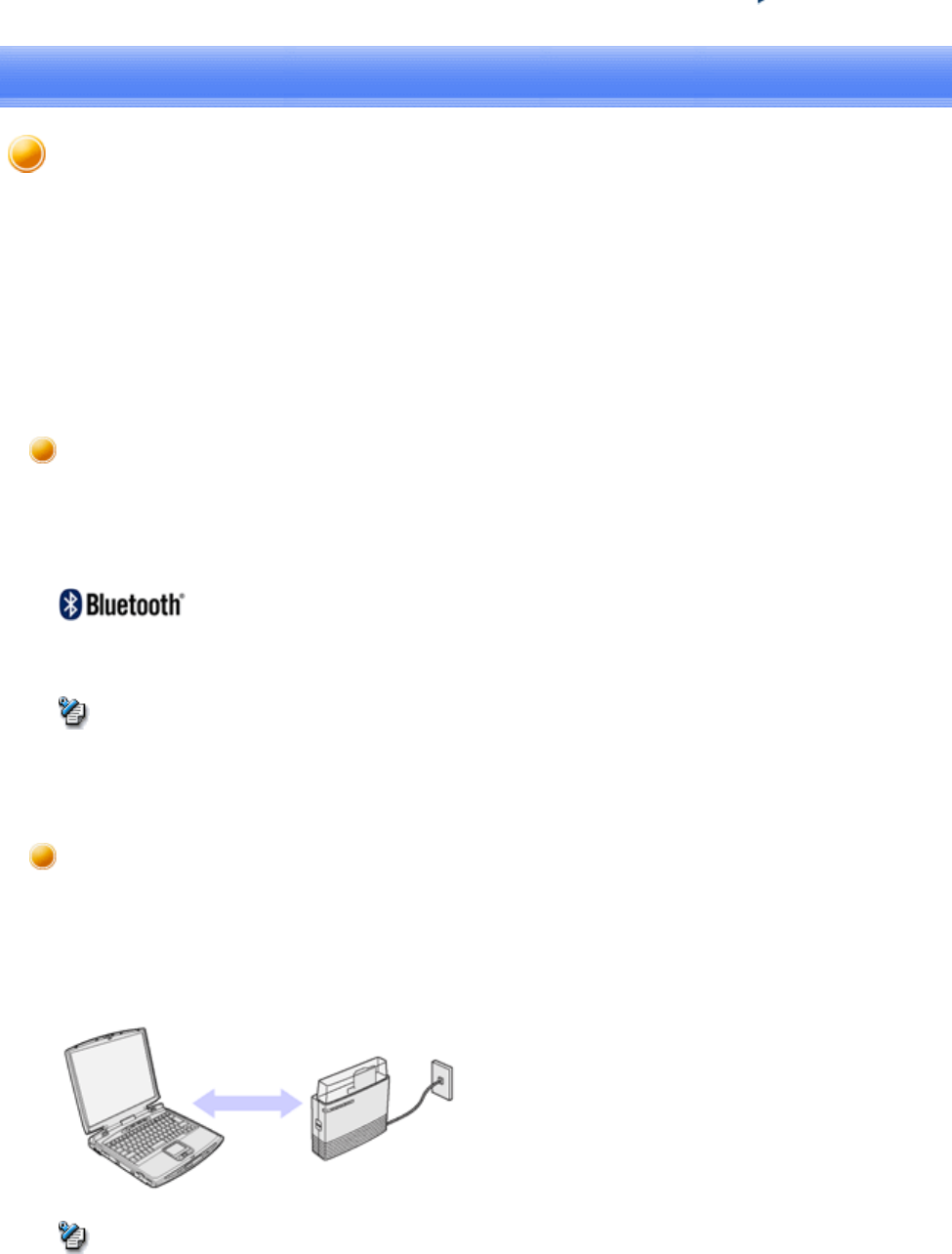

Bluetooth exchanges data using radio waves.
The following points are critical in order to configure and use Bluetooth devices correctly.
zThe devices must be Bluetooth-compatible
zThe Bluetooth devices must be close enough to be able to communicate
zThe devices must be in a connectable state
zNo other radio wave-emitting devices should be operated nearby
zThe Bluetooth devices must be turned on
The hardware and software used in your PC and other components must be Bluetooth-
compatible.
Bluetooth-compatible products normally bear the following logo:
For further details, please refer to your local retailer or consult the product instruction manual.
zA Bluetooth communication card, adapter, or other similar device (not included) needs to
be installed in PCs or PDAs (personal digital assistants) that do not have Bluetooth built
in.
Bluetooth devices situated in places beyond the reach of the radio waves will not recognize
each other, making communication impossible.
In
p
articular
,
p
lease ensure that
y
our Bluetooth devices can communicate with each other before
you register and configure them for the first time.
zPCs have a communication distance restriction of ten meters. Please refer to the
instruction manuals for information on the communication distance restrictions s
p
ecific to
each device.
zCommunication interference may occur if any obstructions are located between the
devices. Devices may not communicate properly if they have been located, for example,
on the ground and first floors of a residence, despite their being within the acceptable
distance.
The devices must be Bluetooth-compatible
Note
The Bluetooth devices must be close enough to be able to communicate
Note
What you need to know about using Bluetooth
Introduction 第 3 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
The Bluetooth devices must recognize each other in order to be connectable for use.
In certain devices, simply turning on the power will not produce a connectable state. Moreover,
the energy-saving feature may come into effect after a certain amount of time, which will
prevent the devices from being detected. Please refer to the specific product instruction manual
for further details.
Microwave ovens, wireless LANs and other radio wave-emitting devices located nearby may
affect Bluetooth communication.
Please ensure that your devices have been accordingly situated, and that the above devices are
not in use when you are operating your Bluetooth device.
Bluetooth cannot be used if the devices have not been turned on.
Some PCs and other components have a Bluetooth communication switch that operates
independently of the main power. Bluetooth cannot function if this switch has been turned off.
zUsing PCs with Bluetooth built in
zWhen using a Bluetooth USB adapter or SD card
The devices must be in a connectable state
No other radio wave-emitting devices should be operated nearby
The Bluetooth devices must be turned on
It is im
p
ortant to understand the conce
p
ts of "services" and "
p
rofiles" in order to determine whether
an intended function can be properly utilized when you use a Bluetooth device.
Examples of Bluetooth devices include mice and keyboards (input devices), printers (output
devices) and wireless modems (communication devices). Functions that can be utilized by such
devices are called "services."
In order for these services to be used reliably, Bluetooth devices are provided with common
specifications known as "profiles."
For example, when a PC makes a connection to a Bluetooth device, it obtains the profile of the
corresponding device and thereby ascertains which functions (services) the device offers.
As an example, imagine someone who travels overseas.
The traveller is only able to converse properly with their counterpart if both speak a language
(English, Japanese, Chinese, etc.) they both understand.
What is a "profile"?
Varieties of Bluetooth devices you can use
Introduction 第 4 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
However, no dialogue will occur if they do not share a common language.
In the above example, the traveller and his/her counterpart correspond to the devices, the
languages to the profiles, and the dialogues between the two people to the services. The former
example refers to a situation where a service can be performed because the devices support a
common profile, whereas the latter example refers to a situation where a service cannot be
performed because a common profile is not supported.
In other words, you will be able to use Bluetooth devices that have a profile supported by a PC
(the Bluetooth Utility in this case).
If the profiles belonging to the device are not supported by the PC, the functions corresponding
to those
p
rofiles will not be able to be utilized. Also
,
a device can onl
y
be used if its
p
rofiles are
supported by the PC.
The following profiles are supported by the Bluetooth Utility:
Types of profiles
Term Definition
DUN Dial-Up Networking
Enables you to establish a dial-up Bluetooth connection to the Internet or other
networks with a wireless modem station, mobile telephone, or similar device.
FAX FAX
Enables you to establish a Bluetooth connection with a wireless modem station,
mobile telephone, or similar device to send or receive a fax.
LAP LAN Access Profile
Enables you to establish a Bluetooth connection with a LAN access point to
access the services of a LAN using PPP.
SPP
Serial Port Profile
Enables communication with a device through a virtual serial port configured for
a Bluetooth connection. This can be used for printers and printer adapters with
PDAs, using a different method from HCRP or ActiveSync.
HID Human Interface Device Profile
All ti t i l i k b d d th i t d i
Introduction 第 5 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
All
ows connec
ti
ons
t
o w
i
re
l
ess m
i
ce
,
k
e
yb
oar
d
s an
d
o
th
er
i
n
p
u
t
d
ev
i
ces.
HCRP Hardcopy Cable Replacement Profile
Enables printing with a printer driver.
FTP File Transfer Profile
Enables you to browse folders on a wireless device and transfer files to and from
the local device.
OPP Object Push Profile
Allows business card data to be exchanged with a wireless device.
A2DP Advanced Audio Distribution Profile
Allows audio data to be exchanged between wireless headsets and other audio
devices, as well as allowing high-quality music playback.
AVRCP Audio/Video Remote Control Profile
A/V remote control functions such as play and stop. The Bluetooth Utility
supports remote control operation.
GAVDP Generic Audio/Video Distribution Profile
Basic profile used to support A2DP, AVRCP and other protocols.
HSP
Head Set Profile
Profile used for headsets.
Allows you to connect to a PC and communicate as well as connect to a mobile
telephone.
PAN Personal Area Networking Profile
Supports IP base network. Allows connection to an ad-hoc or wired network via
an access point.
BIP
Basic Imaging Profile
Allows image files to be sent and received after having been converted to a size
suitable for the destination. In addition to being able to transfer image files, the
Bluetooth Utility allows camera shutters to be operated by remote control, as well
as other offering other functionalities.
The Bluetooth Utility is a software tool used to configure a variety of settings once a connection
has been established between the PC and the Bluetooth device. It also facilitates the exchange of
files between Bluetooth devices.
The Bluetooth Utility comprises the following six tools. Descriptions are provided for the functions
and the supported profiles for the respective tools.
zBluetooth Settings
zBluetooth Manager
zBluetooth Information Exchanger
zRemote Camera
zBluetooth Local COM
zWireless File Transfer
Bluetooth Settings
Contents of the Bluetooth Utility
Introduction 第 6 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
This
p
ro
g
ram enables
y
ou to easil
y
confi
g
ure settin
g
s when
y
ou connect to a Bluetooth device
for the first time. The function of a configured and registered device is displayed on the main
window as a connection icon.
As a rule, the Bluetooth device will be connected automatically after having been set up;
however, a shortcut can be created for a manual connection, if so required.
This program, which appears as a Taskbar icon, monitors and controls the power and operating
status of Bluetooth devices. It can be used to start the Bluetooth Setup Utility, add a new
connection, disconnect from a remote device, and perform other tasks.
This program enables you to easily transfer files and images to or exchange business card data
with a wireless device by selecting the icon of the counterpart device, or using the right-click
menu in Ex
p
lorer. The wireless devices to which
y
ou are connectin
g
must also su
pp
ort the same
service functions (FTP and OPP).
Bluetooth Manager
Bluetooth Information Exchanger
Introduction 第 7 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Related topics
→"Exchanging files with PCs and PDAs"
→"Sending images to mobile telephones"
→"Sending images to PCs or PDAs"
→"Exchanging business card data with PCs and PDAs"

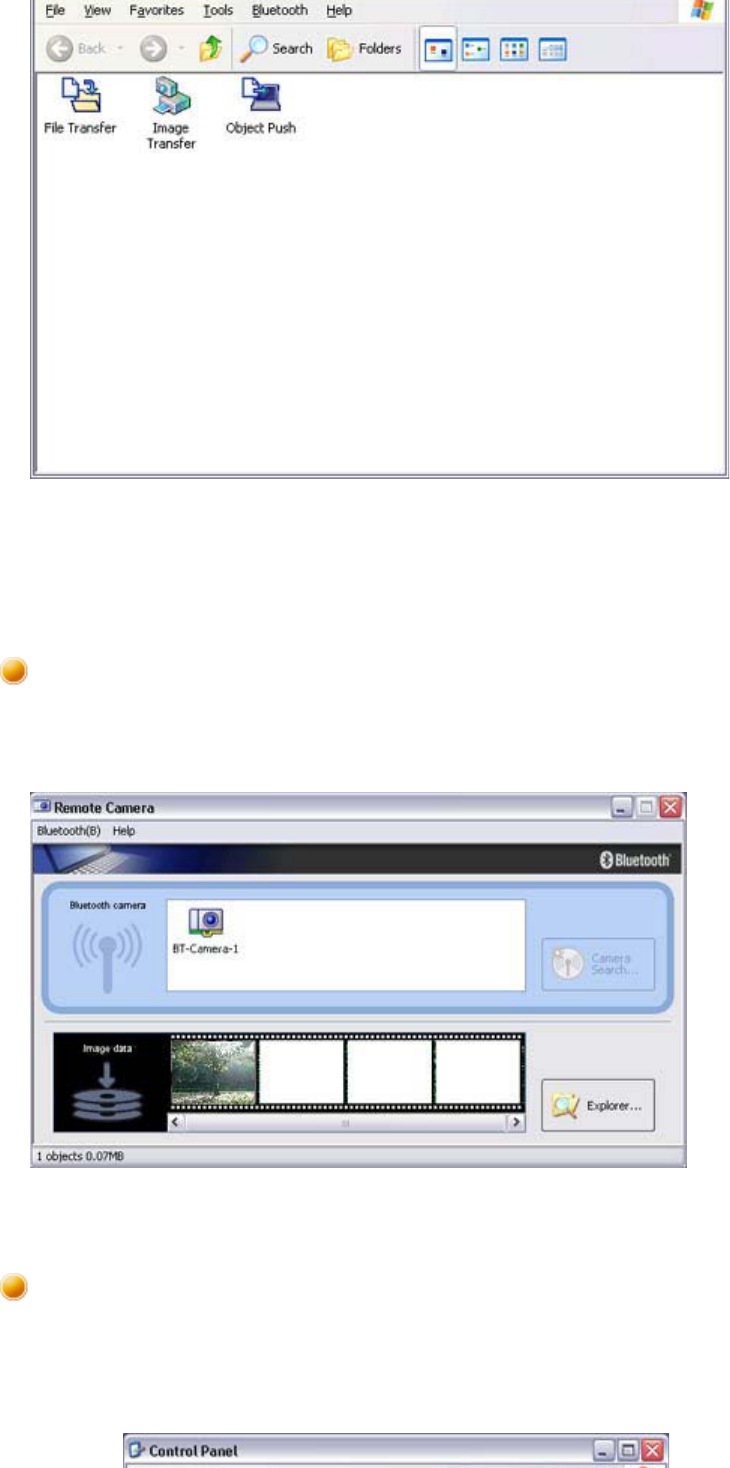

Connecting to a Bluetooth-compatible digital camera allows the device to be operated from the
PC side, and captured images to be sent to the PC.
Related topics
→"Using a Bluetooth-compatible camera"

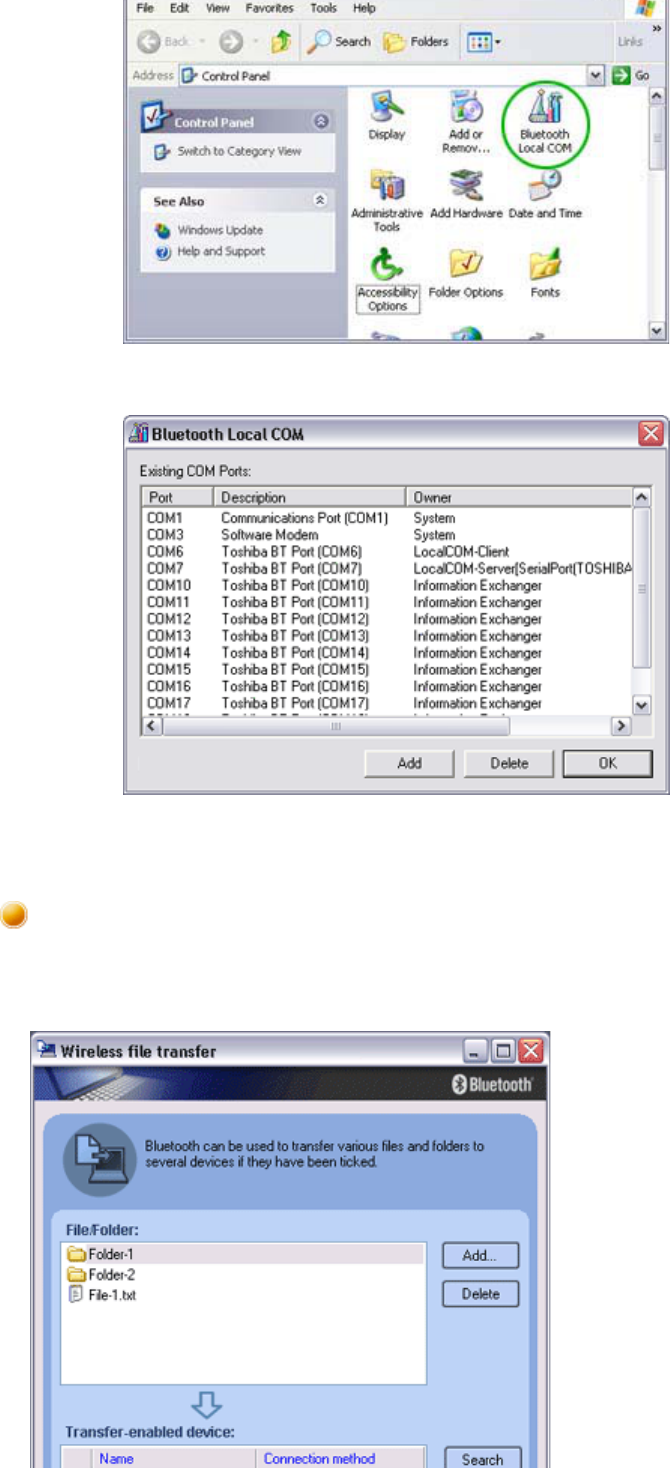

This program, which is registered in the Control Panel, can create a virtual COM port for use
with the Bluetooth Utility. If you need to create a client COM port with the Bluetooth Setup
Utility, it can be created automatically without having to start the program.
Remote Camera
Bluetooth Local COM
Introduction 第 8 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
↓
Related topics
→"Manually creating a virtual Bluetooth COM port"

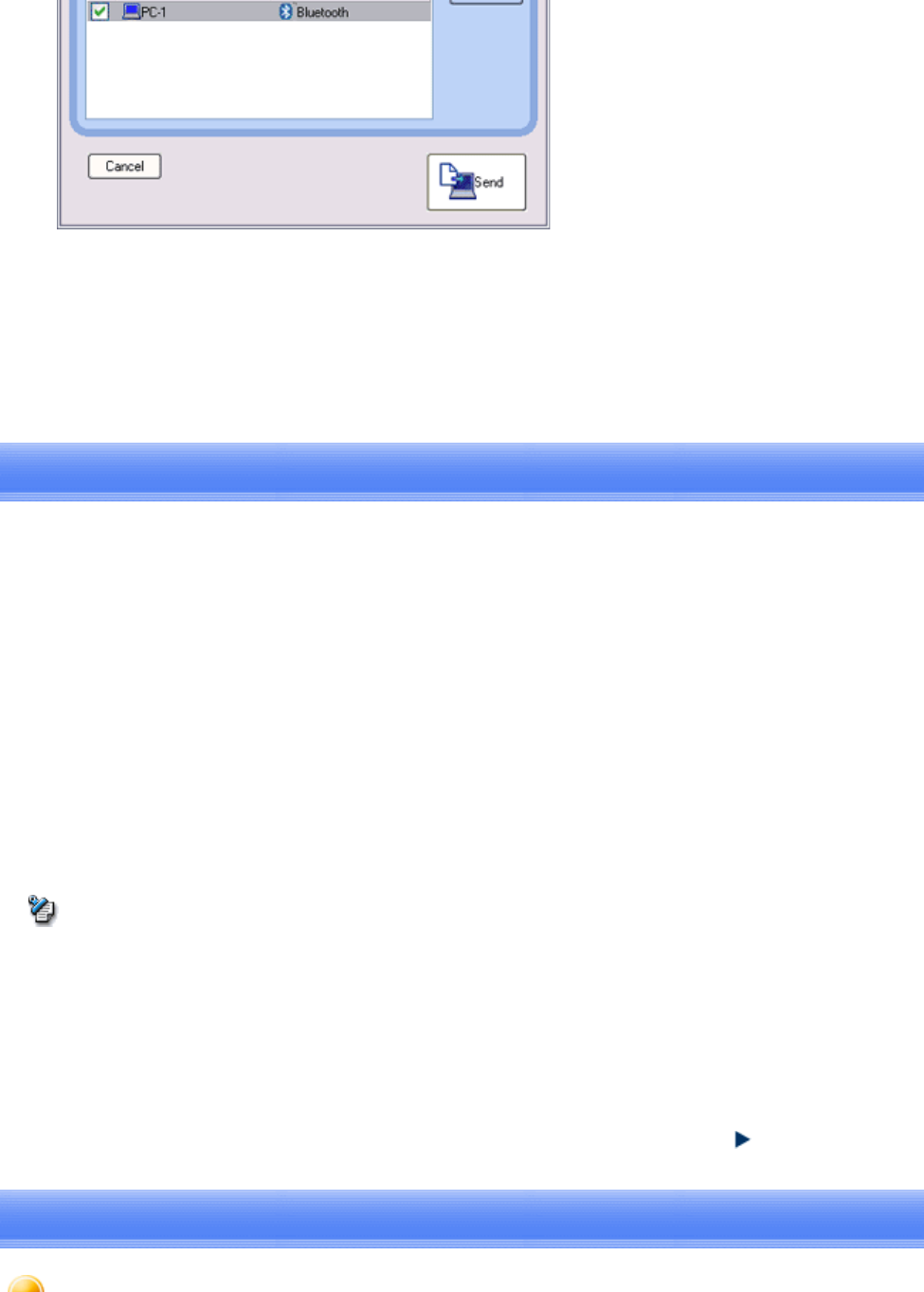

You can send a file wirelessly to another device by right-clicking on the intended file and using
the "Sending to Bluetooth Device" menu that appears.
Wireless File Transfer
Introduction 第 9 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Related topics
→"Exchanging files with PCs and PDAs"
Actual examples of how to establish a connection to a Bluetooth device using the Bluetooth Utility
are described in this section.
Descriptions of more convenient methods and detailed information on the Bluetooth Utility
functions are also provided.
zFlow of operation
zBasic settings
zMaking the most of your Bluetooth device
zUsing the features more effectively
zBluetooth Utility functions in detail
zThe Bluetooth Utility operates under Windows XP and Windows 2000.
The descriptions in the examples mainly pertain to operation under Windows XP.
Windows XP: Microsoft® Windows® XP Operating System
Windows 2000: Microsoft® Windows® 2000 Operating System
Next
Note
Using the Bluetooth Utility
Flow of operation
Introduction 第 10 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30

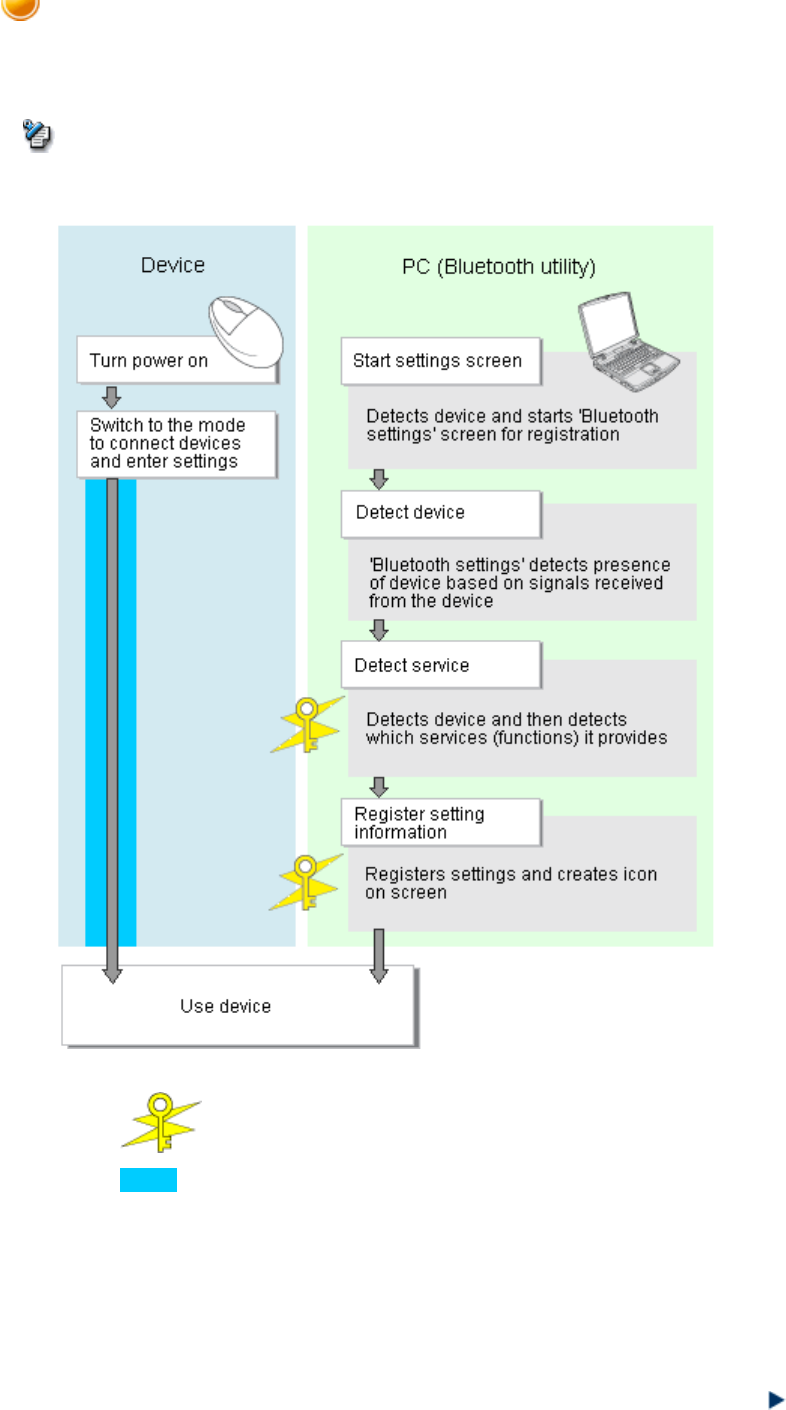

The procedure below is used to set up Bluetooth devices using the Bluetooth Utility.
zIt is assumed that the set-up is performed from the [Bluetooth Settings] window.
Next
Note
: Enter Bluetooth passkey (PIN code), if required by the device.
: During these stages of the set-up process, the Bluetooth device must
be set to Connectability mode.
* Simply turning the power on will activate Connectability mode in
certain devices. Please refer to the device instruction manual for
further details.

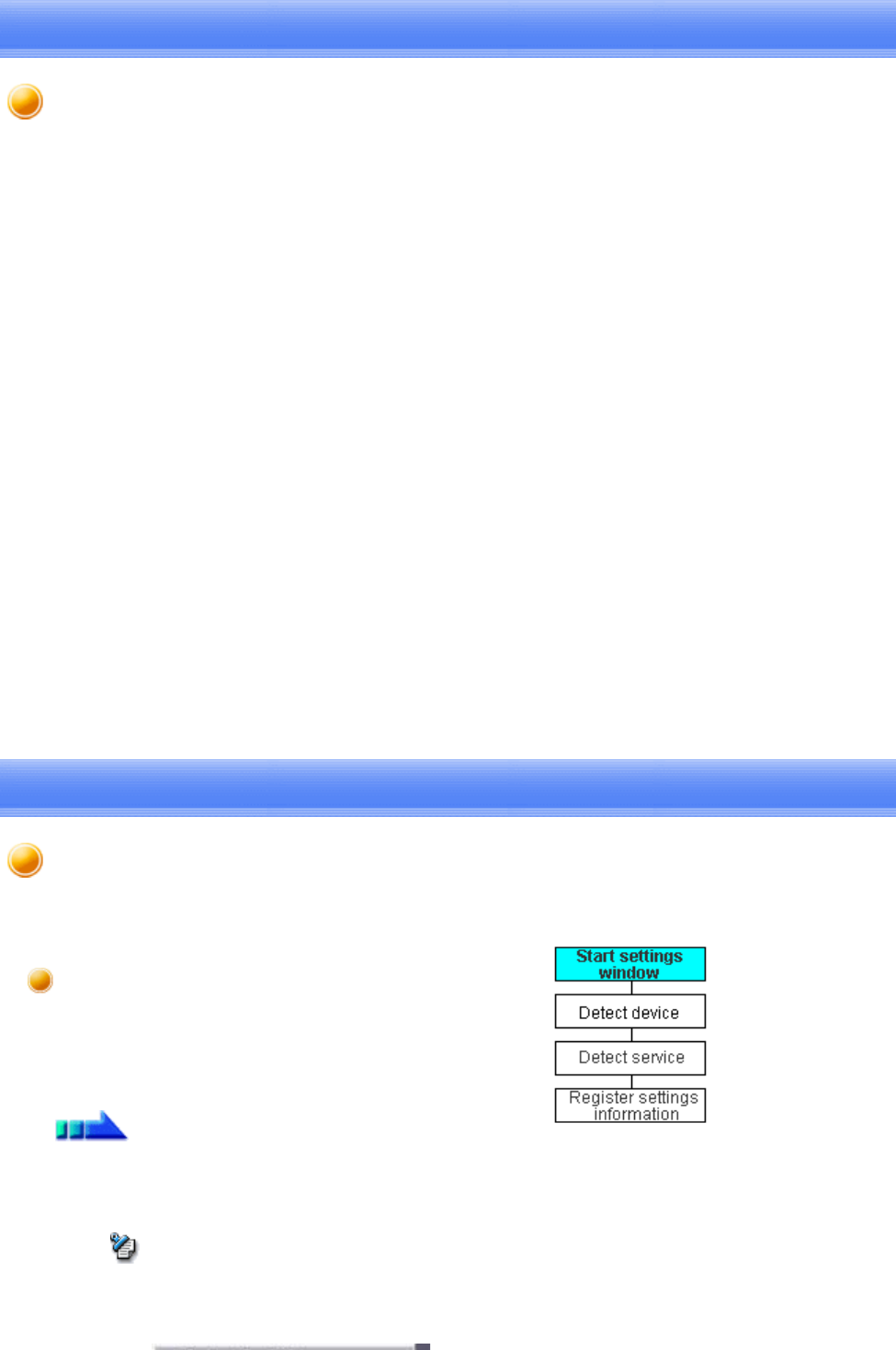

Flow
of
operation
Introduction 第 11 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Methods for registering new devices using the Bluetooth Utility shall now be described.
A Bluetooth mouse shall be connected and set up using [Bluetooth Settings] as an example.
[Bluetooth Settings] provides two set-up methods: "Express Mode" and "Custom Mode."
zExpress Mode
[Bluetooth Settings] will automatically detect and register services. If several services
(p
rofiles
)
are su
pp
orted b
y
the device
,
the service that has been set to the hi
g
hest
p
riorit
y
shall
be selected and registered.
Express Mode is normally recommended for device set-up.
zCustom Mode
After having been detected, the services supported by the device are displayed as a list, from
which you can select the desired function(s).
Custom Mode must be used to set up a device if, for example, you wish to use a modem
station to send a fax (because in Express Mode, the DUN profile will be automatically
selected since it has a higher priority than the FAX profile).
The differences between setting up the same device (a Bluetooth mouse) using Express Mode and
Custom Mode are described on the following pages.
zExpress Mode Set-up
zCustom Mode Set-up
The procedure for setting up the device using Express Mode shall now be described.
1. Click [Start]→[All Programs]→[Bluetooth]→[Bluetooth Settings].
(Under Windows 2000, click [Start]→[Programs]→[Bluetooth]→[Bluetooth Settin
g
s
]
.
)

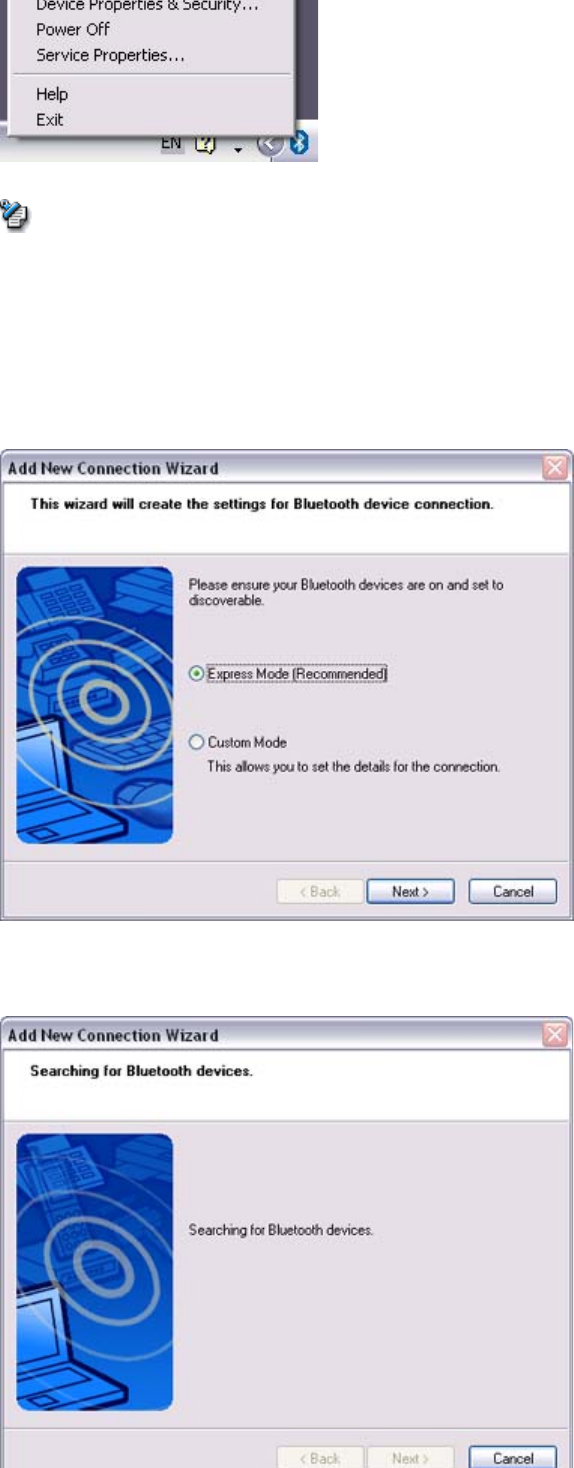

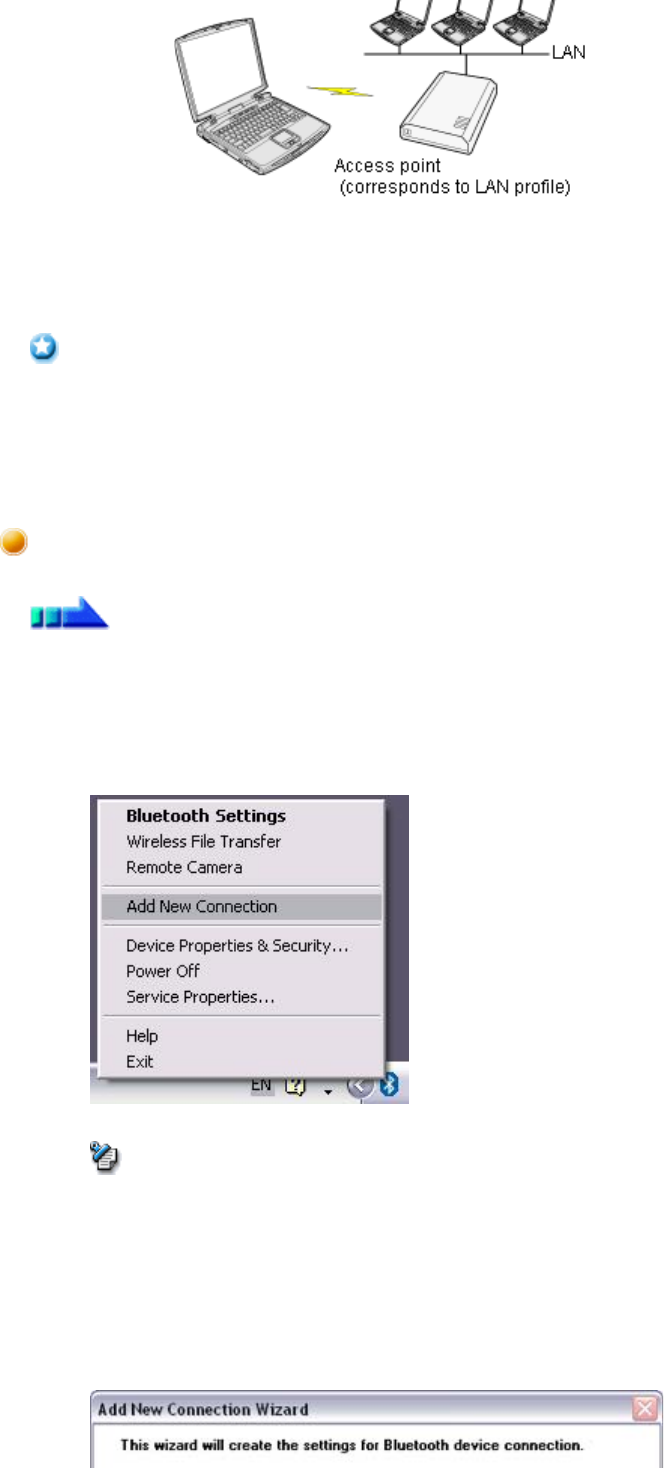

{The same result can be achieved by right-clicking on the Bluetooth icon in the
task tray and selecting [Bluetooth Settings] from the menu that appears.
Starting Bluetooth Settings
Procedure
Note
Basic settings
Express Mode Set-up
Introduction 第 12 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
The [Bluetooth Settings] window below will appear when other devices have already
been registered.
Please click the [New Connection] button to open the [Add New Connection Wizard]
window. If no devices have been registered yet, please proceed directly to "Detecting
Bluetooth Devices."
(continued in "Detecting Bluetooth Devices"...)
Next
(
...continued from
p
revious ste
p)
Detecting Bluetooth devices
Procedure
Introduction 第 13 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
(
pp)

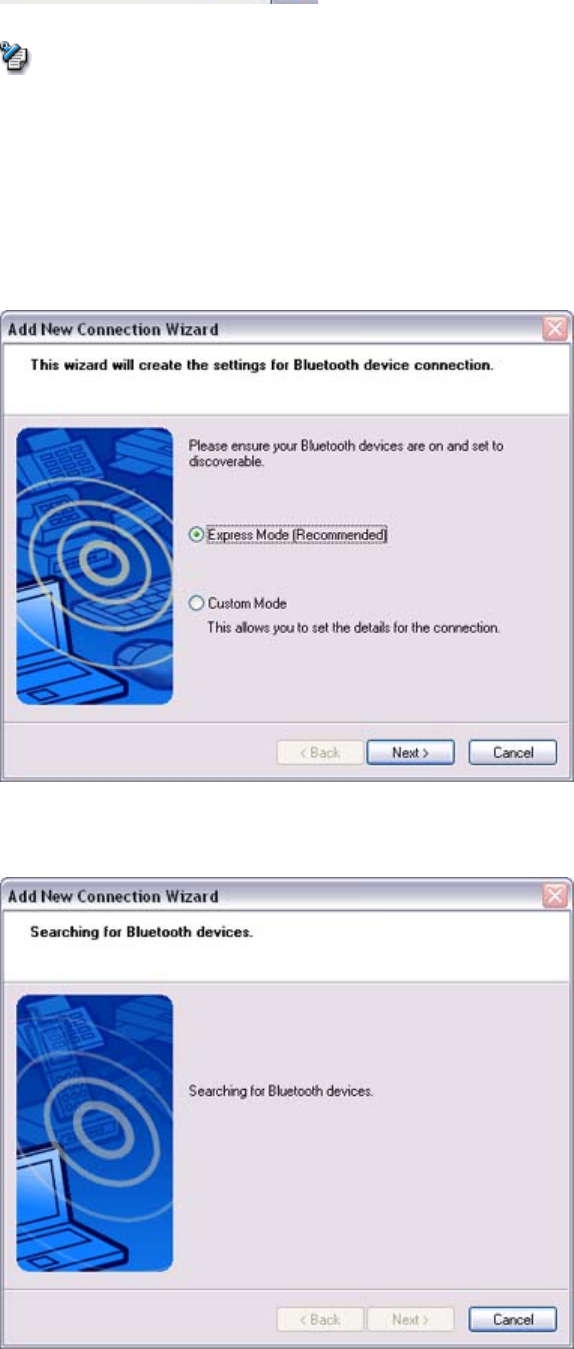

The [Add New Connection Wizard (Welcome to the Add New Connection Wizard)] window
will appear.
1. Switch the mouse power ON to make it connectable via Bluetooth.
Please refer to the mouse instruction manual for details on this procedure.

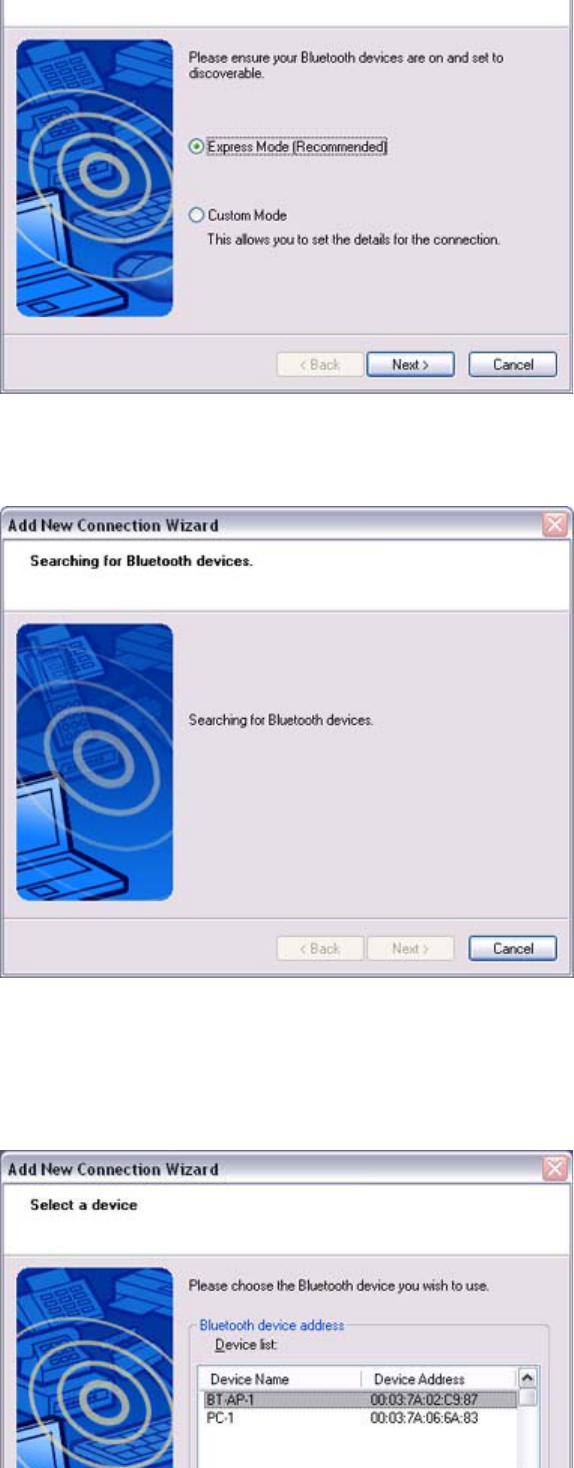

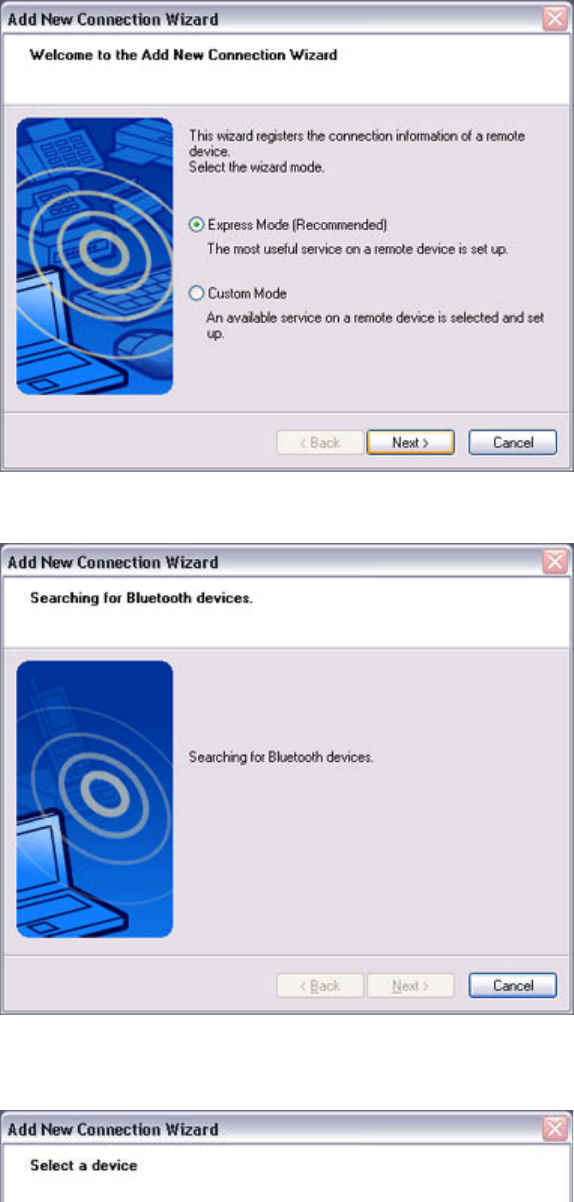

2. Confirm that [Express Mode] has been selected in the [Add New Connection Wizard
(Welcome to the Add New Connection Wizard)] window, and click on the [Next]
button.
Searching for Bluetooth devices will start.
When the mouse has been detected, the name and address of the device will appear in
the [Add New Connection Wizard (Select Device)] window.
Introduction 第 14 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{If no device is found, please confirm that the device has been made connectable
via Bluetooth, and click on the [Update] button.
A further device search will be performed.
(→ continued in [Detecting Services]...)
Next
Note
(...continued from previous step)
When the mouse has been detected, the name and address of the device will appear in the [Add
New Connection Wizard (Select Device)] window.

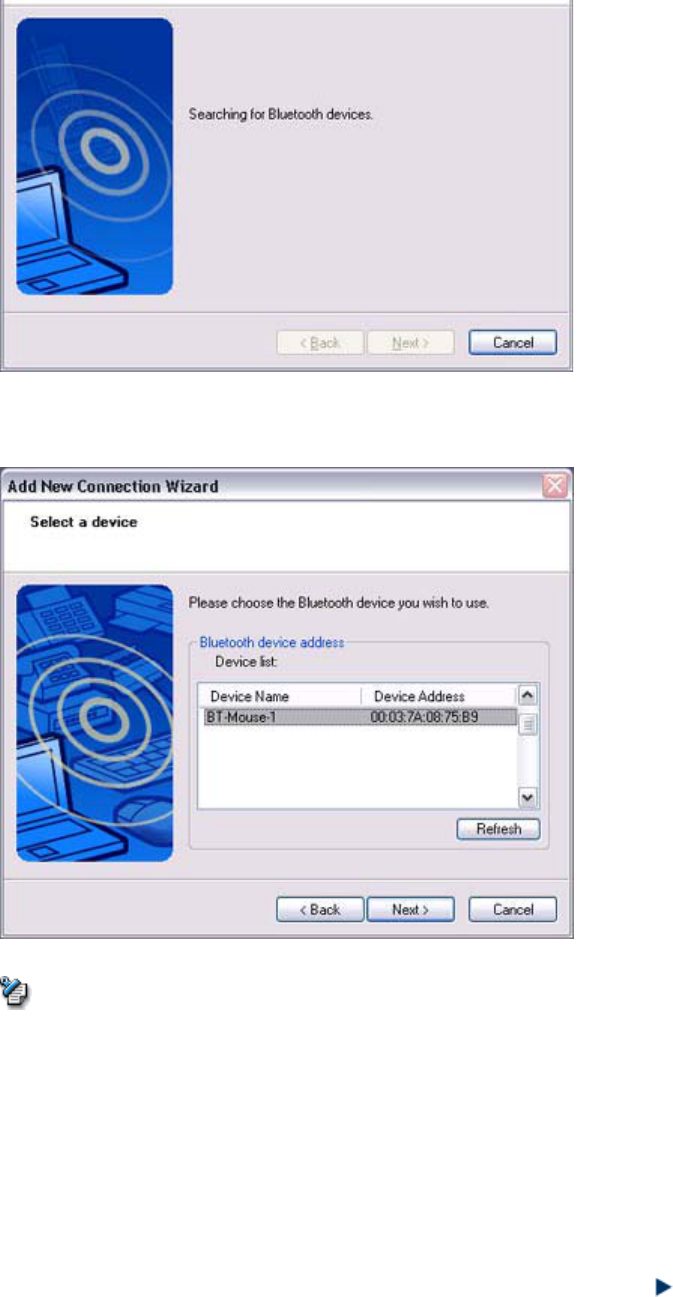

1. Select the mouse device name from [Device List] and click on the [Next] button.
Detecting services
Procedure
Introduction 第 15 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Bluetooth device detection will commence.
{If several services (profiles) are supported by the device, the service that has been
set to the highest priority shall be automatically selected and set up in Express
Mode.
Please use Custom Mode if you wish to select desired services manually.

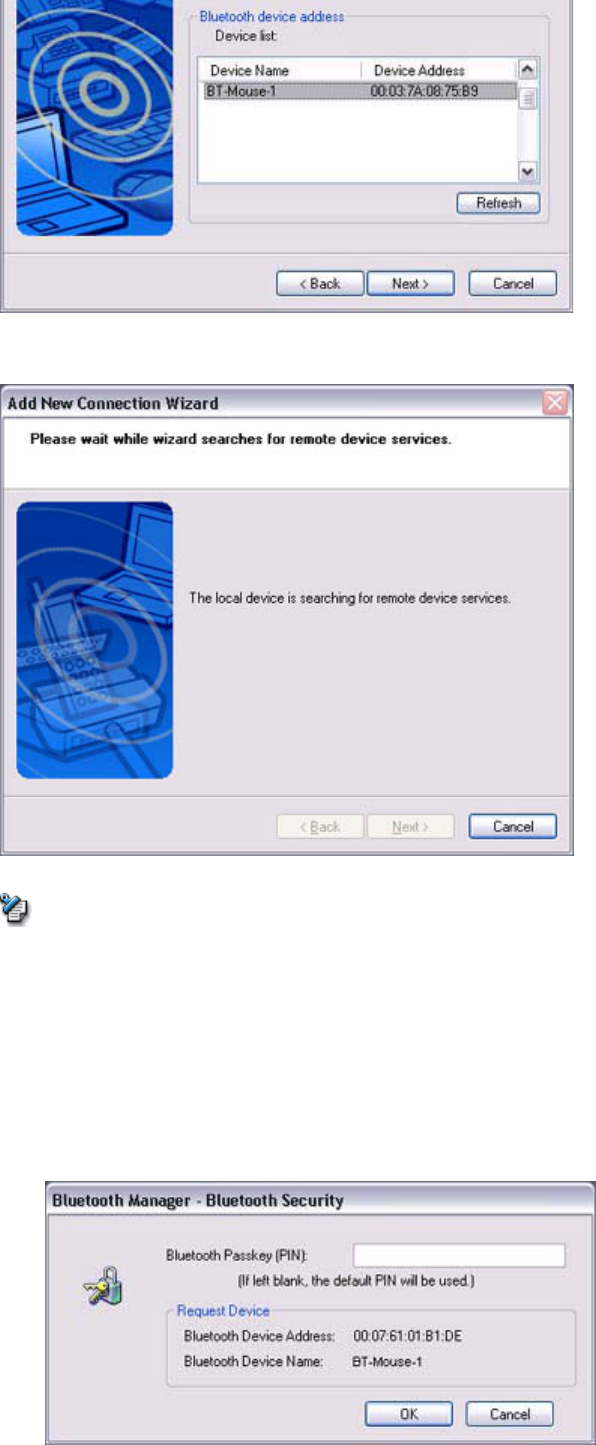

{When a service has been detected, a window prompting you to enter the Bluetooth
passkey (PIN code) may appear. Please enter the passkey and click on the [OK]
button.
Please refer to your device instruction manual for information on which passkey
to use.
{If you have not entered your Bluetooth passkey after a certain amount of time has
Note
Introduction 第 16 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
p
assed
,
the connection
p
rocess will be cancelled for securit
y
reasons. Please
perform the passkey entry process again.

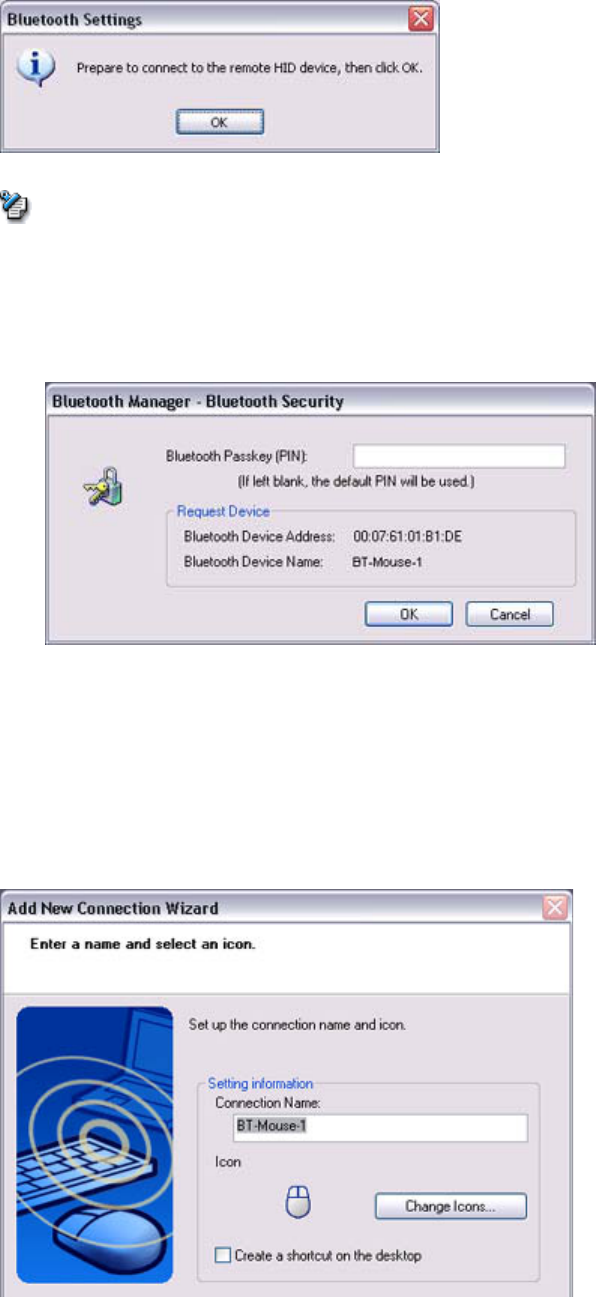

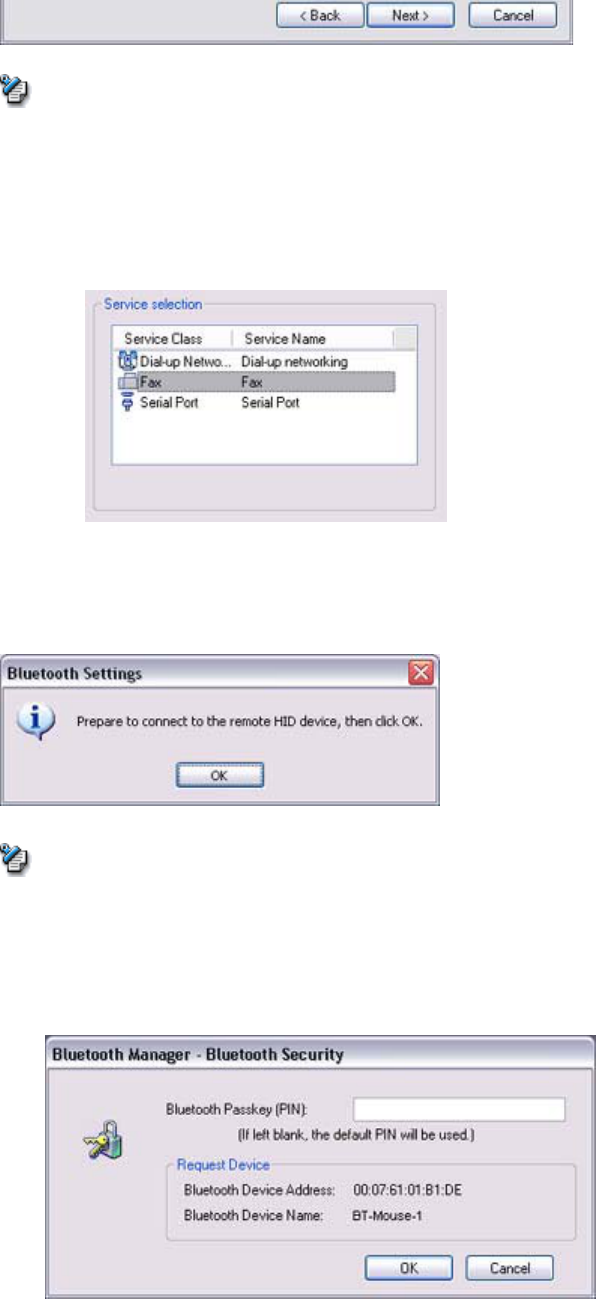

A message will appear prompting you to prepare the device for connection.
2. Click on the [OK] button
{When the settings information has been registered, a window prompting you to
enter your Bluetooth passkey (PIN code) may appear. Please enter your passkey
and click on the [OK] button.
Please refer to your device instruction manual for information on which passkey
to use.
{If you have not entered your Bluetooth passkey after a certain amount of time has
passed, the connection process will be cancelled for security reasons. Please
perform the passkey entry process again.
The [Add New Connection Wizard (Connection Name Setup)] window will appear if a
service has been properly detected.
3. Select the type and name of the icon to be displayed once the device has been
registered, and click on the [Next] button.
Note
Introduction 第 17 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30

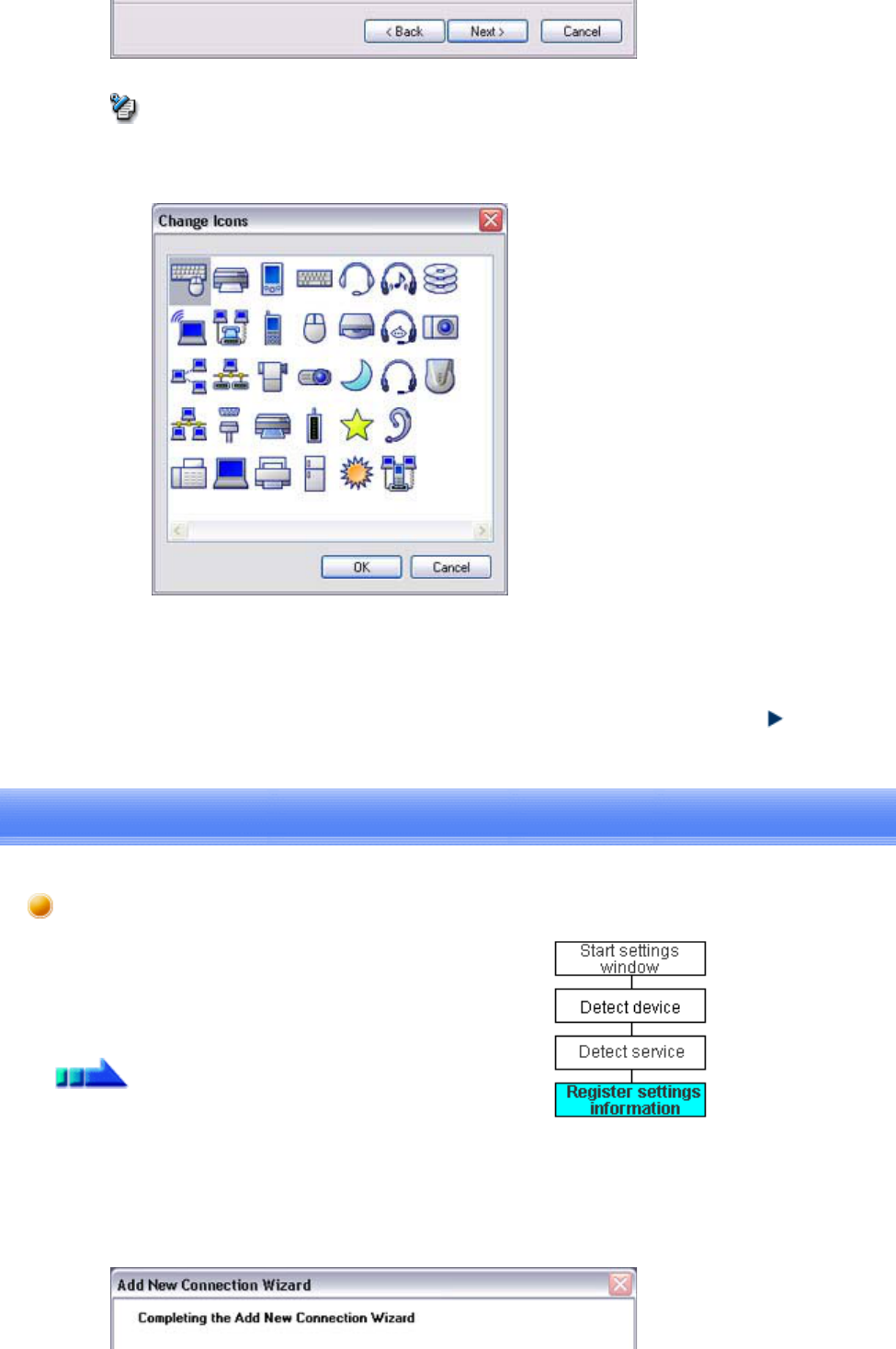

{If you wish to change the icon, please click on the [Change Icon] button and
select your preferred icon from the list that appears.
(→ continued in [Registering Settings Information]...)
Note
Next
(...continued from previous step)

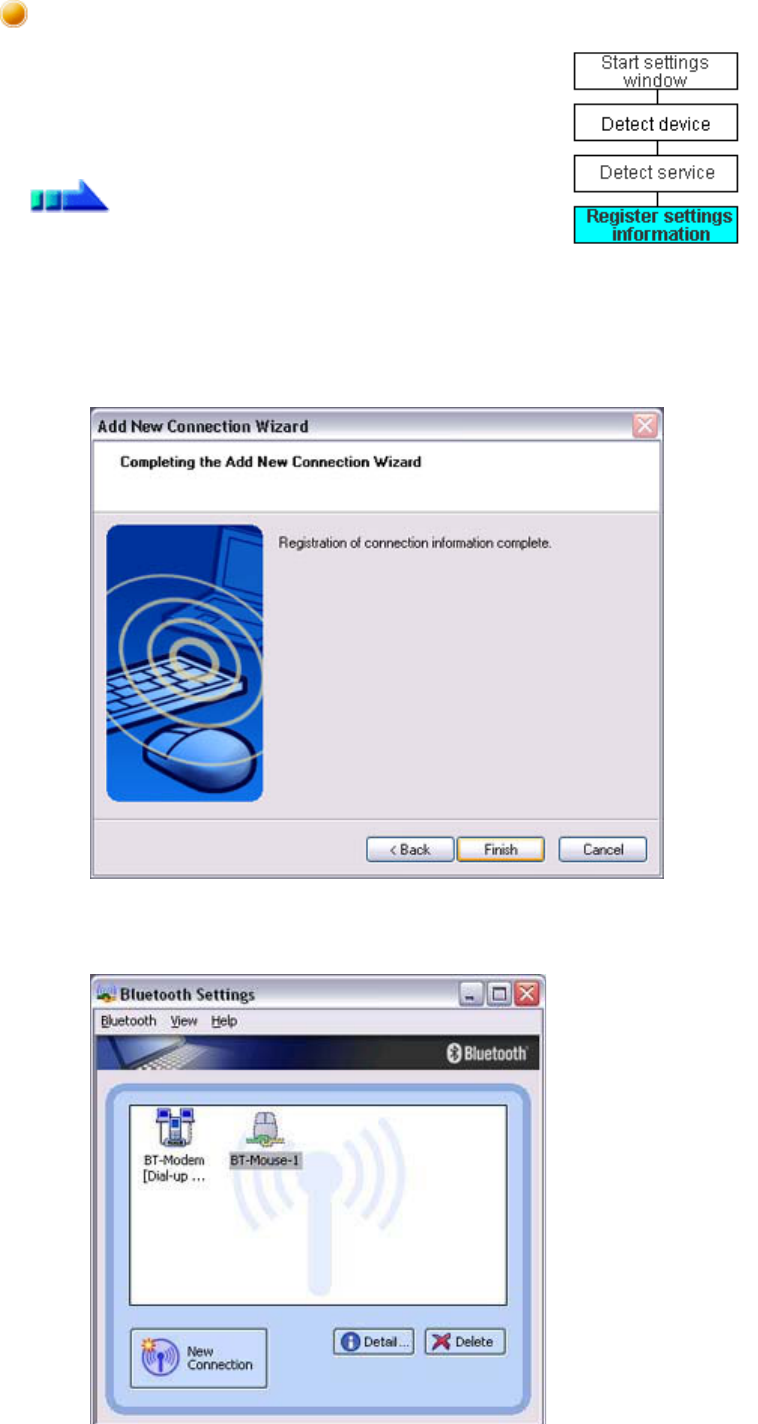

The [Add New Connection Wizard (Completing the Add New Connection Wizard)] window
will appear.
1. Click on the [Finish] button
Registering settings information
Procedure
Introduction 第 18 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30

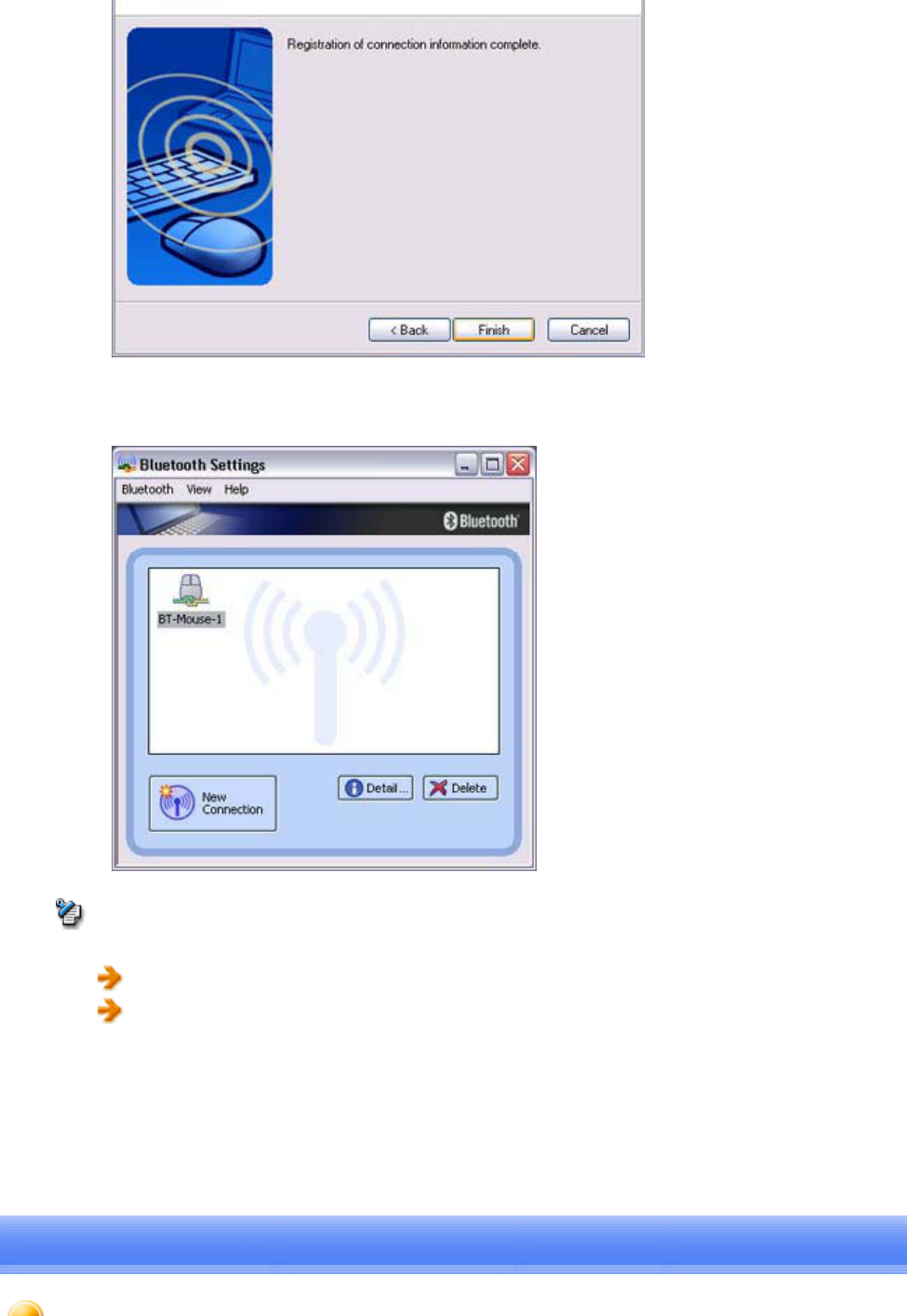

The [Bluetooth Settings] window will appear.

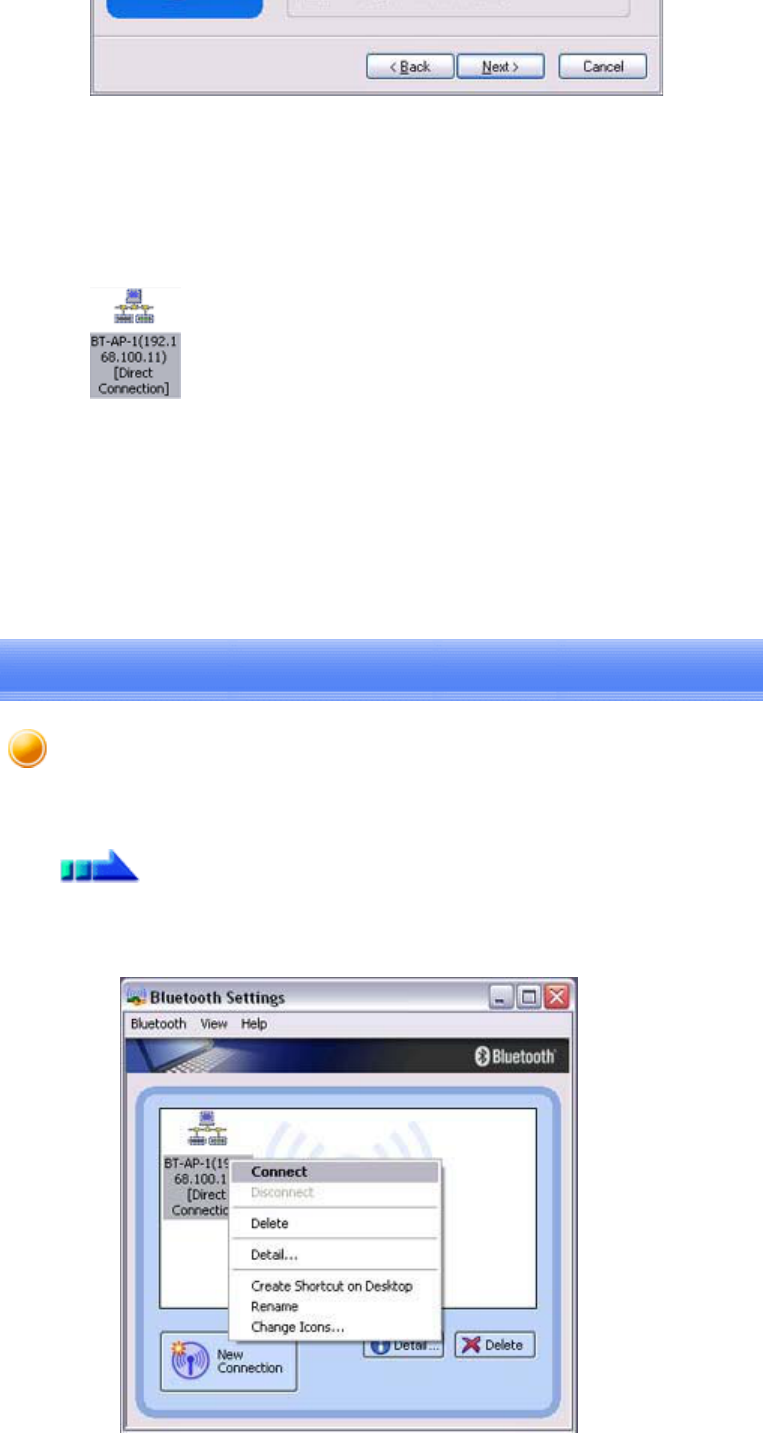

The icons of the registered devices will appear, and the devices will be ready to use.
zThe connection icons and icon names can be changed.
Changing a connection icon name
Changing a connection icon
Note
Custom Mode Set
up
Introduction 第 19 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
The procedure for setting up the device using Custom Mode shall now be described.
1. Click [Start]→[All Programs]→[Bluetooth]→[Bluetooth Settings].
(Under Windows 2000, click [Start]→[Programs]→[Bluetooth]→[Bluetooth
Settings].）
{The same result can be achieved by right-clicking on the Bluetooth icon in the
task tray and selecting [Bluetooth Settings] from the menu that appears.
The [Bluetooth Settings] window below will appear when other devices have already
been registered.
Please click the [New Connection] button to open the [Add New Connection Wizard]
window If no devices have been registered yet please proceed directly to
"
Detecting
Starting Bluetooth Settings
Procedure
Note
Custom
Mode
Set
-
up
Introduction 第 20 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
window
.
If
no
devices
have
been
registered
yet,
please
proceed
directly
to
Detecting
Bluetooth Devices".
(continued in "Detecting Bluetooth Devices"...)
Next
(...continued from previous step)

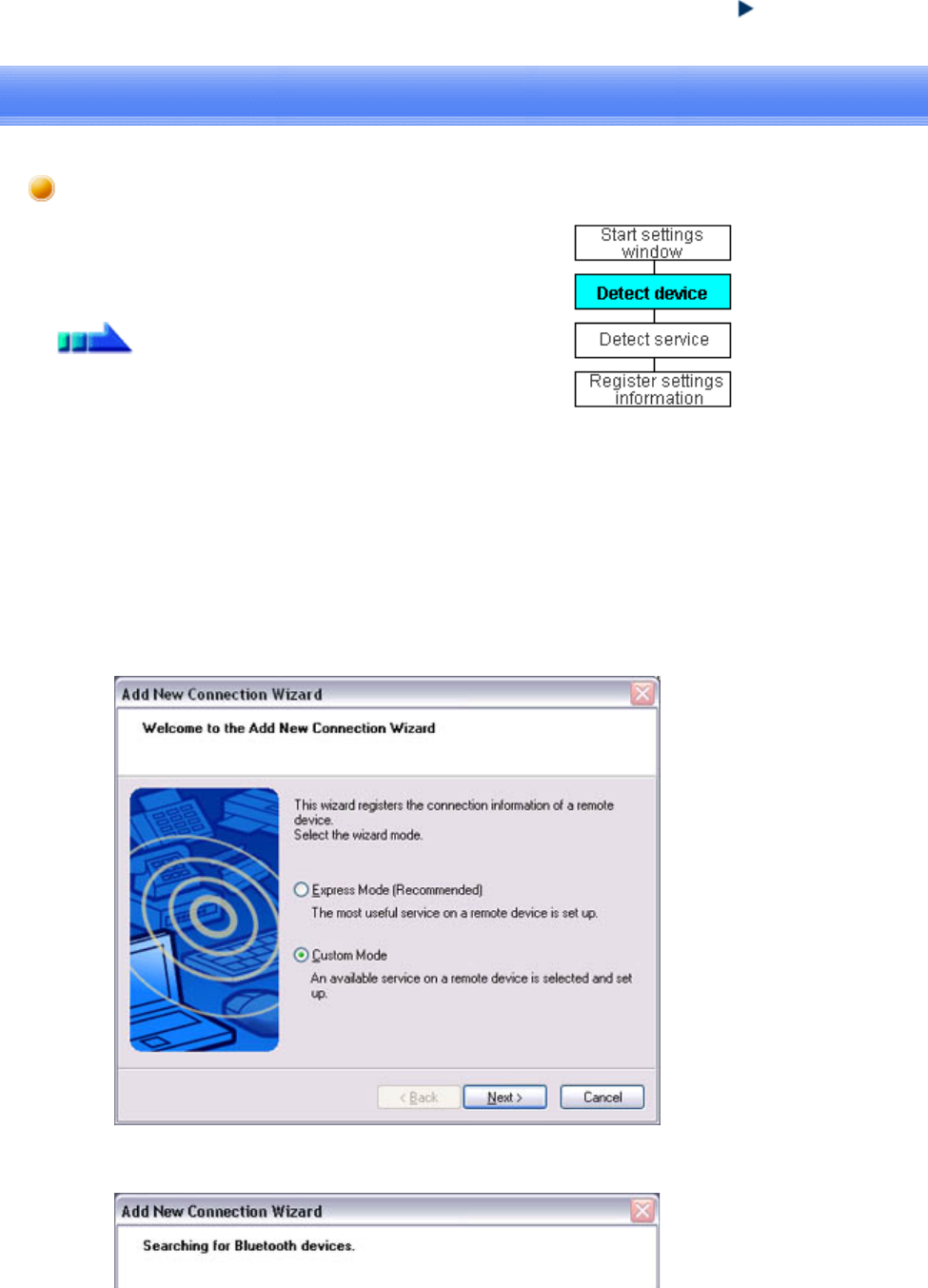

The [Add New Connection Wizard (Welcome to the Add New Connection Wizard)] window
will appear.
1. Switch the mouse power ON to make it connectable via Bluetooth.
Please refer to the mouse instruction manual for details on this procedure.
2. Confirm that [Custom Mode] has been selected in the [Add New Connection Wizard
(Welcome to the Add New Connection Wizard)] window, and click on the [Next]
button.
Searching for Bluetooth devices will start.
Detecting Bluetooth devices
Procedure
Introduction 第 21 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
When the mouse has been detected, the name and address of the device will appear in
the [Add New Connection Wizard (Select Device)] window.
{If no device is found, please confirm that the device has been made connectable
via Bluetooth, and click on the [Update] button.
A further device search will be performed.
(→ continued in [Detecting Services]...)
Next
Note
Introduction 第 22 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
(...continued from previous step)

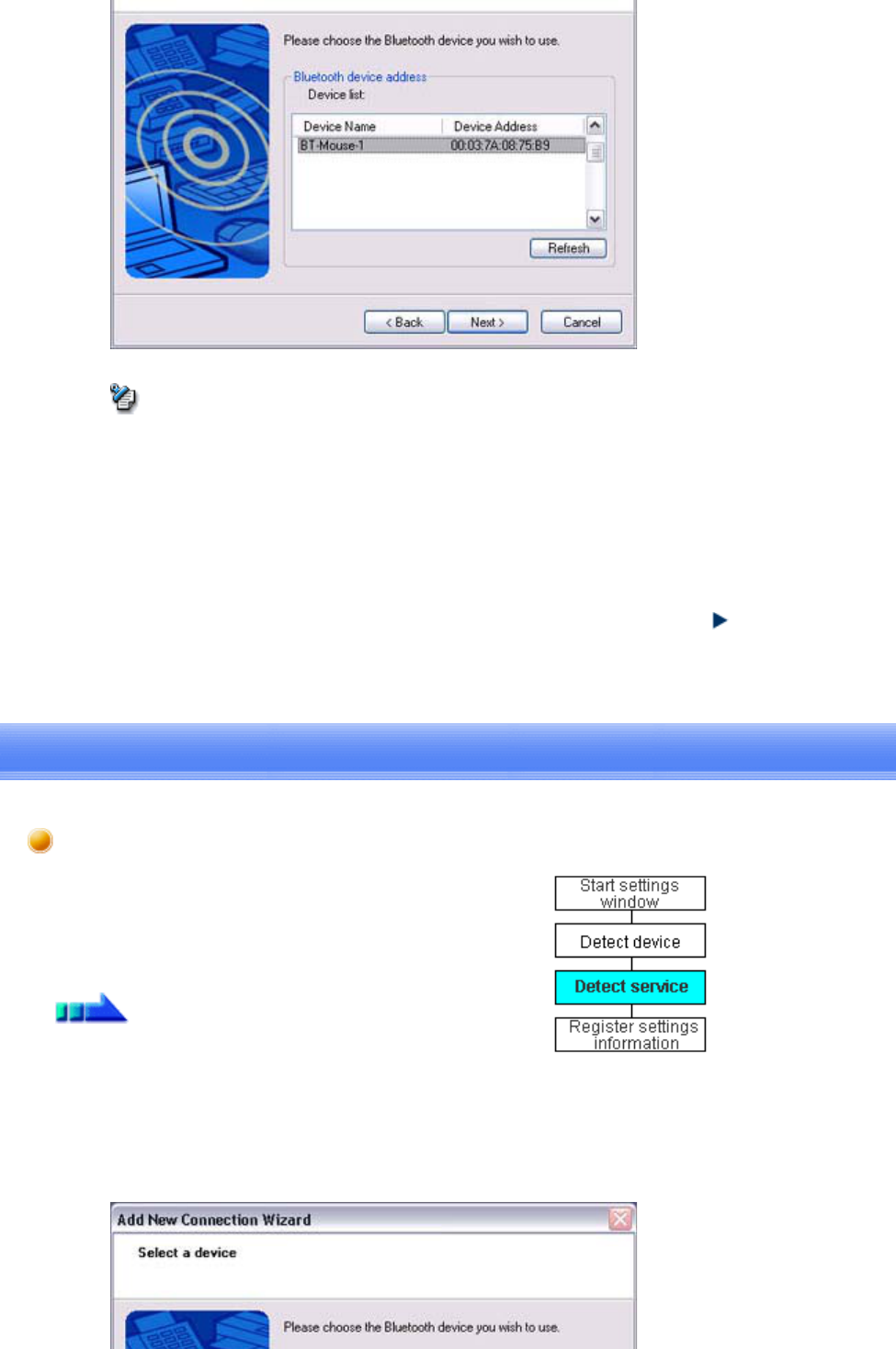

When the mouse has been detected, the name and address of the device will appear in the [Add
New Connection Wizard (Select Device)] window.

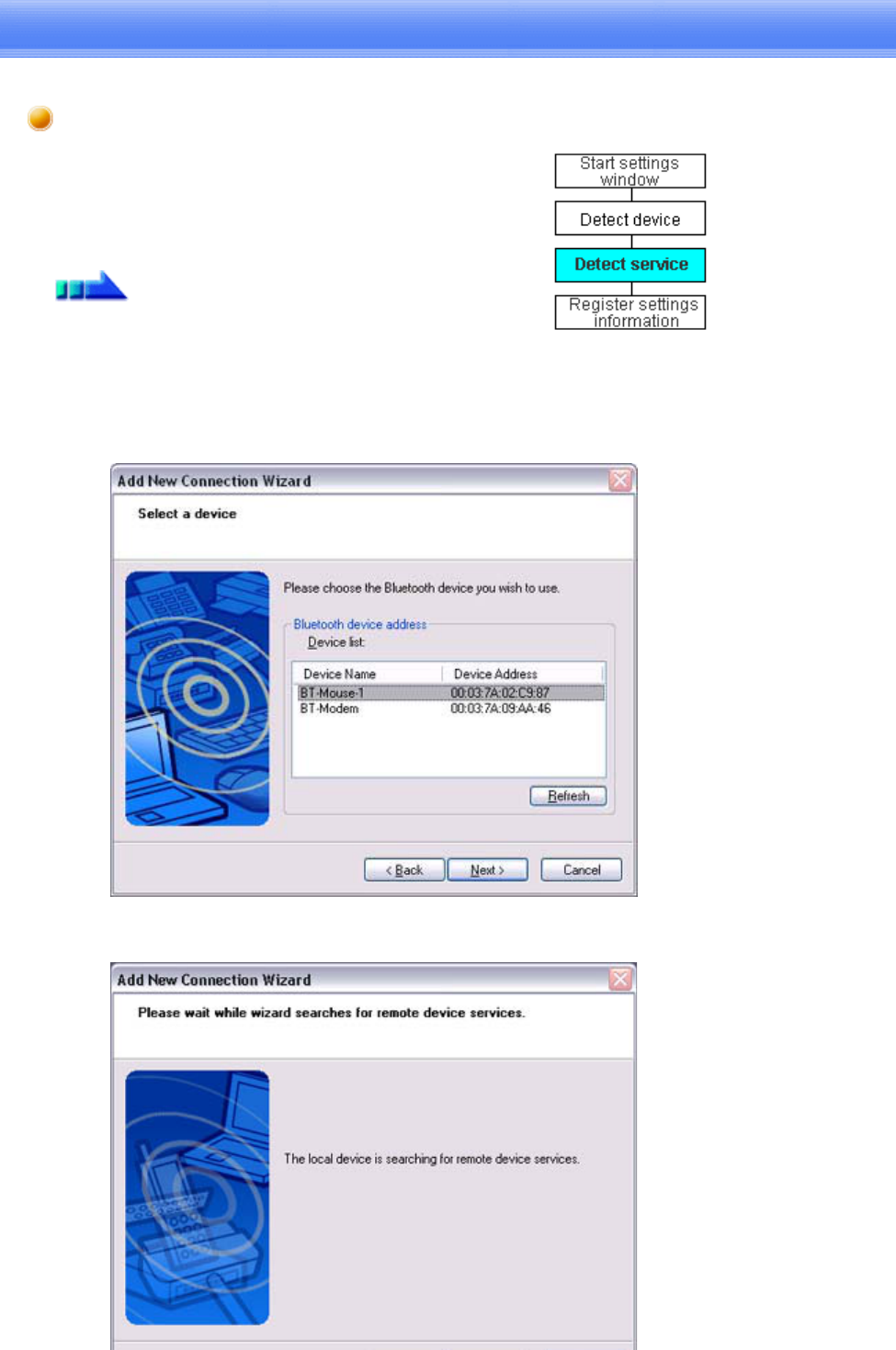

1. Select the mouse device name from [Device List] and click on the [Next] button
Bluetooth device detection will commence.
Detecting services
Procedure
Introduction 第 23 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{When a service has been detected
,
a window
p
rom
p
tin
g
y
ou to enter the Bluetoot
h
passkey (PIN code) may appear. Please enter the passkey and click on the [OK]
button.
Please refer to your device instruction manual for information on which passkey
to use.
{If you have not entered your Bluetooth passkey after a certain amount of time has
passed, the connection process will be cancelled for security reasons. Please
perform the passkey entry process again.

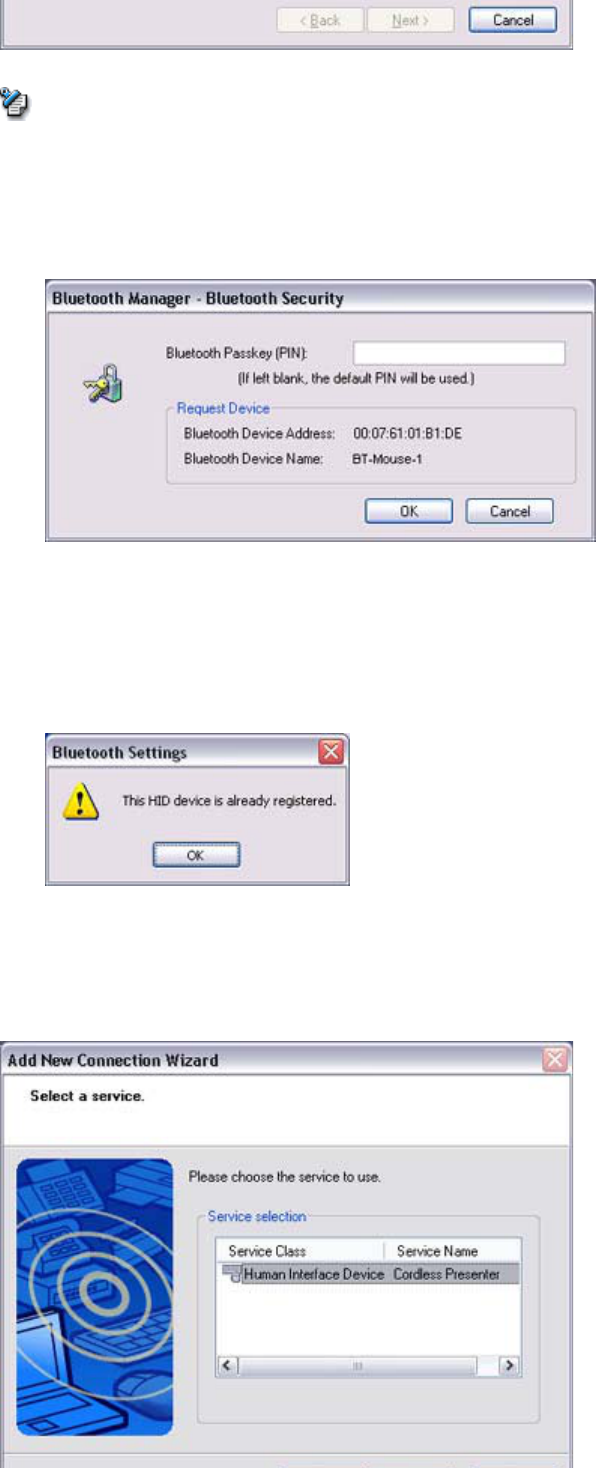

{If you try to register a device that has already been registered, the following
message will appear, and you will not be able to proceed with further operation.
Please click on the [OK] button to close the message.
The services supported by the device will be displayed.
2. Select the desired service and click on the [Next] button
Note
Introduction 第 24 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{When a device supports several services
If the device supports several services, you can use Custom Mode to manually
select the services (profiles) you wish to use from the list that appears under
[Select Services].
Example: List of wireless modem station services
If Express Mode is used to perform the set-up, the highest-priority service in the
device will be automatically selected and configured.
3. Click on the [OK] button.
{When the settings information has been registered, a window prompting you to
enter the Bluetooth passkey (PIN code) may appear. Please enter the passkey and
click on the [OK] button.
Please refer to your device instruction manual for information on which passkey
to use.
{If you have not entered your Bluetooth passkey after a certain amount of time has
passed, the connection process will be cancelled for security reasons. Please
perform the passkey entry process again.
The [Add New Connection Wizard (Connection Name Setup)] window will appear if a
service has been properly detected.
Note
Note
Introduction 第 25 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
4. Select the type and name of the icon to be displayed once the device has been
registered, and click on the [Next] button.
{If you wish to change the icon, please click on the [Change Icon] button and
select your preferred icon from the list that appears.
(→ continued in [Registering Settings Information]...)
Next
Note
Introduction 第 26 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
(...continued from previous step)
The [Add New Connection Wizard (Completing the Add New Connection Wizard)] window
will appear.
1. Click on the [Finish] button
The [Bluetooth Settings] window will appear.
The icons of the registered devices will appear, and the devices will be ready to use.
Registering settings information
Procedure
Introduction 第 27 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{The connection icons and icon names can be changed.
Changing a connection icon name
Changing a connection icon
Note

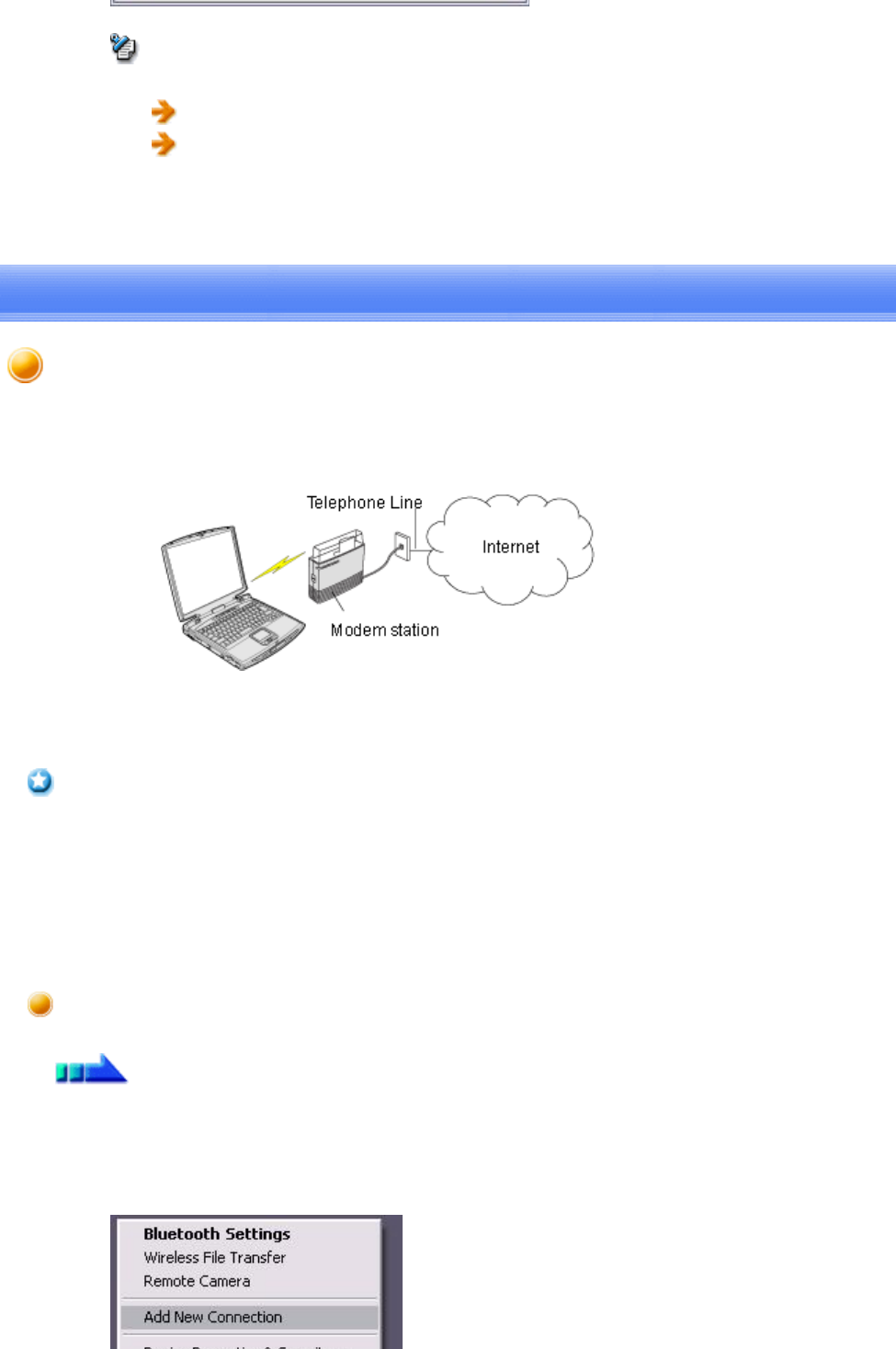

You can use a Bluetooth wireless modem to connect to the Internet via a telephone line.
→Setting up the modem station
→Connecting to the Internet
zIn order to connect to the Internet, you must have already signed up with a provider and
obtained a connection ID and password. Please ensure you have confirmed the ID, password
and telephone number of your provider's access point before you begin the set-up process.
zPlease refer to your instruction manual for information on connecting the modem station to a
telephone line.
zA Bluetooth passkey (PIN code) is required for you to connect to the modem station. Please
make a note of your Bluetooth passkey before you start the set-up process.
1. Turn on the wireless modem station

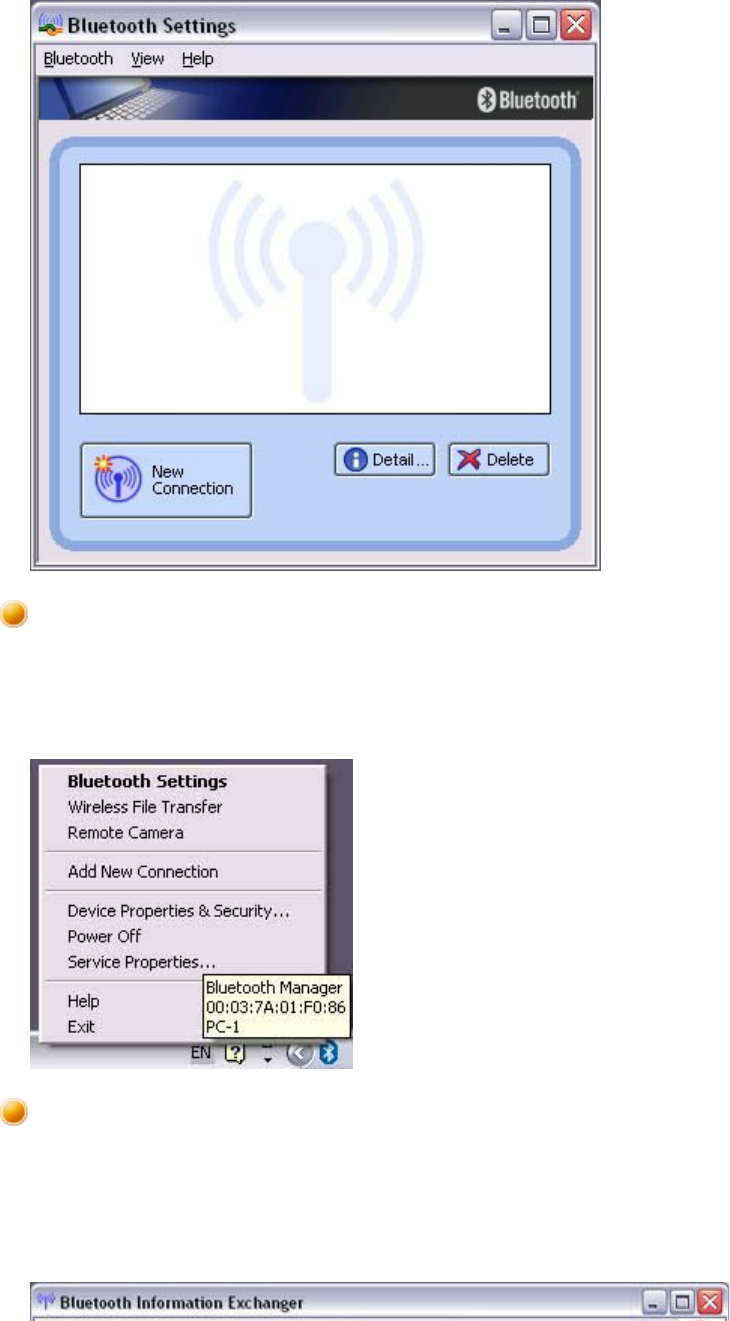

2. Right-click the Bluetooth icon in the task tray, and then click on [Add New
Connection]
Important
Setting up the modem station
Procedure
Connecting to the Internet using a modem station [DUN]
Introduction 第 28 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{Alternatively, click [Start]→[All Programs]→[Bluetooth]→[Bluetooth Settings],
and then click on
[
New Connection
]
from the active
[
Bluetooth Settin
g
s
]
window.
The [Add New Connection Wizard (Welcome to the Add New Connection Wizard)]
window will appear.
3. Confirm that [Express Mode] has been selected, and then click on the [Next] button
The [Add New Connection Wizard (Searching for Bluetooth devices)] window will
appear.
Note
Introduction 第 29 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30

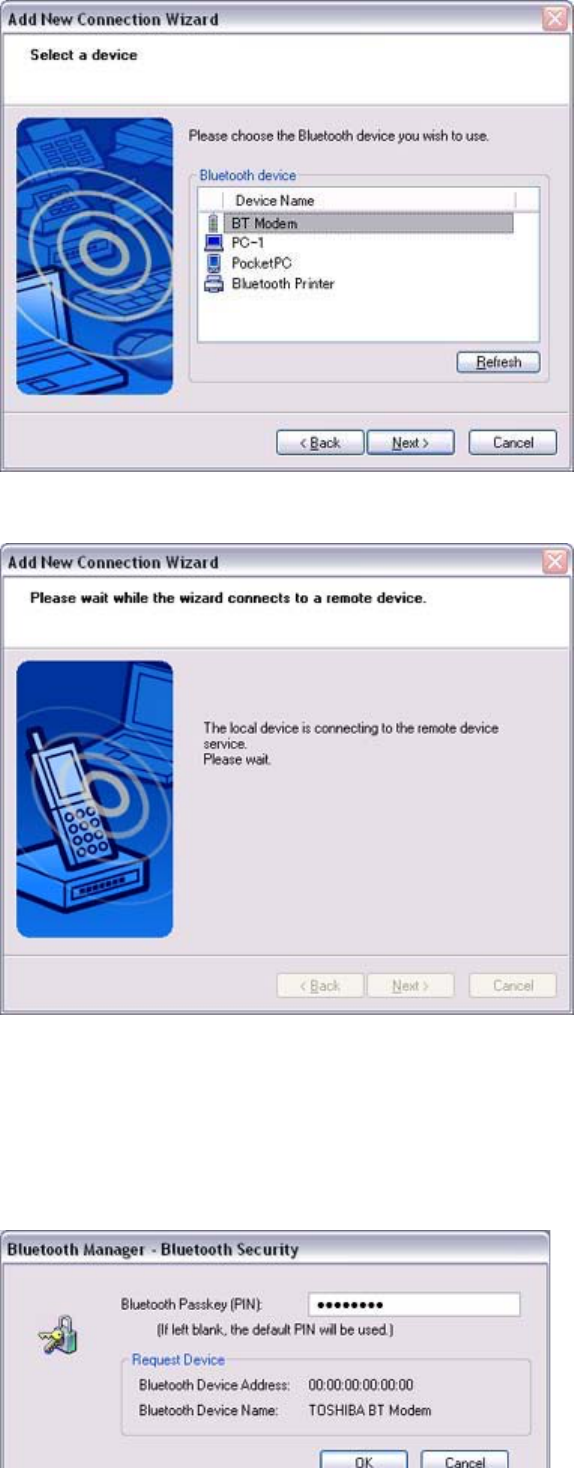

4. Select the device name of the wireless modem station from [Device List], and then
click on the [Next] button

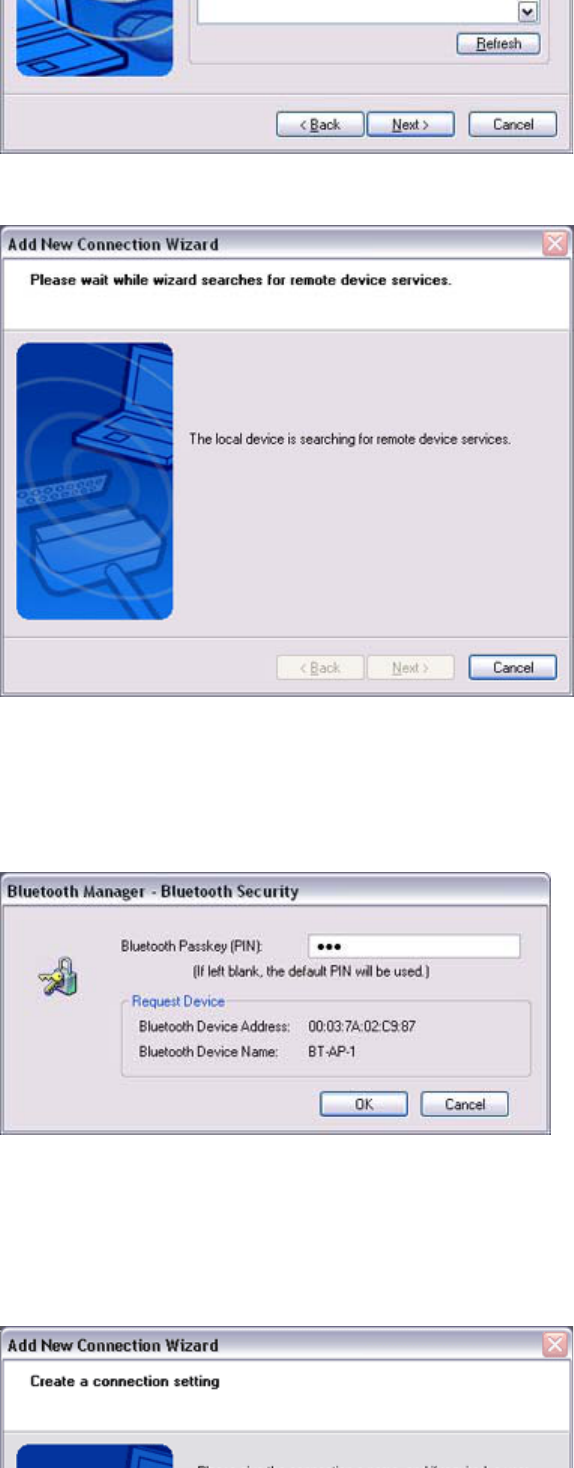

The [Add New Connection Wizard (Searching for Services)] window will appear.
Once a service has been detected successfully, connection to the device and COM port
creation will be
p
erformed automaticall
y,
after which the
[
Add New Connection Wizard
(Modem Settings)] window will appear.
5. If you are connecting to a wireless modem station for the first time, enter the passkey
for the modem station under [Bluetooth Passkey (PIN code)], and then click on the
[OK] button
Introduction 第 30 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Once the program has finished searching for the devices, the [Add New Connection
Wizard (Device Selection)] window will appear.
6. Click on the [Next] button

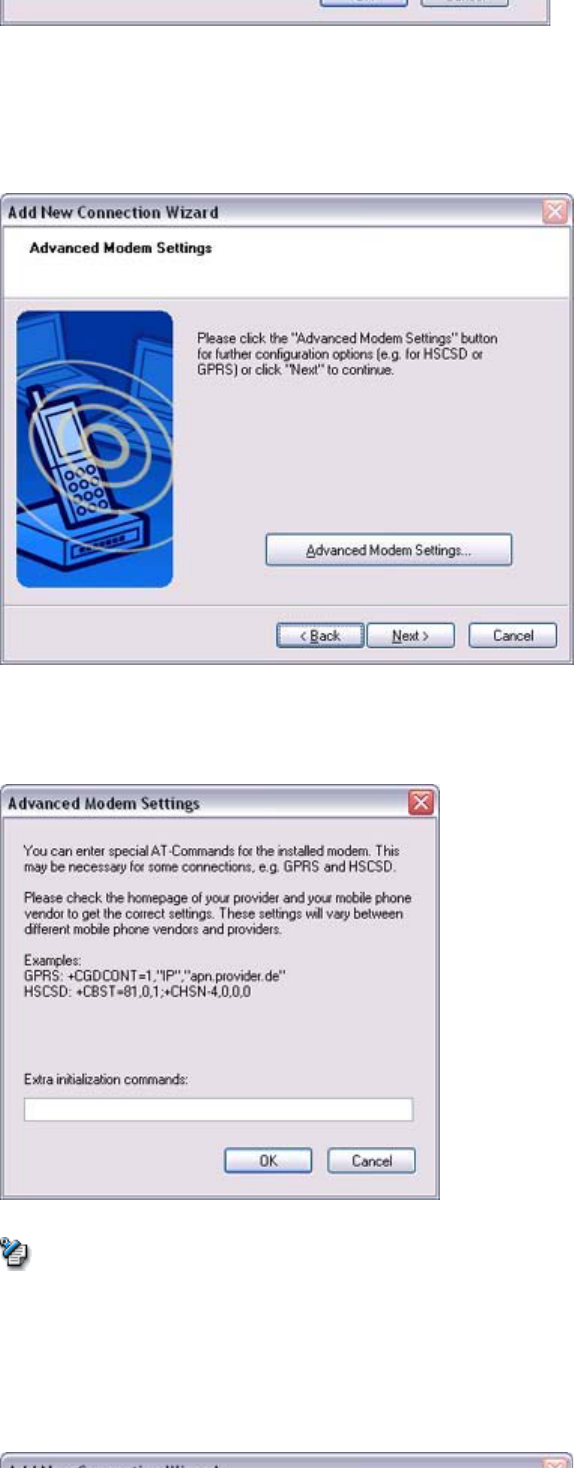

Certain modems require you to configure initialization commands separately.
Please click on the [Additional initialization Command Settings] button, enter the
initialization commands in the following window, and then click on the [OK] button.
{Please refer to the modem or mobile phone instruction manual for further details
on the initialization commands.
Note
Introduction 第 31 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30

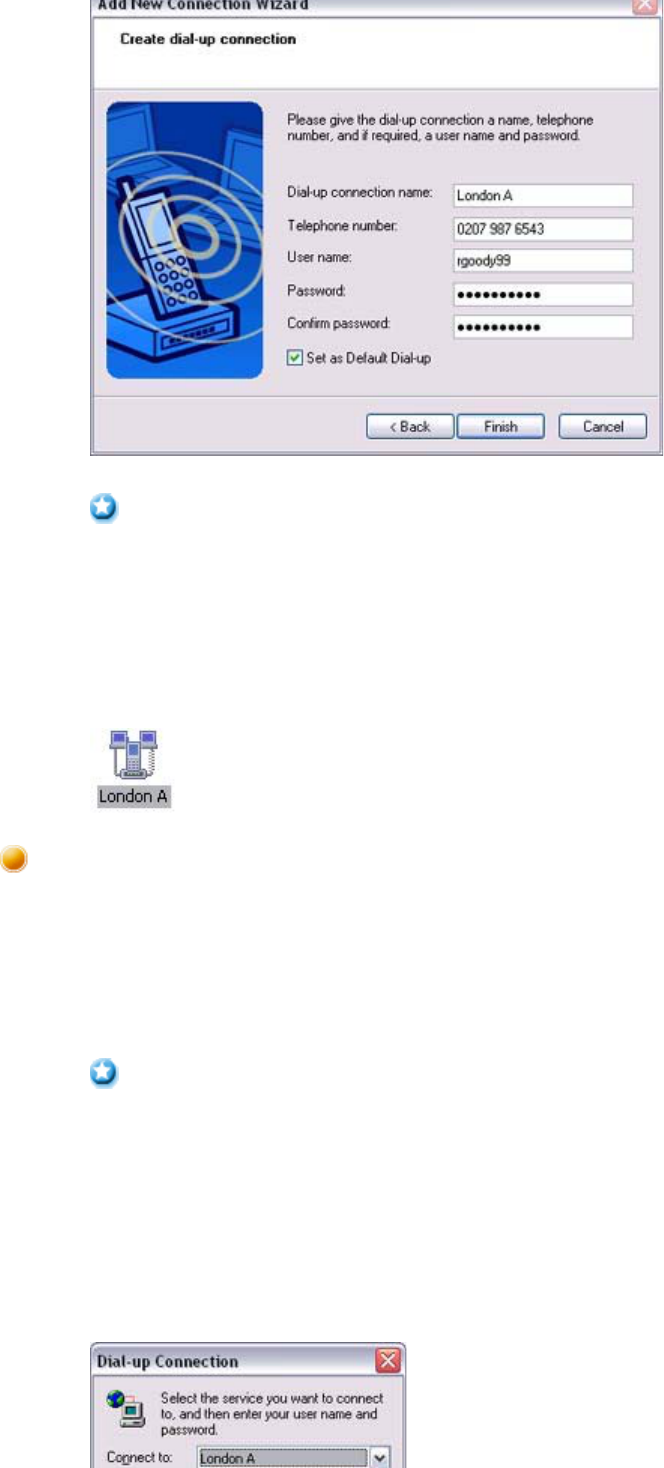

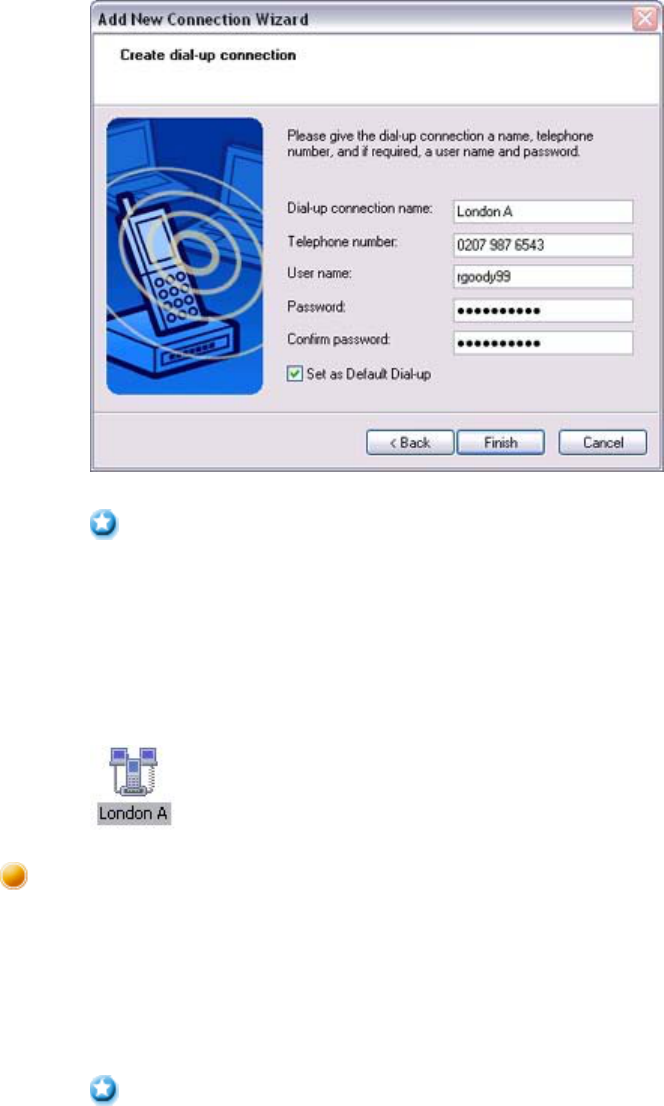

7. Enter the connection name (optional), telephone number (of your provider's access
point), user name and password (as issued by your provider), and then click on the
[Finish] button.
{The sample entries shown in the window are provided solely for purpose of
explanation. Please use your own telephone number, ID and password according
to the arrangement with your provider.

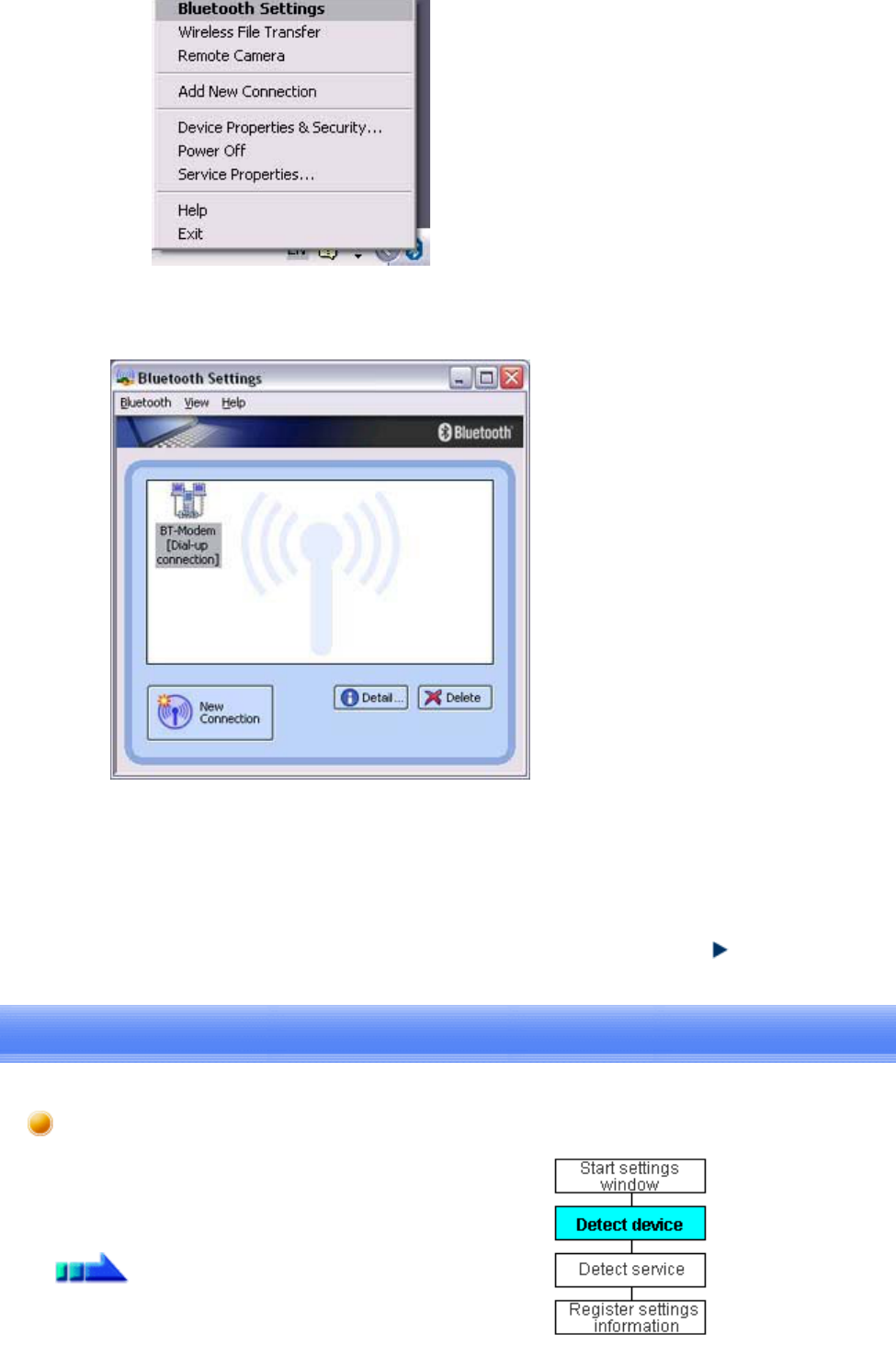

The settings will be registered, and an icon will appear in the [Bluetooth Settings]
window.
You can connect to the Internet by following the procedure below if the connection destination
registered when you configured the wireless modem has been set as the default connection
destination.
1. Start your browser, e-mail application or other application
{Please enter the e-mail settings separately if you are going to use e-mail (the set-
up method will vary with the application).
2. Enter the URL of the Web page you wish to display and then press the [Enter] key, or
use the e-mail tool to send/receive items or perform other activities.
The [Dial-up Connection] window will appear.
3. Click on the [Connect] button
Important
Connecting to the Internet
Important
Introduction 第 32 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{A connection will be automatically established with the modem station if COM
Auto Connect is available. If COM Auto Connect is not available, please
manually connect to the modem station.

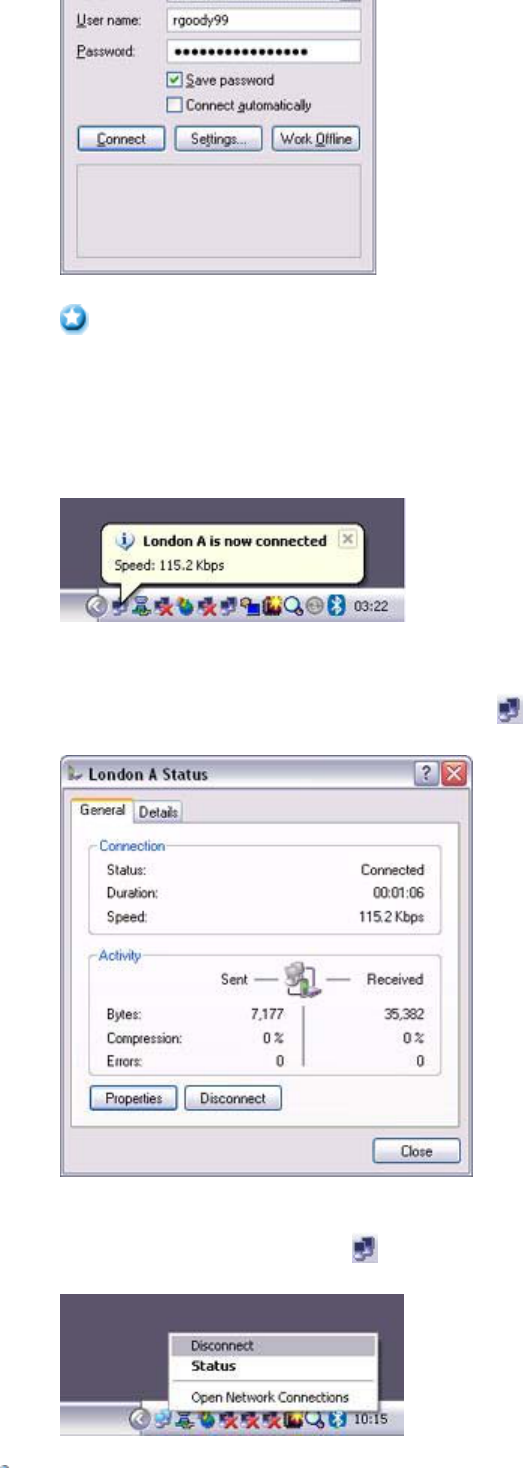

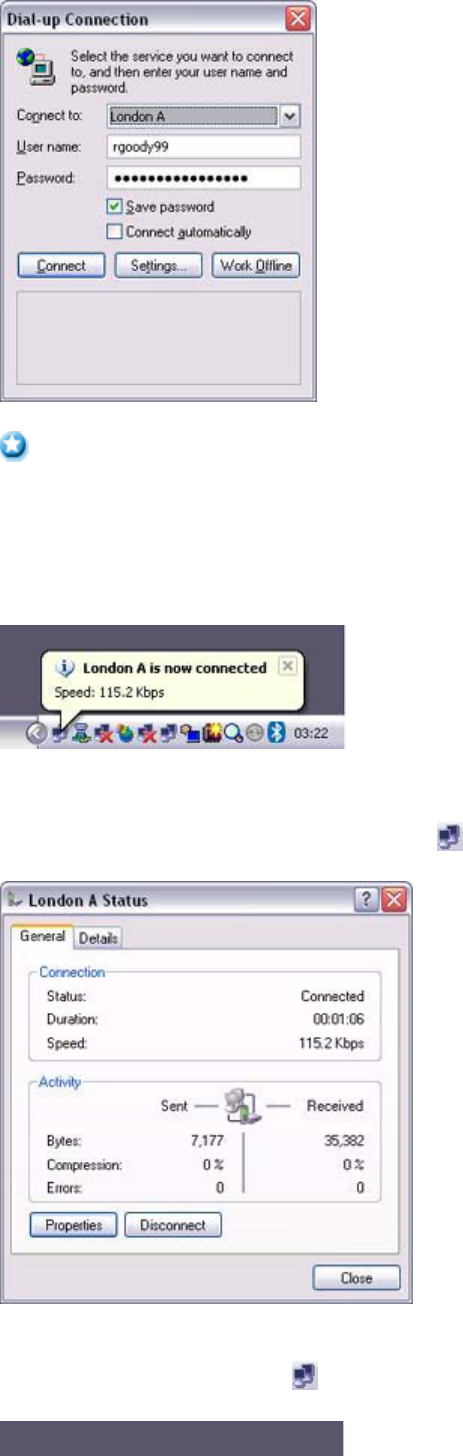

The following message will appear once you have connected to the Internet.
4. End the connection
The window below will appear if you double-click on the icon in the task bar.
Please click on the [Disconnect] button when you want to disconnect from the Internet.
Alternatively, please right-click on the icon, and then click on [Disconnect].
Important
Introduction 第 33 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
zYou can start an application to make an automatic connection to the Internet, but you can
also make a manual connection using the connection destination icon.
The procedure is described below.

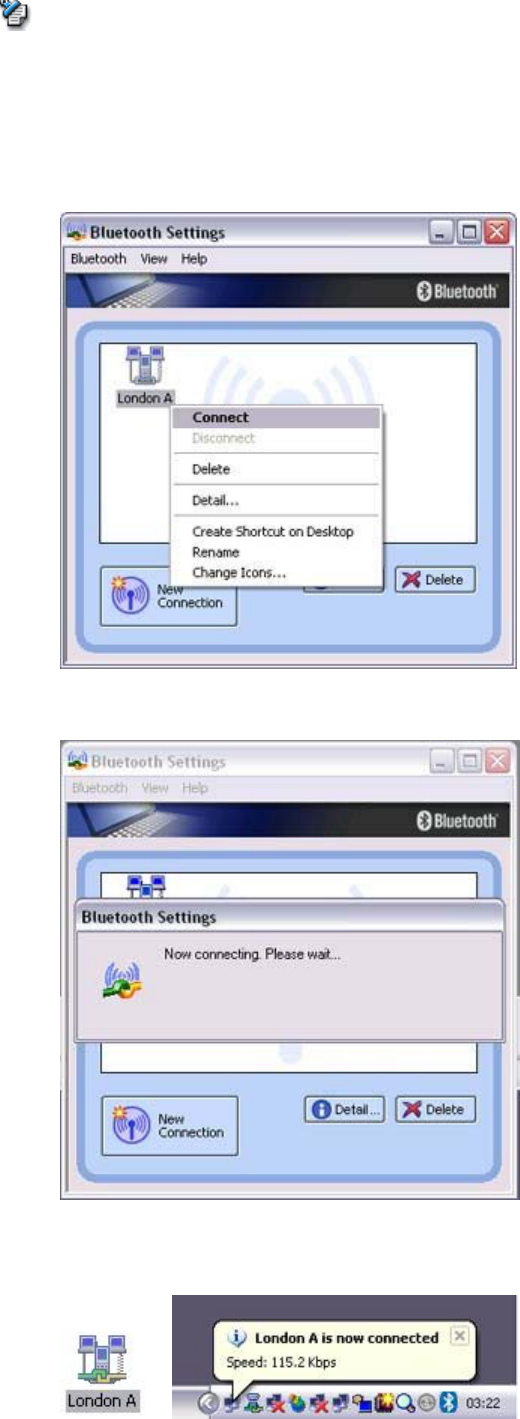

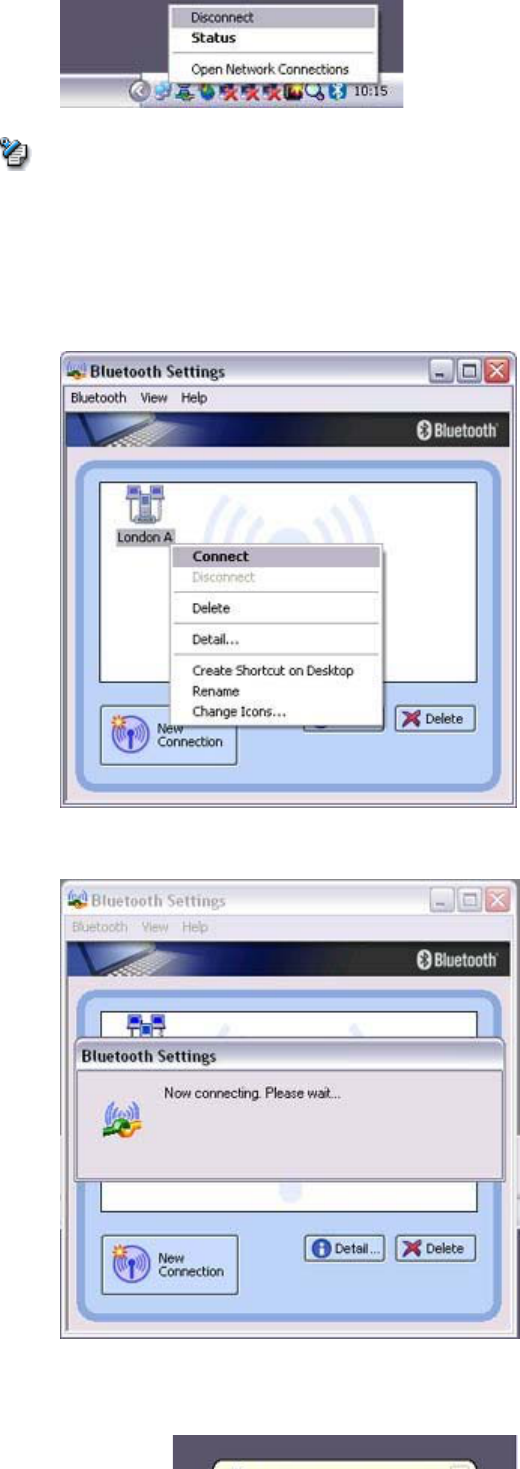

1. From the [Bluetooth Settings] window, right -click on the connection destination icon,
and then click on [Connect] from the menu that appears
A window indicating that the connection is being established will appear.
If the connection has been established successfully, the connection icon and task tray
will appear as shown below.
Note
Introduction 第 34 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
You will be able to browse Web pages using your browser and send and receive e-
mail.
{Please enter the e-mail settings separately if you are going to use e-mail (the set-
up method will vary with the application).

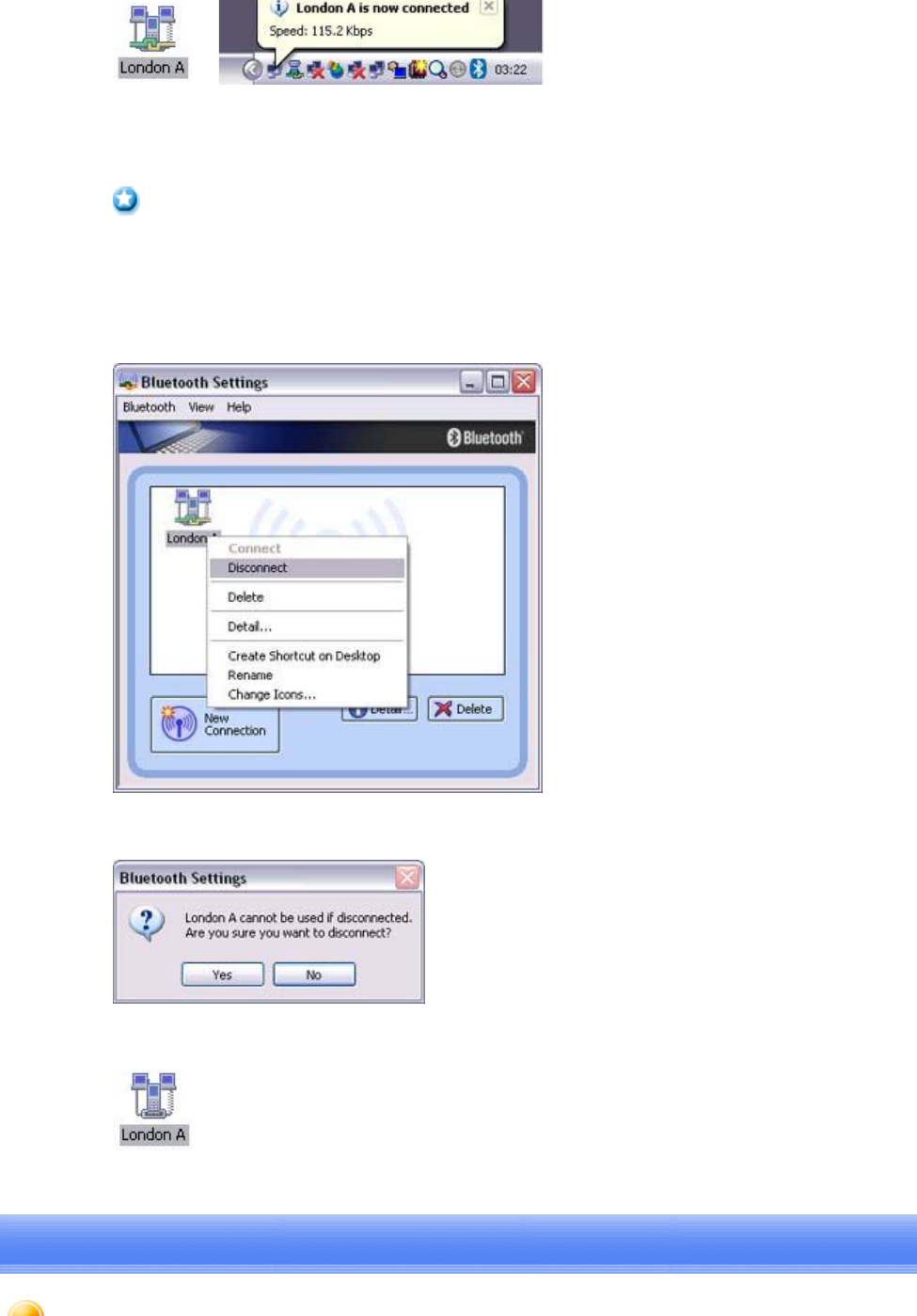

2. End the connection
Right-click on the icon, and then click [Disconnect] to end the connection.
The following message will appear. Click on the [Yes] button.
When the icon appears as shown below, the connection will have ended.
Important
Connecting to the Internet using a mobile telephone
[DUN]
Introduction 第 35 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30

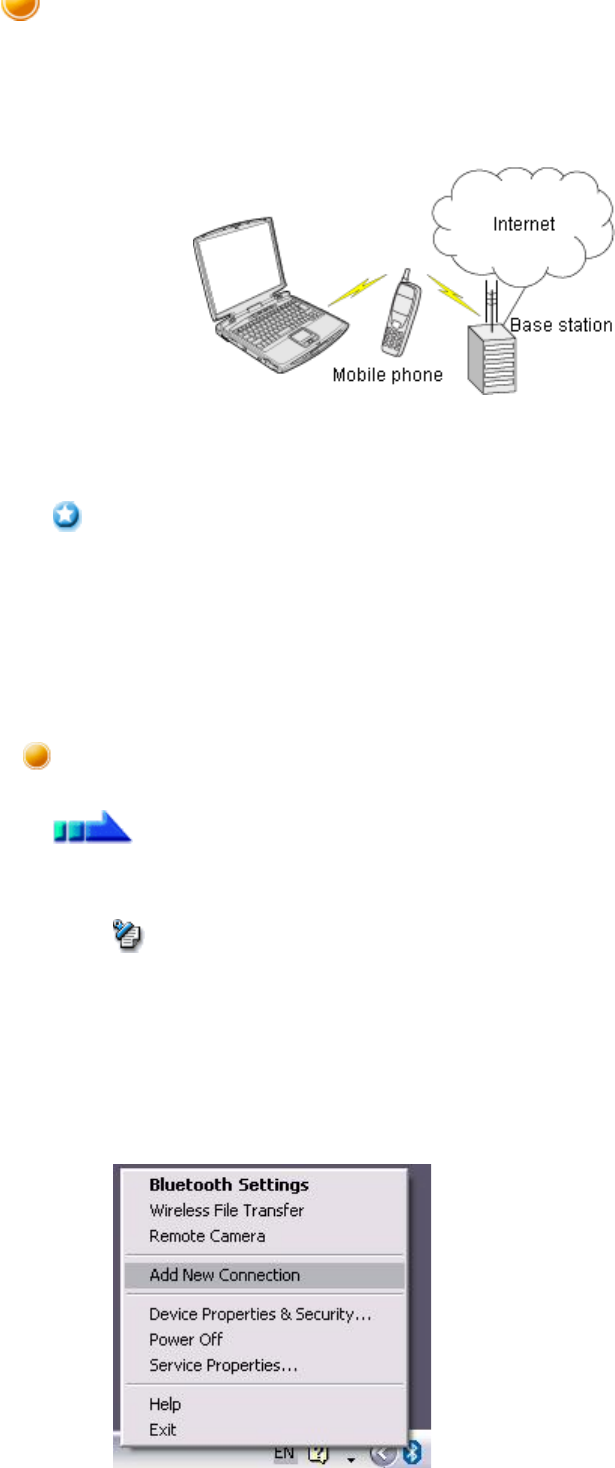

This section describes how to connect to the Internet via a telephone line, using a mobile
telephone.
→Configuring a mobile telephone for use as a modem
→Connecting to the Internet
zIn order to connect to the Internet, you must have already signed up with a provider and
obtained a connection ID and password. Please ensure you have confirmed the ID,
password and telephone number of your provider's access point before you begin the set-
up process.
zA Bluetooth passkey (PIN code) is required for you to connect to the mobile telephone.
Please make a note of your Bluetooth passkey before you start the set-up process.
1. Turn on the mobile telephone, and set it to be connectable via Bluetooth
{Please refer to the mobile telephone instruction manual for information on how to
operate the device.
2. Right-click on the Bluetooth icon in the task tray, and then click on [Add New
Connection]
Important
Configuring a mobile telephone for use as a modem
Procedure
Note
Connecting
to
the
Internet
using
a
mobile
telephone
[DUN]
Introduction 第 36 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{Alternatively, click [Start]→[All Programs]→[Bluetooth]→[Bluetooth Settings],
and then click on
[
New Connection
]
from the active
[
Bluetooth Settin
g
s
]
window.
The [Add New Connection Wizard (Welcome to the Add New Connection Wizard)]
window will appear.
3. Confirm that [Express Mode] has been selected, and then click on the [Next] button
The [Add New Connection Wizard (Searching for Bluetooth devices)] window will
appear.

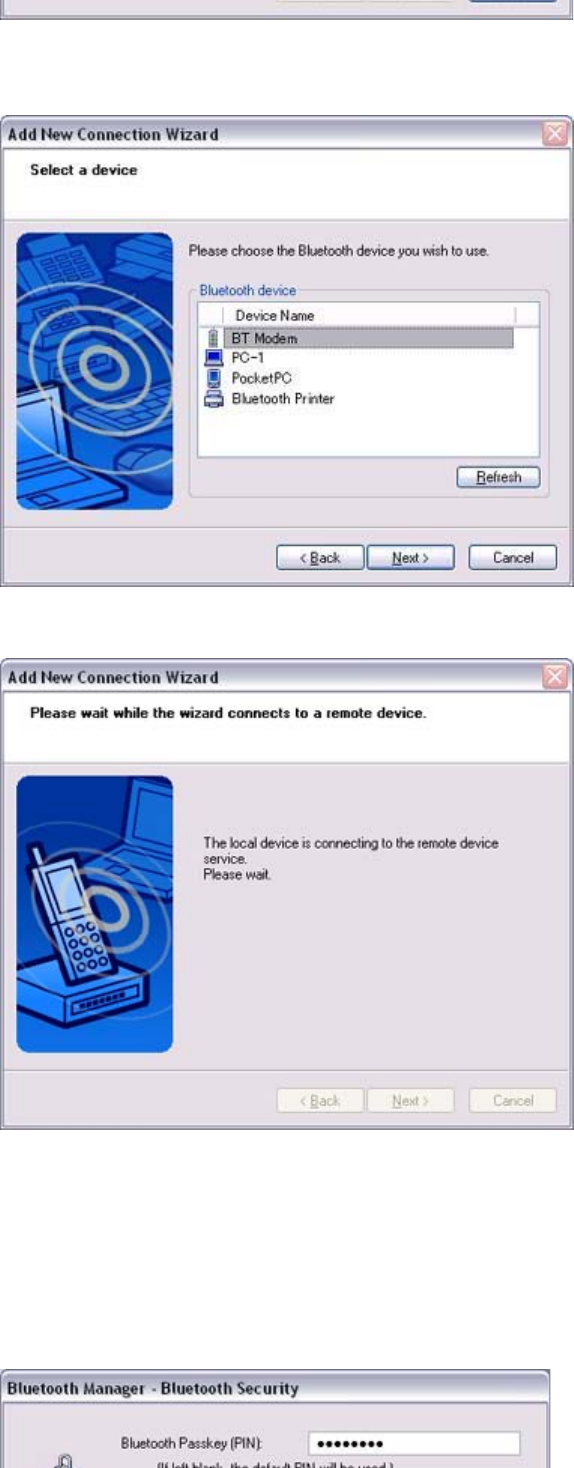

4. Select the device name of the mobile telephone from [Device List], and then click on
the [Next] button
Note
Introduction 第 37 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
The [Add New Connection Wizard (Searching for Services)] window will appear.
Once a service has been detected successfully, connection to the device and COM port
creation will be
p
erformed automaticall
y,
after which the
[
Add New Connection Wizard
(Modem Settings)] window will appear.
5. If you are connecting to a mobile telephone for the first time, enter the passkey for the
wireless modem station under [Bluetooth Passkey (PIN code)], and then click on the
[OK] button
Introduction 第 38 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
Once the program has finished searching for the devices, the [Add New Connection
Wizard (Device Selection)] window will appear.
6. Click on the [Next] button
Certain modems require you to configure initialization commands separately.
Please click on the [Additional Initialization Command Settings] button, enter the
initialization commands in the following window, and then click on the [OK] button.
{Please refer to the modem or mobile phone instruction manual for further details
on the initialization commands.
7. Enter the connection name (optional), telephone number (of your provider's access
point), user name and password (as issued by your provider), and then click on the
[Finish] button.
Note
Introduction 第 39 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{The sample entries shown in the window are provided solely for purpose of
explanation. Please use your own telephone number, ID and password according
to the arrangement with your provider.
The settings will be registered, and an icon will appear in the [Bluetooth Settings]
window.
You can connect to the Internet by following the procedure below if the connection destination
registered when you configured the mobile telephone has been set as the default connection
destination.
1. Start your browser, e-mail application or other application
{Please enter the e-mail settings separately if you are going to use e-mail (the set-
up method will vary with the application).
2. Enter the URL of the Web page you wish to display and then press the [Enter] key, or
use the e-mail tool to send/receive items or perform other activities.
The [Dial-up Connection] window will appear.
3. Click on the [Connect] button
Important
Connecting to the Internet
Important
Introduction 第 40 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{A connection will be automatically established with the mobile telephone if COM
Auto Connect is available. If COM Auto Connect is not available, please
manually connect to the mobile telephone.
The following message will appear once you have connected to the Internet.
4. End the connection
The window below will appear if you double-click on the icon in the task bar.
Please click on the [Disconnect] button when you want to disconnect from the Internet.
Alternatively, please right-click on the icon, and then click on [Disconnect].
Important
Introduction 第 41 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
zYou can start an application to make an automatic connection to the Internet, but you can
also make a manual connection using the connection destination icon.
The procedure is described below.
1. From the [Bluetooth Settings] window, right -click on the connection destination icon,
and then click on [Connect] from the menu that appears
A window indicating that the connection is being established will appear.
If the connection has been established successfully, the connection icon and task tray
will appear as shown below.
You will be able to browse Web
p
a
g
es usin
g
y
our browser and send and receive
e
-mail.
Note
Introduction 第 42 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
pg gy
{Please enter the e-mail settings separately if you are going to use e-mail (the set-
up method will vary with the application).
2. End the connection
Right-click on the icon, and then click [Disconnect] to end a connection.
The following message will appear. Click on the [Yes] button.
When the icon appears as shown below, the connection will have been ended.
Important
This section describes how to connect to a network (for example, a company LAN or a personal
home network) using a LAP profile-compatible access point.
Please refer to "Using an access point (PAN) to connect to a LAN if you are using a PAN profile-
compatible access point.
Connecting to a LAN using an access point (LAP) [LAP]
Introduction 第 43 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
→Setting up the access point
→Connecting to a LAN (LAP)
zThe access point must have been started and a normal connection already established to
the network before the access point is set up. Please refer to the access point instruction
manual for information on how to set up the access point.
zA Bluetooth passkey (PIN code) is required for you to connect to the access point. Please
make a note of your Bluetooth passkey before you start the set-up process.
1. Turn on the access point, and confirm that a connection has been established with the
network
2. Right-click the Bluetooth icon in the task tray, and then click on [Add New
Connection]
{Alternatively, click [Start]→[All Programs]→[Bluetooth]→[Bluetooth Settings],
and then click on [New Connection] from the active [Bluetooth Settings] window.
The [Add New Connection Wizard (Welcome to the Add New Connection
Wizard)] window will appear.
3. Confirm that [Express Mode] has been selected, and then click on the [Next] button
Important
Setting up the access point
Procedure
Note
Introduction 第 44 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
The [Add New Connection Wizard (Searching for Bluetooth devices)] window
will appear.
Once the program has finished searching for the devices, the [Add New
Connection Wizard (Device Selection)] window will appear.
4. Select the device name of the access point from [Device List], and then click on the
[Next] button
Introduction 第 45 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
The [Add New Connection Wizard (Searching for Services)] window will appear.
You will be asked for the Bluetooth passkey in the window that appears.
5. Enter the passkey under [Bluetooth Passkey (PIN code)], and then click on the [OK]
button
Service detection and COM port creation will be performed automatically.
The [Add New Connection Wizard (Create Connection Destination)] window will
appear.
6. Enter the connection name, user name and password, then click on the [Next] button
Introduction 第 46 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
{The user name and password are entered here to allow you to connect to the
access point.
The [Add New Connection Wizard (Confirm Dial-up Settings)] window will appear.
7. Click on the [Confirm Settings] button
The [Internet Options] window will appear.
8. Configure the connection method, and then click on the [OK] button
Set the connection destination used for the LAN connection set up in (6) above as the
default connection destination, and then select "Always dial my default connection."
Note
Introduction 第 47 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
9. Click on the [Next] button
The [Add New Connection Wizard (Connection Name Settings)] window will appear.
10. Enter the type and name of the icon displayed after registration, and then click on the
[Next] button
Please click on the [Next] button if you are satisfied with the settings.
Introduction 第 48 頁，共 224 頁
file://C:\Documents and Settings\anitachou\Local Settings\Temp\~hh114B.htm 2004/11/30
The [Add New Connection Wizard (Completing the Add New Connection Wizard)]
window will appear.
11. Click on the [Finish] button
The access point icon will be registered in the [Bluetooth Settings] window.
This will complete the access point set-up process.
→"Connecting to a LAN (LAP)"
1. Right-click on the connection icon in the [Bluetooth Settings] window, and then click
on [Connect]
The [Dial
-
up Connection] window will appear
Procedure
Connecting to a LAN (LAP)
