© 2017 Araknis Networks® 11
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide

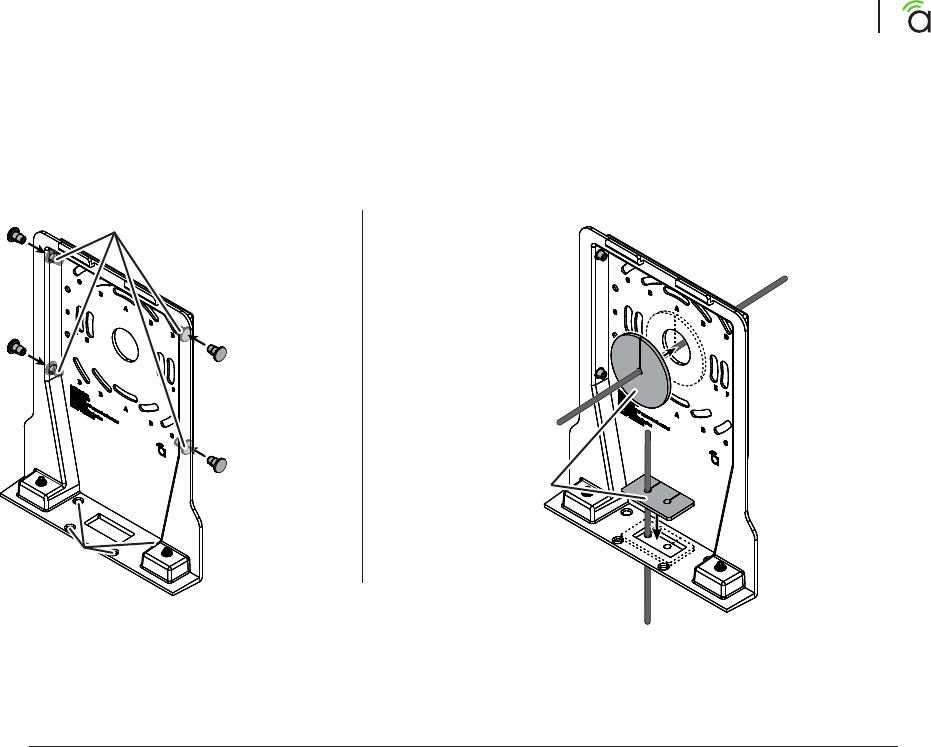

Step 4: Bracket Weatherproofing
Use gaskets that
best fit cable
diameter
Weep hole plugs must
be installed correctly
Leave bottom
weep holes open
for drainage
To ensure weatherproofing, insert gasket
even if cable entrance is not used.
Pull cables through BEFORE installing foam
pieces to avoid tearing the foam.
12
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide
Support: 866.838.5052
Foam block must be
pushed to the back
of the cable entrance
with large holes facing
connectors.

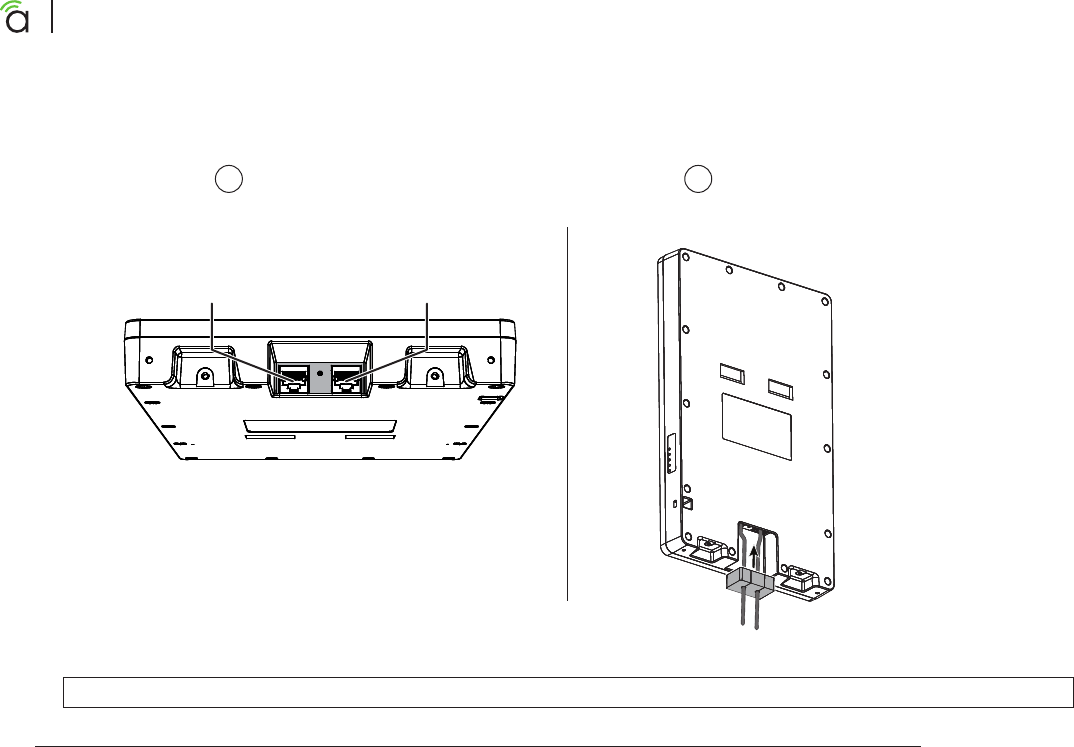

Step 4: Connect
Connections
AInstall Cable Gasket
B
PoE+ Power Input Specifications
IEEE 802.3at Compliant Power Source
Power Consumption:
Typical: 18W
Peak: 23W
PoE+ In Data Port (No PoE)
Remove the adhesive
backing before
installation.
NOTE: Leave the white dust cover in the non-PoE Data Port in place unless the port is being used. Use pliers to remove the dust cover.
© 2017 Araknis Networks® 13
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide

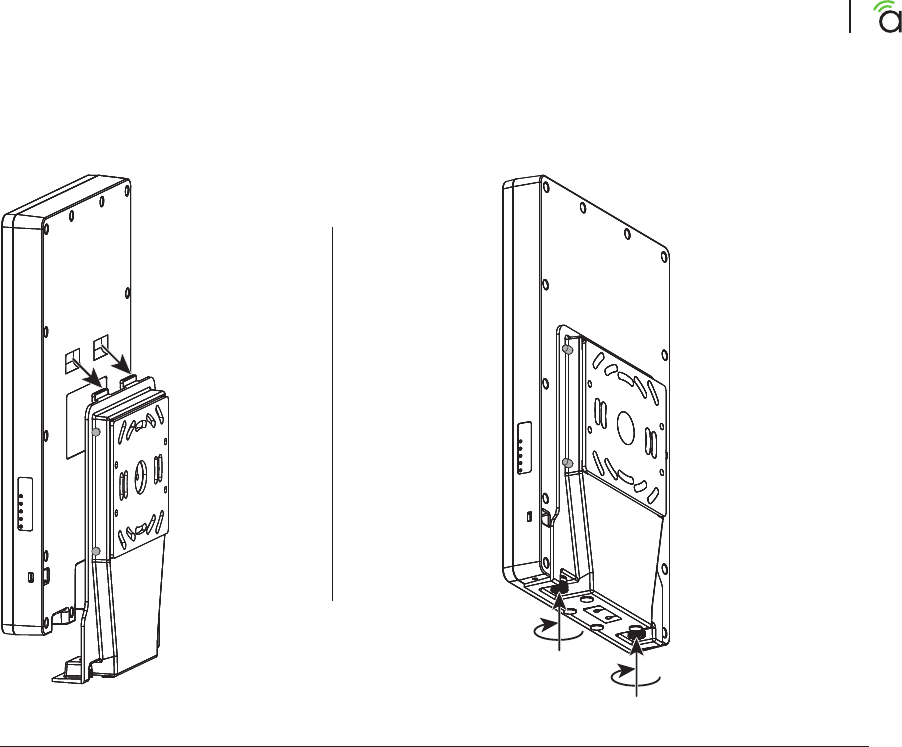

Step 5: Secure
14
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide
Support: 866.838.5052

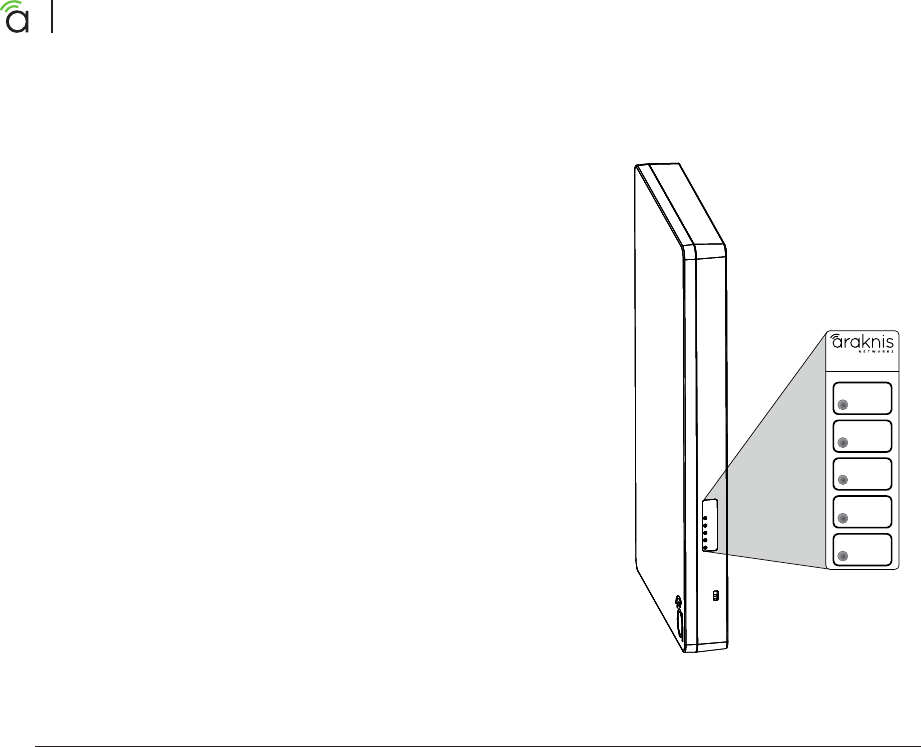

Step 6: Verify
5 GHz (Blue) – O: Radio disabled
Solid: Radio enabled
Blinking: Radio activity
2.4 GHz (Blue) – O: Radio disabled
Solid: Radio enabled
Blinking: Radio activity
LAN 2 (Blue) – O: No Ethernet link
Solid: Ethernet link established
Blinking: Ethernet link activity
LAN 1 (Blue) – O: No Ethernet link
Solid: Ethernet link established
Blinking: Ethernet link activity
Power (Blue) – O: No power to AP
Blinking: AP booting
Solid: AP ready
5GHz
2.4GHz
LAN 2
LAN 1
Power
© 2017 Araknis Networks® 15
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide
ENABLED
Web Browser
Access
Mobile
Apps
AN-110-SW-R-8
1 2 3 4 5 6 7 8
1 Gbps
Link/Act

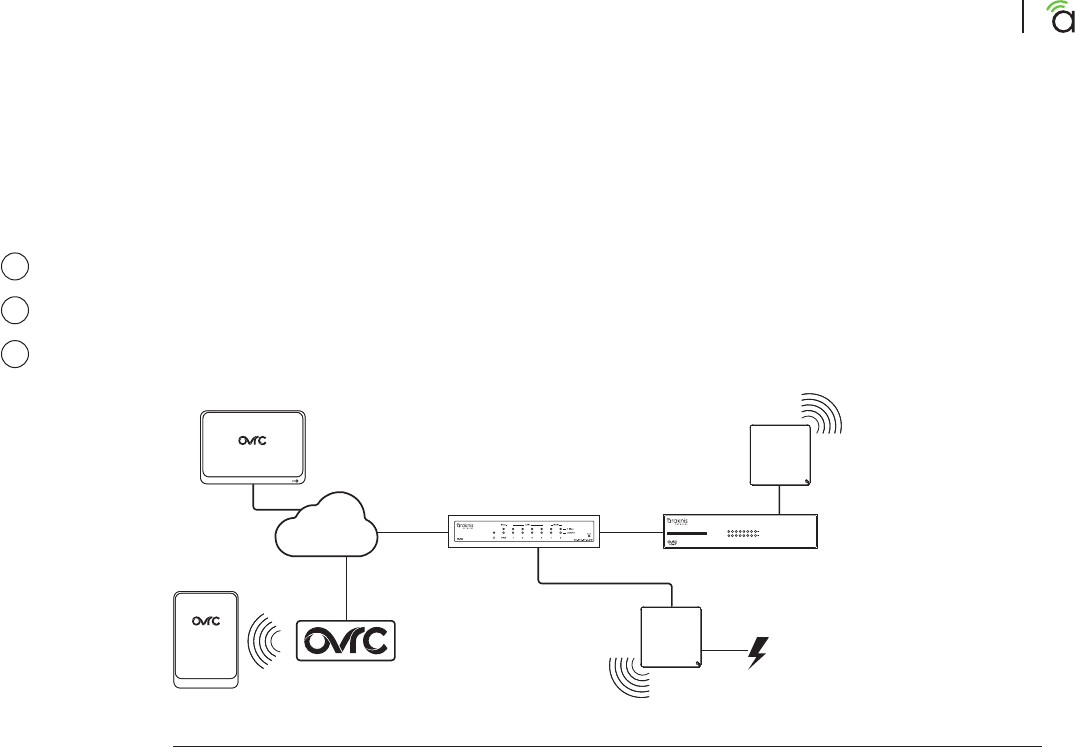

Step 7: Claim on OvrC
OvrC gives you remote device management, real-time notifications, and intuitive customer management, right from
your computer or mobile device. Setup is plug-and-play, with no port forwarding or DDNS address required. To add
this device to your OvrC account:
Connect the WAP to the Internet.
Log Into OvrC (www.ovrc.com) and create a or select a location to add the device.
Add the Device (MAC address and Service Tag numbers needed for authentication)
A
B
C
Internet
OvrC Server
16
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide
Support: 866.838.5052

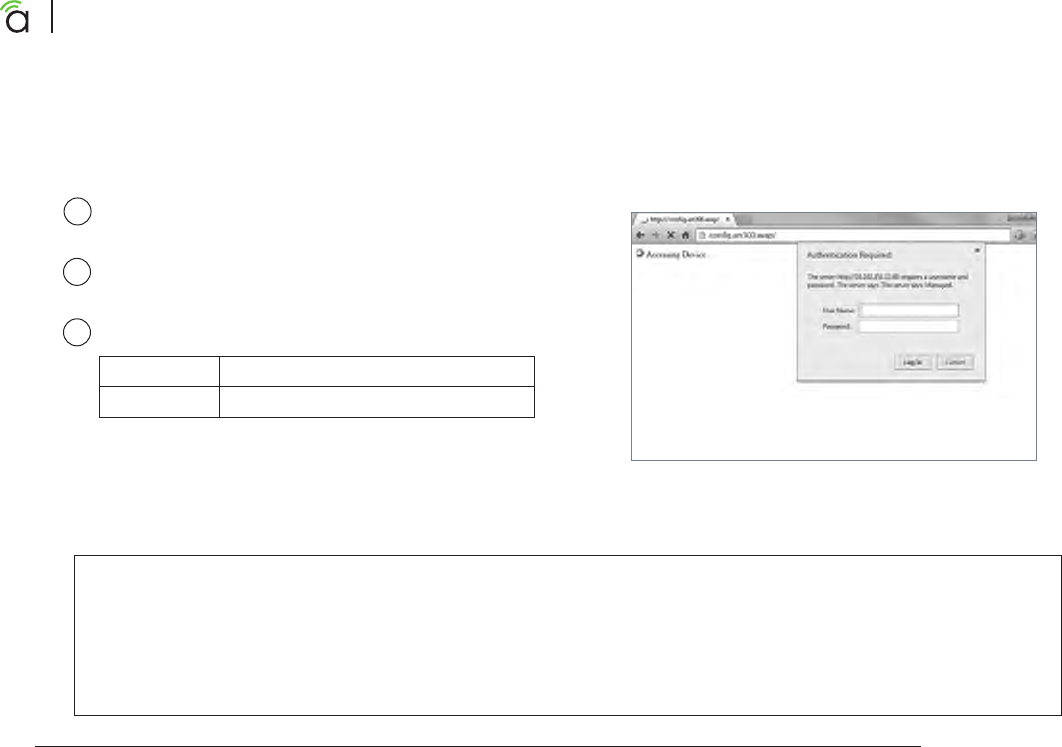

Step 8: Log Into Web Interface
NOTE: If you can’t connect to the WAP using this method, or need to configure the device before connecting it to the network, try these
options for accessing your device:
• DHCP IP address – Page 18
• Default IP Address – Page 19
Find the WAP in the OvrC device list, then click
Web Connect.
Select whether you are on the LAN (I Am Local)
or connecting over the Internet (I Am Remote).
Log in using the default credentials:
Username araknis
Password araknis
A
B
C
© 2017 Araknis Networks® 17
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide

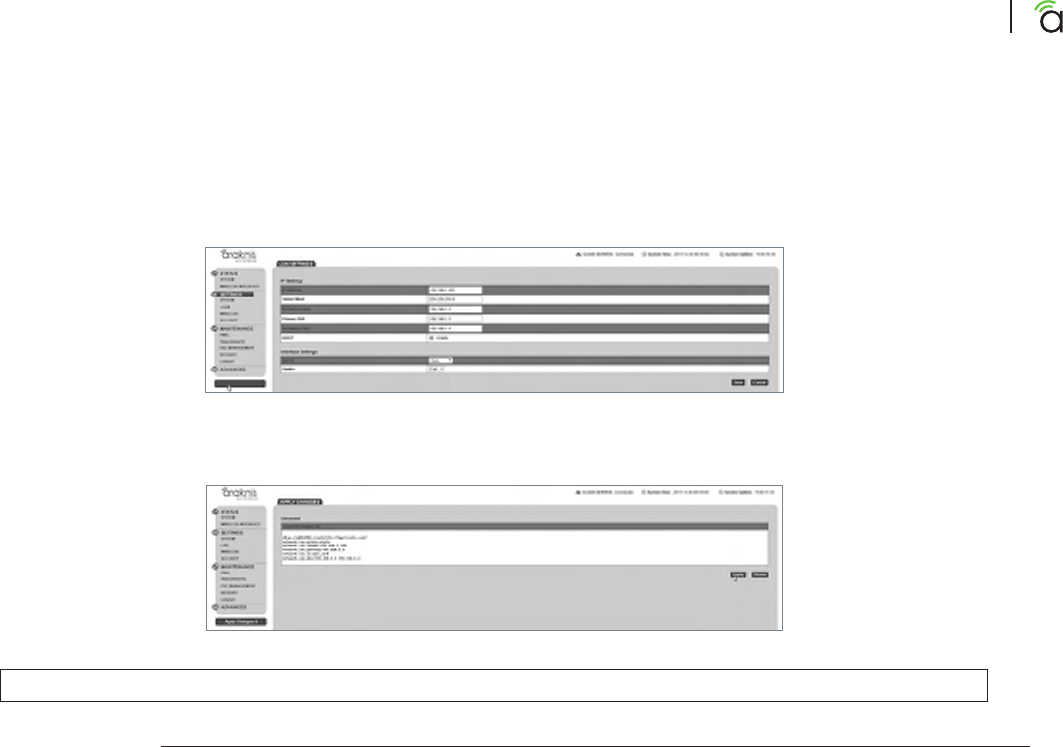

Pro Tip: Save and Apply Changes
After making changes to settings on a menu page, left-click the Save button on the menu to hold the new settings
in the Apply Changes field.
After all desired changes have been made, left-click Apply Changes to review the new settings. Left-click Apply to
make the changes or Revert to cancel the changes.
NOTE: Settings will take aect after the progress bar completes 100%.
18
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide
Support: 866.838.5052
Other Access Methods: DHCP IP Address
The WAP is configured to DHCP by default so that the DHCP server can assign an IP address when the WAP is
connected to the network (the DHCP server is usually the router). This address can be used for accessing the web
interface.
Use one of these methods to find the IP address of the WAP:
• Check the client table on your router

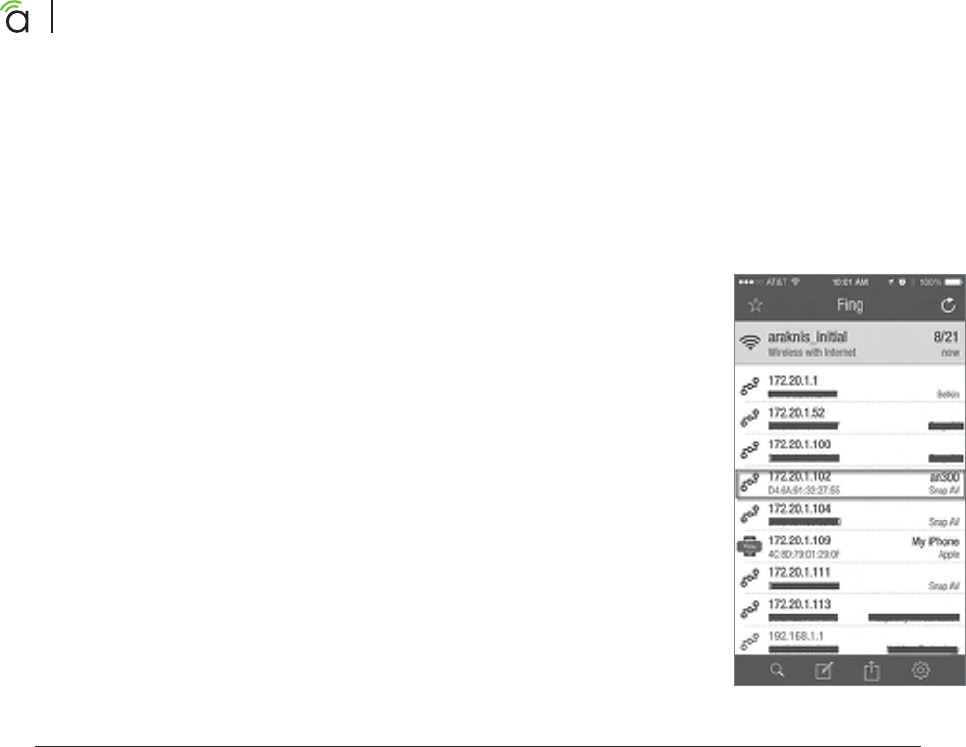

• Use a network scanner (e.g. Fing) to sni the network. The
Araknis WAP manufacturer field will display “Snap AV”
See the highlighted field in the Fing screenshot to the right
for an example of an Araknis device being identified.
© 2017 Araknis Networks® 19
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide

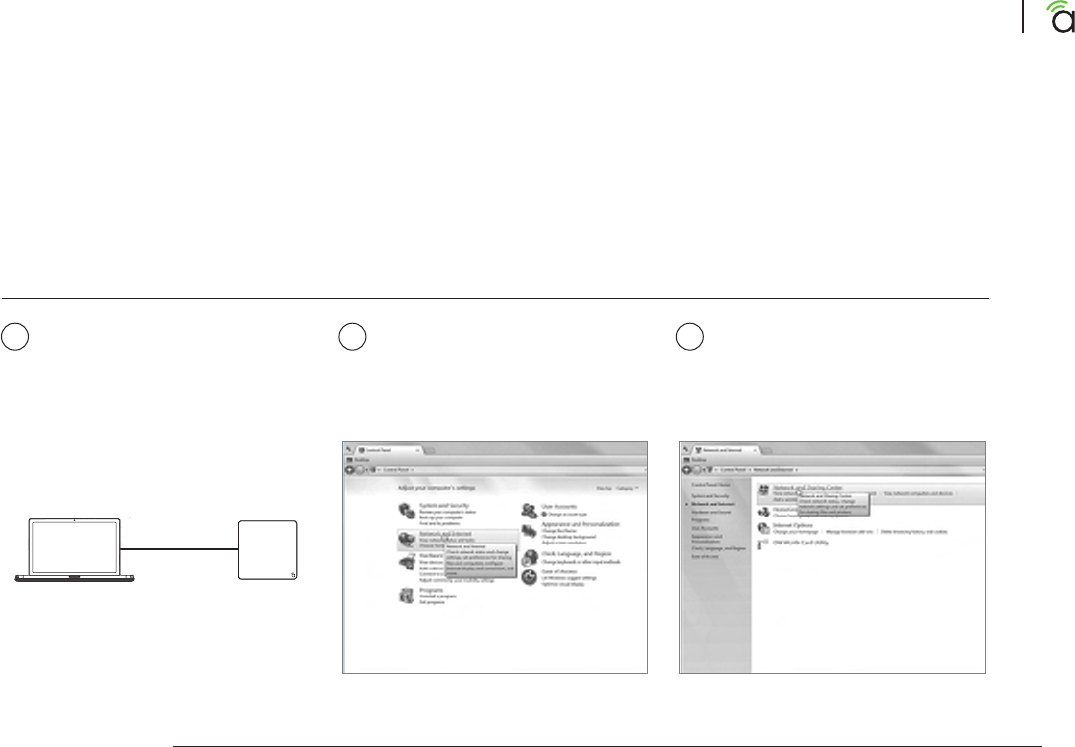

Other Access Methods: Default IP Address
If the WAP is not issued an IP address on the network, or needs to be accessed while not connected to a network,
you can configure your computer's network connection to allow access using the default IP address, 192.168.20.253.
Connect your PC to the WAP
using a network patch cable.
On your PC, open the Control
Panel and left-click Network
and Internet.
Left-click Network and Sharing
Center.
A B C
Windows 7 screenshots shown for reference.
Computer WAP
20
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide
Support: 866.838.5052

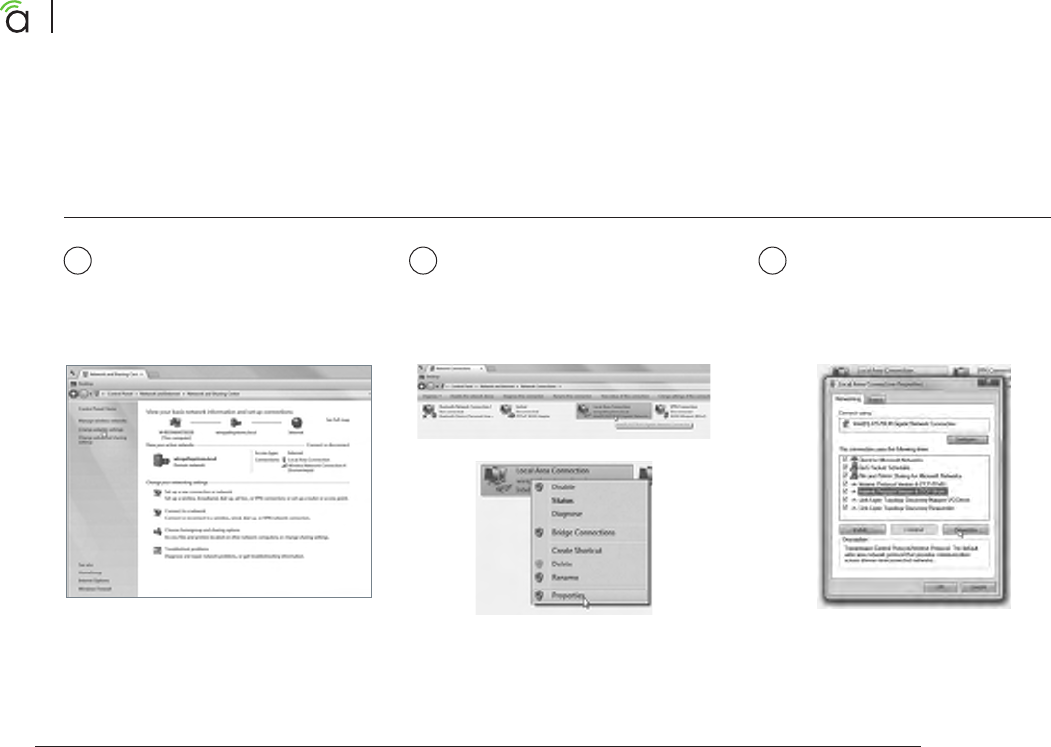

Other Access Methods: Default IP Address
Windows 7 screenshots shown for reference.
D E F
In the left bar, left-click Change
adapter settings.
Right-click the icon for the
wired network connection and
left-click Properties.
Left-click to highlight Internet
Protocol Version 4 (TCP/IPv4),
then left-click Properties.
© 2017 Araknis Networks® 21
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide

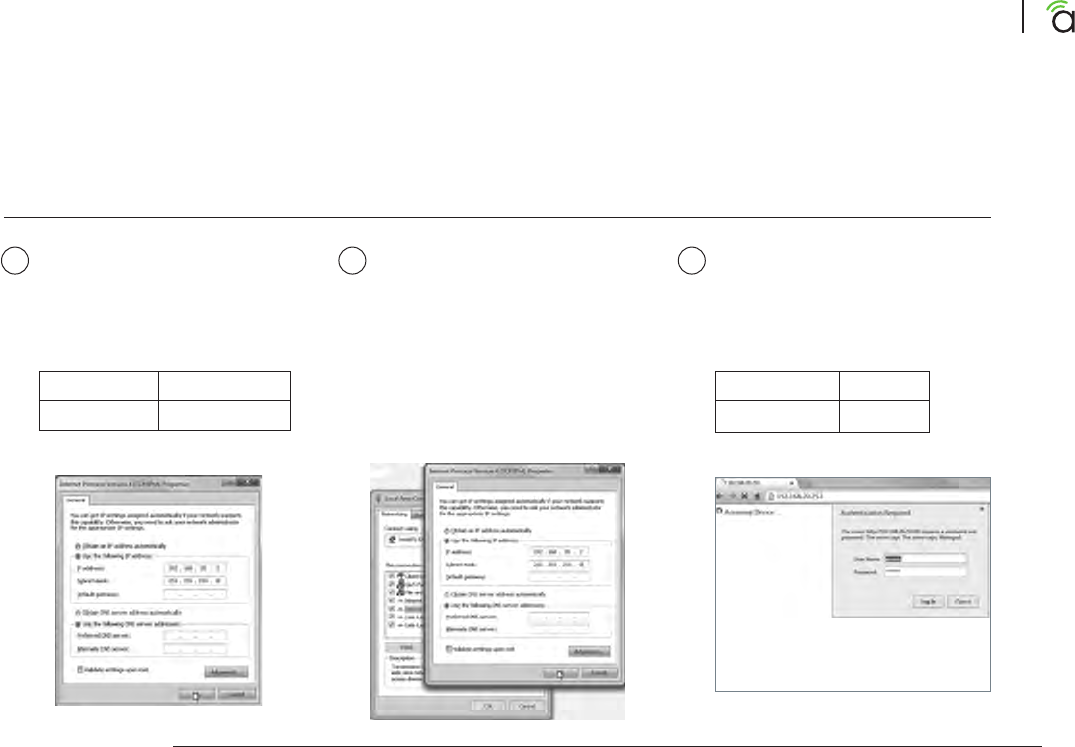

Other Access Methods: Default IP Address
G H I
Left-click OK to close Internet
Protocol Version 4 (TCP/IPv4)
Properties, then left-click OK
to close wireless network
connection properties.
In the General tab, left-click
Use the following IP address:
and enter the IP address and
subnet mask.
IP Address 192.168.20.2
Subnet Mask 255.255.255.0
Open a browser and navigate to
the IP address, 192.168.20.253.
Log in using the default
credentials:
Username araknis
Password araknis
Windows 7 screenshots shown for reference.
22
Araknis Networks Outdoor Wireless Access Point
Quick Start Guide
Support: 866.838.5052

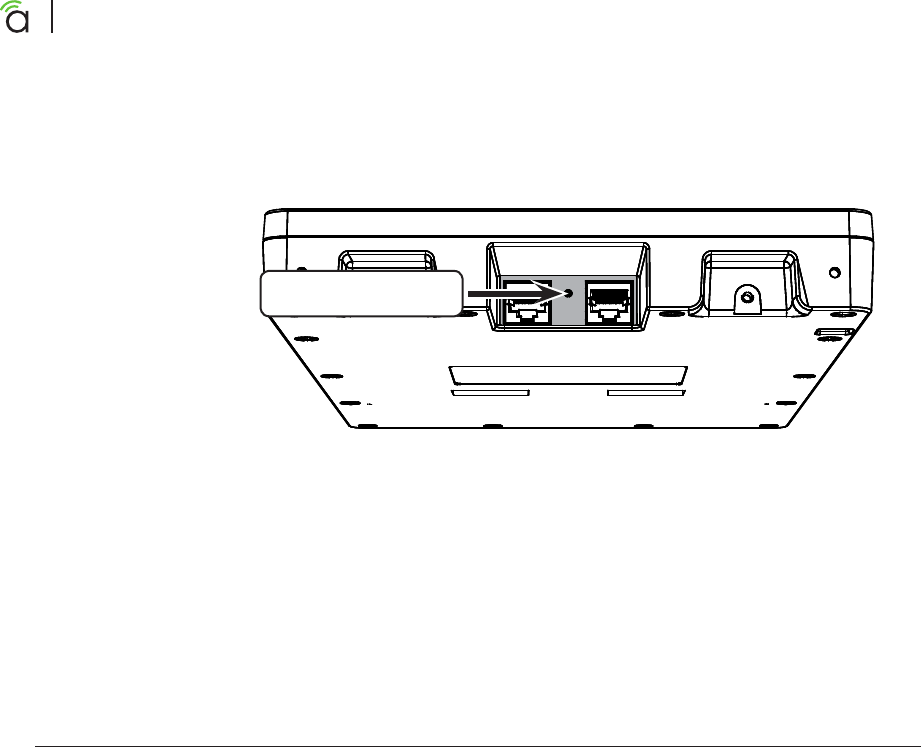

Troubleshooting: Reboot and Default Procedures
Reset Button
Reboot – Press and release the RESET button. The
device will reboot and no settings will be
changed.
Factory Default – Press and hold the RESET button for at least
15 seconds. The device will reset to factory
defaults, then reboot.
Contacting Technical Support
(866) 838-5052
techsupport@araknisnetworks.com
2-Year Limited Warranty
Araknis Networks® products have a 2-Year Limited Warranty. This warranty includes parts and labor
repairs on all components found to be defective in material or workmanship under normal conditions
of use. This warranty shall not apply to products that have been abused, modified, or disassembled.
Products to be repaired under this warranty must be returned to SnapAV or a designated service center
with prior notification and an assigned return authorization (RA) number.
© 2017 Araknis Networks®
