Autec s r l FJMNZ422 Transceiver unit User Manual 5

Autec s.r.l. Transceiver unit 5

User Manual 5

Original instructions
Dynamic SerieS
Part C: FJMﾠtransmittingﾠunit
inDex
1 Description ............................................................................................................ 2
2 Technical data ....................................................................................................... 3
3 Technical data sheet ............................................................................................. 3
4 Plates ..................................................................................................................... 4
5 Light signals .......................................................................................................... 5
6 Actuators for the display ...................................................................................... 7
6.1 DISPLAY pushbutton ....................................................................................... 7
6.2 Six pushbuttons ............................................................................................... 8
7 Malfunction signalled by the transmitting unit ................................................... 9
AUTEC LIFJME00-06
2
LIFJME00-06

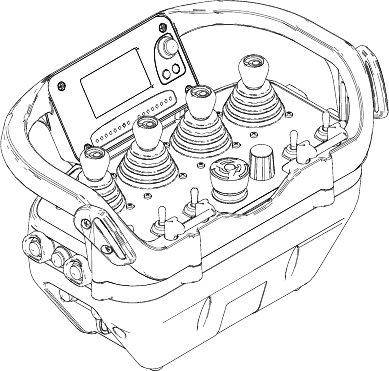

Description
AUTEC - Dynamic Series
1 Description
POWER SUPPLY.....................................................7.2V
RADIO MODULE..............................................FSARTBEU2
FREQUENCY RANGE......................................863-870MHz
RF OUTPUT POWER.....................................
PROTECTION DEGREE...............................................IP65
<25mW ERP
TA1194-00 A0TARG01P09 37
TU ID: XXXXXX
MANIF.DATE XXXX
J
a B
S/N:
XXXXXX
cDc
cc
L
m n e F c
K
H
G

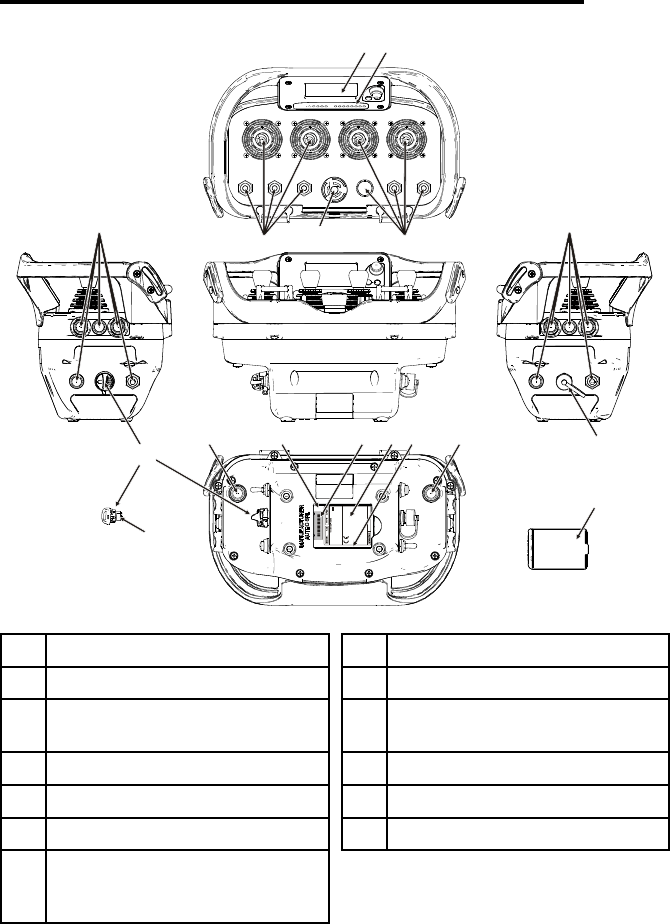

aDisplay or LED (if present)
BLED
cActuators (joysticks, selectors,
pushbuttons)
DSTOP pushbutton
eTransmitting unit identication plate
FTechnical data plate
G
Radio remote control identication
plate (if the “ID internal tx memory” is
present)
HConnector for wire control (if present)
JBattery
KRadio remote control identication plate
(if the “Key ID 0-1” is present)
LPower keyswitch
mSTART pushbutton
nBattery housing
AUTEC - Dynamic Series
Technical data 3
LIFJME00-06
2 Technical data
Power supply (battery MBM06MH) ......................................................................... 7.2V
Power supply (battery LPM02) ............................................................................... 7.4V
Power supply (battery LPM04) ............................................................................... 7.4V
Antenna .................................................................................................................. internal
Housing material .......................................................................................... PA 6 (20%fg)
Protection degree ....................................................................................... IP65 (NEMA 4)
Dimensions .................................................................. 310x210x190mm (12.2x8.3x7.5In)
Weight ........................................................................................................... 2.5kg (5.5Lb)
Run time at 20°C (68°F):
- with battery MBM06MH ............................................................................................... 11h
- with battery MBM06MH and monochromatic display 2.7" .............................................. 9h
- with battery LPM02 .................................................................................................. 18.5h
- with battery LPM02 and monochromatic display 2.7" ................................................... 15h
- with battery LPM04 ..................................................................................................... 35h
- with battery LPM04 and monochromatic display 2.7" ................................................... 28h
- with battery LPM04 and color display 4.3" ..................................................................... 8h
3 Technical data sheet
The technical data sheet contains the transmitting unit conguration and shows the matching
between commands sent and machine functions/movements. It also contains the wiring
diagram showing the connection between the receiving unit and the machine.
Each technical data sheet must be lled in, checked and signed by the installer, who is
responsible for a correct wiring.
A technical data sheet must always be kept toghether with this manual (always keep a copy
of the technical data sheet when it is used for administrative purposes).
The wiring of the receiving unit outputs must always reect the wiring
indicated in the technical data sheet.
4
LIFJME00-06
Plates
AUTEC - Dynamic Series
4 Plates
The transmitting unit has the following plates:
Plate Position Content
radio remote control
identication plate
Key ID 0-1 (if present).
Radio remote control serial number
(S/N).
Battery housing (if the
“ID internal tx memory” is
present).
transmitting unit
identication plate Battery housing.
Manufacturing year, bar code and
transmitting unit identication number
(TU ID).
technical data plate Battery housing.
MODEL, TYPE and main transmitting
unit technical data, marking and possible
radio remote control marks.
AUTEC - Dynamic Series
Light signals 5
LIFJME00-06

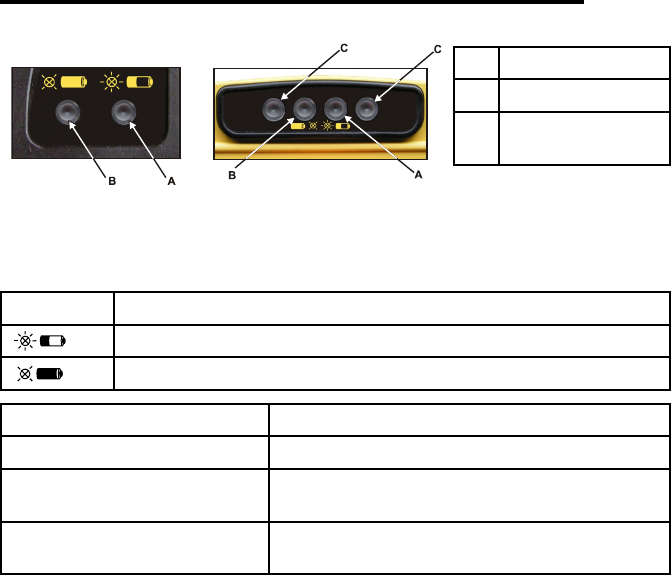

5 Light signals
The FJM transmitting units may have two or four LEDs.
aRed LED
BGreen LED
cLEDs for Data
Feedback function
In both cases, a green LED [B] and a red LED [A] are always available, and they provide
information regarding the radio remote control.
If the unit has 4 LEDs, the side LEDs [C] are red and provide information coming from the
machine (Data Feedback function).
Symbol Meaning
This symbol indicates the red LED [A].
This symbol indicates the green LED [B].
The green LED [B] … Meaning
…is o. The transmitting unit is switched o.
… blinks fast The transmitting unit is switched on and there is no radio
link.
… blinks slowly The radio remote control is started and the radio link is
present.
6
LIFJME00-06
Light signals
AUTEC - Dynamic Series
The red LED [A]a … Meaning
…is o. The transmitting unit works correctly.
… blinks The battery is nearly at.
... illuminates for 2 secondsbThe transmitting unit does not work correctly.
... blinks oncebAt power on, the transmitting unit detects that the STOP
pushbutton is activated or damaged.
... blinks twiceb
At power on, the transmitting unit detects that one of the
commands D2-D20 or SAFETY is activated or damaged
(see technical data sheet).
... blinks three timesbAt power on, the transmitting unit detects that the battery
is at.
... blinks four timesb
At power on, the transmitting unit detects that one of
the commands A1-A8, L1-L8 and H1-H8 is activated or
damaged (see technical data sheet).
a. An acoustic signal is also heard when the red LED [A] is illuminated.
b. After this signal, the transmitting unit switches o.
AUTEC - Dynamic Series
Actuators for the display 7
LIFJME00-06
6 Actuators for the display
If the transmitting unit has a display, it can be used through a pushbutton (see paragraph
6.1 ) or six pushbuttons (see paragraph 6.2).
Functions carried out by these actuators are decided by the machine manufacturer: the user
must be properly trained about them.

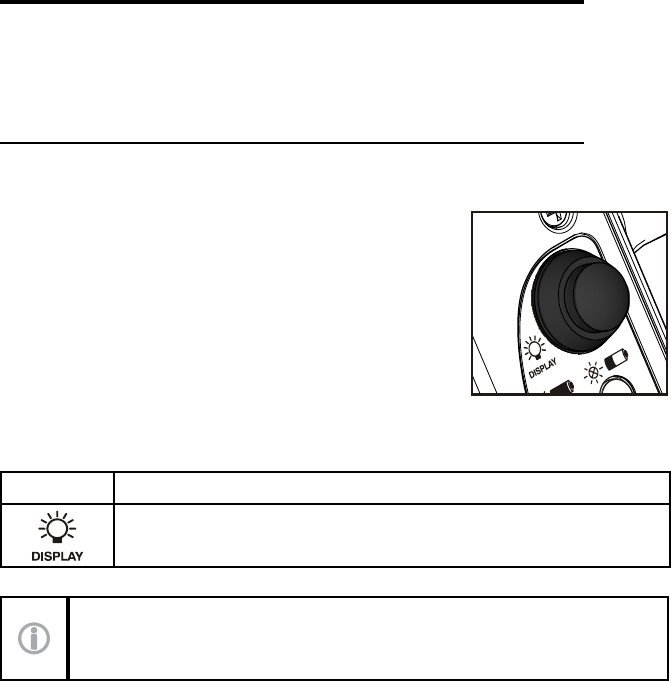

6.1 DISPLAY pushbutton
This pushbutton is used to:
-activate the display lighting, if it is o
-cyclically scroll the information on the display in two dierent
modes:
-manual: the lines scroll up each time the pushbutton is
pressed
-automatic: when the DISPLAY pushbutton is pressed for
3 seconds, the lines scroll automatically. If the DISPLAY
pushbutton is pressed again, it switches back to manual
mode.
It is not possible to scroll the lines if icons only are displayed.
The display lighting stays on for a time set by the machine
manufacturer.
Symbol Meaning
This symbol identies the DISPLAY pushbutton.
The DISPLAY pushbutton may perform dierent functions from that described
above according to what dened by the machine manufacturer.
8
LIFJME00-06
Actuators for the display
AUTEC - Dynamic Series

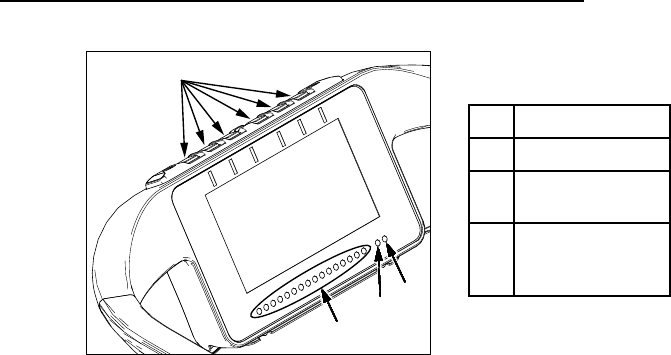

6.2 Six pushbuttons
Functions carried out by the six pushbuttons in order to manage the display, are congurable
and are dened by the machine manufacturer.
C
A
B
D
aRed LED
BGreen LED
cLEDs for Data
Feedback function
D
Pushbuttons to
manage the 4.3"
display
AUTEC - Dynamic Series
Malfunction signalled by the transmitting unit 9
LIFJME00-06
7 Malfunction signalled by the transmitting unit
Use the light signals on the transmitting unit to identify the radio remote control malfunction.
If the problem persists after the suggested solution has been carried out, contact the support
service of the machine manufacturer.
Signals Possible reason Solutions
The green LED does
not switch on when the
START pushbutton is
pressed, even though
both the battery and the
power keyswitch are
inserted.
The battery is at. Replace the battery with a charged one.
The green LED blinks
fast. No radio link. Bring the transmitting unit closer to the
receiving unit.
The red LED switches
on for 2 seconds and
then the unit switches
o.
The transmitting unit does
not work correctly.
Perform the procedure to save the
addressc.
Contact the support service of the
machine manufacturer.
The red LED blinks
once during start up.
The STOP pushbutton is
locked or damaged.
Unlock the STOP pushbutton.
If this signal persists, contact the support
service of the machine manufacturer.
The red LED blinks
twice during start up.
At least one of the
actuators corresponding
to commands D2-D20
and SAFETY is activated
or damaged.
Bring the actuators to the rest position. If
this signal persists, contact the support
service of the machine manufacturer.
The red LED blinks
three times during start
up.
The battery is at. Replace the battery with a charged one.
The red LED blinks four
times during start up.
At least one of the
actuators corresponding
to commands A1-A8, L1-
L8, H1-H8 and SAFETY
is activated or damaged.
Bring the actuators to the rest position. If
this signal persists, contact the support
service of the machine manufacturer.
c. Procedure to save the address
-press the STOP pushbutton
-press the START pushbutton and do not release it until the green LED switches o
-unlock the STOP pushbutton
